Open-pit mining in the boreal forest region of Canada involves the removal of vegetation, top soils, and overburden (i.e., material overlaying a deposit of useful geological material) in order to access the underlying bitumen [1
]. This practice is followed by land reclamation to restore the disturbed land to a naturally appearing and self-sustaining state that is integrated with the surrounding habitat [2
]. When direct placement is not possible, cover soil and other subsoil layers are salvaged and stockpiled for later use in reclamation [3
]. The physical operations involved in stripping and construction as well as mode and duration of storage may have dramatic effects on the physical, chemical, and biological properties of stockpiled soils [5
]. Compaction during mound construction and consolidation during storage increases bulk density, damages soil structure, and impedes plant growth [8
]. Decomposition and development of anaerobic conditions inside the stockpile can significantly reduce seed viability [10
] and reduction in viable microorganisms due to stockpiling has also been reported [11
However, Abdul-Kareem and McRae [3
] argue that while adverse effects due to storage can be demonstrated, the extent of deterioration of soil in stockpiles has been greatly overestimated. Miller and Cameron [12
] reported no change in the diversity of bacteria, fungi, actinomycetes, and algae in 10- and 29-month-old stockpiles compared to nearby undisturbed sites, although species abundance decreased. Dickie et al. [10
] also suggested that the seed bank of stockpiled cover soils can be maintained as long as the storage period is no longer than a few months. Although rates of nitrification and counts of aerobic bacteria decreased with storage, there was relatively little soil structure deterioration, and there was a rapid recovery when soil was respread [13
]. Thus, the general designation of stockpiled soils being very low in quality could be misleading. Assessing individual soil properties and their relationship to plant growth is needed to determine the usefulness of stockpiled soils for revegetation purposes.
In northern Alberta, reclamation cover soils consist of a mixture of organic matter and the surface mineral soils salvaged prior to mining [14
]. The two most common types of cover soils used in this region are forest floor mineral mix (FFMM) salvaged from upland forest sites and peat mineral mix (PMM) salvaged from lowland sites [14
]. Stockpiling FFMM has been shown to adversely affect viability of seeds buried within the stockpile [16
]. However, there is little evidence to suggest that reclamation soils stockpiled in cool climates are stagnant in terms of nutrients [17
]. In large FFMM stockpiles in the Athabasca Oil Sands Region, Alberta, Canada, total percent organic matter did not change substantially, and available nutrients and soluble ions increased with storage depth and time [16
]. However, in smaller FFMM stockpiles, percent organic matter slightly decreased and the increases in available nutrients and soluble cations were not observed [16
]. Results from stockpiling peat and peat mineral mixes in Alberta also suggest that stored peat nutrient contents are similar to undisturbed peat, and changes in nutrient or organic carbon levels may be due to admixing with mineral soil [18
]. Because the successful re-establishment of vegetation on FFMM and PMM is largely dependent on the nutrients these materials can provide [19
], it is important to assess the nutrient status of stockpiled reclamation soils as this would provide a better indication of their suitability for forest-land reclamation than the duration of soil storage.
Fertilization immediately after soil placement is a common practice used in oil sands reclamation in Alberta, and aims to provide an initial pulse of nutrition for planted and naturally regenerated species [20
]. The response of plant growth to fertilization in FFMM and PMM is, however, variable. The height of trembling aspen (Populus tremuloides
Michx.) was greater in nitrogen-phosphorus-potassium fertilized FFMM and PMM compared to unfertilized treatments [21
], but Pinno and Errington [22
] found that the average height of aspen and other deciduous tree seedlings did not respond to fertilization in either FFMM or PMM. With the potential loss of nutrients associated with stockpiling [7
], it could be expected that fertilizing stockpiled soils to ameliorate nutrient deficiencies could lead to these soils supporting similar plant growth to fresh soils. In addition to fertilization, nitrogen-fixing species may be used to improve the quality of reclamation soils. Native leguminous species were reported to show greater improvement in soil fertility parameters than native non-leguminous species in the restoration of a coal-mined area [23
]. The production of readily decomposable nutrient-rich litter and turnover of fine roots and nodules by nitrogen-fixing species allow for substantial nutrient transfer to companion species and subsequent cycling [24
]. Alder (Alnus viridis
(Chaix) DC. ssp crispa
(Ait.) Turrill), a nitrogen-fixing shrub, is a native early successional species in the boreal region of Canada and planting it together with other early successional tree species, such as aspen, on oil sands reclamation sites may help improve reclamation soils to meet plant growth requirements.
Establishing aspen and other early successional tree species in oil sands reclamation sites is crucial for soil development because of its rapid growth and contribution to above- and belowground organic matter accumulation, which would increase nutrient availability and improve soil structure [4
]. The presence of aspen also assists conifer regeneration and establishment of other forest understory species by reducing exposure and grass competition, and improving soil drainage, water storage, and nutrient availability [4
]. In this study, we examined the effect of fresh and stockpiled FFMM and PMM on the growth of early successional species, aspen and nitrogen-fixing alder. Our objectives were to: (i) determine the effects of reclamation soil type and stockpiling on aboveground biomass and height of aspen and alder, (ii) determine whether fertilization alters differences in aspen and alder growth among fresh and stockpiled reclamation soils, and (iii) determine if aspen grown in combination with alder experiences competition or facilitation on fresh and stockpiled reclamation soils.
2. Materials and Methods
Our experimental set up in the greenhouse consisted of 3 species groups (aspen, alder, and aspen + alder) × 2 soil types (FFMM and PMM) × 2 stockpiling treatments (stockpiled and not stockpiled) × 2 fertilization treatments (fertilized and not fertilized) × 11–12 replicates for a total of 281 pots. Additionally, we set up control pots consisting of 7–8 replicates each of four soil types and stockpiling treatments for a total of 31 control pots, which contained no plants and were not fertilized.
The aspen and alder seeds were acquired from the National Tree Seed Centre, located in Fredericton, NB, Canada; they were planted in April 2017 in styroblocks, with a plug size of 2.5 cm in diameter and 11.3 cm in length, using commercial garden soil. Soils were watered after sowing and grit was placed on the soil surface to prevent moisture loss. To prevent further moisture loss, the styroblocks were completely covered with clear plastic sheets until seed germination. Seedlings were transplanted into pots (top diameter = 17 cm, bottom diameter = 12 cm, height = 18.5 cm) in late June 2017. Seedlings were transplanted with the plug of commercial soil. This was due to the roots of seedlings being severely entangled around the soil plugs, and separating the roots from the commercial soil would have severely damaged the roots. Because all the seedlings were transplanted in the same way, we believe that any error resulting from this is similar for all treatments. Individual aspen and alder seedlings were transplanted into separate pots, hereafter referred to as pure aspen and pure alder, respectively. Pure aspen and alder pots were planted at a density of one seedling per pot. Combinations of aspen and alder seedlings, one of each species, were also transplanted into single pots. Aspen seedlings grown in combination with alder in the same pot are hereafter referred to as mixed aspen.
Standard conditions in the greenhouse were 60% relative humidity, automated 1-h daily watering approximately equivalent to 13–18 mm of precipitation, and artificial light when natural light intensity in the greenhouse fell below 200 W m−2. The temperature in the greenhouse ranged from 18–20 °C at night (01:00–06:00) to 22–24 °C during the day (10:00–20:00), ramping evenly between day and night temperatures.
The two soils used were forest floor mineral mix (FFMM) and peat mineral mix (PMM), and were obtained from an operational mine site in the oil sands region, northern Alberta. The FFMM is salvaged from upland forest soil and consists of the surface organic layers mixed with the underlying mineral soil (A horizons) to a maximum total depth of 30 cm [27
]. The PMM is salvaged from lowland organic soils and consists of a mixture of peat and the underlying mineral soil, at a 60:40 ratio of peat:mineral material [27
]. PMM has a greater portion of organic peat, and has a lower bulk density and higher water holding capacity compared to FFMM [22
]. Each of the FFMM and PMM soils consisted of two stockpiling treatments, which were fresh (freshly salvaged) and stockpiled (1 year and 5 years old storage period for PMM and FFMM, respectively). At the mine site, reclamation soils of varying ages are used in reclamation. The soil types used in this study thus reflected what is operationally available for reclamation efforts. The fresh and stockpiled soils were obtained from different sites but within the same general area. For this study, the stockpiled soils were salvaged by an excavator from the surface of the soil mound to a depth of about 1 m.
Half of the pots were fertilized at a cumulative rate equivalent to 120 kg N ha−1 with a 20-20-20 nitrogen, phosphorus, and potassium fertilizer to determine the effects of fertilization on growth of aspen and alder grown in fresh and stockpiled reclamation soils. Fertilizer was applied biweekly for the duration of the experiment, except for the last four weeks of the experiment where a double dose of the biweekly amount was applied once.
Aspen and alder heights were measured each month after transplanting for 3 months, and at the end of the study all the plants were destructively sampled and oven-dried at 50 °C for at least three weeks to determine the aboveground biomasses.
To estimate soil nutrient supply rates, a pair each of anion and cation plant root simulator (PRS; Western Ag Innovations, Saskatoon, SK, Canada) probes were installed to a depth of 12 cm in the control pots. PRS probes attract and adsorb ions through electrostatic attraction on an ion-exchange membrane to provide an estimate of soil nutrient supply rates [27
]. The probes were removed after five weeks, washed with deionized water and sent to Western Ag Innovations for extraction and laboratory analysis. NO3−
supply rates were determined colorimetrically with an automated flow injection analysis system. Supply rates of all other nutrients (phosphorus, potassium, sulphur, iron, and manganese) were determined using inductively coupled plasma spectroscopy.
Aboveground biomass of pure aspen, pure alder, and mixed aspen were separately compared among soil and stockpiling treatments using a two-way factorial analysis of variance (ANOVA). Box-Cox transformation were applied when appropriate to ensure that ANOVA assumptions of normality and/or homoscedasticity were met. Pairwise comparisons (Tukey’s test) were used to determine the effect of soil and stockpiling on aboveground biomass.
To determine whether aspen planted in combination with nitrogen-fixing alder in the same pot had a facilitative or competitive interaction, relative height of aspen was calculated as height of aspen grown in combination with alder (mixed aspen height) divided by mean height of aspen grown individually (pure aspen height). A value of 1, >1, and <1 represent no effect, facilitative effect, and competitive effect, respectively. One-tailed, one-sample t
-test was used to determine if the relative height of aspen was significantly greater or less than 1. For each species group, correlation analyses were performed between nutrient supply rates from the control pots and aboveground biomass from the unfertilized pots. All statistical comparisons were performed with R statistical software [29

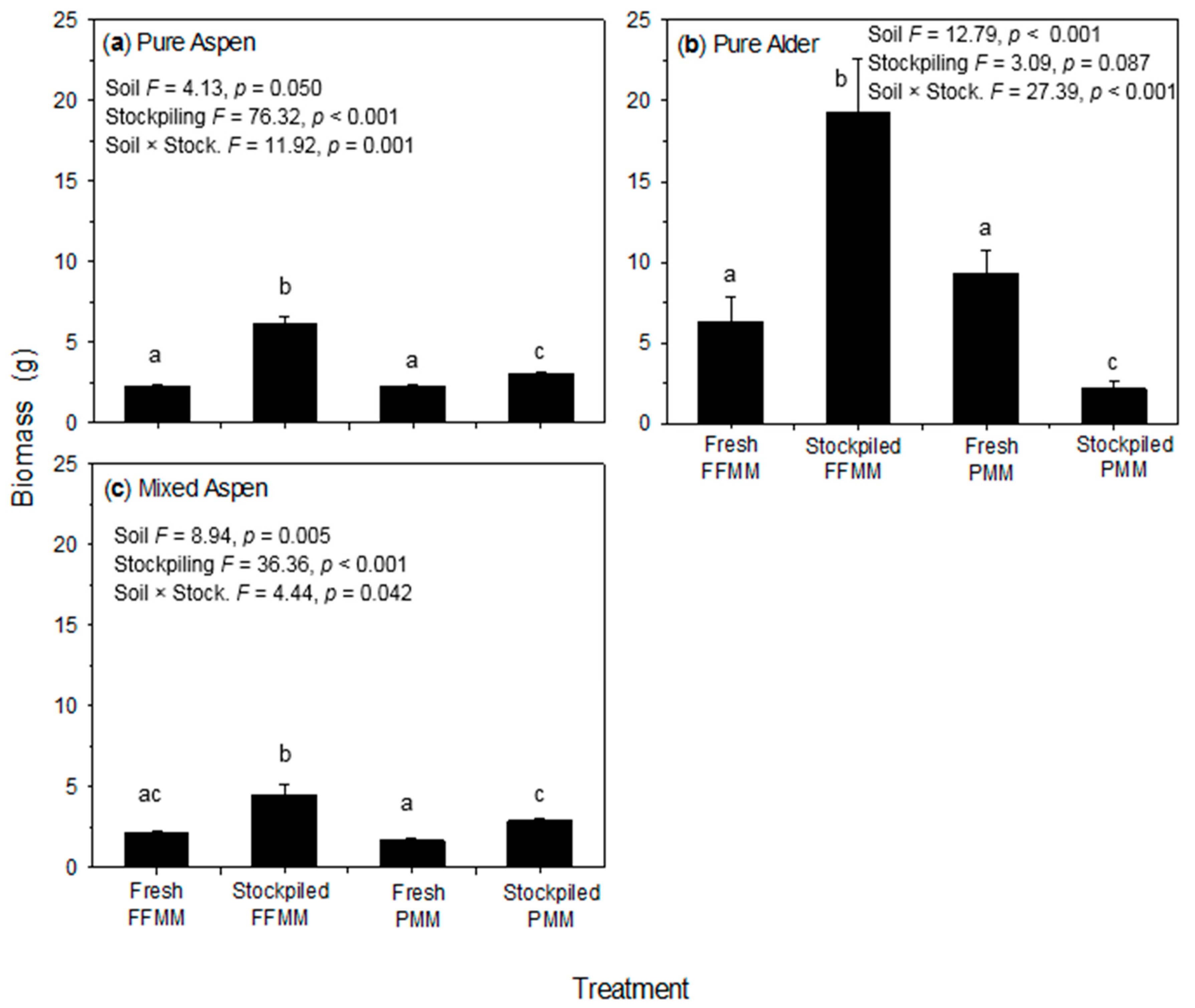

The effect of stockpiling on aboveground biomass was dependent on the soil type and species. Aboveground biomass of unfertilized pure aspen and mixed aspen was significantly greater for the stockpiled soils than the fresh soils for both FFMM and PMM (Figure 1
a,c). For unfertilized pure alder, stockpiled FFMM supported a higher aboveground biomass than fresh FFMM (p
< 0.001), but aboveground biomass on fresh PMM was greater than stockpiled PMM (p
= 0.064) (Figure 1
b). For all species groups, there was no significant difference in aboveground biomass between fresh FFMM and fresh PMM, but for the stockpiled soils, FFMM supported a higher aboveground biomass than PMM for pure aspen (p
< 0.001), mixed aspen (p
= 0.002), and pure alder (p
< 0.001) (Figure 1
In relation to supply rates of soil nutrients (Table 1
), aboveground biomass of unfertilized pure aspen, across the soil and stockpiling treatments, was positively correlated with the supply rate of phosphorus (r
= 0.972, p
= 0.028), potassium (r
= 0.932, p
= 0.067), and manganese (r
= 0.928, p
= 0.072). Aboveground biomass of unfertilized mixed aspen and pure alder was positively correlated with rate of supply of phosphorus (r
= 0.915, p
= 0.085) and potassium (r
= 0.930, p

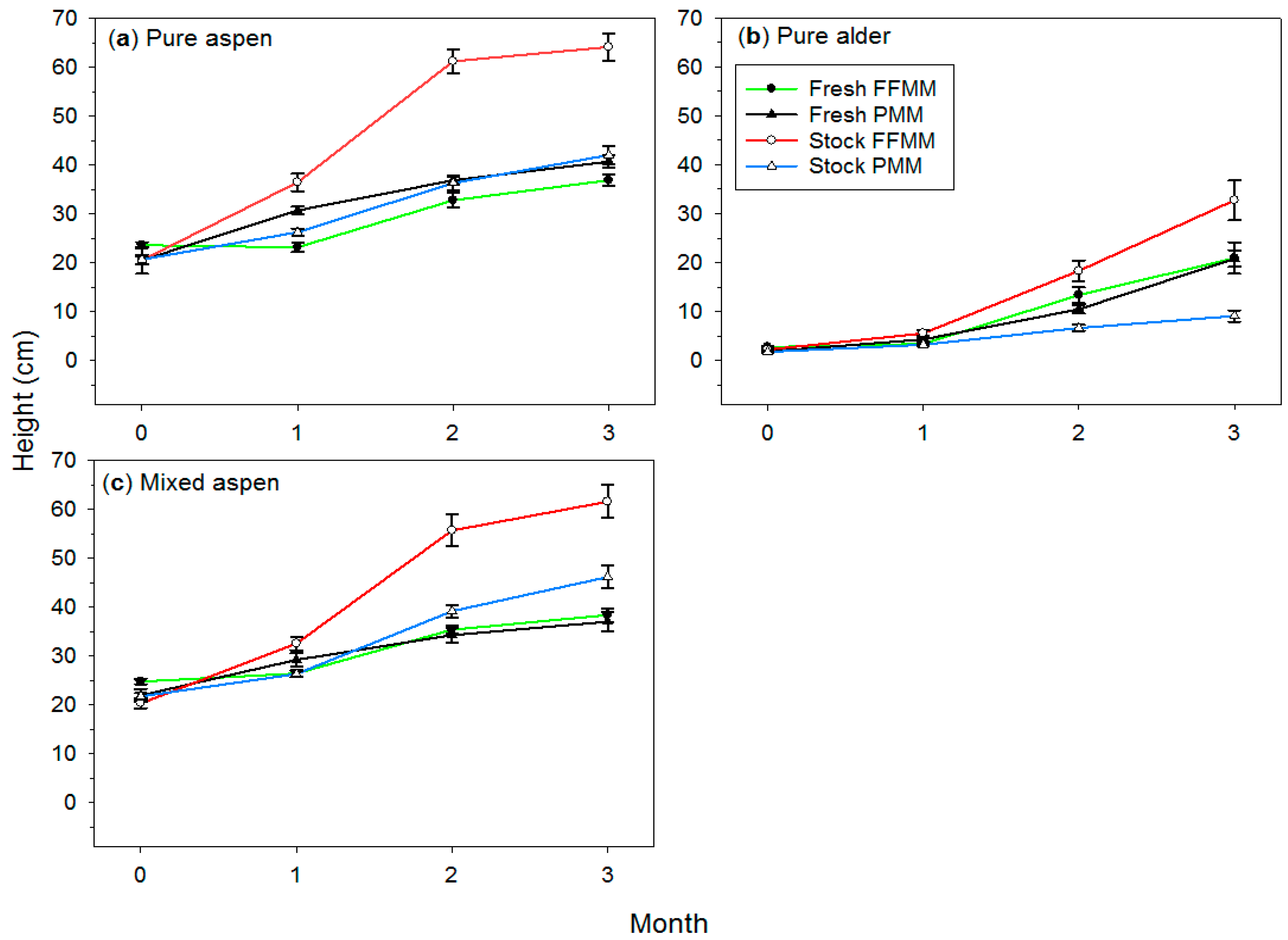

= 0.070), respectively. Growth patterns of unfertilized aspen were generally similar among all the soil and stockpiling treatments except for stockpiled FFMM (pure aspen) and fresh PMM (mixed aspen) (Figure 2
a,c). For unfertilized pure alder, the growth patterns were generally similar across all the soil and stockpiling treatments (Figure 2
Relative height of unfertilized aspen was not significantly different from 1 for all the soil and stockpiling treatments except for fresh PMM, where aspen relative height was significantly less than 1 (p = 0.047). These indicate that aspen grown in combination with nitrogen-fixing alder did not experience competition or facilitation except on fresh PMM where aspen height declined, indicating competition.

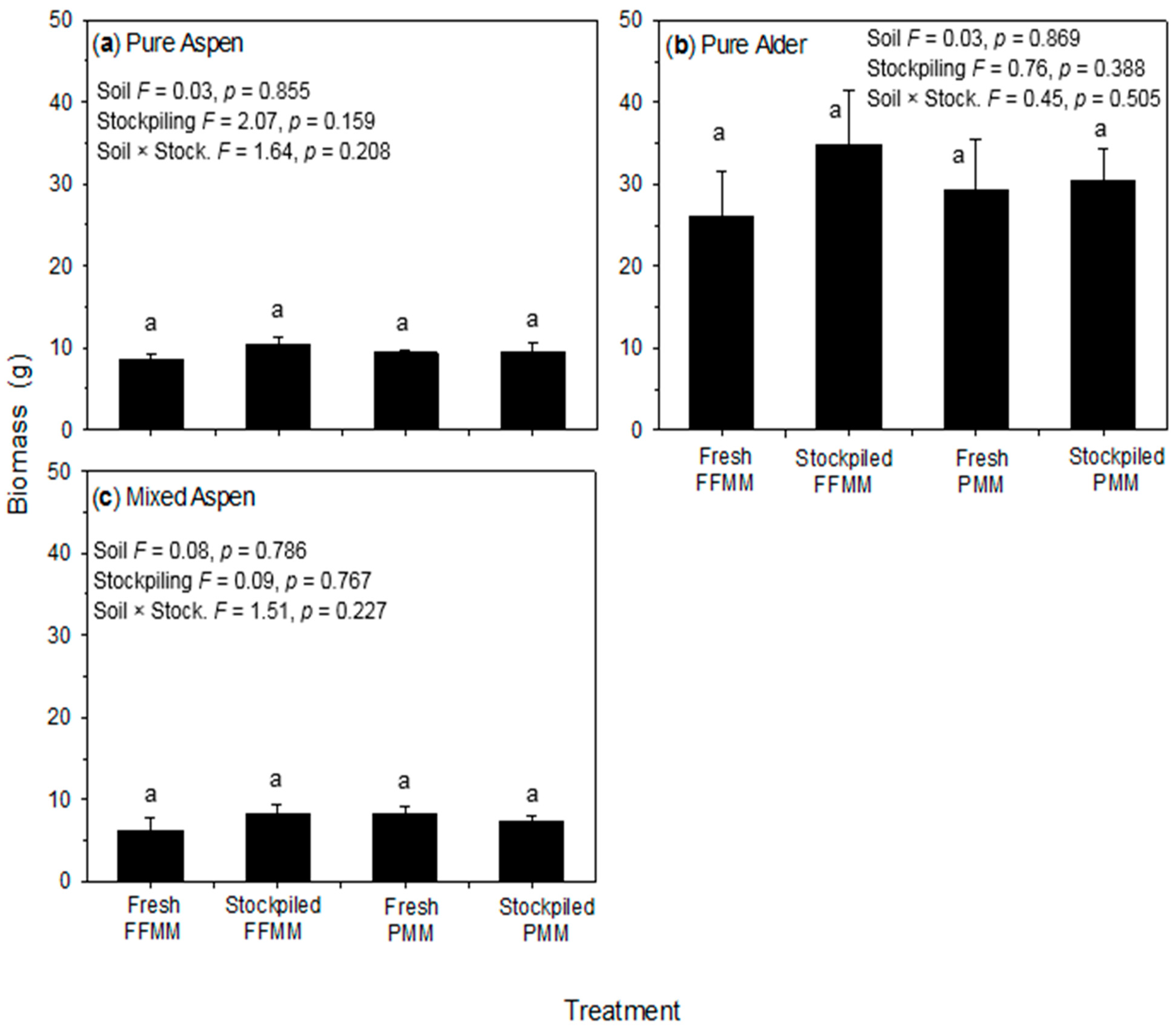

Fertilization increased plant growth and eliminated the differences in aboveground biomass (Figure 3

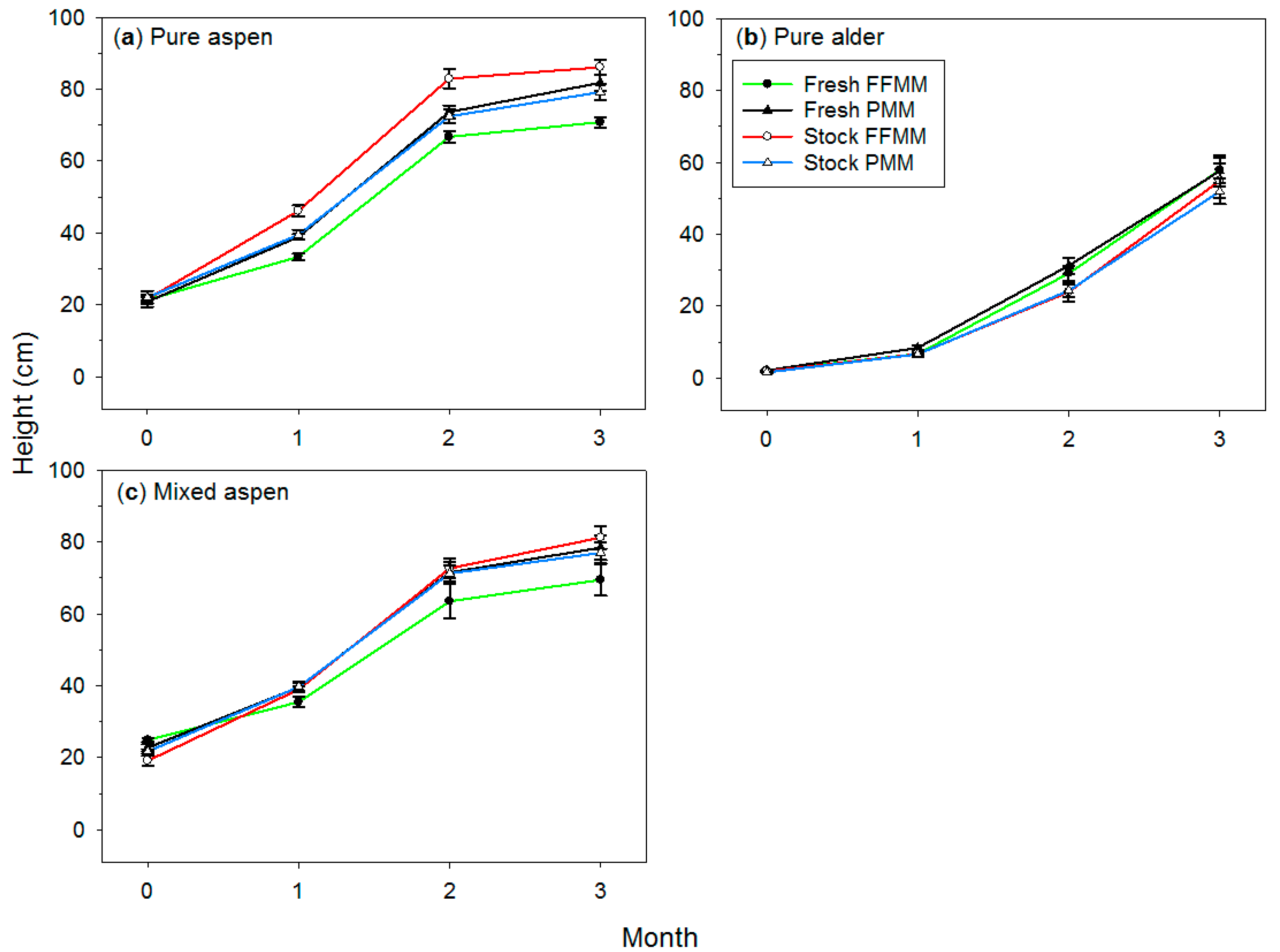

) and growth patterns (Figure 4
) among the soil and stockpiling treatments such that there were no differences in biomass among treatments with fertilization for each of the species groups. Relative height of fertilized aspen was also not significantly different from 1 across the soil and stockpiling treatments.
Stockpiled soils are generally characterized as being poor in physical, chemical, and biological quality compared to fresh soils [7
] and therefore could be expected to poorly support plant growth. However, we found that stockpiled FFMM supported the best aspen and alder growth of all soil and stockpiling treatments. This is similar to findings by Visser et al. [5
], who reported that the primary production potential of stored soil was not adversely affected, but rather shoot production was stimulated after stockpiling. Additionally, we found that between the unfertilized fresh soils there was no significant difference in aspen or alder aboveground biomass between FFMM and PMM. Other studies, however, found that unfertilized PMM better supported aspen growth than FFMM [14
]. Our findings indicate that individual soil properties are more important for revegetation than stockpiling treatment, and also support the conclusion by Howell et al. [20
] that characterization of reclamation soils, which includes physical and chemical characteristics, would be more appropriate than generally classifying them such as FFMM or PMM, stockpiled or fresh.
Across the soil and stockpiling treatments, plant growth was positively correlated with phosphorus (pure and mixed aspen) and potassium (pure aspen and alder) supply rate, with the supply rate of phosphorus and potassium being 12–24 times, and 5–12 times, respectively higher for stockpiled FFMM than the other treatments. MacKenzie [16
] found that stockpiling FFMM increased available phosphorus and potassium and did not substantially change total percent nitrogen or organic matter. In our study, the greater amount of phosphorus and potassium in stockpiled FFMM may partly be because the soil was obtained from a potentially more nutrient-rich site than the other soils, potential nutrient flush from decomposing or decomposed forest floor material [19
], and the likelihood of these nutrients to increase after stockpiling FFMM [16
]. The greater amount of phosphorus and potassium in stockpiled FFMM compared to the other soil and stockpiling treatments contributed to the greater plant biomass on the stockpiled soil. This is consistent with a study by Chapin et al. [30
], who found that total biomass of aspen seedlings increased with increasing phosphorus supply rate. Applying phosphorus fertilizer to aspen increased height and stem volume [31
], and aspen growth has been reported to be positively related to soil extractable potassium [21
]. In another study, which analyzed the chemical composition of clayey, sandy, and loamy stockpiles, levels of extractable phosphorus and potassium were comparable to levels acceptable for agricultural purposes, and no adverse effect of stockpiling on chemical fertility was observed except in the case of nitrogen [3
]. Ghose [7
], however, reported a decrease of 32%–48% nitrogen, 23%–35% phosphorus and 28%–46% potassium in soil dumps that had been stockpiled for 1 to 10 years. While adverse effects of stockpiling exist, it appears that the extent of damage depends on the methods of stripping and stockpiling the soil, management of the topsoil, and length of storage time [5
]. In the oil sands region, soils may be stockpiled for several years to decades. Employing better storage and handling techniques could help reduce soil damage and preserve stockpiled soils to meet plant growth requirements. Such techniques include using appropriate machinery to minimize soil compaction, minimizing mixing of top soil with subsoil, reducing depth of stockpiles, ensuring stockpiled soils are not stored beyond their shelf-life (determined from pilot studies), and using nutrient and soil amendments [3
Fertilization substantially increased both aspen and alder growth and eliminated the differences in growth and growth patterns between soil types and stockpiling treatments. This is similar to results by Pinno et al. [21
], who found that soil type became less important for plant growth after fertilization with nitrogen, phosphorus, and potassium. Thus, from a nutrient perspective, the type of reclamation soil or period of soil storage is of less importance for revegetation when fertilization is applied. Schott et al. [14
], however, reported that growth of aspen on fertilized PMM substantially increased compared to fertilized FFMM; they noted this could be partially due to greater cover by competing vegetation on FFMM. Cultural practices such as weed control may need to be combined with fertilization, especially on fresh or stockpiled FFMM, to enhance tree seedling growth.
Aspen grown in combination with nitrogen-fixing alder did not experience competition or facilitation except in fresh PMM, where aspen growth slightly declined. The decline in mixed aspen growth in fresh PMM is likely due to the very high amount of nitrogen in fresh PMM, along with lower levels of the other macronutrients, so that the nitrogen fixation by alder was redundant for fresh PMM. Positive growth response to increased nitrogen was observed for aspen with greater access to phosphorus [21
]. However, with the addition of nitrogen, phosphorus and potassium fertilizer, we found that aspen grown together with alder only grew as much as the fertilized pure aspen for all the soil and stockpiling treatments. In the current study, our observation of an absence of competition or lack of strong competitive effects between aspen and alder suggests that planting them together as early successional species, in fresh or stockpiled reclamation soils is appropriate. Both species would contribute to revegetation efforts and soil development [4
], without limiting the development of either species.
