Wood Modification Using Imidazole and Succinimide: Effects on Dimensional Stability and Bending Properties

by
Alexander Scharf
1,*,
Henric Dernegård
2,
Johan Oja
3,
Dick Sandberg
1 and
Dennis Jones
1
1
Wood Science and Engineering, Luleå University of Technology, Forskargatan 1, SE-93187 Skellefteå, Sweden
2
Holmen AB, Strandvägen 1, SE-11451 Stockholm, Sweden
3
Norra Timber, Skeppargatan 1, SE-90403 Umeå, Sweden
*
Author to whom correspondence should be addressed.
Forests 2023, 14(10), 1976; https://doi.org/10.3390/f14101976
Submission received: 31 August 2023 / Revised: 20 September 2023 / Accepted: 27 September 2023 / Published: 29 September 2023
(This article belongs to the Special Issue Wood Modification: Optimisation and Characterisation of Modified Timbers)
Browse Figures
Review Reports Versions Notes

Abstract

:
The modification of Scots pine sapwood (Pinus sylvestris L.) with the heterocyclic compounds imidazole and succinimide was investigated. Pressure-impregnation with aqueous solutions containing imidazole, imidazole + citric acid, succinimide, succinimide + citric acid, and citric acid + sorbitol (CIOL®) with solid contents of 5%, 10%, and 15% was followed by oven-curing at 220 °C for 1 h. During the treatment steps, the changes in mass, bending properties, and anti-swelling efficiency (ASE) were examined. The results indicate that solid concentrations within the range of 5% to 10% were optimal. The results seem to show that there are two differing mechanisms in the modification of imidazole and succinimide, respectively. Mass loss due to heat treatment was highest in the imidazole-treated specimens, whereas it remained low and concentration-independent in the succinimide-treated specimens. After three cycles, the ASE reached 31% for the imidazole-treated specimens and improved to 38% with the addition of citric acid. For succinimide, the ASE increased from 17% to 41%. The bending properties generally showed improvement, except for succinimide + citric acid and CIOL®, which displayed a reduced modulus of rupture. Chemical analyses are warranted to fully understand the reaction mechanisms of these treatments. The positive effects of imidazole treatment are suggested to stem from a thermal reaction between the chemical and the wood, indicated by substantial mass loss during leaching and specimen darkening. Succinimide and citric acid might exhibit polymerization with each other and with wood components, which is akin to the CIOL® process. Further research should delve into the reaction mechanisms and the impact of imidazole and succinimide on biological durability.

1. Introduction

Wood modification involves altering the structural and chemical composition of the wood cell wall using heat or chemicals, and this is primarily aimed at enhancing water-related characteristics like sorption, dimensional stability, and resistance to biological degradation [1,2].
Thermal wood modification, achieved through heat treatment in low-oxygen environments within the temperature range of 160 °C to 240 °C, induces favorable changes in the chemical composition of the cell wall [3]. The central mechanism driving alterations in the cell wall is the hydrolysis-induced degradation of hemicelluloses, yielding commonly observed byproducts such as furfural and hydroxymethylfurfural [4,5,6]. Lignin degradation also occurs at temperatures exceeding 220 °C [7]. Condensation reactions of oxidatively cleaved ether linkages can result in carbonyl and phenolic groups, which lead to the formation of new crosslinks [8]. The formation of various degradation products accounts for a mass loss of up to 20%. However, not all of the degradation products are volatiles, and thus, they partly remain in the wood until extracted by a solvent such as water [7]. The positive impact of heat treatment on sorption and dimensional stability arises from the reduced presence of moisture-sensitive hydroxyl groups within hemicelluloses [9], coupled with the generation of novel crosslinks facilitated by degradation products [10]. Furthermore, the lowered availability of accessible sugars and decreased equilibrium moisture content contribute to an enhanced level of biological durability [11]. The strength properties of thermally modified wood are negatively affected due to the reduced degree of polymerization of the holocelluloses [12], as is commonly exhibited during bending tests with a reduced modulus of rupture (MOR), often accompanied by a brittle failure mode. Both biological durability and a decrease in bending properties correlate to mass loss during thermal modification [13].
Chemical wood modification is based on the introduction of various chemicals into the wood. It exists in different forms with the main difference being the location of chemical deposition and the type of bonding with the cell wall [1]. Chemicals can react with groups of cell-wall polymers, blocking, e.g., hydroxyl groups, or leading to crosslinking by reacting with two hydroxyl groups. The former results in cell-wall bulking, whereas the latter additionally limits the maximum distance between the cell-wall polymers, effectively reducing the maximum swelling, i.e., providing anti-swelling efficiency (ASE) [14]. Additionally, lumen-filling treatments exists which may or may not react with the cell-wall components. Similar to thermal modification, chemical modification improves water-related properties and biological durability and can affect mechanical properties [15].
Abundant hydroxyl groups in hemicelluloses drive common esterification reactions for wood modification. Acids like acetic anhydride, succinic or maleic anhydride, polycarboxylic acids, and isocyanates are used, with acetic anhydride-based acetylation being commercialized [2]. Recently, the polycarboxylic acid citric acid gained attention due to its cost-effective availability from microbial fermentation using Aspergillus niger [16]. Initially applied in the cotton industry [17], polycarboxylic acid was later adapted for wood modification [18,19]. The reaction mechanism between wood and citric acid involves a two-step esterification process, where a cyclic anhydride is initially formed, followed by its reaction with hydroxyl groups in the wood to create ester linkages [20]. Wood modification with citric acid offers several advantages, such as reduced water absorption, enhanced resistance against termites and fungi, an improved modulus of elasticity (MOE), improved compression strength, and better dimensional stability [21,22]. However, it is important to note that there are some disadvantages, including a strong reduction in MOR, increased brittleness, and a yellowing of the treated wood [23]. Feng et al. [24] reported an initial ASE of 48% at a chemical load of 36%, whereas L’Hostis et al. [25] reported an initial ASE of 67% and a low leaching rate. However, the MOR decreased significantly. In order to improve the performance of citric acid-treated wood, compounds containing alcoholic hydroxyl groups leading to polymerization and increased chemical fixation can be incorporated [25,26,27,28,29,30,31].
The polymerization of citric acid and sorbitol in an aqueous solution was initially demonstrated by Centolella and Razor [32]. Doll et al. [33] proposed the formation of intermediates and, subsequently, a citrate sorbitol ester, as shown in Figure 1. Larnøy et al. [30] reported the polyesterification of citric acid and sorbitol in a 3:1 molar ratio for solid wood at 140 °C for 18 h at a weight-percentage gain (WPG) of 80%. Leaching tests indicated excellent leaching and fungal resistance, as higher curing temperatures led to higher conversion rates of the functional groups, resulting in a denser crosslinked network in the cell wall. Mubarok et al. [34] reported an ASE of 55% at a WPG of 30%. However, similar to citric acid treatments, the MOR and work-to-maximum load in bending decreased significantly. Beck [35] showed an ASE of 40% at WPGs of 14%–31%, with leaching rates below 2%. For more detailed information on citric acid in wood modification, readers are referred to the review by Lee et al. [23].
Imidazole, a heterocyclic compound comprising two nitrogen and three carbon atoms, possesses acidic and basic properties. It is environmentally benign and nonhazardous. Morais et al. [36] pioneered the use of imidazole for the extraction of cellulose and hemicelluloses from native wheat straw at a temperature of 170 °C. The depolymerization process yielded a range of valuable lignin-derived compounds, including vanillin, vanillic acid, and rosmarinic acid. Since then, extensive research efforts have been directed toward exploring the potential of imidazole as a solvent in the field of biomass valorization. Grylewicz et al. [37] investigated the use of imidazole in combination with glycerol for the fabrication of thermoplastic starch and wood-fiber composites, reporting enhanced moisture sorption and surface hydrophobicity properties. Del Menezzi et al. [38] reported that citric acid not only reacted with the hydroxyl groups of hemicelluloses but also that the reaction with the aliphatic chains of lignin was possible. It is, hence, possible that a combined treatment of lignin-altering imidazole and citric acid might lead to enhanced crosslinking in the wood.
Succinimide, another heterocyclic compound containing nitrogen, exhibits a carbonyl and an amide group. Succinimides have high chemical reactivity due to the presence of both the carbonyl and methylene groups [39]. It has applications in the pharmaceutical, polymer, and material industries [40]. Under certain conditions, the carbonyl group of succinimide can undergo nucleophilic additions with hydroxyl groups leading to the formation of ester linkages. The reaction is typically catalyzed by acidic conditions.
To the best of our knowledge, no previous studies have explored the application of imidazole or succinimide in wood modification. Thus, our research aimed to explore wood modification systems involving imidazole and succinimide alone and in combination with citric acid. The treatment was based on pressure impregnation and subsequent heat treatment to improve the mechanical and hygroscopic properties.

2. Materials and Methods

2.1. Materials

Scots pine (Pinus sylvestris L.) sawn timber harvested in Västerbotten County was obtained from a sawmill in northern Sweden (Norra Timber, Kåge, Sweden). Scots pine is an abundant and economically important species in northern Europe and relatively easy to impregnate. The timber was industrially dried to a moisture content (MC) of approx. 18%.
The chemicals used in this study were synthesis-grade >98% imidazole (C3N2H4) powder (IoLiTec-Ionic Liquids Technologies GmbH, Heilbronn, Germany), synthesis-grade >98% succinimide (C4H5NO2) (Sigma-Aldrich, Merck KGaA, Darmstadt, Germany), 99.9% analytical-grade citric acid (C6H8O7), and ≥96% technical-grade D (-)-sorbitol (C6H14O6) powder (VWR International AB, Stockholm, Sweden).

2.2. Specimen and Solution Preparation

Visually selected, defect-free, straight-grained sapwood specimens were prepared from the sawn timber for further pressure impregnation and heat treatment and the subsequent determination of anti-swelling efficiency (ASE) and bending properties. The specimens used for ASE test had dimensions of 21 × 20 × 10 mm (radial × tangential × longitudinal), and the specimens for the bending test had dimensions of 10 × 10 × 200 mm (radial × tangential × longitudinal). The specimens were prepared in surplus and were conditioned for 4 weeks at 20 °C and 65% relative humidity until they had a constant mass and, thus, the equilibrium moisture content (EMC) was reached. For both tests, the specimens were grouped by density, and the lowest and highest 10% were sorted out. The remaining specimens exhibited a mean density at an EMC of 480 ± 23 kg/m3. They were randomly distributed based on density into 17 groups. Additionally, the cross-sections of the bending specimens were end-sealed with silicon, preventing uneven liquid flow during treatment, and thus securing even modification throughout the specimens.
A total of five different chemical combinations were dissolved in deionized water to produce solutions with 5, 10, and 15 wt% solid contents. The chemical combinations are shown in Table 1. The treatment CIOL® was used as a reference representing a bio-based wood modification process, which is close to commercialization [30,41,42]. Additionally, a solely heat-treated (H) and untreated control (C) group were added.

2.3. Pressure Impregnation and Heat Treatment

For each group to be chemically treated, the conditioned specimens for ASE and the bending tests were placed together in a vessel and fully submerged with the respective chemical solution. The specimens were pressure-impregnated in an autoclave using a full-cell method, whereby a vacuum at 20 mbar was initially applied for 30 min, followed by 1 h pressure at 15 bar. The excess solution was wiped off with tissue paper, and the mass and dimensions were recorded. This was followed by oven-drying (open system) to 0% MC for 24 h at 70 °C and 16 h at 103 °C. The mass and dimensions of each specimen were recorded to determine solution uptake and WPG, which were calculated as follows (Equations (1) and (2)):
S o l u t i o n   u p t a k e = m 1 − m 0 m 0 − 0.11
W P G = ( m 2 − m 0 ) / m 0
where m0 is the initial dry mass, m1 is the mass directly after impregnation, and m2 is the oven-dry mass after impregnation, where m0 was estimated for all specimens based on the EMC of the control group C. The conditioning of the specimens to EMC resulted in an MC of 11.0 ± 0.27%, determined by the gravimetric method. Additionally, the MC of 11% was subtracted from the solution uptake to account for the vapor-bound water as the specimens were impregnated in a conditioned state.
The dried specimens were tightly wrapped in aluminum foil and placed in an oven, undergoing heat treatment in an open system at 220 °C for 1 h. The mass and dimensions were recorded, and the mass loss (ΔmHT) and bulking coefficient (BC) after heat treatment were calculated (Equations (3) and (4)):
Δ m H T = ( m 3 − m 0 ) / m 0
B C = ( V 3 − V 0 ) / V 0
where m3 and V3 are the mass and wood volume after heat treatment, respectively, and V0 is the initial dry wood volume. Referencing the mass loss during the heat treatment to the initial dry mass m0 instead of m2 was a deliberate choice to account for differences in WPG, providing results that are easier to compare.
The heat-treated specimens were kept for 24 h at room climate before being placed in a conditioning chamber at 20 °C and 65% relative humidity until EMC was reached.

2.4. Specimen Characterization

ASE was evaluated using a previously established procedure [43]. All specimens were subjected to repeated wet-dry cycles. The specimens underwent vacuum impregnation in deionized water for 1 h, followed by immersion in water for 72 h. After water treatment, the specimens were air-dried under ambient conditions and subsequently oven-dried for 48 h at 70 °C and 16 h at 103 °C. The mass and dimensions were measured in a wet and dry state. The ASE was calculated following the method described by Stamm [44] (Equation (5)):
A S E = ( S 2 − S 1 ) / S 1
where S1 is the untreated volumetric swelling coefficient, and S2 is the treated volumetric swelling coefficient between the water-saturated and dry states. This wet-dry cycle process was repeated three times to wash out any water-soluble compounds affecting the ASE. Crosslinking was evaluated by the volumetric change over the wet-dry cycles and was calculated according to Equation (6) [43]. In order to evaluate the leaching resistance of the treated wood, the mass loss due to leaching over three cycles Δmleaching was calculated (Equation (7)). It describes the share of water-soluble compounds in the wood after heat treatment, which can be either in the introduced chemicals, (thermal) degradation products, or naturally occurring water-soluble extractives. A high Δmleaching indicates the low stability of the introduced chemicals and a potential negative environmental impact during the service life of the product. Additionally, the mass loss Δmtotal over the complete treatment and leaching process was calculated (Equation (8)). This is similar to the corrected mass loss proposed by Altgen et al. [45] and, in contrast to ΔmHT, includes the water-soluble compounds created during the heat treatment. If the Δmtotal of treatment is lower than the Δmtotal of the solely heat-treated group, chemicals are likely to be present in the wood after leaching, while a higher value would suggest that (thermal) degradation was promoted by the treatment.
V o l u m e t r i c   c h a n g e = ( V n − V 0 ) / V 0
Δ m l e a c h i n g = ( m 4 − m 3 ) / m 3
Δ m t o t a l = ( m 4 − m 0 ) / m 0
where Vn is the volume in either the oven-dried or wet state in the nth wet-dry cycle, V0 is the initial oven-dried dimension, and m4 is the mass after three wet-dry cycles and oven-drying for 24 h at 70 °C and 16 h at 103 °C.
The MOR and the local modulus of elasticity (MOE) in bending were tested in conjunction with a four-point bending test. Specimens 10 × 10 × 200 mm in size were loaded in a universal testing machine (MTS System Corporation, Eden Prairie, MN, USA) equipped with a 10 kN load cell according to the EN 408 standard [46]. The span was 180 mm, the distance between the load points was 60 mm, and the loading rate was 0.03 mm/s.
In order to assess the statistical significance of differences between the mean values for each group, a one-way analysis of variance (ANOVA) was conducted for each measured property. Following this, a Tukey post-hoc test was performed to identify specific groups that exhibited significant differences. The significance level was set at α = 0.05. The results of the post-hoc test are presented using a compact letter display, wherein those groups that were not significantly different from each other were assigned the same letter.

3. Results and Discussion

3.1. Impregnation and Heat Treatment

The solution uptake was 138%–150% among the groups with no significant difference between the different solid concentrations of the solutions. Figure 2 shows the WPG after impregnation and drying and the mass loss ΔmHT after the heat treatment determined for the ASE specimens.
The WPG behaved similarly among the different treatment groups when solutions with a 5 and 10% solid concentration were used, and an increase from 5 to 10% solid concentration in the chemical solution led to an approx. doubling in WPG. The increase from 10% to 15%, however, did not translate into a 1.5-fold increase in WPG. It may be suggested that the saturation of available sites, e.g., for hydrogen bonding, is reached at a solid concentration between 10 and 15%, likely being dependent on the molecular structure of the used chemicals. At 10% and 15%, the groups SuCA and CIOL® showed higher WPG compared to the other treatments, whereas, for imidazole, I15 showed no significant increase in uptake compared to I10.
The mass loss, ΔmHT, in Figure 2 comprised multiple degradative processes. Without chemical treatment, ΔmHT was 2.6 ± 0.4% due to thermal degradation, primarily of the hemicelluloses [7]. In the chemically treated groups (except Su), ΔmHT was related to the WPG with a clear difference between the treatments, with and without imidazole. On the one hand, the thermal degradation of the used chemicals likely happened since it had been noted that both imidazole and citric acid exhibit one-stage degradation, peaking at 220 °C in thermogravimetric analyses [47,48], whereas succinimide starts to thermally degrade around 250 °C [49]. On the other hand, the chemical-promoted degradation of cell wall polymers is possible. The ΔmHT in the imidazole treatments was partly higher than the respective WPG and was accompanied by a strong darkening of the specimens. This has been assumed to be a result of imidazole promoting the degradation of lignin during the heat treatment, a fact that has been observed in the refinery of biomass when imidazole has been present [36]. The groups treated with only succinimide showed the least mass loss independently of WPG. Additionally, the groups Su10 and Su15 exhibited a thin layer of salt deposits on the surface when the specimens were handled. It is likely that only a few reaction sites between the cell wall polymers and the succinimide existed or that no bonds were formed. The mass loss in the CIOL® can be attributed to the ester linkage of the carboxyl groups of the citric acid to the hydroxyl groups of the wood and the sorbitol, which already occurs at temperatures of 140 °C. In this process, citric acid transforms into the reactive anhydride with the release of water molecules [30,33]. In the groups ICA and SuCA, 56% of the imidazole and succinimide mass was substituted by citric acid. While the ΔmHT was little effected in the imidazole groups (from I to ICA), and the ΔmHT in succinimide groups (from Su to SuCA) increased. This can be due to the catalyzed thermal degradation of hemicelluloses and lignin in the presence of acids [50] and by the esterification of citric acid with the cell wall polymers, which involves dehydration during heat treatment. Interestingly, the mass loss was similar between CIOL® and SuCA and between I and ICA. The formation of crosslinks between imidazole, succinimide, citric acid, and the cell-wall polymers or their degradation products is possible, but chemical analyses are necessary.
Figure 3 shows the cross-sections of one arbitrarily chosen specimen per group after the heat treatment. A color change was evident in all groups but was the strongest in groups containing imidazole, where the color was similar to carbonized wood. This indicates that imidazole might increase the amount of thermal degradation in wood and potentially lower the charring temperature of wood. Imidazole has been shown to depolymerize lignin in wheat straw, resulting in compounds such as vanillin, vanillic acid, and rosmarinic acid [36]. The groups Su, SuCA, and CIOL® showed slightly different browning compared to the heat-treated group (H), which could be due to the presence of polymerized chemicals in the wood.

3.2. Anti-Swelling Efficiency and Water Stability

Table 2 shows the EMC after the treatment and the ASE after each wet-dry cycle. The EMC was 4.5%–6.3% in the chemically treated groups, which was slightly lower than the heat-treated group H. The ASE after the first cycle was high among all groups and related to the WPG. Alongside the volatile extractives, nonvolatile degradation products were formed during thermal degradation, which remain in the wood and bulk the cell wall [7]. However, after three cycles, the ASE decreased significantly, indicating that the chemicals and or water-soluble degradation products were leached out. This effect was strongest in the succinimide groups and lowest in the CIOL® groups. The low ASE for succinimide supports the theory that no modification of the wood took place. After three cycles, the ASE of the I and Su groups were not related to the initial WPG, whereas all groups containing citric acid were related to WPG. The ASE of I10 was 33.4%, and the addition of citric acid (ICA10) resulted in an ASE of 34.7%, indicating no synergistic effect of imidazole and citric acid. However, in the case of succinimide, the ASE increased from 21.0% to 37.9% via the addition of citric acid. For CIOL®, the high ASE is attributed to the formation of the insoluble polymers formed during the esterification process between citric acid and wood and citric and sorbitol [30]. Furthermore, the results are in line with work from Beck [35].
Figure 4 presents the mass loss caused by wet-dry cycling, i.e., the leaching of chemicals, degraded wood components, and water-soluble extractives, and the mass loss over the whole treatment and leaching procedure. Δmleaching correlated with the WPG in each group except for CIOL®. Combinations, including citric acid, exhibited less mass loss than the respective single compound treatments. As shown in Figure 2, different degrees of mass loss occurred during the heat treatment, which influenced Δmleaching. In order to understand the mode of action of the treatments, it was, thus, more conclusive to study the total mass loss Δmtotal. It was noted that Δmleaching in the imidazole and succinimide groups was rather similar, but the values for Δmtotal were significantly different. Treatments involving imidazole groups exhibited a mass loss of 7%–8%, indicating that the wood components were degraded to an extended degree during the heat treatment and were washed out during the wet-dry cycling; this was supported by the results for heat treatment only, where the results showed a mass loss of 3%. The yellow/brown color of the leachate supported this.
The WPG did not have a strong influence on the Δmtotal, which was in line with the ASE values. The reductions in ASE from 50–60% in the first cycle to around 30% in the third cycle, coupled with a Δmtotal of 7%–8% were similar to the results of thermal modification by Wentzel et al. [51]. However, if imidazole would solely promote thermal degradation, the mechanical properties would be expected to decrease, which was not the case. The addition of citric acid presented in the ICA groups drastically lowered Δmtotal due to a lower concentration of imidazole and the presence of citric acid. It is also possible that citric acid reacted with the degradation products of the imidazole-promoted reactions, resulting in insoluble polymers and a low Δmleaching and Δmtotal. Succinimide showed the highest Δmleaching but a Δmtotal close to zero. When taken together with the low and WPG-independent ΔmHT and ASE, this indicated that succinimide either did not react with the wood components or only a few reaction sides were available. The addition of citric acid (SuCA) improved leaching resistance as well as Δmtotal. The negative mass loss indicated that insoluble polymers were formed. It is also possible that a reaction of succinimide with the wood or the citric acid took place due to the more acidic conditions. CIOL® treatment led to little leaching and higher chemical retention due to the formation of polymers in the esterification process, and this has been shown by previous research by Larnøy et al. [30].
Figure 5 shows the volumetric change over the wet-dry cycles of the specimens treated with 15 wt% solutions, with D0 being equivalent to the BC. The chemical treatments led to a relatively low BC, with the exception of the succinimide treatments. However, except for CIOL®, the cell wall bulking reduced during the cycles as the chemicals and degradation products were leached out. The reduction in volume was smaller in the groups containing citric acid. Treatment with imidazole alone led to the smallest dimensions after three cycles, assumed to be due to the degradation of lignin. Groups containing citric acid exhibited higher dimensional stability, indicating some degree of crosslinking in ICA and SuCA. Whether these crosslinks involve imidazole or succinimide is currently uncertain. Succinimide led to a reduction in shrinking but not swelling in comparison to the unmodified wood, indicating that although cell wall bulking occurred, there was no crosslinking.

3.3. Bending Performance

MOR and MOE are presented in Figure 6. The statistical analysis suggested that little significant differences existed between the groups. However, the large span of initial density in each group as a result of the even group distribution and natural variability in wood might be a reason for this, as the mean values exhibited clear differences. The mean MOR of some groups was slightly higher than the untreated control, which might be caused by a reduction in moisture content due to thermal treatment. The I and ICA groups showed high MOR at 5 and 10 wt%, with a reduction in MOR at 15 wt%. The increased degradation of cell wall polymers was likely concentrated in the lignin, as holocellulose degradation is expected to result in greater reductions in mechanical properties due to increased shear slipping between cellulose microfibrils [52]. The SuCA and CIOL® groups showed a reduction in MOR. For CIOL®, this is attributed to the acidic modification conditions that led to thermally induced mechanical degradation [34]. A similar drop in the MOR was found in SuCA but not in ICA. Interestingly, Su5 showed the highest MOR, and Su15 had one of the lowest MORs. It is possible that the combined succinimide and citric acid treatment resulted in a similar formation of crosslinks as in the CIOL® process. The MOE was less affected by the treatments. Except for the succinimide groups, the MOE seemed to be unaffected by WPG, and the slight increase in MOE is likely due to the heat treatment.
The results show that the wood modification with imidazole does not negatively affect bending performance but does provide increased dimensional stability. Both the positive effect on ASE and the negative effect on MOR, are stronger in the succinimide and CIOL® treatments. In-house experience that was not included in this study indicated that some degree of cross-polymerization occurs in I, ICA, and SuCA, with ongoing work to provide definitive answers.

4. Conclusions

In order to facilitate the use of fossil-free modification reagents, this study aimed to explore wood modification systems involving imidazole and succinimide in combination with citric acid. The treatments were based on pressure impregnation and subsequent heat treatment to improve the hygroscopic properties without aggravating the mechanical performance.
The treatments with imidazole exhibited increased mass loss during heat treatment, which led to the formation of water-soluble degradation products that were leached out over the wet-dry cycles. The mass loss during the heat treatment of succinimide-containing treatments seemed to be unaffected by the chemical, and a large amount of succinimide was leachable. The total mass loss from the untreated state to the leached state of the imidazole-treated specimens was 7%–8%, exceeding the sole heat treatment mass loss of 3%. The succinimide treatment exhibited values of 0%–2%, indicating a degree of chemical retention. Substituting a part of the chemicals with citric acid improved the leaching resistance and decreased the total mass loss. It is not clear if this was solely due to the reaction of citric acid with the cell wall polymers, or if crosslinks were formed between citric acid and imidazole or succinimide. The reactions between citric acid and the imidazole-promoted lignin-derived degradation products are another possibility. Leaching resistance was highest for a combination of citric acid and sorbitol (CIOL®-process). However, in this treatment, the share of citric acid was almost twice as high as in the other treatments containing citric acid. After three cycles, the anti-swelling efficiency (ASE) reached 31% for the imidazole-treated specimens and improved to 38% with the addition of citric acid. For succinimide, the ASE increased from 17% to 41%. CIOL® exhibited an ASE of 48%.
Previous research showed that wood modification with citric acid led to a high ASE and high leaching resistance at the cost of strongly reduced mechanical properties. In the current study, the bending properties generally showed an improvement, except for succinimide at a high concentration, succinimide + citric acid, and CIOL®, which displayed a reduced modulus of rupture. This indicates that wood modification with imidazole and succinimide are based on different reaction mechanisms, where the improved hygroscopic properties of imidazole treatment does not solely originate from an enhanced thermal degradation, as the modulus of rupture should be strongly reduced. In contrast, succinimide and citric acid might polymerize with each other and any residual wood components, which is akin to the CIOL® process, as the treatments exhibited a similar reduction in modulus of rupture.
The results of this study show that wood modification with imidazole and succinimide can be utilized. However, further research should delve into analyses of the involved reaction mechanisms to optimize the chemical ratios and leaching resistance. Studies on the impact of imidazole and succinimide on biological durability are currently ongoing.

Author Contributions

Conceptualization, D.J., D.S. and H.D.; methodology, D.J.; validation, D.S., H.D. and J.O.; formal analysis, A.S.; investigation, A.S. and D.J.; data curation, A.S.; writing—original draft preparation, A.S.; writing—review and editing, A.S., D.J. and D.S.; visualization, A.S.; supervision, D.J.; project administration, D.J. and D.S.; funding acquisition, D.J. and D.S. All authors have read and agreed to the published version of the manuscript.

Funding

Support through the project CT WOOD, a center of excellence at Luleå University of Technology, and the VINNOVA project “Multifunktionella byggskivor av sågspån” (Grant no. 2022-00998) is gratefully acknowledged.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. All data is supported in the paper (with statistical variance).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Hill, C.A.S. Wood Modification: Chemical, Thermal and Other Processes, 1st ed.; Wiley: Hoboken, NJ, USA, 2006; ISBN 978-0-470-02172-9. [Google Scholar]
  2. Sandberg, D.; Kutnar, A.; Karlsson, O.; Jones, D. Wood Modification Technologies: Principles, Sustainability, and the Need for Innovation, 1st ed.; CRC Press: Boca Raton, FL, USA; Taylor & Francis Group: Boca Raton, FL, USA; London, UK; New York, NY, USA, 2021; ISBN 978-0-367-76782-2. [Google Scholar]
  3. Esteves, B.M.; Pereira, H.M. Wood Modification by Heat Treatment: A Review. BioRes 2008, 4, 370–404. [Google Scholar] [CrossRef]
  4. Klauditz, W.; Stegmann, G. Beiträge zur Kenntnis des Ablaufes, und der Wirkung thermischer Reaktionen bei der Bildung von Holzwerkstoffen. Holz Als Roh- Und Werkstoff 1955, 13, 434–440. [Google Scholar] [CrossRef]
  5. Kollmann, F.; Fengel, D. Änderungen der chemischen Zusammensetzung von Holz durch thermische Behandlung. Holz Als Roh- Und Werkstoff 1965, 23, 461. [Google Scholar] [CrossRef]
  6. Gérardin, P. New Alternatives for Wood Preservation Based on Thermal and Chemical Modification of Wood—A Review. Ann. For. Sci. 2016, 73, 559–570. [Google Scholar] [CrossRef]
  7. Mai, C.; Militz, H. Wood Modification. In Springer Handbook of Wood Science and Technology; Niemz, P., Teischinger, A., Sandberg, D., Eds.; Springer Handbooks Series; Springer International Publishing: Cham, Switzerland, 2023; pp. 873–910. ISBN 978-3-030-81314-7. [Google Scholar]
  8. Tjeerdsma, B.F.; Militz, H. Chemical Changes in Hydrothermal Treated Wood: FTIR Analysis of Combined Hydrothermal and Dry Heat-Treated Wood. Holz Roh Werkst 2005, 63, 102–111. [Google Scholar] [CrossRef]
  9. Dirol, D.; Guyonnet, R. Durability by Rectification Process. In Proceedings of the International Research Group Wood Pre, Section 4-Processes, No IRG/WP 93-40015, Orlando, FL, USA, 16–21 May 1993. [Google Scholar]
  10. Tjeerdsma, B.F.; Boonstra, M.; Pizzi, A.; Tekely, P.; Militz, H. Characterisation of Thermally Modified Wood: Molecular Reasons for Wood Performance Improvement. Holz Als Roh- Und Werkstoff 1998, 56, 149–153. [Google Scholar] [CrossRef]
  11. Weiland, J.J.; Guyonnet, R. Study of Chemical Modifications and Fungi Degradation of Thermally Modified Wood Using DRIFT Spectroscopy. Holz Als Roh- Und Werkstoff 2003, 61, 216–220. [Google Scholar] [CrossRef]
  12. Boonstra, M.J.; Van Acker, J.; Tjeerdsma, B.F.; Kegel, E.V. Strength Properties of Thermally Modified Softwoods and Its Relation to Polymeric Structural Wood Constituents. Ann. For. Sci. 2007, 64, 679–690. [Google Scholar] [CrossRef]
  13. Kim, G.; Yun, K.; Kim, J. Effect of Heat Treatment on the Decay Resistance and the Bending Properties of Radiata Pine Sapwood. Mater. Org. 1998, 32, 101–108. [Google Scholar]
  14. Ohmae, K.; Minato, K.; Norimoto, M. The Analysis of Dimensional Changes Due to Chemical Treatments and Water Soaking for Hinoki (Chamaecyparis Obtusa) Wood. Holzforschung 2002, 56, 98–102. [Google Scholar] [CrossRef]
  15. Verma, P.; Junga, U.; Militz, H.; Mai, C. Protection Mechanisms of DMDHEU Treated Wood against White and Brown Rot Fungi. Holzforschung 2009, 63, 371–378. [Google Scholar] [CrossRef]
  16. Show, P.L.; Oladele, K.O.; Siew, Q.Y.; Aziz Zakry, F.A.; Lan, J.C.-W.; Ling, T.C. Overview of Citric Acid Production from Aspergillus niger. Front. Life Sci. 2015, 8, 271–283. [Google Scholar] [CrossRef]
  17. Yang, C.Q. FT-IR Spectroscopy Study of the Ester Crosslinking Mechanism of Cotton Cellulose. Text. Res. J. 1991, 61, 433–440. [Google Scholar] [CrossRef]
  18. Bischof Vukusic, S.; Katovic, D.; Schramm, C.; Trajkovic, J.; Sefc, B. Polycarboxylic Acids as Non-Formaldehyde Anti-Swelling Agents for Wood. Holzforschung 2006, 60, 439–444. [Google Scholar] [CrossRef]
  19. Zoldners, J.; Kiseleva, T. Modification of Hemicelluloses with Polycarboxylic Acids. Holzforschung 2013, 67, 567–571. [Google Scholar] [CrossRef]
  20. Fang, G.; Li, J.; Xu, X. The Intermediate of Crosslinking Reaction between Wood and Polycarboxylic Acid. Sci. Silvae Sin. 2000, 36, 51–54. [Google Scholar] [CrossRef]
  21. Katović, D.; Trajković, J.; Bischof Vukusic, S.; Bogoslav, S. Alternative Agents and Methods for Chemical Modification of Wood. Drv. Ind. 2004, 55, 175–180. [Google Scholar]
  22. Xie, Y.; Krause, A.; Militz, H.; Turkulin, H.; Richter, K.; Mai, C. Effect of Treatments with 1,3-Dimethylol-4,5-Dihydroxy-Ethyleneurea (DMDHEU) on the Tensile Properties of Wood. Holzforschung 2007, 61, 43–50. [Google Scholar] [CrossRef]
  23. Lee, S.H.; Md Tahir, P.; Lum, W.C.; Tan, L.P.; Bawon, P.; Park, B.-D.; Osman Al Edrus, S.S.; Abdullah, U.H. A Review on Citric Acid as Green Modifying Agent and Binder for Wood. Polymers 2020, 12, 1692. [Google Scholar] [CrossRef]
  24. Feng, X.; Xiao, Z.; Sui, S.; Wang, Q.; Xie, Y. Esterification of Wood with Citric Acid: The Catalytic Effects of Sodium Hypophosphite (SHP). Holzforschung 2014, 68, 427–433. [Google Scholar] [CrossRef]
  25. L’Hostis, C.; Thévenon, M.-F.; Fredon, E.; Gérardin, P. Improvement of Beech Wood Properties by in situ Formation of Polyesters of Citric and Tartaric Acid in Combination with Glycerol. Holzforschung 2018, 72, 291–299. [Google Scholar] [CrossRef]
  26. Umemura, K.; Sugihara, O.; Kawai, S. Investigation of a New Natural Adhesive Composed of Citric Acid and Sucrose for Particleboard. J. Wood Sci. 2013, 59, 203–208. [Google Scholar] [CrossRef]
  27. Essoua, G.G.; Blanchet, P.; Landry, V.; Beauregard, R. Pine Wood Treated with a Citric Acid and Glycerol Mixture: Biomaterial Performance Improved by a Bio-Byproduct. BioResources 2016, 11, 3049–3072. [Google Scholar] [CrossRef]
  28. He, X.; Xiao, Z.; Feng, X.; Sui, S.; Wang, Q.; Xie, Y. Modification of Poplar Wood with Glucose Crosslinked with Citric Acid and 1,3-Dimethylol-4,5-dihydroxy ethyleneurea. Holzforschung 2016, 70, 47–53. [Google Scholar] [CrossRef]
  29. Berube, M.-A.; Schorr, D.; Ball, R.J.; Landry, V.; Blanchet, P. Determination of in situ Esterification Parameters of Citric Acid-Glycerol Based Polymers for Wood Impregnation. J. Polym. Environ. 2018, 26, 970–979. [Google Scholar] [CrossRef]
  30. Larnøy, E.; Karaca, A.; Gobakken, L.R.; Hill, C.A.S. Polyesterification of Wood Using Sorbitol and Citric Acid under Aqueous Conditions. Int. Wood Prod. J. 2018, 9, 66–73. [Google Scholar] [CrossRef]
  31. Guo, W.; Xiao, Z.; Wentzel, M.; Emmerich, L.; Xie, Y.; Militz, H. Modification of Scots Pine with Activated Glucose and Citric Acid: Physical and Mechanical Properties. BioRes 2019, 14, 3445–3458. [Google Scholar] [CrossRef]
  32. Centolella, A.P.; Razor, B.G. Polyesters of Citric Acid and Sorbitol 1972. U.S. Patent No. 3,661,955, 9 May 1972. [Google Scholar]
  33. Doll, K.M.; Shogren, R.L.; Willett, J.L.; Swift, G. Solvent-Free Polymerization of Citric Acid And D-Sorbitol. J. Polym. Sci. A Polym. Chem. 2006, 44, 4259–4267. [Google Scholar] [CrossRef]
  34. Mubarok, M.; Militz, H.; Dumarçay, S.; Gérardin, P. Beech Wood Modification Based on in situ Esterification with Sorbitol and Citric Acid. Wood Sci. Technol. 2020, 54, 479–502. [Google Scholar] [CrossRef]
  35. Beck, G. Leachability and Decay Resistance of Wood Polyesterified with Sorbitol and Citric Acid. Forests 2020, 11, 650. [Google Scholar] [CrossRef]
  36. Morais, A.R.C.; Pinto, J.V.; Nunes, D.; Roseiro, L.B.; Oliveira, M.C.; Fortunato, E.; Bogel-Łukasik, R. Imidazole: Prospect Solvent for Lignocellulosic Biomass Fractionation and Delignification. ACS Sustain. Chem. Eng. 2016, 4, 1643–1652. [Google Scholar] [CrossRef]
  37. Grylewicz, A.; Spychaj, T.; Zdanowicz, M. Thermoplastic Starch/Wood Biocomposites Processed with Deep Eutectic Solvents. Compos. Part A Appl. Sci. Manuf. 2019, 121, 517–524. [Google Scholar] [CrossRef]
  38. Del Menezzi, C.; Amirou, S.; Pizzi, A.; Xi, X.; Delmotte, L. Reactions with Wood Carbohydrates and Lignin of Citric Acid as a Bond Promoter of Wood Veneer Panels. Polymers 2018, 10, 833. [Google Scholar] [CrossRef]
  39. Patil, M.; Rajput, S. Succinimides: Synthesis, Reaction and Biological Activity. Int. J. Pharm. Pharm. Sci. 2014, 6, 8–14. [Google Scholar]
  40. Li, X.; Zhang, Z.; Suo, S.; Qiao, Y.; Du, B.; Deng, H.; Hao, Z.; Luo, H. Microstructure of Silver Coating of Cyanide-Free Brush Plating Based on Multicomponent Coordination System. IOP Conf. Ser. Mater. Sci. Eng. 2019, 688, 033047. [Google Scholar] [CrossRef]
  41. Larnøy, E.; Biørnstad, J.; Treu, A. Advances in CIOL-Protected Wood—The Road Towards Commercialization. In Proceedings of the 17th annual meeting of the Northern European Network for Wood Science and Engineering, Kaunas, Lithuania, 14–15 October 2021; pp. 89–90. [Google Scholar]
  42. Treu, A.; Larnøy, E.; Bjørnstad, J. CIOL®-Protection of Wood—An Update. In Proceedings of the IRG Annual Meeting, IRG/WP 22-40932, Bled, Slovenia, 29 May–2 June 2022. [Google Scholar]
  43. Kim, I.; Karlsson, O.; Jones, D.; Mantanis, G.; Sandberg, D. Dimensional Stabilisation of Scots Pine (Pinus sylvestris L.) Sapwood by Reaction with Maleic Anhydride and Sodium Hypophosphite. Eur. J. Wood Prod. 2021, 79, 589–596. [Google Scholar] [CrossRef]
  44. Stamm, A.J. Wood and Cellulose Science; Ronald Press: New York, NY, USA, 1964. [Google Scholar]
  45. Altgen, M.; Willems, W.; Militz, H. Wood Degradation Affected by Process Conditions during Thermal Modification of European Beech in a High-Pressure Reactor System. Eur. J. Wood Prod. 2016, 74, 653–662. [Google Scholar] [CrossRef]
  46. CEN. EN 408: 2010 + A1: 2012; Timber Structures. Structural Timber and Glued Laminated Timber. Determination of Some Physical and Mechanical Properties. European Committee for Standardization: Brussels, Belgium, 2010.
  47. Umemura, K.; Ueda, T.; Kawai, S. Characterization of Wood-Based Molding Bonded with Citric Acid. J. Wood Sci. 2012, 58, 38–45. [Google Scholar] [CrossRef]
  48. Trivedi, M.K.; Dahryn Trivedi, A.B.; Gunin Saikia, G.N. Physical and Structural Characterization of Biofield Treated Imidazole Derivatives. Nat. Prod. Chem. Res. 2015, 3, 1000187. [Google Scholar] [CrossRef]
  49. Tudorachi, N.; Chiriac, A.P. TGA/FTIR/MS Study on Thermal Decomposition of Poly(succinimide) and Sodium Poly(aspartate). Polym. Test. 2011, 30, 397–407. [Google Scholar] [CrossRef]
  50. Alén, R.; Kotilainen, R.; Zaman, A. Thermochemical Behavior of Norway Spruce (Picea abies) at 180–225 °C. Wood Sci. Technol. 2002, 36, 163–171. [Google Scholar] [CrossRef]
  51. Wentzel, M.; Altgen, M.; Militz, H. Analyzing Reversible Changes in Hygroscopicity of Thermally Modified Eucalypt Wood from Open and Closed Reactor Systems. Wood Sci. Technol. 2018, 52, 889–907. [Google Scholar] [CrossRef]
  52. Wang, D.; Fu, F.; Lin, L. Molecular-Level Characterization of Changes in the Mechanical Properties of Wood in Response to Thermal Treatment. Cellulose 2022, 29, 3131–3142. [Google Scholar] [CrossRef]
Forests 14 01976 g001

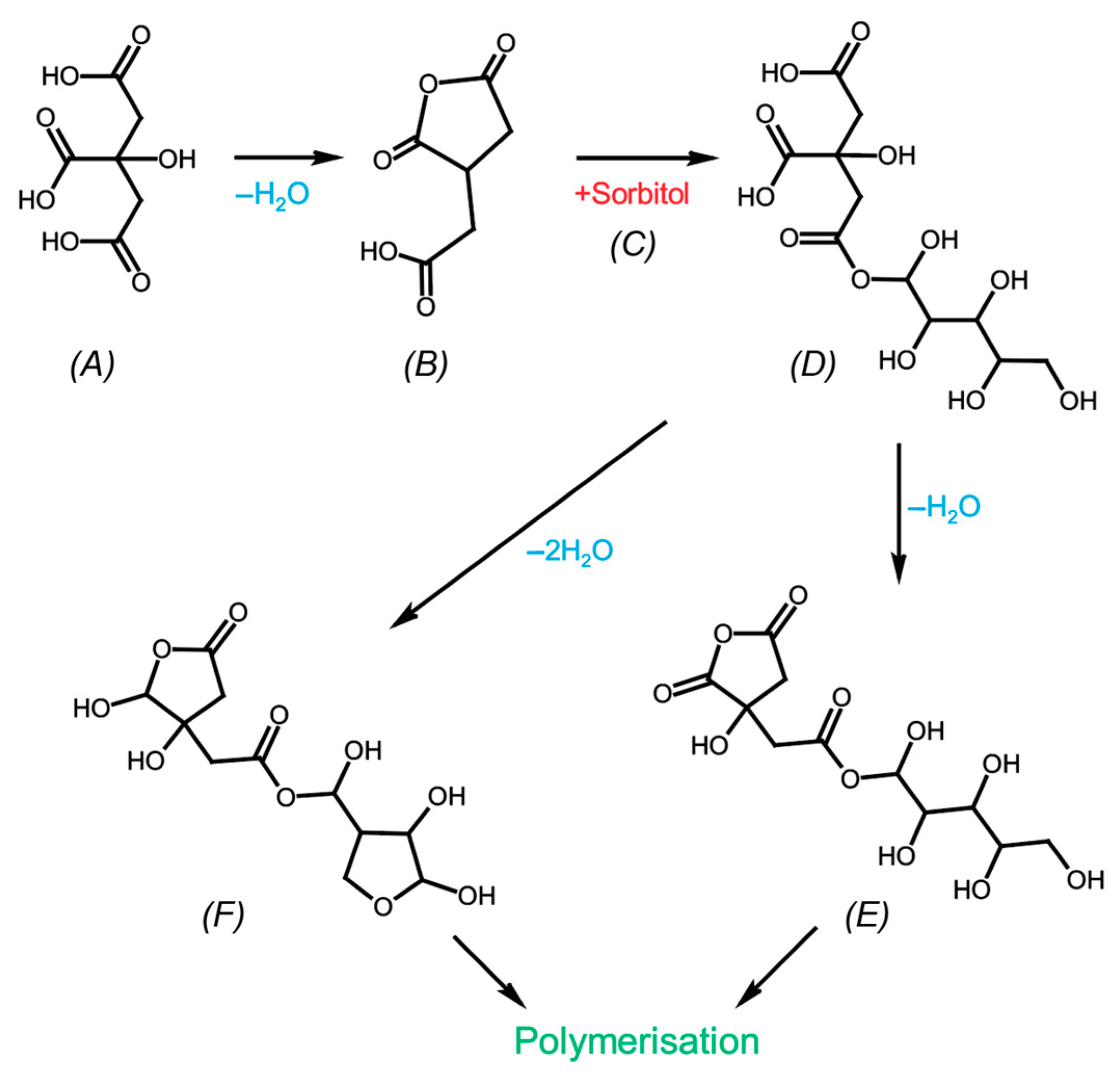

Figure 1. The reaction mechanism between citric acid (A) and sorbitol (C). Intermediate cyclic anhydride (B,E), ester (D), and anhydrosorbitol ring (F). Adapted from [30].
Figure 1. The reaction mechanism between citric acid (A) and sorbitol (C). Intermediate cyclic anhydride (B,E), ester (D), and anhydrosorbitol ring (F). Adapted from [30].
Forests 14 01976 g001
Forests 14 01976 g002

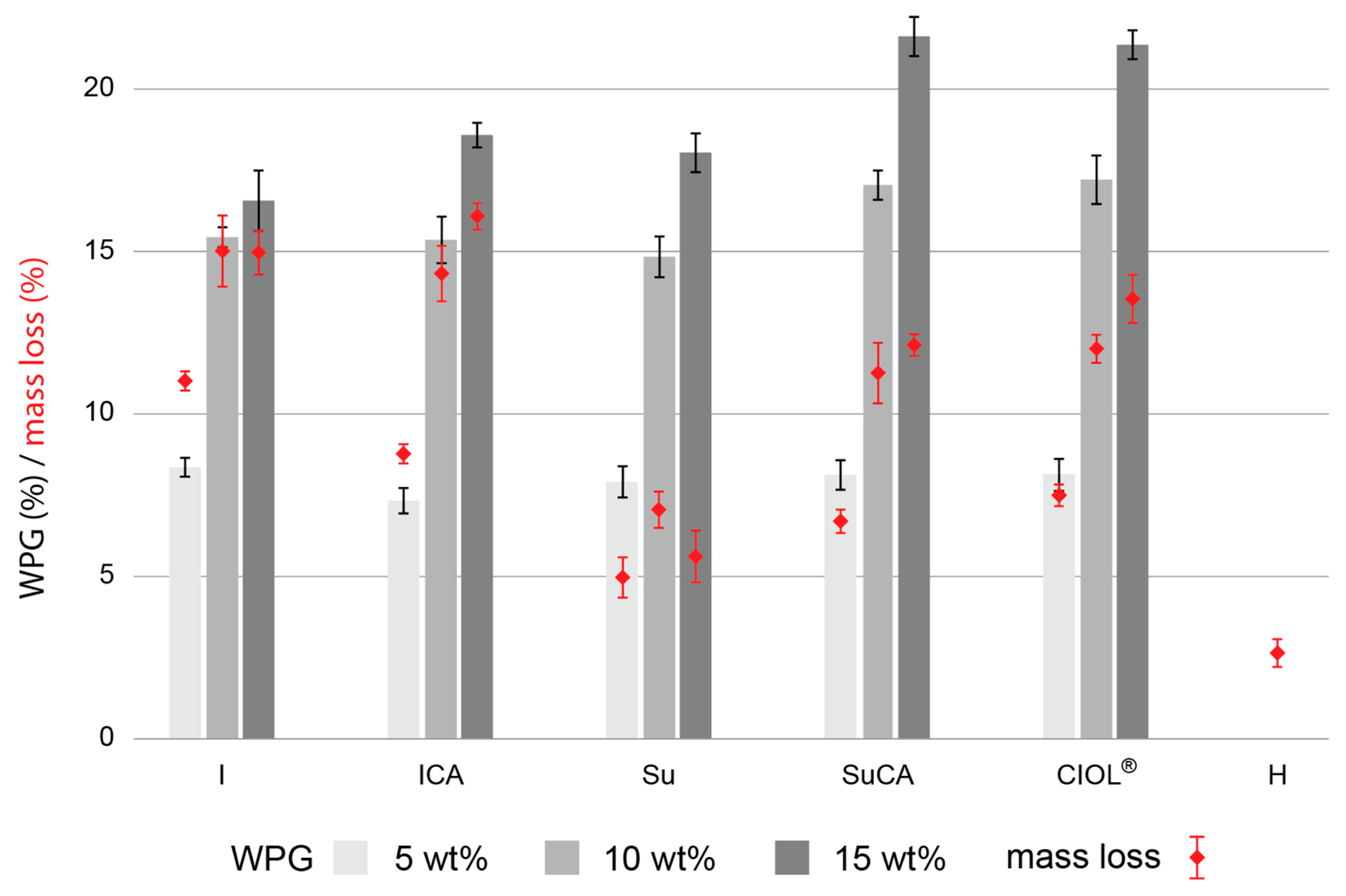

Figure 2. The mean ± standard deviation of weight percentage gain (WPG) after pressure impregnation and drying and mass loss due to heat treatment at 220 °C (ΔmHT) of the specimens treated with different concentrations (wt%) of the chemical solution. ΔmHT was calculated in relation to the initial dry mass. Treatment shorting can be seen in Table 1. The number of specimens per group = 6.
Figure 2. The mean ± standard deviation of weight percentage gain (WPG) after pressure impregnation and drying and mass loss due to heat treatment at 220 °C (ΔmHT) of the specimens treated with different concentrations (wt%) of the chemical solution. ΔmHT was calculated in relation to the initial dry mass. Treatment shorting can be seen in Table 1. The number of specimens per group = 6.
Forests 14 01976 g002
Forests 14 01976 g003

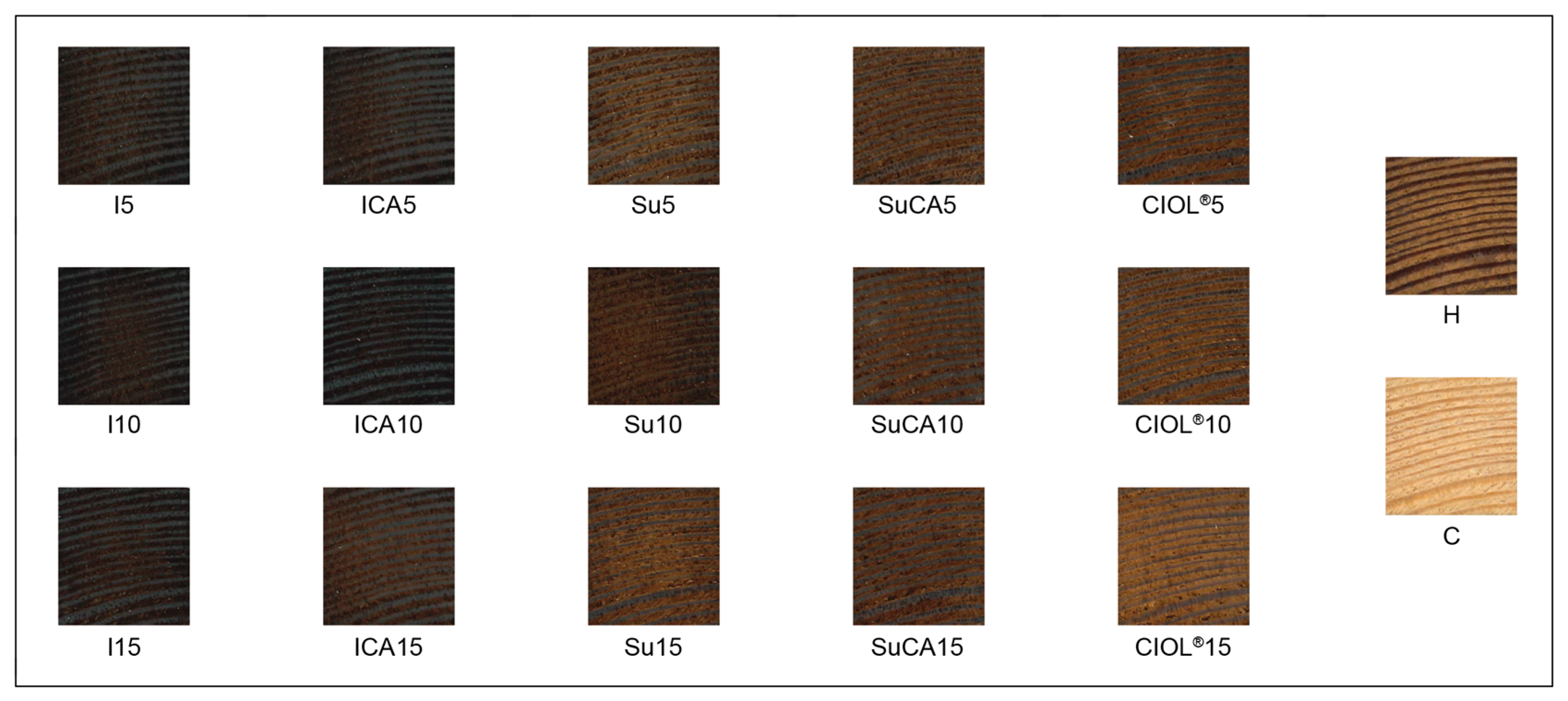

Figure 3. Cross-sectional appearance of specimens after heat treatment and the untreated control (C).
Figure 3. Cross-sectional appearance of specimens after heat treatment and the untreated control (C).
Forests 14 01976 g003
Forests 14 01976 g004
Figure 4. Mass loss after three wet-dry cycles in reference to the dry weight after the treatment (Δmleaching) and to the initial dry weight (Δmtotal). wt% corresponds to the solid concentration of the chemical solution used for pressure impregnation. The number of specimens per group = 6.
Figure 4. Mass loss after three wet-dry cycles in reference to the dry weight after the treatment (Δmleaching) and to the initial dry weight (Δmtotal). wt% corresponds to the solid concentration of the chemical solution used for pressure impregnation. The number of specimens per group = 6.
Forests 14 01976 g004
Forests 14 01976 g005
Figure 5. Mean volumetric changes in specimens treated with solutions with 15 wt% solid concentration during wet-dry cycling. Dn: oven-dried in the nth cycle; Wn: wet in the nth cycle.
Figure 5. Mean volumetric changes in specimens treated with solutions with 15 wt% solid concentration during wet-dry cycling. Dn: oven-dried in the nth cycle; Wn: wet in the nth cycle.
Forests 14 01976 g005
Forests 14 01976 g006

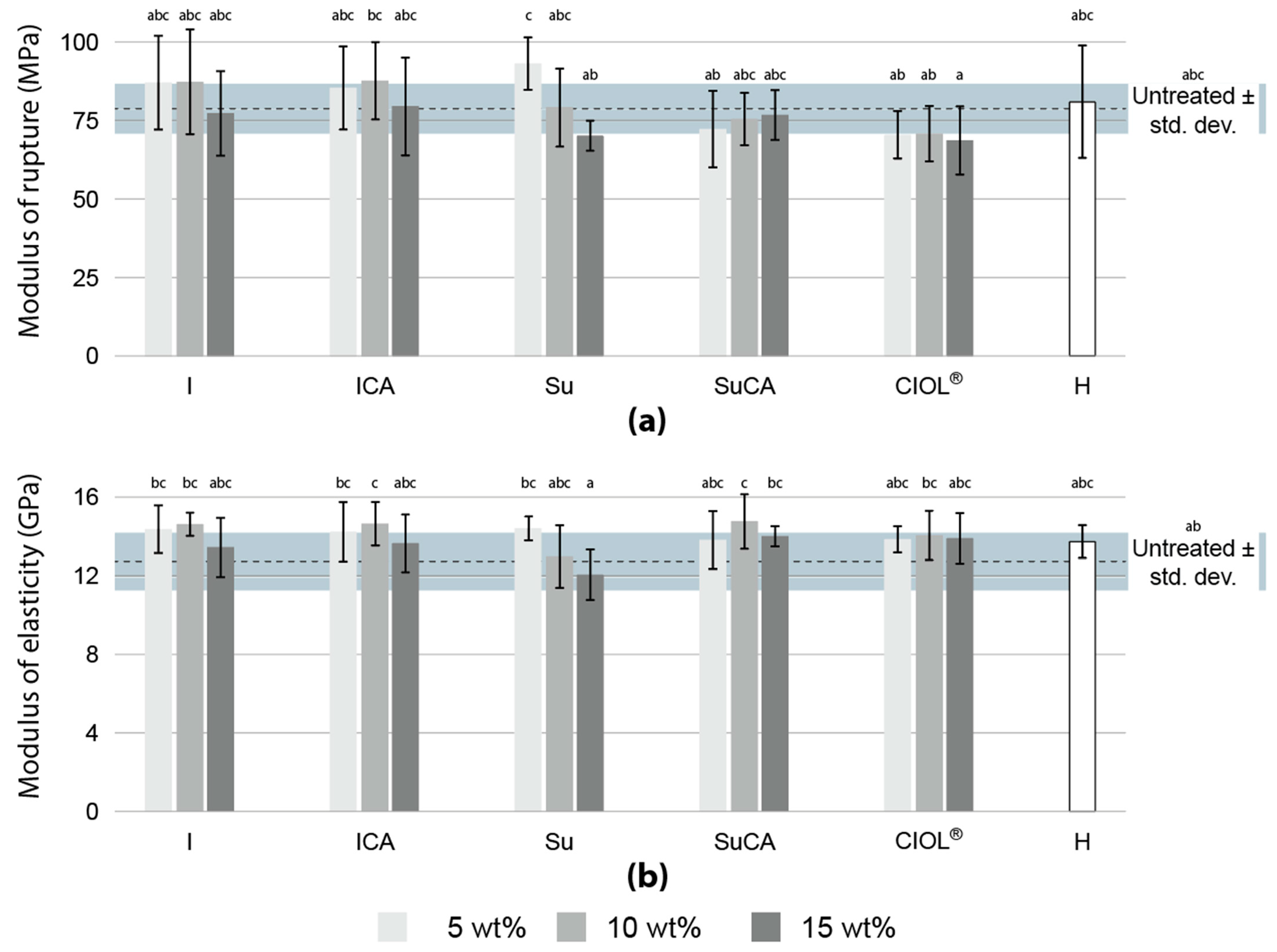

Figure 6. The mean ± standard deviation of the modulus of rupture (a) and modulus of elasticity (b) were measured for the untreated and treated specimens. wt% corresponds to the solid concentration of the chemical solution used for pressure impregnation. The result of the statistical post-hoc test is presented by the compact letter display above each bar. The number of specimens per group = 12.
Figure 6. The mean ± standard deviation of the modulus of rupture (a) and modulus of elasticity (b) were measured for the untreated and treated specimens. wt% corresponds to the solid concentration of the chemical solution used for pressure impregnation. The result of the statistical post-hoc test is presented by the compact letter display above each bar. The number of specimens per group = 12.
Forests 14 01976 g006
Table 1. Treatments and chemical concentration of aqueous solutions used for pressure impregnation. The number in the treatment ID states the solid concentration of the used solution. Number of specimens per group: anti-swelling efficiency test = 6, and bending test = 12.
Table 1. Treatments and chemical concentration of aqueous solutions used for pressure impregnation. The number in the treatment ID states the solid concentration of the used solution. Number of specimens per group: anti-swelling efficiency test = 6, and bending test = 12.
Treatment IDTotal Concentration of Solution (wt%)Imidazole
(wt%)		Succinimide
(wt%)		Citric Acid
(wt%)		Sorbitol
(wt%)		Heat Treatment Temperature (°C)
I555.0---220
I101010.0---220
I151515.0---220
ICA552.8-2.2-220
ICA10105.6-4.4-220
ICA15158.4-6.6-220
Su55-5.0--220
Su1010-10.0--220
Su1515-15.0--220
SuCA55-2.82.2-220
SuCA1010-5.64.4-220
SuCA1515-8.46.6-220
CIOL®5 15--3.81.2220
CIOL®10 110--7.62.4220
CIOL®15 115--11.43.6220
H-----220
C------
1 The combination of citric acid and sorbitol in a 3:1 molar ratio fixed by a curing step is carried out according to the CIOL® process [42].
Table 2. The mean equilibrium moisture content (EMC) and anti-swelling efficiency (ASE) of specimens treated with different concentrations (wt%) of the chemical solution followed by heat treatment. Number of specimens per group = 6.
Table 2. The mean equilibrium moisture content (EMC) and anti-swelling efficiency (ASE) of specimens treated with different concentrations (wt%) of the chemical solution followed by heat treatment. Number of specimens per group = 6.
IICASuSuCACIOL®HC
(wt%)5101551015510155101551015--
EMC4.55.24.65.25.35.06.36.15.65.36.14.85.56.35.07.011.0
ASE
1st cycle		43.753.859.838.044.154.436.347.257.445.650.659.240.847.952.722.40
ASE
2nd cycle		34.535.237.132.737.043.422.724.227.234.240.546.536.443.449.914.7−8.1
ASE
3rd cycle		29.633.431.329.234.738.219.021.017.431.637.941.235.041.547.511.1−7.0
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Scharf, A.; Dernegård, H.; Oja, J.; Sandberg, D.; Jones, D. Wood Modification Using Imidazole and Succinimide: Effects on Dimensional Stability and Bending Properties. Forests 2023, 14, 1976. https://doi.org/10.3390/f14101976

AMA Style

Scharf A, Dernegård H, Oja J, Sandberg D, Jones D. Wood Modification Using Imidazole and Succinimide: Effects on Dimensional Stability and Bending Properties. Forests. 2023; 14(10):1976. https://doi.org/10.3390/f14101976

Chicago/Turabian Style

Scharf, Alexander, Henric Dernegård, Johan Oja, Dick Sandberg, and Dennis Jones. 2023. "Wood Modification Using Imidazole and Succinimide: Effects on Dimensional Stability and Bending Properties" Forests 14, no. 10: 1976. https://doi.org/10.3390/f14101976

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
