Article

Growth, Productivity, Biomass and Carbon Stock in Eucalyptus saligna and Grevillea robusta Plantations in North Kivu, Democratic Republic of the Congo

by
Désiré Katembo Kasekete
1,2,
Gauthier Ligot
3,
Jean-Pierre Mate Mweru
4,
Thomas Drouet
5,
Mélissa Rousseau
6,
Adrien Moango
7 and
Nils Bourland
6,8,9,*
1
Department of Biology, Faculty of Sciences, University of Kisangani, Kisangani 2012, Democratic Republic of the Congo
2
Department of Environmental Science and Management, Faculty of Sciences, Official University of Ruwenzori, Butembo 560, Democratic Republic of the Congo
3
Forest is Life, TERRA, Gembloux Agro-Bio Tech, Université de Liège, 5030 Gembloux, Belgium
4
Regional Postgraduate School for Integrated Planning and Management of Tropical Forests and Territories (ERAIFT), University of Kinshasa, Kinshasa 15373, Democratic Republic of the Congo
5
Unit of Plant Ecology and Biogeochemistry, Faculty of Sciences, Université Libre de Bruxelles, 1050 Brussels, Belgium
6
Service of Wood Biology, Royal Museum for Central Africa, 3080 Tervuren, Belgium
7
Department of Agronomic Sciences, Faculty of Management of Renewable Natural Resources, University of Kisangani, Kisangani 2012, Democratic Republic of the Congo
8
Center for International Forestry Research (CIFOR), Jalan CIFOR, Sindang Barang Bogor (Barat) 16115, Indonesia
9
Resources & Synergies Development Sprl, 1332 Genval, Belgium
*
Author to whom correspondence should be addressed.
Forests 2022, 13(9), 1508; https://doi.org/10.3390/f13091508
Submission received: 26 July 2022 / Revised: 8 September 2022 / Accepted: 9 September 2022 / Published: 16 September 2022
(This article belongs to the Section Forest Ecology and Management)

Abstract

:
Initiated by the World Wildlife Fund (WWF) more than a decade ago in North Kivu, single-species plantations of Eucalyptus saligna and Grevillea robusta constitute, with other village plantations, the current legal source of wood-energy for the communities bordering the Virunga National Park (PNVi). This study assesses the growth and productivity of these plantations in two sites with different soil and climatic conditions to predict their production over time. The study also assesses the carbon stock and long-term CO2 fixation in the biomass of the studied plantations to deduce their contribution to climate change mitigation. Non-destructive inventories were carried out during three consecutive years in 20 E. saligna and 12 G. robusta plantations in Sake and Kirumba. Analysis of the data revealed that both species have similar diametric growth while height growth and productivity were significantly higher in the E. saligna plantations. The productivity of E. saligna was also higher in Kirumba than in Sake, while that of G. robusta was higher in Sake than in Kirumba. The differences observed were mainly related to species, silviculture, altitude and concentration of bioavailable elements in the soils. The analysis of productivity evolution over time allowed us to determine optimal rotations at 8 and 12 years, respectively, for E. saligna and G. robusta plantations. The relationships between biomass or carbon stock and tree diameter were not different between the studied species but were significantly different at the stand level. If silviculture was standardized and plantations carefully monitored, carbon stock and long-term CO2 fixation would be higher in G. robusta plantations than in E. saligna plantations. These results indicate that while for productivity reasons E. saligna is the favoured species in wood-energy plantations to quickly meet the demand of the growing and disadvantaged population living in the vicinity of PNVi, carefully monitored G. robusta plantations could be more interesting in terms of carbon credits. To simultaneously optimise wood-energy production and carbon storage in the plantations initiated in North Kivu, E. saligna and G. robusta should be planted in mixture. In addition, species and site characteristics adapted silvicultural management practices must be applied to these plantations, which are very important for the region, its population and its park. Finally, the economic profitability as well as the sustainability of the plantations should be assessed in the longer term in North Kivu.

1. Introduction

Forest plantations provide a variety of ecosystem services [1,2], contribute to improving people’s livelihoods [3,4], provide raw materials for the wood and paper industry [5,6,7], are a source of wood for domestic energy [8,9] and store carbon in their above- and below-ground biomass [10,11]. Currently, large-scale tree planting on non-forested and/or deforested land is seen as one of the ways to restore degraded ecosystems [12,13,14] and to combat global warming [15,16]. High biomass producing forests such as young plantations in the tropics and subtropics can indeed increase the terrestrial carbon sink and thus slow down the accumulation of CO2 in the atmosphere [10,11,15,16].
Forest plantations are generally composed of one or two species planted at regular spacings and now involve mainly exotic taxa that grow rapidly [5,17]. In the tropics and subtropics, the genera Acacia, Casuarina, Eucalyptus, Gmelina, Grevillea, Leucaena, Pinus or Tectona are generally the most used [9]. Among these species, the genera Eucalyptus and Acacia are amongst those planted in short rotation [18,19]. While the genus Eucalyptus is mainly used in forestry for the production of essential oils, tannins, pulp, timber and wood-energy [20], the genus Acacia is used in agroforestry as well as in forestry for the restoration of degraded land, soil fertility improvement, timber and wood-energy production [19,21,22]. As for the genus Grevillea, it is used in agroforestry as a shade tree for coffee and tea trees, but also in forestry to produce wood-energy over rotations of 10 to 20 years and timber over rotations of 25 to 40 years [23,24].
In the Democratic Republic of Congo (DRC), plantations of fast-growing exotic species have existed since the 1980s but remain poorly documented. These plantations are mainly developed to meet the demand for wood-energy, notably in Kinshasa [25], North Kivu [26], Kwilu [27], Central Kongo [28], Upper Katanga [29] and recently in the Tshopo [30]. Most of these plantations are based on Acacia auriculiformis A. Cunn. ex Benth. except in Kivu where the genus Eucalyptus is mainly used. Other species including Grevillea robusta A. Cunn. and Acacia mearnsii (De Wild.) Pedley are also planted in Kivu [31]. These plantations are generally monospecific, sometimes in association with food crops. Apart from the A. auriculiformis plantations in Mampu on the Bateke plateau, the other plantations in the DRC have not yet been the subject of scientific studies, particularly with regard to production and carbon sequestration potential, economic profitability or the sustainability of their management. Among these plantations are those initiated since 2007 as part of the EcoMakala project around the Virunga National Park (PNVi) by the World Wildlife Fund (WWF). These monospecific plantations based on Eucalyptus spp., G. robusta or A. mearnsii currently cover nearly 11,200 ha [32] and are expected to play a major role in the protection of the PNVi by providing wood-energy to the population living near the park, including the town of Goma, and by providing an alternative financial income to the farmer-planters. In 2011, the EcoMakala project was approved and registered as a geographically integrated REDD+ pilot project in eastern DRC [33]. Between 2020 and 2021, EcoMakala+ received USD 1.3 million, making North Kivu the first province to benefit from the sale of carbon credits in DRC [34].
To establish recommendations for management adapted to the objectives and expected production of these plantations, it is important to characterise and model the determinants of their productivity as suggested by Rondeux [35]. To this end, growth and productivity models must be fitted at the tree or stand level. Vanclay [36] defines a growth model as a synthesis of inventory data to better characterise the growth and evolution of forests. Growth models are generally equations or systems of equations that predict the growth and yield of a forest stand for given ecological conditions. These empirical models are usually calibrated by combining inventory data with environmental data (sometimes also remote sensing data) and are tools for forest researchers and managers to predict production and explore silvicultural options [35,36]. The validity of the models obtained is often restricted to the conditions under which the data were collected. Given the spatial and temporal variability of production factors (species, age, seed source, ontogenic stage, silviculture, climate, soil type, topography), it is indeed risky to use such models to extrapolate to conditions other than those inventoried.
Given the importance of the E. saligna and G. robusta plantations initiated around the PNVi, particularly in terms of wood-energy production and expected carbon remuneration, the main purpose of this research is to quantify their productivity and carbon stock so as to propose adapted management measures. Specifically, in the case of such plantations installed in two sites with contrasting soil and climate conditions (Sake and Kirumba), the study aims to provide answers to the following research questions:
(i)
What are their growth and productivity?
(ii)
Can we define/design/establish a silviculture adapted to the biotic and abiotic factors that significantly influence their growth and productivity?
(iii)
What should be the rotation length as well as the age and intensity of thinning to maximise their production?
(iv)
To which extent are those plantations contributing in the mitigation of climate change and what is their potential income on the carbon markets?
Based on the literature review summarised in Table 1, the basic hypotheses tested in this study were that productivity and carbon stock are higher in plantations (i) of E. saligna rather than G. robusta, and (ii) on fertile volcanic soils of Sake (see [37,38]) rather than non-volcanic ones of Kirumba.

2. Materials and Methods

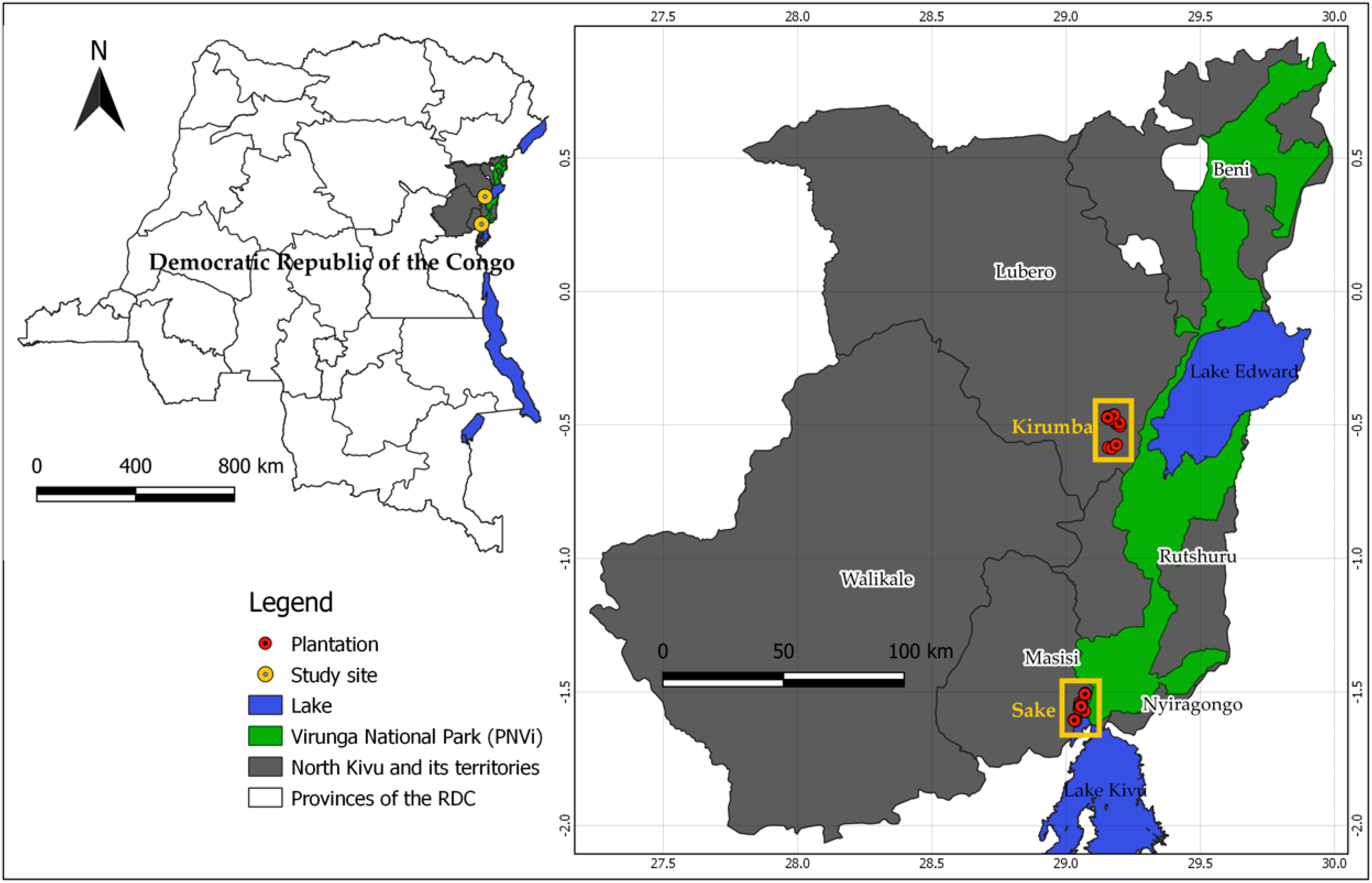

2.1. Study Sites

The study was conducted in the province of North Kivu (DRC), specifically in Sake and Kirumba (Figure 1). The relief is essentially mountainous in both sites with an altitude varying between 1470 and 1760 m in Sake and between 1650 and 2200 m in Kirumba (Table S1). The soils of Sake are derived from ancient (notably at Kimoka, Kirotshe and Luhonga) and recent (notably at Mubambiro) basaltic lava [37,39]. These soils are slightly acidic or neutral (pH-water = 6.8 ± 0.4; Table S2). Soils developed on recent lavas differ from those derived from ancient lavas in their low cation exchange capacity (CEC = 3.5 ± 0.4 cmolc/kg at Mubambiro compared to 14.0 ± 9.9 cmolc/kg at Kimoka, 42.7 ± 15.3 cmolc/kg at Kirotshe and 15.5 ± 0.9 cmolc/kg at Luhonga) and bioavailable calcium concentration ([Ca]: 2200 ± 420 µg/g in Mubambiro compared to 4420 ± 1960 µg/g in Kimoka, 7720 ± 2080 µg/g in Kirotshe and 3180 ± 80 µg/g in Luhonga). In Kirumba, the soils are essentially derived from granitic rocks [39]. These soils are acidic with high and locally sometimes toxic aluminium content (pH-water = 4.6 ± 0.4 and [Al] = 620 ± 370 μg/g), low cation exchange capacity and low bioavailable calcium concentration (respectively, CEC = 3.5 ± 2.1 cmolc/kg and [Ca] = 280 ± 290 μg/g). According to the FAO WRB classification, Sake soils are Haplic Acrisols while Kirumba soils are Aluandic Andosols [40]. The Sake plantations benefit from a tropical monsoon climate (Am) with an average temperature of 19.9 °C and 2716 mm/year of rainfall. In Kirumba, the climate is equatorial (Af) with an average temperature of 18.4 °C and rainfall of 3750 mm/year [41]. In both sites, the vegetation consists of a mosaic of forest and savannah [42]. Eucalyptus spp. and G. robusta plantations are established in small clumps on private concessions.

2.2. Study Material

The study was conducted in 32 single-species plantations, of which 20 were of E. saligna (Figure 2a) and 12 of G. robusta (Figure 2b). Literature data related to the botanical, ecological, silvicultural and cultural characteristics of these two species originating from Australia are summarised in Table 1.
The plantations studied were selected to provide a sample of the different ages, planting spacings and topographical situations per species and site. These plantations were established between 2010 and 2016 by transplanting 15–20 cm tall seedlings at spacings of 3 m × 3 m, 2.5 m × 2.5 m or 2 m × 2 m for E. saligna and 4 m × 4 m or 3 m × 3 m for G. robusta. During the first three years, the trees are regularly hoe-weeded (twice or thrice a year) and food crops are usually grown in association with them. From the fourth year onwards, maintenance is done with a machete (once or twice a year). Agricultural practices as well as extensive grazing (cattle, goats and sheep) have been observed in some plantations. In most of the plantations studied, stems were not evenly distributed. This irregularity in the spatial distribution of stems was due to a lack of replanting following, depending on the plantation, malicious acts (e.g., theft of seedlings), natural mortality, the passage of a bush fire and/or the early cutting of some stems by thieves. The success rate (see Equation (5)) varied between 30 and 100% in E. saligna plantations and between 18 and 94% in G. robusta plantations (Table S1). The lowest success rates were observed in the Sake plantations (18%–70%) and the highest in the Kirumba plantations (52%–100%).
Thinning and/or pruning operations were rare in these plantations. They are mainly exploited by clear-cutting to produce wood-energy (mainly charcoal) and construction wood (planks, rafters and sleepers). This cutting generally takes place between 6 and 10 years in E. saligna plantations and between 10 and 15 years in G. robusta plantations. However, some E. saligna plantations dedicated to timber production remain beyond 10 years and are often thinned between 8 and 10 years. Thinned wood is generally used for energy purposes (fuelwood and charcoal).
Table 1. Botanical, ecological, silvicultural and cultural characteristics of the tree species used in the studied plantations.
Table 1. Botanical, ecological, silvicultural and cultural characteristics of the tree species used in the studied plantations.
Eucalyptus saligna Sm.Grevillea robusta A. Cunn. ex R. Br.
Common nameSydney Blue Gum treeAustralian Silk Oak
FamilyMyrtaceaeProteaceae
ClimateWarm temperate to subtropical (temperature: −2 to 33 °C; rainfall: 800 to 7620 mm/year), with a mild dry season not exceeding 4 months. It tolerates winter frosts down to −15 °C at the highest altitudesPreferably warm and humid (temperature: 4 to 35 °C; rainfall: 700 to 2400 mm/year), with a dry season not exceeding 4 months. It is resistant to drought and occasional light frosts
RequirementsLight, well-drained soil. Control of competing vegetation in the first two years after plantingLight, alluvial soils without waterlogging, moderately acid to neutral. Control of competing vegetation in the first two years after planting
SensitivityInsect attacksInsect attacks
FloweringFrom 3–4 years after planting4–6 years after planting
Trunk and barkThe bole is generally straight and free of branches for half or two-thirds of the height. Its bark is rough and persistent, brownish or greyish and often peels off in long stripsThe bole is generally without buttresses. The bark is grey to light brown, becoming furrowed with age
Spacing at planting2.4 × 2.4 m; 3 × 3 m; 3.7 × 3.7 m and 4.3 × 4.3 m3 × 3 m and 3 × 4 m
Growth0.8–4.8 cm/year for diameter and 1.2–5 m/year for total height in stands aged 0–10 years1.3–3.3 cm/year for diameter and 0.5–3.4 m/year for total height in stands aged 2–20 years
Productivity27 m3/ha/year worldwide, but varies greatly with edaphic and climatic conditions and nutrient availability5–15 m3/ha/year in 10–20 year old plantations. The productivity is maximized on volcanic soils
ThinningBetween five and eight years in timber plantationsAround five years in India; between 10 and 15 years in Brazil
Tree sizeCan reach 2 m in diameter and 30–50 m in height, exceptionally 2.5 m in diameter and 65 m in total heightCan reach 80–120 cm in diameter and 25–35 m in height
Rotation6–10 years in wood-energy and pulp production plantations10–20 years in wood-energy plantations
Wood density0.34–0.85 g/cm30.54–0.72 g/cm3
UsesProduction of timber, wood-energy and pulp. Erosion control, good honey producing speciesProduction of timber, wood-energy and pulp. Tree in agroforestry systems, shade or ornamental, fodder production, good honey species
References[43,44,45,46,47][23,24,48]

2.3. Inventory Design and Data Collection

Non-destructive inventories were carried out periodically in November–December 2018, 2019 and 2020 in 20 E. saligna plantations and 12 G. robusta plantations. Particularly in the G. robusta plantations, a fourth data collection campaign took place in May 2022 because the three-yearly data were judged not sufficient to accurately monitor tree growth. The area (in hectares, ha) and centre of each plantation were determined with a GPS (Garmin GPSMAP 64stc, Olathe, KS, USA). This area varied between 0.49 and 3.0 ha. In each sampled plantation, the inventory was carried out on a constant area of 500 m2 distributed over three circular plots, each with a radius of 7.30 m measured horizontally to correct for slope. The layout of the plots was adapted to the shape of each plantation. The first plot was always placed in the centre of the plantation (Figure 3). The other two plots were then positioned at approximately half the distance between the centre and the boundary of the plantation along the long side. Each plot was centred on a tree. All trees in the plot were measured and marked and their polar coordinates were determined with reference to the centre tree. As the area of the plantations varied between 0.49 and 3.0 ha, the sampling rate was therefore between 1.67 and 10.2%.
The diameter at 1.30 m from the ground (DBH in cm) and the total height (Ht in m) of each tree in the plot were measured with a dendrometric tape and a laser rangefinder (Forestry Pro; Nikon, Tokyo, Japan), respectively. The DBH measurement level was marked with sticky paper which was then removed after marking the tree with oil paint [49,50]. A total of 1044 trees were measured, of which 763 were in E. saligna plantations and 281 in G. robusta plantations.
The topographical situation of each plot was characterised using the classification of Méthot et al. [49]. The slope of the land was measured with a Suunto clinometer (Vantaa, Finland). Due to the absence of weather stations at both sites, climate variables (temperature and precipitation) were acquired from global online data [41] using the geographical coordinates of each plantation.
Soil samples were taken with a soil auger to a depth of 30 cm. For each plantation, two composite samples of 400 g each were taken, one from samples taken in the plots and the other from samples taken in neighbouring fields and/or fallows at a minimum distance of 30 m from the plantation boundaries. These samples were each packed in a plastic bag, marked and sent to the Laboratory of Plant Ecology and Biogeochemistry of the Université Libre de Bruxelles (ULB) for physico-chemical analyses (Table S2). The granulometry (proportion of sand, silt and clay) was determined by sieving and sedimentation after destruction of the organic matter. The pH-water was measured with glass electrodes in a soil suspension according to NF-ISO 10390. The cation exchange capacity (CEC, in cmolc/kg) was evaluated on soil extracts with cobaltihexamine trichloride according to ISO 23470:2007 [51]. The bioavailable elements (Ca, Mg, K, Al, Cu, Fe, Mn, P and Zn, in μg/g) were extracted with 0.5 M EDTA 0.02 M ammonium acetate solution at pH 4.65 [52]. Comparison of the values of these parameters showed that the soils collected from the plantations did not differ significantly (Student’s t-test, p-value > 0.05) from those of the surrounding fields. At this stage, the soil variables do not seem to be affected by the plantations.
Wood cores for the infradensity measurements required for biomass estimation were collected in 2019 from 10 plantations ranging in age from 6 to 10 years, with 5 plantations per species. In each selected plantation, four sample trees were selected along the four cardinal points (E-W-N-S) around the central plot. Wood cores were extracted at 1.30 m from the ground on either side of the tree trunk (180° apart) using a Pressler auger that was driven into the tree perpendicular to the trunk axis [53]. Each of the 80 wood cores collected was stored in a paper envelope and marked. All wood cores were then sent to the Wood Biology Laboratory in Yangambi (DRC) for infradensity measurements. Each core of diameter D (in cm) and length L (in cm) was placed in an oven for drying at 105 °C for 48 h [54]. Once dried, the core was weighed on a 0.001 g precision balance. The infradensity (ρ in g/cm3, Equation (1)) was calculated by dividing the dry mass of the core (DM in g) by its wet volume (Vc in cm3, Equation (2)).
ρ = DM V c
V c = π 4 ×   D 2 ×   L

2.4. Data Analysis

The data were manipulated with Excel (version 2013, Microsoft Corporation, Redmond, WC, USA) and analysed with R (version 4.2.0, R Core Team, Vienna, Austria) [55].

2.4.1. Estimation of Dendrometric Characteristics

The characteristics recorded for each plantation are: age (in years); stand density (N in stems/ha, Equation (3)); basal area (gi and G in m2/ha, Equations (6) and (7)); mean diameter (DBH in cm); mean total height (Ht in m); dominant height (Hdo in m); total volume (V in m3/ha, Equation (9)); quadratic diameter (dg in cm, Equation (10)); mean tree volume (vm in m3, Equation (11)); and mean basal area (gm in m2, Equation (12)). From the observed density (N) and the theoretical density (N′, Equation (4)) derived from the spacing used at planting (L and e in m, cf. Table S1), the success rate was calculated for each plantation (SR in %, Equation (5)). The average diameter and the average total height were respectively calculated as the arithmetic mean of the diameters and total heights of all trees measured in the plots. The dominant height is the average height of the 100 largest trees in one hectare. It was calculated as the arithmetic mean of the total heights of the five largest trees in the inventory area (500 m2). The total volume was calculated as the sum of the individual volumes of the trees in the plot. The individual volume (Vi in m3) was estimated with the allometric equation proposed by Deleuze et al. [56] where 0.496 is the shape coefficient (Equation (8)). The quadratic diameter corresponds to the diameter of the tree with mean basal area gm and mean volume vm.
N = Number   of   trees   measured Surface   inventoried
  N = 10 , 000 L   ×   e
SR = N   N × 100
g i = π 4 × ( DBH i ) 2
G = i = 1 n g I
V i = 0.496   π   ×   H t × DBH 2 4 1 1.3 H t 2
V = i = 1 n I
d g = 4   g m π
v m = V N
g m = G N

2.4.2. Estimation of Growth and Productivity

Growth and productivity were assessed by calculating the average annual increments in diameter (ADBH in cm/year), total height (AHt in m/year) and volume (AMV in m3/ha/year). Each of these increments corresponds to the ratio between the size observed at a given time and the age of the plantation at that time [35].

2.4.3. Comparison of Dendrometric Characteristics

The averages of the dendrometric characteristics were calculated for each species/site and compared between them (“unpaired Student’s parametric t-test”) with a threshold α of 0.05 (Table 2; Figure 4, Figure 5 and Figure 6). Plantations were previously classified into three categories based on the average age calculated over the three inventories and the species (Figure S1) using the hclust function of the vegan package [57]. The first category includes plantations aged ≥ 8 years; they are referred to as “older plantations”. The second category consists of plantations aged between 5.5 and 7.9 years (Intermediate-aged plantations). The third category gathers plantations ≤ 5.4 years old (younger plantations).

2.4.4. Predictions of Increment, Basal Area and Carbon Stock

To define suitable silvicultural itineraries and to identify the biotic and abiotic factors influencing the growth and productivity of the studied plantations, models based on multiple linear regressions (MLR) were developed in two steps. In the first stage, increments were modelled as a function of stand age and density to allow managers to easily predict stand growth and productivity. These two variables were also used in the predictions of basal area and carbon stock, so as to set the age of thinning and estimate the carbon stock over the entire rotation, respectively. In order to identify the variables that significantly influence the growth and productivity of the two species in the two sites, the increments were, in the second step, modelled by combining all measured biotic and abiotic variables (site, stand age and density, altitude, slope, mean temperature and total annual precipitation, soil grain size and bioavailable elements concentrations in soils). These variables were all previously standardised according to Baillargeon [58]. The selection of variables was carried out step by step by minimising the Akaike information criterion (AIC), the root mean square error (RMSE) and the variance inflation factor (VIF) [59,60]. The model selected was one in which the explanatory variables were not redundant or collinear, with normally distributed (shapiro.test, p-value > 0.05) and homoscedastic (ncvTest, p-value > 0.05) residuals [61,62,63]. The collinearity between the variables was tested using the vif function of the car package [64]. Variables with a VIF greater than 5 were progressively eliminated from the model starting with the one with the highest VIF [63,64,65]. The quality of the predictions was tested by comparing the variance of the observed data with the variances of the predicted data using the fligner.test function in the stats package [55].

2.4.5. Expected Productivity over the Rotation, Age and Length of the Thinning Interval

According to Lanier [66], the rotation is the number of years between the establishment of a forest stand and its final felling. Thinning is the elimination of part of a forest stand in order to allow the best trees to develop. The length of the thinning interval (hereafter “thinning interval”) is the time (in years) between two successive thinning passes on the same plot. In this study, the rotation was determined in such a way as to maximise the average increment in volume (Figure 4c, Figure 5c and Figure 6c). The expected productivities on this rotation were estimated from Models 3 and 8 (Table 3) for E. saligna and G. robusta, respectively. Given the temperament of these two species (both heliophilous) and the age of the stands (between two and 12 years), thinning was considered from the moment when the total basal area reached 30 m2/ha in accordance with Prégent [65]. This choice is justified by the fact that basal area is a good indicator of the degree of competition between stems and takes into account both the number and size of stems and the quality of the site [65,67]. The age of first thinning for each site and species was determined from the threshold basal area (30 m2/ha) and stand density using Models 4 and 9 (Table 3) for E. saligna and G. robusta, respectively. Thinning intensity was estimated from Equation (13) [65] assuming a thinning that removes 10 m2/ha of basal area. Under these conditions, the residual basal area (after thinning) is set at 20 m2/ha. The thinning interval (Table 4) was calculated from the age difference between two consecutive thinnings. The number of stems to be removed during the thinning was determined by multiplying the thinning intensity by the stand density before the thinning. The variability of the age of first thinning as a function of site, species and stand density was tested by MLR.
Thinning   intensity = threshold   basal   area residual   basal   area threshold   basal   area × 100
To enable decision-makers to define the area to be planted, projections were made (Equation (14)) based on the expected productivity and volume of wood-energy needed to satisfy the demand of an arbitrary sample of one million inhabitants (case of the city of Goma) with reference to FAO estimates for which the average annual individual consumption in developing countries is one cubic meter of wood per inhabitant [9].
Area   to   be   planted   in   ha = volume   of   wood   to   be   produced   m 3 / an expected   productivity   m 3 / ha / an

2.4.6. Biomass, Carbon Stock and Financial Potential of Carbon Stored by the Plantations Studied over the Rotation Period

Above-ground biomass was estimated at the tree and stand level. At the tree scale, biomass was estimated from Equation (15) proposed by Chave et al. [68].
AGB est = 0.0673 ρ   ×   D 2 × H 0.976
where AGB est = above-ground biomass (in kg), D = DBH (in cm), H = Ht (in m) and ρ = wood infradensity (in g/cm3).
At the stand level, the above-ground biomass (AGB in Mg/ha) is the sum of the individual biomasses. The below-ground biomass (BGB in Mg/ha) was calculated by multiplying the above-ground biomass by 0.2 as suggested by Ponce-Hernandez [69]. The total biomass was obtained by summing the AGB and BGB. The carbon stock (StC, in Mg/ha) was estimated by multiplying the total biomass by 0.5 as recommended by the IPCC [70]. The total carbon stock over the rotation was estimated from models 5 and 10 (Table 3) for E. saligna and G. robusta, respectively. The CO2 equivalent was calculated by multiplying the carbon stock by 3.67 [70]. The long-term fixed CO2 was estimated by dividing the CO2 equivalent by the rotation time [71]. The financial potential due to the CO2 fixation by the studied plantations was estimated by multiplying the long-term fixed CO2 by the international market price of forest carbon, i.e., USD 18 per Megagram of CO2 on 30 June 2022 according to the Gold Standard [72]. The biomass (or carbon stocks) of E. saligna and G. robusta plantations were compared with each other using Student’s t-test. The variability of biomass or carbon stock with site, species, age and stand density was tested by MLR.

3. Results

3.1. Dendrometric Characteristics

All dendrometric characteristics assessed differed significantly by species in the intermediate-aged plantations (Table 2). In the younger and older plantations, only the height (Ht, Hdo and AHt) and volume (V and AMV) characteristics were significantly species dependent. For all age groups combined, the average density assessed in E. saligna plantations (724 ± 303 stems/ha) was significantly higher (p < 0.001) than that found in G. robusta plantations (461 ± 216 stems/ha). The ADBH of E. saligna (2.6 ± 0.6 cm/year) was similar (p = 0.121) to that of G. robusta (2.4 ± 0.5 cm/year). In contrast, AHt and AMV of E. saligna (3.0 ± 0.6 m/year and 30 ± 13 m3/ha/year, respectively) were significantly higher (p < 0.001) than those of G. robusta (2.1 ± 0.3 m/year and 15 ± 7 m3/ha/year, respectively). ADBH and AHt of both species decreased as the stands matured (Figure 4a,b), with maximum values observed between 5 and 7 years for E. saligna and between 3 and 5 years for G. robusta. The maximum value of AMV was observed between 7 and 8 years for E. saligna and between 10 and 12 years for G. robusta (Figure 4c, Figure 5c and Figure 6c). Based on these observations, the rotation that maximises production is 8 years for E. saligna plantations and 12 years for G. robusta plantations. In addition, the average increments of E. saligna were higher in Kirumba than in Sake (Figure 5), while those of G. robusta were higher in Sake than in Kirumba (Figure 6).
Table 2. Dendrometric characteristics of the studied stands by age class category. Max.: maximum value; Min.: minimum value; Avg.: arithmetic average; σ: standard deviation; n1: number of E. saligna plantations; n2: number of G. robusta plantations.
Table 2. Dendrometric characteristics of the studied stands by age class category. Max.: maximum value; Min.: minimum value; Avg.: arithmetic average; σ: standard deviation; n1: number of E. saligna plantations; n2: number of G. robusta plantations.
CategoryNumber of PlantationsVariable and UnitE. salignaG. robustap-Value (t-Test)
Min.Max.Avg.σMin.Max.Avg.σ
Younger plantations (age ≤ 5.4 years)n1 = 8
n2 = 2
N (stems/ha)5001660944349340520447680.002
DBH (cm)4.817.711.73.26.517.912.53.90.626
dg (cm)5.218.312.23.36.717.912.63.90.811
Ht (m)4.718.813.53.75.615.110.23.20.059
Hdo (m)7.923.117.54.17.516.811.83.20.004
G (m2/ha)1.019.010.94.32.09.06.02.80.014
V (m3/ha)7.0180.0102.348.38.077.043.026.20.008
vm (m3)0.010.290.120.070.020.230.100.070.552
ADBH (cm/year)2.03.32.70.42.33.62.90.50.176
AHt (m/year)2.13.83.10.51.92.92.40.40.006
AMV (m3/ha/year)4.034.022.47.73.016.010.34.80.001
Intermediate-age plantations (age between 5.5 and 7.9 years)n1 = 6
n2 = 3
N (stems/ha)200760571123360580449920.015
DBH (cm)13.927.219.73.39.116.012.72.1<0.001
dg (cm)15.127.420.23.19.616.213.12.0<0.001
Ht (m)13.428.721.94.17.515.611.52.6<0.001
Hdo (m)18.632.326.33.99.619.414.13.4<0.001
G (m2/ha)8.032.018.46.03.010.06.32.3<0.001
V (m3/ha)82.0445.0245.4100.515.097.051.026.7<0.001
vm (m3)0.170.820.440.170.040.170.110.04<0.001
ADBH (cm/year)1.43.83.10.61.92.52.20.2<0.001
AHt (m/year)1.44.43.40.61.62.41.90.3<0.001
AMV (m3/ha/year)16.063.039.512.73.014.08.43.7<0.001
Older plantations (age ≥ 8 years)n1 = 6
n2 = 7
N (stems/ha)38082058516016010404622790.124
DBH (cm)17.523.619.61.614.228.121.64.00.073
dg (cm)18.523.920.51.614.628.322.13.90.132
Ht (m)17.436.522.84.512.221.817.82.5<0.001
Hdo (m)22.940.829.24.815.523.320.02.1<0.001
G (m2/ha)10.030.019.46.37.024.015.95.80.086
V (m3/ha)131.0451.0278.8112.360.0295.0172.173.90.001
vm (m3)0.310.880.470.150.150.770.430.170.395
ADBH (cm/year)0.92.62.10.41.53.22.40.50.064
AHt (m/year)1.43.22.40.41.42.41.90.3<0.001
AMV (m3/ha/year)14.049.031.711.68.030.019.27.5<0.001

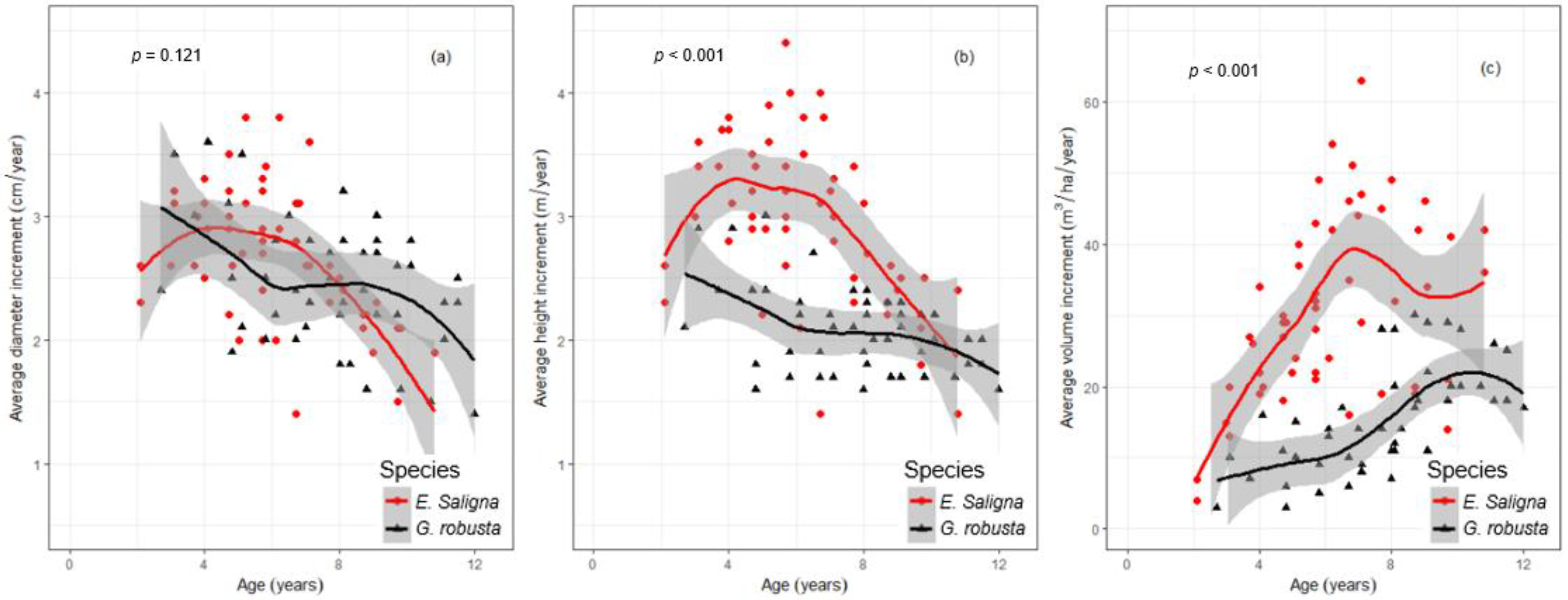

Figure 4. Average increments in diameter (a), total height (b) and volume (c) in E. saligna and G. robusta plantations. The probability (p) indicated is that of Student’s t-test.
Figure 4. Average increments in diameter (a), total height (b) and volume (c) in E. saligna and G. robusta plantations. The probability (p) indicated is that of Student’s t-test.
Forests 13 01508 g004
Figure 5. Average increments in diameter (a), total height (b) and volume (c) in E. saligna plantations in Sake and Kirumba. The probability (p) given is that of Student’s t-test.
Figure 5. Average increments in diameter (a), total height (b) and volume (c) in E. saligna plantations in Sake and Kirumba. The probability (p) given is that of Student’s t-test.
Forests 13 01508 g005
Figure 6. Average increments in diameter (a), total height (b) and volume (c) in G. robusta plantations in Sake and Kirumba. The probability (p) given is that of Student’s t-test.
Figure 6. Average increments in diameter (a), total height (b) and volume (c) in G. robusta plantations in Sake and Kirumba. The probability (p) given is that of Student’s t-test.
Forests 13 01508 g006

3.2. Variation Factors for Growths

The growth and productivity of the plantations studied were significantly dependent on age, stand density and site characteristics (Table 3). The fitted models showed that the combined effect of age and stand density explained 28, 30 and 29% of the variability in diameter, total height and volume increments for E. saligna (Models 1–3) and 69, 50 and 59% for G. robusta (Models 6–8), respectively. The addition of environmental predictors to the models refined the predictions by reducing the AIC and RMSE and explaining 48, 52 and 76% of the variability in diameter, total height and volume increments for E. saligna (Models 11–13) and 74, 75 and 87% for G. robusta (Models 14–16), respectively.
Table 3. Presentation of the models used for increments, basal area and carbon stock. ADBH: average increment in diameter; AHt: average increment in total height; AMV: average increment in volume; G: basal area; StC: carbon stock; R2-aj: adjusted coefficient of determination; AIC: Akaike’s information criterion; RMSE: root mean square error; N: stand density; CEC: cation exchange capacity; Al, Ca, Mn, Zn: respectively, the concentration of aluminium, calcium, manganese and zinc in the soil; Mod: model. The site codes are ‘1’ for Sake and ‘2’ for Kirumba.
Table 3. Presentation of the models used for increments, basal area and carbon stock. ADBH: average increment in diameter; AHt: average increment in total height; AMV: average increment in volume; G: basal area; StC: carbon stock; R2-aj: adjusted coefficient of determination; AIC: Akaike’s information criterion; RMSE: root mean square error; N: stand density; CEC: cation exchange capacity; Al, Ca, Mn, Zn: respectively, the concentration of aluminium, calcium, manganese and zinc in the soil; Mod: model. The site codes are ‘1’ for Sake and ‘2’ for Kirumba.
PredictorsSpeciesVariable to be PredictedModelFormR2-aj.AICRMSEp-Value (Model)p-Value (Shapiro.Test)p-Value (ncvTest)
Stand age and density (raw values) *E. salignaADBH
(cm/year)
Mod.1 ADBH = 3.19 + 0.21 Site 0.14 Age 0.2884.250.48<0.0010.520.47
AHt
(m/year)
Mod.2 AHt = 4.89 + 0.24 Site 0.39 Age 0.002 N + 0.0004 Age × N 0.3096.140.52<0.0010.370.21
AMV
(m3/ha/year)
Mod.3 AMV = 0.83 + 7.62 Site + 1.99 Age + 0.002 Age × N 0.29422.6010.29<0.0010.340.25
G
(m2/ha)
Mod.4 G = 5.6 + 3.42 Site + 1.67 Age + 0.002 Age × N 0.62317.323.95<0.0010.240.14
StC
(Mg/ha)
Mod.5 StC = 66.08 + 20.3 Age + 0.02 Site × N 0.59531.5730.84<0.0010.110.07
G. robustaADBH
(cm/year)
Mod.6 ADBH = 4.36 0.79 Site 0.11 Age 0.6921.460.28<0.0010.410.06
AHt
(m/year)
Mod.7 AHt = 3.19 0.48 Site 0.09 Age + 0.0005 N 0.508.130.23<0.0010.830.07
AMV
(m3/ha/year)
Mod.8 AMV = 14.32 8.23 Site + 0.88 Age + 0.001 Age × N 0.59280.694.58<0.0010.790.34
G
(m2/ha)
Mod.9 G = 2.17 5.63 Site + 0.01 N + 2.04 Age 0.84228.152.59<0.0010.570.14
StC
(Mg/ha)
Mod.10 StC = 0.03 + 4.6 Age 0.07 Site × N + 0.02 Age × N 0.84391.2315.25<0.0010.250.06
Age, stand density and site characteristics (standardised values)E. salignaADBH
(cm/year)
Mod.11 ADBH = 2.69 0.44 Age 0.10 N + 0.16 Altitude + 0.20 CEC 0.16 Ca + 0.13 Age × N 0.4870.390.39<0.0010.080.62
AHt
(m/year)
Mod.12 AHt = 2.96 0.38 Age + 0.15 N + 0.38 Altitude + 0.15 Pente + 0.39 CEC + 0.35 Altitude × Pente 0.5277.210.42<0.0010.430.53
AMV
(m3/ha/year)
Mod.13 AMV = 30.36 + 2.32 Age + 4.54 N + 13.29 Altitude + 9.89 CEC 9.9 Al 8.53 Ca 0.76365.265.79<0.0010.270.08
G. robustaADBH
(cm/year)
Mod.14 ADBH = 2.43 0.27 Age 0.09 N 0.36 Altitude + 0.12 Mn + 0.12 Zn + 0.11 Age × N 0.7416.390.24<0.0010.480.67
AHt
(m/year)
Mod.15 AHt = 2.08 0.23 Age + 0.16 N 0.29 Altitude + 0.05 Mn + 0.06 Zn 0.75−22.590.16<0.0010.440.22
AMV
(m3/ha/year)
Mod.16 AMV = 15.35 + 3.25 Age + 5.13 N 3.99 Altitude 2.63 Al + 1.18 Mn 0.87230.422.54<0.0010.350.06
* We preferred to present models fitted with raw data (with age expressed in ‘years’ and stand density in ‘stems/ha’) to allow forest managers to easily predict stand growth and productivity without resorting to data transformation.

3.3. Thinning and Expected Productivity over the Rotation

Two scenarios were tested for the 8-year rotation for E. saligna plantations and the 12-year rotation for G. robusta plantations. The first scenario considers the production of wood-energy in plantations with different silviculture depending on the species and generally little monitoring as observed in the field (see Section 2.2). The second scenario aims to produce timber from plantations of identical silviculture species in which thinning removes 10 m2/ha when the basal area of the plantation reaches 30 m2/ha, i.e., a thinning intensity of 33%. In both scenarios, the rotation was set at 8 years in E. saligna plantations and 12 years in G. robusta plantations. The application of Models 4 and 9 revealed that in scenario 1, the age of the first thinning is well beyond the respective rotations (Table 4). In scenario 2, one or two thinnings would be required over the 8- and 12-year rotations, respectively, in E. saligna and G. robusta plantations installed at 2 × 2 m and/or 2.5 × 2.5 m spacings. The thinning interval would be 3 to 4 years in E. saligna plantations and 4 to 5 years in G. robusta plantations. The age of first thinning varied significantly (MLR: adjusted R2 = 0.96; p < 0.001) by site (p = 0.002), stand density (p < 0.001) and site-species interaction (p < 0.001).
Table 4. Age, interval and intensity of thinning in E. saligna and G. robusta plantations in North Kivu. The age of first thinning was determined for each site from the threshold basal area (30 m2/ha) and stand density using Models 4 (for E. saligna) and 9 (for G. robusta). The asterisks indicate that the stand density after thinning is that of a stand: unthinned ‘*’, thinned once ‘**’, thinned twice ‘***’.
Table 4. Age, interval and intensity of thinning in E. saligna and G. robusta plantations in North Kivu. The age of first thinning was determined for each site from the threshold basal area (30 m2/ha) and stand density using Models 4 (for E. saligna) and 9 (for G. robusta). The asterisks indicate that the stand density after thinning is that of a stand: unthinned ‘*’, thinned once ‘**’, thinned twice ‘***’.
ScenariosSpeciesSpacing at Planting (m)Planting Density (Stems/ha)Age of First Thinning (Years)Thinning Interval (Years)Thinning Intensity (%)Stand Density After Thinning (Stems/ha)
SakeKirumba
Scenario 1E. saligna3 × 372410.39.23.533724 *
G. robusta4 × 446116.319.01.533461 *
Scenario 2E. saligna2 × 225004.84.33.0331122 ***
2.5 × 2.516006.65.93.4331072 **
3 × 311118.37.43.7331111 *
4 × 462511.09.83.433625 *
G. robusta2 × 225006.39.04.6331675 **
2.5 × 2.5160010.713.55.2331072 **/1600 *
3 × 3111113.115.83.6331111 *
4 × 462515.518.22.033625 *
Productivity forecasts (Table 5) over the entire rotation confirmed that the productivity of E. saligna plantations was higher than that of G. robusta plantations, regardless of the site and scenario considered. In Kirumba, the ratio of E. saligna to G. robusta productivity was 3.0 in the first scenario and 2.0 in the second. In Sake, the ratio was 1.5 in the first scenario and 1.2 in the second. Based on these forecasts, meeting the annual wood-energy demand of an estimated one million inhabitants would require between 20,000 and 32,000 ha of monospecific E. saligna plantations or between 27,000 and 72,000 ha of monospecific G. robusta plantations.

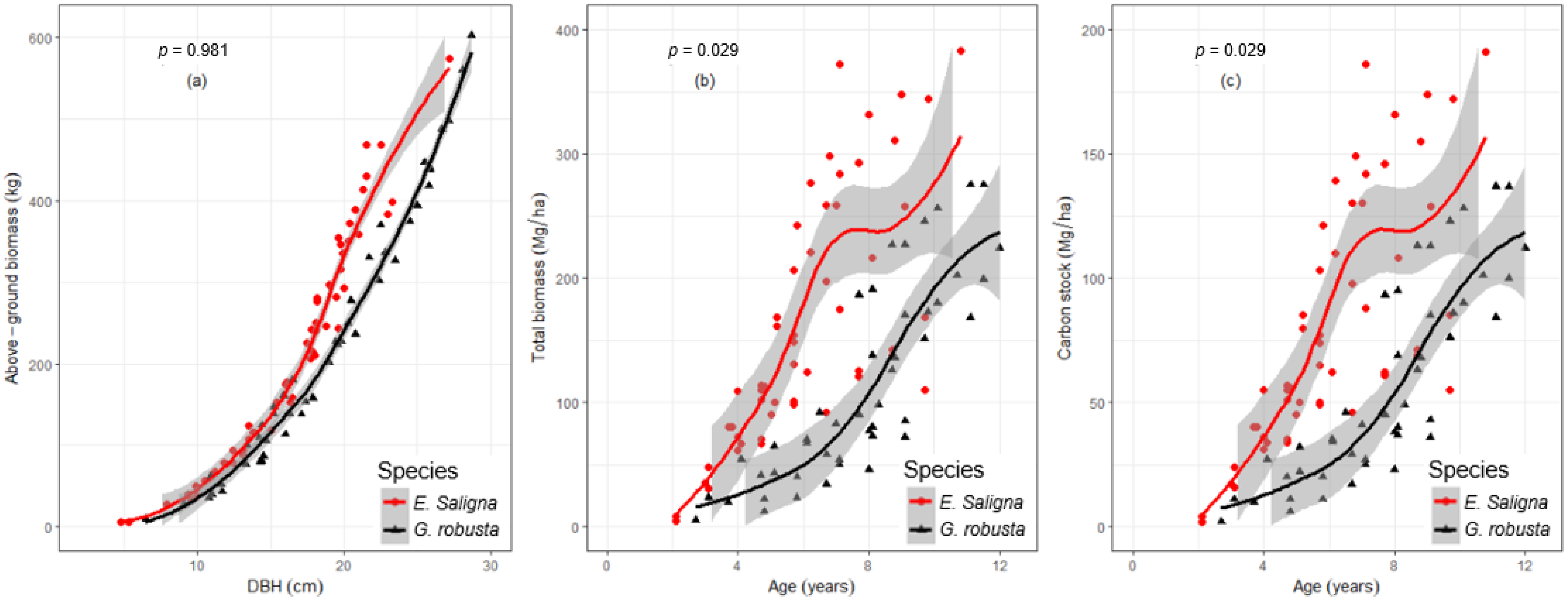

3.4. Wood Infradensity, Biomass, Carbon Stock and Economic Potential of Carbon Sequestered on Rotation

In plantations ranging in age from 6 to 10 years, the average infradensity was 0.56 ± 0.06 g/cm3 for E. saligna wood and 0.59 ± 0.01 g/cm3 for G. robusta wood. The biomass (and thus the carbon stock) of the two species did not differ significantly (Student’s test: p = 0.981) for trees of the same size (DBH, Figure 7a) although their heights differed. At the stand level (Figure 7b,c), biomass or carbon stock varied significantly (MLR: Adjusted R2 = 0.73; p < 0.001) by species (p = 0.029), site (p < 0.001), age (p = 0.028), stand density (p = 0.003) and site–species interactions (p < 0.001) on the one hand, and stand age and density on the other (p < 0.001).
The estimated carbon stock over the 8-year rotation in E. saligna plantations varied between 110 and 125 Mg/ha in the first scenario and between 110 and 140 Mg/ha in the second. In G. robusta plantations, this stock varied between 100 and 135 Mg/ha over the 12-year rotation in the first scenario and between 118 and 340 Mg/ha in the second (Table 6). Long-term CO2 fixation over the respective rotations is estimated to be between 50 and 65 Mg CO2-equivalent per hectare in the E. saligna plantations and between 30 and 100 Mg CO2-equivalent per hectare in the G. robusta plantations. The financial potential of carbon credits over the entire revolution is estimated to be between USD 900 and USD 1200 per hectare in E. saligna plantations and between USD 500 and USD 1900 per hectare in G. robusta plantations.

4. Discussion

4.1. Different Dendrometric Characteristics According to Species, Silviculture and Site Characteristics

The results of this study showed that in Sake as in Kirumba, E. saligna is a much more productive species than G. robusta. In addition, the productivity of E. saligna was higher in Kirumba than in Sake (Figure 5), while that of G. robusta was higher in Sake than in Kirumba (Figure 6). Despite the differences, the average productivities observed (30 ± 13 m3/ha/year at the age of 6.2 ± 2.1 years for E. saligna (N = 724 ± 303 stems/ha) and 15 ± 7 m3/ha/year at the age of 7.7 ± 2.3 years for G. robusta (N = 461 ± 216 stems/ha)) are comparable to the averages reported in other sites. Indeed, for E. saligna, Dyson [73] reports productivity varying between 17 and 39 m3/ha/year over 10 years in plantations in Kenya (N = 509 stems/ha). For the same species, Walters [74] reports productivity of between 33 and 46 m3/ha/year over 15 years in plantations in Hawaii (N = 247 to 400 stems/ha). Concerning G. robusta, Pandey [75] reported a productivity of 10 to 12 m3/ha/year over 10 to 15 years (N = 800 to 1200 stems/ha) in India, while Muchiri et al. [76] found productivities varying between 8 and 24 m3/ha/year over 30 years (N = 200 stems/ha) in some Kenyan agroforestry systems.
As the two species have a similar diameter increment (2.6 ± 0.6 cm/year for E. saligna and 2.4 ± 0.5 cm/year for G. robusta), the observed difference in interspecific productivity is mainly the result of a greater increment in height for E. saligna (3.0 ± 0.6 m/year) than for G. robusta (2.1 ± 0.3 m/year). Furthermore, this difference in productivity is related to the contrast of: (i) silviculture inducing a significantly higher stand density in E. saligna plantations than in G. robusta plantations; (ii) topography (altitude/slope) which had positive effects on E. saligna and negative effects on G. robusta; and (iii) edaphic variables (CEC, [Al], [Ca], [Mn] and [Zn]) which had different effects depending on the species (Models 11–16). Climatic conditions (temperature and rainfall) can also influence growth and productivity [77,78], but these two variables were not determinant in our study where rainfall (3750 mm/year in Kirumba and 2716 mm/year in Sake) was well above the water requirements of both species (800–1800 mm/year for E. saligna and 600–1700 mm/year for G. robusta according to Orwa et al. [45,48]). These results support findings that forest stand growth or productivity varies with species, silviculture and ecological site conditions (e.g., [36,79,80,81,82,83]).
The difference in productivity of E. saligna between Sake and Kirumba was, according to Model 13 (Table 3), mainly related to the positive effects of altitude and stand density, which were higher in Kirumba (respectively, 1580 ± 70 m in Sake versus 2010 ± 190 m in Kirumba, and 685 ± 343 stems/ha in Sake versus 786 ± 217 stems/ha in Kirumba). In addition, E. saligna was more productive on acidic and toxic soils in Kirumba than on slightly acidic or neutral soils in Sake because the species is well adapted to both acidic and basic well-drained soils in tropical and subtropical regions [43,45]. The decrease in productivity of E. saligna in Sake can finally be explained by the high calcium concentrations in the volcanic soils of the region ([Ca] = 4400 ± 1970 μg/g in Sake compared to 900 ± 2010 μg/g in Kirumba). Indeed, high calcium concentrations lead to the retrogradation of phosphorus and the insolubilisation of micronutrients, including manganese, and prevent their assimilation by plants [84,85]. As for G. robusta, its productivity in Sake is, according to Rojas-Sandoval [24], favoured by the presence of volcanic soils, rich in exchangeable cations with a pH favourable to their assimilation by the trees. The low productivity of this species in Kirumba was due to the increase in altitude and the aluminium toxicity of the soils (Model 16).
These results support the conclusion that tree plantations initiated in North Kivu require management measures adapted to the edaphic conditions of the sites [86]. While the soils of Sake have a pH and CEC favourable to tree growth and productivity, the acidic and aluminium-rich soils of Kirumba theoretically require mineral or organic amendments. Given the negative effect of calcium on micronutrient availability in E. saligna, liming is not recommended. Furthermore, given the socio-economic, logistical and technical contexts of the region, farmer-planters do not have sufficient access to manures and/or composts for organic amendments. Itinerant livestock rearing could be beneficial in the region, but it is only practised by a minority in the Sake plantations. To this end, the introduction of soil-improving species in mixtures should be favoured, especially nitrogen-fixing species such as those of the Acacia, Albizia, Calliandra, Casuarina and Leucaena genera. The gradual replacement of monocultures would eventually make up for some of the weaknesses of this type of planting [87,88]. These species can also be used in mixtures in Sake plantations to combat apatitic retrogradation linked to the high presence of calcium in E. saligna. However, experimental plantations based on these species are first needed in the region to: (i) ensure their adaptability or not to local ecological conditions; (ii) check that the benefits expected according to Kelty [87] are actually observed; and (iii) serve as controls with farmer-planters and/or donors. In addition, an awareness and information campaign on the benefits of these species and/or mixed plantations should be conducted among farmers, managers and donors to ensure their acceptability as suggested by Messier et al. [89]. Possible concerns about the impact of these species on soil water resources are discounted [18,90,91,92,93,94] as the region benefits from sufficient rainfall (>2500 mm/year).

4.2. Empirical Models to Predict Growth and Productivity

Our study developed predictive models for growth and productivity of E. saligna and G. robusta plantations based on age, stand density [95,96], but also on the combination of selected biotic and abiotic factors [36]. The analysis of the residuals confirmed the good fit of the models to the data (Table 3). Furthermore, the increases predicted from stand age and density did not differ significantly (Fligner and Killeen test, p > 0.05) from those observed or from those predicted by combining biotic and abiotic factors (Figures S2 and S3). Nevertheless, the models presented were developed under the conditions of the study: first rotation, monospecific even-aged stands, agricultural precedent, soil fertility inherited from the original ecosystem (confirmed by comparison with surrounding soils), etc. If these models have been shown to be effective under these conditions, it would be interesting to verify their extent/scope of application. Unfortunately, in addition to the cost and time involved in such a large survey, local security conditions, the geographical area to be covered, the extreme fragmentation of existing plantations and the poverty in the region do not favour the periodic collection of data, by disrupting the work schedule and obliging planters to cut their plantations prematurely. However, as data on site characteristics are still not readily available, managers can now predict the productivities of even-aged stands of E. saligna and G. robusta established in Sake and Kirumba from stand age and density using Models 3 and 8, respectively.

4.3. Results That Suggest Ages of the First Thinning and Rotations Adapted to the Species, Site and Silviculture

Analysis of the evolution of stand productivity over time allowed us to set the rotation at 8 years for E. saligna plantations and at 12 years for G. robusta plantations. These rotations are comparable to those used in other sites for both species (e.g., [45,48,97,98]) and are within the range of cutting ages intuitively used by planters in North Kivu (see Section 2.2). Furthermore, the rotation set for E. saligna is similar to that applied in the A. auriculiformis agroforestry systems of Mampu (8–10 years) on the Bateke Plateau in the DRC [99,100].
Concerning thinning, our results showed that the age and periodicity of intervention varies with species, site and spacing (Table 4) as indicated by Prégent [66]. In carefully monitored E. saligna plantations, thinning to remove 33% of the stems should be carried out from the age of 4, 5 or 6 years, depending on the site and spacing, and could continue at intervals of 3 to 4 years if the stand remains standing. These thinning practices are comparable to those applied in plantations of the same species in South Africa where timber stands established at densities of 1330 stems/ha are generally thinned by 25% of stems from the age of 6 years, and then these thinnings are continued at intervals of 3 to 5 years until the final harvest of the wood [43]. In G. robusta plantations, thinning of 33% of stems should be applied with intervals of 4 or 5 years from the age of 6 years if stands are established at 2 × 2 m spacings or somewhat later from 10 years or more for stands established at spacings ≥ 2.5 m. These ages and thinning intervals are comparable to those applied in Brazil [23] and Rwanda [101] where plantations of the same species are thinned by about 30% of stems between 10 and 15 years, with an interval of 5 years.
Referring to the productivity forecasts (Table 5), it can be seen that in addition to the wood that would result from thinning operations, plantations established at close spacings (2 to 2.5 m) and scrupulously monitored could produce a volume of raw wood greater than or equal to that of unthinned plantations established at wide spacings. This result indicates that to optimise wood-energy production on small plots in North Kivu, E. saligna and G. robusta should be planted at spacings between 2 and 2.5 m. Spacing of less than 2 m would not be promoted in the two study sites for both species as they would require early thinning with very low individual woody biomass production. However, for timber production purposes, spacings of 3 to 4 m would ideally be of interest.

4.4. Similar Interspecific Biomass and Carbon Stocks at the Tree Level but Significantly Different at the Stand Level

For the same DBH, the above-ground biomass (and therefore the carbon stock) of an individual E. saligna was similar to that of an individual G. robusta (Figure 7a). This similarity in individual biomass between the two species is explained by the compensation of the difference in height by the difference in wood infradensity. Indeed, in E. saligna and G. robusta plantations of similar age and DBH, E. saligna individuals were generally taller with a slightly low wood infradensity (ρ = 0.56 g/cm3) while G. robusta individuals were generally less tall with a slightly high wood infradensity (ρ = 0.59 g/cm3). The wood infradensities found for both species are comparable to those reported between 5 and 10 years in other sites for the same species (e.g., [44,45,46,48]). At the stand level, biomass and carbon stock in age-matched plantations were significantly higher for E. saligna than for G. robusta (Figure 7b,c). This result is justified by a generally higher productivity and stand density in E. saligna plantations than in G. robusta plantations. Considering the 8-year rotation for E. saligna plantations and the 12-year rotation for G. robusta plantations, the total biomass was, however, similar (ca. 230 Mg/ha) for both species. This average biomass production is higher than that reported over 10 years in A. auriculiformis plantations (145 Mg/ha) on the Bateke plateau in the DRC [99].

4.5. What Choice Should Be Made between E. saligna and G. robusta?

In the two scenarios analysed, the average productivity of E. saligna plantations over the 8-year rotation was significantly higher than that of G. robusta plantations over the 12-year rotation, with differences of between 12 and 28 m3/ha/year in the first scenario and between 6 and 22 m3/ha/year in the second (Table 5). As for the carbon stock (Table 6), the first scenario showed that it was similar in plantations of both species (ca. 117 Mg/ha). If silviculture were standardised and plantations scrupulously followed (second scenario), this carbon stock would be better optimised in G. robusta plantations (ca. 206 Mg/ha) than in E. saligna plantations (ca. 126 Mg/ha). These carbon estimates are within the range of stocks (12–228 Mg C/ha) reported in tropical agroforestry systems [102]. Long-term CO2 fixation was estimated to be between 50 and 65 Mg/ha in E. saligna plantations, with higher values in Kirumba, and between 30 and 100 Mg/ha in G. robusta plantations, with higher values in Sake (Table 6). While E. saligna is the species to be favoured for productivity reasons in wood-energy production plantations to try to meet the demand of the growing and disadvantaged population living in the vicinity of the PNVi, scrupulously monitored G. robusta plantations could be more interesting in terms of carbon credits. Thus, to optimise simultaneously the production of wood-energy and the carbon stock in the plantations initiated in North Kivu, E. saligna and G. robusta should be planted in a mixture. Indeed, mixed plantations are thought to be more productive, able to store more carbon, better for restoring biodiversity, and reduce the impact of disturbances more quickly than single-species plantations [11,89,103].

5. Conclusions and Research Perspectives

The E. saligna and G. robusta plantations in North Kivu should not be considered as mere providers of wood-energy but also as real carbon sinks, providing the areas of forest lost through logging would be compensated by new, well-managed plantations. The assessment of productivity showed differences that could lead planters to favour E. saligna. The performance of this species, including on slopes and acidic soils (Kirumba), is an asset for valorising deforested land on less favourable or uncultivated soils in the region. Estimates of carbon stock and long-term CO2 fixation revealed that G. robusta is also a species of choice. Thus, to promote more resilient and diversified production systems, E. saligna and G. robusta should be planted in mixture. Empirical models have been developed locally to predict the productivity of monospecific even-aged plantations of the two most commonly used species in the region. The validity of these models should be extended to other growing environments and plantation types. The impact of stand density (and therefore spacing) and site characteristics on the growth and productivity of the plantations studied led us to propose pragmatic approaches for silviculture of the two species in the two target sites, including the addition of natural fertilisers where possible (itinerant breeding). The economic profitability of the plantations in North Kivu should be assessed so as to deduce their socio-economic impact in the region, including possible income from “carbon credits”. To do this, rapid and efficient methods of inventorying plantations should be developed, using, for example, “remote” (satellites, drones) and/or innovative (machine learning, LIDAR) approaches. Finally, a multi-criteria analysis of their management system/mode should be carried out to discuss their sustainability.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/f13091508/s1. Table S1. Presentation of the plantations studied. ID: plantation identifier; Es: Eucalyptus saligna; Gr: Grevillea robusta; Alt.: altitude; Topo: topographical situation; Temp.: temperature; Af: equatorial climate; Am: tropical monsoon climate. Table S2. Physico-chemical characteristics of soils in the plantations studied. Es: Eucalyptus saligna; Gr: Grevillea robusta. Figure S1. Hierarchical classification of plantations based on average age (in years) and species. The average age was estimated over three years and is equivalent, for each plantation, to the arithmetic mean of the ages calculated in 2018, 2019 and 2020. Es: Eucalyptus saligna; Gr: Grevillea robusta. Figure S2. Projection of observed and predicted increases for E. saligna. Observed: observed values; Predicted1: predicted values from stand age and density; Predicted2: predicted values by combining biotic and abiotic factors with significant effects. The probability (p) given is that of the Fligner and Killeen test. Figure S3. Projection of observed and predicted increments for G. robusta. Observed: observed values; Predicted1: predicted values from stand age and density; Predicted2: predicted values from combination of biotic and abiotic factors with significant effects. The probability (p) given is that of the Fligner and Killeen test.

Author Contributions

Conceptualization: D.K.K., N.B. and J.-P.M.M.; Data curation: D.K.K. and N.B.; Formal analysis: All authors; Funding acquisition: D.K.K., N.B. and J.-P.M.M.; Investigation: D.K.K., N.B. and M.R.; Methodology: All authors; Project administration: J.-P.M.M., A.M. and N.B.; Resources: N.B., M.R., G.L. and T.D.; Software: D.K.K., G.L. and T.D.; Supervision: N.B., J.-P.M.M. and A.M.; Validation: N.B., G.L. and T.D.; Visualization: D.K.K., G.L., T.D. and M.R.; Writing—original draft preparation: D.K.K., G.L. and N.B.; Writing—review and editing: All authors. All authors have read and agreed to the published version of the manuscript.

Funding

This study was carried out with the financial support of the European Union (EU) through the “Formation, Research and Environment in Tshopo” project (FORETS), and the International Foundation for Science (IFS, Stockholm, Sweden) through grant No. I-1-D-6291-1 awarded to the first author.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data analysed in this study are available on request from Désiré K. Kasekete.

Acknowledgments

The authors are grateful to the EU, through the FORETS project implemented by the Centre for International Forestry Research (CIFOR) and its partners, and to the International Foundation for Science (IFS), which supported the research by providing grants to the first author. They also thank Resources and Synergies Development (R&SD) for logistical support and the World Wide Fund for Nature (WWF) for facilitation of data collection in the field. Special thanks go to Nestor Vuambale, Ami Muhima and Jean-Bosco Mastaki for physical accompaniment in the field during data collection and to the owners and/or managers of the plantations studied for permission to work on their private concessions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vihervaara, P.; Marjokorpi, A.; Kumpula, T.; Walls, M.; Kamppinen, M. Ecosystem services of fast-growing tree plantations: A case study on integrating social valuations with land-use changes in Uruguay. For. Policy Econ. 2012, 14, 58–68. [Google Scholar] [CrossRef]
  2. Toppinen, A.; D’Amato, D.; Lähtinen, K.; Rekola, M.; Wan, M.; Wen, Z.; Cai, D. Forest ecosystem services, corporate sustainability and local livelihoods in industrial plantations of China: Building conceptual awareness on the interlinkages. Int. For. Rev. 2017, 19, 170–182. [Google Scholar] [CrossRef]
  3. Li, R.; Zheng, H.; Zhang, C.; Keeler, B.; Samberg, L.H.; Li, C.; Polasky, S.; Ni, Y.; Ouyang, Z. Rural household livelihood and tree plantation dependence in the central mountainous region of Hainan island, China: Implications for poverty alleviation. Forests 2020, 11, 248. [Google Scholar] [CrossRef]
  4. Afonso, R.; Miller, D.C. Forest plantations and local economic development: Evidence from Minas Gerais, Brazil. For. Policy Econ. 2021, 133, 102618. [Google Scholar] [CrossRef]
  5. Evans, J. Planted forests of the wet and dry tropics: Their variety, nature, and significance. New For. 1999, 17, 25–36. [Google Scholar] [CrossRef]
  6. Kanninen, M. Plantation forests: Global perspectives. The Earthscan Forest Library. In Ecosystem Goods and Services from Plantation Forests; Bauhus, J., van der Meer, P.J., Kanninen, M., Eds.; Earthscan: London, UK, 2010; p. 15. ISBN 978-1-84971-168-5. [Google Scholar]
  7. Bredemeier, M.; Busch, G.; Hartmann, L.; Jansen, M.; Richter, F.; Lamersdorf, N.P. Fast growing plantations for wood production—Integration of ecological effects and economic perspectives. Front. Bioeng. Biotechnol. 2015, 3, 72. [Google Scholar] [CrossRef]
  8. Madon, G. Le bois, énergie de première nécessité en Afrique: Une ressource trop souvent négligée. Afr. Contemp. 2017, 261–262, 201–222. [Google Scholar] [CrossRef]
  9. FAO. Plantations and Wood Energy; Report Based on the Work of D. J. Mead; Forest Plantation Thematic Papers, Working Paper 5; FAO: Rome, Italy, 2001; 20p. [Google Scholar]
  10. Tesfaye, M.A.; Gardi, O.; Anbessa, T.B.; Blaser, J. Aboveground biomass, growth and yield for some selected introduced tree species, namely Cupressus lusitanica, Eucalyptus saligna, and Pinus patula in Central Highlands of Ethiopia. J. Ecol. Environ. 2020, 44, 1–18. [Google Scholar] [CrossRef]
  11. Waring, B.; Neumann, M.; Prentice, I.C.; Adams, M.; Smith, P.; Siegert, M. Forests and Decarbonization—Roles of Natural and Planted Forests. Front. For. Glob. Change 2020, 3, 58. [Google Scholar] [CrossRef]
  12. Harrington, C.A. Forests planted for ecosystem restoration or conservation. New For. 1999, 17, 175–190. [Google Scholar] [CrossRef]
  13. Bremer, L.L.; Farley, K.A. Does plantation forestry restore biodiversity or create green deserts? A synthesis of the effects of land-use transitions on plant species richness. Biodivers. Conserv. 2010, 19, 3893–3915. [Google Scholar] [CrossRef]
  14. Rodríguez, J.C.; Sabogal, C. Restoring Degraded Forest Land with Native Tree Species: The Experience of “Bosques Amazónicos” in Ucayali, Peru. Forests 2019, 10, 851. [Google Scholar] [CrossRef]
  15. Pawson, S.M.; Brin, A.; Brockerhoff, E.G.; Lamb, D.; Payn, T.W.; Paquette, A.; Parrotta, J.A. Plantation forests, climate change and biodiversity. Biodivers. Conserv. 2013, 1, 1203–1227. [Google Scholar] [CrossRef]
  16. Bastin, J.-F.; Finegold, Y.; Garcia, C.; Mollicone, D.; Rezende, M.; Routh, D.; Zohner, C.M.; Crowther, T.W. The global tree restoration potential. Science 2019, 365, 76–79. [Google Scholar] [CrossRef]
  17. FAO. Évaluation des Ressources Forestières Mondiales 2020—Principaux Résultats; FAO: Rome, Italy, 2020; 12p. [Google Scholar]
  18. Forrester, D.I.; Theiveyanathan, S.; Collopy, J.J.; Marcar, N.E. Enhanced water use efficiency in a mixed Eucalyptus globulus and Acacia mearnsii plantation. For. Ecol. Manag. 2010, 259, 1761–1770. [Google Scholar] [CrossRef]
  19. Bouillet, J.-P.; Laclau, J.P.; Gonçalves, J.L.d.M.; Voigtlaender, M.; Gava, J.L.; Leite, F.P.; Hakamada, R.; Mareschal, L.; Mabiala, A.; Tardy, F.; et al. Eucalyptus and Acacia tree growth over entire rotation in single- and mixed-species plantations across five sites in Brazil and Congo. For. Ecol. Manag. 2013, 301, 89–101. [Google Scholar] [CrossRef]
  20. Turnbull, J.W. Eucalypt plantations. New For. 1999, 17, 37–52. [Google Scholar] [CrossRef]
  21. Awang, K.; Taylor, A.D. Acacias for Rural, Industrial, and Environmental Development. In Proceedings of the Second Meeting of the Consultative Group for Research and Development of Acacias (COGREDA), Udorn Thani, Thailand, 15–18 February 1993; Winrock International and FAO: Bangkok, Thailand, 1993. ISBN 0-933595-83-0. [Google Scholar]
  22. Koutika, L.S.; Richardson, D.M. Acacia mangium willd: Benefits and threats associated with its increasing use around the world. For. Ecosyst. 2019, 6, 2. [Google Scholar] [CrossRef]
  23. Skolmen, R.G. Silk-Oak. In Silvics of North America: Volume 2. Hardwoods; Agriculture Handbook, 654; Burns, R.M., Honkala, B.H., Eds.; United States Department of Agriculture (USDA), Forest Service: Washington, DC, USA, 1990; pp. 734–741. [Google Scholar]
  24. Rojas-Sandoval, J. Grevillea Robusta (Chêne Soyeux). Available online: https://www.cabi.org/isc/datasheet/25866#02BD5AEB-7291-482F-BB98-7E7B7A2D0FE8 (accessed on 18 August 2021).
  25. Bisiaux, F.; Peltier, R.; Muliele, J.-C. Plantations industrielles et agroforesterie au service des populations des plateaux Batéké, Mampu, en République démocratique du Congo. Bois For. Trop. 2009, 301, 21–32. [Google Scholar] [CrossRef]
  26. Lejeune, G.; Ansay, F.; Van Geit, M.; Lusenge, T. ECOmakala: Répondre à la Demande Énergétique Pour Protéger les Forêts du Parc National des Virunga au Nord-Kivu (RDC) et Lutter Contre la Pauvrété; World Wide Fund for Nature: Bruxelles, Belgium, 2013; 36p. [Google Scholar]
  27. FHS. Le Projet Gungu. Available online: http://ntsio.org/le-projet-gungu/ (accessed on 21 March 2022).
  28. WWF. Action du WWF au Bas-Congo: Lutter Contre L’exploitation Forestière. Le Reboisement. Available online: https://wwf.be/fr/nos-projets/luki/ (accessed on 15 December 2019).
  29. Boldrini, S.; Bracke, C.; Daïnou, K.; Vermeulen, C.; Fétiveau, J.; Ngoy Shutcha, M.; Doucet, J.-L. Guide Technique: Plantation Agroforestière d’Acacia Auriculiformis dans le Haut-Katanga; Les Presses Agronomiques de Gembloux; CIRAD: Gembloux, Belgium, 2017; 53p. [Google Scholar]
  30. CIFOR Paysage de Yangambi: Projets en Cours. Available online: https://www.cifor.org/yangambi/projets-en-cours/ (accessed on 24 March 2022).
  31. Dumont, E.S.; Bonhomme, S.; Sinclair, F. Guide Technique D’agroforesterie pour la Sélection et la Gestion des Arbres au Nord-Kivu; World Agroforestry Centre: Nairobi, Kenya, 2015; 130p. [Google Scholar]
  32. ONFi. Évaluation de L’impact D’une Décennie D’efforts Visant à Réduire la Déforestation Dans et Autour du Parc National des Virunga, Province du Nord-Kivu (RDC); World Wide Fund for Nature: Paris, France, 2019; 95p. [Google Scholar]
  33. BAD. Rapport D’achèvement du Projet Pilote REDD Géographiquement Intégré EcoMakala+; Groupe de la Banque Africaine de Développement: Abidjan, Côte d’Ivoire, 2016; 42p. [Google Scholar]
  34. WWF. Grâce au WWF, la Province du Nord Kivu Bénéficie de la Vente des Crédits-Carbone. Available online: https://www.wwfdrc.org/?38684/Grace-au-WWF-la-province-du-Nord-Kivu-beneficie-de-la-vente-des-credits-carbone (accessed on 3 July 2022).
  35. Rondeux, J. La Mesure des Arbres et des Peuplements Forestiers, 3rd ed.; Gembloux, A., Ed.; Presses Universitaires de Liège—Presses Agronomiques de Gembloux: Gembloux, Belgium, 2021; 736p, ISBN 2013206534. [Google Scholar]
  36. Vanclay, J.K. Modelling Forest Growth and Yield: Applications to Mixed Tropical Forests; CAB International: Wallingford, UK, 1994; 312p, ISBN 0851989136. [Google Scholar]
  37. Funakawa, S.; Kosaki, T. Soil Fertility Status in Equatorial Africa: A Comparison of the Great Rift Valley Regions and Central/Western Africa. In Soils, Ecosystem Processes, and Agricultural Development: Tropical Asia and Sub-Saharan Africa; Funakawa, S., Ed.; Springer Nature: Kyoto, Japan, 2017; pp. 85–101. ISBN 9784431564843. [Google Scholar]
  38. Sanchez, P.A.; Palm, C.A.; Buol, S.W. Fertility capability soil classification: A tool to help assess soil quality in the tropics. Geoderma 2003, 114, 157–185. [Google Scholar] [CrossRef]
  39. Pécrot, A.; Delvigne, J.; Gastuche, M.C.; Vielvoye, L.; Fripiat, J.J. L’altération Des Roches et la Formation Des Sols au Kivu; I.N.E.A.C. & I.B.E.R.S.O.M.: Bruxelles, Belgium, 1962; 90p. [Google Scholar]
  40. IUSS Working Group WRB. Base de Référence Mondiale Pour les Resources en Sol 2014, Mise à Jour 2015. Système International de Classification des Sols Pour Nommer les Sols et Élaborer des Légéndes de Cartes Pédologiques. In Rapport Sur les Ressources en Sols du Monde N°106; FAO: Rome, Italy, 2015; 203p, ISBN 9789251303801. [Google Scholar]
  41. Climate-Data.org. Base de Données Climatiques en Ligne. Available online: https://fr.climate-data.org/search/?q= (accessed on 8 June 2021).
  42. Kakura, B.; Bomboko, F.; Lemba, P.D. Monographie de la Province du Nord-Kivu; Ministère du Plan: Kinshasa, Democratic Republic of the Congo, 2005; 155p. [Google Scholar]
  43. Skolmen, R.G. Saligna eucalyptus. In Silvics of North America: Volume 2. Hardwoods; Agriculture Handbook, 654; Burns, R.M., Honkala, B.H., Eds.; United States Department of Agriculture (USDA), Forest Service: Washington, DC, USA, 1990; pp. 638–652. [Google Scholar]
  44. DeBell, D.S.; Keyes, C.R.; Gartner, B.L. Wood density of Eucalyptus saligna grown in Hawaiian plantations: Effects of silvicultural practices and relation to growth rate. Aust. For. 2001, 64, 106–110. [Google Scholar] [CrossRef]
  45. Orwa, C.; Mutua, A.; Kindt, R.; Jamnadass, R.; Anthony, S. Agroforestree Database: A Tree Reference and Selection Guide Version 4.0—Eucalyptus Saligna Smith. 2009. Available online: http://www.worldagroforestry.org/treedb/AFTPDFS/Eucalyptus_saligna.pdf (accessed on 12 April 2020).
  46. Nogueira, M.C.; de Almeida, D.H.; de Araujo, V.A.; Vasconcelos, J.S.; Christoforo, A.L.; de Almeida, T.H.; Lahr, F.A. Physical and mechanical properties of Eucalyptus saligna wood for timber structures. Ambiente Constr. 2019, 19, 233–239. [Google Scholar] [CrossRef]
  47. Restrepo, C.; Alviar, M. Tasa de descuento y rotación forestal: El caso del Eucalyptus saligna. Lect. Econ. 2010, 73, 149–164. [Google Scholar]
  48. Orwa, C.; Mutua, A.; Kindt, R.; Jamnadass, R.; Simons, A. Agroforestree Database: A Tree Reference and Selection Guide Version 4.0—Grevillea robusta A. Cunn. ex R. Br. 2009. Available online: http://www.worldagroforestry.org/treedb/AFTPDFS/Grevillea_robusta.PDF (accessed on 12 April 2020).
  49. Méthot, S.; Blais, L.; Gravel, J.; Latrémouille, I.; St-Pierre, S.; Vézeau, S. Guide D’inventaire et D’échantillonnage en Milieu Forestier; Ministère des Ressources Naturelles: Québec, QC, Canada, 2014; 237p, ISBN 9782550704621. [Google Scholar]
  50. Tosso, F.; Daïnou, K.; Sonké, B.; Levicek, C.; Bracke, C.; Forni, É.; Jobbé-Duval, B.; Ligot, G.; Tite, V.T.; Gourlet-Fleury, S.; et al. Sentiers de Suivi de la Croissance, de la Mortalité et de la Phénologie des Arbres Tropicaux: Guide Méthodologique; Presses Agronomiques de Gembloux: Gembloux, Belgium, 2020; 119p. [Google Scholar]
  51. Ciesielski, H.; Sterckeman, T. Determination of cation exchange capacity and exchangeable cations in soils by means of cobalt hexamine trichloride. Agronomie 1997, 17, 1–7. [Google Scholar] [CrossRef]
  52. Cottenie, A.; Camerlynck, R.; Verloo, M.; Dhaese, A. Fractionation and determination of trace elements in plants, soils and sediments. Pure Appl. Chem. 1979, 52, 45–53. [Google Scholar] [CrossRef]
  53. Morel, H. Dynamique de Croissance Radiale Saisonnière et Annuelle des Arbres en Forêt Tropicale Humide Guyanaise. Ph.D. Thesis, Université des Antilles et de la Guyane, Guadeloupe, France, 2013; 281p. [Google Scholar]
  54. Francis, J.K. Simple and Inexpensive Method for Extracting Wood Density Samples from Tropical Hardwoods. Tree Plant. Notes 1994, 45, 10–12. [Google Scholar]
  55. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2022. [Google Scholar]
  56. Deleuze, C.; Morneau, F.; Renaud, J.P.; Vivien, Y.; Rivoire, M.; Santenoise, P.; Longuetaud, F.; Mothe, F.; Hervé, J.C.; Vallet, P. Estimer le volume total d’un arbre, quelles que soient l’essence, la taille, la sylviculture, la station. RDV Tech.—ONF 2014, 44, 22–32. [Google Scholar]
  57. Oksanen, J.; Simpson, G.; Blanchet, F.; Kindt, R.; Legendre, P.; Minchin, P.; O’Hara, R.; Solymos, P.; Stevens, M.; Szoecs, E.; et al. Vegan: Community Ecology Package. R package version 2.6-2. 2022. Available online: https://CRAN.R-project.org/package=vegan (accessed on 12 May 2022).
  58. Baillargeon, S. Prétraitement de Données en R; Université Laval: Québec, QC, Canada, 2021; 61p, Available online: https://stt4230.rbind.io/manipulation_donnees/pretraitement_donnees_r_2021.pdf (accessed on 5 November 2021).
  59. de Bourmont, M. La résolution d’un Problème de Multicolinéarité au sein des Etudes Portant sur les Déterminants d’une Publication Volontaire D’informations: Proposition d’un Algorithme de Décision Simplifié basé sur les Indicateurs de Belsley, Kuh et Welsch (1980); Comptabilités et Innovation; Rouen Business School: Rouen, France, 2012; 33p. [Google Scholar]
  60. Pham, H. A new criterion for model selection. Mathematics 2019, 7, 1215. [Google Scholar] [CrossRef]
  61. Vanclay, J.K.; Skovsgaard, J.P. Evaluating forest growth models. Ecol. Modell. 1997, 98, 1–12. [Google Scholar] [CrossRef]
  62. Foucart, T. Colinéarité et régression linéaire. Math. Sci. Hum. 2006, 173, 5–25. [Google Scholar] [CrossRef]
  63. Rakotomalala, R. Pratique de la Régression Linéaire Multiple. In Diagnostic et Sélection de Variables; Université Lyon 2: Lyon, France, 2015; 190p. [Google Scholar]
  64. Fox, J.; Weisberg, S. An R Companion to Applied Regression, 3rd ed.; Sage: Thousand Oaks, CA, USA, 2019; ISBN 9781544336473. [Google Scholar]
  65. Prégent, G. L’éclaircie des Plantations; Ministère des Ressources Naturelles: Québec, QC, Canada, 1998; Volume 133, 38p. [Google Scholar]
  66. Lanier, L. Précis de Sylviculture, 2nd ed.; ENGREF; Agroparistech: Nancy, France, 1994; 477p, ISBN 2857100388. [Google Scholar]
  67. Pardé, J. Comment préciser l’intensité d’une éclaircie? Rev. For. Fr. 1961, 8–9, 551–557. [Google Scholar] [CrossRef]
  68. Chave, J.; Réjou-Méchain, M.; Búrquez, A.; Chidumayo, E.; Colgan, M.S.; Delitti, W.B.C.; Duque, A.; Eid, T.; Fearnside, P.M.; Goodman, R.C.; et al. Improved allometric models to estimate the aboveground biomass of tropical trees. Glob. Change Biol. 2014, 20, 3177–3190. [Google Scholar] [CrossRef] [PubMed]
  69. Ponce-Hernandez, R. Assessing Carbon Stocks and Modelling Win–Win Scenarios of Carbon Sequestration through Land Use Changes; FAO: Rome, Italy, 2004; 156p. [Google Scholar]
  70. GIEC. Recommandations en Matière de Bonnes Pratiques Pour le Secteur de L’utilisation des Terres, Changements D’affectation des Terres et Foresterie; Penman, J., Gytarsky, M., Hiraishi, T., Krug, T., Kruger, D., Pipatti, R., Buendia, L., Miwa, K., Ngara, T., Tanabe, K., et al., Eds.; Institute for Global Environmental Strategies (IGES) for the GIEC: Hayama, Japan, 2003; 594p, ISBN 9291692174. [Google Scholar]
  71. Gold Standard. Gold Standard Afforestation/Reforestation (A/R) GHG Emissions Reduction and Sequestration Methodology. 2017. Available online: https://globalgoals.goldstandard.org/403-luf-ar-methodology-ghgs-emission-reduction-and-sequestration-methodology/ (accessed on 30 June 2022).
  72. Gold Standard. Compensez vos Emissions Inévitables: Sylviculture. Available online: https://www.goldstandard.org/ (accessed on 30 June 2022).
  73. Dyson, W.G. Experiments on Growing Eucalyptus Wood Fuel in the Semi-Deciduous Forest Zone in Kenya. East Afr. Agric. For. J. 1974, 39, 349–355. [Google Scholar] [CrossRef]
  74. Walters, G.A. Saligna Eucalyptus Growth in a 15-Year-Old Spacing Study in Hawaii; U.S. Department of Agriculture: Washington, DC, USA, 1980; 6p. [Google Scholar]
  75. Pandey, D. Yield models of plantations in the tropics. Unasylva 1987, 39, 74–75. [Google Scholar]
  76. Muchiri, M.; Miina, J.; Pukkala, T. Yield of Grevillea robusta in the maize fields of Kenya. J. Trop. For. Sci. 2002, 14, 485–498. [Google Scholar]
  77. Baker, T.R.; Burslem, D.F.R.P.; Swaine, M.D. Associations between tree growth, soil fertility and water availability at local and regional scales in Ghanaian tropical rain forest. J. Trop. Ecol. 2003, 19, 109–125. [Google Scholar] [CrossRef]
  78. Christina, M.; Laclau, J.P.; Gonçalves, J.L.M.; Jourdan, C.; Nouvellon, Y.; Bouillet, J.P. Almost symmetrical vertical growth rates above and below ground in one of the world’s most productive forests. Ecosphere 2011, 2, 1–10. [Google Scholar] [CrossRef]
  79. Nambiar, E.K.S.; Tiarks, A.; Cossalter, C.; Ranger, J. Site Management and Productivity in Tropical Plantation Forests; Nambiar, E.K.S., Cossalter, C., Tiarks, A., Eds.; CIFOR: Bogor, Indonesia, 2000; 76p, ISBN 9798764528. [Google Scholar]
  80. Hébert, J.; Bourland, N.; Rondeux, J. Estimation de l’accroissement et de la production forestière à l’aide de placettes permanentes concentriques. Ann. For. Sci. 2005, 62, 229–236. [Google Scholar] [CrossRef]
  81. Almeida, A.C.; Siggins, A.; Batista, T.R.; Beadle, C.; Fonseca, S.; Loos, R. Mapping the effect of spatial and temporal variation in climate and soils on Eucalyptus plantation production with 3-PG, a process-based growth model. For. Ecol. Manag. 2010, 259, 1730–1740. [Google Scholar] [CrossRef]
  82. Hardwood, C.E.; Nambiar, E.K.S. Productivity of acacia and eucalypt plantations in South-east Asia: Trends and variations. Int. For. Rev. 2014, 16, 249–260. [Google Scholar]
  83. Hardiyanto, E.B.; Inail, M.A.; Nambiar, E.K.S. Productivity of Eucalyptus pellita in sumatra: Acacia mangium legacy, response to phosphorus, and site variables for guiding management. Forests 2021, 12, 1186. [Google Scholar] [CrossRef]
  84. Le Tacon, F.; Miller, C. Influence des conditions de nutrition minérale sur la croissance de l’Épicéa commun sur les plateaux calcaires de l’Est de la France. Ann. Sci. For. 1970, 27, 335–355. [Google Scholar] [CrossRef]
  85. Tchegueni, S.; Kili, K.; Bodjona, M.; Koriko, M.; Hafidi, M.; Baba, G.; Tchangbedji, G. Effets des composts à base de déchets d’agrumes et du tourteau de karité sur la disponibilité du phosphore du sol: Une étude en conditions contrôlées. Int. J. Biol. Chem. Sci. 2012, 6, 1381–1389. [Google Scholar] [CrossRef]
  86. Kasekete, D.K.; Kimbuluma, C.K.; Bourland, N.; Drouet, T.; Makana, J.-R.; Vasombolwa, K.; Mate, J.-P. Plantations monospécifiques d’espèces exotiques, déserts biologiques ou îlots de diversité floristique ? Exemple de situations biotiques et abiotiques contrastées au Nord-Kivu en République démocratique du Congo. Bois For. Trop. 2022, 352, 71–88. [Google Scholar] [CrossRef]
  87. Kelty, M.J. The role of species mixtures in plantation forestry. For. Ecol. Manag. 2006, 233, 195–204. [Google Scholar] [CrossRef]
  88. West, P.W. Mixed-Species Plantations. In Growing Plantation Forests; West, P.W., Ed.; Springer: Cham, Switzerland, 2014; pp. 211–222. ISBN 978-3-319-01827-0. [Google Scholar]
  89. Messier, C.; Bauhus, J.; Sousa-Silva, R.; Auge, H.; Baeten, L.; Barsoum, N.; Bruelheide, H.; Caldwell, B.; Cavender-Bares, J.; Dhiedt, E.; et al. For the sake of resilience and multifunctionality, let’s diversify planted forests! Conserv. Lett. 2021, e12829. [Google Scholar] [CrossRef]
  90. Whitehead, D.; Beadle, C.L. Physiological regulation of productivity and water use in Eucalyptus: A review. For. Ecol. Manag. 2004, 193, 113–140. [Google Scholar] [CrossRef]
  91. Vanclay, J.K. Managing water use from forest plantations. For. Ecol. Manag. 2009, 257, 385–389. [Google Scholar] [CrossRef]
  92. Lima, W.P.; Laprovitera, R.; Ferraz, S.F.B.; Rodrigues, C.B.; Silva, M.M. Forest Plantations and Water Consumption: A Strategy for Hydrosolidarity. Int. J. For. Res. 2012, 2012, 908465. [Google Scholar] [CrossRef]
  93. Gándara, J.; Ross, S.; Quero, G.; Dellacassa, P.; Dellepiane, J.; Figarola, G.; Viega, L. Differential water-use efficiency and growth among eucalyptus grandis hybrids under two different rainfall conditions. For. Syst. 2020, 29, e006. [Google Scholar] [CrossRef]
  94. Dye, P. A review of changing perspectives on Eucalyptus water-use in South Africa. For. Ecol. Manag. 2013, 301, 51–57. [Google Scholar] [CrossRef]
  95. Ottorini, J. Aspects de la notion de densité et croissance des arbres en peuplement. Ann. Sci. For. 1978, 35, 299–320. [Google Scholar] [CrossRef]
  96. Rondeux, J. Estimation de la productivité forestière: Principes et méthodes. Ann. Gembloux 1977, 83, 5–17. [Google Scholar]
  97. Bouillet, J.-P.; Safou-Matondo, R.; Laclau, J.; Nzila, J.D.D.; Ranger, J.; Deleporte, P. Pour une production durable des plantations d’eucalyptus au Congo: La fertilisation. Bois For. Trop. 2004, 279, 23–35. [Google Scholar]
  98. Melun, F.; Nguyen, N. L’Eucalyptus en France: Une espèce remarquable pour la production de biomasse. Rev. For. Fr. 2012, LXIV, 7–26. [Google Scholar] [CrossRef]
  99. Proces, P.; Dubiez, E.; Bisiaux, F.; Péroches, A.; Fayolle, A. Production d’Acacia auriculiformis dans le système agroforestier de Mampu, plateau Batéké, République Démocratique du Congo. Bois For. Trop. 2017, 334, 23–36. [Google Scholar] [CrossRef]
  100. Gerkens, M.; Kasali, L. Productivité des peuplements d’Acacia auriculiformis sur le plateau des Bateke au Zaïre. Tropicultura 1988, 6, 171–175. [Google Scholar]
  101. Mugunga, C.P. Growth and quality of Grevillea robusta provenances in Ruhande Arboretum, Butare, Rwanda. J. Etudes Rwandaises 2009, 17, 128–137. [Google Scholar]
  102. Albrecht, A.; Kandji, S.T. Carbon sequestration in tropical agroforestry systems. Agric. Ecosyst. Environ. 2003, 99, 15–27. [Google Scholar] [CrossRef]
  103. Warner, E.; Cook-Patton, S.C.; Lewis, O.T.; Brown, N.; Koricheva, J.; Eisenhauer, N.; Ferlian, O.; Gravel, D.; Hall, J.S.; Jactel, H.; et al. Higher aboveground carbon stocks in mixed-species planted forests than monocultures—A meta-analysis. bioRxiv 2022, 476441. [Google Scholar] [CrossRef]
Figure 1. Location of the study sites and distribution of the plantations studied.
Figure 1. Location of the study sites and distribution of the plantations studied.
Forests 13 01508 g001
Figure 2. Nine-year-old E. saligna (a) and 8-year-old G. robusta (b) plantations in North Kivu. Diameter measurement levels were marked with paint at a height of 1.3 m or 30 cm above the defect, as appropriate.
Figure 2. Nine-year-old E. saligna (a) and 8-year-old G. robusta (b) plantations in North Kivu. Diameter measurement levels were marked with paint at a height of 1.3 m or 30 cm above the defect, as appropriate.
Forests 13 01508 g002
Figure 3. Theoretical inventory design.
Figure 3. Theoretical inventory design.
Forests 13 01508 g003
Figure 7. Dynamics of biomass accumulation and carbon storage as a function of tree diameter (a) and stand age (b) and (c) in E. saligna and G. robusta plantations in North Kivu. The probability (p) given is that of Student’s t-test.
Figure 7. Dynamics of biomass accumulation and carbon storage as a function of tree diameter (a) and stand age (b) and (c) in E. saligna and G. robusta plantations in North Kivu. The probability (p) given is that of Student’s t-test.
Forests 13 01508 g007
Table 5. Expected productivity over the rotation and area to be dedicated to plantations. Expected productivities were calculated from Models 3 and 8 (Table 3). The area to be dedicated to plantations was estimated from Equation (14). The rotation stand density corresponds to the stand density after thinning (see Table 4).
Table 5. Expected productivity over the rotation and area to be dedicated to plantations. Expected productivities were calculated from Models 3 and 8 (Table 3). The area to be dedicated to plantations was estimated from Equation (14). The rotation stand density corresponds to the stand density after thinning (see Table 4).
ScenariosSpeciesSpacing at Planting (m)Rotation (Years)Rotation Stand Density (Stems/ha)Expected Productivity (m3/ha/year)Area to Be Planted to Produce One Million Cubic Meters of Round Wood per Year (ha)
SakeKirumbaSakeKirumba
Scenario 1E. saligna3 × 38724344229,40023,800
G. robusta4 × 412461221445,50071,400
Scenario 2E. saligna2 × 281122414824,40020,800
2.5 × 2.581072404725,00021,300
3 × 381111404825,00020,800
4 × 48625324031,30025,000
G. robusta2 × 2121675372827,00035,700
2.5 × 2.5121072/160030/3621/2833,300/27,80047,600/35,700
3 × 3121111302233,30045,500
4 × 412625241641,70062,500
Table 6. Carbon stock, long-term CO2 fixation and financial potential of carbon credits in E. saligna and G. robusta plantations in North Kivu. The carbon stock was calculated from Models 5 (for E. saligna) and 10 (for G. robusta). Long-term fixed CO2 and the financial potential of carbon credits were deducted from the carbon stock following the methodology described in Section 2.4.6. The rotation stand density corresponds to the stand density after thinning (see Table 4).
Table 6. Carbon stock, long-term CO2 fixation and financial potential of carbon credits in E. saligna and G. robusta plantations in North Kivu. The carbon stock was calculated from Models 5 (for E. saligna) and 10 (for G. robusta). Long-term fixed CO2 and the financial potential of carbon credits were deducted from the carbon stock following the methodology described in Section 2.4.6. The rotation stand density corresponds to the stand density after thinning (see Table 4).
ScenariosSpeciesSpacing at Planting (m)Rotation (Years)Rotation Stand Density (Stems/ha)Carbon Stock (Mg/ha)Long-Term Fixed CO2 (Mg/ha)Financial Potential of Carbon Credits (USD/ha)
SakeKirumbaSakeKirumbaSakeKirumba
Scenario 1E. saligna3 × 3872411012550579001030
G. robusta4 × 4124611341014131740560
Scenario 2E. saligna2 × 28112211914155659901170
2.5 × 2.58107211813954649701150
3 × 38111111814054649701150
4 × 486251091215055900990
G. robusta2 × 21216753402231046818701220
2.5 × 2.5121072/1600237/327162/21572/10050/661300/1800900/1190
3 × 312111124416675511350920
4 × 4126251611184936880650
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kasekete, D.K.; Ligot, G.; Mweru, J.-P.M.; Drouet, T.; Rousseau, M.; Moango, A.; Bourland, N. Growth, Productivity, Biomass and Carbon Stock in Eucalyptus saligna and Grevillea robusta Plantations in North Kivu, Democratic Republic of the Congo. Forests 2022, 13, 1508. https://doi.org/10.3390/f13091508

AMA Style

Kasekete DK, Ligot G, Mweru J-PM, Drouet T, Rousseau M, Moango A, Bourland N. Growth, Productivity, Biomass and Carbon Stock in Eucalyptus saligna and Grevillea robusta Plantations in North Kivu, Democratic Republic of the Congo. Forests. 2022; 13(9):1508. https://doi.org/10.3390/f13091508

Chicago/Turabian Style

Kasekete, Désiré Katembo, Gauthier Ligot, Jean-Pierre Mate Mweru, Thomas Drouet, Mélissa Rousseau, Adrien Moango, and Nils Bourland. 2022. "Growth, Productivity, Biomass and Carbon Stock in Eucalyptus saligna and Grevillea robusta Plantations in North Kivu, Democratic Republic of the Congo" Forests 13, no. 9: 1508. https://doi.org/10.3390/f13091508

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
