Article

An Updated Infrageneric Classification of the North American Oaks (Quercus Subgenus Quercus): Review of the Contribution of Phylogenomic Data to Biogeography and Species Diversity

1
Department of Biology, Duke University, 330 Bio Sci Bldg, Durham, NC 27708, USA
2
The Morton Arboretum, Center for Tree Science, 4100 Illinois 53, Lisle, IL 60532, USA
*
Author to whom correspondence should be addressed.
Forests 2021, 12(6), 786; https://doi.org/10.3390/f12060786
Received: 5 May 2021 / Revised: 7 June 2021 / Accepted: 10 June 2021 / Published: 15 June 2021
(This article belongs to the Special Issue Quercus Genetics: Insights into the Past, Present, and Future of Oaks)

Abstract

:
The oak flora of North America north of Mexico is both phylogenetically diverse and species-rich, including 92 species placed in five sections of subgenus Quercus, the oak clade centered on the Americas. Despite phylogenetic and taxonomic progress on the genus over the past 45 years, classification of species at the subsectional level remains unchanged since the early treatments by WL Trelease, AA Camus, and CH Muller. In recent work, we used a RAD-seq based phylogeny including 250 species sampled from throughout the Americas and Eurasia to reconstruct the timing and biogeography of the North American oak radiation. This work demonstrates that the North American oak flora comprises mostly regional species radiations with limited phylogenetic affinities to Mexican clades, and two sister group connections to Eurasia. Using this framework, we describe the regional patterns of oak diversity within North America and formally classify 62 species into nine major North American subsections within sections Lobatae (the red oaks) and Quercus (the white oaks), the two largest sections of subgenus Quercus. We also distill emerging evolutionary and biogeographic patterns based on the impact of phylogenomic data on the systematics of multiple species complexes and instances of hybridization.

1. Introduction

The oaks (Quercus, Fagaceae) comprise more than 435 species distributed across temperate and tropical regions of the northern hemisphere [1,2,3]. They are among the best-known and most ecologically significant forest trees in North America (including Mexico) and Eurasia, shaping forest and savanna ecosystems [4] and the diversity of urban forests [5,6], and molding the development of human civilization and mythology [7,8,9,10]. Oaks are united by a suite of distinctive floral traits—in particular, pendant male catkins and tricarpellate female flowers with linear styles and expanded stigmas—and a signature fruit trait: the circular single fruit or acorn seated within a cup-shaped extra-floral accessory structure, a specialized involucre called a cupule. The cupule is the defining feature of Fagaceae. While other genera of the family feature acorns and valveless rounded cupules, the combination of floral character states shared by oaks is unique within the family [11,12].
The most recent classification system of Quercus recognizes eight sections within two subgenera, subgenus Quercus (ca. 295 spp.) and subg. Cerris (ca. 140 spp. [3]; see Table 1). This old dichotomy between oak subgenera, which dates to the early Eocene, was recognized in early molecular studies of the genus and family [13,14] and is robustly supported by an extensive RAD-seq (next-generation DNA sequencing) phylogenomic study of a comprehensive worldwide sample of species [15]. The two subgenera represent a deep biogeographic split among modern taxa: subg. Cerris is restricted to Europe, Asia, and northern Africa; and subg. Quercus, the American oak clade, is largely restricted to the Americas except for two dispersals back to Eurasia. Eight sections of the genus are also supported by a combination of RAD-seq data and macro- and microscopic characters, most notably patterns of pollen ornamentation viewed under SEM [3]. These subtle yet well-established differences in pollen exine, and their correlation with phylogenomic data, give us high confidence in the basic split between subgenera and the pollen subtypes that correspond to each of the recognized sections [3,16].
Fossilized pollen has been used to pin the modern sections in time and space, serving as an invaluable resource to interpret paleobiogeography and to time-calibrate the global oak phylogeny [15,16]. Time-calibrated phylogenomic analyses, combined with fossil and modern oak species distributions, support an initial split in the American oak clade between the red oaks, sect. Lobatae, and the remainder of the clade between ca. 54 and 48 Ma (= million years ago). The non-Lobatae American oak clade sections exhibit high ecological diversity, with several striking contrasts between three early-diverging clades—sects. Protobalanus, Ponticae and Virentes—and the main radiation of white oaks, sect. Quercus. These early-branching lineages are species-poor, two to seven species each, restricted in distribution, and evergreen to wintergreen in habit. By contrast, sect. Quercus, with approximately 150 species of white oak, has the broadest distribution of all forest trees in the Northern Hemisphere [3]. This may be owing to the evolution of deciduousness and other traits associated with a range of continental climates, an exceptionally high range of functional diversity that sets the American oaks up as a model clade for understanding tree diversification and ecology [17,18]. The other main branch of the American oaks and the sister group to these lineages, sect. Lobatae, comprises the second largest clade next to the white oaks. It forms a remarkably parallel radiation to the white oaks with respect to distribution, habit, and morphology [17,19]. There is, however, an important point of ecological distinction between these two large oak clades: Lobatae show lower levels of diversification in western North America, especially in the California Floristic Province (CA-FP) and xeric woodlands of the American southwest [20]. The reasons for this ecological distinction between the clades may be key to understanding coexistence of these sections in the Americas, and the consequent interaction between diversification and tree diversity in oaks [17,21,22]
The sectional classification for Quercus [3] is solid and unlikely to change. In this paper, we present a subsectional classification for the American oak clade based largely on our phylogenomic work of the past five years [15,19,23,24,25]. Our current sampling of species for RAD-seq analysis stands at roughly 250 taxa: A total of 177 from subg. Quercus, the American oak clade, and 73 from subg. Cerris, the Eurasian oak clade. Within subg. Quercus, our coverage is nearly complete for the 92 species treated within the Flora of North America (FNA north of Mexico [1]). This phylogenomic work reveals compelling continental patterns of oak diversity at the broadest and narrowest phylogenetic scales. At the scale of entire clades, the early-branching clades as well as many other lineages within the two largest sections of subg. Quercus, sects. Lobatae (red oaks) and Quercus (white oaks), are distributed exclusively within North America north of Mexico (hereafter, “the FNA region”). It is also clear that the number of species within the FNA region with relationships to species outside the region is relatively low, limited to a single species of sect. Ponticae and a single clade in sect. Quercus, as discussed below. Thus, the oak flora of the FNA region is nearly a self-contained unit for study. At the same time, within regional clades, multiple radiations of taxa have been sampled at the population level for both our global phylogeny and as part of earlier stand-alone studies targeting the fine-scale systematics of challenging species complexes [23,25,26,27,28]. These enable the same dataset that informs classification to provide insight into species taxonomy. With this framework in place, we are well positioned to provide a phylogenetically-driven and timely bookend on the systematics of the taxa treated in the FNA region.
Our goals with this review are: (1) To describe the biogeographic patterns of oak diversity within North America; (2) to formally classify 62 species into nine well-sampled monophyletic subsections; and (3) to review the impact of phylogenomic data on the systematics of multiple species complexes and distill the results of hypothesis testing involving hybridization within the flora.

1.1. Phylogeny and Biogeography of the Oak Flora in North America

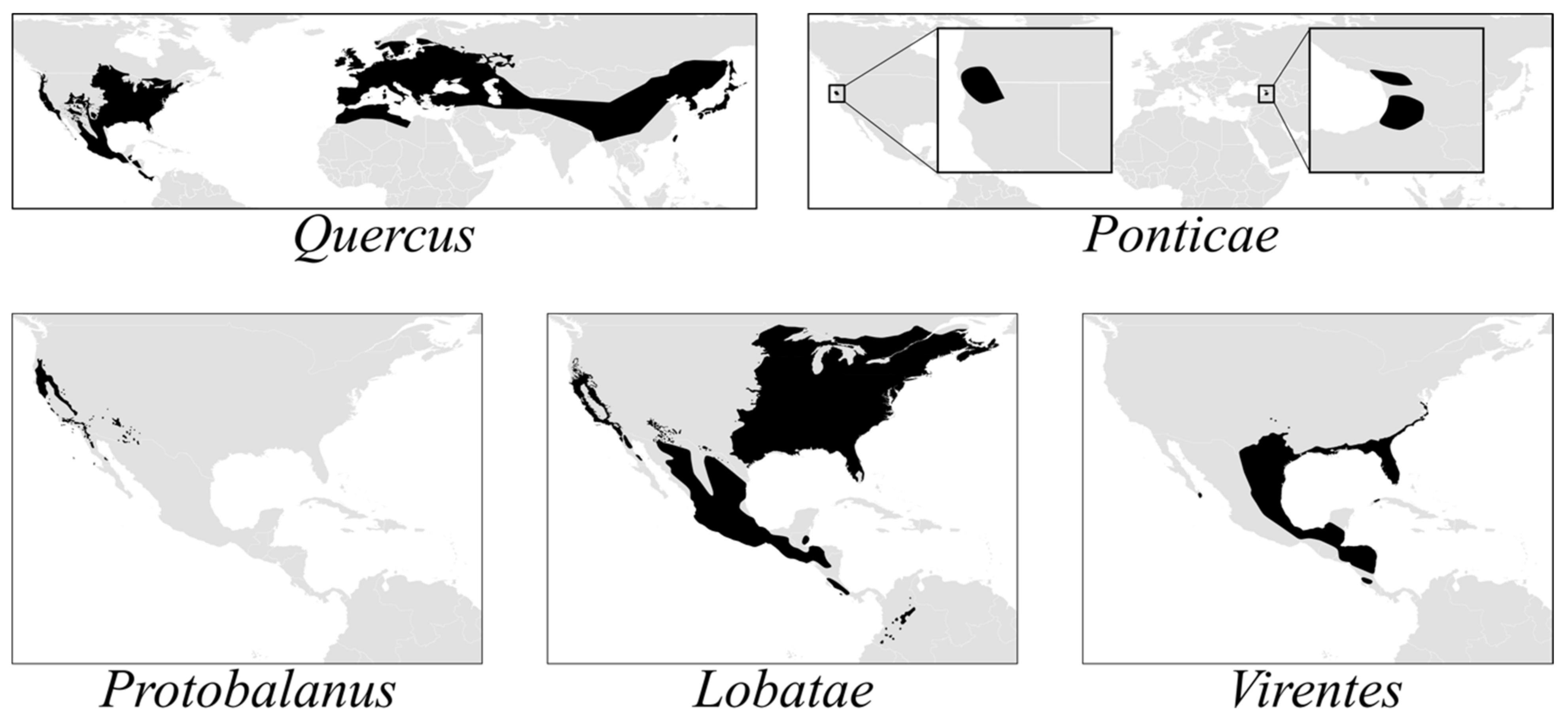

The American oak clade (Quercus subg. Quercus) comprises three endemic lineages—sects. Lobatae, Protobalanus and Virentes—and two Holarctic or transcontinental lineages—sects. Ponticae and Quercus (Figure 1). Sections Lobatae, Protobalanus, and Quercus likely arose in what is now the boreal zone. Middle Eocene pollen records from Axel Heiberg Island (79°55‘N, 88°58‘ W) indicate the presence of modern oak lineages at high latitudes in North America by c. 45 Ma [29]. As temperatures at high latitudes decreased by ca. 3–5 °C during the Eocene–Oligocene climate transition 34 Ma [30], Lobatae and Quercus were pushed southward toward their modern-day distributions (Figure 1). A parallel pattern of vicariance in the red oaks and the white oaks is evident from the phylogeny, with each section diverging into a western clade centered in the California Floristic Province (CA-FP) sister to an eastern North American clade. The red oaks and white oaks then radiated simultaneously in the CA-FP and eastern North America before diverging from an eastern North American ancestor to diversify in Mexico and Central America.
The oak flora of the FNA region contains a high level of global phylogenetic diversity—all five sections of subg. Quercus, including the relictual sects. Ponticae (Q. sadleriana only) and Protobalanus (five species), which are restricted to the CA-FP or, in the case of Q. chrysolepis and Q. palmeri of sect. Protobalanus, range from the CA-FP to the adjacent southwest. Our work suggests that older crown group ages [15] and plastome divergences [13,33] are associated with many of these deeply divergent subclades, a pattern consistently in contrast to the more recently derived subclades containing mostly Mexican and Central American species. These nested clades contain three unrelated red oak species and two distinct groups of white oak species in the FNA region, which suggests multiple recent dispersal events or range extensions from Mexico back into the southwestern edge of the FNA region [19].

1.2. Patterns of Ecological Diversity

A broad overview of North American species diversity and community assembly published in 2018, based on tree species within U.S. Forest Service Forest Inventory and Analysis (FIA) plots [17,18], shows that FNA oak diversity peaks in the southeastern piedmont and coastal plain regions [18]. While these analyses did not include ca. 30 oak shrubs and small tree species, they demonstrate the broad distribution of oak diversity in the FNA region. What they miss most significantly is the impressive level of shrub and small tree diversity in the CA-FP and adjacent desert biomes of the southwest that accounts for about 18 species across four sections, or roughly two-thirds of the species of smaller stature within the flora. While the addition of these species changes little to the initial observation that the uplands of eastern and central North America are the least diverse areas for oaks, this diversity is important to understanding the role of oak phylogenetic diversity in a range of ecological and evolutionary contexts, including community assembly and ecosystem functions of non-forested oak-dominated ecosystems.
The broad geographic and ecological distribution of oaks across at least eight distinct North American biomes has generated a complex array of foliar adaptations, especially within the two main species-rich sections, Lobatae and Quercus. While each of the sections covers a broad ecological and geographic range, these ranges begin to subdivide and segregate regionally. Eastern North American subclades Stellatae (sect. Quercus) and Phellos (sect. Lobatae), here treated as subsections, centered in the piedmont and coastal plain, highlight previously unsuspected close relationships between lobe-leaved and non-lobe-leaved species. In the southeast, the added presence of generally non-lobe-leaved species of sect. Virentes (live oaks) with already diverse communities of sympatric oak species revealed a clear pattern of phylogenetic sorting and convergent evolution among species from the three sections along moisture and fire gradients [26,34].
For species placed within western clades of red and white oaks and centered on the CA-FP—subclades Dumosae (sect. Quercus) and Agrifoliae (sect. Lobatae), here treated as subsections—a combination of sclerophylly and deciduousness has presumably evolved in response to drought. In each case, phylogenies resolved the lobe-leaved deciduous species sister to more diverse clades of mostly sclerophyllous shrub species [23,27,35]. This parallel distinction between leaf habit and species diversity in the white and red oaks of the CA-FP suggests an increase in diversification rate in response to decreasing summer precipitation and general support for the hypothesis of convergent patterns of foliar evolution. Additional complexity in the evolution of character states of leaf persistence is observed within the most diverse clades of red and white oaks along abiotic gradients southward into Mexico and Central America, demonstrating sympatric and strongly parallel diversification in climatic niche and leaf habit increasing in rate with the move into Mexico [19].

1.3. Classification of the American Oak Clade: Species Level Systematics

The ecological and biogeographic segregation of species within sections suggests a biological rationale for naming subsections, beyond the practical ramifications of any classification system for the writing of keys and identification of species. At the species level, phylogenetic relationships among oaks species remain difficult to resolve with confidence, especially for a group well known for hybridization [24,36,37]. But recent studies using a range of DNA markers suggest that hybridization does not pose an insurmountable barrier to achieving that goal [24,26,36,38,39,40,41]. Population-level sampling is critical to establishing that oak species show genetic cohesion, and the use of reduced-representation next-generation sequencing data on exemplars across species ranges has provided robust evidence for the existence of species boundaries even among closely related species occurring in sympatry (e.g., [42,43,44,45,46]. A species level analysis of sect. Virentes stands out as the first oak study with complete phylogenomic sampling of any oak clade, using RAD-seq data and including multiple accessions throughout the range of each species, to generate a phylogeny and provide the context needed to guide a range of comparative investigations [26]. Since then, two more clades, treated here as subsections Dumosae and Agrifoliae, have been comprehensively sampled and analyzed [23,27,35,47].
Throughout this paper, our work rests on a concept of oak species as populations of individuals that cohere genomically in a subset of the genome that is likely shared across all members of the species, barring early-generation hybrids [48,49]. While the mechanisms maintaining species boundaries in oaks very likely differ across the range of even a single species, and while those mechanisms maintained across a species’ range may vary in strength across the range, it remains the case that we are able to recognize most oak species ecologically and morphologically [50,51,52]. In addition, as individual cases of species pairs and species clusters are investigated with increasing amounts of molecular data, sampled from across the genome, they converge with very few exceptions on genomic clusters that accord with recognizable species [23,38,53,54,55,56]. Exceptions will no doubt result from incomplete divergence, as time since speciation is likely a key factor in resolving oak species, even with the application of multiple criteria [48]. Our work thus far has shown that clades from the FNA region often vary in their depth of relative species divergence, with several examples that suggest we are capturing various stages of diversification, ranging from isolation by distance on the California Channel Islands (e.g., sect. Protobalanus, subsect. Dumosae) to differentiation in ecological niche space in both coastal and continental regions (e.g., sect. Virentes, subsect. Prinoideae).
Analogous to the argument that has been made for plant species as a whole [56], the correlation between morphological patterns of similarity and genomic evidence for reproductive barriers suggests that our use of the species category in oaks is both meaningful and based on an integrative approach using multiple criteria [48]. Where studies have found difficulty distinguishing morphological and ecological species using molecular data (e.g., [57,58]), returning with higher numbers of markers generally recovers clusters that cleanly separate the species (e.g., [43,59]). This suggests that there may be genomic heterogeneity in where and how much of the genome is shared within species vs. among species, even if the regions of the genome that distinguish recently diverged oak species may be few and far between [60] and interspersed with regions that exchange relatively freely between species. At the same time, it gives us good reason to expect that species we are able to recognize ecologically and morphologically will also cohere genomically, so long as we look closely enough.
Moreover, in spite of taxonomic difficulties at the species level, our RAD-seq work already cited and ongoing work based on sequence-capture data [37,61] strongly support the clades we recognize as subsections in the current work (Figure 2). Given our sampling to date and the strong phylogenetic support, the timing is reasonable to recognize subsections for the FNA region. To complete the American oak clade (Quercus subg. Quercus), better sampling of the Mexican and Central American taxa is needed and ongoing.

2. Materials and Methods

Taxonomic Treatment

In the treatments that follow, all references to phylogenetic resolution are based on RAD-seq data cited here [15,19,23,24,25,26,27,36,62] unless otherwise indicated. Three of the American sections are relatively small and are not divided into subsections: These are sect. Ponticae (2 species, one of which is in the FNA region), sect. Protobalanus (5 species), and sect. Virentes (7 species, 4 of which are in the FNA region).
Numbers in parentheses indicate the number of species in the FNA region out of the total number of species estimated for the clade, following previous work [1,3]. Species indicated with an asterisk are subshrubs, shrubs, or small trees; all others are trees. Section descriptions are not here; for these, we refer the reader to the most recent classification of the genus [3]. Our subsectional descriptions are based on previous classifications, species-level treatments, and morphological studies cited below, including new observations made from herbarium specimens.

3. Results and Discussion

3.1. Section Protobalanus (5/5)

Includes: * Q. cedrosensis C.H. Muller, Q. chrysolepis Liebm., * Q. palmeri (Engelm.) Engelm., Q. tomentella Engelm., * Q. vacciniifolia Kellogg
The Protobalanus oaks are the only truly evergreen American group, with leaves persisting up to three years. Three of the species are shrubs or small trees. All species of the section are in the FNA region, and two of them extend south into Mexico. Defining features of the section include apiculate stamens and a mostly lateral position of abortive ovules [3,63]. Trichome variation is especially informative in this species complex [64]. The most widespread species, Q. chrysolepis, is also one of the most variable North American oaks, with juvenile leaf morphology and branching habit, sucker shoots, shade forms, or shoots of individuals in ecologically extreme habitats often resembling other species of the complex [1]. The section includes one of the two island endemic species in the FNA region, Q. tomentella (California Channel Islands; Isla Guadelupe, Mexico). Clonal reproduction is common in Q. tomentella [65] and reported to be extreme in Q. palmeri from the Jarupa Hills of southern California, the site of a 13,000 year-old clone [66].
Quercus cedrosensis appears to be the earliest branch in the clade, followed by Q. palmeri. The remaining taxa are not cleanly resolved as subclades with our current sample, suggesting a recent divergence history and likely continued gene flow between the two species pairs, Q. chrysolepisQ. vacciniifolia and Q. chrysolepisQ. tomentella [65,67]. Phylogeographic studies of Protobalanus using plastid data showed a north-south discontinuity in California, perhaps related to an ancient disjunction within the complex that limited seed dispersal [13]. More recently, Ortego et al. [67] detected two lineages within a paraphyletic Q. chrysolepis using RAD-seq data and population genetic analyses. Their work demonstrates the existence of a southern lineage sharing a most recent common ancestor with Q. tomentella, divergence between the southern and northern lineages at about 5 Ma, consistent with our fossil-calibrated estimate [15].
Both the fossil record and expanded ancestral range predicted by niche modeling for Q. chrysolepis suggest Protobalanus once were more widely distributed [70,71]. Plastome sharing between the California white oak Q. engelmanii and sect. Protobalanus and deep plastome splits between sects. Quercus and Protobalanus further support a long history of co-occurrence of the two sections in the CA-FP [13,33]. A center of diversification in western North America suggests a long-term presence in the region and perhaps farther south given the deep phylogenetic divergence of Q. cedrosensis and its extended range south along the Baja coast to Cedros Island, Mexico.

3.2. Section Ponticae (1/2)

Includes: * Q. sadleriana R. Br. Ter
Quercus sadleriana is one of the most distinctive oaks from western North America (CA-FP) and the FNA region’s solitary member of this ditypic section. The combination of its isolated range and chestnut-like, shallowly lobed leaves reminiscent of the white oak species of both eastern North America and Asia likely led to its placement in monotypic groups by both Trelease ([72]; as series Sadlerianae) and Camus ([73,74,75]; subsect. Sadlerianae). Our analyses conclusively place it sister to Q. pontica K. Koch from the Caucasus Mountains, supporting a placement that had previously been shown correctly based on nuclear ribosomal DNA alone, but not robustly supported [76]. Together they form a distinct Holarctic lineage within subg. Quercus. Ponticae are quite similar in their shallowly lobed, chestnut-like leaves, large stipules, large leaf buds with loosely attached scales, and shrubby, rhizomatous habit. They also share the derived features of basal abortive ovules, glabrous endocarp, and annual fruit maturation with sects. Virentes and Quercus [3].
Qualitatively, both species occupy similar latitudes and ecological zones that overlap strongly in the mean values of 19 climatic variables [77], despite being longitudinally separated by 165°. There is morphological evidence that Q. sadleriana hybridizes with Q. garryana ([78]; A. Keuter, pers. comm.) and strong molecular evidence that ancient introgression occurred between Q. pontica and the roburoid white oaks of Eurasia [26,39]. This history of introgression has interfered with the accuracy of phylogenetic estimation within the white oaks and become a model for examining the impact of introgression on the mosaic of phylogenetic signals within the oak genome [15,24,37,79].
Given the nested phylogenetic position of Ponticae within the American oak clade, it seems reasonable to hypothesize an origin in the Americas followed by dispersal to Eurasia. Undoubtedly, Ponticae are relicts of a once more widespread species group although there is no macrofossil evidence that can be definitively attributed to the group [3].

3.3. Section Virentes (4/7)

Includes:Q. fusiformis Small, Q. geminata Small, * Q. minima (Sarg.) Small, Q. virginiana Mill.
Although sect. Virentes has long been considered one of the best-demarcated species groups of the American oaks [34,80], until recently its relationship to the white oaks was unclear. All phylogenomic data place Virentes sister to sect. Quercus with strong support. Section Virentes is uniquely characterized by the combination of fused stellate trichomes on the leaf undersides; seeds with fused cotyledons; and the presence of a cotyledonary tube in seedling development [3,80]. Section Virentes’ consistent and distinct morphology across vegetative and reproductive features support a long and divergent history within the American oak clade.
The lineage is unusual within the FNA region and globally in being restricted to low-elevation habitats, occurring largely on well-drained sandy soils or volcanic tuff [34]. Ecological separation of the taxa by climate and environmental factors is well studied [24], including clear demonstration of flowering time as an isolating mechanism between Q. virginiana and Q. geminata [81].
Population-level studies support the placement of the four FNA taxa into two main clades [24]. One comprises three species from the southeastern FNA region: The widespread Q. virginiana and more narrowly distributed sister species-pair of Q. geminata and Q. minima. These species form the sister to a Central American clade of Q. sagraena Nutt. and Q. oleoides Schltdl. and Cham. In the southwest, Q. fusiformis and Q. brandegeei, a narrow endemic from the southern tip of Baja California, diverge early from the rest of the complex. A discontinuous distribution across the southwest of the FNA region and extension south suggests allopatric speciation, driven by range contraction and isolation by distance [82]. Long distance dispersal also seems likely in explaining the origin of the Antillean Q. sagraena (Cuban oak) from a mainland progenitor similar to Q. oleoides [26].
The distribution of Virentes suggests physiological adaptations to temperate climates with mild winters or seasonally dry tropical climates. Vulnerability to freezing and tolerance of drought have likely influenced historical patterns of migration and the current restricted distribution of the group [17]. Although a temperate origin within the FNA region, followed by east-west dispersion and subsequent migration south seems plausible, the timing remains elusive. With no reliable fossil record for modern Virentes [3], the age of the crown group is dependent on sampling, phylogenetic estimation, and the use of fossil constraints derived from other oak lineages. The wide range of crown group estimates from 11 to 23 Ma is likely due to these variables [16,26], a reminder of the uncertainty and potential disparities in the timing of the pattern of oak diversification across studies.
Evidence for historical introgression between parapatric species pairs suggests hybridization during periods of range overlap or long-distance transmission of pollen [36]. For the FNA taxa, introgression among sympatric Virentes is clear from morphology and genomic data, but the degree of gene flow is modulated by the strength of ecological isolating mechanisms [26]. Differences in flowering time (Q. virginiana vs Q. geminata) and drought tolerance (Q. fusiformis vs Q. virginiana) work to maintain reasonably distinct genetic patterns of species cohesion. However, niche differentiation in fire response and habit between Q. minima and Q. geminata, two species with broadly overlapping flowering times, are less effective ecological barriers to gene flow. Mixed populations of Q. virginiana, Q. minima, and Q. geminata at the northern extent of sympatry in North Carolina appear to show elevated levels of morphological intergradation, possibly a result of habitat destruction and breakdown of ecological isolating mechanisms (P.S. Manos, pers. obs.).

3.4. Section Lobatae–(37/ca. 120)

Lobatae occupy a range of habitats throughout the Americas, with just one species, Q. humboldtii Bonpl., extending into northern Colombia [83,84]; this is the only oak species of any section to range into South America, where it is ecologically important in a diverse array of forest types [85,86]. Lobatae are defined by long styles encircled at their base by a perigon, a skirt-like perianth structure [3,87]. Most Lobatae species have biennial fruit, but three unrelated species within the FNA region bear annual fruit (Q. agrifolia, Q. emoryi, and Q. elliottii), and a fourth unrelated species, Q. hypoleucoides, is polymorphic [88].
The earliest branch within Lobatae is a clade we treat here as subsect. Agrifoliae, distributed largely within the CA-FP. It is sister to a succession of subclades distributed from eastern North America to well south of the FNA region. Four of these clades are densely sampled in our phylogenetic work and treated below as subsects., but a fifth group within the FNA region, informally known as the Texas red oaks (e.g., Q. canbyi Cory and Parks = Q. graciliformis C.H. Muller; = Q. gravesii Sudw.), may or may not contain other rare, unsampled species that occur in Texas (e.g., Q. rubusta C.H. Muller and Q. tardifolia C.H. Muller). The placement of this group between the grade formed by temperate subsects. and the large clade formed by all other Lobatae south of the FNA region seems to geographically parallel the white oak biogeographic patterns (Figure 2). However, additional studies are needed to evaluate the possibility that the taxonomic complexities in the Trans-Pecos Region represent relictual hybrid populations or rare taxa with relationships to species within subsect. Coccineae or to Mexican taxa [1,72,89,90]. With our limited sample, the Texas Red oak group is the provisional sister to the clade formed by all other Lobatae south of the FNA region, informally called Erythromexicana, whose distributions suggest at least two major hotspots of species richness: The Northern Sierra Madre Orientale and Serranías Meridionales of Jalisco [91]. Three additional species within the FNA region, Q. emoryi Torr., Q. hypoleucoides A. Camus, and Q. viminea Trel., are clearly related to three different subclades within Erythromexicana.

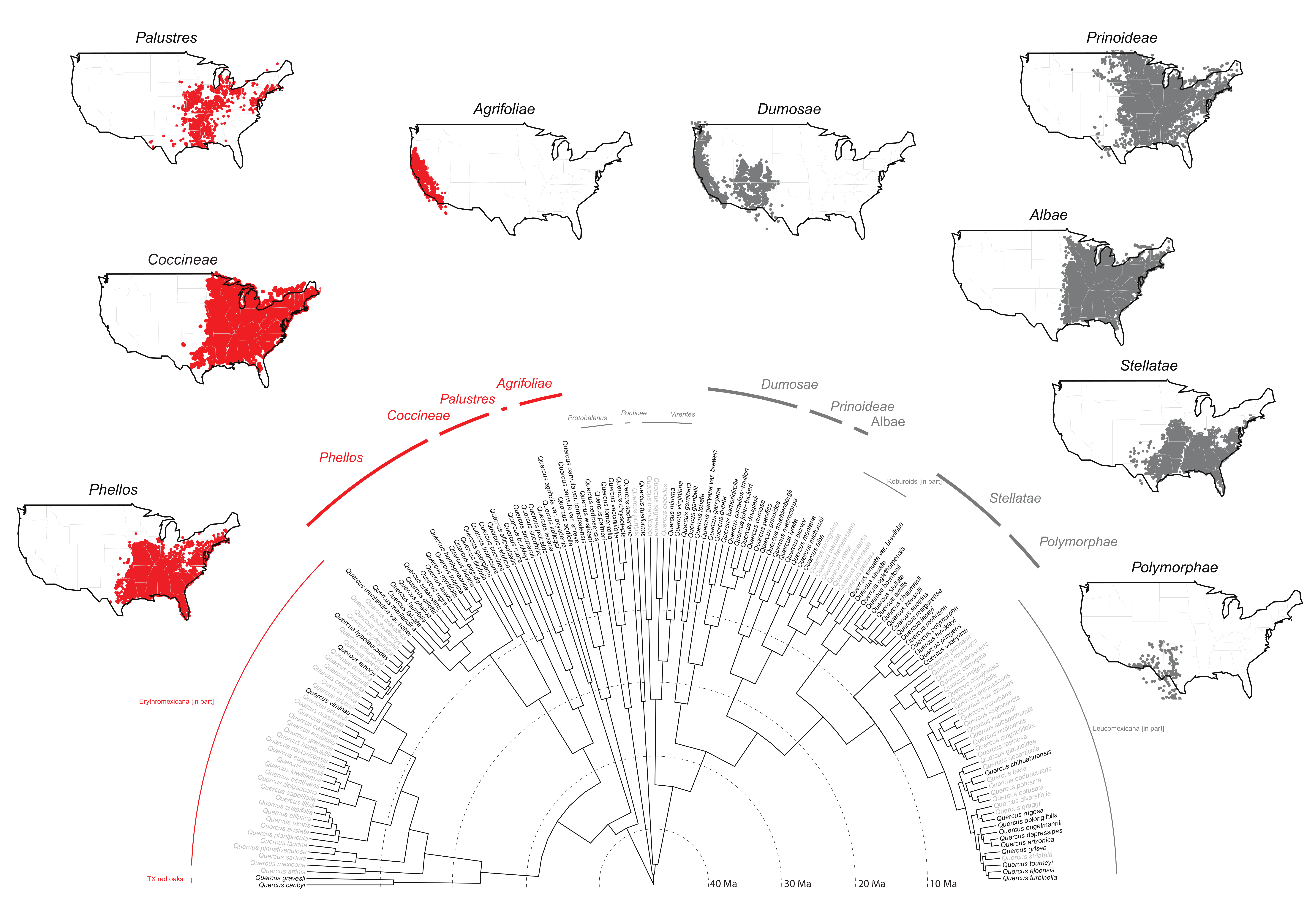

Reconstruction of the timing and biogeography of the Lobatae phylogeny suggests an initial diversification of red oaks within the FNA region, followed by movement south into Mexico about 15 million years ago, associated with an increased net diversification rate most likely attributable to increased speciation rate [19]. This increase in species diversification rate was likely a response to the combination of tectonic movement, volcanism, and climatic oscillations that generated a mosaic of seasonal montane habitats in Mexico [92,93]. One major barrier to the Lobatae diversification was the Nicaraguan Depression [93]. As with the parallel and equally rapid diversification of white oaks, species diversity is considerably lower southward to Costa Rica.
In this subsectional treatment, we re-classify a total of 29 species of sect. Lobatae recovered in our global analysis, and resolved with high confidence into four clades.

3.4.1. Quercus subsect. Agrifoliae (Trel.) A. Camus, Monogr. Genre Quercus 3: 46. 1952

Q. subsect. Californicae A. Camus, Monogr. Genre Quercus 3: 426. 1952.
Shrubs and trees to 30 m; Bark gray, dark brown to black, smooth or with wrinkled rings perpendicular to trunk axis or shallowly sinuous-furrowed to deeply furrowed, occasionally cross-checked into islands; Twigs slender, pubescent to glabrous; Buds light brown to reddish brown, ovoid to conic 3–9 mm; Leaves deciduous to evergreen, petiole 2–40 mm; Leaf blade circular to elliptic, ovate, obovate to oblong or narrowly lanceolate; base obtuse, rounded to cordate; margin entire or spinose with up to 30 awns or with 7–11 acute lobes and 13–30 awns; apex acute, attenuate, blunt to rounded; surfaces abaxially glabrous to densely pubescent with multiradiate trichomes or with small axillary tufts of 4–8 rayed fasciculate trichomes; Acorns biennial or annual, cup thin to thick, sometimes proximally tuberculate, deeply and narrowly cup-shaped, turbinate or U-shaped to deeply bowl-shaped, scales sometimes obtuse proximally to more acute distally, tips ragged or loose especially along distal cup edge, nut ovoid, oblong, conic to broadly ellipsoid; cotyledons distinct.
Distribution: California, north to OR, south to Mexico (B.C.) (see Figure 2)
Includes:Q. agrifolia Née (the type), Q. kelloggii Newb., * Q. parvula Greene, * Q. wislizeni A.DC.
The distinct nature of the red oaks of the CA-FP was recognized by Trelease, who viewed them as an isolated lineage and treated them as series Agrifoliae (pages 205, 206 in [70]). His treatment was mostly followed by Camus, although she classified the deciduous species Q. kelloggii into a monotypic subsection. Despite the contrast in leaf habit, species of Agrifoliae share a suite of diagnostic features including a deep cup and oblong nut and with cup scale tips generally appearing ragged or loose and occasionally inrolled.
Agrifoliae have been the subject of recent morphometric and genetic studies, resulting in intense scrutiny of the eleven named taxa, which include four species, four varieties, and three named hybrids [22,47,94]. These studies all demonstrate that the lobe-leaved deciduous species Q. kelloggii is sister to the remaining subevergreen species, in support of Camus’ recognition that it is taxonomically distinct. Tests for introgression based on the molecular genetic data also demonstrate that Q. kelloggii hybridizes with every species in the complex, but there is yet no evidence that F1 hybrids backcross to parental species in nature [23,95]. This potential barrier to introgression, with F1 hybrids an apparent dead-end between Q. kelloggii and the remainder of the section, is of broad interest: Hybridization between oak species with distinctly different leaf habits is striking on its own [96,97], and biologically, the limits on introgression within any oak section is poorly understood. We also note that the divergence time estimate between Q. kelloggii and the remainder of the subsection is roughly 20 Ma, among the oldest splitting times inferred within crown groups among the major oak groups within subg. Quercus. The deep divergence separating Q. kelloggii from the other California red oaks may contribute to the maintenance of reproductive isolation in the subsection. Nonetheless, at finer phylogenetic scales, lingering taxonomic problems at the varietal level in Agrifoliae appear to be mainly due to hybridization (see references above).
Within the subevergreen complex, Q. agrifolia is sister to Q. parvula + Q. wislizeni. Within each of these species, recognized varieties correspond to north-south extremes in species distribution and values in sets of continuous morphological traits [94]. For the coastally distributed Q. parvula, there is strong support for var. shrevei (C.H. Muller) Nixon as the only valid variety whereas both var. tamalpaisensis and var. parvula have complex genetic backgrounds that likely involve gene flow from different combinations of subevergreen species [47]. While more study is needed, our findings indicate that the narrowly endemic Q. parvula var. tamalpaisensis S.K. Langer represents a hybrid population that is roughly 60% Q. wislizeni and 40% Q. parvula var. shrevei. In this case, leaf size is notably larger in the introgressed populations, well outside the range of the parental species [23].
Disentangling Q. parvula var. shrevei from Q. wislizeni demonstrates that two main taxa span coastal and interior areas of the CA-FP. Molecular dating analysis [23] is consistent with the hypothesis proposed by Axelrod in 1983 [98] that Q. parvula and Q. wislizeni split from a common ancestor approximately 10–12 Ma. The fossil record shows that the Q. wislizeni + Q. parvula clade likely originated within what is now the Great Basin, east of the Sierra Nevada [99,100], with the lineage that would become modern Q. parvula moving westward in response to the drying climate following uplift of the Sierra Nevada. Quercus wislizeni is the more drought-tolerant taxon that also later moved west, following the westward movement of Q. parvula. As the climate continued to dry in the region, Q. wislizeni continued to expand westward with Q. parvula contracting even farther west, eventually resulting in its current coastal distribution.
One other coastal red oak, Q. agrifolia, is well supported except that the southernly distributed var. oxyadenia (Torr.) J.T. Howell, while morphologically and elevationally distinct (>750 m), is weakly supported by molecular data [23,95]. In this case, it’s possible that the var. oxyadenia morphology has arisen multiple times in response to climatological differences in the drier, higher elevation and more southerly environments in which it is found. Future studies should include disjunct Baja populations of Q. agrifolia to test the hypothesis that a distinct genetic entity with the morphology of var. oxyadenia inhabits the more isolated areas farther south, and that widespread interbreeding between the var. agrifolia and var. oxyadenia forms has confounded that distinction just north within the FNA region.

3.4.2. Quercus subsect. Palustres (Trel.) A. Camus, Monogr. Genre Quercus 3: 360. 1952

Large trees to 25 m; Bark gray, brown, with flat ridges and shallow to broad fissures; Twigs slender, glabrous; Buds gray to reddish brown, ovoid 3–7 mm; Leaves deciduous, petiole 20–60 mm; Leaf blade ovate, elliptic, obovate; base cuneate to truncate; margin with 5–11 lobes, and 9–30 awns, lobes acute to distally expanded, apex acute to acuminate; surfaces abaxially glabrous except for conspicuous axillary tufts of fasciculate trichomes; Acorns biennial, cup thin, scale bases visible on inner surface, saucer to deeply goblet shaped with minor to pronounced constriction at the base, scale tips appressed, nut globose to broadly ovoid; cotyledons distinct.
Distribution: Northern and Atlantic States, north to Canada (ONT), west to OK, KS, south to eastern TX, LA (see Figure 2)
Includes:Q. palustris Muenchh. (the type), Q. texana Buckley
Palustres include two largely allopatric bottomland species with highly similar vegetative features that were recognized by Camus to be distinct among lobe-leaved red oaks within North America. However, both Camus and Trelease thought that Q. palustris and Q. georgiana were closely related, while our analyses place Q. georgiana within subsect. Phellos. Although apomorphies are not obvious, phenetic studies using morphological data from leaves and fruit closely clustered Q. palustris and Q. texana (=Q. nuttallii E.J. Palmer) to the exclusion of other lobe-leaved species of Lobatae [101].
The first genetic result to suggest that at least Q. palustris was divergent from other eastern North American lobe-leaved species was obtained by allozyme analyses [102,103]. Phylogenomic studies confirm the early genetic work and resolve Palustres as the first branch among the eastern North American Lobatae, sister to the remainder of the section. For the two taxa of Palustres, dating analysis also shows a deep split, ca. 20 Ma, a pattern consistent with the branching structure within four of the five early-diverging red oak lineages within the FNA region.

3.4.3. Quercus subsect. Coccineae (Trel.) A. Camus, Monogr. Genre Quercus 3: 386. 1952

Q. subsect. Velutinae (Trel.) A. Camus, Monogr. Genre Quercus 3: 376. 1952.
Shrubs and medium to large trees to 30 m; Bark dark brown to black, gray-brown, furrowed, ridges wide, shiny or with scaly fissures; Twigs somewhat thick, glabrous or sparsely pubescent; Buds reddish brown, tawny, gray, or silver, conic to ovoid-ellipsoid 3–12 mm; Leaves deciduous, petiole 20–60 mm; Leaf blade circular, ovate, elliptic, ovate to obovate; base cuneate, obtuse to truncate; margin with 5–11 lobes, and 12–55 awns, lobes acute, ovate-oblong, to distally expanded, apex obtuse, acute, to acuminate; surfaces abaxially glabrous or pubescent, trichomes multiradiate or stipitate fasciculate in conspicuous axillary tufts; Acorns biennial, cup thin to thick, cup to saucer-shaped, hemispheric to turbinate, scales smooth to tuberculate, scale tips appressed to loose at the margin, nut ovoid, subglobose to oblong; cotyledons distinct.
Distribution: Northern and Atlantic States, north to Canada (N.B., N.S., ONT, QUE, P.E.I.), west to KS, OK, TX, south to FL (see Figure 2)
Includes:Q. acerifolia (Palmer) Stoynoff and Hess, Q. buckleyi Nixon and Dorr, Q. coccinea Muenchh. (the type), Q. ellipsoidalis E.J. Hill, Q. rubra L., Q. shumardii Buckland, Q. velutina Lam.
The circumscription of this group of eastern North American lobe-leaved tree species by Trelease is nearly fully supported by our analyses. The few exceptions include Q. velutina which had been either aligned with Q. marilandica or treated as a monotypic [72,75,90], and the inclusion of Q. gravesii (= Q. texana var. chesosensis Sarg.) by Trelease, which we resolved as sister lineage to Erythromexicana insofar as we have sampled it to date (see above).
Coccineae are defined by a certain phenetic similarity and regional proximity. One distinction shared by many of these species (e.g., Q. rubra, Q. shumardii) is wide geographic range, which promotes differentiation in morphological, physiological and ecological traits, and patterns of variation that have been variously treated as species and varieties [104,105]. We resolved two subclades that correspond to the main morphological groups that have been generally recognized: 1) (Q. acerifolia—Q. buckleyi—Q. shumardii) + Q. rubra); and 2) (Q. velutina + Q. coccinea) + Q. ellipsoidalis).
The first group includes the Q. shumardii complex, a cluster of continuously varying morphological forms that have been recognized as varieties and species (e.g., Q. acerifolia) [103]. Edaphic specialization appears to be an important driver of differentiation within this complex as Q. buckleyi (on limestone in TX and OK), Q. shumardii var. schneckii (Britton) Sarg. (uplands west of the Blue Ridge), and Q. acerifolia (on sandstone, shales) are all endemic to the south-central Midwest. Additional range extensions of Q. acerifolia-like populations on limestone into east central Alabama are likely (W. Finch, pers. comm.), and fine-scale molecular and morphological studies of the complex are underway (Y. Wu, pers. comm.). The taxonomic history of Q. rubra involves an intraspecific taxon often associated with the higher elevations in the Appalachians, ca. above 1000 m (e.g., var. ambigua (A. Gray) Fernald = var. borealis (Michx. f.) Farw.). These populations have been quantitatively distinguished by phenetic analysis of morphometric data [101] and by flavonoid profiles [106], but intergradation between the two morphotypes precludes taxonomic recognition [107]. Additional work is needed to better understand the nature of this clinal pattern of variation.
The second group within subsect. Coccineae includes two widespread species, Q. coccinea and Q. velutina, and the north-central endemic Q. ellipsoidalis [108,109], which has the distinction of being our northernmost member of sect. Lobatae [110,111] and, historically, a locus of substantial taxonomic confusion in the upper Midwest (e.g., [111,112,113,114,115,116,117]). The question of whether Q. ellipsoidalis is distinct from Q. coccinea has been studied with AFLP markers [43,118], microsatellites [59], and RAD-seq data [15] using population-level sampling, including many of the morphologically similar red oaks (including Q. palustris) that co-occur in the northern part of the FNA region. There is strong evidence for recognizing Q. ellipsoidalis as a distinct species based on this fairly broad sampling. Further, there is little evidence for gene flow between Q. ellipsoidalis and Q. coccinea, which resolve as largely allopatric sister species, but a low level of ongoing gene flow between Q. ellipsoidalis and both Q. velutina and Q. rubra [43,119,120,121]. The more distantly related Q. rubra and Q. ellipsoidalis also show evidence of genomically heterogeneous introgression driven by selection: alleles that distinguish the two species at a gene associated with flowering phenology segregate along moisture gradients and are preferentially shared between species in intermediate environments [122,123]. Genomic study of this species is underway (O. Gailing, pers. comm.). This western Great Lakes species may turn out to be a gateway to broader understanding of speciation in red oaks.

3.4.4. Quercus subsect. Phellos (G. Don) A. Camus, Monogr. Genre Quercus 3: 293. 1952

Q. subsect. Myrtifoliae (Trel.) A. Camus, Monogr. Genre Quercus 3: 280. 1952; Q. subsect. Nigrae (G.Don) A. Camus, Monogr. Genre Quercus 3: 322. 1952; Q. subsect. Marilandicae (Trel.) A. Camus, Monogr. Genre Quercus 3: 329. 1952; Q. subsect. Laevis A. Camus, Monogr. Genre Quercus 3: 338. 1952; Q. subsect. Pagodifoliae (Trel.) A. Camus (as Pagodaefoliae), Monogr. Genre Quercus 3: 343. 1952; Q. subsect. Ilicifoliae (Oersted) Trel. A. Camus, Monogr. Genre Quercus 3: 353. 1952.
Shrubs or large trees to 40 m; Bark hard, black, roughly furrowed separated by smooth furrows or with rectangular blocks; Twigs slender to thick, glabrous or glabrescent or pubescent; Buds light brown, reddish-brown to purplish, conic to ovoid 2–10 mm; Leaves deciduous or subevergreen, petiole 1.5–60 mm; Leaf blade elliptic, ovate, obovate, circular to rhombic; base cuneate, rounded or cordate; margin entire, revolute or with 3–11 lobes, and 1–25 awns, lobes acute, attenuate to falcate; surfaces abaxially glabrous to tomentulous to uniformly pubescent, trichomes multiradiate, rosulate or stipitate fasciculate in axillary tufts; Acorns biennial and annual, cup thin to involute, shallow goblet-shaped, saucer to cup-shaped, scale tips appressed to loose at the margin, nut ovoid to subglobose; cotyledons distinct.
Distribution: Atlantic and Gulf region States, north to IA, MN, west to OK, TX (see Figure 2)
Includes: Q. arkansana Sarg., * Q. elliottii Wilbur, Q. falcata Michx., Q. georgiana M. A. Curtis, Q. hemisphaerica Bartram ex Willd., * Q. ilicifolia Wangen., Q. imbricaria Michx., Q. incana Bartram, * Q. inopina Ashe, Q. laevis Walter, Q. laurifolia Michx., Q. marilandica Muenchh.,*Q. myrtifolia Willd., Q. nigra L., Q. pagoda Raf., Q. phellos L. (the type)
The center of species diversity for Phellos falls within the North Atlantic Coastal Plain (NACP), a recently recognized global biodiversity hotspot [124]. The combined distributions of eleven of the 16 species conform to the broad outline of the NACP, while the ranges of three of the 11 species, Q. hemisphaerica, Q. phellos and Q. nigra, have expanded from the southeastern coastal plain into adjacent piedmont, likely due to a combination of ecological disturbance and escape from cultivation [107].
Resolution of these 16 species aligns a heterogeneous and variously treated set of species into subsect. Phellos, making it the largest subsection within the FNA region. It is clear from previous treatments that a subset of this diversity was recognized as a natural group based on sharing the non-lobed laurel-like leaf type, small acorns, cups covering less than half of the nut, with scales closely appressed (subsect. Phellos sensu Camus: Q. imbricaria, Q. incana, Q. laurifolia, Q. phellos, Q. pumila Walter (= Q. elliottii). Other potentially related but phenetically dissimilar taxa with lobed leaves (e.g., Q. falcata, Q. ilicifolia, Q. marilandica) instead were segregated into series and subsects, often consisting of one or two species ([72,75]; see [125] for review).
Our results are generally consistent with more recent studies of flavonoid profiles and leaf architecture across these taxa: the systematics of the eight species treated by Trelease and later by Camus within their concepts Laurifoliae, Marilandicae, and Nigrae cannot be divorced from other taxa within the southeastern FNA region, e.g., Q. laevis, Q. myrtifolia, and Q. inopina [125]. The suggestion of a hybrid origin for many of these taxa [125] does not appear to be supported by phylogenomic study [15,19], which clearly resolves these species, with the caveat that this radiation arose relatively recently, within the last 10 Ma. More intensive and targeted sampling is generally needed to test specific cases of reticulate evolution, and this clade has yet to be investigated so closely.
Based on population level sampling, we found that several of the lobe-leaved species show a close relationship to species with unlobed leaves. Additionally, although the five subclades resolved in our analyses are not strongly supported, the following preliminary patterns of species relationship suggest that diversification may be traced along several underlying ecological trajectories. For example, the group formed by (Q. hemisphaerica—Q. incana—Q. myrtifolia—Q. inopina) share unlobed leaves and occupy core NACP habitats of mostly sandhills; by contrast, the group formed by (Q. ilicifolia—Q. georgiana—Q. imbricaria) tend to occur in upland areas outside of the NACP in various habitats and substrates, including ravines and granitic outcrops, except that Q. ilicifolia ranges onto the northern edge of the NACP from New Jersey to Maine. Two other sets of species span sandhills to bottomlands. The larger of the two comprises (Q. elliottii—Q. pagoda—Q. phellos—Q. laurifolia—Q. nigra—Q. arkansana), which includes only three taxa that Camus placed with her concept of Phellos. A close relationship between Q. arkansana and Q. nigra is supported here [125]. The final group ((Q. laevis + Q. marilandica)—Q. falcata) tends to occupy sandy well-drained poor soils spanning coastal areas to adjacent uplands. Two of the tree species often resolved as sister taxa, Q. laevis and Q. marilandica, share a combination of bark, twig, and foliar characteristics. We also sampled Q. marilandica var. ashei Sudw. from the type location (Scott Mt.) in the Cross Timbers Region of Oklahoma. The placement of two accessions as sister to var. marilandica supports previous evidence to recognize this taxon as distinct [88].

3.5. Section Quercus–(45/ca. 150)

The white oaks stand out as the most species rich and most broadly distributed of all oak clades (Figure 1). The center of species diversity, ca. 100 spp., occurs in Mexico [84], but expansion of white oaks into the driest shrublands of the southwest (e.g., Q. turbinella, Q. cornelius-mulleri) and Intermountain west (Q. gambelii), and their extension into the coldest woodlands of the northern Midwest (Q. macrocarpa) demonstrate a physiological breadth not seen in the Lobatae [17]. Although white oaks share diagnostic features such as basal abortive ovules, glabrous endocarp, and annual fruit maturation with sects. Virentes and Ponticae, they are easily distinguished from Virentes and to a lesser extent Ponticae [3].
As with the Lobatae, our analyses reveal that the earliest branch of white oaks, which we treat here as subsect. Dumosae, is distributed largely within the CA-FP. It is sister to two major clades: One comprises three clades of mostly north temperate species that range from eastern North America to Eurasia, the other, a succession of three clades: the predominantly eastern subsect. Stellatae; a predominantly Texan group we treat here as subsect. Polymorphae; and the more recently derived Mexican and Central American clade, informally called Leucomexicana pending more detailed study. For the FNA region, we sampled every species except for Q. intricata Trel. (Trans-Pecos Region; Chihuahuan Desert Region) and Q. carmenensis C.H. Muller (Chisos Mts, Sierra del Carmen Region, Coahuila, Mexico); both of these unsampled species are likely to be placed into the groups we have recognized in this treatment. We also place ten additional FNA species distributed along the southwestern edge of the FNA region into at least three subclades within Leucomexicana. These species, a mix of shrubs and trees ranging from open chaparral, woodlands, and slopes of the Chihuahuan Desert Region west to the southern CA-FP, had been placed into many different series and subsections by Trelease and Camus. While additional sampling is needed for formal recognition, eight of these species, including Q. engelmannii from the CA-FP [35,126,127] and Q. turbinella from the Sonoran Desert, fall into one clade, suggesting a distinct east-west regional radiation that straddles the southwestern border of the FNA region that extends into Mexico.
Where the ranges of distantly related white oaks narrowly intersect, species have formed hybrid zones in areas of sympatry. One case study includes the tree species Q. engelmannii and two shrub species, Q. cornelius-mulleri and Q. berberidifolia, both placed here in subsect. Dumosae. Morphological observations of hybridization remain anecdotal, but recent molecular analyses using phylogenetic methods to estimate whether allele sharing is due to gene flow conclude that ancient introgression had shuttled alleles from Q. cornelius-mulleri into Q. engelmannii [127]. In another case study, Q. gambelli, the only white oak of the Intermountain west, and here placed in subsect. Dumosae (see below), has long been recognized for hybridizing with white oak species of at least four distinct subclades that we recognize, including Q. turbinella and Q. grisea of Leucomexicana (e.g., [128,129]) and Q. macrocarpa of subsect. Prinoideae [130]. While recent genetic analyses show that morphologically typical Q. gambelii is genetically homogeneous (samples from AZ, CO, NM, UT), there is strong evidence that ancient introgression with Q. macrocarpa causes it to be unstable in phylogenomic analyses [25]. The fact that secondary contact zones exist between well separated white oak lineages makes them ideal case studies for ancient introgression and the development of more complete understanding of the nature of the mosaic structure of the oak genome [15,127,131].

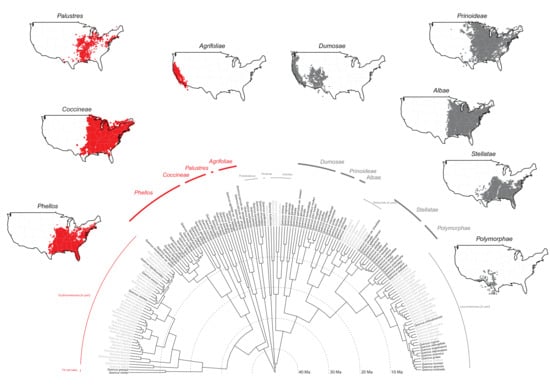

Reconstruction of the timing and biogeography of the Quercus phylogeny also suggests an initial diversification of white oaks within the FNA region, followed by simultaneous movement south in a pattern closely parallel to Lobatae, then across the entire geographic range of Eurasia. The direction of movement, i.e., west through the Beringian Land Bridge or east through the North Atlantic Land Bridges, into Eurasia remains ambiguous, however, recent analyses based on whole plastome genome data also suggest a clear origin of the roburoids within the Americas (B. Wang, P.S. Manos et al. in prep.). The two relatively young and nearly contemporaneous radiations, Leucomexicana and roburoids, starting about 15 Ma [15], together account for roughly 75% of the diversity of the section (see Figure 2).
In this subsectional treatment, we re-classify a total of 33 species of sect. Quercus recovered in our global analysis, and resolved with high confidence into five clades.

3.5.1. Quercus subsect. Dumosae (Trel.) A. Camus, Monogr. Genre Quercus 2: 462. 1936

Q. subsect. Douglasieae (Trel.) Camus, Monogr. Genre Quercus 3: 666. 1936; Q. subsect. Lobatae (Trel.) Camus, Monogr. Genre Quercus 3: 681. 1936; Q. subsect. Gambelieae (Trel.) Camus, Monogr. Genre Quercus 3: 694. 1936.
Shrubs, small to large trees to 30 m; Bark light to dark gray, dark brown, scaly or deeply checkered in age; Twigs slender, yellowish, gray, brown or reddish brown, densely puberulent to tomentulose with spreading hairs to glabrate; Buds yellowish, brown to reddish brown, ovate, globose, ovoid to fusiform, 1–12 mm; Leaves deciduous or subevergreen, petiole 1–20 mm; Leaf blade broadly obovate, elliptic, subrotund to ovate or oblong to oblanceolate, deeply to shallowly 4–8 lobed; base truncate, rounded-attenuate, cuneate or cordate; margins entire, irregularly shallowly toothed, coarsely toothed to spinose-toothed or lobed, lobes oblong to spatulate, obtuse, rounded, subacute or blunt; surfaces abaxially grayish to whitish, dull green, yellowish to light green, blue-green to glaucous, waxy or glossy, densely velvety with erect 4–8 rayed fasciculate trichomes or dense to sparsely appressed to semi-erect 8–12 rayed stellate trichomes, sometimes with interlocking or fused rays, becoming glabrous; Acorns annual, 1–3 subsessile or pedunculate, cup saucer-shaped, hemispheric, deeply cup-shaped or turbinate, base flat or rounded, scales closely appressed, ovate, weakly to strongly tuberculate, scale tips acute, mostly free often reflexed, nut conic, ovoid to globose, ellipsoid, oblong to fusiform, cylindric or barrel-shaped; cotyledons distinct.
Distribution: Pacific States, north to Canada (B.C.), south to Mexico (B.C.) (see Figure 2)
Includes: * Q. berberidifolia Liebm., * Q. cornelius-mulleri Nixon and K. P. Steele, Q. douglasii Hook. and Arn., * Q. dumosa Nutt. (the type), * Q. durata Jepson, * Q. gambelii Nutt., Q. garryana Douglas ex Hook, * Q. john-tuckeri Nixon and C. H. Muller, Q. lobata Née, * Q. pacifica Nixon and C. H. Muller
Dumosae form the sister group to all white oaks, diverging by at least 40 Ma likely from within the FNA region. Two clades of basically sclerophyllous shrubby species are nested within an early-branching grade of the two deciduous lobe-leaved species, Q. lobata and Q. garryana [27]. Fossil leaf compressions attributed to precursors of Q. lobata (e.g., Q. prelobata) occur well north of the current distribution, indicating a broader ancestral distribution of the stem group going back to the early Miocene, 16–23.5 Ma [99,100].
In addition to the nine Dumosae taxa that occur in the Pacific States, we expand the subsection to include Q. gambelii, consistent with the high degree of leaf and trichome similarity between Q. gambelii and Q. garryana sensu lato [132]. Quercus gambelii is a curiously widespread species that consists of many isolated but weakly differentiated populations [77]. It was the eponymous center of the 11-species Treleasian series Gambelieae, but all those taxa have subsequently been subsumed into Q. gambelii or are otherwise not recognized. It was never classified with other lobed-leaved species [72,74,90]. Its uncertain systematic affinities may have been partly a consequence of its isolated geography. In the northern part of its range, it is often the only oak species within the Intermountain west. But in the southwest, Q. gambelii is surrounded by and often sympatric with multiple species representing at least four subsects. of white oaks, resulting in a rich taxonomic and ecological literature describing patterns of natural hybridization [128,129,133,134].
However, its uncertain position may be due to its cryptic morphology, a lobedness that may derive in part from an ancient history of introgression with eastern lobed white oaks. Our phylogenomic studies detected a primary signal of phylogenetic history between Q. gambelii and Q. lobata as the branches leading to accessions of both species formed a clade [25]. The position of this clade was determined to be unstable in the phylogenetic space between Dumosae and Prinoideae. Our work, based on tests designed to detect secondary phylogenetic signals due to introgression, suggests that ancient hybridization between Q. gambelii and Q. macrocarpa is the likely cause of phylogenetic uncertainty in the placement of this species. Our inference of historical rather than contemporary gene flow is further supported by the fact that Q. gambelii, Q. macrocarpa, and Q. lobata are strongly monophyletic across analyses. If ongoing gene flow were the cause of phylogenetic instability, we would expect some individuals of these species to switch positions between species or become dragged to phylogenetically intermediate positions themselves. Instead, all individuals of these species form separate clades by species.
Thus Q. gambelii seems to have arisen from allopatric speciation within the formerly widespread range of Q. lobata or the ancestral complex formed by Q. lobata and the named varieties of Q. garryana [20,25]. In this scenario, uplift of the Sierra Nevada, increasing aridity, and other developing north-south barriers isolated populations of ancestral Q. gambelii during the Miocene. The aridity of the Great Basin would have forced the nascent species eastward, into mesic woodlands, and to the southeast, along the foothills of the Rocky Mountains into its current elevational range of 1000 to 3000 m. While Q. gambelii does not currently overlap in range with Q. lobata, Q. garryana, or Q. macrocarpa, periods of range expansion during warm and wet periods over the last 5 million years likely generated extensive secondary contact zones between Q. gambelii and Q. macrocarpa [99]. In addition to our genetic results, support for historical range extension and hybridization comes from morphological evidence observed in outlier populations of Q. gambelii in the Black Hills of South Dakota and Q. macrocarpa in northeastern New Mexico [130].
The main diversification within Dumosae involves an array of mostly shrub species, including Q. pacifica, the second taxon endemic to the California Channel Islands, that have vexed systematists for well over a century [20,132,135]. It was suggested that all of the California shrub species, except for Q. turbinella are derived from a lobe-leaved ancestor similar to Q. lobata. Nixon [122] outlined anatomical evidence for this relationship, noting the venation pattern shared between sclerophyllous shrub species and lobe-leaved species, specifically branched secondary veins, multiple and irregularly spaced teeth, and an often coarse pattern of lobation. This pattern contrasts with the condition of secondary veins that rarely branch, generally resulting in one tooth per secondary vein and regularly spaced teeth, like those of Q. turbinella and other shrub species in the southwestern FNA region and Mexico. Our analyses confirm this hypothesis, while in-depth studies have generated additional patterns of species relationships within the shrub diversity of Dumosae.
By ca. 15 Ma, the nested crown lineage of Dumosae diverged into two clades, one clade comprising Q. pacificaQ. dumosa and a distinct well supported subclade of (Q. cornelius-mulleri- (Q. john-tuckeri + Q. douglasii)), and the other clade formed by a grade of population samples representing the widespread Q. berberidifolia, within which are nested two separate subclades of Q. durata var. durata and var. gabrielensis Nixon and C.H. Muller [27,35,127]. This overall pattern and taxonomy are consistent with previous morphological work that segregated the narrow endemic Q. dumosa from Q. berberidifolia and recognized the parapatrically distributed Q. cornelius-mulleri and Q. john-tuckeri to be distinct from previous taxonomic treatments (see [132] for review). The nested position of the tree species Q. douglasii within the shrub clade formed by Q. cornelius-mulleri and Q. john-tuckeri is an interesting example of an evolutionary reversal back to the tree habit. The timing of divergence of the nested crown clade of shrubby species, from Q. pacifica through the Q. berberidifolia clade, is consistent with the hypothesis of Kim et al. (2018) [127]: Diversification of the shrub species coincides with mid-Miocene development of the Mediterranean climate in the CA-FP [136]. The onset of this climate regime would have increased the frequency of fire, potentially favoring shrubs over trees. The evolution of Q. douglasii, a tree with shrub-like traits, may have been enabled by ecological opportunity in the relatively mesic foothills of the Sierra Nevada.
Recent demographic studies of gene flow among different combinations of shrub species suggest that hybridization continues to promote taxonomic uncertainty while ecology and climate reinforce genomic cohesiveness and identity [35,127,137]. The full complement of genetic analyses confirms that most of the morphologically-defined species of Dumosae are cohesive and often ecologically isolated to some degree. One notable exception stands out from studies of the Q. berberidifoliaQ. durata complex, which have revealed the most challenging case to date. Quercus durata appears to have arisen twice from within Q. berberidifolia, despite the generally clear taxonomic distinctions between Q. berberidifolia and Q. durata. While Q durata var. durata is well separated, albeit nested, within Q. berberidifolia, var. gabrielensis is only weakly distinguished [27,127]. This distinction likely involves ecological isolation, as Q. durata var. durata mostly occurs on serpentine soils. Such cases may be more widespread in oaks than we suspect and bear closer investigation.

3.5.2. Quercus subsect. Prinoideae (Trel.) A. Camus, Monogr. Genre Quercus 2: 434. 1936

Q. subsect. Lyratae (Oersted) A. Camus, Monogr. Genre Quercus 2: 723. 1936; Q. subsect. Macrocarpae (Trel.) A. Camus, Monogr. Genre Quercus 2: 738. 1936.
Shrubs or large trees to 30–50 m; Bark dark gray to light gray, thin flaky to papery, scaly, flat-ridged or with thick plates underlying scales; Twigs coarse, slender to moderate, gray, tan, reddish brown, fine-pubescent to villous becoming glabrate or with round to radiating flat corky wings; Buds gray, brown, red-brown, subrotund to broadly ovoid 1–4 mm; Leaves deciduous, deciduous or persistent stipules, petiole 4–30 mm; Leaf blade moderate to large, lanceolate, obovate to narrowly elliptic or broadly obovate; base rounded, truncate, cuneate to acute; margins regularly undulate, toothed or shallow-lobed to deeply lobed; surfaces abaxially glaucous to light green, tomentose, trichomes erect long-rayed fasciculate and small stellate; Acorns annual, 1–3 on thin to stout peduncle, cup hemispheric, cup-shaped, turbinate to goblet-shaped or spheroid, base rounded, scales closely appressed to laterally connate, moderately to prominently keeled, tuberculate or coarsely thickened and fringed at the margin with short awns, nut ovoid-ellipsoid or oblong; cotyledons distinct.
Distribution: Atlantic States and Mississippi Valley, north to Canada (MAN, N.B., ONT, QUE, SASK), south to the mountains of western TX, NM, and northeastern Mexico (COAH, N.L., HGO, TAMPS) (see Figure 2)
Includes:Q. bicolor Willd, Q. lyrata Walter, Q. macrocarpa Michx., Q. muehlenbergii Engelm., * Q. prinomides Willd. (the type)
Prinoideae form the sister to a moderately sized temperate clade that spans eastern North America and Eurasia. The five species we recognize here share a common set of trichomes and similar cup scale morphology. Camus classified Q. montana and Q. michauxii in her concept of subsect. Prinoideae, while recognizing Q. lyrata and Q. macrocarpa in separate monotypic groups. Our analyses placed the former species pair with Q. alba, consistent with their lack of the trichome types observed across all Prinoideae [138,139].
Extensive population sampling and analysis resolved a deep split within the crown group, ca. 20 Ma, pairing tree species Q. muehlenbergii and shrub Q. prinoides sister to a well-supported group of (Q. macrocarpa- (Q. lyrata + Q. bicolor)). As with morphology, our data are unable to detect a clean separation between the widespread and ecologically distinct “species-pair,” Q. muehlenbergii (limestone) and Q. prinoides (sands, shales). Further studies are needed to understand the ecological processes behind the weak genetic separation of taxa, despite the heritable differences observed in Q. prinoides, such as the shrub habit and early maturation to flower and fruit [132]. It may be that the situation in Q. muehlenbergii mirrors that of Q. berberidifolia and Q. durata, in which the same phenotype has arisen more than once due to parallel selective processes across the range of the more widespread species.

3.5.3. Quercus subsect. Albae (G. Don) A. Camus, Monogr. Genre Quercus 2: 728. 1936

Large trees to 30 m; Bark dark gray or brown with V-shaped furrows or light brown to gray, scaly; Twigs moderate, green, brown to reddish brown, glabrous or fine-pubescent to sparse spreading hairs, becoming glabrous; Buds gray, light brown, reddish-brown, ovoid 3–6 mm; Leaves deciduous, petiole 5–30 mm; Leaf blade moderate, broadly obovate to narrowly elliptic or narrowly obovate; base cuneate to acute or rounded acuminate to broadly cuneate; margins regularly toothed or moderately to deeply lobed; surfaces abaxially light green or yellowish; trichomes solitary, appressed, and erect or appressed, 1–2 rayed fasciculate, persistent to quickly shed; Acorns annual, 1–3 sessile or pedunculate, cup shallowly cup-shaped to hemispheric or deeply goblet shaped, base rounded, rim thin to moderate, scales concentric to laterally connate or loosely to closely appressed, slightly keeled to prominently tuberculate, nut ovoid-ellipsoid, cylindric or oblong; cotyledons distinct.
Distribution: Atlantic States and Mississippi Valley, north to Canada (ONT, QUE), south to eastern TX, northern FL (see Figure 2)
Includes:Q. alba L. (the type), Q. michauxii Nutt., Q. montana Willd.
The three Albae species are quite divergent with respect to morphology, especially features of the bark and cup scales. Although the leaves of Q. alba are generally described as glabrous and frequently are at maturity [130], fasciculate trichomes are present in the early stages of leaf development, and simple trichomes may persist as the leaf expands. Quercus michauxii and Q. montana also share fasciculate trichomes, but these are persistent, and erect with long rays in the former and appressed with short rays in the latter. Albae, as delimited here, lack the stellate trichomes observed in Prinoideae [138,139]. Our analyses break-up the so-called chestnut group of the FNA region (Q. michauxii, Q. montana, Q. muhlenbergii, Q. prinoides, Q. sadleriana), leading to the distribution species with the ‘prinoid’ or ‘castaneoid’ leaf shape into three distinct temperate clades of white oaks: Albae, Ponticae, and Prinoideae.
Albae combine morphological elements of the prinoids and roburoids to form one of the most genetically cohesive oak subclades of the FNA region. The relationships among the three species (Q. montana—(Q. michauxii + Q. alba)) are well supported and based on strong sampling. The sister group relationship of Albae to the roburoids extends the signature pattern of early-diverging deciduous shallowly and deeply lobe-leaved species from the FNA region to Eurasia. This biogeographic connection has been difficult to estimate phylogenetically as a result of ancient hybridization between the Q. pontica sublineage of Ponticae and ancestral roburoids in Eurasia [24].

3.5.4. Quercus subsect. Stellatae (Trel.) A. Camus, Monogr. Genre Quercus 2: 710. 1936

Q. subsect Confusae (Trel.) A. Camus, Monogr. Genre Quercus 2: 671. 1936; Q. subsect Durandieae (Trel.) A. Camus, Monogr. Genre Quercus 2: 676. 1936.
Shrubs, often rhizomatous, moderate to large trees to 30 m; Bark light gray or whitish, light brown, scaly or flaky to papery and exfoliating; Twigs slender to moderately thick,, densely tomentose, sparsely pubescent, glabrate; Buds gray to reddish-brown, ovoid to globose to acute at the apex, 1–6 mm; Leaves deciduous to wintergreen, petiole 1–15 mm; Leaf blade small to moderately large, obovate to narrowly elliptic, oblong to oblanceolate or rounded 3-dentate to obtriangular; base rounded-attenuate, acute to cordate, cuneate or obtuse; margins undulated, revolute, entire or shallow, moderate to deeply lobed, 3–5 lobes rounded, spatulate or sinuate; surfaces abaxially silvery, grayish, dull to yellowish green or dark green, trichomes dense to scattered, 3–10-rayed stipitate fasciculate, stellate, often becoming glabrate; Acorns annual, 1–3 subsessile or pedunculate, cup thin, deeply cup-shaped, goblet-shaped, turbinate, hemispheric, base rounded or constricted, cup scales gray to brown, thin, tightly appressed, flattened to only slightly tuberculate, scale tips acute, nut ovoid, globose, barrel-shaped to elliptic; cotyledons distinct.
Distribution: Atlantic States west to eastern NM, north to southern IA, southeastern NY (see Figure 2).
Includes:Q. austrina Small, * Q. boyntonii Beadle, * Q. chapmanii Sarg., * Q. havardii Rydberg, Q. margarettae Ashe, Q. oglethorpensis W.H. Duncan, Q. similis Ashe, * Q. sinuata Walter, Q. stellata Wangenh. (the type)
Stellatae comprise a balanced mix of trees of various size and low-growing shrubs that occupy mainly lowlands including deep sands, alluvial flatwoods, and bottomlands. Species of this subsection are more or less distributed in the southeast of the FNA region, strongly overlapping in range and habitat type with species of the red oak clade Phellos. The placement of Q. havardii within this subsection expands the range farther west to eastern New Mexico.
In addition to the five species Camus recognized in her subsect. Stellatae (Q. boyntonii, Q. chapmanii, Q. margarettae, Q. similis, Q. stellata), our expanded delimitation of the group to nine species includes three species—Q. austrina, Q. havardii [66], and Q. sinuata—that had been treated in small subsections of one or two species each, and the unclassified and most recently described oak species east of the Mississippi, Q. oglethorpensis. Duncan (1950) [140] had suggested a close affinity of Q. oglethorpensis to many of the species placed here based on similarities in cup scales, bark, and leaf epidermal features. Strong similarities in cup shape and well-defined cup scales that are thin, generally narrow, and flat and only slightly tuberculate also support the expansion of the historically recognized post oak subgroup sensu Camus to include four additional species.
Stellatae diversified within the last 15 Ma, around the same time as subsect. Phellos and clades within Leucomexicana. We resolved Q. sinuata and Q. oglethorpensis as early-branching species, consistent with Duncan’s (1950) view that both are somewhat isolated evolutionarily. The remaining seven species are resolved into three moderately supported subclades: Q. margarettae—Q. austrina; Q. chapmanii—Q. havardii; and Q. stellata, Q. similis, and Q. boyntonii. Additional population sampling, especially in the southern Gulf states and west into Texas, is needed to better understand the relationship of geography and potential hybridization to this initial estimate of phylogeny.

3.5.5. Quercus subsect. Polymorphae (Trel.) A. Camus, Monogr. Genre Quercus 2: 561. 1936

Shrubs, often rhizomatous, small to moderate trees to 20 m; Bark light gray to brown, papery, scaly or deeply furrowed, sometimes exfoliating in long strips; Twigs slender, gray, yellowish to light brown, reddish brown, pubescent to tomentose or soon glabrate; Buds gray, brown, reddish-brown, round to ovoid or with apex acute, 0.5–10 mm; Leaves subevergreen, deciduous, petiole 2–25 mm; Leaf blade small to moderate, elliptic, narrowly lanceolate to oblong, ovate, obovate, subrotund or rotund; base rounded, cordate, cordulate or cuneate; margins thick or thin, flat, revolute to regularly undulate-crisped, entire to toothed, shallowly lobed sometimes with 2–3 spinescent teeth on each side; surfaces abaxially light green, blue-green, dark green, glaucous or whitish, glabrous, floccose or tomentose, trichomes dense to scattered, flat, curly or stiffened stellate, with erect or appressed simple hairs, sometimes becoming glabrous; Acorns annual, 1–2 subsessile or pedunculate, cup thin, shallowly to deeply cup-shaped, turbinate, hemispheric or funnel-shaped, cup scales appressed, thickened basally, moderately to strongly tuberculate, scale tips appressed; nut ovoid-ellipsoid, oblong or barrel-shaped, sometimes flattened at both ends; cotyledons distinct or connate.
Distribution: Southwestern States AZ, NM, OK, TX, northeastern Mexico south to Guatemala (see Figure 2)
Includes: * Q. hinckleyi C.H. Muller, Q. laceyi Small, Q. mohriana Buckley, Q. polymorpha Schltdl. and Cham. (the type), Q. pungens Liebm., Q. vaseyana Buckley
Polymorphae form a small and variable clade that diverged from Leucomexicana more than 15 Ma. Of the six recognized taxa, only Q. hinckleyi and Q. polymorpha share the same Bioregion climate cluster with Leucomexicana taxa based on climatic ranges estimated from Worldclim data [77], while the other four species cluster with Eastern North American taxa [19]. The clade is remarkably heterogeneous in morphology and habit, with a patchy distribution in the Chihuahuan Desert Region and adjacent Edwards Plateau except for Q. polymorpha, which ranges from southwest Texas, south along the east slope of the Sierra Madre Oriental to Guatemala [83,132].
One well supported subgroup of taxa comprises Q. hinckleyi—Q. pungens—Q. vaseyana. Quercus pungens and Q. vaseyana have been linked taxonomically, the latter initially treated as a variety of the former, and both classified by Muller (1951) [90] in his series Vaseyanae. Muller described and placed Q. hinckleyi within series Glaucoideae, a group he delimited to include the FNA taxa Q. laceyi and Q. depressipes Trel. and the widespread Mexican species Q. glaucoides M. Martins and Galeotti. Our analyses instead support a regional radiation of taxa, including Q. laceyi, while placing the FNA taxa associated with the historical concept of series Glaucoideae (e.g., Q. depressipes, Q. engelmannii Greene, Q. arizonica Sarg.) within Leucomexicana (Figure 2).
Except for Q. pungens and Q. vaseyana, none of the taxa treated here within Polymorphae have been considered closely related in previous classifications. For example, Q. laceyi, Q. polymorpha, and Q. mohriana were placed in different sets of mostly Mexican taxa: (1) Q. mohriana with Q. arizonica in subsect. Arizonicae sensu Camus [74]; (2) Q. polymorpha with Q. porphyrogenita Trel. and a few other Mexican taxa of doubtful validity within subsect. Polymorphae sensu Camus [83]; and (3) Q. laceyi within series Glaucoideae sensu Muller, and as noted later [141], with putative affinities to either Q. porphyrogenita or eastern North American white oaks.
Our current sampling and high level of resolution and support within section Quercus are sufficient to conclude that most of the previous speculation on the disparate affinities of these taxa is not supported. We sampled two accessions of the widespread Q. polymorpha, one from the northernmost population in Texas (Dolan Falls, Val Verde Co.) the other from south of Monterrey (Nuevo Leon; Mexico), about 600 km apart, and they fell sister to one another with strong support [15]. Similarly, each taxon with the exception of Q. hinckleyi has been sampled from two separate populations, with all individuals of these species forming tight, cohesive clades.
While our sampling in Mexico is preliminary, analyses suggest at least one compelling scenario for the biogeographic history of this clade. Aside from Q. polymorpha, these taxa currently form the most narrowly distributed radiation of the North American oak clades, and the timing of the clade’s crown diversification coincides closely with the mid-Miocene expansion of arid zones [142]. Species of this clade generally occur on limestone and desert slopes of the southwestern states (AZ, NM, TX, OK) and three north-central states of Mexico (CHIH, COAH, N.L.). The more mesophytic and broadly distributed Q. polymorpha sublineage occurs to the south along the east slope of the Sierra Madre Oriental. Current patterns of distribution suggest a concentrated distribution of relictual species of various habit and climatic niche breadth, with a notable biogeographic disjunction between the Q. polymorpha and Q. mohriana sublineages by the end of the Pliocene, ca. 3–5 Ma, well after the diversification of main radiation of Leucomexicanae [19]. It is likely that the historical range of Polymorphae was more widespread farther north and west into the FNA region and south into Mexico during wetter and more mild climates during the late Wisconsin glaciation episode (22–11 thousand years ago). The most distinctive of these taxa, Q. hinckleyi, is a narrow endemic of the Trans-Pecos Region, with spinescent, subrotund leaves. It has been called a “climate relict” based on leaf fossil evidence from packrat middens throughout the Pleistocene ([143], for discussion see [144]).

4. Conclusions

We have provided a review and synthesis of the systematics of the oaks within the Flora of the North American region, as informed by recent analyses using phylogenomic analyses of nuclear sequence data. A new classification for part of the American oak clade is presented and discussed with reference to biogeographic history, species-level relationships, and previous hypotheses of hybridization. This update on the evolutionary diversification of an ecologically and economically important tree group provides both a capstone and roadmap to guide future studies.
The recognition of oak clades below the sectional level provides an opportunity to revisit some of the most interesting topics in ecology, biogeography, and species biology. From the ecological processes involved in community assembly to the adaptive role of hybridization, species-level phylogenies derived from next-generation DNA sequence data will enhance scientific inquiry and promote targeted hypothesis testing. In practical terms, translating phylogenies into informative classification systems improves our ability to communicate with precision about the independent evolutionary radiations of species across the tree of life.

Author Contributions

P.S.M. and A.L.H. contributed equally to all aspects of the manuscript. Both authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Science Foundation (DEB-1146488, DEB-1146102) and the Duke University Arts and Sciences Council.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data and scripts to generate the phylogeny and range maps presented in this paper (Figure 2) are available in two public repositories: GitHub (https://github.com/andrew-hipp/2021-oak-classification, accessed on 16 June 2021), with the published data and scripts released as version 0.95-1 under Zenodo DOI 10.5281/zenodo.4905230 (https://zenodo.org/record/4905230, accessed on 16 June 2021).

Acknowledgments

The authors thanks Alan Whittemore and Al Keuter for advice on the taxonomic treatment and comments on the Agrifoliae, respectively. They also acknowledge the constructive comments of two anonymous reviewers and thank Mary Ashley and Janet Backs for the invitation to contribute to this special volume.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nixon, K.C. Quercus. In Flora of North America North of Mexico; Committee Flora of North America Editorial, Ed.; Oxford University Press: New York, NY, USA, 1997; Volume 3, pp. 445–447. [Google Scholar]
  2. Manos, P.S.; Stanford, A.M. The Historical Biogeography of Fagaceae: Tracking the Tertiary History of Temperate and Subtropical Forests of the Northern Hemisphere. Int. J. Plant Sci. 2001, 162, S77–S93. [Google Scholar] [CrossRef]
  3. Denk, T.; Grimm, G.W.; Manos, P.S.; Deng, M.; Hipp, A.L. An updated infrageneric classification of the oaks: Review of previous taxonomic schemes and synthesis of evolutionary patterns. In Oaks Physiological Ecology. Exploring the Functional Diversity of Genus Quercus L.; Gil-Pelegrín, E., Peguero-Pina, J.J., Sancho-Knapik, D., Eds.; Tree Physiology; Springer: Cham, Switzerland, 2017; pp. 13–38. ISBN 9783319690988. [Google Scholar]
  4. Cavender-Bares, J. Diversity, Distribution, and Ecosystem Services of the North American Oaks. Int. Oaks 2016, 27, 37–48. [Google Scholar]
  5. Fahey, R.T.; Darling, L.; Anderson, J. Oak Ecosystem Recovery Plan: Sustaining Oaks in the Chicago Wilderness Region; Chicago Wilderness Oak Ecosystem Recovery Working Group; USDA Forest Service and US Fish & Wildlife Service, Chicago, Illinois. 2015. Available online: http://chicagorti.org/sites/chicagorti/files/OERP-Full-Report-lowres.pdf (accessed on 12 June 2021).
  6. Nowak, D.J.; Hoehn, R.E.I.; Bodine, A.R.; Crane, D.E.; Dwyer, J.F.; Bonnewell, V.; Watson, G. Urban Trees and Forests of the Chicago Region; U.S. Department of Agriculture, Forest Service, Northern Research Station: Newtown Square, PA, USA, 2013.
  7. Chassé, B. Eating Acorns: What Story Do the Distant, Far, and near Past Tell Us, and Why? Int. Oaks: J. Int. Oak Soc. 2016, 27, 107–135. [Google Scholar]
  8. Logan, W.B. Oak: Frame of Civilization; W.W. Norton & Company Inc.: New York, NY, USA, 2005. [Google Scholar]
  9. Leroy, T.; Plomion, C.; Kremer, A. Oak Symbolism in the Light of Genomics. New Phytol. 2020, 226, 1012–1017. [Google Scholar] [CrossRef]
  10. Mabey, R. The Cabaret of Plants: Forty Thousand Years of Plant Life and the Human Imagination, 1st ed.; W.W. Norton & Company Inc.: New York, NY, USA, 2017; ISBN 9780393353860. [Google Scholar]
  11. Forman, L.L. On the Evolution of Cupules in the Fagaceae. Kew Bull. 1966, 18, 385. [Google Scholar] [CrossRef]
  12. Nixon, K.C.; Crepet, W.L. TRIGONOBALANUS (FAGACEAE): TAXONOMIC STATUS AND PHYLOGENETIC RELATIONSHIPS. Am. J. Bot. 1989, 76, 828–841. [Google Scholar] [CrossRef]
  13. Manos, P.S.; Doyle, J.J.; Nixon, K.C. Phylogeny, Biogeography, and Processes of Molecular Differentiation in Quercus Subgenus Quercus (Fagaceae). Mol. Phylogenet. Evol. 1999, 12, 333–349. [Google Scholar] [CrossRef][Green Version]
  14. Oh, S.-H.; Manos, P.S. Molecular Phylogenetics and Cupule Evolution in Fagaceae as Inferred from Nuclear CRABS CLAW Sequences. Taxon 2008, 57, 434–451. [Google Scholar]
  15. Hipp, A.L.; Manos, P.S.; Hahn, M.; Avishai, M.; Bodénès, C.; Cavender-Bares, J.; Crowl, A.A.; Deng, M.; Denk, T.; Fitz-Gibbon, S.; et al. Genomic Landscape of the Global Oak Phylogeny. New Phytol. 2020, 226, 1198–1212. [Google Scholar] [CrossRef] [PubMed]
  16. Denk, T.; Grimm, G.W. Significance of Pollen Characteristics for Infrageneric Classification and Phylogeny in Quercus (Fagaceae). Int. J. Plant Sci. 2009, 170, 926–940. [Google Scholar] [CrossRef]
  17. Cavender-Bares, J. Diversification, Adaptation, and Community Assembly of the American Oaks (Quercus), a Model Clade for Integrating Ecology and Evolution. New Phytol. 2019, 221, 669–692. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Cavender-Bares, J.; Kothari, S.; Meireles, J.E.; Kaproth, M.A.; Manos, P.S.; Hipp, A.L. The Role of Diversification in Community Assembly of the Oaks (Quercus L.) across the Continental U.S. Am. J. Bot. 2018, 105, 565–586. [Google Scholar] [CrossRef] [PubMed][Green Version]
  19. Hipp, A.L.; Manos, P.S.; González-Rodríguez, A.; Hahn, M.; Kaproth, M.; McVay, J.D.; Avalos, S.V.; Cavender-Bares, J. Sympatric Parallel Diversification of Major Oak Clades in the Americas and the Origins of Mexican Species Diversity. New Phytol. 2018, 217, 439–452. [Google Scholar] [CrossRef] [PubMed][Green Version]
  20. Nixon, K.C. The Oak (Quercus) Biodiversity of California and Adjacent Regions. Gen. Tech. Rep. USDA For. Serv. 2002, PSW-GTR-184, 3–20. [Google Scholar]
  21. González-Rodríguez, A.; García-Oliva, F.; Tapie-Torres, Y.; Morón-Cruz, A.; Chávez-Vergara, B.; Baca-Patiño, B.; Cuevas-Reyes, P. Oak Community Diversity Affects Nitrogen in Litter and Soil. Int. Oaks J. Int. Oak Soc. 2019, 30, 125–130. [Google Scholar]
  22. Cavender-Bares, J.; Ackerly, D.D.; Baum, D.A.; Bazzaz, F.A. Phylogenetic Overdispersion in Floridian Oak Communities. Am. Nat. 2004, 163, 823–843. [Google Scholar] [CrossRef]
  23. Hauser, D.A.; Keuter, A.; McVay, J.D.; HIpp, A.L.; Manos, P.S. The Evolution and Diversification of the Red Oaks of the California Floristic Province (Quercus Section Lobatae, Series Agrifoliae). Am. J. Bot. 2017, 104, 1581–1595. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. McVay, J.D.; Hipp, A.L.; Manos, P.S. A Genetic Legacy of Introgression Confounds Phylogeny and Biogeography in Oaks. Proc. Roy. Soc. B. 2017, 284, 20170300. [Google Scholar] [CrossRef][Green Version]
  25. McVay, J.D.; Hauser, D.; Hipp, A.L.; Manos, P.S. Phylogenomics Reveals a Complex Evolutionary History of Lobed-Leaf White Oaks in Western North America. Genome 2017, 60, 733–742. [Google Scholar] [CrossRef][Green Version]
  26. Cavender-Bares, J.; Gonzalez-Rodriguez, A.; Eaton, D.A.R.; Hipp, A.L.; Beulke, A.; Manos, P.S. Phylogeny and Biogeography of the American Live Oaks (Quercus Subsection Virentes): A Genomic and Population Genetics Approach. Mol. Ecol. 2015, 24, 3668–3687. [Google Scholar] [CrossRef] [PubMed]
  27. Fitz-Gibbon, S.; Hipp, A.L.; Pham, K.K.; Manos, P.S.; Sork, V. Phylogenomic Inferences from Reference-Mapped and de Novo Assembled Short-Read Sequence Data Using RADseq Sequencing of California White Oaks (Quercus Subgenus Quercus). Genome 2017, 60, 743–755. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Crowl, A.A.; Bruno, E.; Hipp, A.L.; Manos, P.S. Revisiting the Mystery of the Bartram Oak. Arnoldia 2020, 77, 6–11. [Google Scholar]
  29. McIntyre, D.J. Pollen and Spore Flora of an Eocene Forest, Eastern Axel Heiberg Island. N.W.T. Geol. Surv. Can. Bull. 1991, 403, 83–97. [Google Scholar]
  30. Liu, Z.; Pagani, M.; Zinniker, D.; DeConto, R.; Huber, M.; Brinkhuis, H.; Shah, S.R.; Leckie, R.M.; Pearson, A. Global Cooling During the Eocene-Oligocene Climate Transition. Science 2009, 323, 1187–1190. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Little, E.L. Atlas of United States Trees, Volume 1, Conifers and Important Hardwoods; Miscellaneous publication; U.S. Dept. of Agriculture, Forest Service: Washington, DC, USA, 1971.
  32. Little, E.L. Atlas of United States Trees, Volume 4, Minor Eastern Hardwoods; Miscellaneous publication; U.S. Dept. of Agriculture, Forest Service: Washington, DC, USA, 1977.
  33. Pham, K.K.; Hipp, A.L.; Manos, P.S.; Cronn, R.C. A Time and a Place for Everything: Phylogenetic History and Geography as Joint Predictors of Oak Plastome Phylogeny. Genome 2017, 60, 720–732. [Google Scholar] [CrossRef][Green Version]
  34. Muller, C.H. The Live Oaks of the Series Virentes. Am. Midl. Nat. 1961, 65, 17–39. [Google Scholar] [CrossRef]
  35. Sork, V.L.; Riordan, E.; Gugger, P.F.; Fitz-Gibbon, S.; Wei, X.; Ortego, J. Phylogeny and Introgression of California Scrub White Oaks (Quercus Section Quercus). Int. Oaks 2016, 27, 61–74. [Google Scholar]
  36. Eaton, D.A.R.; Hipp, A.L.; González-Rodríguez, A.; Cavender-Bares, J. Historical Introgression among the American Live Oaks and the Comparative Nature of Tests for Introgression. Evolution 2015, 69, 2587–2601. [Google Scholar] [CrossRef] [PubMed]
  37. Crowl, A.A.; Manos, P.S.; McVay, J.D.; Lemmon, A.R.; Lemmon, E.M.; Hipp, A.L. Uncovering the Genomic Signature of Ancient Introgression between White Oak Lineages (Quercus). New Phytol. 2020, 226, 1158–1170. [Google Scholar] [CrossRef]
  38. Muir, G.; Fleming, C.C.; Schlötterer, C. Species Status of Hybridizing Oaks. Nature 2000, 405, 1016. [Google Scholar] [CrossRef]
  39. Pearse, I.S.; Hipp, A.L. Phylogenetic and Trait Similarity to a Native Species Predict Herbivory on Non-Native Oaks. Proc. Natl. Acad. Sci. USA 2009, 106, 18097–18102. [Google Scholar] [CrossRef][Green Version]
  40. Hipp, A.L. Should Hybridization Make Us Skeptical of the Oak Phylogeny? Int. Oak J. 2015, 26, 9–18. [Google Scholar]
  41. Hipp, A.L. Oak Research in 2015: A Snapshot from the IOS Conference. Int. Oak J. 2016, 27, 15–22. [Google Scholar]
  42. Craft, K.J.; Ashley, M.V.; Koenig, W.D. Limited Hybridization between Quercus Lobata and Quercus Douglasii (Fagaceae) in a Mixed Stand in Central Coastal California. Am. J. Bot. 2002, 89, 1792–1798. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Hipp, A.L.; Weber, J.A. Taxonomy of Hill’s Oak (Quercus Ellipsoidalis: Fagaceae): Evidence from AFLP Data. Syst. Bot. 2008, 33, 148–158. [Google Scholar] [CrossRef]
  44. Lepais, O.; Petit, R.J.; Guichoux, E.; Lavabre, J.E.; Alberto, F.; Kremer, A.; Gerber, S. Species Relative Abundance and Direction of Introgression in Oaks. Mol. Ecol. 2009, 18, 2228–2242. [Google Scholar] [CrossRef] [PubMed]
  45. Curtu, A.L.; Gailing, O.; Leinemann, L.; Finkeldey, R. Genetic Variation and Differentiation within a Natural Community of Five Oak Species (Quercus Spp.). Plant Biol. 2007, 9, 116–126. [Google Scholar] [CrossRef] [PubMed]
  46. Gailing, O.; Curtu, A.L. Interspecific Gene Flow and Maintenance of Species Integrity in Oaks. Ann. For. Res. 2014, 57, 5–18. [Google Scholar] [CrossRef][Green Version]
  47. Dodd, R.; Papper, P. Disentangling the Phylogenetic Network of the California Red Oaks. Int. Oaks 2019, 30, 203–208. [Google Scholar]
  48. Valencia-A, S. Species Delimitation in the Genus Quercus (Fagaceae). Bot. Sci. 2021, 99, 1–12. [Google Scholar] [CrossRef]
  49. Hipp, A.L.; Whittemore, A.T.; Garner, M.; Hahn, M.; Fitzek, E.; Guichoux, E.; Cavender-Bares, J.; Gugger, P.F.; Manos, P.S.; Pearse, I.S.; et al. Genomic Identity of White Oak Species in an Eastern North American Syngameon. Ann. Mo. Bot. Garden 2019, 104, 455–477. [Google Scholar] [CrossRef][Green Version]
  50. Van Valen, L. Ecological Species, Multispecies, and Oaks. Taxon 1976, 25, 233–239. [Google Scholar] [CrossRef][Green Version]
  51. Burger, W.C. The Species Concept in Quercus. Taxon 1975, 24, 45–50. [Google Scholar] [CrossRef]
  52. Hardin, J.W. Hybridization and Introgression in Quercus Alba. J. Arnold Arbor. 1975, 56, 336–363. [Google Scholar]
  53. Kremer, A.; Hipp, A.L. Oaks: An Evolutionary Success Story. New Phytol. 2020, 226, 987–1011. [Google Scholar] [CrossRef] [PubMed]
  54. Fitzek, E.; Delcamp, A.; Guichoux, E.; Hahn, M.; Lobdell, M.; Hipp, A.L. A Nuclear DNA Barcode for Eastern North American Oaks and Application to a Study of Hybridization in an Arboretum Setting. Ecol. Evol. 2018, 8, 5837–5851. [Google Scholar] [CrossRef] [PubMed]
  55. Guichoux, E.; Lagache, L.; Wagner, S.; Léger, P.; Petit, R.J. Two Highly Validated Multiplexes (12-Plex and 8-Plex) for Species Delimitation and Parentage Analysis in Oaks (Quercus Spp.). Mol. Ecol. Resour. 2011, 11, 578–585. [Google Scholar] [CrossRef]
  56. Rieseberg, L.H.; Wood, T.E.; Baack, E.J. The Nature of Plant Species. Nature 2006, 440, 524–527. [Google Scholar] [CrossRef]
  57. Moran, E.V.; Willis, J.; Clark, J.S. Genetic Evidence for Hybridization in Red Oaks (Quercus Sect. Lobatae, Fagaceae). Am. J. Bot. 2012, 99, 92–100. [Google Scholar] [CrossRef][Green Version]
  58. Aldrich, P.R.; Parker, G.R.; Michler, C.H.; Romero-Severson, J. Whole-Tree Silvic Identifications and the Microsatellite Genetic Structure of a Red Oak Species Complex in an Indiana Old-Growth Forest. Can. J. For. Res. 2003, 33, 2228–2237. [Google Scholar] [CrossRef]
  59. Owusu, S.A.; Sullivan, A.R.; Weber, J.A.; Hipp, A.L.; Gailing, O. Taxonomic Relationships and Gene Flow in Four North American Quercus Species (Quercus Section Lobatae). Syst. Bot. 2015, 40, 510–521. [Google Scholar] [CrossRef]
  60. Scotti-Saintagne, C.; Mariette, S.; Porth, I.; Goicoechea, P.G.; Barreneche, T.; Bodenes, C.; Burg, K.; Kremer, A. Genome Scanning for Interspecific Differentiation between Two Closely Related Oak Species [Quercus Robur L. and Q. Petraea (Matt.) Liebl.]. Genetics 2004, 168, 1615–1626. [Google Scholar] [CrossRef] [PubMed][Green Version]
  61. Garner, M.; Pham, K.K.; Whittemore, A.T.; Cavender-Bares, J.; Gugger, P.F.; Manos, P.S.; Pearse, I.S.; Hipp, A.L. From Manitoba to Texas: A Study of the Population Genetic Structure of Bur Oak (Quercus Macrocarpa). Int. Oaks J. Int. Oak Soc. 2019, 30, 131–138. [Google Scholar]
  62. Hipp, A.L.; Eaton, D.A.R.; Cavender-Bares, J.; Fitzek, E.; Nipper, R.; Manos, P.S. A Framework Phylogeny of the American Oak Clade Based on Sequenced RAD Data. PLoS ONE 2014, 9, e93975. [Google Scholar] [CrossRef] [PubMed][Green Version]
  63. Manos, P.S. Cladistic Analyses of Molecular Variation of “Higher” Hamamelididae and Fagaceae, and Systematics of Quercus Section Protobalanus; Cornell University: Ithaca, NY, USA, 1993. [Google Scholar]
  64. Manos, P.S. Foliar Trichome Variation in Quercus section Protobalanus (Fagaceae). Sida Contrib. Bot. 1993, 15, 391–403. [Google Scholar]
  65. Ashley, M.V.; Backs, J.R.; Kindsvater, L.; Abraham, S.T. Genetic Variation and Structure in an Endemic Island Oak, Quercus Tomentella, and Mainland Canyon Oak, Quercus Chrysolepis. Int. J. Plant Sci. 2018, 179, 151–161. [Google Scholar] [CrossRef]
  66. May, M.R.; Provance, M.C.; Sanders, A.C.; Ellstrand, N.C.; Ross-Ibarra, J. A Pleistocene Clone of Palmer’s Oak Persisting in Southern California. PLoS ONE 2009, 4, e8346. [Google Scholar] [CrossRef]
  67. Ortego, J.; Gugger, P.F.; Sork, V.L. Genomic Data Reveal Cryptic Lineage Diversification and Introgression in Californian Golden Cup Oaks (section Protobalanus). New Phytol. 2018, 218, 804–818. [Google Scholar] [CrossRef][Green Version]
  68. Zumwalde, B.A.; McCauley, R.A.; Fullinwider, I.J.; Duckett, D.; Spence, E.; Hoban, S. Genetic, Morphological, and Environmental Differentiation of an Arid-Adapted Oak with a Disjunct Distribution. For. Trees Livelihoods 2021, 12, 465. [Google Scholar] [CrossRef]
  69. Tucker, J.M. Studies in the Quercus undulata Complex. IV. The Contribution of Quercus havardii. Am. J. Bot. 1970, 57, 71–84. [Google Scholar] [CrossRef]
  70. Bouchal, J.; Zetter, R.; Grímsson, F.; Denk, T. Evolutionary Trends and Ecological Differentiation in Early Cenozoic Fagaceae of Western North America. Am. J. Bot. 2014, 101, 1332–1349. [Google Scholar] [CrossRef] [PubMed][Green Version]
  71. Ortego, J.; Gugger, P.F.; Sork, V.L. Climatically Stable Landscapes Predict Patterns of Genetic Structure and Admixture in the Californian Canyon Live Oak. J. Biogeogr. 2015, 42, 328–338. [Google Scholar] [CrossRef][Green Version]
  72. Trelease, W. The American Oaks. Mem. Natl. Acad. Sci. 1924, 20, 1–255. [Google Scholar]
  73. Camus, A.A. Monographie Du Genre Quercus. Tome I. Genre Quercus. Sous-Genre Cyclobalanopsis et Sous-Genre Euquercus (Section Cerris et Mesobalanu); Encyclopédie économique de sylviculture VI.; Editions Paul Lechevalier: Paris, France, 1936. [Google Scholar]
  74. Camus, A.A. Monographie Du Genre Quercus. Tome II. Genre Quercus. Sous-Genre Euquercus (sections Lepidobalanus et Macrobalanus); Encyclopédie économique de sylviculture VII.; Editions Paul Lechevalier: Paris, France, 1938. [Google Scholar]
  75. Camus, A.A. Monographie Du Genre Quercus. Tome III. Genre Quercus. Sous-Genre Euquercus (sections Protobalanus et Erythrobalanus); Encyclopédie économique de sylviculture VIII.; Editions Paul Lechevalier: Paris, France, 1952. [Google Scholar]
  76. Denk, T.; Grimm, G.W. The Oaks of Western Eurasia: Traditional Classifications and Evidence from Two Nuclear Markers. Taxon 2010, 59, 351–366. [Google Scholar] [CrossRef]
  77. Fick, S.E.; Hijmans, R.J. WorldClim 2: New 1-Km Spatial Resolution Climate Surfaces for Global Land Areas. Int. J. Climatol. 2017, 37, 4302–4315. [Google Scholar] [CrossRef]
  78. Brown, R. XXX.—Descriptions of Some New or Little-Known Species of Oaks from North-West America. Ann. Mag. Nat. Hist. 1871, 7, 249–256. [Google Scholar] [CrossRef]
  79. Hipp, A.L. Pharaoh’s Dance: The Oak Genomic Mosaic. Int. Oaks J. Int. Oak Soc. 2019, 30, 53–62. [Google Scholar]
  80. Nixon, K.C. A Biosystematic Study of Quercus Series Virentes (the Live Oaks) with Phylogenetic Analyses of Fagales, Fagaceae and Quercus. Ph.D. Dissertation, University of Texas, Austin, TX, USA, 1985. [Google Scholar]
  81. Cavender-Bares, J.; Pahlich, A. Molecular, Morphological, and Ecological Niche Differentiation of Sympatric Sister Oak Species, Quercus Virginiana and Q. Geminata (Fagaceae). Am. J. Bot. 2009, 96, 1690–1702. [Google Scholar] [CrossRef] [PubMed][Green Version]
  82. Muller, C.H. Relictual Origins of Insular Endemics in Quercus. In Proceedings of the Symposium on the Biology of the Channel Islands; Philbrick, R.N., Ed.; Santa Barbara Botanic Garden: Santa Barbara, CA, USA, 1967; pp. 73–77. [Google Scholar]
  83. Valencia-Avalos, S. Diversidad Del Género Quercus (Fagaceae) En México. Boletín Soc. Botánica México 2004, 75, 33–53. [Google Scholar]
  84. Nixon, K.C. Global and neotropical distribution and diversity of oak (genus Quercus) and oak forests. In Ecology And Conservation of Neotropical Montane Oak Forests; Springer: Berlin/Heidelberg, Germany, 2006; pp. 3–13. [Google Scholar]
  85. Avella Muñoz, A.; Rangel Churio, J.O. Oak forests types of Quercus humboldtii in the Guantiva-La Rusia-Iguaque Corridor (Santandr-Boyacá, Colombia). Colomb. For. 2014, 17, 100–116. [Google Scholar] [CrossRef]
  86. Fernández-M., J.F.; Sork, V.L. Genetic Variation in Fragmented Forest Stands of the Andean Oak Quercus humboldtii Bonpl. (Fagaceae). Biotropica 2007, 39, 72–78. [Google Scholar] [CrossRef]
  87. Nixon, K.C. Infrageneric Classification of Quercus (Fagaceae) and Typification of Sectional Names. Ann. Sci. For. 1993, 50, 25–34. [Google Scholar] [CrossRef][Green Version]
  88. Jensen, R.J. Quercus Linnaeus sect. Lobatae Loudon. In Flora of North America, North of Mexico; Flora of North America Editorial Committee, Ed.; Oxford University Press: New York, NY, USA, 1997; Volume 3, pp. 447–468. [Google Scholar]
  89. Griswold, E.; Still, S.; McNeil-Marshall, A. Scouting and Collecting Rare Oaks in the Trans-Pecos for Ex-Situ Conservation, 2016. Int. Oaks J. Int. Oak Soc. 2018, 29, 125–142. [Google Scholar]
  90. Muller, C.H. The oaks of Texas. In Contributions from Texas Research Foundations; Lundell, C.L., Ed.; Texas Research Foundation: Renner, TX, USA, 1951; pp. 40–41. [Google Scholar]
  91. Torres-Miranda, A.; Luna-Vega, I.; Oyama, K. Conservation Biogeography of Red Oaks (Quercus, Section Lobatae) in Mexico and Central America. Am. J. Bot. 2011, 98, 290–305. [Google Scholar] [CrossRef] [PubMed][Green Version]
  92. Torres-Miranda, A.; Luna-Vega, I.; Oyama, K. New Approaches to the Biogeography and Areas of Endemism of Red Oaks (Quercus L., Section Lobatae). Syst. Biol. 2013, 62, 555–573. [Google Scholar] [CrossRef][Green Version]
  93. Rodríguez-Correa, H.; Oyama, K. How Are Oaks Distributed in the Neotropics? A Perspective from Species Turnover, Areas of Endemism, and Climatic Niches. Int. J. Plant Sci. 2015, 176, 222–231. [Google Scholar] [CrossRef]
  94. Keuter, A.; Manos, P.S. Agrifoliae: The California Red Oaks. Int. Oaks J. Int. Oak Soc. 2019, 30, 191–202. [Google Scholar]
  95. Dodd, R.S.; Afzal-Rafii, Z. Selection and Dispersal in a Multispecies Oak Hybrid Zone. Evolution 2004, 58, 261–269. [Google Scholar] [CrossRef] [PubMed]
  96. Jensen, R.J. Identifying Oaks: The Hybrid Problem. J. Int. Oak Soc. 1995, 6, 47–54. [Google Scholar]
  97. Cottam, W.P.; Tucker, J.M.; Santamour, F.S. Oak Hybridization at the University of Utah; State Arboretum of Utah: Salt Lake City, UT, USA, 1982. [Google Scholar]
  98. Axelrod, D.I. Biogeography of Oaks in the Arcto-Tertiary Province. Ann. Mo. Bot. Gard. 1983, 70, 629–657. [Google Scholar] [CrossRef]
  99. Mensing, S. The Paleohistory of California Oaks. In Proceedings of the Seventh California Oak Symposium: Managing Oak Woodlands in a Dynamic World; USDA Forest Service General Technical Reports PSW-GTR-251; Pacific Southwest Research Station: Berkeley, CA, USA, 2014; pp. 35–48. [Google Scholar]
  100. Mensing, S. The History of Oak Woodlands in California, Part I: The Paleoecologic Record. Calif. Geogr. 2005, 45, 1–38. [Google Scholar]
  101. Jensen, R.J. A Preliminary Numerical Analysis of the Red Oak Complex in Michigan and Wisconsin USA. Taxon 1977, 26, 399–407. [Google Scholar] [CrossRef]
  102. Manos, P.S.; Fairbrothers, D.E. Allozyme Variation in Populations of Six Northeastern American Red Oaks (Fagaceae: Quercus Subg. Erythrobalanus). Syst. Bot. 1987, 12, 265–373. [Google Scholar] [CrossRef]
  103. Guttman, S.I.; Weigt, L.A. Electrophoretic Evidence of Relationships among Quercus (oaks) of Eastern North America. Can. J. Bot. 1989, 67, 339–351. [Google Scholar] [CrossRef]
  104. Hess, W.J.; Stoynoff, N.A. Taxonomic Status of Quercus acerifolia (Fagaceae) and a Morphological Comparison of Four Members of the Quercus shumardii Complex. Syst. Bot. 1998, 23, 89–100. [Google Scholar] [CrossRef]
  105. Stoynoff, N.; Hess, W.J. A New Status for Quercus shumardii varacerifolia (Fagaceae). SIDA Contrib. Bot. 1990, 14, 267–271. [Google Scholar]
  106. McDougal, K.M.; Parks, C.R. Elevational Variation in Foliar Flavonoids of Quercus rubra L. (Fagaceae). Am. J. Bot. 1984, 71, 301–308. [Google Scholar] [CrossRef]
  107. Weakley, A.S. Flora of the Southeastern United States. University of North Carolina Herbarium (NCU), North Carolina Botanical Garden: Chapel Hill, NC, USA, 2020. [Google Scholar]
  108. Trelease, W. The Jack Oak (Quercus ellipsoidalis). Trans. Ill. State Acad. Sci. 1919, 12, 108–118. [Google Scholar]
  109. Jensen, R.J. Lectotypification of Quercus ellipsoidalis E.J. Hill. Taxon 1979, 29, 154–155. [Google Scholar] [CrossRef]
  110. Maycock, P.F.; Daniel, D.R.; Gregory, R.; Reznicek, A.A. Hill’s Oak (Quercus ellipsoidalis) in Canada. Can. Field Nat. 1980, 94, 277–285. [Google Scholar]
  111. Ball, P.W. Hills Oak (Quercus ellipsoidalis) in Southern Ontario, Canada. Can. Field Nat. 1981, 95, 281–286. [Google Scholar]
  112. Overlease, W.R. Genetic Relationships between Three Species of Oaks as Determined by Common Garden Studies with Populations from Michigan, Indiana and Wisconsin. J. Pa. Acad. Sci. 1991, 65, 71–74. [Google Scholar]
  113. Jensen, R.J.; Depiero, R.; Smith, B.K. Vegetative Characters, Population Variation, and the Hybrid Origin of Quercus ellipsoidalis. Am. Midl. Nat. 1984, 111, 364–370. [Google Scholar] [CrossRef]
  114. Wadmond, S.C. The Quercus Ellipsoidalis--Quercus Coccinea Complex. Trans. Wisc. Acad. Sci. Arts Lett. 1933, 28, 197–203. [Google Scholar]
  115. Overlease, W.R. A Study of the Relationship between Scarlet Oak (Quercus coccinea Muenchh.) and Hill Oak (Quercus ellipsoidalis E.J. Hill) in Michigan and Nearby States. J. Pa. Acad. Sci. 1977, 51, 47–50. [Google Scholar]
  116. Shepard, D.A. The Legitimacy of Quercus ellipsoidalis Based on a Populational Study of Quercus Coccinea in Illinois. Western Illinois University: Macomb, IL, USA, 1993. [Google Scholar]
  117. Shepard, D.A. A Review of the Taxonomic Status of Quercus ellipsoidalis and Quercus coccinea in the Eastern United States. Int. Oak J. 2009, 20, 65–84. [Google Scholar]
  118. Hipp, A.L.; Weber, J.A.; Srivastava, A. Who Am I This Time? The Affinities and Misbehaviors of Hill’s Oak (Quercus ellipsoidalis). Int. Oak J. 2010, 21, 27–36. [Google Scholar]
  119. Zhang, R.; Hipp, A.L.; Gailing, O. Sharing of Chloroplast Haplotypes among Red Oak Species Suggests Interspecific Gene Flow between Neighboring Populations. Botany 2015, 93, 691–700. [Google Scholar] [CrossRef][Green Version]
  120. Hokanson, S.C.; Isebrands, J.G.; Jensen, R.J.; Hancock, J.F. Isozyme Variation in Oaks of the Apostle Islands in Wisconsin: Genetic Structure and Levels of Inbreeding in Quercus rubra and Q. ellipsoidalis (Fagaceae). Am. J. Bot. 1993, 80, 1349–1357. [Google Scholar] [CrossRef]
  121. Sullivan, A.R.; Owusu, S.A.; Weber, J.A.; Hipp, A.L.; Gailing, O. Hybridization and Divergence in Multi-Species Oak (Quercus) Communities. Bot. J. Linn. Soc. 2016, 181, 99–114. [Google Scholar] [CrossRef][Green Version]
  122. Khodwekar, S.; Gailing, O. Evidence for Environment-Dependent Introgression of Adaptive Genes between Two Red Oak Species with Different Drought Adaptations. Am. J. Bot. 2017, 104, 1088–1098. [Google Scholar] [CrossRef] [PubMed][Green Version]
  123. Lind-Riehl, J.F.; Sullivan, A.R.; Gailing, O. Evidence for Selection on a CONSTANS-like Gene between Two Red Oak Species. Ann. Bot. 2014, 113, 967–975. [Google Scholar] [CrossRef][Green Version]
  124. Noss, R.F.; Platt, W.J.; Sorrie, B.A.; Weakley, A.S.; Means, D.B.; Costanza, J.; Peet, R.K. How Global Biodiversity Hotspots May Go Unrecognized: Lessons from the North American Coastal Plain. Divers. Distrib. 2015, 21, 236–244. [Google Scholar] [CrossRef]
  125. Hunt, D.M. A Systematic Review of Quercus Series Laurifoliae, Marilandicae and Nigrae; University of Georgia: Athens, GA, USA, 1990. [Google Scholar]
  126. Ortego, J.; Gugger, P.F.; Riordan, E.C.; Sork, V.L. Influence of Climatic Niche Suitability and Geographical Overlap on Hybridization Patterns among Southern Californian Oaks. J. Biogeogr. 2014, 41, 1895–1908. [Google Scholar] [CrossRef]
  127. Kim, B.Y.; Wei, X.; Fitz-Gibbon, S.; Lohmueller, K.E.; Ortego, J.; Gugger, P.F.; Sork, V.L. RADseq Data Reveal Ancient, but Not Pervasive, Introgression between Californian Tree and Scrub Oak Species (Quercus Sect. Quercus: Fagaceae). Mol. Ecol. 2018, 27, 4556–4571. [Google Scholar] [CrossRef] [PubMed]
  128. Tucker, J.M. Studies in the Quercus undulata Complex. I. A Preliminary Statement. Am. J. Bot. 1961, 48, 202. [Google Scholar] [CrossRef]
  129. Howard, D.J.; Preszler, R.W.; Williams, J.; Fenchel, S.; Boecklen, W.J. How Discrete Are Oak Species? Insights from a Hybrid Zone between Quercus grisea and Quercus gambelii. Evolution 1997, 51, 747–755. [Google Scholar] [CrossRef]
  130. Maze, J. Past Hybridization between Quercus macrocarpa and Quercus gambelii. Brittonia 1968, 20, 321–333. [Google Scholar] [CrossRef]
  131. Leroy, T.; Roux, C.; Villate, L.; Bodénès, C.; Romiguier, J.; Paiva, J.A.P.; Dossat, C.; Aury, J.-M.; Plomion, C.; Kremer, A. Extensive Recent Secondary Contacts between Four European White Oak Species. New Phytol. 2017, 214, 865–878. [Google Scholar] [CrossRef][Green Version]
  132. Nixon, K.C.; Muller, C.H. Quercus Linnaeus sect. Quercus. In Flora of North America; Flora of North America Editorial Committee, Ed.; Oxford University Press: New York, NY, USA, 1997; Volume 3, pp. 471–506. [Google Scholar]
  133. Tucker, J.M. Studies in the Quercus undulata Complex. III. The Contribution of Q. arizonica. Am. J. Bot. 1963, 50, 699–708. [Google Scholar] [CrossRef]
  134. Swenson, N.G.; Fair, J.M.; Heikoop, J. Water Stress and Hybridization between Quercus gambelii and Quercus grisea. West. N. Am. Nat. 2008, 68, 498–507. [Google Scholar] [CrossRef]
  135. Nixon, K.C.; Steele, K.P. A New Species of Quecus (Fagaceae) from Southern California. Madroño 1981, 28, 210–219. [Google Scholar]
  136. Rundel, P.W.; Arroyo, M.T.K.; Cowling, R.M.; Keeley, J.E.; Lamont, B.B.; Vargas, P. Mediterranean Biomes: Evolution of Their Vegetation, Floras, and Climate. Annu. Rev. Ecol. Evol. Syst. 2016, 47, 383–407. [Google Scholar] [CrossRef]
  137. Burge, D.O.; Parker, V.T.; Mulligan, M.; Sork, V.L. Influence of a Climatic Gradient on Genetic Exchange between Two Oak Species. Am. J. Bot. 2019, 106, 864–878. [Google Scholar] [CrossRef]
  138. Hardin, J.W. Patterns of Variation in Foliar Trichomes of Eastern North American Quercus. Am. J. Bot. 1979, 66, 576–585. [Google Scholar] [CrossRef]
  139. Thomson, P.M.; Mohlenbrock, R.H. Foliar Trichomes of Quercus Subgenus Quercus in the Eastern United States. J. Arnold Arbor. 1979, 60, 350–366. [Google Scholar]
  140. Duncan, W.H. Quercus oglethorpensis—Range Extensions and Phylogenetic Relationships. Lloydia 1950, 13, 243–248. [Google Scholar]
  141. Nixon, K.C.; Muller, C.H. The Taxonomic Resurrection of Quercus laceyi Small (Fagaceae). SIDA Contrib. Bot. 1992, 15, 57–69. [Google Scholar]
  142. Axelrod, D.I. Evolution of the Madro-Tertiary Geoflora. Bot. Rev. 1958, 24, 433–509. [Google Scholar] [CrossRef]
  143. Van Devender, T.R.; Spaulding, W.G. Development of Vegetation and Climate in the Southwestern United States. Science 1979, 204, 701–710. [Google Scholar] [CrossRef] [PubMed]
  144. Backs, J.R. Genetic Analysis of a Rare Isolated Species: A Tough Little West Texas Oak, Quercus hinckleyi C.H. Mull. J. Torrey Bot. 2015, 142, 302–313. [Google Scholar] [CrossRef]
Figure 1. Distributions of the five oak sections of the American oak clade (Quercus subg. Quercus). Maps were generated using species maps provided by Little [31,32], as refined by recent studies [17] and herbarium records.
Figure 1. Distributions of the five oak sections of the American oak clade (Quercus subg. Quercus). Maps were generated using species maps provided by Little [31,32], as refined by recent studies [17] and herbarium records.
Forests 12 00786 g001
Figure 2. Time tree/chronogram of the five sections of the American oak clade (Quercus subg. Quercus) adapted from [19], with distribution maps for the nine subsections recognized within sections Lobatae and Quercus. Shown in boldface are 88 of the 92 taxa that occur within the FNA region. Ma = million years ago. Maps are based on specimen data used in [19], excluding specimen records from cultivation and from outside the range of the species; additionally, populations of Q. havardii from west of eastern Arizona were excluded as their taxonomic status and possible hybrid origin are uncertain [68,69]. Additional specimen data from SEINet were included for the Coccineae in North Carolina, which were undersampled. Code for generating maps and phylogenetic tree is archived in GitHub (https://github.com/andrew-hipp/2021-oak-classification, Release v0.95-1, 2021-06-06) and Zenodo (DOI: 10.5281/zenodo.4905230).
Figure 2. Time tree/chronogram of the five sections of the American oak clade (Quercus subg. Quercus) adapted from [19], with distribution maps for the nine subsections recognized within sections Lobatae and Quercus. Shown in boldface are 88 of the 92 taxa that occur within the FNA region. Ma = million years ago. Maps are based on specimen data used in [19], excluding specimen records from cultivation and from outside the range of the species; additionally, populations of Q. havardii from west of eastern Arizona were excluded as their taxonomic status and possible hybrid origin are uncertain [68,69]. Additional specimen data from SEINet were included for the Coccineae in North Carolina, which were undersampled. Code for generating maps and phylogenetic tree is archived in GitHub (https://github.com/andrew-hipp/2021-oak-classification, Release v0.95-1, 2021-06-06) and Zenodo (DOI: 10.5281/zenodo.4905230).
Forests 12 00786 g002
Table 1. Current Infrageneric classification of the genus Quercus [3]. The total number of species with in each infrageneric group is provided, including the number of species within the Flora of North America (FNA) region and the number treated within this study.
Table 1. Current Infrageneric classification of the genus Quercus [3]. The total number of species with in each infrageneric group is provided, including the number of species within the Flora of North America (FNA) region and the number treated within this study.
Quercus L.SectionsNo. of Species
Total/FNA
No. of Species
Treated Here
subg. Quercus 297/92
Lobatae Loud.120/3937
Protobalanus (Trel.) Schwarz5/5
Ponticae Stef.2/1
Virentes Loud.7/4
Quercus150/5345
subg. Cerris Oerst. 138
Cyclobalanopsis (Oerst.)
Benth. & Hook. f.
90
Cerris Dumort.13
Ilex Loud.35
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Manos, P.S.; Hipp, A.L. An Updated Infrageneric Classification of the North American Oaks (Quercus Subgenus Quercus): Review of the Contribution of Phylogenomic Data to Biogeography and Species Diversity. Forests 2021, 12, 786. https://doi.org/10.3390/f12060786

AMA Style

Manos PS, Hipp AL. An Updated Infrageneric Classification of the North American Oaks (Quercus Subgenus Quercus): Review of the Contribution of Phylogenomic Data to Biogeography and Species Diversity. Forests. 2021; 12(6):786. https://doi.org/10.3390/f12060786

Chicago/Turabian Style

Manos, Paul S., and Andrew L. Hipp. 2021. "An Updated Infrageneric Classification of the North American Oaks (Quercus Subgenus Quercus): Review of the Contribution of Phylogenomic Data to Biogeography and Species Diversity" Forests 12, no. 6: 786. https://doi.org/10.3390/f12060786

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
