Mapping Soil Burn Severity at Very High Spatial Resolution from Unmanned Aerial Vehicles

by
David Beltrán-Marcos
1,
Susana Suárez-Seoane
2,*,
José Manuel Fernández-Guisuraga
1,
Víctor Fernández-García
1,
Rayo Pinto
1,
Paula García-Llamas
1 and
Leonor Calvo
1
1
Area of Ecology, Biodiversity and Environmental Management Department, Faculty of Biological and Environmental Sciences, University of León, 24071 León, Spain
2
Research Unit of Biodiversity (UMIB; UO-CSIC-PA), Department of Organisms and Systems Biology (BOS; Ecology Unit), University of Oviedo, 33071 Oviedo, Spain
*
Author to whom correspondence should be addressed.
Forests 2021, 12(2), 179; https://doi.org/10.3390/f12020179
Submission received: 21 December 2020 / Revised: 24 January 2021 / Accepted: 31 January 2021 / Published: 4 February 2021
(This article belongs to the Section Forest Inventory, Modeling and Remote Sensing)
Browse Figures
Versions Notes

Abstract

:
The evaluation of the effect of burn severity on forest soils is essential to determine the impact of wildfires on a range of key ecological processes, such as nutrient cycling and vegetation recovery. The main objective of this study was to assess the potentiality of different spectral products derived from RGB and multispectral imagery collected by unmanned aerial vehicles (UAVs) at very high spatial resolution for discriminating spatial variations in soil burn severity after a heterogeneous wildfire. In the case study, we chose a mixed-severity fire that occurred in the northwest (NW) of the Iberian Peninsula (Spain) in 2019 that affected 82.74 ha covered by three different types of forests, each dominated by Pinus pinaster, Pinus sylvestris, and Quercus pyrenaica. We evaluated soil burn severity in the field 1 month after the fire using the Composite Burn Soil Index (CBSI), as well as a pool of five individual indicators (ash depth, ash cover, fine debris cover, coarse debris cover, and unstructured soil depth) of easy interpretation. Simultaneously, we operated an unmanned aerial vehicle to obtain RGB and multispectral postfire images, allowing for deriving six spectral indices. Then, we explored the relationship between spectral indices and field soil burn severity metrics by means of univariate proportional odds regression models. These models were used to predict CBSI categories, and classifications were validated through confusion matrices. Results indicated that multispectral indices outperformed RGB indices when assessing soil burn severity, being more strongly related to CBSI than to individual indicators. The Normalized Difference Water Index (NDWI) was the best-performing spectral index for modelling CBSI (R2cv = 0.69), showing the best ability to predict CBSI categories (overall accuracy = 0.83). Among the individual indicators of soil burn severity, ash depth was the one that achieved the best results, specifically when it was modelled from NDWI (R2cv = 0.53). This work provides a useful background to design quick and accurate assessments of soil burn severity to be implemented immediately after the fire, which is a key factor to identify priority areas for emergency actions after forest fires.

1. Introduction

Wildfires are major drivers of forest functioning [1,2,3]. In the Mediterranean Basin, current shifts in fire regime parameters (e.g., frequency, intensity, and severity), associated with global change trends, might generate harsh ecological effects in forest ecosystems [4]. Particularly relevant are the ecological consequences of burn severity, defined as the magnitude of the environmental change caused by fire [5]. Burn severity patterns might vary at different scales across the landscape due to environmental heterogeneity associated with differences in topography, moisture, vegetation diversity, and flammability. Consequently, complex and heterogeneous land mosaics can emerge after fire occurrence [6,7]. The multiscale evaluation of such spatial variations of burn severity and their ecological implications on biotic and abiotic fluxes is, at present, a leading topic in the research field of fire ecology [8,9,10].
Soil burn severity is defined as the fire-induced changes in organic and mineral soil layers, including organic matter loss, char depth, altered color and structure, and reduced infiltration [11,12,13]. As a key compartment of ecosystems, soil supports a wide range of ecological processes, such as nutrient cycling, productivity, and vegetation dynamics [14,15]. Therefore, when forest landscapes are affected by mixed-severity fire events, a spatially explicit diagnosis of soil damage should be performed immediately after the disturbance in order to determine the subsequent ecological and biochemical impacts generated within and across ecosystems [16,17]. In this sense, accurate methodologies to identify soil burn severity need to be developed at a landscape scale to allow for recognizing priority areas where soil has been affected by high soil burn severity and, consequently, would need restoration actions to avoid further runoff and erosion [18,19,20]. Currently, the methodology for building a standard field quantitative index to determine soil burn severity is a hot topic in fire ecology research [21,22]. Land managers and soil scientists often apply methodological standards based on the alteration of four vertical vegetation strata and one soil stratum, such as the Composite Burn Index (CBI), developed for initial (immediately after fire) and extended (1 year after fire) assessments of burn severity [5], and one of its multiple adaptations [23,24,25]. Usually, the estimation of soil burn severity is based on semiquantitative visual indicators measurable in the field, such as ash characteristics, unburned branch thickness, degree of fuel consumption, and soil structural alterations [11,18,19,26,27,28]. Of particular interest is the presence of char and ashes after fire [13,29,30,31], as well as the depth of unstructured soil, due to their crucial role in postfire erosion processes [32].
The current challenge is to develop spatially explicit tools that allow for a proper and easy evaluation of the above-mentioned soil physicochemical parameters in the face of fine-scale spatial variation of soil burn severity across heterogeneous landscapes. In this sense, remote sensing-based techniques have shown to be effective at discriminating spatial patterns in specific soil properties based on the environmental characteristics of each landscape [33,34]. Multispectral imagery collected by earth observation satellites (EOSs) is a powerful instrument that has been widely explored in many fire ecology applications [9,10,24,31,35], including burn severity. A multitude of remote sensing approaches have been developed to map burn severity on the basis of multispectral variations. For instance, the decrease in red and near-infrared (NIR) reflectance after fire is known to allow for obtaining singular spectral signatures from different surfaces affected by fire. Specifically, a large number of spectral indices, such as the Normalized Difference Vegetation Index (NDVI) [36], the Normalized Burn Ratio (NBR) [5], the Enhanced Vegetation Index (EVI) [37], and the Char Soil Index (CSI) [38], have been used for estimating total (i.e., vegetation and soil) burn severity [24]. Nevertheless, spectral indices computed from multispectral satellite imagery may reflect better burn severity in vegetation than in soil [24]. In addition, the fine spatial scale of soil burn severity patterns in landscapes with strong environmental heterogeneity requires the use of remote sensing data at higher spatial resolution than that commonly provided by current EOS missions [39,40]. The availability of cloud-free satellite imagery for specific dates to perform bitemporal burn severity assessments is also another shortcoming of this type of imagery. In this context, RGB and multispectral imagery collected by unmanned aerial vehicles (UAVs) are a promising tool for evaluating spatial variations in soil burn severity at very high spatial resolution, as can be acquired on demand at a low economic cost [41,42]. UAVs are, in fact, a sound alternative to other remote sensing techniques to survey relatively small areas (tens of hectares) at very high spatial resolution with great versatility [43,44]. UAV imagery provides more information in terms of spatial variability in heterogeneous burned areas in comparison with high-resolution satellite imagery like WorldView-2 [42]. Despite such a great potentiality, the development and implementation of operational and accurate tools targeted to map soil burn severity from UAV imagery, in the short term with a reasonable effort, is still a challenge in current forest fire research.
The main objective of this study is to assess the ability of different spectral products derived from RGB and multispectral imagery collected at very high spatial resolution from a UAV platform to characterize spatial variations in soil burn severity in the short term after a mixed-severity wildfire. Specifically, we aim to analyze the capacity of RGB and multispectral indices to model composite indices of soil burn severity (Composite Burn Soil Index) and individual indicators of soil burn severity (ash depth, ash cover, fine debris cover, coarse debris cover, and unstructured soil depth). We expect that UAV multispectral indices will allow a better soil burn severity characterization than RGB indices, identifying fire-induced modifications in the forest soil compartment at a fine spatial scale.

2. Materials and Methods

The methodology followed in this study was structured in four steps (Figure 1): (i) selection of the study area; (ii) collection of field measurements of soil burn severity; (iii) UAV imagery acquisition, preprocessing, and spectral index calculation; and (iv) statistical analysis.

2.1. Study Area

The study was conducted in Villapadierna (León province, NW Spain; Figure 2), within the perimeter of a wildfire that occurred on 22 August 2019, which affected 82.47 ha covered by young forest plantations of Pinus sylvestris L. (21.47 ha), mature forest plantations of Pinus pinaster Ait. (14.45 ha), and Quercus pyrenaica Willd. forests (35.47 ha). The fire was mostly a stand-replacing fire with a high degree of vegetation consumption, high tree mortality, and residual presence of scorched canopies and living trees (Figure 2). This area suffered a similar fire in the summer of 2012 that burned 70 ha of pine forest. The study area has a smooth relief, and elevation ranges between 922 and 1027 m a.s.l. and slopes between 6% and 27%. The lithology is dominated by silts, sands, and clays, with conglomerate layers in the lowest areas [45]. Soils are classified as Dystric and Humic Cambisols [46]. The climate is Mediterranean with 2–3 months of summer drought and a mean annual precipitation and temperature of 761 mm and 10.7 °C, respectively [47].

2.2. Field Measurements of Soil Burn Severity

To quantify soil burn severity in the field, a total of 80 plots of 50 cm × 50 cm were randomly established 1 month after the wildfire within a study framework of 16 ha. These plots were located on homogeneous burn patches with a minimum size of 2 × 2 m, with the absence of tree canopies to avoid interference in the UAV imagery acquisition. The center of each plot was georeferenced using a submetric GPS (Spectra Precision MobileMapper 20) in postprocessing mode.
Soil burn severity was evaluated in the field by two different ways: (i) using a Composite Burn Soil Index (CBSI) and (ii) using individual visual indicators different from those included in the CBSI. The CBSI is a modified version of the substrate stratum of the Composite Burn Index (CBI) [5] that includes modifications made by other authors, such as the inclusion of char depth [24] and the combination of medium and heavy fuel consumed into one rating factor [23]. CBSI semiquantitative estimations were made in the field considering four biophysical parameters (Table 1), and two trained observers independently classified each of the 50 × 50 cm field plots into a severity class: no effect (0), low severity (0.1–1.24), moderate severity (1.25–2.24), and high severity (2.25–3) (Figure 2 and Table 1). CBSI thresholds were based on those proposed by [48] for CBI.
Since the CBSI can be affected by some interpretation limitations (i.e., it is unclear if all the considered parameters in the index reflect the same pattern of change), we additionally measured on a continuous scale a set of different and complementary visual parameters to those integrated into the CBSI, which individually can help to explain the soil loss in the short term after wildfires [18,19,26,49]: (1) ash depth (cm), (2) ash cover (%), (3) cover of fine debris (<2 cm; %), (4) cover of coarse debris (>2 cm; %), and (5) unstructured soil depth (cm). Ash depth was quantified as the mean value of five measurements collected with a digital king foot on a soil profile for each plot. Cover variables (ash and debris) were estimated as the visual percentage cover [50]. The unstructured soil depth indicates the depth at which the soil structure has been altered due to the fire, allowing greater subsidence [32]. This parameter was measured on the soil surface (i.e., the point where soil depth shows a slight resistance) with a digital king foot in five random points per plot to be subsequently averaged on a plot basis. Neither significant precipitation episodes nor wind events were recorded from the fire until the end of the sampling period.

2.3. UAV Imagery Acquisition, Preprocessing, and Spectral Index Calculation

UAV imagery covered the sampling framework of 16 ha that was stablished within the fire perimeter for field work (Figure 2). The aerial survey was conducted on 25 September 2019 using an FV8 octocopter developed by ATyges. A total of six flights were carried out between 11:00 and 13:00 UTC in optimal atmospheric conditions in terms of lighting and wind. Each flight had an effective duration of 5–6 min, excluding both takeoff and landing. The average flight speed was 5 m·s−1.
A Parrot SEQUOIA multispectral camera was installed underneath the UAV platform. This camera has four monochrome sensors with a resolution of 1.2 megapixels (1280 × 960), which allow for collecting global shutter imagery along four discrete spectral bands [51]: green (center wavelength: 550 nm), red (660 nm), red edge (735 nm), and near-infrared (NIR; 790 nm). The horizontal (HFOV), vertical (VFOV), and diagonal (DFOV) fields of view of the multispectral camera were 70.6°, 52.6°, and 89.6°, respectively, with a focal length of 4 mm. The average ground sample distance (GSD) was 6.64 cm, corresponding to a flight height of 50 m above the ground level. The camera trigger interval and the waypoint route planned allowed the collection of 5060 multispectral images with an 80% forward and side overlap. The exposure time was set to automatic. The camera included an irradiance sensor to record light conditions during the flights. The setting of every image was saved in a text metadata file along with the irradiance sensor data. Before each flight, an image of the Sequoia reflectance calibration panel was captured in order to radiometrically calibrate the multispectral orthomosaic to obtain absolute reflectance values. Additionally, a 16-megapixel (4608 × 3456) Sony a6000 mirrorless RGB camera with a 20 mm Sony Pancake lens was installed underneath the UAV platform. A total amount of 1265 RGB images were collected from a flying altitude of 50 m above the ground level, resulting in a ground sample distance (GSD) of 1.70 cm.
The UAV photogrammetric process was carried out using Pix4dmapper v4.4.12. This software integrates computer vision techniques with photogrammetry algorithms to obtain high-accuracy aerial imagery products [52,53]. Pix4d uses structure-from-motion (SfM) algorithms in an automated workflow to align the raw imagery and create a densified 3D point cloud [54]. Once a densified 3D point cloud is generated, the software builds highly detailed digital surface models (DSMs), which were used to generate the reflectance and RGB orthomosaics. Multispectral and RGB imagery were processed using the “Ag Multispectral” and “Ag RGB” templates, respectively. To improve the spatial accuracy, a dataset consisting of 16 ground control points (GCPs) was added into the photogrammetric workflow. The final georeferencing of the multispectral orthomosaic achieved a root-mean-square error in X, Y (RMSEXY) < 26 cm. The RGB orthomosaic featured an RMSEXY < 48 cm.
From the reflectance orthomosaics, we calculated a set of spectral indices potentially useful for burn soil severity detection, according to the literature (Table 2). Regarding RGB indices, the Excess Green Index (EGI) [55] and the Green Chromatic Coordinate (GCC) [56] have been widely applied in recent studies to discriminate between burn severity classes [57,58,59], as they emphasize the difference between the green reflectance peak and the reflectance of blue and red [59]. Both indices standardize differences in scene illumination conditions [60]. To detect charred organic material at the soil compartment, we used the Char Index (CI) [61]. This index is based on the low visible reflectance of burned surfaces (characterized using the Brightness Index (BI)) and the flat spectrum that is responsible for the lack of color (quantified using a Maximum RGB Difference Index (MaxDiff)) [61]. The selected indices derived from multispectral imagery are expected to be sensitive to physical or biophysical parameters at the soil compartment after a fire. In particular, the Normalized Difference Vegetation Index (NDVI) [36] and the Normalized Difference Vegetation Red Edge Index (NDVIRE) [62] have been widely used for fire severity estimation [59,63]. On the other hand, the Normalized Difference Water Index (NDWI) [64] has been implemented to assess soil moisture in different applications, such as agriculture, hydrology, meteorology, and natural disaster management, including fire severity [65,66,67]. This index is highly related to soil properties, which control water availability, and, therefore, the extent of soil impact by burn severity [68,69]. The values of the RGB and multispectral indices corresponding to each 50 × 50 cm CBSI plot were obtained by averaging the total pixel values distributed within each plot according to the procedure described in [70].

2.4. Statistical Analysis

The CBSI was modeled through univariate proportional odds (PO) models [71,72] given the ordinal nature of the response variable. RGB and multispectral indices computed from UAV imagery were used as predictors, and the categorized CBSI was selected as response variable. The significance of the predictors was assessed through p Wald χ2 statistic [73]. Internal model validation was conducted through 10-fold cross-validation with 10 repeats, providing the average R2cv and Somers’ D as a quality measure of model fit and ordinal predictions, respectively [74]. Additionally, the dataset was randomly partitioned into a training (2/3 of the data) and a validation subset (1/3 of the data) to generate CBSI category predictions based on the output likelihood for each observation. From the confusion matrix, we computed the user’s and producer’s accuracy, as well as the overall classification accuracy and the kappa index [75]. The relationship between each individual indicator of soil burn severity (i.e., ash depth, ash cover, cover of fine debris (<2 cm), cover of coarse debris (>2 cm), and unstructured soil depth) and RGB and multispectral indices was analyzed using univariate linear models. The assumptions of homoscedasticity and normality of model residuals were checked graphically [23]. Model validation was conducted through 10-fold cross-validation with 10 repeats, providing the average R2cv to assess model performance. All statistical analyses were conducted in R [76] using “MASS” [77], “rms” [78], “ordinal” [79], and “effects” [80,81] packages.

3. Results

Moderate and high soil burn severity categories defined by the CBSI in the field had a similar mean spectral signature through the four bands of the multispectral orthomosaic, as opposed to the spectral signature of the low soil burn severity category (Figure 3A). The NIR band featured the maximum separability between low/moderate and high soil burn severity categories. Nevertheless, the RGB mean signature of the field plots burned at moderate and high severity showed the maximum differences. The plots burned at low severity showed a different trend (Figure 3B).
All multispectral and RGB indices were statistically significant (p Wald χ2 < 0.0001) in the univariate proportional odds (PO) models run for the CBSI, multispectral indices being more strongly related to the CBSI than RGB indices (Table 3 and Figure 4). Among the multispectral indices, NDWI featured the best performance in univariate PO models, in both 10-fold cross-validation (R2cv = 0.6893 and DXY = 0.7724) and CBSI category predictions (OA (overall accuracy) = 0.8333 and kappa = 0.7419) (Figure 5). High NDWI values were significantly related to high probabilities of classification on the high CBSI severity category (Figure 4). Regarding RGB indices, CI was the best predictor of burn severity (R2cv = 0.4413 and DXY = 0.4750; OA = 0.5833 and kappa = 0.3375), being inversely related to the probability of high soil burn severity occurrence (Figure 4). Moderate CBSI classification yielded worse accuracy than low and high categories through every multispectral and RGB index (Table 4).
Individual indicators of soil burn severity were also modeled more accurately from multispectral than from RGB indices (Table 5). Ash depth and ash cover models achieved the best performance, specifically through NDWI (R2cv = 0.5325 and R2cv = 0.4401, respectively). The correlations of each individual indicator with UAV products were lower than those achieved when using the CBSI as burn severity indicator.

4. Discussion

In this study, we evaluated for first time the potential of very high-resolution multispectral and RGB products obtained by UAVs to characterize soil burn severity. The accuracies reached in our work when predicting soil burn severity with UAVs were similar to or higher than those found in other studies related to total burn severity [10,24,82,83], demonstrating the potential of high-resolution multispectral imagery for soil burn severity assessment.
Our results showed that multispectral indices (NDVI, NDVIRE, NDWI) outperformed RGB indices (EGI, GCC, CI) when assessing soil burn severity, measured either as a composite index or as individual indicators. The highest separability between low/moderate and high severity categories found in the NIR region and the good performance of the NDWI are two pieces of evidence that demonstrate the relevance of NIR (absent in RGB indices) for discriminating burn severity [5]. This finding has been widely reported using satellite imagery at lower spatial resolution, such as AVIRIS [66], Sentinel-2 [10], Landsat [5], and MODIS [84]. This could be explained by the NIR sensitivity to the changes caused by high temperatures on (i) mineral soil [85], (ii) ash color and quantity [86], and (iii) structure and density of leaves covering the soil surface [24,87]. The NDVIRE also showed great capacity to determine soil burn severity, which highlights the value of the red-edge band for burn severity assessments. In this sense, Ref. [63] found that the NDVIRE calculated with Sentinel-2 imagery outperformed the NDVI for assessing total burn severity (vegetation and soil burn severity). These authors attributed their results to the high sensitivity of red edge to photosynthetic pigments. Although, overall, the multispectral indices showed a high capacity to determine soil burn severity, a better performance could be expected by including a short-wave infrared (SWIR) band in the UAV multispectral camera [42]. It has been shown that SWIR bands in satellite optical sensors enhance sensitivity to changes in soil properties after fire, such as fluctuations in moisture and char content [10,88]. Spectral indices including NIR and SWIR bands would improve the discrimination of soil burn severity levels in heterogeneous landscapes, compared with indices based on NIR and red bands. Despite this, visible and NIR reflectance data at very high spatial resolution accurately detected changes on the postfire forest soil surface.
Moreover, we found that UAV-derived indices were more able to model the composite index of soil burn severity (CBSI) than the individual indicators of soil burn severity (ash depth, ash cover, fine debris cover, coarse debris cover, and unstructured soil depth). This result indicates that spectral indices better retrieve the overall change caused by fire on soil than the particular changes occurring across individual biophysical parameters. This fact has probably been assumed by many authors, as there is a general preference, across the literature, for using composite indices, such as the CBI [5], GeoCBI [23], and its adaptions [24], rather than individual indicators, which could be used by itself or combined a posteriori in a burn severity index similar to the CBSI. Other approaches for burn severity evaluation [25], based on fire effects on the soil compartment, have already shown the capacity of visual indicators and Composite Burn Index (CBI) values to reflect changes in soil biophysical properties. Indeed, several studies [89,90,91] have revealed that using individual visual indicators, such as soil organic depth, together with semiquantitative metrics, such as the CBI, has proven to be useful in the assessment of other soil characteristics, such as changes in carbon storage after combustion. Future research should focus on developing accurate remote sensing methodologies that allow a better understanding of the integrated environmental impacts of forest fires on soils.
Focusing on individual indicators, we found that ash depth and ash cover were the best predicted parameters from the NDWI. In accordance with [38], spectral indices based on a NIR and SWIR band proved to be useful to identify significant spectral variations in ash abundance. In this study, high spatial resolution sensors were effective in detecting postfire patches of ash due to the small-scale large variability noted on the soil. Moreover, imagery of high spectral resolution has also shown a high capacity to quantify severity indicators, such as ash cover [82]. This suggests that new remote sensing methods for improving the detection of different individual indicators of soil burn severity could be addressed by combining high spatial and spectral resolution imagery.
Although previous works have analyzed the potential of UAV-derived products in the fire ecology field [42,61], this study is pioneer in evidencing the usefulness of multispectral sensors on board UAVs for accurately mapping soil burn severity at very high spatial resolution, which is particularly relevant in postfire landscapes with a high fine-scale spatial heterogeneity [83,92,93]. However, future research should be conducted to validate the proposed methodology in other biomes, such as boreal forests, where fire disturbances can also originate substantial heterogeneity in soil burn severity at both plot and landscape scales [94].

5. Conclusions

This study constitutes an interesting contribution to fire ecology research and forest management, as it shows, for the first time, the ability of multispectral and RGB imagery collected with UAV technology to characterize soil burn severity in landscapes affected by mixed-severity wildfires. The proposed approach provides new insights that can be helpful in identifying critical areas for postfire emergency actions. The main achievements are (i) multispectral indices, particularly the NDWI, perform better than RGB indices to determine soil burn severity at very high spatial resolution; (ii) field measurements of soil burn severity combined in a composite index (CBSI) are better predicted by spectral indices than individual indicators of soil burn severity; and (iii) ash depth and ash cover are individual indicators of burn severity best predicted by spectral indices. Further research is needed to validate the proposed approach in other biomes under different fire regime scenarios and address the capability of multispectral cameras with SWIR bands or, even better, hyperspectral cameras on board UAVs to improve the mapping of individual soil indicators of burn severity. In addition, UAV remote sensing technology could benefit future research lines in terms of carbon sequestration and loss, fire emissions, and other ecological impacts of fire.

Author Contributions

D.B.-M., R.P., V.F.-G., J.M.F.-G., L.C., and S.S.-S. conceived and designed the experiment; D.B.-M., R.P., and V.F.-G. obtained the field data; D.B.-M., J.M.F.-G., and P.G.-L. analyzed the data; D.B.-M., J.M.F.-G., V.F.-G., L.C., and S.S.-S. wrote and edited the manuscript; L.C. and S.S.-S. advised and coordinated the study. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the Spanish Ministry of Economy and Competitiveness and the European Regional Development Fund (ERDF) in the framework of the FIRESEVES project (AGL2017-86075-C2-1-R), and by the Regional Government of Castile and León in the framework of the WUIFIRECYL project (LE005P20). The European Regional Development Fund also provided funding for the present study. D.B.-M. was supported by a predoctoral contract from the Regional Government of Castile and León cofinanced by the European Social Fund (EDU/ 556/2019).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hernández:, T.; García, C.; Reinhardt, I. Short-term effect of wildfire on the chemical, biochemical and microbiological properties of Mediterranean pine forest soils. Biol. Fertil. Soils 1997, 25, 109–116. [Google Scholar] [CrossRef]
  2. Oliveira, S.; Oehler, F.; San-Miguel-Ayanz, J.; Camia, A.; Pereira, J.M.C. Modeling spatial patterns of fire occurrence in Mediterranean Europe using Multiple Regression and Random Forest. For. Ecol. Manag. 2012, 275, 117–129. [Google Scholar] [CrossRef]
  3. Taboada, A.; Tárrega, R.; Marcos, E.; Valbuena, L.; Suárez-Seoane, S.; Calvo, L. Fire recurrence and emergency post-fire management influence seedling recruitment and growth by altering plant interactions in fire-prone ecosystems. For. Ecol. Manag. 2017, 402, 63–75. [Google Scholar] [CrossRef]
  4. Pausas, J.G.; Keeley, J.E. A Burning Story: The Role of Fire in the History of Life. BioScience 2009, 59, 593–601. [Google Scholar] [CrossRef] [Green Version]
  5. Key, C.H.; Benson, N.C. Landscape assessment: Ground measure of severity, the composite burn index; and remote sensing of severity, the normalized burn ratio. In FIREMON: Fire Effects Monitoring and Inventory System; General Technical Report RMRS-GTR-164-CD; Lutes, D.C., Keane, R.E., Caratti, J.F., Key, C.H., Benson, N.C., Sutherland, S., Gangi, L.J., Eds.; USDA Forest Service, Rocky Mountain Research Station: Fort Collins, CO, USA, 2006; pp. 1–51. [Google Scholar]
  6. Perry, D.A.; Hessburg, P.F.; Skinner, C.N.; Spies, T.A.; Stephens, S.L.; Taylor, A.H.; Franklin, J.F.; McComb, B.; Riegel, G. The ecology of mixed severity fire regimes in Washington, Oregon, and Northern California. For. Ecol. Manag. 2011, 262, 703–717. [Google Scholar] [CrossRef]
  7. Franco, M.G.; Mundo, I.A.; Veblen, T.T. Field-validated burn-severity mapping in North Patagonian forests. Remote Sens. 2020, 12, 214. [Google Scholar] [CrossRef] [Green Version]
  8. Fernández-García, V.; Quintano, C.; Taboada, A.; Marcos, E.; Calvo, L.; Fernández-Manso, A. Remote Sensing Applied to the Study of Fire Regime Attributes and Their Influence on Post-Fire Greenness Recovery in Pine Ecosystems. Remote Sens. 2018, 10, 733. [Google Scholar] [CrossRef] [Green Version]
  9. Mallinis, G.; Mitsopoulos, I.; Chrysafi, I. Evaluating and comparing sentinel 2A and landsat-8 operational land imager (OLI) spectral indices for estimating fire severity in a mediterranean pine ecosystem of Greece. Giscience Remote Sens. 2018, 55, 1–18. [Google Scholar] [CrossRef]
  10. García-Llamas, P.; Suárez-Seoane, S.; Fernández-Guisuraga, J.M.; Fernández-García, V.; Fernández-Manso, A.; Quintano, C.; Taboada, A.; Marcos, E.; Calvo, L. Evaluation and comparison of Landsat 8, Sentinel-2 and Deimos-1 remote sensing indices for assessing burn severity in Mediterranean fire-prone ecosystems. Int. J. Appl. Earth Obs. Geoinf. 2019, 80, 137–144. [Google Scholar] [CrossRef]
  11. Ryan, K.C.; Noste, N.V. Evaluating prescribed fires. In Proceedings of the Symposium and Workshop on Wildderness Fire, Missoula, MT, USA, 15 November 1985; General Technical Report INT-182. USDA Forest Service: Washington, DC, USA, 1985; pp. 230–238. [Google Scholar]
  12. DeBano, L.F.; Neary, D.G.; Folliott, P.F. Fire: Its Effect on Soil and Other Ecosystem Resources; John Wiley & Sons, Inc.: New York, NY, USA, 1998; pp. 71–159. ISBN 978-0-471-16356-5. [Google Scholar]
  13. Lentile, L.B.; Holden, Z.A.; Smith, A.M.S.; Falkowski, M.J.; Hudak, A.T.; Morgan, P.; Lewis, S.A.; Gessler, P.E.; Benson, N.C. Remote sensing techniques to assess active fire characteristics and post-fire effects. Int. J. Wildland Fire 2006, 15, 319–345. [Google Scholar] [CrossRef]
  14. Smith, J.K.; Fischer, W.C. Intermountain Research Station. In Fire Ecology of the Forest Habitat Types of Northern Idaho; General Technical Report INT-GTR-363; U.S. Department of Agriculture, Forest Service, Intermountain Research Station: Ogden, UT, USA, 1997; p. 142. [Google Scholar]
  15. Graham, R.T.; Harvey, A.E.; Jain, T.B.; Tonn, J.R. The Effects of Thinning and Similar Stand Treatments on Fire Behavior in Western Forests; General Technical Report (GTR); US Department of Agriculture, Forest Service, Pacific Northwest Research Station: Portland, OR, USA, 1999; Volume 463. [Google Scholar]
  16. Lewis, S.A.; Robichaud, P.R.; Frazier, B.E.; Wu, J.Q.; Laes, D.Y.M. Using hyperspectral imagery to predict post-wildfire soil water repellency. Geomorphology 2008, 95, 192–205. [Google Scholar] [CrossRef]
  17. Fernández-García, V.; Miesel, J.; Baeza, M.J.; Marcos, E.; Calvo, L. Wildfire effects on soil properties in fire-prone pine ecosystems: Indicators of burn severity legacy over the medium term after fire. Appl. Soil Ecol. 2019, 135, 147–156. [Google Scholar] [CrossRef] [Green Version]
  18. Jain, T.B.; Pilliod, D.S.; Graham, R.T.; Lentile, L.B.; Sandquist, J.E. Index for Characterizing Post-Fire Soil Environments in Temperate Coniferous Forests. Forests 2012, 3, 445–466. [Google Scholar] [CrossRef] [Green Version]
  19. Fernández, C.; Vega, J.A. Modelling the effect of soil burn severity on soil erosion at hillslope scale in the first year following wildfire in NW Spain. Earth Surf. Process. Landf. 2016, 41, 928–935. [Google Scholar] [CrossRef]
  20. Botella-Martínez, M.A.; Fernández-Manso, A. Estudio de la severidad post-incendio en la comunidad Valenciana comparando los índices dNBR, RdNBR y RBR a partir de imágenes landsat 8. Rev. Teledetec. 2017, 49, 33–47. [Google Scholar] [CrossRef] [Green Version]
  21. Morgan, P.; Keane, R.E.; Dillon, G.K.; Jain, T.B.; Hudak, A.T.; Karau, E.C.; Sikkink, P.G.; Holden, Z.A.; Strand, E.K. Challenges of assessing fire and burn severity using field measures, remote sensing and modelling. Int. J. Wildland Fire 2014, 23, 1045–1060. [Google Scholar] [CrossRef] [Green Version]
  22. Vieira, D.C.S.; Fernández, C.; Vega, J.A.; Keizer, J.J. Does soil burn severity affect the post-fire runoff and interrill erosion response? A review based on meta-analysis of field rainfall simulation data. J. Hydrol. 2015, 523, 452–464. [Google Scholar] [CrossRef]
  23. De Santis, A.; Chuvieco, E. GeoCBI: A modified version of the Composite Burn Index for the initial assessment of the short-term burn severity from remotely sensed data. Remote Sens. Environ. 2009, 113, 554–562. [Google Scholar] [CrossRef]
  24. Fernández-García, V.; Santamarta, M.; Fernández-Manso, A.; Quintano, C.; Marcos, E.; Calvo, L. Burn severity metrics in fire-prone pine ecosystems along a climatic gradient using Landsat imagery. Remote Sens. Environ. 2018, 206, 205–217. [Google Scholar] [CrossRef]
  25. Marcos, E.; Fernández-García, V.; Fernández-Manso, A.; Quintano, C.; Valbuena, L.; Tárrega, R.; Luis-Calabuig, E.; Calvo, L. Evaluation of Composite Burn Index and Land Surface Temperature for assessing soil burn severity in mediterranean fire-prone pine ecosystems. Forests 2018, 9, 494. [Google Scholar] [CrossRef] [Green Version]
  26. Vega, J.A.; Fontúrbel, T.; Merino, A.; Fernández, C.; Ferreiro, A.; Jiménez, E. Testing the ability of visual indicators of soil burn severity to reflect changes in soil chemical and microbial properties in pine forests and shrubland. Plant. Soil 2013, 369, 73–91. [Google Scholar] [CrossRef]
  27. Alloza, J.A.; Garcia, S.; Gimeno, T.; Baeza, J.; Vallejo, V.R.; Rojo, L.; Martínez, A. Guía técnica para la gestión de montes quemados. In Protocolos de Actuación Para la Restauración de Zonas Quemadas con Riesgo de Desertificación; Ministerio de Agricultura, Alimentación y Medio Ambiente: Madrid, Spain, 2014; p. 188. ISBN 84-491-1324-5. [Google Scholar]
  28. Lewis, S.A.; Hudak, A.T.; Robichaud, P.R.; Morgan, P.; Satterberg, K.L.; Strand, E.K.; Smith, A.M.S.; Zamudio, J.A.; Lentile, L.B. Indicators of burn severity at extended temporal scales: A decade of ecosystem response in mixed-conifer forests of western Montana. Int. J. Wildland Fire 2017, 26, 755–771. [Google Scholar] [CrossRef] [Green Version]
  29. Quintano, C.; Fernández-Manso, A.; Roberts, D.A. Multiple Endmember Spectral Mixture Analysis (MESMA) to map burn severity levels from Landsat images in Mediterranean countries. Remote Sens. Environ. 2013, 136, 76–88. [Google Scholar] [CrossRef]
  30. Fernandez-Manso, A.; Quintano, C.; Roberts, D.A. Burn severity influence on post-fire vegetation cover resilience from Landsat MESMA fraction images time series in Mediterranean forest ecosystems. Remote Sens. Environ. 2016, 184, 112–123. [Google Scholar] [CrossRef]
  31. Quintano, C.; Fernandez-Manso, A.; Roberts, D.A. Burn severity mapping from Landsat MESMA fraction images and Land Surface Temperature. Remote Sens. Environ. 2017, 190, 83–95. [Google Scholar] [CrossRef]
  32. Moody, J.A.; Shakesby, R.A.; Robichaud, P.R.; Cannon, S.H.; Martin, D.A. Current research issues related to post-wildfire runoff and erosion processes. Earth-Sci. Rev. 2013, 122, 10–37. [Google Scholar] [CrossRef]
  33. Rodrigo-Comino, J.; Senciales, J.M.; Cerdà, A.; Brevik, E.C. The multidisciplinary origin of soil geography: A review. Earth-Sci. Rev. 2018, 177, 114–123. [Google Scholar] [CrossRef] [Green Version]
  34. Zeraatpisheh, M.; Ayoubi, S.; Sulieman, M.; Rodrigo-Comino, J. Determining the spatial distribution of soil properties using the environmental covariates and multivariate statistical analysis: A case study in semi-arid regions of Iran. J. Arid Land 2019, 11, 551–566. [Google Scholar] [CrossRef] [Green Version]
  35. De Santis, A.; Chuvieco, E. Burn severity estimation from remotely sensed data: Performance of simulation versus empirical models. Remote Sens. Environ. 2007, 108, 422–435. [Google Scholar] [CrossRef]
  36. Rouse, J.W.; Haas, R.H.; Schell, J.A.; Deering, D.W. Monitoring vegetation systems in the great plains with ERTS. In Proceedings of the Third ERTS Symposium, Texas A&M University, College Station, TX, USA, 14 December 1973; pp. 309–317. [Google Scholar]
  37. Gao, X.; Huete, A.R.; Ni, W.; Miura, T. Optical-biophysical relationships of vegetation spectra without background contamination. Remote Sens. Environ. 2000, 74, 609–620. [Google Scholar] [CrossRef]
  38. Smith, A.M.S.; Wooster, M.J.; Drake, N.A.; Dipotso, F.M.; Falkowski, M.J.; Hudak, A.T. Testing the potential of multi-spectral remote sensing for retrospectively estimating fire severity in African Savannahs. Remote Sens. Environ. 2005, 97, 92–115. [Google Scholar] [CrossRef] [Green Version]
  39. Meng, R.; Wu, J.; Zhao, F.; Cook, B.D.; Hanavan, R.P.; Serbin, S.P. Measuring short-term post-fire forest recovery across a burn severity gradient in a mixed pine-oak forest using multi-sensor remote sensing techniques. Remote Sens. Environ. 2018, 210, 282–296. [Google Scholar] [CrossRef]
  40. Melville, B.; Fisher, A.; Lucieer, A. Ultra-high spatial resolution fractional vegetation cover from unmanned aerial multispectral imagery. Int. J. Appl. Earth Obs. Geoinf. 2019, 78, 14–24. [Google Scholar] [CrossRef]
  41. Whitehead, K.; Hugenholtz, C.H. Remote sensing of the environment with small unmanned aircraft systems (UASs), part 1: A review of progress and challenges. J. Unmanned Veh. Syst. 2014, 2, 69–85. [Google Scholar] [CrossRef]
  42. Fernández-Guisuraga, J.M.; Sanz-Ablanedo, E.; Suárez-Seoane, S.; Calvo, L. Using unmanned aerial vehicles in postfire vegetation survey campaigns through large and heterogeneous areas: Opportunities and challenges. Sensors 2018, 18, 586. [Google Scholar] [CrossRef] [Green Version]
  43. Zhao, J.L.; Zhang, D.Y.; Luo, J.H.; Huang, S.L.; Dong, Y.Y.; Huang, W.J. Detection and mapping of hail damage to corn using domestic remotely sensed data in China. Aust. J. Crop. Sci. AJCS 2012, 6, 101–108. [Google Scholar]
  44. Pla, M.; Bota, G.; Duane, A.; Balagué, J.; Curcó, A.; Gutiérrez, R.; Brotons, L. Calibrating Sentinel-2 Imagery with Multispectral UAV Derived Information to Quantify Damages in Mediterranean Rice Crops Caused by Western Swamphen (Porphyrio porphyrio). Drones 2019, 3, 45. [Google Scholar] [CrossRef] [Green Version]
  45. Instituto Geológico y Minero de España (IGME). GEODE. In Mapa Geológico Digital Continuo de España, Scale 1:50000. Sheets 230 and 231; Ministerio de Industria y Energía: Madrid, Spain, 1982; Available online: http://mapas.igme.es/gis/rest/services/Cartografia_Geologica/IGME_Geode_50/MapServer (accessed on 18 March 2020).
  46. Instituto Tecnológico y Agrario de Castilla y León (ITACYL). Portal de suelos. Visor de Datos de Suelos. Available online: http://suelos.itacyl.es/visor_datos (accessed on 18 March 2020).
  47. Instituto Tecnológico y Agrario de Castilla y León (ITACYL). Visor—Atlas agroclimático—Portal Web. Atlas Agroclimático de Castilla y León -ITACYL-AEMET-. 2013. Available online: http://www.atlas.itacyl.es/visor (accessed on 18 March 2020).
  48. Miller, J.D.; Thode, A.E. Quantifying burn severity in a heterogeneous landscape with a relative version of the delta Normalized Burn Ratio (Dnbr). Remote Sens. Environ. 2007, 109, 66–80. [Google Scholar] [CrossRef]
  49. Parsons, A.; Robichaud, P.R.; Lewis, S.A.; Napper, C.; Clark, J.T. Field Guide for Mapping Post-Fire Soil Burn Severity; General Technical Report RMRS-GTR; USDA Forest Service, Rocky Mountain Research Station: Fort Collins, CO, USA, 2010; Volume 243, pp. 1–49. [Google Scholar]
  50. Calvo, L.; Santalla, S.; Valbuena, L.; Marcos, E.; Tárrega, R.; Luis-Calabuig, E. Post-fire natural regeneration of a Pinus pinaster forest in NW Spain. Plant. Ecol. 2008, 197, 81–90. [Google Scholar] [CrossRef]
  51. Alvarez, A.; Gracia, M.; Vayreda, J.; Retana, J. Patterns of fuel types and crown fire potential in Pinus halepensis forests in the Western Mediterranean Basin. For. Ecol. Manag. 2012, 270, 282–290. [Google Scholar] [CrossRef]
  52. Ruzgiene, B.; Berteška, T.; Gečyte, S.; Jakubauskiene, E.; Aksamitauskas, V.Č. The surface modelling based on UAV Photogrammetry and qualitative estimation. Meas. J. Int. Meas. Confed. 2015, 73, 619–627. [Google Scholar] [CrossRef]
  53. Zahawi, R.A.; Dandois, J.P.; Holl, K.D.; Nadwodny, D.; Reid, J.L.; Ellis, E.C. Using lightweight unmanned aerial vehicles to monitor tropical forest recovery. Biol. Conserv. 2015, 186, 287–295. [Google Scholar] [CrossRef] [Green Version]
  54. Puliti, S.; Ørka, H.; Gobakken, T.; Næsset, E. Inventory of Small Forest Areas Using an Unmanned Aerial System. Remote Sens. 2015, 7, 9632–9654. [Google Scholar] [CrossRef] [Green Version]
  55. Woebbecke, D.M.; Meyer, G.E.; Von Bargen, K.; Mortensen, D.A. Color Indices for Weed Identification Under Various Soil, Residue, and Lighting Conditions. Trans. ASAE 1995, 38, 259–269. [Google Scholar] [CrossRef]
  56. Gillespie, A.R.; Kahle, A.B.; Walker, R.E. Color enhancement of highly correlated images. II. Channel ratio and “chromaticity” transformation techniques. Remote Sens. Environ. 1987, 22, 343–365. [Google Scholar] [CrossRef]
  57. Zheng, Z.; Zeng, Y.; Li, S.; Huang, W. A new burn severity index based on land surface temperature and enhanced vegetation index. Int. J. Appl. Earth Obs. Geoinf. 2016, 45, 84–94. [Google Scholar] [CrossRef]
  58. McKenna, P.; Erskine, P.D.; Lechner, A.M.; Phinn, S. Measuring fire severity using UAV imagery in semi-arid central Queensland, Australia. Int. J. Remote Sens. 2017, 38, 4244–4264. [Google Scholar] [CrossRef]
  59. Carvajal-Ramírez, F.; da Silva, J.R.M.; Agüera-Vega, F.; Martínez-Carricondo, P.; Serrano, J.; Moral, F.J. Evaluation of fire severity indices based on pre- and post-fire multispectral imagery sensed from UAV. Remote Sens. 2019, 11, 993. [Google Scholar] [CrossRef] [Green Version]
  60. Nijland, W.; de Jong, R.; de Jong, S.M.; Wulder, M.A.; Bater, C.W.; Coops, N.C. Monitoring plant condition and phenology using infrared sensitive consumer grade digital cameras. Agric. For. Meteorol. 2014, 184, 98–106. [Google Scholar] [CrossRef] [Green Version]
  61. Fraser, R.H.; van der Sluijs, J.; Hall, R.J. Calibrating satellite-based indices of burn severity from UAV-derived metrics of a burned boreal forest in NWT, Canada. Remote Sens. 2017, 9, 279. [Google Scholar] [CrossRef] [Green Version]
  62. Gitelson, A.; Merzlyak, M.N. Spectral Reflectance Changes Associated with Autumn Senescence of Aesculus hippocastanum L. and Acer platanoides L. Leaves. Spectral Features and Relation to Chlorophyll Estimation. J. Plant. Physiol. 1994, 143, 286–292. [Google Scholar] [CrossRef]
  63. Fernández-Manso, A.; Fernández-Manso, O.; Quintano, C. SENTINEL-2A red-edge spectral indices suitability for discriminating burn severity. Int. J. Appl. Earth Obs. Geoinf. 2016, 50, 170–175. [Google Scholar] [CrossRef]
  64. McFeeters, S.K. The use of the Normalized Difference Water Index (NDWI) in the delineation of open water features. Int. J. Remote Sens. 1996, 17, 1425–1432. [Google Scholar] [CrossRef]
  65. Gao, B. NDWI—A Normalized Difference Water Index for Remote Sensing of Vegetation Liquid Water from Space. Remote Sens. Environ. 1996, 58, 257–266. [Google Scholar] [CrossRef]
  66. Van Wagtendonk, J.W.; Root, R.R.; Key, C.H. Comparison of AVIRIS and Landsat ETM+ detection capabilities for burn severity. Remote Sens. Environ. 2004, 92, 397–408. [Google Scholar] [CrossRef]
  67. Hosseini, M.; Saradjian, M.R. Multi-index-based soil moisture estimation using MODIS images. Int. J. Remote Sens. 2011, 32, 6799–6809. [Google Scholar] [CrossRef]
  68. Chuvieco, E.; González, I.; Verdú, F.; Aguado, I.; Yebra, M. Prediction of fire occurrence from live fuel moisture content measurements in a Mediterranean ecosystem. Int. J. Wildland Fire 2009, 2009 18, 430. [Google Scholar] [CrossRef]
  69. Littell, J.S.; McKenzie, D.; Peterson, D.L.; Westerling, A.L. Climate and wildfire area burned in western U.S. ecoprovinces, 1916–2003. Ecol. Appl. 2009, 19, 1003–1021. [Google Scholar] [CrossRef]
  70. Picotte, J.J.; Robertson, K.M. Validation of remote sensing of burn severity in south-eastern US ecosystems. Int. J. Wildland Fire 2011, 20, 453. [Google Scholar] [CrossRef]
  71. Walker, S.H.; Duncan, D.B. Estimation of the probability of an event as a function of several independent variables. Biometrika 1967, 54, 167–179. [Google Scholar] [CrossRef]
  72. Guisan, A.; Harrell, F.E. Ordinal response regression models in ecology. J. Veg. Sci. 2000, 11, 617–626. [Google Scholar] [CrossRef]
  73. Mon, M.S.; Mizoue, N.; Htun, N.Z.; Kajisa, T.; Yoshida, S. Factors affecting deforestation and forest degradation in selectively logged production forest: A case study in Myanmar. For. Ecol. Manag. 2012, 267, 190–198. [Google Scholar] [CrossRef]
  74. Harrell, F. Regression Modeling Strategies, 2nd ed.; Springer International Publishing: New York, NY, USA, 2015. [Google Scholar]
  75. Viera, A.J.; Garrett, J.M. Understanding interobserver agreement: The kappa statistic. Fam. Med. 2005, 37, 360–363. [Google Scholar]
  76. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2019; Available online: https://www.R-project.org/ (accessed on 24 April 2020).
  77. Venables, W.N.; Ripley, B.D. Modern Applied Statistics Con S, 4th ed.; Springer: New York, NY, USA, 2002. [Google Scholar]
  78. Harrell, F.E. rms: Regression Modelling Strategies. R Package Version 5.1-3.1. 2019. Available online: https://CRAN.R-project.org/package=rms (accessed on 24 April 2020).
  79. Christensen, R.H.B. Ordinal—Regression Models for Ordinal Data. R Package Version 2019.4-25. Available online: http://www.cran.r-project.org/package=ordinal/ (accessed on 24 April 2020).
  80. Fox, J.; Hong, J. Visualizations of effects in R for multinomial logit and proportional probability models: Extensions of the effects package. J. Stat. Softw. 2009, 32, 1–24. [Google Scholar] [CrossRef] [Green Version]
  81. Fox, J.; Weisberg, S. An R Companion to Applied Regression, 3rd ed.; Sage Publlications: Thousand Oaks, CA, USA, 2019. [Google Scholar]
  82. Robichaud, P.R.; Lewis, S.A.; Laes, D.Y.M.; Hudak, A.T.; Kokaly, R.F.; Zamudio, J.A. Postfire soil burn severity mapping with hyperspectral image unmixing. Remote Sens. Environ. 2007, 108, 467–480. [Google Scholar] [CrossRef] [Green Version]
  83. Sobrino, J.; Llorens, R.; Fernández, C.; Fernández-Alonso, J.; Vega, J. Relationship between Soil Burn Severity in Forest Fires Measured in Situ and through Spectral Indices of Remote Detection. Forests 2019, 10, 457. [Google Scholar] [CrossRef] [Green Version]
  84. Alonso-González, E.; Fernández-García, V. MOSEV: A global burn severity database from MODIS (2000–2020). Earth Syst. Sci. Data Discuss. 2020, 1–21. [Google Scholar] [CrossRef]
  85. Guerrero, C.; Mataix-Solera, J.; Arcenegui, V.; Mataix-Baneyto, J.; Gómez, I. Near-Infrared Spectroscopy to Estimate the Maximum Temperatures Reached on Burned Soils. Soil Sci. Soc. Am. J. 2007, 71, 1029–1037. [Google Scholar] [CrossRef]
  86. Hamilton, D.; Bowerman, M.; Colwell, J.; Donohoe, G.; Myers, B. A Spectroscopic Analysis for Mapping Wildland Fire Effects from Remotely Sensed Imagery. J. Unmanned Veh. Syst. 2017, 5, 146–158. [Google Scholar] [CrossRef] [Green Version]
  87. Chuvieco, E.; Riaño, D.; Danson, F.M.; Martin, P. Use of a radiative transfer model to simulate the postfire spectral response to burn severity. J. Geophys. Res. Biogeosci. 2006, 111. [Google Scholar] [CrossRef] [Green Version]
  88. Schepers, L.; Haest, B.; Veraverbeke, S.; Spanhove, T.; Vanden Borre, J.; Goossens, R. Burned area detection and burn severity assessment of a heathland fire in Belgium using airborne imaging spectroscopy (APEX). Remote Sens. 2014, 6, 1803–1826. [Google Scholar] [CrossRef] [Green Version]
  89. Boby, L.A.; Schuur, E.A.; Mack, M.C.; Verbyla, D.; Johnstone, J.F. Quantifying fire severity, carbon, and nitrogen emissions in Alaska’s boreal forest. Ecol. Appl. 2010, 20, 1633–1647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  90. Miesel, J.; Reiner, A.; Ewell, C.; Maestrini, B.; Dickinson, M. Quantifying changes in total and pyrogenic carbon stocks across fire severity gradients using active wildfire incidents. Front. Earth Sci. 2018, 6, 41. [Google Scholar] [CrossRef] [Green Version]
  91. Gray, A.; Davies, G.M.; Domènech, R.; Taylor, E.; Levy, P.E. Peatland wildfire severity and post-fire gaseous carbon fluxes. Ecosystems 2020, 1–13. [Google Scholar] [CrossRef]
  92. Neary, D.G.; Klopatek, C.C.; DeBano, L.F.; Ffolliott, P.F. Fire effects on belowground sustainability: A review and synthesis. For. Ecol. Manag. 1999, 122, 51–71. [Google Scholar] [CrossRef]
  93. Goforth, B.R.; Graham, R.C.; Hubbert, K.R.; Zanner, C.W.; Minnich, R. A Spatial distribution and properties of ash and thermally altered soils after high-severity forest fire, southern California. Int. J. Wildland Fire 2005, 14, 343–354. [Google Scholar] [CrossRef]
  94. Johnstone, J.F.; Chapin, F.S. Effects of soil burn severity on post-fire tree recruitment in boreal forest. Ecosystems 2006, 9, 14–31. [Google Scholar] [CrossRef]
Forests 12 00179 g001 550

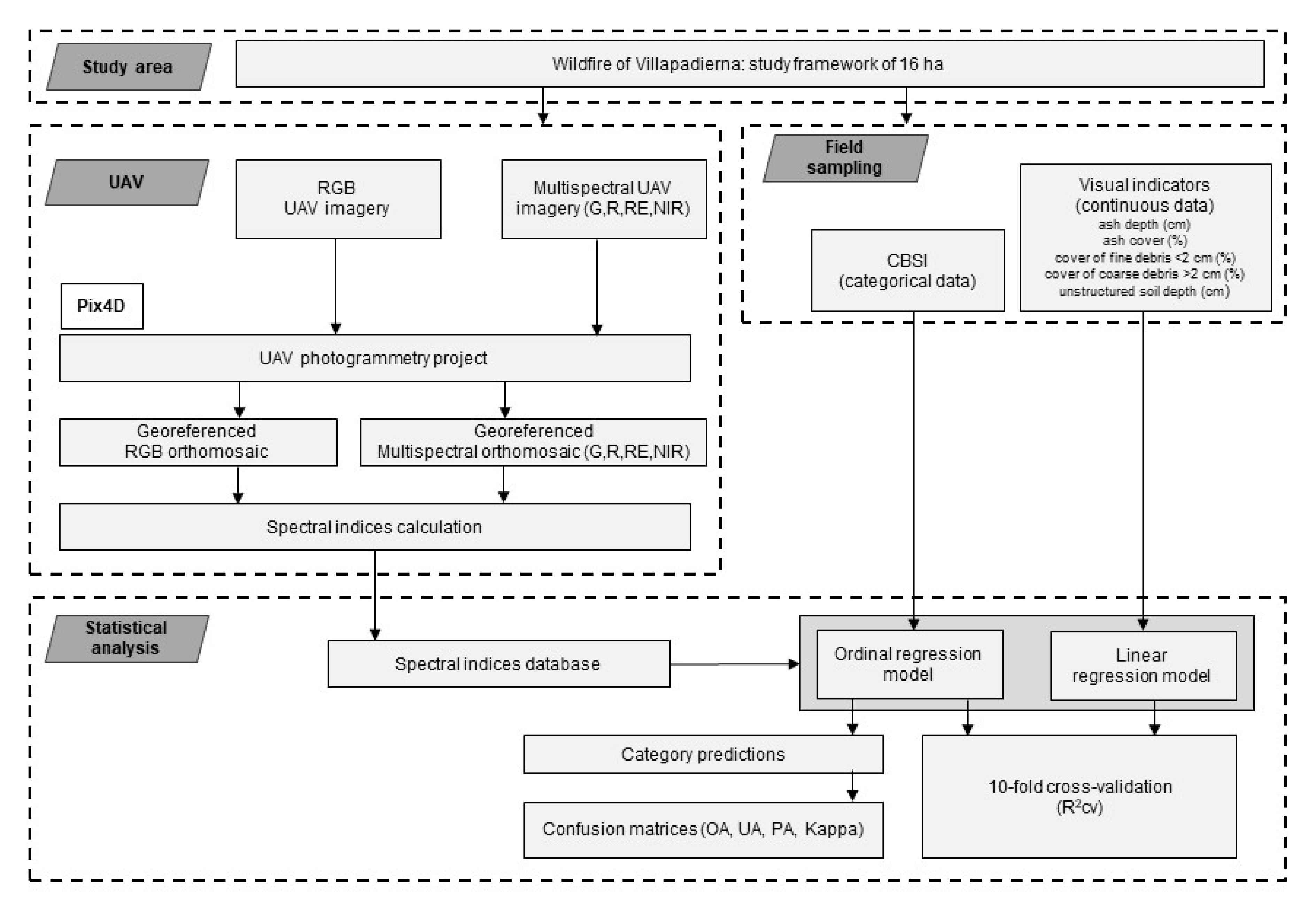

Figure 1. Methodological flowchart. UAV: unmanned aerial vehicle; CBSI: Composite Burn Soil Index; G: green; R: red; RE: red edge; NIR: near-infrared; OA: overall accuracy, UA: user’s accuracy; PA: producer’s accuracy.
Figure 1. Methodological flowchart. UAV: unmanned aerial vehicle; CBSI: Composite Burn Soil Index; G: green; R: red; RE: red edge; NIR: near-infrared; OA: overall accuracy, UA: user’s accuracy; PA: producer’s accuracy.
Forests 12 00179 g001
Forests 12 00179 g002 550
Figure 2. Location of the study site in the NW of the Iberian Peninsula (Spain). The bottom-right image shows the unmanned aerial vehicle (UAV) survey framework and the UAV RGB orthomosaic within the fire perimeter. The images on the left margin show experimental plots representative of the three soil burn severity classes considered in the study: low, moderate, and high.
Figure 2. Location of the study site in the NW of the Iberian Peninsula (Spain). The bottom-right image shows the unmanned aerial vehicle (UAV) survey framework and the UAV RGB orthomosaic within the fire perimeter. The images on the left margin show experimental plots representative of the three soil burn severity classes considered in the study: low, moderate, and high.
Forests 12 00179 g002
Forests 12 00179 g003 550

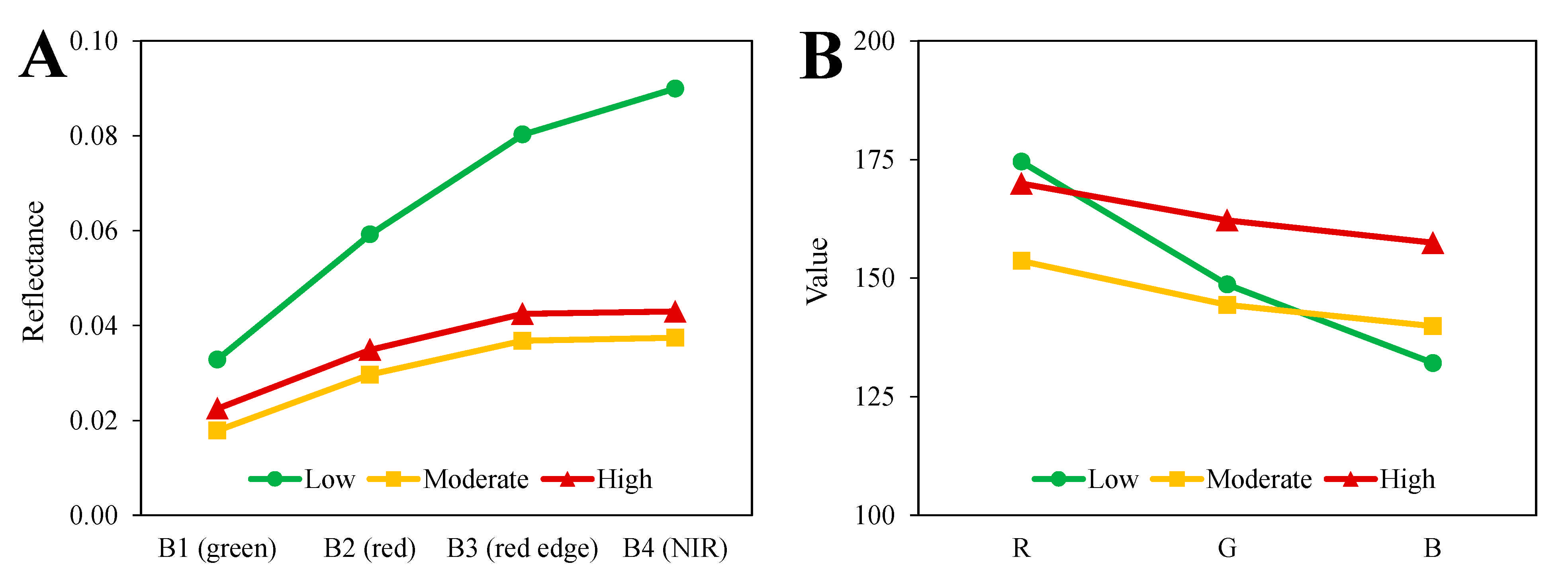

Figure 3. Mean spectral reflectance (A) and RGB values (B) of three burn soil severity categories (low, moderate, and high) measured from multispectral and RGB orthomosaics.
Figure 3. Mean spectral reflectance (A) and RGB values (B) of three burn soil severity categories (low, moderate, and high) measured from multispectral and RGB orthomosaics.
Forests 12 00179 g003
Forests 12 00179 g004 550
Figure 4. Predicted probabilities of classification into low, moderate, and high burn severity CBSI categories for each spectral predictor in univariate proportional odds (PO) CBSI models.
Figure 4. Predicted probabilities of classification into low, moderate, and high burn severity CBSI categories for each spectral predictor in univariate proportional odds (PO) CBSI models.
Forests 12 00179 g004
Forests 12 00179 g005 550

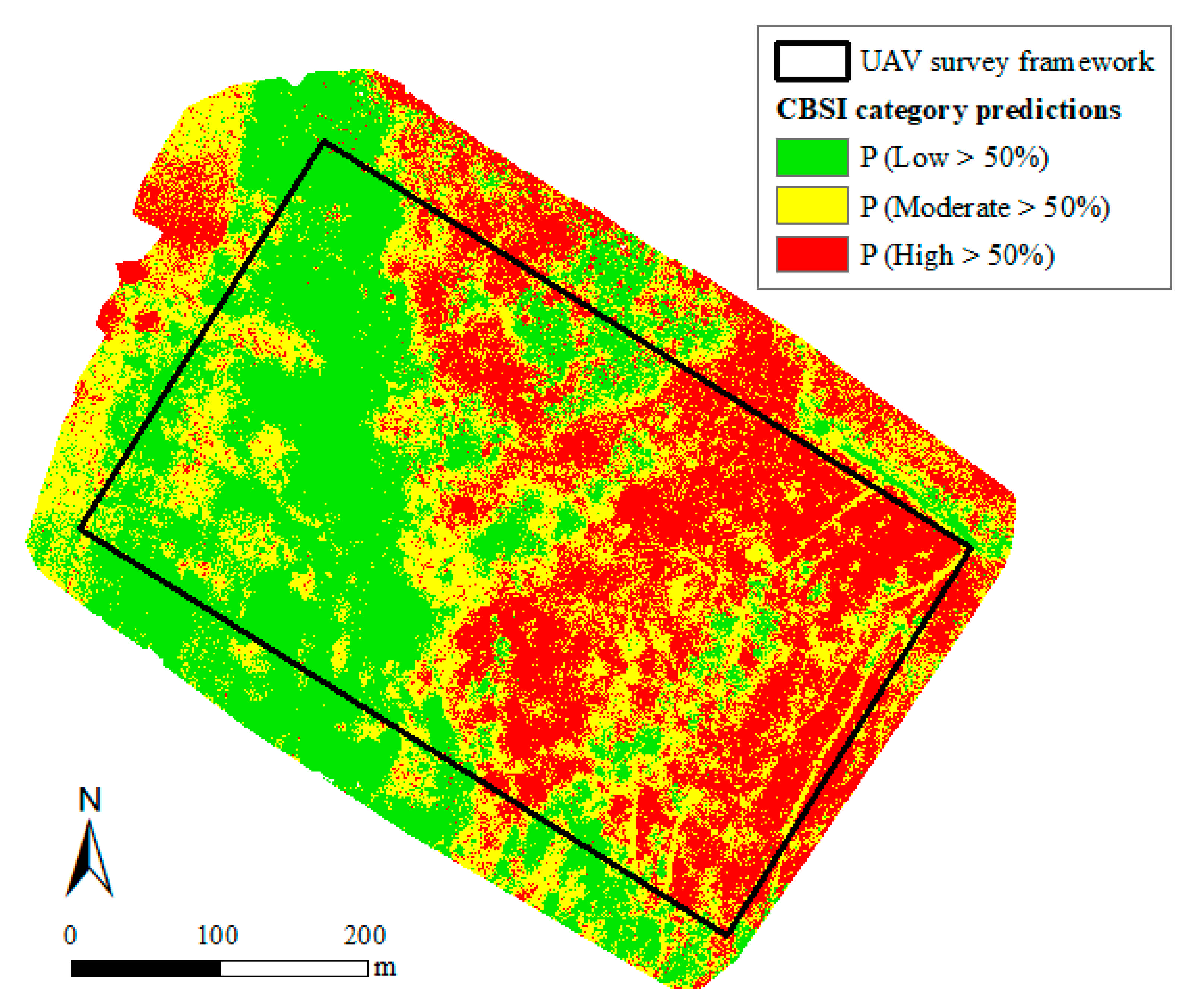

Figure 5. CBSI category predictions of univariate proportional odds (PO) models based on a 50% probability threshold.
Figure 5. CBSI category predictions of univariate proportional odds (PO) models based on a 50% probability threshold.
Forests 12 00179 g005
Table
Table 1. Composite Burn Soil Index (CBSI) used in this study.
Table 1. Composite Burn Soil Index (CBSI) used in this study.
Strata
Rating Factors		Burn Severity Scale
No EffectLowModerateHigh
00.511.522.53
Litter/light
fuel consumed		None<10%10–20%20–40%40–80%80–98%98%
Medium/heavy
fuel consumed		None 20% consumed 40% consumed >60% consumed
Ash colorNoneBlackened litter,
no changes in soil		Charred remains, recognizable litterGrey and white ash, grey soilWhite ash, reddened soil
Char depthNone<1 cm1–3 cm>3 cm
Table
Table 2. Indices derived from RGB and multispectral orthomosaics (B: blue; G: green; R: red; RE: red edge; NIR: near-infrared) used in the study.
Table 2. Indices derived from RGB and multispectral orthomosaics (B: blue; G: green; R: red; RE: red edge; NIR: near-infrared) used in the study.
SPECTRAL INDEXEQUATIONREFERENCES
RGB indices
Excess Green Index (EGI)2 × G − R − B[54]
Green Chromatic Coordinate Index (GCC)G/(G + R + B)[56]
Char Index (CI)BI + (MaxDiff × 15)[61]
Brightness Index (BI)R + G + B[61]
Maximum RGB Difference (MaxDiff)Max (|B − G|, |B − R|,
|R − G|)		[61]
Multispectral indices
Normalized Difference Vegetation Index (NDVI)(NIR − R)/(NIR + R)[36]
Normalized Difference Vegetation Red Edge Index (NDVIRE)(NIR − RE)/(NIR + RE)[62]
Normalized Difference Water Index (NDWI)(G − NIR)/(G + NIR)[64]
Table
Table 3. Univariate proportional odds (PO) CBSI model performance measured by 10-fold cross-validation and CBSI category predictions.
Table 3. Univariate proportional odds (PO) CBSI model performance measured by 10-fold cross-validation and CBSI category predictions.
10-Fold Cross-ValidationCBSI Category Predictions
p Wald χ2R2cvDXYOverall Accuracy (OA)Kappa
NDVI<0.00010.42800.40650.70830.5372
NDVIRE<0.00010.50050.47510.79170.6694
NDWI<0.00010.68930.77240.83330.7419
EGI<0.00010.30030.39540.50180.2195
GCC<0.00010.30870.46790.52840.2131
CI<0.00010.44130.47500.58330.3375
Table
Table 4. Accuracy assessment of CBSI category predictions through the user’s and producer’s accuracy.
Table 4. Accuracy assessment of CBSI category predictions through the user’s and producer’s accuracy.
Low CBSIModerate CBSIHigh CBSI
User’s Acc.Producer’s Acc.User’s Acc.Producer’s Acc.User’s Acc.Producer’s Acc.
NDVI0.750.430.440.500.730.89
NDVIRE1.000.710.500.500.640.78
NDWI0.881.000.830.630.800.89
EGI0.500.290.200.130.530.89
GCC0.500.290.200.130.530.89
CI1.000.710.400.250.430.67
Table
Table 5. Model performance of individual indicators of soil burn severity, measured by R2 of 10-fold cross-validation (R2cv).
Table 5. Model performance of individual indicators of soil burn severity, measured by R2 of 10-fold cross-validation (R2cv).
Ash Depth (cm)Ash Cover (%)Fine Debris Cover (%)Coarse Debris Cover (%)Unstructured Soil Depth (cm)
NDVI0.35090.37960.29980.22850.2609
NDVIRE0.36190.36690.27080.20940.2407
NDWI0.53250.44010.34800.20470.3289
EGI0.34170.24620.19720.14230.1725
GCC0.35190.27720.26840.12980.2164
CI0.29360.26370.25310.16020.1811
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Beltrán-Marcos, D.; Suárez-Seoane, S.; Fernández-Guisuraga, J.M.; Fernández-García, V.; Pinto, R.; García-Llamas, P.; Calvo, L. Mapping Soil Burn Severity at Very High Spatial Resolution from Unmanned Aerial Vehicles. Forests 2021, 12, 179. https://doi.org/10.3390/f12020179

AMA Style

Beltrán-Marcos D, Suárez-Seoane S, Fernández-Guisuraga JM, Fernández-García V, Pinto R, García-Llamas P, Calvo L. Mapping Soil Burn Severity at Very High Spatial Resolution from Unmanned Aerial Vehicles. Forests. 2021; 12(2):179. https://doi.org/10.3390/f12020179

Chicago/Turabian Style

Beltrán-Marcos, David, Susana Suárez-Seoane, José Manuel Fernández-Guisuraga, Víctor Fernández-García, Rayo Pinto, Paula García-Llamas, and Leonor Calvo. 2021. "Mapping Soil Burn Severity at Very High Spatial Resolution from Unmanned Aerial Vehicles" Forests 12, no. 2: 179. https://doi.org/10.3390/f12020179

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
