Best Practices for Quasistatic Berkovich Nanoindentation of Wood Cell Walls
Abstract
:1. Introduction
2. Nanoindentation Basics

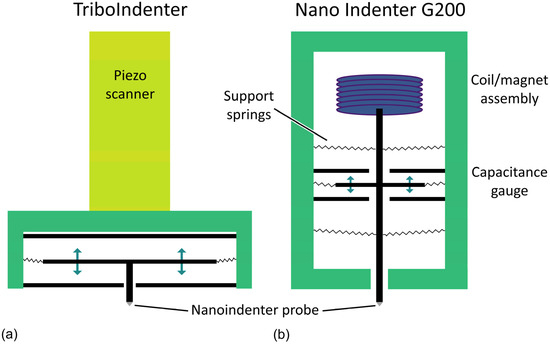

2.1. Instrumentation

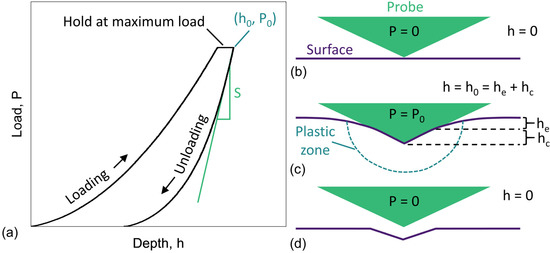

2.2. Contact Mechanics and Basic Load–Depth Trace Analysis
2.3. Structural Compliance Method
2.4. Load Functions and Testing Protocols
2.4.1. Pre-Nanoindentation

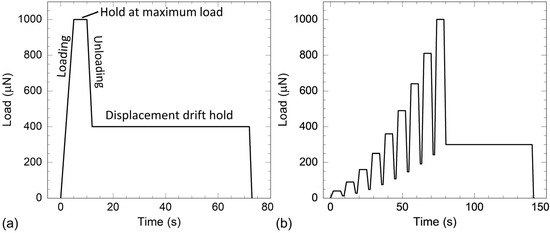

2.4.2. Load Functions

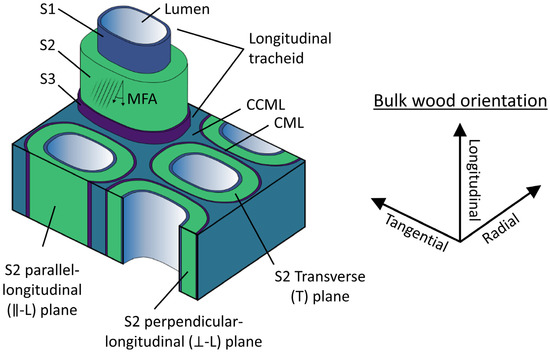

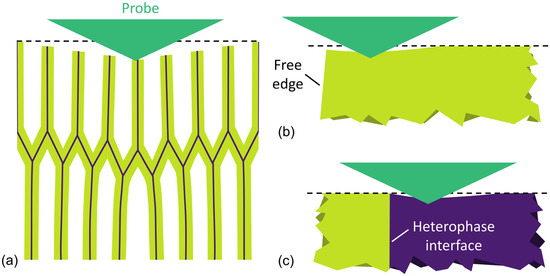

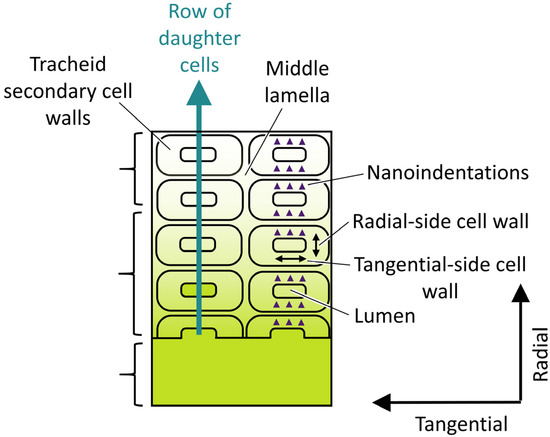

2.5. Considerations for Choosing Wood for Nanoindentation

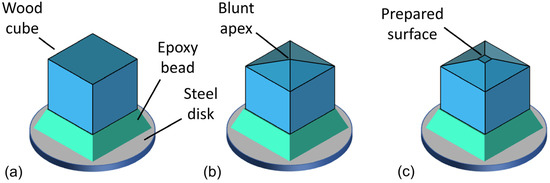

2.6. Wood Specimen Preparation
3. Materials and Methods
3.1. Specimen Preparation
3.2. Nanoindentation
3.3. Atomic Force Microscopy (AFM)
4. Analysis Algorithm

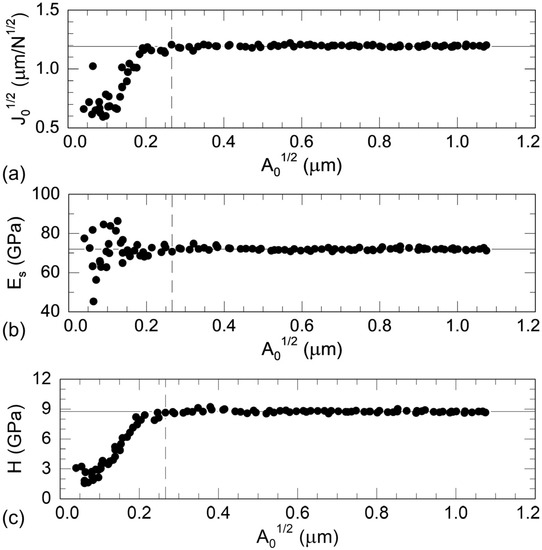

4.1. Fused Silica Calibrations

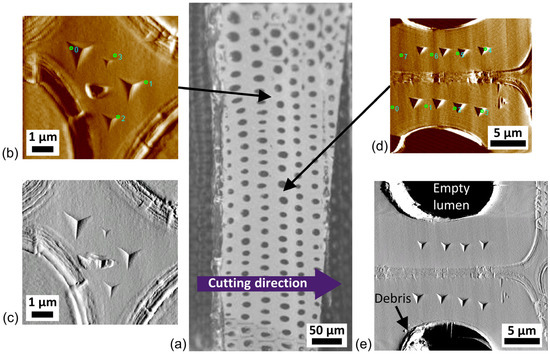

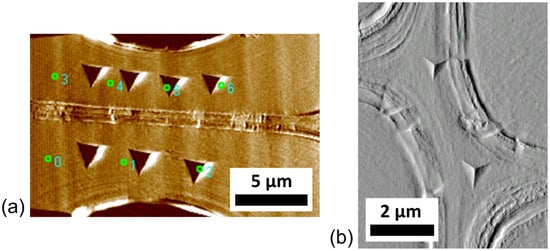

4.2. Check Images of Residual Nanoindentation Impressions

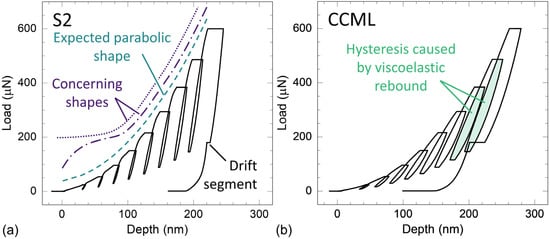

4.3. Check Preliminary Load–Depth Trace

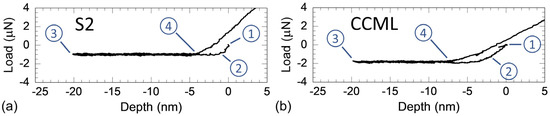

4.4. Pre-Nanoindentation Liftoff Analysis

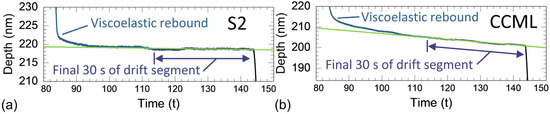

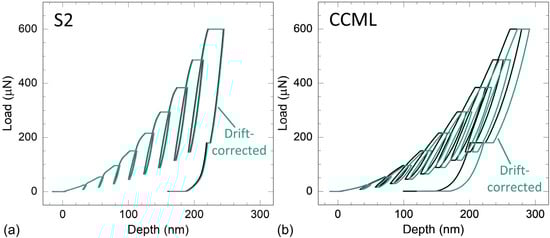

4.5. Measure and Correct for Displacement Drift
4.6. Preliminary Analysis

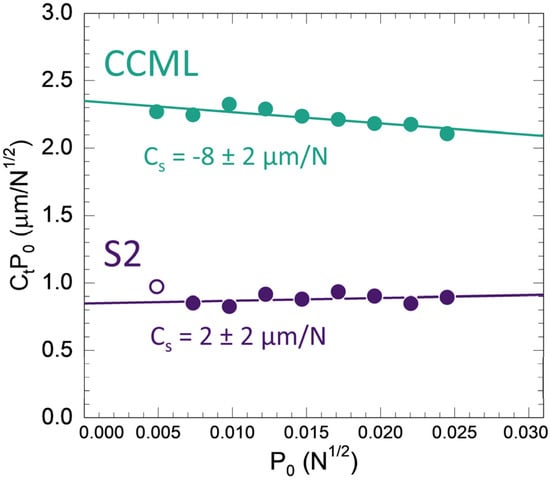

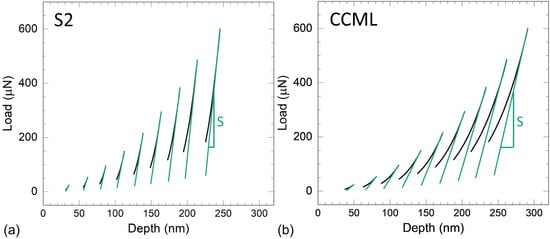

4.7. Structural Compliance Method

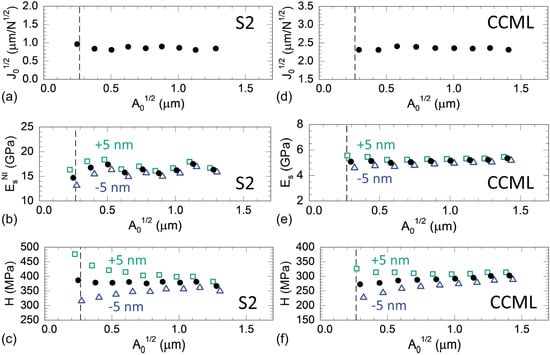

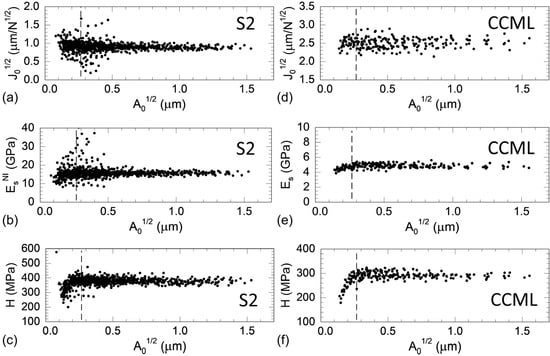

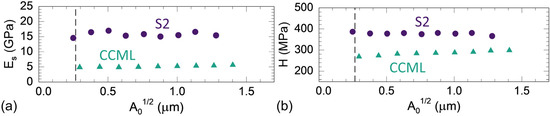

4.8. Check for Surface Detection Errors
- J01/2 is constant.
- Both Es and H appear to increase or decrease with increasing nanoindentation size.
- The size effects in Es and H are stronger in the smaller nanoindentations.
- The size effect is stronger in H than in Es.
4.9. Compare to Independent Area Measurements

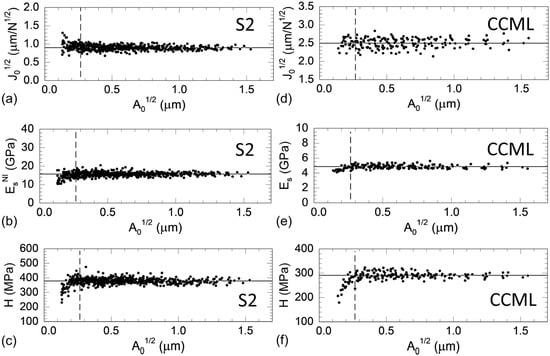

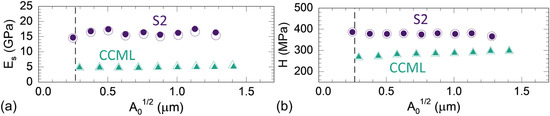

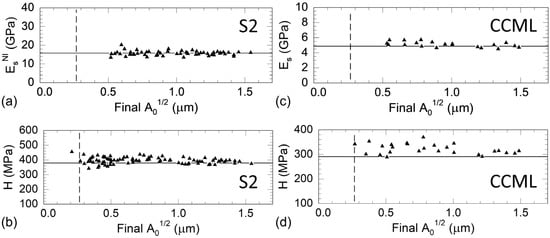

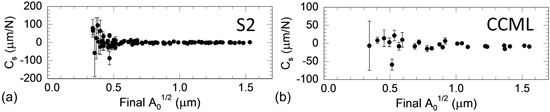

5. Results and Discussion
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Fischer-Cripps, A.C. Nanoindentation, 2nd ed.; LIng, F.F., Hart, W.H., Eds.; Springer: New York, NY, USA, 2004. [Google Scholar]
- Oliver, W.C.; Pharr, G.M. Improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments. J. Mater. Res. 1992, 7, 1564–1580. [Google Scholar] [CrossRef]
- Salmen, L.; Burgert, I. Cell wall features with regard to mechanical performance. A review. COST Action E35 2004–2008: Wood machining-Micromechanics and fracture. Holzforschung 2009, 63, 121–129. [Google Scholar] [CrossRef]
- Terashima, N.; Kitano, K.; Kojima, M.; Yoshida, M.; Yamamoto, H.; Westermark, U. Nanostructural assembly of cellulose, hemicellulose, and lignin in the middle layer of secondary wall of ginkgo tracheid. J. Wood Sci. 2009, 55, 409–416. [Google Scholar] [CrossRef]
- Hafren, J.; Fujino, T.; Itoh, T.; Westermark, U.; Terashima, N. Ultrastructural changes in the compound middle lamella of Pinus thunbergii during lignification and lignin removal. Holzforschung 2000, 54, 234–240. [Google Scholar] [CrossRef]
- Wimmer, R.; Lucas, B.N. Comparing mechanical properties of secondary wall and cell corner middle lamella in spruce wood. Iawa J. 1997, 18, 77–88. [Google Scholar] [CrossRef]
- Wimmer, R.; Lucas, B.N.; Tsui, T.Y.; Oliver, W.C. Longitudinal hardness and Young’s modulus of spruce tracheid secondary walls using nanoindentation technique. Wood Sci. Technol. 1997, 31, 131. [Google Scholar] [CrossRef]
- Gindl, W.; Schoberl, T. The significance of the elastic modulus of wood cell walls obtained from nanoindentation measurements. Compos. Part A Appl. Sci. Manuf. 2004, 35, 1345–1349. [Google Scholar] [CrossRef]
- Wang, S.; Lee, S.-H.; Tze, W.T.Y.; Rials, T.; Pharr, G.M. Nanoindentation as a tool for understanding nano-mechanical properties of wood cell wall and biocomposites. In Proceedings of the International Conference on Nanotechnology for the Forest Products Industry, Marriott Marquis, Atlanta, GA, USA, 26–28 April 2006; Volume 2006, p. 7. [Google Scholar]
- Wu, Y.; Wang, S.; Zhou, D.; Xing, C.; Zhang, Y. Use of nanoindentation and silviscan to determine the mechanical properties of 10 hardwood species. Wood Fiber Sci. 2009, 41, 64–73. [Google Scholar]
- de Borst, K.; Bader, T.K.; Wikete, C. Microstructure–stiffness relationships of ten European and tropical hardwood species. J. Struct. Biol. 2012, 177, 532–542. [Google Scholar] [CrossRef]
- Prošek, Z.; Topič, J.; Tesárek, P.; Indrová, K.; Nežerka, V.; Klapálek, P.; Králík, V. Micromechanical Properties of Spruce Tissues Using Static Nanoindentation and Modulus Mapping. Appl. Mech. Mater. 2015, 732, 115–118. [Google Scholar] [CrossRef]
- Borrega, M.; Gibson, L.J. Mechanics of balsa (Ochroma pyramidale) wood. Mech. Mater. 2015, 84, 75–90. [Google Scholar] [CrossRef] [Green Version]
- Valenzuela, P.; Bustos, C.; Lasserre, J.P.; Gacitúa, W. Mechanical properties characterization to segregate of Eucalyptus nitens families by nanoindentation related to the degree of cracking in logs. Maderas Cienc. Technol. 2015, 17, 533–544. [Google Scholar]
- Wiedenhoeft, A.C.; Arévalo, R.; Ledbetter, C.; Jakes, J.E. Structure–Property Characterization of the Crinkle-Leaf Peach Wood Phenotype: A Future Model System for Wood Properties Research? JOM 2016, 68, 2405–2412. [Google Scholar] [CrossRef]
- Torres-Torres, D.; Torres, J.A.; García-García, A. Finite element simulation based-on atomic force microscopy and nanoindentation for spruce wood microstructure analysis. Microsc. Res. Tech. 2019, 82, 507–516. [Google Scholar] [CrossRef] [PubMed]
- Horvath, L.; Peralta, P.; Peszlen, I.; Csoka, L.; Horvath, B.; Jakes, J. Modeling hygroelastic properties of genetically modified aspen. Wood Fiber Sci. 2012, 44, 22–35. [Google Scholar]
- Huang, Y.; Fei, B.; Yu, Y.; Wang, S.; Shi, Z.; Zhao, R. Modulus of elasticity and hardness of compression and opposite wood cell walls of Masson pine. BioResources 2012, 7, 3028–3037. [Google Scholar]
- Mania, P.; Nowicki, M. Nanohardness and elasticity of cell walls of Scots pine (Pinus sylvestris L.) juvenile and mature wood. Bull. Polish Acad. Sci. Tech. Sci. 2020, 68, 1237–1241. [Google Scholar]
- Liang, R.; Zhu, Y.-H.; Yang, X.; Gao, J.-S.; Zhang, Y.-L.; Cai, L.-P. Study on the ultrastructure and properties of gelatinous layer in poplar. J. Mater. Sci. 2021, 56, 415–427. [Google Scholar] [CrossRef]
- Gindl, W.; Gupta, H.S.; Schoberl, T.; Lichtenegger, H.C.; Fratzl, P. Mechanical properties of spruce wood cell walls by nanoindentation. Appl. Phys. A Mater. Sci. Process. 2004, A79, 2069–2073. [Google Scholar] [CrossRef]
- Yu, Y.; Fei, B.; Wang, H.; Tian, G. Longitudinal mechanical properties of cell wall of Masson pine (Pinus massoniana Lamb) as related to moisture content: A nanoindentation study. Holzforschung 2011, 65, 121–126. [Google Scholar] [CrossRef]
- Meng, Y.; Xia, Y.; Young, T.M.; Cai, Z.; Wang, S. Viscoelasticity of wood cell walls with different moisture content as measured by nanoindentation. RSC Adv. 2015, 5, 47538–47547. [Google Scholar] [CrossRef]
- Bertinetti, L.; Hangen, U.D.; Eder, M.; Leibner, P.; Fratzl, P.; Zlotnikov, I. Characterizing moisture-dependent mechanical properties of organic materials: Humidity-controlled static and dynamic nanoindentation of wood cell walls. Philos. Mag. 2015, 95, 1992–1998. [Google Scholar] [CrossRef] [Green Version]
- Wanju, L.; Wang, H.; Hao, W.; Yu, Y. Moisture dependence of indentation deformation and mechanical properties of Masson pine (Pinus massoniana lamb) cell walls as related to microfibril angle. Wood Fiber Sci. 2014, 46, 228–236. [Google Scholar]
- Youssefian, S.; Jakes, J.E.; Rahbar, N. Variation of Nanostructures, Molecular Interactions, and Anisotropic Elastic Moduli of Lignocellulosic Cell Walls with Moisture. Sci. Rep. 2017, 7, 2054. [Google Scholar] [CrossRef] [PubMed]
- Wagner, L.; Bos, C.; Bader, T.K.; de Borst, K. Effect of Water on the Mechanical Properties of Wood Cell Walls–Results of a Nanoindentation Study. BioResources 2015, 10, 4011–4025. [Google Scholar] [CrossRef] [Green Version]
- Wang, X.; Li, Y.; Wang, S.; Yu, W.; Deng, Y. Temperature-dependent mechanical properties of wood-adhesive bondline evaluated by nanoindentation. J. Adhes. 2017, 93, 640–656. [Google Scholar] [CrossRef]
- Konnerth, J.; Gindl, W. Observation of the influence of temperature on the mechanical properties of wood adhesives by nanoindentation. Holzforschung 2008, 62, 714–717. [Google Scholar] [CrossRef]
- Gindl, W.; Schoberl, T.; Jeronimidis, G. The interphase in phenol-formaldehyde and polymeric methylene di-phenyl-di-isocyanate glue lines in wood. Int. J. Adhes. Adhes. 2004, 24, 279–286. [Google Scholar] [CrossRef]
- Konnerth, J.; Gindl, W. Mechanical characterisation of wood-adhesive interphase cell walls by nanoindentation. Holzforschung 2006, 60, 429–433. [Google Scholar] [CrossRef]
- Liang, K.; Du, G.B.; Hosseinaei, O.; Wang, S.Q.; Wang, H. Mechanical Properties of Secondary Wall and Compound Corner Middle Lamella near the Phenol-Formaldehyde (PF) Adhesive Bond Line Measured by Nanoindentation. Adv. Mater. Res. 2011, 236–238, 1746–1751. [Google Scholar] [CrossRef]
- Jakes, J.E.; Hunt, C.G.; Yelle, D.J.; Lorenz, L.F.; Hirth, K.; Gleber, S.-C.; Vogt, S.; Grigsby, W.; Frihart, C.R. Synchrotron-based X-ray fluorescence microscopy in conjunction with nanoindentation to study molecular-scale interactions of phenol-formaldehyde in wood cell walls. ACS Appl. Mater. Interfaces 2015, 7, 6584–6589. [Google Scholar] [CrossRef]
- Clauß, S.; Gabriel, J.; Karbach, A.; Matner, M.; Niemz, P. Influence of the adhesive formulation on the mechanical properties and bonding performance of polyurethane prepolymers. Holzforschung 2011, 65, 835–844. [Google Scholar] [CrossRef]
- Kaboorani, A.; Riedl, B.; Blanchet, P.; Fellin, M.; Hosseinaei, O.; Wang, S. Nanocrystalline cellulose (NCC): A renewable nano-material for polyvinyl acetate (PVA) adhesive. Eur. Polym. J. 2012, 48, 1829–1837. [Google Scholar] [CrossRef]
- Qin, L.; Lin, L.; Fu, F. Microstructural and Micromechanical Characterization of Modified Urea-Formaldehyde Resin Penetration into Wood. BioResources 2015, 11, 182–194. [Google Scholar] [CrossRef] [Green Version]
- Liu, C.; Cheng, Z.; Wang, S.; Zhang, Y.; Hosseinaei, O. Effects of nanocrystalline cellulose on the micro-creep properties of phenol formaldehyde resin. Mater. Res. Express 2018, 5, 125019. [Google Scholar] [CrossRef]
- Tran, A.; Mayr, M.; Konnerth, J.; Gindl-Altmutter, W. Adhesive strength and micromechanics of wood bonded at low temperature. Int. J. Adhes. Adhes. 2020, 103, 102697. [Google Scholar] [CrossRef]
- Jiang, Z.; Yu, Y.; Qin, D.; Wang, G.; Zhang, B.; Fu, Y. Pilot investigation of the mechanical properties of wood flooring paint films by in situ imaging nanoindentation. Holzforschung 2006, 60, 698–701. [Google Scholar] [CrossRef]
- Vlad-Cristea, M.; Riedl, B.; Blanchet, P.; Jimenez-Pique, E. Nanocharacterization techniques for investigating the durability of wood coatings. Eur. Polym. J. 2012, 48, 441–453. [Google Scholar] [CrossRef]
- Veigel, S.; Grüll, G.; Pinkl, S.; Obersriebnig, M.; Müller, U.; Gindl-Altmutter, W. Improving the mechanical resistance of waterborne wood coatings by adding cellulose nanofibres. React. Funct. Polym. 2014, 85, 214–220. [Google Scholar] [CrossRef]
- Wu, Y.; Wu, J.; Wang, S.; Feng, X.; Chen, H.; Tang, Q.; Zhang, H. Measurement of mechanical properties of multilayer waterborne coatings on wood by nanoindentation. Holzforschung 2019, 73, 871–877. [Google Scholar] [CrossRef]
- Gacitua, W.; Bahr, D.; Wolcott, M. Damage of the cell wall during extrusion and injection molding of wood plastic composites. Compos. Part A Appl. Sci. Manuf. 2010, 41, 1454–1460. [Google Scholar] [CrossRef] [Green Version]
- Soccalingame, L.; Bourmaud, A.; Perrin, D.; Bénézet, J.-C.; Bergeret, A. Reprocessing of wood flour reinforced polypropylene composites: Impact of particle size and coupling agent on composite and particle properties. Polym. Degrad. Stab. 2015, 113, 72–85. [Google Scholar] [CrossRef]
- Zhou, Y.; Fan, M.; Lin, L. Investigation of bulk and in situ mechanical properties of coupling agents treated wood plastic composites. Polym. Test. 2017, 58, 292–299. [Google Scholar] [CrossRef]
- Yadav, S.M.; Yusoh, K. Bin Subsurface mechanical properties and subsurface creep behaviour of modified nanoclay-based wood–plastic composites studied by nanoindentation. Polym. Bull. 2019, 76, 2179–2196. [Google Scholar] [CrossRef]
- Črešnar, K.P.; Bek, M.; Luxbacher, T.; Brunčko, M.; Zemljič, L.F. Insight into the Surface Properties of Wood Fiber-Polymer Composites. Polymers 2021, 13, 1535. [Google Scholar] [CrossRef]
- Lin, Y.; Fu, F. Nanoindentation test and analysis of cell wall of strengthened composite wood. J. Beijing For. Univ. 2012, 34, 139–143. [Google Scholar]
- Ermeydan, M.A.; Cabane, E.; Masic, A.; Koetz, J.; Burgert, I. Flavonoid Insertion into Cell Walls Improves Wood Properties. ACS Appl. Mater. Interfaces 2012, 4, 5782–5789. [Google Scholar] [CrossRef] [PubMed]
- Huang, Y.; Fei, B.; Yu, Y.; Zhao, R. Effect of Modification with Phenol Formaldehyde Resin on the Mechanical Properties of Wood from Chinese Fir. BioResources 2012, 8, 272–282. [Google Scholar] [CrossRef] [Green Version]
- Ermeydan, M.A.; Cabane, E.; Gierlinger, N.; Koetz, J.; Burgert, I. Improvement of wood material properties via in situ polymerization of styrene into tosylated cell walls. RSC Adv. 2014, 4, 12981–12988. [Google Scholar] [CrossRef] [Green Version]
- Li, W.; Ren, D.; Zhang, X.; Wang, H.; Yu, Y. The Furfurylation of Wood: A Nanomechanical Study of Modified Wood Cells. BioResources 2016, 11, 3614–3625. [Google Scholar] [CrossRef]
- Yang, R.; Wang, S.; Zhou, D.; Zhang, J.; Lan, P.; Jia, C. Construction of Hydrophobic Wood Surface and Mechanical Property of Wood Cell Wall on Nanoscale Modified by Dimethyldichlorosilane. IOP Conf. Ser. Mater. Sci. Eng. 2018, 301, 12051. [Google Scholar] [CrossRef]
- Xing, C.; Wang, S.; Pharr, G.M.; Groom, L.H. Effect of thermo-mechanical refining pressure on the properties of wood fibers as measured by nanoindentation and atomic force microscopy. Holzforschung 2008, 62, 230–236. [Google Scholar] [CrossRef]
- Yin, Y.; Berglund, L.; Salmén, L. Effect of Steam Treatment on the Properties of Wood Cell Walls. Biomacromolecules 2011, 12, 194–202. [Google Scholar] [CrossRef]
- Bustos Avila, C.; Gacitúa Escobar, W.; Cloutier, A.; Fang, C.-H.; Valenzuela Carrasco, P. Densification of wood veneers combined with oil-heat treatment. Part III: Cell wall mechanical properties determined by nanoindentation. BioResources 2012, 7, 1525–1532. [Google Scholar] [CrossRef] [Green Version]
- Guo, J.; Song, K.; Salmén, L.; Yin, Y. Changes of wood cell walls in response to hygro-mechanical steam treatment. Carbohydr. Polym. 2015, 115, 207–214. [Google Scholar] [CrossRef] [PubMed]
- Wang, X.; Chen, X.; Xie, X.; Wu, Y.; Zhao, L.; Li, Y.; Wang, S. Effects of thermal modification on the physical, chemical and micromechanical properties of Masson pine wood (Pinus massoniana Lamb.). Holzforschung 2018, 72, 1063–1070. [Google Scholar] [CrossRef] [Green Version]
- Báder, M.; Németh, R.; Konnerth, J. Micromechanical properties of longitudinally compressed wood. Eur. J. Wood Wood Prod. 2019, 77, 341–351. [Google Scholar] [CrossRef] [Green Version]
- Lehringer, C.; Koch, G.; Adusumalli, R.-B.; Mook, W.M.; Richter, K.; Militz, H. Effect of Physisporinus vitreus on wood properties of Norway spruce. Part 1: Aspects of delignification and surface hardness. Holzforschung 2011, 65, 711–719. [Google Scholar] [CrossRef] [Green Version]
- Kim, J.-W.; Harper, D.P.; Taylor, A.M. Technical Note: Effect of Epoxy Embedment on Micromechanical Properties of Brown-Rot-Decayed Wood Cell Walls Assessed with Nanoindentation. Wood Fiber Sci. 2012, 44, 103–107. [Google Scholar]
- Wagner, L.; Bader, T.K.; Ters, T.; Fackler, K.; de Borst, K. A combined view on composition, molecular structure, and micromechanics of fungal degraded softwood. Holzforschung 2015, 69, 471–482. [Google Scholar] [CrossRef]
- Li, J.; Yu, Y.; Feng, C.; Wang, H. Mechanical characterization of Pinus massoniana cell walls infected by blue-stain fungi using in situ nanoindentation. J. For. Res. 2020, 31, 661–665. [Google Scholar] [CrossRef]
- Wang, C.G.; Jiang, Z.H.; Fei, B.H.; Yu, Y.; Zhang, S.Y. Effects of chemical components on longitudinal MOE and hardness of wood cell wall. Journal Beijing For. Univ. 2012, 34, 107–110. [Google Scholar]
- Zhang, S.-Y.; Fei, B.-H.; Wang, C.-G. Effects of Chemical Extraction Treatments on Nano-scale Mechanical Properties of the Wood Cell Wall. BioResources 2016, 11, 7365–7376. [Google Scholar] [CrossRef] [Green Version]
- Wang, X.; Li, Y.; Deng, Y.; Yu, W.; Xie, X.; Wang, S. Contributions of Basic Chemical Components to the Mechanical Behavior of Wood Fiber Cell Walls as Evaluated by Nanoindentation. BioResources 2016, 11, 6026–6039. [Google Scholar] [CrossRef] [Green Version]
- Xu, E.; Wang, D.; Lin, L. Chemical Structure and Mechanical Properties of Wood Cell Walls Treated with Acid and Alkali Solution. Forests 2020, 11, 87. [Google Scholar] [CrossRef] [Green Version]
- Jakes, J.E.; Frihart, C.R.; Stone, D.S. Creep Properties of Micron-Size Domains in Ethylene Glycol Modified Wood across 4½ Decades in Strain Rate. In Symposium Z–Mechanics of Biological and Biomedical Materials; Katti, K., Hellmich, C., Wegst, U.G.K., Narayan, R., Eds.; Materials Research Society: Warrendale, PA, USA, 2008; Volume 1132E, p. 1132Z0721. [Google Scholar]
- Konnerth, J.; Eiser, M.; Jäger, A.; Bader, T.K.; Hofstetter, K.; Follrich, J.; Ters, T.; Hansmann, C.; Wimmer, R. Macro- and micro-mechanical properties of red oak wood (Quercus rubra L.) treated with hemicellulases. Holzforschung 2010, 64, 447–453. [Google Scholar] [CrossRef]
- Zhang, Y.; Meng, Y.-J.; Wu, Y.; Wang, S.-Q.; Du, G.-B.; Jiang, H.; Zhou, Z.-B. Effect of enzyme treatment on the mechanical properties of wood cell walls by nanoindentation. BioResources 2012, 7, 2249–2259. [Google Scholar] [CrossRef] [Green Version]
- Zickler, G.A.; Schoberl, T.; Paris, O. Mechanical properties of pyrolysed wood: A nanoindentation study. Philos. Mag. 2006, 86, 1373–1386. [Google Scholar] [CrossRef]
- Brandt, B.; Zollfrank, C.; Franke, O.; Fromm, J.; Göken, M.; Durst, K. Micromechanics and ultrastructure of pyrolysed softwood cell walls. Acta Biomater. 2010, 6, 4345–4351. [Google Scholar] [CrossRef]
- Das, O.; Sarmah, A.K.; Bhattacharyya, D. Structure–mechanics property relationship of waste derived biochars. Sci. Total Environ. 2015, 538, 611–620. [Google Scholar] [CrossRef]
- Hosseinaei, O.; Wang, S.; Rials, T.G.; Xing, C.; Zhang, Y. Effects of decreasing carbohydrate content on properties of wood strands. Cellulose 2011, 18, 841–850. [Google Scholar] [CrossRef]
- Paredes, J.J.; Shaler, S.; Howell, C.; Jakes, J. Influence of hot water extraction on cell wall and OSB strand mechanics. Wood Sci. Technol. 2017, 51, 1307–1319. [Google Scholar] [CrossRef] [Green Version]
- Blanchet, P.; Kaboorani, A.K.; Bustos, C. Understanding the effects of drying methods on wood mechanical properties at ultra and cellular levels. Wood Fiber Sci. 2016, 48, 117–128. [Google Scholar]
- Bader, T.K.; de Borst, K.; Fackler, K.; Ters, T.; Braovac, S. A nano to macroscale study on structure-mechanics relationships of archaeological oak. J. Cult. Herit. 2013, 14, 377–388. [Google Scholar] [CrossRef]
- Wagner, L.; Almkvist, G.; Bader, T.K.; Bjurhager, I.; Rautkari, L.; Gamstedt, E.K. The influence of chemical degradation and polyethylene glycol on moisture-dependent cell wall properties of archeological wooden objects: A case study of the Vasa shipwreck. Wood Sci. Technol. 2016, 50, 1103–1123. [Google Scholar] [CrossRef]
- Han, L.; Wang, K.; Wang, W.; Guo, J.; Zhou, H. Nanomechanical and Topochemical Changes in Elm Wood from Ancient Timber Constructions in Relation to Natural Aging. Materials 2019, 12, 786. [Google Scholar] [CrossRef] [Green Version]
- Han, L.; Tian, X.; Keplinger, T.; Zhou, H.; Li, R.; Svedström, K.; Burgert, I.; Yin, Y.; Guo, J. Even Visually Intact Cell Walls in Waterlogged Archaeological Wood Are Chemically Deteriorated and Mechanically Fragile: A Case of a 170 Year-Old Shipwreck. Molecules 2020, 25, 1113. [Google Scholar] [CrossRef] [Green Version]
- Wang, H.; Zhang, X.; Ren, D.; Li, W.; Yu, Y. Crystal orientation in cell wall and micro-mechanical characteristics of silica crystals inside petrified wood. Arab. J. Geosci. 2015, 8, 5407–5412. [Google Scholar] [CrossRef]
- Oliver, W.C.; Pharr, G.M. Measurement of hardness and elastic modulus by instrumented indentation: Advances in understanding and refinements to methodology. J. Mater. Res. 2004, 19, 3–20. [Google Scholar] [CrossRef]
- Hay, J.; Agee, P.; Herbert, E. Continuous stiffness measurement during instrumented indentation testing. Exp. Tech. 2010, 34, 86–94. [Google Scholar] [CrossRef]
- Sudharshan Phani, P.; Oliver, W.C.; Pharr, G.M. Measurement of hardness and elastic modulus by load and depth sensing indentation: Improvements to the technique based on continuous stiffness measurement. J. Mater. Res. 2021, 36, 2137–2153. [Google Scholar] [CrossRef]
- Berkovich, E. Three-faceted diamond pyramid for micro-hardness testing. Ind. Diam. Rev. 1951, 11, 129–133. [Google Scholar]
- Vanlandingham, M.R.; Chang, N.K.; Drzal, P.L.; White, C.C.; Chang, S.H. Viscoelastic characterization of polymers using instrumented indentation. I. Quasi-static testing. J. Polym. Sci. Part B (Polym. Phys.) 2005, 43, 1794–1811. [Google Scholar] [CrossRef]
- Jakes, J.E.; Lakes, R.S.; Stone, D.S. Broadband nanoindentation of glassy polymers: Part II. Viscoplasticity. J. Mater. Res. 2012, 27, 475–484. [Google Scholar] [CrossRef]
- Jakes, J.E.; Lakes, R.S.; Stone, D.S. Broadband nanoindentation of glassy polymers: Part I. Viscoelasticity. J. Mater. Res. 2012, 27, 463–474. [Google Scholar] [CrossRef] [Green Version]
- Loubet, J.L.; Oliver, W.C.; Lucas, B.N. Measurement of the loss tangent of low-density polyethylene with a nanoindentation technique. J. Mater. Res. 2000, 15, 1195–1198. [Google Scholar] [CrossRef]
- Lu, H.; Wang, B.; Ma, J.; Huang, G.; Viswanathan, H. Measurement of creep compliance of solid polymers by nanoindentation. Mech. Time-Depend. Mater. 2003, 7, 189–207. [Google Scholar] [CrossRef]
- Odegard, G.; Gates, T.; Herring, H. Characterization of viscoelastic properties of polymeric materials through nanoindentation. Exp. Mech. 2005, 45, 130–136. [Google Scholar] [CrossRef]
- Jakes, J.E.; Frihart, C.R.; Beecher, J.F.; Moon, R.J.; Stone, D.S. Experimental method to account for structural compliance in nanoindentation measurements. J. Mater. Res. 2008, 23, 1113–1127. [Google Scholar] [CrossRef]
- Jakes, J.E.; Frihart, C.R.; Beecher, J.F.; Moon, R.J.; Resto, P.J.; Melgarejo, Z.H.; Surez, O.M.; Baumgart, H.; Elmustafa, A.A.; Stone, D.S. Nanoindentation near the edge. J. Mater. Res. 2009, 24, 1016–1031. [Google Scholar] [CrossRef] [Green Version]
- Xiang, E.; Huang, R.; Yang, S. Change in Micromechanical Behavior of Surface Densified Wood Cell Walls in Response to Superheated Steam Treatment. Forests 2021, 12, 693. [Google Scholar] [CrossRef]
- Zhang, T.; Bai, S.L.; Zhang, Y.F.; Thibaut, B. Viscoelastic properties of wood materials characterized by nanoindentation experiments. Wood Sci. Technol. 2012, 46, 1003–1016. [Google Scholar] [CrossRef] [Green Version]
- Jakes, J.E. A mechanism for diffusion through secondary cell walls in lignocellulosic biomass. J. Phys. Chem. B 2019, 123, 4333–4339. [Google Scholar] [CrossRef] [PubMed]
- Konnerth, J.; Weigl, M.; Gindl-Altmutter, W.; Avramidis, G.; Wolkenhauer, A.; Viöl, W.; Gilge, M.; Obersriebnig, M. Effect of plasma treatment on cell-wall adhesion of urea-formaldehyde resin revealed by nanoindentation. Holzforschung 2014, 68, 707–712. [Google Scholar] [CrossRef]
- Wang, X.; Chen, X.; Xie, X.; Yuan, Z.; Cai, S.; Li, Y. Effect of Phenol Formaldehyde Resin Penetration on the Quasi-Static and Dynamic Mechanics of Wood Cell Walls Using Nanoindentation. Nanomaterials 2019, 9, 1409. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Konnerth, J.; Valla, A.; Gindl, W. Nanoindentation mapping of a wood-adhesive bond. Appl. Phys. A Mater. Sci. Process. 2007, 88, 371–375. [Google Scholar] [CrossRef]
- Johnson, K.L. Contact Mechanics; Cambridge University Press: Cambridge, UK, 1985; ISBN 0521255767. [Google Scholar]
- Tabor, D. The Hardness of Metals; Oxford University Press: Oxford, UK, 1951. [Google Scholar]
- King, R.B. Elastic analysis of some punch problems for a layered medium. Int. J. Solids Struct. 1987, 23, 1657–1664. [Google Scholar] [CrossRef]
- Strader, J.H.; Shim, S.; Bei, H.; Oliver, W.C.; Pharr, G.M. An experimental evaluation of the constant β relating the contact stiffness to the contact area in nanoindentation. Philos. Mag. 2006, 86, 5285–5298. [Google Scholar] [CrossRef]
- Bolshakov, A.; Pharr, G.M. Inaccuracies in Sneddon’s solution for elastic indentation by a rigid cone and their implications for nanoindentation data analysis. In Proceedings of the Thin Films: Stresses and Mechanical Properties VI, San Francisco, CA, USA, 1–3 April 1997; Volume 436, p. 189. [Google Scholar]
- Chudoba, T.; Jennett, N.M. Higher accuracy analysis of instrumented indentation data obtained with pointed indenters. J. Phys. D Appl. Phys. 2008, 41, 215407. [Google Scholar] [CrossRef]
- Jäger, A.; Bader, T.; Hofstetter, K.; Eberhardsteiner, J. The relation between indentation modulus, microfibril angle, and elastic properties of wood cell walls. Compos. Part A Appl. Sci. Manuf. 2011, 42, 677–685. [Google Scholar] [CrossRef]
- Gerber, C.E. Contact Problems for the Elastic Quarter-Plane and for the Quarter Space; Stanford University: Stanford, CA, USA, 1968. [Google Scholar]
- Schwarzer, N.; Hermann, I.; Chudoba, T.; Richter, F. Contact modelling in the vicinity of an edge. Surf. Coat. Technol. 2001, 146–147, 371–377. [Google Scholar] [CrossRef]
- Durst, K.; Göken, M.; Vehoff, H. Finite element study for nanoindentation measurements on two-phase materials. J. Mater. Res. 2004, 19, 85–93. [Google Scholar] [CrossRef]
- Bruet, B.J.F.; Juha, S.; Boyce, M.C.; Ortiz, C. Materials design principles of ancient fish armour. Nat. Mater. 2008, 7, 748–756. [Google Scholar] [CrossRef] [PubMed]
- Lee, S.-H.; Wang, S.; Pharr, G.M.; Xu, H. Evaluation of interphase properties in a cellulose fiber-reinforced polypropylene composite by nanoindentation and finite element analysis. Compos. Part A Appl. Sci. Manuf. 2007, 38, 1517–1524. [Google Scholar] [CrossRef]
- Jakes, J.E.; Stone, D.S. The edge effect in nanoindentation. Philos. Mag. 2011, 91, 1387–1399. [Google Scholar] [CrossRef]
- Stone, D.S.; Yoder, K.B.; Sproul, W.D. Hardness and elastic modulus of TiN based on continuous indentation technique and new correlation. J. Vac. Sci. Technol. A 1991, 9, 2543–2547. [Google Scholar] [CrossRef]
- Joslin, D.L.; Oliver, W.C. New method for analyzing data from continuos depth-sensing microindentation tests. J. Mater. Res. 1990, 5, 123–126. [Google Scholar] [CrossRef]
- Tze, W.T.Y.; Wang, S.; Rials, T.G.; Pharr, G.M.; Kelley, S.S. Nanoindentation of wood cell walls: Continuous stiffness and hardness measurements. Compos. Part A Appl. Sci. Manuf. 2007, 38, 945–953. [Google Scholar] [CrossRef]
- Ago, M.; Jakes, J.E.; Rojas, O.J. Thermomechanical properties of lignin-based electrospun nanofibers and films reinforced with cellulose nanocrystals: A dynamic mechanical and nanoindentation study. ACS Appl. Mater. Interfaces 2013, 5, 11768–11776. [Google Scholar] [CrossRef] [PubMed]
- Qian, Z.; Risan, J.; Stadnick, B.; McKenna, G.B. Apparent depth-dependent modulus and hardness of polymers by nanoindentation: Investigation of surface detection error and pressure effects. J. Polym. Sci. Part B Polym. Phys. 2018, 56, 414–428. [Google Scholar] [CrossRef]
- Fulco, S.; Wolf, S.; Jakes, J.E.; Fakhraai, Z.; Turner, K.T. Effect of surface detection error due to elastic–plastic deformation on nanoindentation measurements of elastic modulus and hardness. J. Mater. Res. 2021, 36, 2176–2188. [Google Scholar] [CrossRef]
- Briscoe, B.J.; Fiori, L.; Pelillo, E. Nano-indentation of polymeric surfaces. J. Phys. D Appl. Phys. 1998, 31, 2395. [Google Scholar] [CrossRef]
- Ngan, A.H.W.; Wang, H.T.; Tang, B.; Sze, K.Y. Correcting power-law viscoelastic effects in elastic modulus measurement using depth-sensing indentation. Int. J. Solids Struct. 2005, 42, 1831–1846. [Google Scholar] [CrossRef]
- Puthoff, J.B.; Jakes, J.E.; Cao, H.; Stone, D.S. Investigation of thermally activated deformation in amorphous PMMA and Zr-Cu-Al bulk metallic glasses with broadband nanoindentation creep. J. Mater. Res. 2009, 24, 1279–1290. [Google Scholar] [CrossRef]
- Stone, D.S.; Jakes, J.E.; Puthoff, J.B.; Elmustafa, A.A. Analysis of indentation creep. J. Mater. Res. 2010, 24, 611–621. [Google Scholar] [CrossRef] [Green Version]
- Jäger, A.; Hofstetter, K.; Buksnowitz, C.; Gindl-Altmutter, W.; Konnerth, J. Identification of stiffness tensor components of wood cell walls by means of nanoindentation. Compos. Part A Appl. Sci. Manuf. 2011, 42, 2101–2109. [Google Scholar] [CrossRef]
- Kim, J.-Y.; Kang, S.-K.; Lee, J.-J.; Jang, J.; Lee, Y.-H.; Kwon, D. Influence of surface-roughness on indentation size effect. Acta Mater. 2007, 55, 3555–3562. [Google Scholar] [CrossRef]
- Spurr, A.R. A low-viscosity epoxy resin embedding medium for electron microscopy. J. Ultrastruct. Res. 1969, 26, 31–43. [Google Scholar] [CrossRef]
- Meng, Y.; Wang, S.; Cai, Z.; Young, T.M.; Du, G.; Li, Y. A novel sample preparation method to avoid influence of embedding medium during nano-indentation. Appl. Phys. A 2012, 110, 361–369. [Google Scholar] [CrossRef]
- Coste, R.; Soliman, M.; Bercu, N.B.; Potiron, S.; Lasri, K.; Aguié-Béghin, V.; Tetard, L.; Chabbert, B.; Molinari, M. Unveiling the impact of embedding resins on the physicochemical traits of wood cell walls with subcellular functional probing. Compos. Sci. Technol. 2021, 201, 108485. [Google Scholar] [CrossRef]
- Jakes, J.E.; Yelle, D.J.; Beecher, J.F.; Frihart, C.R.; Stone, D.S. Characterizing pMDI reactions with wood cell walls: 2. Nanoindentation. In Proceedings of the International Conference on Wood Adhesives, Lake Tahoe, NV, USA, 28–30 September 2009; Frihart, C.R., Hunt, C.G., Moon, R.J., Eds.; pp. 366–373. [Google Scholar]
- Keplinger, T.; Konnerth, J.; Aguié-Béghin, V.; Rüggeberg, M.; Gierlinger, N.; Burgert, I. A zoom into the nanoscale texture of secondary cell walls. Plant Methods 2014, 10, 1. [Google Scholar] [CrossRef] [Green Version]
- Jakes, J.E. Improved methods for nanoindentation Berkovich probe calibrations using fused silica. J. Mater. Sci. 2018, 53, 4814–4827. [Google Scholar] [CrossRef]
- ASTM D 5032-Standard Practice for Maintaining Constant Relative Humidity by Means of Aqueous Glycerin Solutions; ASTM International: West Conshohocken, PA, USA, 2003.
- Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef] [Green Version]
- Jakes, J.E.; Stauffer, D. Contact area correction for surface tilt in pyramidal nanoindentation. J. Mater. Res. 2021, 36, 2189–2197. [Google Scholar] [CrossRef]
- Mook, W.M.; Gerberich, W.W. Effect of hydrostatic pressure on indentation modulus. In Proceedings of the Fundamentals of Nanoindentation and Nanotribology IV, Warrendale, PA, USA, 26–29 November 2007; Bourhis, E.L., Morris, D.J., Oyen, M.L., Schwaiger, R., Straedler, T., Eds.; Volume 1049, pp. 21–26. [Google Scholar]
- Jones Parry, E.; Tabor, D. Pressure dependence of the shear modulus of various polymers. J. Mater. Sci. 1974, 9, 289–292. [Google Scholar] [CrossRef]
- ISO 14577-1:2015 Metallic Materials—Instrumented Indentation Test for Hardness and Materials Parameters—Part 1: Test Method; ISO: Geneva, Switzerland, 2015.

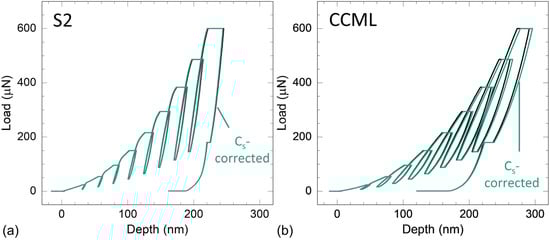

Loading Cycle | Loading Segment (s) | Hold at P0 Segment (s) | Unloading Segment (s) | Hold at 30% P0 Segment (s) |
---|---|---|---|---|
1 | 2.00 | 5 | 1.4 | 1 |
2 | 1.73 | 5 | 1.4 | 1 |
3 | 1.66 | 5 | 1.4 | 1 |
4 | 1.62 | 5 | 1.4 | 1 |
5 | 1.58 | 5 | 1.4 | 1 |
6 | 1.56 | 5 | 1.4 | 1 |
7 | 1.54 | 5 | 1.4 | 1 |
8 | 1.53 | 5 | 1.4 | 1 |
9 | 1.51 | 5 | 1.4 | 1 |
S2 | ||||||||||
Final A01/2 Range | Number of Unloading Segments 3 | Es | H | |||||||
Ave 4 | Std 5 | Ste 6 | Ave | Std | Ste | |||||
Bin | (μm) | N 1 | n 2 | (GPa) | (GPa) | (GPa) | (MPa) | (MPa) | (MPa) | |
1 | 0.33–0.5 | 25 | 100 | 3 to 5 | 18.9 | 11.0 | 1.15 | 376 | 28 | 3 |
2 | 0.5–0.75 | 20 | 128 | 5 to 7 | 15.7 | 1.7 | 0.15 | 375 | 19 | 2 |
3 | 0.75–1.0 | 12 | 88 | 7 to 8 | 15.6 | 1.2 | 0.12 | 391 | 21 | 2 |
4 | 1.0–1.25 | 13 | 112 | 8 | 15.9 | 0.8 | 0.08 | 381 | 17 | 2 |
5 | 1.25–1.53 | 15 | 129 | 8 to 9 | 15.7 | 0.8 | 0.07 | 375 | 15 | 1 |
CCML | ||||||||||
Final A01/2 Range | Number of Unloading Segments | Es | H | |||||||
Ave | Std | Ste | Ave | Std | Ste | |||||
Bin | (μm) | N | n | (GPa) | (GPa) | (GPa) | (MPa) | (MPa) | (MPa) | |
1 | 0.31–0.5 | 5 | 18 | 3 to 5 | 5.1 | 0.2 | 0.04 | 305 | 6 | 2 |
2 | 0.5–0.75 | 6 | 37 | 5 to 7 | 4.9 | 0.3 | 0.06 | 300 | 14 | 2 |
3 | 0.75–1.0 | 6 | 45 | 7 to 8 | 5.0 | 0.2 | 0.04 | 294 | 11 | 2 |
4 | 1.0–1.25 | 4 | 33 | 8 to 9 | 4.7 | 0.2 | 0.03 | 286 | 12 | 2 |
5 | 1.25–1.58 | 5 | 45 | 9 | 4.8 | 0.2 | 0.04 | 284 | 11 | 2 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Jakes, J.E.; Stone, D.S. Best Practices for Quasistatic Berkovich Nanoindentation of Wood Cell Walls. Forests 2021, 12, 1696. https://doi.org/10.3390/f12121696
Jakes JE, Stone DS. Best Practices for Quasistatic Berkovich Nanoindentation of Wood Cell Walls. Forests. 2021; 12(12):1696. https://doi.org/10.3390/f12121696
Chicago/Turabian StyleJakes, Joseph E., and Donald S. Stone. 2021. "Best Practices for Quasistatic Berkovich Nanoindentation of Wood Cell Walls" Forests 12, no. 12: 1696. https://doi.org/10.3390/f12121696
