Mechanical Characteristics of the Fine Roots of Two Broadleaved Tree Species from the Temperate Caspian Hyrcanian Ecoregion

by
Azade Deljouei
1,2,*,
Ehsan Abdi
1,
Massimiliano Schwarz
2,
Baris Majnounian
1,
Hormoz Sohrabi
3 and
R. Kasten Dumroese
4
1
Department of Forestry and Forest Economics, Faculty of Natural Resources, University of Tehran, 31587-77871 Karaj, Iran
2
School of Agricultural, Forest and Food Sciences HAFL, Bern University of Applied Sciences, 3052 Zollikofen, Switzerland
3
Faculty of Natural Resources, Tarbiat Modares University, 46414-356 Noor, Iran
4
Rocky Mountain Research Station, Forest Service, U.S. Department of Agriculture, Moscow, ID 83843, USA
*
Author to whom correspondence should be addressed.
Forests 2020, 11(3), 345; https://doi.org/10.3390/f11030345
Submission received: 23 February 2020 / Revised: 14 March 2020 / Accepted: 17 March 2020 / Published: 20 March 2020
(This article belongs to the Special Issue Adaptation of the Root System to the Environment)
Browse Figures
Versions Notes

Abstract

:
In view of the important role played by roots against shallow landslides, root tensile force was evaluated for two widespread temperate tree species within the Caspian Hyrcanian Ecoregion, i.e., Fagus orientalis L. and Carpinus betulus L. Fine roots (0.02 to 7.99 mm) were collected from five trees of each species at three different elevations (400, 950, and 1350 m a.s.l.), across three diameter at breast height (DBH) classes (small = 7.5–32.5 cm, medium = 32.6–57.5 cm, and large =57.6–82.5 cm), and at two slope positions relative to the tree stem (up- and down-slope). In the laboratory, maximum tensile force (N) required to break the root was determined for 2016 roots (56 roots per each of two species x three sites x three DBH classes x two slope positions). ANCOVA was used to test the effects of slope position, DBH, and study site on root tensile force. To obtain the power-law regression coefficients, a nonlinear least square method was used. We found that: 1) root tensile force strongly depends on root size, 2) F. orientalis roots are stronger than C. betulus ones in the large DBH class, although they are weaker in the medium and small DBH classes, 3) root mechanical resistance is higher upslope than downslope, 4) roots of the trees with larger DBH were the most resistant roots in tension in compare with roots of the medium or small DBH classes, and 5) the root tensile force for both species is notably different from one site to another site. Overall, our findings provide a fundamental contribution to the quantification of the protective effects of forests in the temperate region.

1. Introduction

Worldwide, 24 billion tons of fertile soil are estimated to be lost every year due to erosion and mass wasting [1]. Vegetation, especially in the mountain regions, plays a remarkable role in stabilizing slopes and protecting soil from erosion and landslides [2,3]. Particularly for trees, roots are known to reinforce soil through three mechanisms [4,5,6,7]: basal root reinforcement, lateral root reinforcement, and increasing the stiffness of the root–soil composite material. In all of these mechanisms, the contribution of roots is defined by their mechanical properties (strength and elasticity) [4,5,8,9,10] and their density and spatial distribution [4,6,9,11], although species, environment, root diameter, root branching order, age of the trees, root architecture, and forest structure are known to influence root reinforcement variability [12,13,14].
A review of the literature reveals an overall lack of agreement regarding the size of the roots that must be considered in root mechanical estimation. On one hand, some authors consider only roots with diameters less than 10 mm, because these fine and thin roots act as tensile fibers during slope failures and provide the major contribution to slope stability [15,16,17]. On the other hand, a few authors indicated that roots of a size up to 20 mm in diameter contribute the most slope stability [18], although, in rare cases, roots with diameter up to 40 mm are said to play an important role in slope stability [19].
In many studies, root reinforcement was estimated for different vegetation species growing in different regions and environments. The mechanical properties of roots have been studied in several works [20,21] and it is known that the mechanical properties of roots change depending on the species and local conditions, such as the amount of nutrients and water content [21,22,23]. Generally, roots extend close to the soil surface where the soil has the lowest bulk density and water, oxygen, and nutrients are most available. With increasing soil depth, soil bulk density increases and aeration decreases; consequently, root density and size decline [24]. However, a comprehensive and statistically strong analysis of the influence of factors such as region, species, the diameter at breast height (DBH), and slope position of the roots relative to the tree stem on root mechanical characteristics is lacking in the literature, especially in the Hyrcanian Ecoregion. In Iran, this ecoregion is on the UNESCO World Heritage List from July 2019 because of its biological diversity that provides high economic and social value.
The need for more information about root mechanical characteristics is great. For example, Iran ranks within the top 10 countries for high risk of soil erosion and mass soil movement [25]. Annually, the estimated loss of fertile soil in Iran is one to five billion tons per year [26]. From the period 1996 to 2008, Iran recorded 4900 landslides, and even though these landslides were often shallow in nature [25,27], they caused about 30 billion US dollars of damage [25]. Forestry and natural hazards policies need to be based on the scientific background, which can support the decision makers and forest managers. A simple and reliable quantification of the effect of forests on different types of natural hazards is a key step in order to define a comprehensive and feasible risk mitigation strategy. Such issues still remain largely unsolved globally, especially in temperate forests. Vegetation restoration and forest management are important for the mitigation of such phenomena and preventing hazards, mostly through the impact of the reinforcement exerted by root systems [28,29].
Thus, toward providing a fundamental contribution in the quantification afforded by fine roots against a shallow landslide hazard, our study objective was to assess the most important factors that influence tensile force variability within the roots of the most widespread Iranian tree species in the Caspian Hyrcanian Ecoregion. We explored root tensile force in Carpinus betulus L. and Fagus orientalis L.; these two species were selected because they are the most common species in the Hyrcanian forests and can be found from Europe to the Caucasus and northern Iran [30]. F. orientalis is a shade-tolerant species whereas C. betulus is semi-shade tolerant [31]. In the Hyrcanian forests of Iran, more than 80 species can be found on typical sites; F. orientalis accounts for about 18% of the total forest area, 30% of the standing volume, and 24% of the stem number whereas C. betulus contributes 30% of the standing volume and 30% of the total stem number [30].

2. Materials and Methods

2.1. Study Site and Species

Our study site is located in Mazandran Province, northern Iran, within the Hyrcanian Ecoregion along the southern shore of the Caspian Sea. In particular, our sites are in the ~8000 ha Kheyrud Forest (Lat. 36°33′41″ to 36°33′51″ N; Long. 50°33′14″ to 103 50°33′28″ E; WGS84), classified as temperate deciduous forest [31]. Meteorological records from 1961 to 2015 (Nowshahr Meteorological Station: Lat. 36°38′56″ N; Long. 51°29′20″ E; 23 m a.s.l, 7 Km from study area) characterized the mean annual precipitation as 1300 mm, with the heaviest precipitation in fall. October is the wettest month (average 235 mm) and the driest (average 42 mm) is August. The coldest and warmest months are February (7.1 °C) and August (25.1 °C), respectively. The site has a relatively thin soil mantle, and the lithological substrate is mainly calcareous parent material (Jura, Cretaceous) that contains discontinuities and a large number of cracks that can be penetrated by roots [32,33]. The soil in the study site is an Alfisol without any diagnostic horizons [34].
Within the Kheyrud Forest, we collected root samples from three districts (Patom, Namkhane, and Chelir; Figure 1) to compare the effects of different regional environmental factors. These districts, hereafter study sites, range from low elevation (400 m a.s.l.) with the highest mean temperature and lowest annual precipitation (Patom, Lat. 36°36′54″ N; Long. 51°33′49″ E) to mid-elevation (950 m; Namkhane, Lat. 36°33′54″ N; Long. 51°36′09″ E) to the highest elevation (1300 m) having the lowest mean temperature and greatest annual precipitation (Chelir, Lat. 36°32′02″ N; Long. 51°40′24″ E) [35]. These study sites also have different soil properties (Table 1). Soil properties at the three study sites were presented in Table 1 [36]. According to the unified soil classification system [37], the soils on the three study sites were clay with high plasticity (e.g., CH) [36].

2.2. Sampling Design

Three classes of tree diameter at breast height (DBH) (small = 7.5–32.5 cm, medium = 32.6–57.5 cm, and large = 57.6–82.5 cm) were defined to compare the effects of this parameter [39]. On each of the three study sites and for each of three DBH classes, we randomly selected five trees (with at least 6 m distance between trees) for each species (three sites × three DBH classes × five trees × two species = 90 trees total).
Root samples were collected randomly from the soil (0.5 to 1.5 m from the stem) by excavating pits beside the trees at a depth of about 30 cm below the soil surface and from upslope and downslope of the stem [14]. For each species, site, DBH class, and slope position, we collected about 60 root samples (Table 2). At the end of each day of sampling, a 15% alcohol solution was sprayed on roots in order to prevent mould and microbial degradation [17,40], and treated roots were placed into plastic bags and refrigerated (4 °C) until tested; time between sampling and testing in the laboratory was about 48 h.
Tensile tests were performed using a Universal Testing Machine (SMT-5, SANTOM Co., Tehran, Iran), equipped with 500 kg maximum-capacity load cell (Full Scale, F.S. = accuracy of 0.1% of F.S). Roots with a length of 10 cm and diameters ranging from 0.02 mm to 7.99 mm were clamped into position as vertical as possible within the load cell axis. Roots with diameters more than 8 mm could not be tested due to clumping problems [41]. A strain rate of 10 mm/min [42,43,44] was applied until breakage occurred; breakage near the middle of the root between the clamps was considered a valid test [45], whereas when breakage occurred proximate to the clamps or breakage was due to slippage or crushing by the clamps, the samples were deemed invalid and discarded (Figure 2). The tensile force (N) was taken as the maximum load at the rupture point. Root diameter was measured at three points near the breaking section [40]. For each site, we obtained 336 valid tests for each species (2016 valid root samples; Table 2).

2.3. Statistical Analysis

Analysis of covariance (ANCOVA) was used to test the effects of slope position, DBH, and study site on root tensile force. The normality and homogeneity of data were tested before proceeding with the analysis and, as a result, log transformation was necessary to normalize the data. Preliminary use of the ANCOVA revealed that DBH classes and root diameter should be considered as covariate factors, as this model yielded the lowest residuals. Therefore, maximum tensile force was a function of species, slope position, and their interaction. Eta-squared (η2) was calculated as a measure of the effect of the parameters on the tensile force.
An analysis of residuals was performed to compare the difference between the fitting curves of each dataset as a function of root diameter. The relationships between tensile force–root diameter were interpreted through a regression, which has been proven to be a power-law function [15,40,46]. To obtain the power-law regression coefficients (i.e., F0 and α), a nonlinear least square method was completed using R software (www.r-project.org, R version 3.3.2, University of Auckland, Auckland, New Zealand). In order to visualize whether or not the differences between datasets are significant, ∆Fit and sum of 95% confidence interval (CI) were calculated and compared as shown in Figure 3.

3. Results

3.1. ANCOVA

A separate covariate analysis for each site revealed that species, slope position, DBH, root diameter, and the interaction of species and slope position were significant (p < 0.05) for the tensile force (N) required to break roots (Table 3), except that the interaction was not significant at Namkhane, only at Chelir and Patom. Regardless of site, F values indicate that tensile force was influenced more by root diameter (F=4892) than by species or DBH, and the effect of slope position had the least effect on tensile strength (F=23) (Table 3). The eta-squared (η2) values indicate that root diameter explains more than 90% of the variance in the studied sites (Table 3).

3.2. Species

Tensile force values for F. orientalis at Chelir, regardless of DBH class, and in the medium DBH class at Patom, were higher than those for C. betulus (Figure 4). The slope of regression (F0) is almost the same for F. orientalis and C. betulus trees in the smallest DBH class at Namkhane and Patom. In the case of trees with the largest DBH at Namkhane and Patom, as well as those with medium DBH at Namkhane, the tensile force values of C. betulus are higher than those of F. orientalis (Figure 4). The variability of tensile force within a given species is high because of the wide range of root diameters and different soil properties in these study sites. According to Table 4, significant power-law regressions were observed about the relationship between tensile force and root diameter in all scenarios (p < 0.05). For C. betulus, F0 ranges from 13.75 (Chelir site-small DBH) to 76.75 (Namkhane site-medium DBH). The corresponding values for F. orientalis were 28.01 (Chelir site -small DBH) and 53.84 (Chelir site-medium DBH) (Table 4). Our results showed that α fluctuates from 1.12 (Namkhane site-large DBH) to 1.41 (Patom site-small DBH) for C. betulus. For F. orientalis, α variability is higher than that for C. betulus, as the highest and lowest α were 0.96 (Patom site-small DBH) and 1.29 (Chelir site-small DBH), respectively (Table 4).
For tensile force (N), the ANCOVA revealed that at least one species was significantly different on one of the sites (Table 3). With the data for both species combined, we observed that tensile force was not significantly different for trees with large DBH at all three sites and the medium DBH trees at Patom (as evidenced by the overlap of the ΔFit values and sum of the single tail CI-95% values across the range of root diameter classes; Figure 5). Moreover, it was also not significantly different for trees with small DBH at Namkhane and Patom (i.e., ΔFit values are well below the CI-95% values). In contrast, we found a significant difference in tensile force for trees in the small and medium DBH classes at Chelir and in the medium DBH class at Namkhane (i.e., ΔFit values exceed the CI-95% values).

3.3. Slope Position

For both species, and across sites and DBH classes, the slope of regression (F0) for tensile force by increasing root diameter ranged from 19.66 to 47.01 downslope and 26.88 to 54.84 upslope, and α ranged from 1.08 to 1.29 downslope and 1.12 to 1.24 upslope (Table 5). F0 is slightly higher in the upslope position than in the downslope position at Chelir and Namkhane for C. betulus and at Namkhane and Patom for F. orientalis (Figure 6 and Table 5). Regression slopes for upslope and downslope positions were similar at Patom for C. betulus and for F. orientalis at Chelir (Figure 6 and Table 5). Moreover, significant power-law regressions were observed for the relationship between tensile force and root diameter in all scenarios (p < 0.05; Table 5). Downslope, α is higher than that for upslope for both species across three study sites, and it ranged from 1.23< α <1.29 and 1.08< α <1.20 for C. betulus and F. orientalis, respectively (Table 5).
In general, the one-tail confidence intervals (CI) overlap by more than 2.5%, indicating that the differences in the measured maximum tensile forces upslope and downslope were low (Figure 7). For five combinations of species and site (Carpinus-Chelir; Carpinus-Namkhane; Carpinus-Patom; Fagus-Chelir; Fagus-Namkhane), slope position had no significant effect on tensile force by root diameter class (i.e., ΔFit values are well below the CI-95% values) (Figure 7).

3.4. DBH

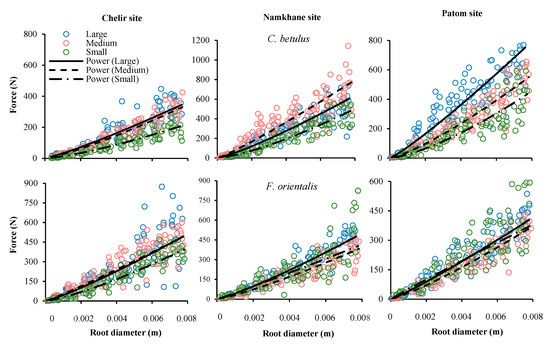

Significant power-law regressions were found observed for the relationship between tensile force and root diameter for all DBH classess (Table 4). At the three study sites, and for both species, unknown trends were observed for F0 values; the exception was for small DBH classes of C. betulus that had the lowest F0 values for this species (Table 4). The F0 of large trees increased slightly at all sites except Namkhane for C. betulus and for F. orientalis at Chelir (Figure 8). For C. betulus, α value within a small DBH class is higher than other DBH classes, whereas no obvious trends were observed for F. orientalis (Table 4).

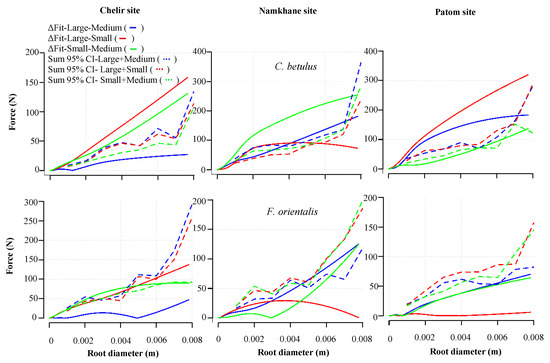

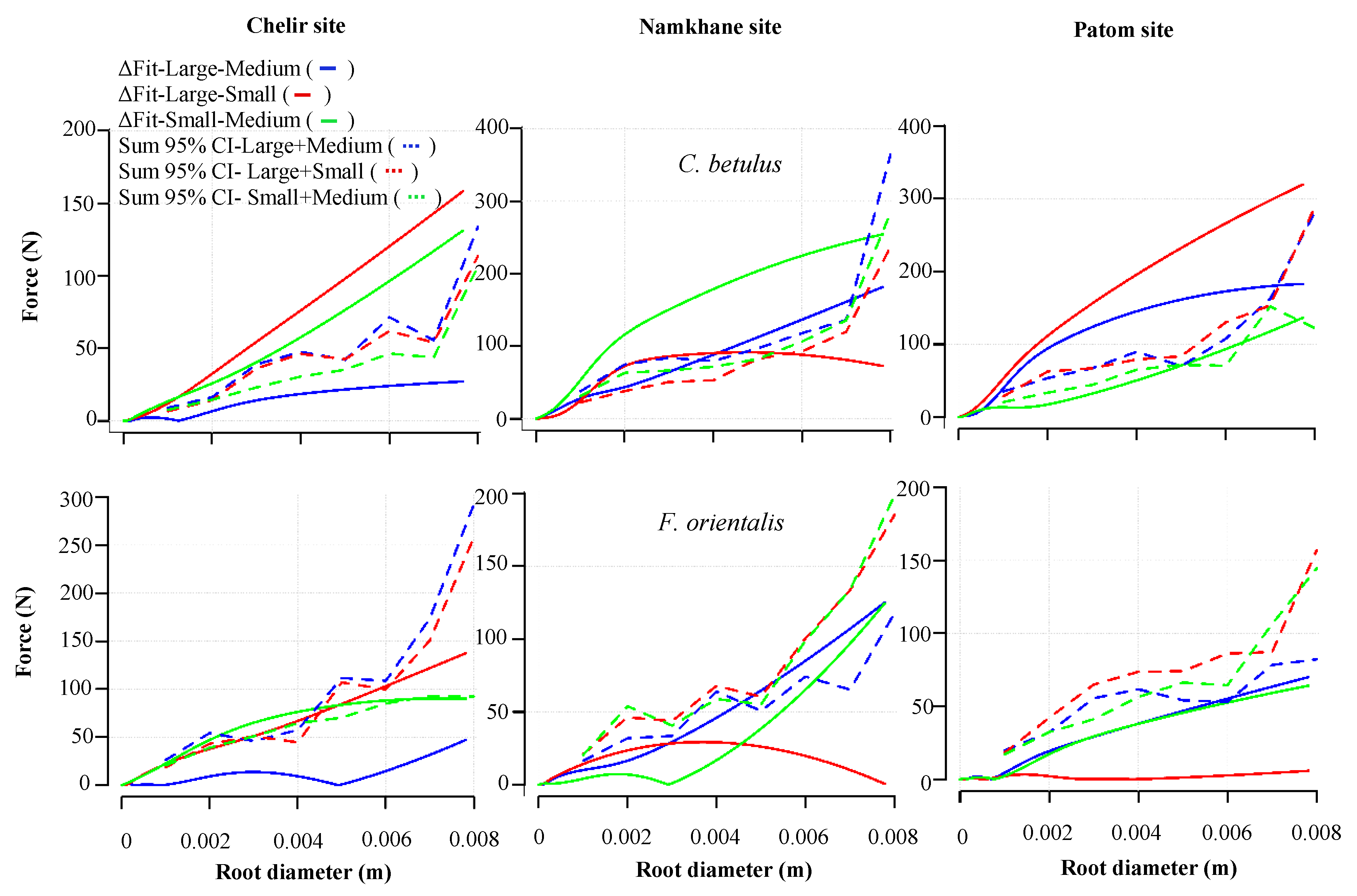

Figure 9 shows the differences between the fitting curves of tensile force vs. root diameter for both species with the three DBH classes on the three study sites. The fitting curves for small and medium, small and large, and medium and large DBH classes were significantly different at all three sites for C. betulus, except at Chelir site, where the curves for medium and large were not significantly different (Figure 9). Furthermore, the curves for small and large and medium and large measurements at Namkhane site and small and medium at Patom site overlap for most of the root diameter classes with a probability lower than 2.5% (Figure 9). The fitting curves for small and medium, small and large, and medium and large DBH classes of F. orientalis at Chelir and Namkhane sites are not significantly different (Figure 9). Small and medium and small and large measurements at Chelir, and medium and large at Namkhane site, overlap for most of the root diameters, although, in the case of Patom site, ΔFit is higher than sum of single tail CI-95% (Figure 9). Results of the ANCOVA test showed that the effect of DBH classes on tensile force was significant (Table 3). F values of ANCOVA test among DBH classes ranged from 33.46 (Namkhane site) to 312.01 (Chelir site) (Table 3).

3.5. Study Sites

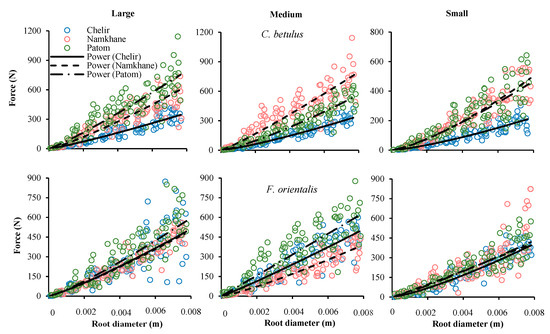

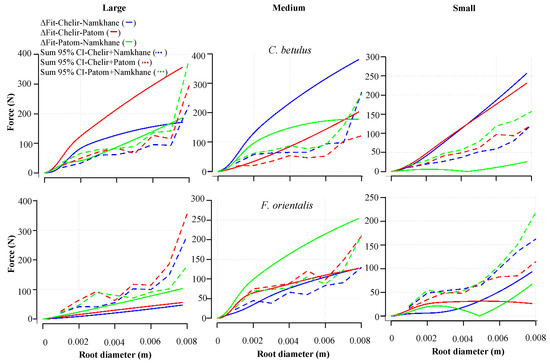

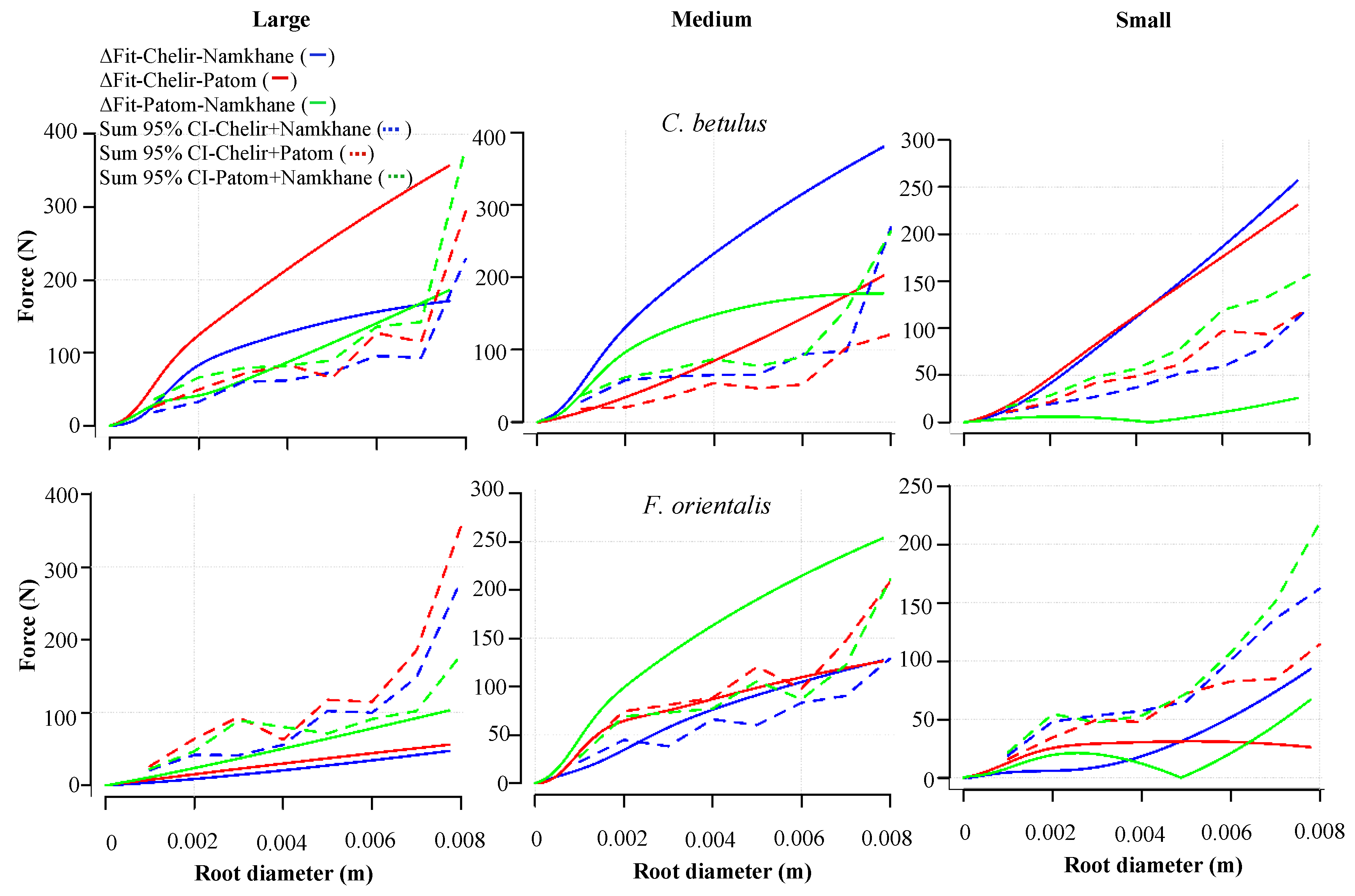

To evaluate the influence of site on the tensile force–root diameter relationship within each species, data from the different sites were plotted and compared, revealing that tensile force increased slightly at different study sites (Figure 10). Significant power-law regressions were observed about the relationship between tensile force and root diameter across study sites (p < 0.05; Table 4). For C. betulus, F0 at Patom site is higher than other sites, while no obvious trends were found for F. orientalis (Table 4). For C. betulus, the α value observed at the Patom site was greater than that observed on the Chelir and Namkhane sites (Table 4). For F. orinetalis, the α value at Namkhane site was greater than that at other sites, except within the small DBH class (Table 4).
For C. betulus, we observed that tensile force was significantly different among Chelir and Namkhane, Chelir and Patom, within all DBH classes (i.e., ΔFit values exceed the CI-95% values), whereas tensile force was not significantly different for large, medium (as evidenced by the overlap of the ΔFit values and sum of the single tail CI-95% values across the range of root diameter classes), and small (i.e., ΔFit values are well below the CI-95% values) trees of Patom and Namkhane (Figure 11). Within the data for F. orientalis, tensile force within the medium DBH class at Patom and Namkhane was significant (Figure 11). No significant differences were observed, however, between large and small diameter trees at all sites, medium trees at Chelir and Namkhane, or any trees at Chelir and Patom (Figure 11).

4. Discussion

To the best of our knowledge, existing research in the Caspian Hyrcanian Ecoregion on root mechanical characteristics consists of case studies with small datasets focused only on the effects of different species on root mechanical characteristics. The novelty of our research is the broadening of the scope and relevance of root mechanical characteristics. This was achieved through a robust sample of roots (2016 samples) across a variety of DBH classes, elevational gradients, and slope positions of the roots of two common species.
Deciduous broadleaf species characterized by an intensive development of fine roots in the upper soil layer instantly linked to different factors such as climate, age, DBH, and stand composition [47]. Root reinforcement has been noticed as one of the key factors when dealing with slope stability issues and landslides safety, thereby becoming one of the criteria in managing forests against natural hazards [10,11]. Large roots anchor the soil, especially across planes of weakness, and fine roots provide an extensive network that increases soil shear strength [6,48,49]. While coarse roots (>10 mm) have a higher impact on root reinforcement than fine roots [6,7], fine roots are more numerous and occupy a larger area around the tree on slopes than do coarse roots [50], playing a key role in slope stability. Most of the scientists consider that fine and thin roots (<10 mm), which act as tensile fibers during slope failures, provide the major contribution to slope stability [15,16,17,51]. Large numbers of fine roots could limit the number of cracks occurring on the surface soil, thereby stabilizing the shallow soil more effectively than a small number of coarse roots, which can slip out of the soil upon soil mass sliding [13,52,53].
In older models of root reinforcement, maximum tensile strength of roots was used to describe their mechanical characteristics [54]. Maximum tensile strength is calculated using root diameter and maximum tensile force (the force required to break roots), the later also being calculated in relation to root diameter. Recently, mechanical tensile force has been used independent of tensile strength to describe the mechanical characteristics of roots [7,55]. In our study, our models also focused solely on the tensile force of fine roots to examine their potential contribution to soil reinforcement. We did so to alleviate using the root diameter twice for each observation, which can add uncertainty to the models because of the difficulty involved in accurately determining the very small diameters we studied [40,44]. In this study, roots larger than 8 mm were not tested, therefore, the results of the maximum tensile force will be different if coarse roots are considered in the analysis.
We found a significant relationship between root diameter and tensile force, confirming that root tensile force strongly depends on root size, and similar to the findings of many researchers [15,40,44,46,51,56,57]. This supports the necessity to take the root diameter into account as a covariate for root tensile force analyzing [9,20,40,58]. Moreover, our results show that root tensile force increases with rising root diameter regardless of species, DBH class, or elevation, similar to the results of other studies [6,7,8,43,57].
In most cases, F. orientalis, with higher root resistance than C. betulus, may be preferred in soil bioengineering systems. Perhaps this type of effect is related to species-specific tree longevity. Alidadi [59] showed that F. orientalis had a significantly higher longevity than C. betulus, and Abdi [60] observed that F. orientalis roots were stronger than those of C. betulus of unspecified DBH in the Kheyrud forest. Our results, which included discrete DBH classes, were similar. Moreover, our comparisons of tensile force vs. root diameter for these two species are similar to those observed in other studies (F. sylvatica [22,40,61]; C. betulus [40]).
We did not, however, note any differences in root-system mechanical resistance on the basis of slope position. This contrasts with the results of Stokes [62], where resistance was greater in the upslope position compared to the downslope position but concurs with Khuder et al. [63] and Genet et al. [64], who observed that no differences occur in the mechanical properties of the roots in different positions around the root system. Commonly, it is believed that no general rule exists to explain the differences in root growth and mechanical properties on the slope, similar to our results. Although earlier studies examined a variety of parameters on root tensile force (e.g., slope position, species, soil types) [9,10,42,51,53,56,58,62]; to the best of our knowledge, we are the first to attempt to examine the interactions of these parameters. Our finding of an interaction between species and slope positions on two of three sites (i.e., Chelir and Patom) suggests that the effective parameters on root tensile force are various and complex.
In general, we found that the roots of the trees with larger DBH were more resistant in tension compared with the roots of the medium or small DBH classes, which concurs with [11]. This may be explained by the report of [65], who showed that root resistance was lower in the early growth stage and increased in older plants.
For the same root diameter, the force needed to break a root was found to decrease with increasing elevation above sea level [64]. Whenever the tensile strength of the roots decreases, the root system may adapt based on the situation, and therefore tree anchorage is not comprised [64]. Adaption of the root system architecture to external stimuli in response to mechanical force was recently shown as the initiation of new coarse roots [66]. This potential of adaptation based on the environmental conditions is termed “morphoplasticity” [67] or “phenotypic plasticity” and results in asymmetric root distribution [66,67,68,69,70]. Our results showed that for C. betulus and F. orientalis the root tensile force is notably different from one site to another site, although further assessment on root system architecture is necessary to determine whether any decrease in root resistance associated with increasing elevation was compensated by morphological adaptation. These findings are similar to those of other studies performed on a single species [64] or in a small area [71]. These authors attributed site differences to elevation and the position of the sampling on hillslope. Genet et al. [65], found a significant difference for the same species sampled at different locations, but the elevation between their locations was much greater than those in our study. However, in contrast with the results of Genet et al. [65], the maximum tensile force of roots of Castanea sativa Mill. did not differ between the two sites under consideration [7]. The mechanical properties of roots between sites with different soil water content regimes differed significantly [23]. Vergani et al. [40] clarified that the comparisons of sites’ relationships for different species remarkably are a consequence of varying conditions of the growing sites and environment. It is discussed that alterations in root mechanical resistance with increasing elevation were due to modification in soil’s chemical and physical properties [64]. On our sites, however, the physical characteristics are almost the same in different sites, although chemical properties showed differences in nitrogen, phosphorus, potassium, carbon, nitrogen, and organic matter (Table 1), making it difficult to reach any conclusion. Different levels of soil compaction did not significantly affect the root resistance in the woody plants Acacia senegal L. and Prosopis juliflora DC. [72]. Goodman and Ennos [73] demonstrated, however, that the roots of two annual plants, Zea mays L. and Helianthus annuus L., either became stiffer or were unchanged, respectively, when growing in soil with low bulk density Moreover, Jourgholami et al. [74] investigated the ratio of lateral to main root length, which is significantly reduced in high intensity compaction in comparison with control treatment, although the ratio of lateral to main root biomass was not significant among different soil compaction treatments. Accordingly, to prove if soil physical characteristics affect root resistance and mechanical properties, further studies are required.
The increased tensile force with increasing root diameter, slope position, tree age and longevity, and elevation has been attributed to a greater cellulose content as a function of root size, environmental stimuli, or genetics [22,41,42,65,71,75,76]. Consequently, analyzing the cellulose content of roots for different size, DBH, slope position, and age classes would be a valuable addition to the literature.

5. Conclusions

This study provides a comprehensive analysis of root tensile force variation of two common species, Carpinus betulus and Fagus orientalis, across differing DBH classifications, slope positions, and study site elevations within a temperate deciduous forest. Our results identified that the main factors affecting variability in fine root tensile force are the tree species and the DBH of the sampled tree. Study site location had an effect on root tensile force only for C. betulus. No differences in tensile force were found for roots growing upslope or downslope of the tree stem. This information is useful for scientists and forest land managers in order to evaluate the variability in root reinforcement due to different factors, and to account for this uncertainty when evaluating the effectiveness of slope stabilization using biological engineering measures. The selection of a species in a region can cause changes in soil reinforcement and slope stability. Understanding the relationship between tree species and soil bioengineering and the impact of different DBH classes on these processes can be useful for forest management and the selection of appropriate species for reforestation projects. In the Caspian Hyrcanian Ecoregion, F. orientalis, with a higher fine root resistance than C. betulus, may be preferred in soil bioengineering systems.

Author Contributions

Conceptualization, A.D., E.A. and M.S.; methodology, A.D. and M.S.; software, A.D., M.S. and H.S.; formal analysis, A.D.; data curation, A.D., H.S. and M.S.; writing—original draft preparation, A.D., E.A., M.S. and R.K.D.; writing—review and editing, R.K.D.; supervision, E.A. and B.M.; project administration, E.A. and B.M.; funding acquisition, E.A. and R.K.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Iran National Science Foundation (INSF), grant number 93022486.

Acknowledgments

The research was funded by the University of Tehran. The authors express their sincere appreciation to Seyed Mohammad Moein Sadeghi, Rahmatollah Ghomi, Habib Zalnezhad, Ghodrat Daneshvar, Nasrollah Ebrahimpour, and Gholi Kalantaj who assited with field work. The authors also thank Seyed Mohammad Moein Sadeghi, Soghra Keybondori, Fardin Moradi, Fardin Moradzadeh, and Abasalt Tarverdi for laboratory support. Additional support was provided by the USDA Forest Service, National Center for Reforestation, Nurseries, and Genetic Resources and the Rocky Mountain Research Station. The views expressed are strictly those of the authors and do not necessarily represent the positions or policy of their respective institutions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mickovski, S.B.; Gonzalez-Ollauri, A.; Tardio, G. Novel approaches to quantification of the vegetation effects on soil strength. In Proceedings of the 19th International Conference on Soil Mechanics and Geotechnical Engineering, Seoul, Korea, 17–22 September 2017. [Google Scholar]
  2. Schwarz, M.; Phillips, C.; Marden, M.; McIvor, I.R.; Douglas, G.B.; Watson, A. Modelling of root reinforcement and erosion control by Veronese poplar on pastoral hill country in New Zealand. N. Z. J. For. Sci. 2016, 46, 4. [Google Scholar] [CrossRef] [Green Version]
  3. Sidle, R.C.; Bogaard, T.A. Dynamic earth system and ecological controls of rainfall-initiated landslides. Earth-Sci. Rev. 2016, 159, 275–291. [Google Scholar] [CrossRef]
  4. Stokes, A.; Atger, C.; Bengough, A.G.; Fourcaud, T.; Sidle, R.C. Desirable plant root traits for protecting natural and engineered slopes against landslides. Plant Soil 2009, 324, 1–30. [Google Scholar] [CrossRef]
  5. Schwarz, M.; Rist, A.; Cohen, D.; Giadrossich, F.; Egorov, P.; Buttner, D.; Stolz, M.; Thormann, J.J. Root reinforcement of soils under compression. J. Geophys. Res. Earth Surf. 2015, 120, 2103–2120. [Google Scholar] [CrossRef] [Green Version]
  6. Vergani, C.; Giadrossich, F.; Buckley, P.; Conedera, M.; Pividori, M.; Salbitano, F.; Rauch, H.S.; Lovreglio, R.; Schwarz, M. Root reinforcement dynamics of European coppice woodlands and their effect on shallow landslides: A review. Earth-Sci. Rev. 2017, 167, 88–102. [Google Scholar] [CrossRef]
  7. Dazio, E.; Conedera, M.; Schwarz, M. Impact of different chestnut coppice managements on root reinforcement and shallow landslide susceptibility. For. Ecol. Manag. 2018, 417, 63–76. [Google Scholar] [CrossRef]
  8. Schwarz, M.; Giadrossich, F.; Cohen, D. Modeling root reinforcement using a root failure weibull survival function. Hydrol. Earth Syst. Sci. 2013, 17, 4367–4377. [Google Scholar] [CrossRef] [Green Version]
  9. Moresi, F.V.; Maesano, M.; Matteucci, G.; Romagnoli, M.; Sidle, R.C.; Scarascia Mugnozza, G. Root biomechanical traits in a montane Mediterranean forest watershed: Variations with species diversity and soil depth. Forests 2019, 10, 341. [Google Scholar] [CrossRef] [Green Version]
  10. Tsige, D.; Senadheera, S.; Talema, A. Stability analysis of plant-root-reinforced shallow slopes along mountainous road corridors based on numerical modeling. Geosciences 2020, 10, 19. [Google Scholar] [CrossRef] [Green Version]
  11. Cohen, D.; Schwarz, M. Tree-root control of shallow landslides. Earth Surf. Dyn. 2017, 5, 451–477. [Google Scholar] [CrossRef] [Green Version]
  12. Roering, J.; Schmidt, K.M.; Stock, J.D.; Dietrich, W.E.; Montgomery, D.R. Shallow landsliding, root reinforcement, and the spatial distribution of tress in the Oregon Coast range. Can. Geotech. J. 2003, 40, 237–253. [Google Scholar] [CrossRef] [Green Version]
  13. Loades, K.; Bengough, A.; Bransby, M.; Hallett, P. Planting density influence on fibrous root reinforcement of soils. Ecol. Eng. 2010, 36, 276–284. [Google Scholar] [CrossRef]
  14. Mao, Z.; Wang, Y.; McCormack, M.L.; Rowe, N.; Deng, X.; Yang, X.; Xia, S.; Nespoulous, J.; Sidle, R.C.; Guo, D.; et al. Mechanical traits of fine roots as a function of topology and anatomy. Ann. Bot 2018, 122, 1103–1116. [Google Scholar] [CrossRef]
  15. Genet, M.; Stokes, A.; Fourcaud, T.; Norris, J.E. The influence of plant diversity on slope stability in a moist evergreen deciduous forest. Ecol. Eng. 2010, 36, 265–275. [Google Scholar] [CrossRef]
  16. Abdi, E.; Majnounian, B.; Genet, M.; Rahimi, H. Quantifying the effects of root reinforcement of Persian ironwood (Parrotia persica) on slope stability; a case study: Hillslope of Hyrcanian forests, Northern Iran. Ecol. Eng. 2010, 36, 1409–1416. [Google Scholar] [CrossRef]
  17. Bassanelli, C.; Bischetti, G.B.; Chiaradia, E.A.; Rossi, L.; Vergani, C. The contribution of chestnut coppice forests on slope stability in abandoned territory: A case study. JAE 2013, 44, 68–73. [Google Scholar] [CrossRef]
  18. Styczen, M.E.; Morgan, R.P.C. Engineering Properties of Vegetation; Taylor & Francis: London, UK, 1995. [Google Scholar]
  19. O’Loughlin, C.L.; Watson, A. Root-wood strength deterioration in radiata pine after clearfelling. N. Z. J. For. Sci. 1979, 9, 284–293. [Google Scholar]
  20. Hales, T.; Cole-Hawthorne, C.; Lovell, L.; Evans, S.L. Assessing the accuracy of simple field based root strength measurements. Plant Soil 2013, 372, 553–565. [Google Scholar] [CrossRef]
  21. Zhang, C.B.; Chen, L.H.; Jiang, J. Why fine tree roots are stronger than thicker roots: The role of cellulose and lignin in relation to slope stability. Geomorphology 2014, 206, 196–202. [Google Scholar] [CrossRef]
  22. Genet, M.; Stokes, A.; Salin, F.; Mickovski, S.B.; Fourcaud, T.; Dumail, J.F.; Van Beek, R. The influence of cellulose content on tensile strength in tree roots. Plant Soil 2005, 278, 1–9. [Google Scholar] [CrossRef]
  23. Hales, T.C.; Miniat, C.F. Soil moisture causes dynamic adjustments to root reinforcement that reduce slope stability. Earth Surf. Process. Landforms. 2017, 42, 803–817. [Google Scholar] [CrossRef] [Green Version]
  24. Dobson, M. Tree root system. Arboric 1995, 130, 1–6. [Google Scholar]
  25. Yarahmadi, J.; Rostaei, S.H.; Sharifikia, M.; Rostaei, M. Identifying and monitoring slope instability by using Differential SAR Interferometry, case study: Garmichay watershed, Miyane. JQGR 2015, 3, 44–59. [Google Scholar]
  26. Khajavi, E.; Arabkhedri, M.; Mahdian, M.H.; Shadfar, S. Investigation of Water Erosion and Soil Loss Values with using the Measured Data from Cs-137 Method and Experimental Plots in Iran. JWMR 2015, 6, 137–151. [Google Scholar]
  27. Karam, A. Quantitive Modelling and Landslide Risk Zonation in Faulted Zageros, Case Study: Sarkhon Basin in Char-Mahal-e-Bakhteyari. Ph.D. Thesis, Tarbiat Modares University, Noor, Iran, 2001. [Google Scholar]
  28. Sakals, M.E.; Sidle, R.C. A spatial and temporal model of root cohesion in forest soils. Can. J. For. Res. 2004, 34, 950–958. [Google Scholar] [CrossRef]
  29. Burylo, M.; Hudek, C.; Rey, F. Soil reinforcement by the roots of six dominant species on eroded mountainous marly slopes (Southern Alps, France). Catena 2011, 84, 70–78. [Google Scholar] [CrossRef]
  30. Sagheb-Talebi, K.; Sajedi, T.; Pourhashemi, M. Forests of Iran: A Treasure from the Past, a Hope for the Future; Springer: Berlin/Heidelberg, Germany, 2014. [Google Scholar]
  31. Marvie-Mohadjer, M.R. Silviculture, 5th ed.; University of Tehran Press: Tehran, Iran, 2019; p. 418. [Google Scholar]
  32. Deljouei, A.; Abdi, E.; Marcantonio, M.; Majnounian, B.; Amici, V.; Sohrabi, H. The impact of forest roads on understory plant diversity in temperate hornbeam-beech forests of Northern Iran. Environ. Monit. Assess. 2017, 189, 392. [Google Scholar] [CrossRef]
  33. Deljouei, A.; Sadeghi, S.M.M.; Abdi, E.; Bernhardt-Römermann, M.; Pascoe, E.L.; Marcantonio, M. The impact of road disturbance on vegetation and soil properties in a beech stand, Hyrcanian forest. Eur. J. For. Res. 2018, 137, 759–770. [Google Scholar] [CrossRef]
  34. Soil Survey Staff. Soil Characterization and Profile Description Data; Soil Survey Laboratory, Natural Resources Conservation Service, USDA: Lincoln, NE, USA, 1995.
  35. Azaryan, M.; Marvie-Mohadjer, M.R.; Etemaad, V.; Shirvany, A.; Sadeghi, S.M.M. Morphological characteristics of old trees in Hyrcanian forest (Case study: Pattom and Namkhaneh districts, Kheyrud). JFWP 2015, 68, 47–59. [Google Scholar]
  36. Deljouei, A. Spatial Dynamics of Soil Reinforcement Due to Presence of Roots in Hyrcanian Forest (Case Study: Kheyroud Forest). Ph.D. Thesis, University of Tehran, Karaj, Iran, 2019. [Google Scholar]
  37. ASTM. ASTM D4318-00. In Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils, Annual Book of ASTM Standards; American Society for Testing and Materials: West Conshohocken, PA, USA, 2003; Volune 04.08, pp. 582–595. [Google Scholar]
  38. Anonymous. Technical Memo No. 3-357. In The Unified Soil Classification System; United States Army Corps of Engineers: Vicksburg, MS, USA, 1957.
  39. Sagheb-Talebi, K.; Eslami, A. Nature-based silviculture—How can we achieve the equilibrium state in uneven-aged oriental beech stands? In Proceedings of the 8th International Symposium, Hokkaido, Japan, 8–13 September 2008. [Google Scholar]
  40. Vergani, C.; Chiaradia, E.; Bischetti, G. Variability in the tensile resistance of roots in alpine forest tree species. Ecol. Eng. 2012, 46, 43–56. [Google Scholar] [CrossRef]
  41. De Baets, S.; Torri, D.; Poesen, J.; Meersmans, J. Modelling increased soil cohesion due to roots with EUROSEM. Earth Surf. Process. Landforms. 2008, 33, 1948–1963. [Google Scholar] [CrossRef]
  42. Chiaradia, E.A.; Vergani, C.; Bischetti, G.B. Evaluation of the effects of three European forest types on slope stability by field and probabilistic analyses and their implications for forest management. For. Ecol. Manag. 2016, 370, 114–129. [Google Scholar] [CrossRef]
  43. Vergani, C.; Schwarz, M.; Soldati, M.; Corda, A.; Giadrossich, F.; Chiaradia, E.A.; Morando, P.; Bassanelli, C. Root reinforcement dynamics in subalpine spruce forests following timber harvest: A case study in Canton Schwyz, Switzerland. Catena 2016, 143, 257–288. [Google Scholar] [CrossRef] [Green Version]
  44. Gilardelli, F.; Vergani, C.; Gentili, R.; Bonis, A.; Pierre, C.; Sandra, C.; Chiaradia, E.A. Root characteristics of herbaceous species for topsoil stabilization restoration in projects. Land Degrad. Dev. 2017, 28, 2074–2085. [Google Scholar]
  45. Abdi, E. Effect of oriental beech root reinforcement on slope stability (Hyrcanian Forest, Iran). J. For. Sci. 2014, 60, 166–173. [Google Scholar] [CrossRef] [Green Version]
  46. Nilaweera, N.; Nutalaya, P. Role of tree roots in slope stabilisation. Bull. Eng. Geol. Environ. 1999, 57, 337–342. [Google Scholar] [CrossRef]
  47. Yuan, Z.Y.; Chen, H.Y.H. Fine root biomass, production, turnover rates, and nutrient contents in boreal forest ecosystems in relation to species, climate, fertility, and stand age: Literature review and meta-analyses. Crit. Rev. Plant Sci. 2010, 29, 204–221. [Google Scholar] [CrossRef]
  48. Sidle, R.C.; Ochiai, H. Landslides: Processes, Prediction and Land Use; American Geographical Union: Washington, DC, USA, 2006. [Google Scholar]
  49. Forbes, K.; Broadhead, J. Forest and landslides. In The Role of Trees and Forests in the Prevention of Landslides and Rehabilitation of Landslide-Affected Areas in Asia; RAP Publication: Bangkok, Thailand, 2013. [Google Scholar]
  50. Schwarz, M.; Cohen, D.; Or, D. Root-soil mechanical interactions during pullout and failure of root bundles. J. Geophys. Res. 2010, 115, F4. [Google Scholar] [CrossRef] [Green Version]
  51. Abdi, E. Root tensile force and resistance of several tree and shrub species of Hyrcanian forest, Iran. Croat. J. For. Eng. 2018, 39, 255–270. [Google Scholar]
  52. Comino, E.; Marengo, P.; Rolli, V. Root reinforcement effect of different grass species: A comparison between experimental and models results. Soil Tillage Res. 2010, 110, 60–68. [Google Scholar] [CrossRef]
  53. Lee, J.T.; Chu, M.Y.; Lin, Y.S.; Kung, K.N.; Lin, W.C.; Lee, M.J. Root traits and biomechanical properties of three tropical pioneer tree species for forest restoration in landslide areas. Forests 2020, 11, 179. [Google Scholar] [CrossRef] [Green Version]
  54. Wu, T.H. No 5, Dpt. of Civil Engineering. In Investigation on landslides on Prince of Wales Island, Alaska Geotech Rpt; Ohio State University: Columbus, OH, USA, 1976. [Google Scholar]
  55. Schwarz, M.; Cohen, D.; Or, D. Spatial characterization of root reinforcement at stand scale: Theory and case study. Geomorphology 2012, 171, 190–200. [Google Scholar] [CrossRef]
  56. Abdi, E.; Deljouei, A. Seasonal and spatial variability of root reinforcement in three pioneer species of the Hyrcanian forest. Austrian J. For. Sci. 2019, 136, 175–198. [Google Scholar]
  57. Boldrin, D.; Leung, A.K.; Bengough, A.G. Root biomechanical properties during establishment of woody perennials. Ecol. Eng. 2017, 109, 196–206. [Google Scholar] [CrossRef] [Green Version]
  58. Abdi, E.; Saleh, H.R.; Majnounian, B.; Deljouei, A. Soil fixation and erosion control by Haloxylon persicum roots in arid lands, Iran. J. Arid. Land. 2019, 11, 86–96. [Google Scholar] [CrossRef] [Green Version]
  59. Alidadi, F. Decay Dynamic of Beech and Hornbeam Dead Trees in Mixed Beech (Fagus orientalis Lipsky) Stands. Master’s Thesis, University of Tehran, Karaj, Iran, 2014. [Google Scholar]
  60. Abdi, E. An Investigation of the Effect of Tree Roots in Slope Stability in Order to Use in Practical Forest Road Construction and Bioengineering. Ph.D. Thesis, University of Tehran, Karaj, Iran, 2009. [Google Scholar]
  61. Bischetti, G.B.; Chiaradia, E.A.; Epis, T.; Morlotti, E. Root cohesion of forest species in the Italian Alps. Plant Soil 2009, 324, 71–89. [Google Scholar] [CrossRef]
  62. Stokes, A. Biomechanics of tree root anchorage. In Plant Roots: The Hidden Half, 3rd ed.; Waisel, Y., Eshel, A., Kafkafi, U., Eds.; CRC Press: Boca Raton, FL, USA, 2002; pp. 175–186. [Google Scholar]
  63. Khuder, H.; Danjon, F.; Stokes, A.; Fourcaud, T. Growth response and root architecture of black locust seedlings growing on slopes and subjected to mechanical perturbation. In Proceedings of the 5th plant biomechanics conference, Stockholm, Sweden, 28 August–1 September 2006. [Google Scholar]
  64. Genet, M.; Li, M.; Luo, T.; Fourcaud, T.; Clément-Vidal, A.; Stokes, A. Linking carbon supply to root cell-wall chemistry and mechanics at high altitudes in Abies Georgei. Ann. Bot. 2011, 107, 311–320. [Google Scholar] [CrossRef] [Green Version]
  65. Genet, M.; Stokes, A.; Fourcaud, T.; Cai, X.; Lu, Y. Soil fixation by tree roots: Changes in root reinforcement parameters with age in Cryptomeria Japonica D. Don. In Plantations. Disaster Mitigation of Debris Flows, Slope Failures and Landslides; Universal Academy Press, Inc.: Tokyo, Japan, 2006; pp. 535–542. [Google Scholar]
  66. Montagnoli, A.; Terzaghi, M.; Chiatante, D.; Scippa, G.S.; Lasserre, B.; Dumroese, R.K. Ongoing modifications to root system architecture of Pinus ponderosa growing on a sloped site revealed by tree-ring analysis. Dendrochronologia 2019, 58, 125650. [Google Scholar] [CrossRef]
  67. Marler, T.E.; Discekici, H.M. Root development of ‘Red Lady’ papaya plants grown on a hillside. Plant Soil 1997, 195, 37–42. [Google Scholar] [CrossRef]
  68. Di Iorio, A.; Lasserre, B.; Scippa, G.S.; Chiatante, D. Root system architecture of Quercus pubescens trees growing on different sloping conditions. Ann. Bot. 2005, 95, 351–361. [Google Scholar] [CrossRef] [Green Version]
  69. Ganatsas, P.; Spanos, I. Root system asymmetry of Mediterranean pines. Plant Soil 2005, 278, 75–83. [Google Scholar] [CrossRef]
  70. Dumroese, R.K.; Terzaghi, M.; Chiatante, D.; Scippa, G.S.; Lasserre, B.; Montagnoli, A. Functional traits of Pinus ponderosa coarse-roots in response to slope conditions. Front. Plant Sci. 2019, 10, 947. [Google Scholar] [CrossRef] [Green Version]
  71. Hales, T.C.; Ford, C.R.; Hwang, T.; Vose, J.M.; Band, L.E. Topographic and ecologic controls on root reinforcement. J. Geophys. Res. Earth Surf. 2009, 114, F03013. [Google Scholar] [CrossRef] [Green Version]
  72. Ba, M. Etude des Proprietes Biomecaniques et de La Capacite de Vie Symbiotique de Racines D’arbres D’acacia Senegal Willd et de Prosopis juliflora DC. Ph.D. Thesis, University Bordeaux, Bordeaux, France, 2008. [Google Scholar]
  73. Goodman, A.M.; Ennos, A.R. The effects of soil bulk density on the morphology and anchor age mechanics of the root systems of sunflower and maize. Ann. Bot. 1999, 83, 293–302. [Google Scholar] [CrossRef] [Green Version]
  74. Jourgholami, M.; Khoramizadeh, A.; Zenner, E.K. Effects of soil compaction on seedling morphology, growth, and architecture of chestnut-leaved oak (Quercus castaneifolia). iForest Biogeosci. For. 2016, 10, 145–153. [Google Scholar] [CrossRef]
  75. Hathaway, R.L.; Penny, D. Root strength in some Populus and Salix clones. N. Z. J. Bot. 1975, 13, 333–344. [Google Scholar] [CrossRef] [Green Version]
  76. Genet, M.; Kokutse, N.; Stokes, A.; Fourcaud, T.; Cai, X.; Ji, J.; Mickovski, S. Root reinforcement in plantations of Cryptomeria japonica D. Don: Effect of tree age and stand structure on slope stability. For. Ecol. Manag. 2008, 256, 1517–1526. [Google Scholar] [CrossRef]
Forests 11 00345 g001 550

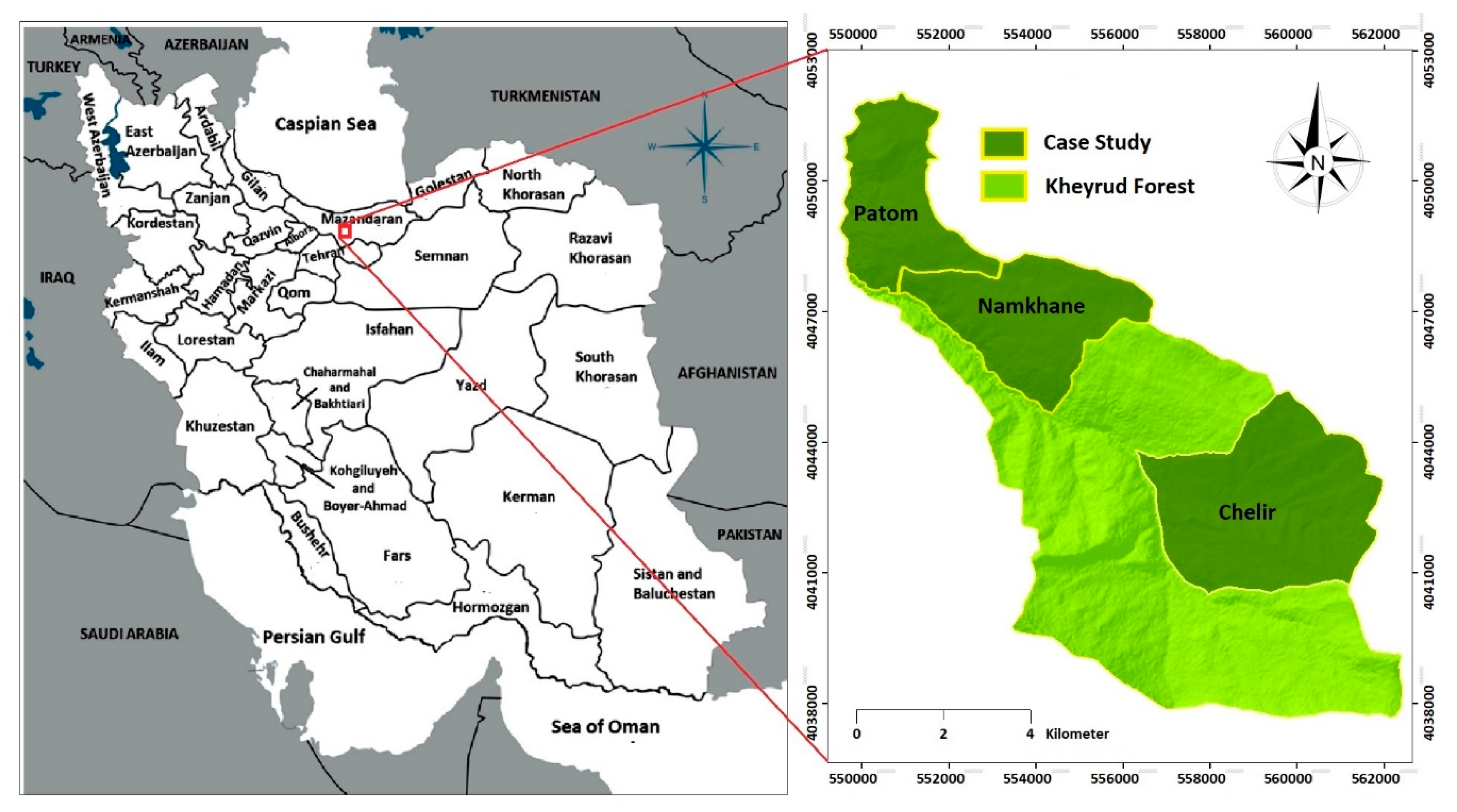

Figure 1. Location of the Chelir, Namkhane, and Patom study sites within the Kheyrud Forest of Mazandran Province in northern Iran. This forest is part of the Caspian Hyrcanian Ecoregion.
Figure 1. Location of the Chelir, Namkhane, and Patom study sites within the Kheyrud Forest of Mazandran Province in northern Iran. This forest is part of the Caspian Hyrcanian Ecoregion.
Forests 11 00345 g001
Forests 11 00345 g002 550

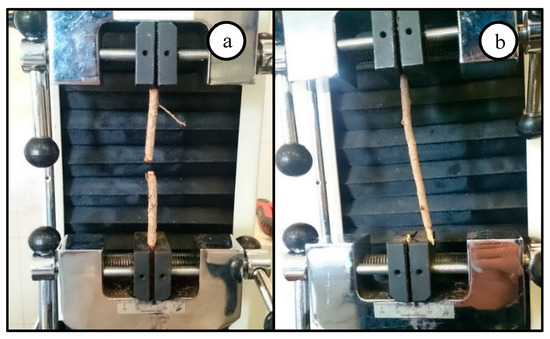

Figure 2. Breaking phase of the root in tensile test. A valid test, where the root broke near the middle (a), and an invalid test, where the root broke proximate the clamp (b).
Figure 2. Breaking phase of the root in tensile test. A valid test, where the root broke near the middle (a), and an invalid test, where the root broke proximate the clamp (b).
Forests 11 00345 g002
Forests 11 00345 g003 550

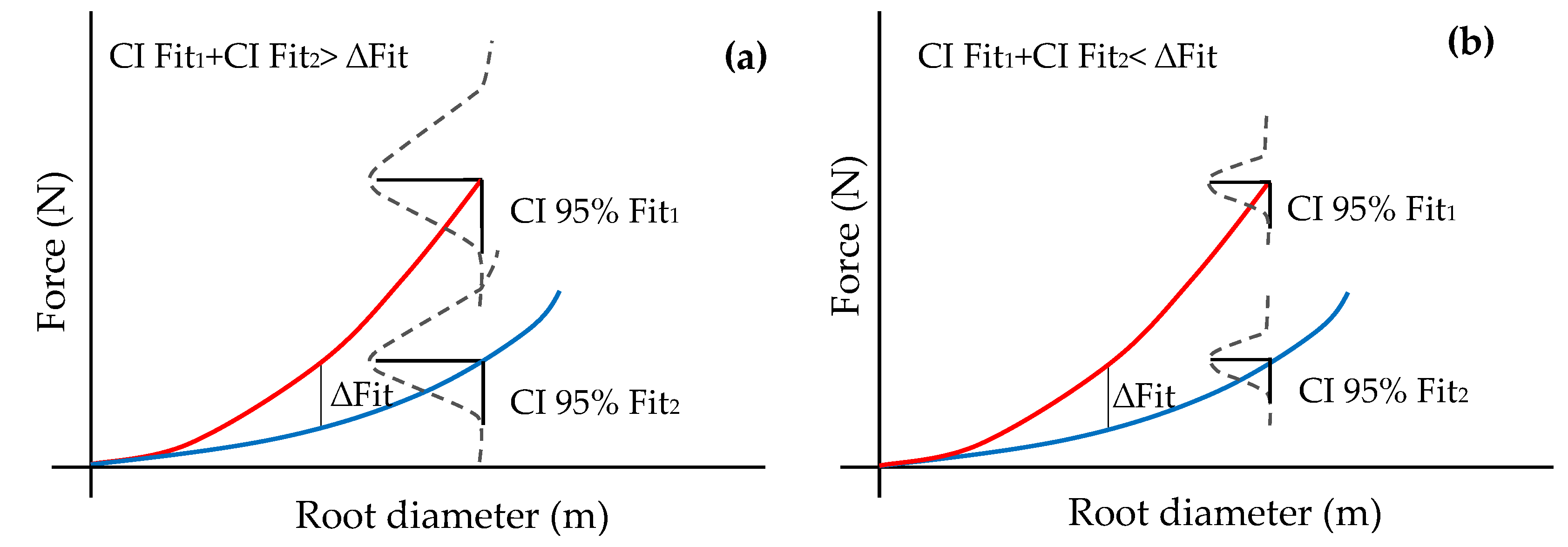

Figure 3. Schematic view of the definition of ∆Fit and sum of the confidence interval at 95% (CI-95%), showing an example of overlapping distributions (a), and significantly different distributions (b).
Figure 3. Schematic view of the definition of ∆Fit and sum of the confidence interval at 95% (CI-95%), showing an example of overlapping distributions (a), and significantly different distributions (b).
Forests 11 00345 g003
Forests 11 00345 g004 550

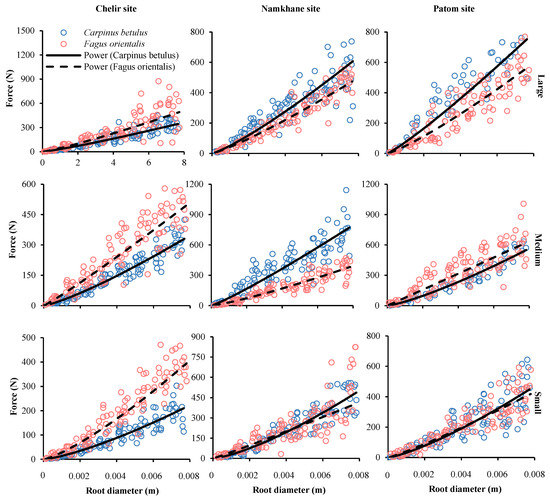

Figure 4. Tensile force at failure point versus root diameter for Carpinus betulus (blue circles) and Fagus orientalis (red circles) within three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three sites (Chelir, Namkhane, Patom). Solid (C. betulus) and dashed (F. orientalis) lines show power-law regression curves fitted to the data.
Figure 4. Tensile force at failure point versus root diameter for Carpinus betulus (blue circles) and Fagus orientalis (red circles) within three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three sites (Chelir, Namkhane, Patom). Solid (C. betulus) and dashed (F. orientalis) lines show power-law regression curves fitted to the data.
Forests 11 00345 g004
Forests 11 00345 g005 550

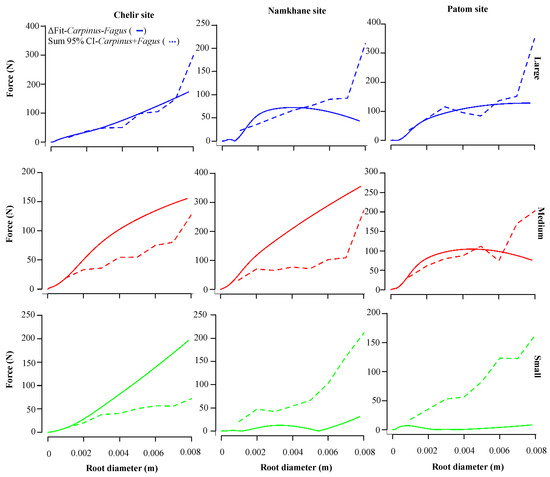

Figure 5. Calculation of difference between the fitting curves of tensile force vs. root diameter for Carpinus betulus and Fagus orientalis within three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom).
Figure 5. Calculation of difference between the fitting curves of tensile force vs. root diameter for Carpinus betulus and Fagus orientalis within three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom).
Forests 11 00345 g005
Forests 11 00345 g006 550

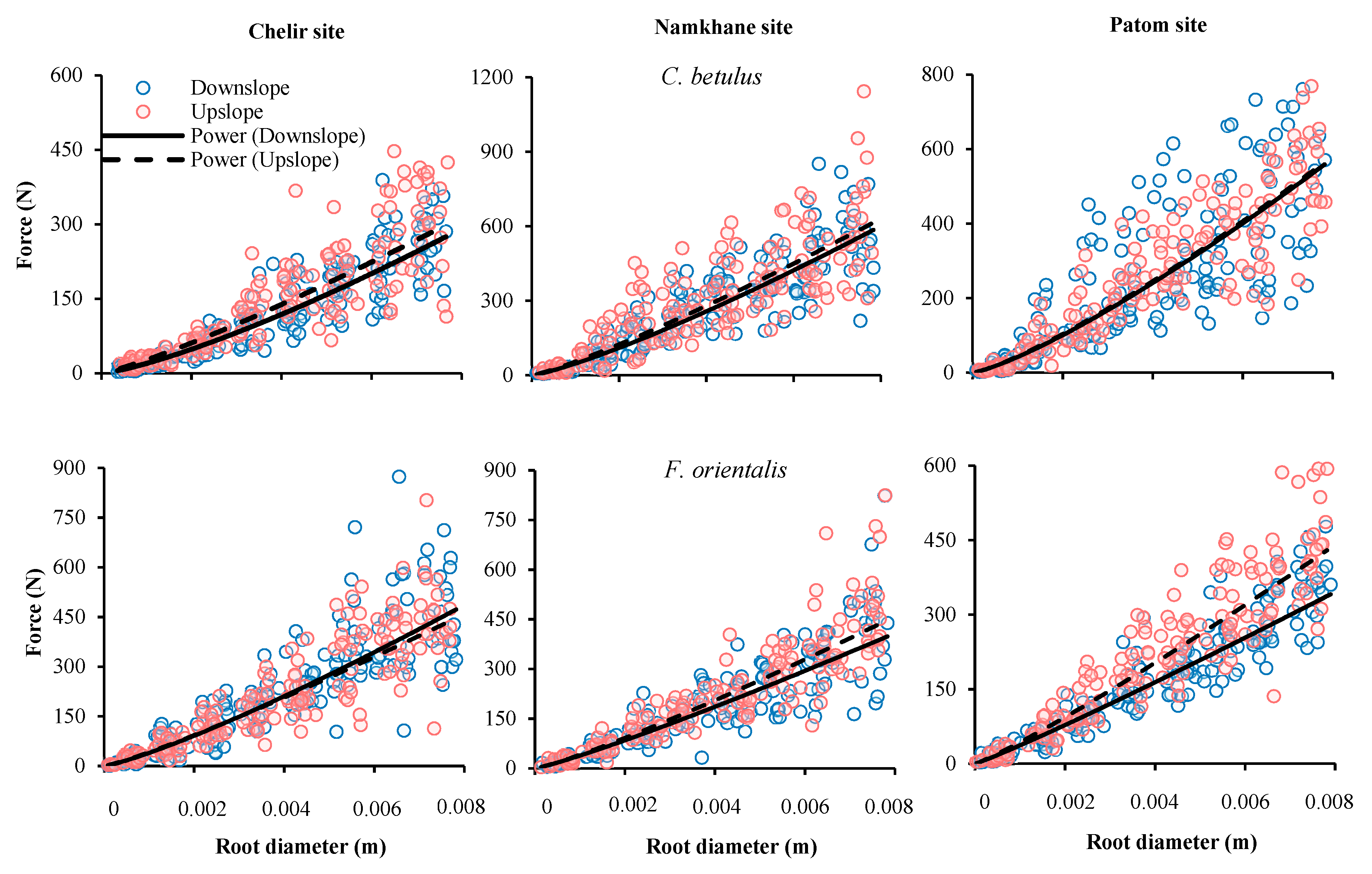

Figure 6. Tensile force at failure point versus root diameter for upslope (red circles) and downslope (blue circles) positions relative to the tree stem at three sites for Carpinus betulus and Fagus orientalis. Solid (downslope) and dashed (upslope) lines show power-law regression curves fitted to the data.
Figure 6. Tensile force at failure point versus root diameter for upslope (red circles) and downslope (blue circles) positions relative to the tree stem at three sites for Carpinus betulus and Fagus orientalis. Solid (downslope) and dashed (upslope) lines show power-law regression curves fitted to the data.
Forests 11 00345 g006
Forests 11 00345 g007 550

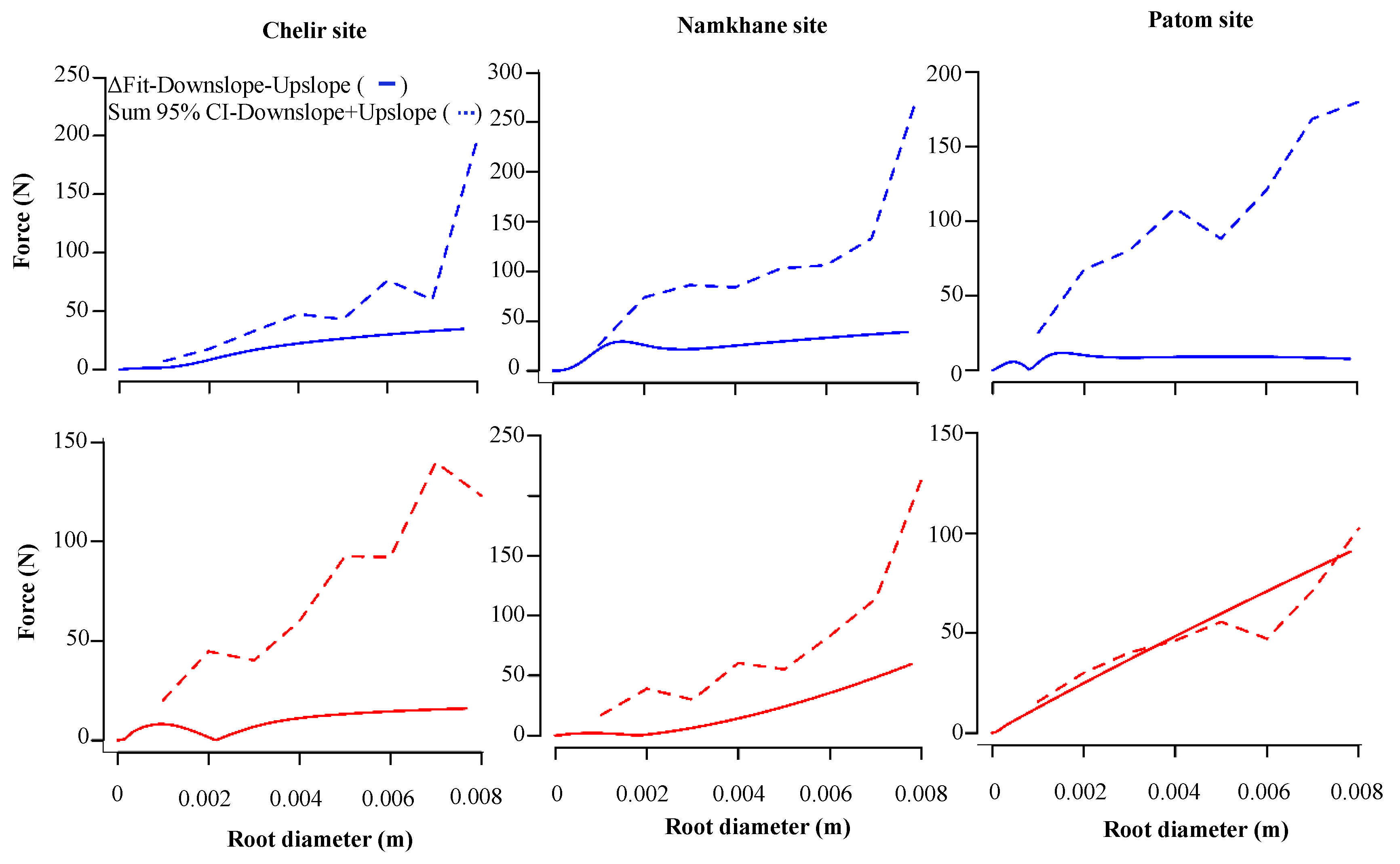

Figure 7. Calculation of difference between the fitting curves of tensile force vs. root diameter for the Carpinus betulus (blue line) and Fagus orientalis (red line) at three study sites (Chelir, Namkhane, Patom).
Figure 7. Calculation of difference between the fitting curves of tensile force vs. root diameter for the Carpinus betulus (blue line) and Fagus orientalis (red line) at three study sites (Chelir, Namkhane, Patom).
Forests 11 00345 g007
Forests 11 00345 g008 550
Figure 8. Tensile force at failure point versus root diameter for diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom) for Carpinus betulus and Fagus orientalis. Solid (large), dashed (medium), and long dash dot (small) lines show power-law regression curves fitted to the data.
Figure 8. Tensile force at failure point versus root diameter for diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom) for Carpinus betulus and Fagus orientalis. Solid (large), dashed (medium), and long dash dot (small) lines show power-law regression curves fitted to the data.
Forests 11 00345 g008
Forests 11 00345 g009 550
Figure 9. Calculation of difference between the fitting curves of tensile force vs. root diameter for the Carpinus betulus and Fagus orientalis within three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom).
Figure 9. Calculation of difference between the fitting curves of tensile force vs. root diameter for the Carpinus betulus and Fagus orientalis within three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom).
Forests 11 00345 g009
Forests 11 00345 g010 550
Figure 10. Tensile force at failure point versus root diameter for diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom). Solid (Chelir), dashed (Namkhane), and long dash dot (Patom) lines show power-law regression curves fitted to the data.
Figure 10. Tensile force at failure point versus root diameter for diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) at three study sites (Chelir, Namkhane, Patom). Solid (Chelir), dashed (Namkhane), and long dash dot (Patom) lines show power-law regression curves fitted to the data.
Forests 11 00345 g010
Forests 11 00345 g011 550
Figure 11. Calculation of difference between the fitting curves of tensile force vs. root diameter of three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) for Carpinus betulus and Fagus orientalis at three study sites (Chelir, Namkhane, Patom).
Figure 11. Calculation of difference between the fitting curves of tensile force vs. root diameter of three classes of diameter at breast height (DBH; small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm) for Carpinus betulus and Fagus orientalis at three study sites (Chelir, Namkhane, Patom).
Forests 11 00345 g011
Table
Table 1. Mean values (± standard error) of soil properties at the three study sites [36].
Table 1. Mean values (± standard error) of soil properties at the three study sites [36].
Soil PropertiesSoil Depth (cm)Study Site
ChelirNamkhanePatom
Dry density (g cm−3)301.13 (± 0.02)1.09 (± 0.02)1.16 (± 0.03)
Nitrogen (%)0–1022.44 (± 3.02)24.89 (± 3.02)21.19 (± 2.25)
10–2013.94 (± 1.13)14.10 (± 0.80)9.19 (± 0.52)
Phosphorus (ppm)0–1020.98 (± 3.01)25.93 (± 3.13)23.57 (± 2.11)
10–2022.00 (± 2.59)34.45 (± 1.06)28.52(± 2.38)
Potassium (ppm)0–101989.2 (± 197.7)1253.6 (± 131.6)1068.1 (± 91.6)
10-201228.0 (± 150.5)1458.3 (± 110.5)866.7 (± 147.3)
Carbon (%)0–102.84 (± 0.3)3.12 (± 0.31)2.50 (± 0.17)
10–201.20 (± 0.10)1.48 (± 0.13)0.92 (± 0.06)
Organic matter (%)0–104.90 (± 0.52)5.38 (± 0.59)4.31 (± 0.41)
10–202.08 (± 0.19)2.56 (± 0.25)1.59 (± 0.14)
pH0–105.54 (± 0.67)5.25 (± 0.54)5.42 (± 0.49)
10–205.28 (± 0.57)5.08 (± 0.36)5.19 (± 0.40)
EC (ds m−1)0–100.45 (± 0.02)0.45 (± 0.02)0.38 (± 0.01)
10–200.30 (± 0.01)0.30 (± 0.01)0.32 (± 0.01)
Soil liquid limit 13085.70 (± 6.85)88.52 (± 7.44)65 (± 6.21)
Soil plastic limit 13037.70 (± 3.71)38.32 (± 4.89)26.42 (± 3.05)
Soil plasticity index 13048.00 (± 4.99)50.20 (± 4.56)38.58 (± 3.80)
Soil texture 2 Silt loamSilt loamSilt loam
Unified soil classification-CHCHCH
1 Atterberg limit [38]. 2 USDA soil classification [34].
Table
Table 2. Total number of root measurements attempted, and in parentheses, the attempts that yielded valid results, for each tree species, diameter at breast height (DBH) class, slope position relative to the main stem, and study site.
Table 2. Total number of root measurements attempted, and in parentheses, the attempts that yielded valid results, for each tree species, diameter at breast height (DBH) class, slope position relative to the main stem, and study site.
SiteDBH Classes 1Carpinus betulusFagus orientalis
UpslopeDownslopeUpslopeDownslope
PatomSmall58 (56)57 (56)62 (56)64 (56)
Medium59 (56)59 (56)61 (56)62 (56)
Large60 (56)61 (56)68 (56)70 (56)
NamkhaneSmall57 (56)57 (56)60 (56)59 (56)
Medium58 (56)60 (56)61 (56)62 (56)
Large59 (56)59 (56)64 (56)63 (56)
ChelirSmall58 (56)59 (56)58 (56)57 (56)
Medium59 (56)60 (56)61 (56)59 (56)
Large62 (56)61 (56)63 (56)62 (56)
1 DBH classes: small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm.
Table
Table 3. Summary of ANCOVA results for each site, showing the effect of species, slope position, diameter at breast height class (DBH), and the species x slope position interaction on tensile force (N) as a function of root diameter.
Table 3. Summary of ANCOVA results for each site, showing the effect of species, slope position, diameter at breast height class (DBH), and the species x slope position interaction on tensile force (N) as a function of root diameter.
SiteSourcedfSum SquareMean SquareF ValueP Valueη2
ChelirSpecies (S)17.637.63388.680.000 *0.049
Slope position (SP)10.430.4322.150.000 *0.003
DBH 116.136.13312.010.000 *0.039
Root diameter 11140.37140.377150.010.000 *0.906
S × SP10.290.2914.950.000 *0.002
NamkhaneSpecies (S)12.672.6799.100.000 *0.019
Slope position (SP)10.400.4014.830.000 *0.003
DBH 110.900.9033.460.000 *0.007
Root diameter 11131.95131.954891.880.000 *0.971
S × SP10.000.000.020.900
PatomSpecies (S)11.441.4447.860.000 *0.009
Slope position (SP)10.330.3310.830.001 *0.002
DBH 112.442.4481.410.000 *0.016
Root diameter 11146.82146.824891.640.000 *0.970
S × SP10.260.268.600.003 *0.002
1 Data transformed by log 10 to achieve normality. Significant code: ‘*’ <0.05.
Table
Table 4. Coefficients and statistical parameters of the power-law regressions for tensile force–root diameter compared by diameter at breast height (DBH) classes.
Table 4. Coefficients and statistical parameters of the power-law regressions for tensile force–root diameter compared by diameter at breast height (DBH) classes.
SiteSpeciesDBH 1F0αP ValueSE
ChelirCarpinus betulusLarge32.441.160.0001.235 × 104
Medium26.541.240.0001.625 × 104
Small13.751.340.0002.307 × 104
Fagus orientalisLarge44.921.170.0007.444 × 104
Medium53.841.080.0002.224 × 104
Small28.011.290.0007.143 × 104
NamkhaneCarpinus betulusLarge51.871.210.0003.191 × 104
Medium76.751.120.0045.326 × 104
Small28.981.370.0001.278 × 105
Fagus orientalisLarge42.881.180.0005.439 × 104
Medium31.511.210.0003.827 × 104
Small46.421.050.0005.166 × 104
PatomCarpinus betulusLarge75.221.330.0002.250 × 104
Medium40.211.270.0002.190 × 104
Small24.251.410.0005.236 × 104
Fagus orientalisLarge40.661.120.0002.528 × 104
Medium30.941.190.0001.087 × 104
Small51.370.960.0001.903 × 104
1 DBH: small = 7.5–32.5 cm; medium = 32.6–57.5; and large = 57.6–82.5 cm.
Table
Table 5. Coefficients and statistical parameters of the power-law regressions for tensile force–root diameter based on a comparison of upslope versus downslope position.
Table 5. Coefficients and statistical parameters of the power-law regressions for tensile force–root diameter based on a comparison of upslope versus downslope position.
SiteSpeciesSlope PositionF0αP ValueSE
ChelirCarpinus betulusDown19.661.290.0001.436 × 103
Up26.881.180.0001.246 × 104
Fagus orientalisDown39.721.200.0006.109 × 104
Up42.061.150.0003.540 × 104
NamkhaneCarpinus betulusDown47.011.230.0003.198 × 104
Up54.841.170.0004.205 × 104
Fagus orientalisDown38.591.130.0005.875 × 104
Up41.071.160.0004.001 × 104
PatomCarpinus betulusDown42.081.260.0002.556 × 104
Up43.631.240.0003.198 × 104
Fagus orientalisDown36.941.080.0002.065 × 104
Up43.111.120.0002.188 × 104

Share and Cite

MDPI and ACS Style

Deljouei, A.; Abdi, E.; Schwarz, M.; Majnounian, B.; Sohrabi, H.; Dumroese, R.K. Mechanical Characteristics of the Fine Roots of Two Broadleaved Tree Species from the Temperate Caspian Hyrcanian Ecoregion. Forests 2020, 11, 345. https://doi.org/10.3390/f11030345

AMA Style

Deljouei A, Abdi E, Schwarz M, Majnounian B, Sohrabi H, Dumroese RK. Mechanical Characteristics of the Fine Roots of Two Broadleaved Tree Species from the Temperate Caspian Hyrcanian Ecoregion. Forests. 2020; 11(3):345. https://doi.org/10.3390/f11030345

Chicago/Turabian Style

Deljouei, Azade, Ehsan Abdi, Massimiliano Schwarz, Baris Majnounian, Hormoz Sohrabi, and R. Kasten Dumroese. 2020. "Mechanical Characteristics of the Fine Roots of Two Broadleaved Tree Species from the Temperate Caspian Hyrcanian Ecoregion" Forests 11, no. 3: 345. https://doi.org/10.3390/f11030345

APA Style

Deljouei, A., Abdi, E., Schwarz, M., Majnounian, B., Sohrabi, H., & Dumroese, R. K. (2020). Mechanical Characteristics of the Fine Roots of Two Broadleaved Tree Species from the Temperate Caspian Hyrcanian Ecoregion. Forests, 11(3), 345. https://doi.org/10.3390/f11030345

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
