Bayesian Evaluation of Smartphone Applications for Forest Inventories in Small Forest Holdings
Abstract
:1. Introduction
2. Materials and Methods

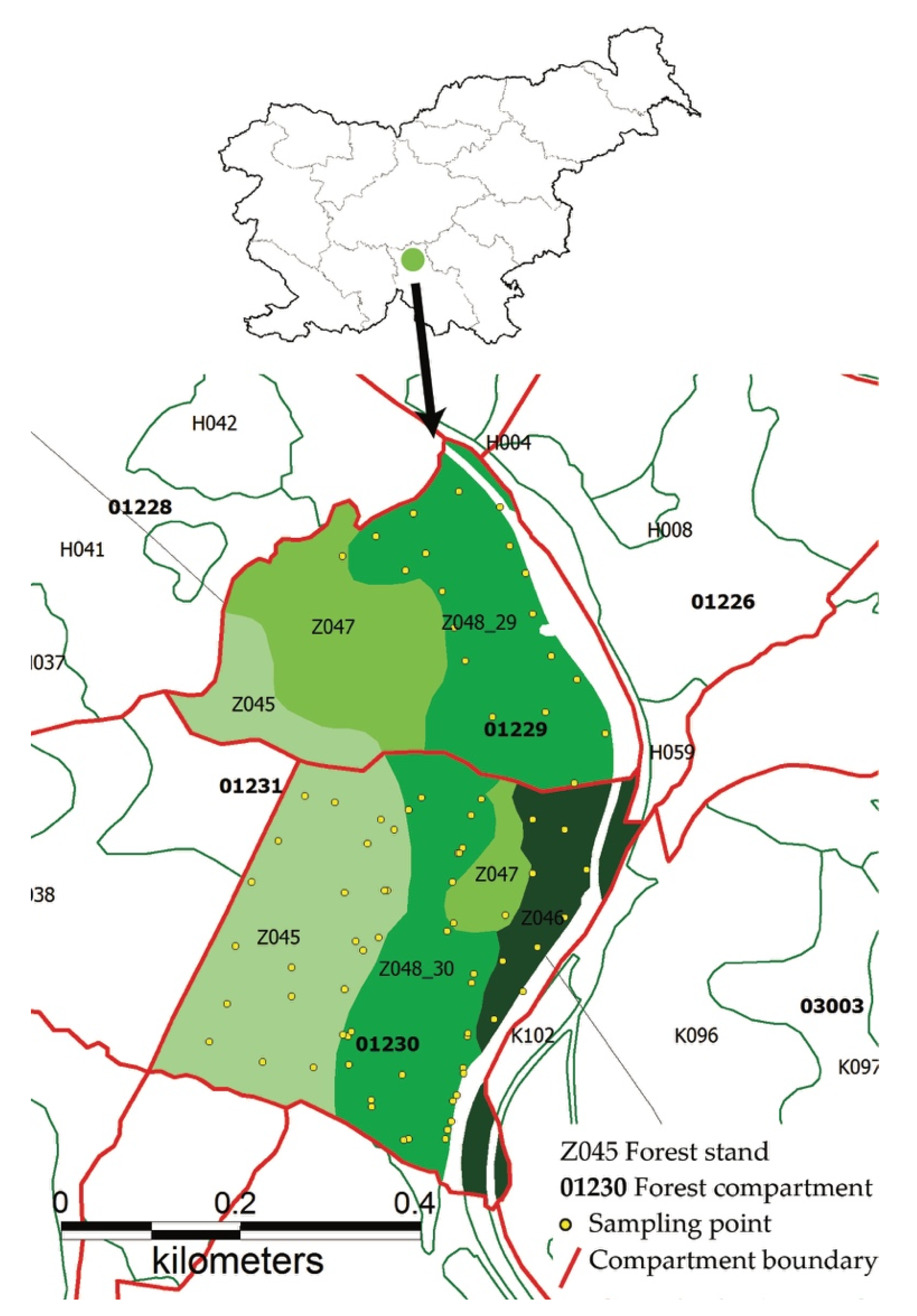

2.1. Study Area and Field Measurements
2.2. Bayesian and Frequentist Paired Sample t-Test
2.3. Bayesian Informative Hypothesis Evaluation (Bain)
3. Results
3.1. Differences in the Number of Stems per Hectare between TRESTIMA and MOTI
3.2. Differences in Stand Basal Area between TRESTIMA and MOTI
3.3. Informative Hypotheses
4. Discussion
5. Conclusions
Funding
Acknowledgments
Conflicts of Interest
References
- Molinier, M.; López-Sánchez, C.A.; Toivanen, T.; Korpela, I.; Corral-Rivas, J.J.; Tergujeff, R.; Häme, T. Relasphone-Mobile and Participative In Situ Forest Biomass Measurements Supporting Satellite Image Mapping. Remote Sens. 2016, 8, 869. [Google Scholar] [CrossRef]
- Rosset, C.; Brand, R.; Caillard, I.; Fiedler, U.; Gollut, C.; Schmocker, A.; Weber, D.; Wuillemin, E.; Dumollard, G. MOTI. L’Inventaire Forestier Simplifié par le Smartphone. Version Actualisée du Rapport Final; Kessel Publishing House: Remagen, Germany, 2017; p. 12. [Google Scholar]
- Mobile Forester. Available online: https://www.mobileforester.com/ (accessed on 25 February 2020).
- KATAM™ Forest. Available online: https://www.katam.se/products/forest/ (accessed on 25 February 2020).
- Liu, J.; Feng, Z.; Mannan, A.; Yang, L. Positioning of coordinates and precision analysis of sample trees using the intelligent forest survey calculator. Comput. Electron. Agr. 2019, 159, 157–164. [Google Scholar] [CrossRef]
- Ficko, A.; Lidestav, G.; Ní Dhubháin, Á.; Karppinen, H.; Zivojinovic, I.; Westin, K. European private forest owner typologies: A review of methods and use. Forest Policy Econ. 2019, 99, 21–31. [Google Scholar] [CrossRef]
- Bashir, A.; Sjølie, H.K.; Solberg, B. Determinants of Nonindustrial Private Forest Owners’ Willingness to Harvest Timber in Norway. Forests 2020, 11, 60. [Google Scholar] [CrossRef] [Green Version]
- Trestima. Available online: https://www.trestima.com/w/en/ (accessed on 1 May 2019).
- Bitterlich, W. Die Winkelzählprobe. Allg. Forst und Holzwirtsch. Ztg. 1948, 59, 4–5. [Google Scholar] [CrossRef]
- Vastaranta, M.; Latorre, E.G.; Luoma, V.; Saarinen, N.; Holopainen, M.; Hyyppä, J. Evaluation of a smartphone app for forest sample plot measurements. Forests 2015, 6, 1179–1194. [Google Scholar] [CrossRef] [Green Version]
- Latorre, E.G. Evaluation of a Mobilephone Application for Sample Plot Measurement in Russia. Master’s Thesis, University of Helsinki, Faculty of Agriculture and Forestry, Department of Forest Sciences, Helsinki, Finland, 2015. [Google Scholar]
- Dunaeva, T. Preharvest Efficiency of Trestima, Airborne Laser Scanning and Forest Management Plan Data Validated by Actual Harvesting Results and Forest Engineer Preharvest Estimations. Bachelor’s Thesis, University of Applied Sciences Novia, Raseborg, Finland, 2017. [Google Scholar]
- Aguilera, M.; Villasante, A.; Fernandez, C. Accuracy in estimating basal areas for forest inventories: Comparison of Android-based virtual relascope and Spiegel Relaskop. Can. J. For. Res. 2020, in press. [Google Scholar] [CrossRef]
- Moti. Available online: http://www.moti.ch/drupal/?q=de (accessed on 25 February 2020).
- Rosset, C.; Brand, R.; Weber, D.; Wuillemin, E.; Gollut, C.; Caillard, I.; Fiedler, U. MOTI–ein Tool für die Waldinventur im Taschenformat. Wald Holz 2015, 96, 45–48. [Google Scholar]
- Rosset, C.; Brand, R.; Caillard, I.; Fiedler, U.; Gollut, C.; Schmocker, A.; Weber, D.; Wuillemin, E. MOTI-L’Inventaire Forestier Facilité par le Smartphone. Rapport Final. Projet no 2012.24; Haute école des sciences agronomiques, forestières et alimentaires: Zollikofen, Switzerland, 2014; p. 110. [Google Scholar]
- Turk, J. Analiza učinkovitosti aplikacij za pametne telefone pri merjenju sestojnih parametrov. Bachelor’s Thesis, University of Ljubljana, Slovenia, Biotechnical Faculty, Ljubljana, Slovenia, 2015. [Google Scholar]
- Fricelj, B. Uporaba mobilne aplikacije MOTI za ocenjevanje sestojnih parametrov na zasebni gozdni posesti Lešje. Bachelor’s Thesis, University of Ljubljana, Biotechnical Faculty, Department of Forestry and Renewable Forest Resources, Ljubljana, Slovenia, 2018. [Google Scholar]
- Rosset, C. Personal Communication; University of Applied Sciences: Bern, Switzerland, 2019. [Google Scholar]
- Schütz, J.-P.; Rosset, C. Performances of different methods of estimating the diameter distribution based on simple stand structure variables in monospecific regular temperate European forests. Ann. For. Sci. 2020, 77, 47. [Google Scholar] [CrossRef]
- Rouder, J.N.; Speckman, P.L.; Sun, D.; Morey, R.D.; Iverson, G. Bayesian t-tests for accepting and rejecting the null hypothesis. Psychon. Bull. Rev. 2009, 16, 225–237. [Google Scholar] [CrossRef]
- Hoijtink, H.; Mulder, J.; van Lissa, C.; Gu, X. A tutorial on testing hypotheses using the Bayes factor. Psychol. Meth. 2018. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Informative Hypotheses. Available online: https://informative-hypotheses.sites.uu.nl/software/bain/ (accessed on 15 August 2020).
- Zar, J.H. Biostatistical Analysis, 5th ed.; Pearson Prentice Hall: Upper Saddle River, NJ, USA, 2010; pp. 16–19. [Google Scholar]
- Trestima. Trestima Forest Inventory System. User manual v1.4. Available online: https://trestima-www.s3-eu-west-1.amazonaws.com/docs/TRESTIMA_user_guide_en_v1.4.pdf (accessed on 25 August 2019).
- Indihar, M. Primerjava mobilnih aplikacij MOTI in TRESTIMA® za oceno sestojnih parametrov. Bachelor’s Thesis, University of Ljubljana, Biotechnical Faculty, Ljubljana, Slovenia, 2020. [Google Scholar]
- Wagenmakers, E.; Love, J.; Marsman, M.; Jamil, T.; Ly, A.; Verhagen, J.; Selker, R.; Gronau, Q.F.; Dropmann, D.; Boutin, B.; et al. Bayesian inference for psychology. Part II: Example applications with JASP. Psychon. Bull. Rev. 2018, 25, 58–76. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kass, R.E.; Raftery, A.E. Bayes Factors. J. Am. Stat. Assoc. 1995, 90, 791. [Google Scholar] [CrossRef]
- Sellke, T.; Bayarri, M.J.; Berger, J.O. Calibration of p values for testing precise null hypotheses. Am. Stat. 2001, 55, 62–71. [Google Scholar] [CrossRef]
- Wasserstein, R.L.; Lazar, N.A. The ASA Statement on p-Values: Context, Process, and Purpose. Am. Stat. 2016, 70, 129–133. [Google Scholar] [CrossRef] [Green Version]
- Altman, N.; Krzywinski, M. Interpreting P values. Nat. Methods 2017, 14, 213–214. [Google Scholar] [CrossRef]
- van Kesteren, E.J.; Wagenmakers, E.J. Exploring the diagnosticity of the p-value. Available online: https://www.shinyapps.org/apps/vs-mpr/ (accessed on 1 July 2020).
- JASP Team. JASP Version 0.11.1; JASP Team: Amsterdam, The Netherlands, 2019. [Google Scholar]
- Téglás, E.; Vul, E.; Girotto, V.; Gonzalez, M.; Tenenbaum, J.B.; Bonatti, L.L. Pure reasoning in 12-month-old infants as probabilistic inference. Science 2001, 332, 1054–1059. [Google Scholar] [CrossRef] [Green Version]
- Halsey, L.G. The reign of the p-value is over: What alternative analyses could we employ to fill the power vacuum? Bio. Lett. 2019, 15, 20190174. [Google Scholar] [CrossRef] [Green Version]
- Kivimäki, S. Personal Communication; Trestima Oy: Tampere, Finland, 2020. [Google Scholar]
- Eastaugh, C.; Hasenauer, H. Improved estimates of per-plot basal area from angle count inventories. iForest Biogeo. For. 2014, 7, 178–185. [Google Scholar] [CrossRef] [Green Version]
- Siipilehto, J.; Lindeman, H.; Vastaranta, M.; Yu, X.; Uusitalo, J. Reliability of the predicted stand structure for clear-cut stands using optional methods: Airborne laser scanning-based methods, smartphone-based forest inventory application Trestima and pre-harvest measurement tool EMO. Silva Fenn. 2016, 50, 1568. [Google Scholar] [CrossRef] [Green Version]
- Eastaugh, C.S.; Hasenauer, H. Biases in Volume Increment Estimates Derived from Successive Angle Count Sampling. For. Sci. 2013, 59, 1–14. [Google Scholar] [CrossRef]
- Zhou, D.Q.; He, X.J.; Chen, G.W. Design and application of barcode diameter-at-breast-height tape in forest inventories. Appl. Ecol. Env. Res. 2019, 17, 13407–13421. [Google Scholar] [CrossRef]
- Student. The Probable Error of a Mean. Biometrika 1908, 6, 1–25. [Google Scholar] [CrossRef]
- de Winter, J.C.F. Using the Student’s t-test with extremely small sample sizes. Pract. Asses. Res. Eval. 2013, 18, 10. [Google Scholar] [CrossRef]
- Fu, Q.; Hoijtink, H.; Moerbeek, M. Sample-size determination for the Bayesian t test and Welch’s test using the approximate adjusted fractional Bayes factor. Beh. Res. Methods 2020. [Google Scholar] [CrossRef] [PubMed]
- Lynch, T.B.; Hamlin, D.; Ducey, M.J.; Borders, B.E. Design-Unbiased Estimation and Alternatives for Sampling Trees on Plantation Rows. Forests 2018, 9, 362. [Google Scholar] [CrossRef] [Green Version]
Paired Sample t-Test | The Bain Paired Sample t-Test | |||
---|---|---|---|---|
Hypotheses | H0: NTRESTIMA = NMOTI. The null hypothesis that the population mean of differences in N between the two applications equals. 0. | H0: GTRESTIMA = GMOTI. The null hypothesis that the population mean of differences in G between the two applications equals 0. | H2: NTRESTIMA > NMOTI. The hypothesis that the population mean of the TRESTIMA estimates is greater than the population mean of the MOTI estimates. | H2: GTRESTIMA > GMOTI. The hypothesis that the population mean of the TRESTIMA estimates is greater than the population mean of the MOTI estimates. |
H1: NTRESTIMA ≠ NMOTI. Two-sided alternative hypothesis that the population mean of differences in N between the two applications does not equal 0. | H1: GTRESTIMA ≠ GMOTI. Two-sided alternative hypothesis that the population mean of differences in G between the two applications does not equal 0. | H3: NTRESTIMA < NMOTI. The hypothesis that the population mean of the TRESTIMA estimates is lower than the population mean of the MOTI estimates. | H3: GTRESTIMA < GMOTI. The hypothesis that the population mean of the TRESTIMA estimates is lower than the population mean of the MOTI estimates. | |
Bayesian approach | BF01 in Bayesian paired sample t-test | BF23 in the Bayesian informative hypotheses evaluation (bain) paired sample t-test | ||
BFab: The bigger the BFab, the greater the strength of the belief that Ha is true. | ||||
Frequentist approach | p-value in paired sample t-test, the Vovk–Sellke maximum p –ratio (VS-MPR) and the Frequentist type I error probability (α(p)) | N/A | ||
p-value: The smaller the p-value, the smaller the probability of the t-statistic being more extreme than or equal to the observed t in the test. | N/A | |||
VS–MPR: The bigger the VS–MPR, the more likely it is that the p-value occurs under H1 than under H0. | ||||
α(p): The bigger the α(p), the greater the probability of false rejection of H0. |
N | Mean | Median | SD | SE | p-Value of Shapiro–Wilk | |
---|---|---|---|---|---|---|
TRESTIMA_N (/ha) | 4 | 924.5 | 947.5 | 130.4 | 65.2 | 0.77 |
MOTI_N (/ha) | 4 | 618.8 | 593.5 | 112.5 | 56.3 | 0.42 |
TRESTIMA_N–MOTI_N (/ha) | 4 | 305.8 | 308.0 | 149.7 | 74.8 | 0.43 |
TRESTIMA_G (m2/ha) | 4 | 39.8 | 40.7 | 8.2 | 4.1 | 0.86 |
MOTI_G (m2/ha) | 4 | 34.0 | 31.5 | 8.5 | 4.3 | 0.36 |
TRESTIMA_G–MOTI_G (m2/ha) | 4 | 5.8 | 4.0 | 5.0 | 2.5 | 0.19 |
TRESTIMA_G (m2/ha) | 61 | 41.2 | 41.2 | 15.3 | 2.0 | 0.37 |
MOTI_G (m2/ha) | 61 | 35.5 | 34.0 | 11.7 | 1.5 | 0.00 |
TRESTIMA_G–MOTI_G (m2/ha) | 61 | 5.7 | 7.6 | 17.7 | 2.3 | 0.71 |
95% CI for Effect Size | ||||||||
---|---|---|---|---|---|---|---|---|
Test | Statistic | df | p | VS-MPR 1 | Effect Size | Lower | Upper | |
TRESTIMA_N−MOTI_N | Student | 4.09 | 3 | 0.03 | 3.83 | 2.04 | 0.19 | 3.85 |
Wilcoxon | 1.83 | 0.13 | 1.42 | 1.00 | 1.00 | 1.00 | ||
TRESTIMA_G−MOTI_G | Student | 2.28 | 3 | 0.11 | 1.54 | 1.14 | −0.21 | 2.41 |
Sign | 1.5 | 0.13 | 1.42 | 1.00 | 1.00 | 1.00 | ||
TRESTIMA_G−MOTI_G | Student | 2.52 | 60 | 0.01 | 6.00 | 0.32 | 0.06 | 0.58 |
Hypothesis 1 | n | BF | Posterior Probability |
---|---|---|---|
H2: NTRESTIMA > NMOTI | 4 | 45,529.8 | 0.9999 |
H3: NTRESTIMA < NMOTI | 4 | 0.0000 | |
H2: GTRESTIMA > GMOTI | 4 | 88.1 | 0.9888 |
H3: GTRESTIMA < GMOTI | 4 | 0.0112 | |
H2: GTRESTIMA > GMOTI | 61 | 168.5 | 0.9941 |
H3: GTRESTIMA < GMOTI | 61 | 0.0059 |
