Article

Genetic Diversity and Population Structure of Natural Pinus koraiensis Populations

by
Yue W. Tong
1,2,
Bernard J. Lewis
1,
Wang M. Zhou
1,
Cheng R. Mao
1,2,
Yan Wang
1,2,
Li Zhou
1,
Da P. Yu
1,
Li M. Dai
1 and
Lin Qi
1,*
1
CAS Key Laboratory of Forest Ecology and Management, Institute of Applied Ecology, Shenyang 110016, Liaoning, China
2
College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Forests 2020, 11(1), 39; https://doi.org/10.3390/f11010039
Submission received: 19 November 2019 / Revised: 19 December 2019 / Accepted: 23 December 2019 / Published: 26 December 2019
(This article belongs to the Section Forest Ecophysiology and Biology)
Browse Figures
Versions Notes

Abstract

:
Studying the genetic diversity and population structure of natural forest populations is essential for evaluating their ability to survive under future environmental changes and establishing conservation strategies. Pinus koraiensis is a conifer species with high ecological and economic value in Northeast China. However, its natural forests have been greatly reduced in recent years, mostly due to over exploitation and over utilization. Here, we evaluated the genetic diversity and population structure of seven populations of P. koraiensis located throughout its native distribution. A total of 204 samples were genotyped with nine polymorphic nuclear SSR (simple sequence repeat) markers. The results showed high genetic diversity in all populations, with an average expected heterozygosity of 0.610, and the northern-most populations (Dailin (DL) and Fenglin (FL)) showed slightly higher diversity than the other five populations. The level of genetic differentiation among populations was very low (FST = 0.020). Analysis of molecular variance (AMOVA) showed that only 2.35% of the genetic variation existed among populations. Moreover, STRUCTURE analysis clearly separated the seven populations into two clusters. Populations DL and FL from the Xiaoxinganling Mountains comprised cluster I, while cluster II included the five populations from the Changbai Mountains and adjacent highlands. Our research on the genetic diversity and population structure of P. koraiensis in natural forests of China can provide a basis for the implementation of programs for the conservation and utilization of P. koraiensis genetic resources in the future.

1. Introduction

Pinus koraiensis Sieb. et Zucc., also known as Korean pine, is an evergreen tree belonging to the Pinus genus and Pinaceae family [1]. It is mainly distributed in the mountainous area of Northeast China, as well as in North Korea, Japan, and Far Eastern region of Russia [1,2,3]. P. koraiensis plays a key ecological role as the most important component of natural broad-leaved Korean pine forests, and it is also famous for its economic value, such as the production of good quality timber and edible seeds [4,5]. However, in recent decades, with the increased demand for timber and pine nuts from P. koraiensis, its natural forests have greatly declined due to excessive harvesting [6,7,8,9], the original forest has become extremely small, and the genetic resources of the species have been threatened by deforestation. Due to the status of P. koraiensis as a rare and nationally endangered species in China (http://www.plant.csdb.cn/endangeredplants), protecting its resources, especially its genetic resources, has become urgent.
An important indicator of genetic resource conservation is the amount of genetic diversity, which is widely recognized as a key determinant of the long-term survival of species [10,11]. Genetic diversity in forests is determined by gene flow, genetic drift, selection, mutation, and other processes [12,13], and it provides the raw material for the adaptation, evolution, and survival of species under changing environmental conditions [14,15]. Another indicator is population structure, which is the distribution pattern of genes and genotypes in time and space, which is informative for understanding genetic diversity [16]. Studying the genetic diversity and population structure of forest trees with a long life cycle, a wide distribution, and high ecological and economic value is of great significance for genetic resource conservation and forest ecosystem management [13,17,18,19].
There are relatively few genetic investigations of P. koraiensis. Potenko and Velikov (1998) investigated the genetic diversity and differentiation of 19 natural Russian populations of P. koraiensis using 15 enzyme systems [2] and found relatively low levels of genetic diversity and low differentiation among populations (FST = 0.015). Kim et al. (2005) studied and compared the genetic variation in Korean pine from 12 natural populations in Korea, China, and Russia using allozymes and random amplified polymorphic DNA (RAPD) [20]. Their results showed that differentiation among the three different regions was low, and genetic variation decreased from south (Korea) to north (Russia) on latitude gradients. Furthermore, Feng et al. (2006) analyzed the genetic diversity and structure of four natural P. koraiensis populations in China by using inter-simple sequence repeats (ISSRs) [4] and applied sequence-related amplified polymorphism (SRAP) markers to study the genetic diversity of 24 different provenances of P. koraiensis in a seed orchard in China [21]. Both studies indicated that the genetic diversity levels of P. koraiensis were high, and no close relationship could be established between genetic diversity and geographical distances. However, these studies still had some limitations, such as small sample sizes that could not represent the populations, small populations that could not represent the whole distribution in China, research characteristics that could not represent the natural forests and outdated detection technology, and failure to investigate relationships between genetic diversity and environmental factors. Therefore, research based on the natural resource distribution of all existing populations, a more comprehensive sample size, and a suitable means of detection is necessary to study the genetic diversity and population structure of P. koraiensis.
In this context, we investigated the genetic diversity and population structure of seven P. koraiensis populations distributed across the species’ natural range in Northeast China by means of simple sequence repeat markers (SSRs). The aim of this study was to (a) identify regions of high genetic diversity of P. koraiensis, (b) determine the number of genetic clusters for population structure, (c) understand whether any populations or regions are genetically distinct, and (d) test if genetic diversity is related to environmental or climatic gradients.. The findings will be useful for the genetic conservation, exploration, and development of breeding programs of this species.

2. Materials and Methods

2.1. Plant Material and Sampling

A total of 204 georeferenced tender leaf samples of P. koraiensis were collected from 28 to 30 randomly selected trees in seven different populations, representing most of the distribution area of this species in Northeast China (Figure 1; Table 1). The detailed population information and climate parameters of each population are listed in Table 1. To avoid sampling from closely related individuals, the distance between sampled trees was at least 200 m. All collected samples were enclosed in plastic bags, brought back to the laboratory and stored at −80 °C before DNA extraction. This work was guided by “Observation Methodology for Long-term Forest Ecosystem Research” of National Standards of the People’s Republic of China (GB/T 33027-2016).

2.2. DNA Extraction and Microsatellite Genotyping

Total genomic DNA was extracted from the samples using a DNAsecure Plant Kit (DP320, Tiangen, Beijing, China) according to the manufacturer’s instructions. A total of nine nuclear microsatellite primers developed for P. koraiensis [22,23] were selected, as shown in Table 2, and the forward primers were labelled with a fluorescent dye (FAM or HEX).
Polymerase chain reaction (PCR) was performed in a 20 μL reaction volume consisting of 40 ng of genomic DNA template, 0.3 μM concentrations of each primer, 2 μL of 10× buffer, 0.1 mM dNTPs (TransGen Biotech, Beijing, China), and 1.0 U of Taq DNA polymerase (TransGen Biotech, Beijing, China). Amplification was conducted by the following cycling parameters: Initial denaturation at 94 °C for 5 min, followed by 35 cycles of denaturation at 94 °C for 30 s, annealing for 35 s (for the annealing temperatures see Table 2), and extension at 72 °C for 40 s and a final extension at 72 °C for 3 min. Then, the PCR products were run on an ABI 3730XL DNA Analyzer (Applied Biosystems, Foster City, CA, USA), using GS-500 LIZ as an internal size standard. Allele binning and genotyping were performed with GeneMarker version 2.20 (Soft Genetics, State College, PA, USA).

2.3. Data Analysis

2.3.1. Genetic Diversity Indices

Genetic diversity per locus and population was evaluated by using GenAlEx 6.5.1 [24]. The number of different alleles (Na), the number of effective alleles (Ne), the observed (Ho) and expected (He) heterozygosities, and the Shannon diversity index (I) were all calculated. In addition, we calculated allelic richness (Ar), the coefficient of differentiation between pairs of populations (FST), and the inbreeding coefficient (FIS) [25] in FSTAT 2.9.3 [26].
Correlations between genetic diversity parameters and geoclimatic factors were determined using a Spearman nonparametric correlation coefficient matrix constructed in R version 3.53 [27]. The climatic data (i.e., annual mean temperature (Tmean), maximum temperature of the warmest month (Tmax), minimum temperature of the coldest month (Tmin), and annual precipitation (Prec)), were extracted from https://climexp.knmi.nl [28] by using each population’s longitude and latitude.

2.3.2. Population Structure Analysis

First, a non-hierarchical analysis of molecular variance (AMOVA) (1000 permutations) based on the degree of genetic divergence among populations was performed using GenAlEx 6.5.1 [24]. Next, population structure was analyzed based on Bayesian clustering using STRUCTURE 2.3.4 [29]. The cluster number was set from 1 to 8 (number of populations plus 1), and the populations set as location priors (LOCPRIOR) [29] under the admixture model were used to run the Markov chain Monte Carlo (MCMC) simulation algorithm. The length of the burn-in period was set to 10,000 iterations. The number of MCMC iterations after the burn-in period was set to 100,000, and for each K value the calculation was repeated 10 times. The optimal K value was obtained by the method of Evanno [30]. The 10 runs for the optimal K were averaged by using the programs STRUCTURE HARVESTER and CLUMPP 1.1.2 [31]. After that, a hierarchical AMOVA which was calculated considering the main groups obtained from the STRUCTURE analysis was implemented by the software GenAlEx 6.5.1 [24]. The statistical significance was also tested using a nonparametric approach described in Excoffier et al. (1992) with 1000 permutations [32].

3. Results

3.1. Genetic Diversity

In total, 72 alleles were amplified from nine SSR primers across the 204 P. koraiensis samples, with an average of 6.7 alleles per locus (Table 3). Among loci, observed heterozygosity (Ho) and expected heterozygosity (He) ranged from 0.416 to 0.922 and from 0.351 to 0.846, with means of 0.741 and 0.610, respectively. Ho was higher than He at each microsatellite locus. Ar ranged from 2.5 (P5) to 11.9 (P45), and the average Ar was 6.8 (Table 3). Meanwhile, the FIS showed negative and significant values at all loci except P62 and P79, and the overall FIS across the nine loci was −0.231 (Table 3, p < 0.05), indicating heterozygote excess in the P. koraiensis populations.
Genetic diversity parameters at the population level are given in Table 4. Among populations, Na and Ne ranged from 5.9 to 7.1 and 3.1 to 3.8, with means of 6.7 and 3.4, respectively. Ho ranged from 0.700 to 0.808, and He ranged from 0.581 to 0.636, with means of 0.741 and 0.610, respectively. Ho was higher than He in each population. For the Ho and He descriptors, the two northern-most populations (Dailin (DL) and Fenglin (FL)) had higher values than the five southern populations, but the difference was not significant. The overall average Ar was 6.6, the largest value was observed in the Lushuihe (LSH) population (7.1), and the smallest value was observed in the Kuandian (KD) population (5.8). Meanwhile, the FIS showed negative and significant values in all seven populations, indicating a slight departure from Hardy–Weinberg equilibrium with heterozygote excess.
Thus, the overall genetic diversity in P. koraiensis populations was relatively high, and the northern-most populations DL and FL showed the highest diversity. By comparison, the southern-most population KD showed the lowest level of genetic diversity.

3.2. Genetic Differentiation

We estimated the overall population differentiation degree among seven populations of P. koraiensis, and the FST was 0.020. This indicated that 2.0% of the genetic variation existed among the seven P. koraiensis populations, whereas 98.0% of the genetic variation existed within populations. In other words, the genetic variation within populations of P. koraiensis was the main source of variation. Pairwise FST values were very low (0.007 to 0.021), and 10 of 21 pairwise FST values were significant, which were mainly found in the comparisons of the two northern populations (DL and FL) (Table 5). This result illustrated that the level of genetic differentiation among populations was very low.
We performed non-hierarchical AMOVA among and within P. koraiensis populations (Table 6), and the results showed that the genetic variation among populations was only 2.35% (p < 0.001). Thus, most variation occurred within populations (97.65%, p < 0.001). These results also indicated that the genetic variation in P. koraiensis mainly occurred within populations, and the genetic differentiation level among populations was very low.

3.3. Population Structure

The population structure analysis provided additional information on the level of genomic admixture among populations. The results from STRUCTURE showed that at K = 2, ∆K was optimal (Figure 2), indicating that the most likely division of P. koraiensis populations included two clusters (Figure 3). The KD, LSH, HNH, DHL, and DFH populations were assigned to cluster I (blue, FST = 0.0031); cluster II (red, FST = 0.0223) included the two northern-most populations (DL and FL).
Furthermore, a hierarchical AMOVA was carried out according to the two main groups (clusters) obtained by STRUCTURE analysis. The results showed that the molecular variance between groups was 3.62% (p < 0.001), and the majority of the genetic variation in P. koraiensis was located within populations (95.81%, p < 0.001) (Table 6).

3.4. Correlations Between Genetic Diversity Parameters and Geoclimatic Variables

We performed Spearman’s correlation analyses between the calculated genetic diversity parameters and geoclimatic variables (Table 7). The results revealed no significant correlations between any of the genetic diversity descriptors (Na, Ne, I, Ho, He, uHe, Ar, and FIS) and latitude or longitude (p > 0.05), except for Ho, which was significantly correlated with latitude. However, some genetic parameters, such as Ho, He, and uHe exhibited significant and negative correlations with the annual mean temperature and annual precipitation variables (p < 0.05), which implied that there were higher genetic diversities in populations that grew in regions with lower temperatures and precipitation. Furthermore, because the temperature and precipitation were highly correlated (R2 = 0.75, p = 0.012), we performed principle component analysis (PCA, Figure S1; Table S1) of our climate data to reduce its dimensionality, and the results indicated that the component 1 (PCA1, Figure S1; Table S1) could explain 88.68% of the variance of the climate predictors. We then calculated relationships between genetic variables and PCA1, which also showed that the Ho, He, and uHe parameters were significant and negatively correlated with PCA1 (p < 0.05).

4. Discussion

4.1. Genetic Diversity

To the best of our knowledge, this study was the first to use SSR molecular markers to evaluate the genetic diversity and structure of natural P. koraiensis populations in China. Thus, our results provide essential insight into the potential of this species to adapt to environmental changes and could play an important role in future forest management and conservation of its genetic resources.
Our results clearly showed that the level of genetic diversity in the natural populations of P. koraiensis was very high, and the overall He (0.610) was similar to that in most Pinus species with high levels of genetic diversity when evaluated by SSRs, including Pinus thunbergii (He = 0.782) [33], Pinus sylvestris (He = 0.586) [34], and Pinus strobus (He = 0.531) [35]. Although different SSR markers could affect the comparisons, most studies still use He to compare the level of genetic diversity [33,34,35,36]. The main reason for the high genetic diversity observed in P. koraiensis may be associated with its specific characteristics such as a long life cycle, an outcrossing mating system, wind pollination, and high fecundity [37,38,39]. Another factor that may have contributed to the high levels of genetic diversity was the large geographic range, which had large differences in climatic and habitat conditions. Although P. koraiensis are wind-pollinated and have an outcrossing mating system, all seven populations showed highly negative FIS values. We presumed that this result could be due to different causes, such as the fusion of formerly isolated populations, adaptive advantage of heterozygote individuals, or their critical habitat destruction, therefore resulting in non-random mating between individuals within populations.
In addition, for P. koraiensis, the level of genetic diversity in this study was higher than that in previous reports employing other means of detection, such as allozymes (He = 0.183) [2], RAPD molecular markers (He = 0.169) [20], and ISSR molecular markers (He = 0.601) [3]. These differences may be due to the different numbers and types of genetic detection technologies used in the studies or to the different populations and biased sample sizes. Meanwhile, we found that the northern-most populations DL and FL had slightly higher genetic diversity than the other populations, which was also different from the findings of Feng [4] and Kim [20]. However, they seem to have low Ar values, which suggests these two populations may have experienced a recent bottleneck, as a faster reduction in the number of alleles and a concomitantly slight reduction of gene diversity have been generally observed in recently bottlenecked populations [40,41].

4.2. Genetic Differentiation and Population Structure

According to Wright [42], the level of genetic differentiation among populations is low when the coefficient of genetic differentiation (FST) is less than 0.25. Our results showed that the genetic differentiation level of P. koraiensis was very low (FST ranging from 0.007 to 0.021), and the AMOVA results showed that only 2.35% of the total genetic variation occurred among populations, which was consistent with conifers often showing low levels of genetic differentiation among populations [35,36,43,44]. Due to their wind pollination and high out-crossing rates, Pinus species, such as P. koraiensis often exhibit high gene flow among populations [45,46,47] and, consequently, a low level of genetic differentiation.
The STRUCTURE analysis clustered the seven natural populations into two main groups, with the two northern populations forming one group and the five southern populations forming another group. The main reason for this clustering might be that the two northern populations (DL and FL), which are located in the Xiaoxinganling Mountains, are the closest geographically and belong to the same range continuum (with the absence of a physical barrier between them), leading to their tendency to cluster together. Meanwhile, the other five populations, which are located in the Changbai Mountains and adjacent highlands, also had barrier-free gene flow and formed another genetic cluster. Furthermore, in this study, the northern populations were collected from regions that had similar climates, and the genetic parameters were significantly and negatively correlated with climatic factors (i.e., Tmean and Prec) (Table 7). This implied that geographical and climatic factors could result in strong and discrete genetic differentiation, which has been found in other studies [36,48]. In addition, human activities might also have an impact on the populations [49,50]. The northern populations were located in nature reserves, and their habitat was protected and relatively intact; however, the southern region had long been deforested by the activities of local villagers. Nevertheless, based on our data, we conclude that P. koraiensis was differentiated into two groups on the basis of its current population genetic structure.

4.3. Implications for Conservation

The main genetic concern in the conservation of an endangered species is to find suitable strategies for maintaining its current genetic diversity and ensuring its long-term evolutionary potential [18,51,52,53]. Therefore, based on the genetic diversity and population structure of P. koraiensis in this study, several necessary approaches should be taken for conservation by the Chinese government. First of all, considering the high genetic diversity of P. koraiensis populations in our study, an in situ conservation strategy should be carried out to protect their habitats, prohibit timber harvesting, and implement sustainable management regimes in order to maintain the genetic diversity of this species. Our results also showed that there are two genetic clusters, so managers should not move seeds between the northern and southern areas if they want to preserve the genetic distinctiveness of the different clusters. Furthermore, some breeding programs such as seed orchards should be established to produce seeds with high genetic diversity, which is another way to maintain the genetic diversity of this species.

5. Conclusions

Pinus koraiensis is a conifer species of ecological and economic importance in Northeast China which has been excessively exploited in recent years. In order to protect and manage the genetic resources of this important species efficiently, greater knowledge of its genetic diversity and population structure is needed. In the present study, we assessed the genetic diversity and population structure of seven natural populations representing most of the P. koraiensis range by using nine nuclear simple sequence repeats. First, we found that the level of genetic diversity in the natural populations was still high, and the level of genetic differentiation among populations was very low. Second, we detected a genetic population structure and a separation between northern and southern populations. Also, genetic variation within populations followed a geographic pattern. Taken together, our results will inform efforts for the conservation and management of P. koraiensis and provide guidance for future studies of population genetics and breeding programs.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4907/11/1/39/s1, Figure S1: The loadings of each climate variable of PCA, Table S1: Principle component analysis of the climate data (PCA).

Author Contributions

Experimental design, Y.W.T. and L.Q.; investigation, Y.W.T., C.R.M., and Y.W.; formal analysis, Y.W.T. and W.M.Z.; funding acquisition, L.M.D. and L.Q.; project administration, L.Z., D.P.Y., and L.Q.; supervision, L.M.D.; writing—original draft, Y.W.T.; writing—review & editing, Y.W.T., B.J.L., L.M.D., and L.Q. All the co-authors have read and approved the submitted version of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by two projects of National Natural Science Foundation of China, grant number “41877549” and “41701052”. This work is also supported by CFERN & BEIJING TECHNO SOLUTIONS Award Funds on excellent academic achievements.

Acknowledgments

We would like to acknowledge Qi Zhu, Jian Wu, Yang Tang, Hong Chen, and all the people from the Forestry Bureau of seven counties that helped us with the sampling.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ma, J.L.; Zhang, L.W.; Cheng, D.; Li, J.W. Geographic distribution of Pinus koraiensis in the world. J. Northeast. For. Univ. 1992, 20, 40–47. (In Chinese) [Google Scholar]
  2. Potenko, V.V.; Velikov, A.V. Genetic diversity and differentiation of natural populations of Pinus koraiensis (Sieb. et Zucc.) in Russia. Silvae Genet. 1998, 47, 202–208. [Google Scholar]
  3. Feng, F.J.; Sui, X.; Chen, M.M.; Zhao, D.; Han, S.J.; Li, M.H. Mode of pollen spread in clonal seed orchard of Pinus koraiensis. J. Biophys. Chem. 2010, 1, 33–39. [Google Scholar] [CrossRef] [Green Version]
  4. Feng, F.J.; Han, S.J.; Wang, H.M. Genetic diversity and genetic differentiation of natural Pinus koraiensis population. J. For. Res. 2006, 17, 21–24. [Google Scholar] [CrossRef]
  5. Aizawa, M.; Kim, Z.S.; Yoshimaru, H. Phylogeography of the Korean pine (Pinus koraiensis) in northeast Asia: Inferences from organelle gene sequences. J. Plant Res. 2012, 125, 713–723. [Google Scholar] [CrossRef] [PubMed]
  6. Yu, D.P.; Zhou, L.; Zhou, W.M.; Ding, H.; Wang, Q.W.; Wang, Y.; Wu, X.Q.; Dai, L.M. Forest management in Northeast China: History, problems, and challenges. Environ. Manag. 2011, 48, 1122–1135. [Google Scholar] [CrossRef] [PubMed]
  7. Qi, L.; Yang, J.; Yu, D.; Dai, L.; Contrereas, M. Responses of regeneration and species coexistence to single-tree selective logging for a temperate mixed forest in eastern Eurasia. Ann. For. Sci. 2016, 73, 449–460. [Google Scholar]
  8. Sun, Y.; Zhu, J.; Sun, O.J.; Yan, Q. Photosynthetic and growth responses of Pinus koraiensis seedlings to canopy openness: Implications for the restoration of mixed-broadleaved Korean pine forests. Environ. Exp. Bot. 2016, 129, 118–126. [Google Scholar] [CrossRef]
  9. Chen, X.W.; Zhou, G.S.; Zhang, X.S. Spatial characteristics and change for tree species along the North East China Transect (NECT). Plant Ecol. 2003, 164, 65–74. [Google Scholar] [CrossRef]
  10. Hughes, A.R.; Inouye, B.D.; Johnson, M.T.J.; Underwood, N.; Vellend, M. Ecological consequences of genetic diversity. Ecol. Lett. 2008, 11, 609–623. [Google Scholar] [CrossRef]
  11. Gapare, W.J. Merging applied gene conservation activities with advanced generation breeding initiatives: A case study of Pinus radiata D. Don. New For. 2014, 45, 311–331. [Google Scholar] [CrossRef]
  12. Hamrick, J.L.; Godt, M.J.W.; Sherman-Broyles, S.L. Factors influencing levels of genetic diversity in woody plant species. New For. 1992, 6, 95–124. [Google Scholar] [CrossRef]
  13. Shi, X.M.; Wen, Q.; Cao, M.; Guo, X.; Xu, L.A. Genetic Diversity and Structure of Natural Quercus variabilis Population in China as Revealed by Microsatellites Markers. Forests 2017, 8, 495. [Google Scholar] [CrossRef] [Green Version]
  14. Potter, K.M.; Jetton, R.M.; Bower, A.; Jacobs, D.F.; Man, G.; Hipkins, V.D.; Westwood, M. Banking on the future: Progress, challenges and opportunities for the genetic conservation of forest trees. New For. 2017, 48, 153–180. [Google Scholar] [CrossRef]
  15. Reed, D.H.; Frankham, R. Correlation between fitness and genetic diversity. Conserv. Biol. 2003, 17, 230–237. [Google Scholar] [CrossRef]
  16. Eltaher, S.; Sallam, A.; Belamkar, V.; Emara, H.A.; Nower, A.A.; Salem, K.F.M. Genetic diversity and population structure of F3:6 Nebraska winter wheat genotypes using genotyping-by-sequencing. Front. Genet. 2018, 9, 76. [Google Scholar] [CrossRef]
  17. Sutherland, W.J.; Albon, S.D.; Allison, H.; Armstrong-Brown, S.; Bailey, M.J.; Brereton, T.; Boyd, I.L.; Carey, P.; Edwards, J.; Gill, M.; et al. The identification of priority policy options for UK nature conservation. J. Appl. Ecol. 2010, 47, 955–965. [Google Scholar] [CrossRef] [Green Version]
  18. Guo, H.Y.; Wang, Z.L.; Huang, Z.; Chen, Z.; Yang, H.B.; Kang, X.Y. Genetic Diversity and Population Structure of Alnus cremastogyne as Revealed by Microsatellite Markers. Forests 2019, 10, 278. [Google Scholar] [CrossRef] [Green Version]
  19. Thakur, S.; Choudhary, S.; Singh, A.; Ahmad, K.; Sharma, G.; Majeed, A.; Bhardwaj, P. Genetic diversity and population structure of Melia azedarach in North-Western Plains of India. Trees 2016, 30, 1483–1494. [Google Scholar] [CrossRef]
  20. Kim, Z.S.; Hwang, J.W.; Lee, S.W.; Yang, C.; Gorovoy, P.G. Genetic variation of Korean pine (Pinus koraiensis Sieb. et Zucc.) at allozyme and RAPD markers in Korea, China and Russia. Silvae Genet. 2005, 54, 235–246. [Google Scholar] [CrossRef] [Green Version]
  21. Feng, F.J.; Chen, M.M.; Zhang, D.D.; Sui, X.; Han, S.J. Application of SRAP in the genetic diversity of Pinus koraiensis of different provenances. Afr. J. Biotechnol. 2009, 8, 1000–1008. [Google Scholar]
  22. Yu, J.H.; Chen, C.M.; Tang, Z.H.; Yuan, S.S.; Wang, C.J.; Zu, Y.G. Isolation and characterization of 13 novel polymorphic microsatellite markers for Pinus koraiensis (Pinaceae). Am. J. Bot. 2012, 99, 421–424. [Google Scholar] [CrossRef] [PubMed]
  23. Jia, D.; Zhen, Z.; Zhang, H.G.; Tang, J.H. EST-SSR marker development and transcriptome sequencing analysis of different tissues of Korean pine (Pinus koraiensis Sieb. et Zucc.). Biotechnol. Biotechnol. Equip. 2017, 31, 679–689. [Google Scholar]
  24. Peakall, R.; Smouse, P.E. GenAlEx 6.5: Genetic analysis in Excel. Population genetic software for teaching and research—An update. Bioinformatics 2012, 28, 2537–2539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Weir, B.S.; Cockerham, C.C. Estimating F-statistics for the analysis of population structure. Evolution 1984, 38, 1358–1370. [Google Scholar]
  26. Goudet, J. FSTAT (version 1.2): A computer program to calculate F-statistics. J. Hered. 1995, 86, 485–486. [Google Scholar] [CrossRef]
  27. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2019. [Google Scholar]
  28. Trouet, V.; Van Oldenborgh, G.J. KNMI climate explorer: A web-based research tool for high-resolution paleoclimatology. Tree Ring Res. 2013, 69, 3–13. [Google Scholar] [CrossRef] [Green Version]
  29. Hubisz, M.J.; Falush, D.; Stephens, M.; Pritchard, J.K. Inferring weak population structure with the assistance of sample group information. Mol. Ecol. Resour. 2009, 9, 1322–1332. [Google Scholar] [CrossRef] [Green Version]
  30. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the number of clusters of individuals using the software STRUCTURE: A simulation study. Mol. Ecol. 2010, 14, 2611–2620. [Google Scholar] [CrossRef] [Green Version]
  31. Jakobsson, M.; Rosenberg, N.A. CLUMPP: A cluster matching and permutation program for dealing with label switching and multimodality in analysis of population structure. Bioinformatics 2007, 23, 1801. [Google Scholar] [CrossRef] [Green Version]
  32. Excoffier, L.; Smouse, P.E.; Quattro, J.M. Analysis of molecular variance inferred from metric distances among DNA haplotypes-application to human mitochondrial-DNA restriction data. Genetics 1992, 131, 479–491. [Google Scholar] [PubMed]
  33. Iwaizumi, M.G.; Miyata, S.; Hirao, T.; Tamura, M.; Watanabe, A. Historical seed use and transfer affects geographic specificity in genetic diversity and structure of old planted Pinus thunbergii populations. For. Ecol. Manag. 2018, 408, 211–219. [Google Scholar] [CrossRef]
  34. Toth, E.G.; Vendramin, G.G.; Bagnoli, F.; Cseke, K.; Hoehn, M. High genetic diversity and distinct origin of recently fragmented Scots pine (Pinus sylvestris L.) populations along the Carpathians and the Pannonian Basin. Tree Genet. Genomes 2017, 13, 47. [Google Scholar] [CrossRef]
  35. Mandak, B.; Hadincova, V.; Mahelka, V.; Wildova, R. European Invasion of North American Pinus strobus at Large and Fine Scales: High Genetic Diversity and Fine-Scale Genetic Clustering over Time in the Adventive Range. PLoS ONE 2013, 8, e68514. [Google Scholar] [CrossRef] [Green Version]
  36. Xu, Y.L.; Cai, N.H.; Woeste, K.; Kang, X.Y.; He, C.Z.; Li, G.Q.; Chen, S.; Duan, A.A. Genetic diversity and population structure of Pinus yunnanensis by simple sequence repeat markers. For. Sci. 2016, 62, 38–47. [Google Scholar] [CrossRef]
  37. Hamrick, J.L.; Linhart, Y.B.; Mitton, J.B. Relationships between life-history characteristics and electrophoretically detectable genetic-variation in plants. Annu. Rev. Ecol. Syst. 1979, 10, 173–200. [Google Scholar] [CrossRef]
  38. Hellmann, J.J.; Pineda-Krch, M. Constraints and reinforcement on adaptation under climate change: Selection of genetically correlated traits. Biol. Conserv. 2007, 137, 599–609. [Google Scholar] [CrossRef]
  39. Gaudeul, M.; Taberlet, P.; Till-Bottraud, I. Genetic diversity in an endangered alpine plant, Eryngium alpinum L. (Apiaceae), inferred from amplified fragment length polymorphism markers. Mol. Ecol. 2000, 9, 1625–1637. [Google Scholar] [CrossRef] [Green Version]
  40. Karmin, M.; Saag, L.; Vicente, M.; Sayres, M.A.W.; Jarve, M.; Talas, U.G.; Rootsi, S.; Ilumaee, A.M.; Maegi, R.; Mitt, M.; et al. A recent bottleneck of Y chromosome diversity coincides with a global change in culture. Genome Res. 2015, 25, 459–466. [Google Scholar] [CrossRef] [Green Version]
  41. Peery, M.Z.; Kirby, R.; Reid, B.N.; Stoelting, R.; Doucet-Beer, E.; Robinson, S.; Vasquez-Carrillo, C.; Pauli, J.N.; Palsboll, P.J. Reliability of genetic bottleneck tests for detecting recent population declines. Mol. Ecol. 2012, 21, 3403–3418. [Google Scholar] [CrossRef]
  42. Wright, S. The Interpretation of Population Structure by F-Statistics with Special Regard to Systems of Mating. Evolution 1965, 19, 395–420. [Google Scholar] [CrossRef]
  43. Belletti, P.; Ferrazzini, D.; Piotti, A.; Monteleone, I.; Ducci, F. Genetic variation and divergence in Scots pine (Pinus sylvestris L.) within its natural range in Italy. Eur. J. For. Res. 2012, 131, 1127–1138. [Google Scholar] [CrossRef] [Green Version]
  44. Iwaizumi, M.G.; Tsuda, Y.; Ohtani, M.; Tsumura, Y.; Takahashi, M. Recent distribution changes affect geographic clines in genetic diversity and structure of Pinus densiflora natural populations in Japan. For. Ecol. Manag. 2013, 304, 407–416. [Google Scholar] [CrossRef]
  45. Nybom, H. Comparison of different nuclear DNA markers for estimating intraspecific genetic diversity in plants. Mol. Ecol. 2004, 13, 1143–1155. [Google Scholar] [CrossRef]
  46. Petit, R.J.; Duminil, J.; Fineschi, S.; Hampe, A.; Salvini, D.; Vendramin, G.G. Comparative organization of chloroplast, mitochondrial and nuclear diversity in plant populations. Mol. Ecol. 2005, 14, 689–701. [Google Scholar] [CrossRef] [Green Version]
  47. Rubio-Moraga, A.; Candel-Perez, D.; Lucas-Borja, M.E.; Tiscar, P.A.; Vinegla, B.; Linares, J.C.; Gómez-Gómez, L.; Ahrazem, O. Genetic diversity of Pinus nigra Arn. populations in southern Spain and northern Morocco revealed by inter-simple sequence repeat profiles. Int. J. Mol. Sci. 2012, 13, 5645–5658. [Google Scholar] [CrossRef] [Green Version]
  48. Wang, B.; Mao, J.F.; Zhao, W.; Wang, X.R. Impact of geography and climate on the genetic differentiation of the subtropical pine Pinus yunnanensis. PLoS ONE 2013, 8, e67345. [Google Scholar] [CrossRef]
  49. Young, A.; Merriam, H. Effects of forest fragmentation on the spatial genetic structure of Acer saccharum Marsh.(sugar maple) populations. Heredity 1994, 72, 201. [Google Scholar] [CrossRef] [Green Version]
  50. Aldrich, P.R.; Hamrick, J.L.; Chavarriaga, P.; Kochert, G. Microsatellite analysis of demographic genetic structure in fragmented populations of the tropical tree Symphonia globulifera. Mol. Ecol. 1998, 7, 933–944. [Google Scholar] [CrossRef]
  51. Forest, F.; Grenyer, R.; Rouget, M.; Davies, T.J.; Cowling, R.M.; Faith, D.P.; Balmford, A.; Manning, J.C.; Proches, S.; van der Bank, M.; et al. Preserving the evolutionary potential of floras in biodiversity hotspots. Nature 2007, 445, 757. [Google Scholar] [CrossRef]
  52. Stojnić, S.; Avramidou, E.V.; Fussi, B.; Westergren, M.; Orlović, S.; Matović, B.; Trudić, B.; Kraigher, H.; Aravanopoulos, F.A.; Konnert, M. Assessment of Genetic Diversity and Population Genetic Structure of Norway Spruce (Picea abies (L.) Karsten) at Its Southern Lineage in Europe. Implications for Conservation of Forest Genetic Resources. Forests 2019, 10, 258. [Google Scholar] [CrossRef] [Green Version]
  53. Carabeo, M.; Simeone, M.C.; Cherubini, M.; Mattia, C.; Chiocchini, F.; Bertini, L.; Caruso, C.; La Mantia, T.; Villani, F.; Mattioni, C. Estimating the genetic diversity and structure of Quercus trojana Webb populations in Italy by SSRs: Implications for management and conservation. Can. J. For. Res. 2017, 47, 331–339. [Google Scholar] [CrossRef]
Forests 11 00039 g001 550

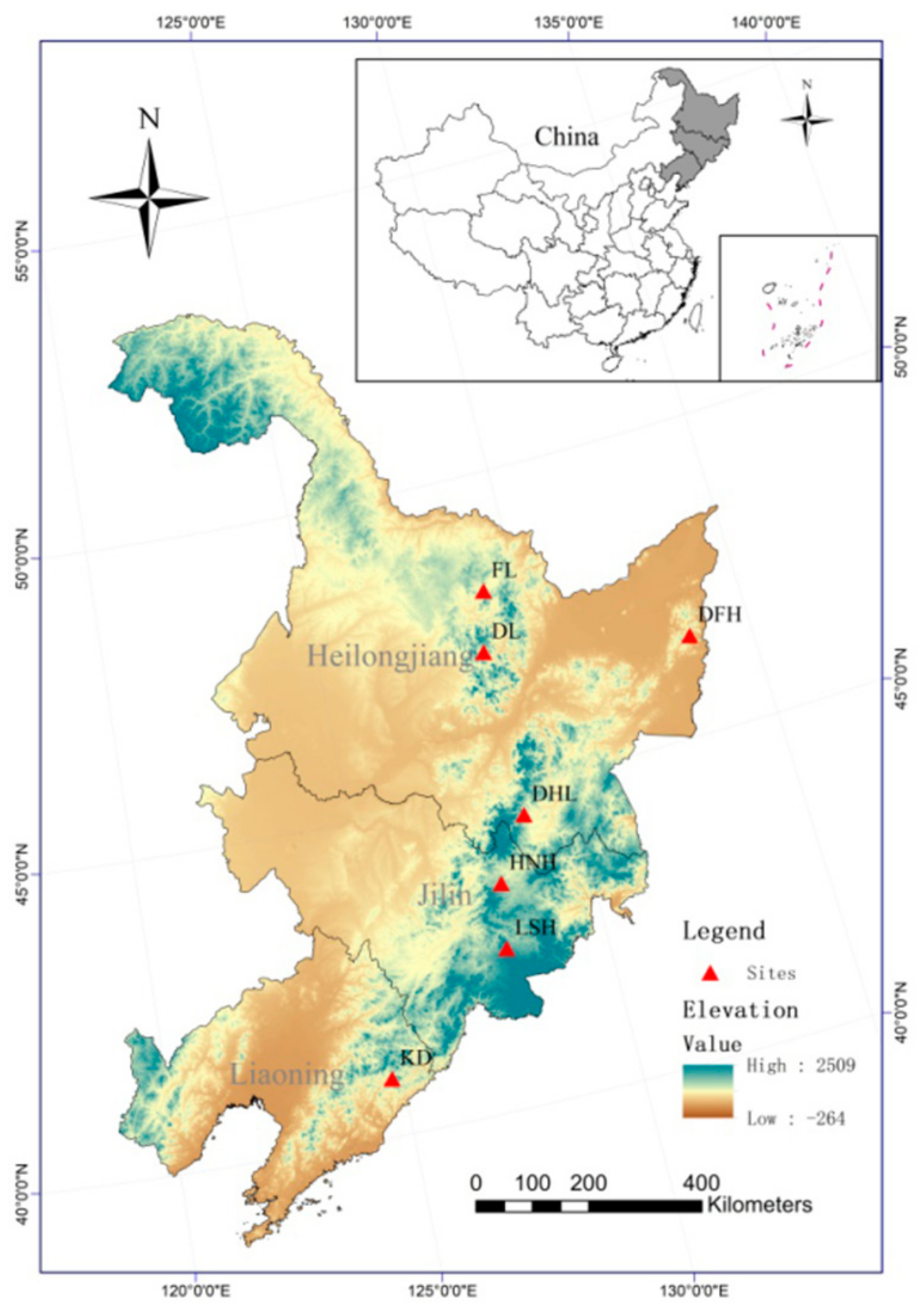

Figure 1. Map illustrating the location of the seven populations of P. koraiensis in this study.
Figure 1. Map illustrating the location of the seven populations of P. koraiensis in this study.
Forests 11 00039 g001
Forests 11 00039 g002 550

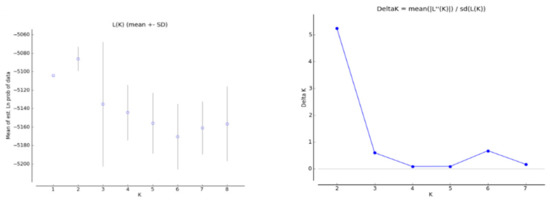

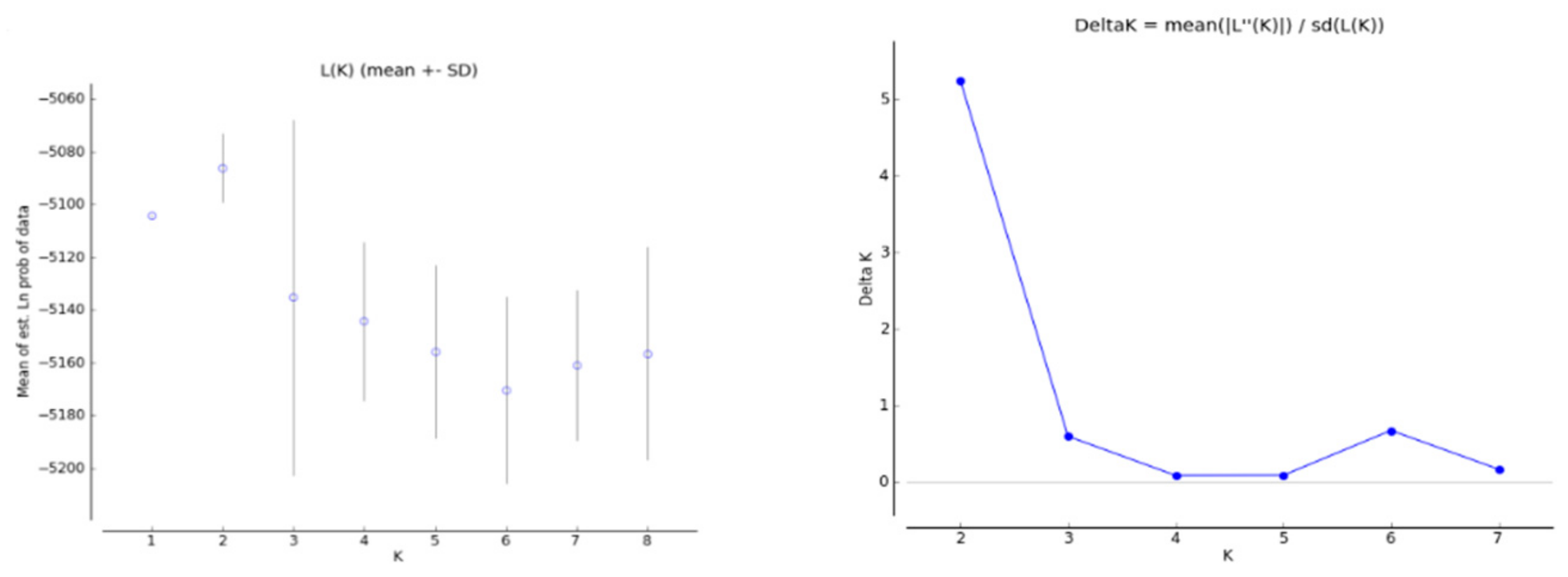

Figure 2. Diagnostic plots of L(K) and Delta-K from the STRUCTURE analysis of P. koraiensis populations.
Figure 2. Diagnostic plots of L(K) and Delta-K from the STRUCTURE analysis of P. koraiensis populations.
Forests 11 00039 g002
Forests 11 00039 g003 550

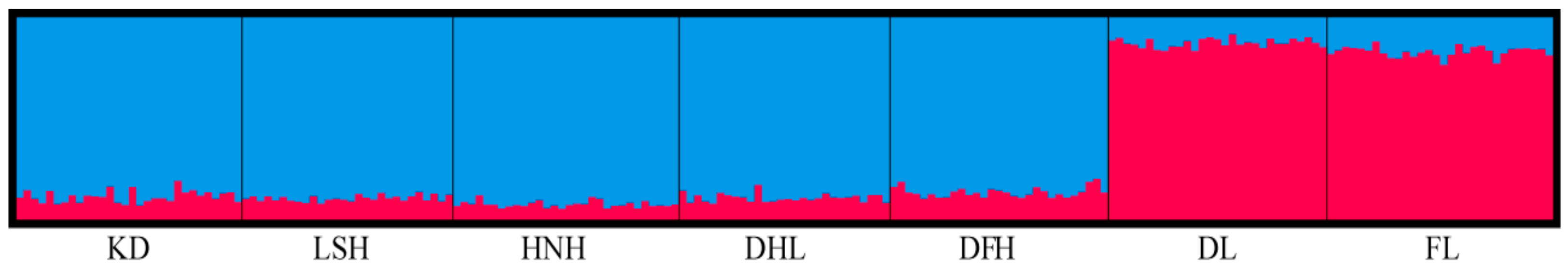

Figure 3. Results of the STRUCTURE analysis of P. koraiensis populations at K = 2. Each individual is represented by a single vertical bar, which is partitioned among gene pools. Colors represent genetic clusters, and the colored segments show the individual’s estimated ancestry proportion.
Figure 3. Results of the STRUCTURE analysis of P. koraiensis populations at K = 2. Each individual is represented by a single vertical bar, which is partitioned among gene pools. Colors represent genetic clusters, and the colored segments show the individual’s estimated ancestry proportion.
Forests 11 00039 g003
Table
Table 1. Population information and geographical characteristics of seven populations of P. koraiensis.
Table 1. Population information and geographical characteristics of seven populations of P. koraiensis.
PopulationIDNLocation
(Province)		Latitude
(°)		Longitude
(°)		Annual Mean Temperature
(°C)		Annual Mean Precipitation (mm)
KuandianKD30Liaoning40.91124.786.29973.04
LushuiheLSH28Jilin42.53127.804.12783.68
HuangniheHNH30Jilin43.55128.013.76635.42
DahailinDHL28Heilongjiang44.52128.861.14619.72
DongfanghongDFH29Heilongjiang46.58133.583.17648.99
DailinDL29Heilongjiang47.18128.850.30574.59
FenglinFL30Heilongjiang48.13129.190.04596.15
All populations 204
Table
Table 2. Primer characteristics of nine microsatellite markers in Pinus koraiensis. The forward primers were labelled with a fluorescent dye (FAM or HEX) [22,23].
Table 2. Primer characteristics of nine microsatellite markers in Pinus koraiensis. The forward primers were labelled with a fluorescent dye (FAM or HEX) [22,23].
LocusDyePrimer Sequences (5′–3′)Repeat MotifRange (bp)Ta (°C)
P5FAMF: ATTCCTACTTTTCCCGTTT
R: ACAGAGACCCCGTTTACAT		(CA)11108–11855
P6FAMF: TCAAATTACCAGACAATAA
R: GAATTCGCCAATGAAATCA		(TA)3(GT)15107–12855
P29HEXF: TGTCAACTTTGAACCCTGAA
R: AGGCCAATCCTCATACATTT		(CA)9134–14855
P45HEXF: CTTACATTTTGCTGCTTTTC
R: TTGTCAGTTTTAGGTTGGAT		(TG)16(AG)17165–20355
P51HEXF: CCTAAGAGCAATGTAAAATG
R: AGCTTGACAACGACTAACT		(AG)15188–22555
P52FAMF: CCATCCTTCAAATTTTCCT
R: GCCATTCTTTCTACCACTT		(AG)26113–14556
P62FAMF: CAAGGAGGAAAACAATAAGG
R: CTACAACAGAAACTAGCCAGA		(CT)10127–13356
P63HEXF: CTCCTTCTTCATCCATCCATT
R: TGAGGTGAGCCTGCATATAGT		(CT)19218–25255
P79HEXF: CCACCGCCAAGTCCATTA
R: GCTTTGTTAGCCGTCCAG		(CAA)7183–20155
Note: Ta = annealing temperature.
Table
Table 3. Genetic diversity parameters of number of alleles (Na), number of effective alleles (Ne), Shannon’s index (I), observed heterozygosity (Ho), expected heterozygosity (He), unbiased expected heterozygosity (uHe), allelic richness (Ar), and the inbreeding coefficient (FIS) for each locus. Significant values are indicated with * (0.01 < p < 0.05).
Table 3. Genetic diversity parameters of number of alleles (Na), number of effective alleles (Ne), Shannon’s index (I), observed heterozygosity (Ho), expected heterozygosity (He), unbiased expected heterozygosity (uHe), allelic richness (Ar), and the inbreeding coefficient (FIS) for each locus. Significant values are indicated with * (0.01 < p < 0.05).
LocusNaNeIHoHeuHeArFIS
P52.31.60.5650.4250.3580.3642.5−0.186 *
P67.12.31.2140.6880.5610.5717.4−0.227 *
P293.11.60.6490.4160.3510.3573.3−0.186 *
P4511.66.12.0430.9220.8360.85111.9−0.102 *
P5111.76.62.1220.9220.8460.86111.7−0.089 *
P528.33.71.5600.8680.7140.7268.3−0.216 *
P623.92.40.9870.8330.5740.5844.5−0.451
P639.14.81.7790.9210.7870.8009.5−0.171 *
P792.71.90.6990.6760.4660.4742.6−0.450
Mean6.73.41.2910.7410.6100.6216.8−0.231 *
Table
Table 4. Genetic diversity parameters for the seven P. koraiensis populations analyzed with nine microsatellite loci: Mean number of different alleles (Na), mean number of effective alleles (Ne), Shannon’s index (I), observed heterozygosity (Ho), expected heterozygosity (He), unbiased expected heterozygosity (uHe), allelic richness (Ar) and the inbreeding coefficient (FIS). Significant values are indicated with * (0.01 < p < 0.05) and ** (p < 0.01).
Table 4. Genetic diversity parameters for the seven P. koraiensis populations analyzed with nine microsatellite loci: Mean number of different alleles (Na), mean number of effective alleles (Ne), Shannon’s index (I), observed heterozygosity (Ho), expected heterozygosity (He), unbiased expected heterozygosity (uHe), allelic richness (Ar) and the inbreeding coefficient (FIS). Significant values are indicated with * (0.01 < p < 0.05) and ** (p < 0.01).
PopulationNaNeIHoHeuHeArFIS
KD5.93.31.2040.7000.5810.5915.8−0.188 **
LSH7.13.41.3030.7180.6050.6167.1−0.170 **
HNH7.13.41.3320.7300.6180.6297.0−0.164 **
DHL6.73.81.3390.7180.6160.6277.0−0.148 **
DFH6.73.11.2140.7430.5860.5966.6−0.252 **
DL6.63.51.3240.8080.6360.6476.5−0.254 **
FL6.63.61.3210.7700.6290.6406.5−0.208 **
Mean6.73.41.2910.7410.6100.6216.6−0.198 *
Table
Table 5. Pairwise FST values for all populations of P. koraiensis. Significant values are indicated with * (p < 0.05).
Table 5. Pairwise FST values for all populations of P. koraiensis. Significant values are indicated with * (p < 0.05).
KDLSHHNHDHLDFHDLFL
0.000 KD
0.0090.000 LSH
0.0070.0080.000 HNH
0.0100.0070.0080.000 DHL
0.0080.0080.0070.0090.000 DFH
0.016 *0.016 *0.017 *0.021 *0.019 *0.000 DL
0.015 *0.014 *0.014 *0.017 *0.014 *0.007 *0.000FL
Table
Table 6. Non-hierarchical and hierarchical AMOVAs of P. koraiensis populations. Significant values are indicated with * (p < 0.05).
Table 6. Non-hierarchical and hierarchical AMOVAs of P. koraiensis populations. Significant values are indicated with * (p < 0.05).
AnalysisSource of
Variation		dfSum of
Squares		Variance ComponentPercentage of
Variation
Non-hierarchical AMOVAAmong populations645.6190.1082.35% *
Within populations197879.8954.46697.65% *
Total203925.5154.574100.00%
Hierarchical AMOVABetween groups119.4140.1693.62% *
Among populations526.2060.0270.57%
Within populations197879.8954.46695.81% *
Total203925.5154.662100.00%
Table
Table 7. Spearman’s correlations between genetic diversity parameters and geoclimatic variables, which were latitude, longitude, annual mean temperature (Tmean), mean temperature of the warmest month (Tmax), mean temperature of the coldest month (Tmin), annual precipitation (Prec), and the component 1 of principle component analysis of the climate data (PCA1). Significant values are indicated with * (0.01 < p < 0.05) and ** (p < 0.01).
Table 7. Spearman’s correlations between genetic diversity parameters and geoclimatic variables, which were latitude, longitude, annual mean temperature (Tmean), mean temperature of the warmest month (Tmax), mean temperature of the coldest month (Tmin), annual precipitation (Prec), and the component 1 of principle component analysis of the climate data (PCA1). Significant values are indicated with * (0.01 < p < 0.05) and ** (p < 0.01).
ParameterLatitude LongitudeTmeanTmaxTminPrecPCA1
Na−0.2020.0180.202−0.0920.2020.1280.202
Ne0.4640.214−0.679−0.929 **−0.643−0.750−0.643
I0.3210.214−0.500−0.893 **−0.393−0.679−0.536
Ho0.901 **0.631−0.811 *−0.432−0.757 *−0.811 *−0.847 *
He0.7140.286−0.786 *−0.786 *−0.714−0.929 *−0.821 *
uHe0.7140.286−0.786 *−0.786 *−0.714−0.929 *−0.821 *
Ar−0.250−0.0710.214−0.1790.1790.1070.179
FIS−0.536−0.3210.357−0.1790.3930.2860.429

Share and Cite

MDPI and ACS Style

Tong, Y.W.; Lewis, B.J.; Zhou, W.M.; Mao, C.R.; Wang, Y.; Zhou, L.; Yu, D.P.; Dai, L.M.; Qi, L. Genetic Diversity and Population Structure of Natural Pinus koraiensis Populations. Forests 2020, 11, 39. https://doi.org/10.3390/f11010039

AMA Style

Tong YW, Lewis BJ, Zhou WM, Mao CR, Wang Y, Zhou L, Yu DP, Dai LM, Qi L. Genetic Diversity and Population Structure of Natural Pinus koraiensis Populations. Forests. 2020; 11(1):39. https://doi.org/10.3390/f11010039

Chicago/Turabian Style

Tong, Yue W., Bernard J. Lewis, Wang M. Zhou, Cheng R. Mao, Yan Wang, Li Zhou, Da P. Yu, Li M. Dai, and Lin Qi. 2020. "Genetic Diversity and Population Structure of Natural Pinus koraiensis Populations" Forests 11, no. 1: 39. https://doi.org/10.3390/f11010039

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
