Release treatments are a common management practice for ponderosa pine (Pinus ponderosa
Lawson & C. Lawson) plantations. Woody shrubs often compete with planted pines reducing growth and increasing mortality rates [1
], and moisture is a primary limiting factor within the range of ponderosa pine [3
]. Controlling competing vegetation reallocates more available soil water to planted trees [1
], thus fostering successful establishment and more rapid canopy closure. Release treatments lead to increased rates of tree growth [4
]. Wagner et al. [7
] observed a growth release threshold of ~3 Mg ha−1
of shrub biomass in interior ponderosa pine. Through a study on a pine plantation at an advanced age (39 years) on a low-quality site, McDonald and Powers [8
] found total aboveground biomass was greater without shrubs than with, although it was not clear if there was any statistical significance.
Although chemical release is a common and effective practice on industry lands, manual release is more often employed on federally-owned forests in the western United States. Although expensive, manual release can be effective at improving the growth of planted ponderosa pine [2
Reducing competition from woody shrubs has consequences for estimating long-term productivity in ponderosa pine stands [9
]. This is true both for volume estimation as well as biomass or carbon sequestration. In summarizing the results for 12 California long-term soil productivity installations, Zhang et al. [11
] found that total aboveground biomass was significantly higher for non-vegetation-controlled plots than for plots with vegetation control at ages 5 and 10, but there was little difference by age 20. It appears that biomass or carbon in vegetation control plots will surpass that of non-vegetation control plots very early in stand development. This carbon-dynamics information is important when managing plantations for carbon storage and other ecosystem services. However, information is lacking on the biomass dynamics, especially with less intensive manual competing vegetation control efforts.
There are many factors that can vary among operational treatments. Timing of application(s), repetition of treatment, intensity of treatment or, in the case of herbicides, the chemical(s) chosen for a given application may all contribute to varying results. Thus, any study that took all these into consideration would be excessively complex, easily involving dozens of potential operational treatment combinations. A simpler approach, employed here, is to evaluate varying levels of treatment intensity that are representative of a range of management styles.
In this paper, we considered three different levels of management intensity in a young ponderosa pine plantation. The first was a control (no release) which represented a laissez-faire management approach to plantation establishment wherein planted trees fend for themselves with no assistance provided to establish any competitive advantage with non-crop vegetation. It is generally the least expensive in terms of operational costs, although there are indirect costs accrued from growth loss and higher mortality. The second approach, often favored on federal forest lands, was the use of manual grubbing around selected planted trees. It is the most expensive approach on a cost per unit area basis [2
]. Recent figures from Region 5 of the Forest Service (personal communication, Joe Sherlock, a Pacific Southwest Region Silviculturist) show that an average of $
5.6 million was spent annually on manual release treatments between 2002 and 2012. The advantage of this particular approach is primarily that it averts controversy associated with herbicide applications. Forest industries in California frequently use herbicides as a cost-effective release treatment which improves tree growth. While the cost of herbicide application is lower, this does not consider indirect costs related to other ecological values. Herbicide application is considered to be more effective at producing desired growth and survival for planted trees [2
]. The third treatment employed herbicides to achieve a more complete control of competing vegetation. This was used as a reference point for growth potential at this site.
The objective of this study was to evaluate the tree growth and total aboveground productivity (including shrubs) of a twelve-year-old ponderosa pine plantation under three separate treatments representing a range of management intensities. We focused on aboveground biomass response in both trees alone and total aboveground woody vegetation. We did not include soil carbon due to the fact of a lack of observed differences between with and without vegetation controls in similar systems [12
2. Materials and Methods
2.1. Study Site
The study was established at the Blacks Mountain Experimental Forest (BMEF) in the southern Cascade Range of northeastern California (40.72N latitude, 121.17W longitude). Elevations range from 1700 to 2100 m. The climate is montane Mediterranean characterized by warm, dry summers and cold, wet winters. Annual precipitation ranges from 231–743 mm and falls primarily as snow from November to May.

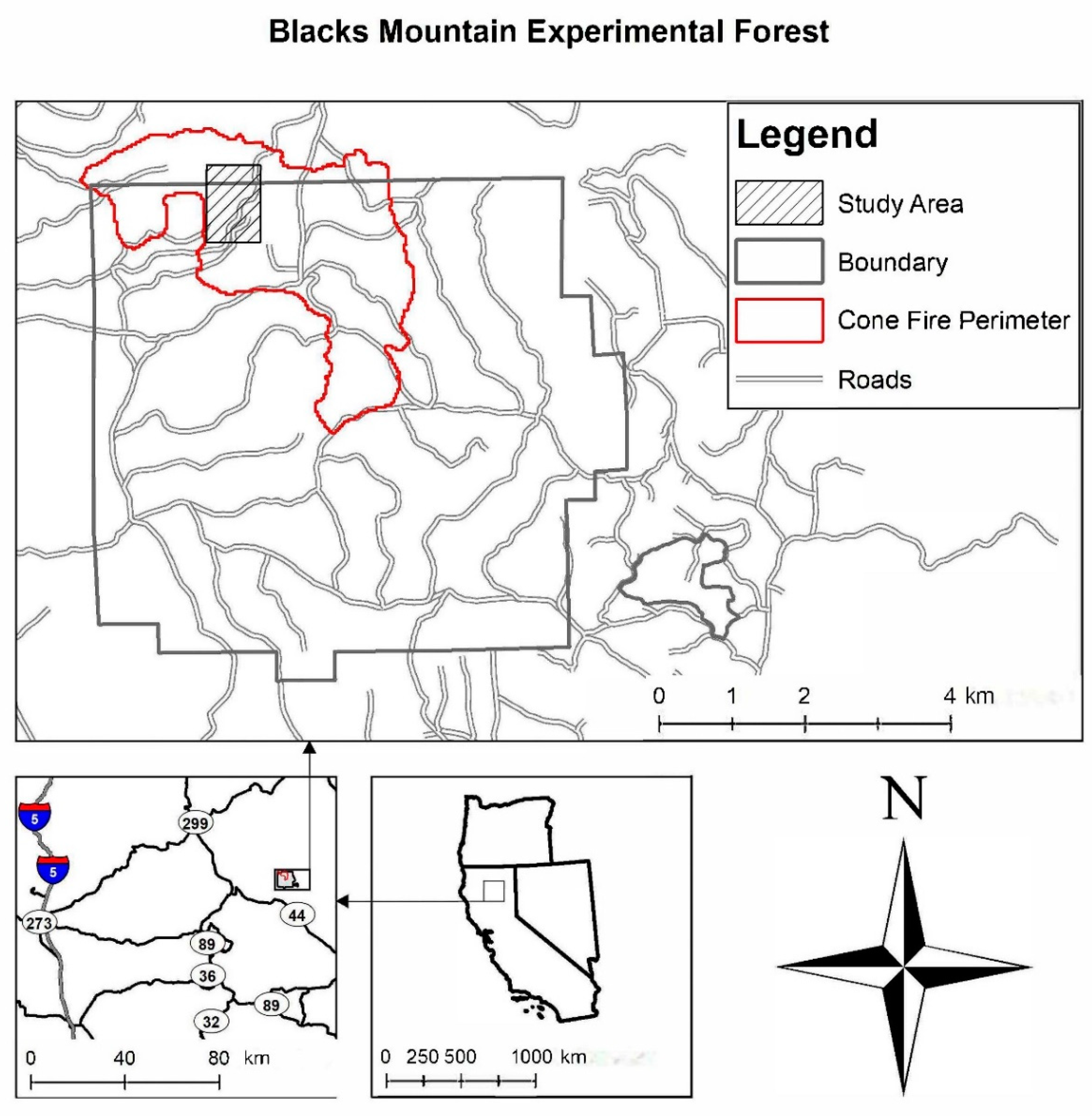

The BMEF is located in the Lassen National Forest in northeastern California (Figure 1
); it is located in an endorheic basin with no year-round streams. The surrounding area is unpopulated; the nearest communities are Susanville 56 km to the southeast and Old Station 22 km to the west. The National Forest is managed for multiple uses and after severe wildfire, areas are typically replanted using native species well adapted to the area. Some adjoining parcels are privately owned and managed primarily for timber production. The forests in this area are dominated by ponderosa pine with a mix of white fir (Abies concolor
(Gord. & Glendl.) Lindl. Ex Hildebr.) and incense-cedar (Calocedrus decurrens
(Torr.) Florin) at higher elevations.
Approximately 650 ha of the BMEF and 200 ha of adjacent privately owned forest was burned by high-severity human-caused wildfire in 2002. Both ownerships were subsequently salvage-logged and planted with container-stock ponderosa pine at 3.7 m square spacing in the spring of 2004 (Figure 2
). The experimental forest was planted with Styroblock 77/170 (164 ml volume per cavity; Beaver Plastics, Stuewe & Sons, Inc., Tangent, Oregon) while the adjacent privately owned land was planted with Styroblock 160/90 (90 ml) stock.
2.2. Blacks Mountain Release Treatments
Within the experimental forest plantation, a paired study of release treatments was established to compare the effects of manual grubbing on competing shrubs (primarily Ceanothus velutinus Douglas ex Hook and Arctostaphylos patula Greene) that germinated from seed after the wildfire. Manual grubbing is a common release treatment on national forest land in this region and herbicide release is used infrequently. Nine paired treatment units were established. At each of the nine locations, two 2.5 ha treatments were applied with random assignment: no release treatment and a release with all vegetation manually grubbed to a 1.5 m radius on half of the planted seedlings. Thus, 18 treatment units were regarded as our experimental units. Grubbing treatment was applied to 370 trees per ha (roughly half of the surviving planted trees in a unit) by assuming as future crop trees. Treatments were applied in the fall of 2007 and then again in the fall of 2009 after 4 and 6 growing seasons, respectively.
Circular measurement plots with a 3.6 m radius were established in a 16 × 13 m grid within each treatment unit. There was a total of 27 plots per treatment unit. The plots were established in 2008 and measured in 2015. All trees within the designated plot radius were measured for basal diameter (BD at 10 cm), total height (H), and crown width (CW). Crown width was measured on the long axis and perpendicular at the base of the live crown and then a geometric mean of the two was calculated. Basal diameter was recorded to the nearest mm with a caliper, height and crown widths to the nearest cm.
2.3. Industry Release Treatments
The adjacent plantation had a site preparation release treatment in 2003 of 22 kg ha−1 of Velpar (backpack application). This was followed with a directed release with two 4D targeting Ceanothus prostratus Benth. plants in 2005 (backpack application). A final release directed for Ceanothus velutinus plants with glyphosate was applied in 2007 (backpack application). Finally, a precommercial thin to 400 trees ha−1 was conducted in 2012 (at age nine).
A systematic array of 50 plots with the same measurements as the experimental forest (3.6 m radius circular plot) was established on the industry property in 2015. The same measurement standards were used with an augmented stump tally with measured basal diameters for all trees removed in the 2012 precommercial thin. Because we could not measure height directly on trees removed during the thinning, height was estimated using a regression relating H (m) and BD (cm) with other measured trees on both properties: H = 0.1 + a0
). The 0.1 m was added because BD was measured at 10 cm above ground.
A total of 81 standing trees were sampled, plus another 141 stumps of trees felled by precommercial thinning. These observations provide a reference for the site productivity potential of ponderosa pine on an identical site with trees in a free-to-grow condition.
2.4. Biomass Data
In both the experimental forest and on the adjacent property, nested rectangular shrub plots were established. Within each of the circular tree plots, a 1.5 m2 shrub-biomass plot was established with the southwest corner at the center of the larger tree plot. This sub-plot was an efficient size to destructively sample in this vegetation structure. On the smaller plot, percent cover and height were obtained for each quadrant by species and averaged for the plot. Percent cover was an ocular estimate and vertical average height was measured to the nearest cm and averaged. There was a total of 486 plots on the BMEF experimental units and 50 on the neighboring privately owned parcel.
Because plots within the chemical release area had so little shrub cover, it was possible to do a complete inventory of shrub biomass by destructive sampling. Therefore, we recorded shrub cover and height and then removed and weighed shrub biomass on all plots where shrub biomass was found.
It was not feasible to destructively sample shrub biomass on all 486 plots in the experimental forest because of the high shrub cover, therefore subsampling of biomass was required for these plots. Within the experimental forest, observed cover values for each plot ranged from near zero to complete coverage of shrubs. This resulted in a total of 30 plots for biomass destructive sampling with a total of 51 separate species-biomass observations (Table 1
Tree biomass for all plots was estimated using equations presented by Powers et al. [13
], Biomass = 278.1443 × (BD)2
× Height + 0.4004, where biomass is in kg and basal diameter (BD) and height are in m.

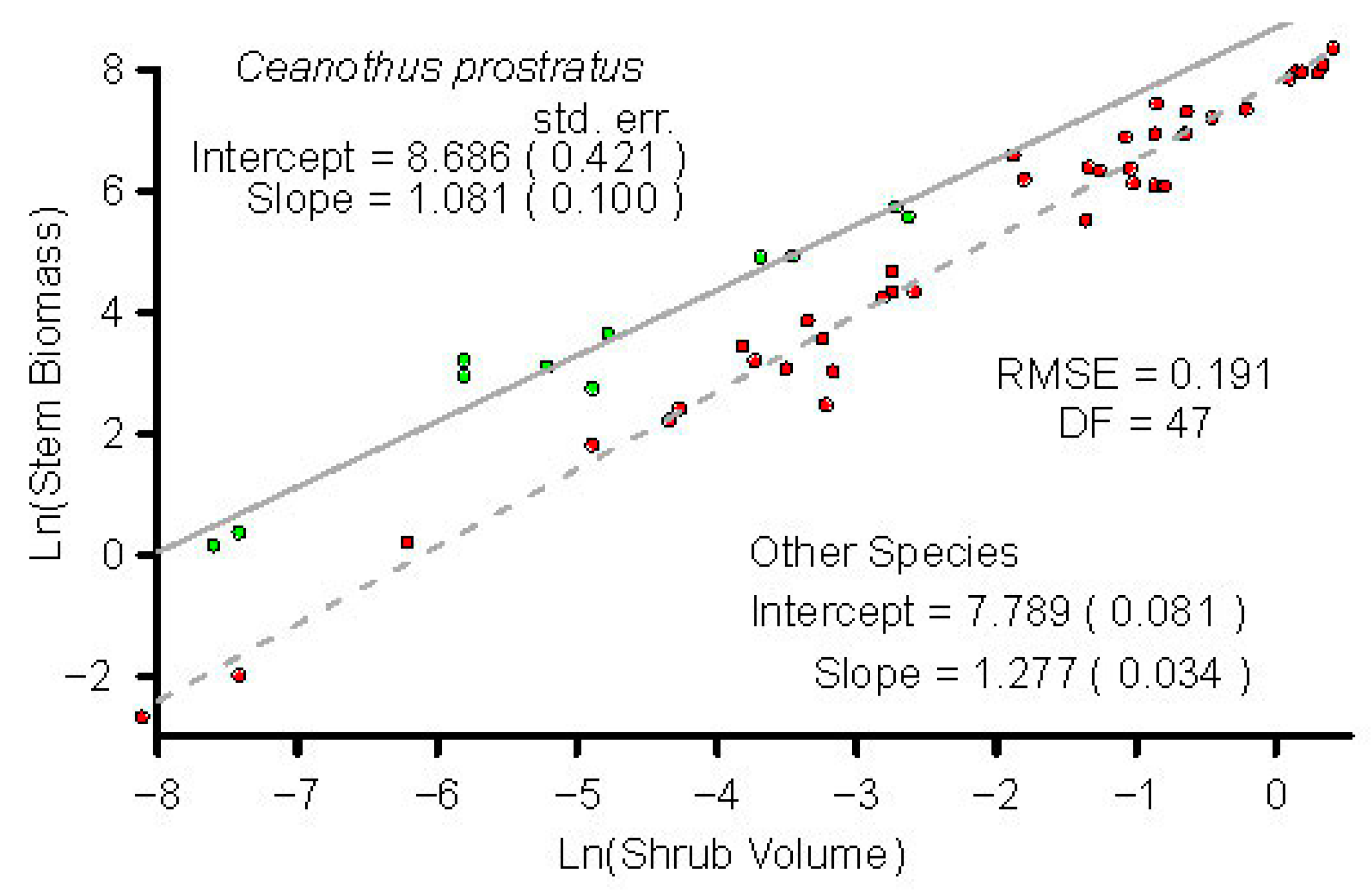

Shrub biomass was calculated by oven-drying each sample until its weight stabilized at 80 ℃. Leaves were separated to obtain the weight of woody biomass. From this sample, we fit woody (stem) biomass (g m−2
) as a function of observed crown volume (m3
) using ordinary least squares regression and the natural log transformation of both variables (Figure 4
). Using log-bias corrected parameter estimates [14
], we then derived a woody shrub biomass estimate for each plot.
Using plot mean height and BD, tree, woody shrub, and total biomass were estimated first. Then, we compared treatment effects using analysis of variance based on the experimental units in the experimental forest. Observations on industry land are presented as a reference for potential growth.

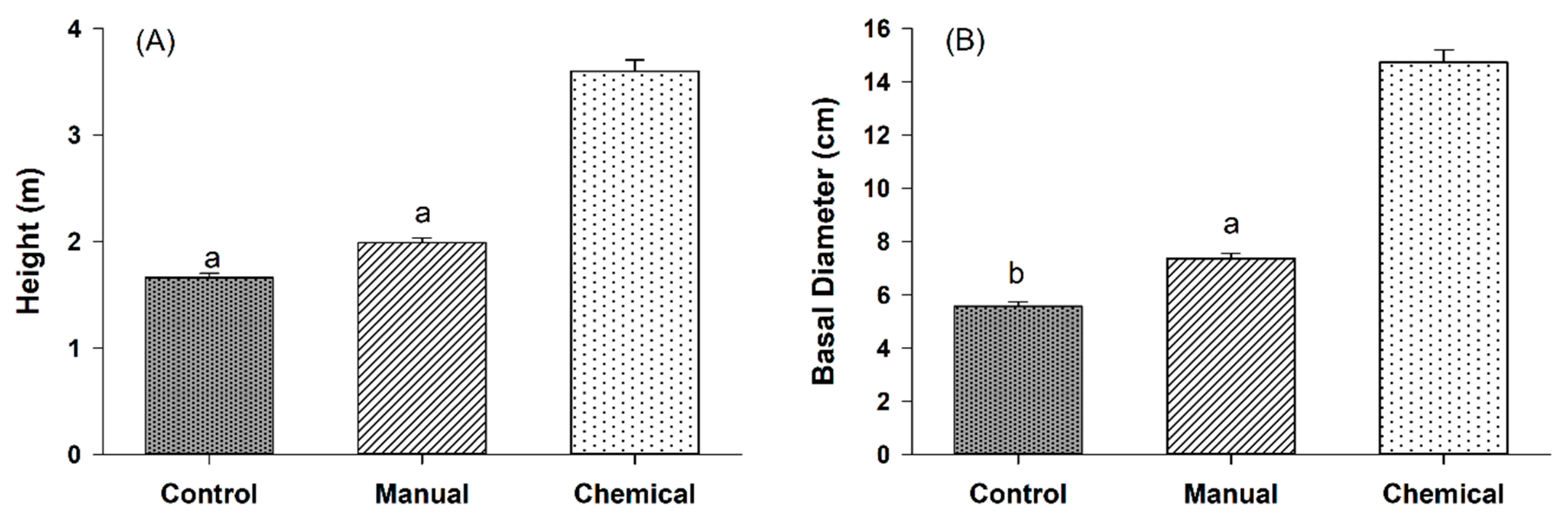

Differences in height between the manual release treatment and the control on public land was 0.33 m, about 20% higher in the manual release treatment (Figure 5
A), which is non-significant (p
= 0.055) if the critical value for the comparison is based on p
= 0.05. The average basal diameter was significantly higher in the manual release treatment (7.4 cm) than in the control (5.6 cm) (Figure 5
B). As a reference point for the growth potential of the site, chemical release yielded much larger sized trees, 3.6 m in height and 14.7 cm in BD.

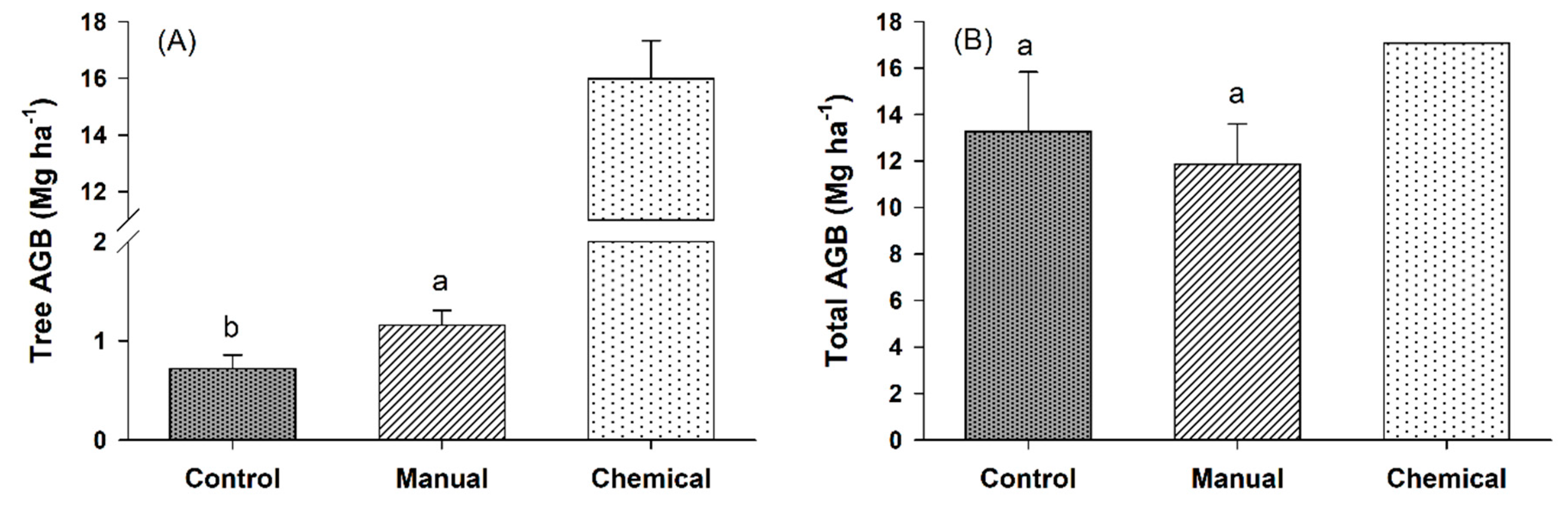

Similar trends were found in the area based on total tree biomass with 1.2 Mg ha−1
in the manual released treatment and 0.7 Mg ha−1
in the control; the difference was significant (p
= 0.045). Chemical release treatment resulted 16.0 Mg ha−1
in green tree biomass (Figure 6
A). However, when total vegetation AGB (trees + shrubs) was considered, the control treatment’s production was slightly higher (but non-significant) in biomass than in the manual release treatment (p
= 0.656) (Figure 6
B). There were 17.1 Mg ha−1
on the adjacent private industry land with the chemical release.
To the best of our knowledge, this is the first study to examine the long-term effects of partial grubbing release on shrub competition. Manual grubbing release has previously been studied mainly for seedling survival and individual tree growth with small plot size and few seedlings monitored during early plantation establishment [2
]. Here, we took advantage of operational planting scale and designed the paired experimental units with a rather large plot size on both no release control and manual grubbing release. Fortunately, an adjacent private land was reforested using the same species and density in the same year as our experimental forest. Although we could not include it in our experimental design ten years ago, a sharp difference in plantation characteristics between management regimes brings into question whether statistical tests can tell us more than what we observed (Figure 2
, Figure 5
and Figure 6
While manual grubbing did increase tree growth, height and BD were not nearly as high as that in the chemical release treatment. Several reasons may explain this result. First, approximately only 50% of planted trees were released. In this dataset, there were 288 released trees and 257 non-released trees. The means the height, BD, and biomass presented in the results included all trees. Had we compared the released with non-released trees within the released treatment, we would find a larger mean size in the released trees (height 2.2 m and BD 8.5 cm) than in the non-released trees (1.8 m and 6.2 cm). Both were still greater than the no released control, but much smaller than trees in the adjacent land with chemical release. Second, 1.5 m radial grubbing around selected seedlings would have represented approximately 50% of the area, if all planted trees had survived and were subsequently released. Because we only released 288 trees, approximately only 25% of the area was grubbed. In contrast, chemical release in the industry land covered 100% of the area. Third, grubbing will not kill resprouting shrubs growing at this site. Ceanothus velutinus, Ceanothus prostratus
, and Arctostaphylos patula
are all resprouting species [15
] and are difficult to kill with grubbing, as was evident in areas with and without manual grubbing where shrubs dominated the plantation (Figure 6
). Because there were very few shrubs on the private industry land after treatments, tree biomass was the primary biomass pool, which was even bigger than the total AGB (trees and shrubs) in the other treatments, and it is worth noting that this does not include the additional 7.4 Mg ha−1
that was removed by precommercial thinning.
Planting trees and restoring forests following disturbances are still regarded as effective strategies for balancing CO2
emission, as forests can store a large amount of carbon. However, within a forest, storing carbon in the tree bole is preferred to understory shrubs. Therefore, the objective for plantation management is to grow trees as quickly as possible, as larger trees are generally more resistant to future fire damage due to the fat of their thicker bark and taller stature [16
]. Complete control of shrubs will provide the best results, as demonstrated in numerous studies [1
]. Partial control of shrubs was difficult to implement, and the crown of remaining shrubs often quickly took over the space [5
]; therefore, it was not as effective as the complete control at reducing competition.
Soil carbon, a larger carbon pool than aboveground vegetation, had a slow and complex sequestration process, which was not measured here. Based on studies at multiple sites with multiple years of understory control, Powers et al. [12
] did not find any difference in soil carbon with and without understory control, including one installation inside the experimental forest. Because our plantations are of a similar age, we expect that the soil carbon does not differ among the two plantations.
Throughout the western United States, current reforestation efforts in the US Forest Service are conducted primarily in a post-burn environment as clearcutting practice has fallen off. Planning for regeneration is influenced by many considerations including fire severity, natural regeneration potential, soil erosion risk, water contamination, and wildlife habitat [19
]. As a result, a relatively small proportion of burned areas are targeted for artificial regeneration. Furthermore, funding constraints limit the manual treatments for these plantations, where both trees and shrubs compete for the dominant position (Figure 2
Cost was a critical limiting factor for manual grubbing; our cost per application was about US $
. The grubbing treatment was also ineffective, with two applications producing a large shrub biomass pool (Figure 6
). It is difficult to know how many applications would be necessary to achieve complete control with grubbing, but given the propensity for these shrubs to re-sprout and abundant viable seeds in the soil seed bank, it would likely take at least six applications of manual grubbing to achieve a free-to-grow condition (Gary Fiddler, personal communication). If this is the case, then the cost for an effective manual grubbing regime would be on the order of US $
Herbicide application is a highly regulated process by the State of California. Not only are applicators licensed by the California Environmental Protection Agency, but they also meet all laws and regulations related to the California Division of Occupational Safety and Health. More importantly, few herbicides have been registered for use in California forests, where applications are typically associated with plantation establishment on private industry lands.
The evaluation of total standing aboveground biomass, including both trees and shrubs, suggested a possible increase with chemical release (Figure 6
). The difference between effective removal of shrubs and a free-to-grow environment through chemical release and manual release for green biomass was about 5.0 Mg ha−1
. But, if the tree AGB from precommercial thinning was considered, we would find a substantial increase in total aboveground biomass or carbon in the chemical release. This is likely due to the more efficient carbon sequestration by conifers versus shrubs after the overstory canopy closes [11
]. In addition, ponderosa pine is a marketable product, so this carbon can be converted to wood products and maintained longer [20
The observed productivity with respect to tree growth, using the OP-Yield projections [21
], suggests that the intensively managed plantation is growing at a rate commensurate with a site index of 25 m at a base age 50 years, while the manually released stand is growing at a rate commensurate with a site index of 10 m at a base age 50 years; suggesting a significant reduction in tree productivity consistent with the findings of Newton and Hansen [10
In this moisture-limited environment for tree growth, effective early control of competing vegetation is a key component of an effective management strategy for regenerating conifers [22
]. One rule of thumb is that cover should be maintained at levels below 20 percent [2
] and that early treatment is the key because growth losses can persist [6
]. These results demonstrate the importance of liming the competition as it relates to aboveground biomass and carbon of trees in young plantations. Two applications of a manual release treatment were not able to produce a growth response approaching productive capacity. More frequent applications could conceivably be applied but these treatments are already cost-prohibitive on a unit area basis.
