Measuring Tree Height with Remote Sensing—A Comparison of Photogrammetric and LiDAR Data with Different Field Measurements

Forstliche Versuchs- und Forschungsanstalt Baden-Württemberg (FVA), Wonnhaldestraße 4, 79100 Freiburg, Germany
*
Author to whom correspondence should be addressed.
Forests 2019, 10(8), 694; https://doi.org/10.3390/f10080694 (registering DOI)
Received: 9 July 2019 / Revised: 12 August 2019 / Accepted: 14 August 2019 / Published: 16 August 2019
  |
PDF [1974 KB, uploaded 16 August 2019]
  |

Abstract

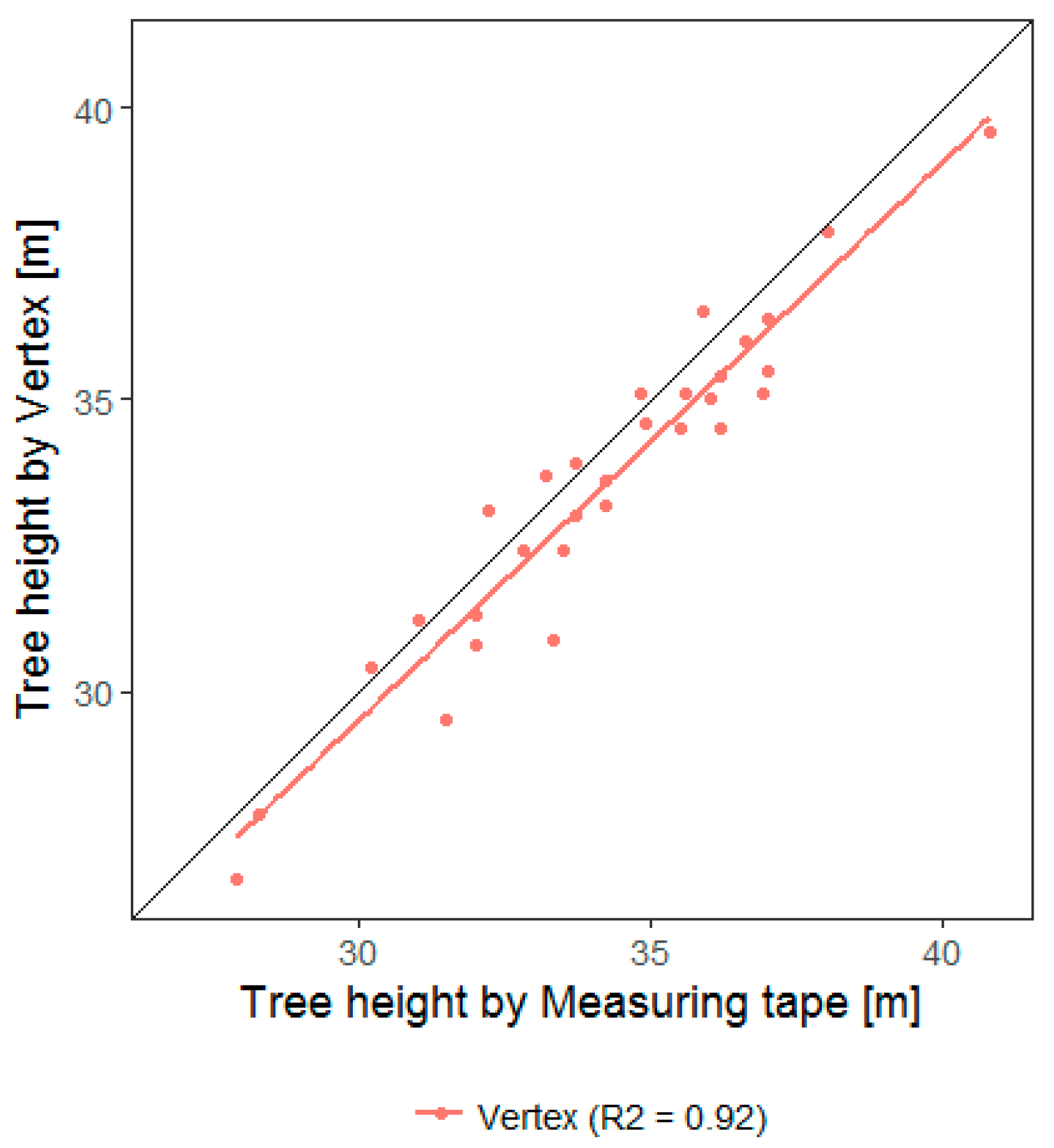

We contribute to a better understanding of different remote sensing techniques for tree height estimation by comparing several techniques to both direct and indirect field measurements. From these comparisons, factors influencing the accuracy of reliable tree height measurements were identified. Different remote sensing methods were applied on the same test site, varying the factors sensor type, platform, and flight parameters. We implemented light detection and ranging (LiDAR) and photogrammetric aerial images received from unmanned aerial vehicles (UAV), gyrocopter, and aircraft. Field measurements were carried out indirectly using a Vertex clinometer and directly after felling using a tape measure on tree trunks. Indirect measurements resulted in an RMSE of 1.02 m and tend to underestimate tree height with a systematic error of −0.66 m. For the derivation of tree height, the results varied from an RMSE of 0.36 m for UAV-LiDAR data to 2.89 m for photogrammetric data acquired by an aircraft. Measurements derived from LiDAR data resulted in higher tree heights, while measurements from photogrammetric data tended to be lower than field measurements. When absolute orientation was appropriate, measurements from UAV-Camera were as reliable as those from UAV-LiDAR. With low flight altitudes, small camera lens angles, and an accurate orientation, higher accuracies for the estimation of individual tree heights could be achieved. The study showed that remote sensing measurements of tree height can be more accurate than traditional triangulation techniques if the aforementioned conditions are fulfilled. View Full-Text
Keywords: remote sensing; individual tree height; forest inventory; digital aerial photogrammetry; airborne laser scanning; UAV; gyrocopter; data acquisition parameters remote sensing; individual tree height; forest inventory; digital aerial photogrammetry; airborne laser scanning; UAV; gyrocopter; data acquisition parameters
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ganz, S.; Käber, Y.; Adler, P. Measuring Tree Height with Remote Sensing—A Comparison of Photogrammetric and LiDAR Data with Different Field Measurements. Forests 2019, 10, 694.
