# Binary Time Series Classification with Bayesian Convolutional Neural Networks When Monitoring for Marine Gas Discharges

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. Problem Formulation

#### 2.2. Artificial Neural Network

#### 2.3. Bayesian Neural Networks and Bayesian Parameter Estimation

#### 2.4. Monte Carlo Dropout

#### 2.5. Uncertainty Estimation in MC Dropout

#### 2.6. Bayesian Decision Making

#### 2.7. Decision Support in Environmental Monitoring under Uncertainty

Algorithm 1 Algorithm for decision support in environmental monitoring under uncertainty |

Input: |

- Training set $\mathbf{X},\mathbf{y}$ |

- Unlabeled time series ${\mathbf{x}}^{*}$ |

- Number of realizations in posterior sampling T |

- Number of classes C |

- CCN model ${\mathbf{f}}^{\mathbf{\omega}}$ with weights $\mathbf{\omega}$ |

- Posterior summary function $\Gamma \left({\left\{{P}_{t}\left({c}_{j}\right|\mathbf{x})\right\}}_{1\le t\le T}\right)$ |

- $\lambda \left({\alpha}_{i}\right|{c}_{j})$ cost associated with taking action ${\alpha}_{i}$ if the class is ${c}_{j}$ |

1 Optimize CNN model weights with MC dropout algorithm |

$p\left(\mathbf{\omega}\right|\mathbf{X},\mathbf{y})\leftarrow $ Optimize BCNN model |

2 Generate posterior predictive distribution from optimized BCNN |

${\widehat{\mathbf{\omega}}}_{t}\sim p\left(\mathbf{\omega}\right|\mathbf{X},\mathbf{y})\leftarrow $ Simulate T samples from the posterior distribution of the weights |

$p\left({\mathbf{y}}^{*}\right|{\mathbf{x}}^{*},\mathbf{X},\mathbf{Y})\approx {\mathbf{f}}^{{\widehat{\mathbf{\omega}}}_{\mathbf{t}}}\left({\mathbf{x}}^{*}\right)\in {\mathbb{R}}^{C\times T}\leftarrow $ Estimate posterior predictive distribution for all classes |

${P}_{t}\left({c}_{j}\right|{\mathbf{x}}^{*})={\left({\mathbf{f}}^{{\widehat{\mathbf{\omega}}}_{\mathbf{t}}}\left({\mathbf{x}}^{*}\right)\right)}_{j}\in {\mathbb{R}}^{T}\leftarrow $ Extract the posterior distribution for class ${c}_{j}$ with T samples |

$P\left({c}_{j}\right|{\mathbf{x}}^{*})=\Gamma \left({\left\{{P}_{t}\left({c}_{j}\right|\mathbf{x})\right\}}_{1\le t\le T}\right)\leftarrow $ Approximate $P\left({c}_{j}\right|{\mathbf{x}}^{*})$ with e.g., (5) or (6) |

3. Make optimal decision based on posterior predictive distribution |

${\alpha}^{*}=\underset{{\alpha}_{i}}{arg\; min}\sum _{j=1}^{C}\lambda \left({\alpha}_{i}\right|{c}_{j})P\left({c}_{j}\right|{\mathbf{x}}^{*})\leftarrow $ Minimize the conditional risk. |

return${\alpha}^{*}\leftarrow $ Optimal decision ${\alpha}_{i}$ based on $P\left({c}_{j}\right|{\mathbf{x}}^{*})$ and cost function $\lambda \left({\alpha}_{i}\right|{c}_{j})$ |

## 3. Case Study—Goldeneye CCS Site

#### 3.1. Data

#### 3.1.1. Description of Data Set

#### 3.1.2. Preprocessing of Data

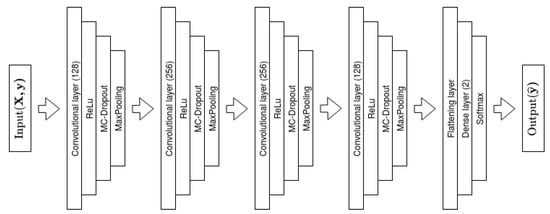

#### 3.2. Model for TSC: Bayesian Convolutional Neural Networks

#### 3.3. Performance of the Classifier

#### 3.4. Approximated Predictive Mean and Uncertainty

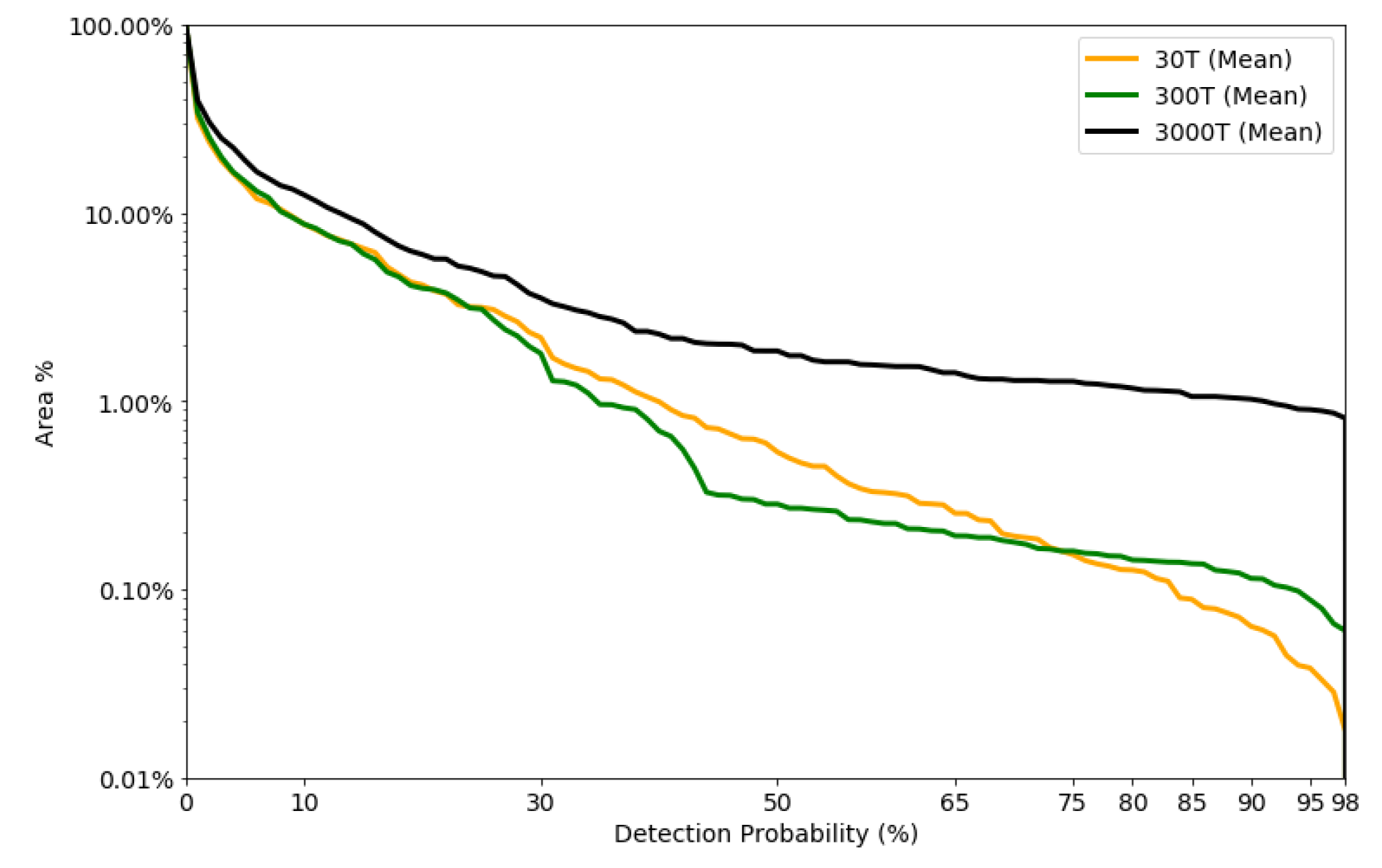

#### 3.5. Detectable Area vs. Detection Probability

#### 3.6. Sensitivity Analysis

#### 3.6.1. Reducing the Training Data Set

#### 3.6.2. Adding Gaussian Noise the Test Data Set

#### 3.7. Making Decisions Based on BCNN Output with Varying Cost

## 4. Discussion

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

AUC | Area Under the Curve |

BCNN | Bayesian Convolutional Neural Network |

CCS | Carbon Capture and Storage |

CO${}_{2}$ | Carbon dioxide |

CNN | Convolutional Neural Network |

DOAJ | Directory of open access journals |

DTW | Dynamic Time Warping |

ERSEM | European Regional Seas Ecosystem Model |

FVCOM | Finite-Volume Community Model |

IOC | Intergovernmental Oceanographic Commission |

KDE | Kernel Density Estimate |

MAP | Maximum A Posteriori |

MDPI | Multidisciplinary Digital Publishing Institute |

MC | Monte Carlo |

MCMC | Markov Chain Monte Carlo |

ReLu | REctified Linear Unit |

RNN | Recurrent Neural Networks |

ROC | Receiver Operating Characteristic |

STEMM-CCS | Strategies for Environmental Monitoring of Marine Carbon Capture and Storage |

TSC | Time Series Classification |

UN | United Nations |

## References

- Halpern, B.S.; Longo, C.; Hardy, D.; McLeod, K.L.; Samhouri, J.F.; Katona, S.K.; Kleisner, K.; Lester, S.E.; O’Leary, J.; Ranelletti, M.; et al. An index to assess the health and benefits of the global ocean. Nature
**2012**, 488, 615–620. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Domínguez-Tejo, E.; Metternicht, G.; Johnston, E.; Hedge, L. Marine Spatial Planning advancing the Ecosystem-Based Approach to coastal zone management: A review. Mar. Policy
**2016**, 72, 115–130. [Google Scholar] [CrossRef] - Ali, A.; Thiem, Ø.; Berntsen, J. Numerical modelling of organic waste dispersion from fjord located fish farms. Ocean Dyn.
**2011**, 61, 977–989. [Google Scholar] [CrossRef] [Green Version] - Hylland, K.; Burgeot, T.; Martínez-Gómez, C.; Lang, T.; Robinson, C.D.; Svavarsson, J.; Thain, J.E.; Vethaak, A.D.; Gubbins, M.J. How can we quantify impacts of contaminants in marine ecosystems? The ICON project. Mar. Environ. Res.
**2017**, 24, 2–10. [Google Scholar] [CrossRef] [PubMed] [Green Version] - First, P.J. Global Warming of 1.5
^{∘}C an IPCC Special Report on the Impacts of Global Warming of 1.5^{∘}C above Pre-Industrial Levels and Related Global Greenhouse Gas Emission Pathways, in the Context of Strengthening the Global Response to the Threat of Climate Change. Sustain. Dev. Efforts Eradicate Poverty**2019**, 1, 1–22. [Google Scholar] - Agency, I.E. Global Energy & CO
_{2}Status Report; Technical Report; IEA: Paris, France, 2018. [Google Scholar] - Bauer, S.; Beyer, C.; Dethlefsen, F.; Dietrich, P.; Duttmann, R.; Ebert, M.; Feeser, V.; Görke, U.; Köber, R.; Kolditz, O.; et al. Impacts of the use of the geological subsurface for energy storage: An investigation concept. Environ. Earth Sci.
**2013**, 70, 3935–3943. [Google Scholar] [CrossRef] - Blackford, J.; Bull, J.M.; Cevatoglu, M.; Connelly, D.; Hauton, C.; James, R.H.; Lichtschlag, A.; Stahl, H.; Widdicombe, S.; Wright, I.C. Marine baseline and monitoring strategies for carbon dioxide capture and storage (CCS). Int. J. Greenh. Gas Control
**2015**, 38, 221–229. [Google Scholar] [CrossRef] [Green Version] - Jones, D.; Beaubien, S.; Blackford, J.; Foekema, E.; Lions, J.; Vittor, C.D.; West, J.; Widdicombe, S.; Hauton, C.; Queirós, A. Developments since 2005 in understanding potential environmental impacts of {CO
_{2}} leakage from geological storage. Int. J. Greenh. Gas Control**2015**, 40, 350–377. [Google Scholar] [CrossRef] [Green Version] - Yang, Q.; Wu, X. 10 challenging problems in data mining research. Int. J. Inf. Technol. Decis. Mak.
**2006**, 5, 597–604. [Google Scholar] [CrossRef] [Green Version] - Esling, P.; Agon, C. Time-series data mining. ACM Comput. Surv. (CSUR)
**2012**, 45, 12. [Google Scholar] [CrossRef] [Green Version] - Bagnall, A.; Lines, J.; Bostrom, A.; Large, J.; Keogh, E. The great time series classification bake off: A review and experimental evaluation of recent algorithmic advances. Data Min. Knowl. Discov.
**2017**, 31, 606–660. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Berndt, D.J.; Clifford, J. Using Dynamic Time Warping to Find Patterns in Time Series; KDD Workshop: Seattle, WA, USA, 1994; Volume 10, pp. 359–370. [Google Scholar]
- Ratanamahatana, C.A.; Keogh, E. Three myths about dynamic time warping data mining. In Proceedings of the 2005 SIAM International Conference on Data Mining, SIAM, Newport Beach, CA, USA, 21–23 April 2005; pp. 506–510. [Google Scholar]
- Bagnall, A.; Janacek, G. A run length transformation for discriminating between auto regressive time series. J. Classif.
**2014**, 31, 154–178. [Google Scholar] [CrossRef] [Green Version] - Smyth, P. Clustering Sequences with Hidden Markov Models. Available online: http://papers.nips.cc/paper/1217-clustering-sequences-with-hidden-markov-models.pdf (accessed on 1 June 2020).
- Williams, C.K.; Barber, D. Bayesian classification with Gaussian processes. IEEE Trans. Pattern Anal. Mach. Intell.
**1998**, 20, 1342–1351. [Google Scholar] [CrossRef] [Green Version] - James, G.M.; Hastie, T.J. Functional linear discriminant analysis for irregularly sampled curves. J. R. Stat. Soc. Ser. B
**2001**, 63, 533–550. [Google Scholar] [CrossRef] - Hall, P.; Poskitt, D.S.; Presnell, B. A functional data—Analytic approach to signal discrimination. Technometrics
**2001**, 43, 1–9. [Google Scholar] [CrossRef] - Bagnall, A.; Lines, J.; Hills, J.; Bostrom, A. Time-series classification with COTE: The collective of transformation-based ensembles. IEEE Trans. Knowl. Data Eng.
**2015**, 27, 2522–2535. [Google Scholar] [CrossRef] - Lines, J.; Taylor, S.; Bagnall, A. Time Series Classification with HIVE-COTE: The Hierarchical Vote Collective of Transformation-Based Ensembles. ACM Trans. Knowl. Discov. Data
**2018**, 12. [Google Scholar] [CrossRef] [Green Version] - Fawaz, H.I.; Forestier, G.; Weber, J.; Idoumghar, L.; Muller, P.A. Deep learning for time series classification: A review. Data Min. Knowl. Discov.
**2019**, 33, 1–47. [Google Scholar] - Zheng, Y.; Liu, Q.; Chen, E.; Ge, Y.; Zhao, J.L. Time series classification using multi-channels deep convolutional neural networks. In Proceedings of the International Conference on Web-Age Information Management, Macau, China, 16–18 June 2014; pp. 298–310. [Google Scholar]
- Wang, Z.; Yan, W.; Oates, T. Time series classification from scratch with deep neural networks: A strong baseline. In Proceedings of the 2017 International Joint Conference on Neural Networks (IJCNN), Anchorage, AK, USA, 14–19 May 2017; pp. 1578–1585. [Google Scholar]
- Hüsken, M.; Stagge, P. Recurrent neural networks for time series classification. Neurocomputing
**2003**, 50, 223–235. [Google Scholar] [CrossRef] - MacKay, D.J.C. A Practical Bayesian Framework for Backpropagation Networks. Neural Comput.
**1992**, 4, 448–472. [Google Scholar] [CrossRef] - Alendal, G.; Blackford, J.; Chen, B.; Avlesen, H.; Omar, A. Using Bayes Theorem to Quantify and Reduce Uncertainties when Monitoring Varying Marine Environments for Indications of a Leak. Energy Procedia
**2017**, 114, 3607–3612. [Google Scholar] [CrossRef] - Gal, Y.; Ghahramani, Z. Dropout as a Bayesian approximation: Representing model uncertainty in deep learning. In Proceedings of the International Conference on Machine Learning, New York, NY, USA, 19–24 June 2016; pp. 1050–1059. [Google Scholar]
- Blundell, C.; Cornebise, J.; Kavukcuoglu, K.; Wierstra, D. Weight uncertainty in neural networks. arXiv
**2015**, arXiv:1505.05424. [Google Scholar] - Shridhar, K.; Laumann, F.; Liwicki, M. A comprehensive guide to bayesian convolutional neural network with variational inference. arXiv
**2019**, arXiv:1901.02731. [Google Scholar] - Leibig, C.; Allken, V.; Ayhan, M.S.; Berens, P.; Wahl, S. Leveraging uncertainty information from deep neural networks for disease detection. Sci. Rep.
**2017**, 7, 17816. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Abideen, Z.U.; Ghafoor, M.; Munir, K.; Saqib, M.; Ullah, A.; Zia, T.; Tariq, S.A.; Ahmed, G.; Zahra, A. Uncertainty Assisted Robust Tuberculosis Identification With Bayesian Convolutional Neural Networks. IEEE Access
**2020**, 8, 22812–22825. [Google Scholar] [CrossRef] - Kendall, A.; Cipolla, R. Modelling uncertainty in deep learning for camera relocalization. In Proceedings of the 2016 IEEE International Conference on Robotics and Automation (ICRA), Stockholm, Sweden, 16–21 May 2016; pp. 4762–4769. [Google Scholar]
- Malde, K.; Handegard, N.O.; Eikvil, L.; Salberg, A.B. Machine intelligence and the data-driven future of marine science. ICES J. Mar. Sci.
**2019**. [Google Scholar] [CrossRef] - Biancofiore, F.; Busilacchio, M.; Verdecchia, M.; Tomassetti, B.; Aruffo, E.; Bianco, S.; Di Tommaso, S.; Colangeli, C.; Rosatelli, G.; Di Carlo, P. Recursive neural network model for analysis and forecast of PM10 and PM2.5. Atmos. Pollut. Res.
**2017**, 8, 652–659. [Google Scholar] [CrossRef] - Freeman, B.S.; Taylor, G.; Gharabaghi, B.; Thé, J. Forecasting air quality time series using deep learning. J. Air Waste Manag. Assoc.
**2018**, 68, 866–886. [Google Scholar] [CrossRef] [PubMed] - Kiiveri, H.; Caccetta, P.; Campbell, N.; Evans, F.; Furby, S.; Wallace, J. Environmental Monitoring Using a Time Series of Satellite Images and Other Spatial Data Sets. In Nonlinear Estimation and Classification; Denison, D.D., Hansen, M.H., Holmes, C.C., Mallick, B., Yu, B., Eds.; Springer: New York, NY, USA, 2003; pp. 49–62. [Google Scholar] [CrossRef]
- Banskota, A.; Kayastha, N.; Falkowski, M.J.; Wulder, M.A.; Froese, R.E.; White, J.C. Forest Monitoring Using Landsat Time Series Data: A Review. Can. J. Remote Sens.
**2014**, 40, 362–384. [Google Scholar] [CrossRef] - Blackford, J.; Artioli, Y.; Clark, J.; de Mora, L. Monitoring of offshore geological carbon storage integrity: Implications of natural variability in the marine system and the assessment of anomaly detection criteria. Int. J. Greenh. Gas Control
**2017**, 64, 99–112. [Google Scholar] [CrossRef] - Siddorn, J.R.; Allen, J.I.; Blackford, J.C.; Gilbert, F.J.; Holt, J.T.; Holt, M.W.; Osborne, J.P.; Proctor, R.; Mills, D.K. Modelling the hydrodynamics and ecosystem of the North-West European continental shelf for operational oceanography. J. Mar. Syst.
**2007**, 65, 417–429. [Google Scholar] [CrossRef] - Alendal, G.; Drange, H. Two-phase, near-field modeling of purposefully released CO
_{2}in the ocean. J. Geophys. Res. Ocean.**2001**, 106, 1085–1096. [Google Scholar] [CrossRef] - Dewar, M.; Sellami, N.; Chen, B. Dynamics of rising CO
_{2}bubble plumes in the QICS field experiment. Int. J. Greenh. Gas Control**2014**. [Google Scholar] [CrossRef] [Green Version] - Ali, A.; Frøysa, H.G.; Avlesen, H.; Alendal, G. Simulating spatial and temporal varying CO
_{2}signals from sources at the seafloor to help designing risk-based monitoring programs. J. Geophys. Res. Ocean.**2016**, 121, 745–757. [Google Scholar] [CrossRef] [Green Version] - Blackford, J.; Alendal, G.; Avlesen, H.; Brereton, A.; Cazenave, P.W.; Chen, B.; Dewar, M.; Holt, J.; Phelps, J. Impact and detectability of hypothetical CCS offshore seep scenarios as an aid to storage assurance and risk assessment. Int. J. Greenh. Gas Control
**2020**, 95, 102949. [Google Scholar] [CrossRef] - Vielstädte, L.; Karstens, J.; Haeckel, M.; Schmidt, M.; Linke, P.; Reimann, S.; Liebetrau, V.; McGinnis, D.F.; Wallmann, K. Quantification of methane emissions at abandoned gas wells in the Central North Sea. Mar. Pet. Geol.
**2015**, 68, 848–860. [Google Scholar] [CrossRef] - Pan, S.J.; Yang, Q. A survey on transfer learning. IEEE Trans. Knowl. Data Eng.
**2009**, 22, 1345–1359. [Google Scholar] [CrossRef] - Chen, C. An Unstructured-Grid, Finite-Volume Community Ocean Model: FVCOM User Manual; Sea Grant College Program, Massachusetts Institute of Technology: Cambridge, MA, USA, 2012. [Google Scholar]
- Butenschön, M.; Clark, J.; Aldridge, J.N.; Allen, J.I.; Artioli, Y.; Blackford, J.; Bruggeman, J.; Cazenave, P.; Ciavatta, S.; Kay, S.; et al. ERSEM 15.06: A generic model for marine biogeochemistry and the ecosystem dynamics of the lower trophic levels. Geosci. Model Dev.
**2016**, 9, 1293–1339. [Google Scholar] - Hähnel, P.; Mareček, J.; Monteil, J.; O’Donncha, F. Using deep learning to extend the range of air pollution monitoring and forecasting. J. Comput. Phys.
**2020**, 408, 109278. [Google Scholar] [CrossRef] [Green Version] - Ruthotto, L.; Haber, E. Deep neural networks motivated by partial differential equations. J. Math. Imaging Vis.
**2019**, 62, 1–13. [Google Scholar] [CrossRef] [Green Version] - Gal, Y. Uncertainty in Deep Learning. Ph.D. Thesis, University of Cambridge, Cambridge, UK, 2016. [Google Scholar]
- Gal, Y.; Ghahramani, Z. Bayesian convolutional neural networks with Bernoulli approximate variational inference. arXiv
**2015**, arXiv:1506.02158. [Google Scholar] - Srivastava, N.; Hinton, G.; Krizhevsky, A.; Sutskever, I.; Salakhutdinov, R. Dropout: A simple way to prevent neural networks from overfitting. J. Mach. Learn. Res.
**2014**, 15, 1929–1958. [Google Scholar] - Tibshirani, R.J.; Efron, B. An introduction to the bootstrap. Monogr. Stat. Appl. Probab.
**1993**, 57, 1–436. [Google Scholar] - Berger, J.O. Statistical Decision Theory and Bayesian Analysis; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2013. [Google Scholar]
- Cazenave, P.; Blackford, J.; Artioli, Y. Regional Modelling to Inform the Design of Sub-Sea CO
_{2}Storage Monitoring Networks. In Proceedings of the 14th Greenhouse Gas Control Technologies Conference Melbourne, Melbourne, Australia, 21–26 October 2018; pp. 21–26. [Google Scholar] - Riebesell, U.; Fabry, V.J.; Hansson, L.; Gattuso, J.P. Guide to Best Practices for Ocean Acidification Research and Data Reporting; Office for Official Publications of the European Communities: Brussels, Belgium, 2011.
- Nair, V.; Hinton, G.E. Rectified linear units improve restricted boltzmann machines. In Proceedings of the 27th International Conference on Machine Learning (ICML-10), Haifa, Israel, 21–24 June 2010; pp. 807–814. [Google Scholar]
- Baldi, P.; Sadowski, P. The dropout learning algorithm. Artif. Intell.
**2014**, 210, 78–122. [Google Scholar] [CrossRef] [Green Version] - Kingma, D.P.; Ba, J. Adam: A method for stochastic optimization. arXiv
**2014**, arXiv:1412.6980. [Google Scholar] - Hvidevold, H.K.; Alendal, G.; Johannessen, T.; Ali, A.; Mannseth, T.; Avlesen, H. Layout of CCS monitoring infrastructure with highest probability of detecting a footprint of a CO
_{2}leak in a varying marine environment. Int. J. Greenh. Gas Control**2015**, 37, 274–279. [Google Scholar] [CrossRef] [Green Version] - Greenwood, J.; Craig, P.; Hardman-Mountford, N. Coastal monitoring strategy for geochemical detection of fugitive CO
_{2}seeps from the seabed. Int. J. Greenh. Gas Control**2015**, 39, 74–78. [Google Scholar] [CrossRef] - Hvidevold, H.K.; Alendal, G.; Johannessen, T.; Ali, A. Survey strategies to quantify and optimize detecting probability of a CO
_{2}seep in a varying marine environment. Environ. Model. Softw.**2016**, 83, 303–309. [Google Scholar] [CrossRef] [Green Version] - Alendal, G. Cost efficient environmental survey paths for detecting continuous tracer discharges. J. Geophys. Res. Ocean.
**2017**, 122, 5458–5467. [Google Scholar] [CrossRef] [Green Version] - Oleynik, A.; García-Ibáñez, M.I.; Blaser, N.; Omar, A.; Alendal, G. Optimal sensors placement for detecting CO
_{2}discharges from unknown locations on the seafloor. Int. J. Greenh. Gas Control**2020**, 95, 102951. [Google Scholar] [CrossRef] - Botnen, H.; Omar, A.; Thorseth, I.; Johannessen, T.; Alendal, G. The effect of submarine CO
_{2}vents on seawater: Implications for detection of subsea Carbon sequestration leakage. Limnol. Oceanogr.**2015**, 60, 402–410. [Google Scholar] [CrossRef] - Bezdek, J.C.; Rajasegarar, S.; Moshtaghi, M.; Leckie, C.; Palaniswami, M.; Havens, T.C. Anomaly detection in environmental monitoring networks [application notes]. IEEE Comput. Intell. Mag.
**2011**, 6, 52–58. [Google Scholar] [CrossRef] - Ahmad, H. Machine learning applications in oceanography. Aquat. Res.
**2019**, 2, 161–169. [Google Scholar] [CrossRef]

**Figure 1.**(

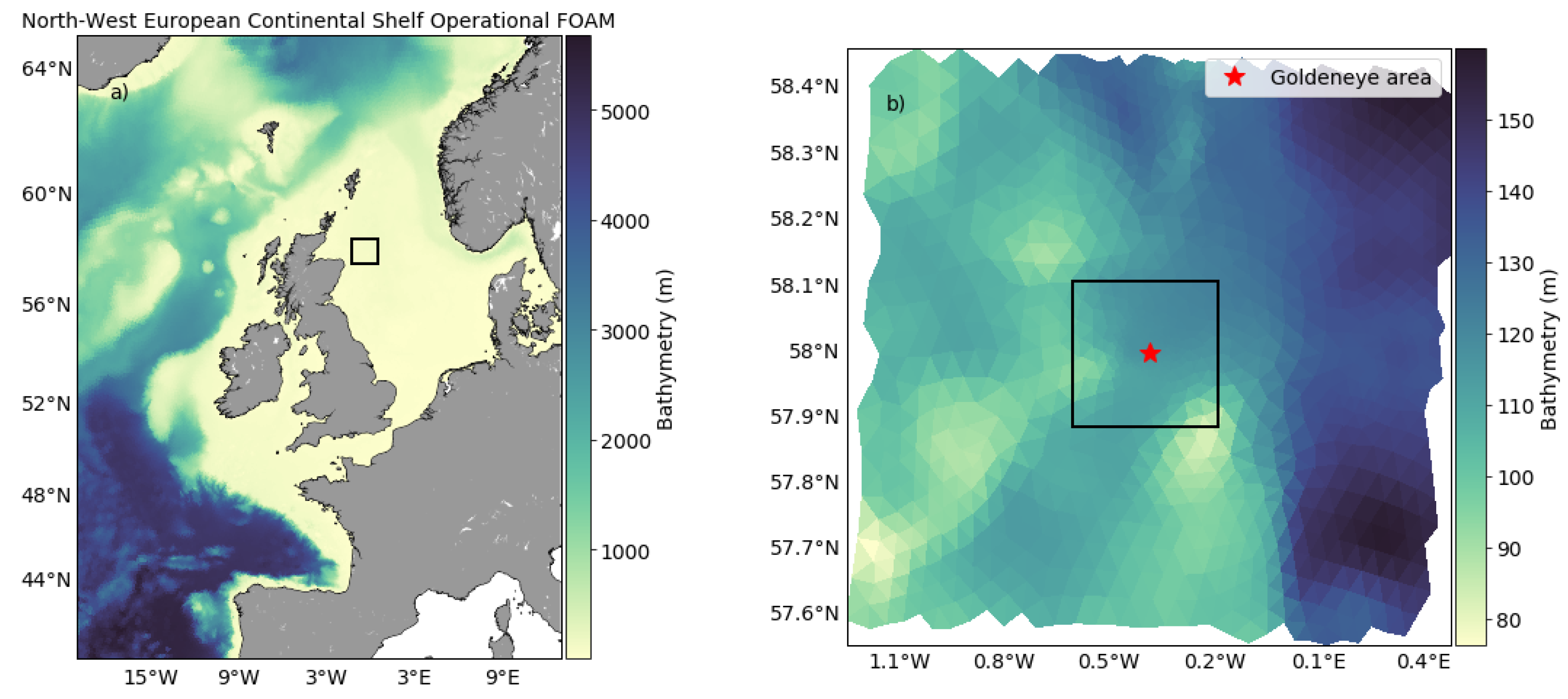

**a**) FVCOM domain used in which resolution varies from 15 km at the open boundaries to 0.5 km at the release site. The black box indicates the extents of the grid shown in (

**b**). (

**b**) The nested domain with resolution from 0.5 km at the boundary to 3 m at the release site (red star). The black box in (

**b**) indicates the extent of the Goldeneye complex [56].

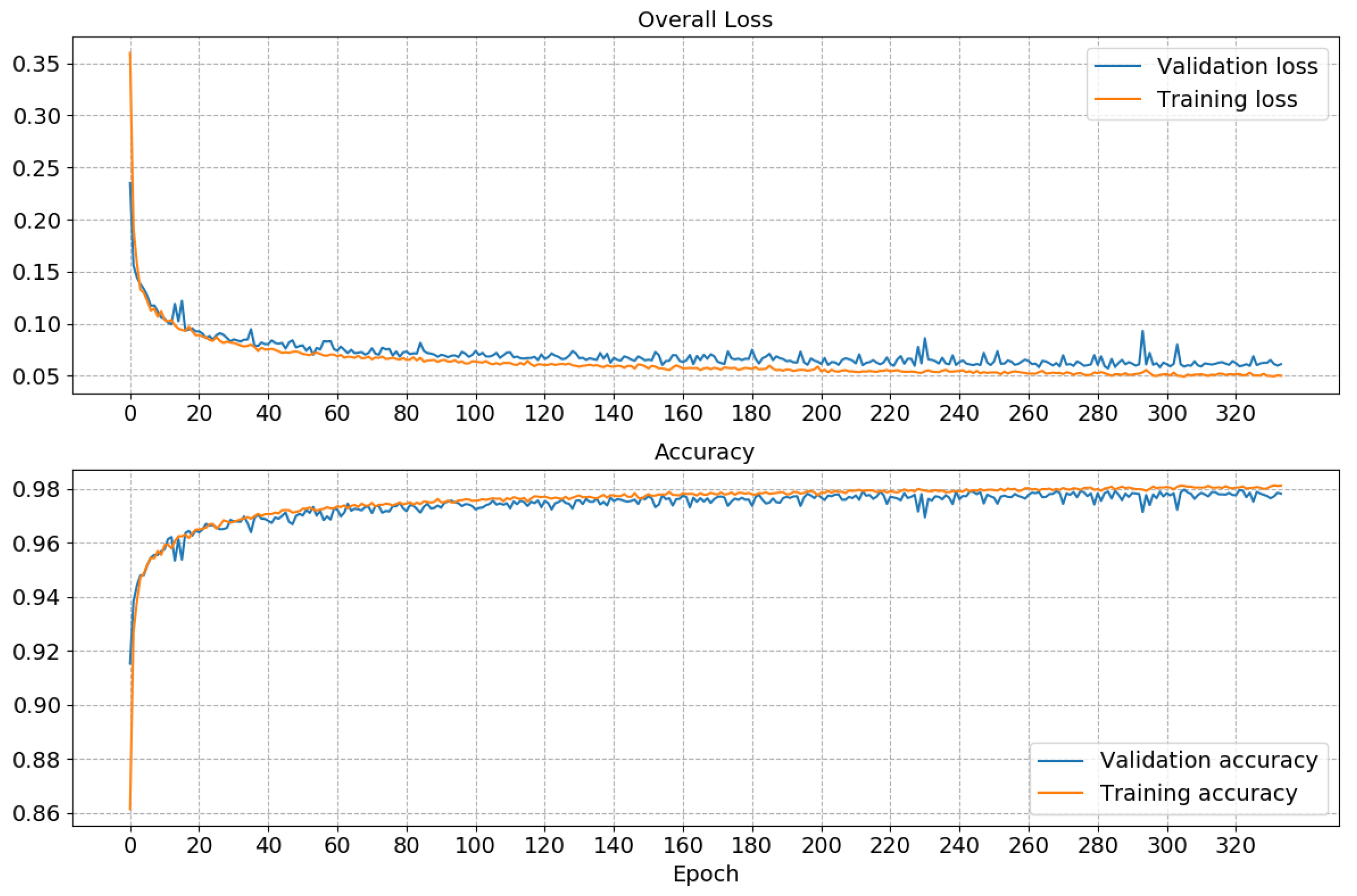

**Figure 3.**Convergence of the BCNN. In total it ran for 334 epochs, approximately two hours of train/validation time with a NVIDIA Titan V GPU.

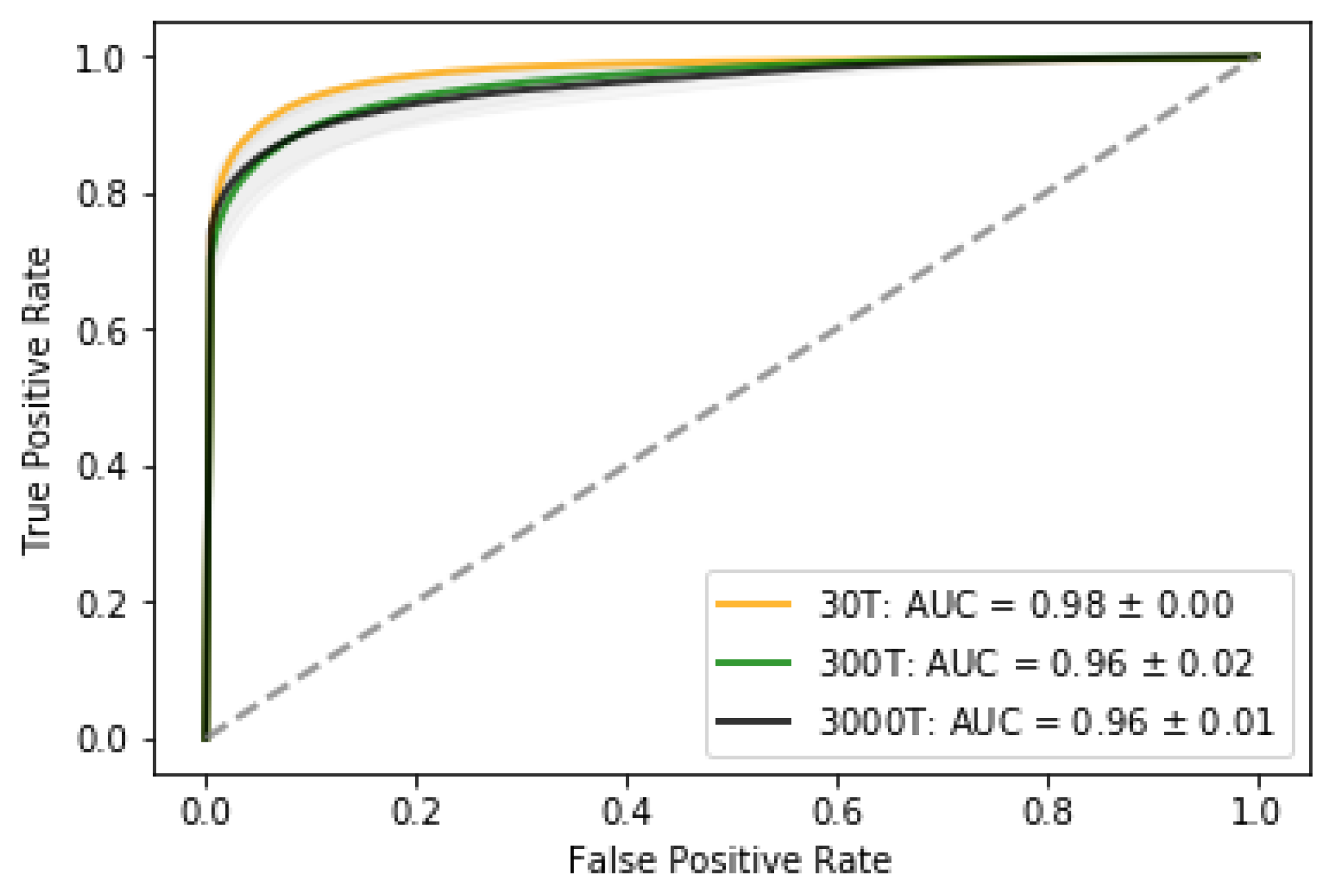

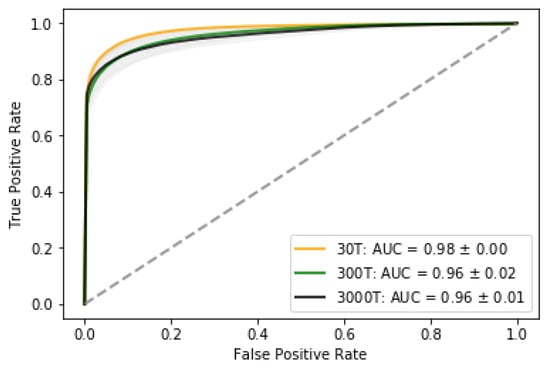

**Figure 4.**ROC-curves for the three leak scenarios. The 0T scenario is not included since it in all cases will be classified as no-leak, i.e., there are no false positives.

**Figure 5.**(

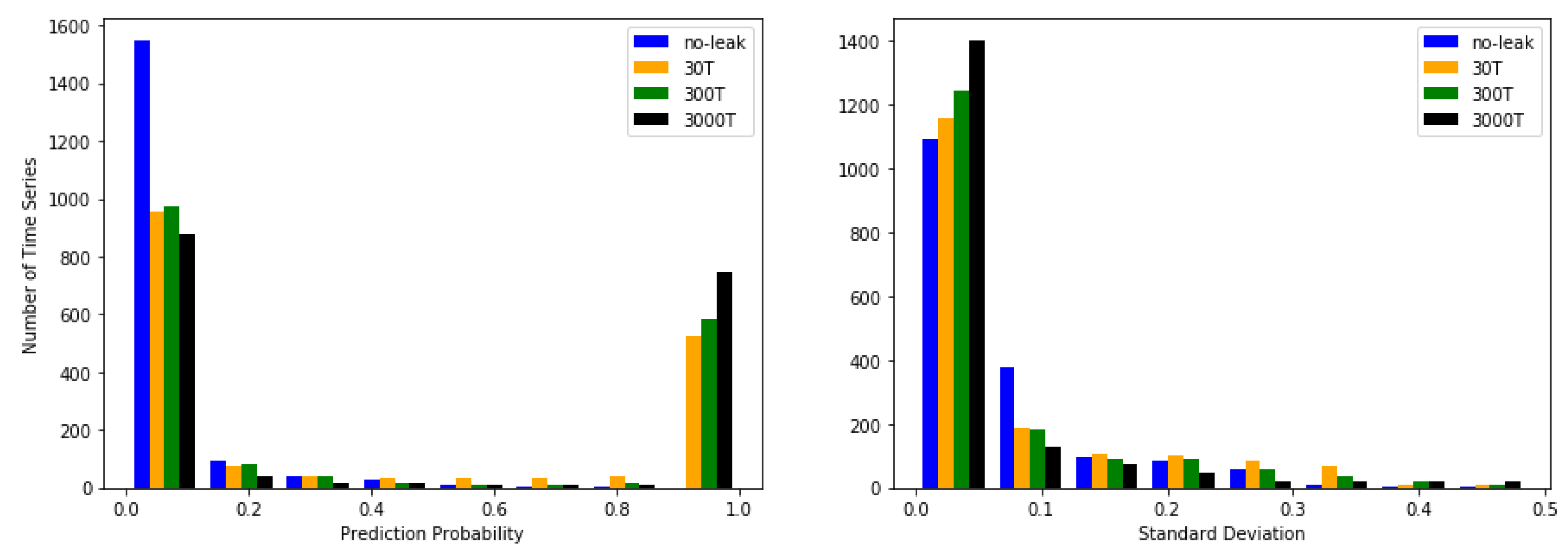

**Left Panel**) Prediction probability for each scenario plotted as a histogram. (

**Right Panel**) Standard deviation for each scenario plotted as a histogram. The central observation is that most of the time series is classified as either $\mathrm{leak}=0$ or $\mathrm{No}\text{-}\mathrm{leak}=1$. Minor leaks have a smaller proportion of the time series that are classified as leaks than larger ones and smaller leaks are associated with a higher degree of uncertainty than the larger ones.

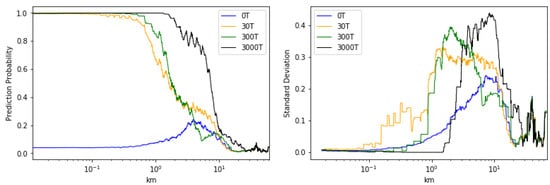

**Figure 6.**(

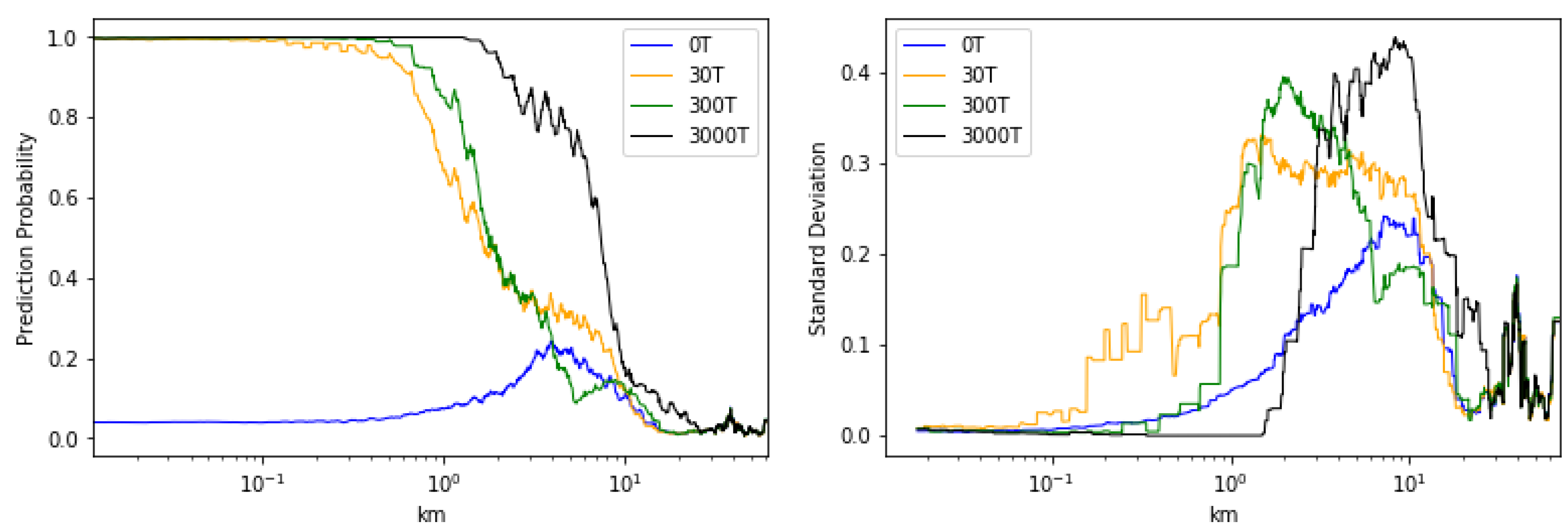

**Right panel**) A moving mean of the prediction probability vs. the distance from the leakage. (

**Left panel**) A moving standard deviation vs. the distance from the leakage. For the moving statistics, all points are evenly weighted.

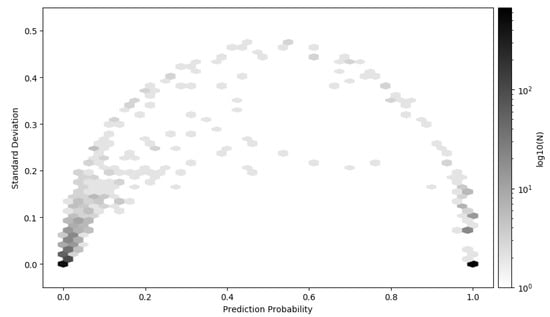

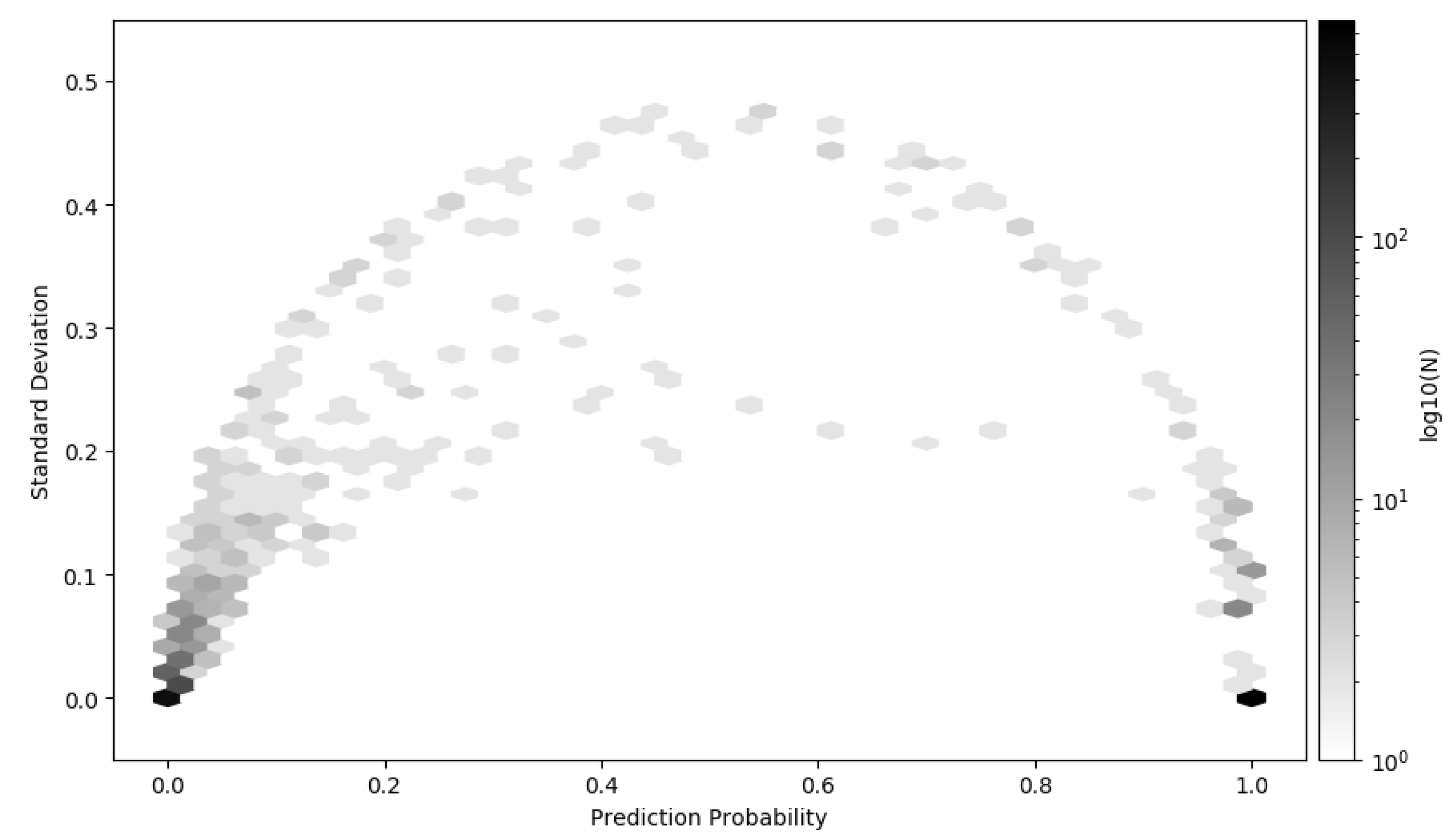

**Figure 7.**2D histogram of the mean prediction and standard deviation of all the time series in the test data set. The majority of the time series are predicted near 0 or 1 with low standard deviation. The color pallet have log-scale to visualize the time series that are classified with high standard deviation and low distinction in the prediction probability.

**Figure 8.**Prediction from the BCNN on the 3000T test data. (

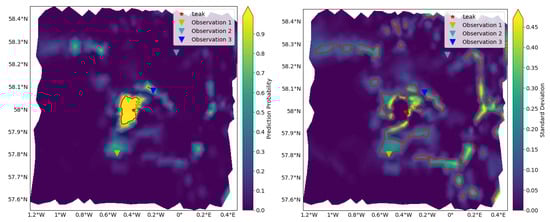

**Left panel**) The plot shows the predictive mean leak probability of the 1736 nodes with 200 forward MC realization on each instance. The red line shows where the predictive mean leak probability is above a value of 0.95. (

**Right panel**) The plot shows the uncertainty in the prediction. Red line shows where the standard deviation is above 0.15 indicating areas where the prediction is uncertain. See Figure 9 for more details about the uncertainty in observation locations 1, 2, and 3.

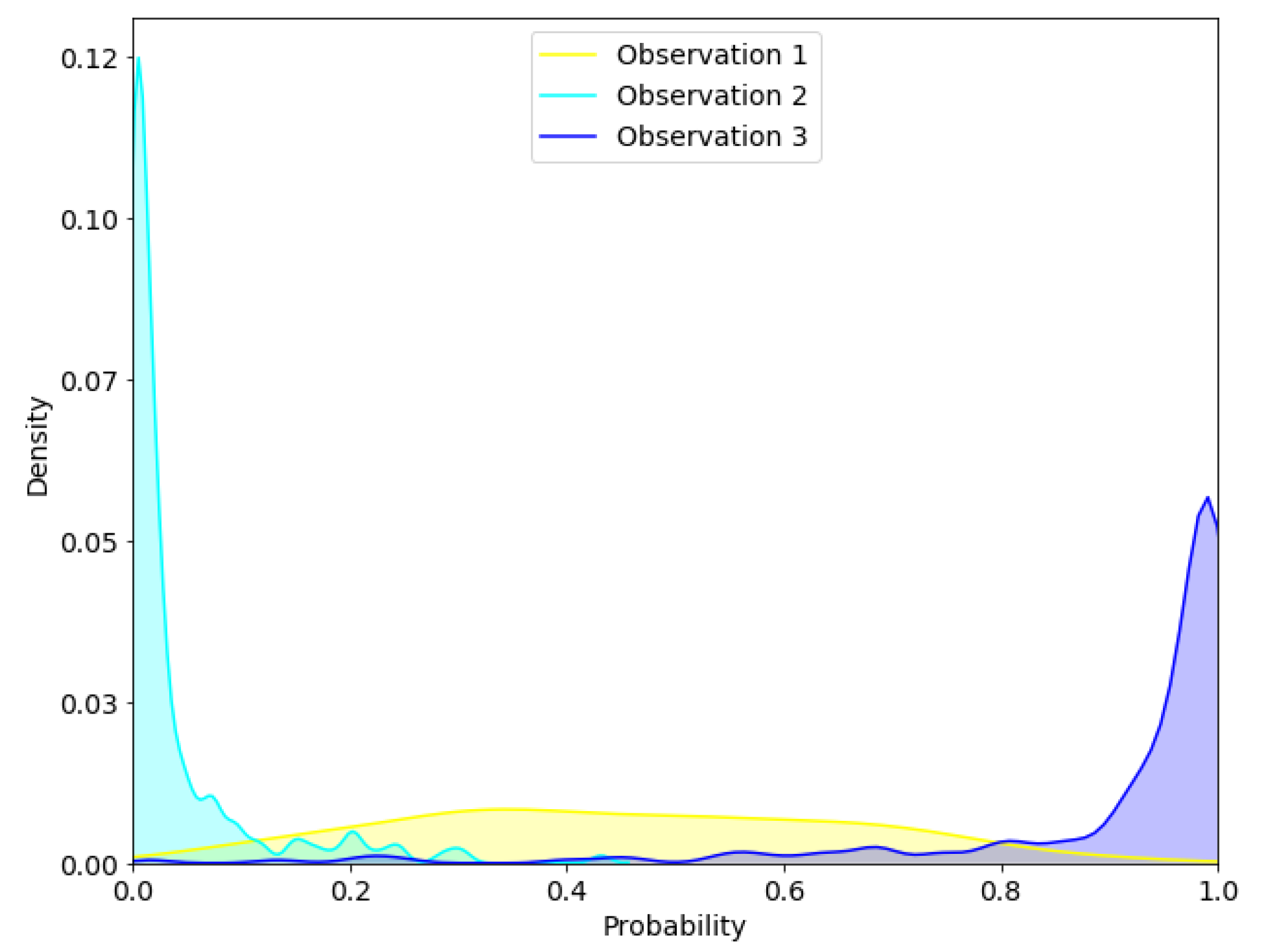

**Figure 9.**Kernel density estimation (KDE) of the three observations in Figure 8. We have used the seaborn visualization library, i.e., Gaussian kernel with Scott method for estimation the kernel bandwidth. The KDE smoothens the empirical distribution, thus exceeding the estimate beyond the possible range of $[0,1]$. We thus limit the plot to be within the bounds, which means that this KDE does not summarize to 1.

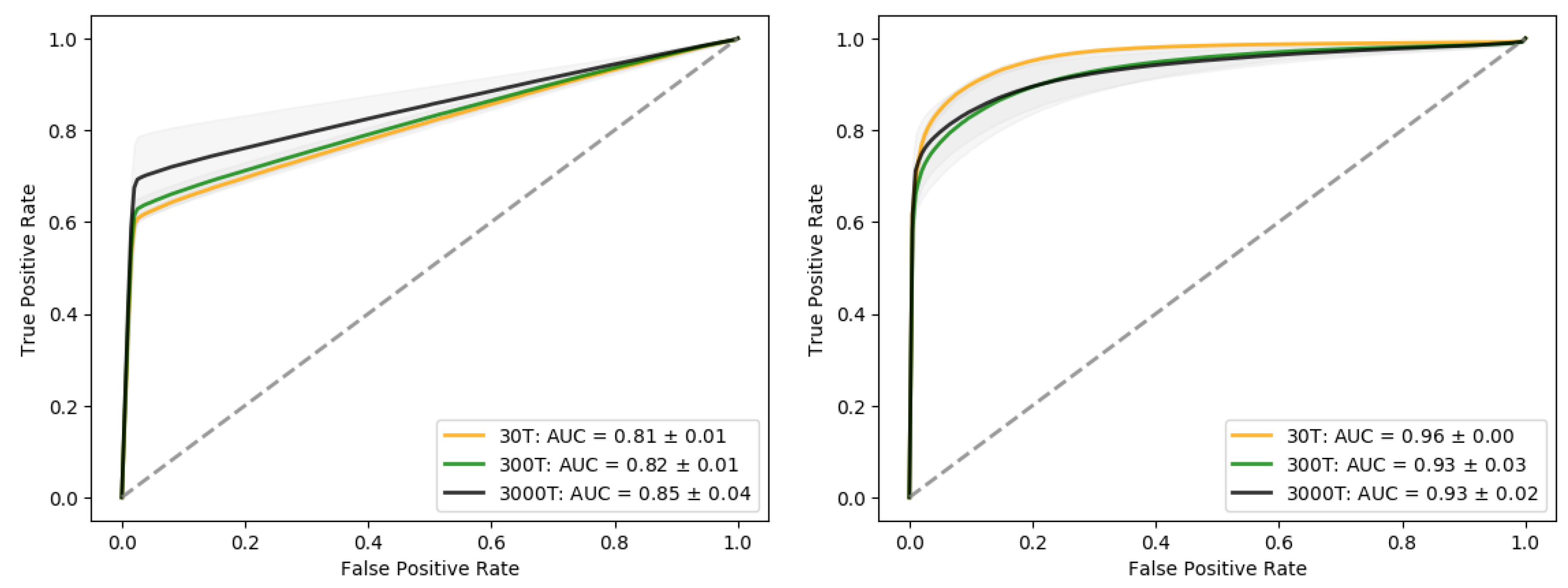

**Figure 11.**(

**Left panel**) ROC curve with Gaussian noise is simulated with a standard deviation of 0.01 is added to the test data set. The drop of in accuracy is quite large, even with relatively low level of noise added to the test data. (

**Right Panel**) ROC curve for the case where we have excluded the 300T scenario.

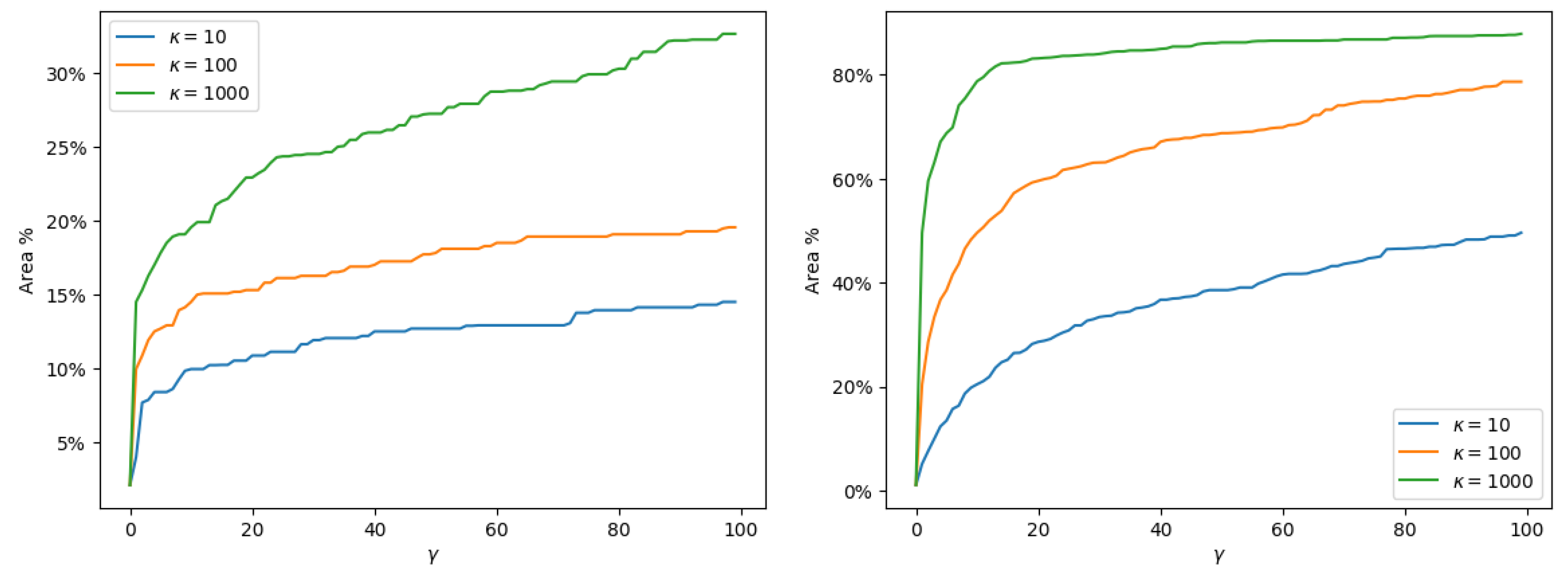

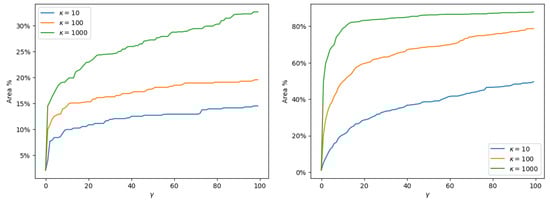

**Figure 12.**The figure shows the percentage of the total area to be monitored where the optimal decision would be confirming a leak. The cost function is altered by varying the parameter $\kappa $ and $\gamma $ in Equation (7) and Table 3. The three different lines represents varying $\kappa $, and the the x-axis shows varying $\gamma $ for each scenario. Increased cost difference between the operational cost and the cost of confirming a leak, result in a higher degree of confirmation, faster. (
