A Genetic Algorithm Using Triplet Nucleotide Encoding and DNA Reproduction Operations for Unconstrained Optimization Problems

Abstract

As one of the evolutionary heuristics methods, genetic algorithms (GAs) have shown a promising ability to solve complex optimization problems. However, existing GAs still have difficulties in finding the global optimum and avoiding premature convergence. To further improve the search efficiency and convergence rate of evolution algorithms, inspired by the mechanism of biological DNA genetic information and evolution, we present a new genetic algorithm, called GA-TNE+DRO, which uses a novel triplet nucleotide coding scheme to encode potential solutions and a set of new genetic operators to search for globally optimal solutions. The coding scheme represents potential solutions as a sequence of triplet nucleotides and the DNA reproduction operations mimic the DNA reproduction process more vividly than existing DNA-GAs. We compared our algorithm with several existing GA and DNA-based GA algorithms using a benchmark of eight unconstrained optimization functions. Our experimental results show that the proposed algorithm can converge to solutions much closer to the global optimal solutions in a much lower number of iterations than the existing algorithms. A complexity analysis also shows that our algorithm is computationally more efficient than the existing algorithms.

1. Introduction

Optimization problems arise in many real-world applications and various types of intelligent evolutionary optimization methods, such as the Genetic Algorithm (GA) [1], the Particle Swarm Optimization (PSO) [2], the Differential Evolution (DE) [3], and the artificial bee colony (ABC) [4], have been proposed in the literature over the last few decades. The PSO algorithm is based on a simulation of social behavior and has been applied in various optimization problems [5]. The DE algorithm employs the difference of parameter vectors to explore the objective function [6]. The Genetic Algorithm, proposed by Holland in 1975, is an algorithmic model for solving optimization problems and is inspired by genetic evolution. The conventional GA encodes a possible solution in the solution space as a string of binary bits which is treated as (a chromosome of) an individual. It explores the search space for optimal solutions by generating new individuals from an individual in the current population, using a set of operations that mimic genetic mutation in natural evolution. This approach has shown some success in solving complex optimization problems. However, the traditional GA has several drawbacks. It often suffers from a premature convergence to a local optimum when searching in a local area if there is a rapid decrease in population diversity. In addition, the binary bit string encoding usually results in a very long code and therefore, significantly reduces the computational efficiency. Many researchers believe that a promising solution to these problems may lie in the adaptation of more sophisticated natural models that can be incorporated into the framework of the GA algorithms. Hybrid optimization algorithms have recently been proposed to overcome the existing drawbacks of GA [7]. Pelusi et al. proposed a revised Gravitational Search Algorithm (GSA) [8] powered by evolutionary methods and obtained good results. Garg proposed a hybrid technique known as PSO-GA [9] for solving the constrained optimization problems.

On the other hand, mimicking the genetic mechanisms of biological DNA in computation has gained increasing interest in the computer science research community [10]. This was inspired by the fact that, as the major genetic material in life, DNA encodes and processes an enormous amount of genetic information. DNA computing, proposed by Adleman [11] in 1994, may potentially provide a promising method for solving complex optimization problems because its parallel computing may efficiently search through a large space for potential solutions [12]. However, using DNA as computing hardware [13] still faces many challenges. For example, current solutions require biological experiments which are expensive and time-consuming.

Integrating genetic algorithms with DNA computing can provide a promising alternative for solving complex optimization problems. Extending GA to use DNA encoding and corresponding genetic operations is a natural extension to the GA and DNA-computing techniques, which both aim to solve complex computational problems by mimicking a process in nature. Recent developments in the understanding of biological DNA has provided a solid ground for research. For example, a PID controller [14] and many other applications [15] have been designed using DNA computing. The DNA sequence is arguably more suitable for encoding individuals in a genetic algorithm than simple binary bit strings for solving optimization problems. The current research in this area is focused on developing better DNA encoding [16,17].

A DNA genetic algorithm (DNA-GA) was initially proposed by Ding [18] and a modified DNA genetic algorithm (MDNA-GA) was subsequently introduced by Zhang and Wang [19]. In these algorithms, DNA encoding and two DNA-based operators, the choose crossover and frame-shift mutation, were used. These methods have been shown to be effective in improving the search for global solutions. A method was also used in these algorithms to break from a local optimum, so that a larger portion of the search space can be explored to accelerate the convergence towards the global optimum. Chen and Wang presented a DNA-based hybrid genetic algorithm (DNA-HGA) for nonlinear optimization problems [20], in which potential solutions are encoded as nucleotide bases and genetic operators use the complementary properties of nucleotide bases to efficiently locate feasible solutions. Zhang et al. proposed an adaptive RNA genetic algorithm (ARNA-GA) [21] which used RNA encoding to represent potential solutions and new RNA-based genetic operators to improve the global search. Noticeably, ARNA-GA deploys an adaptive genetic strategy that dynamically chooses between a crossover operation and mutation operation based on a dissimilarity coefficient. Zang et al. presented a DNA genetic algorithm that is modeled after a biological membrane structure [22].

DNA-based GA methods have been successfully applied to solve many difficult optimization problems. Sun et al. employed RNA-GA in a double inverted pendulum system and showed an improved performance [23]. Zang et al. have adapted DNA-GA to solve several pattern recognition problems, including clustering analysis, classification, and multi-object optimization [24,25,26].

Although much progress has been made to improve DNA-based genetic algorithms, further study is still needed to improve the speed at which the search converges to the global optimum and to prevent the algorithm from been locked to a local optimum. The focus is to find an efficient coding scheme, better genetic operations, and better convergence control.

In this paper, we present a new GA, called GA-TNE+DRO, which uses a novel triplet nucleotide coding scheme to encode individuals of GA and provides a set of novel genetic operators that mimic DNA molecule genetic operations. Specifically, we make the following contributions in this paper.

• We define a new DNA coding scheme which encodes the potential solution problem space using triplet nucleotides that represent amino acids.
• We define a set of evolutional operations that create new individuals in the problem space by mimicking the DNA reproduction process at an amino acid level.
• We present a genetic algorithm that uses triplet nucleotide encoding (TNE) and a DNA reproduction operator (DRO), hence the name GA-TNE+DRO.
• We perform experiments to evaluate the performance of the algorithm using a benchmark of eight unconstrained optimization problems and compare it with state-of-the-art algorithms including conventional GA [1], PSO [2], and DE [3]. Our experimental results show that our algorithm can converge to solutions much closer to the global optimal solutions in a much lower number of iterations than the existing algorithms.

The remainder of this paper is organized as follows. Section 2 presents the triplet nucleotide code scheme. Section 3 presents a set of genetic operations that are based on DNA triplet nucleotide encoding. Section 4 describes the algorithm. Section 5 presents the experiments, results, and complexity. Section 6 presents the conclusions.

2. A Triplet Nucleotide Coding Scheme

In this section, we present a new DNA coding scheme. We assume that a potential solution for an optimization problem consists of values for several variables, and is encoded in a single DNA strand. In the rest of this paper, we call an encoded potential solution an individual in a population (i.e., the portion of the solution space that is currently under exploration). A genetic algorithm will start with a random population, and search for global optimal solutions by generating new individuals from the individuals in the current population. These new individuals will be created by mimicking a cell reproduction process using a set of reproduction operators (to be presented in Section 3). When the algorithm terminates, the best fit individual will be decoded and presented as the optimal solution to the optimization problem.

In biology, a DNA strand is a sequence of nucleotide bases (or simply nucleotides): Adenine (A), Guanine (G), Cytosine (C), and Thymine (T). A subsequence of three consecutive nucleotides is called a triplet codon (or simply a triplet) and represents an amino acid. During cell reproduction, a DNA strand is first translated into a sequence of RNAs, then into a sequence of an amino acid, and eventually into proteins. It is possible for different triplet codons to be translated into the same amino acid. In fact, the 64 unique triplet codons only correspond to 19 different amino acids.

We define an amino acid-based coding scheme as follows. We map the 19 unique amino acids to integers 0 through 18, as shown in

Table 1. Relationship between triplet codons and 19-ary integers.

First Nucleotide	Second Nucleotide				Third Nucleotide
	T	C	A	G
T	Phe(0)	Ser(2)	Tyr(3)	Cys(4)	T
T	Phe(0)	Ser(2)	Tyr(3)	Cys(4)	C
T	Leu(1)	Ser(2)	Stop(9)	Stop(9)	A
T	Leu(1)	Ser(2)	Stop(9)	Try(9)	G
C	Leu(1)	Pro(5)	His(6)	Arg(8)	T
C	Leu(1)	Pro(5)	His(6)	Arg(8)	C
C	Leu(1)	Pro(5)	Gln(7)	Arg(8)	A
C	Leu(1)	Pro(5)	Gln(7)	Arg(8)	G
A	Ile(10)	Thr(11)	Asn(12)	Ser(2)	T
A	Ile(10)	Thr(11)	Asn(12)	Ser(2)	C
A	Met(9)	Thr(11)	Lys(13)	Arg(8)	A
A	Met(9)	Thr(11)	Lys(13)	Arg(8)	G
G	Val(14)	Ala(15)	Asp(16)	Gly(18)	T
G	Val(14)	Ala(15)	Asp(16)	Gly(18)	C
G	Val(14)	Ala(15)	Glu(17)	Gly(18)	A
G	Val(14)	Ala(15)	Glu(17)	Gly(18)	G

. For example, the triplet codon TTT is translated into amino acid Phe, which is mapped to 0, and TAG is translated into amino acid Stop, which is mapped to 9.

In our coding scheme, we also represent nucleotides A, G, C, and T numerically by 0, 1, 2, and 3, respectively. Thus, the triplet GTC, representing amino acid Val, is represented numerically as 132.

In general, an optimization problem with $n$ variables can be defined as follows.

$$\{\begin{array}{l}\min f(x_1,x_2,\mathrm{...},x_n)\\ x_{\min i}\le x_i\le x_{\max i},i=1,2,\mathrm{...},n\end{array},$$

(1)

where $x=(x_1,x_2,\mathrm{...},x_n)$ is a vector of n decision or control variables, f(x) is the objective function to be minimized, and [x_mini, x_maxi] is the value range (or domain) of variable $x_i$. In a genetic algorithm, the objective function is often used to derive the fitness values that measure the quality of individuals. The individual with the best fitness value is chosen to be the best solution.

To encode a possible solution, each variable $x_i$ is represented by a base-4 integer of l digits and each possible solution (i.e., an individual) is represented by a sequence of n encoded variables. Therefore, the length of an individual is $L=n\times l$. Here, $l=3\times k$ and k represent the number of triplet codons per variable.

To decode an individual, we devise the model through which the individual is converted into an $n$-dimensional decimal vector $x=(x_1,x_2,\mathrm{...},x_n)$, where:

$$x_i=\frac{temp{x}_i}{{19}^{l/3}-1}(x_{\max i}-x_{\min i})+x_{\min i},$$

(2)

and for the l digits of x_i:

$$temp{x}_i={\displaystyle \sum _{j=1}^{l}bit(j)\times {19}^{l/3-j}},$$

(3)

which is a sequence of codes of amino acids, and finally, $(x_{\max i}-x_{\min i})/({19}^{l/3}-1)$ is used to map this sequence into a value within the range of x_i in the original problem domain. Here, $bit(j)$ is the $j$th digit of $x_i$. Figure 1 shows an example using the coding scheme described earlier.

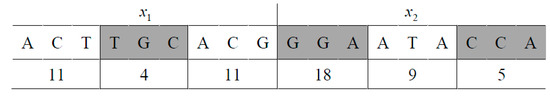

In this example, each of the two variables $x_1$ and $x_2$ is encoded as a sequence of nine nucleotides, or three amino acids. The encoding of $x_1$ is ACTTGCACG, which can be numerically represented as 023312021. The decoding will first map this DNA code into a vector of three amino acids: (11, 4, 11), which, according to Table 1, represents (Thr, Val, Thr). If the value of $x_1$ is in the range of [−10, 10] in a problem domain, this coding of $x_1$ will be decoded using Formulas (2) and (3) to obtain $x_1$ = 1.8344.

3. A Set of DNA Reproduction Operations

In this section, we define a set of new genetic operators that can be used to generate new individuals from existing individuals. The key difference between these operators and those used in existing DNA GAs is that our operators are based on amino acid level rather than nucleotide level activities.

3.1. Crossover Operations

Crossover operations such as the single-point, multi-point, and arithmetic crossover have been used in existing GAs to mimic the process of reproduction where the offspring individuals inherit information from their parents. Existing crossover operators were designed to manipulate a single nucleotide. In this subsection, we define three new crossover operators which are performed according to a pre-specified probability $P_c$. For the sake of clarity, we view an individual as a sequence of fixed-length units, where each unit has a fixed number of nucleotides, such as a triplet. Each operator will create a new individual from an existing individual by relocating a unit. These operators can be easily extended to work on units of variable lengths.

(1)

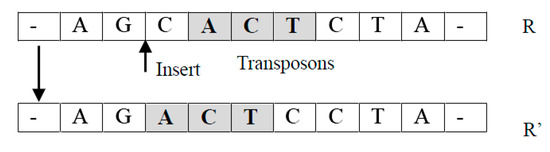

Translocation operator TransLoc(R): It takes an individual $R$ as an input and returns a new individual $R\prime$ by relocating a randomly selected unit of $R$ to a randomly chosen new location.

For example, suppose $R=R_5{R}_4{R}_3{R}_2{R}_1$, where $R_i$ is a unit. A new individual returned can be $R\prime =R_5{R}_2{R}_4{R}_3{R}_1$ in which $R_2$ has been moved into the position before $R_4$. Notice that it is easy to extend this operation so that an arbitrary new location can be selected (See Figure 2).

(2)

Transformation operator Transform(R): It takes an individual and two positions as parameters, and returns a new individual by swapping two randomly selected units.

For example, the sequence $R=R_5{R}_4{R}_3{R}_2{R}_1$ becomes $R\prime =R_5{R}_2{R}_3{R}_4{R}_1$, after exchanging randomly selected units $R_4$ with $R_2$.

(3)

Permutation operator Permute(R): It takes an individual as a parameter, and returns a new individual in which a randomly selected unit is randomly permuted.

For example, if $R=R_5{R}_4{R}_3{R}_2{R}_1$, the new individual can be $R\prime =R_5{R}_4{R}_3{R}_2^{\prime }{R}_1$, where $R_2^{\prime }$ is a random permutation of a randomly selected unit $R_2$.

3.2. Mutation Operations

Mutation operators are used to mimic mutations in DNA replication caused by mutagens such as chemical agents and radiation. A mutation operator will make random changes to the structure of an individual. These operators will be used to increase the diversity of the population and to prevent the algorithm from converging to local optima. Here, we introduce three new mutation operators which are performed according to a pre-specified probability $P_m$.

(1)

Inverse anticodon mutation IA(R). It takes an individual as a parameter and returns a new individual by replacing a randomly selected unit (as a codon) with its inverse anticodon. In biology, the anticodon of a codon is obtained by replacing each nucleotide with its complementary nucleotide based on the Watson–Crick complementary principle. Thus, A is replaced by T, C by G, and vice versa. An inversed anticodon is obtained by inverting the nucleotide sequence of the anticodon.

For example, if the randomly selected codon is GCA (or 112 in numerical code), its anticodon will be CCT (or 003 in coding) and its inverse anticodon is TCC (or 300 in coding).

(2)

Frequency mutation FM(R). It takes an individual as a parameter and returns a new individual by replacing every occurrence of the most frequently appearing nucleotide by the least frequently appearing nucleotide.

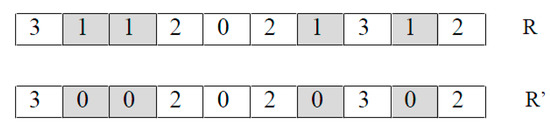

For example, in Figure 3 nucleotide G (represented by 1) is the most frequently appearing and nucleotide C (represented by 0) is the least frequently appearing. Thus, the FM operator replaces every G using a C.

(3)

Pseudo-bacteria mutation Pseudobac(R). It takes an individual as a parameter and returns a new individual as follows.

First, a random subsequence of nucleotides is identified as a gene. Then, a given number of candidate individuals are created by randomly changing one nucleotide in the selected gene. Finally, the candidate individual with the highest fitness value is returned.

For example, in Figure 4, gene1 is randomly selected, and five variations are created by changing one nucleotide at a time (indicated by the shaded bold letter). One candidate individual is created by using each of the variants to replace gene1.

This operator mimics a type of bacterial infection which, in a biological sense, may result in a new individual with an improved quality. The design is inspired by the pseudo-bacteria algorithm proposed by Yoshikawa et al. [27].

3.3. Recombination Operation

The recombination operator Recomb(R₁, R₂) performs two sub-tasks: cutting the molecules by restriction enzymes and pasting together the molecules obtained, provided that they have matching sticky ends. It is designed based on the splicing model described by Amos and Paun [28]. This operation is performed according to another pre-specified probability $P_r$.

For each individual, a double-strand DNA is created from its single-strand DNA according to the complementary property of the nucleotides (i.e., A and T, and C and G are complementary to each other).

For example, suppose R₁ = CCCCCTCGACCCCC and R₂ = AAAAGCGCAAAA, the following double-stranded DNA molecules will be created:

Restriction enzymes can act upon DNA sequences as chemical compounds able to recognize specific subsequences of DNA and to cut the DNA sequence at that place. For instance, the enzymes named TaqI and SciNI are characterized by the recognition sequences: respectively. The restriction enzymes TaqI and SciNI will cleave the above two molecules R₁ and R₂ into four segments:

Notice the uneven cuts of the segments. Specifically, from left to right, the first and the fourth segments have complementary leads (the top and the bottom strands contain complementary nucleotides), and so do the second and the third segments. Next, the segments with complementary leads are combined into new double-strands. For the given example, the new double-strands are as follows:

Finally, the two top strands, CCCCCTCGAAAAA and AAAAGCGCCCCC, are returned as two new individuals.

4. The GA-TNE+DRO Algorithm

In this section, we present a genetic algorithm that used the triplet nucleotide coding in Section 2 and the genetic operations in Section 3.

In GA-TNE+DRO, we introduce the simulated annealing method. At the end of each generation, it compares the current best individual with previous ones. If the current optimum is improved, nothing will be done. Otherwise, GA-TNE+DRO (Algorithm 1) will randomly generate some (e.g., 10) individuals in the nearby area. We compare the fitness values among them and pick the best one as the current generation optimum.

Algorithm 1 GA-TNE+DRO

Input: $f(X)$: the objective function    $n$: the number of variables in $X$    $dom(X)$: domains of the n variables    $N$: the size of initial population    Pc: the probability of crossover operation    Pm: the probability of mutation operation    Pr: the probability of recombination operation    $G$: max number of iterations    $\epsilon$: accuracy threshold Output: The value of X that optimizes $f(X)$ Method: 1. POP = a population of $N$ randomly generated individuals 2. For each p in POP 3. Calculate the fitness value of p using f(decode(p)) 4. $X$ = the best individual in POP 5. OldX = any individual in POP that is not $X$ 6. While termination condition is not satisfied do 7. OldX = $X$ 8. NewPOP = {$X$} 9. NEU = {N/2 neutral individuals in POP} 10. DEL = {N/2 deleterious individuals in POP} 11. For each individual p in NEU 12. Apply crossover operations to p according to Pc and add results to NewPOP 13. For each individual p in DEL 14. Apply mutation operations to p according to Pm and add results to NewPOP 15. For each pair of individual p and p’ in POP 16. Apply the recombination operation according to Pr and add results to NewPOP 17. For each p in NewPOP 18. Calculate the fitness value of p using f(decode(p)) 19. $X$ = the best individual in NewPOP 20. If $X$ is not better than OldX then 21. Generate randomly new individuals and pick up the best one into NewPOP 22. POP = NewPOP 23. End while 24. Return decode (X)

This algorithm explores the solution space iteratively to find the optimal global solutions to a given optimization problem. The input parameters define the optimization problem with the objective function, number of variables and the domains of each variable, and the probabilities for applying various types of operators.

In Step 1, an initial population of N individuals is randomly created. Each individual is a sequence of $n$ variables encoded by the encoding method presented in Section 2. In Steps 2 and 3, a fitness value is calculated for each individual using the objective function on the decoded values of the variables. The current optimal individual is identified in Step 4. Within each iteration (in Step 7 through Step 22), the current best individual is directly passed into the next generation in Step 8. This is based on the elitism strategy [29], so that the individuals with the highest fitness values are always kept in the population.

In Steps 9 and 10, the neutral and deleterious individuals in the current population are identified. According to the DNA model [30], neutral individuals should have high fitness values and are likely to generate better solutions in the genetic process; deleterious individuals will not affect the final solutions, but they can help maintain or increase the diversity of the population. We use a tournament selection strategy to identify neutral and deleterious individuals. Assume that the current population has N individuals. First, we randomly select two individuals and keep the one with the higher fitness value as a neutral individual. We repeat this process until ceiling (N/2) neutral individuals have been selected. We then randomly create ceiling (N/2) new individuals for the current population. The same procedure is applied to select ceiling (N/2) deleterious individuals, only this time, the individual with a lower fitness value is selected.

The translocation, transformation, and permutation operators are then randomly applied to each neutral individual in Step 12 according to P_c, the probability of crossover operations. The mutation, inverse anticodon mutation, frequency mutation, and pseudo-bacteria mutation operators are then randomly applied to each deleterious individual in Step 14 according to P_m, the probability of mutation operations. Next, the recombination operation is randomly applied to each pair of individuals of the population in Step 16 according to P_r, the probability of recombination operations. New individuals created by the crossover, mutation, and recombination operations are added to the new population. At the end of each iteration, if the fitness value of the optimal individual is not improved, some (e.g., 10) additional individuals will be randomly generated to prevent the search from being trapped in a local optimum. In Step 22, the old population is replaced by the new population.

The process will terminate after Step 22 if the maximum number of iterations G has been reached or the improvement of the fitness values between the old and the new optimal individuals is not larger than $\epsilon$, which is the user specified threshold. Finally, the optimal solution is returned in Step 24.

5. Numerical Experiments

In this section, we first describe our experiments and discuss the results. Then, we provide the algorithm complexity.

5.1. Experiment Setup

We implemented four algorithms: GA-TNE+NRO, conventional GA [1], PSO [2], and DE [3] in MATLAB and ran our experiment on a laptop with 4-core CPU in Windows 7. We applied these algorithms on a benchmark of eight nonlinear unconstrained optimization problems that are commonly used to evaluate the performance of global optimization algorithms [31]. These problems are difficult to solve using conventional optimization algorithms due to their large search space, numerous local minima, and fraudulence.

Table 2. Benchmark functions.

Function Name	Function Formula	Optimal Solution	Optimum
Ackley	$\begin{array}{l}\min f_1(x)=20\times (1-e^{-0.2\times \sqrt{0.5*(x_1^2+x_2^2)}})\\ -e^{0.5(\cos (2\pi x1)+\cos (2\pi x2))}+e,x\in [-5,5]\end{array}$	[−3, 0.5]	0
Beale	$\begin{array}{l}\min f_2(x)=(1.5-x_1+x_1\times x_2)2+(2.25-x_1+x1\times x_2^2)2\\ +(2.625-x^1+x^1\times x_2^3)2,x\in [-5,5]\end{array}$	[−3, 0.5]	0
Crossintray	$\begin{array}{l}\min f_3(x)=-0.0001\times (|\sin (x_1)\times \sin (x_2)\times e^{|100-\frac{\sqrt{x_1^2+x_2^2}}{\pi }|}|+1)0.1\\ x\in [-10,10]\end{array}$	[0.3459, 0.3459]	0
Giunta	$\begin{array}{l}\min f_4(x)=0.6+{\displaystyle \sum _{i=1}^2[{\sin }^2(1-\frac{16}{15}{x}_i)-\frac{1}{50}\sin (4-\frac{64}{15}{x}_i)}\\ -\sin (1-\frac{16}{15}{x}_i)],x\in [-15,15]\end{array}$	[−10, 10]	−20
Himmelblau	$\min f_5(x)={(x_1^2+x_2-11)}^2+{(x_1+x_2^2-7)}^2,x\in [-5,5]$	[3,2]	0
Penholder	$\min f_6(x)=-e^{-1/|\cos (x_1)\times \cos (x_2)\times e^{|1-\frac{\sqrt{x_1^2+x_2^2}}{\pi }|}|},x\in [-11,11]$	[−9.64617, 9.64617]	−0.96353
Testtubeholder	$\begin{array}{l}\min f_7(x)=-4|\sin (x_1)\times \cos (x_2)\times e^{|\cos \frac{(x_1^2+x_2^2)}{200}|}|,\\ x\in [-10,10]\end{array}$	[$-\pi /2$, 0]	−10.8723
Levi13	$\begin{array}{l}\min f_8(x)={\sin }^2(3\pi x_1)+(x_1-1)2\times (1+{\sin }^2(3\pi x_2)+\\ (x_2-1)2\times (1+{\sin }^2(2\pi x_2)),x\in [-10,10]\end{array}$	[1,1]	0

summarizes these optimization problems. For convenience, we refer to the optimization problems in Table 2 by their objective functions $f_1(x)$ through $f_8(x)$.

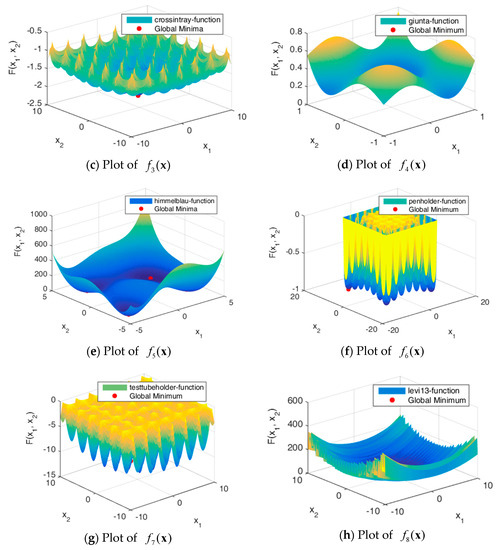

Figure 5 shows the solution spaces of these problems. Problems $f_1(x)$ through $f_4(x)$ are uni-modal, which have precisely one global optimum, and are good for studying how well the algorithm can exploit the solution space [32]. Problems $f_5(x)$ through $f_8(x)$ are multimodal, which have one global optimum and many local optima. The number of local optima will increase exponentially as the number of dimensions increases.

Table 3. Parameter setting for GA, PSO, DE, and GA-TNE+DRO.

GA	PSO	DE	GA-TNE+DRO
G = 200	G = 200	G = 200	G = 200
N = 20	N = 20	N = 20	N = 20
Pc = 0.5	C1 = 2, C2 = 2	Pc = 0.5	Pc = 0.5
Pm = 0.01	w1 = 0.9, w2 = 0.4	Pm = 0.06	Pm = 0.05, Pr = 0.05

lists the set of parameters we used to run the algorithms on the benchmark problems. Here, $G$ denotes the number of iterations, N is the size of the initial population, P_c is the probability of crossover operations, P_m is the probability of mutation operations, and P_r is the probability of recombination operations.

For impartial comparison, each algorithm is executed 50 times for every benchmark problem. For each run, the optimization process terminates if $\left|O_b-O^{*}\right|\le \epsilon$, where $O_b$ denotes the best optimized objective function value, $O*$ is the real optimal value, and $\epsilon ={10}^{-4}$ is the precision threshold.

5.2. Results and Discussion

We compared the performance of the algorithms by comparing the values of the objective function and the number of iterations for the algorithms to converge.

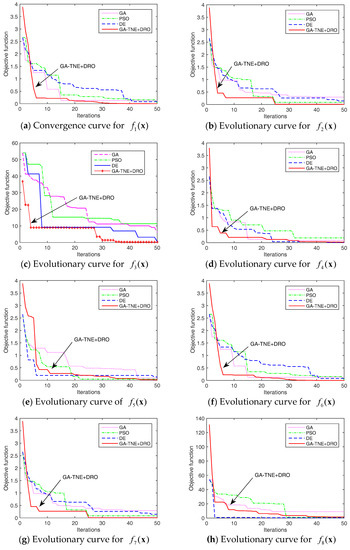

Figure 6 shows the evolution curves of the algorithms for each benchmark problem. For the sake of clarity, only 50 iterations are shown in Figure 6. Although a maximum of 1000 iterations were run in our experiments, the objective values stay unchanged beyond 50 iterations. As shown in Figure 6, our algorithm can find better solutions earlier than other algorithms for most of the benchmark problems.

Table 4. The optimal values of objective functions obtained by the algorithms (the best obtained results are highlighted in bold).

Function	GA		PSO		DE		GA-TNE+DRO
	${\mathit{F}}_{\mathit{b}\mathit{e}\mathit{s}\mathit{t}}$	${\mathit{F}}_{\mathit{a}\mathit{v}\mathit{e}}$	${\mathit{F}}_{\mathit{b}\mathit{e}\mathit{s}\mathit{t}}$	${\mathit{F}}_{\mathit{a}\mathit{v}\mathit{e}}$	${\mathit{F}}_{\mathit{b}\mathit{e}\mathit{s}\mathit{t}}$	${\mathit{F}}_{\mathit{a}\mathit{v}\mathit{e}}$	${\mathit{F}}_{\mathit{b}\mathit{e}\mathit{s}\mathit{t}}$	${\mathit{F}}_{\mathit{a}\mathit{v}\mathit{e}}$
$f_1(x)$	8.43 × 10−8	4.91 × 10−7	3.13 × 10−10	3.67 × 10−8	4.13 × 10−9	3.18 × 10−8	1.13 × 10−11	1.16 × 10−10
$f_2(x)$	3.48 × 10−7	6.12 × 10−6	5.62 × 10−9	4.12 × 10−8	7.52 × 10−10	7.01 × 10−9	7.85 × 10−11	8.61 × 10−10
$f_3(x)$	1.86 × 10−8	3.65 × 10−6	1.58 × 10−10	4.28 × 10−9	3.04 × 10−10	3.17 × 10−9	2.47 × 10−12	3.45 × 10−11
$f_4(x)$	−20.0023	−20.0238	−19.9986	−19.9865	−19.9987	−19.9928	−20.0001	−20.0010
$f_5(x)$	2.36 × 10−5	5.69 × 10−4	3.65 × 10−6	7.54 × 10−5	5.97 × 10−6	4.19 × 10−5	7.98 × 10−7	8.67 × 10−6
$f_6(x)$	−0.96350	−0.96251	−0.96349	−0.96332	−0.96343	−0.96341	−0.96354	−0.96350
$f_7(x)$	−10.8716	−10.8689	−10.8718	−10.8702	−10.8718	−10.8703	−10.8721	−10.8714
$f_8(x)$	4.35 × 10−8	2.36 × 10−6	3.68 × 10−9	6.39 × 10−7	8.26 × 10−10	8.69 × 10−9	6.31 × 10−9	9.23 × 10−8

shows the ability of the algorithms to find the global optimal solutions. Notice that since all benchmark problems require the objective functions to be minimized, the smaller the value of the objective function for the solution obtained by the algorithm, the more accurate the solution is. In Table 4, the columns labeled with $F_{ave}$ and $F_{best}$ are, respectively, the average and best values of the objective function at the termination of the algorithm over 50 runs. The best obtained results are highlighted in bold.

From these results, we can see that our algorithm outperforms the other algorithms in all benchmark problems, except for $f_8(x)$ in both the average and the optimal cases. This clearly indicates that our algorithm can find solutions that are much closer to the global optimal solution than other algorithms, especially for optimization problems in high dimensional space. The slightly worse performance than DE for problem $f_8(x)$ was due to the difficulty caused by thousands of local optima in the solution space. However, this result of our algorithm is still much better than those of GA and PSO.

Table 5. The Convergence Speed of the Algorithms (the best obtained results are highlighted in bold).

Function	GA			PSO			DE			GA-TNE+DRO
	${\mathit{G}}_{\mathbf{max}}$	${\mathit{G}}_{\mathbf{min}}$	${\mathit{G}}_{\mathit{a}\mathit{v}\mathit{e}}$	${\mathit{G}}_{\mathbf{max}}$	${\mathit{G}}_{\mathbf{min}}$	${\mathit{G}}_{\mathit{a}\mathit{v}\mathit{e}}$	${\mathit{G}}_{\mathbf{max}}$	${\mathit{G}}_{\mathbf{min}}$	${\mathit{G}}_{\mathit{a}\mathit{v}\mathit{e}}$	${\mathit{G}}_{\mathbf{max}}$	${\mathit{G}}_{\mathbf{min}}$	${\mathit{G}}_{\mathit{a}\mathit{v}\mathit{e}}$
$f_1(x)$	200	54	86.8	200	51	65.8	191	50	70.4	180	9	15.6
$f_2(x)$	200	102	120.4	187	69	111.6	182	49	95.7	159	23	56.8
$f_3(x)$	198	118	142.6	168	87	115.6	174	37	61.7	149	19	24.6
$f_4(x)$	186	76	126.8	182	76	116.8	170	72	120.4	138	28	96.8
$f_5(x)$	178	78	125.6	186	42	87.6	158	62	111.3	127	26	75.6
$f_6(x)$	192	96	130.1	192	63	97.6	144	55	102.7	106	27	38.8
$f_7(x)$	187	112	168.3	193	61	91.3	162	28	75.8	116	19	50.2
$f_8(x)$	186	86	118.6	179	53	78.6	104	13	24.4	132	21	52.4

shows the speed at which the algorithms converge. We measured the maximum, minimum, and average number of iterations executed until the algorithms converged to a solution.

From Table 5, we can see that our algorithm converges much faster than other algorithms on all benchmark problems except $f_8(x)$.

5.3. Algorithm Complexity

In this Section, the algorithm complexity for the proposed GA-TNE+DRO is described.

Table 6. Algorithm complexity (the best obtained results are highlighted in bold).

Function	T1	GA		PSO		DE		GA-TNE+DRO
		$\overline{\mathit{T}2}$	T	$\overline{\mathit{T}2}$	T	$\overline{\mathit{T}2}$	T	$\overline{\mathit{T}2}$	T
$f_1(x)$	4.3874 × 10−3	9.2735 × 10−3	143.71	5.6002 × 10−3	35.672	8.1046 × 10−3	109.33	5.2750 × 10−3	26.105
$f_2(x)$	3.8156 × 10−3	8.0649 × 10−3	124.98	7.0483 × 10−3	95.078	4.8704 × 10−3	31.023	4.5875 × 10−3	22.702
$f_3(x)$	7.6552 × 10−3	1.6180 × 10−2	250.74	1.4141 × 10−2	190.75	9.7714 × 10−3	62.241	9.2038 × 10−3	45.547
$f_4(x)$	7.9521 × 10−3	1.6808 × 10−2	260.47	1.4689 × 10−2	198.15	1.0150 × 10−2	64.654	9.5607 × 10−3	47.313
$f_5(x)$	1.8687 × 10−3	3.9498 × 10−3	61.210	2.3853 × 10−3	15.194	3.4519 × 10−3	46.565	2.2467 × 10−3	11.119
$f_6(x)$	4.8976 × 10−3	1.0352 × 10−2	160.42	6.2515 × 10−3	39.821	9.0470 × 10−3	122.04	5.8884 × 10−3	29.14
$f_7(x)$	4.4559 × 10−3	9.4182 × 10−3	145.95	8.2309 × 10−3	111.03	5.6877 × 10−3	36.229	5.3573 × 10−3	26.512
$f_8(x)$	6.4631 × 10−3	1.3661 × 10−2	211.70	1.1939 × 10−2	161.05	7.7706 × 10−3	38.455	8.2498 × 10−3	52.549

shows the complexity of the four algorithms: GA, PSO, DE, and GA-TNE+DRO. Using the method in [33], the running times of algorithms are measured against $T0$, the running time of Algorithm 2. Under our experimental setup, $T0$ is 3.4 × 10⁻⁵ s.

Algorithm 2 Test Problem

for i = 1:200  x = 0.55 + i;  x = x + x;  x = x/ 2; x = x*x; x= sqrt(x); x = log(x); x= exp(x); x = x/(x+2); end

In Table 6, $T1$ is the running time for executing the benchmark function alone for 200 times. $T2$ is the total running time for applying an algorithm to solve a benchmark function 200 times. $\overline{T2}$ is the mean $T2$ over 50 runs. The complexity of the algorithm is measured by $T=(\overline{T2}-T1)/T0$. The best results in Table 6 are highlighted in bold. According to Table 6, our algorithm is much more efficient than the other algorithms.

6. Conclusions

To accelerate the evolutionary process and increase the probability to find the optimal solution, we present a new genetic algorithm, called GA-TNE+DRO, which uses a novel triplet nucleotide coding scheme to encode potential solutions and a set of new genetic operators to search for globally optimal solutions. The coding scheme represents potential solutions as a sequence of triplet nucleotides and the DNA reproduction operations mimic the DNA reproduction process more vividly than existing DNA-GAs. We compared our algorithm with several existing GA and DNA-based GA algorithms using a benchmark of eight optimization functions. Our experimental results show that our algorithm can converge to solutions much closer to the global optimal solutions in a much lower number of iterations than the existing algorithms.

Several interesting issues may deserve further research. It may be interesting to explore a new encoding scheme and new genetic operators for a better performance and efficiency. The current algorithm is designed for solving unconstrained optimizations; however, it would be interesting to extend this algorithm to solve other types of optimizations, for example, constrained optimization and multi-objective optimization problems. It would also be interesting to apply the algorithm to solve problems in machine learning, such as clustering and classification.
