Materials 2016, 9(7), 549; https://doi.org/10.3390/ma9070549

Article
Low Cost Local Contact Opening by Using Polystyrene Spheres Spin-Coating Method for PERC Solar Cells
1
Department of Materials Science and Engineering, Da-Yeh University, Chunghua 51591, Taiwan
2
Department of Electrical Engineering, National Chung Hsing University, Taichung 40227, Taiwan
3
Electronics and Communication Engineering, Peking University, Wuxi 214125, China
4
Department of Electrical Engineering, Da-Yeh University, Chunghua 51591, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Shoou-Jinn Chang
Received: 29 May 2016 / Accepted: 1 July 2016 / Published: 8 July 2016

Abstract

:
The passivated emitter and rear cell (PERC) concept is one of the most promising technologies for increasing crystalline silicon solar cell efficiency. Instead of using the traditional laser ablation process, this paper demonstrates spin-coated polystyrene spheres (PS) to create local openings on the rear side of PERCs. Effects of PS concentration and post-annealing temperature on PERC performance are investigated. The experimental results show that the PS are randomly distributed on wafers and no PS are joined together at a spin rate of 2000 rpm. The PS can be removed at a temperature of 350 °C, leaving holes on the passivation layers without damaging the wafer surfaces. As compared to the laser opening technique with the same contact fraction, the PS opening technique can yield a higher minority effective lifetime, a higher implied open-circuit voltage, and a slightly higher short-circuit current. Although the fill factor of the PS opening technique is lower owing to non-optimized distribution of the openings, the conversion efficiency of the devices is comparable to that of devices prepared via the laser opening process.
Keywords:
passivated emitter and rear cell; local contact opening; polystyrene sphere

1. Introduction

Passivated emitter and rear cells (PERCs) are considered a next-generation monocrystalline silicon (c-Si) solar technology owing to their significant efficiency gain without a large increase in the manufacturing costs on traditional industrial production lines [1,2]. The most obvious difference between typical c-Si solar cells and PERCs is the rear side passivation layers, which not only efficiently reduce the recombination velocity, but also reflect longer wavelengths on the rear side surfaces [3,4,5]. To create a rear side metal contact, laser ablation technology is used to remove passivation layers to produce local openings [6,7]. Laser ablation might cause unintended laser-induced damage, such as silicon recrystallization, surface melting, and heat-affected zones that diminish cell performance [8]. To achieve damage-free openings, shorter laser pulse widths in the range of picoseconds to femtoseconds are used [1]. The picosecond or femtosecond lasers are around seven to ten times more expensive than nanosecond laser systems. Development of a cheaper method to replace conventional laser technology is necessary.
In this work, we demonstrate an opening technique using polystyrene spheres (PS). The morphologies of different concentrations of PS spin-coated on wafers are shown. The effect of temperature on the PS removal process is investigated. Finally, the performance of PERCs prepared using the PS opening technique is presented.

2. Experimental Methods

The solution contained 0.5 wt. % PS in deionized water were obtained from Polysciences, Inc. (Warrington, PA, USA) The diameter of the PS was 40 µm. The solution was diluted to the concentrations to 0.15–0.3 wt. % by adding ethanol. No surfactant was used. The p-type silicon wafer had a doping concentration of 1016 cm−3, size of 15.6 × 15.6 cm2, thickness of 200 µm, and resistivity of 1 Ω-cm. The wafers were cleaned by standard Radio Corporation of America, process consisting of immersion steps in standard cleaning 1 (5:1:1 H2O:NH4OH:H2O2), 1% hydrofluoric acid, and standard cleaning 2 (6:1:1 H2O:HCl:H2O2) solutions to remove organic contamination, particles and native silicon oxide on the surface. Some wafers were sliced into small pieces of 2 × 2 cm2. Then, the PS opening technique was performed as shown in Figure 1. The PS solutions with concentrations ranging from 0.15 to 0.3 wt. % were applied on the wafer surface manually and statically prior to spin coating. The spin velocity was initially 500 rpm for 30 s and increased up to 2000 rpm for 60 s. The effect of the PS concentration on the morphological distribution was investigated. A 10-nm aluminum oxide (Al2O3) layer and a 150-nm silicon nitride (SiNx) layer were deposited by atomic layer deposition at room temperature and by plasma-enhanced chemical vapor deposition at 120 °C on wafers, as well as on PS. Afterwards, the samples were loaded into a thermal furnace at atmospheric pressure with temperatures of between 150 °C and 450 °C for 30 min in order to evaporate the PS from the wafers. Part of the overlying Al2O3 was lifted off leaving local holes.
PERCs with a typical front-side structure of Ag/SiNx/SiO2/n emitter/p wafer base were fabricated. The PS opening technique was applied to the rear side of the devices to create local holes. The emitter sheet resistance was 75 Ω/sq. An Al layer with a thickness of 200 nm was sputtered on the rear side of the device and this contacted with silicon wafer through the holes. The devices were annealed in a furnace with a peak temperature of 800 °C, which was held for about 15 s, to form a back surface field. The morphologies of the wafers were observed by optical microscopy (OM) (M&T Optics, Co., Ltd., Taipei, Taiwan). The minority carrier lifetime and implied open-circuit voltage (implied Voc) of the wafers were determined by quasi-steady-state photoconductance (WCT-120, Sinton Consulting Inc., Boulder, CO, USA) at 25 °C. The J–V characteristics of the PERCs were measured using a standard solar simulator under AM1.5G (100 mW/cm2) conditions.

3. Results and Discussion

Figure 2 shows the OM topographical images of the wafers spin-coated with PS concentrations of (a) 0.15; (b) 0.2; (c) 0.25; and (d) 0.3 wt. %. The number of PS per unit area increases with increasing PS concentration. It can be clearly seen that the PS are separated in all the cases. This is attributed to the two-stage spin-coating process used. Empirically, the extent of the separation of the PS is positively related to the spin speed of the second stage. In the present study, the maximum spin speed used was 2000 rpm owing to equipment limitations, but it resulted in the isolation of every PS. The coverage ratio of PS area to wafer area was calculated by using Image Pro computer software. The coverage ratios for the PS concentrations of 0.15, 0.2, 0.25, and 0.3 wt. % were 1.51%, 2.45%, 2.88% and 3.98%, respectively. These coverage ratios are also in the range of those obtained from typical PERCs prepared with the laser opening process.
The average spacing, Savg, of the PS is calculated by the following equation:
S avg = 1 n i = 1 n ( d i 1 + d i 2 + d i 3 + d i 4 ) 4
where n is the total number of PS and di1, di2, di3, and di4 are the distances between a PS and its four nearest neighbors. The calculation results are shown in Figure 3. The value of Savg reduces from 410 to 163 µm when the PS concentration increases from 0.15 to 0.3 wt. %. The normalized standard deviation (SD), defined as SD divided by Savg, can be determined, as shown in Figure 2, to help evaluate the uniformity of PS distribution. The normalized SDs are 52.6%, 45.5%, 47.3%, and 41.4% for PS concentrations of 0.15, 0.2, 0.25, and 0.3 wt. %, respectively. The large coefficient of variation in PS particle distribution might possibly be further narrowed by adding surfactant to the PS solution, or by optimizing parameters of the spin coating process. The non-uniformly distributed openings may have a significant influence if the surface recombination is high. However, the aluminum oxide (Al2O3) layer deposited by using atomic layer deposition (ALD), which has been reported as the greatest passivation layer currently available, can yield a very low surface recombination velocity. Adverse influences related to the PS non-uniformity can thus be significantly reduced.
A 10-nm-thick Al2O3 passivation layer and a 150-nm-thick SiNx capping layer were deposited on the wafer as well as PS, followed by an annealing process with temperatures ranging from 150 °C to 450 °C for 30 min. Figure 4 shows the OM images for the annealing processes of (a) 150 °C; (b) 250 °C; (c) 300 °C; and (d) 350 °C. It can be seen that at the temperature of 150 °C no significant change could be observed between the OM images before and after annealing. The PS remain on the wafer surface. At 250 °C, the PS are found to partly decompose. When the temperature is 350 °C and 450 °C, no PS are observable on the wafers. Temperatures above 350 °C can provide sufficient energy to not only evaporate the PS but also push out the overlying films. No damage to the wafers can be reasonably expected and assumed. In contrast, in the case of the traditional laser opening process, the Al2O3 and SiNx layers have very small absorption of laser energy, so the strategy for creating holes is that the Si wafer absorbs heat energy, which would then be transferred by conduction in a few nanoseconds to the adjacent layers [9,10,11]. The ablation of the passivation layer initiates when the temperature reached in the layers is of the order of the boiling temperature (around 3525 K for Al2O3 and 2150 K for SiNx) [12]. The required laser energy is about 0.8 J/cm2, which is close to the energy (typically around 1 J/cm2) that can melt or damage Si wafers [12]. It is noted that there might be some kind of carbon trace remaining on the surface wafer, and this would possibly affect metal contact formation. The Al contact was sputtered on the wafers, and the specific contact resistance (ρc) between Al and Si wafer was determined by using transmission line method. ρc of the sample annealed at 450 °C is 8.4 × 10−3 Ω-cm2, which is comparable to the value (8.6 × 10−3 Ω-cm2) of the sample prepared with the laser method. As a result, the effect of the residue of carbon trace at the wafer surface might be insignificant.
Figure 5 shows the effective carrier lifetime as a function of injection level for the wafers prepared with different PS coverage ratios after PS annealing process. The maximum carrier lifetime for each curve is illustrated in Figure 6a. With no PS on the wafer, corresponding to the coverage ratio of 0 wt. %, the highest lifetime of 140 µs can be reached owing to the full surface passivation by Al2O3. The lifetime reduces from 132 to 107 µs as the coverage ratio is increased from 1.51% to 4.57%. The reduction can be directly attributed to the loss in passivation area caused by an increase in the amount of local holes when the coverage ratio increases. For the purpose of comparison, the wafer with the laser openings was fabricated with a hole diameter of 40 µm and spacing of about 240 µm, corresponding to a metal fraction of 2.7%. The lifetime of the wafer with the laser openings is 103 µs, lower than that of the PS technique if the same metal fraction is used.
The implied Voc for the wafers prepared with the PS opening technique is shown in Figure 6b to evaluate the maximum Voc before metal deposition. The implied Voc is determined as given by [13]:
τ eff ( n ) = n ( t ) G n ( t ) / t
implied V oc = kT q ln ( n ( N A + n ) n i 2 )
where G is the generation rate; τeff is the effective minority carrier lifetime; ∆n is the excess carrier concentration; ∆t is the time taken in seconds; k is the Boltzmann constant; T is the temperature; NA is the acceptor concentration of the wafer; and ni is the intrinsic carrier concentration. The implied Voc follows the same trend as the effective minority carrier lifetime with respect to the PS concentration. It should be noted that the wafer prepared with the laser opening technique has an implied Voc of 619 mV, whereas the wafer prepared with the PS opening technique should be around 628–633 mV if it had the same metal fraction.
Figure 7 shows the J–V characteristics of the PERCs with different PS coverage ratios. The detailed solar cell external parameters are summarized in Table 1. It can be seen that the conversion efficiency trade-off is the gain in FF and the loss in Voc when the PS coverage ratio increases. FF can be related to the series resistance (Rs) and the shunt resistance (Rsh) of the devices, which could be calculated from the inverse slopes of the J–V curves at V = 0 and J = 0, respectively. The result shows that most of the gain in FF is attributed to the reduced Rs, resulting from the increased contact area between the silicon wafer and the back electrode as the coverage ratio increases. FF for the PS method with a metal fraction of 2.88% is higher than that for the laser method with the coverage ratio of 2.7%, might be attributed to the non-uniform PS distribution. The reduction in Voc is owing to the loss in passivation area, which is supported by the lifetime measurement. Jsc slightly decreases with the PS coverage ratio, presumably owing to the carrier loss at the rear surface. Overall, the optimal conversion efficiency of 17.94% occurs at the coverage ratio of 2.88%. Twenty devices were reproduced under the same conditions, and the conversion efficiencies were between 17.8% and 17.95% with an average of 17.92%. This result demonstrates that the PS opening technique could yield cell efficiencies comparable to that of the PERC cell with identical structure but prepared with the laser opening technique, which is 17.99% (Voc = 605 mV, Jsc = 36.9 mA/cm2, FF = 80.6%).

4. Conclusions

This study uses PS to create local openings for rear contacts of PERCs. The PS are randomly distributed on wafers, and the PS are isolated at a spin rate of 2000 rpm. Annealing temperatures of greater than 350 °C for 30 min can completely remove the PS, leaving holes on the passivation layer. The PS annealing process can thus be combined with the annealing process for the SiNx/Al2O3 passivation layer, so no additional annealing process is needed. The best PERC cell efficiency obtained with the PS opening technique is 17.94%, which comparable to that of the cell with identical structure prepared using the laser opening technique.

Acknowledgments

This work is sponsored by the Ministry of Science and Technology of the Republic of China under contract Nos. 104-2221-E-212 002-MY3 and 104-2632-E-212-002.

Author Contributions

Chia-Hsun Hsu, Chi-Hsiang Yang designed the experiments; Yi-Han Wang performed the experiments; Chun-Wei Huang performed the measurements; Chia-Hsun Hsu, Shui-Yang Lien, Chung-Yuan Kung, Jen-Chung Lou analyzed the results; Chia-Hsun Hsu, Chi-Hsiang Yang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, M.; Park, S.; Kim, D. Highly efficient PERC cells fabricated using the low cost laser ablation process. Sol. Energy Mater. Sol. Cells 2013, 117, 126–131. [Google Scholar] [CrossRef]
  2. Schultz, O.; Mette, A.; Hermle, M.; Glunz, S.W. Thermal oxidation for crystalline silicon solar cells exceeding 19% efficiency applying industrially feasible process technology. Prog. Photovolt. 2008, 16, 317–324. [Google Scholar] [CrossRef]
  3. Kim, Y.; Jung, S.; Ju, M.; Ryu, K.; Park, J.; Choi, H.; Yang, D.; Lee, Y.; Yi, J. The effect of rear surface polishing to the performance of thin crystalline silicon solar cells. Sol. Energy 2011, 85, 1085–1090. [Google Scholar] [CrossRef]
  4. Lüder, T.; Lauermann, T.; Zushlag, A.; Hahn, G.; Terheiden, B. Al2O3/SiNx-stacks at increased temperatures: Avoiding blistering during contact firing. Energy Proced. 2012, 27, 426–431. [Google Scholar] [CrossRef]
  5. Vermang, B.; Goverde, H.; Uruena, A.; Lorenz, A.; Cornagliotti, E.; Rothschild, A.; John, J.; Poormans, J.; Mertens, R. Blistering in ALD Al2O3 passivation layers as rear contacting for local Al BSF Si solar cells. Sol. Energy Mater. Sol. Cells 2012, 101, 204–209. [Google Scholar] [CrossRef]
  6. Qiao, Q.; Lu, H.; Ge, J.; Xi, X.; Chen, R.; Yang, J.; Zhu, J.; Shi, Z.; Chu, J. 18.5% efficient AlOx/SiNx rear passivated industrial multicrystalline silicon solar cells. Appl. Surf. Sci. 2014, 30, 439–444. [Google Scholar] [CrossRef]
  7. Lee, D.Y.; Lee, H.H.; Ahn, J.Y.; Park, H.J.; Kim, J.H.; Kwon, H.J.; Jeong, J.K. A new back surface passivation stack for thin crystalline silicon solar cells with screen-printed back contacts. Sol. Energy Mater. Sol. Cells 2010, 95, 26–29. [Google Scholar] [CrossRef]
  8. Kim, J.; Hwang, Y.; Kim, J.; Lim, J.; Lee, E. Investigation of rear side selective laser ablation and damge etching process for industrial PERC solar cells. Energy Proced. 2014, 55, 791–796. [Google Scholar] [CrossRef]
  9. Correia, S.A.G.D.; Lossen, J.; Wald, M.; Neckermann, K.; Bähr, M. Selective laser ablation of dielectric layers. In Proceedings of the 22nd European Photovoltaic Solar Energy Conference, Milan, Italy, 3 September 2007.
  10. Poulain, G.; Blanc, D.; Focsa, A.; De Vita, M.; Semmache, B.; Gauthier, M.; Pellegrin, Y.; Lemiti, M. Laser ablation mechanism of silicon nitride layers in a nanosecond UV regime. Energy Proced. 2012, 27, 516–521. [Google Scholar] [CrossRef]
  11. Hermann, S.; Dezhdar, T.; Harder, N.P.; Brendel, R.; Seibt, M.; Stroj, S. Impact of surface topography and laser pulse duration for laser ablation of solar cell front side passivating SiNx layers. J. Appl. Phys. 2010, 108, 114514–114521. [Google Scholar] [CrossRef]
  12. Parola, S.; Blanc-Pélissier, D.; Barbos, C.; Le Coz, M.; Poulain, G.; Lemiti, M. Time-resolved photoluminescence for evaluating laser-induced damage during dielectric stack ablation in silicon solar cells. Appl. Surf. Sci. 2016, 374, 177–182. [Google Scholar] [CrossRef]
  13. Wang, H.P.; Li, A.C.; Lin, T.Y.; He, J.H. Concurrent improvement in optical and electrical characteristics by using inverted pyramidal array structures toward efficient Si heterojunction solar cells. Nano Energy 2016, 23, 1–6. [Google Scholar] [CrossRef]

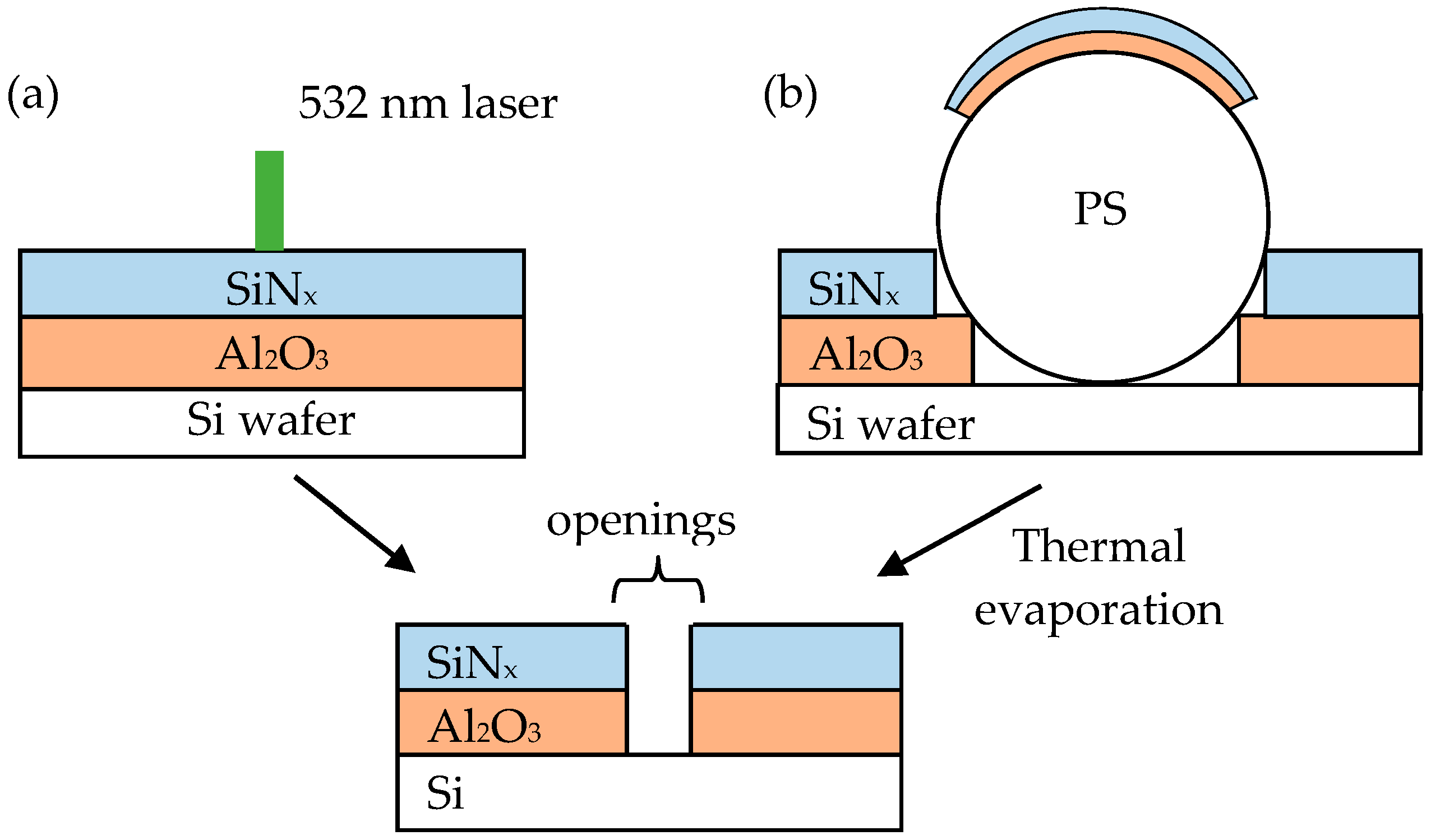

Figure 1. Diagram of (a) laser and (b) polystyrene spheres (PS) opening technique for passivated emitter and rear cells (PERCs).
Figure 1. Diagram of (a) laser and (b) polystyrene spheres (PS) opening technique for passivated emitter and rear cells (PERCs).
Materials 09 00549 g001
Figure 2. Optical microscopy (OM) images for the wafers with PS concentrations of (a) 0.15; (b) 0.2; (c) 0.25 and (d) 0.3 wt. % at a spin speed of 2000 rpm.
Figure 2. Optical microscopy (OM) images for the wafers with PS concentrations of (a) 0.15; (b) 0.2; (c) 0.25 and (d) 0.3 wt. % at a spin speed of 2000 rpm.
Materials 09 00549 g002

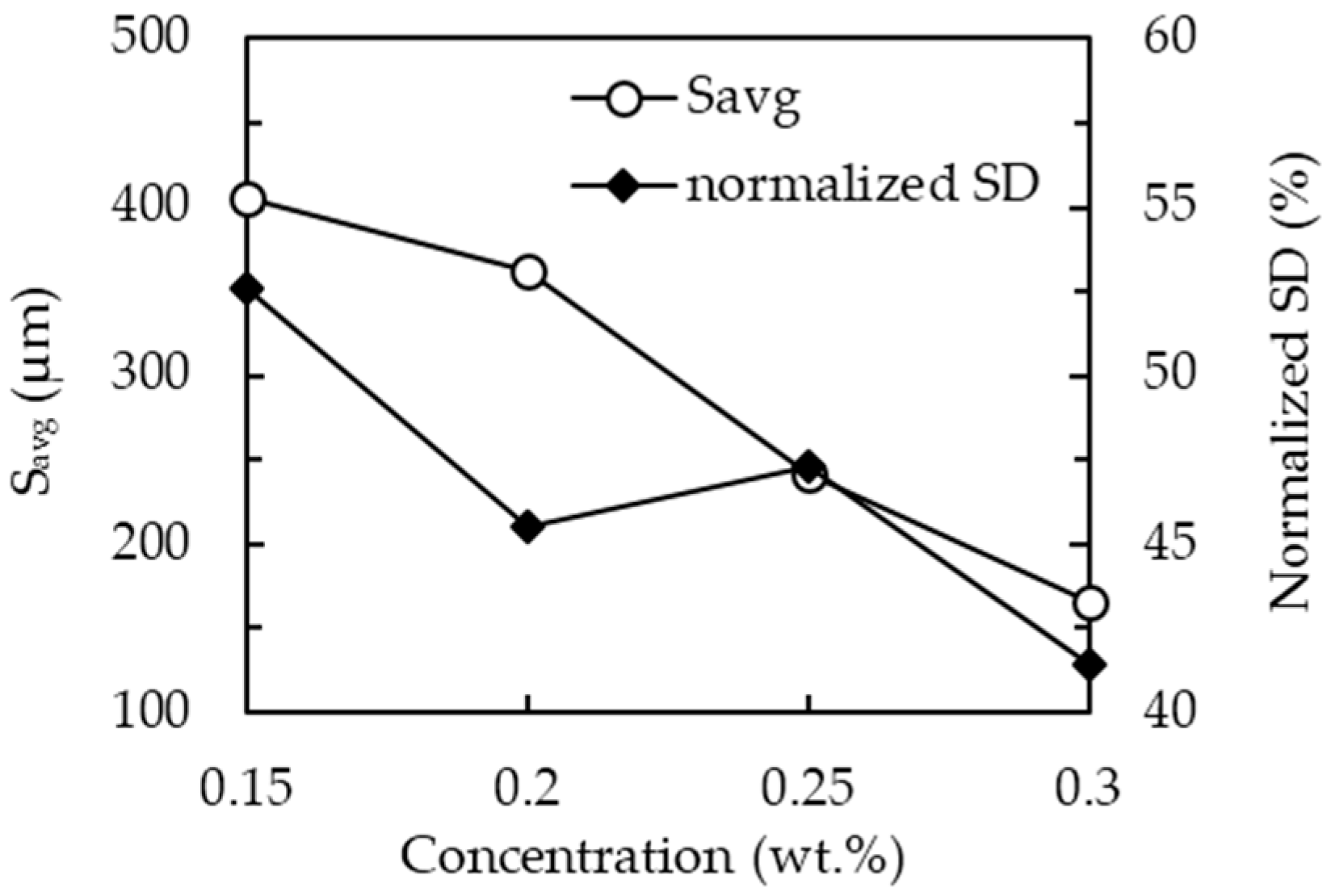

Figure 3. Average PS spacing, Savg, and normalized SD for the different PS concentrations.
Figure 3. Average PS spacing, Savg, and normalized SD for the different PS concentrations.
Materials 09 00549 g003
Figure 4. OM images for the PS with annealing temperatures of (a) 150 °C; (b) 250 °C; (c) 350 °C and (d) 450 °C.
Figure 4. OM images for the PS with annealing temperatures of (a) 150 °C; (b) 250 °C; (c) 350 °C and (d) 450 °C.
Materials 09 00549 g004

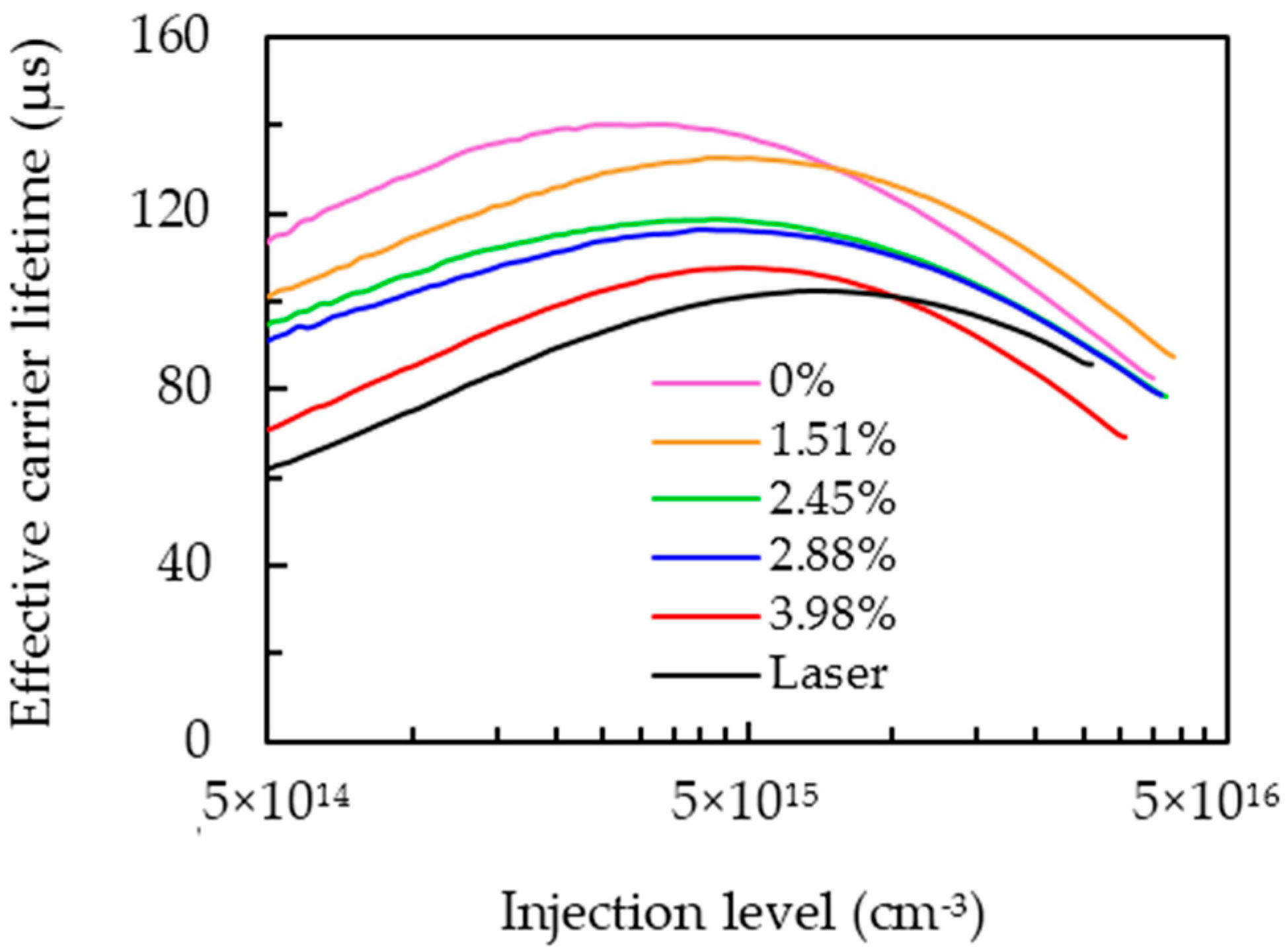

Figure 5. Effective carrier lifetime as a function of injection level.
Figure 5. Effective carrier lifetime as a function of injection level.
Materials 09 00549 g005

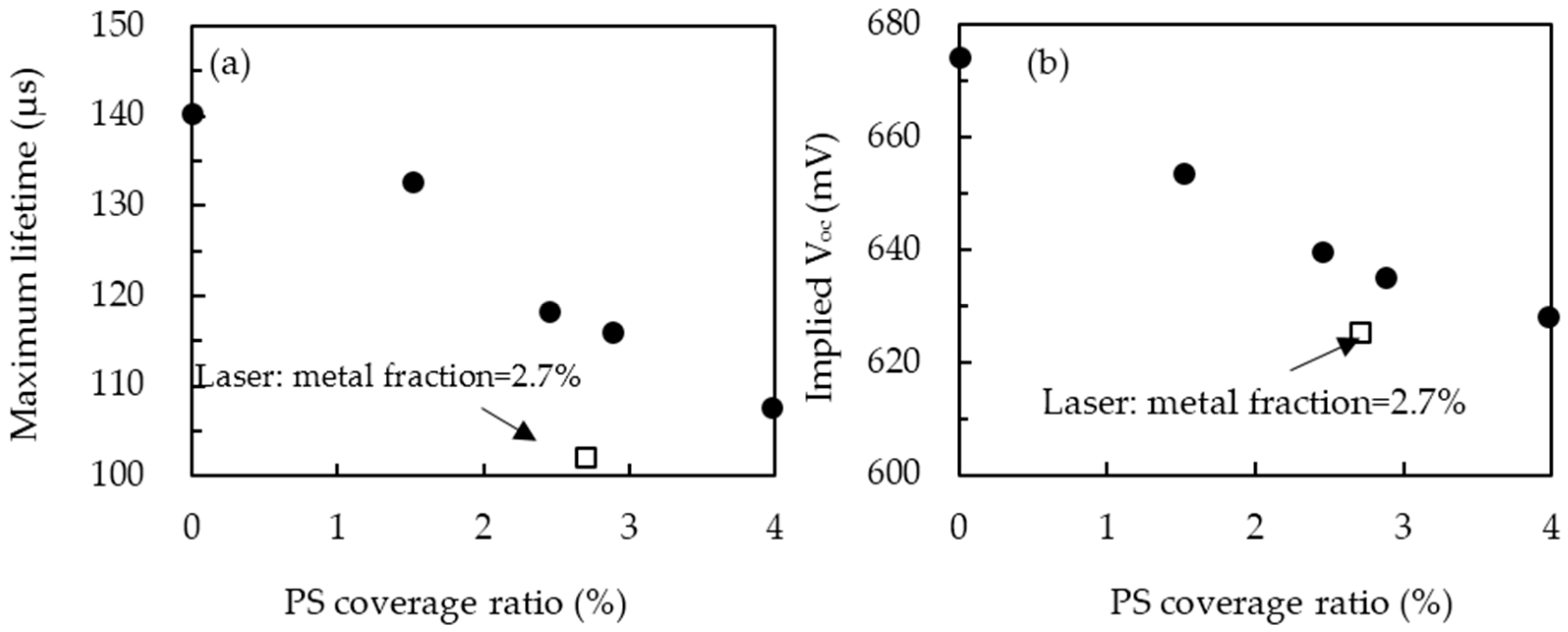

Figure 6. (a) Maximum effective carrier lifetime and (b) implied Voc values as a function of PS coverage ratio. Wafers with identical structure but using laser opening technique is indicated.
Figure 6. (a) Maximum effective carrier lifetime and (b) implied Voc values as a function of PS coverage ratio. Wafers with identical structure but using laser opening technique is indicated.
Materials 09 00549 g006

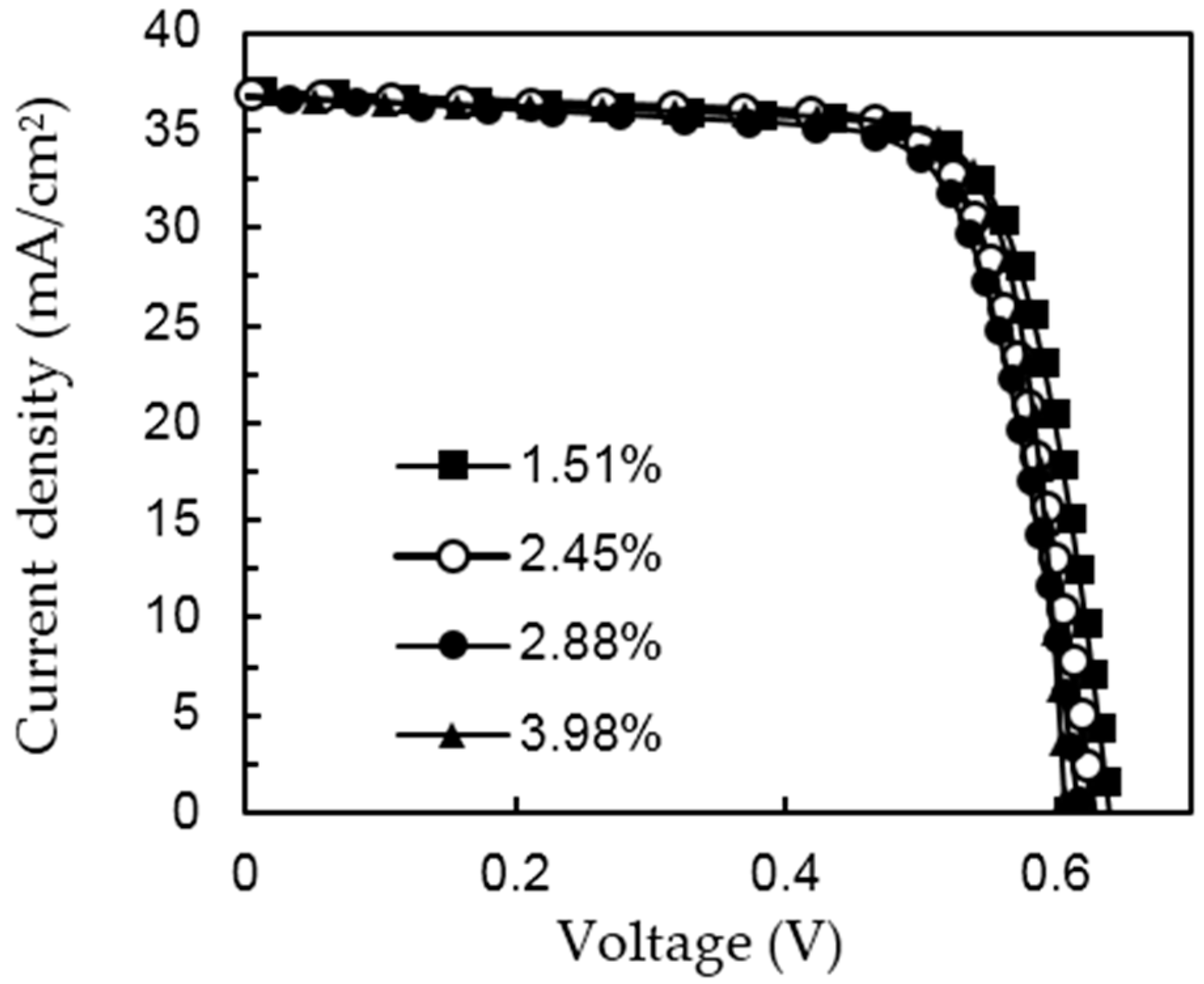

Figure 7. J–V characteristics of the PERCs for the different PS coverage ratio.
Figure 7. J–V characteristics of the PERCs for the different PS coverage ratio.
Materials 09 00549 g007
Table 1. Performance of the PERCs with different PS coverage ratios.
Table 1. Performance of the PERCs with different PS coverage ratios.
Coverage (%)Voc (mV)Jsc (mA/cm2)FF (%)η (%)Rs (Ω-cm2)Rsh (Ω-cm2)
1.5164137.274.717.812.03435.6
2.456293776.717.851.88422.1
2.8862236.978.217.941.51420.7
3.9860936.679.417.690.93410.2
2.7 (laser)60536.980.617.991.36399.7
