Abstract

:
Graphene is a single-atom-thick two-dimensional carbon nanosheet with outstanding chemical, electrical, material, optical, and physical properties due to its large surface area, high electron mobility, thermal conductivity, and stability. These extraordinary features of graphene make it a key component for different applications in the biosensing and imaging arena. However, the use of graphene alone is correlated with certain limitations, such as irreversible self-agglomerations, less colloidal stability, poor reliability/repeatability, and non-specificity. The addition of gold nanostructures (AuNS) with graphene produces the graphene–AuNS hybrid nanocomposite which minimizes the limitations as well as providing additional synergistic properties, that is, higher effective surface area, catalytic activity, electrical conductivity, water solubility, and biocompatibility. This review focuses on the fundamental features of graphene, the multidimensional synthesis, and multipurpose applications of graphene–Au nanocomposites. The paper highlights the graphene–gold nanoparticle (AuNP) as the platform substrate for the fabrication of electrochemical and surface-enhanced Raman scattering (SERS)-based biosensors in diverse applications as well as SERS-directed bio-imaging, which is considered as an emerging sector for monitoring stem cell differentiation, and detection and treatment of cancer.
Keywords:
graphene; graphene–gold nanoparticle; electrochemical biosensor; SERS biosensor; bioimaging

1. Introduction

The advent of graphene, a perfect two dimensional (2D) material, composed of single-atom-thick sheets of sp2 bonded carbon atoms packed into a honeycomb lattice, has opened up the exciting new horizon of the carbon era in the field of science and technology. From its discovery in 2004 by Geim and Novoselov [1], graphene has attracted increasing attention due to its excellent properties and applications in diversified fields [2,3]. Owing to its structural features, graphene is characterized by a number of unique and extraordinary structural, optical, and electronic properties (Table 1) [4] with mesmerizing transport phenomena such as the quantum Hall effect [5], optical transmittance, and fluorescence quenching ability [6]. Graphene is a zero-band-gap semiconductor and demonstrates high electron mobility under ambient conditions, [7] which is advantageous in sensors, super capacitors, and electrocatalysis application. The high optical transparency of graphene nanocomposites pushes forward the fabrication of transparent conductive films [8,9] for application in solar cells, advanced electronics etc. All of these properties make graphene an ideal building block in the fabrication of nanocomposites. Graphene nanocomposites also show high thermal conductivity that provides excellent thermal stability, which is important in some electronic devices or catalytic reactions that release heat, such as fuel cells and lithium-ion batteries.
Before graphene, another carbon nanomaterial, carbon nanotubes (CNTs), were of great interest in the fabrication of nanocomposites in biosensor applications [16,17], however, the preference for this material seems to have declined with the emergence of graphene due to its easy availability and some other advantageous properties in comparison to CNTs [18]. Graphene has a unique basal plane structure to load microspheres of several hundred nanometers in diameter, which presents a benefit over CNTs for nanomaterial decoration (Figure 1) [19]. Its 2D structures make it plausible to synthesize graphene-based nanocomposites by novel synthesis methods such as thermal decomposition of intercalated graphene precursors, which is a challenge in the case of CNT-based nanocomposites [20,21]. The higher surface area of graphene improves interfacial contact with the other components in comparison to CNTs and can prevent the accumulation of secondary components, thus preserving some unique properties in the nanoscale level [22]. In addition, graphene has no metallic impurity, which is the major drawback of CNTs in biosensor applications, and hence can be easily integrated into complex sensors or other devices through conventional microfabrication approaches. Conversely, the one-dimensional nature of CNTs creates difficulty in controllably assembling integrated electronic architectures on them.
Nanocomposites consist of multiphase materials wherein one phase (dispersed phase) in nanosize form is dispersed in a second phase (matrix/continuous phase), with the ensuing combination of the individual properties of the component materials [25]. Graphene–inorganic metal and metal oxide nanocomposites are now substrates of interest due to their advantageous properties in diversified fields of application. In some instances, these composites not only overcome the limitations of the usage of a single component in biosensor applications but also provide higher effective surface area, excellent catalytic properties, higher specificity, limit of detection (LOD), etc. For example, individual sheets of graphene have a tendency towards irreversible self-agglomerations [26] by van der Waals and π-π stacking interactions, which may partially reduce their electrochemical properties. The addition of a second component (noble metal nanoparticles) acts as a nano-spacer and conductor, hence increasing the graphene interlayer distance to minimize the agglomeration, making both faces accessible and improving the electrical conductivity [27,28].
Direct immobilization of biomolecules (proteins) onto CNTs [29] or graphene oxide (GO) [30] has been proved unstable, therefore frequently applied washing steps in biosensor fabrication can readily remove proteins. Consequently, this presents undesirable effects, such as poor reliability/repeatability and non-specificity of the sensor. Graphene–nanoparticle hybrid structures offer a number of highly desirable and markedly advantageous additional unique physicochemical properties and functions in bio-applications in comparison to either material alone [31]. Among the noble metal nanoparticles, AuNPs are one of the most studied nanomaterials, due to their remarkable surface chemical properties [32], higher chemical stability, excellent catalytic activity [33], biocompatibility [34], and other notable properties. These properties make AuNPs a model component for the detection of DNA [35,36,37] and proteins [38], rapid identification of microorganisms [39], and differentiation of cancer patients from healthy individuals [40].
Therefore, it is highly expected that extraordinary outputs can be achieved using the fabricated graphene–AuNPs composites in numerous applications. In this regard, AuNPs/reduced graphene oxide (rGO) composites comply by offering around 2.3 times superior electrocatalytic current density [41], and stronger Raman signals from Rhodamine 6G (R6G) absorbed on the nano-composites than individual pure AuNPs [42]. In addition, the presence of Au and Ag nanostructures (AgNS) on graphene increases the SERS by factors of about 45 and 150, respectively, than graphene alone [43]. This review emphasizes the wide-ranging synthesis and fabrication procedures of graphene–AuNPs hybrids, their application as a fundamental component for the electrochemical and SERS-based biosensor, as well as SERS-measured bioimaging.

2. Fabrication of Graphene–Gold Nanocomposite

Considering the unique and advantageous properties of GO and its derivatives—graphene and rGO, efforts have been made to utilize these materials either by themselves, or in conjunction with other nanomaterials. On the basis of structural features, graphene nanoparticles can be broadly categorized into two main classes: AuNPs-embedded graphene nanocomposites and graphene-encapsulated AuNPs. This section introduces the methods used to produce graphene, GO, and rGO, and presents an in-depth analysis of the various synthesis methods of graphene–nanoparticle hybrids with particular emphasis on graphene–AuNPs. A schematic representation of the synthesis of graphene–AuNPs composites is drawn in Figure 2.

2.1. Synthesis and Functionalization of Graphene

Graphite oxide, formerly called graphitic oxide or graphitic acid, is the layered structure of GO sheets obtained by treating pristine graphite with strong oxidizers. Chemically, graphite oxide is similar to GO while very different structurally. The material is exfoliated into monolayers or a few layered sheets retaining a rather stacked structure [44] (Figure 3). This exfoliation to colloidal suspension of GO sheets in water or organic solvents is generally mediated by simple sonication [45,46] and by stirring for a longer period of time [47]. Graphite oxide and GO are electrically insulating materials due to their interrupted sp2-bonding networks, hence conductivity can be regained by rearranging the π-network by the reduction of GO. The product of this reaction is termed differently either as graphene, rGO, or chemically reduced graphene oxide (CR–GO). rGO is the most common product among the synthesized chemically modified graphene which is generally attained by graphite oxide exfoliation–chemical reduction pathway [48]. Nowadays, most graphene-based nanocomposites are considered desired hybrid materials, employing graphite oxide as the initial material. Till now, a lot of articles as well as reviews have been published on the different synthesis techniques of graphene, highlighting different properties including dimensions, layers, conductivity, quality, cost effectiveness, and so on [49,50,51,52]. Methods include micromechanical exfoliation [1], chemical vapor deposition (CVD) and epitaxial growth [53,54], epitaxial growth on electrically insulating surfaces [55,56,57], colloidal suspension from graphite or graphite derivatives [46,58], longitudinal “unzipping” of CNTs [59,60], and chemical, electrochemical, or thermal reduction of GO [26,61,62]. Here, we present a comparative study (Table 2) of the methods that are scalable as well as mostly employed in research and bio-applications.
Graphene nanosheets can be functionalized, in some instances, to attain high specificity, greater loading capacity, solubility, stability, and biocompatibility [64]. Generally, this can be achieved by either covalent bonding of the functional molecules between the basal planes and edges of GNs or noncovalent adsorption via hydrogen bonding [65], π-π stacking [66], electrostatic interactions, and van der Waals attractions [67]. The expected property of graphene nanosheets (GNs) can be attained by creating covalent hydroxyl (-OH) or carboxyl (-COOH) groups, treating with strong acid/oxidants, sulfonate (-SO3, -SO3H) and amino groups on the graphene surface, immobilizing linker molecules such as pyrenebutyric acid and molecules with an aromatic tail or a reactive end [64], and by adding polymers [68,69] or small molecules [70,71]. Thus functionalization turns graphene/GO into a versatile precursor for a wide range of executions, such as boosting the solubility of graphene in various solvents [71,72], augmenting the capability to adhere to nanomaterials or disperse in matrices [73], and improving the manipulation and processing aptitude of graphene for the fabrication of different devices [74].

2.2. Synthesis and Functionalization of Graphene–Gold Nanoparticles

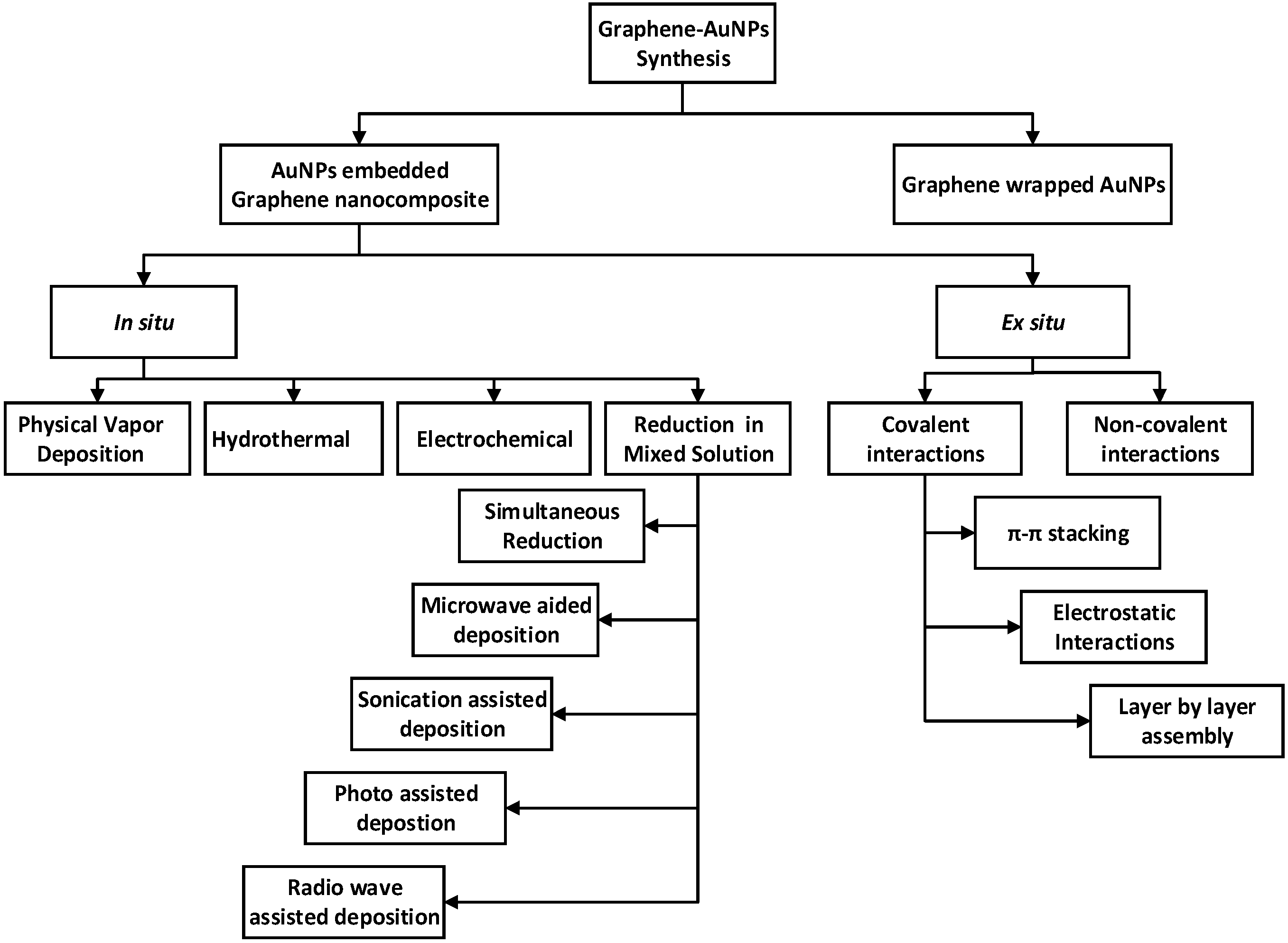

In a broad sense, the synthesis of graphene–AuNPs hybrids can be categorized into two basic categories. The principal approach entitled the in situ technique (Figure 4a) involves the formation of nano crystallites in the presence of pristine or functionalized GNs followed by the direct growth of nanostructures onto the graphene surfaces; while the other technique, termed ex situ, (Figure 4b,c) comprises the preceding synthesis of nanomaterials in the desired sizes and shape, followed by modification and subsequent attachment to the surface of functionalized GNs [25,76]. Under these two broad titles, there are many different synthesis techniques which are illustrated in Figure 5. Furthermore, beneficial aspects as well as limitations of the major synthesis procedures of graphene–Au nanocomposites are summarized in Table 3.

2.2.1. In situ Synthesis of Graphene–Gold Nanoparticles

Simultaneous Reduction

The common path of graphene–AuNPs synthesis is the synchronous reduction of Au metal precursors and GO in a mixed solution. The fundamental principle is that the functionalities on GO or rGO surfaces cause the attachment of free metal ions through electrostatic interactions while the addition of a reducing agent expedites the coupling of metal ions. The spontaneous reduction of Au ions in the absence of any reducing agent and linker molecule to form layer-by-layer (LBL) films of alternating graphene and AuNPs has also been shown. This simple and cost-effective method produces more electrically conductive rGO than GO sheets [93]. In another method, both AuNP precursors and GO are reduced individually with the addition of different reducing agents [94]. The functionalization of GO or its derivatives has also been observed by adding external molecules for better output [69], dispersion, size distribution, or even stability of the AuNPs [95,96]. Commonly used functionalizing agents include—octadecylamine (ODA) [95], 1-pyrene butyric acid [96], tannic acid [97], pyrene ethylene glycol amine or decyl pyrene [69], sulfur [98], and others. On the contrary, however less frequently, functionalization of the AuNPs to accelerate the reduction process has also been observed [83]. Different synthesis approaches along with different reducing, functionalizing, and stabilizing agents or conditions are summarized in Table 4.

Microwave-Assisted Deposition

Microwave irradiation triggers the uniform and prompt heating of reaction mixtures, thereby allowing simultaneous reduction of GO and metal ions, resulting in the rapid formation of Gr–AuNS. Therefore, nanoparticles of very little size with narrow size distribution can be achieved [99]. For instance, Hu et al. [100] reported a GNs–Au nanocomposite by microwave irradiation and Jasuja et al. [101] evidenced in situ synthesis of multiple shaped bare-surfaced AuNPs on GO sheets by applying microwave exposure without any reducing agents and stabilizing molecules. Simultaneous chemical reduction of GO to rGO with the formation of AuNPs nanosheets in presence of ascorbic acid [102] and prior functionalized GNs with polyethyleneimine and HAuCl4 to prepare Gr-AuNPs [103] were also reported. Microwave exposure strength as well as other parameters are mentioned in Table 4.

Sonication-Assisted Deposition

High-frequency ultrasound reduction methods are being considered as an expedient and clean approach for the synthesis of Gr–AuNPs nanocomposites. For example, Park et al. reported the synthesis of rGO–AuNPs nanocomposites by simultaneous reduction and deposition of AuNPs onto the surface of rGO by ultrasonic irradiation. Here, the attachment of AuNPs onto the rGO surface is mediated via the electrostatic attraction of Au ions to oxygen functionalities on the rGO surface [104]. On the other hand, Vinodgopal et al. [105] reported simultaneous and sequential reduction of GO and HAuCl4 in 2% polyethylene glycol aqueous solution to fabricate rGO–Au nanocomposites by maintaining an ultrasonic frequency of 211 kHz.

Photo-Assisted Deposition

Photo-assisted deposition is a green technique which creates a uniform reducing environment in solution without the need for any additional reagents. For example, GO–gold nanorods (AuNRs) synthesis by the one-pot one-step method was achieved by UV light irradiation (256 nm, 30 W) for 25 min in a quartz tube [106]. Huang et al. [107] reported one-pot synthesis of Au nanodots (AuNDs) on rGO nanosheets by photochemical reduction of HAuCl4 in the presence of octadecanethiol. Another group of scientists prepared ultrathin gold nanocrystals (AuNCs) on a co-reduced GO surface by photo irradiation (LEDs with continuous stirring) in the absence of chemical reductants and surfactants [108]. Also, photo-aided synthesis of graphene–AuNPs was employed to grow AuNPs in AuCl4 electrolyte [109]. This convenient and reliable method has ensured a steady growth rate of AuNPs with well-controlled distribution by using focused laser light.

Radio Wave-Assisted Deposition

Pruneanu et al. [110] employed the radio frequency (1.2 MHz, 5 kW) CVD method to synthesize multi-layered graphene–AuNPs composite by using Au/MgO catalyst (1 wt % Au).

2.2.2. Electrochemical Method

The electrochemical reduction method is a simple, fast, and green technique of graphene–AuNPs fabrication. The classical electrochemical deposition method consists of three steps: firstly, deposition of graphene sheets onto an electrode, secondly, immersion of the graphene-coated electrode in an electrolytic solution containing metallic precursors, and finally application of an electrochemical potential. Generally, glassy carbon electrode (GCE) as a working electrode material and an in situ technique is mainly applied for the electrochemical deposition of graphene–AuNPs. Table 5 summarizes different reduction methods, electrochemical potentials, and reaction conditions for the fabrication of graphene–AuNPs composites.

2.2.3. Hydrothermal Reduction Method

Usually, the hydrothermal reduction method is performed at high temperature with high steam pressure using an autoclave. The most advantageous feature of this approach is the formation of nanoparticles or nanowires without any requirement for post annealing and calcination [25]. Qin et al. [85] reported the fabrication of GO–AuNCs (80% of pentagonal pyramid and 20% of tetrahedron) of 10–20 nm in size variation through a hydrothermal reduction and crystallization route using polytetrafluoroethylene autoclave at 60 °C overnight without using extra reductants or capping agents. Liu et al. [87] described the preparation of graphene–AuNPs in a Teflon-lined autoclave with a microwave hydrothermal system at 150 °C for 60 min in the absence of reducing agents.

2.2.4. Physical Vapor Deposition Method

This procedure ensures the formation of metal nanoparticles of different and controllable geometries on the graphene sheets. Zaretski et al. [127] deposited metal nanoislands on a metal/graphene bilyer template by keeping the evaporation rate at 0.1 Å·s−1 and chamber pressure at 7 × 10−7 torr, whereas Pandey et al. [128] fabricated AuNPs on graphene with appropriate control over size (down to ~1.5 nm) and coverage (5 × 104 μm−2). In physical vapor deposition, the size of the gold atoms deposited onto the graphene depends on the number of the layers [127,128,129]. Besides, the geometry, distribution, and inter-island gaps of the gold metal deposited on graphene rely on the type of the substrate materials, and reaction conditions [127,128]; the morphology varies significantly even on the type of the metal itself [128].

2.2.5. Ex Situ Method

In the ex situ approach, nanoparticles are synthesized in advance and subsequently decorated onto the surface of graphene sheets. This attachment is facilitated by either covalent or noncovalent interactions, including van der Waals interactions, hydrogen bonding, π-π stacking, or electrostatic interactions. In this method, metal nanoparticles or graphene, or sometimes both, necessitate activation with functional groups [130]. However, the type of functionalization and interaction strength defines the loading, i.e., dispersion and concentration of metal nanoparticles on the graphene surface [131]. Therefore, the ex situ self-assembly procedure is a promising technique to overcome the difficulties encountered during the in situ technique for nanocomposite fabrication [25].

Covalent Interactions

The ex situ approach for noble metal nanoparticles decoration is not often used. GO rather than rGO is preferable for covalent attachment of nanoparticles due to the vast amount of oxygen functionalities on its surface which facilitate bonding with other functional groups. Ismaili and co-workers demonstrated the light-activated (wavelengths above 300 nm) covalent formation of 3-aryl-3-(trifluoromethyl)-diazirine modified AuNPs on rGO [23].

Noncovalent Interactions

  • π-π stacking
Generally, aromatic compounds are attached to the nanoparticle surface, which enables their attachment to graphene via π-π stacking. For example, pyridine, purine, and pyrimidine bases of DNA [132], thiolated DNA (Figure 6a) [132], and pyrene-labeled DNAs [133] have provided π-π interactions between AuNPs and GO/rGO/graphene sheets. Guided by similar principles, Wang et al. fabricated DNA conjugated AuNPs and AgNPs on GO nanosheets, respectively, by functionalizing nanoparticles with DNA via didentate capping ligands, followed by assembly onto GO via π-π stacking interactions [134].
  • Electrostatic interactions
This is one of the most common as well as being considered a facile and scalable method of synthesizing graphene–metal nanoparticles in a precise manner avoiding conglomeration. The common principle behind this reaction is that GO and rGO have immanent negative charges on their surface which are being utilized to assemble/decorate positively charged AuNPs. For instance, Mao et al. [96] have described the electrostatic force-directed assembly of AuNP–antibody conjugates onto the surface of TR-GO sheets.

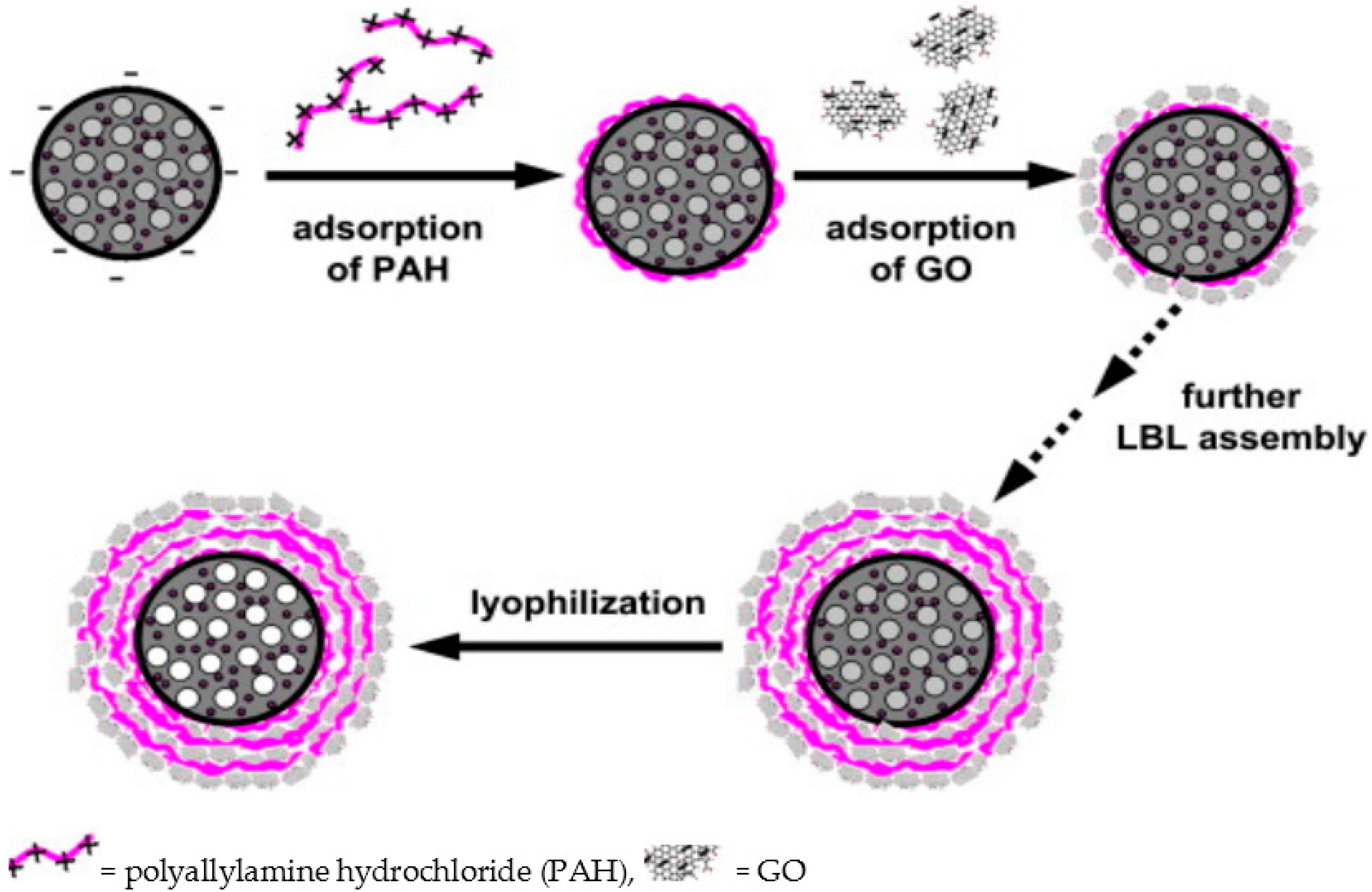

  • Layer-by-layer self-assembly
This bilayer film is typically generated by alternating the oppositely charged GNs and AuNPs. Consecutive repetition of the decoration process is employed to make the desired number of bilayers. Liu et al. fabricated graphene/AuNPs multilayered films consisting of 4-styrenesulfonate functionalized rGO and polyamidoamine dendrimer stabilized AuNPs on GCE adapted with an initial layer of poly(diallyldimethylammonium chloride) [135]. Xi et al. [118] reported a uniform three dimensional (3D) AuNPs-inserted graphene thin film by the electrostatic LBL assembly of AuNPs and bovine serum albumin-functionalized GNs (Figure 6b) followed by thermal annealing at 340 °C for two hours under aerobic conditions (Figure 6b).

2.2.6. Graphene-Wrapped Gold Nanoparticles

Graphene, GO, or rGO can be easily used to wrap or encapsulate the AuNPs with variable sizes ranging from nanometer to even micrometer level due to their flexibility and 2D nature [136]. The oxygen functionalities on GO and rGO generate an overall negative zeta potential, thus easing coupling with positively charged AuNPs. This encapsulation process enhances the greater degree of contact, results in the suppression of AuNPs aggregation, and ensures greater stability, thereby limiting the degree of exfoliation of AuNPs from graphene [76]. One of the initial efforts is the fabrication of a graphite-like carbon shell around the AuNPs attached to a 3-mercaptopropyl-trimethoxysilane-modified Si substrate, followed by the growth of a graphene shell using the CVD process [137]. Bian et al. [138] applied the CVD method for growing graphene shells onto the loaded HAuCl4 metal precursors on fumed silica powder, followed by silica dissolution to retain the graphene-encapsulated AuNC. On the other hand, Kim and co-workers [139] achieved the desired structure by using aminopropyltriethoxysilane-functionalized ITO to decorate AuNPs and followed by encapsulation by the GO via electrostatic interaction. GO-wrapped AuNPs hybrid materials are now constructed without using any substrate, which ensures consistent wrapping of GO sheets onto each of the AuNPs (Figure 7a,b) [140] as well as controllable, tunable size and morphology of the AuNPs (Figure 7c) [141].
As per the requirement of specific features, particular approaches are executed: electrostatic self-assembly of ultrathin GO-wrapped AuNPs or AuNRs with excellent dispersibility of individual nanoparticles [142], in situ reduction of electrostatically bounded nanosized GO to cysteamine-stabilized AuNPs or Cetyl-trimethylammonium bromide (CTAB)-stabilized AuNRs accompanied by greater colloidal stability as well as enhanced photothermal effect [143]. Turcheniuk et al. [144] reported pegylated (PEG) rGO nanoparticles and AuNRs coated with rGO–PEG (rGO–PEG–AuNRs) by laser irradiation to achieve the declined cytotoxicity of the CTAB-stabilized AuNRs and enhanced overall photothermal activity. It is observed that the encapsulation of AuNS by GNs is generally accomplished by electrostatic self-interactions. In some cases, firm bonding is needed along with expected properties and necessitates different strategies such as functionalization of the AuNPs [145], generation of different shapes, combinations, and arrangements of AuNS [146,147], and even by LBL self-assembly [148]. Jin et al. [148] fabricated a complex architecture by introducing AuNPs into polylactic acid (PLA) microcapsules through a dual microemulsion water-in-oil-in-water solvent evaporation technique followed by electrostatic LBL deposition of GO on the microcapsule surface (Figure 8).

3. Graphene–Gold Nanoparticle Hybrid for Biosensing and Bioimaging Application

Biosensors are self-contained analytical devices using biological sensing elements that respond selectively and reversibly to detect and/or quantify a particular target analyte or family of analytes. A biosensor is made up of two fundamental components—(i) receptor and (ii) transducer. The receptor may be of either organic or inorganic material which interacts with a marked analyte or group of analytes. Conversely, a transducer transforms the recognition event which occurred between the analyte and the receptor into an assessable signal. These signals can occur in varied forms including, but not restricted to, electrical, electrochemical, and optical.
Nanoparticles can be used as biosensor platforms to enhance sensitivity by amplifying the obtained signal as well as increasing the available surface area for analyte binding. Graphene–AuNPs hybrids made up of two excellent and unique modalities in this context ensure a number of advantageous properties in biosensing applications. Graphene itself is an excellent material with which to immobilize nanoparticles, enhancing their stability, e.g., preventing aggregation while graphene with nanoparticles increase the available surface area for analyte binding, as well as improving their electrical conductivity and electron mobility, thereby enhancing the achievable sensitivity and selectivity. In the next section, we focus primarily on the use of graphene–AuNP hybrid materials in electrochemical and optical biosensors with greater emphasis on how they compare to current gold standards and their sensitivities and selectivities towards various biomolecules.

3.1. Electrochemical Biosensor

Electrochemical biosensors are, by far, the largest group of sensors which provide especially attractive methods of analyzing the content of a biological sample due to direct conversion of a biological recognition event to an electrical signal. A typical electrochemical biosensor consists of a sensing (or working) electrode containing a biological recognition element and a counter electrode, both detached by a layer of electrolytes. At electrochemical biosensing, in most cases silver/silver chloride (Ag/AgCl) and platinum (Pt) wire/sheets are being used as the reference and auxiliary/counter electrodes respectively, against different graphene–AuNPs-based working electrodes. On the basis of the nature of their biological recognition process, electrochemical biosensors can be categorized into—(i) affinity sensors; and (ii) catalytic devices [149]. Affinity-based sensors depend on the selective binding properties between a biological element such as an antibody, enzyme, nucleic acid, or a receptor and its target analyte, which results in the production of a measurable electrical signal. On the other hand, catalytic sensors generally incorporate nanoparticles or enzymes, whole cells, or tissue pieces that identify the target analyte and yield electroactive species [149]. Various forms of voltammetry/amperometry (e.g., linear sweep, differential pulse, square wave, stripping), impedimetry, and potentiometry techniques are commonly used for the electrochemical detection of biomolecules [150,151]. The amount of analyte being reduced or oxidized at the working electrode is proportional to the concentration of the target analyte present. In this context, graphene is being considered as a perfect conductor of electrical charge material [152,153]. Furthermore, the high surface area of graphene facilitates the formation of a large number of defects and, consequently, electroactive sites, due to the heterogeneous electron transfers that can occur between graphene and the analyte to be oxidized or reduced [154]. The electrochemical behavior of graphene is first-rate and analogous to other carbon-based materials, including CNTs and graphite. Current researches have shown that graphene-based electrochemical biosensors exhibit better performance than CNTs due to the presence ofmore sp2-like planes and surface edge defects. While graphene exhibits a great prospective, graphene nanoparticle composites, including metal nanoparticles, metal oxide, and semiconductor nanoparticles, have recently paved more attention toward their electrochemical sensing capability [155]. These nanoparticles exhibit different roles, for example, the immobilization of biomolecules, catalysis of electrochemical reactions, or acting as a reactant in electrochemical sensing platforms [153,156,157,158].
In the biomedical field, electrochemical biosensors are currently showing the dominating trend. The fabrication of electrochemical biosensors using graphene–AuNPs for glucose sensing is one of the prime and mostly applied methods. For example, Shan et al. [159] constructed a novel and biocompatible graphene/AuNPs/chitosan nanocomposite on an Au electrode which shows high electrocatalytical activity toward H2O2 and O2 due to attributes of the synergistic effects between graphene and AuNPs. Influenced by this result, a glucose biosensor is manufactured by immobilizing glucose oxidase (GOD) on thin films of graphene/AuNPs/chitosan nanocomposites on an Au electrode. The resulting biosensor reveals a remarkable amperometric response to glucose with good reproducibility and LOD of 180 μM with a liner range of 2–10 mM, which makes it applicable to real-time clinical analysis of blood glucose levels (4–6 mM) [159]. Therefore, different combinations of graphene–Au nanocomposites have been tested for glucose biosensing by immobilization of the GOD enzyme, including AuNPs–rGO/GCE [114], graphene/nano-Au/GOD/GCE [124], AuNPs–graphene/GCE [160], graphene/ polyaniline(PANI)/AuNPs/GCE [161], AuNPs–graphene rod [162] and GCE-4-aminothiphenol(ATP)-GNs–AuNPs [98]. Here, at first a GNs–AuNPs hybrid film is prepared by the wet impregnation-thermal reduction method followed by their deposition on a modified glassy carbon electrode (GCE) via LBL assembly of ATP and GCE for up to three layers. GOD is immobilized and checked for glucose-sensing efficiency both by voltammetry and electrochemical impedance spectroscopy (EIS). EIS experimental data analysis indicates the enhanced activity which might be due to the synergistic effect of GNs and AuNPs, the role of ATP mediating the assembly of the GNs–AuNPs hybrid on GCE, and the increase in surface roughness [98]. LBL deposition of GOD on graphene–AuNPs is also mentioned by another group of scientists [163].
On the other hand, a non-enzymatic glucose voltammetric sensor developed by Ruiyi et al. [119] based on [email protected]/AuNPs shows ultra-high sensitive electrochemical response to glucose due to greater electron transfer, mass transport, and catalytic activity. The study of the prepared [email protected]/AuNPs shows high electrical conductivity (15.4 S·m−1), specific surface area (291.6 m2·g−1), and an apparent heterogeneous electron transfer rate constant (14.8 ± 0.12 cm·s−1) because of their well-exposed active sites as well as the high catalytic properties of the adsorbed AuNPs. The enzyme-free voltammetric glucose sensor based on graphite/SrPdO3 perovskite/AuNPs nanocomposites offers many advantages for glucose electro-oxidation such as high sensitivity, low detection limit, and excellent long term stability [164]. It has shown high selectivity to glucose even in presence of common interferences like ascorbic acid, uric acid, paracetamol, dopamine, and chloride. Furthermore, it is also proved to be an excellent sensor for glucose sensing in human urine and blood serum samples with outstanding recovery and low LOD of 16.55 and 14.25 µmol·L−1, respectively [164].
Another good example is the utilization of AuNPs-decorated graphene nanocomposites in the catalysis of electrochemical reactions to detect H2O2. For example, Fang et al. [165] fabricated a graphene–AuNPs hetero-structure using poly(diallyldimethylammonium chloride)-functionalized graphene which ensured high loading and uniform dispersion of AuNPs on the GNs, as well as making the sensor an efficient one with low LOD and a wide linear range compared to that of an enzyme-based sensor. On the other hand, graphene–AuNPs immobilized with hemoglobin to construct the Nafion/hemoglobin (Hb)/AuNPs–graphene/GCE sensors show ultra-sensitivity for H2O2 detection (LOD 0.03 μM) with good reproducibility and longer stability (Figure 9) [87]. Chang and co-workers [166] used LBL-assembled AuNP–graphene–poly (toluidine blue O) hybrid films for the detection of H2O2 by evaluating the oxidative stress of a tumor cell. The results indicated a higher efflux of H2O2 in tumor cells compared to normal cells. Similarly, the excellent sensing features of the graphene–AuNPs composite coupled to electrochemical mechanisms have influenced the detection of several other biomolecules and imparted a greater emphasis on biomedical applications, namely, the detection of uric acid [96] and β-nicotinamide adenine dinucleotide (NADH) [41] in human urine with effective separation from the common interferents (glutathione, glucose, ascorbic acid, and quinine), and many others.

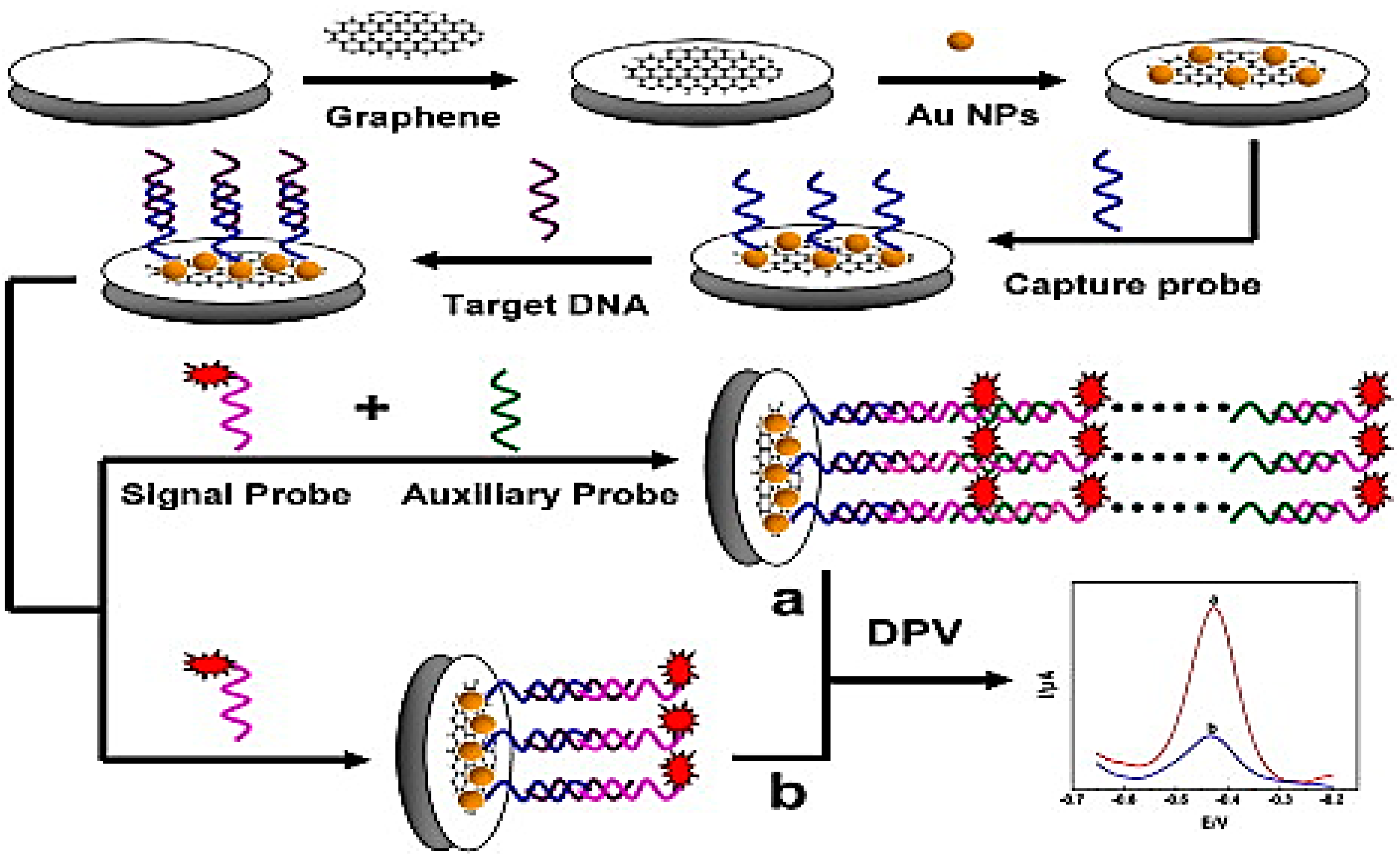

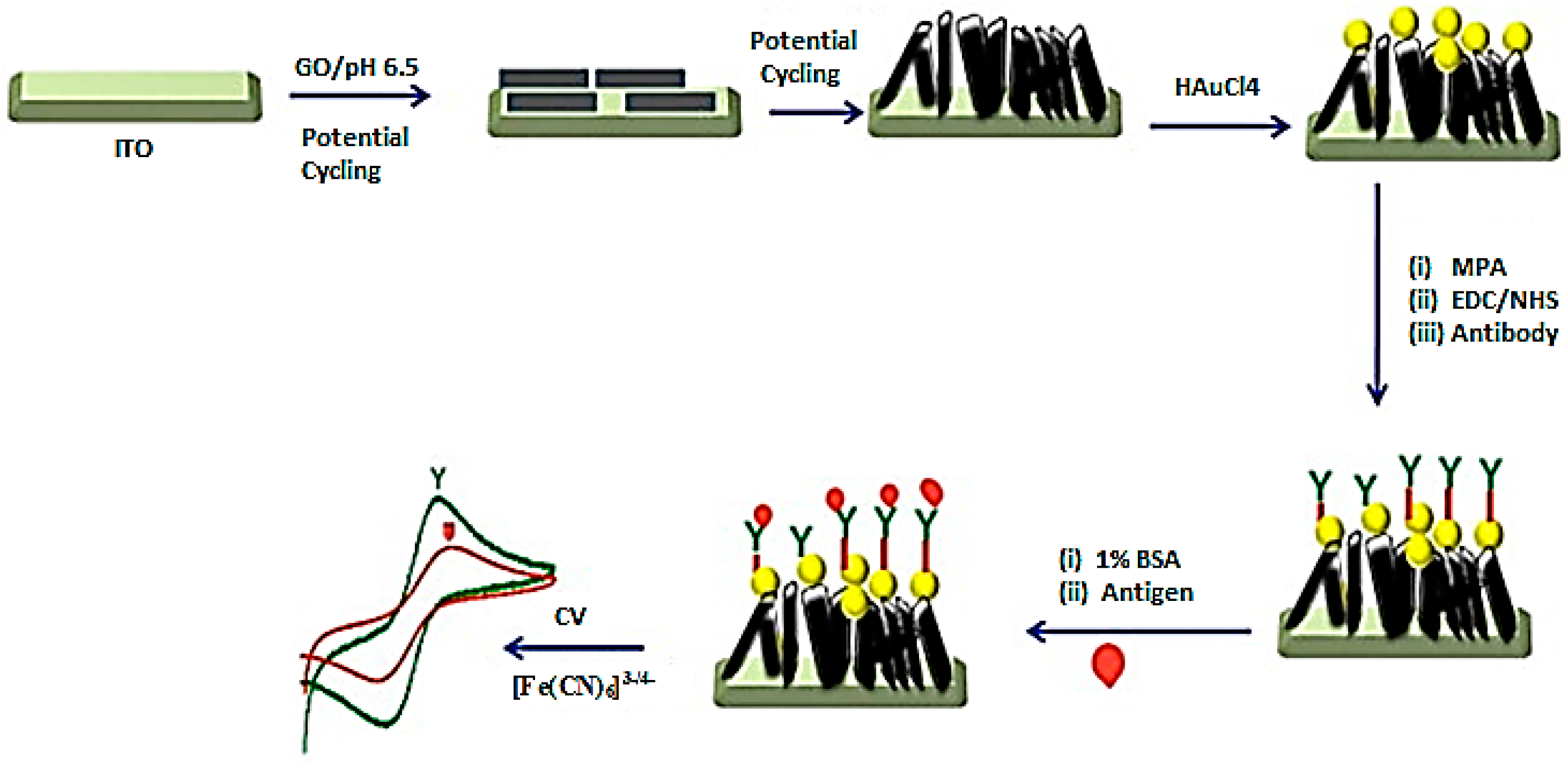

Fabrication of electrochemical biosensors using graphene–AuNP hybrids for DNA detection is one of the most advisable methods nowadays. Wang et al. [125] showed that nano electrode ensembles (GCE–GO–AuNP) can be easily modified by thiolated probe DNA (HS-DNA) through strong Au–S bonding. Addition of the target DNA or 1-mismatch target DNA (m-DNA) facilitates the hybridization of probe DNA with intercalation of methylene blue into the DNA duplex, specifically by binding with guanine in DNA molecules. A super-sandwich type electrochemical biosensor (Figure 10) was fabricated by Wang et al. [167] using a methylene blue-labelled signal probe for sequence-specific DNA detection with ultra-sensitivity and single-base mismatched target DNA detection. Conversely, Peng et al. [168] constructed AuNPs/toluidine blue–GO-based (AuNPs/TB–GO) label-free biosensor for the detection of the multidrug resistant 1 (MDR1) gene responsible for the resistance to chemotherapeutic drugs used in the treatment of human cancer. The developed sensor showed very low LOD with a wide linear range as well as an ability to differentiate between single-base mismatched DNA sequences among the MDR1-related DNA sequences. Sun et al. [89] reported an electrochemical DNA biosensor made up of multilayer graphene–AuNPs immobilized with a dual-labelled (50-SH and 30-biotin) stem-loop DNA probe. This DNA biosensor is extremely effective in the detection of the peanut allergen-Ara h1 gene from peanut milk beverages as well as highly sensitive and selective to the target DNA sequence with great recovery (86.8%–110.4%).
Some pathogenic bacterial species are very difficult to isolate and identify due to their low growth rate and fastidious nature. Hence, their rapid and sensitive detection are crucial to laboratory diagnosis and appropriate patient management. Mycobacterium tuberculosis is one of the most problematic bacteria of worldwide public health concern. Tuberculosis is easily transmissible via air, hard to isolate, and has spread across borders and developed multidrug resistance. Hence, the fabrication of an electrochemical DNA biosensor to identify Mycobacterium tuberculosis is a pressing need to public health and society. Liu et al. immobilized a capture probe (specific sequence of the IS6110 gene) on rGO–AuNPs as a sensing platform and a probe-label (AuNPs–PANI) as a tracer label for amplification. The sensor exhibits ultra-sensitive detection of M. tuberculosis DNA as low as femto mole (fm) level [169]. Wang et al. [170] focused on the preparation of a low cost, robust, rapid, and sensitive impedimetric immunosensor, which is made of anti-E. coli O157:H7 antibodies immobilized on an AuNPs-modified free-standing rGO paper electrode (rGOPE) via the biotin–streptavidin system to detect the most prevalent food-borne disease-producing bacteria, Escherichia coli O157:H7. Dharuman et al. [120] reported an anti-estradiol antibody immobilized eGr–AuNP composite on an ITO surface for the immune sensing of the breast cancer-inducing hormone 17β-estradiol (E2) in the presence of [Fe(CN)6]3−/4−. The lowest LOD of the sensor is 0.1 fM, which indicates the viability of the sensor in real life as blood and urine samples of post-menopausal breast cancer patients normally contain 17β-estradiol at the picomole level (Figure 11) [120]. Another immunosensor, named the carcinoembryonic antigen (CEA) immunosensor, was constructed by Yu et al. [171] for the rapid and sensitive immunoassay measurement of serum CEA concentration by immobilizing the CEA antibody on AuNPs/poly L-arginine (Arg)/rGO/CILE.
The extraordinarily advantageous properties of graphene–AuNPs make them suitable to different applications, including: the determination of biological compounds—levodopa, uric acid, and folic acid simultaneously [90], and ascorbic acid [81], folic acid [126], dopamine [103,135], and animal growth stimulant; in treatment of estrogen deficiency disorders; in veterinary medicine–diethylstilbestrol (DES) [91]; antibiotics–chloramphenicol [112]; antiepileptic drugs; emerging pollutants in ground and surface water–carbamazepine (CBZ) [110]; environmental pollutants–hydroquinone [100], and so on. The integration of biomolecules in some instances enhances the catalytic properties of the graphene–AuNPs hybrid in electrochemical applications. For example, the immobilization of hemoglobin molecules on an AuNPs–graphene–SDS/BPG hybrid electrode increases the electrocatalytic activity toward nitric oxide [94], while Hb-immobilized AuNPs/graphene with biocompatible chitosan (GACS) (Hb/AuNPs/GACS)-modified GCE is used for the electrochemical detection of nitrite at high sensitivity levels within a wide concentration range and is consequently being envisioned to have promising applications in the monitoring of food safety [172]. Besides, a number of chemicals related to food adulteration are also being detected, e.g., bisphenol A (BPA) in baby bottles [122] and in milk samples by an electrochemical aptasensor [123], and aflatoxin B1 in spiked food samples [121]. Graphene–AuNPs-fabricated electrochemical biosensors with their corresponding identified analytes, citing linear range and LOD, are summarized in Table 6.

3.2. SERS Biosensor

SERS is a Raman spectroscopic technique combining laser spectroscopy with optical properties of metallic nanostructures. It provides a greatly enhanced Raman signal from a Raman-active analyte adsorbed onto metal nanostructure surfaces [174,175,176,177,178,179]. This enhancement factor strongly relies on the size, shape, and composition of the metallic nanostructure and nature of the molecular analyte [180]. The overall SERS effect is due to two different mechanisms—the electromagnetic enhancement (EME) and chemical enhancement (CE). The EM mechanism is based on the interaction of the transition moment of an adsorbed molecule with the electric field of surface plasmons induced by the incoming light on the metal [181], and is dependent on the presence of rough features on the metal surface [182], independent of the probe molecules. CE is due to the interaction of the adsorbed molecules on the metal surface, mostly from the first layer of the charge–transfer resonance between the adsorbate and the metal [181]. Hence, SERS is being considered as a powerful analytical tool for surface and interfacial analysis as it can unveil the molecular fingerprint information and ultrahigh surface sensitivity [183]. It is one of the best techniques for molecular analysis, with very high sensitivities (nano mole or even pico mole level) [184] and the added capability of detecting single molecules [185,186,187,188].

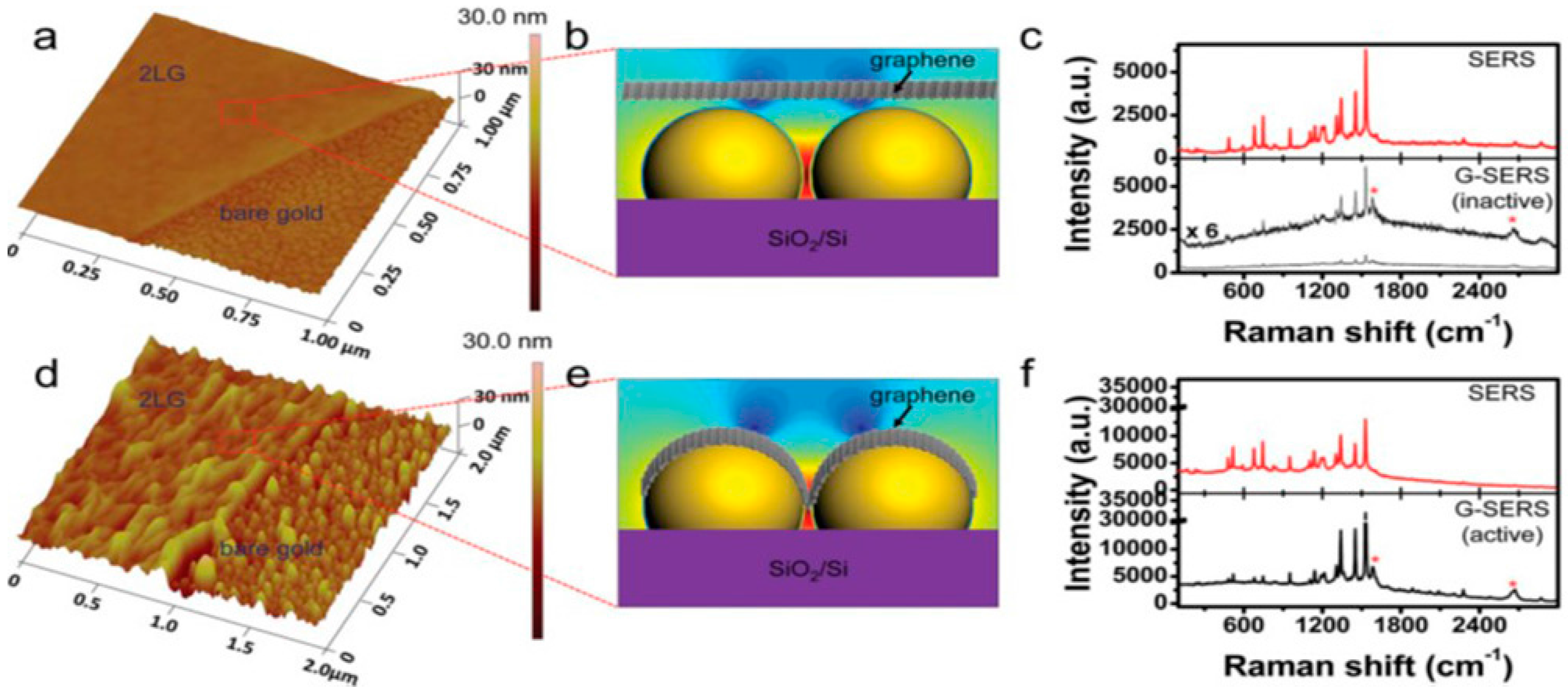

For example, GO-AuNRs have been proved as strong SERS substrates by using a model molecule (cresyl violet perchlorate) that unveiled very large SERS enhancement factors (106) with very low molecular detection limits (10−11 M) [106]. It is well known that noble metal nanoparticles (e.g., Cu, Ag, or Au) are more commonly used in SERS-based experiments due to their electromagnetic properties, which enhance the Raman signal [82]. On the other hand, graphene or GO have the potentiality for greater Raman signals via the chemical enhancement mechanism [42,189,190], which is independent from that of noble metal nanoparticles. It can be anticipated that graphene–metal nanocomposites would act synergistically for further magnification of the weak Raman signals by many orders of magnitude via chemical and electromagnetic enhancement when compared to using either graphene or metal nanoparticles alone [82,101,184,191]. Hu et al. [192] provided a clear dictation in this context by comparing the Raman signals of an adsorbed aromatic dye molecule, crystal violet onto SiO2/Si, GO, Au NRs, and GO-AuNRs separately, and validated the boosted SERS signal of GO-AuNRs nanohybrids. This enhancement is the summation of electromagnetic enhancement based on local electromagnetic field by the AuNRs as the hot spots, and chemical mechanism based on the charge transfer and chemical bonding of GO and crystal violet dye molecules [192]. Zhang et al. [193] fabricated SERS-active substrates in a newer dimension based on GO embedded [email protected] sandwich nanostructures ([email protected]/GO/[email protected]) to achieve higher sensitivity, reproducibility and reliability of the Raman readout and obtained dramatic enhancements of the Raman signals (R6G with an enhancement factor of 7.0 × 107) due to abundant hot spots on their surfaces and the distinctive edifice of the GO sheets. However, a few examples of the SERS-based enhancement are summarized in Table 7. It is experimentally proved that the degree of SERS enhancement could be fine-tuned by the quantity [194], size and shape [191,195,196], type [197] of AuNS on the graphene sheets, and morphological arrangement of graphene and AuNPs (Figure 12) [198], as well as the excitation wavelength of the laser [199]. On the other hand, corresponding enhancement factors are reliant on the volume of graphene and consequentially its thickness [200], layer numbers, i.e., single layer graphene provides larger SERS enhancement in comparison to fewer layers of graphene [199], and type of defects of the graphene sheets. Moreover, in-plane defects in graphene prepared by the CVD technique have defect-enhanced firm interactions of AuNPs with the defect sites and hence a positive influence on the efficient physical functionalization with AuNPs [201]. An experiment by Wang et al. [197] proved that ~7 nm thick Au films are the perfect SERS substrates among the different thickness of Au films, decorated on the monolayer graphene for the characterization of low concentration rhodamine molecules, providing the strongest Raman signals for molecules with the weakest photoluminescence background. All of these extraordinary advantageous properties make graphene–Au nanocomposites the perfect substrate for SERS measurements, as it has been extensively instigated in versatile applications, including sensing and molecular diagnostics, biomedical applications, agriculture, food adulteration [202], and so on. This hybrid has also been verified for the detection of single molecule interactions [184], identification of pathogenic microorganisms [203] and biomolecules [204,205], nucleic acids [206], and cancer cells [207], and even in the detection of explosives and chemical warfare agents [208].
Nguyen et al. [202] have fabricated a high performance SERS substrate by using graphene–Au films–AuNRs for the detection of three pesticides namely azinphos-methyl, carbaryl, and phosmet by SERS with LODs of approximately 5, 5, and 9 ppm, respectively. The LODs of carbaryl and phosmet meet the FAO/WHO- and EU-defined maximum residue limits, which make it a potential method in food safety applications. On the other hand, Zhang et al. [193] developed [email protected]/GO/[email protected] sandwich nanostructures to detect the pesticide thiram (a broadly applied sulfur-containing pesticide) in commercially marketed grape juice. This hybrid nanostructure shows a narrow detection limit of 0.1 mM (0.03 ppm), which is significantly below the maximal residue limit of 7 ppm in fruit as approved by the United States Environmental Protection Agency. This simple, rapid, and ultrasensitive Raman detection approach shows significant potential in practical applications like on-site monitoring of food/environmental safety and spectroscopic identification of trace pesticides in agricultural foodstuffs [193]. Similarly, Fu et al. [117] mentioned GO–AuNPs hybrids as an efficient SERS substrate for the sensitive, selective, and label-free detection of malachite green in water samples, which is a cationic triphenylmethane dye with high genotoxicity and carcinogenicity. Heavy metal contamination is one of the alarming and challenging problems in this 21st century. Mercury (II) (Hg2+) is considered one of the most toxic pollutants, having severe adverse effects on the environment and consequently on human health. Therefore, its detection is of prime concern and several approaches have been attempted. In this milieu, Ding et al. [209] synthesized heterojunction SERS active substrates, AuNPs/rGO/SiO2/Si through in situ direct growth of AuNPs on rGO surfaces, which have been utilized for trace analysis of Hg2+ via thymine–Hg2+–thymine coordination. This heterojunction SERS sensor exhibited 500 times greater enhancement the referenced mercury (II) sensor with an LOD of 0.1 nM or 20 ppt for Hg2+.
A glucose biosensor has been manufactured by Gupta et al. [210] using immobilized glucose oxidase (GOD) into mercaptophenyl boronic acid (MBA)-terminated [email protected]–GO nanomaterials films. The developed SERS biosensor shows a linearity range of glucose detection between 2 and 6 mM, with LOD of 0.33 mM, as well as successful determination of glucose in blood samples. This SERS-based analytical method can offer multiple benefits such as selectivity, high speed of analysis, and high cost-effectiveness over other analytical methods. Fan et al. [203] demonstrated a popcorn-shaped GO–AuNPs hybrid SERS probe for the ultrasensitive (fM), label-free detection of HIV DNA and the identification of methicillin-resistant Staphylococcus aureus in concentrations as low as 10 cfu/mL. He et al. [206] fabricated a SERS active platform displaying AuNPs on CVD-made graphene for contemporaneous multiplex DNA examination with a single excitation light source. Here, two different thiolated DNA probes were immobilized on AuNPs, followed by the exposure of target DNA as well as the addition of Cy3-labeled reporter DNA, which resulted in the formation of a sandwich composed of probe/target/reporter DNA. Multiplex detection of DNA was achieved with a LOD of 10 pM. On the other hand, little or no Raman signal was detected from the uncomplimentary DNA at the same concentration. It was also revealed that Raman signals from the Cy3 on AuNPs–graphene/SiO2/Si substrate exhibited intense Raman signals compared to the SiO2/Si, graphene–SiO2/Si, AuNPs–SiO2/Si substrates individually, which was attributed to the coupled surface plasmon resonance absorption of AuNPs on the graphene film [206]. The identification of explosive molecules in trace levels is very crucial not only for security screening but also for the environment and human health. Driven by this need, Kanchanapally et al. [211] made a GO–Au nanocage hybrid SERS platform for the label-free identification of the nitro explosives cyclotrimethylenetrinitramine (RDX) and trinitrotoluene, with resulting LODs as low as 500 fM and 10 fM, respectively.

3.3. SERS Bioimaging

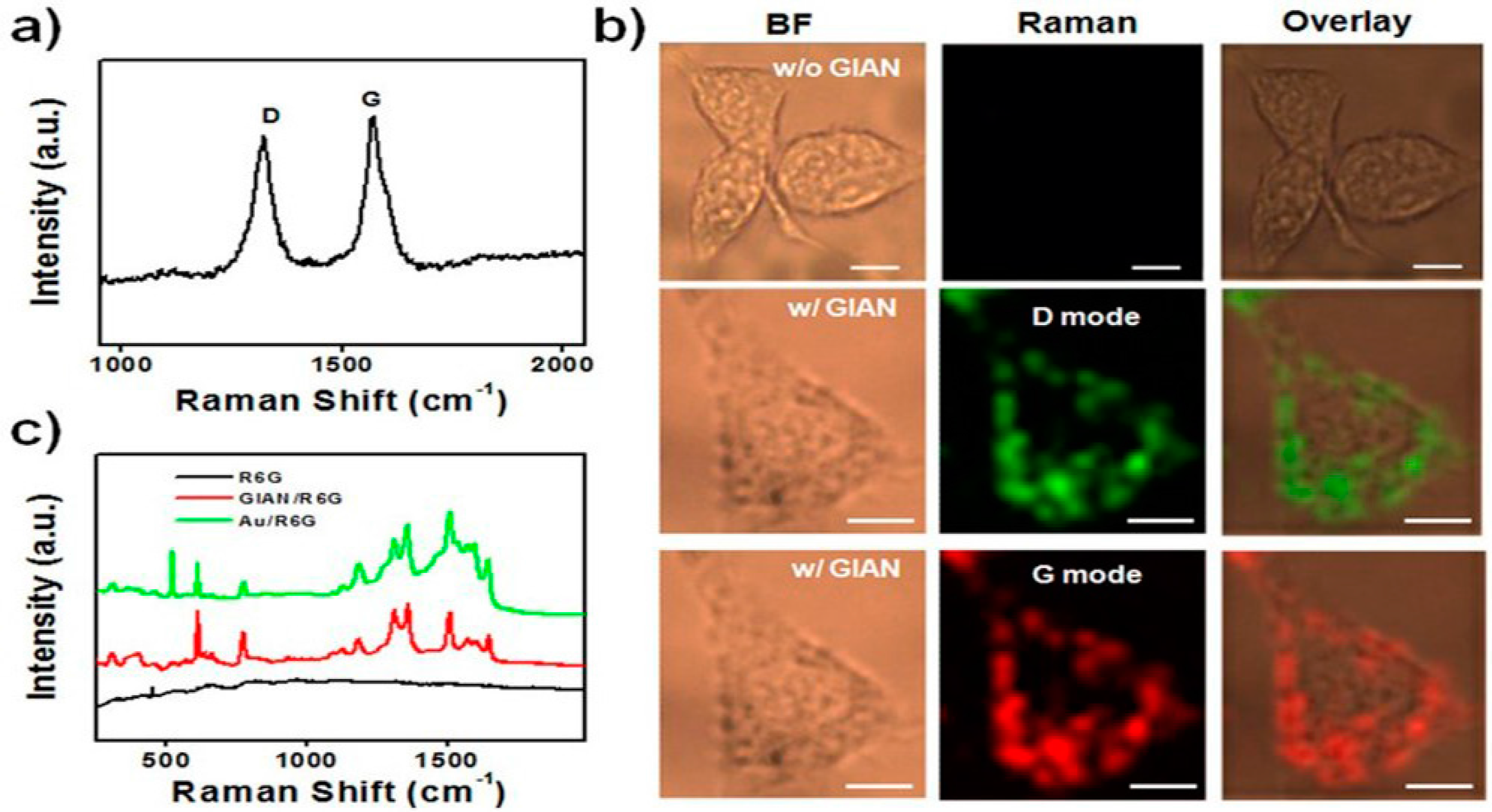

GO–AuNPs hybrids for SERS-based bioimaging have been emerging due to the superior attributes of SERS in this field, such as greater sensitivity, and a stable and reproducible signal over the conventional methods. For example, Ma et al. [140] fabricated GO-wrapped AuNPs ([email protected]) which is employed for intracellular Raman imaging in HeLa cancer cells. It was predicted that [email protected] enters HeLa cells through endocytosis and is mainly distributed in the cytoplasm. Liu et al. [218] found that HeLa cells incubated with GO–AuNPs hybrid exhibited much stronger and more distinguishable Raman signals than the cells incubated with pristine GO. Once again, SERS not only improves the sensitivity but also shortens the acquisition time (1 s). GO–AuNPs are internalized by an energy-dependent process named endocytosis into the subcellular level of individual cells and provide localized sensing and images. The author has provided information on good distribution and stability (several weeks) of the nanohybrid in aqueous dispersion, which indicates higher longevity in intracellular condition. Besides, GO as well as Raman imaging have been approved again as biocompatible and almost harmless to cells, respectively [218]. The internalization events of the hybrid molecules were further supported by a more detailed study conducted by Huang et al. [222] by utilizing SERS to illustrate the cellular uptake mechanism of GO–AuNPs nanocomposites in living cells. In their study, Ca Ski cells are considered a model cell line and an inhomogeneous distribution of GO–AuNPs inside the cells is found where internalization is mainly via the clathrin-mediated energy-dependent endocytosis route.
Another group of scientists, reported a one-pot green technique for the intracellular synthesis of AuNS aided by poly(vinylpyrrolidone) (PVP)-functionalized GO [220]. The random intracellular distribution of GO/PVP/IGAuNPs in the cells allowed for ultrasensitive detection of cellular components of cancer cells (A549, 4T1, and HeLa cells) located in the cytoplasm, nucleoplasm, and nucleolus using SERS (Figure 13) and signals induced by the hybrid composites could be collected as early as 15 h, thus enabling the early detection or diagnosis of cancer as well. Specifically, a comparison of the SERS spectral analysis of GO/PVP/IGAuNPs and IGAuNPs individually showed that the hybrid structure results in five times larger Raman enhancement, possibly due to the formation of IGAuNP aggregates on GO [220]. More recently, Nergiz et al. [219] demonstrated a novel class of multifunctional hybrid nanopatches made up of GO and Au nanostars and the internalization of intact nanopatches into human epithelial breast cancer cells (SKBR-3) by Raman imaging. Raman mapping of the graphitic band of GO showed that hybrid nanopatches are concentrated in the cytoplasm with weak or no signal from the nucleus of the cell, thus indicating their presence in the cytoplasm and absence in the nucleus. In the cytosolic space, hybrid nanopatches exhibit long-term biocompatibility with extremely low cytotoxicity due to the amphipathic nature and large surface area of GO [219]. Kim and co-workers [139] moved towards the in situ monitoring of the undifferentiated or differentiated state or differentiation level of neural stem cells using 3D GO-encapsulated AuNPs by SERS. There is a positive correlation between the number of C=C bonds and the Raman intensity at 1656 cm−1. Indeed, the membranes of the undifferentiated cell line have polyunsaturated fatty acids which are richer in C=C bonds than normal/differentiated cells—this is the principle of differentiating cells by SERS (Figure 14).

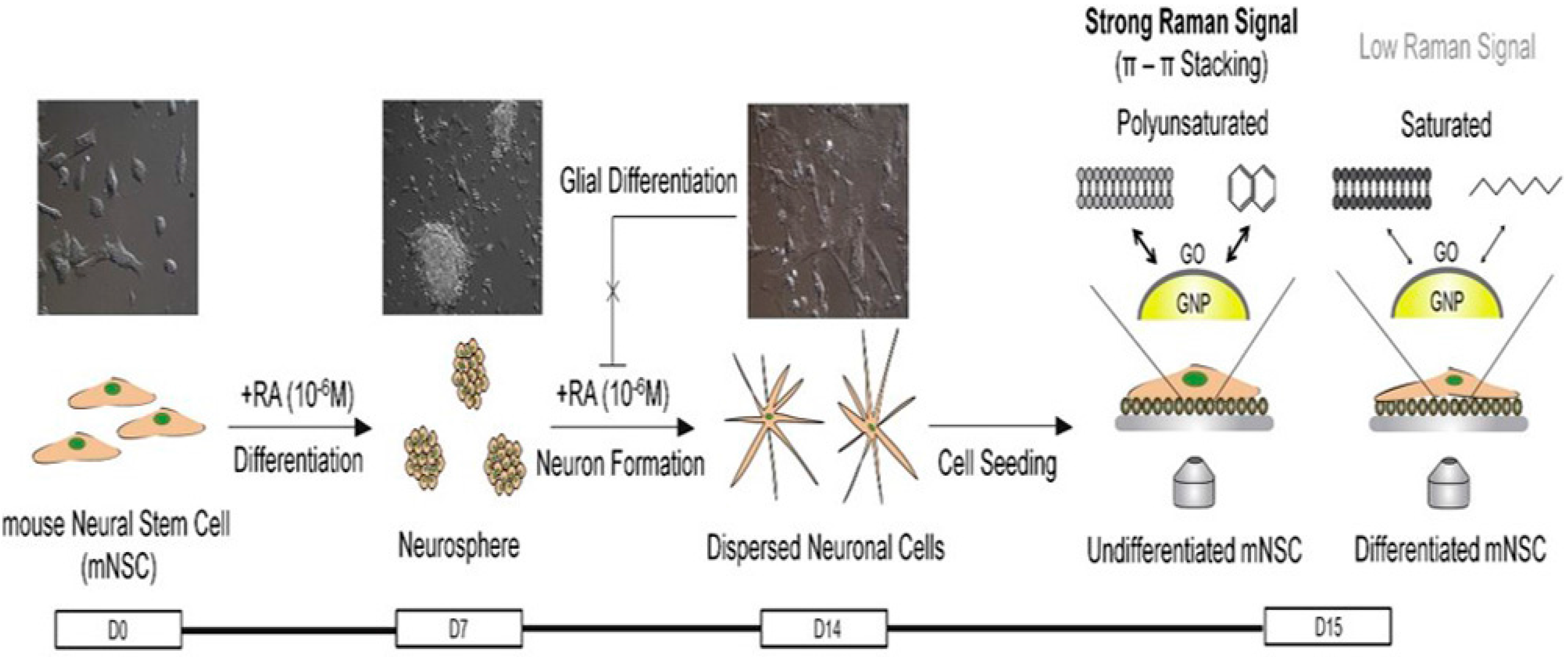

Moreover, graphene–Au nanohexagons can differentiate between normal human breast cells, cancer cells, and cancer stem cells by Raman spectroscopy. These substrates in a concentration of 100 μg/1 × 104 cells led to a 5.4-fold increase in the detection of breast cancer cells and 4.8-fold in sensitivity for the detection of breast cancer stem cells [207]. Bian et al. [138] fabricated GIAN nanostructures by employing the CVD process to wrap the AuNCs with a thin layer of graphene and verified it as a SERS substrate using the analyte R6G. GIANs significantly amplify the Raman signal by a factor of more than 100 by quenching background fluorescence and reducing the photocarbonization or photobleaching of analytes. These GIAN nanostructures are utilized for multimodal imaging of the breast cancer MCF-7 cells by significantly enhancing the Raman signals of the graphene shell by the AuNCs core while making the MCF-7 cells light up clearly under laser excitation (Figure 15). It is also evidently observed that the GIANs are distributed in the cytoplasm as the Raman signals are seen throughout the cytoplasm, not in the nuclei [138]. Moreover, an interesting and valued experiment is conducted by Wang et al. [223] using rGO–Au nanostars nanocomposites as active SERS materials for anticancer drug (doxorubicin) loading, its release thus showing its promising potential role in anticancer treatment for drug delivery of chemotherapeutic agents.

4. Conclusions, Challenges and Perspectives

Graphene–AuNPs hybrids display extraordinary synergistic properties when combined rather than individually. These materials have attracted considerable attention and been used in the biomedical and biosensing fields where biosensors are mainly based on electronic, electrochemical, and optical sensing principles. This review provides insights for graphene–AuNPs synthesis and discusses its importance and use in electrochemical and SERS biosensing platforms.
Synthesis techniques highly depend on the requirements of their intended applications. As such, synthesis methods of GO–AuNPs vary from green synthesis to synthetic, in situ (reduction, hydrothermal, electrochemical) to ex situ (covalent, noncovalent) AuNPs decoration, single layer to alternate LBL assembly, and even in some cases wrapping of AuNPs by GNs. It has been noted that graphene or rGO–AuNPs composites are used for electrochemical biosensor fabrication generally due to their greater conductivity and high electron mobility, hence in situ reduction is preferable in this case. Additionally, the in situ method is applicable whenever there is no urge for precise control over size, shape, and density of AuNPs and their narrow size distribution as well. Conversely, ex situ decoration is influenced by the predefined size, shape, and distribution of AuNS, which consequently minimizes possible incompatibilities between the synthesis and assembly of AuNPs on the graphene sheets. It has been noted that GO is generally used for the encapsulation of AuNS and their application has been successful in the stem cell differentiation biosensing by SERS. The review has shown that recent technological advancements in both graphene and AuNP synthesis are very promising to obtain high quality graphene with controllable size, shapes, layers, and defects in a cost-effective, high yielding, and ecologically friendly manner, in addition to AuNPs of the desired size, morphology, crystallinity, and good distribution on graphene sheets.
Graphene–AuNS have proven to be powerful sensing platforms for the fabrication of comparatively low cost, robust, rapid, and sensitive electrochemical biosensors. These electrochemical devices have been mostly applied in the biomedical fields for the detection of glucose either by enzymatic or catalytic means, H2O2, biomolecules (DNA, protein), small molecules (dopamine), microorganisms, food poisoning chemicals, environmental pollutants, and many more other analytes. One of the major achievements is the detection of a multi-drug resistant strain of Mycobacterium tuberculosis at fM level. All in all, electrochemical biosensors have the remarkable advantages of customization, miniaturization, and fast analysis times, however, they also have common analytical limitations, such as interferences from complex biological sample matrices and the inability to simultaneously detect multiple analytes at a time.
Most noticeably, the graphene–AuNPs SERS-based biosensor is trending in the scientific community due to its extremely high sensitivity as a result of its dual enhancement (chemical and electromagnetic). This dual effect facilitates larger enhancements as well as more clearly distinguished Raman peaks. This technology is being successfully utilized in multiple arenas for different purposes, most notably the detection of single molecular differentiation, multiplex DNA detection in a single laser excitation, screening of explosives, and security. One of the potential and exceptional applications is the bioimaging of intracellular components by SERS for the early detection of cancer cells, which may be a good alternative to conventional methods.
Graphene–AuNPs hybrid technology for biosensing is still in its infancy and, even though it is very promising, a few challenges are yet to be addressed. SERS bioimaging by the graphene–AuNPs hybrid has opened a new era but there needs to be extensive studies on long-term cytotoxicity, biocompatibility, and distribution of graphene–AuNPs hybrids in vivo for future applications. In summary, the design and manufacture of graphene–AuNPs hybrids and their implementation in biosensors is novel and very promising for sensing both in vivo and ex vivo. The technology permits the construction of highly sensitive, selective, customizable, and portable sensors for the detection of variable analytes. This is a promising sensing technology that can undoubtedly result in concrete innovations through concerted efforts between multidisciplinary teams which unite chemists, biochemists, material scientists, physicists, biologists, and engineers worldwide.

Acknowledgments

The authors would like to thank Grand Challenge (GC001B-14SBS) of University Malaya, Malaysia for their cordial support in completing this work. The authors would also like to thank Md. Eaqub Ali, Program Leader of the Grant challenge program, for his contributions to the inception of this work and continuing support of our work and helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

APTESAminopropyltriethoxysilane
ATP4-aminothiphenol
ArgArginine
ArArgon
CBZCarbamazepine
CILECarbon Ionic Liquid Electrode
CNTCarbon Nanotube
CEACarcinoembryonic Antigen
CTABCetyl-trimethylammonium bromide
CR-GOChemically Reduced Graphene Oxide
CVDChemical Vapor Deposition
cfuColony Forming Unit
RDXCyclotrimethylenetrinitramine
Cy3Cysteamine
DESDiethylstilboestrol
DHBDihydroxybenzoic Acid
EISElectrochemical Impedance Spectroscopy
EPAEnvironmental Protection Agency
fMFemtomolar
FAOFood and Agriculture Organization
FAFunctionalizing Agent
GCEGlassy Carbon Electrode
GODGlucose Oxidase
AuNCGold Nanocrystal
AuNPGold Nanoparticle
AuNSGold Nanostructure
GAGraphene Aerogel
GNsGraphene Nanosheets
GOGraphene Oxide
HbHemoglobin
H2O2Hydrogen Peroxide
ITOIndium Titanium Oxide
kWKilowatt
LBLLayer by layer
LODLimit of Detection
MHzMegahertz
MBAMercaptophenyl Boronic Acid
MPTMS3-mercaptopropyltrimethoxysilane
MRSAMethicillin Resistant Staphylococcus aureus
μMMicromolar
mMMilimolar
MDRMultidrug Resistant
NDsNanodots
nMNanomolar
nGONano graphene oxide
NRNano Rod
NADHNicotinamide Adenine Dinucleotide
N2Nitrogen
ODTOctadecanethiol
ODAOctadecylamine
O2Oxygen
ppmParts per million
PEGPegylated
pMPicomolar
PtPlatinum
PANIPolyaniline
PAHPoly allylamine hydrochloride
PLAPoly (lactic acid)
PVPPoly(vinylpyrrolidone)
KClsatPotassium Chloride saturated
rGOReduced Graphene Oxide
RAReducing Agent
RPReducing Process
Ref.Reference
SCESaturated Calomel Electrode
SEMScanning Electron Microscopy
SiSilica
SiO2Silica Oxide
AgSilver
AgClSilver Chloride
AgNSSilver nanostructures
ssSingle Stranded
SDSSodium Dodecyl Sulfate
SAStabilizing Agent
SERSSurface Enhanced Raman Spectroscopy/Scattering
TR-GOThermally Reduced Graphene Oxide
3DThree-dimensional
TBToluidine Blue
TEMTransmission Electron Microscopy
2DTwo dimensional
wtWeight
WHOWorld Health Organization

References

  1. Novoselov, K.S.; Geim, A.K.; Morozov, S.; Jiang, D.; Zhang, Y.; Dubonos, S.A.; Grigorieva, I.; Firsov, A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed]
  2. Miller, D.L.; Kubista, K.D.; Rutter, G.M.; Ruan, M.; de Heer, W.A.; First, P.N.; Stroscio, J.A. Observing the quantization of zero mass carriers in graphene. Science 2009, 324, 924–927. [Google Scholar] [CrossRef] [PubMed]
  3. Hirsch, A. The era of carbon allotropes. Nat. Mater. 2010, 9, 868–871. [Google Scholar] [CrossRef] [PubMed]
  4. Geim, A.K.; Novoselov, K.S. The rise of graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, Y.; Tan, Y.-W.; Stormer, H.L.; Kim, P. Experimental observation of the quantum hall effect and berry’s phase in graphene. Nature 2005, 438, 201–204. [Google Scholar] [CrossRef] [PubMed]
  6. Bonaccorso, F.; Sun, Z.; Hasan, T.; Ferrari, A.C. Graphene photonics and optoelectronics. Nat. Photonics 2010, 4, 611–622. [Google Scholar] [CrossRef]
  7. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-dimensional gas of massless dirac fermions in graphene. Nature 2005, 438, 197–200. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Hong, T.-K.; Lee, D.W.; Choi, H.J.; Shin, H.S.; Kim, B.-S. Transparent, flexible conducting hybrid multilayer thin films of multiwalled carbon nanotubes with graphene nanosheets. ACS Nano 2010, 4, 3861–3868. [Google Scholar] [CrossRef] [PubMed]
  9. Tung, V.C.; Chen, L.-M.; Allen, M.J.; Wassei, J.K.; Nelson, K.; Kaner, R.B.; Yang, Y. Low-temperature solution processing of graphene-carbon nanotube hybrid materials for high-performance transparent conductors. Nano Lett. 2009, 9, 1949–1955. [Google Scholar] [CrossRef] [PubMed]
  10. Basu, S.; Bhattacharyya, P. Recent developments on graphene and graphene oxide based solid state gas sensors. Sens. Actuators B Chem. 2012, 173, 1–21. [Google Scholar] [CrossRef]
  11. Chowdhury, S.; Balasubramanian, R. Recent advances in the use of graphene-family nanoadsorbents for removal of toxic pollutants from wastewater. Adv. Colloid Interface Sci. 2014, 204, 35–56. [Google Scholar] [CrossRef] [PubMed]
  12. Stoller, M.D.; Park, S.; Zhu, Y.; An, J.; Ruoff, R.S. Graphene-based ultracapacitors. Nano Lett. 2008, 8, 3498–3502. [Google Scholar] [CrossRef] [PubMed]
  13. Lee, C.; Wei, X.; Kysar, J.W.; Hone, J. Measurement of the elastic properties and intrinsic strength of monolayer graphene. Science 2008, 321, 385–388. [Google Scholar] [CrossRef] [PubMed]
  14. Balandin, A.A.; Ghosh, S.; Bao, W.; Calizo, I.; Teweldebrhan, D.; Miao, F.; Lau, C.N. Superior thermal conductivity of single-layer graphene. Nano Lett. 2008, 8, 902–907. [Google Scholar] [CrossRef] [PubMed]
  15. Bolotin, K.I.; Sikes, K.; Jiang, Z.; Klima, M.; Fudenberg, G.; Hone, J.; Kim, P.; Stormer, H. Ultrahigh electron mobility in suspended graphene. Solid State Commun. 2008, 146, 351–355. [Google Scholar] [CrossRef]
  16. Balasubramanian, K.; Burghard, M. Biosensors based on carbon nanotubes. Anal. Bioanal. Chem. 2006, 385, 452–468. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, J. Carbon-nanotube based electrochemical biosensors: A review. Electroanalysis 2005, 17, 7–14. [Google Scholar] [CrossRef]
  18. Ma, H.; Wu, D.; Cui, Z.; Li, Y.; Zhang, Y.; Du, B.; Wei, Q. Graphene-based optical and electrochemical biosensors: A review. Anal. Lett. 2013, 46, 1–17. [Google Scholar] [CrossRef]
  19. Zhou, K.; Zhu, Y.; Yang, X.; Li, C. One-pot preparation of graphene/fe 3 o 4 composites by a solvothermal reaction. New J. Chem. 2010, 34, 2950–2955. [Google Scholar] [CrossRef]
  20. Nethravathi, C.; Rajamathi, M.; Ravishankar, N.; Basit, L.; Felser, C. Synthesis of graphene oxide-intercalated α-hydroxides by metathesis and their decomposition to graphene/metal oxide composites. Carbon 2010, 48, 4343–4350. [Google Scholar] [CrossRef]
  21. Jiang, B.; Tian, C.; Zhou, W.; Wang, J.; Xie, Y.; Pan, Q.; Ren, Z.; Dong, Y.; Fu, D.; Han, J.; et al. In situ growth of TiO2 in interlayers of expanded graphite for the fabrication of TiO2-graphene with enhanced photocatalytic activity. Chemistry 2011, 17, 8379–8387. [Google Scholar] [CrossRef] [PubMed]
  22. Jin, Z.; Nackashi, D.; Lu, W.; Kittrell, C.; Tour, J.M. Decoration, migration, and aggregation of palladium nanoparticles on graphene sheets. Chem. Mater. 2010, 22, 5695–5699. [Google Scholar] [CrossRef]
  23. Ismaili, H.; Geng, D.; Sun, A.X.; Kantzas, T.T.; Workentin, M.S. Light-activated covalent formation of gold nanoparticle–graphene and gold nanoparticle–glass composites. Langmuir 2011, 27, 13261–13268. [Google Scholar] [CrossRef] [PubMed]
  24. Ismaili, H.; Lagugne-Labarthet, F.; Workentin, M.S. Covalently assembled gold nanoparticle-carbon nanotube hybrids via a photoinitiated carbene addition reaction. Chem. Mater. 2011, 23, 1519–1525. [Google Scholar] [CrossRef]
  25. Bai, S.; Shen, X. Graphene–inorganic nanocomposites. Rsc Adv. 2012, 2, 64–98. [Google Scholar] [CrossRef]
  26. Stankovich, S.; Dikin, D.A.; Piner, R.D.; Kohlhaas, K.A.; Kleinhammes, A.; Jia, Y.; Wu, Y.; Nguyen, S.T.; Ruoff, R.S. Synthesis of graphene-based nanosheets via chemical reduction of exfoliated graphite oxide. Carbon 2007, 45, 1558–1565. [Google Scholar] [CrossRef]
  27. Si, Y.; Samulski, E.T. Exfoliated graphene separated by platinum nanoparticles. Chem. Mater. 2008, 20, 6792–6797. [Google Scholar] [CrossRef]
  28. Tien, H.-W.; Huang, Y.-L.; Yang, S.-Y.; Wang, J.-Y.; Ma, C.-C.M. The production of graphene nanosheets decorated with silver nanoparticles for use in transparent, conductive films. Carbon 2011, 49, 1550–1560. [Google Scholar] [CrossRef]
  29. Chen, R.J.; Bangsaruntip, S.; Drouvalakis, K.A.; Kam, N.W.S.; Shim, M.; Li, Y.; Kim, W.; Utz, P.J.; Dai, H. Noncovalent functionalization of carbon nanotubes for highly specific electronic biosensors. Proc. Natl. Acad. Sci. USA 2003, 100, 4984–4989. [Google Scholar] [CrossRef] [PubMed]
  30. Mohanty, N.; Berry, V. Graphene-based single-bacterium resolution biodevice and DNA transistor: Interfacing graphene derivatives with nanoscale and microscale biocomponents. Nano Lett. 2008, 8, 4469–4476. [Google Scholar] [CrossRef] [PubMed]
  31. Wu, Z.-S.; Zhou, G.; Yin, L.-C.; Ren, W.; Li, F.; Cheng, H.-M. Graphene/metal oxide composite electrode materials for energy storage. Nano Energy 2012, 1, 107–131. [Google Scholar] [CrossRef]
  32. Zhong, Z.; Patskovskyy, S.; Bouvrette, P.; Luong, J.H.; Gedanken, A. The surface chemistry of Au colloids and their interactions with functional amino acids. J. Phys. Chem. B 2004, 108, 4046–4052. [Google Scholar] [CrossRef]
  33. Han, J.; Liu, Y.; Guo, R. Facile synthesis of highly stable gold nanoparticles and their unexpected excellent catalytic activity for suzuki−miyaura cross-coupling reaction in water. J. Am. Chem. Soc. 2009, 131, 2060–2061. [Google Scholar] [CrossRef] [PubMed]
  34. Connor, E.E.; Mwamuka, J.; Gole, A.; Murphy, C.J.; Wyatt, M.D. Gold nanoparticles are taken up by human cells but do not cause acute cytotoxicity. Small 2005, 1, 325–327. [Google Scholar] [CrossRef] [PubMed]
  35. Elghanian, R.; Storhoff, J.J.; Mucic, R.C.; Letsinger, R.L.; Mirkin, C.A. Selective colorimetric detection of polynucleotides based on the distance-dependent optical properties of gold nanoparticles. Science 1997, 277, 1078–1081. [Google Scholar] [CrossRef] [PubMed]
  36. Li, H.; Rothberg, L. Colorimetric detection of DNA sequences based on electrostatic interactions with unmodified gold nanoparticles. Proc. Natl. Acad. Sci. USA 2004, 101, 14036–14039. [Google Scholar] [CrossRef] [PubMed]
  37. Khan, M.S.; Vishakante, G.D.; Siddaramaiah, H. Gold nanoparticles: A paradigm shift in biomedical applications. Adv. Colloid Interface Sci. 2013, 199, 44–58. [Google Scholar] [CrossRef] [PubMed]
  38. Wei, H.; Li, B.; Li, J.; Wang, E.; Dong, S. Simple and sensitive aptamer-based colorimetric sensing of protein using unmodified gold nanoparticle probes. Chem. Commun. 2007, 3735–3737. [Google Scholar] [CrossRef] [PubMed]
  39. Phillips, R.L.; Miranda, O.R.; You, C.C.; Rotello, V.M.; Bunz, U.H. Rapid and efficient identification of bacteria using gold-nanoparticle–poly (para-phenyleneethynylene) constructs. Angew. Chem. Int. Ed. 2008, 47, 2590–2594. [Google Scholar] [CrossRef] [PubMed]
  40. Peng, G.; Tisch, U.; Adams, O.; Hakim, M.; Shehada, N.; Broza, Y.Y.; Billan, S.; Abdah-Bortnyak, R.; Kuten, A.; Haick, H. Diagnosing lung cancer in exhaled breath using gold nanoparticles. Nat. Nano 2009, 4, 669–673. [Google Scholar] [CrossRef] [PubMed]
  41. Govindhan, M.; Amiri, M.; Chen, A. Au nanoparticle/graphene nanocomposite as a platform for the sensitive detection of NADH in human urine. Biosens. Bioelectron. 2015, 66, 474–480. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, W.; He, D.; Duan, J.; Wang, S.; Peng, H.; Wu, H.; Fu, M.; Wang, Y.; Zhang, X. Simple synthesis method of reduced graphene oxide/gold nanoparticle and its application in surface-enhanced raman scattering. Chem. Phys. Lett. 2013, 582, 119–122. [Google Scholar] [CrossRef]
  43. Sidorov, A.N.; Sławiński, G.W.; Jayatissa, A.; Zamborini, F.P.; Sumanasekera, G.U. A surface-enhanced raman spectroscopy study of thin graphene sheets functionalized with gold and silver nanostructures by seed-mediated growth. Carbon 2012, 50, 699–705. [Google Scholar] [CrossRef]
  44. Dreyer, D.R.; Park, S.; Bielawski, C.W.; Ruoff, R.S. The chemistry of graphene oxide. Chem. Soc. Rev. 2010, 39, 228–240. [Google Scholar] [CrossRef] [PubMed]
  45. Paredes, J.; Villar-Rodil, S.; Martinez-Alonso, A.; Tascon, J. Graphene oxide dispersions in organic solvents. Langmuir 2008, 24, 10560–10564. [Google Scholar] [CrossRef] [PubMed]
  46. Stankovich, S.; Piner, R.D.; Chen, X.; Wu, N.; Nguyen, S.T.; Ruoff, R.S. Stable aqueous dispersions of graphitic nanoplatelets via the reduction of exfoliated graphite oxide in the presence of poly (sodium 4-styrenesulfonate). J. Mater. Chem. 2006, 16, 155–158. [Google Scholar] [CrossRef]
  47. Jung, I.; Pelton, M.; Piner, R.; Dikin, D.A.; Stankovich, S.; Watcharotone, S.; Hausner, M.; Ruoff, R.S. Simple approach for high-contrast optical imaging and characterization of graphene-based sheets. Nano Lett. 2007, 7, 3569–3575. [Google Scholar] [CrossRef]
  48. Si, Y.; Samulski, E.T. Synthesis of water soluble graphene. Nano Lett. 2008, 8, 1679–1682. [Google Scholar] [CrossRef] [PubMed]
  49. Novoselov, K.S.; Fal, V.; Colombo, L.; Gellert, P.; Schwab, M.; Kim, K. A roadmap for graphene. Nature 2012, 490, 192–200. [Google Scholar] [CrossRef] [PubMed]
  50. Singh, V.; Joung, D.; Zhai, L.; Das, S.; Khondaker, S.I.; Seal, S. Graphene based materials: Past, present and future. Prog. Mater. Sci. 2011, 56, 1178–1271. [Google Scholar] [CrossRef]
  51. Choi, W.; Lahiri, I.; Seelaboyina, R.; Kang, Y.S. Synthesis of graphene and its applications: A review. Crit. Rev. Solid State Mater. Sci. 2010, 35, 52–71. [Google Scholar] [CrossRef]
  52. Zhu, Y.; Murali, S.; Cai, W.; Li, X.; Suk, J.W.; Potts, J.R.; Ruoff, R.S. Graphene and graphene oxide: Synthesis, properties, and applications. Adv. Mater. 2010, 22, 3906–3924. [Google Scholar] [CrossRef] [PubMed]
  53. Reina, A.; Jia, X.; Ho, J.; Nezich, D.; Son, H.; Bulovic, V.; Dresselhaus, M.S.; Kong, J. Large area, few-layer graphene films on arbitrary substrates by chemical vapor deposition. Nano Lett. 2008, 9, 30–35. [Google Scholar] [CrossRef] [PubMed]
  54. Mattevi, C.; Kim, H.; Chhowalla, M. A review of chemical vapour deposition of graphene on copper. J. Mater. Chem. 2011, 21, 3324–3334. [Google Scholar] [CrossRef]
  55. Berger, C.; Song, Z.; Li, X.; Wu, X.; Brown, N.; Naud, C.; Mayou, D.; Li, T.; Hass, J.; Marchenkov, A.N. Electronic confinement and coherence in patterned epitaxial graphene. Science 2006, 312, 1191–1196. [Google Scholar] [CrossRef] [PubMed]
  56. De Heer, W.A.; Berger, C.; Wu, X.; First, P.N.; Conrad, E.H.; Li, X.; Li, T.; Sprinkle, M.; Hass, J.; Sadowski, M.L. Epitaxial graphene. Solid State Commun. 2007, 143, 92–100. [Google Scholar] [CrossRef]
  57. Shivaraman, S.; Barton, R.A.; Yu, X.; Alden, J.; Herman, L.; Chandrashekhar, M.; Park, J.; McEuen, P.L.; Parpia, J.M.; Craighead, H.G. Free-standing epitaxial graphene. Nano Lett. 2009, 9, 3100–3105. [Google Scholar] [CrossRef] [PubMed]
  58. Park, S.; An, J.; Piner, R.D.; Jung, I.; Yang, D.; Velamakanni, A.; Nguyen, S.T.; Ruoff, R.S. Aqueous suspension and characterization of chemically modified graphene sheets. Chem. Mater. 2008, 20, 6592–6594. [Google Scholar] [CrossRef]
  59. Kosynkin, D.V.; Higginbotham, A.L.; Sinitskii, A.; Lomeda, J.R.; Dimiev, A.; Price, B.K.; Tour, J.M. Longitudinal unzipping of carbon nanotubes to form graphene nanoribbons. Nature 2009, 458, 872–876. [Google Scholar] [CrossRef] [PubMed]
  60. Jiao, L.; Zhang, L.; Wang, X.; Diankov, G.; Dai, H. Narrow graphene nanoribbons from carbon nanotubes. Nature 2009, 458, 877–880. [Google Scholar] [CrossRef] [PubMed]
  61. Wang, G.; Yang, J.; Park, J.; Gou, X.; Wang, B.; Liu, H.; Yao, J. Facile synthesis and characterization of graphene nanosheets. J. Phys. Chem. C 2008, 112, 8192–8195. [Google Scholar] [CrossRef]
  62. McAllister, M.J.; Li, J.-L.; Adamson, D.H.; Schniepp, H.C.; Abdala, A.A.; Liu, J.; Herrera-Alonso, M.; Milius, D.L.; Car, R.; Prud’homme, R.K. Single sheet functionalized graphene by oxidation and thermal expansion of graphite. Chem. Mater. 2007, 19, 4396–4404. [Google Scholar] [CrossRef]
  63. Wong, C.H.A.; Pumera, M. Stripping voltammetry at chemically modified graphenes. RSC Adv. 2012, 2, 6068–6072. [Google Scholar] [CrossRef]
  64. Wang, H.; Yuan, X.; Wu, Y.; Huang, H.; Peng, X.; Zeng, G.; Zhong, H.; Liang, J.; Ren, M. Graphene-based materials: Fabrication, characterization and application for the decontamination of wastewater and wastegas and hydrogen storage/generation. Adv. Colloid Interface Sci. 2013, 195, 19–40. [Google Scholar] [CrossRef] [PubMed]
  65. Yang, X.; Zhang, X.; Liu, Z.; Ma, Y.; Huang, Y.; Chen, Y. High-efficiency loading and controlled release of doxorubicin hydrochloride on graphene oxide. J. Phys. Chem. C 2008, 112, 17554–17558. [Google Scholar] [CrossRef]
  66. Lv, W.; Guo, M.; Liang, M.-H.; Jin, F.-M.; Cui, L.; Zhi, L.; Yang, Q.-H. Graphene-DNA hybrids: Self-assembly and electrochemical detection performance. J. Mater. Chem. 2010, 20, 6668–6673. [Google Scholar] [CrossRef]
  67. Patil, A.J.; Vickery, J.L.; Scott, T.B.; Mann, S. Aqueous stabilization and self-assembly of graphene sheets into layered bio-nanocomposites using DNA. Adv. Mater. 2009, 21, 3159–3164. [Google Scholar] [CrossRef]
  68. Bai, H.; Xu, Y.; Zhao, L.; Li, C.; Shi, G. Non-covalent functionalization of graphene sheets by sulfonated polyaniline. Chem. Commun. 2009. [Google Scholar] [CrossRef] [PubMed]
  69. Kim, Y.-K.; Na, H.-K.; Min, D.-H. Influence of surface functionalization on the growth of gold nanostructures on graphene thin films. Langmuir 2010, 26, 13065–13070. [Google Scholar] [CrossRef] [PubMed]
  70. Hao, R.; Qian, W.; Zhang, L.; Hou, Y. Aqueous dispersions of tcnq-anion-stabilized graphene sheets. Chem. Commun. 2008. [Google Scholar] [CrossRef] [PubMed]
  71. Xu, Y.; Bai, H.; Lu, G.; Li, C.; Shi, G. Flexible graphene films via the filtration of water-soluble noncovalent functionalized graphene sheets. J. Am. Chem. Soc. 2008, 130, 5856–5857. [Google Scholar] [CrossRef] [PubMed]
  72. Niyogi, S.; Bekyarova, E.; Itkis, M.E.; McWilliams, J.L.; Hamon, M.A.; Haddon, R.C. Solution properties of graphite and graphene. J. Am. Chem. Soc. 2006, 128, 7720–7721. [Google Scholar] [CrossRef] [PubMed]
  73. Quintana, M.; Spyrou, K.; Grzelczak, M.; Browne, W.R.; Rudolf, P.; Prato, M. Functionalization of graphene via 1, 3-dipolar cycloaddition. ACS Nano 2010, 4, 3527–3533. [Google Scholar] [CrossRef] [PubMed]
  74. Liu, Z.; Liu, Q.; Huang, Y.; Ma, Y.; Yin, S.; Zhang, X.; Sun, W.; Chen, Y. Organic photovoltaic devices based on a novel acceptor material: Graphene. Adv. Mater. 2008, 20, 3924–3930. [Google Scholar] [CrossRef]
  75. Cooper, D.R.; D’Anjou, B.; Ghattamaneni, N.; Harack, B.; Hilke, M.; Horth, A.; Majlis, N.; Massicotte, M.; Vandsburger, L.; Whiteway, E. Experimental review of graphene. ISRN Condens. Matter Phys. 2012. [Google Scholar] [CrossRef]
  76. Yin, P.T.; Shah, S.; Chhowalla, M.; Lee, K.-B. Design, synthesis, and characterization of graphene–nanoparticle hybrid materials for bioapplications. Chem. Rev. 2015, 115, 2483–2531. [Google Scholar] [CrossRef] [PubMed]
  77. Kim, K.S.; Zhao, Y.; Jang, H.; Lee, S.Y.; Kim, J.M.; Kim, K.S.; Ahn, J.-H.; Kim, P.; Choi, J.-Y.; Hong, B.H. Large-scale pattern growth of graphene films for stretchable transparent electrodes. Nature 2009, 457, 706–710. [Google Scholar] [CrossRef] [PubMed]
  78. Sutter, P.W.; Flege, J.-I.; Sutter, E.A. Epitaxial graphene on ruthenium. Nat. Mater. 2008, 7, 406–411. [Google Scholar] [CrossRef] [PubMed]
  79. Park, S.; Ruoff, R.S. Chemical methods for the production of graphenes. Nat. Nanotechnol. 2009, 4, 217–224. [Google Scholar] [CrossRef] [PubMed]
  80. Hasan, M.R.; Hamid, S.B.A.; Basirun, W.J.; Chowdhury, Z.Z.; Kandjani, A.E.; Bhargava, S.K. Ga doped RGO–TiO2 composite on an ito surface electrode for investigation of photoelectrocatalytic activity under visible light irradiation. New J. Chem. 2015, 39, 369–376. [Google Scholar] [CrossRef]
  81. Song, J.; Xu, L.; Xing, R.; Li, Q.; Zhou, C.; Liu, D.; Song, H. Synthesis of au/graphene oxide composites for selective and sensitive electrochemical detection of ascorbic acid. Sci. Rep. 2014. [Google Scholar] [CrossRef] [PubMed]
  82. Huang, J.; Zhang, L.; Chen, B.; Ji, N.; Chen, F.; Zhang, Y.; Zhang, Z. Nanocomposites of size-controlled gold nanoparticles and graphene oxide: Formation and applications in sers and catalysis. Nanoscale 2010, 2, 2733–2738. [Google Scholar] [CrossRef] [PubMed]
  83. Pham, T.A.; Choi, B.C.; Lim, K.T.; Jeong, Y.T. A simple approach for immobilization of gold nanoparticles on graphene oxide sheets by covalent bonding. Appl. Surf. Sci. 2011, 257, 3350–3357. [Google Scholar] [CrossRef]
  84. Zhuo, Q.; Ma, Y.; Gao, J.; Zhang, P.; Xia, Y.; Tian, Y.; Sun, X.; Zhong, J.; Sun, X. Facile synthesis of graphene/metal nanoparticle composites via self-catalysis reduction at room temperature. Inorg. Chem. 2013, 52, 3141–3147. [Google Scholar] [CrossRef] [PubMed]
  85. Qin, Y.; Li, J.; Kong, Y.; Li, X.; Tao, Y.; Li, S.; Wang, Y. In situ growth of Au nanocrystals on graphene oxide sheets. Nanoscale 2014, 6, 1281–1285. [Google Scholar] [CrossRef] [PubMed]
  86. Zhou, Y.; Bao, Q.; Tang, L.A.L.; Zhong, Y.; Loh, K.P. Hydrothermal dehydration for the “green” reduction of exfoliated graphene oxide to graphene and demonstration of tunable optical limiting properties. Chem. Mater. 2009, 21, 2950–2956. [Google Scholar] [CrossRef]
  87. Liu, H.; Su, X.; Duan, C.; Dong, X.; Zhou, S.; Zhu, Z. Microwave-assisted hydrothermal synthesis of Au NPs–graphene composites for H2O2 detection. J. Electroanal. Chem. 2014, 731, 36–42. [Google Scholar] [CrossRef]
  88. Hu, Y.; Jin, J.; Wu, P.; Zhang, H.; Cai, C. Graphene–gold nanostructure composites fabricated by electrodeposition and their electrocatalytic activity toward the oxygen reduction and glucose oxidation. Electrochim. Acta 2010, 56, 491–500. [Google Scholar] [CrossRef]
  89. Sun, X.; Jia, M.; Guan, L.; Ji, J.; Zhang, Y.; Tang, L.; Li, Z. Multilayer graphene–gold nanocomposite modified stem-loop DNA biosensor for peanut allergen-Ara h1 detection. Food Chem. 2015, 172, 335–342. [Google Scholar] [CrossRef] [PubMed]
  90. Benvidi, A.; Dehghani-Firouzabadi, A.; Mazloum-Ardakani, M.; Mirjalili, B.-B.F.; Zare, R. Electrochemical deposition of gold nanoparticles on reduced graphene oxide modified glassy carbon electrode for simultaneous determination of levodopa, uric acid and folic acid. J. Electroanal. Chem. 2015, 736, 22–29. [Google Scholar] [CrossRef]
  91. Ma, X.; Chen, M. Electrochemical sensor based on graphene doped gold nanoparticles modified electrode for detection of diethylstilboestrol. Sens. Actuators B Chem. 2015, 215, 445–450. [Google Scholar] [CrossRef]
  92. Li, S.-J.; Deng, D.-H.; Shi, Q.; Liu, S.-R. Electrochemical synthesis of a graphene sheet and gold nanoparticle-based nanocomposite, and its application to amperometric sensing of dopamine. Microchim. Acta 2012, 177, 325–331. [Google Scholar] [CrossRef]
  93. Kong, B.-S.; Geng, J.; Jung, H.-T. Layer-by-layer assembly of graphene and gold nanoparticles by vacuum filtration and spontaneous reduction of gold ions. Chem. Commun. 2009. [Google Scholar] [CrossRef] [PubMed]
  94. Xu, M.-Q.; Wu, J.-F.; Zhao, G.-C. Direct electrochemistry of hemoglobin at a graphene gold nanoparticle composite film for nitric oxide biosensing. Sensors 2013, 13, 7492–7504. [Google Scholar] [CrossRef] [PubMed]
  95. Muszynski, R.; Seger, B.; Kamat, P.V. Decorating graphene sheets with gold nanoparticles. J. Phys. Chem. C 2008, 112, 5263–5266. [Google Scholar] [CrossRef]
  96. Mao, S.; Lu, G.; Yu, K.; Bo, Z.; Chen, J. Specific protein detection using thermally reduced graphene oxide sheet decorated with gold nanoparticle-antibody conjugates. Adv. Mater. 2010, 22, 3521–3526. [Google Scholar] [CrossRef] [PubMed]
  97. Zhang, Y.; Liu, S.; Lu, W.; Wang, L.; Tian, J.; Sun, X. In situ green synthesis of Au nanostructures on graphene oxide and their application for catalytic reduction of 4-nitrophenol. Catal. Sci. Technol. 2011, 1, 1142–1144. [Google Scholar] [CrossRef]
  98. Shervedani, R.K.; Amini, A. Novel graphene-gold hybrid nanostructures constructed via sulfur modified graphene: Preparation and characterization by surface and electrochemical techniques. Electrochim. Acta 2014, 121, 376–385. [Google Scholar] [CrossRef]
  99. Lin, Y.; Baggett, D.W.; Kim, J.-W.; Siochi, E.J.; Connell, J.W. Instantaneous formation of metal and metal oxide nanoparticles on carbon nanotubes and graphene via solvent-free microwave heating. ACS Appl. Mater. Interfaces 2011, 3, 1652–1664. [Google Scholar] [CrossRef] [PubMed]
  100. Hu, H.; Wang, X.; Xu, C.; Wang, J.; Wan, L.; Zhang, M.; Shang, X. Microwave-assisted synthesis of graphene nanosheets–gold nanocomposites with enhancing electrochemical response. Fuller. Nanotub. Carbon Nanostruct. 2012, 20, 31–40. [Google Scholar] [CrossRef]
  101. Jasuja, K.; Linn, J.; Melton, S.; Berry, V. Microwave-reduced uncapped metal nanoparticles on graphene: Tuning catalytic, electrical, and raman properties. J. Phys. Chem. Lett. 2010, 1, 1853–1860. [Google Scholar] [CrossRef]
  102. Sharma, P.; Darabdhara, G.; Reddy, T.M.; Borah, A.; Bezboruah, P.; Gogoi, P.; Hussain, N.; Sengupta, P.; Das, M.R. Synthesis, characterization and catalytic application of Au NPs-reduced graphene oxide composites material: An eco-friendly approach. Catal. Commun. 2013, 40, 139–144. [Google Scholar] [CrossRef]
  103. Ponnusamy, V.K.; Mani, V.; Chen, S.-M.; Huang, W.-T.; Jen, J.-F. Rapid microwave assisted synthesis of graphene nanosheets/polyethyleneimine/gold nanoparticle composite and its application to the selective electrochemical determination of dopamine. Talanta 2014, 120, 148–157. [Google Scholar] [CrossRef] [PubMed]
  104. Park, G.; Lee, K.G.; Lee, S.J.; Park, T.J.; Wi, R.; Kim, D.H. Synthesis of graphene-gold nanocomposites via sonochemical reduction. J. Nanosci. Nanotechnol. 2011, 11, 6095–6101. [Google Scholar] [CrossRef] [PubMed]
  105. Vinodgopal, K.; Neppolian, B.; Lightcap, I.V.; Grieser, F.; Ashokkumar, M.; Kamat, P.V. Sonolytic design of graphene–Au nanocomposites. Simultaneous and sequential reduction of graphene oxide and Au (iii). J. Phys. Chem. Lett. 2010, 1, 1987–1993. [Google Scholar] [CrossRef]
  106. Caires, A.; Alves, D.; Fantini, C.; Ferlauto, A.; Ladeira, L. One-pot in situ photochemical synthesis of graphene oxide/gold nanorod nanocomposites for surface-enhanced raman spectroscopy. RSC Adv. 2015, 5, 46552–46557. [Google Scholar] [CrossRef]
  107. Huang, X.; Zhou, X.; Wu, S.; Wei, Y.; Qi, X.; Zhang, J.; Boey, F.; Zhang, H. Reduced graphene oxide-templated photochemical synthesis and in situ assembly of Au nanodots to orderly patterned Au nanodot chains. Small 2010, 6, 513–516. [Google Scholar] [CrossRef] [PubMed]
  108. Chen, J.; Cui, X.; Wang, Q.; Wang, H.; Zheng, X.; Liu, C.; Xue, T.; Wang, S.; Zheng, W. One-pot photochemical synthesis of ultrathin Au nanocrystals on co-reduced graphene oxide and its application. J. Colloid Interface Sci. 2012, 383, 140–147. [Google Scholar] [CrossRef] [PubMed]
  109. Cheng, C.-E.; Lin, C.-Y.; Chang, H.-Y.; Huang, C.-H.; Lin, H.-Y.; Chen, C.-H.; Hsu, C.-C.; Chang, C.-S.; Sen Chien, F.S. Surface-enhanced raman scattering of graphene with photo-assisted-synthesized gold nanoparticles. Opt. Express 2013, 21, 6547–6554. [Google Scholar] [CrossRef] [PubMed]
  110. Pruneanu, S.; Pogacean, F.; Biris, A.R.; Ardelean, S.; Canpean, V.; Blanita, G.; Dervishi, E.; Biris, A.S. Novel graphene-gold nanoparticle modified electrodes for the high sensitivity electrochemical spectroscopy detection and analysis of carbamazepine. J. Phys. Chem. C 2011, 115, 23387–23394. [Google Scholar] [CrossRef]
  111. Zhang, H.; Hines, D.; Akins, D.L. Synthesis of a nanocomposite composed of reduced graphene oxide and gold nanoparticles. Dalton Trans. 2014, 43, 2670–2675. [Google Scholar] [CrossRef] [PubMed]
  112. Borowiec, J.; Wang, R.; Zhu, L.; Zhang, J. Synthesis of nitrogen-doped graphene nanosheets decorated with gold nanoparticles as an improved sensor for electrochemical determination of chloramphenicol. Electrochim. Acta 2013, 99, 138–144. [Google Scholar] [CrossRef]
  113. Wojnicki, M.; Luty-Błocho, M.; Grzonka, J.; Pacławski, K.; Kurzydłowski, K.J.; Fitzner, K. Micro-continuous flow synthesis of gold nanoparticles and integrated deposition on suspended sheets of graphene oxide. Chem. Eng. J. 2013, 225, 597–606. [Google Scholar] [CrossRef]
  114. Tabrizi, M.A.; Varkani, J.N. Green synthesis of reduced graphene oxide decorated with gold nanoparticles and its glucose sensing application. Sens. Actuators B Chem. 2014, 202, 475–482. [Google Scholar] [CrossRef]
  115. Goncalves, G.; Marques, P.A.; Granadeiro, C.M.; Nogueira, H.I.; Singh, M.; Gracio, J. Surface modification of graphene nanosheets with gold nanoparticles: The role of oxygen moieties at graphene surface on gold nucleation and growth. Chem. Mater. 2009, 21, 4796–4802. [Google Scholar] [CrossRef]
  116. Iliut, M.; Leordean, C.; Canpean, V.; Teodorescu, C.-M.; Astilean, S. A new green, ascorbic acid-assisted method for versatile synthesis of Au–graphene hybrids as efficient surface-enhanced raman scattering platforms. J. Mater. Chem. C 2013, 1, 4094–4104. [Google Scholar] [CrossRef]
  117. Fu, W.L.; Zhen, S.J.; Huang, C.Z. One-pot green synthesis of graphene oxide/gold nanocomposites as sers substrates for malachite green detection. Analyst 2013, 138, 3075–3081. [Google Scholar] [CrossRef] [PubMed]
  118. Xi, Q.; Chen, X.; Evans, D.G.; Yang, W. Gold nanoparticle-embedded porous graphene thin films fabricated via layer-by-layer self-assembly and subsequent thermal annealing for electrochemical sensing. Langmuir 2012, 28, 9885–9892. [Google Scholar] [CrossRef] [PubMed]
  119. Li, R.-Y.; Zhang, J.-J.; Wang, Z.-P.; Li, Z.-J.; Liu, J.-K.; Gu, Z.-G.; Wang, G.-L. Novel graphene-gold nanohybrid with excellent electrocatalytic performance for the electrochemical detection of glucose. Sens. Actuators B Chem. 2015, 208, 421–428. [Google Scholar]
  120. Dharuman, V.; Hahn, J.H.; Jayakumar, K.; Teng, W. Electrochemically reduced graphene–gold nano particle composite on indium tin oxide for label free immuno sensing of estradiol. Electrochim. Acta 2013, 114, 590–597. [Google Scholar] [CrossRef]
  121. Zhou, L.-T.; Li, R.-Y.; Li, Z.-J.; Xia, Q.-F.; Fang, Y.-J.; Liu, J.-K. An immunosensor for ultrasensitive detection of aflatoxin B1 with an enhanced electrochemical performance based on graphene/conducting polymer/gold nanoparticles/the ionic liquid composite film on modified gold electrode with electrodeposition. Sens. Actuators B Chem. 2012, 174, 359–365. [Google Scholar]
  122. Niu, X.; Yang, W.; Wang, G.; Ren, J.; Guo, H.; Gao, J. A novel electrochemical sensor of bisphenol a based on stacked graphene nanofibers/gold nanoparticles composite modified glassy carbon electrode. Electrochim. Acta 2013, 98, 167–175. [Google Scholar] [CrossRef]
  123. Zhou, L.; Wang, J.; Li, D.; Li, Y. An electrochemical aptasensor based on gold nanoparticles dotted graphene modified glassy carbon electrode for label-free detection of bisphenol a in milk samples. Food Chem. 2014, 162, 34–40. [Google Scholar] [CrossRef] [PubMed]
  124. Wang, X.; Zhang, X. Electrochemical co-reduction synthesis of graphene/nano-gold composites and its application to electrochemical glucose biosensor. Electrochim. Acta 2013, 112, 774–782. [Google Scholar] [CrossRef]
  125. Wang, Z.; Zhang, J.; Yin, Z.; Wu, S.; Mandler, D.; Zhang, H. Fabrication of nanoelectrode ensembles by electrodepositon of Au nanoparticles on single-layer graphene oxide sheets. Nanoscale 2012, 4, 2728–2733. [Google Scholar] [CrossRef] [PubMed]
  126. Wang, X.; You, Z.; Cheng, Y.; Sha, H.; Li, G.; Zhu, H.; Sun, W. Application of nanosized gold and graphene modified carbon ionic liquid electrode for the sensitive electrochemical determination of folic acid. J. Mol. Liq. 2015, 204, 112–117. [Google Scholar] [CrossRef]
  127. Zaretski, A.V.; Root, S.E.; Savchenko, A.; Molokanova, E.; Printz, A.D.; Jibril, L.; Arya, G.; Mercola, M.; Lipomi, D.J. Metallic nanoislands on graphene as highly sensitive transducers of mechanical, biological, and optical signals. Nano Lett. 2016, 16, 1375–1380. [Google Scholar] [CrossRef] [PubMed]
  128. Pandey, P.A.; Bell, G.R.; Rourke, J.P.; Sanchez, A.M.; Elkin, M.D.; Hickey, B.J.; Wilson, N.R. Physical vapor deposition of metal nanoparticles on chemically modified graphene: Observations on metal–graphene interactions. Small 2011, 7, 3202–3210. [Google Scholar] [CrossRef] [PubMed]
  129. Luo, Z.; Somers, L.A.; Dan, Y.; Ly, T.; Kybert, N.J.; Mele, E.; Johnson, A.C. Size-selective nanoparticle growth on few-layer graphene films. Nano Lett. 2010, 10, 777–781. [Google Scholar] [CrossRef] [PubMed]
  130. Vélez, G.Y.; Encinas, A.; Quintana, M. Immobilization of metal and metal oxide nanoparticles on graphene. Funct. Gr. 2014. [Google Scholar] [CrossRef]
  131. Vilatela, J.J.; Eder, D. Nanocarbon composites and hybrids in sustainability: A review. ChemSusChem 2012, 5, 456–478. [Google Scholar] [CrossRef] [PubMed]
  132. Liu, J.; Li, Y.; Li, Y.; Li, J.; Deng, Z. Noncovalent DNA decorations of graphene oxide and reduced graphene oxide toward water-soluble metal–carbon hybrid nanostructures via self-assembly. J. Mater. Chem. 2010, 20, 900–906. [Google Scholar] [CrossRef]
  133. YoungáChoi, J.; SeokáSeo, T. DNA mediated water-dispersible graphene fabrication and gold nanoparticle-graphene hybrid. Chem. Commun. 2010, 46, 2844–2846. [Google Scholar]
  134. Wang, Y.; Zhen, S.J.; Zhang, Y.; Li, Y.F.; Huang, C.Z. Facile fabrication of metal nanoparticle/graphene oxide hybrids: A new strategy to directly illuminate graphene for optical imaging. J. Phys. Chem. C 2011, 115, 12815–12821. [Google Scholar] [CrossRef]
  135. Liu, S.; Yan, J.; He, G.; Zhong, D.; Chen, J.; Shi, L.; Zhou, X.; Jiang, H. Layer-by-layer assembled multilayer films of reduced graphene oxide/gold nanoparticles for the electrochemical detection of dopamine. J. Electroanal. Chem. 2012, 672, 40–44. [Google Scholar] [CrossRef]
  136. Turcheniuk, K.; Boukherroub, R.; Szunerits, S. Gold–graphene nanocomposites for sensing and biomedical applications. J. Mater. Chem. B 2015, 3, 4301–4324. [Google Scholar] [CrossRef]
  137. Chopra, N.; Bachas, L.G.; Knecht, M.R. Fabrication and biofunctionalization of carbon-encapsulated Au nanoparticles. Chem. Mater. 2009, 21, 1176–1178. [Google Scholar] [CrossRef]
  138. Bian, X.; Song, Z.-L.; Qian, Y.; Gao, W.; Cheng, Z.-Q.; Chen, L.; Liang, H.; Ding, D.; Nie, X.-K.; Chen, Z. Fabrication of graphene-isolated-au-nanocrystal nanostructures for multimodal cell imaging and photothermal-enhanced chemotherapy. Sci. Rep. 2014. [Google Scholar] [CrossRef] [PubMed]
  139. Kim, T.-H.; Lee, K.-B.; Choi, J.-W. 3D graphene oxide-encapsulated gold nanoparticles to detect neural stem cell differentiation. Biomaterials 2013, 34, 8660–8670. [Google Scholar] [CrossRef] [PubMed]
  140. Ma, X.; Qu, Q.; Zhao, Y.; Luo, Z.; Zhao, Y.; Ng, K.W.; Zhao, Y. Graphene oxide wrapped gold nanoparticles for intracellular raman imaging and drug delivery. J. Mater. Chem. B 2013, 1, 6495–6500. [Google Scholar] [CrossRef]
  141. Cui, Y.; Zhou, D.; Sui, Z.; Han, B. Sonochemical synthesis of graphene oxide-wrapped gold nanoparticles hybrid materials: Visible light photocatalytic activity. Chin. J. Chem. 2015, 33, 119–124. [Google Scholar] [CrossRef]
  142. Xu, C.; Yang, D.; Mei, L.; Lu, B.; Chen, L.; Li, Q.; Zhu, H.; Wang, T. Encapsulating gold nanoparticles or nanorods in graphene oxide shells as a novel gene vector. ACS Appl. Mater. Interfaces 2013, 5, 2715–2724. [Google Scholar] [CrossRef] [PubMed]
  143. Lim, D.-K.; Barhoumi, A.; Wylie, R.G.; Reznor, G.; Langer, R.S.; Kohane, D.S. Enhanced photothermal effect of plasmonic nanoparticles coated with reduced graphene oxide. Nano Lett. 2013, 13, 4075–4079. [Google Scholar] [CrossRef] [PubMed]
  144. Turcheniuk, K.; Hage, C.-H.; Spadavecchia, J.; Serrano, A.Y.; Larroulet, I.; Pesquera, A.; Zurutuza, A.; Pisfil, M.G.; Héliot, L.; Boukaert, J. Plasmonic photothermal destruction of uropathogenic E. coli with reduced graphene oxide and core/shell nanocomposites of gold nanorods/reduced graphene oxide. J. Mater. Chem. B 2015, 3, 375–386. [Google Scholar] [CrossRef]
  145. Yun, Y.J.; Song, K.-B. Preparation and characterization of graphene oxide encapsulated gold nanoparticles. J. Nanosci. Nanotechnol. 2013, 13, 7376–7380. [Google Scholar] [CrossRef] [PubMed]
  146. Wang, P.; Zhang, W.; Liang, O.; Pantoja, M.; Katzer, J.; Schroeder, T.; Xie, Y.-H. Giant optical response from graphene–plasmonic system. ACS Nano 2012, 6, 6244–6249. [Google Scholar] [CrossRef] [PubMed]
  147. Heeg, S.; Fernandez-Garcia, R.; Oikonomou, A.; Schedin, F.; Narula, R.; Maier, S.A.; Vijayaraghavan, A.; Reich, S. Polarized plasmonic enhancement by Au nanostructures probed through raman scattering of suspended graphene. Nano Lett. 2012, 13, 301–308. [Google Scholar] [CrossRef] [PubMed]
  148. Jin, Y.; Wang, J.; Ke, H.; Wang, S.; Dai, Z. Graphene oxide modified pla microcapsules containing gold nanoparticles for ultrasonic/ct bimodal imaging guided photothermal tumor therapy. Biomaterials 2013, 34, 4794–4802. [Google Scholar] [CrossRef] [PubMed]
  149. Ronkainen, N.J.; Halsall, H.B.; Heineman, W.R. Electrochemical biosensors. Chem. Soc. Rev. 2010, 39, 1747–1763. [Google Scholar] [CrossRef] [PubMed]
  150. Chikkaveeraiah, B.V.; Bhirde, A.A.; Morgan, N.Y.; Eden, H.S.; Chen, X. Electrochemical immunosensors for detection of cancer protein biomarkers. ACS Nano 2012, 6, 6546–6561. [Google Scholar] [CrossRef] [PubMed]
  151. Pohanka, M.; Skládal, P. Electrochemical biosensors–principles and applications. J. Appl. Biomed 2008, 6, 57–64. [Google Scholar]
  152. Shao, Y.; Wang, J.; Wu, H.; Liu, J.; Aksay, I.A.; Lin, Y. Graphene based electrochemical sensors and biosensors: A review. Electroanalysis 2010, 22, 1027–1036. [Google Scholar] [CrossRef]
  153. Yin, P.T.; Kim, T.-H.; Choi, J.-W.; Lee, K.-B. Prospects for graphene–nanoparticle-based hybrid sensors. Phys. Chem. Chem. Phys. 2013, 15, 12785–12799. [Google Scholar] [CrossRef] [PubMed]
  154. Ambrosi, A.; Pumera, M. Nanographite impurities dominate electrochemistry of carbon nanotubes. Chem. Eur. J. 2010, 16, 10946–10949. [Google Scholar] [CrossRef] [PubMed]
  155. Luo, X.; Morrin, A.; Killard, A.J.; Smyth, M.R. Application of nanoparticles in electrochemical sensors and biosensors. Electroanalysis 2006, 18, 319–326. [Google Scholar] [CrossRef]
  156. Plowman, B.J.; Bhargava, S.K.; O’Mullane, A.P. Electrochemical fabrication of metallic nanostructured electrodes for electroanalytical applications. Analyst 2011, 136, 5107–5119. [Google Scholar] [CrossRef] [PubMed][Green Version]
  157. Plowman, B.J.; O’Mullane, A.P.; Bhargava, S.K. The active site behaviour of electrochemically synthesised gold nanomaterials. Faraday Discuss. 2011, 152, 43–62. [Google Scholar] [CrossRef] [PubMed][Green Version]
  158. Plowman, B.J.; Field, M.R.; Bhargava, S.K.; O’Mullane, A.P. Exploiting the facile oxidation of evaporated gold films to drive electroless silver deposition for the creation of bimetallic Au/Ag surfaces. ChemElectroChem 2014, 1, 76–82. [Google Scholar] [CrossRef][Green Version]
  159. Shan, C.; Yang, H.; Han, D.; Zhang, Q.; Ivaska, A.; Niu, L. Graphene/AuNPs/chitosan nanocomposites film for glucose biosensing. Biosens. Bioelectron. 2010, 25, 1070–1074. [Google Scholar] [CrossRef] [PubMed]
  160. Chen, Y.; Li, Y.; Sun, D.; Tian, D.; Zhang, J.; Zhu, J.-J. Fabrication of gold nanoparticles on bilayer graphene for glucose electrochemical biosensing. J. Mater. Chem. 2011, 21, 7604–7611. [Google Scholar] [CrossRef]
  161. Xu, Q.; Gu, S.-X.; Jin, L.; Zhou, Y.-E.; Yang, Z.; Wang, W.; Hu, X. Graphene/polyaniline/gold nanoparticles nanocomposite for the direct electron transfer of glucose oxidase and glucose biosensing. Sens. Actuators B Chem. 2014, 190, 562–569. [Google Scholar] [CrossRef]
  162. German, N.; Ramanavicius, A.; Ramanaviciene, A. Electrochemical deposition of gold nanoparticles on graphite rod for glucose biosensing. Sens. Actuators B Chem. 2014, 203, 25–34. [Google Scholar] [CrossRef]
  163. Cao, X.; Ye, Y.; Li, Y.; Xu, X.; Yu, J.; Liu, S. Self-assembled glucose oxidase/graphene/gold ternary nanocomposites for direct electrochemistry and electrocatalysis. J. Electroanal. Chem. 2013, 697, 10–14. [Google Scholar] [CrossRef]
  164. Ekram, H.; Galal, A.; Atta, N.F. Electrochemistry of glucose at gold nanoparticles modified graphite/srpdo 3 electrode–towards a novel non-enzymatic glucose sensor. J. Electroanal. Chem. 2015, 749, 42–52. [Google Scholar]
  165. Fang, Y.; Guo, S.; Zhu, C.; Zhai, Y.; Wang, E. Self-assembly of cationic polyelectrolyte-functionalized graphene nanosheets and gold nanoparticles: A two-dimensional heterostructure for hydrogen peroxide sensing. Langmuir 2010, 26, 11277–11282. [Google Scholar] [CrossRef] [PubMed]
  166. Chang, H.; Wang, X.; Shiu, K.-K.; Zhu, Y.; Wang, J.; Li, Q.; Chen, B.; Jiang, H. Layer-by-layer assembly of graphene, Au and poly (toluidine blue O) films sensor for evaluation of oxidative stress of tumor cells elicited by hydrogen peroxide. Biosens. Bioelectron. 2013, 41, 789–794. [Google Scholar] [CrossRef] [PubMed]
  167. Wang, J.; Shi, A.; Fang, X.; Han, X.; Zhang, Y. An ultrasensitive supersandwich electrochemical DNA biosensor based on gold nanoparticles decorated reduced graphene oxide. Anal. Biochem. 2015, 469, 71–75. [Google Scholar] [CrossRef] [PubMed]
  168. Peng, H.-P.; Hu, Y.; Liu, P.; Deng, Y.-N.; Wang, P.; Chen, W.; Liu, A.-L.; Chen, Y.-Z.; Lin, X.-H. Label-free electrochemical DNA biosensor for rapid detection of mutidrug resistance gene based on Au nanoparticles/toluidine blue–graphene oxide nanocomposites. Sens. Actuators B Chem. 2015, 207, 269–276. [Google Scholar] [CrossRef]
  169. Liu, C.; Jiang, D.; Xiang, G.; Liu, L.; Liu, F.; Pu, X. An electrochemical DNA biosensor for the detection of mycobacterium tuberculosis, based on signal amplification of graphene and a gold nanoparticle–polyaniline nanocomposite. Analyst 2014, 139, 5460–5465. [Google Scholar] [CrossRef] [PubMed]
  170. Wang, Y.; Ping, J.; Ye, Z.; Wu, J.; Ying, Y. Impedimetric immunosensor based on gold nanoparticles modified graphene paper for label-free detection of Escherichia coli O157:H7. Biosens. Bioelectron. 2013, 49, 492–498. [Google Scholar] [CrossRef] [PubMed]
  171. Yu, S.; Cao, X.; Yu, M. Electrochemical immunoassay based on gold nanoparticles and reduced graphene oxide functionalized carbon ionic liquid electrode. Microchem. J. 2012, 103, 125–130. [Google Scholar] [CrossRef]
  172. Jiang, J.; Fan, W.; Du, X. Nitrite electrochemical biosensing based on coupled graphene and gold nanoparticles. Biosens. Bioelectron. 2014, 51, 343–348. [Google Scholar] [CrossRef] [PubMed]
  173. Gupta, V.K.; Yola, M.L.; Qureshi, M.S.; Solak, A.O.; Atar, N.; Üstündağ, Z. A novel impedimetric biosensor based on graphene oxide/gold nanoplatform for detection of DNA arrays. Sens. Actuators B Chem. 2013, 188, 1201–1211. [Google Scholar] [CrossRef]
  174. Plowman, B.; Ippolito, S.J.; Bansal, V.; Sabri, Y.M.; O’Mullane, A.P.; Bhargava, S.K. Gold nanospikes formed through a simple electrochemical route with high electrocatalytic and surface enhanced raman scattering activity. Chem. Commun. 2009. [Google Scholar] [CrossRef] [PubMed][Green Version]
  175. Sharma, D.K.; Ott, A.; O’Mullane, A.P.; Bhargava, S.K. The facile formation of silver dendritic structures in the absence of surfactants and their electrochemical and sers properties. Colloids Surf. A Physicochem. Eng. Asp. 2011, 386, 98–106. [Google Scholar] [CrossRef]
  176. Selvakannan, P.; Ramanathan, R.; Plowman, B.J.; Sabri, Y.M.; Daima, H.K.; O’Mullane, A.P.; Bansal, V.; Bhargava, S.K. Probing the effect of charge transfer enhancement in off resonance mode sers via conjugation of the probe dye between silver nanoparticles and metal substrates. Phys. Chem. Chem. Phys. 2013, 15, 12920–12929. [Google Scholar] [CrossRef] [PubMed]
  177. Kandjani, A.E.; Mohammadtaheri, M.; Thakkar, A.; Bhargava, S.K.; Bansal, V. Zinc oxide/silver nanoarrays as reusable sers substrates with controllable ‘hot-spots’ for highly reproducible molecular sensing. J. Colloid Interface Sci. 2014, 436, 251–257. [Google Scholar] [CrossRef] [PubMed]
  178. O’Mullane, A.P.; Ippolito, S.J.; Sabri, Y.M.; Bansal, V.; Bhargava, S.K. Premonolayer oxidation of nanostructured gold: An important factor influencing electrocatalytic activity. Langmuir 2009, 25, 3845–3852. [Google Scholar] [CrossRef] [PubMed][Green Version]
  179. Pearson, A.; O’Mullane, A.P.; Bhargava, S.K.; Bansal, V. Comparison of nanostructures obtained from galvanic replacement in water and an ionic liquid for applications in electrocatalysis and sers. Electrochem. Commun. 2012, 25, 87–90. [Google Scholar] [CrossRef]
  180. Abalde-Cela, S.; Carregal-Romero, S.; Coelho, J.P.; Guerrero-Martínez, A. Recent progress on colloidal metal nanoparticles as signal enhancers in nanosensing. Adv. Colloid Interface Sci. 2015, in press. [Google Scholar]
  181. Kiefer, W.; Schlücker, S. Surface Enhanced Raman Spectroscopy: Analytical, Biophysical and Life Science Applications; John Wiley & Sons: Hoboken, NJ, USA, 2011. [Google Scholar]
  182. Hicks, C.J. Surface Enhanced Raman Spectroscopy (SERS). Available online: http://www.cem.msu.edu/~cem924sg/ChristineHicks.pdf (accessed on 19 May 2016).
  183. Zong, C.; Chen, C.-J.; Zhang, M.; Wu, D.-Y.; Ren, B. Transient electrochemical surface-enhanced raman spectroscopy (tec-sers): A millisecond time-resolved study of an electrochemical redox process. J. Am. Chem. Soc. 2015, 137, 11768–11774. [Google Scholar] [CrossRef] [PubMed]
  184. Lu, G.; Li, H.; Liusman, C.; Yin, Z.; Wu, S.; Zhang, H. Surface enhanced raman scattering of Ag or Au nanoparticle-decorated reduced graphene oxide for detection of aromatic molecules. Chem. Sci. 2011, 2, 1817–1821. [Google Scholar] [CrossRef]
  185. Kneipp, K.; Wang, Y.; Kneipp, H.; Perelman, L.T.; Itzkan, I.; Dasari, R.R.; Feld, M.S. Single molecule detection using surface-enhanced raman scattering (SERS). Phys. Rev. Lett. 1997. [Google Scholar] [CrossRef]
  186. Nie, S.; Emory, S.R. Probing single molecules and single nanoparticles by surface-enhanced raman scattering. Science 1997, 275, 1102–1106. [Google Scholar] [CrossRef] [PubMed]
  187. Le Ru, E.C.; Etchegoin, P.G. Single-molecule surface-enhanced raman spectroscopy. Ann. Rev. Phys. Chem. 2012, 63, 65–87. [Google Scholar] [CrossRef] [PubMed]
  188. Sonntag, M.D.; Klingsporn, J.M.; Zrimsek, A.B.; Sharma, B.; Ruvuna, L.K.; van Duyne, R.P. Molecular plasmonics for nanoscale spectroscopy. Chem. Soc. Rev. 2014, 43, 1230–1247. [Google Scholar] [CrossRef] [PubMed]
  189. Ling, X.; Xie, L.; Fang, Y.; Xu, H.; Zhang, H.; Kong, J.; Dresselhaus, M.S.; Zhang, J.; Liu, Z. Can graphene be used as a substrate for raman enhancement? Nano Lett. 2009, 10, 553–561. [Google Scholar] [CrossRef] [PubMed]
  190. Xu, W.; Mao, N.; Zhang, J. Graphene: A platform for surface-enhanced raman spectroscopy. Small 2013, 9, 1206–1224. [Google Scholar] [CrossRef] [PubMed]
  191. Jasuja, K.; Berry, V. Implantation and growth of dendritic gold nanostructures on graphene derivatives: Electrical property tailoring and raman enhancement. Acs Nano 2009, 3, 2358–2366. [Google Scholar] [CrossRef] [PubMed]
  192. Hu, C.; Rong, J.; Cui, J.; Yang, Y.; Yang, L.; Wang, Y.; Liu, Y. Fabrication of a graphene oxide–gold nanorod hybrid material by electrostatic self-assembly for surface-enhanced raman scattering. Carbon 2013, 51, 255–264. [Google Scholar] [CrossRef]
  193. Zhang, L.; Jiang, C.; Zhang, Z. Graphene oxide embedded sandwich nanostructures for enhanced raman readout and their applications in pesticide monitoring. Nanoscale 2013, 5, 3773–3779. [Google Scholar] [CrossRef] [PubMed]
  194. Lee, J.U.; Lee, W.; Yoon, S.S.; Kim, J.; Byun, J.H. Site-selective immobilization of gold nanoparticles on graphene sheets and its electrochemical properties. Appl. Surf. Sci. 2014, 315, 73–80. [Google Scholar] [CrossRef]
  195. Qiu, C.; Zhou, H.; Cao, B.; Sun, L.; Yu, T. Raman spectroscopy of morphology-controlled deposition of Au on graphene. Carbon 2013, 59, 487–494. [Google Scholar] [CrossRef]
  196. Zhu, J.; Gao, J.; Li, J.-J.; Zhao, J.-W. Improve the surface-enhanced raman scattering from rhodamine 6g adsorbed gold nanostars with vimineous branches. Appl. Surf. Sci. 2014, 322, 136–142. [Google Scholar] [CrossRef]
  197. Wang, Y.; Ni, Z.; Hu, H.; Hao, Y.; Wong, C.P.; Yu, T.; Thong, J.T.; Shen, Z.X. Gold on graphene as a substrate for surface enhanced raman scattering study. Appl. Phys. Lett. 2010, 97, 163111. [Google Scholar] [CrossRef]
  198. Xu, W.; Xiao, J.; Chen, Y.; Chen, Y.; Ling, X.; Zhang, J. Graphene-veiled gold substrate for surface-enhanced raman spectroscopy. Adv. Mater. 2013, 25, 928–933. [Google Scholar] [CrossRef] [PubMed]
  199. Lee, J.; Shim, S.; Kim, B.; Shin, H.S. Surface-enhanced raman scattering of single- and few-layer graphene by the deposition of gold nanoparticles. Chem. A Eur. J. 2011, 17, 2381–2387. [Google Scholar] [CrossRef] [PubMed]
  200. Li, J.-J.; An, H.-Q.; Zhu, J.; Zhao, J.-W. Improve the surface enhanced raman scattering of gold nanorods decorated graphene oxide: The effect of ctab on the electronic transition. Appl. Surf. Sci. 2015, 347, 856–860. [Google Scholar] [CrossRef]
  201. Biroju, R.K.; Giri, P. Defect enhanced efficient physical functionalization of graphene with gold nanoparticles probed by resonance raman spectroscopy. J. Phys. Chem. C 2014, 118, 13833–13843. [Google Scholar] [CrossRef]
  202. Nguyen, T.H.; Zhang, Z.; Mustapha, A.; Li, H.; Lin, M. Use of graphene and gold nanorods as substrates for the detection of pesticides by surface enhanced raman spectroscopy. J. Agric. Food Chem. 2014, 62, 10445–10451. [Google Scholar] [CrossRef] [PubMed]
  203. Fan, Z.; Kanchanapally, R.; Ray, P.C. Hybrid graphene oxide based ultrasensitive sers probe for label-free biosensing. J. Phys. Chem. Lett. 2013, 4, 3813–3818. [Google Scholar] [CrossRef]
  204. Das, G.; Patra, N.; Gopalakrishnan, A.; Zaccaria, R.P.; Toma, A.; Thorat, S.; Di Fabrizio, E.; Diaspro, A.; Salerno, M. Fabrication of large-area ordered and reproducible nanostructures for sers biosensor application. Analyst 2012, 137, 1785–1792. [Google Scholar] [CrossRef] [PubMed]
  205. Li, M.; Zhang, J.; Suri, S.; Sooter, L.J.; Ma, D.; Wu, N. Detection of adenosine triphosphate with an aptamer biosensor based on surface-enhanced raman scattering. Anal. Chem. 2012, 84, 2837–2842. [Google Scholar] [CrossRef] [PubMed]
  206. He, S.; Liu, K.-K.; Su, S.; Yan, J.; Mao, X.; Wang, D.; He, Y.; Li, L.-J.; Song, S.; Fan, C. Graphene-based high-efficiency surface-enhanced raman scattering-active platform for sensitive and multiplex DNA detection. Anal. Chem. 2012, 84, 4622–4627. [Google Scholar] [CrossRef] [PubMed]
  207. Manikandan, M.; Abdelhamid, H.N.; Talib, A.; Wu, H.-F. Facile synthesis of gold nanohexagons on graphene templates in raman spectroscopy for biosensing cancer and cancer stem cells. Biosens. Bioelectron. 2014, 55, 180–186. [Google Scholar] [CrossRef] [PubMed]
  208. Hakonen, A.; Andersson, P.O.; Schmidt, M.S.; Rindzevicius, T.; Käll, M. Explosive and chemical threat detection by surface-enhanced raman scattering: A review. Anal. Chim. Acta 2015, 893, 1–13. [Google Scholar] [CrossRef] [PubMed]
  209. Ding, X.; Kong, L.; Wang, J.; Fang, F.; Li, D.; Liu, J. Highly sensitive sers detection of Hg2+ ions in aqueous media using gold nanoparticles/graphene heterojunctions. ACS Appl. Mater. Interfaces 2013, 5, 7072–7078. [Google Scholar] [CrossRef] [PubMed]
  210. Gupta, V.K.; Atar, N.; Yola, M.L.; Eryılmaz, M.; Torul, H.; Tamer, U.; Boyacı, İ.H.; Üstündağ, Z. A novel glucose biosensor platform based on [email protected] modified graphene oxide nanocomposite and sers application. J. Colloid Interface Sci. 2013, 406, 231–237. [Google Scholar] [CrossRef] [PubMed]
  211. Kanchanapally, R.; Sinha, S.S.; Fan, Z.; Dubey, M.; Zakar, E.; Ray, P.C. Graphene oxide–gold nanocage hybrid platform for trace level identification of nitro explosives using a raman fingerprint. J. Phys. Chem. C 2014, 118, 7070–7075. [Google Scholar] [CrossRef]
  212. Kong, X.-K.; Chen, Q.-W.; Sun, Z.-Y. Enhanced sers of the complex substrate using Au supported on graphene with pyridine and r6g as the probe molecules. Chem. Phys. Lett. 2013, 564, 54–59. [Google Scholar] [CrossRef]
  213. Wang, P.; Zhang, D.; Zhang, L.; Fang, Y. The sers study of graphene deposited by gold nanoparticles with 785 nm excitation. Chem. Phys. Lett. 2013, 556, 146–150. [Google Scholar] [CrossRef]
  214. Jalani, G.; Cerruti, M. Nano graphene oxide-wrapped gold nanostars as ultrasensitive and stable sers nanoprobes. Nanoscale 2015, 7, 9990–9997. [Google Scholar] [CrossRef] [PubMed]
  215. Benítez-Martínez, S.; López-Lorente, Á.I.; Valcárcel, M. Multilayer graphene–gold nanoparticle hybrid substrate for the sers determination of metronidazole. Microchem. J. 2015, 121, 6–13. [Google Scholar] [CrossRef]
  216. Lu, R.; Konzelmann, A.; Xu, F.; Gong, Y.; Liu, J.; Liu, Q.; Xin, M.; Hui, R.; Wu, J.Z. High sensitivity surface enhanced raman spectroscopy of r6g on in situ fabricated Au nanoparticle/graphene plasmonic substrates. Carbon 2015, 86, 78–85. [Google Scholar] [CrossRef]
  217. Liu, A.; Xu, T.; Tang, J.; Wu, H.; Zhao, T.; Tang, W. Sandwich-structured Ag/graphene/Au hybrid for surface-enhanced raman scattering. Electrochim. Acta 2014, 119, 43–48. [Google Scholar] [CrossRef]
  218. Liu, Q.; Wei, L.; Wang, J.; Peng, F.; Luo, D.; Cui, R.; Niu, Y.; Qin, X.; Liu, Y.; Sun, H. Cell imaging by graphene oxide based on surface enhanced raman scattering. Nanoscale 2012, 4, 7084–7089. [Google Scholar] [CrossRef] [PubMed]
  219. Nergiz, S.Z.; Gandra, N.; Tadepalli, S.; Singamaneni, S. Multifunctional hybrid nanopatches of graphene oxide and gold nanostars for ultraefficient photothermal cancer therapy. ACS Appl. Mater. Interfaces 2014, 6, 16395–16402. [Google Scholar] [CrossRef] [PubMed]
  220. Liu, Z.; Hu, C.; Li, S.; Zhang, W.; Guo, Z. Rapid intracellular growth of gold nanostructures assisted by functionalized graphene oxide and its application for surface-enhanced raman spectroscopy. Anal. chem. 2012, 84, 10338–10344. [Google Scholar] [CrossRef] [PubMed]
  221. Liu, A.; Xu, T.; Ren, Q.; Yuan, M.; Dong, W.; Tang, W. Graphene modulated 2D assembly of plasmonic gold nanostructure on diamond-like carbon substrate for surface-enhanced raman scattering. Electrochem. Commun. 2012, 25, 74–78. [Google Scholar] [CrossRef]
  222. Huang, J.; Zong, C.; Shen, H.; Liu, M.; Chen, B.; Ren, B.; Zhang, Z. Mechanism of cellular uptake of graphene oxide studied by surface-enhanced raman spectroscopy. Small 2012, 8, 2577–2584. [Google Scholar] [CrossRef] [PubMed]
  223. Wang, Y.; Polavarapu, L.; Liz-Marzán, L.M. Reduced graphene oxide-supported gold nanostars for improved sers sensing and drug delivery. ACS Appl. Mater. Interfaces 2014, 6, 21798–21805. [Google Scholar] [CrossRef] [PubMed]

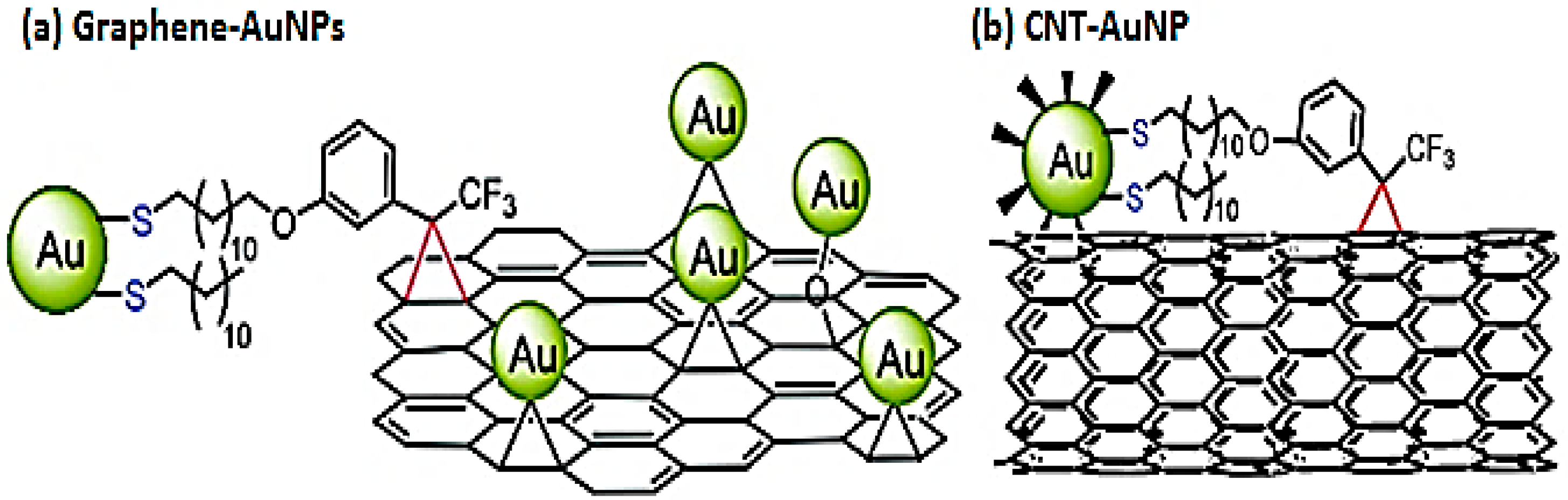

Figure 1. (a) Decoration of AuNPs on graphene. Adapted from [23], with permission from ©2011 American Chemical Society; (b) Covalent attachment of AuNP on CNT. Adapted from [24], with permission from ©2011 American Chemical Society.
Figure 1. (a) Decoration of AuNPs on graphene. Adapted from [23], with permission from ©2011 American Chemical Society; (b) Covalent attachment of AuNP on CNT. Adapted from [24], with permission from ©2011 American Chemical Society.
Materials 09 00406 g001

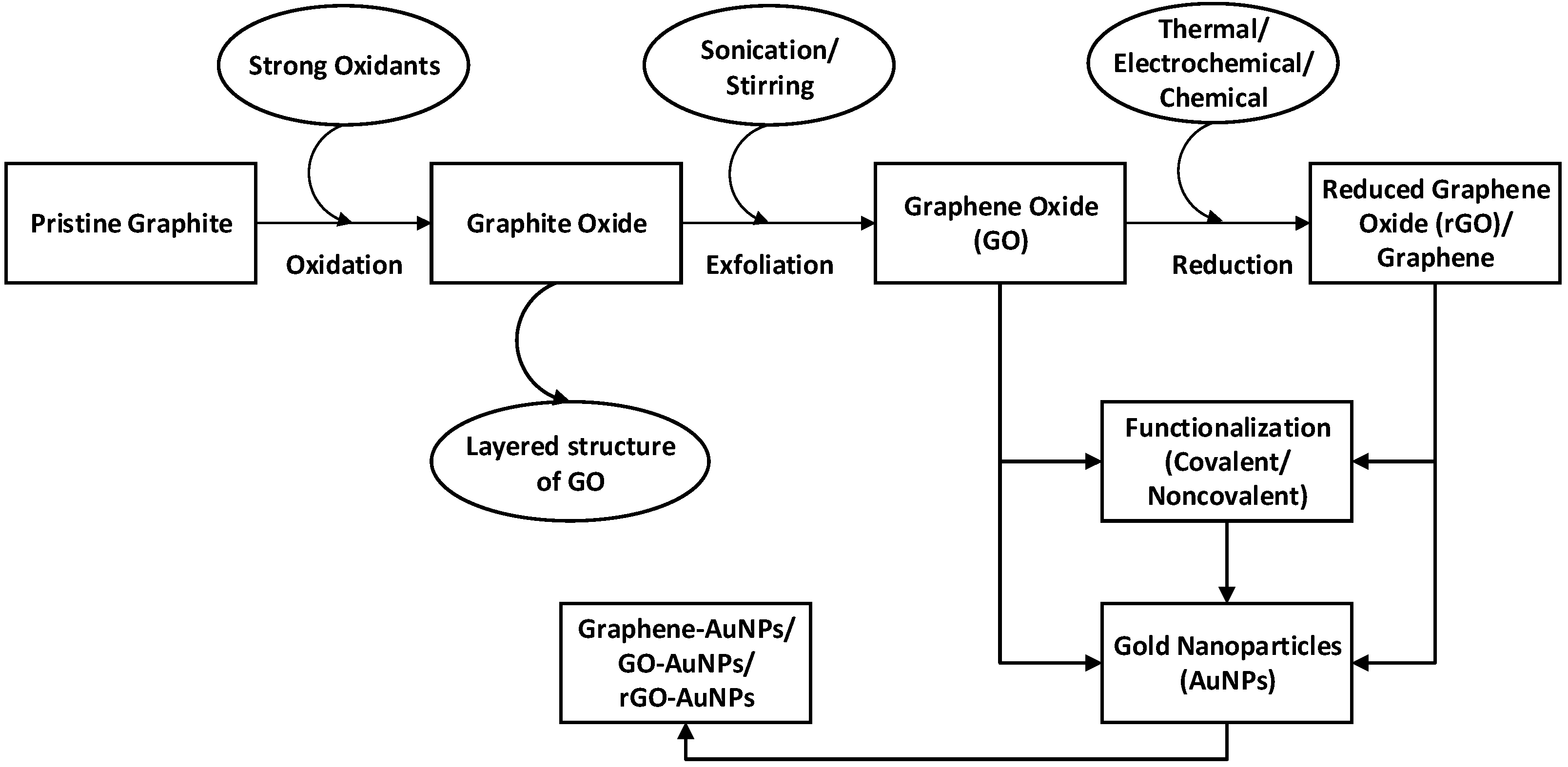

Figure 2. Schematic representation of the formation of graphene–AuNPs nanocomposites.
Figure 2. Schematic representation of the formation of graphene–AuNPs nanocomposites.
Materials 09 00406 g002
Figure 3. Schematic representation of the synthesis of chemically modified graphene. Adapted from [63], with permission from ©2012 Royal Society of Chemistry.
Figure 3. Schematic representation of the synthesis of chemically modified graphene. Adapted from [63], with permission from ©2012 Royal Society of Chemistry.
Materials 09 00406 g003

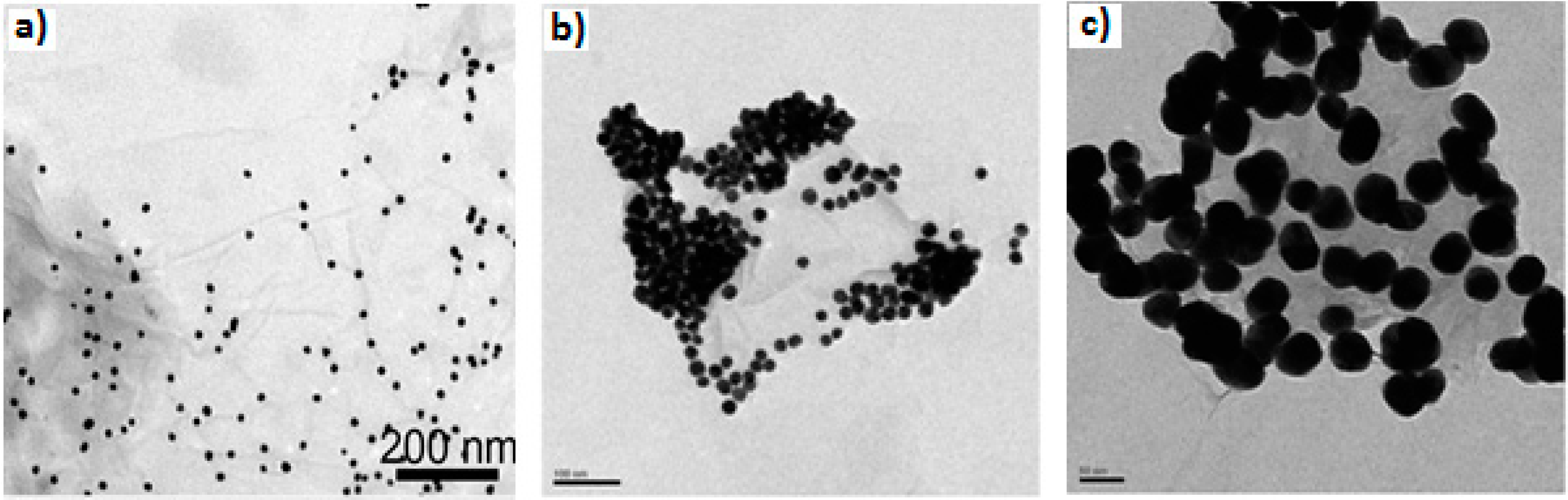

Figure 4. TEM image of GO–AuNPs composites (a) in situ growth, adapted from [81], with permission from ©2014 Nature Publishing Groupand (b) and (c) ex situ decoration of 20 nm and 40 nm AuNPs on GO sheets respectively, adapted from [82], with permission from ©2010 Royal Society of Chemistry.
Figure 4. TEM image of GO–AuNPs composites (a) in situ growth, adapted from [81], with permission from ©2014 Nature Publishing Groupand (b) and (c) ex situ decoration of 20 nm and 40 nm AuNPs on GO sheets respectively, adapted from [82], with permission from ©2010 Royal Society of Chemistry.
Materials 09 00406 g004
Figure 5. Schematic diagram of the graphene–AuNPs synthesis procedures.
Figure 5. Schematic diagram of the graphene–AuNPs synthesis procedures.
Materials 09 00406 g005
Figure 6. Ex situ Graphene-–AuNPs decoration (a) noncovalent interactions, adapted from [132], with permission from ©2009 Royal Society of Chemistry; (b) LBL self-assembly, adapted from [118], with permission from ©2012 American Chemical Society.
Figure 6. Ex situ Graphene-–AuNPs decoration (a) noncovalent interactions, adapted from [132], with permission from ©2009 Royal Society of Chemistry; (b) LBL self-assembly, adapted from [118], with permission from ©2012 American Chemical Society.
Materials 09 00406 g006

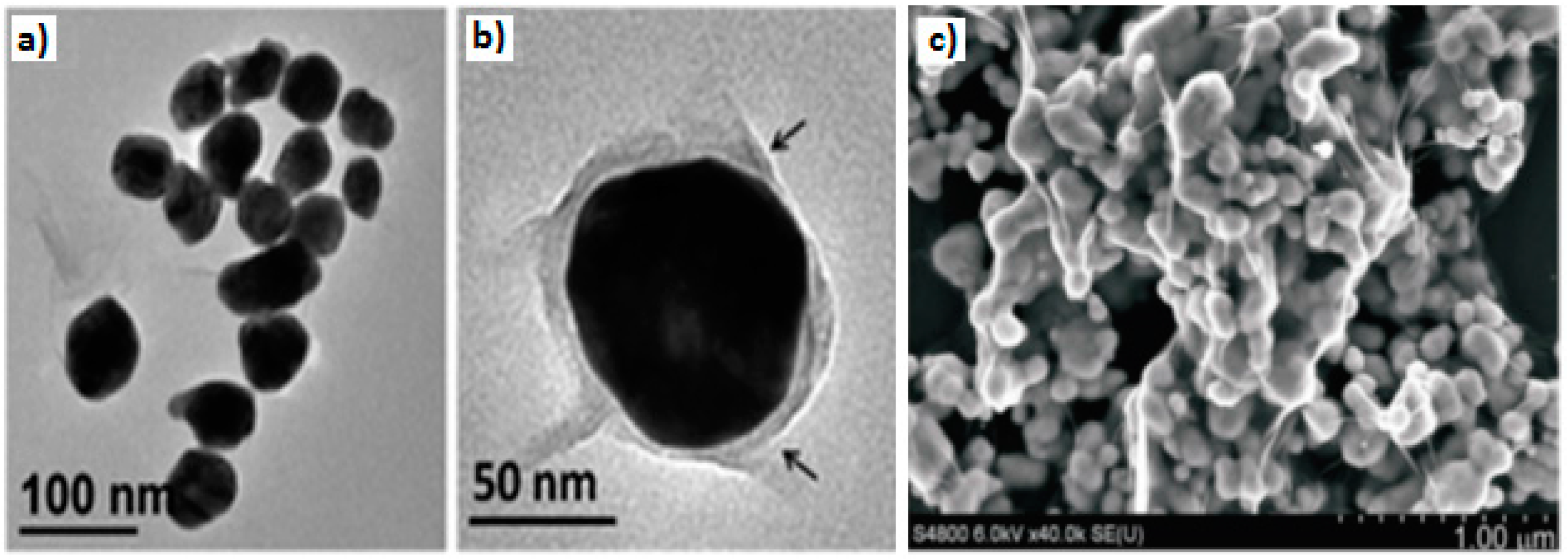

Figure 7. TEM images of the Au-encapsulated GO nanoparticles at (a) low magnification; (b) high magnification, adapted from [140], with permission from ©2013 Royal Society of Chemistry and (c) SEM image of GO-wrapped AuNPs, adapted from [141], with permission from ©2014, 2015 Wiley.
Figure 7. TEM images of the Au-encapsulated GO nanoparticles at (a) low magnification; (b) high magnification, adapted from [140], with permission from ©2013 Royal Society of Chemistry and (c) SEM image of GO-wrapped AuNPs, adapted from [141], with permission from ©2014, 2015 Wiley.
Materials 09 00406 g007
Figure 8. LBL fabrication process of [email protected]–(PAH/GO)n microcapsule. Adapted from [148], with permission from ©2013 Elsevier.
Figure 8. LBL fabrication process of [email protected]–(PAH/GO)n microcapsule. Adapted from [148], with permission from ©2013 Elsevier.
Materials 09 00406 g008
Figure 9. Fabrication steps of AuNPs–Graphene/Hb/Nafion/GC electrode and electrocatalytic activity for H2O2. Adapted from [87], with permission from ©2014 Elsevier.
Figure 9. Fabrication steps of AuNPs–Graphene/Hb/Nafion/GC electrode and electrocatalytic activity for H2O2. Adapted from [87], with permission from ©2014 Elsevier.
Materials 09 00406 g009
Figure 10. Schematic representation of the fabrication procedure of the DNA biosensor. (a) DPV cures from the super-sandwich biosensor; (b) DPV cures from the sandwich biosensor. Adapted from [167], with permission from ©2015 Elsevier.
Figure 10. Schematic representation of the fabrication procedure of the DNA biosensor. (a) DPV cures from the super-sandwich biosensor; (b) DPV cures from the sandwich biosensor. Adapted from [167], with permission from ©2015 Elsevier.
Materials 09 00406 g010
Figure 11. Fabrication of eGr–AuNP on ITO for immune sensing of estradiol. Adapted from [120], with permission from ©2013 Elsevier.
Figure 11. Fabrication of eGr–AuNP on ITO for immune sensing of estradiol. Adapted from [120], with permission from ©2013 Elsevier.
Materials 09 00406 g011
Figure 12. Morphology-dependent SERS performance of normal SERS and graphene-mediated SERS (G-SERS). (a,d) AFM images of a bilayer graphene (2LG)-covered 8-nm gold film (a) before, and (d) after annealing, showing both the bare gold regions and graphene-covered regions; (b,e) Schematic illustration of the contact state between graphene and AuNS correspond to the enlarged regions; (c,f) SERS performance of normal SERS (top) and G-SERS regions (bottom) (c) before, and (f) after annealing, respectively. “*” marks the G and G′ band of the 2LG. The figure is adapted from [198], with permission from ©2013 Wiley.
Figure 12. Morphology-dependent SERS performance of normal SERS and graphene-mediated SERS (G-SERS). (a,d) AFM images of a bilayer graphene (2LG)-covered 8-nm gold film (a) before, and (d) after annealing, showing both the bare gold regions and graphene-covered regions; (b,e) Schematic illustration of the contact state between graphene and AuNS correspond to the enlarged regions; (c,f) SERS performance of normal SERS (top) and G-SERS regions (bottom) (c) before, and (f) after annealing, respectively. “*” marks the G and G′ band of the 2LG. The figure is adapted from [198], with permission from ©2013 Wiley.
Materials 09 00406 g012

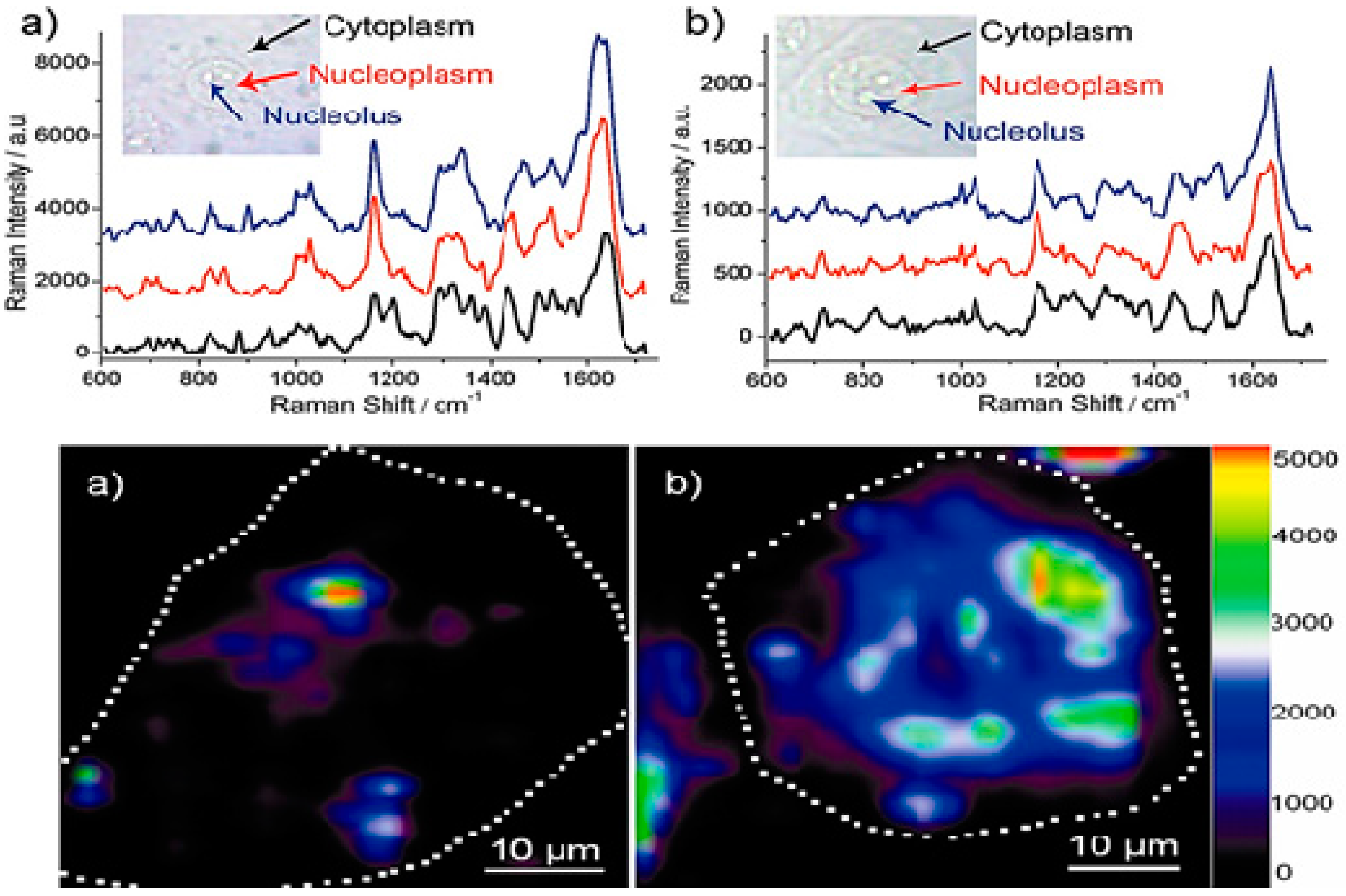

Figure 13. In the upper (a) GO/PVP/IGAuNPs and (b) IGAuNPs—SERS spectra of A549 cells collected from the regions corresponding to the cytoplasm, nucleoplasm, and nucleolus. In the lower—typical SERS images of A549 cells contained with (a) IGAuNPs or (b) GO/PVP/IGAuNPs, showing the distribution of gold nanostructures inside the cell. The dotted lines in the images are drawn to indicate the boundaries of select cells. Adapted from [220], with permission from ©2012 American Chemical Society.
Figure 13. In the upper (a) GO/PVP/IGAuNPs and (b) IGAuNPs—SERS spectra of A549 cells collected from the regions corresponding to the cytoplasm, nucleoplasm, and nucleolus. In the lower—typical SERS images of A549 cells contained with (a) IGAuNPs or (b) GO/PVP/IGAuNPs, showing the distribution of gold nanostructures inside the cell. The dotted lines in the images are drawn to indicate the boundaries of select cells. Adapted from [220], with permission from ©2012 American Chemical Society.
Materials 09 00406 g013
Figure 14. Schematic diagram representing the method to detect the undifferentiated and differentiated state of mNSCs using 3D GO-encapsulated AuNPs. Adapted from [139], with permission from ©2013 Elsevier.
Figure 14. Schematic diagram representing the method to detect the undifferentiated and differentiated state of mNSCs using 3D GO-encapsulated AuNPs. Adapted from [139], with permission from ©2013 Elsevier.
Materials 09 00406 g014
Figure 15. (a) Raman spectrum (excitation at 632 nm) of GIANs showing the G and D bands of graphitic carbon; (b) Raman imaging of MCF-7 cells with and without GIAN staining. BF: bright field, scale bar: 10 μm; (c) Raman spectra of R6G molecules, with and without GIAN, and with AuNPs, respectively. The figures are adapted from [138], with permission from ©2014 Nature Publishing Group.
Figure 15. (a) Raman spectrum (excitation at 632 nm) of GIANs showing the G and D bands of graphitic carbon; (b) Raman imaging of MCF-7 cells with and without GIAN staining. BF: bright field, scale bar: 10 μm; (c) Raman spectra of R6G molecules, with and without GIAN, and with AuNPs, respectively. The figures are adapted from [138], with permission from ©2014 Nature Publishing Group.
Materials 09 00406 g015
Table 1. General properties of grapheme.
Table 1. General properties of grapheme.
PropertiesValueReferences
Optical transmittance~97.7%[6]
Density0.77 mg·m−2[10,11]
Career density1012 cm−2[10,11]
Resistivity10−6 Ω·cm[10,11]
Planar surface area2630 m2·g−1[12]
Mechanical strength of its Young Modulus1100 GPa[13]
Fracture strength125 GPa[13]
Thermal conductivity~5000 W·m−1·K−1[14]
Mobility charge carrier200,000 cm2·V−1·s−1[15]
Table 2. Advantages and limitations of the major synthesis procedures of grapheme.
Table 2. Advantages and limitations of the major synthesis procedures of grapheme.
Synthesis ProcedureBeneficial AspectsLimitationsReferences
Micromechanical exfoliation
  • Simple process.
  • Few defects.
  • Excellent quality of graphene.
  • Well suited for fundamental research.
  • Poor reproducibility.
  • Not amenable for large scale production.
[49,75,76]
CVD
  • Large area (up to ~1 cm2).
  • Limited number of defects.
  • Mass production.
  • High quality graphene.
  • Expensive.
  • Poor scalability.
[49,53,77,78]
Epitaxial growth
  • High quality of graphene.
  • Few defects.
  • High cost.
  • Requires high temp.
[49]
Colloidal suspension
  • Scalable.
  • High volume of production.
  • Suitable for multipurpose chemical functionalization.
  • Significant number of defects.
[79]
Unzipping of CNTs
  • Scalable with controlled widths and edge structures.
  • Better control over chemical functionalization and edge quality.
  • Low yield.
  • More expensive in respect to chemical exfoliation of graphite or graphite oxide.
[49,60]
Reduction of GO
  • Economical and facile technique.
  • Significant number of defects.
[76,79,80]
Table 3. Advantages and limitations of the major synthesis techniques of graphene–gold nanocomposites.
Table 3. Advantages and limitations of the major synthesis techniques of graphene–gold nanocomposites.
Synthesis TechniquesAdvantagesLimitationsReferences
In situ reduction
  • One-pot synthesis.
  • Efficient, easy to perform, and cost effective.
  • Generally, no need of protecting surfactant or extra linker molecule.
  • Can be employed by a lot of physical and chemical synthesis methods.
  • Hard to control the size and morphology of AuNPs in the resulting composite.
[25,83,84]
Ex situ
  • Prior synthesis of nanoparticles ensures good control over morphology, size, distribution and density of AuNPs on graphene.
  • Requires more time and steps.
[76,82,84]
Hydro-thermal
  • Synthesis of nanoparticles with high crystallinity and narrow size distribution.
  • High production efficiency.
  • Requires high temp. and long reaction times, which may cause partial or complete reduction of GO.
[85,86,87]
Electro-chemical
  • Cost effective, robust and in most cases it’s a green approach.
  • Morphology and size of the AuNPs can be fine-tuned by adjusting the electrodeposition potential, time and concentration of precursor solution.
  • Normally involves multiple steps.
[41,88,89,90,91,92]
Table 4. Summary of the different synthesis approaches of graphene–gold nanocomposites.
Table 4. Summary of the different synthesis approaches of graphene–gold nanocomposites.
Name of the Synthesis ProcessName of the Final Graphene–Gold HybridGold—Functionalizing Agent (FA)/Stabilizing Agent (SA)/Reducing Agent (RA)Graphene—Functionalizing Agent (FA)/Stabilizing Agent (SA)/Reducing Agent (RA)/Reduction Process (RP)References
Seeded-growth simultaneous reductionrGO-AuNPsSodium citrate (FA), NaBH4 (RA)GO–rGO via redox chemistry of GO & Au Precursors (RP)[111]
Sequential reduction methodN2 doped graphene-AuNPsEthylene glycol (RA)Hydrazine hydrate & NH3 (RA)[112]
Chemical reduction in micro flow reactorGO-AuNPsDimethylamina borane (RA)No agent[113]
Eco-friendly chemical reduction methodrGO-AuNPsRose water (RA)Rose water (RA)[114]
Reductive deposition processrGO-AuNPsNo agentHydrazine and NH3[93]
Chemical reductionGraphene-AuNPsNaBH4 (RA) in presence of GOHydrazine hydrate (RA); SDS as a protector and disperser[94]
Solution-based chemical reductionGraphene-AuNPsNaBH4 (RA)ODA (FA)[95]
Green synthesis methodGO-AuNPsTannic acid as RA and immobilizing agentTannic Acid (FA)[97]
Electrostatic self- assemblyGraphene-AuNPsNaBH4 (RA)1-pyrene butyric acid (FA)[96]
Seed-assisted reduction methodrGO-AuNPsNaBH4 (RA) &Trisodium citrate (SA)Pyrene ethylene glycol amine or decyl pyrene (FA)[69]
Wet impregnation thermal reduction methodGraphene-AuNPsA flow of H2/Ar (RA)Hydrazine hydrate & NH3 (RA); Sulphur (FA)[98]
Reduction via amidation reactionGO-AuNPs4 amino-thiophenol (FA)Thionyl chloride (FA)[83]
Chemical ReductionGraphene-AuNPsSodium citrate (RA)1050 °C for 30 s in furnace (RP); Hydrazine hydrate (RA)[115]
Chemical reductionGO-AuNPsSodium citrate (RA)-[81]
Green dual reduction methodrGO-AuNPAscorbic acid (RA)Ascorbic acid (RA)
Polyvinylpyrrolidone (SA)
[116]
One-pot green synthesisGO-AuNPsTyrosine (RA)No agent[117]
Wet impregnation–thermal reduction methodGNs-AuNPsFlow of H2/Ar (10% H2) by ramping temp. From room temp. to 350 °C (10 °C/min) and holding at 350 °C for 3 hGO–GNs by Hydrazine hydrate and NH3[98]
Microwave reductionGO-AuNPsMicrowave exposure (1.05 kW, 2450 MHz)No agent[101]
Microwave-assisted simultaneous reductionGraphene-AuNPsMicrowave exposure (0.8 kw) at 80 °C for 5 min under vigorous stirringHydrazine hydrate (RA)[100]
Microwave irradiation—simultaneous reductionGraphene-AuNPsMicrowave irradiation for 5 minAscorbic acid (RA)[102]
Microwave-assisted simultaneous reductionGraphene-AuNPsMicrowave exposure (0.2 kw) for 2 minPolyethyleneimine (FA)[103]
Sonolytic simultaneous and sequential reductionGraphene-AuNPsUltrasonic frequency of 211 kHzNo agent[105]
Sonochemical reductionGraphene-AuNPsUltrasound irradiationNo agent[104]
One-pot one step photochemical methodGO-AuNRsUV-irradiation (256 nm, 30 W) for 25 min in a quartz tubeNo agent[106]
Photochemical reductionGraphene-AuNDsPhotochemistry (RA) in presence of octadecanethiolNo agent[107]
Photochemical reductionGraphene-AuNSPhoto (LED) irradiationNo agent[108]
Photo-assisted chemical reductionGraphene-AuNPsLaser light in presence of AuCl4 electrolyteNo agent[109]
Light-induced covalent interactionsrGO-AuNPs3-aryl-3-(trifluoromethyl) diazirine (FA)GO to rGO by high temp. (1050 °C for 30 s) reduction in an argon flow environment (RP)[23]
Self-catalysis reductionrGO-AuNPsNaBH4 (RA)
CTAB (SA)
NaBH4 (RA), GO–AuNPs (catalyst)[84]
Self-assembly/Noncovalent attachmentrGO-AuNPs & GO-AuNPs2-mercaptopyridine (FA), Trisodium citrate (SA/RA)-[82]
Thermal reduction of GO/electrostatic attractionsrGO-AuNPs-GO to rGO by thermal (200 °C) reduction in an argon flow environment[96]
LBL self-assembly/electrostatic interactionsGraphene-AuNPsTrisodium citrate (SA)BSA (RA & SA)[118]
-Graphene-aerogel (GA)@AuNPs/AuNPsCitric Acid (RA)Ascorbic acid (RA) for GO to GA; freezing drying and thermal annealing at 180 °C for 6 h for final products[119]
Table 5. In situ electrochemical reduction approaches for graphene–gold nanoparticles.
Table 5. In situ electrochemical reduction approaches for graphene–gold nanoparticles.
ElectrodeComposition of Electrolytic SolutionApplied Electrochemical Potential and Reaction ConditionReferences
AuNPs/rGO/GCE10 mM AuCl3, Nafion (0.5%), and 0.1 M H2SO4−1.0 V for 500 s.[41]
Au film/graphene–Au nanocomposite/GCE0.1 mM HAuCl4−1.2 V for 50 s for graphene; −0.25 V for 50 s for Au electrodeposition. Run the process using alternate graphene and AuNPs for 3 cycles.[89]
DHB/AuNPs/rGO/GCE0.3 mM HAuCl4−0.2 V for 24 h at room temp.[90]
Graphene/nano-Au/GCE0.1 M Kn and 5 mM HAuCl4−0.2 to 1.0 V for 2 cycles at scan rate of 50 mV∙s−1.[91]
AuNP/electro reduced graphene (eGr)/Indium titanium oxide (ITO)0.5 mM HAuCl4.nH2O in phosphate buffer0 to −1.6 V continuously for 75 cycles at a scan rate 50 mV·s−1 to electrodeposit eGr on ITO and 25 cycles for AuNPs electrodeposition.[120]
AuNPs/2,5-di-(2-thienyl)-1-pyrrole-1-(p-benzoic acid) (DPB)/graphene/Au electrode3 mM of HAuCl4 containing 0.5 M H2SO4−1.2 V for 200 s for electrochemical reduction and deposition of GO on Au electrode; −0.25 V for 25 s at 10 °C for the electrodeposition of AuNPs.[121]
AuNPs/graphene-nanofibers/GCE25 mM of HAuCl4 containing 0.1 M Na2SO4 solution−0.4 V for 300 s for the electrochemical deposition of AuNPs.[122]
AuNPs/graphene/GCEmM HAuCl4 solution containing 0.5 M H2SO4−1.2 V for 1200 s for the electrochemical reduction of GO on the electrode surface; −0.25 V for 30 s for the electrodeposition of AuNPs.[123]
Graphene/nano-Au/GCE0.1 M phosphate buffer (pH 7.0) containing 6.5 mM HAuCl40 to −2 V at a scan rate of 100 mV·s−1 for continuous cyclic voltammetric sweep of 40 cycles.[124]
AuNPs/GO/GCEHAuCl4 solutionElectrodeposition of AuNPs by pulse voltammetry with a pulse width of 0.1 s, potential 1.1 and −0.2 V, respectively.[125]
AuNPs/ERGO/carbon ionic liquid electrode (CLIE)5.0 mM HAuCl4 solution−1.3 V for 300 s to from a stable ERGO on the surface of CILE; −0.4 V for 300 s for electrodeposition of AuNPs on ERGO/CILE.[126]
Table 6. Graphene–gold nanocomposites-based electrochemical biosensors, target analytes with respective specificity of detection.
Table 6. Graphene–gold nanocomposites-based electrochemical biosensors, target analytes with respective specificity of detection.
Composition of the SensorsDetected AnalyteLinear Range of DetectionLODReferences
GOD/rGO–AuNPs/GCEGlucose1–8 mM10 μM[114]
Graphene/nano–Au/GOD/GCEGlucose0.2–2 and 2–20 mM17 μM[124]
Graphene/AuNPs/chitosan/GODGlucose2–10 mM180 μM[159]
GOD/graphene–AuNPs/GCEGlucose0.1–10 mM35 mM[160]
Graphene Rod/AuNPs/GODGlucose0.1–10 mM83 μM[162]
GCE–ATP–GNs–AuNPs–GODGlucose1–12 mM (voltammetry)9.3 μM[98]
GCE–ATP–GNs–AuNPs–GODGlucose1–8 mM (EIS)4.1 μM[98]
GOD/graphene–AuNPsGlucose0.02–2.264.1 μM[163]
[email protected]/AuNPsGlucose0.01–16 mM4.0 μM[119]
Graphite/SrPdO3/AuNPsGlucose0.1–6 mM10.1 μM[164]
GOD–graphene/PANI/AuNPs/GCEGlucose0.004–1.12 mM0.6 μM[161]
Graphene/Au–NPs/GCEH2O20.0005–0.5 mM0.44 μM[165]
Nafion/Hb/AuNPs–graphene/GCEH2O20.0001–0.07 mM0.03 μM[87]
GCE–GO–AuNP–ssDNADNA-100 fM[125]
ssDNA/AuNPs–ATPGO/GCEDNA1.0 × 10−13 to 1.0 × 10−9 M1.13 × 10−14 M[173]
ssDNA/AuNPs/TB–GO/GCEMDR gene (DNA)1.0 × 10−11 to 1.0 × 10−9 M2.95 × 10−12 M[168]
Capture probe (cDNA)/AuNPs–rGO/GCEDNA0.1 μM to 0.1 fM35 aM[167]
Au film/graphene–Au nanocomposite/GCEPeanut allergen Ara h1 gene10−16 to 10−13 M0.041 fM[89]
DHB/AuNPs/rGO/GCElevodopa (LD)0.05–1200.0 μM18 nM[90]
Au NP/GO/GCEsAscorbic Acid0.11–0.6 mM100 nM[81]
Graphene/AuNPs/GCEDES1.20 × 10−8 to 1.20 × 10−5 M9.80 × 10−9 M[91]
AuNPs/rGO/GCENADH in human urine50 nM to 500 μM1.13 nM[41]
AuNPs/ERGO/CILEFolic Acid0.01 μM to 50.0 μM2.7 nM[126]
AuNPs/1-pyrene butyric acid-functionalized graphene/GCEUric acid2.6 × 10−6 to 6.2 × 10−5 M2.0 × 10−7 M[96]
Graphene nanosheet–PEI/AuNPs/GCEDopamine2.0 to 48.0 μM0.2 μM[103]
[AuNPs/rGO]20/GCEDopamine1.0 to 60.0 μM0.02 μM[135]
Hb/AuNPs–graphene–SDS/BPGNitric oxide7.2 × 10−7 to 7.92 × 10−6 M1.2 × 10−8 M[94]
Hb/AuNPs/GACS/GRENitrite0.05 to 1000 μM0.01 μM[172]
AuNPs/graphene nanofibers/GCEBisphenol A in baby bottle8.0 × 10−8 to 2.5 × 10−4 M3.5 × 10−8 M[122]
Anti-BPA/MCH/AuNPs/graphene/GCEBisphenol A in milk sample0.01–10.0 μM5 nM[123]
Aflatoxin B1 antibody-AuNPs/DPB/graphene/Au electrodeAflatoxin B1 in spiked food3.2 fM–0.32 pM1 fM[121]
AuNP/N2-doped graphene/GCEChloramphenicol2.0 × 10−6 to 8.0 × 10−5 M5.9 × 10−7 M[112]
Anti-estradiol antibody-AuNP–eGr/ITO17 β-estradiol1 × 10−3 to 0.1 × 10−12 M0.1 fM[120]
rGO–AuNPs-modified GCEM. tuberculosis1.0 × 10−15 and 1.0 × 10−9 MfM level[169]
E. coli O157:H7 antibodies-AuNPs/rGOPEE. coli O157:H71.5 × 102 to 1.5 × 107 cfu/mL1.5 × 102 cfu/mL[170]
Au-graphene–AuNPs electrodeCarbamazepine5 × 10−6 to 10−2 M3.03 × 10−6 M[110]
anti-CEA/AuNPs/Arg/rGO/CILECEA0.5 to 200 ng·mL−10.03 ng·mL−1[171]
AuNP–graphene/CILEHydroquinone0.06 μM to 800.0 μM0.018 μM[100]
Table 7. SERS enhancement of the graphene–gold hybrid nanocomposites.
Table 7. SERS enhancement of the graphene–gold hybrid nanocomposites.
Name of the Hybrid SubstrateSERS—Order of MagnitudeCompared MaterialReferences
rGO–AuNPs100Pure AuNPs[42]
Graphene–AuNS45Graphene[43]
Graphene–AgNS150Graphene[43]
AuNPs/graphene/SiO2/Si120Graphene/SiO2/Si[199]
Graphene–AuNPs10–100AuNPs[212]
Graphene–AuNPs77.6Graphene[213]
Pyrene ethylene glycol amine-functionalized rGO/AuNRs14.7Bare rGO[69]
R6G/GO–AuNR with CTAB10Pure AuNRs[200]
Nano GO (nGO)–Au nanostars5.3nGO[214]
Graphene–AuNPs3.3AuNPs[215]
R6G/AuNP/graphene/SiO2/Si86Graphene/SiO2/Si with R6G[216]
Ag/rGO/Au for rhodamine B (RhB)8.8Pristine Ag dendrites[217]
AuNPs/rGO/SiO2/Si40Blank substrate[209]
GO–AuNPs~4GO[218]
Neural Stem Cells on GO encapsulated AuNPs3.5AuNPs[139]
GO–AuNS3GO[219]
GO/PVP/intracellularly grown AuNPs (IGAuNPs)5IGAuNPs[220]
Carbaryl on graphene–Au film–AuNR2Au film–AuNR[202]
Carbaryl on graphene–Au film–AuNR100Graphene–AuNR[202]
Si/N2 doped diamond-like carbon (DLC-N)/Au/rGO/Au for RhB860Si/DLC-N[221]
GO-popcorn shaped AuNPs hybrid for R6G11GO[203]
GO-Au nanocage for RDX4Au nanocage[211]
Graphene-isolated AuNC (GIAN) nanostructures for R6GMore than 100R6G[138]
[email protected]/GO/[email protected] sandwich for R6GEnhancement factor of ~7.0 × 107-[193]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
