Next Article in Journal
Temperature-Driven Structural and Morphological Evolution of Zinc Oxide Nano-Coalesced Microstructures and Its Defect-Related Photoluminescence Properties
Previous Article in Journal
Microwave Synthesized ZnO Nanorod Arrays for UV Sensors: A Seed Layer Annealing Temperature Study
Open AccessArticle

Mechanical Properties, Short Time Creep, and Fatigue of an Austenitic Steel

Department of Engineering Mechanics, Faculty of Engineering, University of Rijeka, Rijeka 51000, Croatia
School of Material Science and Engineering, Henan Polytechnic University, Jiaozuo 454003, China
School of Material Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
Author to whom correspondence should be addressed.
Academic Editor: Richard Thackray
Materials 2016, 9(4), 298;
Received: 26 February 2016 / Revised: 8 April 2016 / Accepted: 15 April 2016 / Published: 20 April 2016

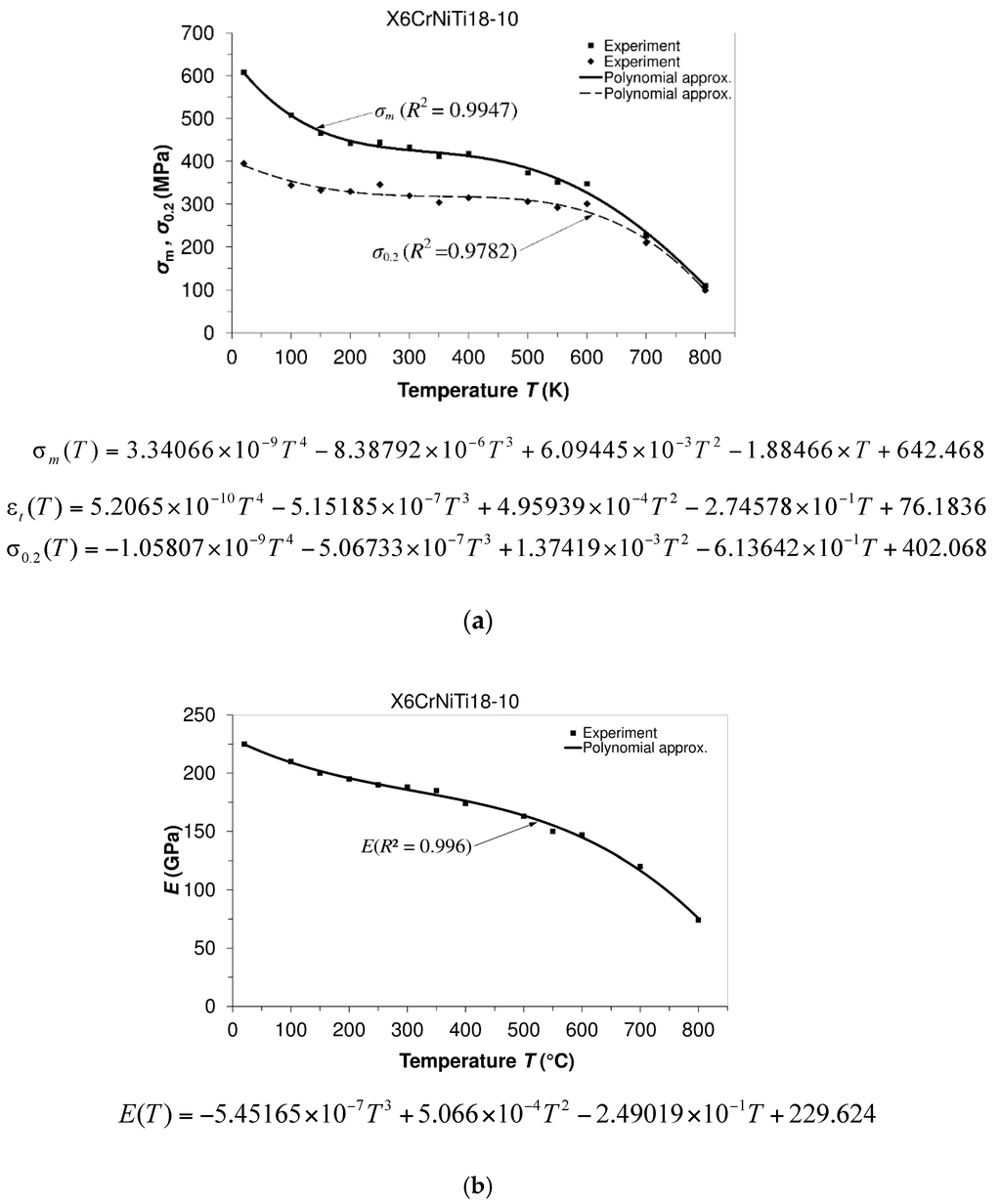

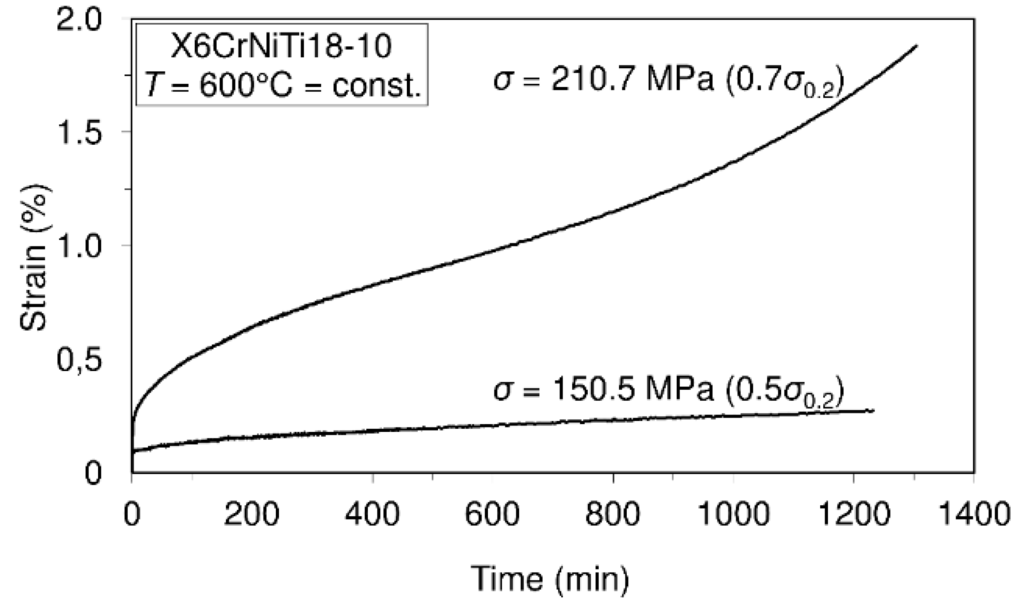

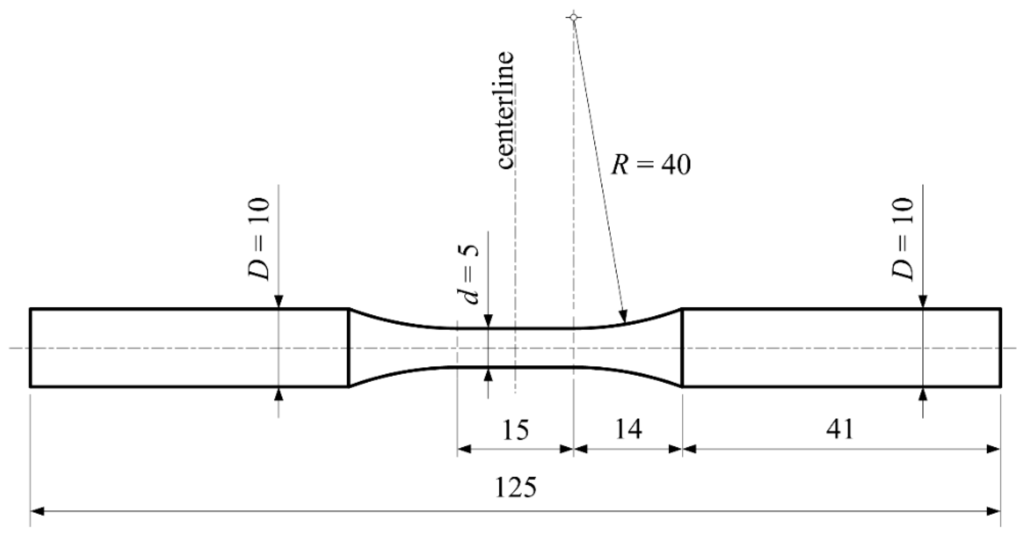

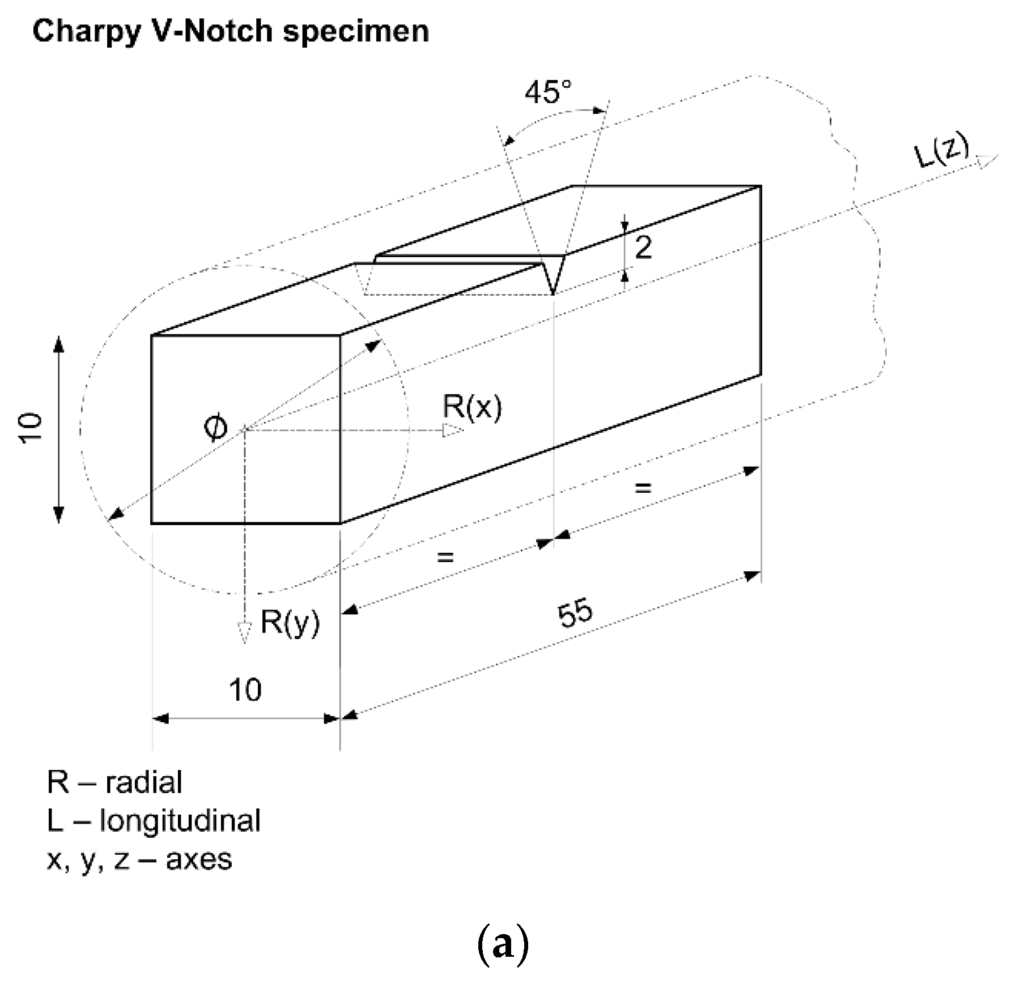

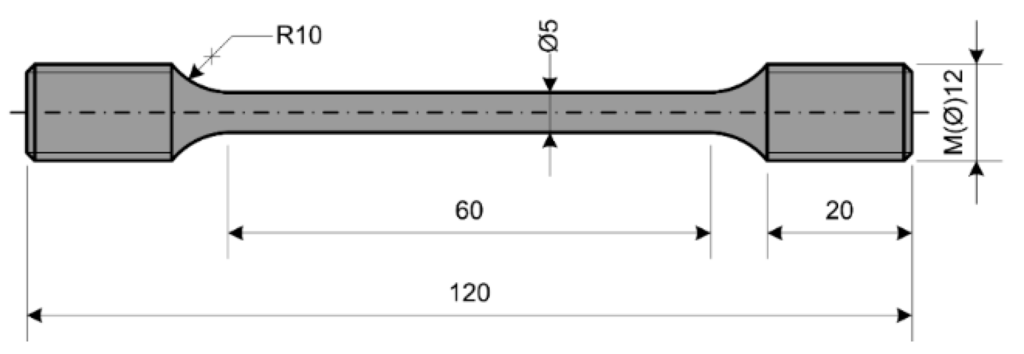

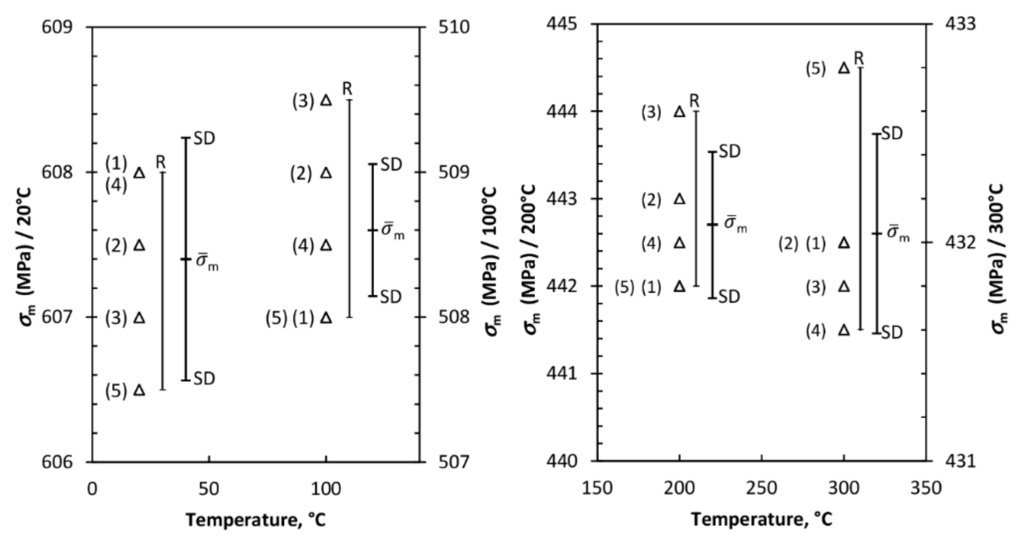

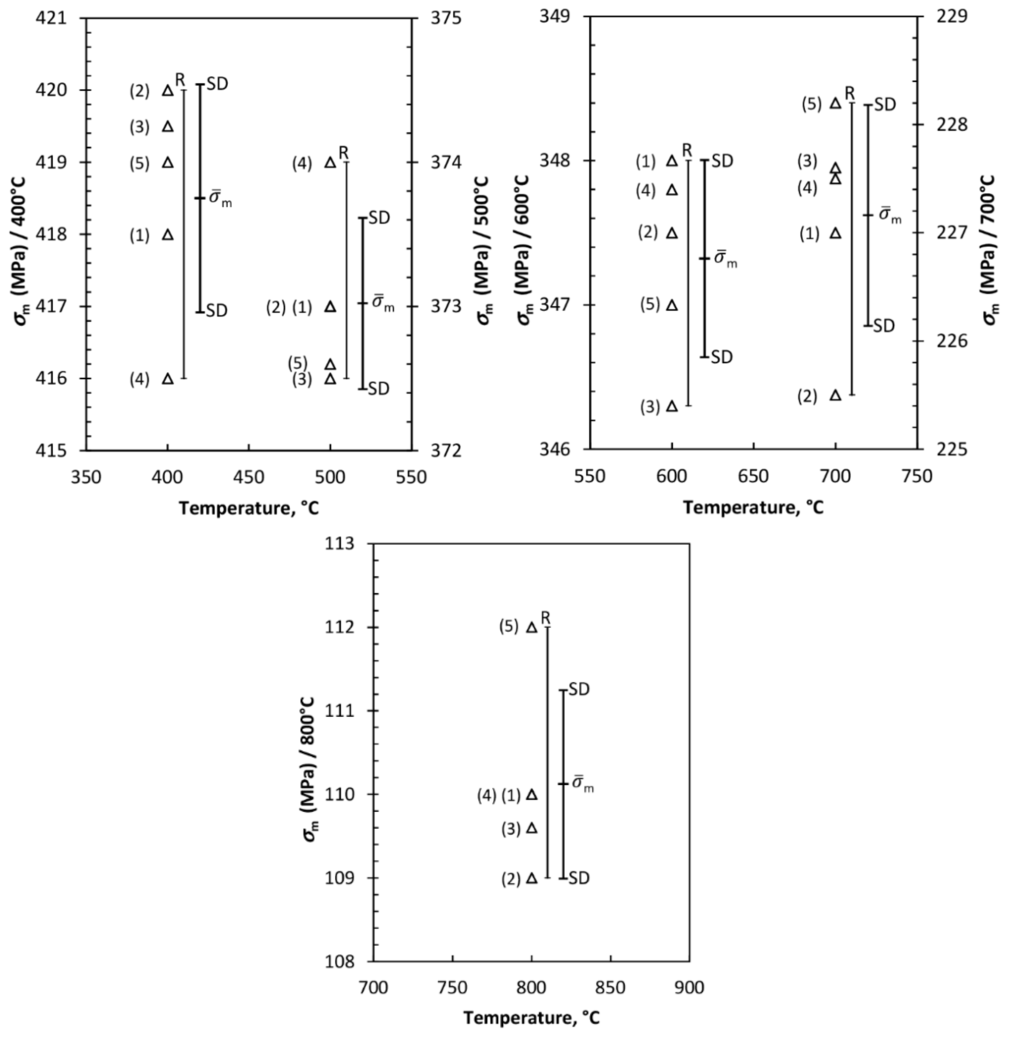

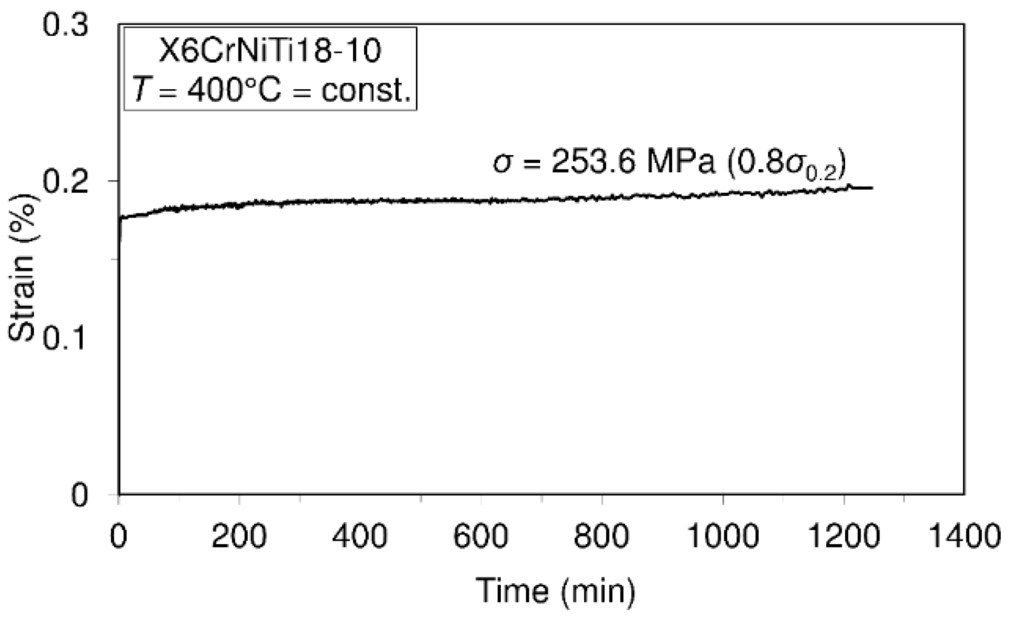

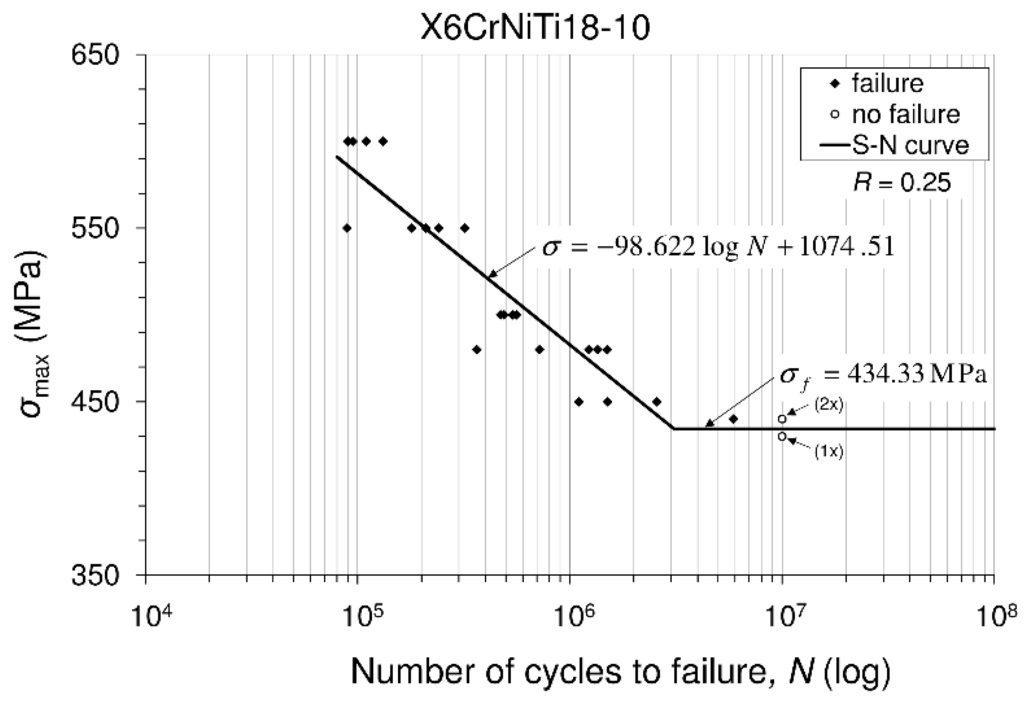

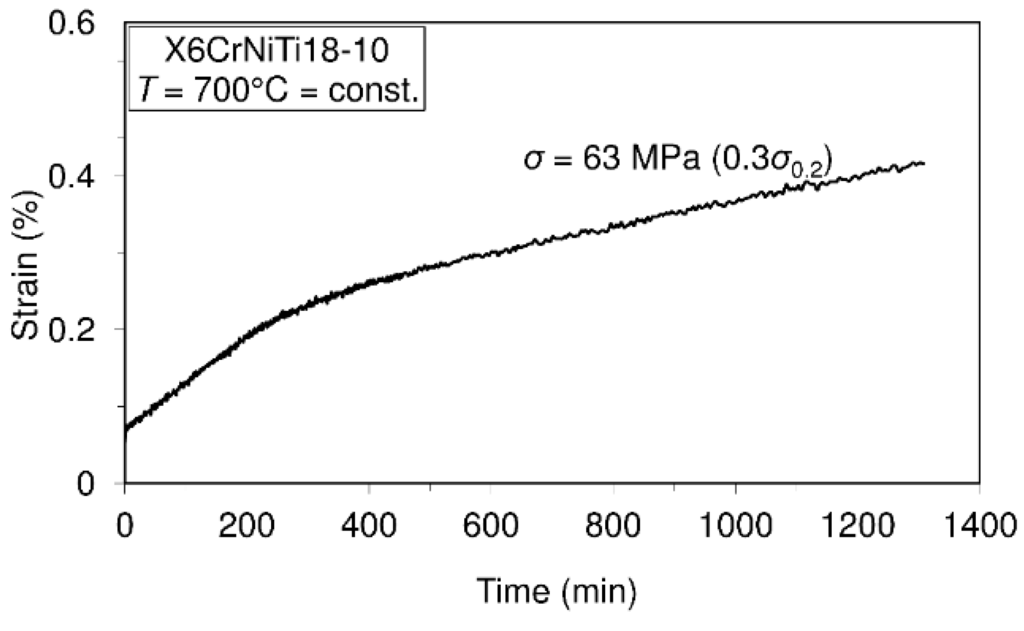

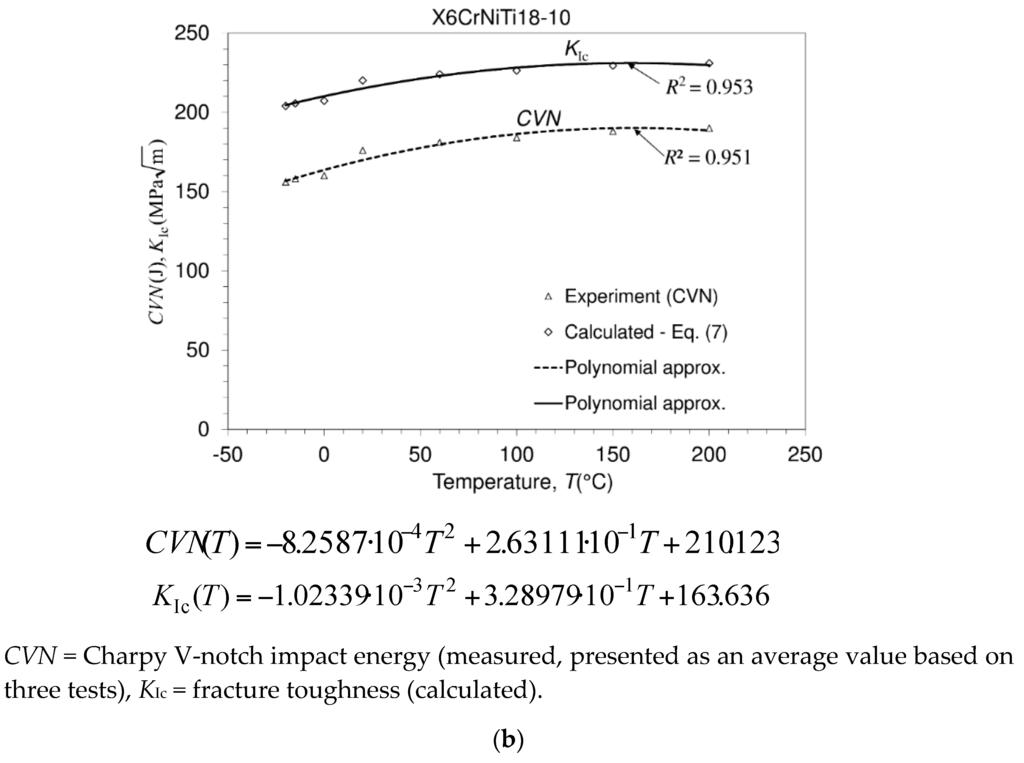

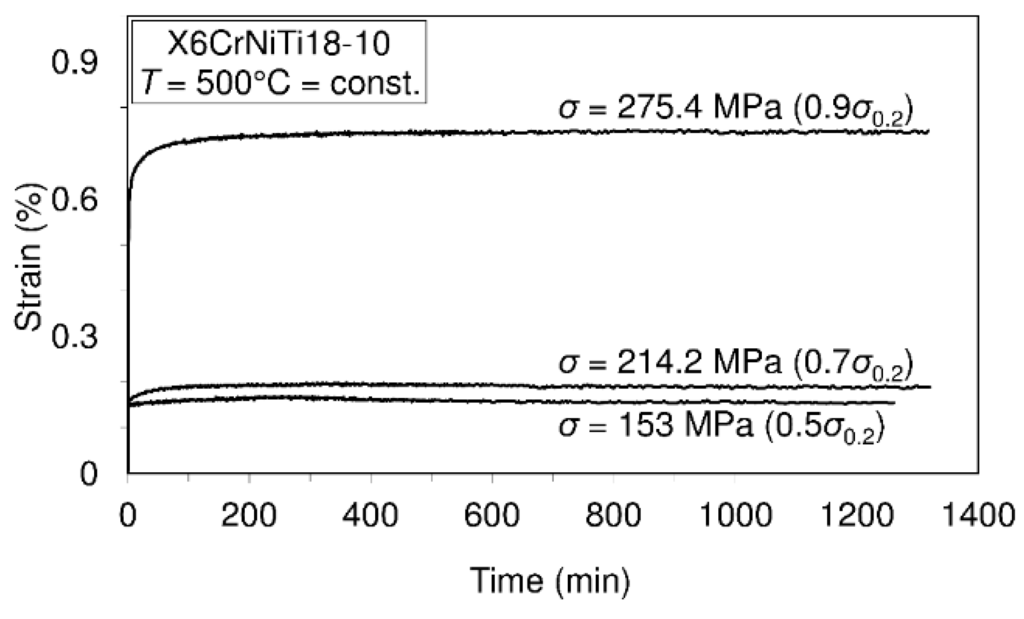

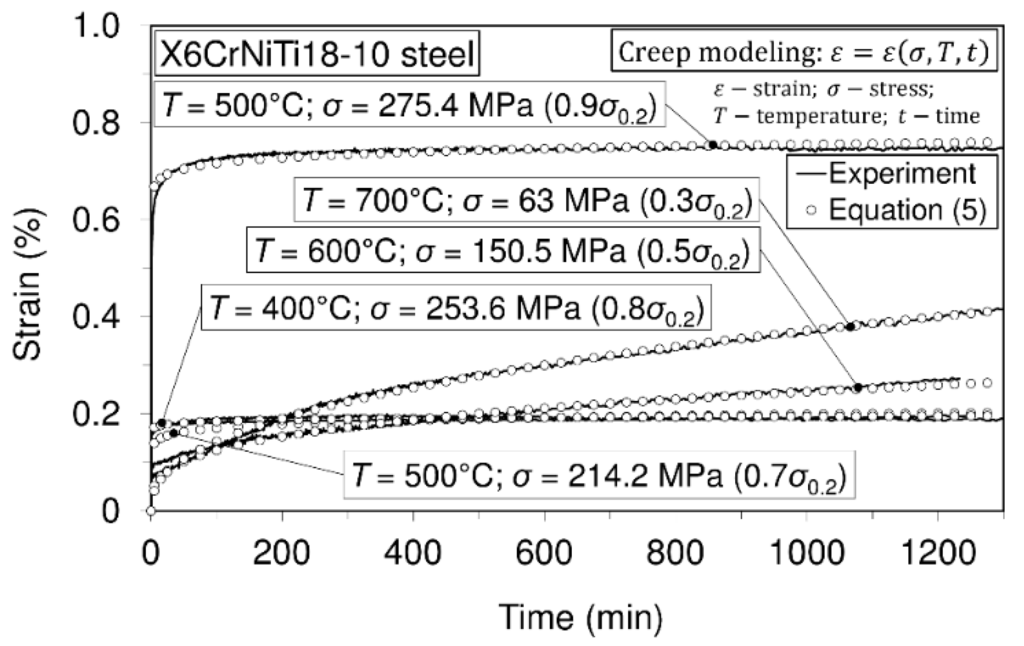

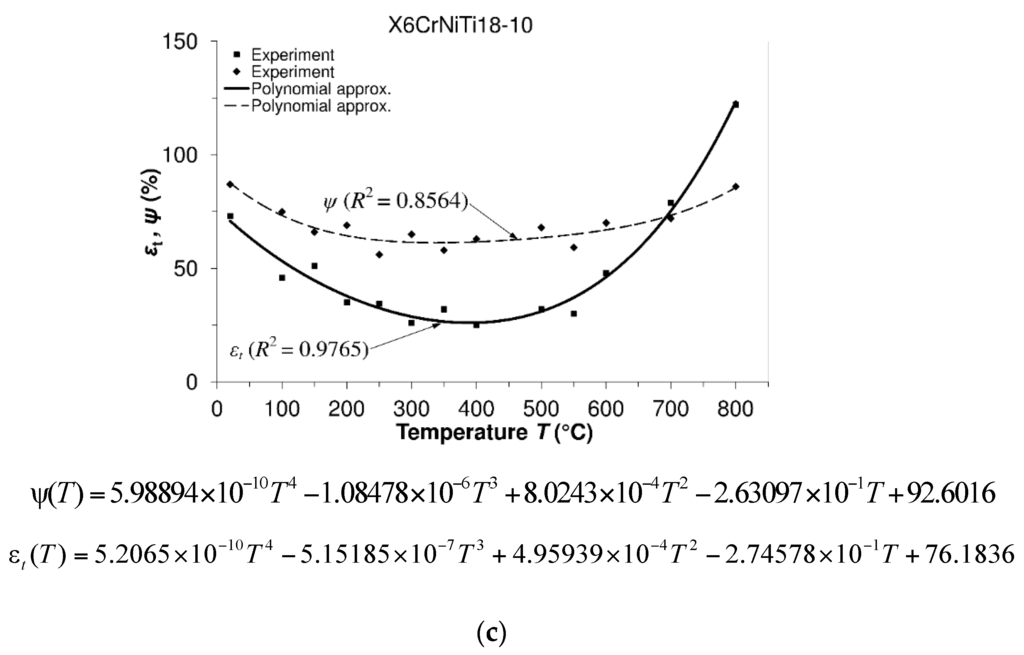

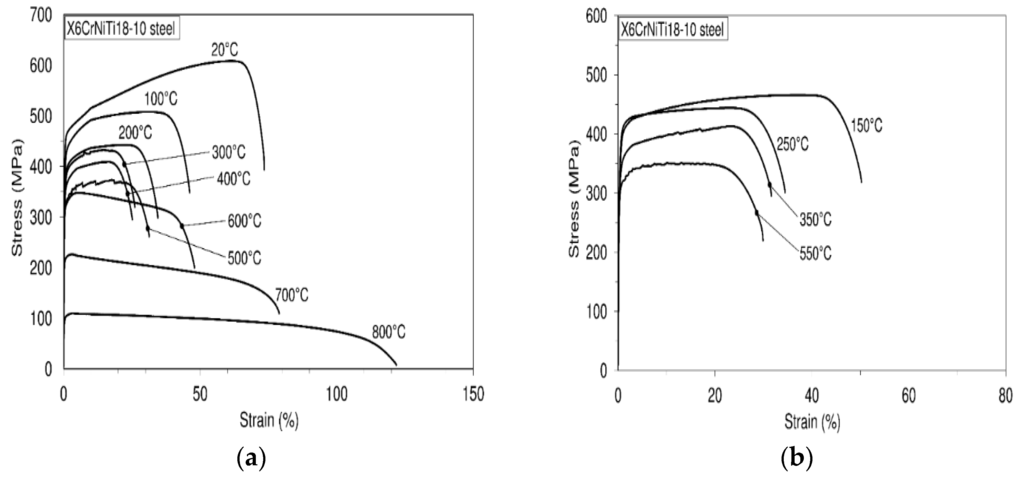

The correct choice of a material in the process of structural design is the most important task. This study deals with determining and analyzing the mechanical properties of the material, and the material resistance to short-time creep and fatigue. The material under consideration in this investigation is austenitic stainless steel X6CrNiTi18-10. The results presenting ultimate tensile strength and 0.2 offset yield strength at room and elevated temperatures are displayed in the form of engineering stress-strain diagrams. Besides, the creep behavior of the steel is presented in the form of creep curves. The material is consequently considered to be creep resistant at temperatures of 400 °C and 500 °C when subjected to a stress which is less than 0.9 of the yield strength at the mentioned temperatures. Even when the applied stress at a temperature of 600 °C is less than 0.5 of the yield strength, the steel may be considered as resistant to creep. Cyclic tensile fatigue tests were carried out at stress ratio R = 0.25 using a servo-pulser machine and the results were recorded. The analysis shows that the stress level of 434.33 MPa can be adopted as a fatigue limit. The impact energy was also determined and the fracture toughness assessed. View Full-Text
Keywords: mechanical properties; creep test; fatigue; austenitic stainless steel mechanical properties; creep test; fatigue; austenitic stainless steel
Show Figures

Figure 1

MDPI and ACS Style

Brnic, J.; Turkalj, G.; Canadija, M.; Lanc, D.; Krscanski, S.; Brcic, M.; Li, Q.; Niu, J. Mechanical Properties, Short Time Creep, and Fatigue of an Austenitic Steel. Materials 2016, 9, 298.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
