Article

Origin of Activity and Stability Enhancement for Ag3PO4 Photocatalyst after Calcination

by
Pengyu Dong
1,*,
Guihua Hou
1,
Chao Liu
2,
Xinjiang Zhang
2,
Hao Tian
2,
Fenghua Xu
2,
Xinguo Xi
3 and
Rong Shao
3,*
1
Key Laboratory for Advanced Technology in Environmental Protection of Jiangsu Province, Yancheng Institute of Technology, Yancheng 224051, China
2
School of Materials Engineering, Yancheng Institute of Technology, Yancheng 224051, China
3
Jiangsu Collaborative Innovation Center for Ecological Building Materials and Environmental Protection Equipments, Yancheng Institute of Technology, Yancheng 224051, China
*
Authors to whom correspondence should be addressed.
Materials 2016, 9(12), 968; https://doi.org/10.3390/ma9120968
Submission received: 30 September 2016 / Revised: 21 November 2016 / Accepted: 23 November 2016 / Published: 29 November 2016
Browse Figures
Versions Notes

Abstract

:
Pristine Ag3PO4 microspheres were synthesized by a co-precipitation method, followed by being calcined at different temperatures to obtain a series of calcined Ag3PO4 photocatalysts. This work aims to investigate the origin of activity and stability enhancement for Ag3PO4 photocatalyst after calcination based on the systematical analyses of the structures, morphologies, chemical states of elements, oxygen defects, optical absorption properties, separation and transfer of photogenerated electron-hole pairs, and active species. The results indicate that oxygen vacancies (VO˙˙) are created and metallic silver nanoparticles (Ag NPs) are formed by the reaction of partial Ag+ in Ag3PO4 semiconductor with the thermally excited electrons from Ag3PO4 and then deposited on the surface of Ag3PO4 microspheres during the calcination process. Among the calcined Ag3PO4 samples, the Ag3PO4-200 sample exhibits the best photocatalytic activity and greatly enhanced photocatalytic stability for photodegradation of methylene blue (MB) solution under visible light irradiation. Oxygen vacancies play a significantly positive role in the enhancement of photocatalytic activity, while metallic Ag has a very important effect on improving the photocatalytic stability. Overall, the present work provides some powerful evidences and a deep understanding on the origin of activity and stability enhancement for the Ag3PO4 photocatalyst after calcination.

Graphical Abstract

1. Introduction

Photocatalysis using semiconductors has attracted considerable attention due to its potential applications in solving energy supply and environmental pollution problems [1]. Much effort has been devoted to exploit new and efficient visible light-driven photocatalysts [2,3]. In particular, a breakthrough was made by Ye et al., who used silver phosphate (Ag3PO4) semiconductor as the visible light photocatalyst for the oxidation of water as well as the photodecomposition of organic compounds. The results indicated that Ag3PO4 semiconductor had an extremely higher visible light activity than commercial TiO2−xNx [4,5]. Zhu et al. investigated the origin of photocatalytic activation of Ag3PO4 via first-principle density functional theory, showing that Ag3PO4 had a large dispersion of conduction band (CB) and the inductive effect of PO43−, favoring the separation of electron-hole pairs [6]. In the past several years, various strategies have been developed to further improve the photocatalytic activity and stability of Ag3PO4 under visible light irradiation. Coupling of Ag3PO4 with other semiconductors or noble metals is an effective approach to promote the charge separation efficiency of Ag3PO4, and thus improve the photocatalytic activity. Some coupled systems such as Ag3PO4/TiO2 [7,8,9], Ag3PO4/AgX (X = Cl, Br, I) [10], Ag3PO4/Ag [11,12,13], Ag3PO4/g-C3N4 [14,15] and Ag3PO4/graphene [16,17,18,19] have recently been developed to improve the photocatalytic activity of Ag3PO4. On the other hand, morphological engineering design is another effective approach to modify the photocatalytic activity of Ag3PO4. For instance, our research group synthesized Ag3PO4 crystals with various morphologies such as branch, tetrapod, nanorod, and triangular prism [20] and tetrahedral Ag3PO4 mesocrystals [21]. Additionally, other groups also prepared cubic sub-microcrystals [22], colloidal nanocrystals [23], hierarchical porous microcubes [24], tetrapod microcrystals [25,26,27], and two-dimensional dendritic nanostructures [28] of Ag3PO4. Nevertheless, researchers are still trying their best to explore novel and facile ways to further improve the photocatalytic activity and stability of Ag3PO4.
Recently, we found that the photocatalytic activity of Ag3PO4 was highly enhanced after calcination process in the air. However, we do not want to avoid the fact that two papers were recently published (nearly) simultaneously. Chong et al. prepared Ag3PO4 by using AgNO3 as the precursor, and found that Ag3PO4 annealed at 400 °C showed the best photocatalytic degradation performance under visible light due to the synergistic effect of crystallinity, oxygen vacancies and specific surface [29]. Nevertheless, it lacked the direct evidence for the formation of oxygen vacancies as well as the content of oxygen vacancies, and the detailed photocatalytic mechanism was not discussed. On the contrary, Yan et al. reported that the thermal treatment yielded many Ag vacancies within Ag3PO4 lattices, and both metallic Ag NPs and Ag vacancies in annealed Ag3PO4 samples were beneficial to the enhancement of photocatalytic activity toward methyl orange (MO) degradation under visible light irradiation [30]. However, no corresponding direct evidence was introduced to prove the presence of Ag vacancies within Ag3PO4 lattices. Therefore, some interesting questions naturally arise: What makes the contrary behavior? What are the substantial changes of Ag3PO4 during the calcination process? What is the evidence?
In this work, the substantial changes happened to Ag3PO4 after calcination were investigated based on the systematical analyses of the structures, morphologies, chemical states of elements, oxygen defects (including the direct and indirect evidences for the formation of oxygen vacancies and the content of oxygen vacancies), optical absorption properties, separation and transfer of photogenerated electron-hole pairs, and active species. The reasons for the enhancement of photocatalytic activity and stability of calcined Ag3PO4 series samples were analyzed and revealed. Furthermore, the transfer pathways of photo-induced carriers and degradation mechanism were proposed and discussed in detail.

2. Experimental

2.1. Synthesis

The calcined Ag3PO4 photocatalysts were synthesized as follows. Firstly, the pristine Ag3PO4 sample was prepared by a co-precipitation method in the dark at room temperature, according to a procedure described in the literature [4]. Typically, 1 g Na2HPO4 was dissolved into 250 mL deionized water to form a transparent solution. Then, 13.5 mL CH3COOAg solution (0.15 M) was dropped into the above Na2HPO4 solution under stirring. After stirring for 0.5 h, the obtained sample was filtered, washed with deionized water and ethanol, and dried at 80 °C overnight in vacuum. Secondly, the as-obtained Ag3PO4 precursor was placed in quartz boat and calcined in muffle furnace at a heating rate of 1 °C/min for 1 h at 100, 200, 300, and 400 °C in air atmosphere, respectively. The final Ag3PO4 photocatalysts were denoted as Ag3PO4-T, where T refers to the calcination temperature (100, 200, 300, and 400 °C).
To identify the roles of metallic Ag and oxygen vacancies, Ag/Ag3PO4 composite was prepared by photodeposited method using the pristine Ag3PO4 as the precursor. The synthesis details are as follows. The as-obtained Ag3PO4 precursor was dispersed into the CH3COOAg solution and irradiated with a 300 W Xe lamp for 1 h. Then the photocatalyst was filtered, washed with deionized water and ethanol, and dried at 80 °C overnight, which was marked as Ag/Ag3PO4-PD.

2.2. Characterization

The phase of the as-prepared samples was identified using Rigaku D/max-2400 X-ray diffractometer (XRD, Rigaku, Tokyo, Japan) with Ni-filtered Cu Kα radiation at room temperature. Thermogravimetric and differential scanning calorimetric analyses (TG-DSC) were performed with a NETZSCH DSC 200 F3 under an air flow, and the measurements were conducted from room temperature to 600 °C at a heating rate of 10 °C/min. Brunauer-Emmett-Teller (BET) surface area measurements were carried out using a Micromeritics ASAP 2000 system (Micromeritics Instrument Corp., Atlanta, GA, USA). The morphology was investigated by scanning electron microscopy (SEM, JSM-7500F, JEOL, Tokyo, Japan). X-ray photoelectron spectroscopy (XPS) measurements were carried out to investigate the surface chemical compositions and states with Al Kα X-ray (hν = 1486.6 eV) radiation source (K-Alpha, Thermo Electron, Waltham, MA, USA). The binding energies (BE) were referenced to the adventitious C 1s peak (284.6 eV) which was used as an internal standard to take into account charging effects. Electron paramagnetic resonance (EPR) spectra were recorded on a JEOL JES-FA200 EPR spectrometer (JEOL, Tokyo, Japan) at room temperature. A combination of Gaussian and Lorentzian functions was used to fit the curves. Photoluminescence (PL) spectra were recorded on a 48000DSCF luminescence spectrometer (SLM Corp., Edison, NJ, USA) at room temperature by using a continuous-wave 325 nm He-Cd laser as the excitation source. UV-Vis diffuse reflectance spectra (DRS) were obtained on a UV-Vis spectrophotometer (UV-2600, Shimadzu, Kyoto, Japan) using BaSO4 as reference. The samples were pressed into a thin disk and fixed in a homemade quartz cell. The electrochemical impedance spectra (EIS) and Mott-Schottky (MS) plots of the as-prepared photocatalysts were measured on an electrochemical analyzer (CHI660E, Shanghai Chenhua Instruments Co., Ltd., Shanghai, China), and the details are described in Supplementary Materials.

2.3. Photocatalytic Tests

According to the test method of photocatalytic materials for purification of water solution (GB/T 23762-2009, China) [31], the visible light photocatalytic activity of as-prepared samples was evaluated by degradation of MB in aqueous solution. The test details are as follows. Firstly, 0.10 g of catalyst was suspended in an MB aqueous solution (200 mL, 10 mg/L) in the dark for 1 h to gain the adsorption-desorption equilibrium. After the adsorption equilibrium of MB, the photocatalytic degradation reaction was carried out in a beaker with a circulating water system to remove the thermal effect of light. Light from a 300 W Xe lamp (HSX-UV300, Beijing NBET Technology Co. Ltd., Beijing, China), passed through a UV light filter film (to remove radiation with λ < 420 nm), was focused onto the reaction cell. When the light was turned on, at given time intervals, approximately 4 mL of the reaction suspension was sampled and thoroughly separated by means of high-speed centrifugation (18,000 rpm for 10 min) to reduce the experimental errors as much as possible. Then, clear and transparent filtrate was analyzed by recording the maximum absorbance at 664 nm in the UV-visible spectrum of MB. The degradation efficiency at time t was determined from the value of Ct/C0, where C0 is the initial concentration and Ct is the concentration of MB at time t.
The photocatalytic stability of pristine Ag3PO4 and Ag3PO4-200 was also investigated by checking the cycling runs in photocatalytic degradation of MB. Four consecutive cycles were completed and each cycle lasted for 14 min. After each cycle, the photocatalyst was filtrated and washed thoroughly with deionized water, and then fresh MB solution (10 mg/L) was added again for the next cycling run. The Ag3PO4-200 after second cycle was marked as the used Ag3PO4-200 sample.
The active species capturing experiments were carried out to study the photocatalytic mechanism. Different radical scavengers such as ethylenediaminetetraacetic acid disodium salt (EDTA-2Na, 1 mmol/L), tert-butyl alcohol (t-BuOH, 1 mmol/L) and 1,4-benzoquinone (BQ, 1 mmol/L) were added to the MB aqueous solution, sequentially, to capture various active species. Then, the remaining experimental processes were similar to the above photocatalytic activity test.

3. Results and Discussion

3.1. Phenomenon of the Enhanced Photocatalytic Activity and Stability

Figure 1 shows the photocatalytic activities of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) under visible light irradiation. First of all, MB solution was illuminated under visible light irradiation in the absence of photocatalyst and the result indicates that the self-degradation of MB is neglectable. The photocatalytic degradation efficiency of MB over pristine Ag3PO4 and Ag3PO4-T follows the order of Ag3PO4-200 > Ag3PO4-100 > Ag3PO4-300 ≈ Ag3PO4-400 > pristine Ag3PO4. The variation of absorption intensity of MB dye solutions over these samples at different irradiation times was recorded (Supplementary Materials Figure S1), which strongly supports the above result. Clearly, the photocatalytic activity of calcined Ag3PO4 samples is much higher than that of pristine Ag3PO4. More strikingly, the Ag3PO4-200 sample shows the highest photocatalytic activity among these calcined Ag3PO4 series samples, with the decomposition of about 98% MB within 4 min, while only 40% MB was decomposed by pristine Ag3PO4 within 4 min, even, only 80% MB was decomposed by pristine Ag3PO4 after 14 min under visible light irradiation. It is obvious that the photocatalytic activity of Ag3PO4 was significantly enhanced after calcination. This enhancement strategy aroused our great interest, which requires neither the combination with other semiconductor nor the design of morphology engineering. Anyway, this phenomenon of the enhanced photocatalytic activity suggests that something happened to Ag3PO4 during the simple calcination process.
To investigate the photocatalytic stability, pristine Ag3PO4 and Ag3PO4-200 were selected and used to carry out the cycling runs in photocatalytic degradation of MB under visible light irradiation, as displayed in Figure 2. It is observed that the Ag3PO4-200 still maintains a high photocatalytic activity even after four cycles. In contrast, the pristine Ag3PO4 shows a significant decrease in its photocatalytic degradation efficiency, and almost no MB degradation occurs over pristine Ag3PO4 after four cycles. This result clearly indicates that the Ag3PO4-200 sample possesses excellent photocatalytic stability.

3.2. Investigation of Substantial Changes

In order to make clear the origin of the enhanced photocatalytic activity and stability for Ag3PO4 after calcination, XRD, TG-DSC, BET, SEM, XPS, EPR, PL and UV-Vis DRS technologies were employed.
It is well-known that a high calcination temperature always improves the crystallization of photocatalysts [32]. In order to examine whether the crystallinity is enhanced after calcination process, the as-prepared samples were identified by XRD. As shown in Figure 3, the XRD pattern of the as-prepared pristine Ag3PO4 is in good accordance with the standard data (JCPDS No. 06-0505), indicating the formation of the pure Ag3PO4 phase with a body-centered cubic (bcc) structure. The intense and well-defined diffraction peaks suggest that pristine Ag3PO4 sample is well crystallized. After calcination in air, the crystal structure of the resulted samples is retained, showing a good thermal stability of the pristine Ag3PO4. However, it should be noted that the peak intensity of Ag3PO4-T samples does not obviously increase as expected. Especially, the samples of Ag3PO4-200, Ag3PO4-300 and Ag3PO4-400 show slightly decreased peak intensities, meaning that the crystallinity of these samples is slightly reduced.
Figure S2 presents TG-DSC curves of pristine Ag3PO4 measured in air atmosphere. The first weight loss below 150 °C is attributed to the release of free water (ca. 0.7 wt %). The second weight loss (ca. 1.2 wt %) ranging from 150 to 371 °C is due to the dehydration of pristine Ag3PO4. A sharp endothermic peak at 528 °C is observed in the DSC curve, which can be attributed to the melting of Ag3PO4 instead of the phase change [33]. This result is consistent with the XRD results.
BET surface areas of as-prepared Ag3PO4 samples were measured to estimate the influence of the surface area on the photocatalytic activity. However, it is found that the BET surface areas of pristine Ag3PO4, Ag3PO4-100, Ag3PO4-200, Ag3PO4-300, and Ag3PO4-400 are relatively low, which are 1.02, 0.83, 0.52, 0.31, and 0.16 m2/g, respectively. It is clear that the BET surface area decreases as the calcination temperature rises. Therefore, it is considered that the BET surface area is not a positive factor for the enhanced activity of calcined Ag3PO4 samples.
Figure 4a–j shows SEM images of the pristine and calcined Ag3PO4 samples. As shown in Figure 4a,b, the pristine Ag3PO4 consists of spherical particles with an estimated average diameter of ~0.8–1.2 μm. Compared with pristine Ag3PO4, it can be clearly visible that some nanoparticles with size of ~5–10 nm are adorned on the surface of Ag3PO4 microspheres (Figure 4c,d) for Ag3PO4-100. A similar structure is maintained in the samples of Ag3PO4-200 and Ag3PO4-300. Moreover, it can be seen that the amount of nanoparticles on the surface increases as the calcination temperature rises, indicating that the thermal treatment promotes the grain growth. However, for Ag3PO4-400, large particles are linked end-to-end and thus self-assembled into a chain-structure as the higher temperature may promote the disorder movement of fine particles [34], and almost all the surface of Ag3PO4 is covered with sintered nanoparticles. Figure 4k,l shows the SEM images of the reused Ag3PO4-200 sample. It can be seen that the surface of Ag3PO4 particles becomes unshaped and rough, and the nanoparticles are assembled on the surface of Ag3PO4. In addition, the quantity of nanoparticles was not significantly increased compared with fresh Ag3PO4-200 sample (Figure 4e,f). These nanoparticles with a size of ~5–10 nm, however, are hard to probe by high resolution transmission electron microscopy (HRTEM) because the structure of Ag3PO4 materials could be destroyed by high-energy electron beams during measurements [20,35].
In order to make these nanoparticles clear, XPS spectra were employed to further analyze the surface structure and composition. It can be seen from Figure S3 that the XPS survey spectra with peak identification for all samples are similar, which contain the elements of C, O, Ag, and P, and no obvious impurities can be detected. The C peak is attributed to adventitious hydrocarbon from the XPS instrument.
As shown in Figure 5a–e, the high-resolution XPS spectra of Ag 3d region of the as-prepared samples consist of two individual peaks at ~374 and ~368 eV, which can be attributed to Ag 3d3/2 and Ag 3d5/2 binding energies, respectively [8,36]. Since the peaks are asymmetrical, the Ag 3d peaks are further divided into four different peaks at 374.2, 375.4, 368.2 and 369.4 eV, respectively [37]. The peaks at 375.4 and 369.4 eV can be ascribed to metal Ag0, while the signals at 368.2 and 374.2 eV are associated with Ag+ ions [37]. This result clearly indicates the presence of metallic Ag, but it could not eliminate the existence of Ag2O. Moreover, as shown in Figure 5f, it is observed that the peak area attributed to Ag0 is increased with the increase of calcination temperature. The surface Ag0 content for the pristine Ag3PO4, Ag3PO4-100, Ag3PO4-200, Ag3PO4-300, and Ag3PO4-400, is calculated to be about 1.7%, 1.8%, 1.9%, 2.2%, and 2.6%, respectively, indicating that the surface content of Ag0 increases with the increase of the calcination temperature, being accordance with SEM results. Furthermore, it should be mentioned that metallic Ag are not probed by XRD patterns because the amount of Ag0 in the calcined samples is below the detection limit (5 mol %) of the XRD analysis [38], as confirmed by the calculated result in Figure 5f. In addition, the reused Ag3PO4-200 sample was collected after a second run and characterized by XPS technique. In Figure S4a, it can be seen that the Ag 3d peaks are further divided into four different peaks at 374.2, 375.4, 368.2 and 369.4 eV, respectively. The peaks at 375.4 and 369.4 eV can be ascribed to metal Ag0 [37], indicating the presence of metal Ag in the reused Ag3PO4-200 sample. Moreover, the Ag0 content for the reused Ag3PO4-200 sample was calculated to be about 2.08%, which is close to that for fresh Ag3PO4-200 sample (1.9%), as shown in Figure S4b. This result indicates that there is no obvious photocorrosion phenomenon for the fresh Ag3PO4-200 sample during photocatalytic process.
Figure 6a–e shows the O1s peaks of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400). The O1s peaks of all samples are divided into four different peaks at 530.8 ± 0.1 (O1 peak), 531.5 ± 0.1 (O2 peak), 532.3 ± 0.1 (O3 peak) and 533.2 ± 0.1 eV (O4 peak), respectively. The O1 peak can be attributed to the non-bridging (P=O) oxygen atoms [39,40]. The O2 peak is associated with oxygen vacancies or defects within the matrix, which are originally occupied by O2− ions [41,42,43,44], and the content of oxygen vacancies or defects depends on the intensity or the area of this peak [42]. In addition, it was reported that the peak attributed to O2− in Ag2O was located at 528.8 eV [45], which is much lower than the value of O2 peak (531.5 ± 0.1 eV) in our study. Then, it can be concluded that O2− is due to oxygen vacancies and not to the formation of Ag2O. O3 and O4 peaks at higher binding energies can be assigned to the bridging oxygen atoms (P–O–Ag) in the structure of Ag3PO4 and the specific absorbed oxygen, such as adsorbed oxygen and water molecules, respectively [46]. Additionally, as shown in Figure 6f, the ratio of the O2 peak area to the total area of all O1s peaks (O1 + O2 + O3 + O4) first rapidly increases with the increase of the calcination temperature, and the ratio for Ag3PO4-200 reaches maximum of 11.4%, which is circa six times higher than that of the pristine Ag3PO4 sample (1.8%). This indicates that Ag3PO4-200 has the highest density related to deficient oxygen, which is attributed to the release of oxygen from Ag3PO4 during the calcination process, giving rise to the formation of VO˙˙ on the surface of Ag3PO4 [29]. VO˙˙ could create shallow donor states below CB and increase the electron concentration, thus leading to the enhancement of the electrical conductivity and the increase of active sites [47].
Given the SEM results and the analyses of high-resolution XPS spectra of Ag 3d and O1s regions of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400), it is reasonable to assume that Ag (NPs) are deposited on the surface of Ag3PO4 microspheres. Moreover, it is obvious that metal Ag0 exists in the as-prepared Ag3PO4 samples including the pristine Ag3PO4, which might result from the “self-corrosion” of pristine Ag3PO4 during the period of preservation in the dark [48]. Nevertheless, the fact that the surface Ag0 content increases with the increase of the calcination temperature could originate from the thermally decomposition during calcination process. During the heat treatment, Ag3PO4 semiconductor is activated at high temperatures, and thus electrons are excited from the valence band (VB) into the CB of Ag3PO4, leaving holes behind. In our work, because CH3COOAg was used as the raw material, the residual CH3COO− species on the Ag3PO4 surface may capture and react with thermally excited holes, which will inhibit the recombination of thermally excited charge carriers and further promote the reduction reaction between electrons and Ag+ ions within Ag3PO4 matrix, resulting in the formation of metallic Ag in the air [30]. Simultaneously, molecular O2 in air condition adsorbed on Ag3PO4 can also act as an electron scavenger to trap the thermally excited electrons to form the superoxide radicals (•O2−) active specie, which is the predominant reaction [30]. However, under the oxygen-free condition, the thermally excited electrons should mainly participate in the reduction of Ag+ ions into metallic Ag; thus, compared with that annealed in the air condition, the calcined samples should have higher content of metallic Ag [30]. Anyway, metallic Ag was also formed in the presence of air.
EPR is considered to be a sensitive and direct method to monitor the behaviors of oxygen defects [48]. The EPR spectra of the pristine and calcined Ag3PO4 samples are displayed in Figure 7. The peak at g = 2.001–2.004 has been reported previously and it can be attributed to natural surface oxygen vacancies [49,50]. Notably, Ag3PO4-200 has much higher intensity of the EPR signal at g factor of ~2.003 for the oxygen vacancy than both pristine Ag3PO4 and other calcined Ag3PO4 samples, implying the increase of oxygen vacancies in the sample of Ag3PO4-200, which is consistent with the O1s XPS results.
It is well-known that the band-band PL signals of semiconductor materials are caused by the recombination of photoinduced charge carriers. In general, a lower intensity of band-band PL signals indicates a decrease in the recombination rate of photogenerated charge carriers [51]. However, the excitonic PL signals mainly result from surface oxygen vacancies and defects of semiconductors [52], because the oxygen vacancies as well as defects can easily bind photo-induced electrons to form excitons and the exciton energy level can be formed near the bottom of the CB so that PL signal can easily occur. The larger the content of oxygen vacancy or defect, the stronger the PL signal [52]. As shown in Figure 8, the strong emission peak is located at about 488 nm for the as-prepared samples, which could be attributed to the band edge binding excitons resulting from the surface oxygen vacancies and defects [53]. In addition, the band-band PL peak at about 530 nm (corresponding to the band gap of ~2.4 eV for Ag3PO4 semiconductor) cannot be found [4]. Furthermore, the intensity of excitonic PL signal for the as-prepared samples follows the order of Ag3PO4-200 > Ag3PO4-300 > Ag3PO4-400 > Ag3PO4-100 > Ag3PO4 sample. This order is consistent with the content of oxygen vacancies obtained from the O1s XPS spectra. The result implies that the stronger the PL signal, the larger the surface oxygen vacancy concentration. Additionally, it can be concluded that the PL spectra provide an indirect evidence for the formation of oxygen vacancies.
Figure 9 shows UV-visible DRS of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400). It can be observed that all Ag3PO4 samples show similar absorption plot. The pristine Ag3PO4 has a broader absorption in the visible region with an absorption edge at ~530 nm, which is attributed to the charge transfer response of Ag3PO4 from VB to CB. As seen from Figure S5, the estimated indirect band gap of pristine Ag3PO4 is 2.44 eV, and the thermal treatment decreased the energy gap of Ag3PO4-T (T = 100, 200, 300 and 400) series sample from 2.44 eV to 2.41 eV, resulting in an expanded light response. The band gap narrowing upon calcination may be caused by the formation of oxygen vacancies, which create a local state below CB of Ag3PO4. In addition, the localized surface plasmon resonance (LSPR) of metallic Ag is not observed. It might result from the fact that the metallic Ag0 content in the pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) samples is very low according to the calculation from high-resolution XPS spectra of Ag 3d region of these samples (Figure 5f). The metallic Ag0 with quite low content will not exhibit the plasmon absorption in the UV-Vis spectra. Similar phenomenon was also reported by Bi et al. [13], who synthesized the Ag/Ag3PO4 necklace-like heterostructure and did not observe the plasmon absorption in the UV-Vis spectra.
Based on the above analyses of O1s XPS spectra, EPR, PL and DRS, it is clear that oxygen vacancies are generated during the calcination process, and the Ag3PO4-200 sample shows the highest content of oxygen vacancies.

3.3. Mechanism of the Photocatalytic Reaction

EIS analysis is a powerful tool to investigate the transfer process of the photogenerated charges. Figure 10 displays EIS Nyquist plots of pristine and calcined Ag3PO4 samples. In Nyquist plots, the semicircle or the arch at high frequency represents the charge transfer process, and the diameter of the semicircle or the arch reflects the mobility of charges; that is, the smaller the diameter of the semicircle, the faster the electrons transfer [54]. Clearly, the diameters of the semicircle for the electrodes prepared by the calcined Ag3PO4 series samples are all much smaller than by the pristine Ag3PO4, indicating that the calcination process can enhance the electron mobility. As a result, the recombination of electron-hole pairs can be prevented to a certain extent. Among the electrodes prepared by the calcined Ag3PO4 series samples, the Ag3PO4-200 electrode shows the smallest semicircle, suggesting that Ag3PO4-200 owns a more effective separation of photogenerated electron-hole pairs and a faster interfacial charge transfer. This result strongly supports the highest photocatalytic degradation efficiency of MB over Ag3PO4-200, as displayed in Figure 1.
Figure 11 shows Mott-Schottky plots for the electrodes prepared by pristine and calcined Ag3PO4 samples. All samples have a positive slope in the Mott-Schottky plots, as expected for the n-type semiconductors. Additionally, it is noteworthy that the slopes of the linear region for the calcined Ag3PO4 series samples are much smaller than that for pristine Ag3PO4, suggesting a higher donor density [55]. Generally, the higher the donor density, the faster the photocatalytic degradation rate [56]. Therefore, the Mott-Schottky results further confirm that the calcination process greatly promotes the charge transfer, favoring significantly the improvement of the photocatalytic activity.
A succession of control experiments was performed to understand the role of the photoexcited active species in the photocatalytic degradation of MB dye. Herein, EDTA-2Na [57], t-BuOH [58] and BQ [59] were used as scavengers of the trapped holes (h+), hydroxyl radical (•OH) and •O2−, respectively. Figure 12 presents the photocatalytic activity of Ag3PO4-200 upon the addition of different scavengers. The degradation efficiency greatly decreases to 6.9%, 55.1%, and 98.2% with the addition of EDTA-2Na, t-BuOH and BQ, respectively. Thus, the role of active species in the degradation of MB dye follows the order of h+ > •OH > •O2−. This result indicates that h+ and •OH are the most crucial species while there is little or no •O2− during the photocatalytic degradation of MB in the Ag3PO4-200 system.
From the above analysis, it is clear that both metallic Ag and oxygen vacancies are present in the calcined Ag3PO4 samples. However, it is difficult to trace the beneficial effect back to either of them or both of them. To identify the roles of both species, the uncalcined Ag3PO4 was used as the precursor and metallic Ag was photodeposited on it non-thermally, marked as Ag/Ag3PO4-PD. Then, oxygen vacancies would likely not be formed.
Figure 13 shows a comparison of the photocatalytic activity over pristine Ag3PO4, Ag/Ag3PO4-PD, and Ag3PO4-200 samples under visible light irradiation. It is found that the photocatalytic degradation efficiency of Ag/Ag3PO4-PD is lower than that of pristine Ag3PO4 and Ag3PO4-200, indicating that metallic Ag has a negative effect on the photocatalytic activity. Thus, it can be concluded that oxygen vacancies play a significantly positive role in the enhancement of photocatalytic activity for the calcined Ag3PO4 samples. However, it should be pointed out that metallic Ag plays an important role in the enhancement of photocatalytic stability for the calcined Ag3PO4 samples because the metallic Ag can serve as a good electron acceptor for facilitating quick electron transfer from Ag3PO4 [13] as far as possible instead of remaining in the position of Ag+ ions in Ag3PO4 lattice, leading to the inhibition of photocorrosion of Ag3PO4 [11,12]. This explains why the Ag3PO4-200 sample exhibits improved photocatalytic stability.
Since Ag3PO4 has a low CB level (+0.45 V vs. a normal hydrogen electrode (NHE)) [4,60], which is more positive than the potential for the single-electron reduction of oxygen (E(O2/•O2−) ≈ −0.33 V vs. NHE) [61,62], the electrons transferred to the surface of Ag NPs could not react with dissolved oxygen to generate the active groups of •O2−, but leaving a large number of h+ in the VB of Ag3PO4, as shown in Scheme 1a. This proposed mechanism is confirmed by the photogenerated carriers trapping experiment (Figure 12). The excess electrons on the surface of Ag NPs might react with oxygen molecules and H+ in the aqueous solution of MB to form H2O2 by multi-electron reduction process (O2 + 2H+ + 2e− = H2O2 (aq), +0.682 V vs. NHE) [63].
Furthermore, the oxygen vacancies might form a local state below CB of Ag3PO4, leading to narrowing of band gap and thus the enhancement of the visible-light response (as confirmed by UV-Vis DRS). Once irradiated under visible light, a majority of electrons are able to jump from the VB to the local state formed by oxygen vacancies in Ag3PO4, and leave h+ in the VB. During the process of photocatalytic reaction, the formed oxygen vacancies and defects can become centers to capture photo-induced electrons, so the recombination of photo-induced electrons and holes can be effectively inhibited [64], leading to the enhancement of photocatalytic activity. Additionally, a large number of h+ with high oxidation potential (+3.0 V vs. NHE) [65] are produced and take part in the photocatalytic degradation reaction. This is consistent with the measured results of the mainly oxidative species. Of course, some of h+ can also react with OH− group or H2O molecules to produce •OH radicals, which are responsible for the degradation of organic MB pollutant due to their high oxidation capacity, as illustrated in Scheme 1b.

4. Conclusions

The calcined Ag3PO4 photocatalysts with VO˙˙ have been successfully synthesized via a facile calcination method. During the calcination, Metallic Ag NPs are generated due to the reduction of Ag+ in Ag3PO4 semiconductor with the thermally excited electrons, and deposited on the surface of Ag3PO4 microspheres with the formation of the closely contacted interface between two components which is beneficial for the rapid transfer of the photo-excited electrons from Ag3PO4 to Ag NPs, and thus inhibiting the photocorrosion of Ag3PO4 that means the enhancement of photocatalytic stability. Notably, the Ag3PO4-200 sample owns the highest amount of VO˙˙, which could inhibit the recombination of photo-induced electron-hole pairs by acting as centers to capture photoinduced electrons and enhance the visible-light response by creating a shallow donor state below CB of Ag3PO4, leading to the enhancement of the electrical conductivity and the increase of active sites and then the highest photocatalytic activity. Moreover, it is found that a large number of h+ and •OH play a crucial role in the photocatalytic degradation of MB, while there is little or no •O2− generated during the photocatalytic degradation of MB. In brief, the present work provides insight for the design of novel efficient visible-light photocatalysts.

Supplementary Materials

The following are available online at www.mdpi.com/1996-1944/9/12/968/s1. Figure S1: UV-Vis absorption spectra of MB solutions separated from: pristine Ag3PO4 (a); Ag3PO4-100 (b); Ag3PO4-200 (c); Ag3PO4-300 (d); and Ag3PO4-400 (e) suspensions during illumination, Figure S2: TG-DSC curves of pristine Ag3PO4, Figure S3: The survey XPS spectra of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400), Figure S4: (a) High-resolution XPS spectrum of Ag 3d region of the reused Ag3PO4-200 sample; and (b) a comparison of Ag0 content for fresh Ag3PO4-200 sample and the reused Ag3PO4-200 sample, Figure S5: Plots of (αhν)1/2 versus photon energy (hν) of pristine Ag3PO4 (a); Ag3PO4-100 (b); Ag3PO4-200 (c); Ag3PO4-300 (d); and Ag3PO4-400 (e).

Acknowledgments

This work is financially supported by the National Natural Science Foundation of China (Grant Nos. 21403184 and 21301149), Natural Science Foundation of the Jiangsu Higher Education Institutions of China (Grant No. 14KJB150025), China Postdoctoral Science Foundation (No. 2014M561622), Jiangsu Collaborative Innovation Center for Ecological Building Materials and Environmental Protection Equipments (No. CP201502, and GX2015102), Natural Science Foundation of Jiangsu Province (BK20150428 and BK20160434), and National Key Research and Development Project of China (No. 2016YFC0209202).

Author Contributions

Pengyu Dong, Guihua Hou and Hao Tian participated in the experimental work, literature review, data analysis, and manuscript preparation. Chao Liu, Xinjiang Zhang, Fenghua Xu and Xinguo Xi provided suggestions on the concept, research methodology, as well as participated in data analysis and manuscript preparation. Rong Shao provided suggestions on the revision of original manuscript as well as participated in data analysis. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujishima, A.; Zhang, X.; Tryk, D.A. Heterogeneous photocatalysis: From water photolysis to applications in environmental cleanup. Int. J. Hydrogen Energy 2007, 32, 2664–2672. [Google Scholar] [CrossRef]
  2. Ong, W.-J.; Tan, L.-L.; Ng, Y.H.; Yong, S.-T.; Chai, S.-P. Graphitic Carbon Nitride (g-C3N4)-Based Photocatalysts for Artificial Photosynthesis and Environmental Remediation: Are We a Step Closer to Achieving Sustainability? Chem. Rev. 2016, 116, 7159–7329. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, Q.; Joo, J.-B.; Lu, Z.; Dahl, M.; Oliveira, D.L.; Ye, M.; Yin, Y. Self-assembly and photocatalysis of mesoporous TiO2 nanocrystal clusters. Nano Res. 2011, 4, 103–114. [Google Scholar] [CrossRef]
  4. Yi, Z.; Ye, J.; Kikugawa, N.; Kako, T.; Ouyang, S.; Stuart-Williams, H.; Yang, H.; Cao, J.; Luo, W.; Li, Z. An orthophosphate semiconductor with photooxidation properties under visible-lightirradiation. Nat. Mater. 2010, 9, 559–564. [Google Scholar] [CrossRef] [PubMed]
  5. Bi, Y.; Ouyang, S.; Umezawa, N.; Cao, J.; Ye, J. Facet Effect of Single-Crystalline Ag3PO4 Sub-microcrystals on Photocatalytic Properties. J. Am. Chem. Soc. 2011, 133, 6490–6492. [Google Scholar] [CrossRef] [PubMed]
  6. Ma, X.; Lu, B.; Li, D.; Shi, R.; Pan, C.; Zhu, Y. Origin of Photocatalytic Activation of Silver Orthophosphate from First-Principles. J. Phys. Chem. C 2011, 115, 4680–4687. [Google Scholar] [CrossRef]
  7. Yao, W.; Zhang, B.; Huang, C.; Ma, C.; Song, X.; Xu, Q. Synthesis and characterization of high efficiency and stable Ag3PO4/TiO2 visible light photocatalyst for the degradation of methylene blue and rhodamine B solutions. J. Mater. Chem. 2012, 22, 4050–4055. [Google Scholar] [CrossRef]
  8. Teng, W.; Li, X.; Zhao, Q.; Chen, G. Fabrication of Ag/Ag3PO4/TiO2 heterostructure photoelectrodes for efficient decomposition of 2-chlorophenol under visible light irradiation. J. Mater. Chem. A 2013, 1, 9060–9068. [Google Scholar] [CrossRef]
  9. Rawal, S.B.; Sung, S.D.; Lee, W.I. Novel Ag3PO4/TiO2 composites for efficient decomposition of gaseous 2-propanol under visible-light irradiation. Catal. Commun. 2011, 17, 131–135. [Google Scholar] [CrossRef]
  10. Bi, Y.; Ouyang, S.; Cao, J.; Ye, J. Facile synthesis of rhombic dodecahedral AgX/Ag3PO4 (X = Cl, Br, I) heterocrystals with enhanced photocatalytic properties and stabilities. Phys. Chem. Chem. Phys. 2011, 13, 10071–10075. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, Y.; Fang, L.; Lu, H.; Liu, L.; Wang, H.; Hu, C. Highly efficient and stable Ag/Ag3PO4 plasmonic photocatalyst in visible light. Catal. Commun. 2011, 17, 200–204. [Google Scholar] [CrossRef]
  12. Liu, Y.; Fang, L.; Lu, H.; Li, Y.; Hu, C.; Yu, H. One-pot pyridine-assisted synthesis of visible-light-driven photocatalyst Ag/Ag3PO4. Appl. Catal. B 2012, 115, 245–252. [Google Scholar] [CrossRef]
  13. Bi, Y.; Hu, H.; Ouyang, S.; Jiao, Z.; Lu, G.; Ye, J. Selective growth of Ag3PO4 submicro-cubes on Ag nanowires to fabricate necklace-like heterostructures for photocatalytic applications. J. Mater. Chem. 2012, 22, 14847–14850. [Google Scholar] [CrossRef]
  14. He, P.; Song, L.; Zhang, S.; Wu, X.; Wei, Q. Synthesis of g-C3N4/Ag3PO4 heterojunction with enhanced photocatalytic performance. Mater. Res. Bull. 2014, 51, 432–437. [Google Scholar]
  15. Katsumata, H.; Sakai, T.; Suzuki, T.; Kaneco, S. Highly Efficient Photocatalytic Activity of g-C3N4/Ag3PO4 Hybrid Photocatalysts through Z-Scheme Photocatalytic Mechanism under Visible Light. Ind. Eng. Chem. Res. 2014, 53, 8018–8025. [Google Scholar]
  16. Dong, P.; Wang, Y.; Cao, B.; Xin, S.; Guo, L.; Zhang, J.; Li, F. Ag3PO4/reduced graphite oxide sheets nanocomposites with highly enhanced visible light photocatalytic activity and stability. Appl. Catal. B 2013, 132, 45–53. [Google Scholar]
  17. Yang, X.; Cui, H.; Li, Y.; Qin, J.; Zhang, R.; Tang, H. Fabrication of Ag3PO4-Graphene Composites with Highly Efficient and Stable Visible Light Photocatalytic Performance. ACS Catal. 2013, 3, 363–369. [Google Scholar] [CrossRef]
  18. Liu, L.; Liu, J.; Sun, D. Graphene Oxide Enwrapped Ag3PO4 Composite: Towards a Highly Efficient and Stable Visible-Light-Induced Photocatalyst for Water Purification. Catal. Sci. Technol. 2012, 2, 2525–2532. [Google Scholar] [CrossRef]
  19. Chai, B.; Li, J.; Xu, Q. Reduced Graphene Oxide Grafted Ag3PO4 Composites with Efficient Photocatalytic Activity under Visible-Light Irradiation. Ind. Eng. Chem. Res. 2014, 53, 8744–8752. [Google Scholar] [CrossRef]
  20. Dong, P.; Wang, Y.; Li, H.; Li, H.; Ma, X.; Han, L. Shape-controllable synthesis and morphology-dependent photocatalytic properties of Ag3PO4 crystals. J. Mater. Chem. A 2013, 1, 4651–4656. [Google Scholar] [CrossRef]
  21. Dong, P.; Yin, Y.; Xu, N.; Guan, R.; Hou, G.; Wang, Y. Facile synthesis of tetrahedral Ag3PO4 mesocrystals and its enhanced photocatalytic activity. Mater. Res. Bull. 2014, 60, 682–689. [Google Scholar] [CrossRef]
  22. Bi, Y.; Hu, H.; Ouyang, S.; Lu, G.; Cao, J.; Ye, J. Photocatalytic and photoelectric properties of cubic Ag3PO4 sub-microcrystals with sharp corners and edges. Chem. Commun. 2012, 48, 3748–3750. [Google Scholar] [CrossRef] [PubMed]
  23. Dinh, C.T.; Nguyen, T.D.; Kleitz, F.; Do, T.O. Large-scale synthesis of uniform silver orthophosphate colloidal nanocrystals exhibiting high visible light photocatalytic activity. Chem. Commun. 2011, 47, 7797–7799. [Google Scholar] [CrossRef] [PubMed]
  24. Liang, Q.; Ma, W.; Shi, Y.; Li, Z.; Yang, X. Hierarchical Ag3PO4 porous microcubes with enhanced photocatalytic properties synthesized with the assistance of trisodium citrate. CrystEngComm 2012, 14, 2966–2973. [Google Scholar] [CrossRef]
  25. Wang, H.; He, L.; Wang, L.; Hu, P.; Guo, L.; Han, X.; Li, J. Facile Synthesis of Ag3PO4 Tetrapod Microcrystals with an Increased Percentage of Exposed {110} Facets and Highly Efficient Photocatalytic Properties. CrystEngComm 2012, 14, 8342–8344. [Google Scholar] [CrossRef]
  26. Zheng, B.; Wang, X.; Liu, C.; Tan, K.; Xie, Z.; Zheng, L. High-efficiently visible light-responsive photocatalysts: Ag3PO4 tetrahedral microcrystals with exposed {111} facets of high surface energy. J. Mater. Chem. A 2013, 1, 12635–12640. [Google Scholar] [CrossRef]
  27. Hu, H.; Jiao, Z.; Yu, H.; Lu, G.; Ye, J.; Bi, Y. Facile synthesis of tetrahedral Ag3PO4 submicro-crystals with enhanced photocatalytic properties. J. Mater. Chem. A 2013, 1, 2387–2390. [Google Scholar] [CrossRef]
  28. Bi, Y.; Hu, H.; Jiao, Z.; Yu, H.; Lu, G.; Ye, J. Two-dimensional dendritic Ag3PO4 nanostructures and their photocatalytic properties. Phys. Chem. Chem. Phys. 2012, 14, 14486–14488. [Google Scholar] [CrossRef] [PubMed]
  29. Chong, R.; Cheng, X.; Wang, B.; Li, D.; Chang, Z.; Zhang, L. Enhanced photocatalytic activity of Ag3PO4 for oxygen evolution and Methylene blue degeneration: Effect of calcination temperature. Int. J. Hydrogen Energy 2016, 41, 2575–2582. [Google Scholar] [CrossRef]
  30. Yan, T.; Guan, W.; Tian, J.; Wang, P.; Li, W.; You, J.; Huang, B. Improving the photocatalytic performance of silver phosphate by thermal annealing: Influence of acetate species. J. Alloys Compd. 2016, 680, 436–445. [Google Scholar] [CrossRef]
  31. China Standards Publication. Test Method of Photocatalytic Materials for Purification of Water Solution; GB/T 23762-2009; China Standards Press: Beijing, China, 2009. (In Chinese) [Google Scholar]
  32. Yu, J.-G.; Yu, H.-G.; Cheng, B.; Zhao, X.-J.; Yu, J.C.; Ho, W.-K. The Effect of Calcination Temperature on the Surface Microstructure and Photocatalytic Activity of TiO2 Thin Films Prepared by Liquid Phase Deposition. J. Phys. Chem. B 2003, 107, 13871–13879. [Google Scholar] [CrossRef]
  33. Dhanabal, R.; Chithambararaj, A.; Velmathi, S.; Bose, A.C. Visible light driven degradation of methylene blue dye using Ag3PO4. J. Environ. Chem. Eng. 2015, 3, 1872–1881. [Google Scholar] [CrossRef]
  34. Štengl, V.; Bakardjieva, S.; Murafa, N.; Houšková, V.; Lang, K. Visible-light photocatalytic activity of TiO2/ZnS nanocomposites prepared by homogeneous hydrolysis. Microporous Mesoporous Mater. 2008, 110, 370–378. [Google Scholar] [CrossRef]
  35. Dong, R.; Tian, B.; Zeng, C.; Li, T.; Wang, T.; Zhang, J. Ecofriendly Synthesis and Photocatalytic Activity of Uniform Cubic Ag@AgCl Plasmonic Photocatalyst. J. Phys. Chem. C 2013, 117, 213–220. [Google Scholar] [CrossRef]
  36. Seo, D.; Park, J.C.; Song, H. Polyhedral Gold Nanocrystals with Oh Symmetry: From Octahedra to Cubes. J. Am. Chem. Soc. 2006, 128, 14863–14870. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, P.; Huang, B.; Zhang, Q.; Zhang, X.; Qin, X.; Dai, Y.; Zhan, J.; Yu, J.; Liu, H.; Lou, Z. Highly Efficient Visible Light Plasmonic Photocatalyst Ag@Ag(Br,I). Chem. Eur. J. 2010, 16, 10042–10047. [Google Scholar] [CrossRef] [PubMed]
  38. Kontoyannis, C.G.; Vagenas, N.V. Calcium carbonate phase analysis using XRD and FT-Raman spectroscopy. Analyst 2000, 125, 251–255. [Google Scholar] [CrossRef]
  39. Mani, P.D. Reactive Sputter Deposition of Lithium Phosphorus Oxynitride Thin Films, A Li Battery Solid State Electrolyte. Ph.D. Thesis, University of Central Florida, Orlando, FL, USA, 2015. [Google Scholar]
  40. Li, X.B.; Ma, S.Y.; Li, F.M.; Chen, Y.; Zhang, Q.Q.; Yang, X.H.; Wang, C.Y.; Zhu, J. Porous spheres-like ZnO nanostructure as sensitive gas sensors for acetone detection. Mater. Lett. 2013, 100, 119–123. [Google Scholar] [CrossRef]
  41. Kumar, V.; Swart, H.C.; Ntwaeaborwa, O.M.; Kroon, R.E.; Terblans, J.J.; Shaat, S.K.K.; Yousif, A.; Duvenhage, M.M. Origin of the red emission in zinc oxide nanophosphors. Mater. Lett. 2013, 101, 57–60. [Google Scholar] [CrossRef]
  42. Zhang, X.; Qin, J.; Xue, Y.; Yu, P.; Zhang, B.; Wang, L.; Liu, R. Effect of aspect ratio and surface defects on the photocatalytic activity of ZnO nanorods. Sci. Rep. 2014, 4, 4596. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, L.; Zhao, J.; Lu, H.; Gong, L.; Li, L.; Zheng, J.; Li, H.; Zhu, Z. High sensitive and selective formaldehyde sensors based on nanoparticle-assembled ZnO micro-octahedrons synthesized by homogeneous precipitation method. Sens. Actuator B Chem. 2011, 160, 364–370. [Google Scholar] [CrossRef]
  44. Perron, H.; Vandenborre, J.; Domain, C.; Drot, R.; Roques, J.; Simoni, E.; Ehrhardt, J.J.; Catalette, H. Combined investigation of water sorption on TiO2 rutile (1 1 0) single crystal face: XPS vs. periodic DFT. Surf. Sci. 2007, 601, 518–527. [Google Scholar] [CrossRef] [Green Version]
  45. Weaver, J.F.; Hoflund, G.B. Surface Characterization Study of the Thermal Decomposition of Ag2O. Chem. Mater. 1994, 6, 1693–1699. [Google Scholar] [CrossRef]
  46. Mani, P.D.; Saraf, S.; Singh, V.; Real-Robert, M.; Vijayakumar, A.; Duranceau, S.J.; Seal, S.; Coffey, K.R. Ionic conductivity of bias sputtered lithium phosphorus oxy-nitride thin films. Solid State Ion. 2016, 287, 48–59. [Google Scholar] [CrossRef]
  47. Amano, F.; Nakata, M. High-temperature calcination and hydrogen reduction of rutile TiO2: A method to improve the photocatalytic activity for water oxidation. Appl. Catal. B 2014, 158–159, 202–208. [Google Scholar] [CrossRef]
  48. Ma, X.; Li, H.; Wang, Y.; Li, H.; Liu, B.; Yin, S.; Sato, T. Substantial change in phenomenon of “self-corrosion” on Ag3PO4/TiO2 compound photocatalyst. Appl. Catal. B 2014, 158, 314–320. [Google Scholar] [CrossRef]
  49. Lv, Y.H.; Liu, Y.F.; Zhu, Y.Y.; Zhu, Y.F. Surface oxygen vacancy induced photocatalytic performance enhancement of a BiPO4 nanorod. J. Mater. Chem. A 2014, 2, 1174–1182. [Google Scholar] [CrossRef]
  50. Pan, X.; Yang, M.-Q.; Fu, X.; Zhang, N.; Xu, Y.-J. Defective TiO2 with oxygen vacancies: Synthesis, properties and photocatalytic applications. Nanoscale 2013, 5, 3601–3614. [Google Scholar] [CrossRef] [PubMed]
  51. Liqiang, J.; Yichun, Q.; Baiqi, W.; Shudan, L.; Baojiang, J.; Libin, Y.; Wei, F.; Honggang, F.; Jiazhong, S. Review of photoluminescence performance of nano-sized semiconductor materials and its relationships with photocatalytic activity. Sol. Energy Mater. Sol. C 2006, 90, 1773–1787. [Google Scholar] [CrossRef]
  52. Jing, L.; Yuan, F.; Hou, H.; Xin, B.; Cai, W.; Fu, H. Relationships of surface oxygen vacancies with photoluminescence and photocatalytic performance of ZnO nanoparticles. Sci. China Ser. B Chem. 2005, 48, 25–30. [Google Scholar] [CrossRef]
  53. Cui, E.; Lu, G. New evidence for the regulation of photogenerated electron transfer on surface potential energy controlled co-catalyst on TiO2—The investigation of hydrogen production over selectively exposed Au facet on Au/TiO2. Int. J. Hydrogen Energy 2014, 39, 7672–7685. [Google Scholar] [CrossRef]
  54. Huang, G.; Shi, R.; Zhu, Y. Photocatalytic activity and photoelectric performance enhancement for ZnWO4 by fluorine substitution. J. Mol. Catal. A Chem. 2011, 348, 100–105. [Google Scholar] [CrossRef]
  55. Bai, X.; Wang, L.; Wang, Y.; Yao, W.; Zhu, Y. Enhanced oxidation ability of g-C3N4 photocatalyst via C60 modification. Appl. Catal. B 2014, 152, 262–270. [Google Scholar] [CrossRef]
  56. Lv, Y.H.; Pan, C.S.; Ma, X.G.; Zong, R.L.; Bai, X.J.; Zhu, Y.F. Production of visible activity and UV performance enhancement of ZnO photocatalyst via vacuum deoxidation. Appl. Catal. B 2013, 138, 26–32. [Google Scholar] [CrossRef]
  57. Lee, H.; Choi, W. Photocatalytic Oxidation of Arsenite in TiO2 Suspension: Kinetics and Mechanisms. Environ. Sci. Technol. 2002, 36, 3872–3878. [Google Scholar] [CrossRef] [PubMed]
  58. Chen, C.; Wang, Q.; Lei, P.; Song, W.; Ma, W.; Zhao, J. Photodegradation of Dye Pollutants Catalyzed by Porous K3PW12O40 under Visible Irradiation. Environ. Sci. Technol. 2006, 40, 3965–3970. [Google Scholar] [CrossRef] [PubMed]
  59. Ge, M.; Zhu, N.; Zhao, Y.; Li, J.; Liu, L. Sunlight-Assisted Degradation of Dye Pollutants in Ag3PO4 Suspension. Ind. Eng. Chem. Res. 2012, 51, 5167–5173. [Google Scholar] [CrossRef]
  60. Hou, Y.; Zuo, F.; Ma, Q.; Wang, C.; Bartels, L.; Feng, P. Ag3PO4 Oxygen Evolution Photocatalyst Employing Synergistic Action of Ag/AgBr Nanoparticles and Graphene Sheets. J. Phys. Chem. C 2012, 116, 20132–20139. [Google Scholar] [CrossRef]
  61. Bamwenda, G.R.; Arakawa, H. The visible light induced photocatalytic activity of tungsten trioxide powders. Appl. Catal. A 2001, 210, 181–191. [Google Scholar] [CrossRef]
  62. Lee, H.S.; Woo, C.S.; Youn, B.K.; Kim, S.Y.; Oh, S.T.; Sung, Y.E.; Lee, H.I. Bandgap Modulation of TiO2 and its Effect on the Activity in Photocatalytic Oxidation of 2-isopropyl-6-methyl-4-pyrimidinol. Top. Catal. 2005, 35, 255–260. [Google Scholar] [CrossRef]
  63. Abe, R.; Takami, H.; Murakami, N.; Ohtani, B. Pristine Simple Oxides as Visible Light Driven Photocatalysts: Highly Efficient Decomposition of Organic Compounds over Platinum-Loaded Tungsten Oxide. J. Am. Chem. Soc. 2008, 130, 7780–7781. [Google Scholar] [CrossRef] [PubMed]
  64. Liqiang, J.; Xiaojun, S.; Baifu, X.; Baiqi, W.; Weimin, C.; Honggang, F. The preparation and characterization of La doped TiO2 nanoparticles and their photocatalytic activity. J. Solid State Chem. 2004, 177, 3375–3382. [Google Scholar] [CrossRef]
  65. Arai, T.; Yanagida, M.; Konishi, Y.; Iwasaki, Y.; Sugihara, H.; Sayama, K. Efficient Complete Oxidation of Acetaldehyde into CO2 over CuBi2O4/WO3 Composite Photocatalyst under Visible and UV Light Irradiation. J. Phys. Chem. C 2007, 111, 7574–7577. [Google Scholar] [CrossRef]
Materials 09 00968 g001 550

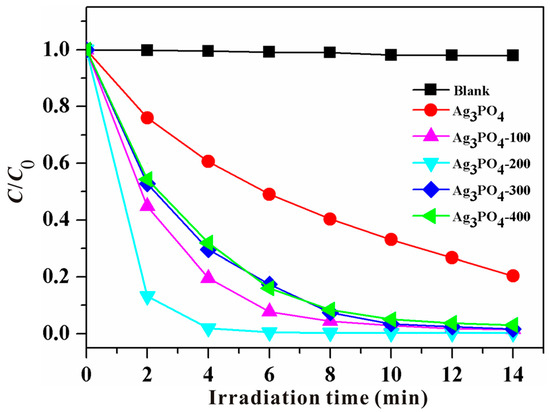

Figure 1. Photocatalytic degradation of MB over pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) samples under visible light irradiation.
Figure 1. Photocatalytic degradation of MB over pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) samples under visible light irradiation.
Materials 09 00968 g001
Materials 09 00968 g002 550

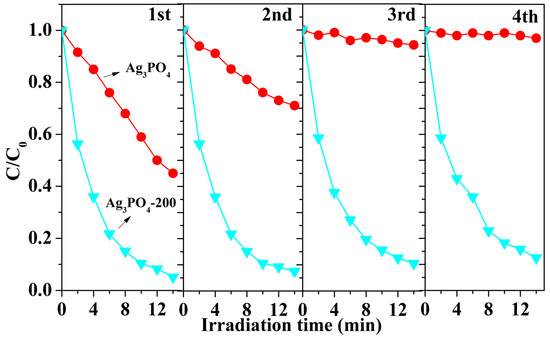

Figure 2. Cycling curves of photocatalytic degradation of MB solution in the presence of pristine Ag3PO4 and Ag3PO4-200, respectively.
Figure 2. Cycling curves of photocatalytic degradation of MB solution in the presence of pristine Ag3PO4 and Ag3PO4-200, respectively.
Materials 09 00968 g002
Materials 09 00968 g003 550

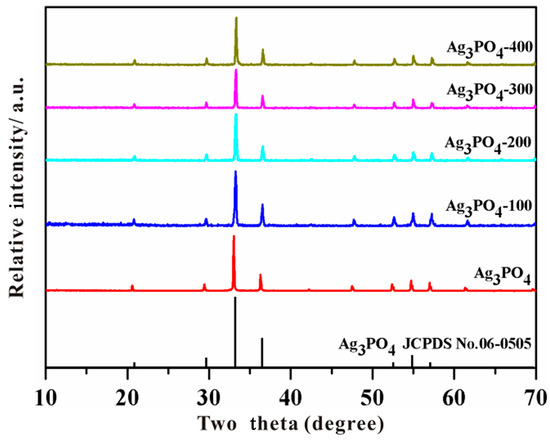

Figure 3. XRD patterns of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) (the standard data for body-centered cubic Ag3PO4 (JCPDS No. 06-0505) are also presented at the bottom for comparison).
Figure 3. XRD patterns of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) (the standard data for body-centered cubic Ag3PO4 (JCPDS No. 06-0505) are also presented at the bottom for comparison).
Materials 09 00968 g003
Materials 09 00968 g004 550

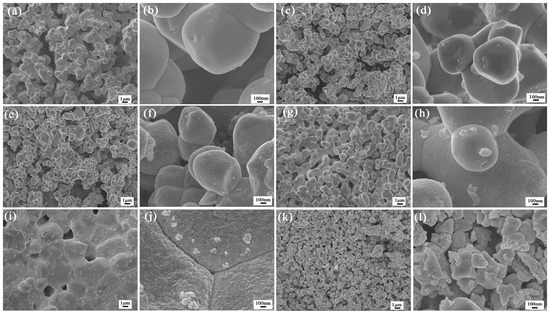

Figure 4. SEM images of: pristine Ag3PO4 (a,b); Ag3PO4-100 (c,d); Ag3PO4-200 (e,f); Ag3PO4-300 (g,h); Ag3PO4-400 (i,j); and the reused Ag3PO4-200 sample (k,l).
Figure 4. SEM images of: pristine Ag3PO4 (a,b); Ag3PO4-100 (c,d); Ag3PO4-200 (e,f); Ag3PO4-300 (g,h); Ag3PO4-400 (i,j); and the reused Ag3PO4-200 sample (k,l).
Materials 09 00968 g004
Materials 09 00968 g005 550

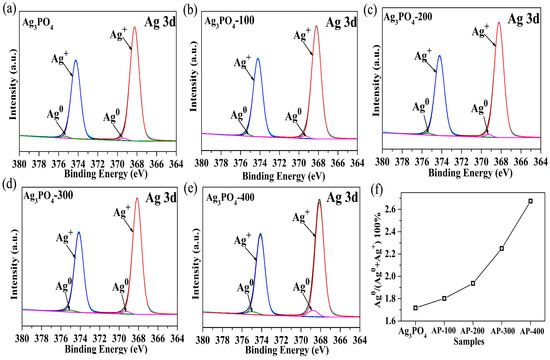

Figure 5. High-resolution XPS spectra of Ag 3d region of pristine Ag3PO4 (a); and Ag3PO4-T (T = 100, 200, 300 and 400) (b–e); and the ratios of peak area attributed to Ag0 to the total area of all Ag3d peaks for these samples (f) (AP denotes Ag3PO4 in (f)).
Figure 5. High-resolution XPS spectra of Ag 3d region of pristine Ag3PO4 (a); and Ag3PO4-T (T = 100, 200, 300 and 400) (b–e); and the ratios of peak area attributed to Ag0 to the total area of all Ag3d peaks for these samples (f) (AP denotes Ag3PO4 in (f)).
Materials 09 00968 g005
Materials 09 00968 g006 550

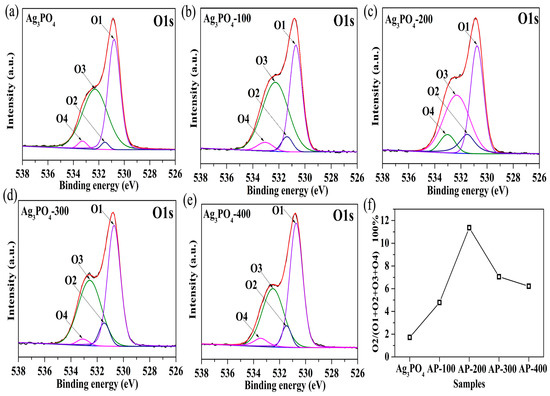

Figure 6. High-resolution XPS spectra of O1s region of pristine Ag3PO4 (a); and Ag3PO4-T (T = 100, 200, 300 and 400) (b–e); and the ratios of the O2 peak area to the total area of all O1s peaks for these samples (f) (AP denotes Ag3PO4 in (f)).
Figure 6. High-resolution XPS spectra of O1s region of pristine Ag3PO4 (a); and Ag3PO4-T (T = 100, 200, 300 and 400) (b–e); and the ratios of the O2 peak area to the total area of all O1s peaks for these samples (f) (AP denotes Ag3PO4 in (f)).
Materials 09 00968 g006
Materials 09 00968 g007 550

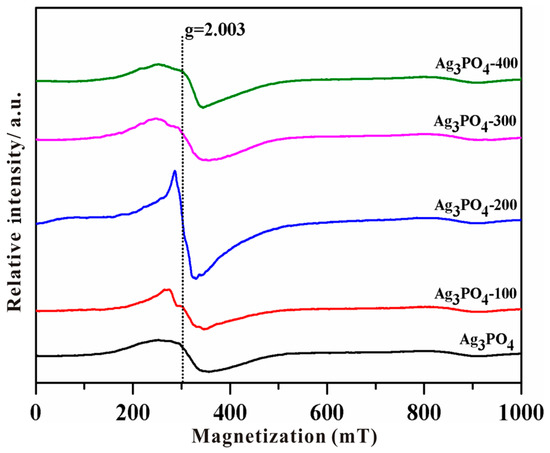

Figure 7. EPR spectra of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) recorded at room-temperature.
Figure 7. EPR spectra of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400) recorded at room-temperature.
Materials 09 00968 g007
Materials 09 00968 g008 550

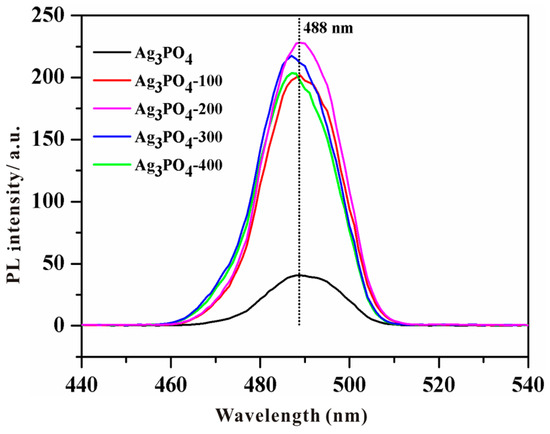

Figure 8. PL spectra of the as-prepared samples (excitation wavelength: 325 nm).
Figure 8. PL spectra of the as-prepared samples (excitation wavelength: 325 nm).
Materials 09 00968 g008
Materials 09 00968 g009 550

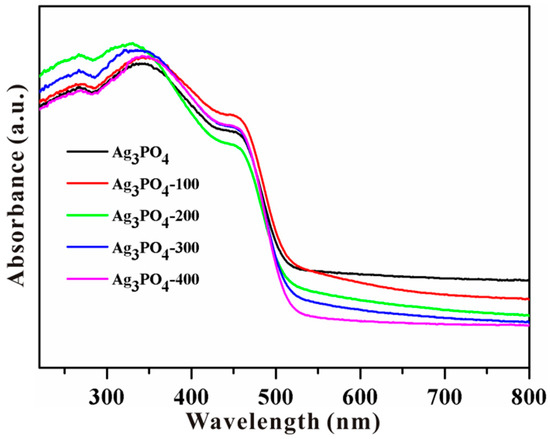

Figure 9. UV-Vis DRS of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400).
Figure 9. UV-Vis DRS of pristine Ag3PO4 and Ag3PO4-T (T = 100, 200, 300 and 400).
Materials 09 00968 g009
Materials 09 00968 g010 550

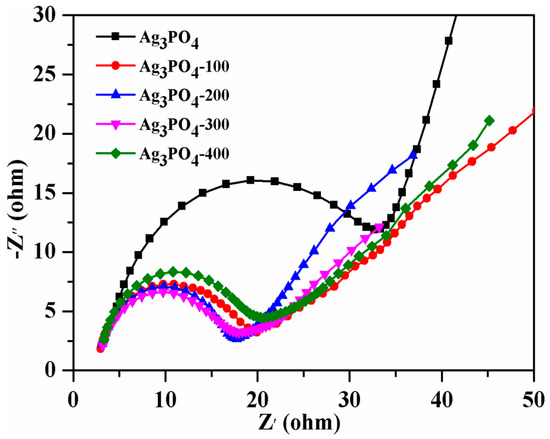

Figure 10. EIS Nyquist plots of the electrodes prepared by pristine and calcined Ag3PO4 samples under visible light irradiation.
Figure 10. EIS Nyquist plots of the electrodes prepared by pristine and calcined Ag3PO4 samples under visible light irradiation.
Materials 09 00968 g010
Materials 09 00968 g011 550

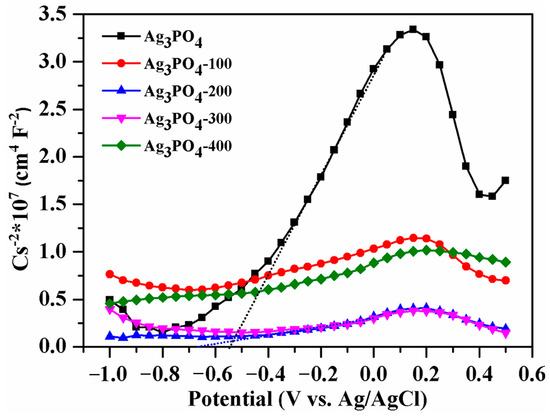

Figure 11. Mott-Schottky (MS) plots of the electrodes prepared by pristine and calcined Ag3PO4 samples.
Figure 11. Mott-Schottky (MS) plots of the electrodes prepared by pristine and calcined Ag3PO4 samples.
Materials 09 00968 g011
Materials 09 00968 g012 550

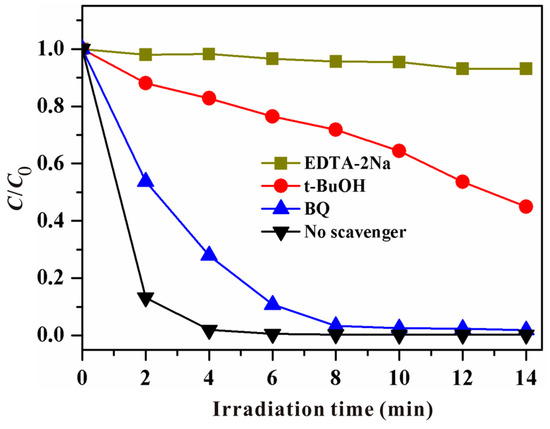

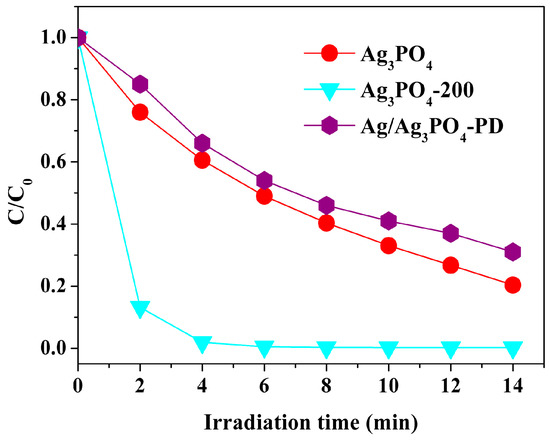

Figure 12. The photocatalytic activity of Ag3PO4-200 for the degradation of MB under visible light upon the addition of different scavengers.
Figure 12. The photocatalytic activity of Ag3PO4-200 for the degradation of MB under visible light upon the addition of different scavengers.
Materials 09 00968 g012
Materials 09 00968 g013 550
Figure 13. Photocatalytic degradation of MB over pristine Ag3PO4, Ag/Ag3PO4-PD, and Ag3PO4-200 under visible light irradiation.
Figure 13. Photocatalytic degradation of MB over pristine Ag3PO4, Ag/Ag3PO4-PD, and Ag3PO4-200 under visible light irradiation.
Materials 09 00968 g013
Materials 09 00968 sch001 550

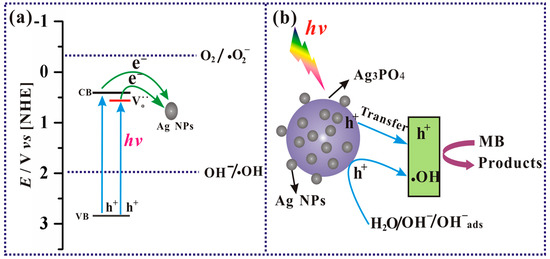

Scheme 1. (a) Proposed transfer pathways of photoinduced carriers based on the energy levels of Ag3PO4 and oxygen vacancies; and (b) a schematic illustration of MB photodegradation for the calcined Ag3PO4 samples.
Scheme 1. (a) Proposed transfer pathways of photoinduced carriers based on the energy levels of Ag3PO4 and oxygen vacancies; and (b) a schematic illustration of MB photodegradation for the calcined Ag3PO4 samples.
Materials 09 00968 sch001

Share and Cite

MDPI and ACS Style

Dong, P.; Hou, G.; Liu, C.; Zhang, X.; Tian, H.; Xu, F.; Xi, X.; Shao, R. Origin of Activity and Stability Enhancement for Ag3PO4 Photocatalyst after Calcination. Materials 2016, 9, 968. https://doi.org/10.3390/ma9120968

AMA Style

Dong P, Hou G, Liu C, Zhang X, Tian H, Xu F, Xi X, Shao R. Origin of Activity and Stability Enhancement for Ag3PO4 Photocatalyst after Calcination. Materials. 2016; 9(12):968. https://doi.org/10.3390/ma9120968

Chicago/Turabian Style

Dong, Pengyu, Guihua Hou, Chao Liu, Xinjiang Zhang, Hao Tian, Fenghua Xu, Xinguo Xi, and Rong Shao. 2016. "Origin of Activity and Stability Enhancement for Ag3PO4 Photocatalyst after Calcination" Materials 9, no. 12: 968. https://doi.org/10.3390/ma9120968

APA Style

Dong, P., Hou, G., Liu, C., Zhang, X., Tian, H., Xu, F., Xi, X., & Shao, R. (2016). Origin of Activity and Stability Enhancement for Ag3PO4 Photocatalyst after Calcination. Materials, 9(12), 968. https://doi.org/10.3390/ma9120968

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
