Next Article in Journal
Lamb-Wave-Based Tomographic Imaging Techniques for Hole-Edge Corrosion Monitoring in Plate Structures
Previous Article in Journal
Influence of Sintering Temperature on the Microstructure and Mechanical Properties of In Situ Reinforced Titanium Composites by Inductive Hot Pressing
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Materials 2016, 9(11), 920;

Influence of EDC on Dentin-Resin Shear Bond Strength and Demineralized Dentin Thermal Properties

Beijing Key Laboratory of Digital Stomatology, National Engineering Laboratory for Digital and Material Technology of Stomatology, Department of Prosthodontics, Peking University School and Hospital of Stomatology, Beijing 100081, China
Author to whom correspondence should be addressed.
Academic Editor: Marco Salerno
Received: 8 August 2016 / Revised: 3 October 2016 / Accepted: 31 October 2016 / Published: 12 November 2016
PDF [1730 KB, uploaded 12 November 2016]

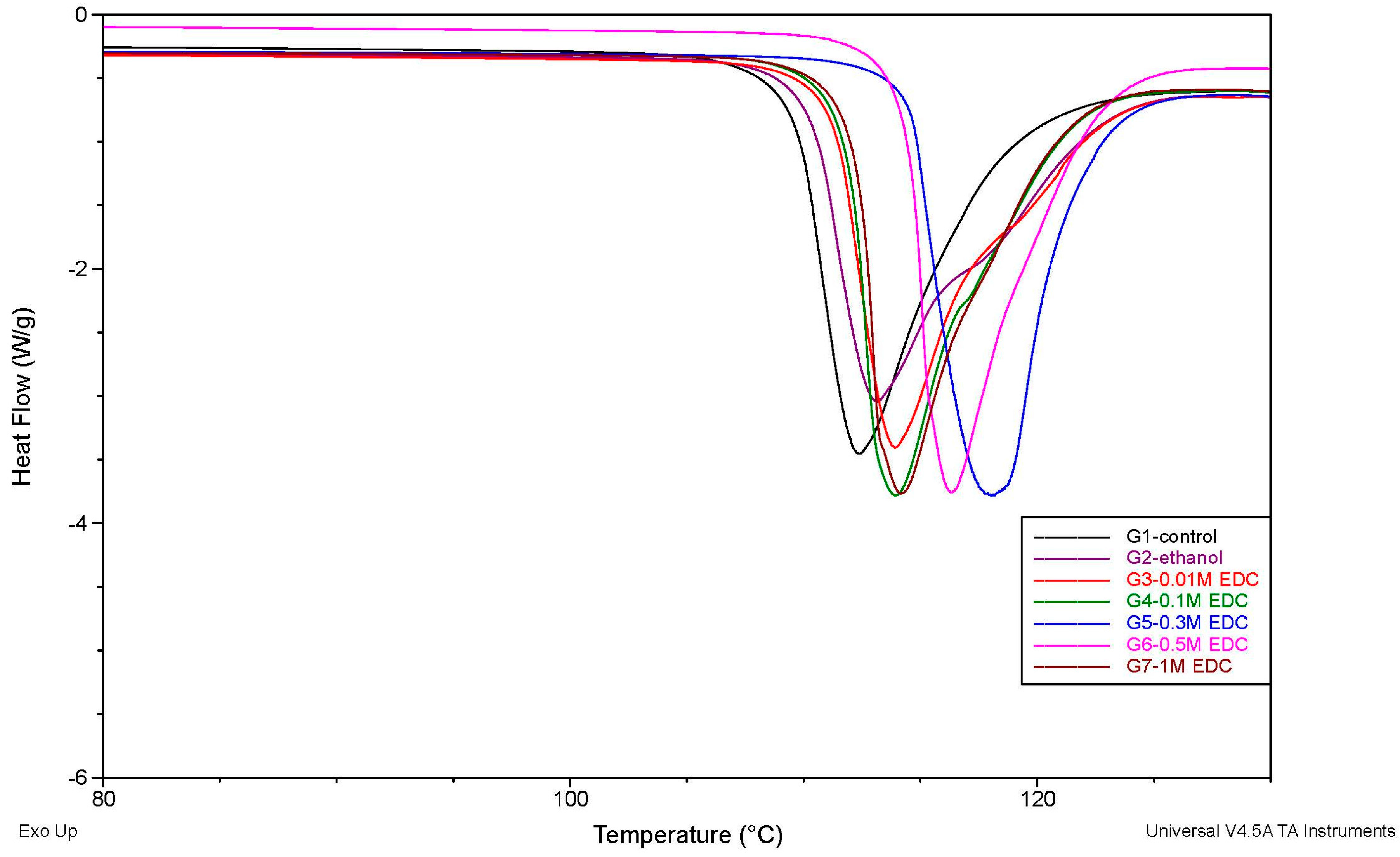

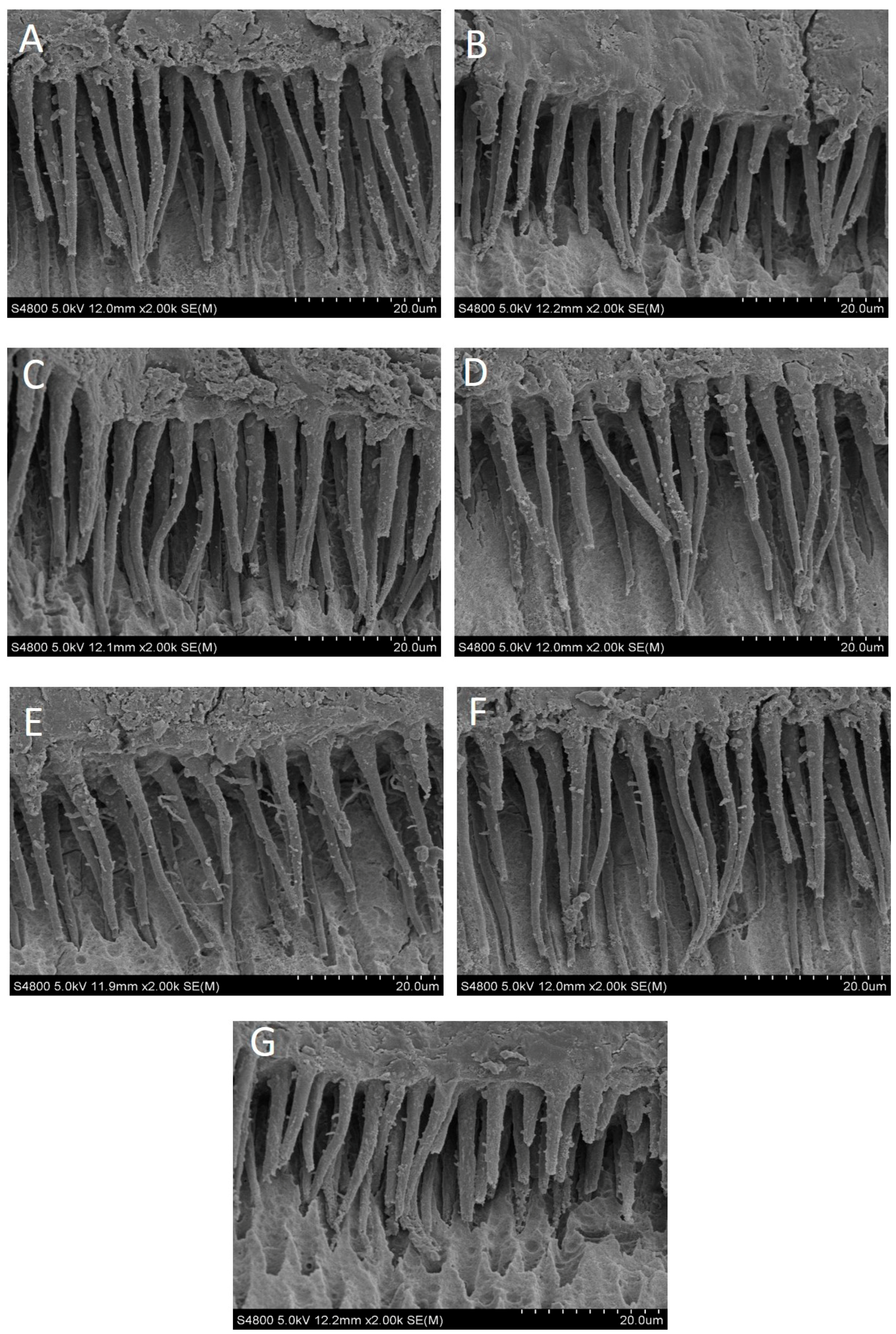

This study aimed to evaluate the bonding strength and thermal properties of demineralized dentin with and without EDC treatment. Sound human molars were randomly divided into seven treatment groups (n = 20): control, 80% ethanol, and five EDC ethanol solutions (0.01–1.0 M). In each group, 16 samples were used for bond strength assessment and 4 samples were used for scanning electron microscopy (SEM) analysis. A further 70 intact molars were used to obtain a fine demineralized dentin powder, treated with the same solutions and were evaluated the crosslink degree by ninhydrin test and denaturation temperature (Td) by differential scanning calorimetry. EDC-treated specimens (<1.0 M) had a higher bond strength, especially 0.3 and 0.5 M group, than the control counterpart. There was a significant drop in bond strength of 1.0 M EDC group. SEM revealed a homogeneous and regular interface under all treatments. EDC treatment significantly increased the demineralized dentin cross-link degree and Td compared with the control and ethanol treatments. The 0.3 and 0.5 M treatments showed the highest cross-link degree and Td. In terms of mechnical and theramal properties consideration, 0.3 and 0.5 M EDC solutions may be favorable for when applied with etch-and-rinse adhesives, but it is still needed further long-term study. View Full-Text
Keywords: shear bond strength; carbodiimide; resin–dentin bond; differential scanning calorimetry shear bond strength; carbodiimide; resin–dentin bond; differential scanning calorimetry

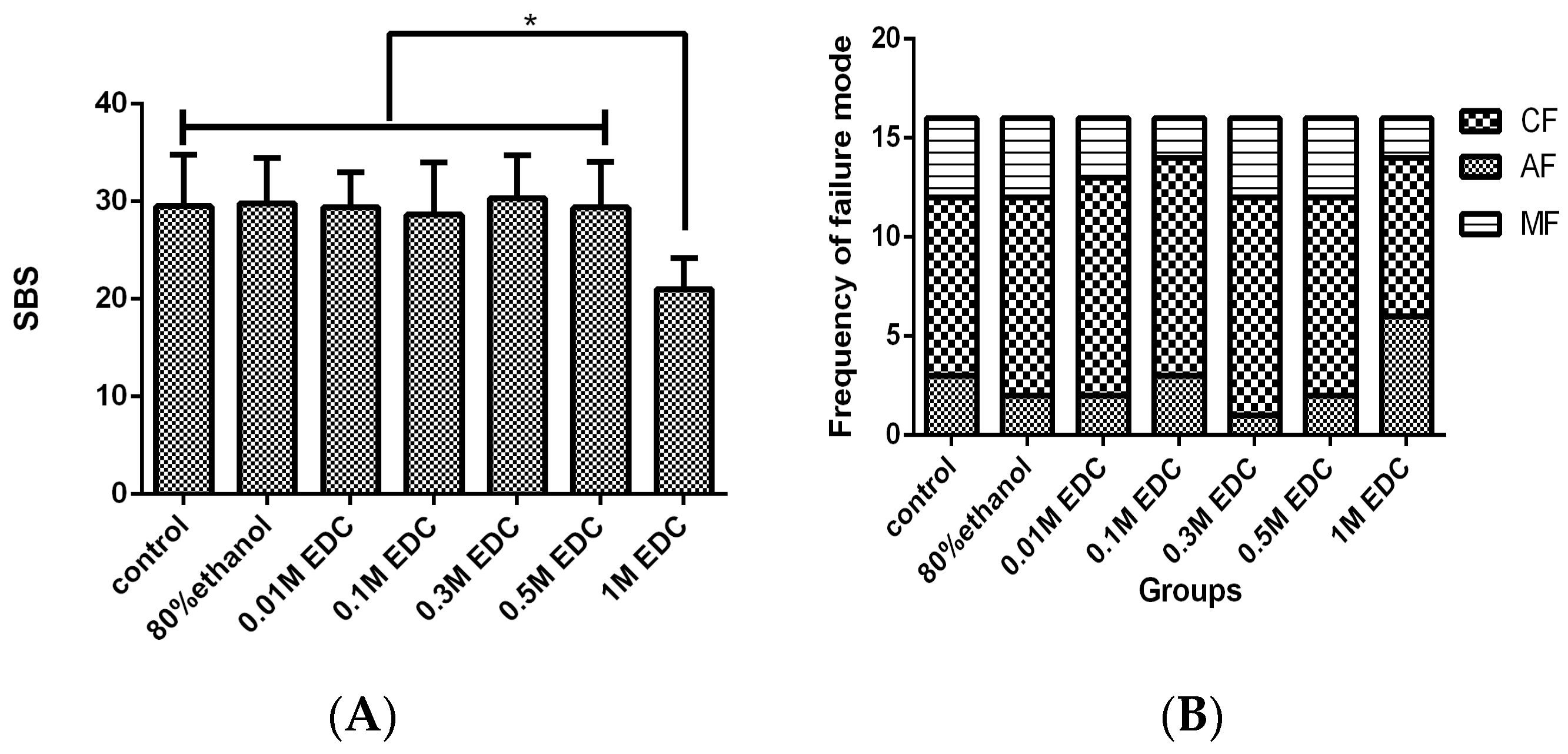

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Tang, L.; Zhang, Y.; Liu, Y.; Zhou, Y. Influence of EDC on Dentin-Resin Shear Bond Strength and Demineralized Dentin Thermal Properties. Materials 2016, 9, 920.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
