Dihydrogen Phosphate Stabilized Ruthenium(0) Nanoparticles: Efficient Nanocatalyst for The Hydrolysis of Ammonia-Borane at Room Temperature

by
Feyyaz Durap
1,
Salim Caliskan
2,
Saim Özkar
2,
Kadir Karakas
3 and
Mehmet Zahmakiran
3,*
1
Department of Chemistry, Dicle University, Diyarbakir 21280, Turkey
2
Department of Chemistry, Middle East Technical University, Ankara 06800, Turkey
3
NanoMatCat Research Laboratory, Department of Chemistry, Yüzüncü Yıl University, Van 65080, Turkey
*
Author to whom correspondence should be addressed.
Materials 2015, 8(7), 4226-4238; https://doi.org/10.3390/ma8074226
Submission received: 29 May 2015 / Revised: 1 July 2015 / Accepted: 7 July 2015 / Published: 10 July 2015
(This article belongs to the Special Issue Hydrogen Storage Materials)
Browse Figures
Versions Notes

Abstract

:
Intensive efforts have been devoted to the development of new materials for safe and efficient hydrogen storage. Among them, ammonia-borane appears to be a promising candidate due to its high gravimetric hydrogen storage capacity. Ammonia-borane can release hydrogen on hydrolysis in aqueous solution under mild conditions in the presence of a suitable catalyst. Herein, we report the synthesis of ruthenium(0) nanoparticles stabilized by dihydrogenphosphate anions with an average particle size of 2.9 ± 0.9 nm acting as a water-dispersible nanocatalyst in the hydrolysis of ammonia-borane. They provide an initial turnover frequency (TOF) value of 80 min−1 in hydrogen generation from the hydrolysis of ammonia-borane at room temperature. Moreover, the high stability of these ruthenium(0) nanoparticles makes them long-lived and reusable nanocatalysts for the hydrolysis of ammonia-borane. They provide 56,800 total turnovers and retain ~80% of their initial activity even at the fifth catalytic run in the hydrolysis of ammonia-borane at room temperature.

1. Introduction

Hydrogen is globally considered to be an efficient and clean energy carrier because of its abundance and high energy density [1,2]. However, as the low density of hydrogen makes it difficult to store in compressed or liquefied form [3,4], safe storage and effective release of hydrogen from the storage materials are required for practical fuel cell applications of hydrogen-based technologies [5,6,7]. Recent studies have already shown that ammonia-borane (NH3BH3; AB) is one of the most promising candidates for chemical hydrogen storage [8,9] because of its low molecular weight (30.9 g·mol−1), high hydrogen content (19.6% wt, 6.5% wt for the first equivalents of H2 and 13.1% wt for the second equivalents of H2) which is greater than the 2015 target of U.S. Department of Energy (5.5% wt H2) [10,11], nontoxicity, and high stability under ambient conditions for potential fuel cell applications. The catalytic hydrolysis reaction is the preferred way to release hydrogen from AB [12,13,14] because AB has high solubility in water (33.6 g/100 g water) [15,16] and has high stability in aqueous solution against self-hydrolysis [17]. The controllable release of three equivalent H2 per mole of AB can be achieved at appreciable rate from the hydrolysis of AB (Equation (1)) in the presence of a suitable catalyst at room temperature [18,19]:
NH3BH3 + 2H2O → NH4BO2 + 3H2
To date, various homogeneous [20,21] and heterogeneous [11,22,23] catalysts have been tested in the hydrolysis of AB. Of particular importance, the examples of heterogeneous catalysts that provide notable catalytic performances are ruthenium(0) nanoparticles (NPs) supported on carbon nanotube [5], platinum NPs supported on carbon [24], colloidal rhodium(0) NPs [25], Ni1-xPtx hollow nanospheres [26], ruthenium(0), rhodium(0) and platinum(0) NPs supported on γ-Al2O3 [27], palladium(0) NPs supported on carbon [28] or grapheme [29], iron(0) NPs [30], Co(0)/Co2B and Ni(0)/Ni3B [31], poly(N-vinyl-2-pyrrolidone) stabilized nickel(0) NPs [32], transition metal-based alloy catalysts [33], hollow Ni-SiO2 nanosphere [34], water soluble laurate stabilized ruthenium(0) [35] and rhodium(0) NPs [36], poly(4-styrenesulfonic acid-co-maleic acid) stabilized ruthenium(0) and palladium(0) NPs [3], zeolite confined copper(0) NPs [23], nickel(0) [37], cobalt(0) [38], palladium(0) [39] and rhodium(0) NPs [40].
The aforementioned studies clearly reveal that the majority of heterogeneous catalysts that show high performance in the hydrolysis of AB are transition metal NP-based catalytic systems. It is well-known that the use of transition metal NPs enhances catalytic activity as the fraction of surface atoms increases with the decreasing particle size [41]. However, these highly reactive transition metal(0) NPs need to be stabilized against agglomeration, which causes a significant decrease in catalytic activity. We have recently reported the synthesis of water-soluble ruthenium(0) NPs stabilized by hydrogenphosphate ion and their catalytic activity in hydrogen generation from the hydrolysis of dimethylamine-borane ((CH3)2NHBH3) at 25 ± 0.1 °C [42]. The hydrogen phosphate anion has been suggested as a stabilizer for transition metal NPs with atomic size matching to the O-O distance in phosphate ion [43,44]. The high catalytic performance observed for these novel water soluble ruthenium(0) NPs in the hydrolysis of dimethylamine-borane ((CH3)2NHBH3; DMAB) prompted us to test the same nanocatalyst in the hydrolysis of AB. Herein, we report the catalytic performance of water-soluble dihydrogen phosphate stabilized ruthenium(0) NPs in terms of activity, lifetime and reusability in the hydrolysis of AB under mild conditions.

2. Experimental Section

2.1. Materials

Ruthenium(III) chloride trihydrate (RuCl3.3H2O), tetrabutylammonium phosphate monobasic ((CH3CH2CH2CH2)4N[OP(OH)2O], 99%), dimethylamine borane ((CH3)2NHBH3, 97%), and ammonia-borane (AB) (H3NBH3, 99%) were purchased from Aldrich. Ethanol (C2H5OH) was purchased from Merck. The water content of RuCl3·xH2O was determined by TGA and found to be x = 3. Deionized water was distilled by water purification system (Milli Q-pure WS). All glassware and Teflon coated magnetic stir bars were cleaned with acetone, followed by copious rinsing with distilled water before drying in an oven at 150 °C.

2.2. Preparation of Water Soluble Dihydrogen Phosphate Stabilized Ruthenium(0) Nanoparticles

The synthesis of dihydrogen phosphate anion stabilized ruthenium(0) NPs was carried out by a slight modification of our previously reported method [42]. In a 20.0 mL Schlenk tube ruthenium(III) chloride (RuCl3.3H20, 0.02 mmol) was dissolved in 10.0 mL deionized water. Then 0.40 mmol tetrabutylammoniumdihydrogen phosphate was added to this solution. After stirring the solution for half an hour at room temperature 0.10 mmol DMAB was added to the reaction mixture. The solution gradually changed its colour from dark red to brown during the reaction at room temperature. The colour change was completed within two hours. The change in colour from dark red to brown is indicative of the formation of ruthenium(0) NPs. The colloidal dihydrogenphosphate anion stabilized ruthenium(0) NPs were found to be stable in aqueous medium, no precipitation was observed after two days of storage under ambient conditions.

2.3. Transmission Electron Microscopy Analyses

The dihydrogenphosphate anion-stabilized ruthenium(0) NPs isolated from the reaction solution by centrifugation were re-dispersed in dichloromethane and one drop of this colloidal solution was deposited on the chloroform-cleaned, carbon-coated Cu TEM grid and the solvent was then evaporated under inert gas atmosphere. Transmission electron microscopy (TEM) images were taken by using a Philips CM-12TEM with a 70 μm lens operating at 100 kV and with a 2.0 Å point-to-point resolution. Samples were examined at magnification between 100 and 400K.

2.4. Testing the Catalytic Activity of Ruthenium(0) Nanoparticles in the Hydrolysis of Ammonia-Borane

The catalytic activity of ruthenium(0) NPs in the hydrolysis of AB was determined by measuring the rate of hydrogen generation. To determine the rate of hydrogen generation the catalytic reactions were performed in a Fischer-Porter pressure bottle modified with Swagelock TFE-sealed quick connects and connected to an Omega PX-302 pressure transducer interfaced through an Omega D1131 digital transmitter to a computer using the RS-232 module. The progress of an individual hydrolysis reaction was followed by monitoring the increase of H2 pressure on Lab View 8.0 program. The pressure vs. time data was processed using Microsoft Office Excel 2003 and Origin 7.0 then converted into the proper unit [volume of hydrogen (mL)] by using the stoichiometry given in Equation 1. In a typical experiment, 30.9 mg (1.0 mmol) AB was dissolved in 10.0 mL water, (corresponding to a maximum amount of 3.0 mmol = 67.0 mL H2 at 25.0 ± 0.1 °C). This solution was transferred with a 50.0 mL glass-pipette into the FP bottle thermostated at 25.0 ± 0.1 °C. Then, aliquot of dihydrogen phosphate anion stabilized ruthenium(0) NPs from the 2.0 mM stock solution was transferred into the FP bottle. The experiment was started by closing the FP bottle connected to the pressure transducer and turning on stirring at 1000 rpm simultaneously. When no more hydrogen generation was observed, the experiment was stopped; an aliquot was then transferred into a quartz NMR sample tube, which was subsequently sealed and then brought out for 11B NMR analysis. NMR spectra were recorded on a Bruker Avance DPX 400 MHz spectrometer (128.2 MHz for 11B NMR). The conversion of AB to ammonium metaborate (NH4BO2) was further checked by comparing the 11B NMR signal intensities of AB and metaborate anion at δ = −23.9 and 9 ppm, respectively, in the spectra of the solution.

2.5. Determination of Activation Energy for Ruthenium(0) Nanoparticles Catalyzed Hydrolysis of Ammonia-Borane

In a typical experiment, ruthenium(0) NPs (0.50 mM Ru) catalyzed hydrolysis of AB (100 mM) was performed by following the same procedure as described in the previous section at various temperatures (10, 15, 20, 25, 30, 35 °C) to obtain the apparent activation energy (Ea).

2.6. Determination of Catalytic Lifetime of Ruthenium(0) Nanoparticles in the Hydrolysis of Ammonia-Borane

The catalytic lifetime of ruthenium(0) NPs in the hydrolysis of AB was determined by measuring the total turnover number (TTO). The lifetime experiment was started with a 10.0 mL aqueous solution containing ruthenium(0) NPs (0.10 mM) and AB (200 mM) at 25.0 ± 0.1 °C. When the complete conversion of AB had been achieved, more ammonia-borane was added until no hydrogen gas evolution was observed.

2.7. Recyclability of Ruthenium(0) Nanoparticles in the Hydrolysis of Ammonia-Borane

The recyclability of ruthenium(0) NPs in the hydrolysis of AB was determined by a series of experiments started with a 10.0 mL solution containing ruthenium(0) NPs (0.50 mM) and AB (100 mM) at 25.0 ± 0.1 °C. When the complete conversion is achieved, immediately, another batch of fresh AB (100 mM) was added, leading to further hydrogen evolution from the reaction mixture.

3. Results and Discussion

3.1. Catalytic Activity of Water-Soluble Dihydrogen Phosphate-Stabilized Ruthenium(0) Nanoparticles in the Hydrolysis of Ammonia-Borane

The water soluble dihydrogen phosphate stabilized ruthenium(0) NPs were prepared from the reduction of the aqueous mixture of ruthenium(III) chloride and tetrabutylammoniumdihydrogen phosphate by DMAB at room temperature, which were then isolated and characterized as described elsewhere [42]. The resulting ruthenium(0) NPs were tested as a heterogeneous catalyst in the hydrolysis of AB (Figure 1). Figure 1a shows the plots of volume of H2 generated versus time during the catalytic hydrolysis of AB solution in the presence of ruthenium(0) NPs at different ruthenium concentrations (0.25, 0.50, 1.00, 2.00 mM) and 25.0 ± 0.1 °C. Linear hydrogen generation starts immediately without an induction period, as the experiment was started with a preformed ruthenium catalyst, and continues until the complete consumption of AB present in the reaction medium. 11B-NMR spectrum of the reaction solution taken at the end of hydrolysis of AB shows that the triplet signal of AB at δ = −23.9 ppm is completely converted to the singlet of the metaborate anion at δ = 9 ppm [19,24]. The catalytic activity of Ru NPs in the hydrolysis of AB shows variation with the ruthenium concentration as seen from the inspection of plots shown in Figure 1a. Expectedly, the rate of hydrogen generation increases with the increase of ruthenium(0) concentration; with 2.0 mM Ru concentration the reaction is completed within 3.5 minutes at 25.0 ± 0.1 °C. It is noteworthy that the resulting ruthenium(0) NPs are acting as active catalysts even at low ruthenium(0) concentrations; for example, at 0.25 mM Ru concentration (substrate/catalyst ratio = 400) the catalytic reaction is completed within 15 minutes by yielding 3.0 mol H2/mol AB at 25.0 ± 0.1 °C. The quantity of ammonia liberated during ruthenium(0) NP-catalyzed hydrolysis of AB was investigated via control tests using copper(II) sulfate or an acid/base indicator, which showed no ammonia evolution in detectable amount in the experiments [45]. The rate of hydrogen generation was determined from the linear portions of each plot given in Figure 1a and used to calculate the turnover frequency (TOF) values for the hydrolysis of AB at different catalyst concentrations and 25.0 ± 0.1 °C. Figure 1b indicates that the TOF values decrease with the increase of catalyst concentration, which is most likely due to the growing particle size. As we kept dihydrogen phosphate concentration at a constant value and increased the ruthenium concentration, under these circumstances one can expect an increase in the size of ruthenium(0) nanoparticles [46].
The catalytic activity was determined in terms of turnover frequency (TOF = mol H2/mol catalyst × time) and it was found to be 80 mol H2/mol Ru.min when the ruthenium concentration is 0.25 or 0.50 mM (Figure 1b), which is higher than that obtained by using Ru@Al2O3 catalyst (39.6 mol H2/mol Ru.min) [47] and laurate stabilized Ru(0) NPs (75 mol H2/mol Ru.min) [35] but lower than that obtained by using Ru/C (430 mol H2/mol Ru.min) [48], Ru@MWCNT (329 mol H2/mol Ru.min) [5] and PSSA-Co-MA stabilized Ru(0) NPs (172 mol H2/mol Ru.min) [3]. The hydrogen generation rate increases with the ruthenium concentration (observed rate constants (kobs): 0.0704, 0.1409, 0.2254 and 0.322 mL·min−1 for [Ru]: 0.25, 0.50, 1.00 and 2.00 mM respectively). When the hydrogen generation rate is plotted against ruthenium concentration (on logarithmic scale), one obtains a straight line with a slope of 0.84 (Figure 1c), which is indicative of the ruthenium(0) NP-catalyzed hydrolysis of AB proceeds first order with respect to the catalyst concentration. The effect of ammonia-borane concentration on the hydrogen generation rate was also investigated. Figure 2 summarizes the results of a series of experiments performed for ruthenium(0) NP-catalyzed hydrolysis of AB starting with various AB concentrations (50, 100, 200, 400 mM) at 25.0 ± 0.1 °C. The logarithmic plot of observed initial rates versus AB concentration gives a straight line with a slope of 0.50. Thus, it indicates that the rate of ruthenium(0) NP-catalyzed hydrolysis of AB depends on the substrate concentration, at least in the range studied here.
Materials 08 04226 g001 1024

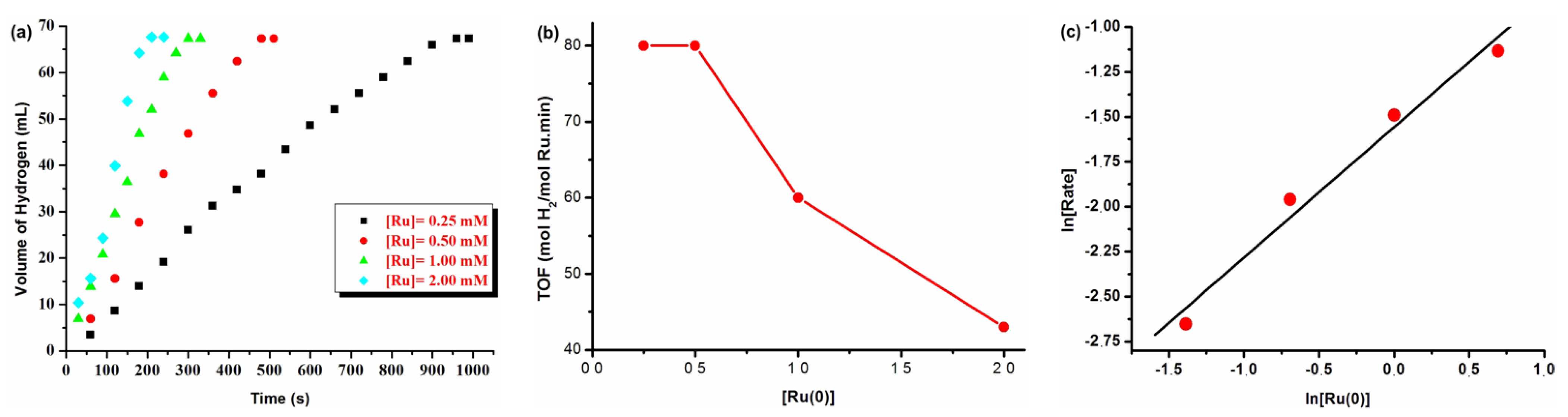

Figure 1. (a) The volume of hydrogen versus time graph for the ruthenium(0) NP-catalyzed hydrolysis of AB (100 mM) started with different ruthenium concentrations at 25.0 ± 0.1 °C; (b) plot of initial TOF values versus catalyst concentration; (c) plot of hydrogen generation rate versus the catalyst concentration, both in logarithmic scale.
Figure 1. (a) The volume of hydrogen versus time graph for the ruthenium(0) NP-catalyzed hydrolysis of AB (100 mM) started with different ruthenium concentrations at 25.0 ± 0.1 °C; (b) plot of initial TOF values versus catalyst concentration; (c) plot of hydrogen generation rate versus the catalyst concentration, both in logarithmic scale.
Materials 08 04226 g001
Materials 08 04226 g002 1024

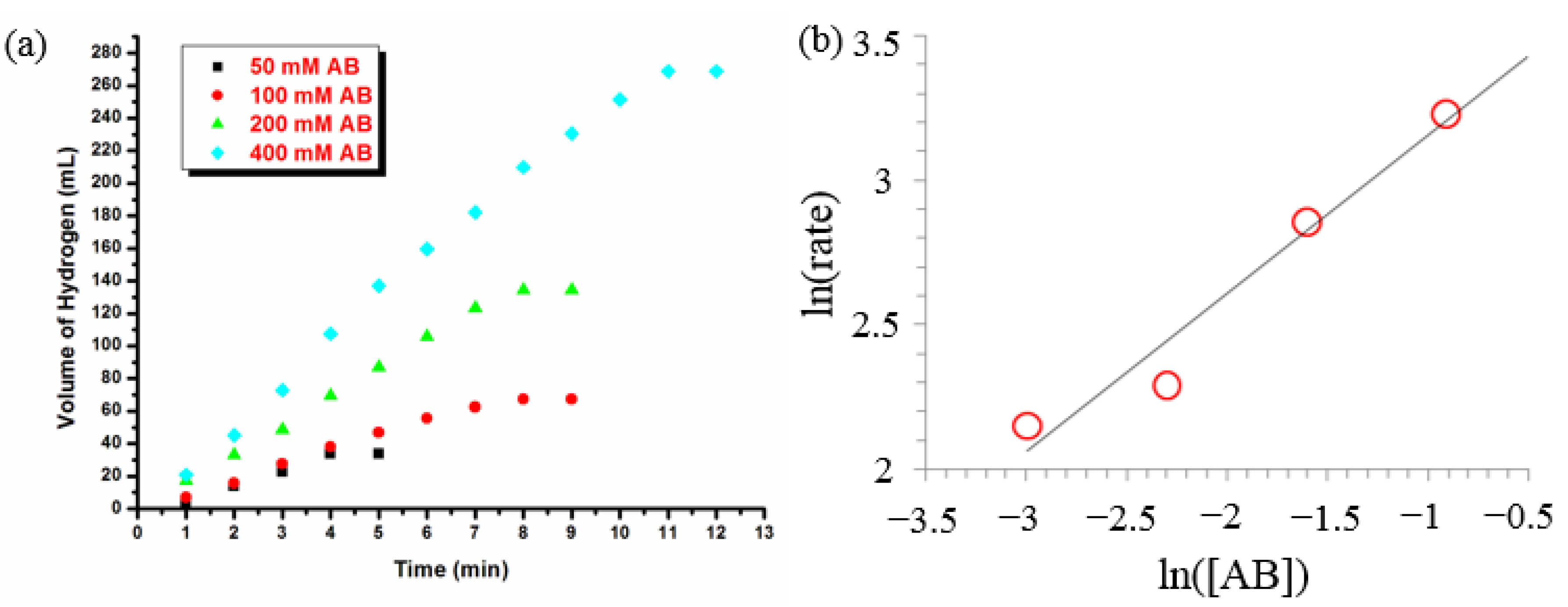

Figure 2. (a) The plots of volume of hydrogen generated versus time for the ruthenium(0) NP (0.50 mM) catalyzed hydrolysis of AB starting with different AB concentrations in the range of 50–400 mM at 25.0 ± 0.1 °C; (b) the logarithmic plot of hydrogen generation rate versus ammonia-borane concentration, both in logarithmic scale, for the same reaction.
Figure 2. (a) The plots of volume of hydrogen generated versus time for the ruthenium(0) NP (0.50 mM) catalyzed hydrolysis of AB starting with different AB concentrations in the range of 50–400 mM at 25.0 ± 0.1 °C; (b) the logarithmic plot of hydrogen generation rate versus ammonia-borane concentration, both in logarithmic scale, for the same reaction.
Materials 08 04226 g002
Furthermore, ruthenium(0) NPs show significant catalytic activity in the hydrolysis of AB even at low temperatures (Figure 3). For example, they achieve the generation of 3.0 equivalents H2 per mole of AB with an initial TOF value of 31.6 min−1 at 10.0 ± 0.1 °C. This is the highest TOF value reported for the catalytic hydrolysis of AB at such a low temperature. Figure 3 shows the plots of hydrogen volume versus time for ruthenium(0) NP-catalyzed hydrolysis of AB at various temperatures. As expected, the rate of hydrogen generation increases with temperature.
Materials 08 04226 g003 1024

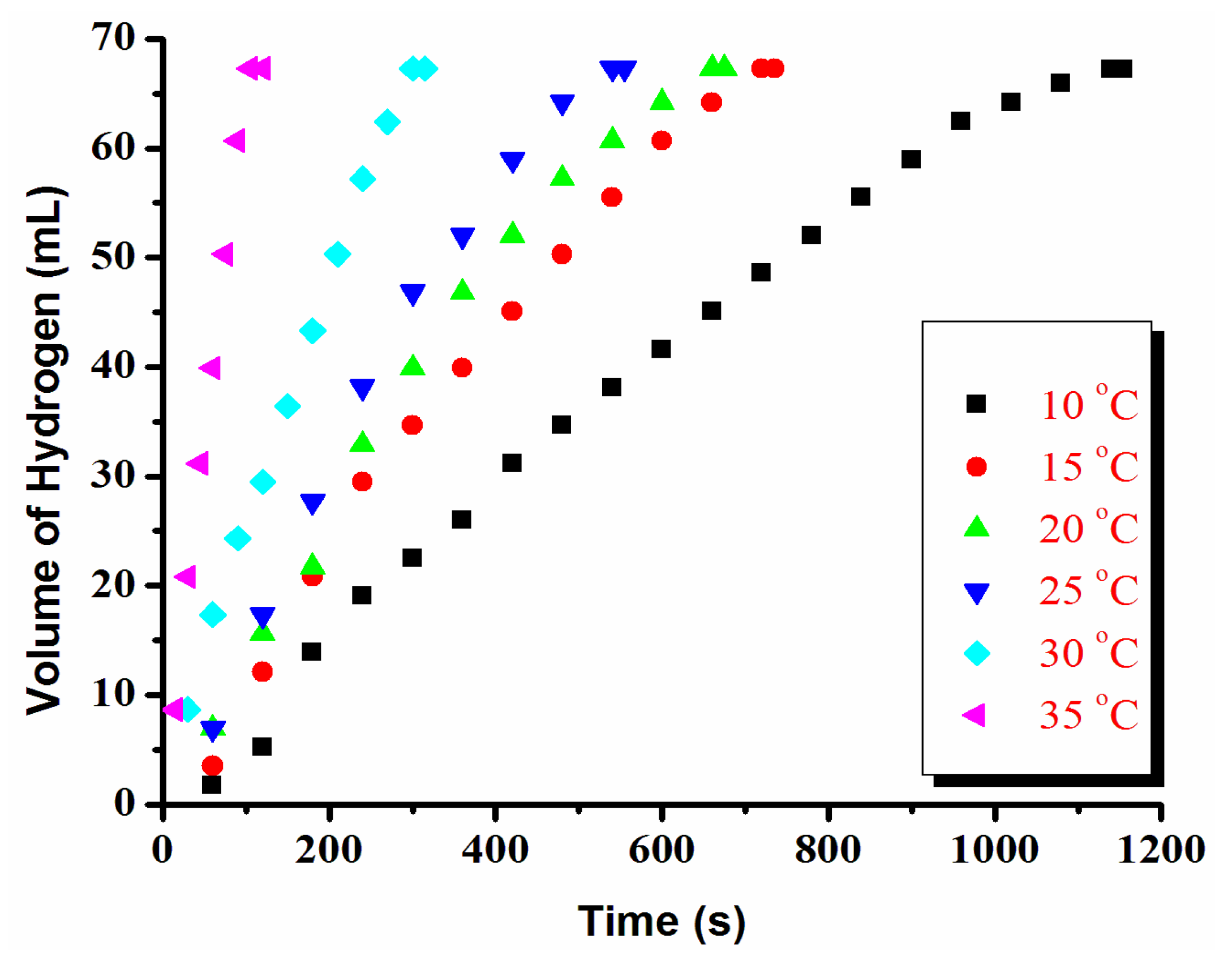

Figure 3. Volume of hydrogen versus time graph for the dihydrogen phosphate anion stabilized ruthenium(0) NP-catalyzed hydrolysis of AB at different temperatures ([Ru] = 0.50 mM, [AB] = 100 mM).
Figure 3. Volume of hydrogen versus time graph for the dihydrogen phosphate anion stabilized ruthenium(0) NP-catalyzed hydrolysis of AB at different temperatures ([Ru] = 0.50 mM, [AB] = 100 mM).
Materials 08 04226 g003
The values of the observed rate constant (kobs) were measured from the linear portion of each plot given in Figure 3 at six different temperatures and used for the construction of an Arrhenius plot (Figure 4). The activation energy for ruthenium(0) NP-catalyzed hydrolysis of AB was found to be Ea= 69 ± 2 kJ·mol−1 from the Arrhenius plot. This value is higher than those reported in the literature for the same reaction by using Rh/ γ-Al2O3 (21 kJ·mol−1), Ru/ γ-Al2O3 (23 kJ·mol−1) [27], Ru(0)@MWCNT (33 kJ·mol−1) [5], laurate-stablized rhodium(0) (43 kJ·mol−1) [36] and ruthenium(0) NPs (47 kJ·mol−1) [35], but nevertheless smaller than the values reported in the literature for the same reaction obtained by using nickel powder (70 kJ·mol−1) [26] and ruthenium/C (76 kJ·mol−1) [49].
Materials 08 04226 g004 1024

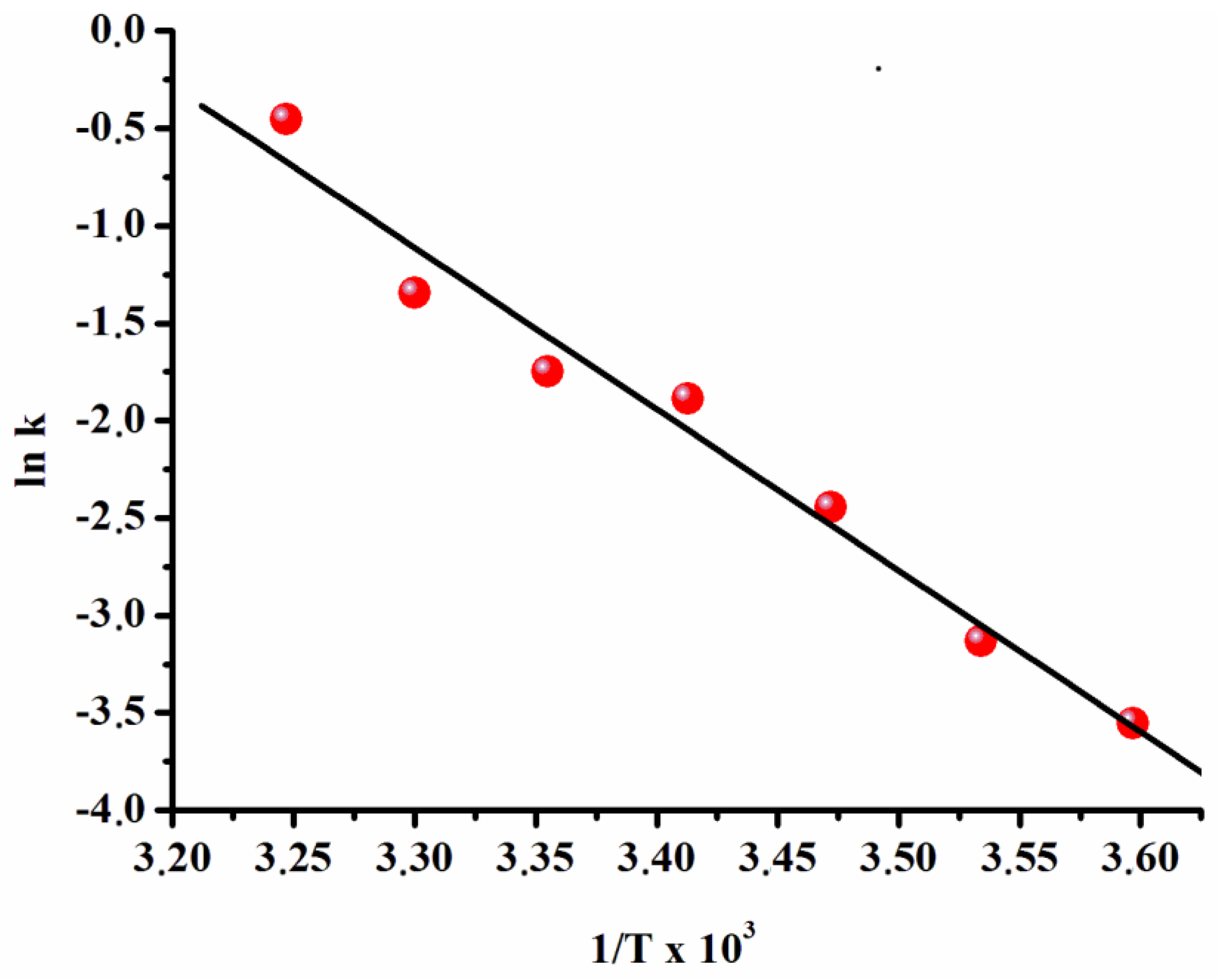

Figure 4. Arrhenius plot for the dihydrogen phosphate anion-stabilized ruthenium(0) NP-catalyzed hydrolysis of AB ([Ru] = 0.50 mM, [AB] = 100 mM).
Figure 4. Arrhenius plot for the dihydrogen phosphate anion-stabilized ruthenium(0) NP-catalyzed hydrolysis of AB ([Ru] = 0.50 mM, [AB] = 100 mM).
Materials 08 04226 g004

3.2. Recyclability and Catalytic Lifetime of Ruthenium(0) Nanoparticles in the Hydrolysis of Ammonia-Borane

The recyclability and catalytic lifetime of ruthenium(0) NPs in the hydrolysis of AB were also explored by performing a series of experiments. When the complete conversion is achieved in the first run for ruthenium(0) NP-catalyzed hydrolysis of AB, another batch of a fresh equal amount of AB was immediately added to the reaction, and this protocol was continued up to fifth catalytic run. The results of these experiments reveal that water soluble dihydrogen phosphate stabilized ruthenium(0) NPs retain 78% of their inherent activity and achieve complete conversion at the fifth catalytic run. The slight decrease in the activity throughout the successive runs may be attributed to the passivation of nanoparticles surface due to the increasing concentration of the metaborate anion, which reduces the accessibility of active sites on the surface of nanoparticles catalyst [25]. Additionally, TEM image given in Figure 5 for the ruthenium(0) NPs sample harvested after the fifth catalytic run shows the aggregation of ruthenium(0) nanoparticles, which can also lead to a reduction in catalytic activity. The corresponding size histogram of ruthenium(0) NPs harvested after the fifth catalytic run reveals that the size of the ruthenium(0) NPs increased to 47.3 ± 5.5 nm at the end of the hydrolysis of ammonia-borane. It should be noted that the mean size of fresh ruthenium(0) NPs prepared using the same methodology was found to be 2.9 ± 0.9 nm [42].
Materials 08 04226 g005 1024
Figure 5. (a) TEM image of a dihydrogen phosphate anion stabilized ruthenium(0) NP sample harvested after the fifth run of hydrolysis of AB (the scale bar corresponds to 100 nm); and (b) corresponding size histogram.
Figure 5. (a) TEM image of a dihydrogen phosphate anion stabilized ruthenium(0) NP sample harvested after the fifth run of hydrolysis of AB (the scale bar corresponds to 100 nm); and (b) corresponding size histogram.
Materials 08 04226 g005
The catalytic lifetime of ruthenium(0) NPs was determined by measuring the total turnover number (TTO) in the hydrolysis of ammonia-borane. Before the complete consumption of AB present in reaction solution, a new batch of AB was added to provide continuity in the hydrogen generation. The addition of AB is repeated until no more hydrogen evolution was observed. Figure 6 depicts the plot of turnover number versus time determined throughout the catalytic lifetime experiment. Ruthenium(0) NPs, when stabilized, provide 56,800 turnovers over 34 h before deactivation in the hydrolysis of AB at 25.0 ± 0.1 °C (Figure 6). This catalytic lifetime value recorded by dihydrogen phosphate-stabilized ruthenium(0) NPs is higher than that of obtained by using PSSA-Co-MA-stabilized ruthenium(0) NPs (51720 mol H2/mol Ru) [3], RhNPs@zeolite (47200 mol H2/mol Rh) [40], Ru@MWCNT (26400 mol H2/mol Ru) [5] but lower than that produced using laurate-stabilized rhodium(0) NPs (80000 mol H2/mol Rh) [36].
Materials 08 04226 g006 1024

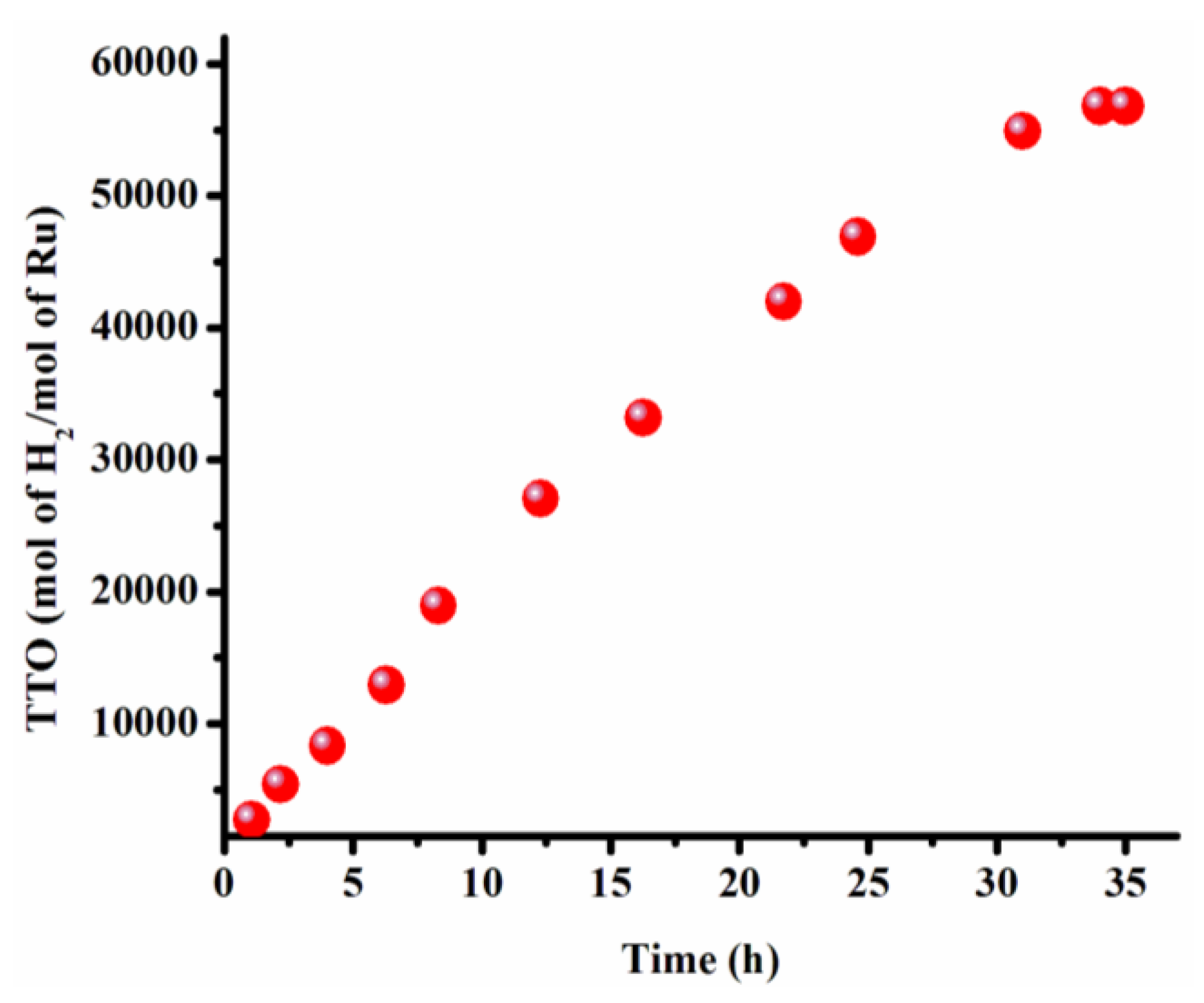

Figure 6. Total turnover number (TTO) versus time for the catalytic lifetime of ruthenium(0) NPs (0.50 mM) in the hydrolysis of ammonia-borane at 25.0 ± 0.1 °C.
Figure 6. Total turnover number (TTO) versus time for the catalytic lifetime of ruthenium(0) NPs (0.50 mM) in the hydrolysis of ammonia-borane at 25.0 ± 0.1 °C.
Materials 08 04226 g006

4. Conclusions

In summary, water-soluble ruthenium(0) NPs stabilized dihydrogen phosphate anion were readily prepared and employed as catalyst in the catalytic hydrolysis of AB under mild conditions. The resulting ruthenium(0) NPs show significantly high catalytic activity in the hydrolysis of ammonia-borane even at low catalyst concentration and temperature. More importantly, they were found to be long-lived heterogeneous catalysts, providing 56,800 turnovers over 34 h in the hydrolysis of AB at 25.0 ± 0.1 °C. The stability of these ruthenium(0) NPs was also investigated, and their recycling tests show that they retain 78% of their initial activity at complete conversion in the hydrolysis of AB, so they can be reused successively in this reaction. In summary, our study reveals that the easy preparation and high catalytic performance of water-soluble ruthenium(0) nanoparticles stabilized by dihydrogen phosphate make them a promising heterogeneous catalyst system for efficient hydrogen generation from the hydrolysis of AB.

Acknowledgments

The partial support from the Scientific and Technological Research Council of Turkey (TUBITAK-2218-Research Fellowship for FD), Fevzi Akkaya Scientific Activities Support Fund (FABED), and Science Academy and Turkish Academy of Sciences (TUBA) is gratefully acknowledged.

Author Contributions

Feyyaz Durap and Salim Caliskan performed the experiments, Mehmet Zahmakiran and Saim Özkar designed the experiments, discussed results and wrote the paper, and Kadir Karakas performed the control experiments and did the studies required in the revision of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sperling, D.; DeLuchi, M.A. Transportation energy futures. Annu. Rev. Energy 1989, 14, 375–424. [Google Scholar] [CrossRef]
  2. Schlapbach, L.; Züttel, A. Hydrogen-storage materials for mobile applications. Nature 2001, 414, 353–358. [Google Scholar] [CrossRef] [PubMed]
  3. Yu, W.; Porosoff, M.D.; Chen, J.G. Review of Pt-based bimetallic catalysis: From model surfaces to supported catalysts. Chem. Rev. 2012, 112, 5780–5817. [Google Scholar] [CrossRef] [PubMed]
  4. Metin, Ö.; Şahin, Ş.; Özkar, S. Water-soluble poly(4-styrene sulfonic acid-co-maleic acid) stabilized ruthenium(0) and palladium(0) nanoclusters as highly active catalyst in hydrogen generation from the hydrolysis of ammonia-borane. Int. J. Hyd. Energy 2009, 34, 6304–6313. [Google Scholar] [CrossRef]
  5. Wu, B.H.; Zheng, N.F. Surface and interface control of noble metal nano crystals for catalytic and electrocatalytic applications. Nano Today 2013, 8, 168–197. [Google Scholar] [CrossRef]
  6. Guo, S.J.; Wang, E.K. Noble metal nanomaterials: Controllable synthesis and application in fuel cells and analytical sensors. Nano Today 2011, 6, 240–264. [Google Scholar] [CrossRef]
  7. Akbayrak, S.; Özkar, S. Ruthenium(0) nanoparticles supported on multiwalled carbon nanotube as highly active catalyst for hydrogen generation from ammonia borane. ACS Appl. Mater. Interfaces 2012, 4, 6302–6310. [Google Scholar] [CrossRef] [PubMed]
  8. Basic Research Needs Catalysis for Energy, Report from the US Department of Energy, Basic Energy Sciences Workshop Report. Available online: http://www.sc.doe.gov/bes/reports/list.html (accessed on 6 August 2007).
  9. Marder, T. Will we soon be fueling our automobiles with ammonia-borane? Angew. Chem. Int. Ed. 2007, 46, 8116–8118. [Google Scholar] [CrossRef] [PubMed]
  10. Satyapala, S.; Petrovic, J.; Read, C.; Thomas, G.; Ordaz, G. The U.S. department of energy’s national hydrogen storage project: Progress towards meeting hydrogen-powered vehicle requirements. Catal. Today 2007, 120, 246–256. [Google Scholar] [CrossRef]
  11. Zahmakıran, M. Preparation and characterization LTA-type zeolite framework dispersed ruthenium nanoparticles and their catalytic application in the hydrolytic dehydrogenation of ammonia-borane for efficient hydrogen generation. Mater. Sci. Eng. B 2012, 177, 606–613. [Google Scholar] [CrossRef]
  12. Wolf, G.; Baumann, J.; Baitalow, F.; Hoffmann, F.P. Calorimetric process monitoring of thermal decomposition of B-N-H compounds. Thermochim. Acta 2000, 343, 19–25. [Google Scholar] [CrossRef]
  13. Gutowska, A.; Li, L.; Shin, Y.; Wang, C.M.; Li, X.S.; Linehan, J.C.; Smith, R.S.; Kay, B.D.; Schmid, B.; Shaw, W.; et al. Nanoscaffold mediates hydrogen release and the reactivity of ammonia borane. Angew. Chem. Int. Ed. 2005, 44, 3578–3582. [Google Scholar] [CrossRef] [PubMed]
  14. Bluhm, M.E.; Bradley, M.G.; Butterick, R.; Kusari, U.; Sneddon, L.G. Amineborane-based chemical hydrogen storage:  Enhanced ammonia borane dehydrogenation in ionic liquids. J. Am. Chem. Soc. 2006, 128, 7748–7749. [Google Scholar] [CrossRef] [PubMed]
  15. Stephens, F.H.; Pons, V.; Baker, R.T. Ammonia-borane: The hydrogen source par excellence? Dalton Transactions 2007, 25, 2613–2626. [Google Scholar] [CrossRef] [PubMed]
  16. Proceedings of the 2002 U.S. DOE Hydrogen Program Review. Available online: http://www.eere.energy.gov/hydrogenandfuelcells/pdfs/32405b15.pdf (accessed on 17 April 2015).
  17. Chandra, M.; Xu, Q. Dissociation and hydrolysis of ammoniaborane with solid acids and carbon dioxide: An efficient hydrogen generation system. J. Power Sources 2006, 159, 855–860. [Google Scholar] [CrossRef]
  18. Xu, Q.; Chandra, M. Catalytic activities of non-noble metals for hydrogen generation from aqueous ammonia-borane at room temperature. J. Power Sources 2006, 163, 364–370. [Google Scholar] [CrossRef]
  19. Xu, Q.; Chandra, M. A portable hydrogen generation system: Catalytic hydrolysis of ammonia-borane. J. Alloys Compd. 2007, 446, 729–732. [Google Scholar] [CrossRef]
  20. Graham, T.W.; Tsang, C.W.; Chen, X.; Guo, R.; Jia, W.; Lu, S.M.; Sui-Sen, C.; Ewart, C.B.; Lough, A.; Amoroso, D.; et al. Catalytic solvolysis of ammonia borane. Angew. Chem. Int. Ed. 2010, 49, 8708–8711. [Google Scholar] [CrossRef] [PubMed]
  21. Fortman, G.C.; Slawin, A.M.Z.; Nolan, S.P. Highly active iridium(III)–NHC system for the catalytic B-N bond activation and subsequent solvolysis of ammonia-borane. Organometallics 2011, 30, 5487–5492. [Google Scholar] [CrossRef]
  22. Staubitz, A.; Robertson, A.; Manners, I. Ammonia-borane and related compounds as dihydrogen sources. Chem. Rev. 2010, 110, 4079–4124. [Google Scholar] [CrossRef] [PubMed]
  23. Zahmakıran, M.; Durap, F.; Özkar, S. Zeolite confined copper(0) nanoclusters as cost-effective and reusable catalyst in hydrogen generation from the hydrolysis of ammonia-borane. Int. J. Hydrogen Energy 2010, 35, 187–197. [Google Scholar] [CrossRef]
  24. Chandra, M.; Xu, Q. A high performance hydrogen generation system: Transition metal-catalyzed dissociation and hydrolysis of ammonia-borane. J. Power Sources 2006, 156, 190–194. [Google Scholar] [CrossRef]
  25. Clark, T.J.; Whittell, G.R.; Manners, I. Highly efficient colloidal cobalt- and rhodium-catalyzed hydrolysis of H3N-BH3 in air. Inorg. Chem. 2007, 46, 7522–7527. [Google Scholar] [CrossRef] [PubMed]
  26. Cheng, F.; Ma, H.; Li, Y.; Chen, J. Ni1-xPtx (x = 0–0.12) hollow spheres as catalysts for hydrogen generation from ammonia borane. Inorg. Chem. 2007, 46, 788–794. [Google Scholar] [CrossRef] [PubMed]
  27. Chandra, M.; Xu, Q. Room temperature hydrogen generation from aqueous ammonia-borane using noble metal nanoclusters as highly active catalysts. J. Power Sources 2007, 168, 135–142. [Google Scholar] [CrossRef]
  28. Ramachandran, P.V.; Gagare, P.D. Preparation of ammonia borane in high yield and purity, methanolysis, and regeneration. Inorg. Chem. 2007, 46, 7810–7817. [Google Scholar] [CrossRef] [PubMed]
  29. Metin, Ö.; Kayhan, E.; Özkar, S.; Schneider, J.J. Palladium nanoparticles supported on chemically derived graphene: An efficient and reusable catalyst for the dehydrogenation of ammonia borane. Int. J. Hydrogen Energy 2012, 37, 8161–8169. [Google Scholar]
  30. Yan, J.M.; Zang, X.B.; Han, S.; Shioyama, H.; Xu, Q. Iron nanoparticle catalyzed hydrolytic dehydrogenation of ammonia-borane for chemical hydrogen storage. Angew. Chem. Int. Ed. 2008, 47, 2287–2289. [Google Scholar] [CrossRef] [PubMed]
  31. Kalindindi, S.B.; Indirani, M.; Jagirdar, B.R. First row transition metal ion-assisted ammonia-borane hydrolysis for hydrogen generation. Inorg. Chem. 2008, 47, 7424–7429. [Google Scholar] [CrossRef] [PubMed]
  32. Umegaki, T.; Yan, J.M.; Zhang, X.B.; Shioyama, H.; Kuriyama, N.; Xu, Q. Preparation and catalysis of poly(N-vinyl-2-pyrrolidone) (PVP) stabilized nickel catalyst for hydrolytic dehydrogeneration of ammonia borane. Int. J. Hydrogen Energy 2009, 34, 3816–3822. [Google Scholar] [CrossRef]
  33. Yao, C.F.; Zhuang, L.; Cao, Y.L.; Ai, X.P.; Yang, H.X. Hydrogen release from hydrolysis of borazane on Pt- and Ni-based alloy catalysts. Int. J. Hydrogen Energy 2008, 33, 2462–2467. [Google Scholar] [CrossRef]
  34. Umegaki, T.; Yan, J.M.; Zhang, X.B.; Shioyama, H.; Kuriyama, N.; Xu, Q. Hollow Ni-SiO2 nanosphere-catalyzed hydrolytic dehydrogenation of ammonia borane for chemical hydrogen storage. J. Power Sources 2009, 191, 209–216. [Google Scholar] [CrossRef]
  35. Durap, F.; Zahmakıran, M.; Özkar, S. Water soluble laurate stabilized ruthenium(0) nanoclusters catalyst for hydrogen generation from the hydrolysis of ammonia-borane: High activity and long life time. Int. J. Hydrogen Energy 2009, 34, 7223–7230. [Google Scholar] [CrossRef]
  36. Durap, F.; Zahmakıran, M.; Özkar, S. Water soluble laurate stabilized rhodium(0) nanoclusters catalyst: Unprecedented catalytic lifetime in the hydrolytic dehydrogenation of ammonia-borane. Appl. Catal. A. General 2009, 369, 53–59. [Google Scholar] [CrossRef]
  37. Zahmakıran, M.; Ayvalı, T.; Akbayrak, S.; Çalışkan, S.; Çelik, D.; Özkar, S. Zeolite framework stabilized nickel(0) nanoparticles: Active and long-lived catalyst for hydrogen generation from the hydrolysis of ammonia-borane and sodiumborohydride. Catalysis Today 2011, 170, 76–84. [Google Scholar] [CrossRef]
  38. Rakap, M.; Özkar, S. Hydrogen generation from the hydrolysis of ammonia-borane using intrazeolite cobalt(0) nanoclusters catalyst. Int. J. Hydrogen Energy 2010, 35, 3341–3346. [Google Scholar] [CrossRef]
  39. Rakap, M.; Özkar, S. Zeolite confined palladium(0) nanoclusters as effective and reusable catalyst for hydrogen generation from the hydrolysis of ammonia-borane. Int. J. Hydrogen Energy 2010, 35, 1305–1312. [Google Scholar] [CrossRef]
  40. Zahmakıran, M.; Özkar, S. Zeolite framework stabilized rhodium(0) nanoclusters catalyst for the hydrolysis of ammonia-borane in air: Outstanding catalytic activity, reusability and life time. Appl. Catal. B 2009, 89, 104–110. [Google Scholar] [CrossRef]
  41. Pool, R. Clusters: Strange morsels of matter: when metals or semiconductor are shrunk down to clumps only 10 or 100 atoms in size, they become a “totally new class of materials” with potentially valuable applications. Science 1990, 248, 1186–1188. [Google Scholar] [CrossRef] [PubMed]
  42. Çalışkan, S.; Zahmakıran, M.; Durap, F.; Özkar, S. Hydrogen liberation from the hydrolytic dehydrogenation of dimethylamine-borane at room temperature by using a novel ruthenium nanocatalyst. Dalton Trans. 2012, 41, 4976–4984. [Google Scholar] [CrossRef] [PubMed]
  43. Özkar, S.; Finke, R.G. Transition-metal nanocluster stabilization fundamental studies: Hydrogenphosphate as a simple, effective, readily available, robust and previously unappreciated stabilizer for well-formed, isolable, and redissolvable Ir(0) and other transition-metal nanoclusters. Langmuir 2003, 19, 6247–6260. [Google Scholar]
  44. Özkar, S.; Finke, R.G. Molecular insights for how preferred oxoanions bind to and stabilize transition-metal nanoclusters: A tridentate, C3 symmetry, lattice size-matching binding model. Coord. Chem. Rev. 2004, 248, 135–146. [Google Scholar]
  45. Metin, Ö.; Özkar, S. Water soluble nickel(0) and cobalt(0) nanoclusters stabilized by poly(4-styrenesulfonic acid-co-maleic acid): Highly active, durable and cost effective catalysts in hydrogen generation from the hydrolysis of ammonia borane. Int. J. Hydrogen Energy 2011, 36, 1424–1432. [Google Scholar]
  46. Zahmakiran, M.; Özkar, S. Metal nanoparticles in liquid phase catalysis; from recent advances to future goals. Nanoscale 2011, 3, 3462–3481. [Google Scholar] [CrossRef] [PubMed]
  47. Can, H.; Metin, Ö. A facile synthesis of nearly monodisperse ruthenium nanoparticles and their catalysis in the hydrolytic dehydrogenation of ammonia borane for chemical hydrogen store. Appl. Cat. B Environ. 2012, 125, 304–310. [Google Scholar] [CrossRef]
  48. Liang, H.; Chen, G.; Desinan, S.; Rosei, R.; Rosei, F.; Ma, D. In situ facile synthesis of ruthenium nanocluster catalyst supported on carbon black for hydrogen generation from the hydrolysis of ammonia-borane. Int. J. Hydrogen Energy 2012, 37, 17921–17927. [Google Scholar] [CrossRef]
  49. Basu, S.; Brockman, A.; Gagore, P.; Zheng, Y.; Ramachandran, P.V.; Delgass, W.N. Chemical kinetics of Ru-catalyzed ammonia borane hydrolysis. J. Power Sources 2009, 188, 238–243. [Google Scholar] [CrossRef]
