Materials 2015, 8(5), 2495-2513; https://doi.org/10.3390/ma8052495

Article
“Low Cost” Pore Expanded SBA-15 Functionalized with Amine Groups Applied to CO2 Adsorption
1
Department of Chemical Engineering, Universidade Federal do Ceará, Campus do Pici, bl. 709, 60455-760 Fortaleza, Brazil
2
Departament of Inorganic Chemistry, Cristallography and Mineralogy, Universidad de Málaga, Campus de Teatinos s/n, 29071 Málaga, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Rafael Luque
Received: 1 March 2015 / Accepted: 30 April 2015 / Published: 11 May 2015

Abstract

:
The CO2 adsorption capacity of different functionalized mesoporous silicas of the SBA-15 type was investigated and the influence of textural properties and the effect of the silicon source on the CO2 uptake studied. Several adsorbents based on SBA-15 were synthesized using sodium silicate as silicon source, replacing the commonly used tetraethyl orthosilicate (TEOS). Thus, we synthesized three couples of supports, two at room temperature (RT, RT-F), two hydrothermal (HT, HT-F) and two hydrothermal with addition of swelling agent (1,3,5-triisopropylbenzene) (TiPB, TiPB-F). Within each couple, one of the materials was synthesized with ammonium fluoride (NH4F). The supports were functionalized via grafting 3-aminopropyltriethoxysilane (APTES) and via impregnation with polyethylenimine ethylenediamine branched (PEI). The adsorption behavior of the pure materials was described well by the Langmuir model, whereas for the amine-silicas, a Dualsite Langmuir model was applied, which allowed us to qualify and quantify two different adsorption sites. Among the materials synthesized, only the SBA-15 synthesized at room temperatures (RT) improved its properties as an adsorbent with the addition of fluoride when the silicas were functionalized with APTES. The most promising result was the TiPB-F/50PEI silica which at 75 °C and 1 bar CO2 captured 2.21 mmol/g.
Keywords:
SBA-15; 1,3,5-triisopropylbenzene; ammonium fluoride; adsorption; CO2; 3-aminopropyltriethoxysilane; polyethylenimine ethylenediamine; Dualsite Langmuir model; chemisorptions

1. Introduction

Since the beginning of the industrialization era, the emissions of greenhouse gases such as carbon dioxide (CO2), methane (CH4), nitrous oxide (N2O), chlorofluorocarbons (CFC), and sulfur hexafluoride (SF6) have been continuously increasing. Thus, the average world temperature has increased by 0.74% in the past 100 years and is expected to increase by another 6.4% by the end of the twenty-first century [1]. The emissions of greenhouse gases cause the global warming, which is directly related with droughts, floods, heat waves, and destruction of ecosystems [2]. This fact has led to more restrictive environmental requirements by governments to reduce CO2 emissions to the atmosphere.
Among the currently available technologies, post-combustion capture, a technology for capturing CO2 from post-combustion emission gases, is the most easily applied technology for existing emission sources. Post-combustion capture uses wet/dry adsorbents, which are used for gas separation, and separates and collects CO2 by adsorption/desorption. In general, post-combustion capture technologies include wet absorption, dry adsorption, membrane-based technologies, and cryogenics [3,4].
Wet absorption is good for treating large emission volumes from combustion, however, it demands high energy for absorbent regeneration, suffers from loss of effectiveness over time due to low solvent thermal stability, and usually requires a large footprint. In addition, this technology has some drawbacks such as high equipment corrosion rate and losses due to solvent evaporation [5,6]. Membrane-based processes generally require simple devices, are easy to operate, and have low energy consumption. However, they entail high-cost membrane modules, which are not suitable for treating large volumes of emission gases and may suffer from fast fouling [7,8]. Cryogenics requires low investment cost and it is a mature technology; however, it is not suitable in most cases because of its energy consumption. Current research is focused on dry adsorption systems using dry adsorbents. This technology requires simple devices, which are robust and easy to operate [9]. Nevertheless, the choice of an adsorbent with a suitable working capacity, selectivity, and regenerability is still an open issue.
The process of capturing CO2 using a dry adsorbent involves selective separation of CO2 based on gas-solid interactions, using molecular sieves such as zeolites [10,11,12], activated carbons [13,14], metal-organic frameworks (MOF) [15,16] and porous silica such as SBA-15 [17,18,19,20,21,22,23,24,25], MCM-41 [21,26,27,28] and mesocellular foams (MCF) [22,24,25,29,30]. The synthesis of both SBA-15 and MCM-41 requires surfactant templates in order to give rise to ordered mesoporous materials. Note that the polymer employed to obtain SBA-15, poly(ethylene oxide)–poly(propylene oxide)–poly(ethylene oxide) (PEO–PPO–PEO), is biodegradable and cheaper than the surfactants used initially in the synthesis of MCM-41 [31]. In addition, a feature of SBA-15 is the interconnection between channels that facilitate diffusion inside the entire porous structure and may pose a significant contribution in gas physisorption [32]. In the last decade, many efforts have focused on the modification of SBA-15 to more effectively tailor it for its application as catalyst or adsorbent.
Thus, the pore size of SBA-15 can be increased by the incorporation of swelling agents such as aromatics compounds [24,25] or alkanes [24], which favors the diffusion of bulky molecules. The presence of fluoride species in the synthesis conditions limits the aggregation and growth of the mesochannels and disrupts the honeycomb arrangement of SBA-15, leading to spherical cells that are interconnected by windows with a narrow pore size distribution [24,25,33]. An important issue related to the potential applications of the ordered mesoporous materials, such as SBA-15 or MCM-41, is their large scale synthesis, which needs to be simple and economically feasible. Alkoxides, such as tetraethyl orthosilicate (TEOS), are a quite expensive silica source, which should be replaced by a less costly and more environmentally friendly silica compound. Stucky et al. [34] reported a slightly modified synthesis of SBA-15 using an inexpensive sodium metasilicate as silicon source, obtaining materials with similar behavior as those prepared with TEOS.
The incorporation of amine species (by impregnation or grafting) produces a significant increase in the CO2 adsorption capacity. In the case of the impregnation method, large amounts of amine polymers are stabilized inside the porous framework by electrostatic interactions between the amine groups and the silanol species of the porous silica based material [17,24,25,30]. Nonetheless, bulky amine polymers may detrimentally affect CO2 adsorption by clogging the porous matrix [35]. The grafting method takes place by reacting an aminosilane the silanol species present on the solid surface, leading to amine modified porous silica. Such grafted silicas have been reported to have high stability and outstanding CO2 capacity [20,24,25].
The aim of this work was the synthesis and characterization of SBA-15 using a low cost and environmentally friendly source such as sodium metasilicate. The uniqueness of this study is based on the modification of low-cost SBA-15 with the use of a swelling agent such as 1,3,5-triisopropylbenzene, which increases the pore size and/or the addition of fluoride, which limits the growing of mesochannels of the porous framework, diminishing the diffusion problems. In both cases the textural properties of the low-cost SBA-15 are strongly modified. The porous silica materials were either grafted with 3-(triethoxysilyl)propylamine (APTES) or impregnated with polyethyleneimine (PEI) to be tested for CO2 capture.

2. Experimental

2.1. Materials

The chemicals used to synthesize the various mesoporous silica samples by soft templating were triblock copolymers Pluronic P123 (PEO20PPO70PEO20 average molecular weigth Mn = 5800 g mol−1, Aldrich, St. Louis, MO, USA), sodium silicate solution (Na2Si3O7 with 27% SiO2 and 14% NaOH from Aldrich), sodium hydroxide (NaOH, Prolabo, PA, USA) and sulfuric acid (H2SO4, VWR 95%). In order to enlarge the pore volume and shorten the length of the channels, 1,3,5-triisopropylbenzene (Aldrich 95%) and NH4F (Aldrich) were employed, respectively. The functionalization of the thus synthesized silicas was performed with branched polyethylenimine ethylenediamine (PEI) (average molecular weight Mn~600, Aldrich) and 3-aminopropyltriethoxysilane (APTES) (Aldrich 98%), using methanol (Aldrich 99.9%) and toluene (Aldrich 99.5%) as solvents, respectively. The gases employed in this work were He (Air Liquide, Paris, France, 99.99%), N2 (Air Liquide 99.9999%) and CO2 (Air Liquide 99.998%).

2.2. Preparation of Siliceous Porous Structures

The synthesis of the low-cost porous silica was obtained following the synthesis reported by Gómez-Cazalilla et al. [36] with modifications by the use of a swelling agent such as 1,3,5-triisopropylbenzene or/and NH4F to reduce the length of the channels. The synthetic conditions and final molar ratio in the synthesis gel are summarized in Scheme 1 and Table 1.

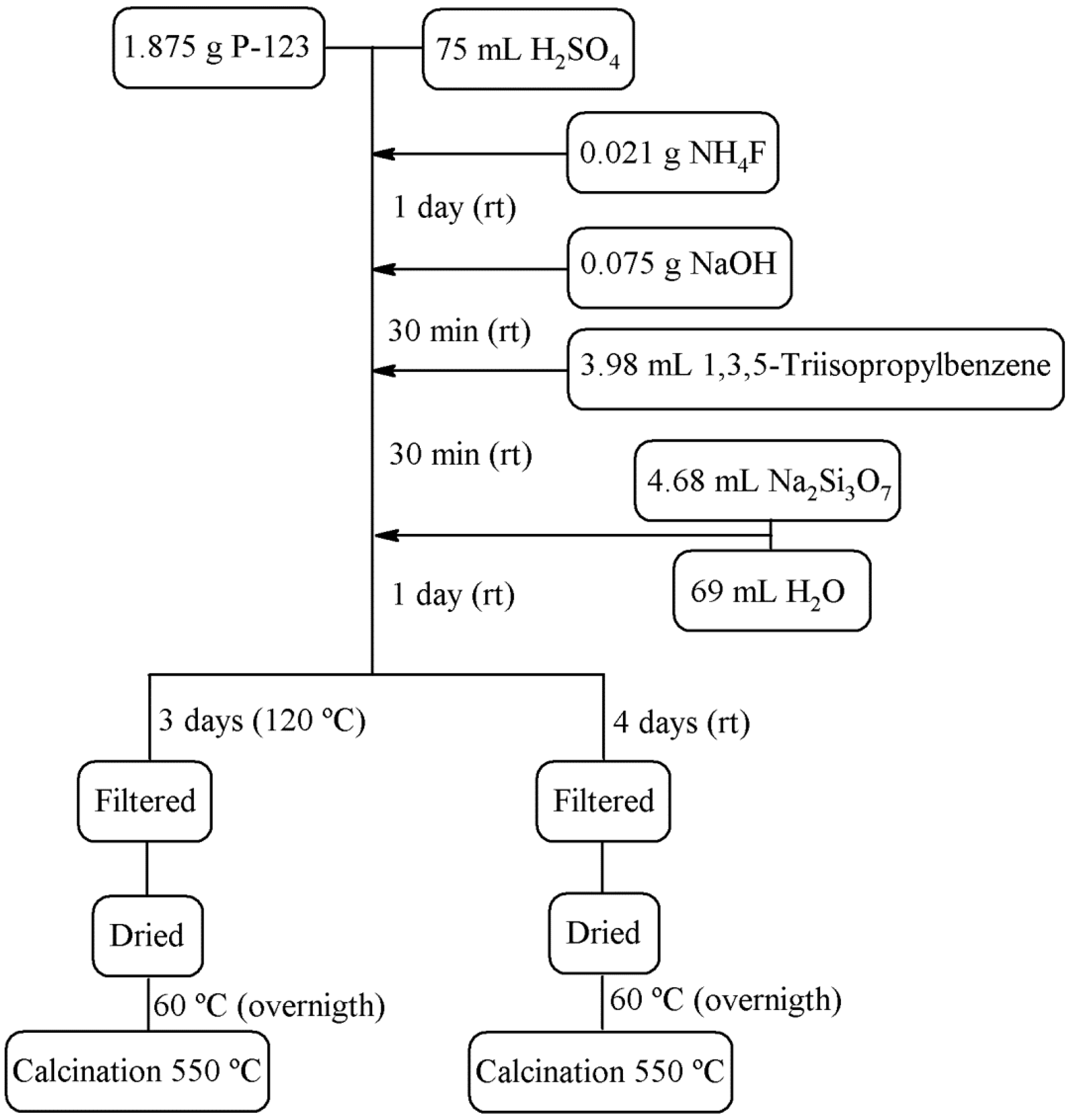

Scheme 1. Synthesis of pure silicas.
Scheme 1. Synthesis of pure silicas.
Materials 08 02495 g011
Table 1. Final molar compositon of the synthesis gel.
Table 1. Final molar compositon of the synthesis gel.
SampleDescriptionP123/SiO2/H2SO4/NaOH/NH4F/TIPB/H2O
RTRoom temperature SBA151/189/93/5.8/0/0/4447
RT-FRoom temperature porous silica modified with fluoride1/189/93/5.8/1.7/0/4447
HTHydrothermal SBA151/189/93/5.8/0/0/4447
HT-FHydrothermal porous silica modified with fluoride1/189/93/5.8/1.7/0/4447
TiPBHydrothermal SBA-15 modified with pore expander (TiPB)1/189/93/5.8/0/49/4447
TiPB-FHydrothermal porous silica modified with pore expander (TIPB)1/189/93/5.8/1.7/49/4447
In a typical synthesis, 1.875 g Pluronic was added to 75 mL H2SO4 0.4 M solution. After stirring for a few hours, a clear solution was obtained. Then, 0.075 g NaOH and 4.68 mL sodium silicate solution were added at room temperature under magnetic stirring. The resulting gel mixture was stirred for 5 days at room temperature, the final pH was about 1. The solid product was recovered by filtration, washed several times with water, and dried overnight at 60 °C.
All materials were calcined at a heating rate of 1 °C min−1 to 550 °C and maintained at this temperature for 6 h. The mesoporous materials were labeled as indicated in Table 1.

2.3. Characterization Techniques

X-ray diffraction (XRD) was used to identify the crystalline phases of the synthesized solids. These experiments were performed on an X’Pert Pro MPD automated diffractometer (PANalytical, Almelo, The Netherlands) equipped with a Ge (111) primary monochromator (strictly monochromatic Cu-Kα radiation) and an X’Celerator detector. Measurements were obtained for 2 h in the range of 1°–10°.
The textural parameters (SBET, VP and DP) were evaluated from nitrogen adsorption–desorption isotherms at −196 °C as determined by an automatic ASAP 2020 system from Micromeritics. Prior to the measurements, samples were degassed at 200 °C and 10−4 mbar overnight. Surface areas were determined by using the Brunauer–Emmett–Teller (BET) equation assuming a cross section of 16.2 Å2 for the nitrogen molecule. Micropore surface areas were obtained by de Boer’s t-plot method [37] for relative pressures between 0.35 and 0.70. The pore size distribution was calculated by applying the Barrett–Joyner–Halenda (BJH) method applied to the desorption branch of the N2 isotherm. The total pore volume was calculated from adsorbed N2 at P/P0 = 0.996
FTIR spectra were collected on a Varian 3100 FTIR spectrophotometer (Varian Inc., Walnot Creek, CA, USA). The interferograms consisted of 200 scans, and the spectra were collected using a KBr spectrum as background. About 30 mg of a mixture of each sample and KBr at a weight ratio of 1:9 were placed in the sample holder and then spectra were collected.
Elemental chemical analysis was performed with a LECO CHNS 932 analyzer (LECO Corporation, St. Joseph, MI, USA) to determine the nitrogen content present through the combustion of the samples at 1100 °C in pure oxygen to form NO.
Thermal analysis was performed on a TG-DTG thermobalance (Mettler Toledo, Columbus, OH, USA) with a continuous heating rate of 5 °C min−1 in a helium flow.

2.4. CO2 Adsorption Tests

CO2 adsorption isotherms were measured with a Micromeritics ASAP 2020 Analyzer (Micromeritics Corp., Norcross, GA, USA) (i.e., volumetrically) at 25 °C. Prior to the measurements, samples were degassed at 115 °C and 10−4 mbar overnight.

3. Results and Discussion

3.1. Characterization

The low-angle XRD diffractograms of the synthesized samples are depicted in Figure 1. Samples RT, RT-F, HT and HT-F (samples are labeled as indicated in Table 1) clearly show the (100) reflection, which is associated to the P6mm hexagonal arrangement [38]. Although the addition to fluoride limits the length of the mesochannels, there is a shift of the (100) reflection towards lower values, which suggests an increase of the pore size in the hexagonal framework in all cases. The hydrothermal treatment leads to a shift to even lower 2θ(°) values, revealing the formation of better ordered hexagonal materials with a larger pore size.

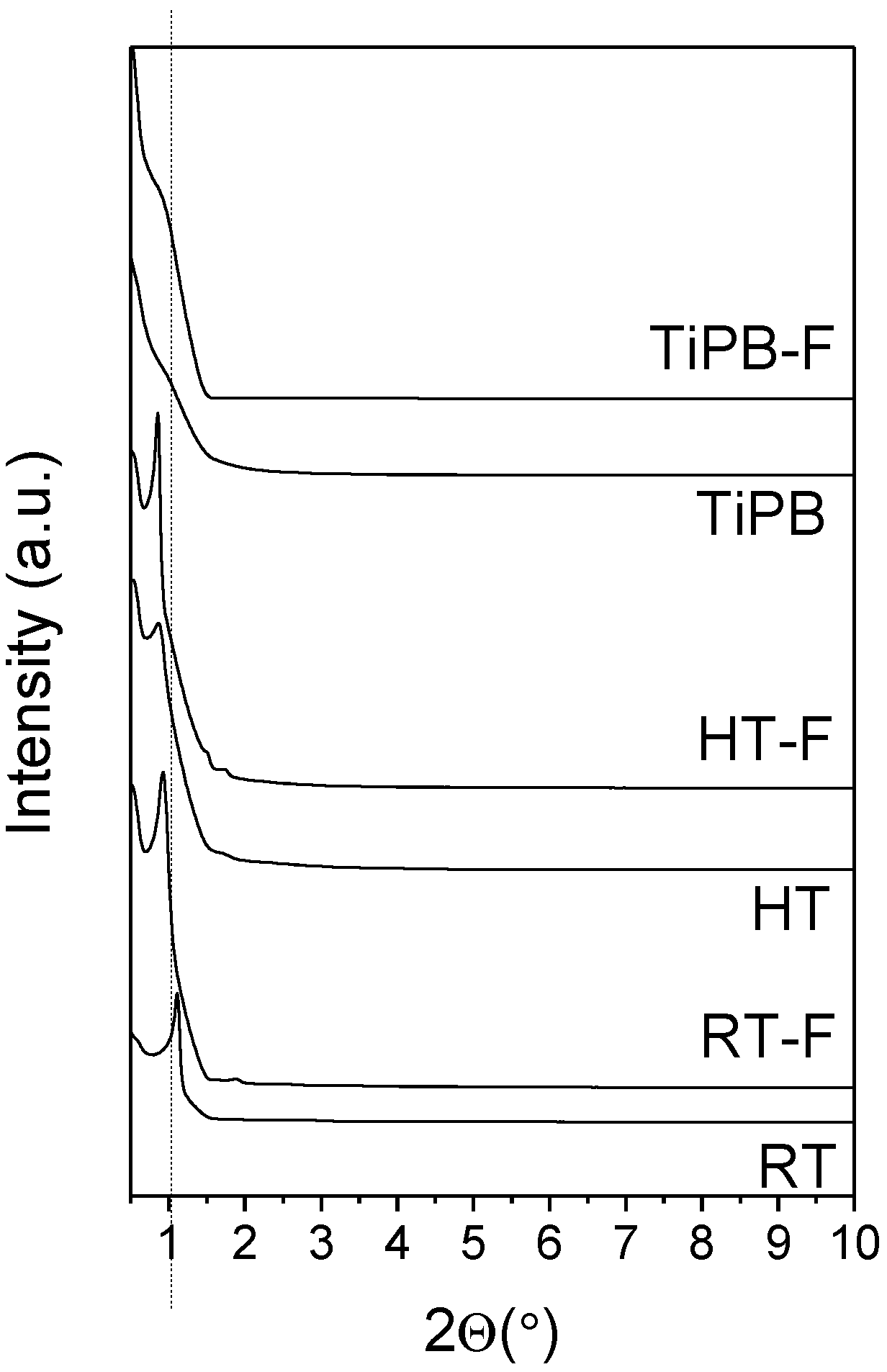

Figure 1. Low angle X-ray diffraction (XRD) patterns of pure silicas.
Figure 1. Low angle X-ray diffraction (XRD) patterns of pure silicas.
Materials 08 02495 g001
The addition of a swelling agent, such as 1,3,5-triisopropylbenzene, leads to a shift of the (100) reflection to lower angles, which has been attributed to the incorporation of swelling agents such as alkanes or derived benzene compounds that penetrate into the hydrophobic core of the surfactant micelle of P-123, disrupting the honeycomb packing typical of the hydrothermal SBA-15, leading to node separation into spherical micelles [39,40].
Figure 2 shows the nitrogen adsorption/desorption isotherms of the porous silicas. Samples without fluoride (RT, HT and TiPB) exhibit the classic type IV isotherms with parallel H1 type hysteresis loops. The hysteresis loop, which accounts for capillary condensation, is shifted toward higher P/P0 when a swelling agent is added (TiPB). This fact is related to the larger pore sizes by the addition of 1,3,5-triisopropylbenzene, which is known to widen the hydrophobic core of the surfactant that shapes the pores of the silica.
The addition of ammonium fluoride also causes a shift of hysteresis loop to higher relative pressure together with a decrease in surface area, except for RT and RT-F samples, in which case the surface area increases with the addition of the fluoride salt (Table 2). This fact suggests that the temperature synthesis could have an influence on the behavior of samples. (RT and RT-F were synthesized at 25 °C).
Table 2 summarizes the textural properties of pure silicas. Note that the less ordered materials present lower surface areas but exhibit higher pore volumes. The addition of swelling agent produced the desired effect, leading to pore expanded materials (7.9 and 13.2 nm for TiPB and TiPB-F, respectively). Micropore volume and micropore surface area were higher for more ordered materials. In these materials, the micropores are formed due to the hydrophilic character of the ethylene oxide chains, which remain trapped within the siliceous walls during the condensation step and leave interconnecting micropores upon surfactant removal by calcinations or solvent extraction [32,41,42,43,44].

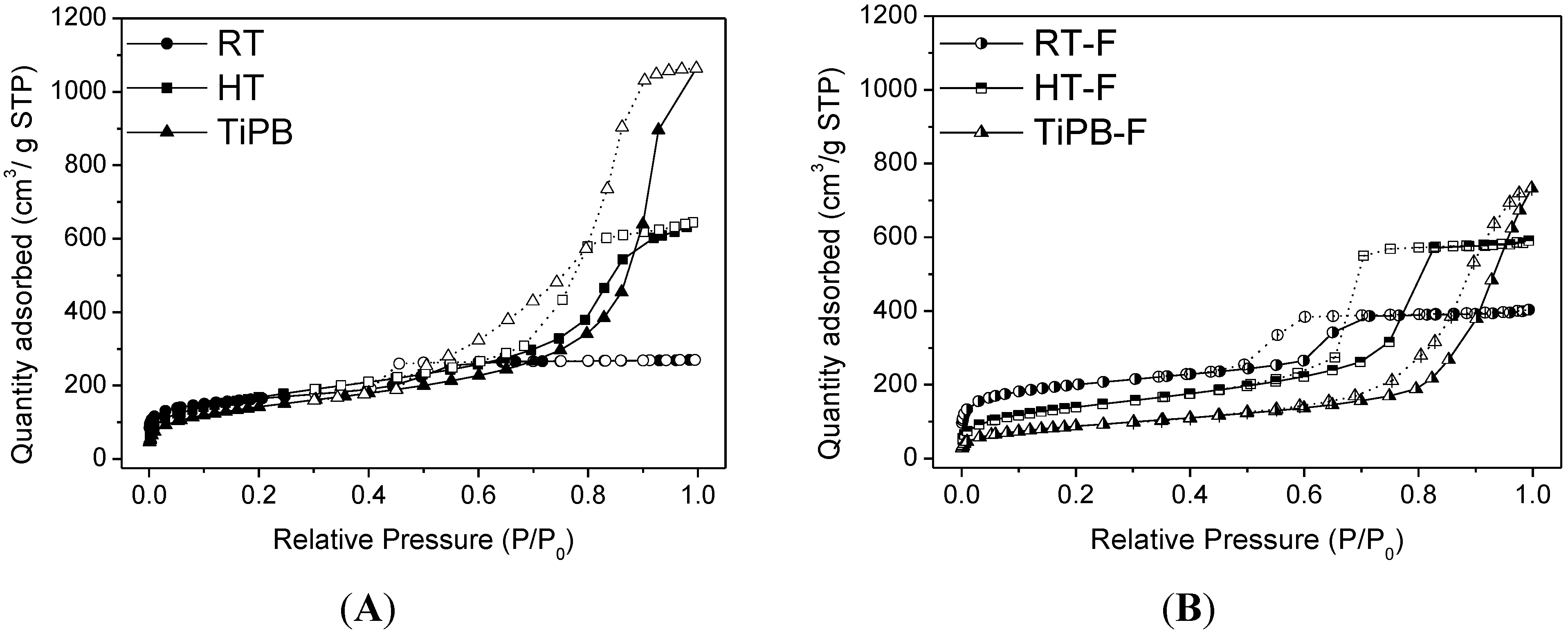

Figure 2. Nitrogen adsorption/desorption isotherms at −196 °C of pure silicas: (A) without fluoride (B) with fluoride.
Figure 2. Nitrogen adsorption/desorption isotherms at −196 °C of pure silicas: (A) without fluoride (B) with fluoride.
Materials 08 02495 g002
Table 2. Textural properties of pure silicas.
Table 2. Textural properties of pure silicas.
SampleSBET (m2/g)Smp t.plot (m2/g)VP (cm3/g)Vmp t-plot (cm3/g)DP (nm)
RT5712560.420.123.6
RT-F6993850.620.174.6
HT6131480.990.067.5
HT-F508740.910.036.3
TiPB519741.640.027.9
TiPB-F321751.130.0213.2
Notes: SBET: equivalent surface area, as determined by Brunauer-Emmett-Teller equation; Smp t.plot/Vmp t-plot: micropore surface area/micropore volume area, as determined by t-plot method; VP: total pore volume, as calculated from adsorbed N2 at P/P0 = 0.996 (−196 °C); DP: pore diameter, as calculated by Barret-Joyner-Halenda (BJH) method to the desorption branch of the N2 isotherm at −196 °C.
The FTIR spectra for the different synthesized pure silicas and their respective amine functionalized counterparts are shown in Figure 3. The FTIR spectra of pure silicas (Figure 3A) show a narrow and intense band around 3700 cm−1 and a broad low frequency band centered at 3400 cm−1. A first band is related to the symmetrical stretching vibration mode of isolated O-H in terminal silanol groups [45] and the broad band centered at 3400 cm−1 is due to those silanol groups with cross hydrogen bonding interactions with adsorbed water molecules [20,27,46,47,48]. The above mentioned band at around 3700 cm−1 has a major importance to ensure high grafting efficiency of the amine groups.
The spectra of amine silicas (Figure 3B,C) reveal the presence of two bands at 2950 and 2840 cm−1 assigned to C-H asymmetric and symmetric stretching modes of the APTES and PEI chains, respectively [49]. Furthermore, the bands located at 1565 and 1485 cm−1 are attributed to asymmetric and symmetric bending of primary amines (-NH2) [25,50]. The presence of two bands around 3300 cm−1 is noticeable and may be assigned to N-H stretching vibrations [25], which provides evidence for the successful APTES grafting of the porous silicas [51,52]. Finally, the intensity of the band mentioned above, at around 3700 cm−1, decreases or is not observed in the FTIR spectra of amine functionalized silicas. This suggests that surface silanol groups have reacted with ethoxy groups from the aminosilane, thus providing evidence of the incorporation of organic molecules in the porous silica materials.

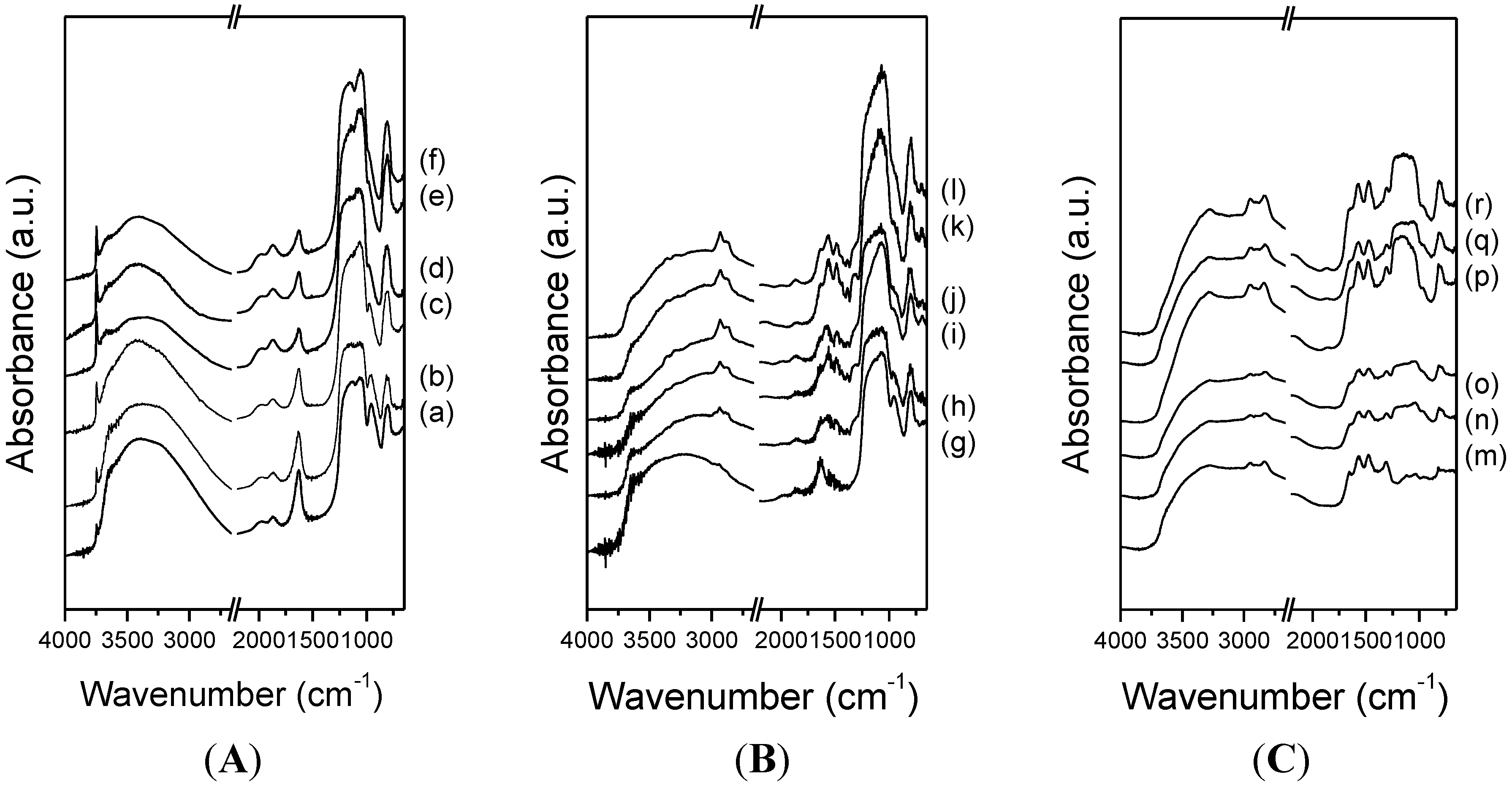

Figure 3. FTIR spectra of (A) pure silicas; (B) amine grafted silicas and (C) amine impregnated silicas (a) RT; (b) RT-F; (c) HT, (d) HT-F; (e) TiPB, (f) TiPB-F; (g) RT/20A, (h) RT-F/20A; (i) HT/20A; (j) HT-F/20A; (k) TiPB/20A; (l) TiPB-F/20A; (m) RT/50P; (n) RT-F/50P; (o) HT/50P; (p) HT-F/50P; (q) TiPB/50P and (r) TiPB-F/50P.
Figure 3. FTIR spectra of (A) pure silicas; (B) amine grafted silicas and (C) amine impregnated silicas (a) RT; (b) RT-F; (c) HT, (d) HT-F; (e) TiPB, (f) TiPB-F; (g) RT/20A, (h) RT-F/20A; (i) HT/20A; (j) HT-F/20A; (k) TiPB/20A; (l) TiPB-F/20A; (m) RT/50P; (n) RT-F/50P; (o) HT/50P; (p) HT-F/50P; (q) TiPB/50P and (r) TiPB-F/50P.
Materials 08 02495 g003
It is noteworthy that the band located at 1054 cm−1 related to Si-O-Si asymmetric stretching with a shoulder at 1160 cm−1 appears with a strong intensity in the amine grafted silicas (Figure 3B) whereas it is weaker in the more ordered impregnated silicas, perhaps due to the deposition of PEI layers that prevents a clean visualization of these bands.

3.2. CO2 Adsorption

Figure 4 shows CO2 adsorption /desorption isotherms on pure silicas obtained with sodium silicate solution. For non-functionalized supports, adsorption isotherms are virtually linear, thereby all isotherms show a gradual increase in the amount of the adsorbed CO2 with an increase of pressure. Except for the samples synthesized at room temperature (RT and RT-F), all silicas adsorbed CO2 at less than 0.6 mmol/g.
Experimental data were fit to the Langmuir adsorption model. More ordered pure silicas exhibit higher CO2 capacities and also higher affinity to CO2 capture (q and K values, Table 3). These results can be associated with the larger microporous network (less ordered materials present lower k values). The isotherms showed a nearly linear behavior, suggesting weak adsorbent–adsorbate affinity.
In Figure 5, CO2 adsorption/desorption isotherms at 25 °C on amine-grafted silicas are plotted. All isotherms present hysteresis, due to strong interactions between CO2 and amine groups, leading to incomplete desorption by only decreasing pressure. Note that special care was taken in these experiments to allow for enough time for equilibrium to be reached, so that the hypothesis of diffusional resistances in the adsorption branch as a cause of this hysteresis could be ruled out.
Figure 4. (A) CO2 adsorption/desorption isotherms at 25 °C on pure silicas. Filled symbols stand for adsorption data and empty symbols stand for desorption data; dotted lines (B) are fits from the Langmuir model equation using adsorption data.
Figure 4. (A) CO2 adsorption/desorption isotherms at 25 °C on pure silicas. Filled symbols stand for adsorption data and empty symbols stand for desorption data; dotted lines (B) are fits from the Langmuir model equation using adsorption data.
Materials 08 02495 g004
Table 3. Parameters from fit to Langmuir model for pure silicas.
Table 3. Parameters from fit to Langmuir model for pure silicas.
SampleLangmuir Modelq (25 °C, 1 bar)
q (mmol CO2/g)K (mmHg−1)
RT2.53 ± 0.050.0011 ± 3.4 × 10−41.19
RT-F2.88 ± 0.045.61 × 10−4 ± 1.03 × 10−50.87
HT1.99 ± 0.035.59 × 10−4 ± 1.23 × 10−50.61
HT-F1.69 ± 0.044.08 × 10−4 ± 1.06 × 10−50.39
TiPB1.58 ± 0.035.66 × 10−4 ± 1.59 × 10−50.48
TiPB-F1.16 ± 0.064.47 × 10−4 ± 2.73 × 10−50.29

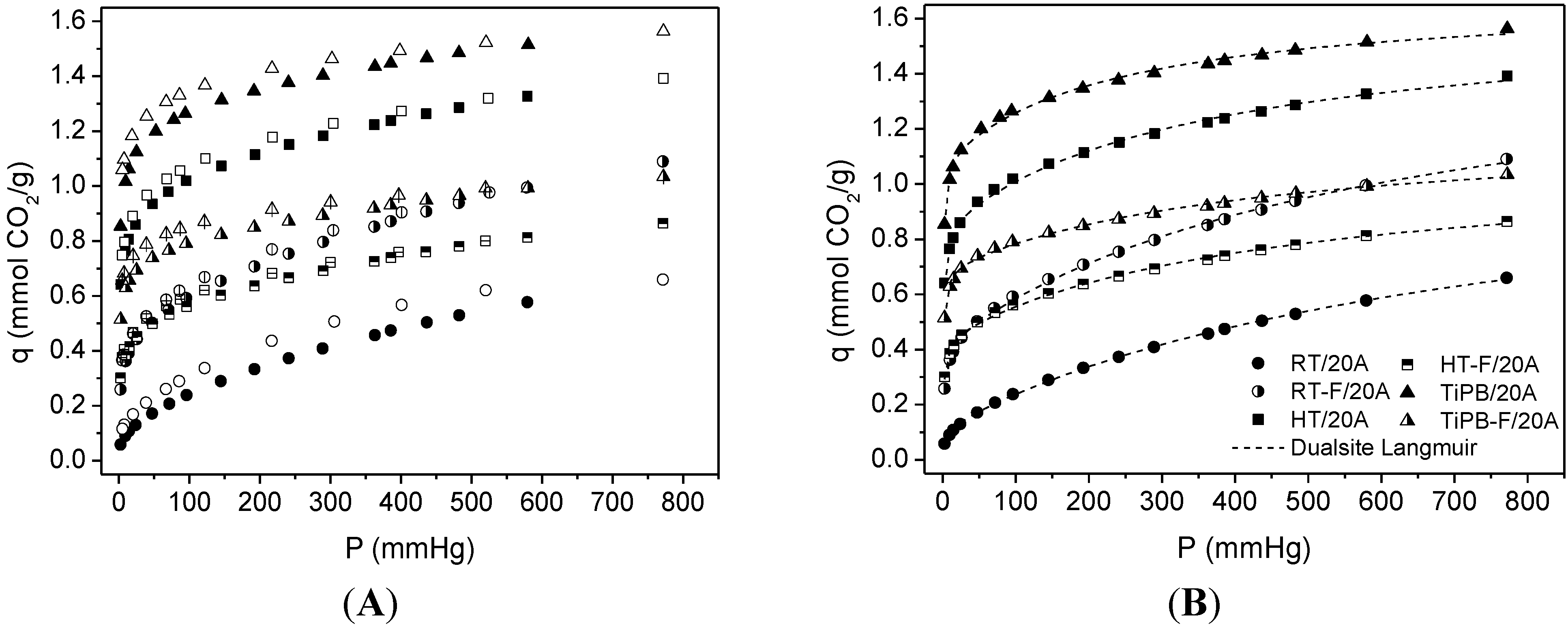

Figure 5. (A) CO2 isotherms at 25 °C on 3-aminopropyltriethoxysilane (APTES)-grafted silicas Adsorption data are the filled symbols and desorption data are the empty symbols; (B) dotted lines are fits from de Dualsite Langmuir model using adsorption data.
Figure 5. (A) CO2 isotherms at 25 °C on 3-aminopropyltriethoxysilane (APTES)-grafted silicas Adsorption data are the filled symbols and desorption data are the empty symbols; (B) dotted lines are fits from de Dualsite Langmuir model using adsorption data.
Materials 08 02495 g005
All CO2 adsorption isotherms showed an initial steep slope at pressures below 100 mmHg, followed by a smooth increase in the amount of the adsorbed CO2 from this pressure up. This behavior was also observed in impregnated silicas (see Figure 6). The nature of this steep rise can be related to the chemical reaction between CO2 and amine groups, and the subsequent gradual increase in the amount of the adsorbed CO2 attributed to CO2 adsorbed by physisorption. In the case of high amine density, e.g., the impregnation with PEI, the CO2 adsorbed interacts by hydrogen bonding with neighboring amine sites and promotes the formation of strongly adsorbed CO2. This fact is confirmed by the high adsorption at lower absolute pressure. However, for low amine density, e.g., grafting with APTES, the CO2 species lack neighboring amine sites and bind weakly adsorbed CO2, so these sites can be easily removed; the chemisorptions sites of the materials functionalized with APTES are less strong than those functionalized with PEI [22,23]. From this reasoning and based on previous works [24,25], we used the Dualsite Langmuir model (DsL) (Equation (1)) to describe isotherms of functionalized materials with the aim to distinguish between the contributions due to chemical reaction and physical interactions.
q = q 1 K 1 P 1 + K 1 P + q 2 K 2 P 1 + K 2 P

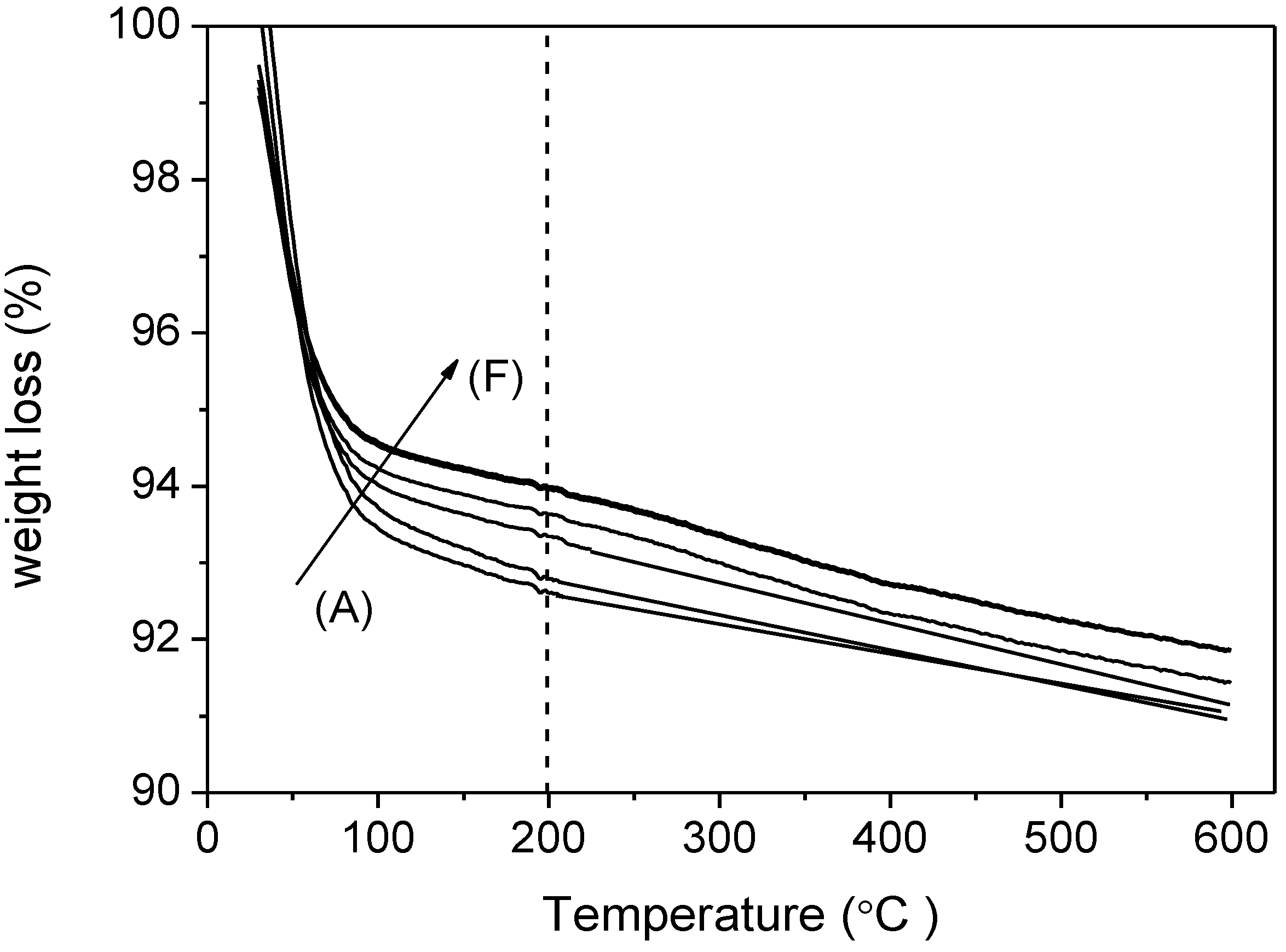

Figure 6. Thermogravimetry (TGA) thermograms of (A) RT; (B) RT-F; (C) HT; (D) HT-F; (E) TiPB and (F) TiPB-F.
Figure 6. Thermogravimetry (TGA) thermograms of (A) RT; (B) RT-F; (C) HT; (D) HT-F; (E) TiPB and (F) TiPB-F.
Materials 08 02495 g006
Site 1 was taken as that with higher k parameter and is hence assigned as a chemisorption site whereas site 2 accounts for physical adsorption. The fitted parameters are presented in Table 4. It is noteworthy that the more ordered silicas showed higher CO2 capacities than the pore expanded materials, in terms of physisorption (see q2 values in Table 4), following the same trend observed in pure silicas. Despite the fact that the presence of a more extended microporous structure enhances physical adsorption of CO2, the pore expanded materials show a higher amount of chemisorbed CO2, because these materials have higher grafting yields, in agreement with elemental analysis results. APTES surface coverage [25,53], as calculated by Equation (2), is also included in Table 4.
% A P T E S   s u r f a c e   c o v e r a g e = m o l a r   N   c o n t e n t   ×   2   ×   N A 3.7   ×   S B E T   ×   100
where N is the molar concentration of nitrogen (mol g−1), as determined by elemental analysis, 2 accounts for the assumption that two surface silanol groups react with two ethoxy groups of each APTES molecule, in accordance with Chang et al. [54] who proposed bidentate coordination. SBET is the BET surface area of amine-grafted silica (m2g−1) and 3.7 is the density of silanol groups per nm2, as determined by Shenderovich et al. [55] through Si-NMR analysis for this class of materials. Although not necessarily these materials present 3.7 as silanol density, for comparison purposes we can use that density as all materials synthesized in this work exhibit a similar silanol density. The silanol densities were estimated by thermogravimetry (TGA). In Figure 6, we can observe that the total weight losses of our pure adsorbents are in the range 8.1%–9.0%, consisting of two mass loss steps, below 200 °C attributed to the removal of the physically and the chemically adsorbed water and the weight loss above 200 °C is related to dehydroxylation by condensation of silanol groups. Due to the weight loss associated with the dehydroxylation being similar (around 2%) for all adsorbents, and from this value being related to the density of silanols [56], these results lead us to consider that the addition of swelling agents has only a slight effect on the silanol densities. However, solvent extraction as a template removal method could be an efficient method to increase this value [56].
Table 4. Parameters from fit to Dualsite Langmuir model for amine grafting samples (20% APTES).
Table 4. Parameters from fit to Dualsite Langmuir model for amine grafting samples (20% APTES).
SampleSBET%N%APTESDualsite Langmuir modelq*
q1K1q2K2
RT221.371440.12 ± 0.010.247 ± 0.0451.07 ± 0.031.31 × 10−3 ± 9.95 × 10−40.66
RT-F1022.85650.43 ± 0.010.538 ± 0.0711.17 ± 0.061.65 × 10−3 ± 1.82 × 10−41.09
HT2453.36320.85 ± 0.010.984 ± 0.1110.77 ± 0.042.77 × 10−3 ± 3.89 × 10−41.39
HT-F2602.41210.44 ± 0.010.727 ± 0.0790.66 ± 0.032.25 × 10−3 ± 2.61 × 10−40.86
TiPB1353.89671.09 ± 0.021.449 ± 0.1480.59 ± 0.024.16 × 10−3 ± 6.22 × 10−41.56
TiPB-F1982.70320.69 ± 0.011.107 ± 0.0990.52 ± 0.032.30 × 10−3 ± 3.55 × 10−41.03
Notes: SBET: equivalent surface area, as determined by Brunauer-Emmett-Teller equation (m2/g); %N: N content (wt%) as obtained by chemical elemental analysis (CNH); qx: mmol CO2/g; q*: mmol CO2/g at 25 °C and 1 bar; Kx: mmHg−1.
The %APTES values are summarized in Table 4. Note that the silanol density was fixed at 3.7 per nm2, which led to grafting yields over 100% (RT sample). It is likely that this sample contains a higher silanol density, above 3.7. However, only 1.37% N content was bonded on the RT sample surface. This could be due to the APTES molecules experiencing higher diffusional resistances through the narrow and long channels of the RT sample. This phenomenon is not expected to occur in less ordered materials, which explains the higher %N contents leading to higher CO2 adsorption capacities.
In accord with previous works [27,57], primary and secondary amines (an APTES molecule has one primary amine) react with CO2 through a zwitterion mechanism where water or amine group is needed (Equation (3))
2(RNH2) + CO2→RNHCO2RNH3+
Consequently, under our work conditions (dry conditions), two amine groups are required to capture one CO2 molecule, so that the maximum CO2/N adsorption efficiency is 0.5. Lower efficiencies may be due to the lack of two amine groups sufficiently close to each other so as to allow reaction and formation of carbamate [58].
In addition, recently others authors have reported that the increase in CO2 capture capacity of the N-containing materials could be also attributed to hydrogen bonding interactions between hydrogen atoms (from C-H and N-H) and CO2 molecules [59,60], providing a new mechanism of the interaction between CO2 and N-doped materials.
The best CO2 capacity at 25 °C and 1 bar in this work was 1.56 mmol CO2/g or 7 wt%, found in the case of the TPiB silica sample. This value is in the range of those reported by other authors [25,57,61].
Figure 7 shows adsorption/desorption CO2 isotherms at 25 °C for impregnated silicas (50 wt% PEI). The presence of amine groups on the silicas surface, as observed in amine grafted silicas isotherms, causes a steep rise at low pressures. An outstanding CO2 capacity is observed for the TiPB-F sample, reaching 1.87 mmol CO2/g at 25 °C and 1 bar. All adsorption isotherms were fitted to the DsL model and the fit parameters are summarized in Table 5. For PEI impregnated silicas, we observed a gradual increase in both chemical and physical CO2 adsorption (see q1 and q2 values and see also Figure 8). It seems that the evolution to the less ordered materials with expanded pores delays the pore blockage at higher PEI loadings. Further, the MCF type of arrangement improves the accessibility to amine groups, as we observed in previous works [24].
Upon loading of polyethylenimine up to a certain level, the porous structure of the original supports remained unchanged, although the surface area and pore volume decreased drastically. Accordingly, CO2 adsorption capacities of the resulting adsorbents increased with the loading of PEI up to a maximum loading value, beyond which over-loading of the amines had a detrimental effect on CO2 capture capacities.

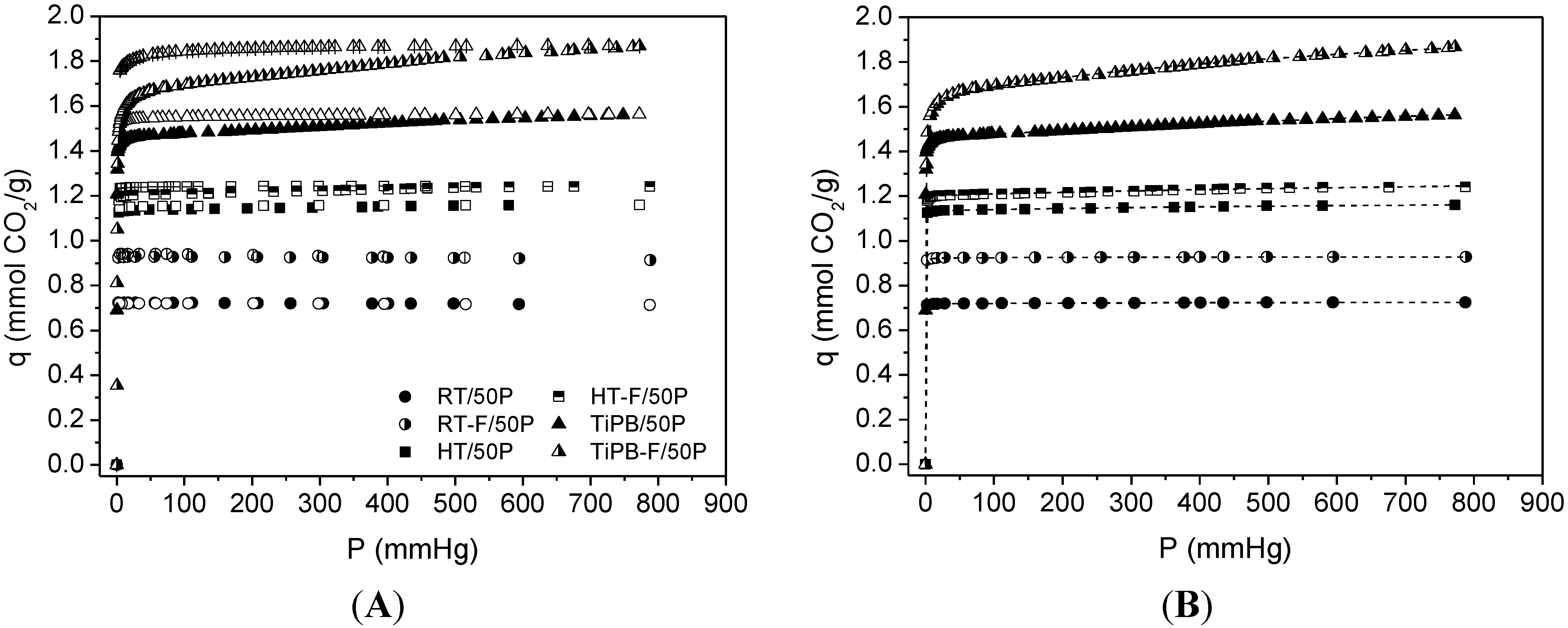

Figure 7. (A) CO2 isotherms at 25 °C on polyethylenimine ethylenediamine branched (PEI)-impregnated silicas Adsorption data are the filled symbols and desorption data are the empty symbols; (B) dotted lines are fits from de Dualsite Langmuir model using adsorption data.
Figure 7. (A) CO2 isotherms at 25 °C on polyethylenimine ethylenediamine branched (PEI)-impregnated silicas Adsorption data are the filled symbols and desorption data are the empty symbols; (B) dotted lines are fits from de Dualsite Langmuir model using adsorption data.
Materials 08 02495 g007
Table 5. Parameters from fit to Dualsite Langmuir model for amine impregnated samples (50% polyethylenimine ethylenediamine branched (PEI)).
Table 5. Parameters from fit to Dualsite Langmuir model for amine impregnated samples (50% polyethylenimine ethylenediamine branched (PEI)).
SampleSBET%NDualsite Langmuir modelq*
q1K1q2K2
RT4015.810.72 ± 0.0156.051 ± 5.0959.21 × 10−3 ± 1.13 × 10−32.31 × 10−3 ± 7.40 × 10−40.72
RT-F8115.070.92 ± 0.0135.113 ± 2.8747.29 × 10−3 ± 1.91 × 10−32.33 × 10−3 ± 1.58 × 10−30.93
HT10315.231.13 ± 0.0142.840 ± 5.3120.05 ± 0.011.32 × 10−3 ± 2.64 × 10−41.16
HT-F10114.181.20 ± 0.0119.234 ± 1.2990.12 ± 0.026.53 × 10−4 ± 1.51 × 10−41.24
TiPB14613.621.46 ± 0.0111.783 ± 0.0280.33 ± 0.035.95 × 10−4 ± 7.19 × 10−51.56
TiPB-F17114.631.64 ± 0.012.795 ± 0.0690.45 ± 0.031.12 × 10−4 ± 1.35 × 10−51.87
Notes: SBET: equivalent surface area, as determined by Brunauer-Emmett-Teller equation (m2/g); %N: N content (wt%) as obtained by chemical elemental analysis (CNH); qx: mmol CO2/g; q*: mmol CO2/g at 25 °C and 1 bar; Kx: mmHg−1.

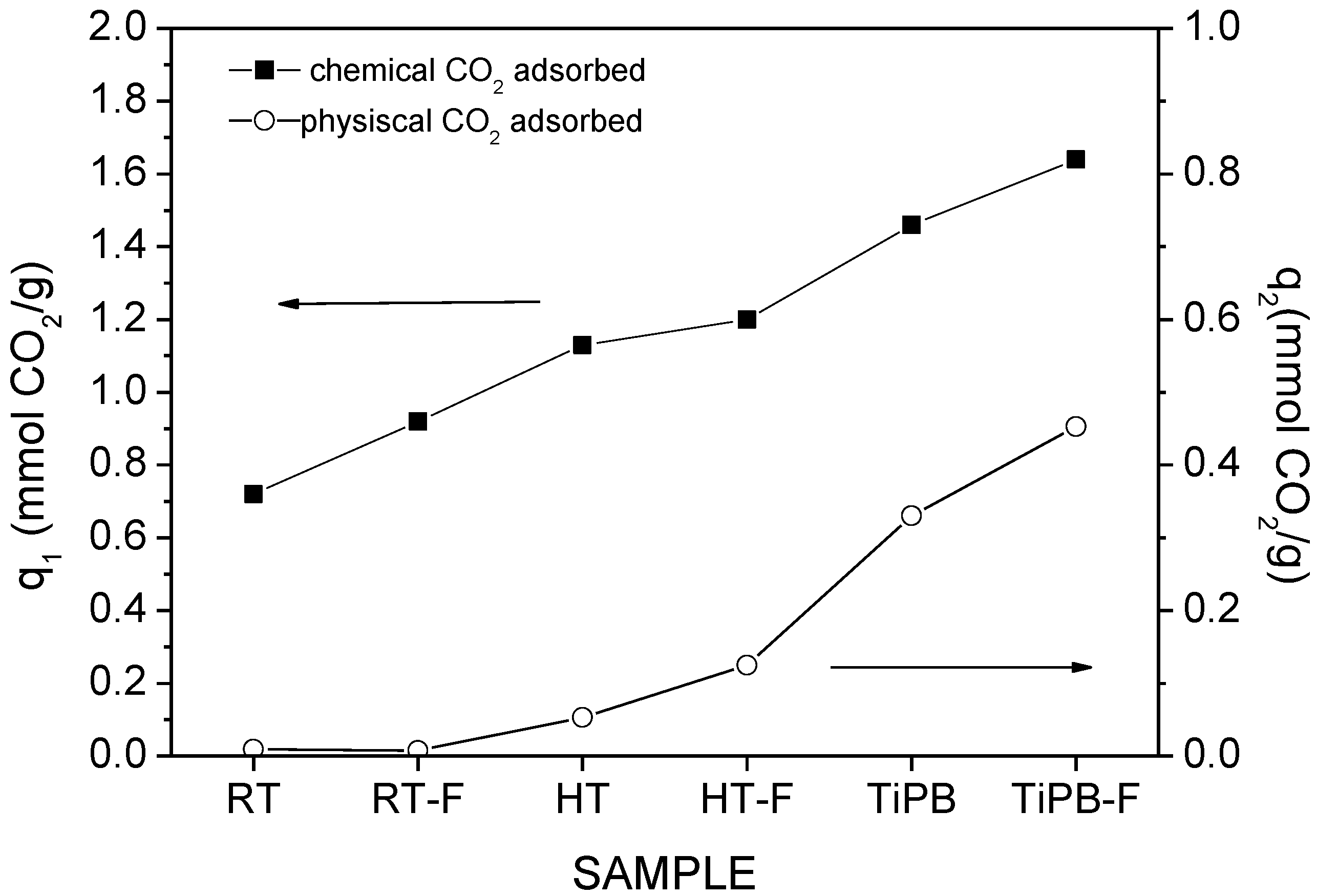

Figure 8. Evolution q1 and q2 PEI-silicas.
Figure 8. Evolution q1 and q2 PEI-silicas.
Materials 08 02495 g008
It is believed that under extreme high amine loadings, all the pores are filled and the external surface of SBA-15 will also be coated by the sticky amines, leading to limited accessibility of CO2 towards the bulk amine molecules [62,63]. According to this reasoning, the maximum amount of amines that a mesoporous silica support can accommodate depends upon its pore volume. This hypothesis has been verified by experimental observation that when the volume corresponding to the amount of impregnated amine exceeds the total pore volume of the support, the resulting adsorbent appears to be sticky and gel-like. The high viscosity of the organic amines will also cause difficulties in CO2 diffusion from the surface to the bulk amines, therefore a two-stage adsorption kinetics was observed (a fast surface reaction stage followed by a slower diffusion-controlling stage) [64,65], and where it appears that rather than lower temperatures, the highest capacities were typically obtained at 75 °C [52], so as to get rid of the diffusion barrier.
The sample that achieved the higher CO2 capacity (TiPB-F/50 PEI) was also tested at 45 and 75 °C and CO2 adsorption isotherms are shown in Figure 9. CO2 capacity increases at higher temperatures, as expected. TiPB-F/50 PEI reached 1.87, 1.91 and 2.21 mmol CO2/g at 25, 45 and 75 °C, respectively. This increase in capacity at higher temperatures is due to chemisorption gain, as shown in Figure 10. The increase of the K1 values (2.74, 3.25 and 4.61 mmHg−1 for 25, 45 and 75 °C respectively) from DsL fit with temperature rise signifies that the process needs thermal energy, meaning that the process is endothermic. This is consistent with the assumption that chemisorptions occurs in site 1 [66]. SBA-15 synthesized from sodium silicate solution is a feasible option to obtain mesoporous silica with interesting capacities of CO2 adsorption and probably with high CO2/N2 selectivity, especially SBA-15 impregnated and working at 75 °C, where the chemisorptions process prevails.

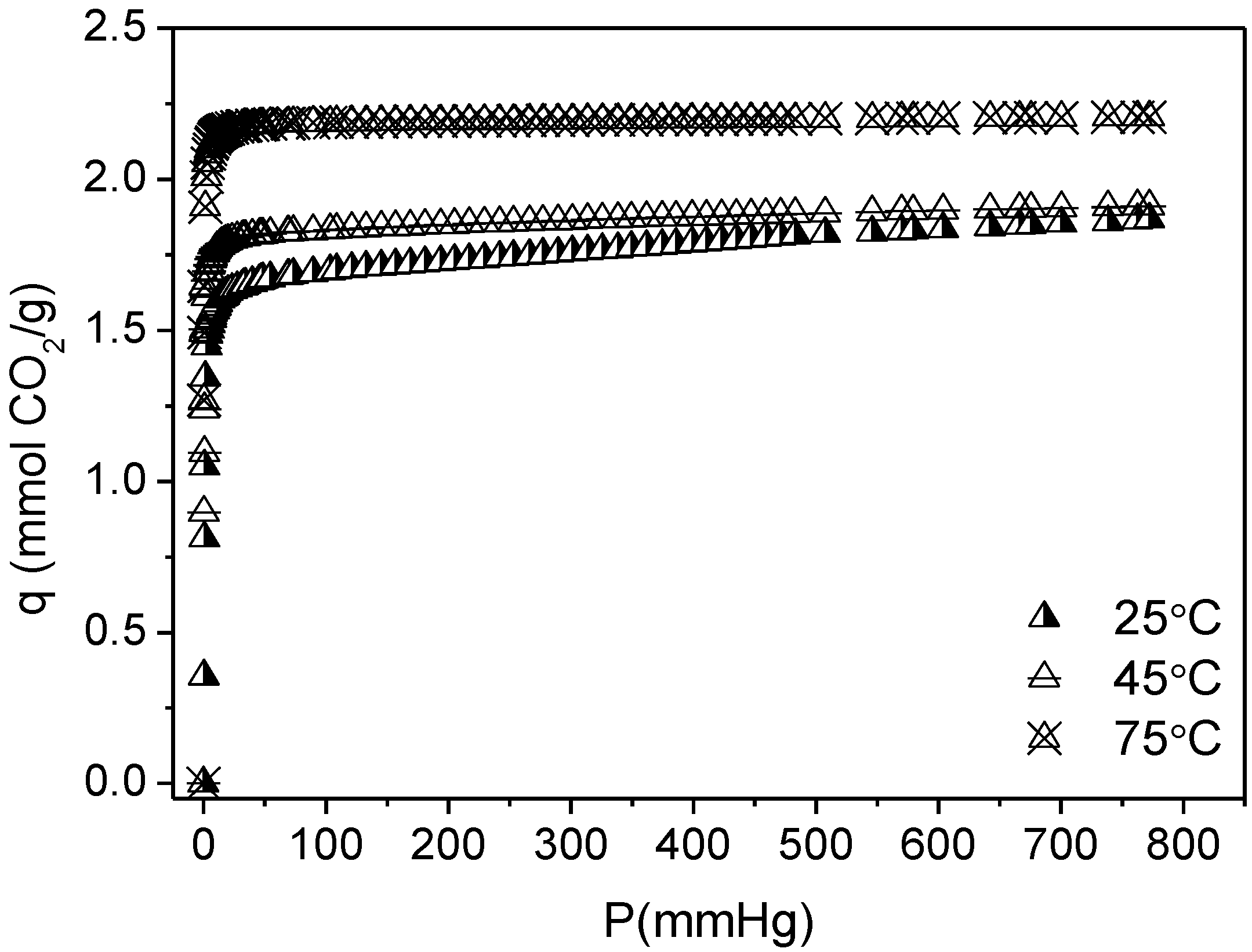

Figure 9. CO2 adsorption isotherms for TiPB-F/50 PEI at 25, 45 and 75 °C.
Figure 9. CO2 adsorption isotherms for TiPB-F/50 PEI at 25, 45 and 75 °C.
Materials 08 02495 g009

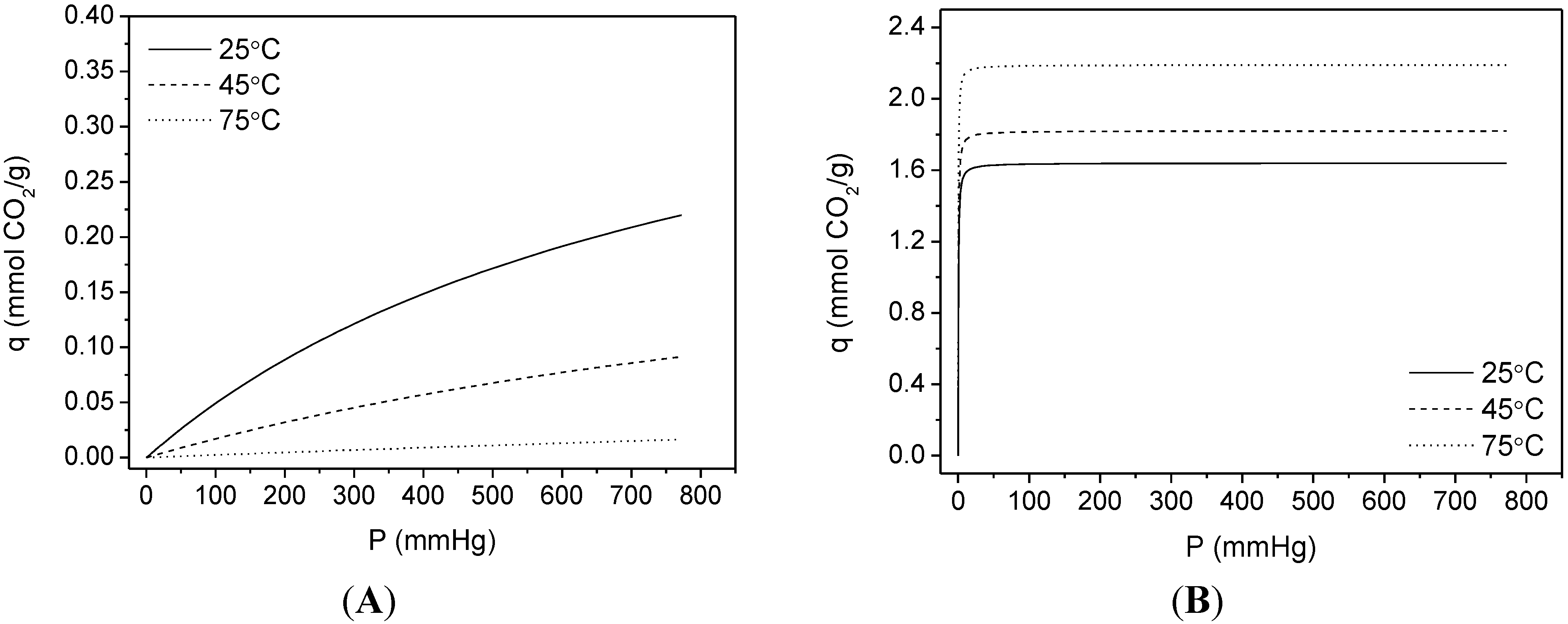

Figure 10. Deconvolution of CO2 adsorption isotherms for TiPB-F/50PEI in their respective physisorption (A) and chemisorption (B) contributions.
Figure 10. Deconvolution of CO2 adsorption isotherms for TiPB-F/50PEI in their respective physisorption (A) and chemisorption (B) contributions.
Materials 08 02495 g010

4. Conclusions

Several mesoporous silicas were synthesized using sodium silicate, a cheaper silicon and environmentally benign source than traditional silicon alkoxides. The addition of swelling agents (1,3,5-triisopropylbenzene) and a solubility enhancer (ammonium fluoride) succeeded in producing materials with different textural features, but the addition of ammonium fluoride was not beneficial because it led to materials with lower pore volume as compared to those from the same synthesis performed without ammonium fluoride.
The materials were functionalized by grafting with APTES (20% v/v) and by impregnation with PEI (50 wt%) and the CO2 adsorption /desorption isotherms were measured. Materials with APTES had a direct relationship between the capacity and surface area of the non-functionalized material.
Among the materials synthesized, only SBA-15 synthesized at room temperatures (RT) improved its properties as an adsorbent with the addition of fluoride. The other solids showed poorer performance with the fluoride presence. The most promising result was the mesoporous silica synthesized with TIPB without fluoride (TIPB) at 25 °C and 1 bar CO2 which captured 1.56 mmol/g (69 mg CO2/g).
In the case of materials impregnated with PEI, the addition of fluoride was beneficial when synthesized with sodium silicate, the twisting up of the structure causes better performance of the material in terms of CO2 adsorption, reaching 2.21 mmol CO2/g at 75 °C and 1 bar. Therefore, compared with the results obtained in others works, sodium silicate can replace TEOS with the consequent reduction in the cost without the material losing potential properties as a CO2 adsorbent.

Acknowledgments

The authors acknowledge financial support provided by the Spanish Ministry of Economy and Competitiveness CTQ2012-37925-C03-03 and FEDER funds, the Regional Government (Junta de Andalucía) P09-FQM-5070, the European Union Grant 295156, FP7-PEOPLE-2011-IRSES and Brazil-Spain Project PHB2011-0074-PC. E. Vilarrasa-García thanks to CAPES (Brazilian Ministry of Education) for fellowship.

Author Contributions

Enrique Vilarrasa García: This work was done as a part of his Ph.D. research; Juan Antonio Cecilia: He participated in the synthesis and characterization of the materials; Elisa M. Ortigosa Moya: She participated in the preparation of the porous solids; Celio L. Cavalcante Jr.: He participated in the adsorption measurements and in the discussion of the results; Diana C.S. Azavedo: She was co-advisor of the Ph.D. of Enrique Vilarrasa and participated in all the research; Enrique Rodríguez-Castellón: He was co-advisor of the Ph.D. of Enrique Vilarrasa and participated in all the research. The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Houghton, J.T.; Ding, Y.; Griggs, D.J.; Noguer, M.; Linden, P.J.; Dai, X.; Maskell, K.; Johnson, C.A. Climate Change: The Scientific Basis, Intergovernmental Panel on Climate Change; The Press Syndicate of the University of Cambridge: Cambridge, UK, 2001. [Google Scholar]
  2. Jacobson, M.Z. Review of solutions to global warming, air pollution, and energy security. Energy Environ. Sci. 2009, 2, 148–173. [Google Scholar] [CrossRef]
  3. Choi, S.; Drese, J.H.; Jones, C.W. Adsorbent materials for carbon dioxide capture from large anthropogenic point sources. ChemSusChem 2009, 2, 796–854. [Google Scholar] [CrossRef] [PubMed]
  4. Lee, S.Y.; Park, S.J. A review on solid adsorbents for carbon dioxide capture. J. Ind. Eng. Chem. 2015, 23, 1–11. [Google Scholar] [CrossRef]
  5. Song, C.-F.; Kitamura, Y.; Li, S.-H. Evaluation of Stirling cooler system for cryogenic CO2 capture. Appl. Energ. 2012, 98, 491–501. [Google Scholar] [CrossRef][Green Version]
  6. Rao, A.B.; Rubin, E.R. A technical, economic, and environmental assessment of amine-based CO2 capture technology for power plant greenhouse gas control. Environ. Sci. Technol. 2002, 36, 4467–4475. [Google Scholar] [CrossRef] [PubMed]
  7. Favre, E. Membrane processes and postcombustion carbon dioxide capture: Challenges and prospects. Chem. Eng. J. 2011, 171, 782–793. [Google Scholar] [CrossRef]
  8. Olajire, A.A. CO2 capture and separation technologies for end-of-pipe applications. A review. Energy 2010, 35, 2610–2628. [Google Scholar] [CrossRef]
  9. Oh, T.H. Carbon capture and storage potential in coal-fired plant in Malaysia: A review. Renew. Sustain. Energy Rev. 2010, 14, 2697–2709. [Google Scholar] [CrossRef]
  10. Zhang, J.; Singh, R.; Webley, P.A. Alkali and alkaline-earth cation exchanged chabazite zeolites for adsorption based CO2 capture. Micropor. Mesopor. Mater. 2008, 111, 478–487. [Google Scholar] [CrossRef]
  11. Walton, K.S.; Abney, M.B.; LeVan, M.D. CO2 adsorption in Y and X zeolites modified by alkali metal cation exchange. Micropor. Mesopor. Mater. 2006, 91, 78–84. [Google Scholar] [CrossRef]
  12. Cavenati, S.; Grande, C.A.; Rodrigues, A.E. Adsorption equilibrium of methane, carbon dioxide and nitrogen on zeolite 13X at high pressures. J. Chem. Eng. Data 2004, 49, 1095–1101. [Google Scholar] [CrossRef]
  13. Bai, B.C.; Cho, S.; Yu, H.-R.; Yi, K.-B.; Kim, K.-D.; Lee, Y.-S. Effects of aminated carbon molecular sieves on breakthrough curve behavior in CO2/CH4 separation. J. Ind. Eng. Chem. 2013, 13, 776–783. [Google Scholar] [CrossRef]
  14. Zhao, Y.; Zhao, L.; Yao, K.-X.; Yang, Y.; Zhang, Q.; Han, Y. Novel porous carbon materials with ultrahigh nitrogen contents for selective CO2 capture. J. Mater. Chem. 2012, 22, 19726–19731. [Google Scholar] [CrossRef]
  15. Bao, Z.; Yu, L.; Ren, Q.; Lu, X.; Deng, S. Adsorption of CO2 and CH4 on a magnesium-based metal organic framework. J. Colloid Interf. Sci. 2011, 353, 549–556. [Google Scholar] [CrossRef]
  16. Millward, A.R.; Yaghi, O.M. Metal−Organic Frameworks with exceptionally high capacity for storage of carbon dioxide at room temperature. J. Am. Chem. Soc. 2005, 127, 17998–17999. [Google Scholar] [CrossRef] [PubMed]
  17. Sanz, R.; Calleja, G.; Arencibia, A.; Sanz-Pérez, E.S. CO2 adsorption on branched polyethyleneimine-impregnated mesoporous silica SBA-15. Appl. Surf. Sci. 2010, 256, 5323–5328. [Google Scholar] [CrossRef]
  18. Khatri, R.A.; Chuang, S.S.C.; Soong, Y.; Gray, M. Thermal and chemical stability of regenerable solid amine sorbent for CO2 capture. Energy Fuels 2006, 20, 1516–1520. [Google Scholar] [CrossRef]
  19. Yue, M.B.; Chun, Y.; Cao, Y.; Dong, X.; Zhu, J.H. CO2 capture by as-prepared SBA15 with an occluded organic template. Adv. Funct. Mater. 2006, 16, 1717–1722. [Google Scholar] [CrossRef]
  20. Hiyoshi, N.; Yogo, K.; Yashima, T. Adsorption characteristics of carbón dioxide on organically functionalized SBA-15. Micropor. Mesopor. Mater. 2005, 84, 357–365. [Google Scholar] [CrossRef]
  21. Zelenak, V.; Badanicova, M.; Malanova, D.; Cejka, J.; Zukai, A.; Murafa, N.; Goerigk, G. Amine-modified ordered mesoporous silica. Effect of pore size on carbon dioxide capture. Chem. Eng. J. 2008, 144, 336–342. [Google Scholar] [CrossRef]
  22. Srikanth, C.S.; Chuang, S.S.C. Infrared study of strongly and weakly adsorbed CO2 on fresh and oxidatively degraded amine sorbents. J. Phys. Chem. C 2013, 117, 9196–9205. [Google Scholar] [CrossRef]
  23. Tumuluri, U.; Isenberg, M.; Tan, C.-S.; Chuang, S.C. In situ infrared study of the effect of amine density on the nature of adsorbed CO2 on amine-functionalized solid sorbents. Langmuir 2014, 30, 7405–7413. [Google Scholar] [CrossRef] [PubMed]
  24. Vilarrasa-García, E.; Ortigosa Moya, E.M.; Cecilia, J.A.; Cavalcante, C.L., Jr.; Jiménez-Jiménez, J.; Azevedo, D.C.S.; Rodríguez-Castellón, E. CO2 adsorption on amine modified mesoporous silicas: Effect of the progressive disorder of the honeycomb arrangement. Micropor. Mesopor. Mater. 2015, 209, 172–183. [Google Scholar] [CrossRef]
  25. Vilarrasa-García, E.; Cecilia, J.A.; Santos, S.M.L.; Cavalcante, C.L., Jr.; Jiménez-Jiménez, J.; Azevedo, D.C.S.; Rodríguez-Castellón, E. CO2 adsorption on APTES functionalized mesocellular foams obtained from mesoporosu silicas. Micropor. Mesopor. Mater. 2014, 187, 125–134. [Google Scholar] [CrossRef]
  26. Harlick, P.J.E.; Sayari, A. Applications of pore-expanded mesoporous silica. Triamine grafted material with exceptional CO2 dynamic and equilibrium adsorption performance. Ind. Eng. Chem. Res. 2007, 46, 446–458. [Google Scholar] [CrossRef]
  27. Mello, M.R.; Phanon, D.; Silveira, G.Q.; Llewellyn, P.L.; Ronconi, C.M. Amine-modified MCM-41 mesoporous silica for carbon dioxide capture. Micropor. Mesopor. Mater. 2011, 143, 174–179. [Google Scholar] [CrossRef]
  28. Builes, S.; Vega, L.F. Understanding CO2 capture in amine-functionalized MCM-41 by molecular simulation. J. Phys. Chem. C 2012, 116, 3017–3024. [Google Scholar] [CrossRef]
  29. Heydari-Gorji, A.; Yang, Y.; Sayari, A. Effect of the pore length on CO2 adsorption over amine-modified mesoporous silicas. Energy Fuels 2011, 25, 4206–4216. [Google Scholar] [CrossRef]
  30. Feng, X.; Hu, G.; Hu, X.; Xie, G.; Xie, Y.; Lu, J.; Luo, M. Tetraethylenepentamine-modified siliceious mesocellular foam (MCF) CO2 capture. Ind. Eng. Chem. Res. 2013, 52, 4221–4228. [Google Scholar] [CrossRef]
  31. Fulvio, P.F.; Pikus, S.; Jaroniec, M. Short-time synthesis of SBA-15 using various silica sources. J. Colloid Interf. Sci. 2005, 287, 717–720. [Google Scholar] [CrossRef]
  32. Kruk, M.; Jaroniec, M.; Ko, C.H.; Ryoo, R. Characterization of the porous structure of SBA-15. Chem. Mater. 2000, 12, 1961–1968. [Google Scholar] [CrossRef]
  33. Zhang, H.; Sun, J.; Ma, D.; Bao, X.; Klein-Hoffmann, A.; Weinberg, G.; Su, D.; Schlögl, R. Unusual mesoporous SBA-15 with parallel channels running along the short axis. J. Am. Chem. Soc. 2004, 126, 7440–7441. [Google Scholar] [CrossRef] [PubMed]
  34. Kim, J.M.; Stucky, G.D. Synthesis of highly ordered mesoporous silica materials using sodium silicate and amphiphilic block copolymers. Chem. Commun. 2000, 13, 1159–1160. [Google Scholar] [CrossRef]
  35. Kassab, H.; Maksoud, M.; Aguado, S.; Pera-Titus, M.; Albela, B.; Bonneviot, L. Polyethylenimine covalently grafted on mesostructured porous silica for CO2 capture. RSC Adv. 2012, 2, 2508–2516. [Google Scholar] [CrossRef]
  36. Gómez-Cazalilla, M.; Mérida-Robles, J.M.; Gurbani, A.; Rodríguez-Castellón, E.; Jiménez-López, A. Characterization and acidic properties of Al-SBA-15 materials prepared by post-synthesis alumination of a low-cost ordered mesoporous silica. J. Solid State Chem. 2007, 180, 1130–1140. [Google Scholar] [CrossRef]
  37. De Boer, J.H.; Lippens, B.C.; Linsen, J.C.P.; Broekhoff, J.C.P.; van den Heuvel, A.; Osinga, T.J. The t-curve of multimolecular N2-adsorption. J. Colloid Interf. Sci. 1966, 21, 405–414. [Google Scholar] [CrossRef]
  38. Zhao, D.; Feng, J.; Huo, Q.; Melosh, N.; Fredrickson, G.H.; Chmelka, B.F.; Stucky, G.D. Triblock copolymer synthesis of mesoporous silica with periodic 50 to 300 angstrom pores. Science 1998, 279, 548–552. [Google Scholar] [CrossRef] [PubMed]
  39. Schmidt-Winkel, P.; Lukens, W.W., Jr.; Zhao, D.; Yang, P.; Chmelka, B.F.; Stucky, G.D. Mesocellular siliceous foams with uniformly sized cells and windows. J. Am. Chem. Soc. 1999, 121, 254–255. [Google Scholar] [CrossRef]
  40. Lettow, J.S.; Han, Y.J.; Schmidt-Winkel, P.; Yang, P.; Zhao, D.; Stucky, G.D.; Ying, J.Y. Hexagonal to mesocellular foam phase transition in polymer-templated mesoporous silicas. Langmuir 2000, 16, 8291–8295. [Google Scholar] [CrossRef]
  41. Miyazawa, K.; Inagaki, S. Control of the microporosity within the pore walls of ordered mesoporous silica SBA-15. Chem. Commun. 2000, 2121–2122. [Google Scholar] [CrossRef]
  42. Imperor-Clerc, M.; Davidson, P.; Davidson, A. Existence of a microporous corona around the mesopores of silica-based SBA-15 materials templated by triblock copolymers. J. Am. Chem. Soc. 2000, 122, 11925–11933. [Google Scholar] [CrossRef]
  43. Galarneau, A.; Cambon, H.; di Renzo, F.; Fajula, F. True microporosity and surface area of mesoporous SBA-15 silicas as a function of synthesis temperature. Langmuir 2001, 17, 8328–8335. [Google Scholar] [CrossRef]
  44. Ravikovitch, P.I.; Neimark, A.V. Characterization of micro- and mesoporosity in SBA-15 materials from adsorption data by the NLDFT method. J. Phys. Chem. B 2001, 105, 6817–6823. [Google Scholar] [CrossRef]
  45. Luan, Z.; Fournier, J.A.; Wooten, J.B.; Miser, D.E. Preparation and characterization of (3-aminopropyl)triethoxysilane-modified mesoporous SBA-15 silica molecular sieves. Microp. Mesop. Mater. 2005, 83, 150–158. [Google Scholar] [CrossRef]
  46. Tanev, P.T.; Vlaev, L.T. An attempt at a more precise evaluation of the approach to mesopore size distribution calculations depending on the degree of pore blocking. J. Colloid Interface Sci. 1993, 160, 110–116. [Google Scholar] [CrossRef]
  47. Shen, S.C.; Kawi, S. Understanding of the effect of Al substitution on the hydrothermal stability of MCM-41. J. Phys. Chem. B 1999, 103, 8870–8876. [Google Scholar] [CrossRef]
  48. Kosslick, H.; Landmesser, H.; Fricke, R. Acidity of substituted MCM-41-type mesoporous silicates probed by ammonia. J. Chem. Soc., Faraday Trans. 1997, 93, 1849–1854. [Google Scholar] [CrossRef]
  49. Wang, X.; Schwartz, V.; Clark, J.C.; Ma, X.; Overbury, S.H.; Xu, X.; Song, C. Infrared study of CO2 sorption over “Molecular Basket” sorbent consisting of polyethylenimine-modified mesoporous molecular sieve. J. Phys. Chem. C 2009, 113, 7260–7268. [Google Scholar] [CrossRef]
  50. Wang, X.G.; Lin, K.S.K.; Chen, J.C.C.; Cheng, S. Direct synthesis and catalytic applications of ordered large pore aminopropyl-functionalized SBA-15 mesoporous materials. J. Phys. Chem. B 2005, 109, 1763–1769. [Google Scholar] [CrossRef] [PubMed]
  51. Han, L.; Ruan, J.F.; Li, Y.S.; Terasaki, O.; Che, S.A. Synthesis and characterization of the amphoteric amino acid bifunctional mesoporous silica. Chem. Mater. 2007, 19, 2860–2867. [Google Scholar] [CrossRef]
  52. Heydary-Gorji, A.; Belmabkhout, Y.; Sayari, A. Polyethylenimine-impregnated mesoporous silica: Effect of amine loading and surface alkyl chains on CO2 adsorption. Langmuir 2011, 27, 12411–12416. [Google Scholar] [CrossRef] [PubMed]
  53. Vilarrasa-García, E.; Cecilia, J.A.; Cavalcante, C.L., Jr.; Jiménez-Jiménez, J.; Azevedo, D.C.S.; Rodríguez-Castellón, E. Adsorción de CO2 y separación CO2/CH4 en SBA-15 de poro expandido modificada con Ti y funcionalizada con APTES. Mater. Adsorc. Catál. 2014, 7, 30–47. (In Spanish) [Google Scholar]
  54. Chang, F.Y.; Chao, K.J.; Cheng, H.H. Adsorption of CO2 onto amine-grafted mesoporous Silicas. Sep. Pur. Technol. 2009, 70, 87–95. [Google Scholar] [CrossRef]
  55. Shenderovich, L.G.; Buntkwosky, G.; Schreiber, A.; Gedat, E.; Sharif, S.; Albrecht, J.; Golubev, N.S. Pyridine-15N a mobile NMR sensor for surface acidity and surface defects of mesoporous silica. J. Phys. Chem. B 2003, 107, 11924–11939. [Google Scholar] [CrossRef]
  56. Wang, L.; Yang, R.T. Increasing selective CO2 adsorption on amine-grafted SBA-15 by increasing silanol density. J. Phys. Chem. C 2011, 115, 21264–21272. [Google Scholar] [CrossRef]
  57. Sayari, A.; Belmabkhout, Y. Stabilization of amine-containing CO2 adsorbents: Dramatic effect of water vapor. J. Am. Chem. Soc. 2010, 132, 6312–6314. [Google Scholar] [CrossRef] [PubMed]
  58. Knofel, C.; Martin, C.; Hornebecq, V.; Llewellyn, P.L. Study of carbon dioxide adsorption on mesoporous aminopropylsilane-functionalized silica and Titania combining microcalorimetry and in situ infrared spectroscopy. J. Phys. Chem. C 2009, 113, 21726–21734. [Google Scholar] [CrossRef]
  59. Xing, W.; Liu, C.; Zhou, Z.; Zhang, L.; Zhou, J.; Zhuo, S.; Yan, Z.; Gao, H.; Wang, G.; Qiao, S.Z. Superior CO2 uptake of N-doped activated carbon through hydrogen-bonding interaction. Energy Environ. Sci. 2012, 5, 7323–7327. [Google Scholar] [CrossRef]
  60. Bermúdez, J.M.; Dominguez, P.H.; Arenillas, A.; Cot, J.; Weber, J.; Luque, R. CO2 separation and capture properties of porous carbonaceous materials from leather residues. Materials 2013, 6, 4641–4653. [Google Scholar] [CrossRef]
  61. Gray, M.L.; Soong, Y.; Champagne, K.J.; Pennline, H.; Baltrus, J.P.; Stevens, R.W. Improved immobilized carbon dioxide capture sorbents. Fuel Process Technol. 2005, 86, 1449–1455. [Google Scholar] [CrossRef]
  62. Xu, X.C.; Song, C.S.; Andresen, J.M.; Miller, B.G.; Scaroni, A.W. Preparation and characterization of novel CO2 “molecular basket” adsorbents based on polymer-modified mesoporous molecular sieve MCM-41. Micropor. Mesopor. Mater. 2003, 62, 29–45. [Google Scholar] [CrossRef]
  63. Sun, N.; Tang, Z.; Wei, W.; Snape, C.E.; Sun, Y. Solid adsorbents for low temperature CO2 capture with low energy penalties leading to more effective integrated solutions for power generation and industrial processes. Front. Energy Res. 2015. [Google Scholar] [CrossRef]
  64. Wang, X.X.; Song, C.S. Temperature-programmed desorption of CO2 from polyethylenimine-loaded SBA-15 as molecular basket sorbents. Catal. Today 2012, 194, 44–52. [Google Scholar] [CrossRef]
  65. Chen, Z.H.; Deng, S.B.; Wei, H.R.; Wang, B.; Huang, J.; Yu, G. Polyethylenimine-impregnated resin for high CO2 adsorption: An efficient adsorbent for CO2 capture from simulated flue gas and ambient air. ACS Appl. Mater. Inter. 2013, 5, 6937–6945. [Google Scholar] [CrossRef]
  66. Yang, R.T. Gas Separation by Adsorption Process; Imperial College Press: London, UK, 1997; Volume 1. [Google Scholar]
Back to TopTop
