Electrodeposition of Manganese-Nickel Oxide Films on a Graphite Sheet for Electrochemical Capacitor Applications

1
Department of Chemical Engineering and Division of Energy Systems Research, Ajou University, Suwon 443-749, Korea
2
Department of Chemical and Biomolecular Engineering, Yonsei University, Seoul 120-749, Korea
*
Author to whom correspondence should be addressed.
Materials 2014, 7(1), 265-274; https://doi.org/10.3390/ma7010265
Submission received: 15 November 2013 / Revised: 26 December 2013 / Accepted: 30 December 2013 / Published: 9 January 2014
(This article belongs to the Section Energy Materials)

Abstract

: Manganese-nickel (Mn-Ni) oxide films were electrodeposited on a graphite sheet in a bath consisting of manganese acetate and nickel chloride, and the structural, morphological, and electrochemical properties of these films were investigated. The electrodeposited Mn-Ni oxide films had porous structures covered with nanofibers. The X-ray diffractometer pattern revealed the presence of separate manganese oxide (γ-MnO2) and nickel oxide (NiO) in the films. The electrodeposited Mn-Ni oxide electrode exhibited a specific capacitance of 424 F/g in Na2SO4 electrolyte. This electrode maintained 86% of its initial specific capacitance over 2000 cycles of the charge-discharge operation, showing good cycling stability.

1. Introduction

Electrochemical capacitors are attracting significant interest owing to their potential role in power storage of electric and fuel cell vehicles. Electrochemical capacitors can be classified into two types according to their charge storage mechanisms [1,2]: electric double layer capacitor (EDLC) and redox supercapacitor (or pseudo-capacitor). EDLCs mainly utilize the nonfaradaic charge separation at the electrode/electrolyte interface. Redox supercapacitors make use of a reversible redox reaction in order to store charges. The behavior of redox supercapacitors is typically termed “pseudo-capacitance” and resembles a rechargeable battery more than a traditional capacitor. In the case of redox supercapacitors, various noble and transition metal oxides (e.g., RuO2, CoOx, NiOx, MnO2, etc.) and conducting polymers have been employed as electrode materials [37]. Among these materials, ruthenium oxide has been found to be a successful redox supercapacitor exhibiting a specific capacitance up to 720 F/g [3]. However, cost is a prohibitive factor in the large-scale commercial production of ruthenium oxide as a redox supercapacitor.

Manganese and its oxides have received much attention as an alternative to the ruthenium oxide in electrochemical capacitor applications because of their satisfactory electrochemical performance, relatively low cost, natural abundance, and so on [5,8,9]. Several methods, including hydrothermal synthesis [10], chemical bath deposition [11], sol-gel method [12], and co-precipitation [13], have been used to produce manganese oxide electrodes for electrochemical capacitors. However, these methods produce oxide powders and the use of oxide powders is complicated and inconvenient in making electrodes. It needs several sequential treatments such as synthesizing powders, mixing them with a conducting agent and a binder, and then making electrodes [14]. A more effective method to prepare manganese oxide electrodes for electrochemical capacitor applications is electrodeposition because it leads to a direct deposition of oxide films on an electrode. In addition, electrochemical manganese dioxides which are in the forms of α-, β-, and γ-MnO2 exhibit better electrochemical properties for electrochemical capacitor applications than natural manganese dioxide and chemically prepared manganese dioxide [15]. There are also several reports that binary metal oxides such as manganese-nickel oxide and manganese-cobalt oxide enhance the electrochemical capacitive performance of manganese oxides and have better electrochemical properties than single metal oxide [1620].

In the present work, we have developed a bath consisting of manganese acetate and nickel chloride for the electrodepositon of manganese-nickel (Mn-Ni) oxide films as electrochemical capacitor electrodes. The structural, morphological, and electrochemical properties of the electrodeposited manganese-nickel oxide films were discussed.

2. Results and Discussion

2.1. Formation Mechanism of the Electrodeposited Mn-Ni Oxide Films

The anodic electrodeposition of manganese oxide in an electrolyte containing Mn2+ ions can be described by the following Equation [9]:

Mn 2 + + 2 H 2 O  MnO 2 + 4 H + + 2 e

In Equation (1), the oxidation state of Mn increases from +2 to +4. Since it is improbable that two electrons are transferred in a single step, the formation of MnO2 from Mn2+ occurs concomitantly with the oxidation of water molecules. The detailed intermediate steps for the overall reaction of Equation (2) are as follows:

2Mn 2 +  2Mn 3 + +  2e
2Mn 3 +  Mn 2 + +  Mn 4 +
Mn 4 + +  4H 2  Mn ( OH ) 4 +  4H +
Mn ( OH ) 4  MnO 2 +  2H 2 O

The deposition of nickel oxide makes a use of nickel hydroxide precipitation. Nickel hydroxide is formed on the electrode such that:

Ni 2 + +  2OH  Ni ( OH ) 2

Nickel hydroxide is subsequently involved in the electrochemical reactions of Equations (8) and (9) [21,22]:

Ni ( OH ) 2 +  OH  NiO OH  +  H 2 +  e
NiO OH  +  OH  NiO 2 +  H 2 +  e

Finally, the eletrodeposition of nickel oxide in an electrolyte containing Ni2+ ions can be represented by the Equation (10):

Ni ( OH ) 2 +   2 OH  NiO 2 +   2 H 2 +   2 e

2.2. Structural, Morphological, and Electrochemical Properties of the Electrodeposited Mn-Ni Oxide Films

The SEM (Hitachi, Tokyo, Japan) image of the electrodeposited Mn-Ni oxide film is shown in Figure 1. The substrate was well covered with nanofibers. Porous spaces were observed between the nanofibers, enhancing the redox process. This type of morphology is favorable for electrochemical capacitor applications owing to its large surface area.

Figure 2 represents the pore size distribution of the electrodeposited Mn-Ni oxide film. The size of the pores in the film was mainly distributed in the range of 2–20 nm.

Figure 3 shows the XRD (Rigaku, Tokyo, Japan) patterns of the Mn-Ni oxides electrodeposited on a graphite sheet. The peaks at 26.4°, 44.4°, 54.5°, 59.7°, 77.2°, and 83.2° represented carbon in the substrate (graphite sheet) [JCPDS No. 41-1487]. The peaks at 22.1° and 34.4° indicated that manganese oxide existed in the form of γ-MnO2 [JCPDS No. 14-0644]. Nickel oxides were found to be in the form of NiO, resulting from the peaks at 37.2°, 43.2°, and 62.8°. The XRD spectrum suggested that separate manganese oxide (γ-MnO2) and nickel oxide (NiO), not in the form of composites, were obtained using electrodeposition.

The surface composition of the electrodeposited Mn-Ni oxide film was analyzed by XPS (Thermo Fisher Scientific, East Grinstead, UK). Figure 4 shows the XPS spectrum of the Mn-Ni oxide film electrodeposited from an electrolyte containing 0.1 M of manganese acetate and 0.2 M of nickel chloride. The survey scan (Figure 4a) shows that the film contained Mn, Ni, and O. The peak representing C due to the substrate (graphite sheet) was also observed. A higher resolution of the Mn 2P3/2 and Ni 2P3/2 spectra revealed that the peak at 642.6 eV corresponded to manganese (IV) oxide [23] while the peak at 855.2 eV represented the presence of nickel (II) oxide [24] in the film. A quantitative analysis using XPS yielded a surface composition of Mn0.24Ni0.05O0.71.

Figure 5 shows the cyclic voltammograms of the Mn-Ni oxide electrode electrodeposited at various scan rates. CVs were measured from −0.2 to +1.0 V vs. Ag/AgCl in the 0.5 M Na2SO4 electrolyte. The CV curve was shaped as an asymmetrically closed box at all scan rates. This indicates that the capacitance characteristics of the electrodeposited Mn-Ni oxide electrode are distinguished from the electric double-layer capacitance whose CV curve is nearly an ideal rectangular shape. Figure 5 also shows that the area under the curve increased with the scan rate. This implies that the voltammetric current was proportional to the scan rate, corresponding to a capacitive behavior. Based on the CV measurements, the capacitance of the electrodeposited Mn-Ni oxide electrode was calculated from Equation (10) in “Experimental Section”. The specific capacitance of the electrodeposited Mn-Ni oxide electrode was found to be 424 F/g at a scan rate of 20 mV/s in 0.5 M Na2SO4 electrolyte.

Figure 6 shows the first charge-discharge cycle of the electrodeposited Mn-Ni oxide electrode. The charge-discharge curve was nearly symmetric in the range between 0 and 0.85 V (vs. Ag/AgCl), indicating that a good capacitive behavior of the electrodeposited Mn-Ni oxide electrode was observed.

To evaluate the stability of the Mn-Ni oxide electrode, the charge-discharge cycling test at a current of 5 mA test was performed. Figure 7 shows the capacitance of the Mn-Ni oxide electrode over 2000 cycles. The specific capacitance decreased to about 380 F/g (90% of the initial value) during the initial 200 cycles. Then, it decreased slightly and became stable during the next 1800 cycles. The capacitance was about 370 F/g for 2000 cycles. This indicated that after 2000 cycles of the charge-discharge operation, the electrodeposited Mn-Ni oxide maintained 86% of its initial specific capacitance and exhibited good cycling stability.

3. Experimental Section

Mn-Ni oxide films were electrodeposited on a graphite sheet. The graphite sheet was cut into a 10 × 50 mm2 rectangular substrate and lacquered to expose an area of 10 × 20 mm2 for electrodeposition. Prior to electrodeposition, the substrate was polished with a silicon carbide paper. The polished substrate was etched in a 20 wt% sulfuric acid solution at room temperature for 20 s, and dipped into a solution of 2 M methanol for 20 s to remove macro-level surface defects and contamination. Then, the substrate was cleaned in double distilled water and dried in an oven at 65 °C for 6 h.

Manganese acetate (Mn(CH3COO)2 4H2O) and nickel chloride (NiCl2 6H2O) were used as the sources of manganese and nickel, respectively. The concentrations of manganese acetate and nickel chloride were 0.1 M and 0.2 M, respectively. The electrolytes were obtained by dissolving the above chemicals in deionized water. All chemicals were of analytical reagent grade supplied by Sigma-Aldrich (St. Louis, MO, USA).

The electrodeposition was carried out using a standard three-electrode cell. A saturated Ag/AgCl electrode was used as a reference electrode and a graphite sheet having a size of 20 × 70 mm2 (exposed area of 20 × 35 mm2) prepared by the same aforementioned method was used as a counter electrode. During electrodeposition, a constant potential of 1.2 V versus the reference electrode of Ag/AgCl from a stagnant electrolyte at room temperature (24 ± 1 °C) was applied using a computer-controlled potentiostat (Princeton Applied Research, VSP). The electrodeposition was done for 60 s in all cases. After deposition, the samples were washed with a deionized water jet, dried with flowing nitrogen gas, and annealed in an oven at 250 ± 1 °C for 3 h. Annealing of the samples was done to improve the adhesion of the Mn-Ni oxide films to the substrate.

The weight of the electrodeposited manganese-nickel oxides films were determined by a microbalance to an accuracy of 10 μg. The surface composition of the film was identified using X-ray photoelectron spectroscopy (XPS). Microstructural analysis of the film was carried out using a high-power X-ray diffractometer (XRD, Rigaku, D/max- 2500V/PC), which used a Cu Kα radiation (wavelength = 0.154 nm) as an incident beam and worked at 40 kV and 150 mA. Surface morphology of the film was examined using a field emission scanning electron microscopy (FE-SEM, Hitachi, S-4800, Tokyo, Japan). Nitrogen adsorption-desorption measurements were made using an adsorption analyzer (Micrometrics, ASAP 2010, Norcross, GA, USA) to obtain the pore size of the electrodeposited Mn-Ni oxide film. The sample was outgassed for 6 h at 473 K prior to the measurements. The pore sizes were calculated based on the Barret-Joyner-Halenda (BJH) desorption method.

For electrochemical measurements, a platinum-coated titanium mesh (2.5 cm2 in size) and a saturated Ag/AgCl electrode were used as a counter electrode and a reference electrode, respectively. Cyclic voltammograms (CVs) were recorded between −0.2 and 1.0 V versus Ag/AgCl. The capacitance (C) of an electrode can be calculated from the following Equation

C = d Q d V = I d V / d t

where Q is the charge on the electrode, V is its potential, I is the average current, and dV/dt is the voltage scanning rate. The specific capacitance of the electrodeposited manganese-nickel oxide electrode was obtained by dividing the capacitance by its respective weight. The weight of the electrodeposited manganese-nickel oxide films was measured using a microbalance with an accuracy of 10 μg. The constant current charge-discharge behavior of the manganese-nickel oxide electrode was investigated galvanostatically at a current of 5 mA.

4. Conclusions

The electrodeposition of Mn-Ni oxide films for use as an electrochemical capacitor electrode was carried out in a bath containing manganese acetate and nickel chloride. SEM studies showed that the Mn-Ni oxide film was well covered with numerous nanofibers in a three-dimensional network. Porous spaces were also observed between the nanofibers, which are required for electrochemical capacitor applications. The XRD analysis revealed that the electrodeposited Mn-Ni oxide film contained separate manganese oxide (γ-MnO2) and nickel oxide (NiO). The XPS spectra of the electrodeposited Mn-Ni oxide film confirmed the presence of manganese (IV) oxide and nickel (II) oxide. From the XPS measurements, the surface composition of the film was determined to be Mn0.24Ni0.05O0.71. The cyclic voltammetry measurements showed that the electrodeposited Mn-Ni oxide electrode had a specific capacitance of 424 F/g at a scan rate of 20 mV/s. The stability test of the film exhibited good cycling stability in that the electrodeposited Mn-Ni oxide electrode maintained 86% of its initial specific capacitance over 2000 cycles of the charge-discharge operation. Therefore, electrodeposition is a simple and promising method to fabricate Mn-Ni oxide films for electrochemical capacitor applications.

Acknowledgments

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MEST) (2011-0029118 and 2012-004416), S-Oil Corporation, and an Ajou University Research Fellowship of 2010 (S-2010-G0001-00058).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Simon, P.; Gogotsi, Y. Materials for electrochemical capacitors. Nat. Mater 2000, 91, 845–854. [Google Scholar]
  2. Burke, A. Ultracapacitors: Why, how, and where is the technology. J. Power Sour 2000, 91, 37–50. [Google Scholar]
  3. Zheng, J.P.; Cygan, P.J.; Jow, T.R. Hydrous ruthenium oxide as an electrode material for electrochemical capacitors. J. Electrochem. Soc 1995, 142, 2699–2703. [Google Scholar]
  4. Kandalkar, S.G.; Lee, H.-M.; Chae, H; Kim, C.-K. Structural, morphological, and electrical characteristics of the electrodeposited cobalt oxide electrode for supercapacitor applications. Mater. Res. Bull 2011, 46, 48–51. [Google Scholar]
  5. Pang, S.-C.; Anderson, M.A.; Chapman, T.W. Novel electrode materials for thin-film ultracapacitors: Comparison of electrochemical properties of sol-gel-derived and electrodeposited manganese dioxide. J. Electrochem. Soc 2000, 147, 444–450. [Google Scholar]
  6. Nam, K.-W.; Yoon, W.-S.; Kim, K.-B. X-ray absorption spectroscopy studies of nickel oxide thin film electrodes for supercapacitors. Electrochim. Acta 2002, 47, 3201–3209. [Google Scholar]
  7. Rudge, A.; Davey, J.; Raistrick, I.; Gottesfeld, S.; Ferraris, J.P. Conducting polymers as active materials in electrochemical capacitors. J. Power Sour 1994, 47, 89–107. [Google Scholar]
  8. Hu, C.-C.; Tsou, T.-W. The optimization of specific capacitance of amorphous manganese oxide for electrochemical supercapacitors using experimental strategies. J. Power Sour 2003, 115, 179–186. [Google Scholar]
  9. Ghaemi, M.; Binder, L. Effects of direct and pulse current on electrodeposition of manganese dioxide. J. Power Sour 2002, 111, 248–254. [Google Scholar]
  10. Liu, J.-L.; Fan, L.-Z.; Qu, X. Low temperature hydrothermal synthesis of nano-sized manganese oxide for supercapacitors. Electrochim. Acta 2012, 66, 302–305. [Google Scholar]
  11. Dubal, D.P.; Dhawale, D.S.; Salunkhe, R.R.; Fulari, V.J.; Lockhande, C.D. Chemical synthesis and characterization of Mn3O4 thin films for supercapacitor application. J. Alloy. Compd 2010, 497, 166–170. [Google Scholar]
  12. Lin, C.-K.; Chuang, K.-H.; Lin, C.-Y.; Tsay, C.-Y.; Chen, C.-Y. Manganese oxide films prepared by sol-gel process for supercapacitor application. Surf. Coat. Technol 2007, 202, 1272–1276. [Google Scholar]
  13. Jiang, R.; Huang, T.; Liu, J.; Zhuang, J.; Yu, A. A novel method to prepare nanostructured manganese dioxide and its electrochemical properties as a supercapacitor electrode. Electrochim. Acta 2009, 54, 3047–3052. [Google Scholar]
  14. Wang, G.-X.; Zhang, B.-L.; Yu, Z.-L.; Qu, M.-Z. Manganese oxide/MWNTs composite electrode for supercapacitors. Solid State Ion 2005, 176, 1169–1174. [Google Scholar]
  15. Walanda, D.K.; Lawrance, G.A.; Donne, S.W. Hydrothermal MnO2: Synthesis, structure, morphology and discharge performance. J. Power Sour 2005, 139, 325–341. [Google Scholar]
  16. Chuang, P.-Y.; Hu, C.-C. The electrochemical characteristics of binary manganese-cobalt oxides prepared by anodic deposition. Mater. Chem. Phys 2005, 92, 138–145. [Google Scholar]
  17. Chen, Y.-S.; Hu, C.-C. Capacitive characteristics of binary manganese-nickel oxides prepared by anodic deposition. Electrochem. Solid State Lett 2003, 6, A210–A213. [Google Scholar]
  18. Wei, T.-Y.; Chen, C.-H.; Chien, H.-C.; Lu, S.-Y.; Hu, C.-C. A cost-effective supercapacitor material of ultrahigh specific capacitances: Spinel nickel cobaltite aerogels from an epoxide-driven sol-gel process. Adv. Mater 2010, 22, 347–351. [Google Scholar]
  19. Salunke, R.R.; Jang, K.; Lee, S.-W.; Ahn, H. Aligned nickel-cobalt hydroxide nanorod arrays for electrochemical pseudocapacitor applications. RSC Adv 2012, 2, 3190–3193. [Google Scholar]
  20. Sun, Z.; Firdoz, S.; Yap, E.Y.-X.; Li, L.; Lu, X. Hierarchically structured MnO2 nanowires supported on hollow Ni dendrites for high-performance supercapacitors. Nanoscale 2013, 5, 4379–4387. [Google Scholar]
  21. Jayashree, R.S.; Kamath, P.V. Nickel hydroxide electrodeposition from nickel nitrate solutions: Mechanistic studies. J. Power Sour 2001, 93, 273–278. [Google Scholar]
  22. Berchmans, S.; Gomathi, H.; Rao, G.P. Electrooxidation of alcohols and sugars catalyzed on a nickel oxide modified glassy carbon electrode. J. Electroanal. Chem 1995, 394, 267–270. [Google Scholar]
  23. Strohmeier, B.; Hercules, D.M. Surface spectroscopic characterization of Mn/Al2O3 catalysts. J. Phys. Chem 1984, 88, 4922–4929. [Google Scholar]
  24. Khawaja, E.E.; Salim, M.A.; Khan, M.A.; Al-Adel, F.F.; Khattak, G.D.; Hussain, Z. XPS, auger, electrical and optical studies of vanadium phosphate glasses doped with nickel oxide. J. Non-Cryst. Solids 1989, 110, 33–43. [Google Scholar]
Figure 1. SEM image of the electrodeposited Mn-Ni oxide film.
Figure 1. SEM image of the electrodeposited Mn-Ni oxide film.
Materials 07 00265f1 1024
Figure 2. Pore size distribution of the electrodeposited Mn-Ni oxide film.
Figure 2. Pore size distribution of the electrodeposited Mn-Ni oxide film.
Materials 07 00265f2 1024

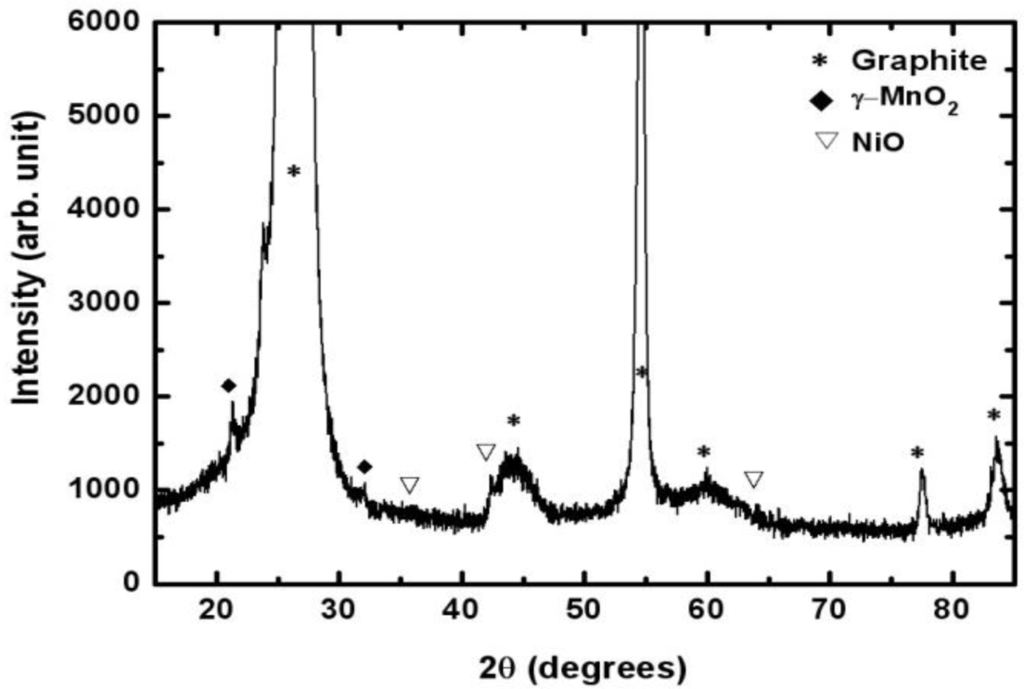

Figure 3. XRD spectrum of the electrodeposited Mn-Ni oxide film.
Figure 3. XRD spectrum of the electrodeposited Mn-Ni oxide film.
Materials 07 00265f3 1024

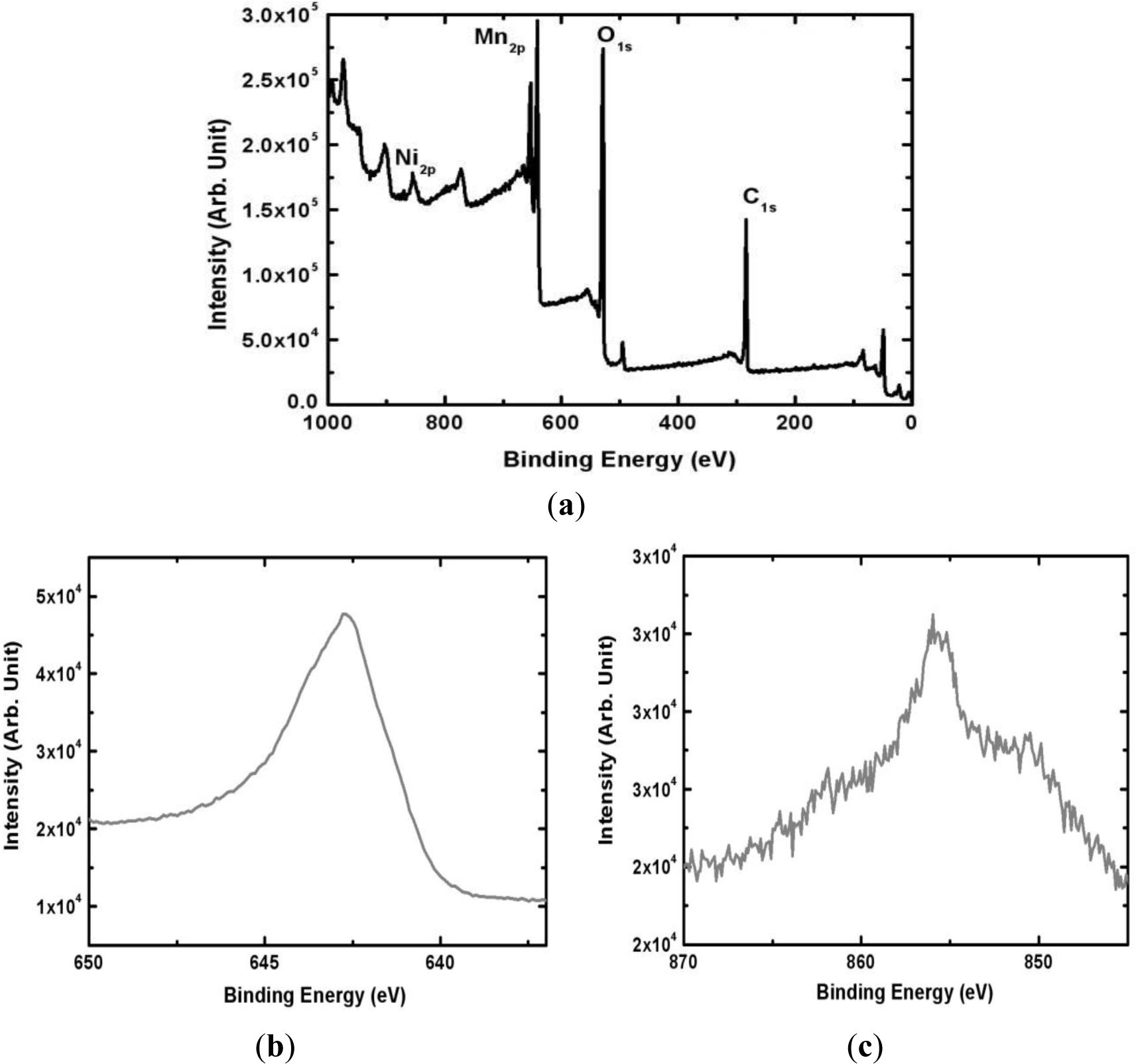

Figure 4. XPS spectra of the electrodeposited Mn-Ni oxide films. (a) survey scan; (b) Mn 2P3/2 electron; and (c) Ni 2P3/2 electron.
Figure 4. XPS spectra of the electrodeposited Mn-Ni oxide films. (a) survey scan; (b) Mn 2P3/2 electron; and (c) Ni 2P3/2 electron.
Materials 07 00265f4 1024

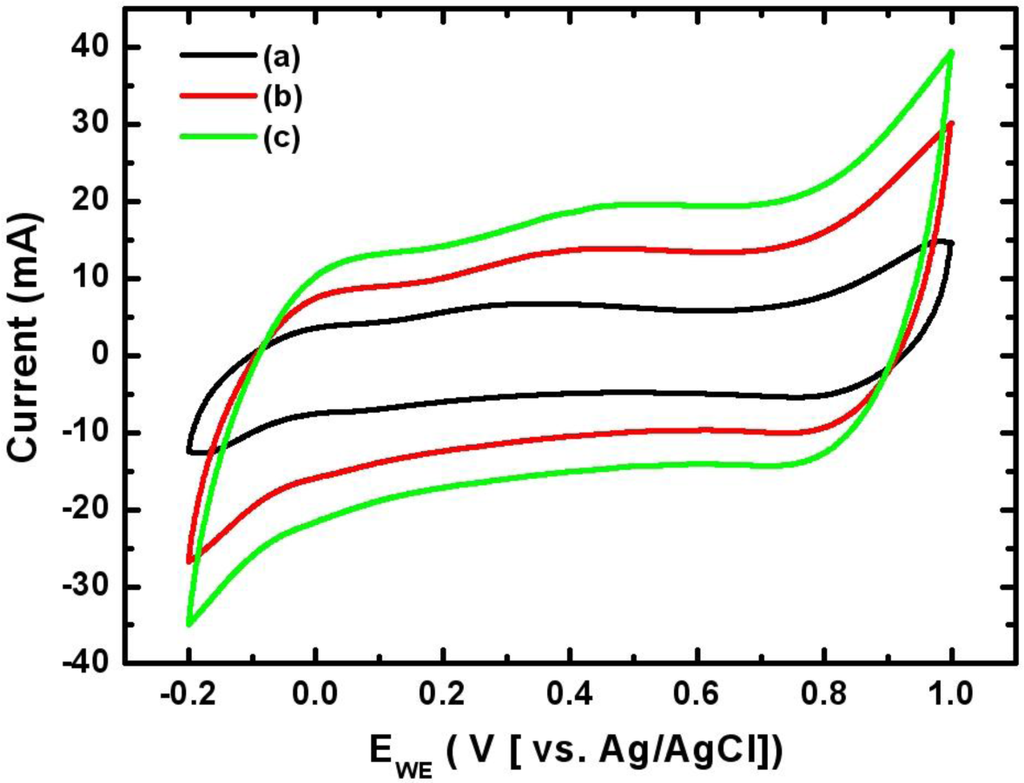

Figure 5. Cyclic voltammograms of the electrodeposited Mn-Ni oxide electrode in 0.5 M Na2SO4 at scan rates of (a) 20; (b) 60; and (c) 100 mV/s.
Figure 5. Cyclic voltammograms of the electrodeposited Mn-Ni oxide electrode in 0.5 M Na2SO4 at scan rates of (a) 20; (b) 60; and (c) 100 mV/s.
Materials 07 00265f5 1024

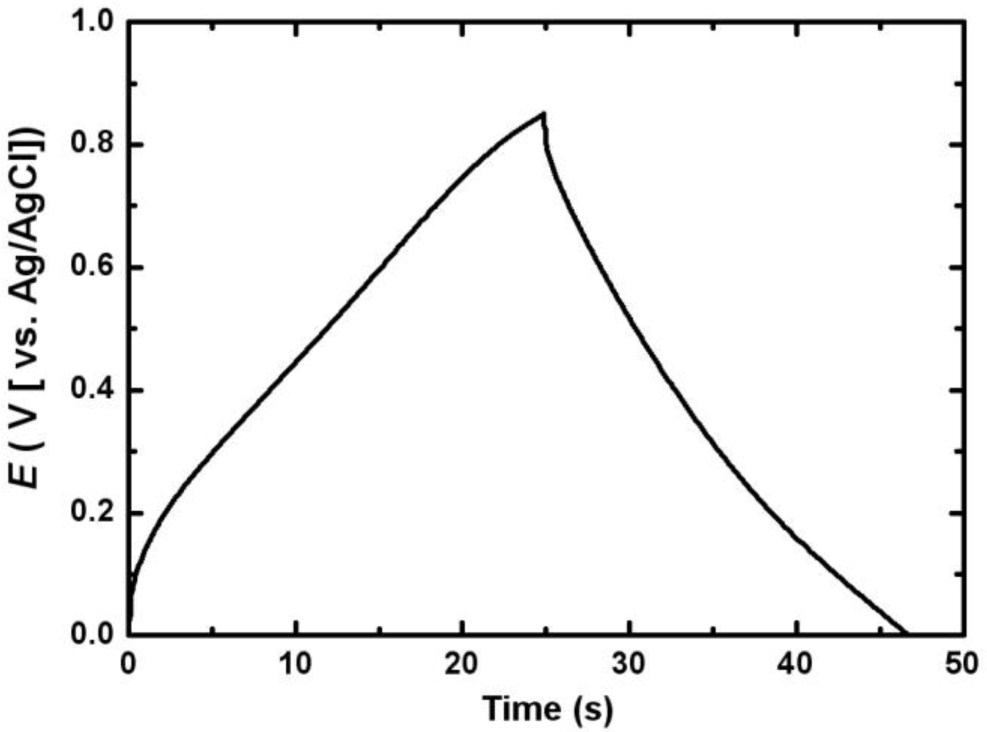

Figure 6. Charge-discharge curve of the electrodeposited Mn-Ni oxide electrode in 0.5 M Na2SO4.
Figure 6. Charge-discharge curve of the electrodeposited Mn-Ni oxide electrode in 0.5 M Na2SO4.
Materials 07 00265f6 1024

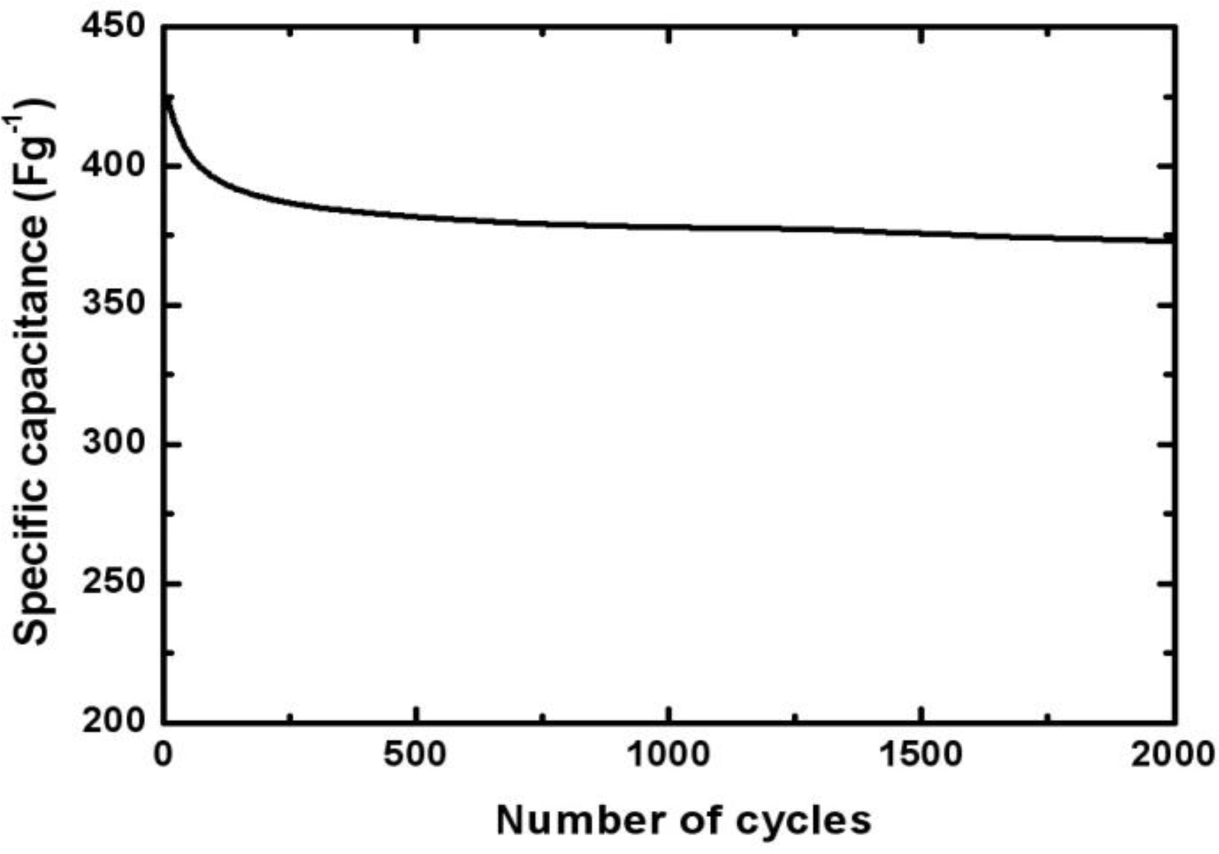

Figure 7. Specific capacitance of the electrodeposited Mn-Ni oxide electrode 0.5 M Na2SO4.
Figure 7. Specific capacitance of the electrodeposited Mn-Ni oxide electrode 0.5 M Na2SO4.
Materials 07 00265f7 1024
