CO₂ Separation and Capture Properties of Porous Carbonaceous Materials from Leather Residues

Abstract

Carbonaceous porous materials derived from leather skin residues have been found to have excellent CO₂ adsorption properties, with interestingly high gas selectivities for CO₂ (α > 200 at a gas composition of 15% CO₂/85% N₂, 273K, 1 bar) and capacities (>2 mmol·g⁻¹ at 273 K). Both CO₂ isotherms and the high heat of adsorption pointed to the presence of strong binding sites for CO₂ which may be correlated with both: N content in the leather residues and ultrasmall pore sizes.

1. Introduction

The combination of more environmentally friendly and low impact technologies in manufacturing processes that provide improved efficiencies as well as waste minimization have been highlighted to be critical assets to favor industrial development for the benefit of future societies in a more sustainable manner [1]. In this regard, greener processes and technologies aiming to valorize residues to valuable products (e.g., materials, chemicals and energy) should be the focus of future research endeavors in our aim to meet sustainability targets and to face the lack of resources we will experience in coming decades [2]. Waste valorization, differently understood from basic management of residues, can offer important advantages to enhance the value of residues via greener processing to valuable products, both from the environmental and economic viewpoints [2].

Leather industries generate exceptional quantities of residues which have been rather under utilized to date [3,4]. Managing such waste is essential. The majority of this waste (wet residues, >650,000 tons per year generated worldwide) [5], which contains metals and chemicals including chromium, titanium and others, currently has no uses different from landfilling. More importantly, some of those residues including unprocessed defective skin, processed leather bits and related others produced in large scale (dry waste, accounting for over 150,000 tons per year worldwide) [5], constitute a major issue to leather processing companies that do not generally find alternatives to manage them. Fully or at least partially processed leather skin waste can in principle be a potentially promising feedstock to valorize to a range of valuable products with interesting properties.

Spain has an important leather industry both at the North (Catalonia) and South (Andalucia) from which we have been extensively collaborating in past years [6,7]. Along these lines, we recently developed a proof of concept methodology to valorize leather skin residues (processed and unprocessed) to potentially interesting materials for a series of applications [6,7,8]. Other literature reports have also focused on the conversion of bio-collagenic residues into carbonaceous materials by means of a facile carbonization approach at high temperatures (>900 °C) as alternative methodology to existing chemical vapor deposition methods [8]. The carbonaceous-derived materials were found to have a partially graphitized structure with onion like morphology containing nitrogen and oxygen into their composition, resulting in multifunctional properties with potential applications in battery electrodes [9].

Inspired by such previous studies, particularly related to the high N content of leather residues (contained in proteins ubiquitous in animal skin), we were interested in the conversion of leather skin residues into greener porous carbonaceous materials suitable for adsorption applications. N-containing materials have been reported to have interesting adsorption properties in various applications, particularly for CO₂ sequestration [10,11,12].

In this work, we present a preliminary assessment of the potential of carbonaceous materials from leather-derived residues on CO₂ adsorption. We demonstrate that such materials obtained from (un)processed leather skin can have a very promising CO₂ adsorption with an interesting gas selectivity over N₂.

2. Results and Discussion

Thermal gravimetric and differential thermal analysis (TG/DTA) measurements were initially conducted to carefully plan the selection of the carbonization temperature for the materials. Figure 1 clearly depicts the remarkable differences between carbonized materials under air and argon. Leather residues carbonized under air showed the typical small mass loss associated to physisorbed water (ca. 100–110 °C, <10% mass loss) which was followed by a highly exothermic band between 300 and 480 °C, corresponding to the decomposition and burning of the residue into CO₂ and water as well as some NO_x species [in good agreement with TG/MS (thermogravimetry mass spectrometry) results, not shown], with a mass loss of over 70% (Figure 1). A mass reduction of ca. 75%–90% was observed in all samples, regardless of the starting material. Comparatively, the carbonized materials under inert atmosphere (Ar or Nitrogen) exhibited a remarkably different profile in which no significant mass loss (less than 50%) was observed in the worst case scenario. Similar mass loss steps were observed in the case of carbonization under inert atmosphere but to a lower extend. These were typically around 5–20 wt %. From TG/DTA curves we could infer two key points to select the temperatures for carbonization: prior to the important mass loss in the systems (around 350 °C) and close after the significant decomposition step of samples (600 °C, to ensure a full sample carbonization). Temperatures higher than 600 °C were ruled out as in principle they were believed to not offer very different information to results obtained at 600 °C and obviously required of a larger energy input in the carbonization process.

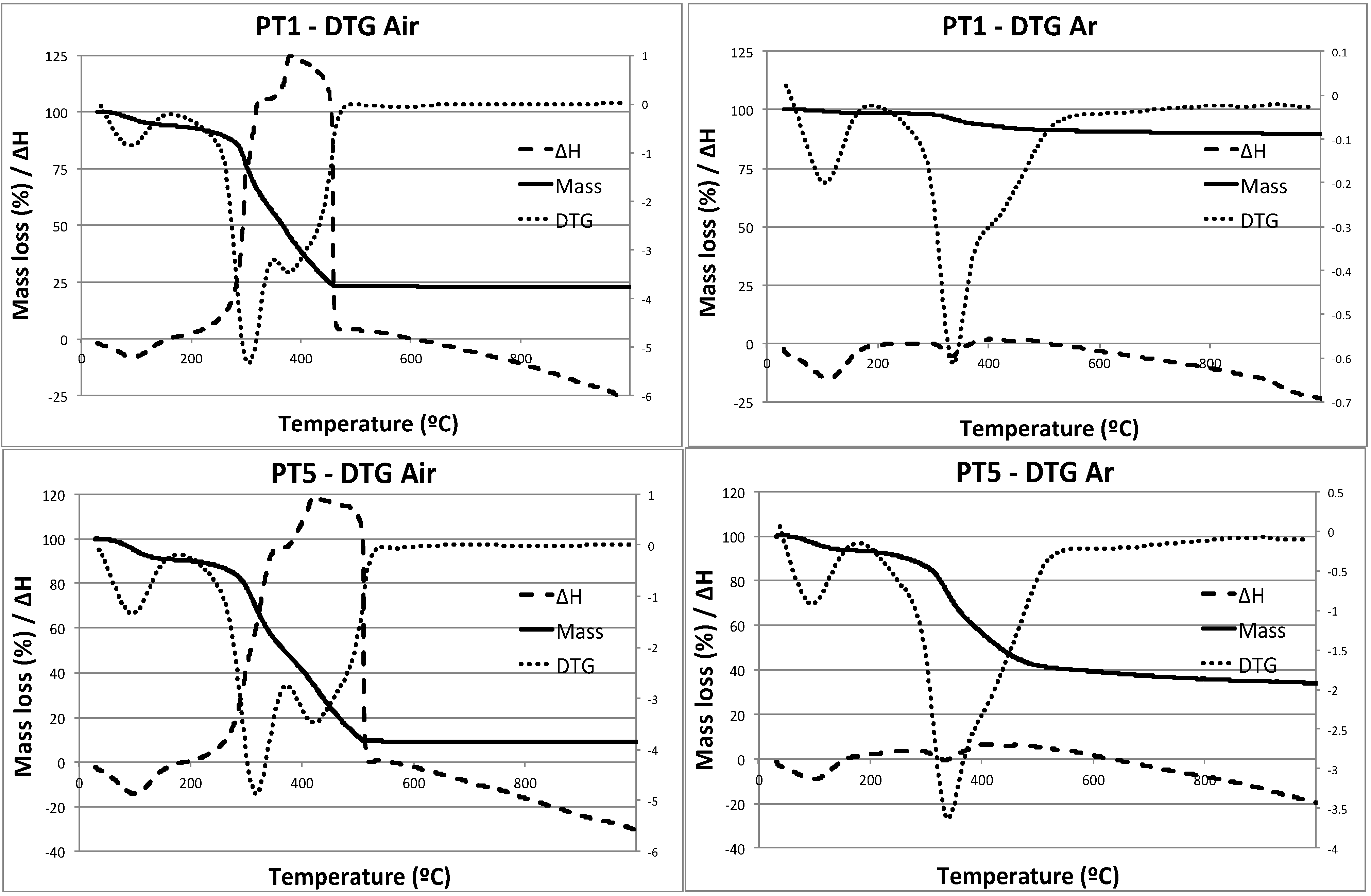

Figure 1. Thermal gravimetric and differential thermal analysis (TG/DTA) profiles of PT1 and PT5 under air (left plot) and argon (right plot).

Figure 1. Thermal gravimetric and differential thermal analysis (TG/DTA) profiles of PT1 and PT5 under air (left plot) and argon (right plot).

Materials carbonized under inert atmosphere (e.g., Ar and N₂) were the focus of subsequent studies included in this work.

X-ray Diffraction (XRD) (patterns of carbonaceous materials obtained from processed leather residues (Figure 2, see also supporting information) pointed out the existence of an amorphous phase corresponding to a carbonaceous material (broad band at ca. 2θ = 20°, Figure 2a) which gradually decreases with temperature to give rise to several crystalline peaks corresponding to the various species present in the leather skin residue depending on their origin and treatment/processing (Figure 2b, supporting information). In most cases, processed skins exhibited diffraction lines corresponding to various oxide phases of chromium (eskolaite, Cr₂O₃) and titanium (rutile and anatase, TiO₂) (Figure 2, see also supporting information). Cr and Ti contents in the materials were measured by inductively coupled plasma mass spectrometry (ICP/MS), showing <5 wt % Cr (for PT4 and PT5) and Ti (ca. 4.6 wt % for PT2) in the investigated materials.

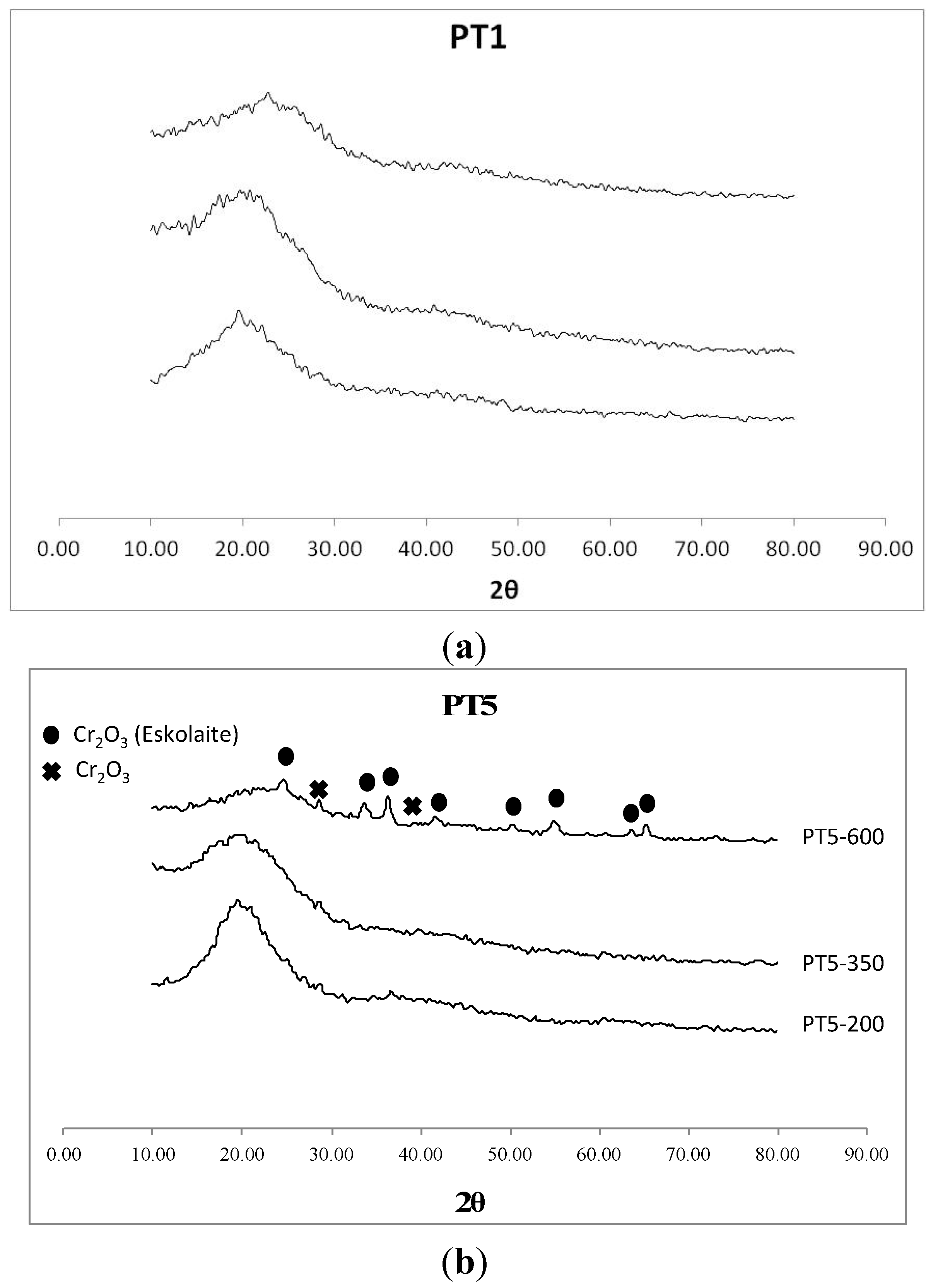

Figure 2. X-Ray diffraction (XRD) patterns of PT1 and PT5 carbonized under nitrogen at 200, 350 and 600 °C.

Figure 2. X-Ray diffraction (XRD) patterns of PT1 and PT5 carbonized under nitrogen at 200, 350 and 600 °C.

Diffuse reflectance infrared Fourier transform (DRIFTS) spectra recorded for selected samples (not shown, see supporting information) proved the transformation of the parent leather skin residues into carbonaceous materials. In this sense, several bands of the parent leather materials, including O–H, C–N (from proteins) and C–C bands are mostly lost in the carbonaceous materials at higher temperatures (600 °C), leading to an amorphous carbonaceous type of structure with bands in the 900–1000 cm⁻¹ corresponding to aromatic groups for most materials (see supporting information).

Nitrogen adsorption isotherms collected at 77.4 K do not show any signs of microporosity, with profiles typical of low porosity materials (see also supporting information). The steep increase observed at high relative pressure is typically associated with either a macroporous structure or agglomerated small particles. Such morphology is in accordance with transmission electron microscopy (TEM) investigations (see below). In either case, this can be beneficial for gas separation applications facilitating a fast mass transfer to adsorption sites as later discussed. The absence of any measurable microporosity by classic N₂ adsorption at 77.4 K (at first sight contradictory to the high CO₂ capacity observed in the materials) is however well known from both carbon [13,14,15,16] and polymer research [17]. It points to the presence of ultrasmall pores, which cannot be easily filled by Nitrogen at 77.4 K either due to size or kinetic restrictions. Table 1 summarizes the specific surface areas and pore volumes of the carbonized material.

The presence of a distinct morphology of small particulates and/or developed interparticular macroporosity was also evidenced in TEM micrographs (Figure 3). Not much more information can be obtained from these images that otherwise clearly shows amorphous-like materials that resemble those of typical carbons [18].

Figure 3. Transmission electron microscopy (TEM) micrographs of PT1-600 materials.

Figure 3. Transmission electron microscopy (TEM) micrographs of PT1-600 materials.

Upon characterization, the CO₂ adsorption capacity of prepared carbonaceous materials was investigated. These studies were based on previous reports that suggested that N-containing materials possess improved CO₂ adsorption properties as compared to pristine porous carbons based on various binding modes of CO₂ to Nitrogen [15,16,19,20,21,22,23,24]. The deeper reasons of the impact of N-doping on the CO₂ uptake properties are still a matter of discussion. Hydrogen bonding interactions between C–H and N–H and CO₂ were recently suggested to be one of the main reasons for such affinity by Qiao et al. [19]. These results challenged the extensively reported argument that related improved CO₂ adsorption on N doped carbons as a consequence of acid-base interactions between N functionalities and CO₂ [25]. More recent reports do, however, suggest that the actual micropore size may be the main reason for the observation of high CO₂ uptake [15,16,26]. This can be understood from the fact that CO₂ fills very narrow pores by volume-filling, while wider pores (W > 1.2 nm) are only surface covered within the commonly analyzed pressure range (T: 0–25 °C, P: 0–1 bar). However, we doubt that polar functionalities at the surface can lead to additionally enhanced adsorption tendency.

Table 1. Porosity properties of carbonized materials investigated in this work.

Material	SBET (m2/g)	Pore Volume (cm3/g)
PT1*	–	–
PT1-350*	< 10	0.09
PT1-600*	29	0.10
PT2*	–	–
PT2-350*	< 10	0.06
PT2-600*	21	0.07
PT3*	–	–
PT3-350*	< 5	–
PT3-600*	< 5	–
PT4*	–	–
PT4-350*	< 5	–
PT4-600*	–	–
PT5-350*	< 5	–
PT5-600*	10	0.05

* A detailed explanation of the nomenclature used can be found in the Experimental Section.

Table 1. Porosity properties of carbonized materials investigated in this work.

Material	SBET (m2/g)	Pore Volume (cm3/g)
PT1*	–	–
PT1-350*	< 10	0.09
PT1-600*	29	0.10
PT2*	–	–
PT2-350*	< 10	0.06
PT2-600*	21	0.07
PT3*	–	–
PT3-350*	< 5	–
PT3-600*	< 5	–
PT4*	–	–
PT4-350*	< 5	–
PT4-600*	–	–
PT5-350*	< 5	–
PT5-600*	10	0.05

* A detailed explanation of the nomenclature used can be found in the Experimental Section.

CO₂ adsorption properties of selected materials carbonized under nitrogen (PT1-600 and PT5-600) were analyzed in more detail. Initial adsorption experiments were undertaken at 273.15 K (Figure 4), which allows a first screening of the porosity and the extraction of the pore size distribution and specific surface area using a GCMC (grand canonical monte carlo) methodology [27]. Materials PT1-600 and PT5-600 showed a significant CO₂ uptake of 2.11 mmol·g⁻¹ (PT1-600) and 2.35 mmol·g⁻¹ (PT5-600) and were consequently analyzed with regard to their structural characteristics, heat of adsorption and adsorption selectivity. At this stage, the adsorption of a conventionally carbonized material (under air) was also compared to such nitrogen atmosphere carbonized materials (ESI). Interestingly, their analogues carbonized under air exhibited a very low CO₂ uptake accounting for an almost negligible <0.1 mmol·g⁻¹. The observed partial removal of nitrogen under the calcination step under air (see exothermic band in the 300–500 °C range from TG/DTA, Figure 1 and ESI) is believed to be one of the reasons accounting for the poor CO₂ uptake in these samples as well as the potential destruction of the ultramicroporous framework by oxidation processes.

Translating the isotherms of nitrogen-carbonized materials into a pore size distribution (PSD) and specific surface area applying the above-mentioned GCMC methodology (see ESI), a very narrow PSDs could be found, centered at pore widths of ~0.5 nm. Overall, both samples do show a very similar PSD and the vast majority of their pores have widths < 0.7 nm. Such small pore sizes can explain the absence of N₂ uptake at 77.4 K. Specific surface areas calculated from the GCMC method were found to be 452 m²·g⁻¹ (PT1-600) and 475 m²·g⁻¹ (PT5-600), respectively.

CO₂ adsorption at 283 K was subsequently measured in order to access the isosteric heat of adsorption q_st. Calculation was based on the routine provided by the software package of the gas adsorption instrument manufacturer and on a routine suggested by Krishna, Long and coworkers (Figure 5) [28]. Interestingly, the software did overestimate the heat of adsorption in the low-coverage region, probably, due to bad isotherm fitting in this range. Contrarily, the calculation approach, which is based on the dual-site fitting of the adsorption isotherms, can describe the heat of adsorption more reliably, as the whole isotherm region can be described very well by the fit. The heats of adsorption are generally rather high with q_st > 30 kJ/mol even at high loadings. At low loadings, there seem to be some indication for higher energy adsorption places (q_st ~ 38–41 kJ·mol⁻¹), which is supported by isotherm fitting (see below). As the materials have generally very narrow pores (which additionally enhance the heat of adsorption) [15,16] and may contain N functionalities as well as metal traces, the presence of high energy adsorption sites is clearly unsurprising. Indeed, it was shown that carbon materials with comparably narrow pores (W < 0.7 nm) but without pronounced chemical functionality do show values of q_st = 29–30 kJ·mol⁻¹ even at high loadings. The introduction of chemical functionality (as for example OH-groups) in such narrow pore size materials does however lead to increased heat of adsorption up to 35–38 kJ·mol⁻¹ [15,16].

Figure 4. Symbols: Experimental adsorption/desorption isotherms of CO₂ (273 K, 283K) and N₂ (273K) of PT1-600 (left plot) and PT5-600 (a); Lines: predicted adsorption isotherms of CO₂ and N₂ at 273K of PT1-600 (b) and PT5-600 (right plot) as determined from ideal adsorbed solution theory (IAST) modeling (gas composition: 0.15/0.85 CO₂/N₂).

Figure 4. Symbols: Experimental adsorption/desorption isotherms of CO₂ (273 K, 283K) and N₂ (273K) of PT1-600 (left plot) and PT5-600 (a); Lines: predicted adsorption isotherms of CO₂ and N₂ at 273K of PT1-600 (b) and PT5-600 (right plot) as determined from ideal adsorbed solution theory (IAST) modeling (gas composition: 0.15/0.85 CO₂/N₂).

CO₂ isotherms were fitted by a single-site and dual-site Langmuir approach (see supporting information). A single site approach could not give a good fit of the isotherms, while a dual-site fit gave reasonable results. This supports the presence of some high-energy sites. In contrast, N₂ adsorption isotherms on PT1-600 and PT5-600, which were measured at 273.15 K (N₂ adsorption capacity at 273.15 K and 1 bar are ~0.31 mmol·g⁻¹ and ~0.29 mmol·g⁻¹ for PT1-600 and PT5-600, respectively), in order to calculate the adsorption selectivity, could be fitted very well using a simple (single site) Langmuir approach. This gives additional evidence for the presence of adsorption sites favoring CO₂ adsorption. The CO₂/N₂ adsorption selectivity α(CO₂/N₂) was calculated from the fitted isotherms using the ideal adsorbed solution theory [IAST (ideal adsorbed solution theory), see ESI for details] [28] for a gas composition of 0.15/0.85 (typical composition of flue gas, Figure 5]. We calculated also the adsorption isotherms of CO₂ and N₂ from the respective gas mixture at 237 K, which can be predicted on the base of IAST as well. [29,30].

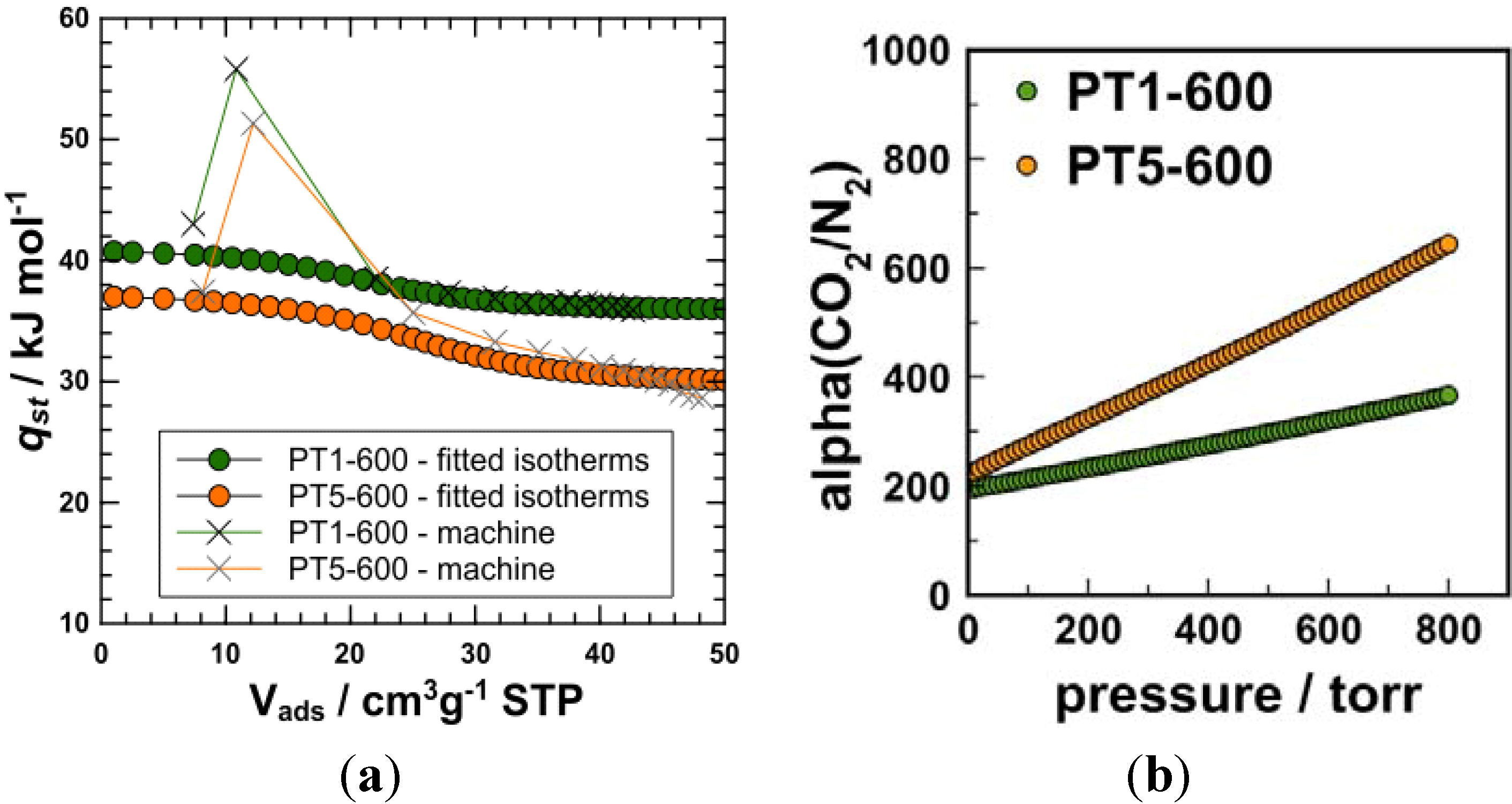

Figure 5. Isosteric heat of carbon dioxide adsorption of (a) PT1-600 and PT5-600; and (b) IAST prediction of the gas selectivity of PT1-600 and PT5-600 for the gas pair CO₂/N₂ 0.15/0.85 composition at 273 K.

Figure 5. Isosteric heat of carbon dioxide adsorption of (a) PT1-600 and PT5-600; and (b) IAST prediction of the gas selectivity of PT1-600 and PT5-600 for the gas pair CO₂/N₂ 0.15/0.85 composition at 273 K.

Although measured at 273 K (roughly 30–50 K lower than the normal temperature of flue gas in a modern coal-fired power plant), the calculated selectivities can be used to decide whether the materials could indeed be regarded as useful CO₂ adsorbents. IAST selectivities of ~360 and ~640 were calculated for PT1-600 and PT5-600 at 1 bar and 273.15 K. Such selectivities are high and indeed competitive when compared to other recently reported highly selective zeolite materials [30], which showed selectivity values located in the range of 100–900. With regard to the rather small pore sizes and the narrow pore size distribution, it can be speculated that the high selectivities are a consequence of kinetic sieving effects [31], but those effects may be enhanced by favorable interactions between CO₂ and the functional carbon surface (see above). The reason for the somewhat differing selectivities of PT1-600 and PT5-600 might be related to the overall capacity of the materials (PT5-600 has a higher CO₂ capacity at lower N₂ capacity). To what extent finer details of the surface chemistry play a role here cannot be derived from the data so far, as both, heat of adsorption and pore size distribution, are rather similar for the most interesting materials (PT1-600 and PT5-600). The overall adsorption capacity of the materials might however require some improvement and the adsorption kinetics deserve further investigation. The uptake capacity is comparatively low to that of activated carbons [32,33] (~2.1–2.3 mmol·g⁻¹ in the case of the leather skin residue derived carbons versus 3–6 mmol·g⁻¹ in the case of activated carbons) but could probably be enhanced by activation. Usually, this leads however to a reduced selectivity as a consequence of increased pore sizes. Whether additional activation is necessary, might hence be judged on an economic basis weighing the costs of the processing step and the benefit depending on the envisaged application. Nevertheless, reported results constitute a promising basis for future and further in-depth studies.

3. Experimental Section

3.1. Materials Preparation

Leather skin residues were leftovers from processed leather to bags, wallets and related consumer products kindly donated by Serpelsa S.A. from Vic (Barcelona, Spain). The original feedstock is rabbit skin. Samples are referred to PT (for processed skin) and numbered (1, 2, 3) depending on the type of sample and treatment. PT1 and PT3 were processed leather skin cuts under a metal-free tanning natural processing (no metals added, exclusive use of tannins [34]). Comparatively, PT2 was processed and cured using titanium salts and PT4 and PT5 were processed under conventional and most extended chromium salt treatment, typical of over 80% of the leather processing industry. Different batches were also processed in this work, showing a high reproducibility in terms of textural and adsorption properties.

Carbonization of the leather residues was conducted in a microactivity reactor (P&D, Madrid, Spain) at two different temperatures (350 and 600 °C) based on results obtained from TG/DTA experiments that indicated these were optimum decomposition points of the samples. Reduced temperatures of carbonization (<250 °C) lead to materials that had very similar properties to those of the original processed leather skin. The carbonization temperature of each sample is added at the end of the label. Thus, PT1-350 is the processed skin number one carbonized at 350 °C.

In a typical and simple carbonization process, 2–3 g leather skin cut in small pieces were placed into the microactivity reactor and heated up at the desired temperature (350 or 600 °C) under a flow of nitrogen (50 mL/min) at 10 °C/min and then final stabilization at the carbonization temperature for 60 min. Carbonization under oxygen or air was found to significantly mineralize the initial material, especially at higher temperatures (>350 °C). The final carbonaceous material was then obtained upon cooling down of the system and processed accordingly. Representative photos of the starting materials have been included in Figure 6.

Figure 6. Photos of PT1 and PT5 (processed leather skin).

Figure 6. Photos of PT1 and PT5 (processed leather skin).

3.2. Characterization of Materials

Materials were characterized by means of several techniques including nitrogen physisorption, TG/DTA, X-ray Diffraction, Diffuse Reflectance Infrared Fourier Transform Spectroscopy (DRIFTS), Transmission Electron Microscopy (TEM) and N₂ and CO₂ adsorption.

Thermal analysis was performed by simultaneous thermal gravimetric and differential thermal analysis (TG/DTA) measurement using a Setsys 12 Setaram thermobalance. Samples were heated in air or argon (50 mL/min) from room temperature to 900 °C at a heating rate of 10 °C·min⁻¹.

XRD patterns were recorded on a Bruker AXS diffractometer with CuKα (λ = 1.5418 Å), over a 2θ range from 5° to 80°, using a step size of 0.01° and a counting time per step of 20 s.

Nitrogen adsorption measurements were carried out at 77.4 K using an ASAP 2010 volumetric absorption analyzer from Micromeritics. The samples were outgassed 24 h at 150 °C under vacuum (p < 10⁻² Pa) and subsequently analyzed. The linear part of the BET (brunauer-emmett-teller theory) equation (relative pressure between 0.05 and 0.30) was used for the determination of the specific surface area. DBJH = mean pore size diameter; VBJH = pore volumes. The pore size distribution was calculated from the adsorption branch of the N₂ physisorption isotherms and the Barret–Joyner–Halenda (BJH) formula. The cumulative pore volume VBJH was obtained from the pore size distribution (PSD) curve.

The size and morphology of carbonaceous materials were investigated using a transmission electron microscope (TEM, JEOL, Tokyo, Japan, JEM-2010HR) operated at 300 kV. Samples were suspended in ethanol and deposited straightaway on a copper grid prior to analysis.

DRIFTS experiments were conducted in a Perkin Elmer Spectrumn 100 infrared spectrometer equipped with an attenuated total reflectance (ATR) module. Attenuated total reflectance infrared (FTIR-ATR) spectra were recorded using a Perkin Elmer^® SpectrumTM 400 FT-IR/NIR spectrometer (Perkin Elmer Inc., Tres Cantos, Madrid, Spain) in mid-IR mode, equipped with a universal ATR (atenuated total reflectance) sampling device containing diamond/ZnSe crystal. Besides, for powdered samples an extra accessory plate with a conic awl was used which required only a few milligrams without any previous sample preparation. Spectra were acquired and then processed with the Spectrum software version 6.3.2. Spectra were scanned at room temperature in absorbance mode over the wave number range of 4000–650 cm⁻¹, with a scan speed of 0.20 209 cm s⁻¹ and 30 accumulations at a resolution of 4 cm⁻¹. A background spectrum of air was scanned under the same instrumental conditions before each series of measurements.

CO₂ and N₂ adsorption/desorption isotherms at 273 and 283 K were conducted on an Autosorb-1MP instrument (Quantachrome Corp, Boynton Beach, FL, USA.). High purity gases were used and the samples were degassed prior to analysis at 150 °C and high vacuum. Initial data analysis and calculation of pore size distributions and heat of adsorption was done using the QuadraWin 5.05 software package (Quantachrome Corp). IAST calculations were based on octave and MatLab^® scripts, which can be accessed from the authors or via Internet at [35].

4. Conclusions

Leather skin residues have been converted into useful carbonaceous materials that have very promising CO₂ sequestration properties and selected materials exhibited very high gas selectivities. Given the fact that greener useful materials can be produced from inexpensive waste even with low burn-off rates as opposed to derived from expensive monomers with time-consuming and wasteful experimental protocols [(e.g., metal-organic frameworks (MOFs)], the obtained results are rather competitive and encouraging. Additionally, materials are carbon-based, which makes them less sensitive to moisture, which is an important fact to keep in mind for CO₂ adsorption. Although the materials might not be relevant to applications in power plants (which require large amount of adsorbents), they may find other interesting CO₂-related markets (e.g., air supply in aircrafts).
