Synthesis, Crystal Structure and Luminescent Property of Cd (II) Complex with N-Benzenesulphonyl-L-leucine
College of Chemistry and Chemical Engineering, Weifang University, Weifang 261061, China
*
Author to whom correspondence should be addressed.
Materials 2012, 5(9), 1626-1634; https://doi.org/10.3390/ma5091626
Submission received: 13 July 2012
/
Revised: 3 August 2012
/
Accepted: 7 September 2012
/
Published: 14 September 2012
Abstract
:A new trinuclear Cd (II) complex [Cd3(L)6(2,2-bipyridine)3] [L = N-phenylsulfonyl-L-leucinato] has been synthesized and characterized by elemental analysis, IR and X-ray single crystal diffraction analysis. The results show that the complex belongs to the orthorhombic, space group P212121 with a = 16.877(3) Å, b = 22.875(5) Å, c = 29.495(6) Å, α = β = γ = 90°, V = 11387(4) Å3, Z = 4, Dc= 1.416 μg·m−3, μ = 0.737 mm−1, F (000) = 4992, and final R1 = 0.0390, ωR2 = 0.0989. The complex comprises two seven-coordinated Cd (II) atoms, with a N2O5 distorted pengonal bipyramidal coordination environment and a six-coordinated Cd (II) atom, with a N2O4 distorted octahedral coordination environment. The molecules form one dimensional chain structure by the interaction of bridged carboxylato groups, hydrogen bonds and π-π interaction of 2,2-bipyridine. The luminescent properties of the Cd (II) complex and N-Benzenesulphonyl-L-leucine in solid and in CH3OH solution also have been investigated.
1. Introduction
Investigation of the inorganic-organic hybrid materials with carboxylate ligands has gained considerable attention during the last decade due to their attractive structures and promising potential applications for catalysis, gas storage, magnetic, luminescence materials [1,2,3,4,5,6,7]. Structural studies have shown that the organic ligands containing multi-oxygen and nitrogen atoms can coordinate with metal ions in different ways, resulting in the formation of various metal-organic frameworks with specific topologies and useful properties. The Cd (II) complexes have gained considerable attention due to their luminescent properties [4]. We have been exploring the preparation of inorganic-organic hybrid materials by combining metal ions and organic ligands containing multi-oxygen and nitrogen atoms. We have now synthesized a new hybrid material, [Cd3(L)6(2,2-bipyridine)3] [L= N-phenylsulfonyl-L-leucinato]. The luminescent properties of the Cd (II) complex and N-Benzenesulphonyl-L-leucine in solid and in CH3OH solution also have been investigated.
2. Results and Discussion
2.1. IR Spectra
The νas (COOH), νs (COOH) and ν (C=N) vibrations of free ligand are at 1,659 cm−1 and 1,436 cm−1 and 1587 cm−1, respectively. For the Cd (II) complex, they shift to 1,587 cm−1, 1,402 cm−1 and 1552 cm−1, respectively, which suggest that the oxygen atoms of COO- and the nitrogen atoms of 2,2-bipyridine coordinate to Cd (II) ions [8]. The difference between the νas (COO−) and νs (COO−) band is 185 cm−1, indicating a bidentate carboxylate moiety, consistent with the X-ray structural analysis. The new band at 419 cm−1 is assigned to the ν (Cd-O) vibration.
2.2. Structure Description
The molecular structure and molecular packing arrangement are shown in Figure 1 and Figure 2, respectively. Figure 3 shows the coordination environment of the Cd (II) atom. From Figure 1 and Figure 3, we can see that two coordination environments of the Cd (II) atoms exist in the complex. The first coordination environment of the Cd (II) atom [Cd1, Cd3] is a distorted pengonal bipyramidal coordination environment with five oxygen atoms from the N-phenylsulfonyl-L-leucinato ligand, two nitrogen atoms from 2,2-bipyridine. The second coordination environment of the Cd (II) atom [Cd2] is a distorted octahedral coordination environment with four oxygen atoms from the N-phenylsulfonyl-L-leucinato ligand, two nitrogen atoms from 2,2-bipyridine. The carboxylates have three coordination ways of in the Cd (II) complex (Figure 4). The distances of the Cd-O bonds and Cd-N bonds are in the range of 2.244(3)–2.450(4) Å and 2.329(4)–2.366(4) Å, respectively. The aromatic rings of 2,2-bipyridine in the complex are nearly parallel, the dihedral angle and distance between ring 1 (containing N71 and N72) and ring 2 (containing N81 and N82) are 7.8(3)° and 3.846(4) Å, ring 2 (containing N81 and N82) and ring 3 (containing N91 and N92) are 6.2(3)° and 3.886(4) Å. The hydrogen bonds and π-π interaction of 2,2-bipyridine rings help to stabilize the structure. The bond lengths of Cd-O are similar to the Cd-O bond lengths reported previously [9,10]. The aromatic rings in the molecules do not show any unusual features, and the bond lengths and bond angles are within the range of normal values.
Figure 1.

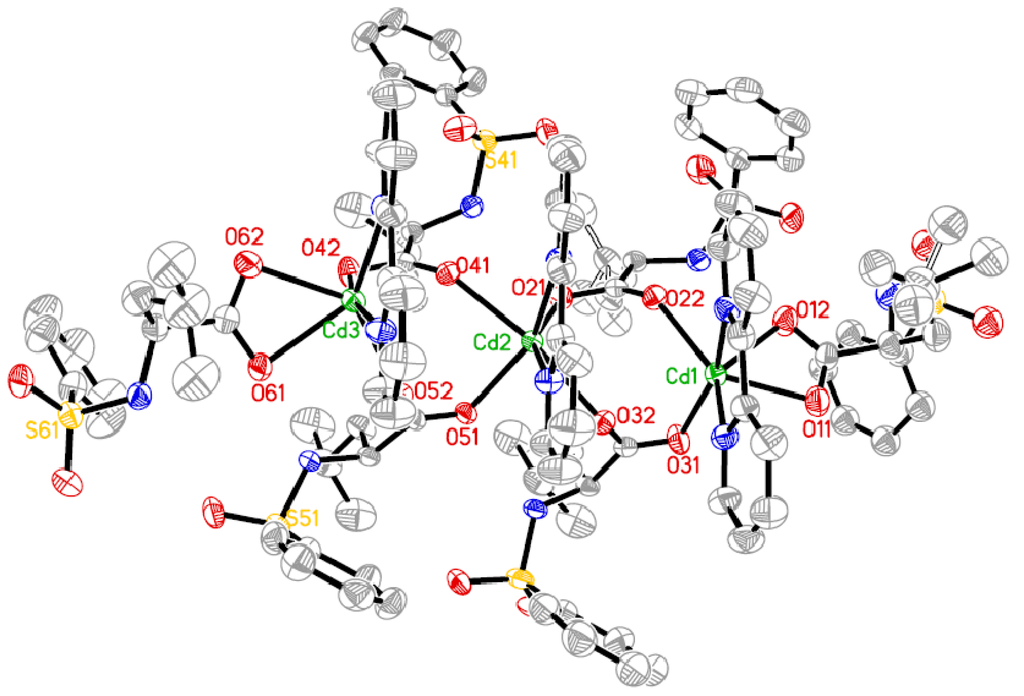

The molecular structure of the Cd (II) complex.
Figure 2.

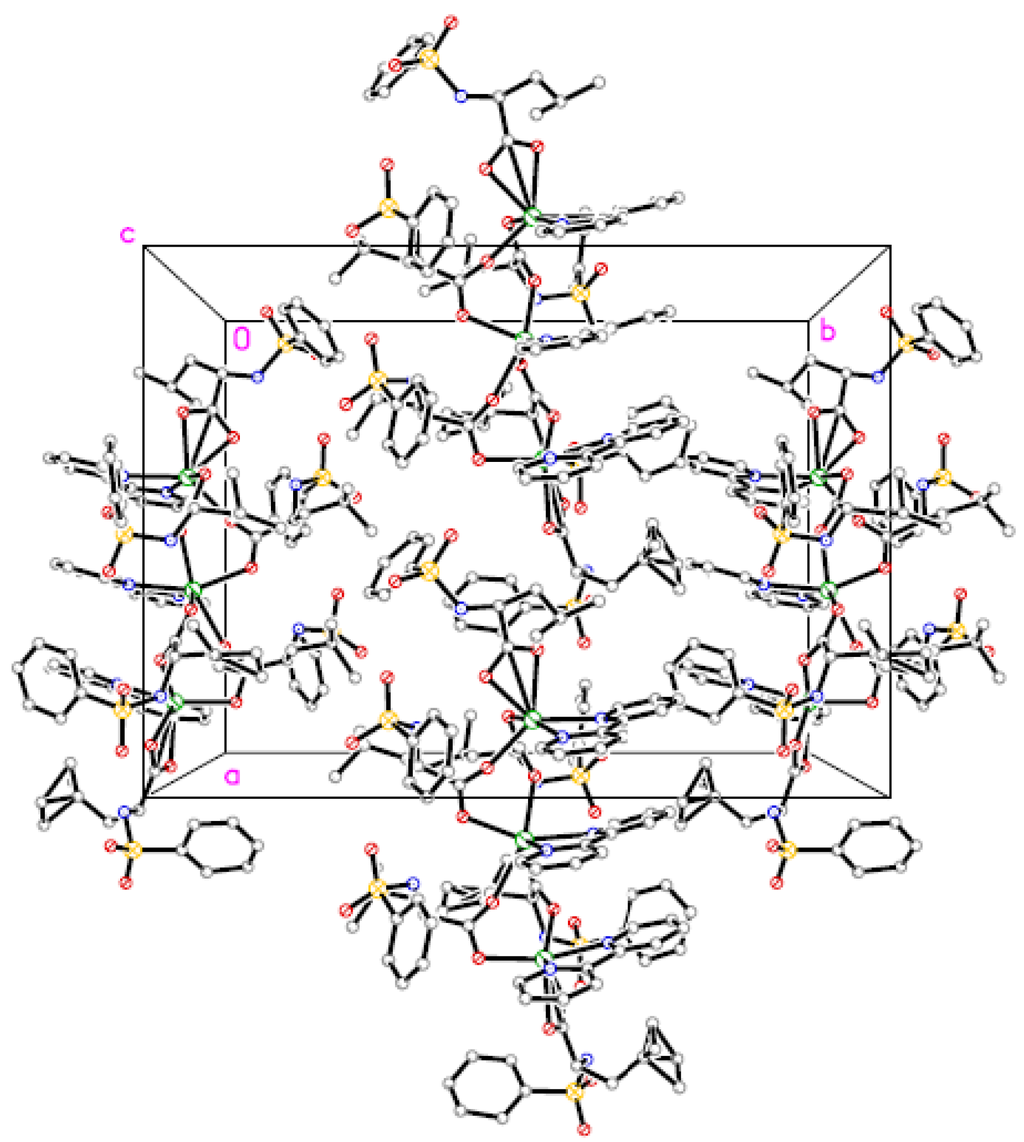

The molecular packing arrangement of the Cd (II) complex.
Figure 3.

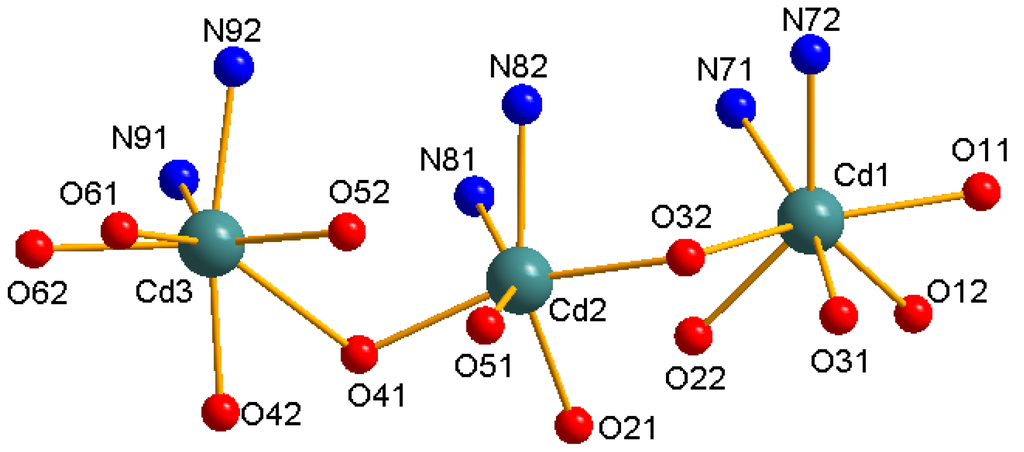

The coordination environment of the Cd (II) ions.
Figure 4.

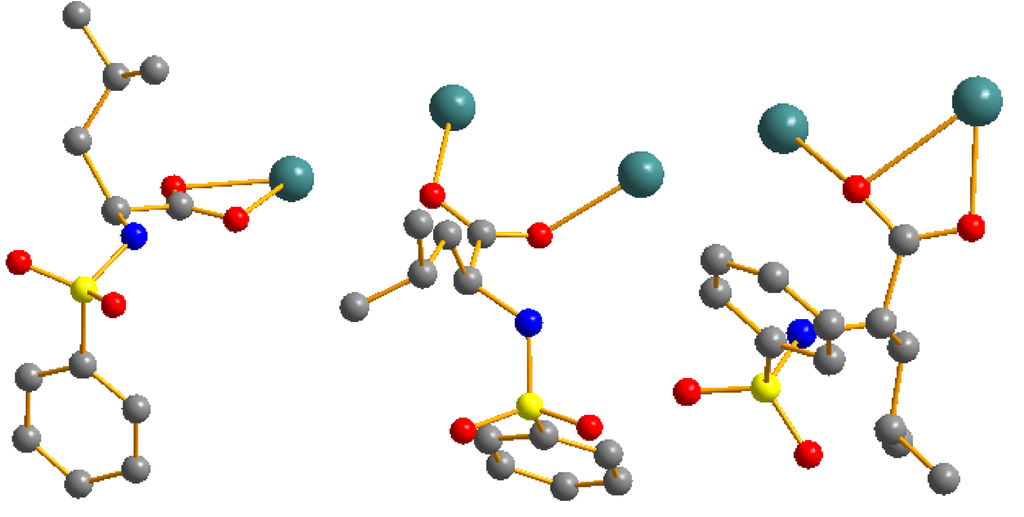

The coordination options of carboxylates in the Cd (II) complex.
2.3. Luminescent Properties
Previous studies have shown that the Cd (II) complexes exhibit luminescent properties [11]. Hence, we investigated the luminescent properties of the Cd (II) complex in the solid-state and in CH3OH solution (1.06 × 10−5 mol L−1) at room temperature. The emission spectra of the Cd (II) complex are shown in Figure 5. In the solid state, the Cd (II) complex displays strong luminescent emission bands at 442 nm when excited at 335 nm. And in CH3OH solution, the Cd (II) complex displays strong luminescent emission bands at 457 nm when excited at 335 nm. For excitation wavelengths between 280 and 420 nm, there is no obvious emission observed for the N-benzenesulphonyl-L-leucine ligand. Compared with the emission maximum of the Cd (II) complex in methanol solution, the emission maximum of the Cd (II) complex in solid was blue shifted, which may be due to the quenching effect of the methanol solvent.
Figure 5.

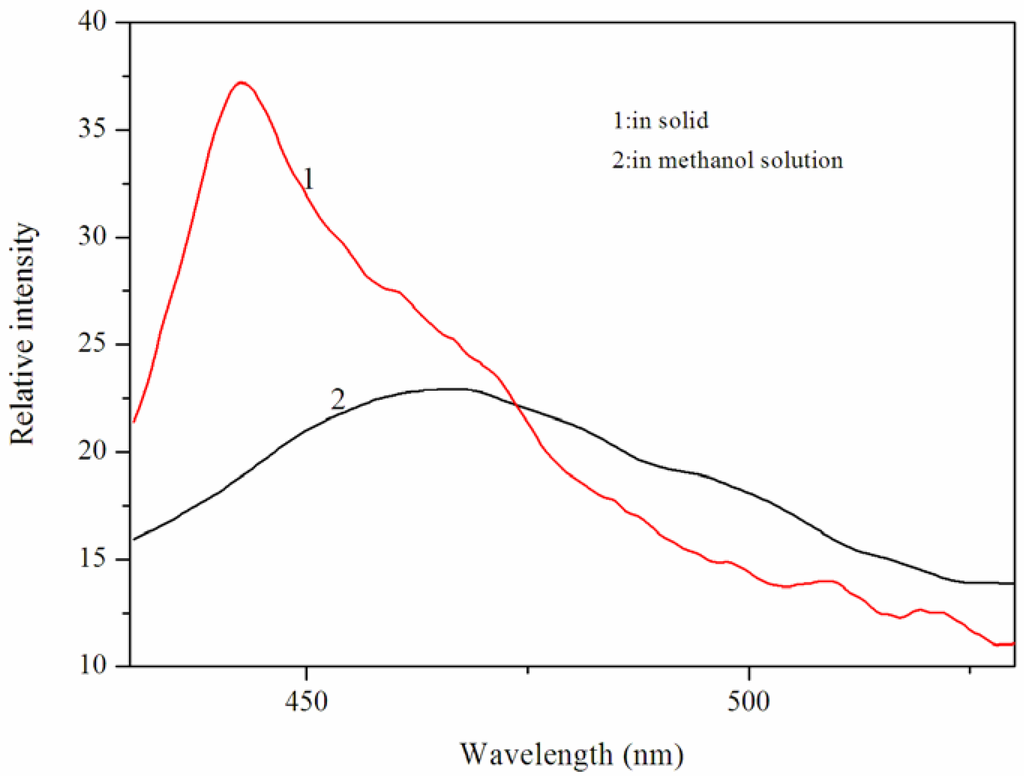

The emission spectrum of the Cd (II) complex. The excitation and emission slit widths were 5 nm.
Figure 5.
The emission spectrum of the Cd (II) complex. The excitation and emission slit widths were 5 nm.
3. Experimental Section
3.1. Materials and Methods
The N-benzenesulphonyl-L-leucine ligand was prepared according to the method reported in the literature [5]. Other chemicals were of reagent grade and were used without further purification.
Carbon, hydrogen and nitrogen analyses were obtained using an Elementar Vario III EL elemental analyzer. Infrared spectra were recorded on a Nicolet AVATAR 360 FTIR spectrophotometer with KBr in the range of 400 cm−1–4000 cm−1. Mass spectrum was performed on a VG ZAB-HS Fast-atom bombardment (FAB) instrument. Excitation and emission spectra were obtained on a PE LS-55 spectrometer at room temperature. X-ray diffraction data of the Cd (II) complex was collected on a Bruker smart CCD diffractometer.
3.2. Synthesis of Cd (II) Complex
A methanol solution of 0.5 m mol (0.1543 g) cadmium nitrate tetrahydrate was added to a solution containing 1.0 m mol (0.2710 g) of N-benzenesulphonyl-L-leucine and 1.0 m mol (0.04 g) of sodium hydroxide in 10 mL CH3OH. The mixture was continuously stirred for 2 h at refluxing temperature. The mixture was cooled at room temperature, and was collected by filtration. By evaporation in air at room temperature, a single crystal suitable for X-ray determination was obtained from methanol solution after 15 days. Elementary analysis: calcd for C102H120Cd3N12O24S6: C, 50.42; H, 4.94; N, 6.92%; found: C, 50.77; H, 4.58; N, 6.73%. IR νmax (cm−1): νas (COO−):1,587 cm−1, νs (COO−):1402 cm−1, ν (-SO2-NH-): 3,249 cm−1, 1,320 cm−1,1,156 cm−1, ν (C=N): 1,552 cm−1, ν (Cd-O):419 cm−1.
3.3. X-Ray Crystallography
Single crystal X-ray diffraction data were collected on a Bruker smart CCD diffractometer at 153(2) K using graphite-monochromatic Mo Kα radiation (λ = 0.71073 Å). The structure was solved by the direct method and refined with full-matrix least-squares techniques using SHELXL-97 [12]. All non-hydrogen atoms were refined anisotropically, and all hydrogen atoms were put in calculated positions. Molecular graphics were drawn with the program package SHELXTL-97 crystallographic software package [13]. The main crystal data of the collection and refinement details of the Cd (II) complex are summarized in Table 1. Selected bond lengths and angles are listed in Table 2.
| Crystallographic parameter | Crystallographic data |
|---|---|
| Formula | C102H120Cd3N12O24S6 |
| Formula weight | 2427.66 |
| Crystal system | Orthorhombic |
| Space group | P212121 |
| a(Å) | 16.877(3) |
| b(Å) | 22.875(5) |
| c(Å) | 29.495(6) |
| Z | 4 |
| F(000) | 4992 |
| Temperature (K) | 153(2) |
| V (Å 3) | 11387(4) |
| Calculated density (μg·m−3) | 1.416 |
| Crystal size (mm3) | 0.24 × 0.20 × 0.12 |
| μ (mm−1) | 0.737 |
| S | 1.060 |
| Limiting indices | −20≤ h ≤ 20, −26 ≤ k ≤ 27, −35 ≤ l ≤ 34 |
| Reflections collected/unique | 20023/17894 |
| R1, wR2 [all data] | 0.0452, 0.1029 |
| R1, wR2 [I > 2σ(I)] | 0.0390, 0.0989 |
| Largest diff.peak and hole (e·Å−3) | 1.213–1.250 |
| Bonds | Bond parameter | Bonds | Bond parameter |
|---|---|---|---|
| Cd1-O31 | 2.241(3) | Cd2-O41 | 2.386(3) |
| Cd1-N71 | 2.329(4) | Cd2-O32 | 2.408(3) |
| Cd1-O22 | 2.331(3) | Cd3-O42 | 2.244(3) |
| Cd1-O11 | 2.331(4) | Cd3-O52 | 2.310(3) |
| Cd1-N72 | 2.366(4) | Cd3-N91 | 2.330(4) |
| Cd1-O12 | 2.450(4) | Cd3-N92 | 2.347(5) |
| Cd2-O21 | 2.253(3) | Cd3-O62 | 2.360(4) |
| Cd2-O51 | 2.263(3) | Cd3-O61 | 2.420(4) |
| Cd2-N81 | 2.335(4) | - | - |
| Cd2-N82 | 2.341(4) | - | - |
| O31-Cd1-N71 | 161.91(14) | O41-Cd2-N81 | 78.30(13) |
| O31-Cd1-O22 | 92.09(14) | O41-Cd2-N82 | 116.50(13) |
| N71-Cd1-O22 | 84.39(14) | O21-Cd2-O32 | 89.06(12) |
| O31-Cd1-O11 | 94.74(16) | O51-Cd2-O32 | 81.05(12) |
| N71-Cd1-O11 | 100.64(17) | N81-Cd2-O32 | 120.38(13) |
| O11-Cd1-O22 | 133.05(13) | O32-Cd2-N82 | 78.95(13) |
| O31-Cd1-N72 | 102.03(15) | O32-Cd2-O41 | 160.16(12) |
| N71-Cd1-N72 | 70.04(15) | O42-Cd3-O52 | 94.83(13) |
| N72-Cd1-O22 | 137.92(14) | N91-Cd3-O42 | 106.22(15) |
| O11-Cd1-N72 | 85.50(15) | N91-Cd3-O52 | 133.77(15) |
| O31-Cd1-O12 | 99.51(15) | O42-Cd3-N92 | 168.28(15) |
| N71-Cd1-O12 | 97.17(16) | N92-Cd3-O52 | 80.53(14) |
| O12-Cd1-O22 | 78.55(13) | N91-Cd3-N92 | 70.57(16) |
| O11-Cd1-O12 | 54.50(14) | O42-Cd3-O62 | 91.90(15) |
| N72-Cd1-O12 | 135.80(15) | O52-Cd3-O62 | 135.51(13) |
| O21-Cd2-O51 | 103.84(12) | N91-Cd3-O62 | 85.27(16) |
| O21-Cd2-N81 | 97.39(14) | O62-Cd3-N92 | 98.95(16) |
| O51-Cd2-N81 | 150.20(14) | O61-Cd3-O42 | 100.38(13) |
| O21-Cd2-N82 | 153.49(14) | O61-Cd3-O52 | 81.03(12) |
| O51-Cd2-N82 | 97.58(13) | N91-Cd3-O61 | 132.21(14) |
| N81-Cd2-N82 | 69.56(14) | O61-Cd3-N92 | 89.58(15) |
| O21-Cd2-O41 | 81.37(11) | O62-Cd3-O61 | 54.52(13) |
| O51-Cd2-O41 | 84.41(12) | - | - |
4. Conclusions
In summary, by selecting the Cd (II) ion as a knot, and N-phenylsulfonyl-L-leucinato and 2,2-bipyridine as a building block, a new complex [Cd3(L)6(2,2-bipyridine)3] has been synthesized and structurally characterized. The complex comprises two seven-coordinated Cd (II) atoms, with a N2O5 distorted pengonal bipyramidal coordination environment and a six-coordinated Cd (II) atom, with a N2O4 distorted octahedral coordination environment. The molecules form a one dimensional chain structure by the interaction of bridged carboxylato groups and π-π interaction of 2,2-bipyridine. The Cd (II) complex exhibited fluorescence in solid and in CH3OH. Based on those results, a series of new Cd (II) complex could be designed and synthesized to optimize the luminescent properties.
Acknowledgments
The authors would like to thank the National Natural Science Foundation of China (No. 21171132 and 20671073), the Promotive Research Fund for Excellent Young and Middle-aged Scientists of Shandong Province (2010BSA07004) and Science Foundation of Weifang University.
Supplementary Material
Crystallographic data for the structure reported in this paper has been deposited with the Cambridge Crystallographic Data Centre as supplementary publication No.CCDC 890837. Copy of the data can be obtained free of charge on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (Fax: +44-1223-336-033; E-Mail: [email protected]).
