Next Article in Journal
Effect of Molecular Flexibility on the Nematic-to-Isotropic Phase Transition for Highly Biaxial Molecular Non-Symmetric Liquid Crystal Dimers
Next Article in Special Issue
Polyamide 6 Nanocomposites with Inorganic Particles Modified with Three Quaternary Ammonium Salts
Previous Article in Journal
Phase Stability and Elasticity of TiAlN
Open AccessArticle

Coating of Carbon Fiber with Polyhedral Oligomeric Silsesquioxane (POSS) to Enhance Mechanical Properties and Durability of Carbon/Vinyl Ester Composites

Ocean and Mechanical Engineering Department, Florida Atlantic University, Boca Raton, FL 33431, USA
Materials Science and Engineering Department, Tuskegee University, Tuskegee, AL 36088, USA
Department of Mechanical Engineering, University of Texas at El Paso, TX 79968, USA
Author to whom correspondence should be addressed.
Materials 2011, 4(9), 1619-1631;
Received: 27 July 2011 / Revised: 24 August 2011 / Accepted: 6 September 2011 / Published: 21 September 2011
(This article belongs to the Special Issue Nanocomposites of Polymers and Inorganic Particles)
Our continuing quest to improve the performance of polymer composites under moist and saltwater environments has gained momentum in recent years with the reinforcement of inorganic nanoparticles into the polymer. The key to mitigate degradation of composites under such environments is to maintain the integrity of the fiber/matrix (F/M) interface. In this study, the F/M interface of carbon/vinyl ester composites has been modified by coating the carbon fiber with polyhedral oligomeric silsesquioxane (POSS). POSS is a nanostructured inorganic-organic hybrid particle with a cubic structure having silicon atoms at the core and linked to oxygen atoms. The advantage of using POSS is that the silicon atoms can be linked to a substituent that can be almost any chemical group known in organic chemistry. Cubic silica cores are ‘hard particles’ and are about 0.53 nm in diameter. The peripheral organic unit is a sphere of about 1–3 nm in diameter. Further, cubic structure of POSS remains intact during the polymerization process and therefore with appropriate functional groups, if installed on the fiber surface, would provide a stable and strong F/M interface. Two POSS systems with two different functional groups; namely, octaisobutyl and trisilanolphenyl have been investigated. A set of chemical and mechanical procedures has been developed to coat carbon fibers with POSS, and to fabricate layered composites with vinyl ester resin. Interlaminar shear and low velocity impact tests have indicated around 17–38% improvement in mechanical properties with respect to control samples made without the POSS coating. Saltwater and hygrothermal tests at various environmental conditions have revealed that coating with POSS reduces water absorption by 20–30% and retains the composite properties. View Full-Text
Keywords: nanocomposite; POSS; carbon fiber; vinyl ester; F/M interface nanocomposite; POSS; carbon fiber; vinyl ester; F/M interface
Show Figures

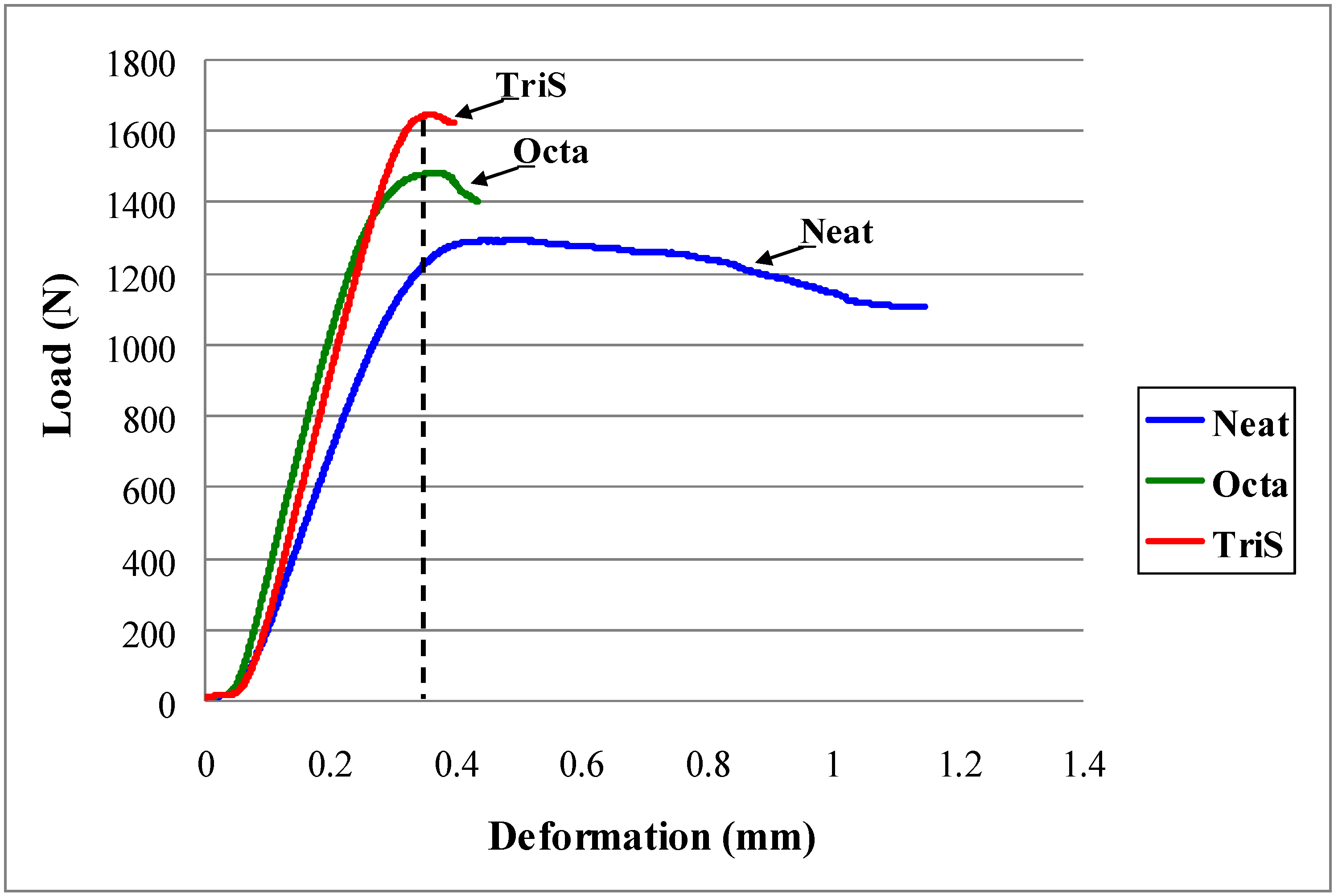

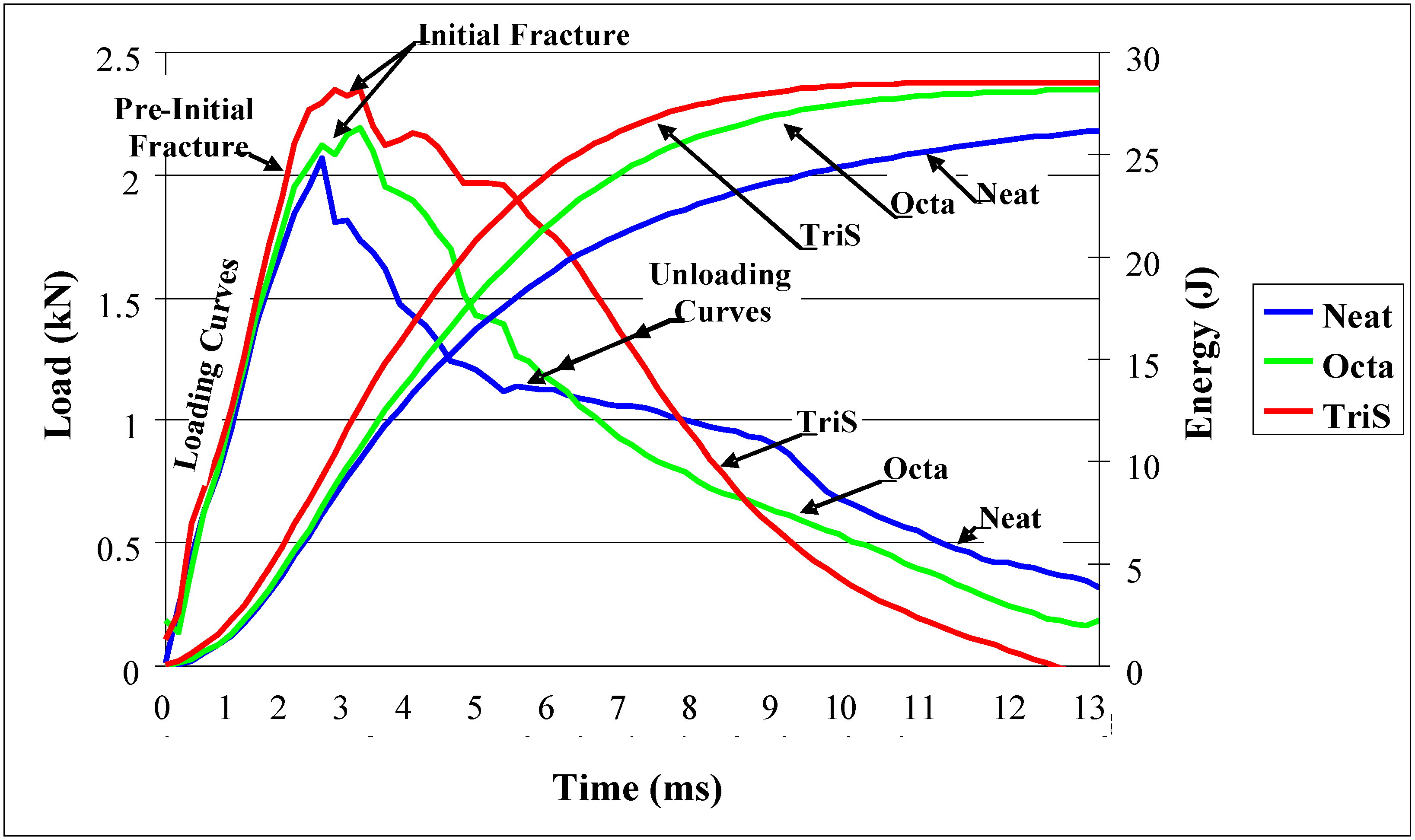

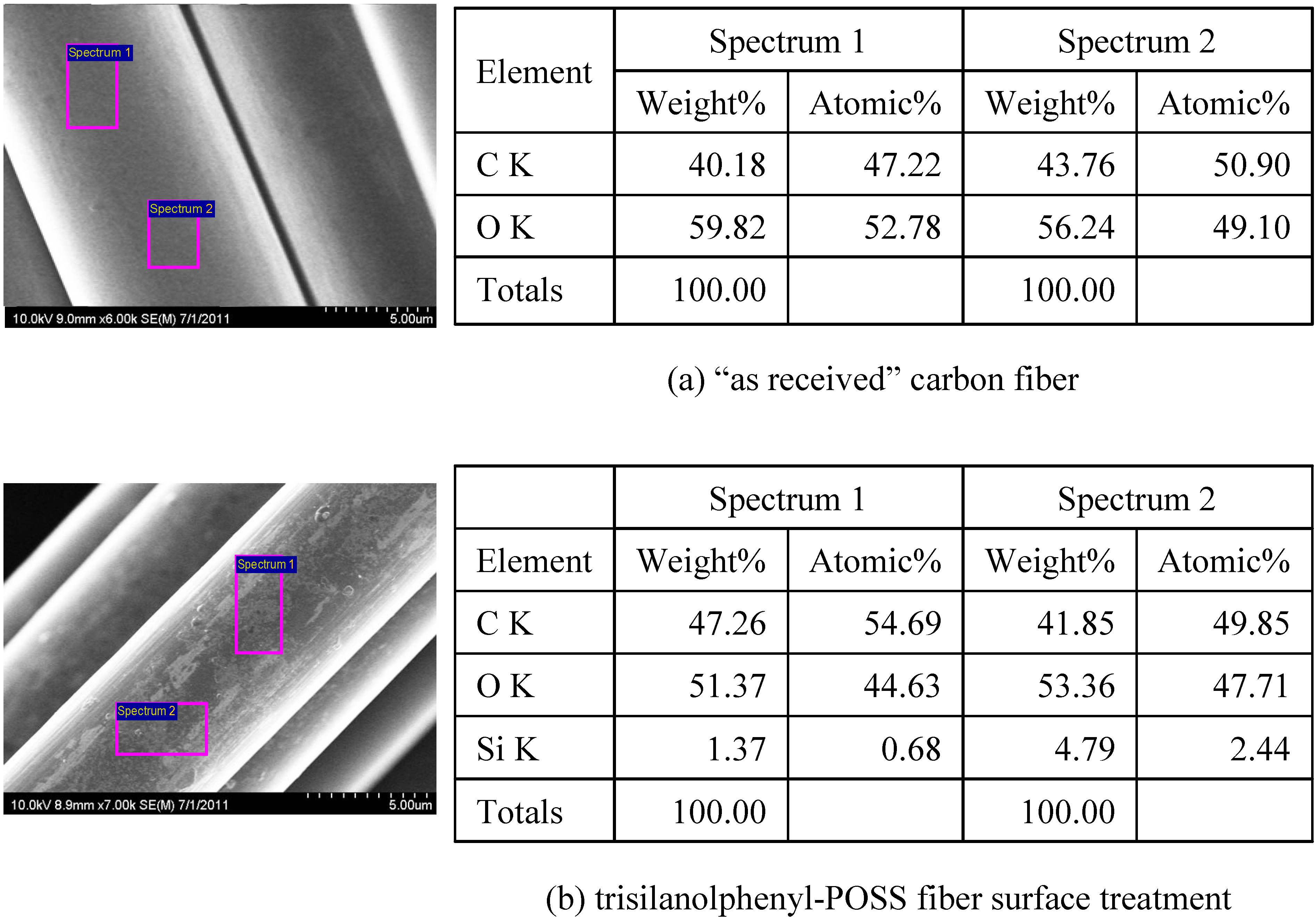

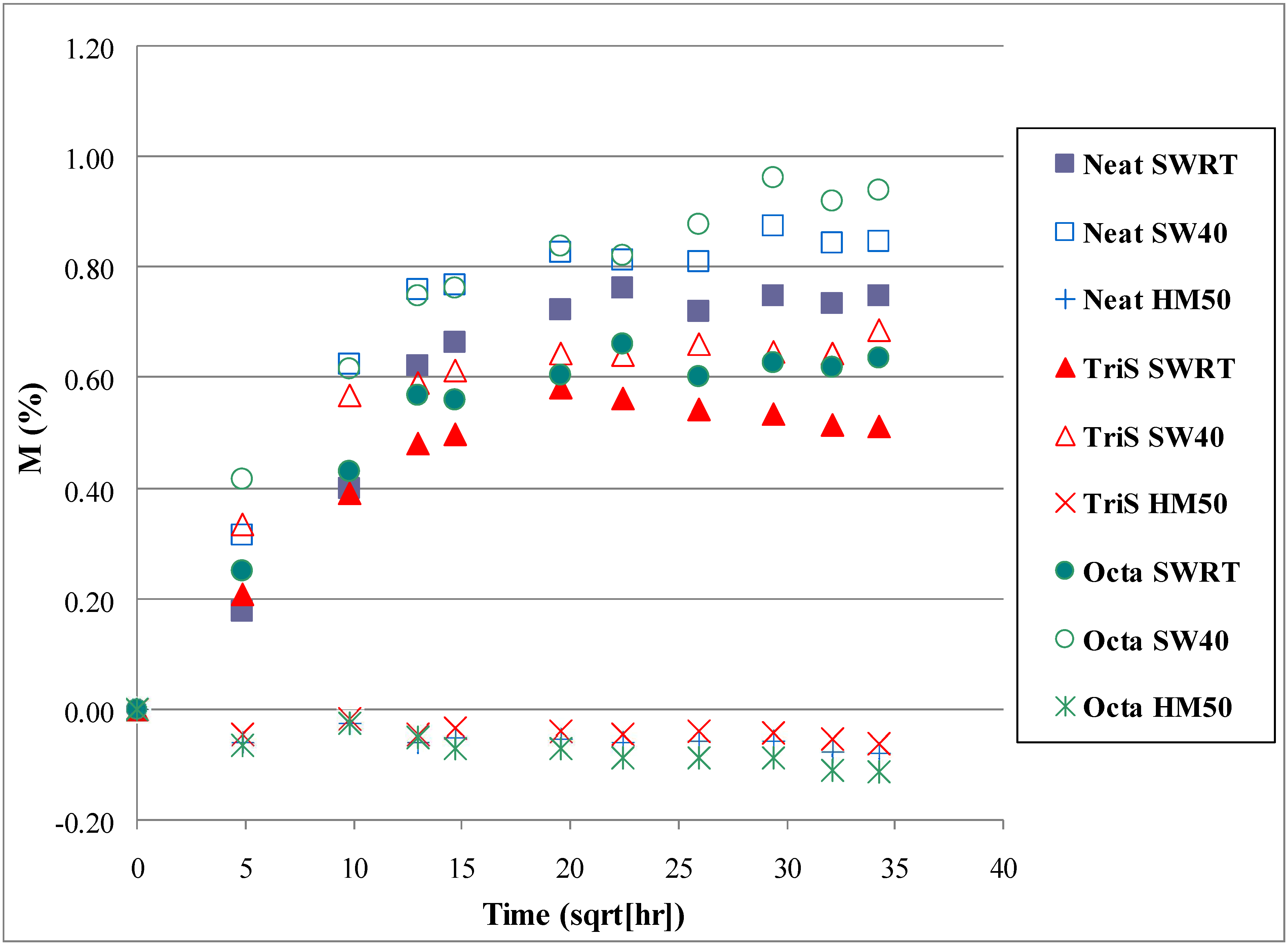

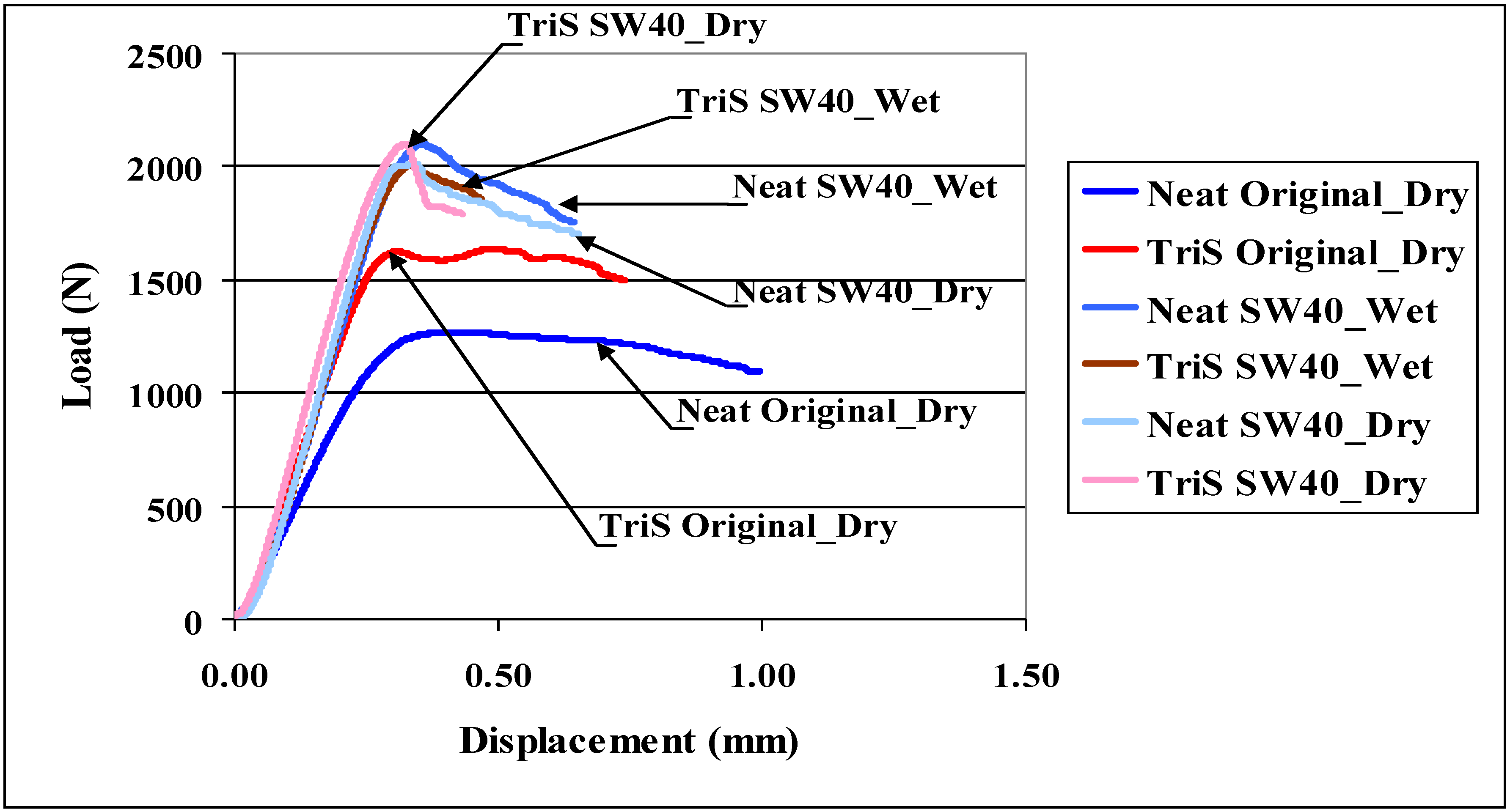

Figure 1

MDPI and ACS Style

Mahfuz, H.; Powell, F.; Granata, R.; Hosur, M.; Khan, M. Coating of Carbon Fiber with Polyhedral Oligomeric Silsesquioxane (POSS) to Enhance Mechanical Properties and Durability of Carbon/Vinyl Ester Composites. Materials 2011, 4, 1619-1631.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

Only visits after 24 November 2015 are recorded.
Back to TopTop
