Next Article in Journal
Coating of Carbon Fiber with Polyhedral Oligomeric Silsesquioxane (POSS) to Enhance Mechanical Properties and Durability of Carbon/Vinyl Ester Composites
Next Article in Special Issue
Synthesis of Binary Transition Metal Nitrides, Carbides and Borides from the Elements in the Laser-Heated Diamond Anvil Cell and Their Structure-Property Relations
Previous Article in Journal
Single Voxel Proton Spectroscopy for Neurofeedback at 7 Tesla
Previous Article in Special Issue
The Hardness and Strength Properties of WC-Co Composites
Open AccessReview

Phase Stability and Elasticity of TiAlN

Department of Physics, Chemistry, and Biology (IFM), Linköping University, Linköping 58183, Sweden
Author to whom correspondence should be addressed.
Materials 2011, 4(9), 1599-1618;
Received: 11 July 2011 / Revised: 29 August 2011 / Accepted: 31 August 2011 / Published: 15 September 2011
(This article belongs to the Special Issue Hard Materials: Advances in Synthesis and Understanding)

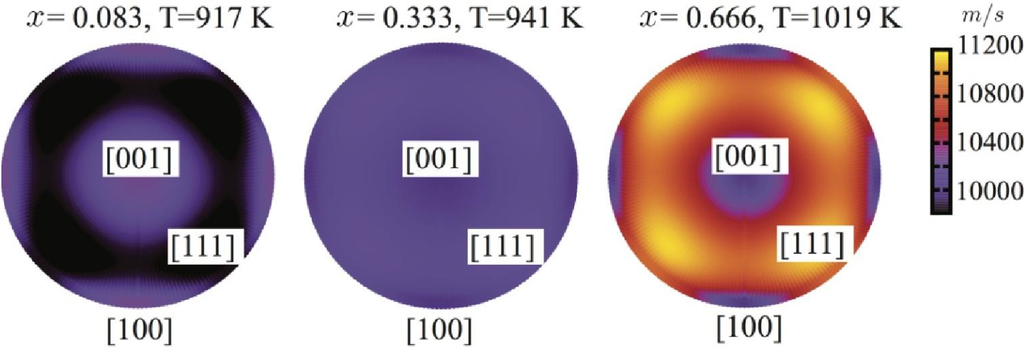

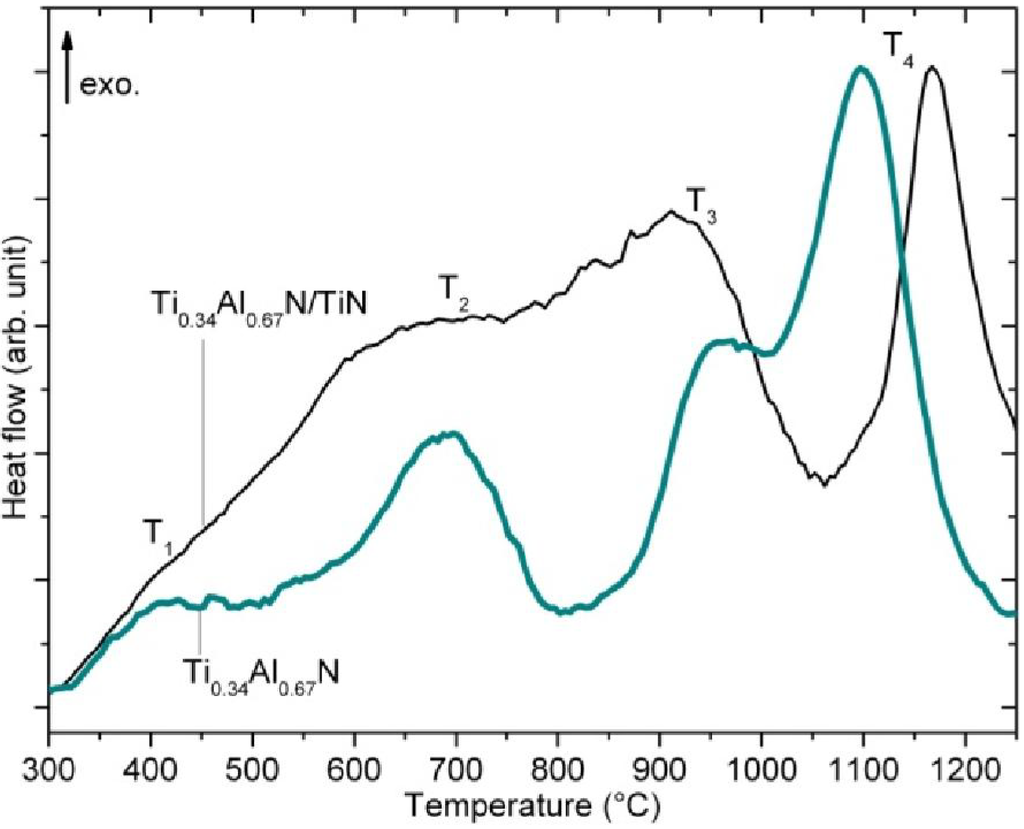

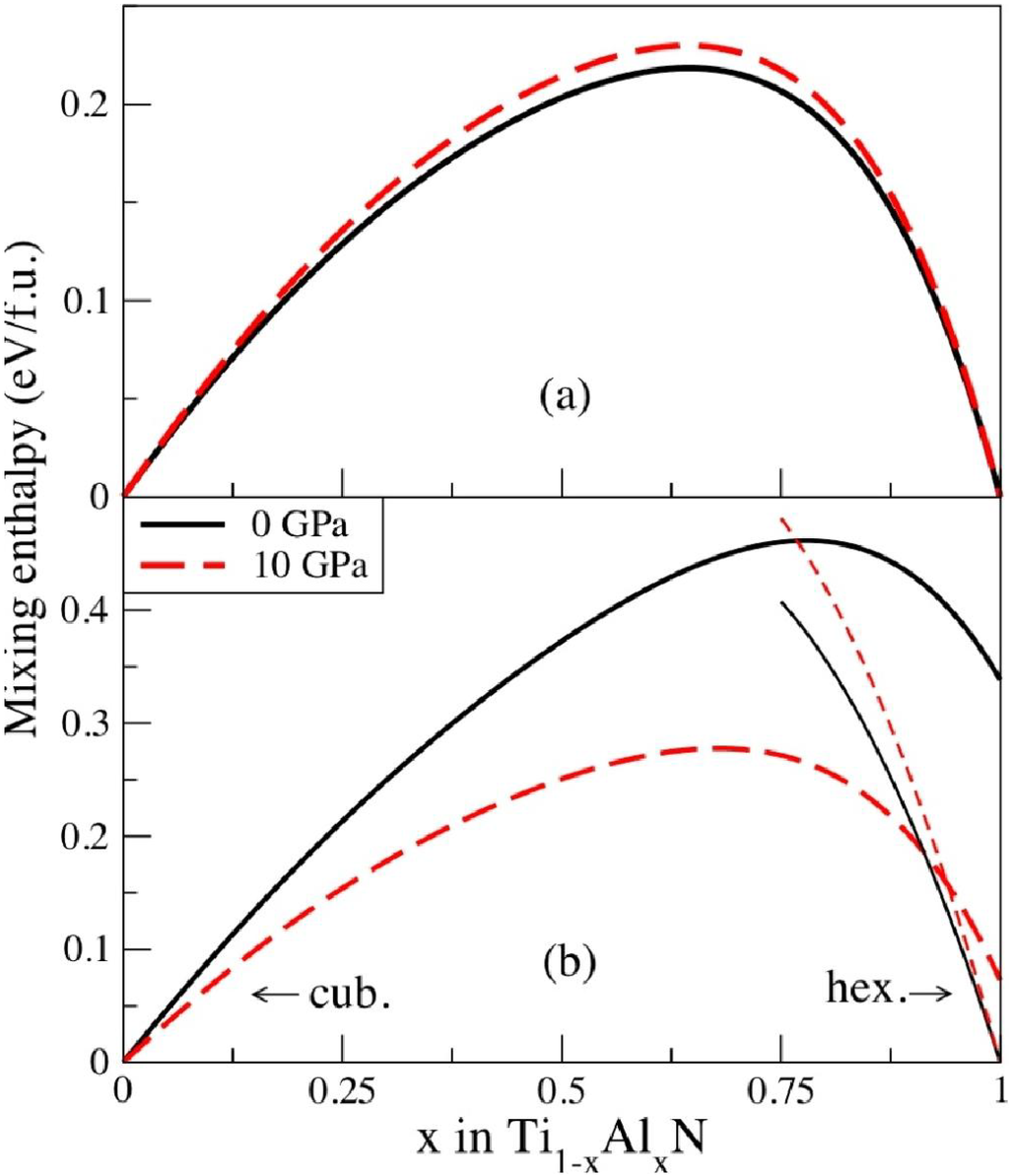

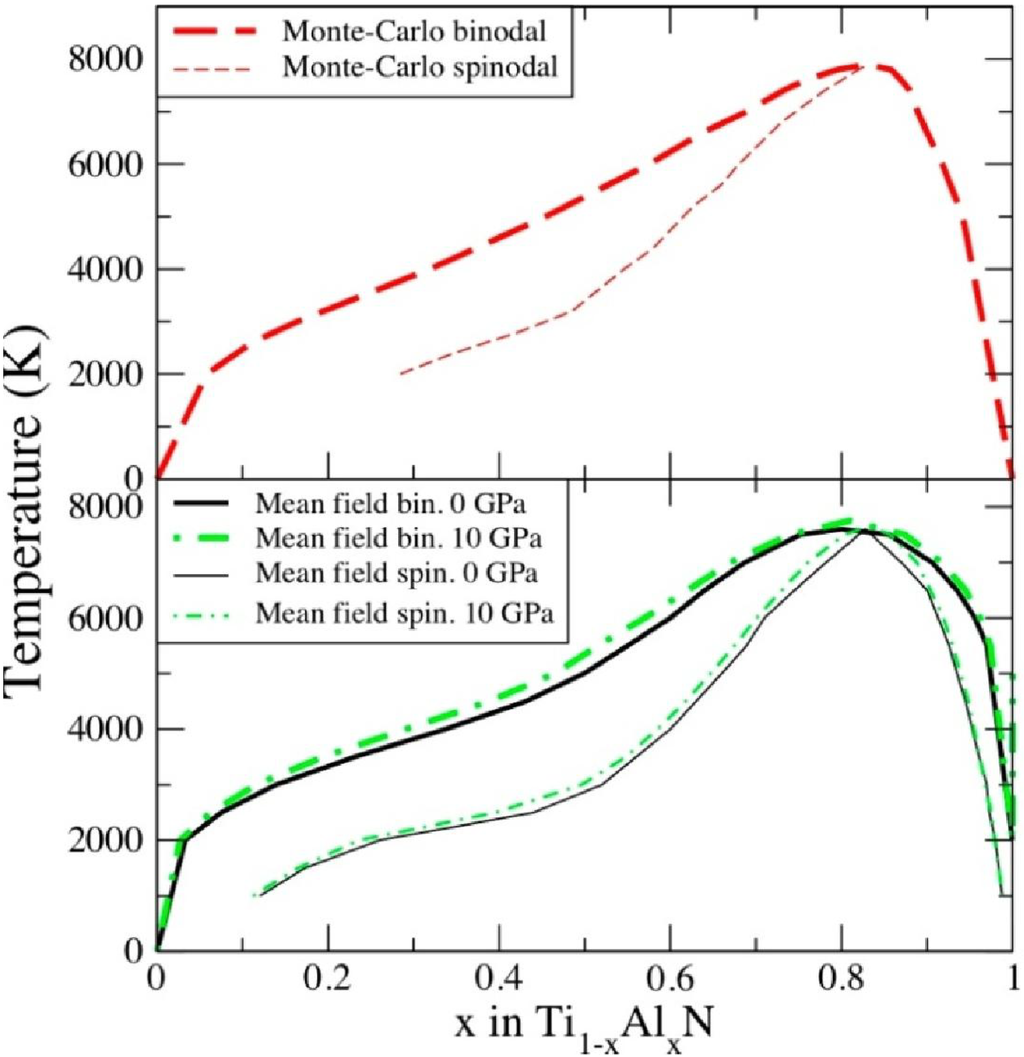

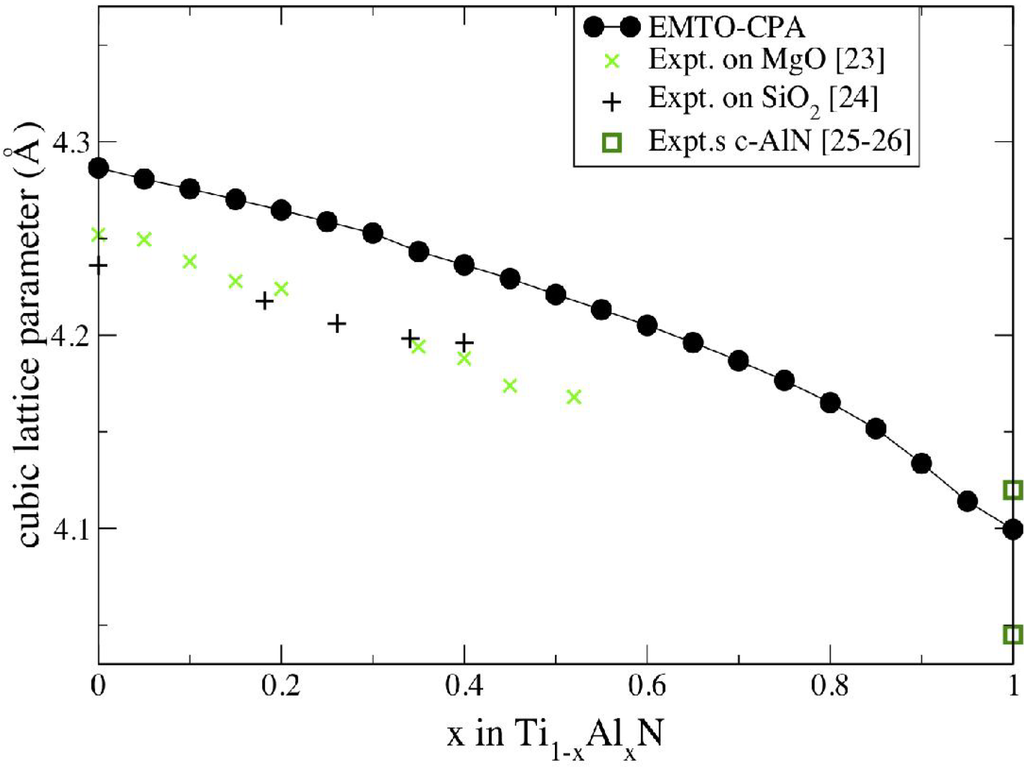

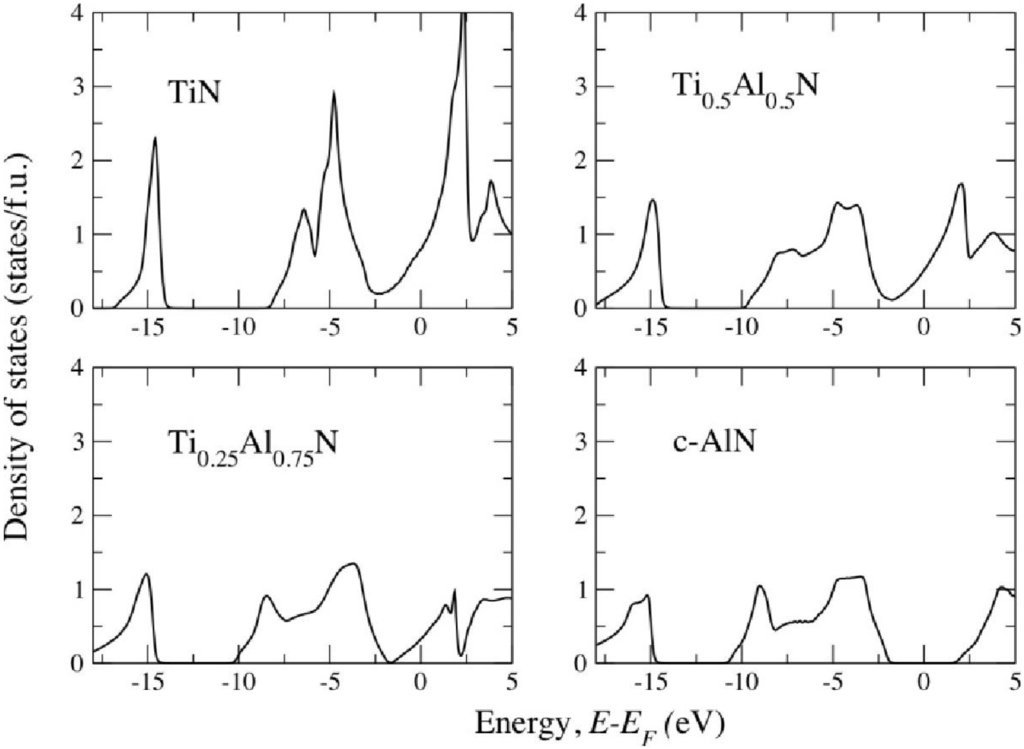

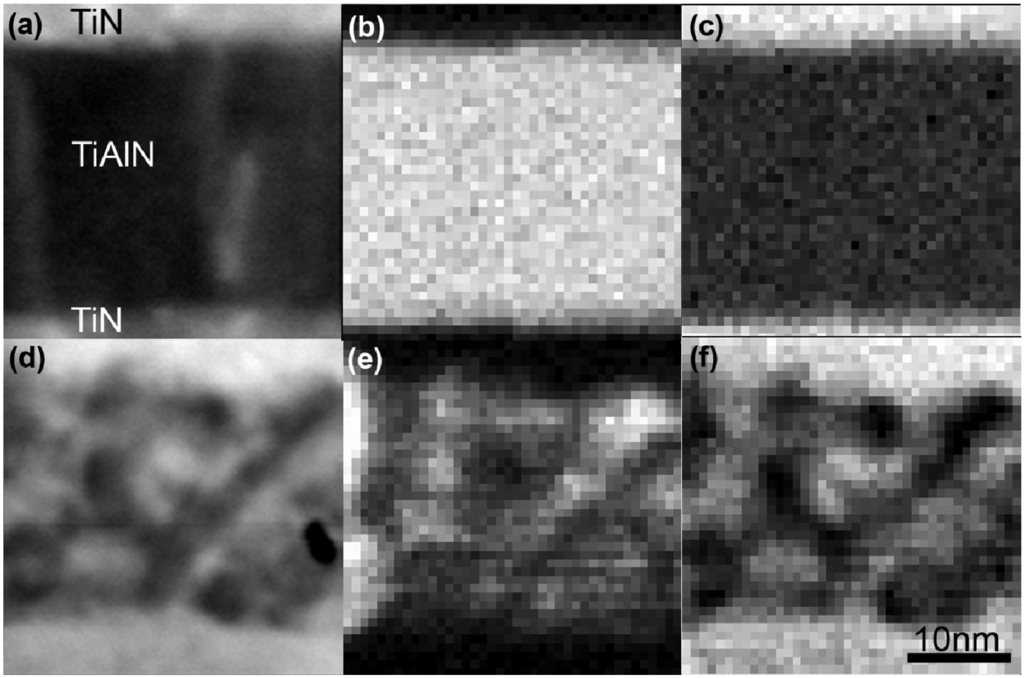

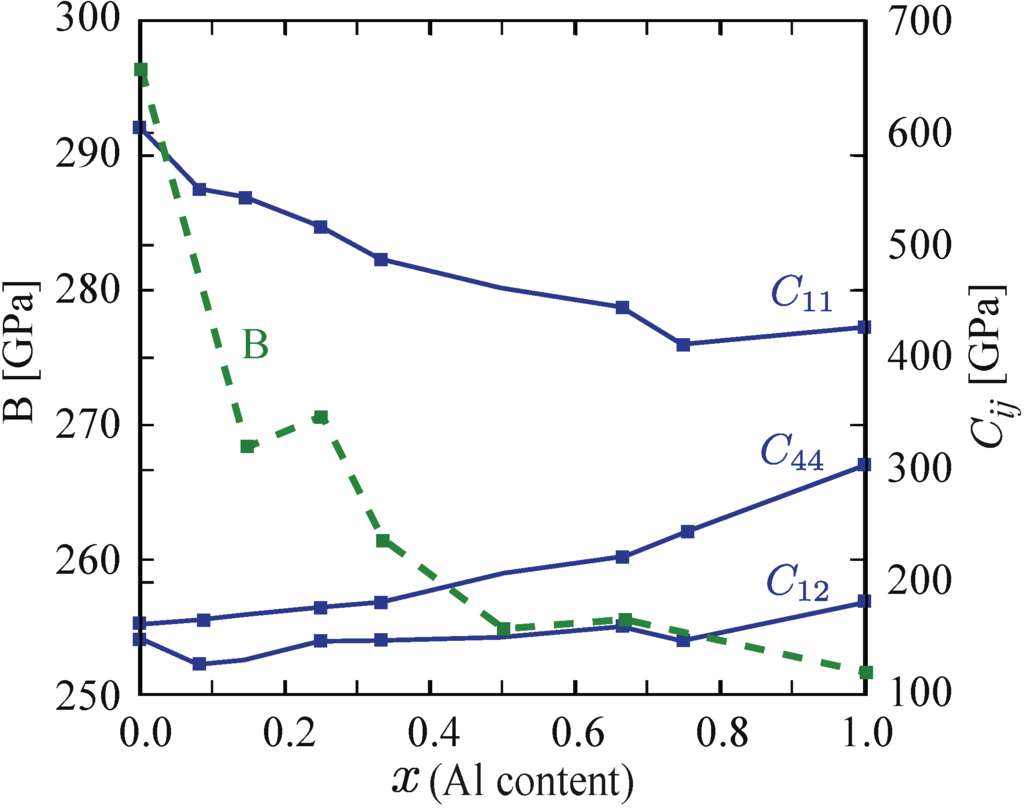

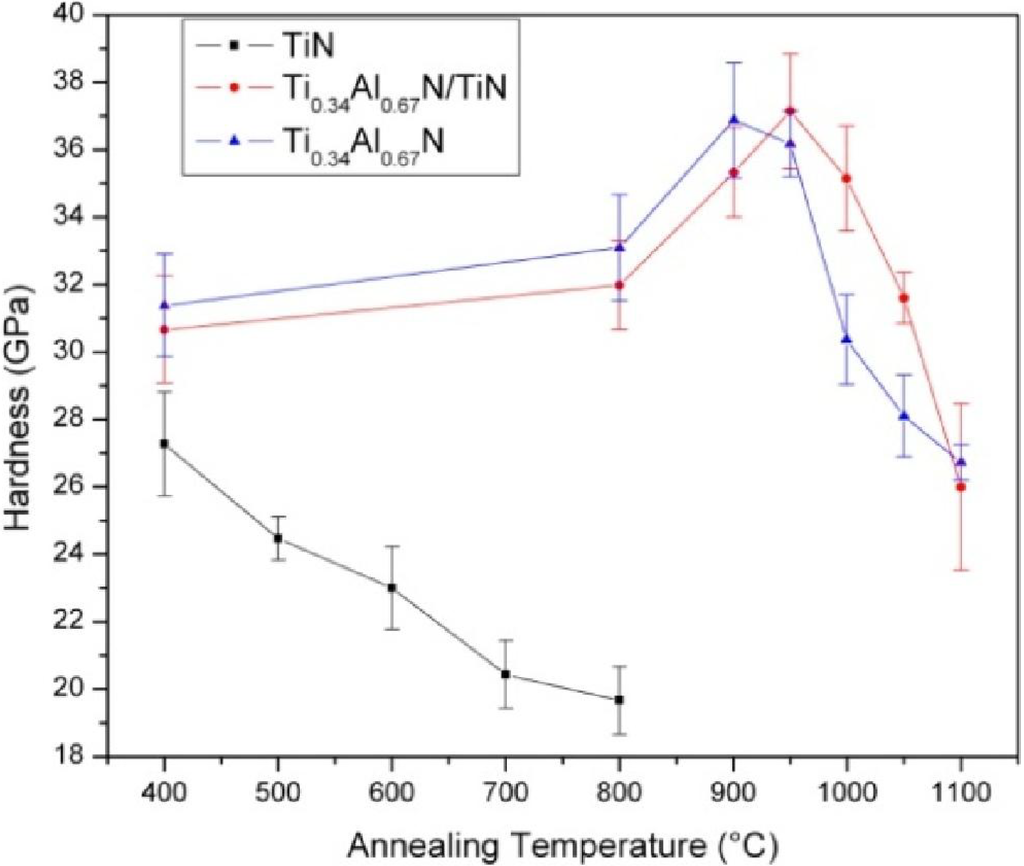

We review results of recent combined theoretical and experimental studies of Ti1−xAlxN, an archetypical alloy system material for hard-coating applications. Theoretical simulations of lattice parameters, mixing enthalpies, and elastic properties are presented. Calculated phase diagrams at ambient pressure, as well as at pressure of 10 GPa, show a wide miscibility gap and broad region of compositions and temperatures where the spinodal decomposition takes place. The strong dependence of the elastic properties and sound wave anisotropy on the Al-content offers detailed understanding of the spinodal decomposition and age hardening in Ti1−xAlxN alloy films and multilayers. TiAlN/TiN multilayers can further improve the hardness and thermal stability compared to TiAlN since they offer means to influence the kinetics of the favorable spinodal decomposition and suppress the detrimental transformation to w-AlN. Here, we show that a 100 degree improvement in terms of w-AlN suppression can be achieved, which is of importance when the coating is used as a protective coating on metal cutting inserts. View Full-Text
Keywords: hard coatings; spinodal decomposition; ab initio calculations; thermodynamics; multilayer; TiN hard coatings; spinodal decomposition; ab initio calculations; thermodynamics; multilayer; TiN
Show Figures

Figure 1

MDPI and ACS Style

Abrikosov, I.A.; Knutsson, A.; Alling, B.; Tasnádi, F.; Lind, H.; Hultman, L.; Odén, M. Phase Stability and Elasticity of TiAlN. Materials 2011, 4, 1599-1618.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

Only visits after 24 November 2015 are recorded.
Back to TopTop
