Study on the Corrosion Behavior of Additively Manufactured NiCoCrFeyMox High-Entropy Alloys in Chloride Environments

by
Chaoqun Xie
1,
Yaqing Hou
2,
Youpeng Song
2,
Zhishan Mi
2,
Fafa Li
2,
Wei Guo
1,* and
Dupeng He
2,3,*
1
Faculty of Materials Science and Engineering, Jiangsu University of Science and Technology, Zhenjiang 212100, China
2
Research Institute of Advanced Materials, Shenzhen 518048, China
3
Faculty of Materials Science and Engineering, University of Science and Technology Beijing, Beijing 100081, China
*
Authors to whom correspondence should be addressed.
Materials 2025, 18(19), 4544; https://doi.org/10.3390/ma18194544
Submission received: 11 September 2025 / Revised: 24 September 2025 / Accepted: 26 September 2025 / Published: 30 September 2025
(This article belongs to the Section Metals and Alloys)
Browse Figures
Versions Notes

Abstract

This study aims to determine the optimal Mo content for corrosion resistance in two alloys, FeCoCrNiMox and Fe0.5CoCrNiMox. The alloys were fabricated using laser powder bed fusion (LPBF) technology with varying Mo contents (x = 0, 0.05, 0.1, 0.15). The corrosion behavior of these alloys was investigated in 3.5 wt.% NaCl solution at room temperature and 60 °C using electrochemical testing and X-ray photoelectron spectroscopy (XPS). The results show that all alloys exhibit good corrosion resistance at room temperature. However, at 60 °C, both alloys without Mo addition exhibit severe corrosion, while the Fe0.5CoCrNiMo0.1 alloy demonstrates the best corrosion resistance while maintaining the highest strength. The enhanced corrosion resistance is attributed to the optimal molybdenum addition, which refines the passive film structure and promotes the formation of Cr2O3. Furthermore, molybdenum oxide exists as MoO42− ions on the surface of the passive film, significantly improving the alloy’s corrosion resistance in chloride-containing environments.

1. Introduction

Corrosion is one of the three primary degradation modes of engineering materials [1], causing substantial economic losses in critical sectors such as aerospace, energy, chemical engineering, and marine engineering [2]. Global assessments indicate that corrosion-related costs amount to approximately 3.34% of gross domestic product (GDP), while the associated safety hazards and maintenance demands are increasingly emphasized [3]. With the expansion of human activities into aerospace and deep-sea environments, alloys are expected to withstand more extreme corrosive conditions, demanding superior mechanical performance and corrosion resistance [4]. Consequently, the design and development of novel corrosion-resistant alloys represent both an economic imperative and a technological frontier [5].
High-entropy alloys (HEAs), composed of five or more elements in near-equiatomic proportions, provide a disruptive alternative to conventional alloy design dominated by one or two principal elements [6,7]. Since their inception by Yeh [6] and Cantor [8] in 2004, HEAs have garnered significant interest owing to four core effects—high entropy, lattice distortion, sluggish diffusion [9], and the “cocktail effect.” These unique mechanisms endow HEAs with exceptional stability, mechanical strength, high temperature stability, and corrosion resistance, positioning them as promising candidates for next-generation structural applications [7,10,11].
Among HEA families, FeCoCrNi-based systems are particularly attractive due to their simple composition, stable FCC structure, and balanced mechanical properties across a wide temperature range [7,8,12,13,14]. Composition optimization, such as Fe reduction (e.g., Fe0.5CoCrNi), has been shown to enhance the strength–ductility synergy [15]. Furthermore, minor alloying additions can significantly alter both mechanical and corrosion properties without destabilizing the solid-solution phase [16,17,18,19,20,21,22]. For example, Mo improves pitting resistance [23,24,25,26,27,28], Ti enhances both strength and corrosion resistance [29], Al promotes FCC-to-BCC transformation while stabilizing passive films [28,30], and Nb contributes to pitting resistance by a mechanism similar to Mo [31]. These insights highlight the critical role of microalloying in tuning the passivation behavior of FeCoCrNi-based HEAs.
Laser powder bed fusion (L-PBF), which is alternatively called Selective laser melting (SLM), offers a powerful means of fabricating HEAs with tailored microstructures [32]. Its extremely high cooling rate (>105 K/s) results in refined grains [33,34,35], while repetitive melting–solidification cycles during layer-by-layer deposition introduce an intrinsic heat treatment (IHT) effect [36]. These features often yield distinct microstructural and functional characteristics compared with conventionally processed HEAs, presenting unique opportunities for performance optimization.
This study systematically investigates the role of Mo additions in FeCoCrNi and Fe0.5CoCrNi alloys fabricated via L-PBF. Alloys with varying Mo contents (x = 0, 0.05, 0.1, 0.15) were evaluated in terms of microstructure, mechanical performance, and electrochemical behavior in 3.5 wt.% NaCl solution at room temperature and 60 °C. The results demonstrate that while all alloys exhibit good corrosion resistance at room temperature, Mo-free alloys suffer severe degradation at elevated temperature. In contrast, Fe0.5CoCrNiMo0.1 combines the highest strength with superior corrosion resistance, owing to Mo-induced optimization of the passive film structure and enhanced Cr2O3 formation. These findings provide fundamental insights into Mo-doping mechanisms and establish design guidelines for engineering FeCoCrNi-based HEAs in aggressive environments.

2. Materials and Methods

2.1. Experimental Material

In our experiment, the raw materials consisted of Fe, Co, Cr, Ni, and Mo powders of 99.99% purity, characterized by particle sizes in the range of 15–53 μm and a spherical morphology of good quality (Jiangsu Vilory Advanced Materials Co., Ltd., Xuzhou, China). The powders exhibited good sphericity and flowability. To ensure precise compositional control, each elemental powder was weighed using an electronic balance (CN-LQC50002, Kunshan, China) with an accuracy of 0.001 g, and the weighing error was controlled within ±0.002 g. Compared with pre-alloyed powders, the direct use of elemental powders provides greater flexibility in alloy design while significantly reducing both the time and cost associated with powder preparation.
The theoretical compositions of the designed CoCrNiFeyMox alloys are listed in Table 1. The weighed powders were mixed in a ball mill (YG-L, Jining, Shandong, China) for 5 h to achieve homogeneous distribution. The CoCrNiFeyMox (y = 0,0.5; x = 0, 0.05, 0.1, 0.15) alloys were fabricated by laser powder bed fusion (L-PBF) using a DLM-120HT additive manufacturing system (Hangzhou Dedi Intelligent Manufacturing Co., Ltd., Hangzhou, China) under a high-purity argon atmosphere. For convenience, these alloys are denoted as Mo0, Mo0.05, Mo0.1, Mo0.15, Fe0.5Mo0, Fe0.5Mo0.05, Fe0.5Mo0.1, and Fe0.5Mo0.15, respectively, throughout the text.
During fabrication, the processing parameters were fixed as follows: layer thickness of 25 μm, hatch spacing of 80 μm, laser spot diameter of 100 μm, and a rotation angle of 67° between successive layers to minimize residual stress during printing [37,38]. The laser power was set to 200 W, 220 W, and 240 W, and the corresponding scanning speeds at each power level were 500 mm/s, 600 mm/s, and 700 mm/s. Each sample was subjected to three re-melting cycles to ensure complete melting and uniform elemental distribution. For each composition, the sample with the highest density and best surface quality among the nine processing conditions was selected for electrochemical corrosion testing, thereby minimizing the influence of surface defects on corrosion behavior.
Representative fabricated samples of Mo0 and Fe0.5Mo0, together with the scanning strategy, are illustrated in Figure 1. The as-built specimens were detached from the substrate using electrical discharge wire cutting and subsequently sectioned into specimens of 10 mm× 10 mm× 3 mm to meet the dimensional requirements of subsequent tests.

2.2. Microstructural Characterization

The phase structures of FeCoCrNiMox and Fe0.5CoCrNiMox alloys were analyzed using X-ray diffraction (XRD, Rigaku DMAX-2600, Tokyo, Japan) with Cu Kα radiation, operated at 40 kV and 40 mA, over a 2θ range of 10–90° at a scanning rate of 8°/min. The microstructural morphology and elemental distribution were characterized using a scanning electron microscope (SEM, Apreo 2S, Thermo Scientific, Waltham, MA, USA) equipped with an energy-dispersive spectroscopy (EDS, Apreo 2S, Thermo Scientific, Waltham, MA, USA) detector. Prior to SEM observation, the prepared samples were sequentially ground with SiC papers of 320, 600, 800, 1200, and 1500 grit. For subsequent passive film analysis by XPS, the surfaces were further polished to 1 μm. After grinding and polishing, specimens were cleaned in ethanol and air-dried. For metallographic etching, aqua regia (HCl:HNO3 = 3:1) was used, and samples were etched for 20 s at room temperature.

2.3. Hardness Tests

Hardness tests were conducted using a Vickers hardness tester (MH-500, HENGYI PRECISION INSTRUMENT Co., Ltd, Shanghai, China). Prior to testing, the specimens were ground and polished mechanically to obtain a smooth finish. A load of 500 gf was applied during testing, with a dwell time of 15 s. For each specimen, five different regions were selected, and five indentations were measured per region. The average hardness value was then calculated.

2.4. Electrochemical Testing

Electrochemical measurements were conducted using a CS310M workstation (WUHAN CORRTEST INSTRUMENTS CORP., Ltd, Wuhan, China). The FeCoCrNiMox and Fe0.5CoCrNiMox alloys were employed as working electrodes, with a saturated calomel electrode (SCE) serving as the reference and a platinum sheet as the counter electrode. The electrolyte was a 3.5 wt.% NaCl solution at both room temperature and 60 °C. To avoid instability of the SCE potential, the electrode was not immersed for extended periods above 70 °C.
Prior to the experiment, the open-circuit potential was monitored for 3600 s to ensure its stabilization. Potentiodynamic polarization tests were then carried out from –0.5 VSCE to +1.5 VSCE at a scan rate of 0.5 mV/s. Electrochemical impedance spectroscopy (EIS) was conducted by applying an AC perturbation at 0 VSCE to maintain passive film stability. The frequency range was 100 kHz–0.01Hz with an amplitude of 10 mV. Equivalent circuit models were constructed, and impedance data were fitted using ZSimpWin software (Version 3.30).

2.5. XPS Analysis of Passive Films

A stable passive film was ours, following OCP stabilization. The passive films on Mo0 and Mo0.1 alloys were examined formed on the specimen surface by polarizing the samples in a NaCl solution at 0 VSCE for 3 h using X-ray photoelectron spectroscopy (XPS, Thermo Scientific K-Alpha, Waltham, MA, USA). Argon ions sputtering was used to remove surface contamination prior to analysis. XPS spectra were processed with Avantage software (Version 5.9), calibrating all binding energies to the C1s peak at 284.8 eV.

3. Results

3.1. Phase Constitution, Microstructure, and Properties

3.1.1. Calculation of Solid-Phase Molar Fractions During Non-Equilibrium Solidification

Excessive addition of Mo is known to promote the formation of the σ phase (a Cr- and Mo-rich intermetallic) [39], which can induce local corrosion in adjacent Cr and Mo-depleted regions [23]. To avoid σ-phase precipitation, the Mo content in this study was carefully controlled to ensure retention of a single-phase FCC structure. Prior to experimentation, the non-equilibrium solidification behavior of FeCoCrNiMo high-entropy alloys was thermodynamically simulated using Thermo-Calc 2023a. In 2021, Thermo-Calc released a solute trapping model tailored for the ultra-rapid solidification process in additive manufacturing. In the present study, the non-equilibrium Scheil solidification module incorporating the solute trapping model was employed, with a scanning speed of 500 mm/s. As shown in Figure 2, when the alloy composition was Fe:Co:Cr:Ni:Mo = 1:1:1:1:0.2, the system exhibited a strong tendency for σ-phase precipitation during solidification. In contrast, reducing the Mo atomic fraction to Fe:Co:Cr:Ni:Mo = 1:1:1:1:0.15 favored the preferential formation of a Face-centered Cubic (FCC) phase, thereby effectively suppressing σ-phase formation, mitigating the risk of localized corrosion, and ultimately determining the maximum Mo content adopted in the investigated alloy systems.

3.1.2. XRD Analysis

Figure 3 presents the XRD test results of the FeCoCrNiMox and Fe0.5CoCrNiMox HEAs fabricated by L-PBF. In conjunction with the calculated results shown in Figure 2, all samples with varying Mo contents exhibit a single-phase FCC structure, which can be primarily attributed to the unique high-entropy effect inherent to HEAs. With increasing Mo content, the diffraction peaks progressively shift toward lower angles, mainly due to the incorporation of Mo atoms with relatively larger atomic radii, which increases the lattice parameter and consequently enlarges the interplanar spacing. Notably, no additional diffraction peaks are detected, indicating that no considerable formation of secondary phases occurred during the L-PBF process. Nevertheless, given that XRD is unable to detect phases with a content below 3–5%, the presence of trace amounts of the σ phase cannot be completely excluded.

3.1.3. Microstructural Analysis

The optical micrographs of the XZ planes of the as-printed alloys fabricated under the optimal processing parameters are presented in Figure 4 a–g. All alloys exhibit surfaces free from large-scale porosity or unmelted particles. For the equiatomic FeCoCrNiMox alloy, when the Mo atomic fraction reaches 0.15, pronounced corrosion pits are observed along the sample edges. In contrast, for the non-equiatomic Fe0.5CoCrNiMox alloy, the Fe0.5Mo0.15 high-entropy alloy experiences severe edge cracking during the printing process. As shown in Figure 4h, macroscopic cracks are clearly visible within the as-printed specimen after sectioning along the build direction. Consequently, this composition was excluded from further investigation. In summary, for FeCoCrNi-based HEAs, printability progressively deteriorates with increasing Mo content.
The SEM morphology in Figure 5 reveals that the samples prepared by L-PBF exhibit typical fish-scale-like interlocked stacked melt pools after corrosion. The melt pools are relatively regular in shape, with tightly overlapped boundaries between adjacent pools (as shown in Figure 5 a–g). Upon magnification of individual melt pools, it is clear that the pools consist of numerous fine, elongated cellular substructures. The formation of these cellular structures is primarily attributed due to the ultrafast cooling conditions generated in the L-PBF process. Under rapid solidification conditions, the cellular substructures preferentially evolve in the direction of the highest temperature gradient, perpendicular to the melt pool boundary. (higher temperature gradient, G) towards the melt pool surface (lower G) [40,41]. Therefore, on a three-dimensional scale, these cellular substructures appear as columns in the solidification direction, while in the direction perpendicular to the solidification axis, they exhibit a cellular arrangement.
Furthermore, during the L-PBF process, if the input energy is relatively high, the molten layer not only affects the current layer but also significantly influences the previously solidified layer beneath, resulting in local remelting or heat treatment effects. Under this influence, the original dendritic structure continues to grow along its original orientation during the repeated heating and cooling cycles. This phenomenon facilitates the breaking of the grain structure’s single-layer boundary, forming columnar crystals that extend through multiple layers.
High magnification SEM analysis further reveals that the internal structure of each melt pool primarily consists of fine cellular substructures, which are highly dense and evenly distributed. Combined with the EDS point scan analysis results shown in Table 2, it is evident that the Fe, Co, and Ni elements in the FeCoCrNiMox and Fe0.5CoCrNiMox high-entropy alloys prepared by L-PBF are uniformly distributed, whereas the Cr and Mo elements exhibit compositional deviations within the cellular structures and along their boundaries. This suggests that Cr and Mo tend to accumulate at specific locations during rapid solidification and interface migration processes.

3.1.4. Hardness Testing

Figure 6 illustrates the relationship between microhardness and Mo content for FeCoCrNiMox and Fe0.5CoCrNiMox HEAs. The results indicate that the overall microhardness of the CoCrNiFeyMox does not vary significantly with increasing Mo content. For equiatomic FeCoCrNi-based HEAs, the hardness fluctuates slightly around 266.6 HV as the Mo atomic fraction increases. In contrast, the non-equiatomic Fe0.5CoCrNi-based HEAs exhibit a clear upward trend in Vickers hardness with increasing Mo content, Among them, Fe0.5CoCrNiMo0.1 shows the highest hardness, with an average hardness value of 286.82 HV.

3.2. Electrochemical Testing and Corrosion Morphology Analysis

3.2.1. Electrochemical Testing

Electrochemical measurements were initially conducted at room temperature in a 3.5 wt.% NaCl solution for HEAs of various compositions as well as for 316L stainless steel. Electrochemical tests were first conducted in 3.5 wt.% NaCl solution at room temperature for HEAs with different compositions. The test results are shown in Figure 7. Analysis of the polarization curves of the four alloys revealed pronounced passivation plateaus, indicating the formation of protective oxide films. However, no significant differences were observed in the breakdown potentials, and no distinct pitting potential transitions appeared during anodic scanning. Together with the corroded morphologies shown in Figure 8, these results suggest that the passive films formed on CoCrNiFeyMox and HEAs at 25 °C in 3.5 wt.% NaCl solution possess strong stability and resistance to pitting, remaining intact against Cl− attack, and thus no pitting occurred. For 316L stainless steel, a distinct pitting potential inflection point was observed, and its passive region was markedly narrower than that of the FeCoCrNiMo high-entropy alloy. In addition, pronounced corrosion pits were found on the surface morphology after electrochemical testing, indicating that the corrosion resistance of 316L stainless steel is significantly inferior to that of the FeCoCrNiMo high-entropy alloy.
In order to further study the pitting corrosion behavior of CoCrNiFeyMox. additional electrochemical tests were carried out in 3.5 wt.% NaCl solution at 60 °C. This approach enabled characterization of the influence of Mo content on the pitting resistance of the alloys.
Figure 9 presents the potentiodynamic polarization curves of as-printed CoCrNiFeyMox HEAs measured in NaCl solution at 60 °C. From these curves, the corrosion potential (Ecorr), corrosion current density (Icorr), and pitting potential (Epit) were determined and are summarized in Table 3. The corrosion potential reflects the tendency of the alloy to undergo corrosion, the corrosion current density indicates the corrosion rate once corrosion occurs, and the pitting potential represents the alloy’s resistance to pitting corrosion.
As shown in Figure 9, HEAs with different Mo contents exhibit typical passivation behavior in NaCl solution. The values of Ecorr and Icorr, calculated using the Tafel extrapolation method, are listed in Table 3. The variation trends of Epit and Ecorr with Mo content are illustrated in Figure 10. With increasing solution temperature, the passive region of FeCoCrNi and Fe0.5CoCrNi high-entropy alloys is significantly reduced. The rates of anodic dissolution and cathodic reduction reactions at the electrode interface are markedly accelerated, while the diffusion rates of cations and oxygen anions through the film are also enhanced, which readily leads to compositional inhomogeneity of the film and the formation of voids or defects. In addition, in chloride-containing media, elevated temperature strengthens the penetration and competitive adsorption ability of Cl− ions, thereby reducing corrosion resistance [42,43]. Consequently, in the corrosive medium at 60 °C, the passive region of Mo0 and Fe0.5Mo0 high-entropy alloys is notably diminished. Upon the addition of Mo, however, the pitting potential increases with Mo addition up to x = 0.1 and then decreases, with Mo0.1 displaying the highest Epit of 1.003 VSCE. In the case of Fe0.5CoCrNi-based HEAs, Fe0.5Mo0.1 exhibits the maximum pitting potential of 1.034 VSCE. These results clearly indicate that the addition of Mo effectively enhances the resistance of FeCoCrNi-based HEAs to pitting corrosion in chloride-containing environments.

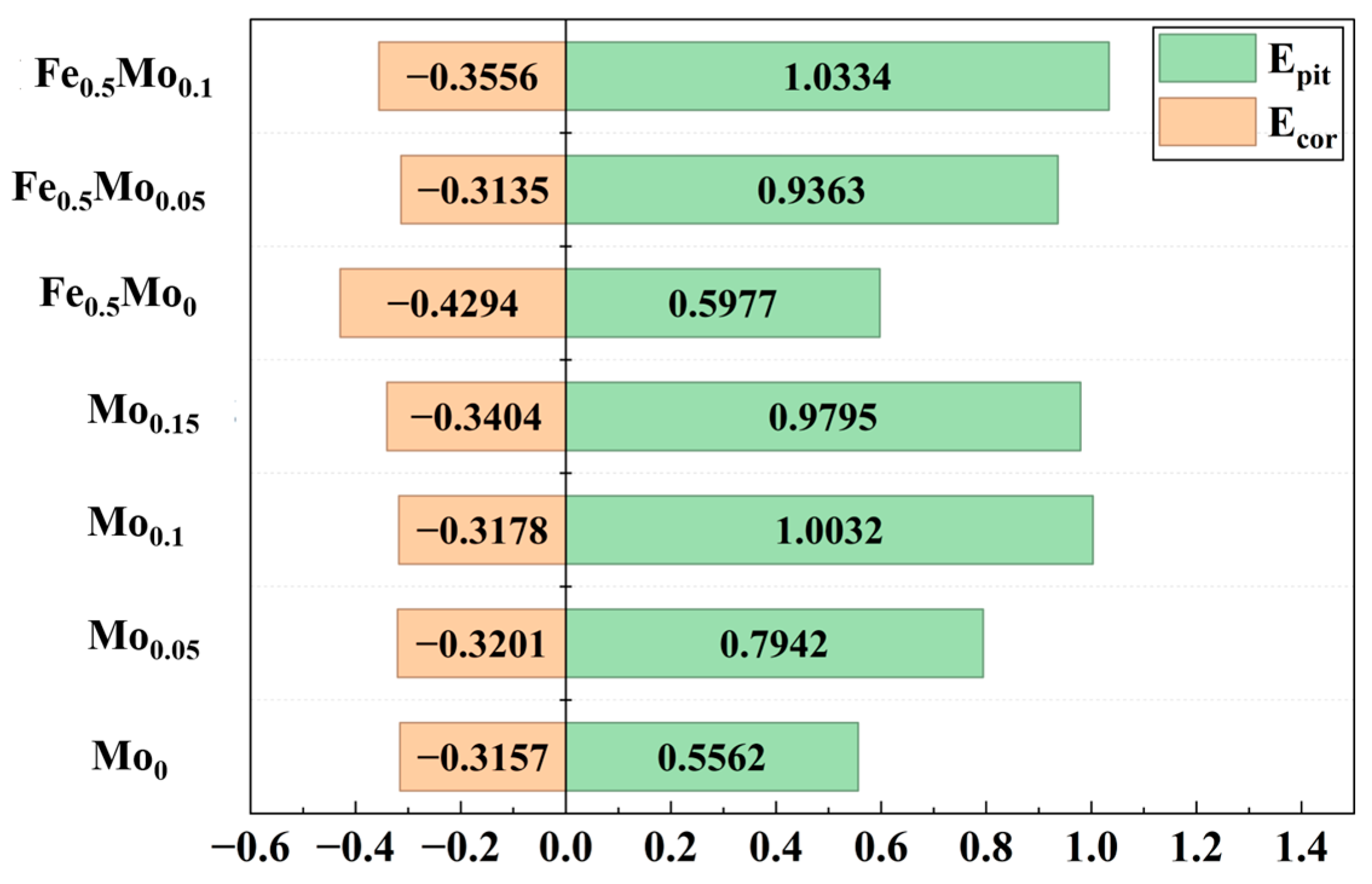

When comparing equiatomic FeCoCrNiMox alloys with the non-equiatomic Fe0.5CoCrNiMox counterparts, it is evident that, at the same Mo content, the non-equiatomic alloys exhibit superior pitting resistance. This improvement is attributed to their higher Cr and Mo concentrations, which strengthen the protective characteristics of the passive film and enhance resistance against chloride-induced localized corrosion.

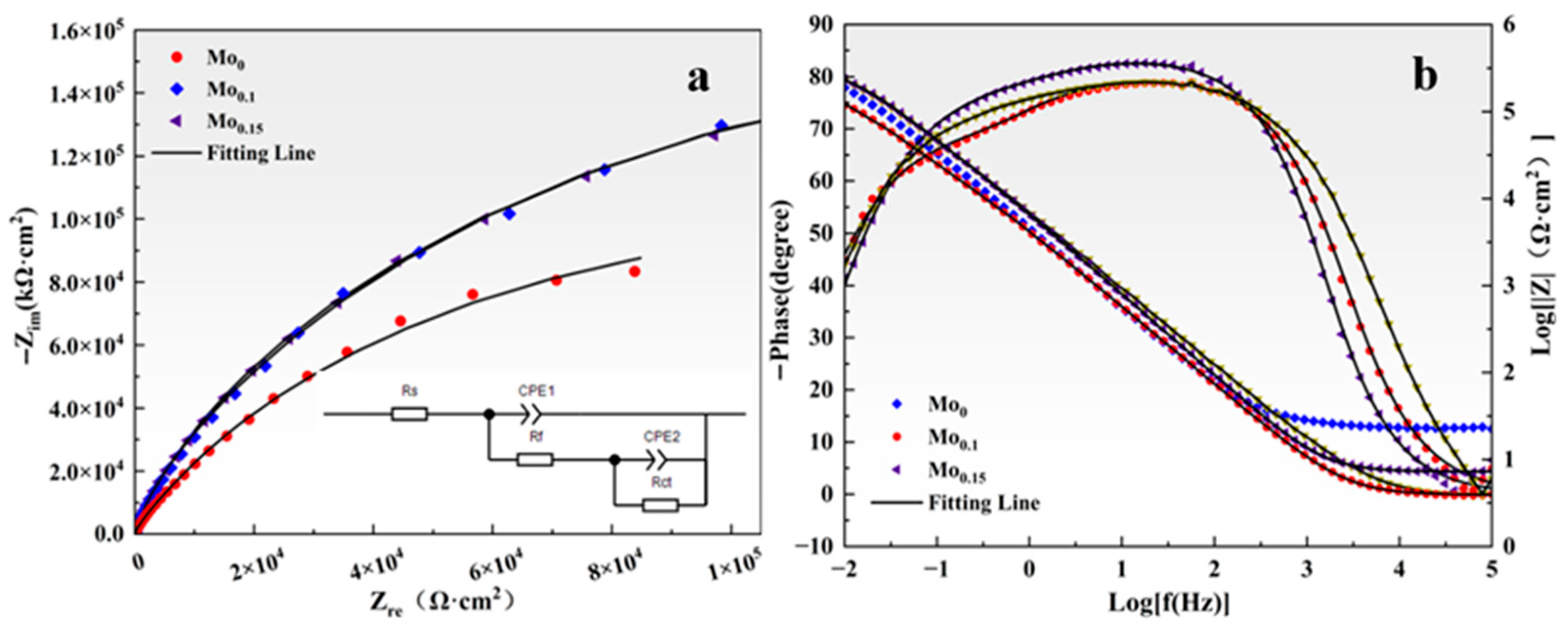

Electrochemical impedance spectroscopy was additionally used to assess the corrosion characteristics of Mo0, Mo0.1, and Mo0.15 alloys in NaCl solution. As shown in Figure 11a, all Nyquist plots exhibit similar semicircular impedance arcs, indicating that the corrosion behavior of FeCoCrNi-based alloys with varying Mo contents is broadly comparable. According to the principle of Nyquist analysis, the arc radius is indicative of the resistance value of the CoCrNiFeyMox passive film: a larger radius corresponds to higher impedance of the passive film and thus better corrosion resistance [27]. It is evident from the figure that the semicircle radius first increases and then decreases with Mo addition, reaching its maximum when x = 0.1. This demonstrates that the Mo0.1 alloy possesses the most favorable corrosion resistance.
Figure 11b displays the Bode plots of alloys with different Mo contents. The Mo0.1 alloy shows the highest impedance modulus, approaching −80° over a broad frequency range, which suggests superior chemical stability and enhanced corrosion resistance. To further interpret the EIS results, the data were fitted using an equivalent circuit with time constants, as illustrated in the inset of Figure 11a [20,44,45]. Due to the non-uniformity of the electrode surface, a constant phase element (CPE) was introduced to simulate the non-ideal capacitive response.
The parameters obtained from fitting the equivalent circuit, including solution resistance (Rs), charge transfer resistance (Rct), and constant phase element (CPE), are presented in Table 4. As the content of the Mo element increases, the Rct value initially increases and then decreases, reaching its maximum for the Mo0.1 alloy. This indicates that charge transfer is most hindered in Mo0.1, which corresponds to the slowest corrosion rate. Since Rct is inversely related to the corrosion rate, this confirms that the passive film on Mo0.1 is the most compact and protective. The exponent n, which describes the surface heterogeneity in the CPE, ranges from 0 to 1; n = 1 represents an ideal capacitor, while n = 0 corresponds to a pure resistor.

3.2.2. Corrosion Morphology Analysis

The corroded morphologies are presented in Figure 12. Corrosion pits of various sizes were observed, indicating that HEAs with different Mo contents all experienced corrosion to different extents. Severe corrosion occurred on the surfaces of Mo0 and Fe0.5Mo0 alloys, where large corrosion pits were accompanied by smaller pitting sites. This suggests that localized corrosion originated from pitting. Under the testing condition of 60 °C in 3.5 wt.% NaCl solution, the passive film on these alloys failed to provide sufficient protection, ultimately leading to the formation of large corrosion pits. By contrast, only slight pitting was detected on Mo0.1 and Fe0.5Mo0.1 alloys, demonstrating that the addition of even a small amount of Mo significantly improved the protective performance of the passive film.
For single-phase alloys, the passive film can be considered nearly continuous and homogeneous, and thus their corrosion resistance is mainly governed by the composition and structure of the passive film [22]. Therefore, to further elucidate the influence of Mo on the composition and structural characteristics of the passive film, XPS analysis was conducted on the passivation films formed on Mo0 and Mo0.1 alloys in the corrosive solution.

3.3. XPS Analysis of the Passive Film

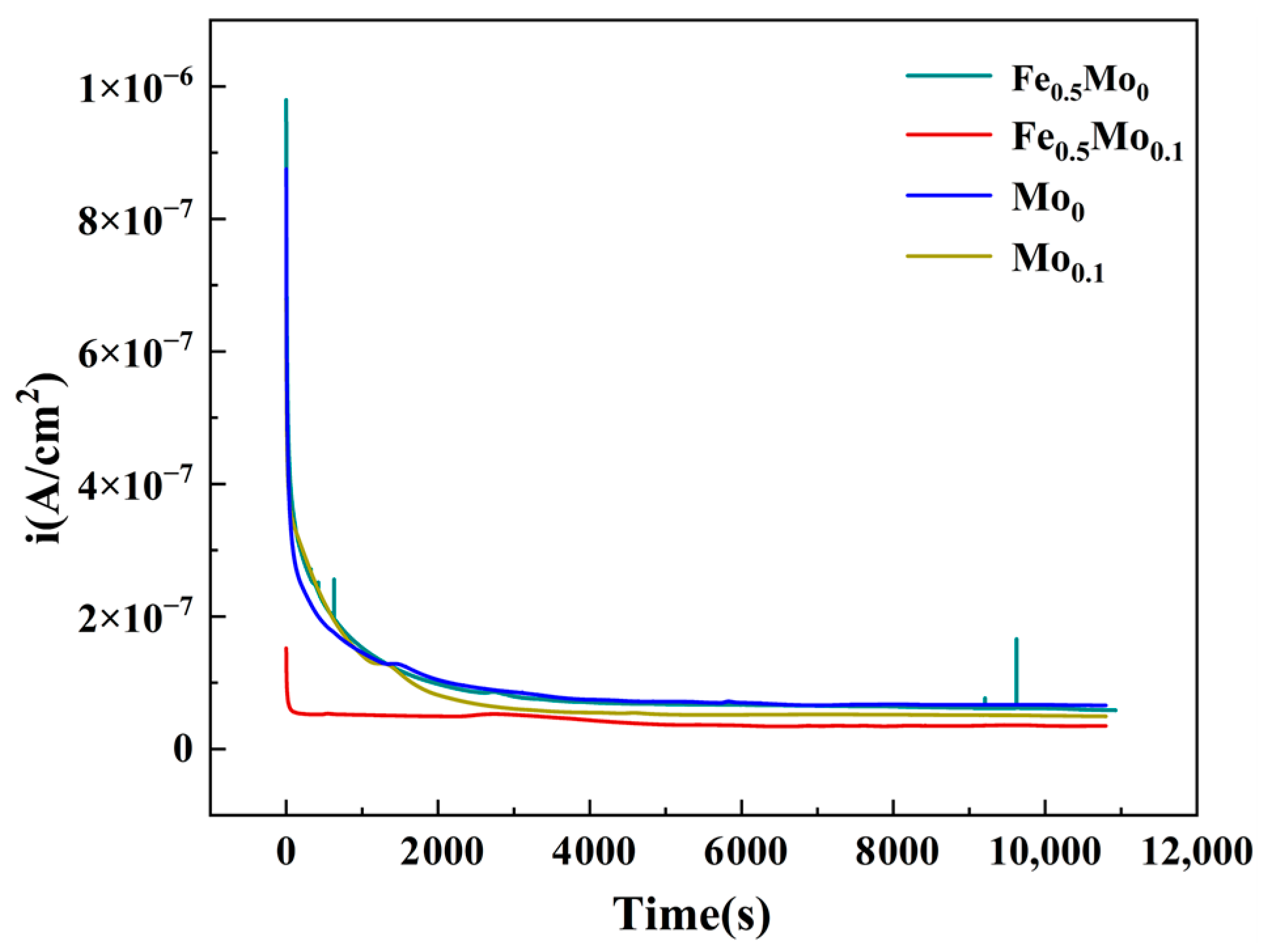

Based on the electrochemical test results mentioned above, the addition of Mo can significantly enhance the corrosion resistance of high-entropy alloys (HEAs). The corrosion resistance of an alloy largely depends on the composition and structure of its passive film [31]. Therefore, XPS was employed to analyze and compare the passive films formed on the alloys. In this study, Mo0 and Mo0.1 alloys were polarized at a constant potential of 0 VSCE for 3 h in a corrosive medium to form passive films. The evolution of current during the polarization process is shown in Figure 13. As the polarization progressed, the current gradually stabilized, indicating the formation of a stable passive film on the alloy surface. Among them, Fe0.5Mo0.1 exhibited the lowest passivation current density, suggesting that its passive film is the most compact and stable.

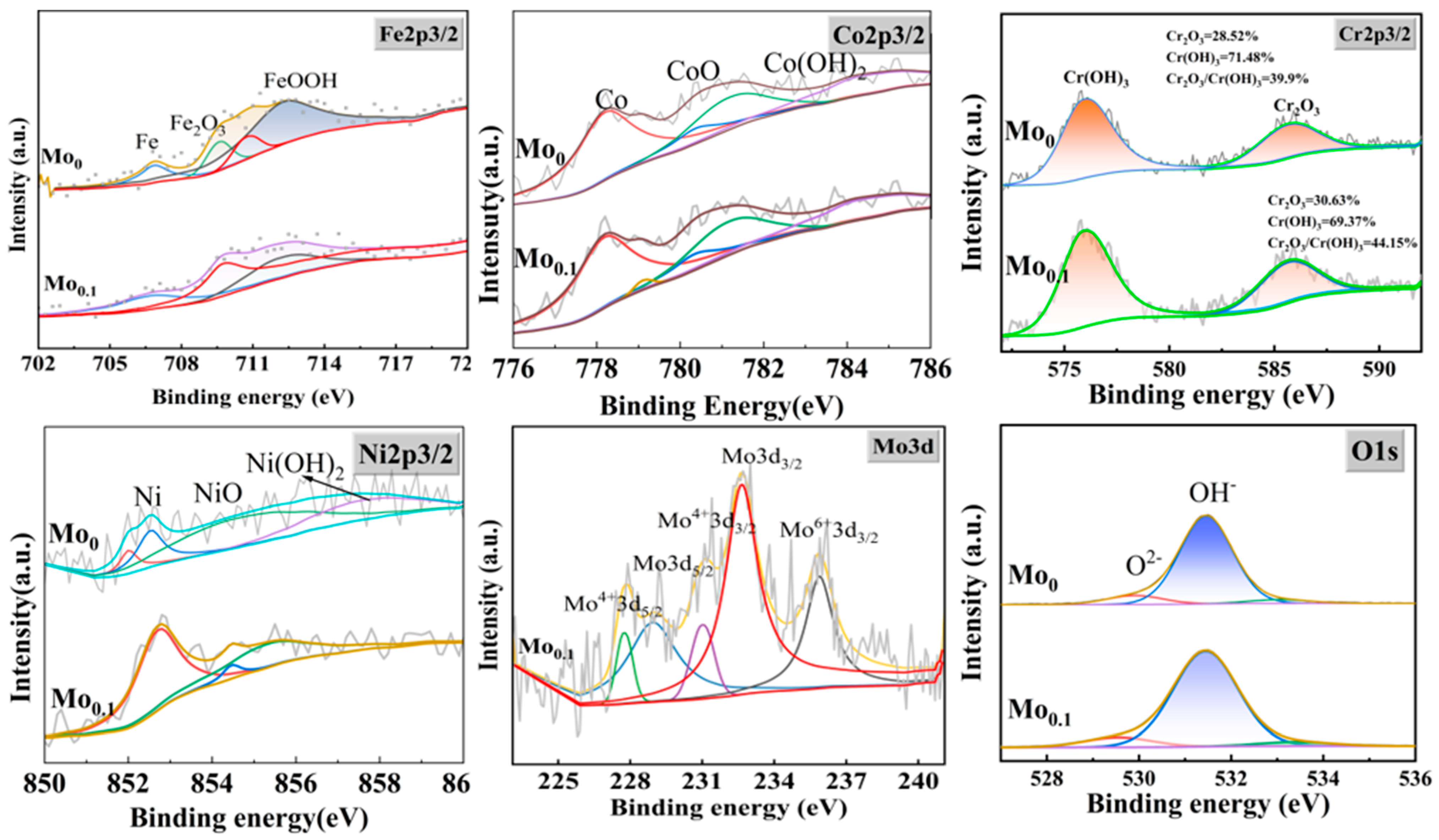

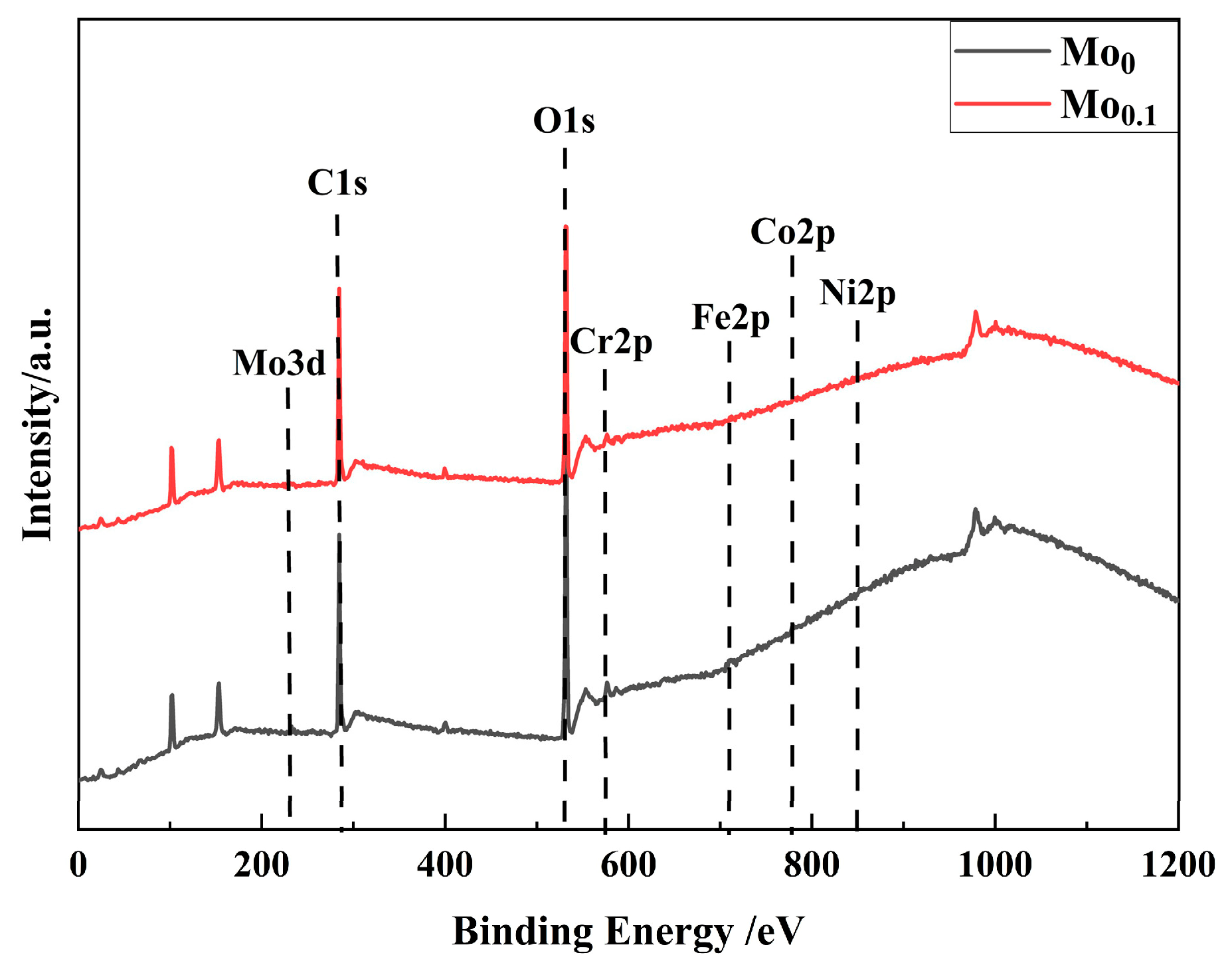

Figure 14 presents the full XPS spectra of the passive films on Mo0 and Mo0.1 alloys, showing the valence states of each element in the passive films. Figure 15 provides the fitting results for Fe 2p3/2 [26,46,47,48], Co 2p3/2 [26,49], Cr 2p3/2 [50,51,52], Ni 2p3/2 [26,53], Mo 3d [23,36,48], and O 1s [26,46] peaks in the passive films of Mo0 and Mo0.1 alloys. From the spectra, it can be seen that the Fe 2p3/2 peak in both alloys is divided into contributions from metallic Fe, Fe3+ in Fe(OH)O, and Fe3+ in Fe2O3. The Co 2p3/2 peak is split into three peaks corresponding to metallic Co, Co2+ in CoO, and Co2+ in Co(OH)2. The Cr 2p3/2 peak is divided into two components: Cr(OH)3 and Cr2O3. The Ni 2p3/2 peak is composed of three components corresponding to metallic Ni, NiO, and Ni(OH)2. The O1s peak is composed of two components corresponding to O2− and OH−, indicating that the passive films on both alloys are mainly composed of oxides and hydroxides of the alloying elements. In Mo0.1, the ratio of Cr2O3 to Cr(OH)3 is 44.15%, which is higher than the 39.9% observed in Mo0. This suggests that the addition of Mo promotes the formation of more Cr2O3 in the passive film [54]. The excellent compactness and stability of Cr2O3 play a key role in enhancing the alloy’s corrosion resistance [55]. Therefore, the incorporation of a small amount of Mo can significantly improve the protective capacity of the alloy’s passive film in chloride-containing solutions. Additionally, the Mo3d peak in Mo0.1 reveals a more complex pattern. According to the literature [48], Mo6+ predominantly exists as Mo42− in the passive film, contributing to the inhibition of Cl− ion-induced corrosion.

4. Conclusions

FeCoCrNiMox and Fe0.5CoCrNiMox high-entropy alloys were systematically investigated using SEM, EDS, XPS, and electrochemical measurements. The post-corrosion morphologies were also examined to elucidate their corrosion behavior in 3.5 wt.% NaCl solution at room temperature and 60 °C. The main conclusions are as follows:
  • All FeCoCrNiMox and Fe0.5CoCrNiMox alloys (x = 0, 0.05, 0.1, 0.15) exhibited an FCC crystal structure. Mo addition led to a pronounced increase in hardness, particularly in Fe0.5CoCrNiMox alloys, with Fe0.5CoCrNiMo0.1 achieving the highest hardness.
  • All alloys fabricated via L-PBF exhibited good corrosion resistance at room temperature. At 60 °C, Mo addition significantly improved pitting resistance. Under the condition of the same atomic ratio of Mo, the non-equiatomic Fe0.5CoCrNi alloys demonstrated superior corrosion resistance compared with equiatomic FeCoCrNi alloys.
  • XPS analysis of passive films formed under potentiostatic polarization revealed that Mo0.1 alloys contained a higher fraction of dense Cr2O3, which accounts for the enhanced pitting resistance of Mo-containing alloys.

Author Contributions

Conceptualization: D.H. and Y.H.; methodology: D.H., Z.M., F.L. and C.X.; data curation: C.X. and Y.S.; writing—original draft, C.X.; writing—review and editing: D.H. and Y.S.; supervision: D.H., Y.H., Y.S. and W.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Key Research and Development Program of China (Grant No. 2021YFB3702501).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors Yaqing Hou, Youpeng Song, Zhishan Mi, Fafa Li, Wei Guo and Dupeng He were employed by the company “Research Institute of Advanced Materials”. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
HEAHigh Entropy Alloy
FCCFace-Centered Cubic
L-PBFLaser powder bed fusion
SLMSelective laser melting
IHTIntrinsic heat treatment
SEMScanning electron microscope
EDSEnergy Dispersive Spectroscopy
EISElectrochemical impedance spectroscopy
OCPOpen-circuit potential
XPSX-ray Photoelectron Spectroscopy
XRDX-ray Diffraction

References

  1. Hansson, C.M. 1—An introduction to corrosion of engineering materials. In Corrosion of Steel in Concrete Structures, 2nd ed.; Poursaee, A., Ed.; Woodhead Publishing: Cambridge, UK, 2023; pp. 1–16. [Google Scholar]
  2. Hansson, C.M. The Impact of Corrosion on Society. Metall. Mater. Trans. A 2011, 42, 2952–2962. [Google Scholar] [CrossRef]
  3. Hou, B.; Li, X.; Ma, X.; Du, C.; Zhang, D.; Zheng, M.; Xu, W.; Lu, D.; Ma, F. The cost of corrosion in China. NPJ Mater. Degrad. 2017, 1, 4. [Google Scholar] [CrossRef]
  4. Liu, Y.; Zhou, Y.; Wang, W.; Tian, L.; Zhao, J.; Sun, J. Synergistic damage mechanisms of high-temperature metal corrosion in marine environments: A review. Prog. Org. Coat. 2024, 197, 108765. [Google Scholar] [CrossRef]
  5. Ayyagari, A.; Hasannaeimi, V.; Grewal, H.S.; Arora, H.; Mukherjee, S. Corrosion, Erosion and Wear Behavior of Complex Concentrated Alloys: A Review. Metals 2018, 8, 603. [Google Scholar] [CrossRef]
  6. Yeh, J.-W.; Chen, S.-K.; Lin, S.-J.; Gan, J.-Y.; Chin, T.-S.; Shun, T.-T.; Tsau, C.-H.; Chang, S.-Y. Nanostructured high-entropy alloys with multiple principal elements: Novel alloy design concepts and outcomes. Adv. Eng. Mater. 2004, 6, 299–303. [Google Scholar] [CrossRef]
  7. Miracle, D.B.; Senkov, O.N. A critical review of high entropy alloys and related concepts. Acta Mater. 2017, 122, 448–511. [Google Scholar] [CrossRef]
  8. Cantor, B.; Chang, I.T.H.; Knight, P.; Vincent, A.J.B. Microstructural development in equiatomic multicomponent alloys. Mater. Sci. Eng. A 2004, 375–377, 213–218. [Google Scholar] [CrossRef]
  9. Tsai, K.Y.; Tsai, M.H.; Yeh, J.W. Sluggish diffusion in Co–Cr–Fe–Mn–Ni high-entropy alloys. Acta Mater. 2013, 61, 4887–4897. [Google Scholar] [CrossRef]
  10. Yen, H.; Yeh, A.-C.; Yeh, J.-W. High-entropy alloys: An overview on the fundamentals, development, and future perspective. In Encyclopedia of Condensed Matter Physics, 2nd ed.; Chakraborty, T., Ed.; Academic Press: Cambridge, MA, USA, 2024; pp. 647–658. [Google Scholar]
  11. Ye, Y.F.; Wang, Q.; Lu, J.; Liu, C.T.; Yang, Y. High-entropy alloy: Challenges and prospects. Mater. Today 2016, 19, 349–362. [Google Scholar] [CrossRef]
  12. Lin, D.; Xu, L.; Li, X.; Jing, H.; Qin, G.; Pang, H.; Minami, F. A Si-containing FeCoCrNi high-entropy alloy with high strength and ductility synthesized in situ via selective laser melting. Addit. Manuf. 2020, 35, 101340. [Google Scholar] [CrossRef]
  13. Qu, L.; Wang, W.; Li, P.; Zhao, J. Research Progress of Transition Metal-Free Fe-Cr-Co-Ni Type High-Entropy Alloys. Heat Process. Technol. 2016, 45, 15–19. [Google Scholar] [CrossRef]
  14. Wang, Z.; He, D.; Hou, Y.; Yang, L.; Su, H.; Wang, K. Constitutive model of additively manufactured FeCoCrNi high-entropy alloy. Emerg. Mater. Res. 2025, 14, 154–161. [Google Scholar] [CrossRef]
  15. Hou, Y. Research on In-situ Alloying Preparation Technology of Entropy Alloys in FeCoCrNi System by SLM. Ph.D. Thesis, Central Iron & Steel Research Institute, Beijing, China, 2022. [Google Scholar]
  16. Chang, W.; Wang, X.; Qian, H.; Chen, X.; Lou, Y.; Zhou, M.; Guo, D.; Kwok, C.T.; Tam, L.M.; Zhang, D. Effect of Sn addition on microstructure, hardness and corrosion behavior of CoCrFeNiSnx high entropy alloys in chloride environment. Corros. Sci. 2024, 227, 111808. [Google Scholar] [CrossRef]
  17. Xiao, H.; Liu, Y.; Wang, K.; Wang, Z.; Hu, T.; Fan, T.; Ma, L.; Tang, P. Effects of Mn Content on Mechanical Properties of FeCoCrNiMnx (0 ≤ x ≤ 0.3) High-Entropy Alloys: A First-Principles Study. Acta Metall. Sin. 2020, 34, 1–10. [Google Scholar] [CrossRef]
  18. Song, Y.; Yan, L.; Pang, X.; Su, Y.; Qiao, L.; Gao, K. Effects of co-alloying Al and Cu on the corrosion behavior and mechanical properties of nanocrystalline FeCrNiCo high entropy alloys. Corros. Sci. 2023, 213, 110983. [Google Scholar] [CrossRef]
  19. Pan, B.; Xu, X.; Yang, J.; Zhan, H.; Feng, L.; Long, Q.; Yao, Q.; Deng, J.; Cheng, L.; Lu, Z.; et al. Effect of Nb, Ti, and V on wear resistance and electrochemical corrosion resistance of AlCoCrNiMx (M = Nb, Ti, V) high-entropy alloys. Mater. Today Commun. 2024, 39, 109314. [Google Scholar] [CrossRef]
  20. Liu, J.; Wen, Z.; Tang, D.; Wang, M.; Wu, Z.; Ma, B.; Chen, Y.; Zhao, Y. Effects of Nb and Zr Alloying on the Microstructure, Mechanical Properties, and Corrosion Resistance of CoCrFeNi High-Entropy Alloys. J. Mater. Eng. Perform. 2024, 34, 5674–5685. [Google Scholar] [CrossRef]
  21. Zhu, M.; Li, K.; Liu, Y.; Wang, Z.; Yao, L.; Fa, Y.; Jian, Z. Microstructure, Corrosion Behaviour and Microhardness of Non-equiatomic Fe1.5CoNiCrCux (0.5  ≤  x  ≤  2.0) High-Entropy Alloys. Trans. Indian. Inst. Met. 2019, 73, 389–397. [Google Scholar] [CrossRef]
  22. Hsu, K.-M.; Chen, S.-H.; Lin, C.-S. Microstructure and corrosion behavior of FeCrNiCoMnx (x = 1.0, 0.6, 0.3, 0) high entropy alloys in 0.5 M H2SO4. Corros. Sci. 2021, 190, 109694. [Google Scholar] [CrossRef]
  23. Dai, C.; Zhao, T.; Du, C.; Liu, Z.; Zhang, D. Effect of molybdenum content on the microstructure and corrosion behavior of FeCoCrNiMox high-entropy alloys. J. Mater. Sci. Technol. 2020, 46, 64–73. [Google Scholar] [CrossRef]
  24. Fu, Y.; Li, J.; Luo, H.; Du, C.; Li, X. Recent advances on environmental corrosion behavior and mechanism of high-entropy alloys. J. Mater. Sci. Technol. 2021, 80, 217–233. [Google Scholar] [CrossRef]
  25. Liu, J.; Lv, Z.; Wu, Z.; Zhang, J.; Zheng, C.; Chen, C.; Ju, D.; Che, L. Research progress on the influence of alloying elements on the corrosion resistance of high-entropy alloys. J. Alloys Compd. 2024, 1002, 175394. [Google Scholar] [CrossRef]
  26. Luo, H.; Li, Z.; Mingers, A.M.; Raabe, D. Corrosion behavior of an equiatomic CoCrFeMnNi high-entropy alloy compared with 304 stainless steel in sulfuric acid solution. Corros. Sci. 2018, 134, 131–139. [Google Scholar] [CrossRef]
  27. Wang, Z.; Zhang, G.-H.; Yao, Y.; Fan, X.-H.; Jin, J.; Zhang, L.; Du, Y.-X. Corrosion Behaviour of a Non-equiatomic CoCrFeNiMo High-Entropy Alloy in H2S-Containing and H2S-Free Environments. Acta Metall. Sin. 2022, 36, 366–378. [Google Scholar] [CrossRef]
  28. Wang, Y.; Li, G.; Qi, H.; Zhang, W.; Chen, R.; Su, R.; Qu, Y. Effect of Al content on the corrosion behavior and mechanism of AlxCoCrFeNi high-entropy alloys. J. Mater. Res. Technol. 2024, 30, 5977–5989. [Google Scholar] [CrossRef]
  29. Zhang, L.; Tu, J.; Liang, Y.; Yang, W.; Zhang, X.; Zhou, Z.; Gu, Y.; Liu, Y.; Du, Y. Titanium doping levels and their effects on FeCoCrNi high-entropy alloys: From microstructure to performance. Mater. Charact. 2024, 215, 114136. [Google Scholar] [CrossRef]
  30. Zhu, X.; Wang, G.; Wang, X.; Zhao, G. Microstructure and mechanical properties of Al0.3FeCoCrNi high entropy alloy processed by laser powder bed fusion using FeCoCrNi and Al powder mixture. Mater. Sci. Eng. A-Struct. Mater. Prop. Microstruct. Process. 2022, 848, 143468. [Google Scholar] [CrossRef]
  31. Liu, C.; Gao, Y.; Chong, K.; Guo, F.; Wu, D.; Zou, Y. Effect of Nb content on the microstructure and corrosion resistance of FeCoCrNiNbx high-entropy alloys in chloride ion environment. J. Alloys Compd. 2023, 935, 168013. [Google Scholar] [CrossRef]
  32. Jarlöv, A.; Zhu, Z.; Ji, W.; Gao, S.; Hu, Z.; Vivegananthan, P.; Tian, Y.; Kripalani, D.R.; Fan, H.; Seet, H.L.; et al. Recent progress in high-entropy alloys for laser powder bed fusion: Design, processing, microstructure, and performance. Mater. Sci. Eng. R Rep. 2024, 161, 100834. [Google Scholar] [CrossRef]
  33. Cabrera-Correa, L.; González-Rovira, L.; de Dios López-Castro, J.; Botana, F.J. Pitting and intergranular corrosion of Scalmalloy® aluminium alloy additively manufactured by Selective Laser Melting (SLM). Corros. Sci. 2022, 201, 110273. [Google Scholar] [CrossRef]
  34. Qin, X.; Liu, S.; Duan, J.; Chen, W.; Fu, Z. Influence of grain sizes and secondary phases on the mechanical behavior and corrosion resistance in a non-equiatomic NiCrCoFeMoAlTi high-entropy alloy. Corros. Sci. 2024, 240, 112452. [Google Scholar] [CrossRef]
  35. Karlsson, D.; Marshal, A.; Johansson, F.; Schuisky, M.; Sahlberg, M.; Schneider, J.M.; Jansson, U. Elemental segregation in an AlCoCrFeNi high-entropy alloy—A comparison between selective laser melting and induction melting. J. Alloys Compd. 2019, 784, 195–203. [Google Scholar] [CrossRef]
  36. Kong, D.; Ni, X.; Dong, C.; Zhang, L.; Man, C.; Yao, J.; Xiao, K.; Li, X. Heat treatment effect on the microstructure and corrosion behavior of 316L stainless steel fabricated by selective laser melting for proton exchange membrane fuel cells. Electrochim. Acta 2018, 276, 293–303. [Google Scholar] [CrossRef]
  37. Chen, J.; Liu, Z.; Liu, C.; Zhang, B.; Liu, T.; Chen, G.; Qin, M.; Qu, X. Effects of scanning strategy and scanning speed on microstructures and mechanical properties of NiTi alloys by laser powder bed fusion. Mater. Sci. Eng. A 2024, 914, 147115. [Google Scholar] [CrossRef]
  38. Dong, H.; He, K.; Meng, X.; Xu, H.; Ming, G.; Du, Y.; Dai, K.; Dong, C. Influence of laser powder bed fusion scanning strategies on the magnetic and mechanical properties of NdFeB. J. Alloys Compd. 2025, 1020, 179384. [Google Scholar] [CrossRef]
  39. Zhang, Q.; Du, M.; Xiao, Y.; Wu, L.; Qian, J.; Zhang, C.; He, Y. Effects of molybdenum content and heat treatment on hydrogen evolution reaction properties and microstructure of FeCoCrNiMox high entropy alloys. Intermetallics 2024, 168, 108230. [Google Scholar] [CrossRef]
  40. Fu, A.; Xie, Z.; Wang, J.; Cao, Y.; Wang, B.; Li, J.; Fang, Q.; Li, X.; Liu, B.; Liu, Y. Controlling of cellular substructure and its effect on mechanical properties of FeCoCrNiMo0.2 high entropy alloy fabricated by selective laser melting. Mater. Sci. Eng. A 2024, 901, 146547. [Google Scholar] [CrossRef]
  41. Lin, D.Y.; Chen, Q.; Xi, X.; Ma, R.; Shi, Z.F.; Song, X.G.; Xia, H.B.; Bian, H.; Tan, C.W.; Lu, Y.X.; et al. Laser powder bed fusion to fabricate high-entropy alloy FeCoCrNiMo0.5 with excellent high-temperature strength and ductility. Mater. Sci. Eng. A-Struct. Mater. Prop. Microstruct. Process. 2024, 900, 146413. [Google Scholar] [CrossRef]
  42. Okonkwo, B.O.; Peng, J.; Lin, H.; Li, Z.; Li, L.; Chen, Y.; Fu, C.; You, W.; Xiang, C.; Pu, J.; et al. A comparative study of the long-term corrosion behavior of two different 304 stainless steels in boron-lithium containing high temperature water. Electrochim. Acta 2025, 538, 147010. [Google Scholar] [CrossRef]
  43. Lee, M.; Jang, J.; Chae, N.; Kim, J.S. High-temperature long-term corrosion of copper in aerobic environment. Nucl. Eng. Technol. 2025, 57, 103823. [Google Scholar] [CrossRef]
  44. Yue, K.; Wang, L.; Xu, Z.; Cheng, C.; Wang, Y.; Fan, Y.; Xu, J.; Wang, Z.; Chen, Z. Effect of Ti addition on the microstructure and corrosion behavior of laser cladding AlCoCrFeNi high-entropy alloy coatings. Vacuum 2024, 230, 113633. [Google Scholar] [CrossRef]
  45. Tian, Y.; Liu, J.; Xue, M.; Zhang, D.; Wang, Y.; Geng, K.; Dong, Y.; Yang, Y. Structure and corrosion behavior of FeCoCrNiMo high-entropy alloy coatings prepared by mechanical alloying and plasma spraying. Int. J. Miner. Metall. Mater. 2024, 31, 2692–2705. [Google Scholar] [CrossRef]
  46. Yao, J.; Macdonald, D.D.; Dong, C. Passive film on 2205 duplex stainless steel studied by photo-electrochemistry and ARXPS methods. Corros. Sci. 2019, 146, 221–232. [Google Scholar] [CrossRef]
  47. Wang, L.; Dong, C.; Yao, J.; Dai, Z.; Man, C.; Yin, Y.; Xiao, K.; Li, X. The effect of ɳ-Ni3Ti precipitates and reversed austenite on the passive film stability of nickel-rich Custom 465 steel. Corros. Sci. 2019, 154, 178–190. [Google Scholar] [CrossRef]
  48. Tian, H.; Cheng, X.; Wang, Y.; Dong, C.; Li, X. Effect of Mo on interaction between α/γ phases of duplex stainless steel. Electrochim. Acta 2018, 267, 255–268. [Google Scholar] [CrossRef]
  49. Badawy, W.A.; Al-Kharafi, F.M.; Al-Ajmi, J.R. Electrochemical behaviour of cobalt in aqueous solutions of different pH. J. Appl. Electrochem. 2000, 30, 693–704. [Google Scholar] [CrossRef]
  50. Cui, Z.; Chen, S.; Dou, Y.; Han, S.; Wang, L.; Man, C.; Wang, X.; Chen, S.; Cheng, Y.F.; Li, X. Passivation behavior and surface chemistry of 2507 super duplex stainless steel in artificial seawater: Influence of dissolved oxygen and pH. Corros. Sci. 2019, 150, 218–234. [Google Scholar] [CrossRef]
  51. Olefjord, I.; Wegrelius, L. The influence of nitrogen on the passivation of stainless steels. Corros. Sci. 1996, 38, 1203–1220. [Google Scholar] [CrossRef]
  52. Luo, H.; Gao, S.; Dong, C.; Li, X. Characterization of electrochemical and passive behaviour of Alloy 59 in acid solution. Electrochim. Acta 2014, 135, 412–419. [Google Scholar] [CrossRef]
  53. Feng, Z.; Cheng, X.; Dong, C.; Xu, L.; Li, X. Passivity of 316L stainless steel in borate buffer solution studied by Mott–Schottky analysis, atomic absorption spectrometry and X-ray photoelectron spectroscopy. Corros. Sci. 2010, 52, 3646–3653. [Google Scholar] [CrossRef]
  54. Lu, Y.C.; Clayton, C.R.; Brooks, A.R. A bipolar model of the passivity of stainless steels—II. The influence of aqueous molybdate. Corros. Sci. 1989, 29, 863–880. [Google Scholar] [CrossRef]
  55. Gerard, A.Y.; Kautz, E.J.; Schreiber, D.K.; Han, J.; McDonnell, S.; Ogle, K.; Lu, P.; Saal, J.E.; Frankel, G.S.; Scully, J.R. The role of chromium content in aqueous passivation of a non-equiatomic Ni38Fe20CrxMn21-0.5xCo21-0.5x multi-principal element alloy (x = 22, 14, 10, 6 at%) in acidic chloride solution. Acta Mater. 2023, 245, 118607. [Google Scholar] [CrossRef]
Materials 18 04544 g001

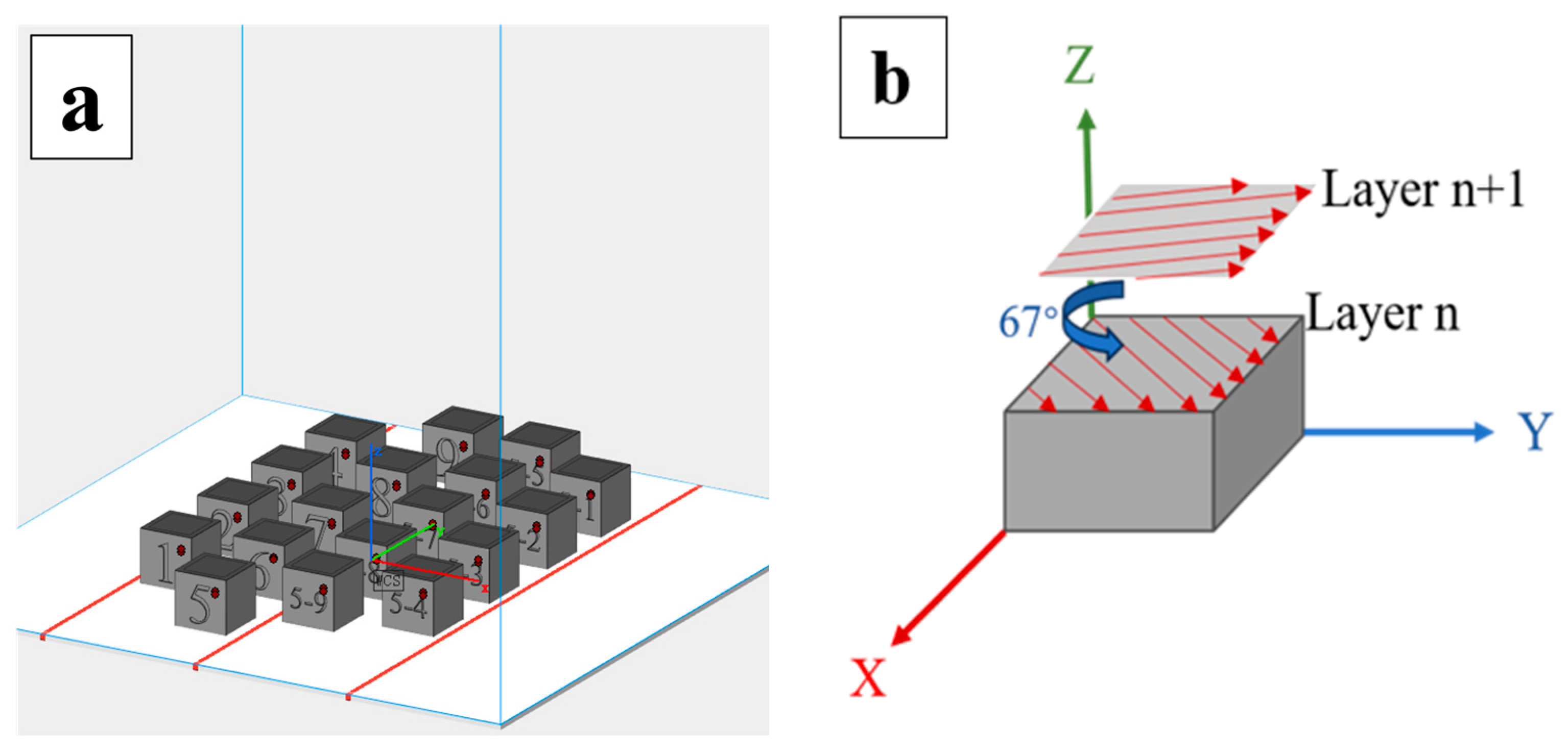

Figure 1. (a) Schematic diagram of sample preparation and (b) laser scanning strategy.
Figure 1. (a) Schematic diagram of sample preparation and (b) laser scanning strategy.
Materials 18 04544 g001
Materials 18 04544 g002

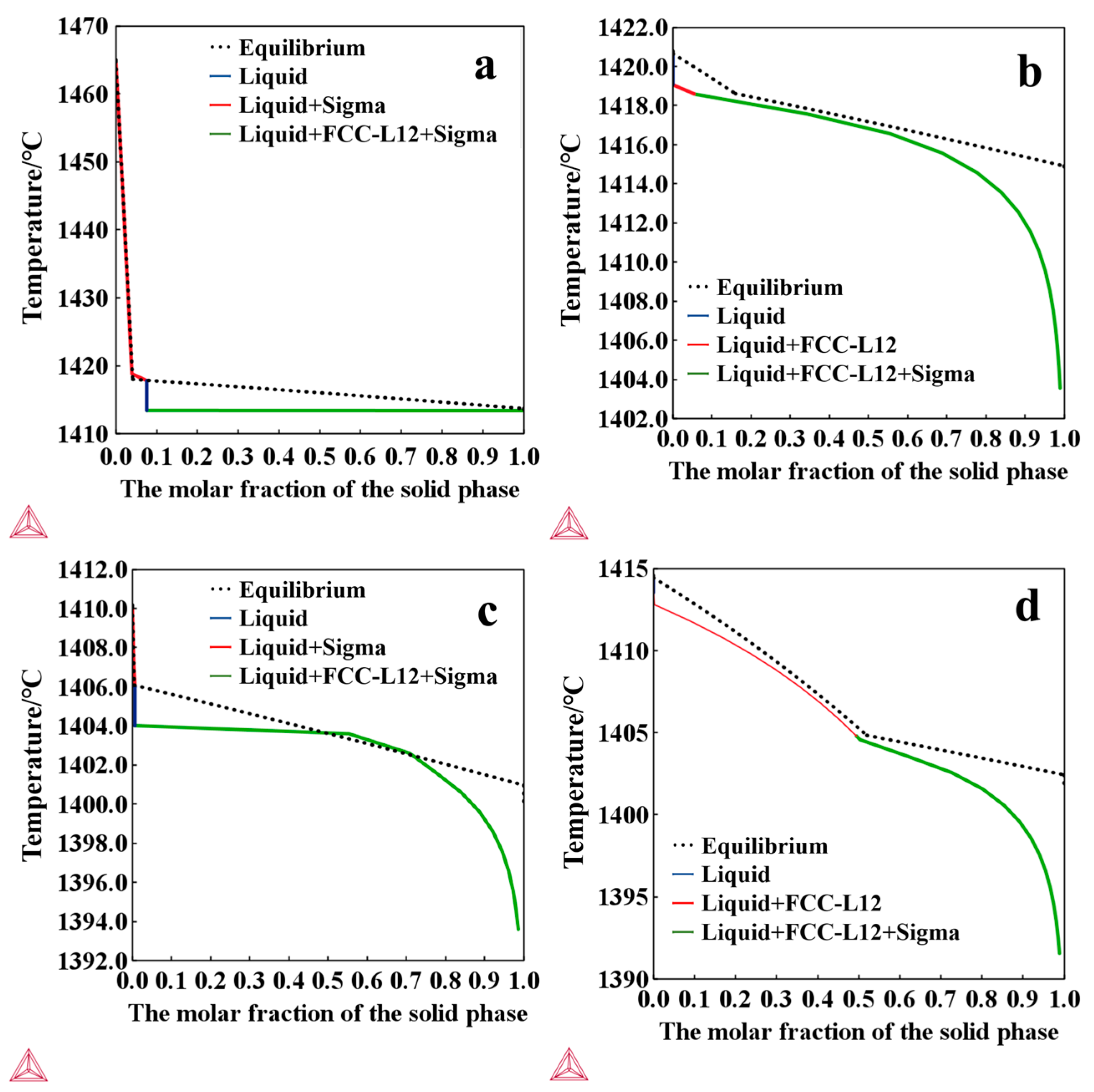

Figure 2. Molar fraction of the solid phase during non-equilibrium solidification (a) Mo0.2, (b) Mo0.15, (c) Fe0.5Mo0.2, (d) Fe0.5Mo0.15.
Figure 2. Molar fraction of the solid phase during non-equilibrium solidification (a) Mo0.2, (b) Mo0.15, (c) Fe0.5Mo0.2, (d) Fe0.5Mo0.15.
Materials 18 04544 g002
Materials 18 04544 g003

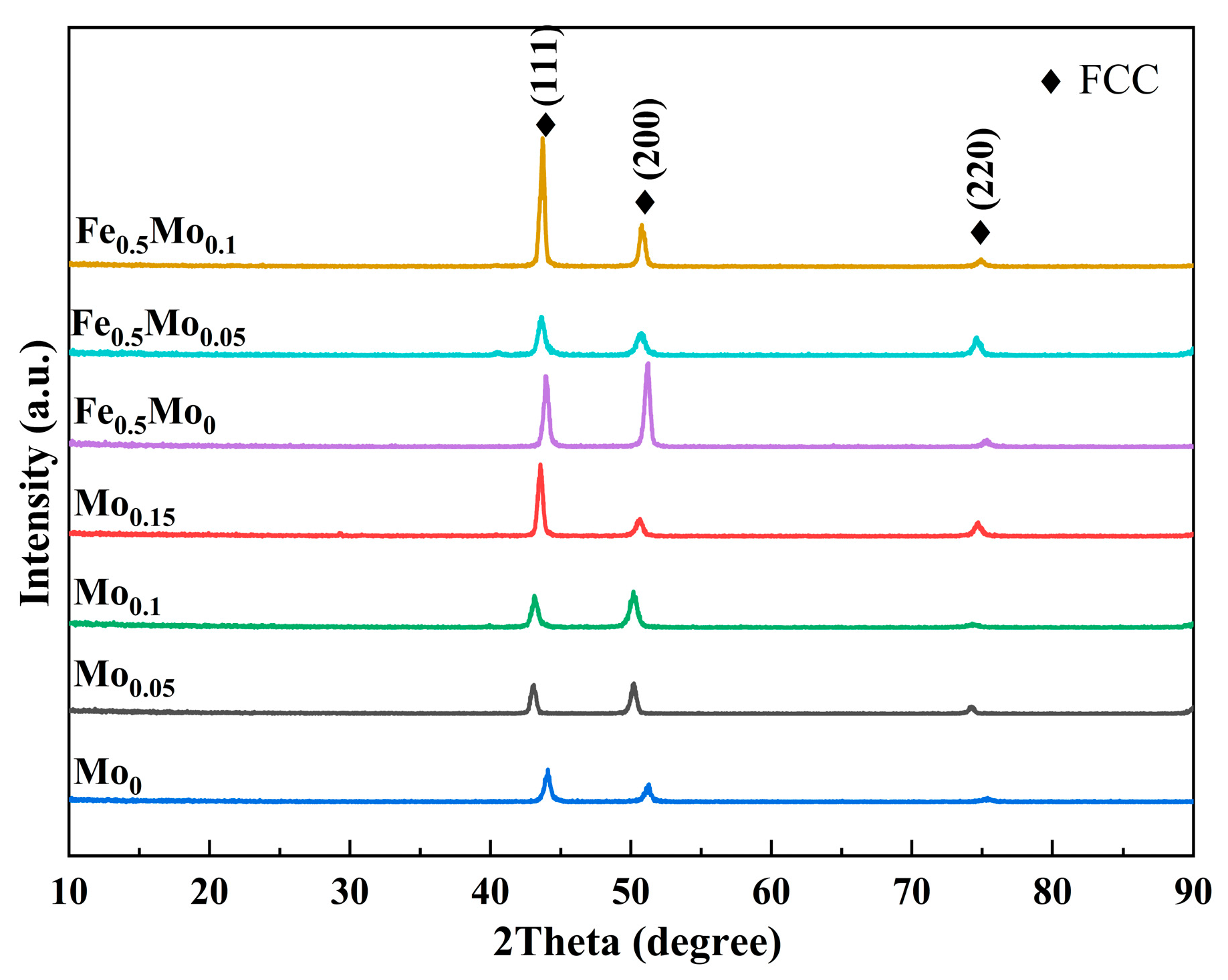

Figure 3. XRD spectra of HEAs with different Mo contents.
Figure 3. XRD spectra of HEAs with different Mo contents.
Materials 18 04544 g003
Materials 18 04544 g004
Figure 4. Printed XZ plane optical microscopic image (uncorroded) (a) Mo0, (b) Mo0.05, (c) Mo0.1, (d) Mo0.15, (e) Fe0.5Mo0, (f) Fe0.5Mo0.05, (g) Fe0.5Mo0.1, (h) Fe0.5Mo0.15.
Figure 4. Printed XZ plane optical microscopic image (uncorroded) (a) Mo0, (b) Mo0.05, (c) Mo0.1, (d) Mo0.15, (e) Fe0.5Mo0, (f) Fe0.5Mo0.05, (g) Fe0.5Mo0.1, (h) Fe0.5Mo0.15.
Materials 18 04544 g004
Materials 18 04544 g005aMaterials 18 04544 g005b

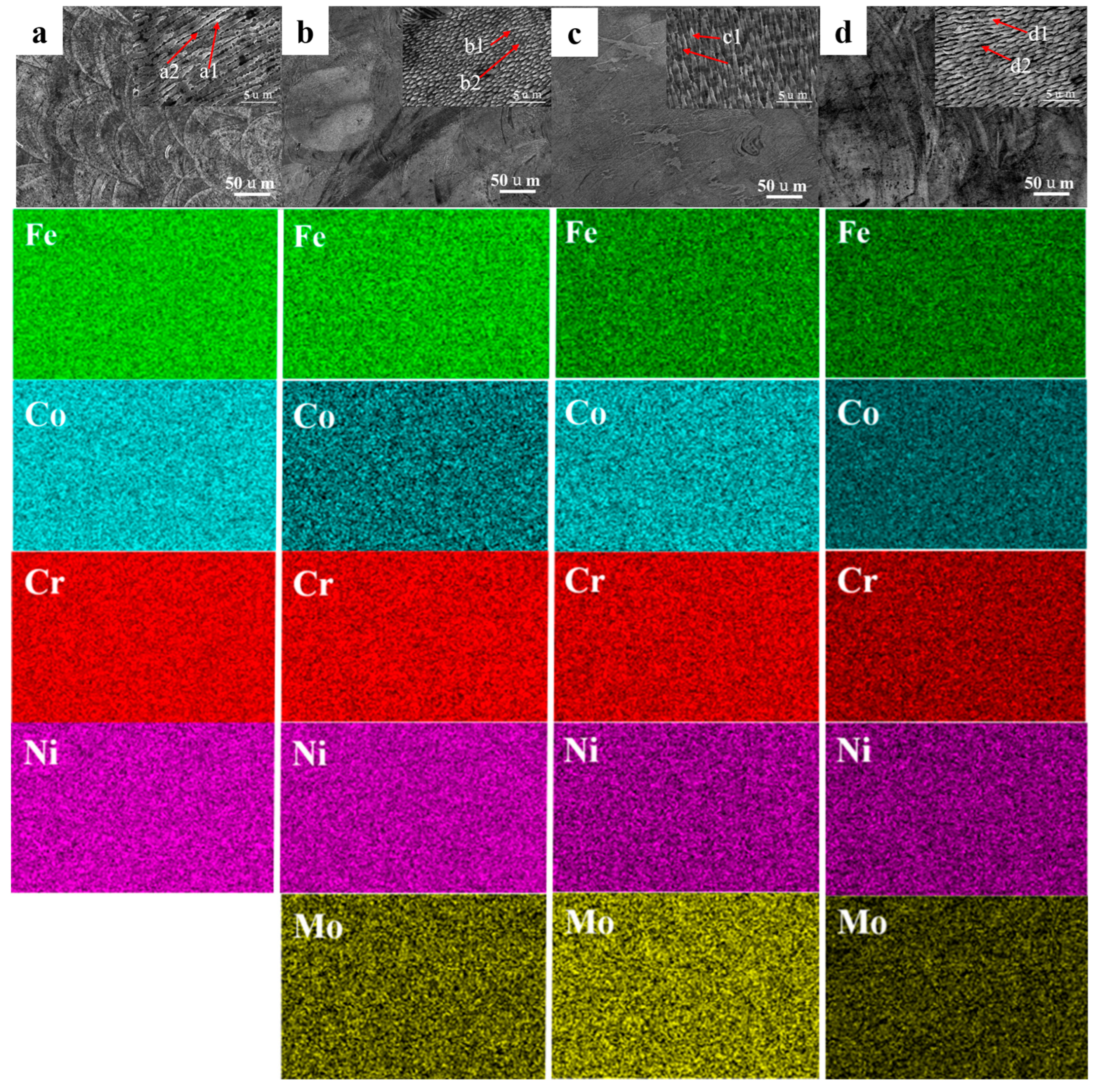

Figure 5. SEM images and EDS spectra of XZ plane of high-entropy alloys with various components in as-printed state (a) Mo0, (b) Mo0.05, (c) Mo0.1, (d) Mo0.15, (e) Fe0.5Mo0, (f) Fe0.5Mo0.05, (g) Fe0.5Mo0.1.
Figure 5. SEM images and EDS spectra of XZ plane of high-entropy alloys with various components in as-printed state (a) Mo0, (b) Mo0.05, (c) Mo0.1, (d) Mo0.15, (e) Fe0.5Mo0, (f) Fe0.5Mo0.05, (g) Fe0.5Mo0.1.
Materials 18 04544 g005aMaterials 18 04544 g005b
Materials 18 04544 g006

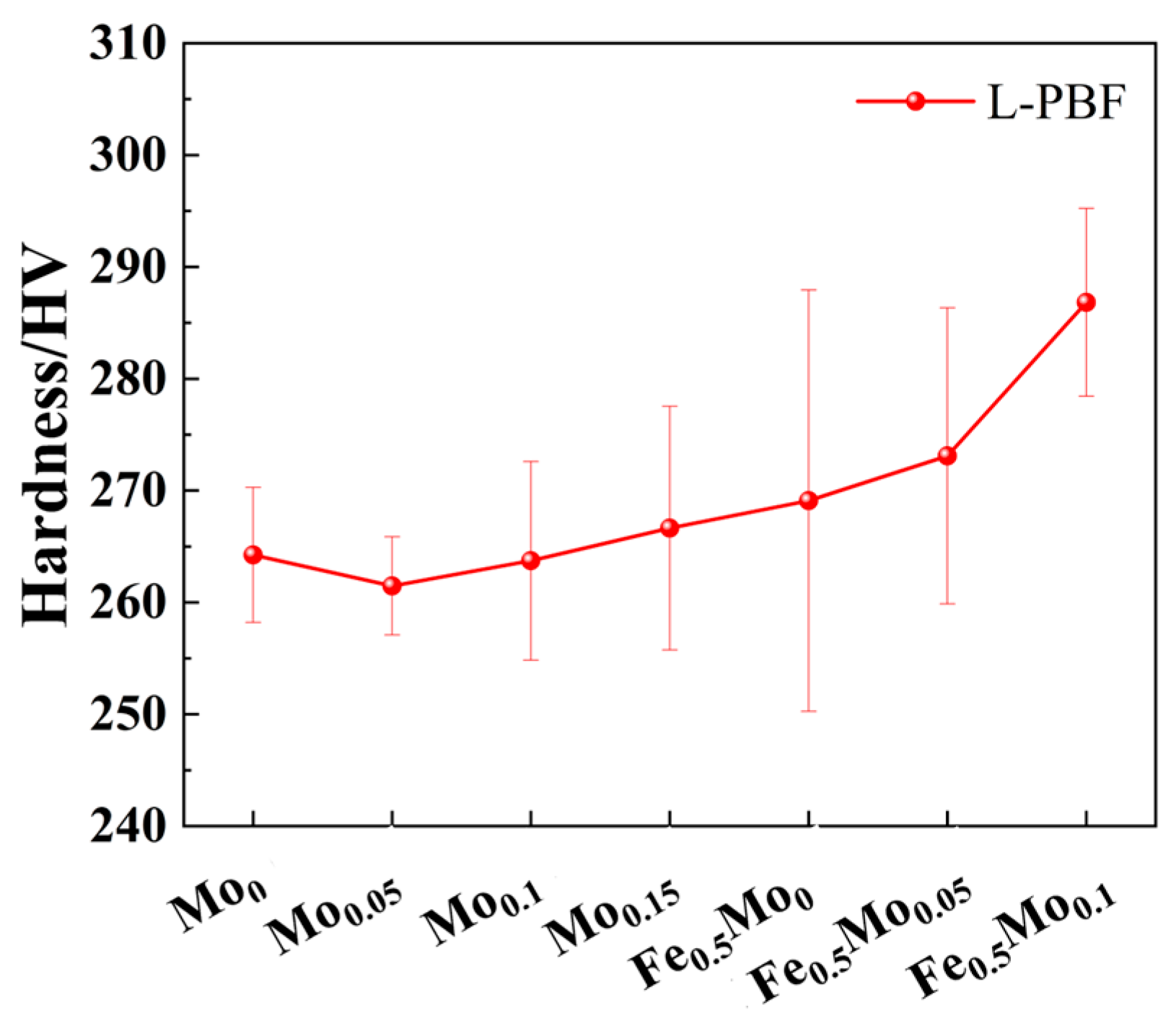

Figure 6. Hardness variation curves of HEAs with varying Mo contents fabricated via L-PBF.
Figure 6. Hardness variation curves of HEAs with varying Mo contents fabricated via L-PBF.
Materials 18 04544 g006
Materials 18 04544 g007

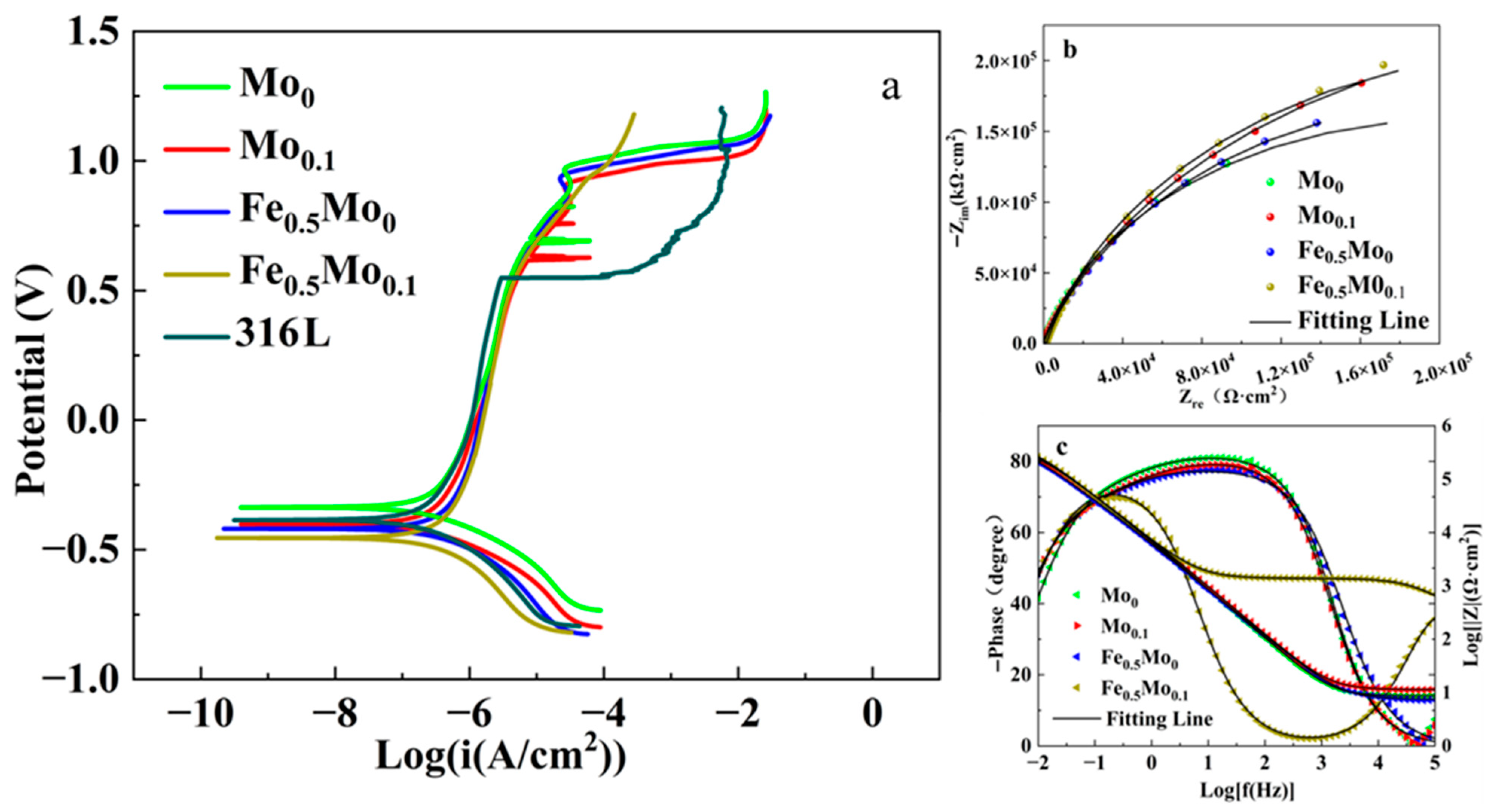

Figure 7. Electrochemical tests of HEAs with different Mo contents in a 3.5 wt.% NaCl solution at 25 °C (a) Tafel curve, (b) Nyquist diagram, (c) Bode diagram.
Figure 7. Electrochemical tests of HEAs with different Mo contents in a 3.5 wt.% NaCl solution at 25 °C (a) Tafel curve, (b) Nyquist diagram, (c) Bode diagram.
Materials 18 04544 g007
Materials 18 04544 g008
Figure 8. The corrosion morphology of CoCrNiFeyMox HEAs after electrochemical tests in a 3.5 wt.% NaCl solution at 25 °C (a) Mo0, (b) Mo0.1, (c) Fe0.5Mo0, (d) Fe0.5Mo0.1, (e) 316L.
Figure 8. The corrosion morphology of CoCrNiFeyMox HEAs after electrochemical tests in a 3.5 wt.% NaCl solution at 25 °C (a) Mo0, (b) Mo0.1, (c) Fe0.5Mo0, (d) Fe0.5Mo0.1, (e) 316L.
Materials 18 04544 g008
Materials 18 04544 g009

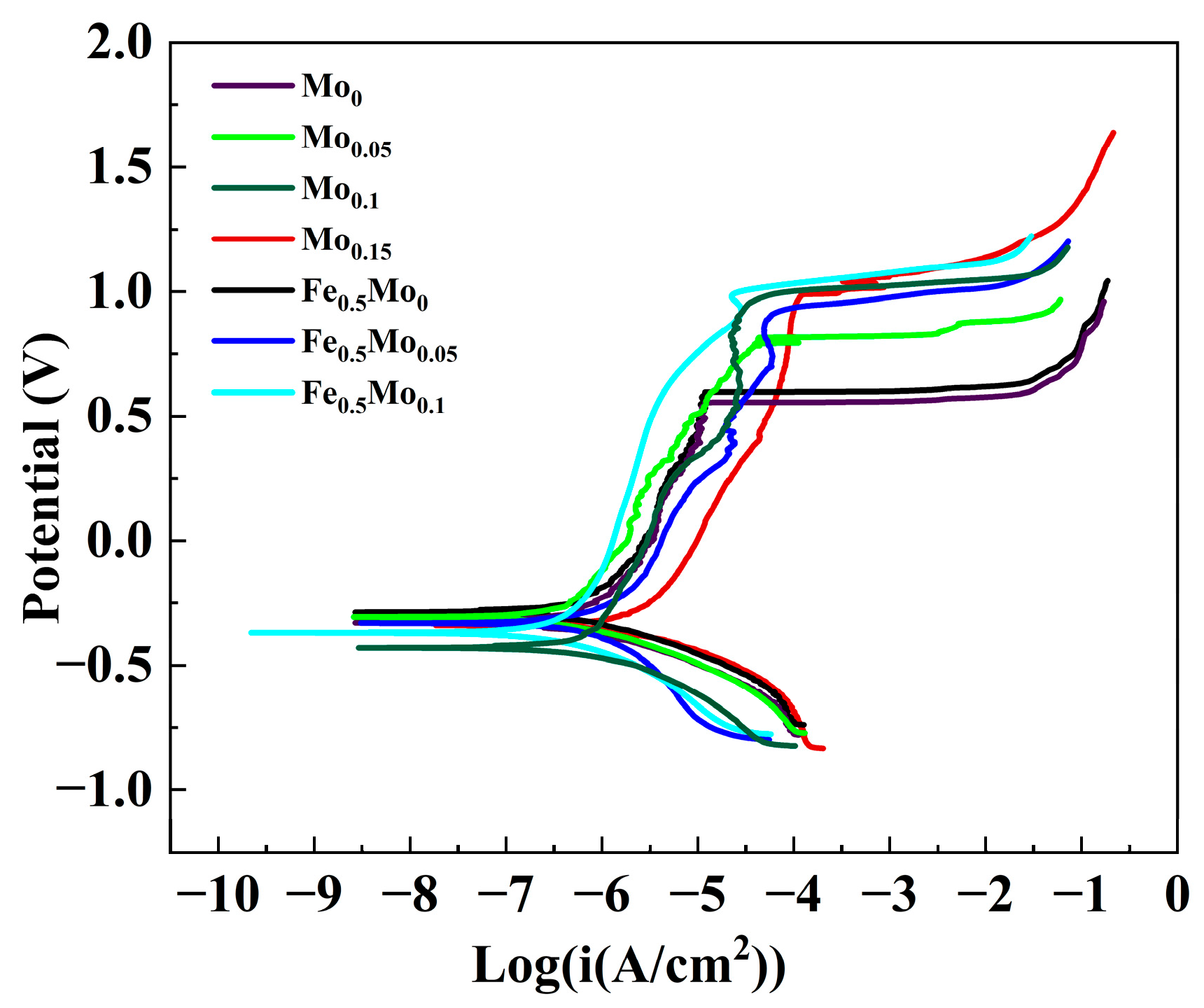

Figure 9. The polarization curves of CoCrNiFeyMox HEAs in a 60 °C, 3.5 wt.% NaCl solution.
Figure 9. The polarization curves of CoCrNiFeyMox HEAs in a 60 °C, 3.5 wt.% NaCl solution.
Materials 18 04544 g009
Materials 18 04544 g010
Figure 10. Electrochemical parameters of HEAs with different Mo contents.
Figure 10. Electrochemical parameters of HEAs with different Mo contents.
Materials 18 04544 g010
Materials 18 04544 g011
Figure 11. EIS curves of CoCrNiFeyMox HEAs in a 3.5wt.% NaCl solution: (a) Nyquist diagram, (b) Bode diagram. The illustration in Figure a depicts a fitted circuit.
Figure 11. EIS curves of CoCrNiFeyMox HEAs in a 3.5wt.% NaCl solution: (a) Nyquist diagram, (b) Bode diagram. The illustration in Figure a depicts a fitted circuit.
Materials 18 04544 g011
Materials 18 04544 g012
Figure 12. The surface morphology after corrosion (a) Mo0, (b) Mo0.05, (c) Mo0.1, (d) Mo0.15, (e) Fe0.5Mo0, (f) Fe0.5Mo0.05, (g) Fe0.5Mo0.1.
Figure 12. The surface morphology after corrosion (a) Mo0, (b) Mo0.05, (c) Mo0.1, (d) Mo0.15, (e) Fe0.5Mo0, (f) Fe0.5Mo0.05, (g) Fe0.5Mo0.1.
Materials 18 04544 g012
Materials 18 04544 g013
Figure 13. Constant potential polarization curves of alloys with different Mo contents in a corrosive medium at 0 VSCE for 3 h.
Figure 13. Constant potential polarization curves of alloys with different Mo contents in a corrosive medium at 0 VSCE for 3 h.
Materials 18 04544 g013
Materials 18 04544 g014
Figure 14. XPS full spectrum of the passivation films of Mo0 and Mo0.1 alloys.
Figure 14. XPS full spectrum of the passivation films of Mo0 and Mo0.1 alloys.
Materials 18 04544 g014
Materials 18 04544 g015
Figure 15. XPS fine spectra of the surface passivation films of Mo0 and Mo0.1 alloys in 3.5wt.% NaCl solution.
Figure 15. XPS fine spectra of the surface passivation films of Mo0 and Mo0.1 alloys in 3.5wt.% NaCl solution.
Materials 18 04544 g015
Table 1. The theoretical compositions of the designed CoCrNiFeyMox alloys (wt.%).
Table 1. The theoretical compositions of the designed CoCrNiFeyMox alloys (wt.%).
AlloysFeCoCrNiMo
Mo024.7726.1423.0626.030
Mo0.0524.2525.5922.5825.492.08
Mo0.123.7625.0722.1224.974.08
Mo0.1523.2824.5721.6824.476
Fe0.5Mo014.1429.8326.3229.710
Fe0.5Mo0.0513.829.1225.729.012.37
Fe0.5Mo0.113.4828.4525.128.344.63
Fe0.5Mo0.1513.1727.8124.5427.696.79
Table 2. EDS analysis results of high-entropy alloys with various components (wt.%).
Table 2. EDS analysis results of high-entropy alloys with various components (wt.%).
Alloys FeCoCrNiMo
Mo0a12825.521.225.2/
a228.125.522.823.6/
Mo0.05b124.726.222.123.73.3
b224.725.623.423.82.5
Mo0.1c123.524.520.525.75.8
c22426.719.125.74.5
Mo0.15d122.624.323.523.85.8
d222.924.923.623.35.4
Fe0.5Mo0e11530.226.528.2/
e215.430.725.927.9/
Fe0.5Mo0.05f116.929.621.928.33.3
f216.829.921.5292.8
Fe0.5Mo0.1g117.630.421.625.64.8
g21830.921264.1
Table 3. Electrochemical Parameters of Various High Entropy Alloys.
Table 3. Electrochemical Parameters of Various High Entropy Alloys.
AlloysEcorr (VSCE)Icorr (A/cm2)Epit (VSCE)
Mo0−0.31571.371 × 1060.5562
Mo0.05−0.32011.277 × 1060.7942
Mo0.1−0.31781.294 × 1061.0032
Mo0.15−0.34042.1267 × 1060.9795
Fe0.5Mo0−0.42942.541 × 1060.5977
Fe0.5Mo0.05−0.31356.173 × 1060.9363
Fe0.5Mo0.1−0.35569.012 × 1071.0334
Table 4. Fitting parameters of equivalent circuits for impedance spectra of CoCrNiFeyMox HEAs in a 60 °C, 3.5 wt.% NaCl solution.
Table 4. Fitting parameters of equivalent circuits for impedance spectra of CoCrNiFeyMox HEAs in a 60 °C, 3.5 wt.% NaCl solution.
AlloysRs
(Ω·cm2)		CPE1
Y0(Ω−1·cm−2s−n)		n1Rf
(Ω·cm2)		CPE2
Y0(Ω−1·cm−2s−n)		n2Rct
(Ω·cm2)
Mo03.924.34 × 10−50.893243632.27 × 10−50.6932.45 × 105
Mo0.19.364.12 × 10−50.836482251.39 × 10−50.6353.48 × 105
Mo0.157.242.61 × 10−50.933395697.75 × 10−60.6683.10 × 105
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xie, C.; Hou, Y.; Song, Y.; Mi, Z.; Li, F.; Guo, W.; He, D. Study on the Corrosion Behavior of Additively Manufactured NiCoCrFeyMox High-Entropy Alloys in Chloride Environments. Materials 2025, 18, 4544. https://doi.org/10.3390/ma18194544

AMA Style

Xie C, Hou Y, Song Y, Mi Z, Li F, Guo W, He D. Study on the Corrosion Behavior of Additively Manufactured NiCoCrFeyMox High-Entropy Alloys in Chloride Environments. Materials. 2025; 18(19):4544. https://doi.org/10.3390/ma18194544

Chicago/Turabian Style

Xie, Chaoqun, Yaqing Hou, Youpeng Song, Zhishan Mi, Fafa Li, Wei Guo, and Dupeng He. 2025. "Study on the Corrosion Behavior of Additively Manufactured NiCoCrFeyMox High-Entropy Alloys in Chloride Environments" Materials 18, no. 19: 4544. https://doi.org/10.3390/ma18194544

APA Style

Xie, C., Hou, Y., Song, Y., Mi, Z., Li, F., Guo, W., & He, D. (2025). Study on the Corrosion Behavior of Additively Manufactured NiCoCrFeyMox High-Entropy Alloys in Chloride Environments. Materials, 18(19), 4544. https://doi.org/10.3390/ma18194544

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
