Article

Investigation of Low-Temperature Molten Oxide Electrolysis of a Mixture of Hematite and Zinc Oxide

by
Joongseok Kim
1,
In-Ho Jung
1,2,
Jungshin Kang
3,4,* and
Kyung-Woo Yi
1,2,*
1
Department of Materials Science and Engineering, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 08826, Republic of Korea
2
Research Institute of Advanced Materials, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 08826, Republic of Korea
3
Department of Energy Resources Engineering, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 08826, Republic of Korea
4
Research Institute of Energy and Resources, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 08826, Republic of Korea
*
Authors to whom correspondence should be addressed.
Materials 2025, 18(17), 4116; https://doi.org/10.3390/ma18174116
Submission received: 29 July 2025 / Revised: 26 August 2025 / Accepted: 29 August 2025 / Published: 2 September 2025

Abstract

To develop a CO2-free process for recovering Fe and Zn metals from electric arc furnace (EAF) dust, this study investigated the molten oxide electrolysis of various Fe2O3–ZnO mixtures in a B2O3–Na2O electrolyte. Electrolysis was conducted using an Fe cathode and Pt anode at 1173 K by applying cell voltages that were determined based on thermodynamic calculations and cyclic voltammetry measurements. When electrolysis was conducted at a cell voltage of 1.1 V, the selective reduction of Fe oxide to Fe metal was observed without ZnO reduction. However, when 1.6 V was applied, the co-reduction of Fe oxide and ZnO to the Fe–Zn alloy was observed. In the vacuum distillation of the Fe–Zn alloy at 1000–1200 K, Zn metal with a purity of ≥99.996% was obtained with a recovery efficiency of ≥99.9%, under certain conditions. This study demonstrates the feasibility of recovering Fe and Zn from EAF dust using low-temperature molten oxide electrolysis and subsequent vacuum distillation.

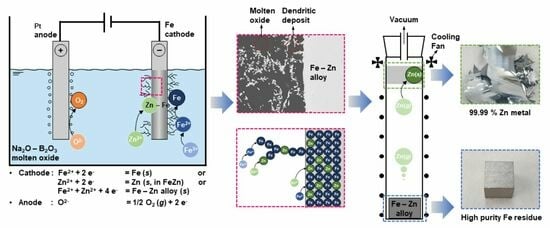

Graphical Abstract

1. Introduction

The production of iron (Fe) and steel, which are fundamental commodities, has rapidly increased since the 20th century owing to the development of the global economy. For example, the global pig Fe and steel production in 2023 exceeded 1.3 and 1.8 billion tons, respectively [1,2]. Consequently, the generation of by-products, such as dust, has also increased. Although most of the produced dust can be directly recycled as raw material for blast furnaces, electric arc furnace (EAF) dust is not directly recycled because of its high zinc (Zn) concentration [3]. EAF dust is currently recycled using the Waelz kiln or the rotary hearth furnace (RHF) process. In these processes, Zn (g) and Fe (s) are recovered by reducing EAF dust using carbon (C) at temperatures above 1273 K, resulting in carbon monoxide (CO) and/or carbon dioxide (CO2) gas emissions. Considering the environmental burden of these processes, developing a CO2-free method for recycling EAF dust is essential in the near future.
Various technologies have been developed in the Fe and steel industry to reduce CO2 emissions. An important approach involves changing the reducing agent from coke to hydrogen (H2) gas or electrons [4]. Although the commercialization of molten oxide electrolysis is currently under investigation, it has been reported to offer advantages in terms of energy consumption and CO2 emissions [5,6,7]. Moreover, because CO2-free Fe production with H2 requires green H2 generated by water electrolysis, directly using electrons as reducing agents for Fe production can simplify the process.
Numerous studies have investigated the electrolysis of Fe oxides, as shown in Table 1. Electrolysis using molten oxides, salts, carbonates, and hydroxides has been investigated using various supporting electrolytes. Among the various electrolysis methods, molten oxide electrolysis is promising owing to the high solubility of oxide feedstocks and the direct use of oxide feeds without pre-treatment, such as sintering or pelletizing. Several studies have reported the results of molten oxide electrolysis at high temperatures such as 1700 K, as shown in Table 1. However, operation at such high temperatures results in higher energy consumption compared to other electrolytic processes that use molten salts, carbonates, or hydroxides.
To decrease the energy consumption of molten oxide electrolysis, the low-temperature molten oxide electrolysis of hematite (Fe2O3) using a boron oxide (B2O3)–sodium oxide (Na2O) electrolyte was investigated [14]. When conducted at 1273 K by applying 1.4–2 V, Fe metal was obtained with a current efficiency of 32.3–54.7%. Use of the B2O3–Na2O electrolyte retained the advantages of the molten oxide electrolysis process, such as the sufficient solubility of Fe2O3 even at moderate operating temperatures.
However, investigations into electrolytic methods using EAF dust to recover Fe and Zn have rarely been reported, as shown in Table 1. Liu et al. performed electrolysis of ZnFe2O4 generated during Zn metallurgy instead of EAF dust in sodium chloride (NaCl)–calcium chloride (CaCl2) molten salt at 1073 K [22]. ZnFe2O4 underwent stepwise reduction, and Fe was reduced before Zn. Although this process can be used to recycle EAF dust, treating chloride salts is challenging because the electrolysis environment tends to be corrosive owing to their hygroscopicity.
Low-temperature molten oxide electrolysis is an alternative method for recovering Fe and Zn from EAF dust. Molten oxides offer a safer and more stable electrolysis environment than chloride-based molten salt systems. In addition, Zn and Fe can be recovered from EAF dust without emitting CO2 gas by using an inert anode. Therefore, to develop a novel and environmentally friendly method for recycling EAF dust, we fundamentally investigated the electrochemical behavior of Fe and Zn oxides and their electrolysis at 1173 K using low-temperature molten oxide electrolysis, as shown in Figure 1.

2. Materials and Methods

2.1. Cyclic Voltammetry (CV) of Fe2O3 and ZnO in B2O3–Na2O Molten Oxide

CV measurements were conducted to investigate the electrochemical behavior of Fe2O3 and ZnO in B2O3–Na2O molten oxide at 1173 K. Prior to the experiments, Na2O (purity: >97.5%; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA) was dried in a vacuum oven (Model: VOS-602 SD, EYELA, Tokyo, Japan) at 453 K for more than 24 h and then stored in a glove box (Model: MB-200MOD, MBRAUN, Garching, Germany) to prevent hydration by atmospheric moisture.
An oxide mixture of 71 mass% B2O3 (purity: 99.98%; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA), 26 mass% Na2O, and 3 mass% Fe2O3 (purity: 99.9%; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA) and a mixture of 71 mass% B2O3, 26 mass% Na2O, 1.5 mass% Fe2O3, and 1.5 mass% ZnO (purity: 99.99%; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA) were prepared at room temperature. The oxide mixtures were placed in an alumina (Al2O3) crucible (O.D. = 56 mm, thickness (t) = 3.5 mm).
Figure 2a shows a schematic of the electrolytic cell used for the CV measurements (see Figure S1 in the Supplementary Materials for a photograph of the apparatus). An Al2O3 crucible containing the oxide mixture was placed in an electric furnace and the temperature was increased to 1173 K for the CV measurements.
Platinum (Pt) wire (purity: 99.95%; diameter (ϕ) = 0.5 mm; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA) was used as both the working and counter electrodes whereas molybdenum (Mo) wire (purity: 99.95%; ϕ = 0.5 mm; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA) was used as the quasi-reference electrode. In addition, an identical Mo wire was used as the potential lead for all electrodes. The electrodes and Mo potential lead were hand-polished prior to the experiment. After connecting the electrode and potential lead, the potential leads of the working and quasi-reference electrodes were diagonally inserted into two holes of an Al2O3 tube (O.D. = 8.5 mm) with four holes (ϕ = 1.8 mm). The potential lead of the counter electrode was inserted into a hole in an identical Al2O3 tube. The end of the potential lead connected to the potentiostat was bent and secured using Teflon tape to prevent electrode movement. Subsequently, the prepared Al2O3 tubes were inserted into the furnace through the two holes in the lid and fixed with clamps. The prepared electrodes were immersed in molten oxide, and CV measurements were conducted using a potentiostat (Model: SP-150e, booster: VMP3B, 2 A–20 V, Biologic Science Instruments, Seyssinet-Pariset, France).

2.2. Molten Oxide Electrolysis of Fe2O3 and ZnO Using the Fe Cathode

Before the experiments, Na2O was dried in a vacuum oven at 453 K for 24 h and then stored in a glove box. Subsequently, 3.0 g of the Fe2O3–ZnO mixture with a predetermined composition as listed in Table 2 was mixed with 97.0 g of an oxide mixture containing B2O3 and Na2O at 73 and 27 mass%, respectively. The prepared oxide mixture was placed in an Al2O3 crucible and then placed in an electric furnace. The temperature was increased to 1173 K and maintained for 3 h before electrolysis.
Figure 2b shows a schematic of the experimental apparatus used for molten oxide electrolysis. Fe wire (purity: 99.99%; ϕ = 1 mm; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA) was used as the cathode, and Pt foil (purity: 99.9%; length (l) = 20 mm, width (w) = 3 mm, t = 0.127 mm; Thermo Fisher Scientific Chemicals, Inc., Ward Hill, MA, USA) was used as the anode. A Mo wire was used as the potential lead to connect the electrode and potentiostat. The electrodes and Mo potential lead were hand-polished before use. Each potential lead assembled with an electrode was inserted into a separate Al2O3 tube. The end of the potential lead connected to the potentiostat was bent and secured using Teflon tape. Subsequently, the prepared Al2O3 tubes were inserted into the furnace through the two holes in the lid and fixed with clamps. The prepared electrodes were immersed in the molten oxide and chronoamperometry was performed in the range of 1.1–1.6 V at 1173 K. Following electrolysis completion, the electrodes were removed from the molten oxide. Subsequently, the temperature was decreased to room temperature, and the cathode was retrieved for analysis.

2.3. Vacuum Distillation of the Fe–Zn Alloys

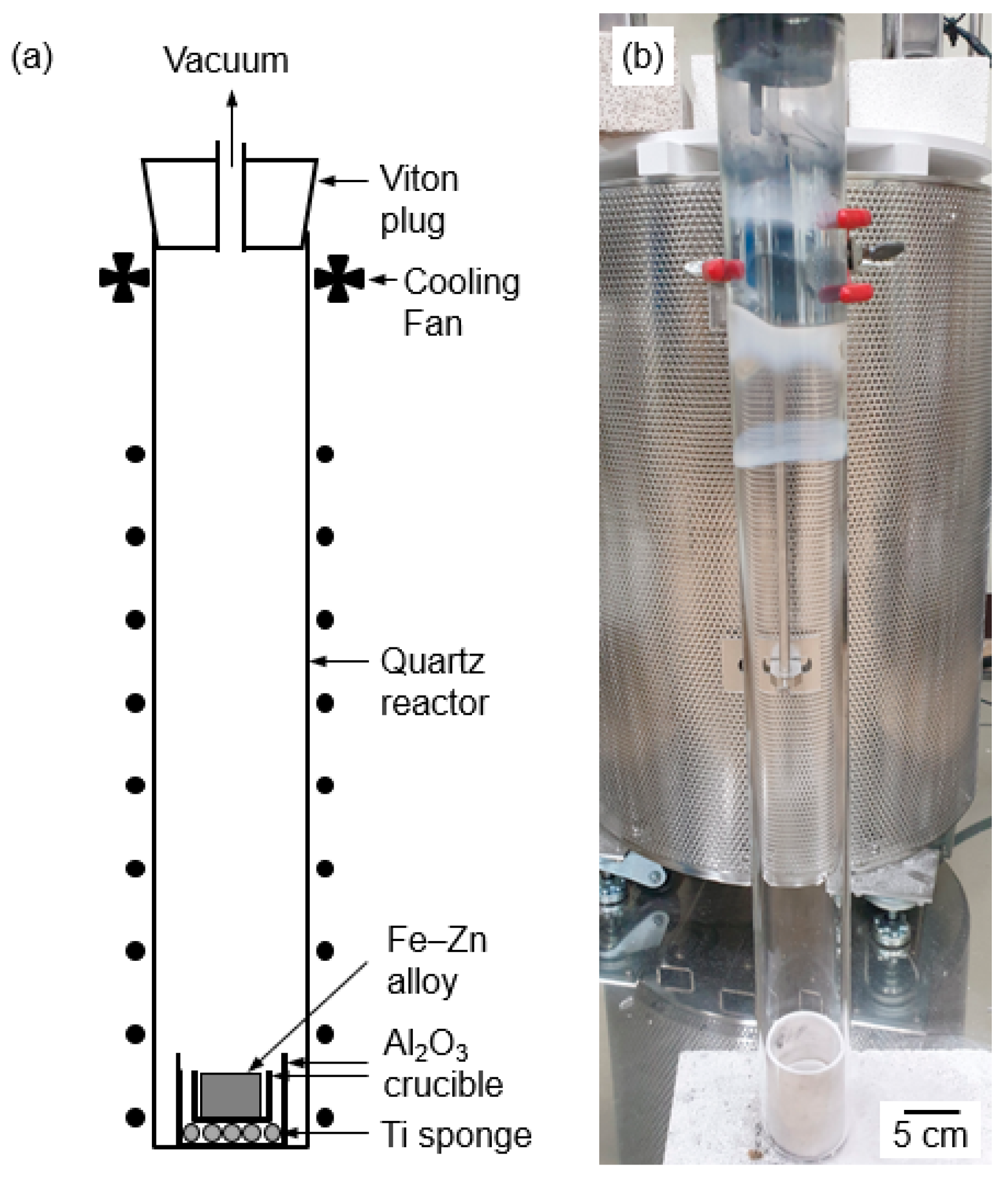

Figure 3 shows a schematic and photograph of the experimental apparatus used for vacuum distillation. The Fe–27.1 mass% Zn alloy (l = 10 mm, w = 10 mm, t = 10 mm; RND KOREA Corp., Gwanmyeong, Republic of Korea) was placed in a small Al2O3 crucible (O.D. = 40 mm, t = 2 mm) that was then placed in another Al2O3 crucible (O.D. = 50 mm, t = 2 mm). A titanium (Ti) sponge was packed at the bottom to absorb residual oxygen in the atmosphere at elevated temperatures. Subsequently, the assembly was positioned at the bottom of a quartz reactor (O.D. = 61 mm, t = 3 mm, height (h) = 650 mm).
A Viton plug equipped with Pyrex tubes as the inlet and outlet was plugged into the top of the reactor, which was then evacuated and refilled twice with argon (Ar) gas (purity: 99.999%) to control the atmosphere. After the final filling with Ar gas, the reactor was continuously evacuated using a rotary pump until the end of the experiment.
The reactor was placed in a furnace preheated to 1200 K for the vacuum distillation of Fe–Zn alloy for 1–12 h. After vacuum distillation, the reactor was immediately removed from the furnace and cooled to room temperature. The residue at the bottom of the crucible and the deposit on the inner wall of the reactor were recovered for analysis.

2.4. Analysis

The microstructures and compositions of the samples were analyzed using field-emission scanning electron microscopy (FE-SEM: GeminiSEM 560, Carl Zeiss AG, Jena, Germany) equipped with energy-dispersive X-ray spectroscopy (EDS: Ultim Max 100, Oxford Instruments, High Wycombe, UK). The crystalline phases of samples were identified using X-ray diffractometer (XRD: SmartLab, Rigaku Corporation, Tokyo, Japan, Cu-Kα radiation). The compositions of the samples were analyzed using inductively coupled plasma optical emission spectroscopy (ICP-OES: 5800 ICP-OES, Agilent Technologies, Santa Clara, CA, USA).

3. Electrolysis Mechanism of Fe2O3 and ZnO in Molten B2O3–Na2O

In this study, to produce metallic Fe or Fe–Zn alloy from Fe2O3 and ZnO, electrolysis in molten B2O3–Na2O using an Fe cathode and a Pt anode was investigated. The FactSage thermodynamic software (FactSage 8.3 version; www.factsage.com) was employed to understand the electrolysis mechanism of Fe2O3 and ZnO. In particular, the FTOxid database containing optimized data for the Fe2O3–B2O3–Na2O and ZnO–B2O3–Na2O systems, in which thermodynamic assessments are based on the modified quasi-model [29,30], was used to calculate activities of molten oxides. In addition, the FSStel database for the Fe–Zn alloy was utilized in the FactSage calculations.
The composition of the supporting electrolyte was determined based on the binary phase diagram of B2O3–Na2O shown in Figure 4. The eutectic compositions of this system were calculated to be at 73 mass%, 32 mass%, and 18 mass% B2O3. Na2O is a network modifier that breaks down the B2O3 network structure in a borate melt, leading to an increase in electrical conductivity [31,32,33]. However, Kim et al. demonstrated that increasing the amount of basic oxide species increases the basicity of the melt, thereby leading to the corrosion of an iridium (Ir)-based inert anode [34]. Therefore, 73 mass% B2O3–Na2O was selected as the supporting electrolyte in this study.

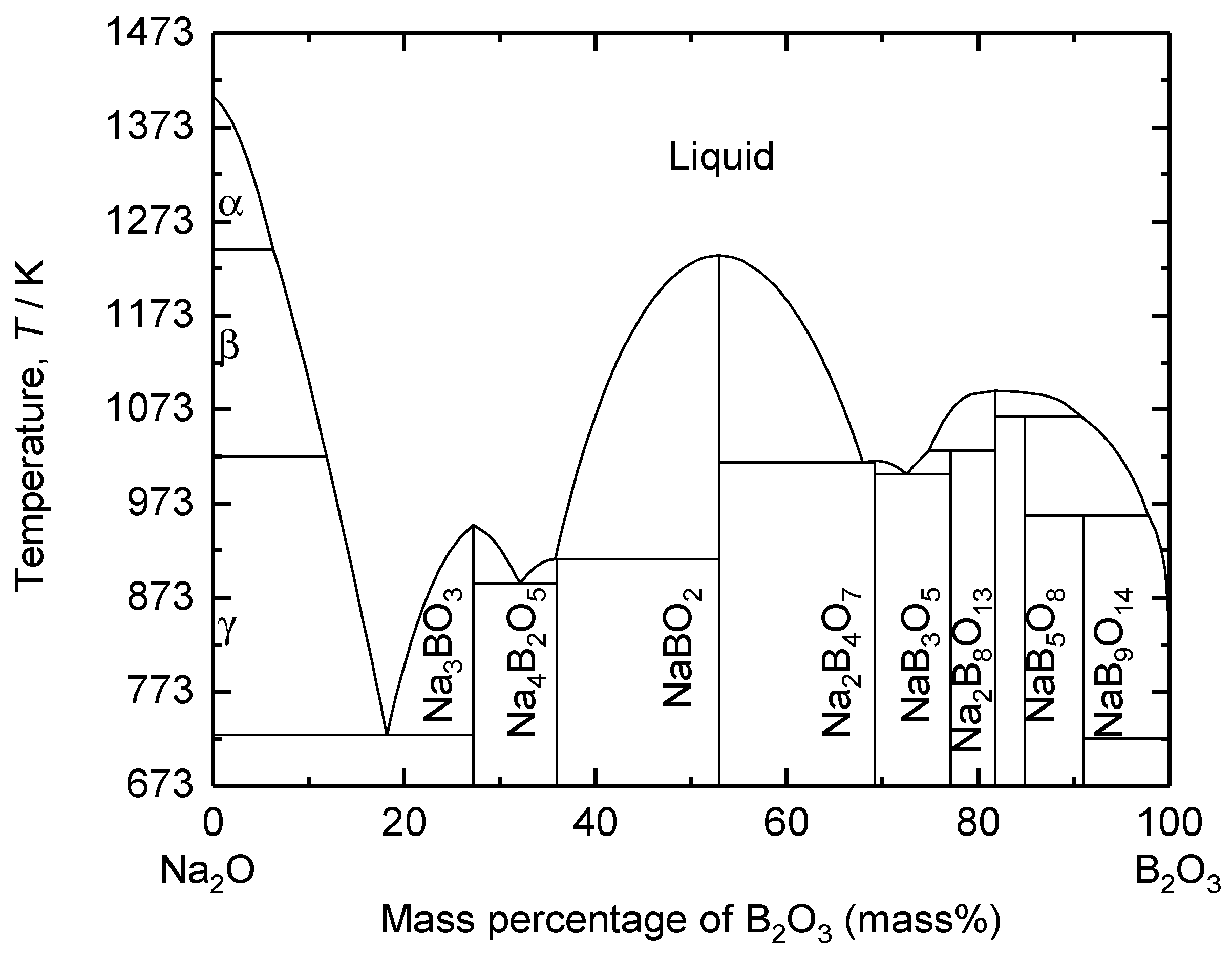

As shown in Figure 4, the eutectic temperature of 73 mass% B2O3–Na2O is 1004 K. Considering the composition as well as the temperature fluctuations during the scaled-up process in the future, the electrolysis temperature of 1173 K was selected for the stable electrolysis operation.
Fe and Zn in EAF dust typically exist in the form of zinc ferrite (ZnFe2O4). However, when ZnFe2O4 is dissolved in the B2O3–Na2O melt, Fe and Zn are present as dissolved species. Therefore, instead of using ZnFe2O4, the mixture of Fe2O3 and ZnO was used as the feedstock to assess the feasibility of utilizing actual EAF dust for molten oxide electrolysis.
The solubilities of Fe2O3 and ZnO in molten B2O3–Na2O at 1173 K were calculated using the FactSage software and were found to be 11.7 mass% and 4.4 mass%, respectively. Consequently, the maximum concentration of ZnO added to 73 mass% B2O3–Na2O was 3 mass% in this study. The feedstock compositions used in this study are listed in Table 2. Figure 5 shows the iso-composition plane of the quaternary phase diagram of the B2O3–Na2O–Fe2O3–ZnO system at 1173 K with 0 mass%, 1 mass%, 2 mass%, and 3 mass% ZnO. According to the calculated phase diagrams presented in Figure 5, all oxide mixtures were in a fully liquid state.
Table 3 shows the theoretical standard decomposition voltages of the selected oxides at 1173–1373 K. Na2O and B2O3 are more stable than the other oxides, owing to their higher decomposition voltages. The reductions of Fe2O3 and ZnO proceed in the following order: Fe2O3 to wüstite (FeO), FeO to metallic Fe, and ZnO to liquid Zn. However, because the actual electrolytic process does not proceed under the standard state conditions, it is necessary to consider the activities of the oxides in the electrolyte melt and the metals at the Fe cathode to accurately estimate the decomposition voltages of all species involved during electrolysis at 1173 K. Thus, FactSage thermodynamic calculations were performed.
In the case of Fe, trivalent (Fe3+) and divalent (Fe2+) Fe ions are present in the oxide melt. To calculate the decomposition voltages of Fe2O3 and FeO, their activities in the melt must be considered. Figure 6a shows the variations in Fe2O3 and FeO in the 73 mass% B2O3–Na2O electrolyte at 1173 K as a function of oxygen partial pressure ( p O 2 ). Using the Nernst equation, the cell voltage required for the reduction of Fe2O3 to FeO under each p O 2 condition was calculated and plotted in Figure 6a. As shown in Figure 6a, Fe3+ and Fe2+ are dominant at high p O 2 and low p O 2 , respectively. During electrolysis, reducing conditions are formed near the cathode, corresponding to a low p O 2 , whereas oxidizing conditions are formed near the anode via O2 gas evolution, corresponding to a high p O 2 . Therefore, as electrolysis proceeds, Fe2+ primarily exists near the cathode, followed by the reduction of Fe3+ to Fe2+, whereas Fe3+ will primarily exist near the anode, as shown in Figure 6b.

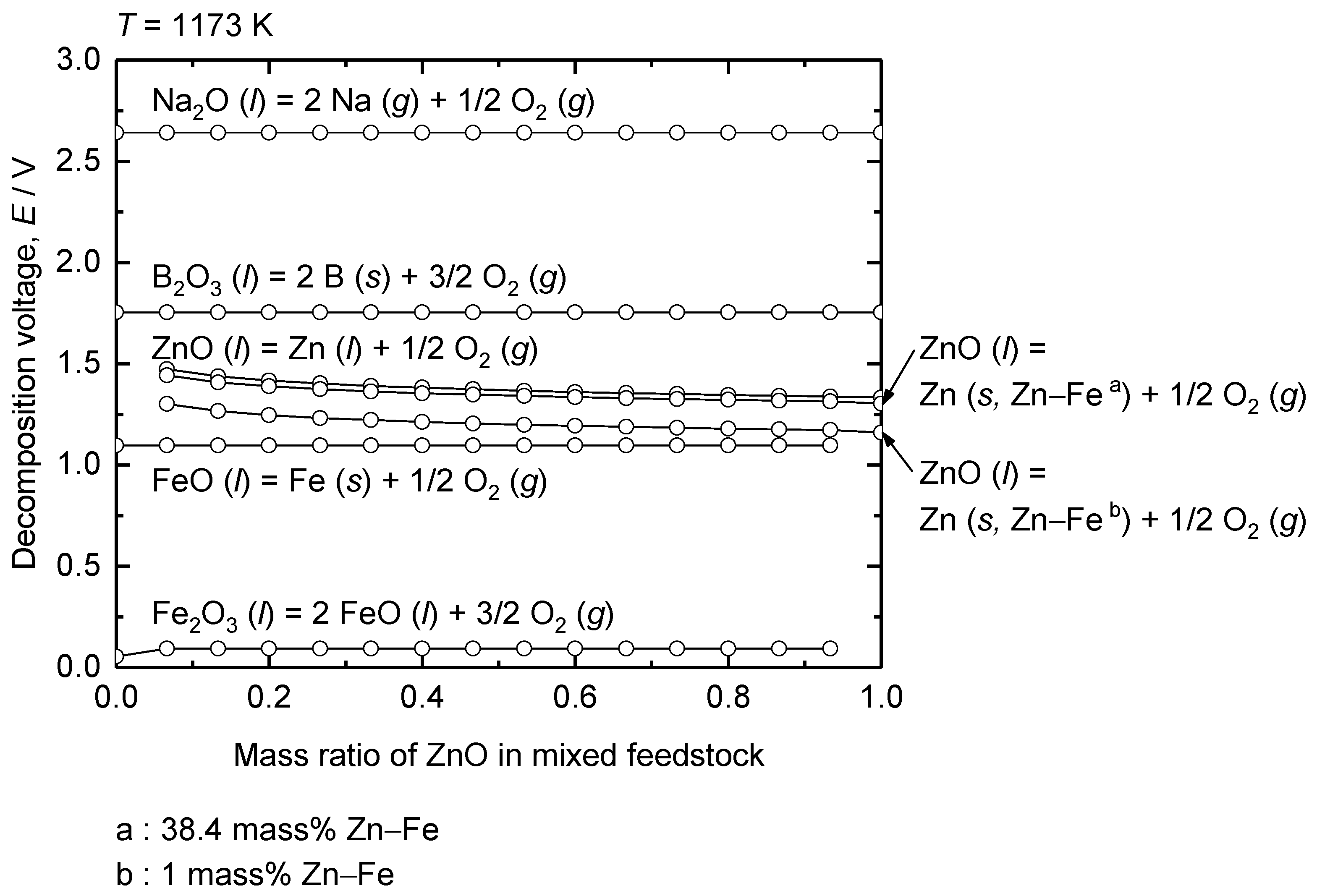

Figure 7 shows the estimated decomposition voltages of Fe2O3, FeO, ZnO, B2O3, and Na2O using the Nernst equation, considering their activities under the conditions of this study at 1173 K as a function of the ZnO ratio in the Fe2O3–ZnO mixed feed. Before electrolysis, Fe2O3 is dominant over FeO because the Fe2O3–ZnO–B2O3–Na2O system is in equilibrium with air ( p O 2 = 0.21 atm) at 1173 K. When the onset of the electrolysis near the cathode is considered, the estimated decomposition voltage for reduction of Fe2O3 to FeO decreases from 0.74 V under standard state conditions to approximately 0.05–0.09 V owing to the significantly low aFeO in the melt.
The decomposition voltage for the reduction of FeO to Fe was calculated by considering the activity of Fe as unity owing to the formation of pure metallic Fe (s). Accordingly, the decomposition voltage for the reduction of FeO to Fe is governed by aFeO, which is directly affected by the FeO concentration near the cathode. Because the decomposition voltage for the reduction of Fe2O3 at the onset of electrolysis is considerably low as shown in Figure 7, Fe2O3 will be reduced to FeO before the reduction of FeO to metallic Fe. This results in the accumulation of FeO near the cathode, leading to a gradual increase in its concentration, until it is reduced to metallic Fe.
The equilibrium p O 2 for the Fe (s)/FeO (l, in melt) eq. under the experimental conditions is 10−18 atm at 1173 K. Therefore, the activities of the existing state of Fe oxides such as aFeO and aFe2O3 before the reduction of FeO to metallic Fe are determined by the FeO (l, in melt)/Fe2O3 (l, in melt) eq. under p O 2 = 10−18 atm. The resulting decomposition voltage estimated using aFeO was approximately 1.09 V, which is slightly higher than that calculated under the standard state of 0.98 V. This increase is attributed to the lower aFeO content in the melt compared with that in the standard state.
The decomposition voltage for the reduction of ZnO was calculated by considering the activities of ZnO near the cathode and Zn in the Fe–Zn alloy. Figure 8 shows that the solubility of Zn in Fe is 38.4 mass% at 1173 K. Consequently, the activities of Zn in the 1 mass% Zn–Fe and 38.4 mass% Zn–Fe solid solutions were considered to estimate the decomposition voltage of ZnO. The aZn of the 1 mass% Zn–Fe solid solution indicates the onset of ZnO reduction into the Fe cathode, whereas that of the 38.4 mass% Zn–Fe solid solution indicates the saturation of Zn in the Fe cathode by ZnO reduction. The estimated decomposition voltages were 1.21 V and 1.34 V for 1 mass% and 38.4 mass% Zn–Fe solid solutions, respectively.
For the supporting electrolytes, the calculation results indicate that both B2O3 and Na2O decompose at higher voltages than Fe oxides and ZnO at 1173 K. The estimated decomposition voltage for B2O3 (l, in melt) was 1.75 V, which is slightly higher than that of B2O3 (l) under standard state conditions (1.70 V). The estimated decomposition voltage of Na2O (l, in melt) was 2.64 V, which is significantly higher than that of Na2O (s) under standard state conditions (1.33 V). This increase is attributed to a substantial decrease in the activity of Na2O in the melt. Notably, Na2O exhibits considerably low activity in acidic oxide systems because it is strongly stabilized in melt [35,36,37].
These results indicate that the reduction of Fe and Zn occurs prior to the decomposition of the electrolyte components. In addition, the selective reduction of FeO from the mixture of Fe2O3 and ZnO is feasible through molten oxide electrolysis at 1173 K by using the difference in their decomposition voltages, as shown in Figure 7. Furthermore, when the cell voltage above the decomposition voltage determined by the ZnO (l, in melt)/1 mass% Zn–Fe (s) eq. is applied during the molten oxide electrolysis of the mixture of Fe2O3 and ZnO at 1173 K, an Fe–Zn solid solution will be obtained.

4. Results and Discussion

4.1. CV Measurements of Fe2O3 and the Mixture of Fe2O3 and ZnO in the Molten Oxide

To investigate the electrochemical behaviors of the Fe and Zn oxides in the B2O3–Na2O molten oxides at 1173 K, CV measurements were conducted using Mo as the quasi-reference electrode and Pt as both the working and counter electrodes. Figure 9 shows the results of the CV measurements conducted on the B2O3–Na2O–Fe2O3 molten oxide before and after the addition of ZnO.
As shown in Figure 9a,b, a sharp increase in anodic current was observed at 1.15 V (vs. Mo quasi-reference electrode). This increase is attributed to the oxidation of O2− ions to O2 gas, as shown in Equation (1). In addition, a sharp increase in cathodic current was observed at −0.5 V (vs. Mo quasi-reference electrode). As shown in Figure 7, the estimated decomposition voltages of B2O3 (l, in melt) and Na2O (l, in melt) were 1.75 V and 2.64 V, respectively. Therefore, the increase in the cathodic current from −0.5 V (vs. Mo quasi-reference electrode) is attributed to the reduction of B3+, as shown in Equation (2).
2 O2− (in melt) = O2 (g) + 4 e
B3+ (in melt) + 3 e = B (s)
As shown in Table 3, the decomposition voltages of Na2O and B2O3 are 1.33 V and 1.70 V at 1173 K under the standard state, respectively. The decomposition voltage of Na2O is lower than that of B2O3 under the standard state. It is worth noting that Na+/Na (l) eq. was not observed in Figure 9. This shows that the results of the CV measurements match the estimated decomposition voltages of B2O3 (l, in melt) by the FactSage software for the Fe2O3–B2O3–Na2O and ZnO–B2O3–Na2O systems. Therefore, the utilization of the optimized thermodynamic database is valid for estimating the electrochemical behavior of the molten oxide electrolysis of the B2O3–Na2O–Fe2O3–ZnO system at 1173 K.
Meanwhile, as shown in Figure 9a,b, when the potential of the working electrode decreased from 1.15 V (vs. Mo quasi-reference electrode) to 0.4 V (vs. Mo quasi-reference electrode), a gradual increase in the cathodic current was observed. Because the estimated potential for O2−/O2 (g) eq. was 1.15 V (vs. Mo quasi-reference electrode), the value of p O 2 is expected to be approximately 1 atm at 1.15 V (vs. Mo quasi-reference electrode). This value corresponds to point a in Figure 6 where Fe2O3 is dominant. In this case, the estimated decomposition voltage of Fe2O3 is 0.05 V. Therefore, the gradual increase in the cathodic current from 1.15 V (vs. Mo quasi-reference electrode) is attributed to the reduction of Fe3+ to Fe2+, as shown in Equation (3).
Fe3+ (in melt) + e = Fe2+ (in melt)
In addition, an increase in cathodic current was observed at 0.18 V (vs. Mo quasi-reference electrode), as shown in Figure 9a,b. The span of the potential between O2 gas evolution and 0.18 V is 0.97 V. As the cathodic potential was swept in the negative direction from the potential of Fe3+/Fe2+ eq. at 1.15 V (vs. Mo quasi-reference electrode), the concentration of FeO near the working electrode continuously increased. In addition, Figure 7 shows that the estimated decomposition voltage of FeO (l, in melt) was 1.10 V. Therefore, the reduction of Fe2+ to Fe (s), as shown in Equation (4) occurred at 0.18 V (vs. Mo quasi-reference electrode).
Fe2+ (in melt) + 2 e = Fe (s)
As the cathodic potential was further swept in the negative direction, an increase in the cathodic current was observed at −0.06 V (vs. Mo quasi-reference electrode) in Figure 9b. This increase was not observed when only Fe2O3 was used as the feedstock. Therefore, the cathodic current at −0.06 V (vs. Mo quasi-reference electrode) is attributed to the reduction of ZnO. The span of the potential between O2 gas evolution and −0.06 V is 1.21 V. As shown in Figure 7, the estimated decomposition voltage of ZnO (l, in melt) to Zn (s, in 1 mass% Zn–Fe) was 1.22 V. Therefore, the reduction of Zn2+ to Zn (s, in 1 mass% Zn–Fe), as shown in Equation (5), occurred at −0.06 V (vs. Mo quasi-reference electrode). Therefore, the reduction potentials of the dissolved oxide species were determined via CV measurements. The reduction potentials obtained during repeated CV measurements yielded identical values, validating the repeatability and the stability of the Mo quasi-reference electrode.
Zn2+ (in melt) + 2 e + Fe (s) = 1 mass% Zn–Fe (s)

4.2. Electrolysis of ZnO and the Mixture of Fe2O3 and ZnO in the Molten Oxide

4.2.1. Selective Reduction of the Fe Oxide from B2O3–Na2O–Fe2O3–ZnO Melt

To evaluate the feasibility of selectively reducing Fe oxide from a mixed feedstock containing Fe2O3 and ZnO, electrolysis was conducted by applying a cell voltage of 1.1 V for 1 h using an Fe cathode and a Pt anode in the B2O3–Na2O–Fe2O3–ZnO molten oxides at 1173 K. The applied cell voltage was determined by considering the results of the CV measurements shown in Figure 9, which indicated that Fe oxide can be reduced at 0.97 V, whereas the reduction of ZnO required a higher cell voltage of 1.21 V. To investigate the influence of the composition variation of Fe2O3 and ZnO in the EAF dust, feedstocks with different ratios of Fe2O3 to ZnO, as listed in Table 2, were employed.
Figure 10 shows the SEM-EDS results of the cross-section of the cathode surface before and after electrolysis with varying Fe2O3 to ZnO ratios from 3:1 to 1:3. Compared to the smooth surface observed in the electrode before electrolysis shown in Figure 10a, the electrode recovered after electrolysis in Figure 10b,c showed a rough surface owing to the dendritic growth of the reduced Fe. In addition, several of these coarse particles were partially detached from the electrode surface. Such morphologies have been reported for the reduction of solid-state metal oxides on solid electrodes, where the deposits tend to exhibit weak adhesion to the solid substrate because of their branched structure and limited interfacial contact [38].
As shown in Figure 10d–f, regardless of the composition ratio of the Fe2O3 and ZnO feedstock mixtures, only metallic Fe was observed on the surface of the Fe cathode, while Zn, B, and Na were not observed. Although the mean cathodic current during electrolysis decreased from 10.37 mA to 1.89 mA as the Fe2O3 concentration in the molten oxides decreased (see Figure S2a in the Supplementary Materials), the selective reduction of Fe oxide proceeded. The selective reduction of Fe oxide over ZnO was achieved via electrolysis in B2O3–Na2O molten oxides at 1173 K when the ratio of Fe2O3 to ZnO ranged from 3:1 to 1:3. Therefore, EAF dust with various concentrations of Fe oxide and ZnO can be utilized as feedstock to produce Fe metal using our developed molten oxide system.

4.2.2. Reduction of ZnO from B2O3–Na2O–ZnO Melt

Before conducting the co-reduction of Fe oxide and ZnO, the reduction behavior of ZnO during electrolysis in B2O3–Na2O molten oxides at 1173 K was investigated. Electrolysis was conducted for 1–3 h using an Fe cathode and a Pt anode by applying a cell voltage of 1.6 V. The applied cell voltage was determined by considering the results of the CV measurements shown in Figure 9, which indicate that ZnO can be reduced at 1.21 V, while the decomposition of the supporting electrolyte occurs at a higher cell voltage of 1.65 V.

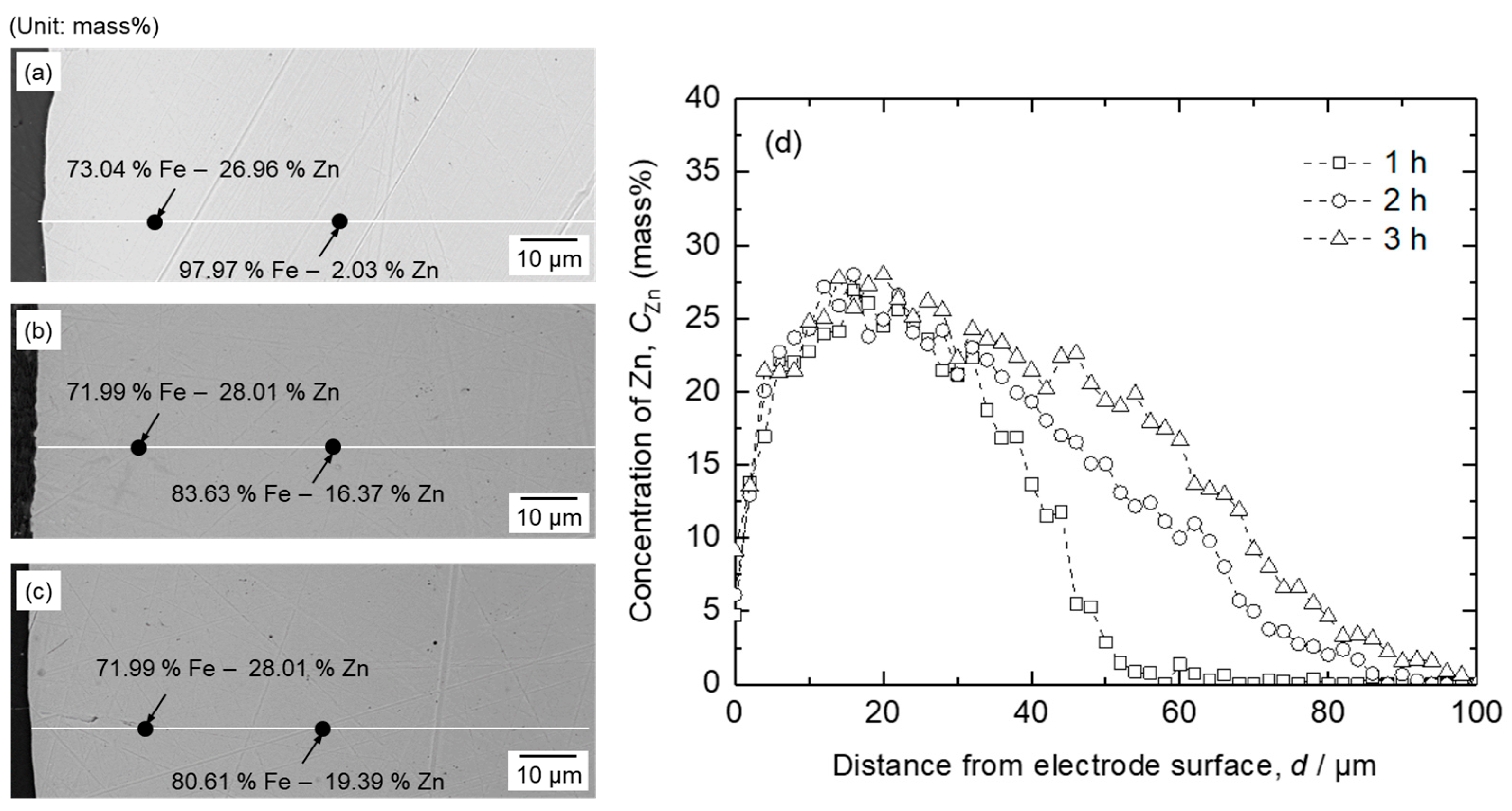

Figure 11 shows the SEM-EDS results for the cathode recovered after electrolysis. As shown in Figure 11a–c, an Fe–Zn solid solution was observed at the cathode, indicating the reduction of ZnO during electrolysis. The electrode exhibited a smooth surface compared with that of the electrode surface with only electrodeposited Fe metal. The Zn concentration exhibited its highest value of 26.96–28.01 mass% in the Fe cathode at 16–20 μm from the surface of the cathode, which was close to its maximum solubility. As shown in Figure 11d, at depths between 18 μm and 100 μm from the cathode surface, Zn diffused into the interior of the Fe cathode. This resulted in a gradual decrease in Zn concentration from its maximum concentration to below the detection limit. In addition, Figure 11d shows that the Zn concentration decreases more gradually with increasing electrolysis duration because a larger amount of Zn is reduced.
Figure 11d shows that at depths of 0–18 μm from the cathode, the Zn concentration increased from the surface of the cathode to its highest value. The Zn concentration at the surface of the cathode was only 4.71–9.12 mass%, likely due to the volatilization of Zn. As shown in Figure 8, Zn exhibited a high vapor pressure of 10−2 atm, even when the concentration of Zn in the Fe–Zn alloy was 0.2 mass% at 1173 K. Therefore, Zn at the surface of the Fe cathode can evaporate during electrolysis, resulting in a low concentration.

4.2.3. Co-Reduction of Fe Oxide and ZnO from B2O3–Na2O–Fe2O3–ZnO Melt

Although the selective reduction of Fe oxides from the mixture of Fe2O3 and ZnO via electrolysis at 1.1 V was confirmed, a low cathodic current was observed during electrolysis. Therefore, electrolysis of a mixture of Fe2O3 and ZnO was conducted by applying 1.6 V to investigate the reduction behavior of the oxides while increasing the cathodic current. Electrolysis was conducted in B2O3–Na2O–Fe2O3–ZnO molten oxides using feedstocks with different ratios of Fe2O3 to ZnO in Table 2, for 1 h using an Fe cathode and a Pt anode at 1173 K. When electrolysis was conducted at 1.6 V, the co-reduction of Fe and Zn oxides to produce the Fe–Zn alloy was expected considering the decomposition voltages of Fe oxide and ZnO, as shown in Figure 9. However, Zn can be separated from the Fe–Zn alloy through vacuum distillation owing to the large vapor pressure difference between Fe and Zn.

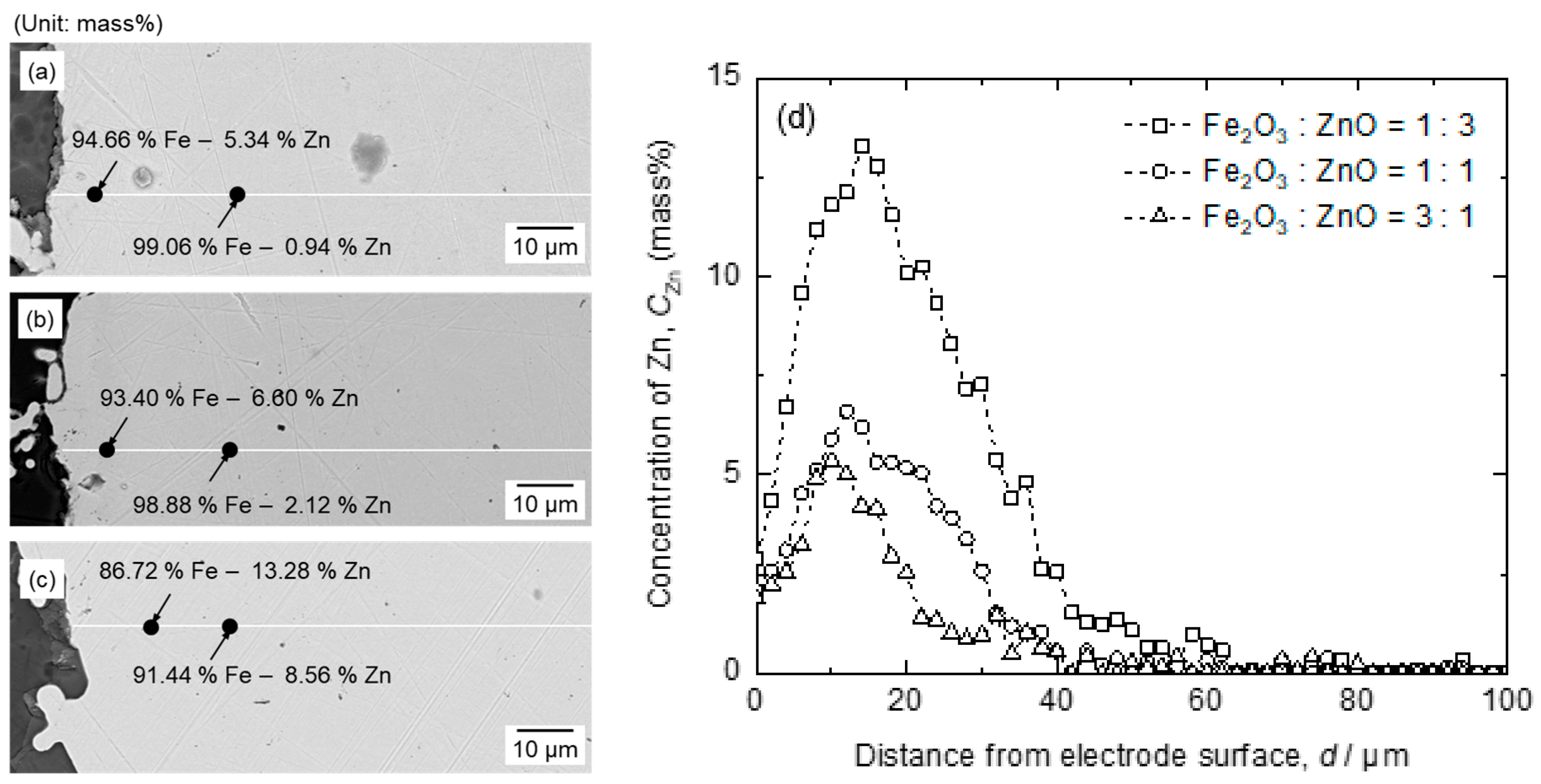

Figure 12 shows the SEM-EDS results for the cross-section of the cathode recovered after electrolysis conducted for 1 h at 1.6 V, using Fe2O3 and ZnO feedstocks at various ratios. As shown in Figure 12, an Fe–Zn solid solution was observed at the Fe cathode, indicating that ZnO was reduced on the Fe cathode. The Zn concentration in the Fe cathode increased as the ZnO concentration in the feedstock increased, exhibiting its highest value of 5.34–13.28 mass% Zn, at 10–14 μm from the surface of the cathode. The Zn concentration gradually decreased after reaching its highest value owing to its diffusion into the interior of the Fe cathode. Meanwhile, the concentration of Zn near the surface of the Fe cathode was 1.89–2.87 mass%, owing to the evaporation of Zn at the surface of the cathode.
As shown in Figure 12a–c, the electrode exhibited a rough surface owing to the dendritic growth of reduced Fe. The dendritic Fe deposit contained 6.98–17.87 mass% Zn (see Figure S3 in the Supplementary Materials). Therefore, the co-reduction of Fe oxide and ZnO occurred when electrolysis was conducted at a cell voltage of 1.6 V.
The morphology of the dendritic Fe deposit was further analyzed to evaluate the effect of cell voltage. In Figure 10b, when the applied cell voltage was 1.1 V, the reduced Fe appeared as coarse and compact deposits localized near the cathode surface. In contrast, at 1.6 V, the deposits exhibited a finer dendritic morphology and were more widely distributed in the electrolyte. Figure 13 shows the SEM images of the cathode after electrolysis for 5 h under the same experimental condition as in Exp. nos. 1-3 and 2-3. As the electrolysis time was extended to 5 h, the morphological features observed at 1 h became more pronounced, with coarser dendritic deposits at 1.1 V and finer, more branched dendritic deposits at 1.6 V. Thus, applying a higher cell voltage of 1.6 V promoted a higher nucleation rate and finer dendrite growth.
The electrolysis results indicate that the co-reduction of Fe oxide and ZnO is attainable at 1173 K with an applied cell voltage of 1.6 V, when the weight ratio of Fe2O3 to ZnO in the feedstock ranges from 3:1 to 1:3. Fe is reduced on the surface of the Fe cathode and Zn is reduced at the Fe cathode and on the Fe deposit. In addition, a mean cathodic current of 55.15–30.92 mA was observed during electrolysis at an applied cell voltage of 1.6 V. This value is significantly higher than that observed during electrolysis at 1.1 V (see Figure S2 in the Supplementary Materials), indicating an enhanced overall reduction rate of oxides.
Throughout the electrolysis experiments, the stability of the supporting electrolyte was maintained owing to its low vapor pressure and by controlling the cell voltage below the decomposition voltage of B2O3. Regarding electrode stability, Pt is thermodynamically stable even under high p O 2 conditions. Furthermore, an SEM image after electrolysis revealed no detectable degradation of the anode surface and the thickness remained unchanged, confirming its stability (see Figure S4 in the Supplementary Materials).

4.3. Vacuum Distillation of the Fe–Zn Alloys

To investigate the feasibility of separating high-purity Fe and Zn from the Fe–Zn alloy, vacuum distillation of the Fe–27.1 mass% Zn alloys was conducted at 1000–1200 K for 1–12 h. The concentration of Zn in the Fe–Zn alloy was selected by considering its maximum concentration in the Fe–Zn alloys obtained after electrolysis. Owing to the large difference in vapor pressure between Fe and Zn, vacuum distillation at high temperatures is an effective method for separating Fe and Zn from their alloys (see Figure S5 in the Supplementary Materials).

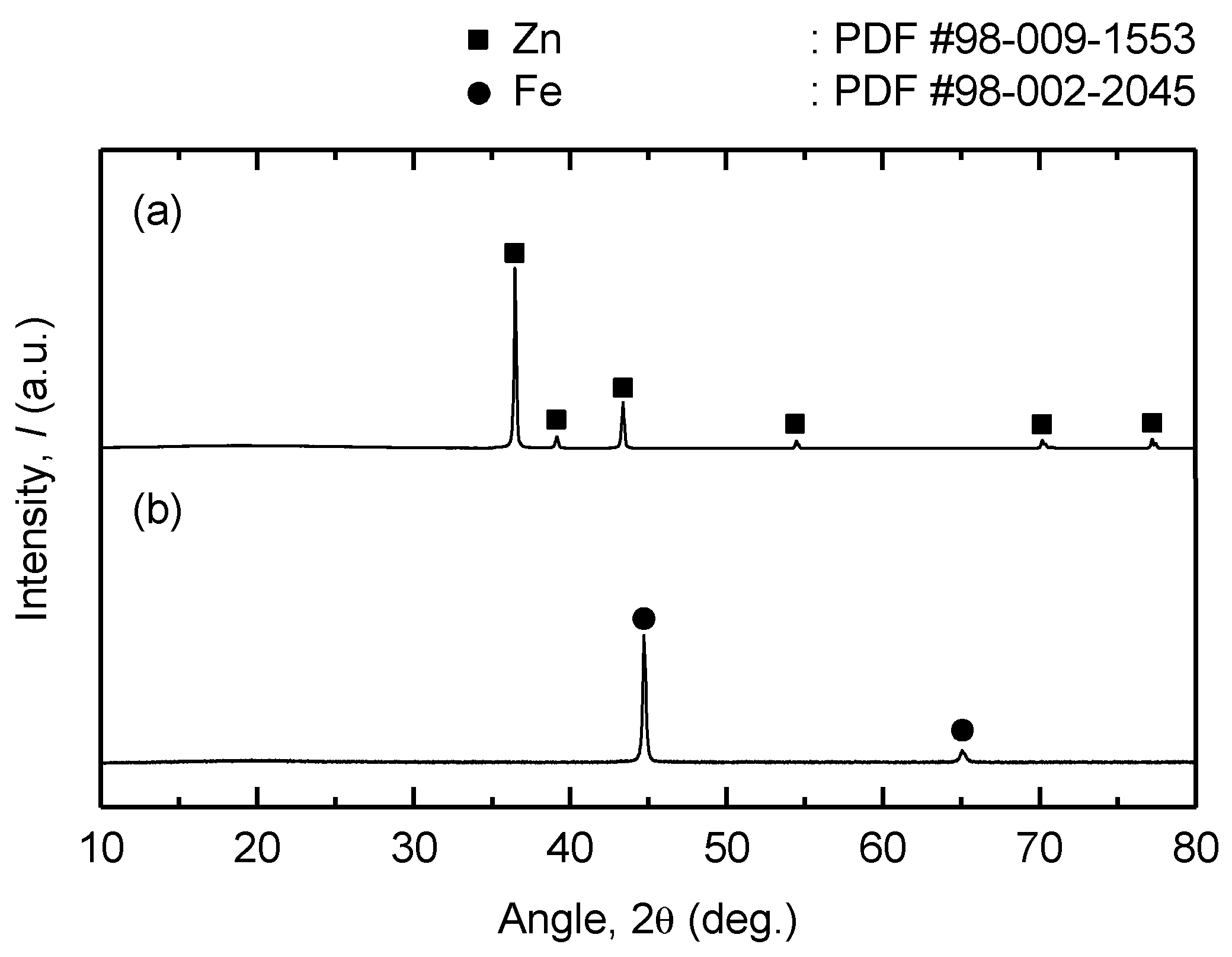

Figure 14 shows the XRD results of the deposit obtained from the low-temperature part of the reactor and the residue at the bottom of the reactor following vacuum distillation of the Fe–Zn alloy at 1200 K for 12 h. Table 4 shows the ICP-OES results of the Fe–Zn alloy before distillation, Zn deposit after distillation at 1200 K for 12 h, and residues after distillation at 1000–1200 K for 1–12 h. The results show that Zn was separated from the Fe–Zn alloy and condensed at the low-temperature part of the reactor with a purity of ≥99.996%. In addition, the residue at the bottom of the reactor was Fe with a purity of ≥99.9% (see Figure S6 in the Supplementary Materials for detailed information of vacuum distillation). Thus, vacuum distillation enabled the separation and recovery of high-purity Zn and Fe from Fe–Zn alloys.
The effect of distillation time and temperature on the recovery efficiency of Zn was evaluated based on the ICP results in Table 4. The Zn recovery efficiency was calculated using Equation (6), where wresidue is the weight of the residue at the bottom of the reactor, wfeed is the weight of the Fe–Zn alloy before vacuum distillation, CZn_feed is the concentration of Zn in the Fe–Zn alloy before vacuum distillation, and CZn_residue is the concentration of Zn in the residue at the bottom of the reactor.
R (%) = 100 × {1 − (wresidue/wfeed)/(CZn_feed/CZn_residue)}

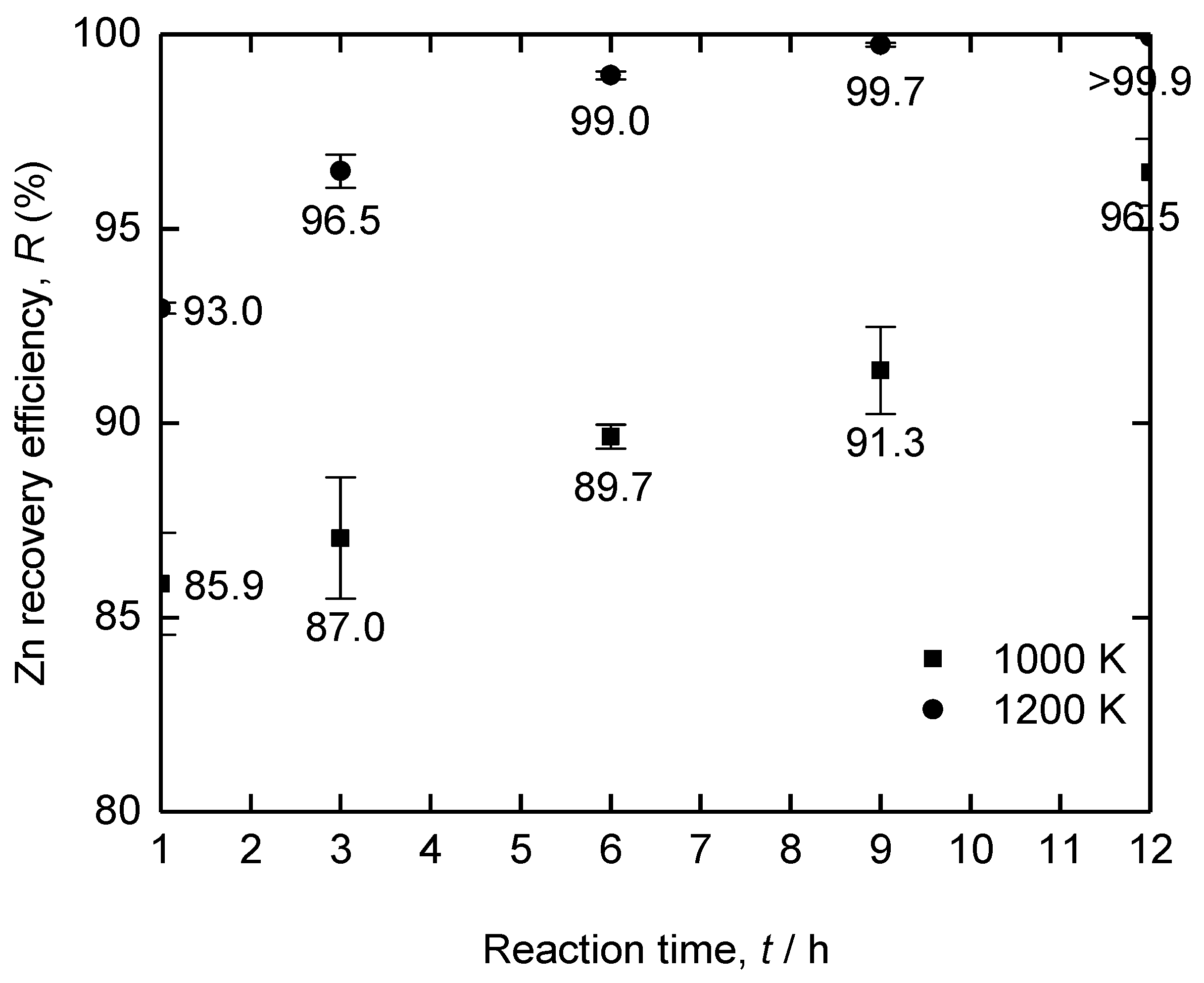

Figure 15 shows the Zn recovery efficiency obtained after vacuum distillation of the Fe–Zn alloy at 1000 K and 1200 K for 1–12 h. At 1000 K, the Zn recovery efficiency increased from 85.9% at 1 h to 96.5% at 12 h. However, the Zn in Fe–Zn alloys was not completely recovered even when distillation was conducted for 12 h. This is because the vapor pressure of Zn was not sufficient for volatilization, as it decreases below 10−2 atm when its concentration in the Fe–Zn alloy decreases to 1.2 mass% during vacuum distillation.
Meanwhile, at 1200 K, the efficiency increased from 93.0% to 99.0% as the distillation time increased from 1 h to 6 h and further increased to 99.7–99.9% after 9–12 h. The increased recovery efficiency of Zn from the Fe–Zn alloy at 1200 K compared to 1000 K is due to the increase in vapor pressure of Zn, as shown in Figure 8. Thus, a sufficient amount of Zn was recovered from the Fe–Zn alloy via vacuum distillation at 1200 K for 6 h with a recovery efficiency of ≥99%.

5. Conclusions

The electrochemical behavior and electrolysis of Fe2O3 and ZnO in a B2O3–Na2O molten oxide electrolyte at 1173 K were investigated to develop a CO2-free process for the recovery of Fe and Zn from EAF dust. The CV measurement results revealed that the decomposition voltages of FeO, ZnO, and B2O3 in the electrolyte were 0.97 V, 1.21 V, and 1.65 V, respectively, as expected from thermodynamic calculations. When electrolysis was conducted at a cell voltage of 1.1 V for 1 h using an Fe cathode and a Pt anode, the selective reduction of Fe oxide was observed, resulting in the formation of coarse metallic deposits on the cathode surface. At an applied cell voltage of 1.6 V for 1 h, an Fe–Zn alloy was produced owing to the co-reduction of Fe oxide and ZnO, and the maximum concentration of Zn in the Fe cathode increased from 5.34 mass% to 13.28 mass% when the ratio of ZnO in the feedstock increased from 0.25 to 0.75, respectively. When vacuum distillation was conducted at 1200 K for 12 h, Zn metal with a purity of ≥99.996% was obtained, with a recovery efficiency of ≥99.9%.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ma18174116/s1, Figure S1: Photograph of experimental apparatus used for cyclic voltammetry measurement and electrolysis in this study; Figure S2: Current during electrolysis of Fe2O3 and ZnO mixture in 73 mass% B2O3–Na2O molten oxide electrolyte at 1173 K for 1 h, by applying a cell voltage of (a) 1.1 V and (b) 1.6 V; Figure S3: SEM-EDS results for the cathode after electrolysis of B2O3–Na2O–Fe2O3–ZnO at 1173 K for 1 h by applying a cell voltage of 1.6 V in following feedstocks; (a) 2.25 g of Fe2O3 + 0.75 g of ZnO (Exp. no. 2-1); (b) 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 2-3); Figure S4: SEM images of the Pt anode (a) before and (b) after electrolysis; Figure S5: Vapor pressure of Fe and Zn at elevated temperatures; Figure S6: Temperature profile of the reactor at 1200 K and photographs of deposit and residue obtained after vacuum distillation of Fe–Zn alloy at 1200 K for 12 h.

Author Contributions

Conceptualization, J.K. (Joongseok Kim), I.-H.J., J.K. (Jungshin Kang) and K.-W.Y.; formal analysis, J.K. (Joongseok Kim); funding acquisition, J.K. (Jungshin Kang) and K.-W.Y.; investigation, J.K. (Joongseok Kim); supervision, J.K. (Jungshin Kang) and K.-W.Y.; validation, J.K. (Joongseok Kim), I.-H.J., J.K. (Jungshin Kang) and K.-W.Y.; visualization, J.K. (Joongseok Kim); writing—original draft preparation, J.K. (Joongseok Kim); writing—review and editing, I.-H.J., J.K. (Jungshin Kang) and K.-W.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Korea Institute of Energy Technology Evaluation and Planning (KETEP) (Project No.: RS-2023-00246095 and Project No.: RS-2025-0442986), funded by the Ministry of Trade, Industry & Energy (MOTIE) of the Republic of Korea and by the Pohang Iron & Steel Company (POSCO) (Project No.: 2022Z001) of the Republic of Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article. Further inquiries can be directed to the corresponding author(s).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. World Steel Association. World Steel in Figures 2025. Available online: https://worldsteel.org/data/world-steel-in-figures/world-steel-in-figures-2025/ (accessed on 7 July 2025).
  2. US Geological Survey. Mineral Commodity Summaries 2025: Iron and Steel. Available online: https://pubs.usgs.gov/periodicals/mcs2025/mcs2025-iron-steel.pdf (accessed on 14 July 2025).
  3. Sohn, H. Recycling of Common Metals; KNU Press: Daegu, Republic of Korea, 2020; pp. 120–121. [Google Scholar]
  4. World Steel Association. Steel’s Contribution to a Low Carbon Future and Climate Resilient Societies. Available online: https://www.acero.org.ar/wp-content/uploads/2020/02/Position_paper_climate_2020_vfinal.pdf (accessed on 14 July 2025).
  5. Pistorius, P.C. Energy requirements for electrification of ironmaking and steelmaking. In Proceedings of the Southern African Pyrometallurgy, Misty Hills Conference Centre, Johannesburg, South Africa, 12–14 March 2024. [Google Scholar]
  6. Patisson, F.; Mirgaux, O. Hydrogen ironmaking: How it works. Metals 2020, 10, 922. [Google Scholar] [CrossRef]
  7. IEAGHG. Clean Steel: An Environmental and Technoeconomic Outlook of a Disruptive Technology. In IEAGHG Technical Report; IEAGHG: Cheltenham, UK, 2024. [Google Scholar]
  8. Allanore, A.; Yin, L.; Sadoway, D.R. A new anode material for oxygen evolution in molten oxide electrolysis. Nature 2013, 497, 353–356. [Google Scholar] [CrossRef]
  9. Zhang, K.; Jiao, H.; Zhou, Z.; Jiao, S.; Zhu, H. Electrochemical behavior of Fe (III) ion in CaO–MgO–SiO2–Al2O3–NaF–Fe2O3 melts at 1673 K. J. Electrochem. Soc. 2016, 163, D710. [Google Scholar] [CrossRef]
  10. Wiencke, J.; Lavelaine, H.; Panteix, P.-J.; Petitjean, C.; Rapin, C. Electrolysis of iron in a molten oxide electrolyte. J. Appl. Electrochem. 2018, 48, 115–126. [Google Scholar] [CrossRef]
  11. Liu, J.; Zhang, Y. Electroreduction mechanism and electrodeposition of ferric ions in CaO–SiO2–Al2O3–Fe2O3 slags at 1773 K. Can. Metall. Q. 2023, 62, 119–124. [Google Scholar] [CrossRef]
  12. Kim, H.; Paramore, J.D.; Allanore, A.; Sadoway, D.R. Stability of iridium anode in molten oxide electrolysis for ironmaking: Influence of slag basicity. ECS Trans. 2010, 33, 219. [Google Scholar] [CrossRef]
  13. Wang, D.; Gmitter, A.J.; Sadoway, D.R. Production of oxygen gas and liquid metal by electrochemical decomposition of molten iron oxide. J. Electrochem. Soc. 2011, 158, E51. [Google Scholar] [CrossRef]
  14. Choi, H.-G.; Choi, S.; Kim, M.-K.; Jang, J.; Nam, K.T.; Jung, I.-H.; Yi, K.-W. Electrolysis of iron with oxygen gas evolution from molten sodium borate electrolytes. Ironmak. Steelmak. 2021, 48, 1030–1037. [Google Scholar] [CrossRef]
  15. Park, K.W.; Sohn, I. Electrochemical reduction of K2MoO4–Fe2O3 binary melts using a consumable steel electrode to produce ferromolybdenum alloys. J. Sustain. Metall. 2023, 9, 753–762. [Google Scholar] [CrossRef]
  16. Zhou, Z.; Jiao, H.; Tu, J.; Zhu, J.; Jiao, S. Direct production of Fe and Fe–Ni alloy via molten oxides electrolysis. J. Electrochem. Soc. 2017, 164, E113. [Google Scholar] [CrossRef]
  17. Haarberg, G.M.; Kvalheim, E. Electrochemical behavior of dissolved Fe2O3 in molten CaCl2–KF. J. Electrochem. Soc. 2017, 164, E113. [Google Scholar] [CrossRef]
  18. Haarberg, G.M.; Kvalheim, E.; Rolseth, S.; Murakami, T.; Pietrzyk, S.; Wang, S. Electrodeposition of iron from molten mixed chloride/fluoride electrolytes. ECS Trans. 2007, 3, 341. [Google Scholar] [CrossRef]
  19. Li, H.; Jia, L.; Liang, J.-l.; Yan, H.-y.; Cai, Z.-y.; Reddy, R.G. Study on the direct electrochemical reduction of Fe2O3 in NaCl–CaCl2 melt. Int. J. Electrochem. Sci. 2019, 14, 11267–11278. [Google Scholar] [CrossRef]
  20. Xie, K.; Kamali, A.R. Molten salt electrochemical production and in situ utilization of hydrogen for iron production. Int. J. Hydrogen Energy 2019, 44, 24353–24359. [Google Scholar] [CrossRef]
  21. Li, G.; Wang, D.; Chen, Z. Direct reduction of solid Fe2O3 in molten CaCl2 by potentially green process. J. Mater. Sci. Technol. 2009, 25, 767. [Google Scholar]
  22. Liu, C.; Liang, J.; Li, H.; Yan, H.; Zheng, S.; Cao, W.; Wang, L. The electrochemical reduction mechanism of ZnFe2O4 in NaCl–CaCl2 melts. Crystals 2021, 11, 925. [Google Scholar] [CrossRef]
  23. Xu, Y.; Yan, H.; Jing, Z.; Qi, X.; Li, H.; Liang, J. Effect of Fe2O3 on electro-deoxidation in Fe2O3–Al2O3–NaCl–KCl system. Crystals 2021, 11, 1026. [Google Scholar] [CrossRef]
  24. Panigrahi, M.; Iizuka, A.; Shibata, E.; Nakamura, T. Fe–Ti alloy production by electrolytic reduction of (Fe, Ti) oxide electrodes in molten calcium chloride. In TT Chen Honorary Symposium on Hydrometallurgy, Electrometallurgy and Materials Characterization; TMS: Warrendale, PA, USA, 2012; pp. 273–284. [Google Scholar]
  25. Qiu, G.; Wang, D.; Ma, M.; Jin, X.; Chen, G.Z. Electrolytic synthesis of TbFe2 from Tb4O7 and Fe2O3 powders in molten CaCl2. J. Electroanal. Chem. 2006, 589, 139–147. [Google Scholar] [CrossRef]
  26. Tang, D.; Yin, H.; Xiao, W.; Zhu, H.; Mao, X.; Wang, D. Reduction mechanism and carbon content investigation for electrolytic production of iron from solid Fe2O3 in molten K2CO3–Na2CO3 using an inert anode. J. Electroanal. Chem. 2013, 689, 109–116. [Google Scholar] [CrossRef]
  27. Cox, A.; Fray, D.J. Mechanistic investigation into the electrolytic formation of iron from iron (III) oxide in molten sodium hydroxide. J. Appl. Electrochem. 2008, 38, 1401–1407. [Google Scholar] [CrossRef]
  28. Wang, S.; Ge, J.; Hu, Y.; Zhu, H.; Jiao, S. Electrochemical reduction of iron oxide in molten sodium hydroxide based on a Ni0.94Si 0.04Al0.02 metallic inert anode. Electrochim. Acta 2013, 87, 148–152. [Google Scholar] [CrossRef]
  29. Kim, M.-K.; Jung, I.-H. Coupled experimental phase diagram study and thermodynamic optimization of the Na2O–B2O3–Fe2O3 system in air. Calphad 2022, 76, 102364. [Google Scholar] [CrossRef]
  30. Kim, M.-K.; Jung, I.-H. Coupled phase diagram study and thermodynamic modeling of the Na2O–B2O3–ZnO system. J. Eur. Ceram. Soc. 2024, 44, 7370–7382. [Google Scholar] [CrossRef]
  31. Claes, P.; Coq, J.; Glibert, J. Electrical conductivity of molten B2O3–Na2O mixtures. Electrochim. Acta 1988, 33, 347–352. [Google Scholar] [CrossRef]
  32. Al-Zaibani, M.; Althobiti, R.; El Agammy, E.; Alzahrani, E.; El-Damrawi, G.; Doweidar, H.; Al-Muntaser, A. Electrical conduction in ternary Na2O–ZnO–B2O3 glasses; a unique dependence on the mobility of Na+ ions as main charge carriers. J. Non-Crystal. Solids 2025, 650, 123367. [Google Scholar] [CrossRef]
  33. Tijaria, M.; Sharma, Y.; Kumar, V.; Dahiya, S.; Dalal, J. Effect of Na2O on physical, structural and electrical properties of borate glasses. Mater. Today Proc. 2021, 45, 3722–3725. [Google Scholar] [CrossRef]
  34. Kim, H.; Paramore, J.; Allanore, A.; Sadoway, D.R. Electrolysis of molten iron oxide with an iridium anode: The role of electrolyte basicity. J. Electrochem. Soc. 2011, 158, E101. [Google Scholar] [CrossRef]
  35. Asai, K.; Yokokawa, T. Thermodynamic activity of Na2O in Na2O–B2O3–SiO2 melt. Trans. Jpn Inst. Met. 1982, 23, 571–577. [Google Scholar] [CrossRef]
  36. Konakov, V. A study of the acid-base properties of melts in the Na2O–B2O3–SiO2 system: II. Composition Joins with Sodium Oxide Contents of 25, 30, and 35 mol%. Glass Phys. Chem. 2002, 28, 135–138. [Google Scholar] [CrossRef]
  37. Park, J.H.; Min, D.J. Thermodynamic behavior of Na2O–B2O3 melt. Metall. Mater. Trans. B 2001, 32, 297–303. [Google Scholar] [CrossRef]
  38. Popov, K.I.; Nikolić, N.D. General theory of disperse metal electrodeposits formation. In Electrochemical Production of Metal Powders; Springer: Berlin/Heidelberg, Germany, 2012; pp. 1–62. [Google Scholar] [CrossRef]

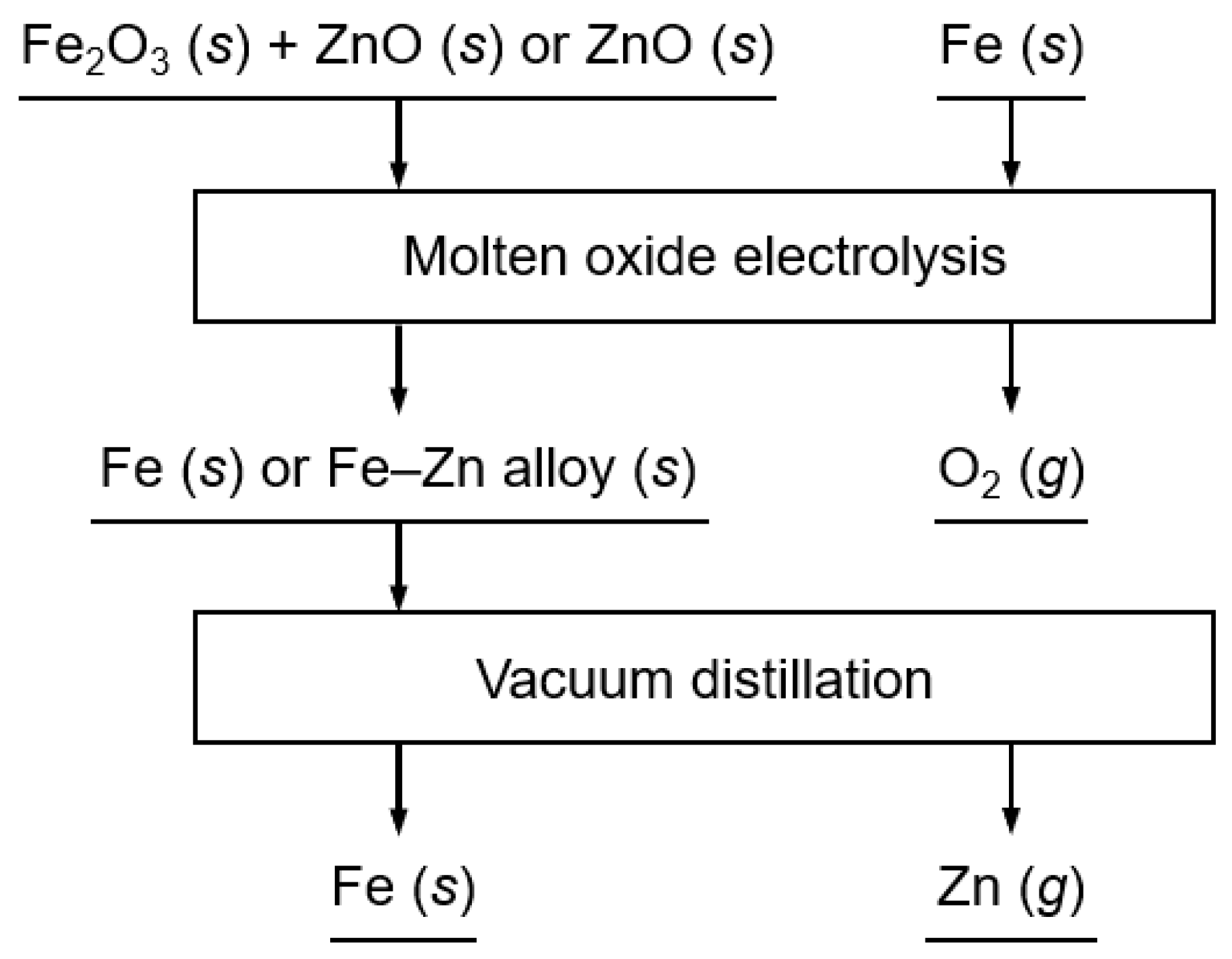

Figure 1. Flowchart of the Fe and Zn production process presented in this study.
Figure 1. Flowchart of the Fe and Zn production process presented in this study.
Materials 18 04116 g001

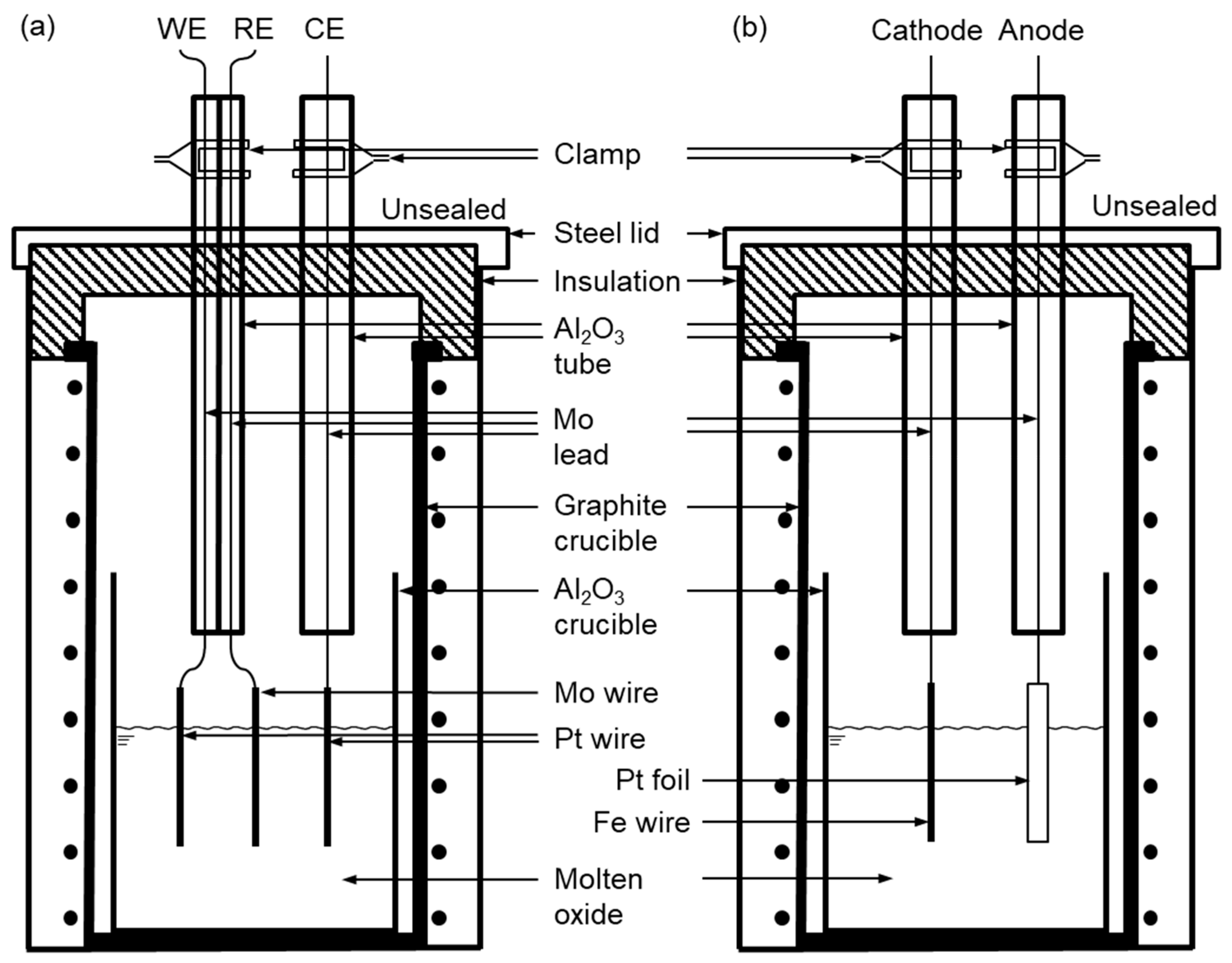

Figure 2. Schematic of experimental apparatus used for (a) cyclic voltammetry measurement and (b) electrolysis in this study.
Figure 2. Schematic of experimental apparatus used for (a) cyclic voltammetry measurement and (b) electrolysis in this study.
Materials 18 04116 g002
Figure 3. (a) Schematic and (b) photograph of the experimental apparatus for vacuum distillation.
Figure 3. (a) Schematic and (b) photograph of the experimental apparatus for vacuum distillation.
Materials 18 04116 g003
Figure 4. Calculated binary phase diagram of the B2O3–Na2O system.
Figure 4. Calculated binary phase diagram of the B2O3–Na2O system.
Materials 18 04116 g004

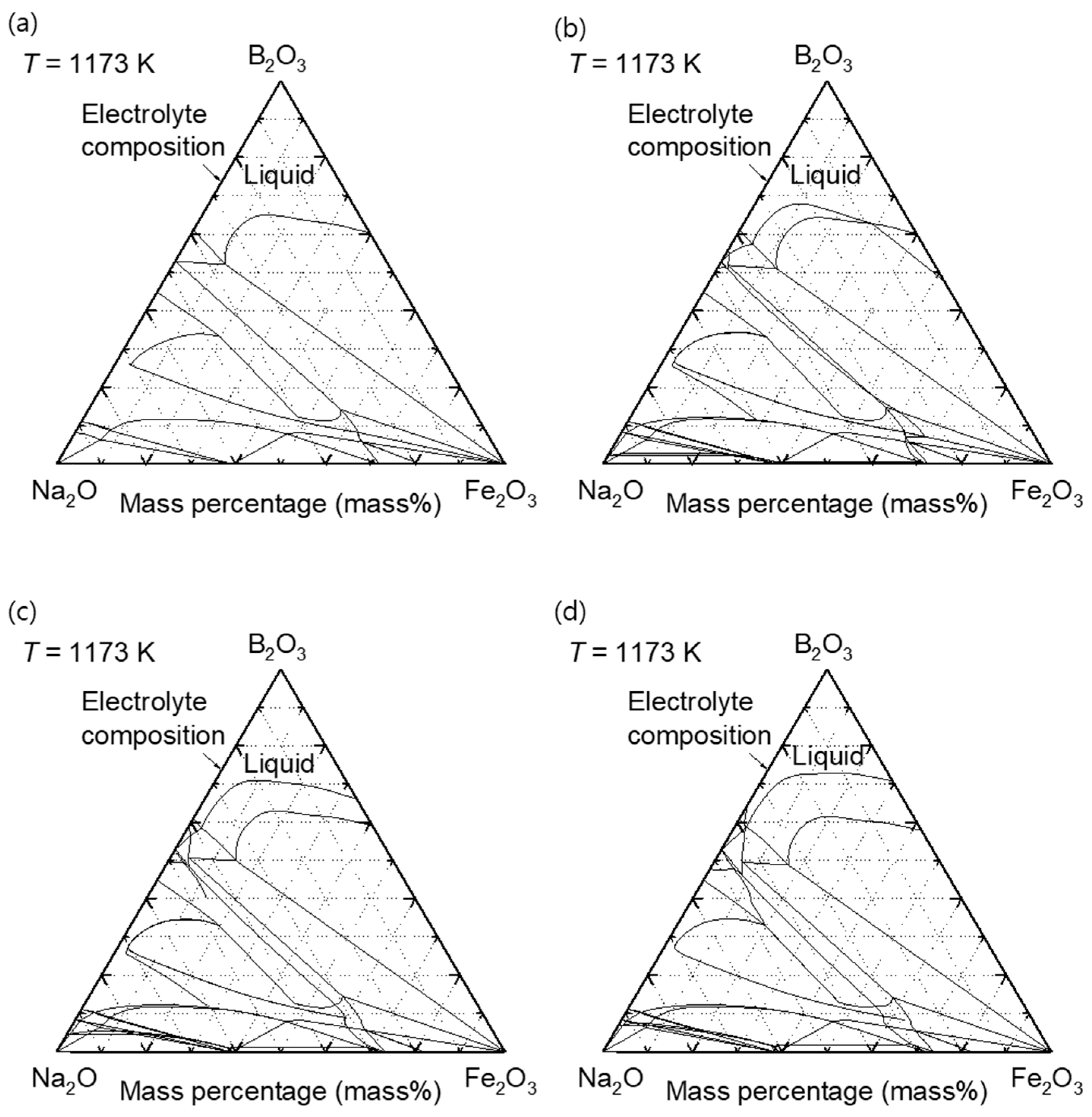

Figure 5. Calculated phase diagrams of the B2O3–Na2O–Fe2O3–ZnO system at 1173 K with constant ZnO contents of (a) 0 mass%, (b) 1 mass%, (c) 2 mass%, and (d) 3 mass%.
Figure 5. Calculated phase diagrams of the B2O3–Na2O–Fe2O3–ZnO system at 1173 K with constant ZnO contents of (a) 0 mass%, (b) 1 mass%, (c) 2 mass%, and (d) 3 mass%.
Materials 18 04116 g005

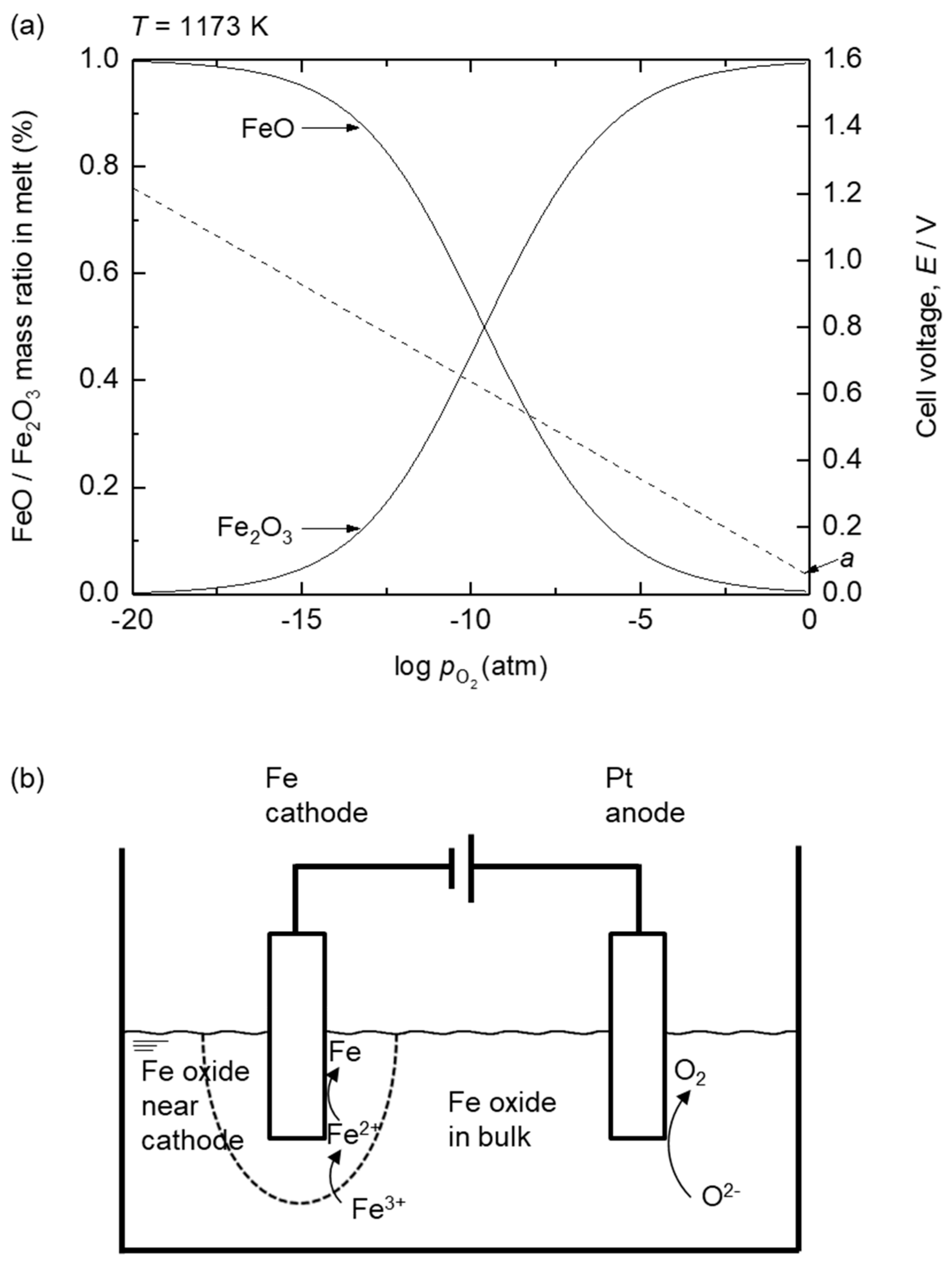

Figure 6. (a) Variations in Fe2O3 and FeO ratio in the melt and the decomposition voltages for the reduction of Fe2O3 to FeO as a function of p O 2 at 1173 K, calculated from the FactSage database: electrolyte composition of 73 mass% B2O3–Na2O. (b) Illustration of the reactions during the electrolysis of Fe oxide in oxide melt.
Figure 6. (a) Variations in Fe2O3 and FeO ratio in the melt and the decomposition voltages for the reduction of Fe2O3 to FeO as a function of p O 2 at 1173 K, calculated from the FactSage database: electrolyte composition of 73 mass% B2O3–Na2O. (b) Illustration of the reactions during the electrolysis of Fe oxide in oxide melt.
Materials 18 04116 g006
Figure 7. Decomposition voltages of selected oxides as a function of ZnO concentration in mixed feedstock.
Figure 7. Decomposition voltages of selected oxides as a function of ZnO concentration in mixed feedstock.
Materials 18 04116 g007

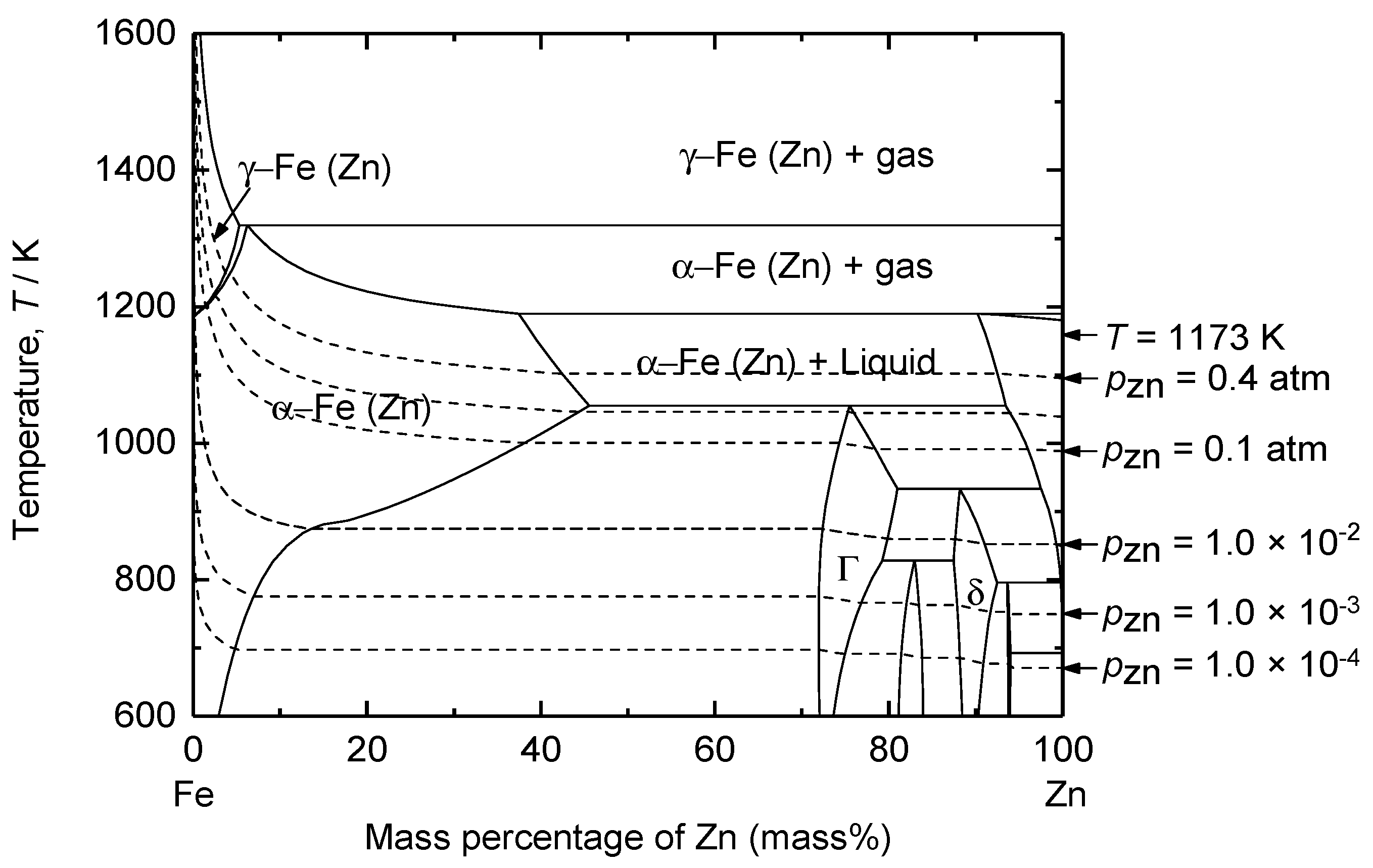

Figure 8. Calculated binary phase diagram of the Fe–Zn system at 1 atm total pressure. Dotted lines indicate the isobaric vapor pressure of Zn (g).
Figure 8. Calculated binary phase diagram of the Fe–Zn system at 1 atm total pressure. Dotted lines indicate the isobaric vapor pressure of Zn (g).
Materials 18 04116 g008

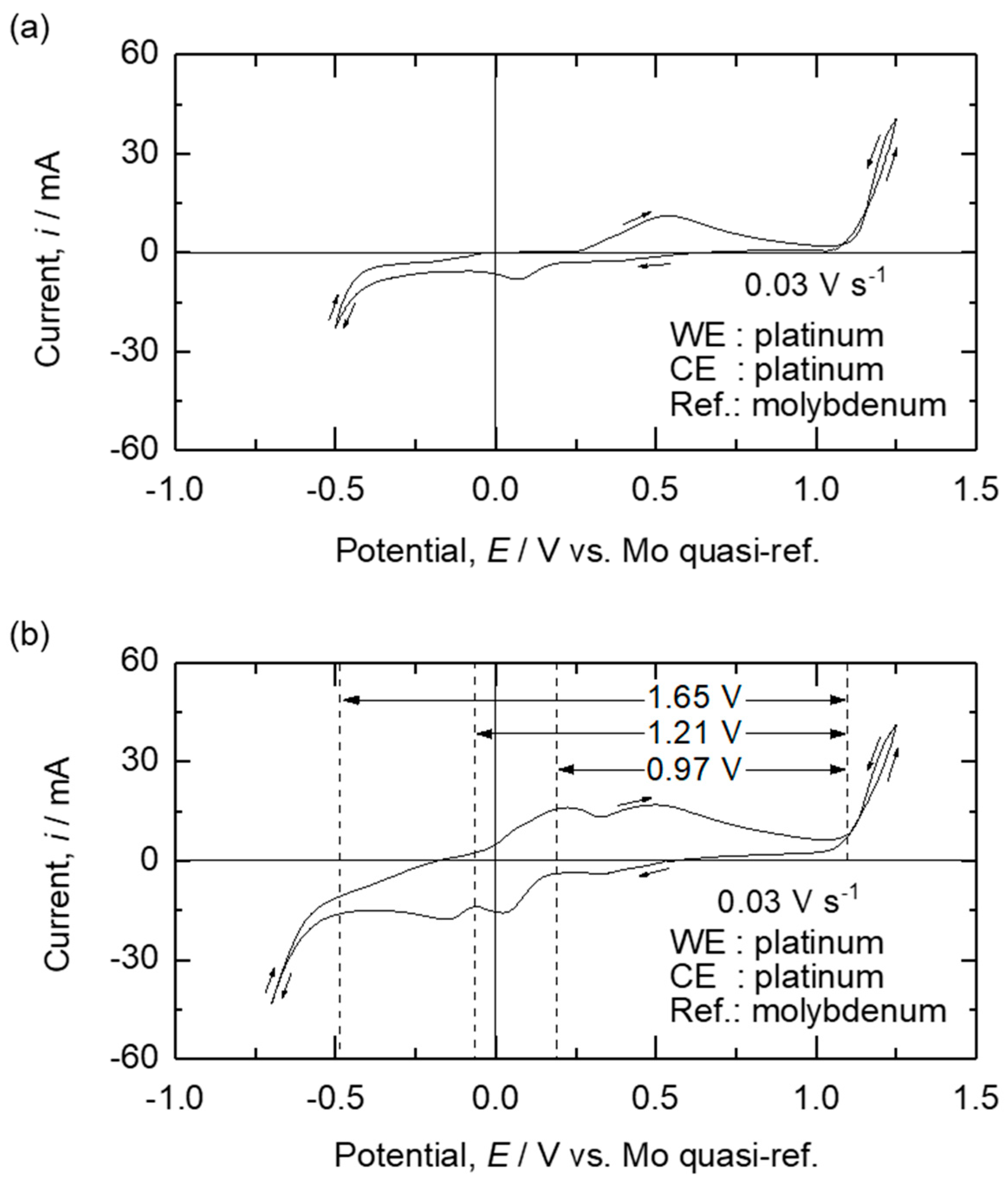

Figure 9. Results of the CV measurements of (a) B2O3–Na2O–Fe2O3 and (b) B2O3–Na2O–Fe2O3–ZnO molten oxides at 1173 K with a scan rate of 0.03 V·s−1.
Figure 9. Results of the CV measurements of (a) B2O3–Na2O–Fe2O3 and (b) B2O3–Na2O–Fe2O3–ZnO molten oxides at 1173 K with a scan rate of 0.03 V·s−1.
Materials 18 04116 g009
Figure 10. SEM-EDS analysis results of the cathode surface (a) before and after electrolysis at 1173 K for 1 h under the following conditions: (b) 1.1 V, 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 1-3); (c) 1.6 V, 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 2-3); (d) 1.1 V, 2.25 g of Fe2O3 + 0.75 g of ZnO (Exp. no. 1-1); (e) 1.1 V, 1.50 g of Fe2O3 + 1.50 g of ZnO (Exp. no. 1-2); and (f) 1.1 V, 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 1-3).
Figure 10. SEM-EDS analysis results of the cathode surface (a) before and after electrolysis at 1173 K for 1 h under the following conditions: (b) 1.1 V, 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 1-3); (c) 1.6 V, 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 2-3); (d) 1.1 V, 2.25 g of Fe2O3 + 0.75 g of ZnO (Exp. no. 1-1); (e) 1.1 V, 1.50 g of Fe2O3 + 1.50 g of ZnO (Exp. no. 1-2); and (f) 1.1 V, 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 1-3).
Materials 18 04116 g010
Figure 11. SEM-EDS results for the cathode following the electrolysis of B2O3–Na2O–ZnO at 1173 K by applying a cell voltage of 1.6 V for (a) 1 h, (b) 2 h, and (c) 3 h. (d) EDS line result of Zn concentration in the Fe cathode as a function of distance from the electrode surface.
Figure 11. SEM-EDS results for the cathode following the electrolysis of B2O3–Na2O–ZnO at 1173 K by applying a cell voltage of 1.6 V for (a) 1 h, (b) 2 h, and (c) 3 h. (d) EDS line result of Zn concentration in the Fe cathode as a function of distance from the electrode surface.
Materials 18 04116 g011
Figure 12. SEM-EDS results for the cathode following the electrolysis of B2O3–Na2O–Fe2O3–ZnO at 1173 K for 1 h by applying a cell voltage of 1.6 V in following feedstocks: (a) 2.25 g of Fe2O3 + 0.75 g of ZnO (Exp. no. 2-1); (b) 1.50 g of Fe2O3 + 1.50 g of ZnO (Exp. no. 2-2); (c) 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 2-3). (d) EDS line analysis result of Zn concentration in Fe cathode as a function of distance from the electrode surface.
Figure 12. SEM-EDS results for the cathode following the electrolysis of B2O3–Na2O–Fe2O3–ZnO at 1173 K for 1 h by applying a cell voltage of 1.6 V in following feedstocks: (a) 2.25 g of Fe2O3 + 0.75 g of ZnO (Exp. no. 2-1); (b) 1.50 g of Fe2O3 + 1.50 g of ZnO (Exp. no. 2-2); (c) 0.75 g of Fe2O3 + 2.25 g of ZnO (Exp. no. 2-3). (d) EDS line analysis result of Zn concentration in Fe cathode as a function of distance from the electrode surface.
Materials 18 04116 g012
Figure 13. SEM images of the cathode surface after electrolysis at 1173 K for 5 h under the following conditions: (a) 1.1 V, 0.75 g of Fe2O3 + 2.25 g of ZnO; (b) 1.6 V, 0.75 g of Fe2O3 + 2.25 g of ZnO.
Figure 13. SEM images of the cathode surface after electrolysis at 1173 K for 5 h under the following conditions: (a) 1.1 V, 0.75 g of Fe2O3 + 2.25 g of ZnO; (b) 1.6 V, 0.75 g of Fe2O3 + 2.25 g of ZnO.
Materials 18 04116 g013
Figure 14. XRD results for the (a) deposit obtained from the low-temperature part of the reactor and (b) residue at the bottom of the reactor following the vacuum distillation of the Fe–Zn alloy at 1200 K for 12 h.
Figure 14. XRD results for the (a) deposit obtained from the low-temperature part of the reactor and (b) residue at the bottom of the reactor following the vacuum distillation of the Fe–Zn alloy at 1200 K for 12 h.
Materials 18 04116 g014
Figure 15. Efficiency of Zn recovery following vacuum distillation of the Fe–Zn alloy at 1000 K and 1200 K for 1–12 h.
Figure 15. Efficiency of Zn recovery following vacuum distillation of the Fe–Zn alloy at 1000 K and 1200 K for 1–12 h.
Materials 18 04116 g015
Table 1. Previous studies on the electrolysis of Fe oxide feedstocks in various electrolytes.
Table 1. Previous studies on the electrolysis of Fe oxide feedstocks in various electrolytes.
MethodElectrolyteFeedstockTemp.,
T/K
Electrode for ElectrolysisCathode
Product
Cell Voltage,
E/V
Faradaic
Efficiency,
(%)
Ref.
TypeFeOx Conc.,
(mass%)
CathodeAnode
Molten
oxide
electrolysis
Al2O3–CaO–MgO Fe3O4101838MoCr90Fe10Fe 3.834[8]
Al2O3–CaO–MgO–SiO2Fe2O3101873MoGraphiteFe232[9]
Al2O3–MgO–SiO2Fe3O4151823Pt–RhPtFe336[10]
Al2O3–CaO–SiO2Fe2O351773–1873MoGraphiteFe64–83[11]
Al2O3–CaO–MgO–SiO2Fe2O39.11823MoIrFe225 a[12]
Al2O3–CaO–MgO–SiO2Fe2O351848MoIrFe[13]
B2O3–Na2OFe2O351273PtPtFe1.433.2[14]
K2MoO4–Fe2O3Fe2O31273SteelSteelFe–Mo70.77[15]
Al2O3–CaO–MgO–SiO2Fe2O3,
NiO
151723WGraphiteFe–Ni46[16]
Molten
salt
electrolysis
CaCl2–KFFe2O31.71100FeFe3O4Fe[17]
CaCl2–CaF2Fe2O31.51163FeFe3O4Fe92[18]
NaCl–CaCl2Fe2O3 b1073Fe2O3GraphiteFe1.295.3[19]
LiClFe2O3 b933Fe2O3GraphiteFe0.9797[20]
CaCl2Fe2O3 b1073Fe2O3GraphiteFe1.890[21]
NaCl–CaCl2ZnFe2O4 b1073ZnFe2O4GraphiteFe c1.8[22]
NaCl–KClFe2O3,
Al2O3 b
1123Fe2O3
Al2O3
GraphiteFeO–Al2O32.3[23]
CaCl2Fe2O3,
TiO2 b
1223Fe2O3
TiO2
GraphiteFe–Ti3[24]
CaCl2Fe2O3,
Tb4O7 b
1173Fe2O3
Tb4O7
GraphiteFe–Tb2.6 97[25]
Molten
carbonate
electrolysis
Na2CO3–K2CO3Fe2O3 b1023Fe2O3Ni–Cu–FeFe293.6[26]
Molten
hydroxide
electrolysis
NaOHFe2O3 b803Fe2O3NiFe1.789[27]
NaOHFe2O3 b773Fe2O3Ni–Si–AlFe1.730[28]
a anodic current efficiency. b direct solid-state electrolysis using oxide cathode as feedstock. c Zn volatilized.
Table 2. Experimental conditions for the electrolysis of Fe2O3 and/or ZnO using an Fe cathode and Pt anode at 1173 K.
Table 2. Experimental conditions for the electrolysis of Fe2O3 and/or ZnO using an Fe cathode and Pt anode at 1173 K.
Exp.
No. a
Weight of Feed, wfeed/gMass Ratio of Oxide to Feed, roxide/feedApplied Cell Voltage,
E/V
Time,
t/h
Fe2O3ZnOFe2O3ZnO
1-12.250.750.750.251.101
1-21.501.500.500.501.101
1-30.752.250.250.751.101
2-12.250.750.750.251.601
2-21.501.500.500.501.601
2-30.752.250.250.751.601
3-10.003.000.001.001.601
3-20.003.000.001.001.602
3-30.003.000.001.001.603
a Experimental conditions: Weight of supporting electrolyte = 97 g; 73 mass% B2O3–27 mass% Na2O mixture.
Table 3. Theoretical standard decomposition voltages of selected oxides at 1173 K, 1273 K and 1373 K.
Table 3. Theoretical standard decomposition voltages of selected oxides at 1173 K, 1273 K and 1373 K.
ReactionDecomposition Voltage, E/VPhase Transformation
1173 K1273 K1373 K
FeO (s) = Fe (s) + 1/2 O2 (g)0.980.940.91Fe (BCC) → Fe (FCC) at 1184.81 K
ZnO (s) = Zn (l,g) + 1/2 O2 (g)1.191.090.98Zn (l) → Zn (g) at 1181.47 K
B2O3 (l) = 2 B (s) + 3/2 O2 (g)1.701.661.62
Na2O (s) = 2 Na (g) + 1/2 O2 (g)1.331.181.03Na2O (β) → Na2O (α) at 1243 K
Fe2O3 (s) = 2 Fe (s) + 3/2 O2 (g)0.900.860.81Fe (BCC) → Fe (FCC) at 1184.81 K
Fe3O4 (s) = 3 Fe (s) + 2 O2 (g)0.960.920.88Fe (BCC) → Fe (FCC) at 1184.81 K
Fe2O3 (s) = 2 FeO (s) + 1/2 O2 (g)0.740.680.62
Table 4. ICP-OES results of Fe–Zn alloy before distillation, Zn deposit after distillation at 1200 K for 12 h, and residues after distillation at 1000–1200 K for 1–12 h.
Table 4. ICP-OES results of Fe–Zn alloy before distillation, Zn deposit after distillation at 1200 K for 12 h, and residues after distillation at 1000–1200 K for 1–12 h.
SampleTemp.,
T/K
Time,
t/h
Concentration of Element i, Ci (mass%)
FeZn
Fe–Zn feed72.89427.105
Zn deposit1200120.00399.996
Residues of No. 11000194.9555.044
Residues of No. 21000395.3804.619
Residues of No. 31000696.3363.663
Residues of No. 41000996.7643.235
Residues of No. 510001298.6671.332
Residues of No. 61200197.4072.592
Residues of No. 71200398.7031.296
Residues of No. 81200699.6100.389
Residues of No. 91200999.9010.098
Residues of No. 1012001299.9780.021
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, J.; Jung, I.-H.; Kang, J.; Yi, K.-W. Investigation of Low-Temperature Molten Oxide Electrolysis of a Mixture of Hematite and Zinc Oxide. Materials 2025, 18, 4116. https://doi.org/10.3390/ma18174116

AMA Style

Kim J, Jung I-H, Kang J, Yi K-W. Investigation of Low-Temperature Molten Oxide Electrolysis of a Mixture of Hematite and Zinc Oxide. Materials. 2025; 18(17):4116. https://doi.org/10.3390/ma18174116

Chicago/Turabian Style

Kim, Joongseok, In-Ho Jung, Jungshin Kang, and Kyung-Woo Yi. 2025. "Investigation of Low-Temperature Molten Oxide Electrolysis of a Mixture of Hematite and Zinc Oxide" Materials 18, no. 17: 4116. https://doi.org/10.3390/ma18174116

APA Style

Kim, J., Jung, I.-H., Kang, J., & Yi, K.-W. (2025). Investigation of Low-Temperature Molten Oxide Electrolysis of a Mixture of Hematite and Zinc Oxide. Materials, 18(17), 4116. https://doi.org/10.3390/ma18174116

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
