Effects of Heat-Treatment and Cold-Rolling on Mechanical Properties and Impact Failure Resistance of New Al 6082 Aluminum Alloy by Continuous Casting Direct Rolling Process
Abstract
:1. Introduction
2. Experimental Procedure
3. Results and Discussion
3.1. Comparison of Two Post-Processing Combined Processes
3.2. Microstructure and Mechanical Properties
3.3. Tensile Toughness, Charpy Impact Toughness, and Elasticity Modulus
3.4. Metallurgical Mechanism of CCDR Al Alloy
4. Conclusions
- (1)
- The strength of specimen T6 was notably higher than that of specimen T4 under the same solution heat treatment conditions. This discrepancy is attributed to the weaker precipitation strengthening effect in specimen T4 compared to T6, resulting in lower deformation resistance and higher elongation in specimen T4.
- (2)
- Solution heat treatment after rolling induces recrystallization and grain coarsening, leading to the disappearance of the rolling effect and a decrease in strength. Conversely, heat treatment followed by rolling enhances strength. For diameter reductions of up to 33.3% (R4) due to cold rolling after heat treatment, the elongation remains within the engineering application range (TE > 10%), while maintaining adequate mechanical strength.
- (3)
- The elastic modulus of specimens T4R4 and T6R4 increased from the original 2.13 GPa and 2.67 GPa to 4.98 GPa and 5.96 GPa, respectively. However, the elongation decreased from 10% to 12% after cold rolling, and the toughness also decreased by 71.7% and 64.2%, respectively, after stretching. Despite this, the strength, tensile toughness, and Charpy impact toughness of specimen T6R4 were slightly higher than those of specimen T4R4.
- (4)
- The CCDR process prevented abnormal grain growth. Initially, precipitation strengthening occurred with T4 and T6 heat treatments. Subsequently, the cold rolling process was implemented, promoting the accumulation of dislocations and significantly enhancing the hardening effect, further increasing the strength but reducing the plasticity. Finally, heat treatment was performed to soften the material and restore the ductility reduced by rolling.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Liu, J.T.; Zhang, Y.A.; Li, X.W.; Li, Z.H.; Xiong, B.Q.; Zhang, J.S. Phases and microstructures of high Zn-containing Al–Zn–Mg–Cu alloys. Rare Met. 2016, 35, 380–384. [Google Scholar] [CrossRef]
- Zhang, P.; Song, A.; Fang, Y.; Yue, X.; Wang, Y.; Yu, X. A study on the dynamic mechanical behavior and microtexture of 6082 aluminum alloy under different direction. Vacuum 2020, 173, 109119. [Google Scholar] [CrossRef]
- Peruš, I.; Kugler, G.; Malej, S.; Terčelj, M. Contour Maps for Simultaneous Increase in Yield Strength and Elongation of Hot Extruded Aluminum Alloy 6082. Metals 2022, 12, 461. [Google Scholar] [CrossRef]
- Ma, H.; Huang, L.; Tian, Y.; Li, J. Effects of strain rate on dynamic mechanical behavior and microstructure evolution of 5A02-O aluminum alloy. Mater. Sci. Eng. A 2014, 606, 233–239. [Google Scholar] [CrossRef]
- Lee, J.H.; Loya, P.E.; Lou, J.; Thomas, E.L. Dynamic mechanical behavior of multilayer graphene via supersonic projectile penetration. Science 2014, 346, 1092–1096. [Google Scholar] [CrossRef] [PubMed]
- Liu, T.S.; Qiu, F.; Yang, H.Y.; Tan, C.L.; Dong, B.X.; Xie, J.F.; Shu, S.L.; Jiang, Q.C.; Zhang, L.C. Versatility of trace nano-TiC-TiB2 in collaborative control of solidification-rolling-welding microstructural evolution in Al–Mg–Si alloy for enhanced properties. Mater. Sci. Eng. A 2022, 851, 143661. [Google Scholar] [CrossRef]
- Chen, Y.; Wei, W.; Zhao, Y.; Shi, W.; Zhou, X.; Rong, L.; Wen, S.; Wu, X.; Gao, K.; Huang, H.; et al. Effect of the Solid Solution and Aging Treatment on the Mechanical Properties and Microstructure of a Novel Al-Mg-Si Alloy. Materials 2023, 16, 7036. [Google Scholar] [CrossRef]
- Görtan, M.O.; Yüksel, B. Dependency of mechanical properties on artificial aging conditions for EN AW 6082 aluminum alloy. Metall. Res. Technol. 2023, 120, 204. [Google Scholar] [CrossRef]
- Tan, E. The Effect of Hot-Deformation on Mechanical Properties and Age Hardening Characteristics of Al-Mg-Si Based Wought Aluminum Alloys. Master’s Thesis, Middle East Technical University, Ankara, Turkey, 2006. Available online: https://hdl.handle.net/11511/16096 (accessed on 14 January 2024).
- Aruga, Y.; Kozuka, M.; Sato, T. Formulation of initial artificial age-hardening response in an Al-Mg-Si alloy based on the cluster classification using a high-detection-efficiency atom probe. J. Alloys Compd. 2018, 739, 1115–1123. [Google Scholar] [CrossRef]
- Gao, G.J.; Chen, H.E.; Yong, L.I.; Li, J.D.; Wang, Z.D.; Misra, R.D.K. Influence of different solution methods on microstructure, precipitation behavior and mechanical properties of Al–Mg–Si alloy. Trans. Nonferrous Met. Soc. China 2018, 28, 839–847. [Google Scholar] [CrossRef]
- Demirpolat, H.; Seracettin, A.K.D.I.; Alkan, B. The effect of homogenization and chemical compositions of 6005 and 6082 aluminium alloys on the cold forming process. Eur. J. Sci. Technol. 2021, 28, 16–20. [Google Scholar] [CrossRef]
- Birol, Y. The effect of processing and Mn content on the T5 and T6 properties of AA6082 profiles. J. Mater. Process Technol. 2006, 173, 84–91. [Google Scholar] [CrossRef]
- Kwon, Y.N.; Lee, Y.S.; Lee, J.H. Deformation behavior of Al–Mg–Si alloy at the elevated temperature. J. Mater. Process Technol. 2007, 187, 533–536. [Google Scholar] [CrossRef]
- Očenášek, V.; Sedláček, P. The effect of surface recrystallized layers on properties of extrusions and forgings from high strength aluminium alloys. In Proceedings of the 20th International Conference on Metallurgy and Materials, Brno, Czech Republic, 18–20 May 2011. [Google Scholar]
- Hayoune, A. Thermal analysis of the impact of RT storage time on the strengthening of an Al-Mg-Si alloy. Mater. Sci. Appl. 2012, 3, 460–466. [Google Scholar] [CrossRef]
- Lezaack, M.B.; Simar, A. Avoiding abnormal grain growth in thick 7XXX aluminium alloy friction stir welds during T6 post heat treatments. Mater. Sci. Eng. A 2021, 807, 140901. [Google Scholar] [CrossRef]
- Liu, T.S.; Qiu, F.; Yang, H.Y.; Liu, S.; Jiang, Q.C.; Zhang, L.C. Exploring the potential of FSW-ed Al–Zn–Mg–Cu-based composite reinforced by trace in-situ nanoparticles in manufacturing workpiece with customizable size and high mechanical performances. Compos. B Eng. 2023, 250, 110425. [Google Scholar] [CrossRef]
- Kase, M.; Matsuzuka, K.; Takahashi, H.; Oba, H.; Hirata, O. Continuous casting direct rolling technology at Nippon Steel’s Sakai Works. Steel Times 1985, 213, 268. [Google Scholar]
- Muntin, A.V. Advanced technology of combined thin slab continuous casting and steel strip hot rolling. Metallurgist 2019, 62, 900–910. [Google Scholar] [CrossRef]
- Amiri, M.M.; Fereshteh-Saniee, F. An experimental investigation on the effect of cooling rate during combined continuous casting and rolling process on mechanical properties of 7075 aluminum alloy. Trans. Indian Inst. Met. 2020, 73, 441–448. [Google Scholar] [CrossRef]
- Zhao, J.R.; Hung, F.Y.; Chen, B.J. Effects of heat treatment on a novel continuous casting direct rolling 6056 aluminum alloy: Cold rolling characteristics and tensile fracture properties. J. Mater. Res. Technol. 2021, 11, 535–547. [Google Scholar] [CrossRef]
- Connolly, R.S. Method of Continuous Casting and Rolling Strip. U.S. Patent 4,675,974, 30 June 1987. [Google Scholar]
- Echigo, R.; Yoshida, H.; Mochizuki, T. Temperature equalization by the radiative converter for a slab in continuous casting direct rolling. JSME Int. J. Ser. 2 Fluids Eng. Heat Transf. Power Combust. Thermophys. Prop. 1988, 31, 545–552. [Google Scholar] [CrossRef]
- Maehara, Y.; Nakai, K.; Yasumoto, K.; Mishima, T. Hot cracking of low alloy steels in simulated continuous casting-direct rolling process. ISIJ Int. 1988, 28, 1021–1027. [Google Scholar] [CrossRef]
- Huang, B.C.; Chang, K.C.; Hung, F.Y. Study on microstructure, mechanical properties and erosion characteristics of Al-Si alloy manufactured by continuous casting direct rolling process. Appl. Sci. 2021, 11, 8351. [Google Scholar] [CrossRef]
- Xu, X.J.; Jiang, L.; Lu, W.J.; Lu, Y.D.; Fei, Z.D.; Cheng, C. Effect of rolling and subsequent heat treatment on tensile property and crystal orientation of 5052 Al alloy. Rare. Met. Mater. Eng. 2014, 43, 245–248. [Google Scholar]
- Wei, W.; Morris, J.G. The effect of cold rolling and annealing on the serrated yielding phenomenon of AA5182 aluminum alloy. Mater. Sci. Eng. A 2004, 373, 204–216. [Google Scholar] [CrossRef]
- Cantergiani, E.; Weißensteiner, I.; Grasserbauer, J.; Falkinger, G.; Pogatscher, S.; Roters, F. Influence of hot band annealing on cold-rolled microstructure and recrystallization in AA 6016. Metall. Mater. Trans. A 2023, 54, 75–96. [Google Scholar] [CrossRef]
- Faraji, M.; Shabestari, S.G.; Razavi, S.H. The effects of cold rolling and stabilization treatment on the improvement of microstructure, mechanical properties, and corrosion behavior of AA5083 sheet. J. Mater. Eng. Perform. 2023, 32, 2097–2108. [Google Scholar] [CrossRef]
- Chang, Y.L.; Hung, F.Y.; Lui, T.S. Enhancing the tensile yield strength of A6082 aluminum alloy with rapid heat solutionizing. Mater. Sci. Eng. A 2017, 702, 438–445. [Google Scholar] [CrossRef]
- Chang, Y.L.; Hung, F.Y.; Lui, T.S. Study of microstructure and tensile properties of infrared-heat-treated cast-forged 6082 aluminum alloy. J. Mater. Res. Technol. 2019, 8, 173–179. [Google Scholar] [CrossRef]
- ASTM A370-23; Standard Test Methods and Definitions for Mechanical Testing of Steel Products. ASTM: West Conshohocken, PA, USA, 2014.
- Zhen, L.; Fei, W.D.; Kang, S.B.; Kim, H.W. Precipitation behavior of Al-Mg-Si alloys with high silicon content. J. Mater. Sci. 1997, 32, 1895–1902. [Google Scholar] [CrossRef]
- Anderson, K.; Kaufman, J.G.; Weritz, J. (Eds.) ASM Handbook: Volume 2B Properties and Selection of Aluminum Alloys; ASM International: Almere, The Netherlands, 2019. [Google Scholar] [CrossRef]
- Birol, Y.; Ilgaz, O. Effect of cast and extruded stock on grain structure of EN AW 6082 alloy forgings. Mater. Sci. Technol. 2014, 30, 860–866. [Google Scholar] [CrossRef]
- Birol, Y.; Gokcil, E.; Guvenc, M.A.; Akdi, S. Processing of high strength EN AW 6082 forgings without a solution heat treatment. Mater. Sci. Eng. A 2016, 674, 25–32. [Google Scholar] [CrossRef]
- Birol, Y.; Ilgaz, O.; Akdi, S.; Unuvar, E. Comparison of cast and extruded stock for the forging of AA6082 alloy suspension parts. Adv. Mater. Res. 2014, 939, 299–304. [Google Scholar] [CrossRef]
- Edwards, G.A.; Stiller, K.; Dunlop, G.L.; Couper, M.J. The precipitation sequence in Al–Mg–Si alloys. Acta Mater. 1998, 46, 3893–3904. [Google Scholar] [CrossRef]
- Mirzakhani, B.; Payandeh, Y. Combination of sever plastic deformation and precipitation hardening processes affecting the mechanical properties in Al–Mg–Si alloy. Mater. Des. 2015, 68, 127–133. [Google Scholar] [CrossRef]
- Sonia, P.; Verma, V.; Saxena, K.K.; Kishore, N.; Rana, R.S. Effect of cryogenic treatment on mechanical properties and microstructure of aluminum 6082 alloy. Mater. Today Proc. 2020, 26, 2248–2253. [Google Scholar] [CrossRef]
- Zhao, N.; Ma, H.; Sun, Q.; Hu, Z.; Yan, Y.; Chen, T.; Hua, L. Microstructural evolutions and mechanical properties of 6082 aluminum alloy part produced by a solution-forging integrated process. J. Mater. Process Technol. 2022, 308, 117715. [Google Scholar] [CrossRef]
- Chang, Y.L.; Hung, F.Y.; Lui, T.S. Enhancement of the Young’s Modulus through Infrared Heat Treatment: A Study of the Microstructure and the Mass Effect of Real Body 6082 Aluminum Forgings. Metals 2018, 8, 239. [Google Scholar] [CrossRef]
- Su, G.; Gao, X.; Zhang, D.; Du, L.; Hu, J.; Liu, Z. Impact of reversed austenite on the impact toughness of the high-strength steel of low carbon medium manganese. JOM 2018, 70, 672–679. [Google Scholar] [CrossRef]
- Birol, Y. Effect of Cr and Zr on the grain structure of extruded EN AW 6082 alloy. Met. Mater. Int. 2014, 20, 727–732. [Google Scholar] [CrossRef]
- Kumar, V.; Kumar, D. Investigation of tensile behaviour of cryorolled and room temperature rolled 6082 Al alloy. Mater. Sci. Eng. A 2017, 691, 211–217. [Google Scholar] [CrossRef]
- Qian, X.; Parson, N.; Chen, X.G. Effects of Mn content on recrystallization resistance of AA6082 aluminum alloys during post-deformation annealing. J. Mater. Sci. Technol. 2020, 52, 189–197. [Google Scholar] [CrossRef]
- Wang, B.; Chen, X.H.; Pan, F.S.; Mao, J.J.; Fang, Y. Effects of cold rolling and heat treatment on microstructure and mechanical properties of AA 5052 aluminum alloy. Trans. Nonferrous Met. Soc. China 2015, 25, 2481–2489. [Google Scholar] [CrossRef]
- Wang, D.; Ma, Z.Y.; Gao, Z.M. Effects of severe cold rolling on tensile properties and stress corrosion cracking of 7050 aluminum alloy. Mater. Chem. Phys. 2009, 117, 228–233. [Google Scholar] [CrossRef]
- Kang, F.; Wei, S.; Hu, W.; Wang, E. Effect of solid solution process on microstructure and properties of 6082 aluminum alloy. Mater. Res. Express 2019, 6, 1165c3. [Google Scholar] [CrossRef]
- Kumar, N.; Goel, S.; Jayaganthan, R.; Owolabi, G.M. The influence of metallurgical factors on low cycle fatigue behavior of ultra-fine grained 6082 Al alloy. Int. J. Fatigue 2018, 110, 130–143. [Google Scholar] [CrossRef]
- Zhang, L.; Wang, S.; Wang, H.; Wang, J.; Bian, W. Mechanical properties and microstructure revolution of vibration assisted wire arc additive manufacturing 2319 aluminum alloy. Mater. Sci. Eng. A 2023, 885, 145634. [Google Scholar] [CrossRef]
Coded | Treatment Condition |
---|---|
F | Raw material |
T4-2h | 560 °C 2 h/water quenching → natural aging 7 days |
T4-4h | 560 °C 4 h/water quenching → natural aging 7 days |
T4-6h | 560 °C 6 h/water quenching → natural aging 7 days |
T6-2h | 560 °C 2 h/water quenching → 170 °C 4 h/air quenching |
T6-4h | 560 °C 4 h/water quenching → 170 °C 4 h/air quenching |
T6-6h | 560 °C 6 h/water quenching → 170 °C r 4 h/air quenching |
R5 | Thicknesses of 6 mm were rolled to 5 mm |
R4 | Thicknesses of 6 mm were rolled to 4 mm |
R3 | Thicknesses of 6 mm were rolled to 3 mm |
R2 | Thicknesses of 6 mm were rolled to 2 mm |
R1 | Thicknesses of 6 mm were rolled to 1 mm |
R5T4 | Thicknesses of 6 mm were rolled to 5 mm + 560 °C 2 h/water quenching → natural aging 7 days |
R4T4 | Thicknesses of 6 mm were rolled to 4 mm + 560 °C 2 h/water quenching → natural aging 7 days |
R3T4 | Thicknesses of 6 mm were rolled to 3 mm + 560 °C 2 h/water quenching → natural aging 7 days |
R2T4 | Thicknesses of 6 mm were rolled to 2 mm + 560 °C 2 h/water quenching → natural aging 7 days |
R1T4 | Thicknesses of 6 mm were rolled to 1 mm + 560 °C 2 h/water quenching → natural aging 7 days |
R5T6 | Thicknesses of 6 mm were rolled to 5 mm + 560 °C 2 h/water quenching →170 °C 4 h/air quenching |
R4T6 | Thicknesses of 6 mm were rolled to 4 mm + 560 °C 2 h/water quenching →170 °C 4 h/air quenching |
R3T6 | Thicknesses of 6 mm were rolled to 3 mm + 560 °C 2 h/water quenching →170 °C 4 h/air quenching |
R2T6 | Thicknesses of 6 mm were rolled to 2 mm + 560 °C 2 h/water quenching →170 °C 4 h/air quenching |
R1T6 | Thicknesses of 6 mm were rolled to 1 mm + 560 °C 2 h/water quenching →170 °C 4 h/air quenching |
T4R5 | 560 °C 2 h/water quenching → natural aging 7 days + Thicknesses of 6 mm were rolled to 5 mm |
T4R4 | 560 °C 2 h/water quenching → natural aging 7 days + Thicknesses of 6 mm were rolled to 4 mm |
T4R3 | 560 °C 2 h/water quenching → natural aging 7 days + Thicknesses of 6 mm were rolled to 3 mm |
T4R2 | 560 °C 2 h/water quenching → natural aging 7 days + Thicknesses of 6 mm were rolled to 2 mm |
T4R1 | 560 °C 2 h/water quenching → natural aging 7 days + Thicknesses of 6 mm were rolled to 1 mm |
T6R5 | 560 °C 2 h/water quenching →170 °C 4 h/air quenching + Thicknesses of 6 mm were rolled to 5 mm |
T6R4 | 560 °C 2 h/water quenching →170 °C 4 h/air quenching + Thicknesses of 6 mm were rolled to 4 mm |
T6R3 | 560 °C 2 h/water quenching →170 °C 4 h/air quenching + Thicknesses of 6 mm were rolled to 3 mm |
T6R2 | 560 °C 2 h/water quenching →170 °C 4 h/air quenching + Thicknesses of 6 mm were rolled to 2 mm |
T6R1 | 560 °C 2 h/water quenching →170 °C 4 h/air quenching + Thicknesses of 6 mm were rolled to 1 mm |
T6R4T6 | 560 °C 2 h/water quenching →170 °C 4 h/air quenching + Thicknesses of 6 mm were rolled to 4 mm + 360 °C 2 h/water quenching →170 °C 4 h/air quenching |

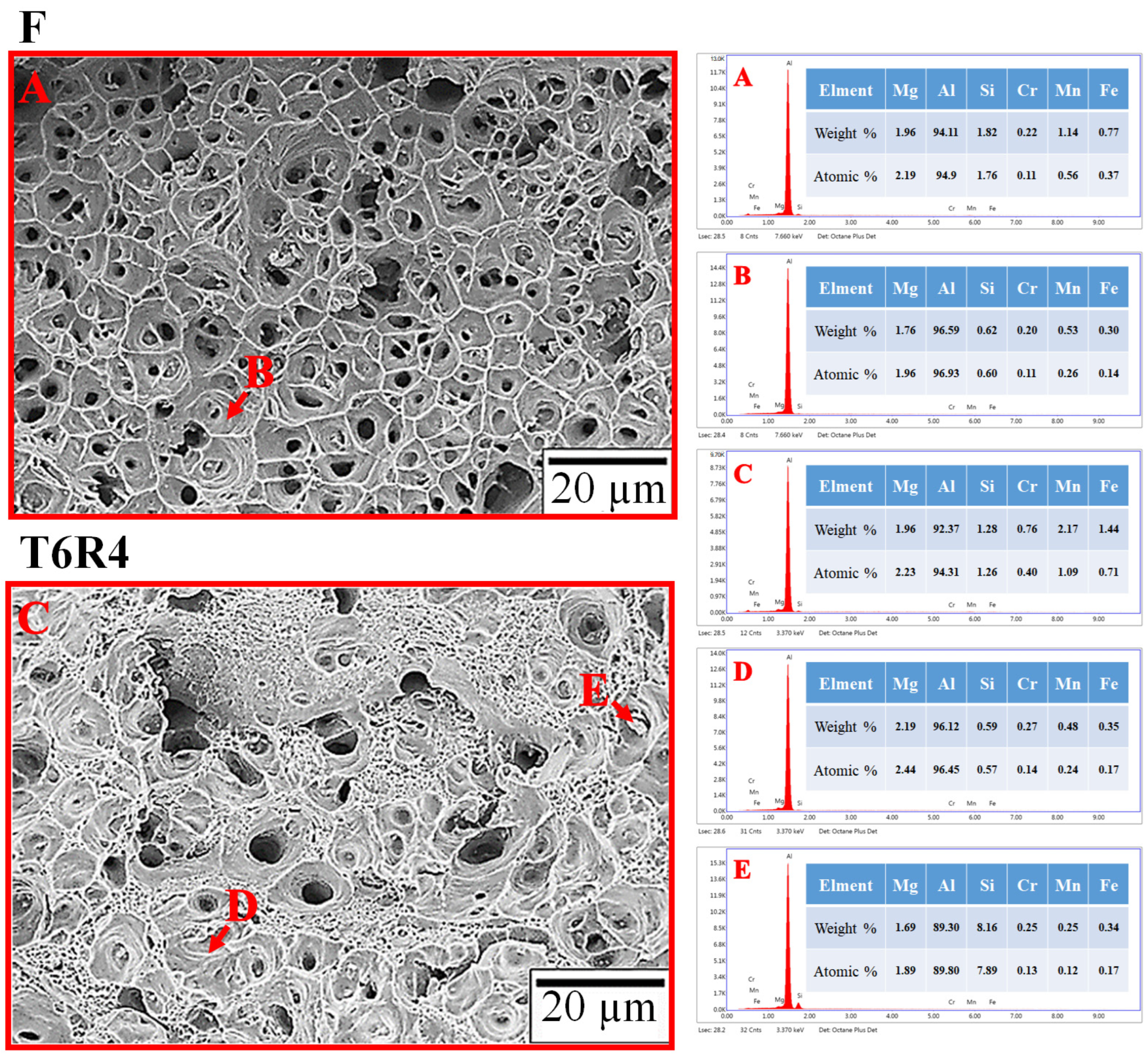

Locations | A | B | C | D | E | |||||
---|---|---|---|---|---|---|---|---|---|---|
Elements | Wt. % | At. % | Wt. % | At. % | Wt. % | At. % | Wt. % | At. % | Wt. % | At. % |
Mg | 1.96 | 2.19 | 1.76 | 1.96 | 1.96 | 2.23 | 2.19 | 2.44 | 1.69 | 1.89 |
Al | 94.11 | 94.99 | 96.59 | 96.93 | 92.37 | 94.31 | 96.12 | 96.45 | 89.30 | 89.80 |
Si | 1.82 | 1.76 | 0.62 | 0.60 | 1.28 | 1.26 | 0.59 | 0.57 | 8.16 | 7.89 |
Cr | 0.22 | 0.11 | 0.20 | 0.11 | 0.76 | 0.40 | 0.27 | 0.14 | 0.25 | 0.13 |
Mn | 1.14 | 0.56 | 0.53 | 0.26 | 2.17 | 1.09 | 0.48 | 0.24 | 0.25 | 0.12 |
Fe | 0.77 | 0.37 | 0.14 | 0.14 | 1.44 | 0.81 | 0.38 | 0.17 | 0.34 | 0.17 |

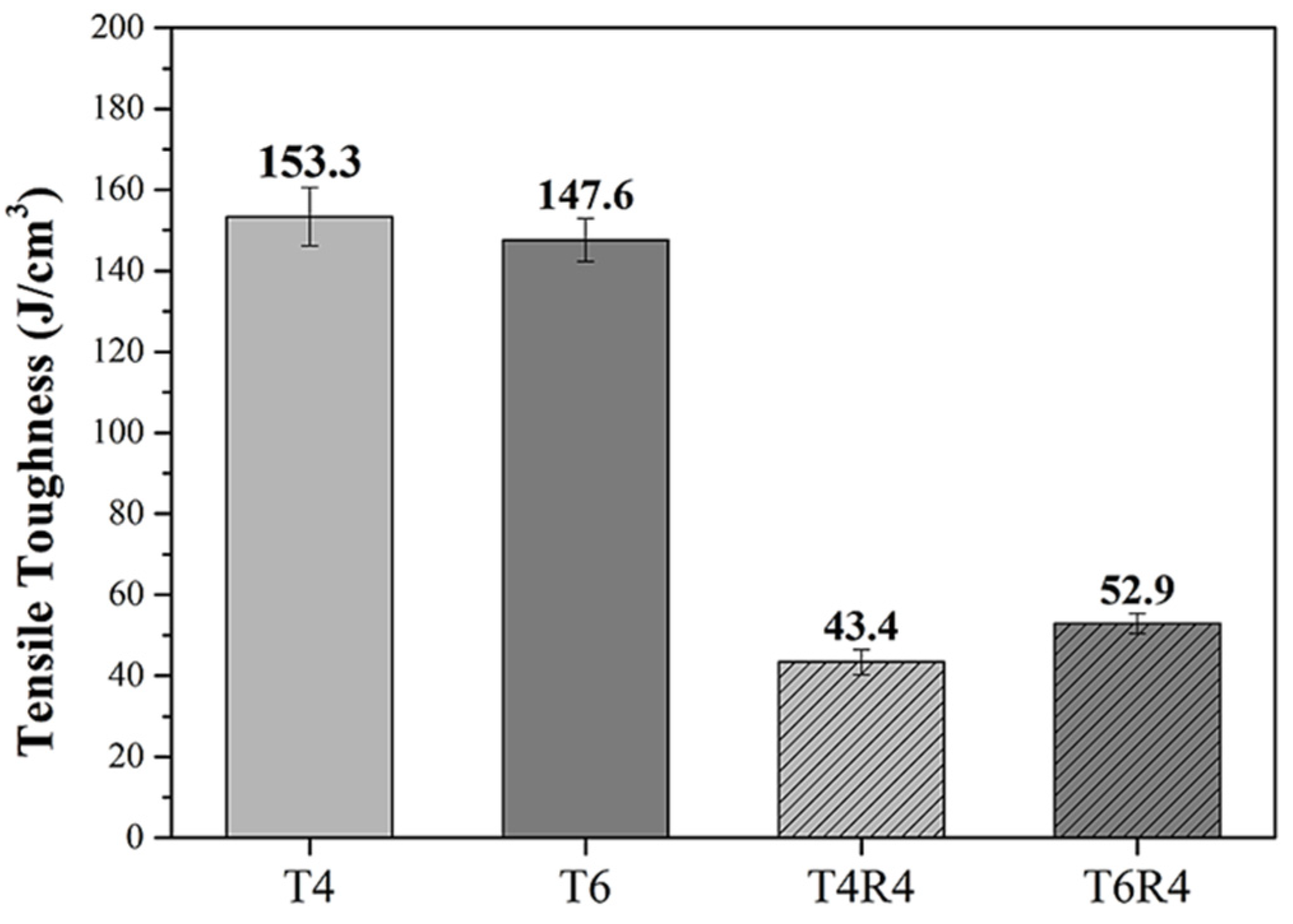

Specimen | T4R4 | T6R4 |
---|---|---|
Tensile Toughness (J/cm3) | 43.4 ± 3.1 | 52.9 ± 2.5 |
Charpy Impact Toughness (J/cm2) | 11.6 ± 1.5 | 12.3 ± 2.3 |
Specimen | F | T4 | T6 | T4R4 | R4T4 | T6R4 | R4T6 |
---|---|---|---|---|---|---|---|
E (GPa) | 0.87 | 2.13 | 2.67 | 4.98 | 4.46 | 5.16 | 4.52 |
