Article

Catalytic Oxidation of Acetone over MnOx-SiO2 Catalysts: An Effective Approach to Valorize Rice Husk Waste

by
Mauricio Cardoso
1,
Patrice Portugau
1,
Carolina De Los Santos
1,
Ricardo Faccio
2,
Hilario Vidal
3,
José Manuel Gatica
3,
María del Pilar Yesté
3,
Jorge Castiglioni
1 and
Martin Torres
1,*
1
Área Fisicoquímica, Facultad de Química, Universidad de la República, Gral. Flores 2124, Montevideo 11800, Uruguay
2
Área Física, Facultad de Química, Universidad de la República, Gral. Flores 2124, Montevideo 11800, Uruguay
3
Departamento C.M. I.M. y Química Inorgánica, Universidad de Cádiz, 11510 Puerto Real, Spain
*
Author to whom correspondence should be addressed.
Materials 2024, 17(24), 6069; https://doi.org/10.3390/ma17246069
Submission received: 14 November 2024 / Revised: 3 December 2024 / Accepted: 10 December 2024 / Published: 12 December 2024

Abstract

:
Rice husk, a byproduct of rice production, poses significant environmental challenges due to disposal issues, while the emission of volatile organic compounds into the atmosphere further exacerbates these concerns. This study addresses both problems by exploring the potential of texturally enhanced SiO2, derived from Uruguayan rice husk, as a catalytic support for manganese oxides in the combustion of volatile organic compounds. SiO2 was synthesized from rice husk ash using a sustainable, acid-free pretreatment method, yielding a notably high silica purity of 96.5%—a level comparable to or exceeding previously reported values, highlighting the high silica quality inherent in Uruguayan rice husk. The catalytic activity was evaluated using acetone as a model volatile organic compound, achieving up to 90% conversion with 30 wt.% manganese oxide at 300 °C, with CO2 as the primary product. Furthermore, a 24 h stability test demonstrated consistent performance, maintaining a conversion rate of around 95.6 ± 2.5%. These findings suggest that high-purity SiO2 derived from Uruguayan rice husk, with its sustainability benefits, offers an effective solution for acetone removal when supporting an active phase such as manganese oxides, addressing both rice husk disposal and volatile organic compound emissions.

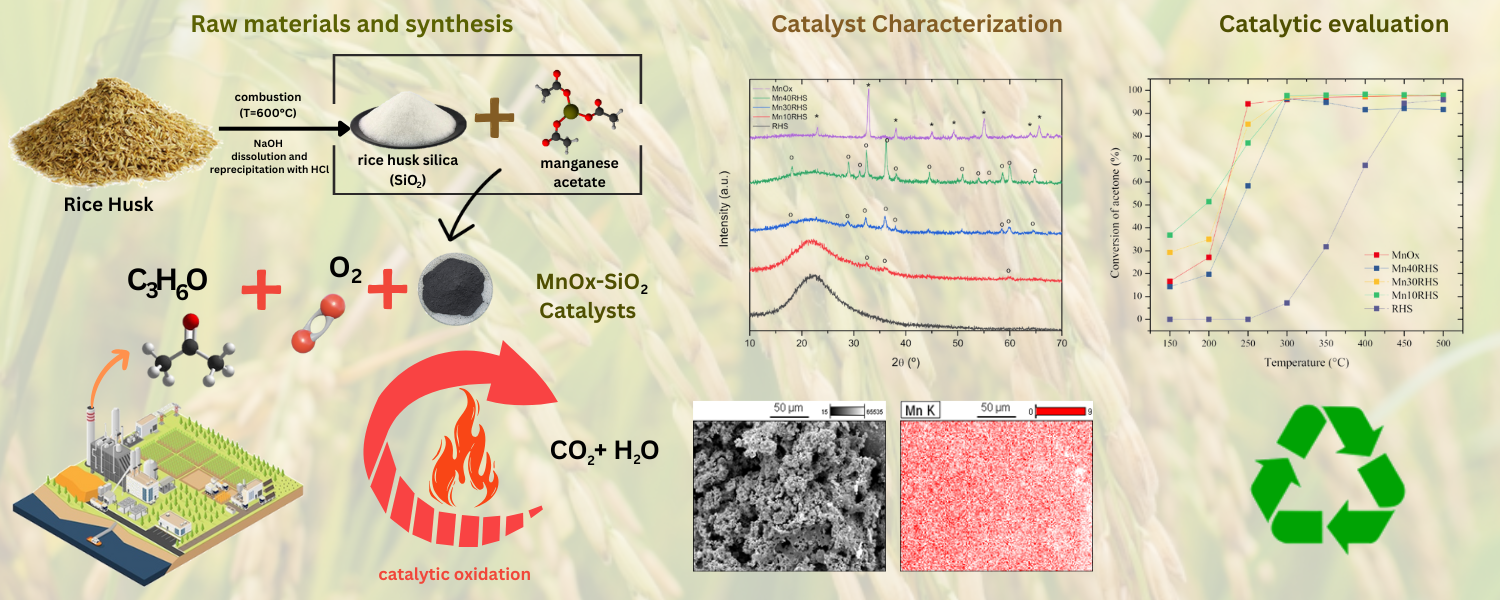

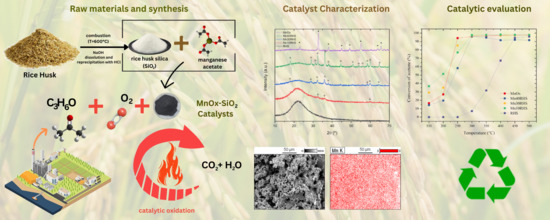

Graphical Abstract

1. Introduction

The conversion of biomass waste globally to produce value-added materials is a current trend, driven by the United Nations Sustainable Development Goals. One of the main objectives is the modernization of infrastructure and the transition of industries towards sustainability through more efficient use of resources and the promotion of clean and environmentally responsible technologies and industrial processes. This implies that all countries must take measures according to their respective capacities [1].
In this sense, Uruguay is renowned for being an agrarian country that extensively utilizes its soil for various crops, particularly rice. During the 2022–2023 season, the estimated rice harvest reached 1,462,800 tonnes, as reported by the competent ministry of Uruguay [2]. This level of production places Uruguay among the top 10 rice producers [3]. The primary product of the rice crop is paddy rice, accounting for 80% of the total harvested mass [4], while the remaining 20% corresponds to rice husk (RH), which is predominantly used for energy production due to its high calorific value of 14.7 MJ kg−1 [5]. In Uruguay, there are two energy production plants that utilize RH as a fuel source [6]. Despite its extensive use as an energy source, a significant portion of the rice husk produced remains unused, ending up deposited in various locations, including watercourses, causing environmental degradation [4]. This situation raises concerns among the Uruguayan academic community, which has been exploring multiple approaches for RH management and valorization, including its use in energy storage and the production of antioxidants, among others [7,8,9].
When RH is used to produce energy, the challenge lies in managing large quantities of ash, which is primarily composed of amorphous SiO2 (90–95%) [4,10]. These ashes are not widely utilized and are eventually deposited in the environment, causing soil acidification and alterations in its physicochemical properties [11]. The abundance of SiO2 in RH ash has prompted its evaluation as a potential material for various applications [4].
The SiO2 obtained from RH combustion at temperatures below 800 °C is mainly amorphous but requires textural modification for broader applications in material science. These modifications are achieved via specific reaction sequences that yield high specific surface areas [12]. Texturally enhanced SiO2 derived from RH has multiple applications, including adsorption, supercapacitors, controlled release systems, and catalysis, among others [4,10,13,14,15].
SiO2 has been evaluated as a catalyst support by incorporating active species. This application has been widely reported in studies spanning a variety of reactions, such as water contaminant remediation, the Fischer–Tropsch reaction, hydrogenation reactions, and the combustion of volatile organic compounds (VOCs). In the latter case, active phases such as copper and palladium have been utilized [16,17,18,19].
Currently, atmospheric pollution is a significant concern for the scientific community. The emission of VOCs into the atmosphere resulting from industrial and anthropogenic activities has numerous environmental and human health impacts due to their toxicity and contribution to the formation of ground-level ozone and photochemical smog [20,21]. Catalytic combustion has emerged as a promising solution to prevent the emission of VOCs into the atmosphere [21]. In this context, manganese-based catalysts have demonstrated broad efficacy for the conversion of VOCs [22].
Manganese is one of the most abundant metals in the Earth’s crust, resulting in the availability of cost-effective manganese compounds. This transition metal features five unpaired d-electrons, enabling it to exhibit multiple oxidation states and form a wide range of stable oxides (MnOx) [23]. Moreover, manganese is capable of transitioning between oxidation states, such as MnO2, Mn2O3, and Mn3O4 [24]. This capability explains its excellent performance in VOC oxidation. Despite its catalytic combustion capabilities, treating gas streams containing VOCs requires large quantities of MnOx due to its low specific surface area (<5 m2 g−1). Consequently, supporting MnOx on a mesoporous solid enhances dispersion and increases atomic efficiency, offering an effective method to boost the specific surface area and improve catalytic performance [25].
Our research group has assessed the purity of RH ash in terms of SiO2 content, obtained from Uruguayan RH, and found it to exceed 95% without necessitating further purification steps. These results establish Uruguayan RH as a high-purity silica source, differentiating it from other studies that require acid treatments to achieve similar purity levels [12,26]. Based on the aforementioned information, and to the best of the authors’ knowledge, this is the first time RH ash has been evaluated from this perspective. The objective of this study is to develop a new type of catalyst, characterize the texturally enhanced SiO2 derived from Uruguayan rice husk ash, and assess its potential as a catalytic support for MnOx in the catalytic combustion of a VOC such as acetone. This represents a new application for rice husk waste in the field of catalysis [27]. Furthermore, this study provides insights into a new method for valorizing rice husk ash, offering a foundation for potential solutions to two pressing environmental challenges.

2. Materials and Methods

2.1. Synthesis of SiO2

Rice husk (RH) from the Olimar variety, supplied by the Sociedad Anónima de Molinos Arroceros Nacionales (SAMAN, Montevideo, Uruguay), was used as the raw material. RH underwent a pre-treatment process: a large quantity was ground and sieved to collect 50 g of material with a particle size between 0.60 and 0.80 mm. The sieved sample was washed with distilled water to remove soil and other soluble impurities and then dried for 24 h at 105 °C.
The synthesis of SiO2 from RH followed the technique described in [12] with some modifications. The pre-treated RH was directly calcined at 600 °C for 2 h in a muffle furnace, yielding approximately 10 g of ash. After calcination, the resulting RH ash was dissolved in NaOH (1 g of RH ash per 10 mL of 4 M NaOH) with continuous magnetic stirring and maintained at 80 °C for 4 h, as shown in Equation (1).
S i O 2   s + 2 N a O H   a q Δ   N a 2 S i O 3   a q + H 2 O   ( l )
The solution was cooled to room temperature and filtered. The pH was measured, and the solution was stored in a polypropylene flask. It was then treated with a stoichiometric volume of 5 M HCl added in one step to achieve a pH of 9. At this pH, silicic acid gelled within the solution, as illustrated in Equation (2).
N a 2 S i O 3   a q + 2 H C l   2 N a C l   a q + H 2 S i O 3   ( s )
The gel was washed multiple times under magnetic stirring conditions to ensure mass exchange and reduce impurities until a neutral pH and a conductivity below 50 µS cm−1 were reached. The gel was then dried overnight at 105 °C in an oven. Finally, the solid product was calcined in an air atmosphere at 600 °C for 2 h to obtain SiO2, following the process shown in Equation (3). This final solid was labeled “RHS”.
H 2 S i O 3   s Δ   S i O 2   s + H 2 O   ( l )

2.2. Synthesis of Catalysts

Catalysts were synthesized via the incipient wetness impregnation method [24,28], using manganese (II) acetate tetrahydrate (Mn(Ac)2), supplied by Sigma-Aldrich (St. Louis, MO, USA) (purity > 99%), as the MnOx precursor. Scheme 1 summarizes the synthesis route followed to obtain the catalysts. An appropriate amount of Mn(Ac)2 was dissolved in distilled water to create a saturated solution. The RHS was impregnated with this solution, then dried in an oven at 105 °C for 24 h.
The impregnated solid was calcined in a furnace with the following temperature pro-gramme: heating from room temperature to 550 °C at 5 °C min−1, followed by a 4 h dwell at 550 °C. This program was based on thermal analysis results (discussed below). Catalysts were labeled as MnX/RHS, where X denotes the weight percentage of manganese loaded onto RHS (10%, 30%, or 40%). Bulk manganese oxide (MnOx) was synthesized using the same precursor and temperature program.

2.3. Characterization Studies

2.3.1. X-Ray Diffraction (XRD) and Rietveld Analysis

X-ray powder diffraction was performed using a Rigaku Miniflex 600-C (Tokyo, Japan) X-ray diffractometer in θ–θ geometry. The instrument was operated with a CuKα X-ray radiation source (sealed tube at 40 kV/30 mA) and a curved Ge crystal beam monochromator with a focal distance of 285 mm. Data were collected over a 2θ range of 2.00°–70.00° in steps of 0.02°, with a counting time of 2 s per step. Full-pattern profile fitting via Rietveld refinement [29] was conducted using Smart Lab Studio II software (version 4.3) from Rigaku (Tokyo, Japan).

2.3.2. Thermogravimetric Analysis (TGA)

TGA was performed using a Shimadzu TGA-50 apparatus (Kyoto, Japan). Approximately 10 mg of each sample was analyzed in a platinum pan under an air stream (50 cm3 min−1). For RH, the temperature program ranged from room temperature to 900 °C at a heating rate of 10 °C min−1. For the MnOx precursor, the temperature program ranged from room temperature to 550 °C at 5 °C min−1, followed by a 4 h dwell at 550 °C.

2.3.3. Microwave-Induced Plasma Atomic Emission Spectrometry (MIP-AES)

The purity of RHS ash was assessed using an Agilent 4210 MIP-OES system (Santa Clara, CA, USA). For analysis, 250 mg of sample was dissolved in 15 mL of 0.5 M KOH, sonicated for 20 min, and treated in a water bath at 80 °C for 3 h.

2.3.4. Textural Characterization

Textural properties were determined via N2 physisorption at 77 K using a Micromeritics ASAP2020 analyzer (Norcross, GA, USA). Samples were pre-evacuated at 200 °C for 2 h. The specific surface area was calculated using the BET method, and total pore volume was estimated from nitrogen adsorption at a relative pressure of 0.99. The Non-Local Density Functional Theory (NLDFT) method was applied to determine the pore size distribution.

2.3.5. Fourier Transformed Infrared Spectroscopy (FTIR)

FTIR spectra were obtained using a Shimadzu QATR-S IRSpirit spectrometer (Kyoto, Japan) in the range of 4000–400 cm−1. Measurements were recorded in % Transmittance mode with attenuated total reflection (ATR) using a single-reflection accessory (QATR-S).

2.3.6. Scanning Electron Microscopy (SEM) and Energy Dispersive Spectroscopy (EDS)

SEM analysis was conducted on uncoated samples using a JEOL JS M-5900LV (Tokyo, Japan) scanning electron microscope operating at 25 kV. Samples were mounted on aluminum holders with carbon tape. Elemental composition was analyzed using an energy-dispersive spectrometry probe (NORAN System 7) at 20 kV.

2.3.7. Temperature-Programmed Reduction Mass Spectrometry (H2-TPR)

H2-TPR experiments were carried out using a Micromeritics Autochem (Norcross, GA, USA) apparatus equipped with a thermal conductivity detector (TCD). Samples were pre-treated in Ar at 500 °C for 1 h (60 cm3 min−1) before cooling to 25 °C. During TPR, samples were heated to 900 °C (10 °C min−1) under 5% H₂/Ar (60 cm3 min−1) conditions for 1 h.

2.4. Catalytic Evaluation

The catalytic activity of the materials for acetone oxidation was evaluated using 500 mg samples placed in a U-shaped quartz reactor. Oxygen was bubbled through liquid acetone at (0 ± 1) °C with a flow rate of 6.5 cm3 min−1, then mixed with an argon flow of 120 cm3 min−1. The gas hourly space velocity (GHSV) was approximately 15,000 cm3 h−1 g−1 cat.
For each test, the temperature was increased from 150 °C to 500 °C in increments of 50 °C. Gas samples were collected from the reactor inlet and outlet to monitor gas composition using a Shimadzu GC-2014 (Kyoto, Japan) gas chromatograph equipped with a Hayesep® column. The stability of the most active catalyst was tested under the same flow conditions for 24 h at the temperatures identified from light-off curves.

3. Results and Discussion

3.1. Characterization Results

In the thermogravimetric analysis depicted in Figure 1a, RH exhibits three distinct mass loss steps: the first is attributed to moisture in the raw sample, while the subsequent two result from organic matter decomposition, consistent with the literature [8]. Above 500 °C, the mass stabilizes at approximately 20%, which is attributed to ash content. Figure 1b presents the thermal analysis for RHS and Mn(Ac)2, noting that RHS exhibits no weight loss above 105 °C, with mass loss observed only from humidity below 100 °C. The decomposition of Mn(Ac)2 to form MnOx aligns with previous studies [24]. Consequently, the calcination temperature for the catalysts was set at 550 °C.
The SiO2 content in RHS, determined using MIP-AES, was found to be 96.5 wt.%, confirming the high purity of silica in our rice husk sample. Additionally, the sodium content, quantified as Na2O, was found to be 2.47 wt.%. Compared to previous studies that employed acid-based extraction methods [12,26], this approach presents a more sustainable alternative due to its reduced energy requirements. The acid-free extraction method not only enhances sustainability by minimizing chemical usage and energy consumption but also reinforces the purity of our RHS, highlighting its potential as a cost-effective and environmentally responsible source of high-purity silica for various applications.
Figure 2 shows the RHS diffractogram, which presents the typical broad dispersion of amorphous SiO2 in the 2θ range of approximately 20–30° [30]. Conversely, the bulk MnOx diffractogram presents a diffraction pattern consistent with the crystalline structure of α-Mn2O3 (Bixbyite, cubic crystalline system, space group I a 3 ¯ ) [24], as shown in Figure S1. According to a full-pattern profile fitting and Rietveld refinement [29,31] (see Table S1), the refined crystalline size domain value corresponds to D = 26.8(4) nm, indicating a nanosized domain.
The synthesized catalysts (Mn10RHS, Mn30RHS, and Mn40RHS) exhibit a similar crystalline structure, and their broad reflections are related to the presence of amorphous SiO2, which indicates the structural stability of the support. For the supported catalysts, the diffraction pattern matches the crystalline structure of majority Mn3O4 (Hausmannite, tetragonal crystalline system, space group I41/amd) and minority β-MnO2 (Pyrolusite, tetragonal crystalline system, space group P42/mnm) [32]. The corresponding Bragg reflections display significant full widths at half maximum (FWHM), suggesting a possible confinement effect according to Scherrer’s equation [33]. Due to this broadening and the proximity of the Bragg reflections between Mn3O4 and β-MnO2, the samples are likely to contain both phases.
We applied an internal standard procedure using yttrium oxide (cubic crystalline system, space group I a 3 ¯ ) as a reference pattern to determine the relative weight fractions of the crystalline and amorphous components. For Mn40RHS, we obtained a crystalline size domain value of approximately D = 30.9(5) nm and relative weight fractions on a crystalline basis of 17.44(2)% for Mn3O4, 0.04(2)% for β-MnO2, and 82.5(2)% for the amorphous phase. For Mn30RHS, we refined a crystalline size domain of D = 18.4(5) nm, with relative weight fractions of 14.4(4)% for Mn3O4, 1.1(4)% for β-MnO2, and 84.5% for the amorphous phase. Finally, for Mn10RHS, we obtained D = 10(1) nm for Mn3O4 exclusively, with a relative weight fraction of 5.7(4)%, accompanied by an amorphous fraction of 94.3%.
The difference between the crystalline structure of bulk MnOx and that of the supported catalysts reveals the interaction of the SiO₂ surface during the formation of MnOx. Additionally, there are differences in the evolution of the crystalline unit cell parameters for the majority phase Mn3O4, with a = 5.7646(3) Å, a = 5.7737(16) Å, and a = 5.784(9) Å for Mn40RHS, Mn30RHS, and Mn10RHS, respectively. As mentioned above, the reducibility of Mn2O3 differs from that of Mn3O4; therefore, its catalytic performance is expected to vary accordingly.
The N₂ physisorption isotherm presented in Figure 3a, along with the corresponding pore size distribution (PSD) in Figure 3b, illustrates the characteristics of all catalysts. According to the IUPAC classification [34], the isotherms are primarily Type II with H3 hysteresis loops. The PSD profiles for all catalysts and the RHS support are similar; however, the pores measuring approximately 1 nm decrease as the manganese phase content increases, resulting in a reduction in the microporosity of the samples.
Table 1 lists the textural parameters and specific surface area (SBET) for the catalysts, with RHS exhibiting a SBET of 333 m2/g, indicating a favorable surface area compared to other silica supports derived from RH ash [12]. For supported catalysts, SBET decreases with the increase in MnOx loading, a trend also observed in total pore volume (VTp). This behavior likely results from the reduction in mesoporous volume (Vmp) and micropore volume (Vµp) due to catalyst deposition and subsequent pore coverage.
The FT-IR analysis of the synthesized catalysts and RHS, as shown in Figure 4, reveals that RHS displays three main bands at 453 cm−1 and 1070 cm−1, corresponding to Si-O-Si bonds, and at 802 cm−1, related to silanol groups (Si-OH) on the surface. These silanol groups may interact with the carbonyl groups of acetone molecules, the VOC model used in this work, potentially impacting catalytic performance [21]. Bulk MnOx exhibits broad bands between 350 and 600 cm−1, with peak absorption around 480 cm−1 [32]. However, the specific phase of Mn2O3 (α or γ) cannot be determined from this analysis due to the similarity of FT-IR patterns reported in the literature [32]. Despite this limitation, the results align with the XRD findings. For the Mn40RHS and Mn30RHS catalysts, two characteristic peaks of Mn3O4 are identified at 475 cm−1 and 594 cm−1 [32]. In contrast, the FT-IR spectrum of Mn10RHS is similar to that of RHS.
The results of SEM analysis and EDS mapping are presented in Figure 5. The SEM image of MnOx (Figure 5i,j) reveals particle agglomeration, in contrast to the catalysts Mn10RHS (Figure 5c,d), Mn30RHS (Figure 5e,f), and Mn40RHS (Figure 5g,h). EDS mapping was conducted to evaluate the distribution of manganese oxide on the RHS surface, showing no agglomeration zones for the manganese phase, which indicates a homogeneous distribution.
The H2-TPR results depicted in Figure 6 illustrate the reduction behavior of the catalyst components, including the support and the catalytic phase. For MnOx, a two-step reduction is observed, with peaks at 450 °C and 510 °C. In contrast, the reduction of Mn40RHS occurs in a single step, peaking at 445 °C, while RHS shows no reduction. The total H2 consumed (O/Mn) is 0.46 for MnOx, indicating that the starting oxide was Mn2O3, which was subsequently reduced to Mn3O4 and MnO. The Mn40RHS catalyst shows an H2 consumption corresponding to a 0.30 O/Mn ratio, suggesting that the starting oxide is Mn3O4, consistent with its single-peak reduction profile. This increase in the oxidation state of manganese with its content aligns with the literature [35]. Additionally, the more intense low-temperature reduction peak for Mn40RHS can be attributed to a higher dispersion of the manganese phase on the support.

3.2. Activity Testing

The light-off curves for the catalysts using acetone as a VOC model are presented in Figure 7. All catalysts and the support demonstrate activity in the catalytic conversion of acetone. For the catalysts containing MnOx, acetone oxidation is known to occur via a Mars–van Krevelen mechanism through which the reaction occurs between the adsorbed VOCs and the lattice oxygen of the catalyst rather than the oxygen in the gas phase [36,37].
For RHS, catalytic activity begins above 250 °C, reaching conversion values of up to 90% at 450 °C. This conversion can be partly attributed to the presence of silanol groups on the RHS surface [21]. Bulk MnOx achieves over 90% acetone conversion at 250 °C, while the supported catalysts—Mn10RHS, Mn30RHS, and Mn40RHS—achieve this performance at 300 °C. Although RHS shows activity above 250 °C, it does not reach 10% acetone conversion at 300 °C, indicating its contribution to acetone oxidation is smaller but not negligible, supporting its role as a catalytic support.
Moreover, the light-off curves demonstrate the effectiveness of supporting the active phase on RHS at contents below 50%. Under the specified temperature conditions, Mn30RHS and Mn40RHS achieve complete conversion to CO2. This behavior is summarized in Table 2, which presents the ratio (R) between experimentally quantified CO2 and CO2 calculated from the total combustion of acetone, based on experimental conversion at various temperatures. The ratios were evaluated at T85 and T95, the temperatures at which 85% and 95% acetone conversion are reached, respectively, along with the temperature at which a ratio of 1 indicates total conversion to CO2.
While the Mn10RHS catalyst achieved conversions above 90%, it did not attain complete conversion of acetone to CO2. In contrast, the Mn30RHS and Mn40RHS catalysts demonstrated significantly better performance, reaching an R value of 1 at 300 °C. This improvement is likely due to better surface coverage of the support in Mn30RHS and Mn40RHS, attributed to higher loading compared to Mn10RHS, despite all catalysts displaying similar phases according to XRD.
Among the Mn30RHS and Mn40RHS catalysts, Mn30RHS exhibited the lowest T85 and T95 temperatures (see Table 2), indicating superior performance in acetone oxidation. This enhanced activity may stem from its higher surface area, larger pore and mesopore volumes, and improved distribution, as supported by N2 physisorption and SEM results. Thus, Mn30RHS is more effective for acetone conversion, allowing for a smaller amount of active phase when using SiO2 derived from RH.
The positive results for acetone conversion align with previous research, as shown in Table 3. The T90 values obtained in this study are intermediate compared to those reported for manganese oxides on various supports in the catalytic combustion of acetone. It is worth noting that catalysts achieving better T90 values than Mn30RHS either incorporate a second metal in the active phase or lack a support.
With Mn30RHS identified as the best supported catalyst for acetone, achieving conversions above 90%, its catalytic stability was evaluated over 24 h under the same flow conditions used for catalytic testing but at 300 °C, where an R value of 1 was achieved. The results are presented in Figure 8.
In this case, the stability tests yielded remarkable results, as no deactivation was observed, and the conversion remained virtually constant within the range of (95.6 ± 2.5)%. Additionally, the R ratio was closely monitored, and its value also remained steady within the range of (0.9 ± 0.1).

4. Conclusions

This work involved the preparation, characterization, and evaluation of catalysts with varying loads of MnOx supported on mesoporous SiO2 derived from Uruguayan rice husk ashes. The silica from RH ash proved to be a promising catalytic support, achieving over 90% acetone conversion at 450 °C, with improved textural properties compared to previous results.
All catalysts demonstrated activity in acetone oxidation, with Mn30RHS and Mn40RHS showing notable conversion to CO2. Among the catalysts examined, Mn30RHS yielded the best overall performance. Notably, comparable catalytic behavior to bulk MnOx was achieved at 300 °C, allowing for a reduced quantity of transition metal oxide when supported on RHS.
This study highlights that SiO2 derived from Uruguayan rice husk ashes can effectively contribute to the development of mesoporous solid–MnOx catalysts for VOC removal, offering potential solutions for ash deposition and improving air quality.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma17246069/s1, Figure S1: Rietveld profile fitting for (a) Mn40RHS, (b) Mn30RHS, and (c) Mn10RHS samples including yttria; Table S1: Summary of main statistics of the Rietveld refinement for Mn40RHS, Mn30RHS, and Mn10RHS.

Author Contributions

M.C.: Validation, Formal analysis, Investigation, Software, Writing—Original Draft, Visualization. P.P.: Validation, Formal analysis, Investigation, Software, Writing—Original Draft, Visualization, Writing—Review and Editing. C.D.L.S.: Validation, Formal analysis, Investigation, Writing—Original Draft, Visualization, Writing—Review and Editing. R.F.: Validation, Formal analysis, Investigation, Software, Writing—Original Draft, Visualization, Writing—Review and Editing. H.V.: Writing—Original Draft, Visualization, Writing—Review and Editing. J.M.G.: Writing—Original Draft, Visualization, Writing—Review and Editing. M.d.P.Y.: Validation, Formal analysis, Investigation, Writing—Original Draft, Visualization, Writing—Review and Editing. J.C.: Conceptualization, Methodology, Writing—Review and Editing, Supervision, Project Administration, Funding Acquisition. M.T.: Validation, Formal analysis, Resources, Investigation, Writing—Original Draft, Visualization, Conceptualization, Methodology, Software, Writing—Review and Editing, Supervision, Project Administration, Funding Acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Comisión Sectorial de Investigación Científica, grant number I+D 2115-347.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article. Further inquiries can be directed to the corresponding authors.

Acknowledgments

The authors thank Comisión Sectorial de Investigación Científica, project CSIC I+D 2115-347 for the funding given to carry out the research and to SAMAN for the rice husk samples. The authors also acknowledge PEDECIBA for the financial support. The authors also thank Mariela Piston and Marcelo Belluzzi for their assistance with the MIP-AES analysis.

Conflicts of Interest

The authors declare no conflicts of any commercial or associative interest in connection with the work submitted.

References

  1. United Nations. Sustainable Development Goals. Available online: https://www.un.org/sustainabledevelopment/infrastructure-industrialization/ (accessed on 1 May 2024).
  2. Salgado, L. Arroz: Situación y Perspectivas. Available online: https://www.gub.uy/ministerio-ganaderia-agricultura-pesca/comunicacion/publicaciones/anuario-opypa-2022/analisis-sectorial-cadenas-productivas/arroz (accessed on 25 March 2024).
  3. Uruguay XXI. Sector Agrícola En Uruguay. Available online: https://www.uruguayxxi.gub.uy/uploads/informacion/20c2018b1a2e68514020b55bcd11b62c6874640e.pdf (accessed on 25 March 2024).
  4. Gebretatios, A.G.; Kadiri Kanakka Pillantakath, A.R.; Witoon, T.; Lim, J.-W.; Banat, F.; Cheng, C.K. Rice Husk Waste into Various Template-Engineered Mesoporous Silica Materials for Different Applications: A Comprehensive Review on Recent Developments. Chemosphere 2023, 310, 136843. [Google Scholar] [CrossRef] [PubMed]
  5. Torres, M.; Portugau, P.; Castiglioni, J.; Yermán, L.; Cuña, A. Evaluation of the Potential Utilization of Conventional and Unconventional Biomass Wastes Resources for Energy Production. Renew. Energy Power Qual. J. 2019, 17, 511–515. [Google Scholar] [CrossRef]
  6. MGAP. Plantas de Operación. Available online: https://www.gub.uy/ministerio-industria-energia-mineria/publicaciones/plantas-operacion (accessed on 25 March 2024).
  7. Xavier, L.; Rocha, M.; Pisani, J.; Zecchi, B. Aqueous Two-Phase Systems Based on Cholinium Ionic Liquids for the Recovery of Ferulic and P-Coumaric Acids from Rice Husk Hydrolysate. Appl. Food Res. 2024, 4, 100381. [Google Scholar] [CrossRef]
  8. Leal da Silva, E.; Torres, M.; Portugau, P.; Cuña, A. High Surface Activated Carbon Obtained from Uruguayan Rice Husk Wastes for Supercapacitor Electrode Applications: Correlation between Physicochemical and Electrochemical Properties. J. Energy Storage 2021, 44, 103494. [Google Scholar] [CrossRef]
  9. Torres, M.; Portugau, P.; Castiglioni, J.; Cuña, A.; Yermán, L. Co-Combustion Behaviours of a Low Calorific Uruguayan Oil Shale with Biomass Wastes. Fuel 2020, 266, 117118. [Google Scholar] [CrossRef]
  10. Adam, F.; Appaturi, J.N.; Iqbal, A. The Utilization of Rice Husk Silica as a Catalyst: Review and Recent Progress. Catal Today 2012, 190, 2–14. [Google Scholar] [CrossRef]
  11. Moraes, C.A.; Fernandes, I.J.; Calheiro, D.; Kieling, A.G.; Brehm, F.A.; Rigon, M.R.; Berwanger Filho, J.A.; Schneider, I.A.; Osorio, E. Review of the Rice Production Cycle: By-Products and the Main Applications Focusing on Rice Husk Combustion and Ash Recycling. Waste Manag. Res. J. A Sustain. Circ. Econ. 2014, 32, 1034–1048. [Google Scholar] [CrossRef]
  12. Santana Costa, J.A.; Paranhos, C.M. Systematic Evaluation of Amorphous Silica Production from Rice Husk Ashes. J. Clean. Prod. 2018, 192, 688–697. [Google Scholar] [CrossRef]
  13. Andrade, J.d.L.; Moreira, C.A.; Oliveira, A.G.; de Freitas, C.F.; Montanha, M.C.; Hechenleitner, A.A.W.; Pineda, E.A.G.; de Oliveira, D.M.F. Rice Husk-Derived Mesoporous Silica as a Promising Platform for Chemotherapeutic Drug Delivery. Waste Biomass Valor. 2022, 13, 241–254. [Google Scholar] [CrossRef]
  14. Araichimani, P.; Prabu, K.M.; Kumar, G.S.; Karunakaran, G.; Surendhiran, S.; Shkir, M.; AlFaify, S. Rice Husk-Derived Mesoporous Silica Nanostructure for Supercapacitors Application: A Possible Approach for Recycling Bio-Waste into a Value-Added Product. Silicon 2022, 14, 10129–10135. [Google Scholar] [CrossRef]
  15. Sinyoung, S.; Kunchariyakun, K.; Asavapisit, S.; MacKenzie, K.J.D. Synthesis of Belite Cement from Nano-Silica Extracted from Two Rice Husk Ashes. J. Environ. Manag. 2017, 190, 53–60. [Google Scholar] [CrossRef] [PubMed]
  16. Ernst, B.; Libs, S.; Chaumette, P.; Kiennemann, A. Preparation and Characterization of Fischer-Tropsch Active Co/SiO2 Catalysts. Appl. Catal. A Gen. 1999, 186, 145–168. [Google Scholar] [CrossRef]
  17. Lambert, S.; Cellier, C.; Gaigneaux, E.M.; Pirard, J.-P.; Heinrichs, B. Ag/SiO2, Cu/SiO2 and Pd/SiO2 Cogelled Xerogel Catalysts for Benzene Combustion: Relationships Between Operating Synthesis Variables and Catalytic Activity. Catal. Commun. 2007, 8, 1244–1248. [Google Scholar] [CrossRef]
  18. Sitthisa, S.; Sooknoi, T.; Ma, Y.; Balbuena, P.B.; Resasco, D.E. Kinetics and Mechanism of Hydrogenation of Furfural on Cu/SiO2 Catalysts. J. Catal. 2011, 277, 1–13. [Google Scholar] [CrossRef]
  19. Peralta, Y.M.; Molina, R.; Moreno, S. Chemical and Structural Properties of Silica Obtained from Rice Husk and Its Potential as a Catalytic Support. J. Environ. Chem. Eng. 2024, 12, 112370. [Google Scholar] [CrossRef]
  20. Bratan, V.; Vasile, A.; Chesler, P.; Hornoiu, C. Insights into the Redox and Structural Properties of CoOx and MnOx: Fundamental Factors Affecting the Catalytic Performance in the Oxidation Process of VOCs. Catalysts 2022, 12, 1134. [Google Scholar] [CrossRef]
  21. Guo, Y.; Wen, M.; Li, G.; An, T. Recent Advances in VOC Elimination by Catalytic Oxidation Technology onto Various Nanoparticles Catalysts: A Critical Review. Appl. Catal. B 2021, 281, 119447. [Google Scholar] [CrossRef]
  22. Zhu, J.; Cheng, Y.; Wang, Z.; Zhang, J.; Yue, Y.; Qian, G. Low-Energy Production of a Monolithic Catalyst with MnCu-Synergetic Enhancement for Catalytic Oxidation of Volatile Organic Compounds. J. Environ. Manag. 2023, 336, 117688. [Google Scholar] [CrossRef]
  23. Ghosh, S.K. Diversity in the Family of Manganese Oxides at the Nanoscale: From Fundamentals to Applications. ACS Omega 2020, 5, 25493–25504. [Google Scholar] [CrossRef]
  24. Torres, M.; de los Santos, C.; Portugau, P.; Yeste, M.D.P.; Castiglioni, J. Utilization of a PILC-Al Obtained from Uruguayan Clay as Support of Mesoporous MnOx-Catalysts on the Combustion of Toluene. Appl. Clay. Sci. 2021, 201, 105935. [Google Scholar] [CrossRef]
  25. Gaticaa, J.M.; Castiglionib, J.; de los Santosb, C.; Yestea, M.P.; Cifredoa, G.A.; Torresb, M.; Vidala, H. Clay Honeycomb Monoliths as Support of Manganese Catalysts for VOCs Oxidation. Int. J. Chem. Environ. Eng. 2015, 6, 230–235. [Google Scholar]
  26. Steven, S.; Restiawaty, E.; Pasymi, P.; Bindar, Y. An Appropriate Acid Leaching Sequence in Rice Husk Ash Extraction to Enhance the Produced Green Silica Quality for Sustainable Industrial Silica Gel Purpose. J. Taiwan Inst. Chem. Eng. 2021, 122, 51–57. [Google Scholar] [CrossRef]
  27. Nzereogu, P.U.; Omah, A.D.; Ezema, F.I.; Iwuoha, E.I.; Nwanya, A.C. Silica Extraction from Rice Husk: Comprehensive Review and Applications. Hybrid Adv. 2023, 4, 100111. [Google Scholar] [CrossRef]
  28. Rashid, U.; Soltani, S.; Al-Resayes, S.I.; Nehdi, I.A. Metal Oxide Catalysts for Biodiesel Production. In Metal Oxides in Energy Technologies; Elsevier: Amsterdam, The Netherlands, 2018; pp. 303–319. [Google Scholar]
  29. Rietveld, H.M. A Profile Refinement Method for Nuclear and Magnetic Structures. J. Appl. Crystallogr. 1969, 2, 65–71. [Google Scholar] [CrossRef]
  30. Mattos, B.D.; Rojas, O.J.; Magalhães, W.L.E. Biogenic SiO2 in Colloidal Dispersions via Ball Milling and Ultrasonication. Powder Technol. 2016, 301, 58–64. [Google Scholar] [CrossRef]
  31. Toby, B.H.; Von Dreele, R.B. GSAS-II: The Genesis of a Modern Open-Source All Purpose Crystallography Software Package. J. Appl. Crystallogr. 2013, 46, 544–549. [Google Scholar] [CrossRef]
  32. Julien, C.M.; Massot, M.; Poinsignon, C. Lattice Vibrations of Manganese Oxides. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2004, 60, 689–700. [Google Scholar] [CrossRef]
  33. Patterson, A.L. The Scherrer Formula for X-Ray Particle Size Determination. Phys. Rev. 1939, 56, 978–982. [Google Scholar] [CrossRef]
  34. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of Gases, with Special Reference to the Evaluation of Surface Area and Pore Size Distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  35. Fanelli, E.; Turco, M.; Russo, A.; Bagnasco, G.; Marchese, S.; Pernice, P.; Aronne, A. MnO x/ZrO2 Gel-Derived Materials for Hydrogen Peroxide Decomposition. J. Solgel. Sci. Technol. 2011, 60, 426–436. [Google Scholar] [CrossRef]
  36. Kamal, M.S.; Razzak, S.A.; Hossain, M.M. Catalytic Oxidation of Volatile Organic Compounds (VOCs)—A Review. Atmos. Env. 2016, 140, 117–134. [Google Scholar] [CrossRef]
  37. Mars, P.; van Krevelen, D.W. Oxidations Carried out by Means of Vanadium Oxide Catalysts. Chem. Eng. Sci. 1954, 3, 41–59. [Google Scholar] [CrossRef]
  38. Cheng, L.; Wang, J.; Zhang, C.; Jin, B.; Men, Y. Boosting Acetone Oxidation Efficiency over MnO2 Nanorods by Tailoring Crystal Phases. New J. Chem. 2019, 43, 19126–19136. [Google Scholar] [CrossRef]
  39. Di Benedetto, N.; De los Santos, C.; Del Pilar Yeste, M.; Morais, J.; Do Carmo Martins Alves, M.; Amaya, A.; Suescun, L.; Gatica, J.M.; Vidal, H.; Castiglioni, J. Influence of the Thermal Processing and Doping on LaMnO3 and La0.8A0.2MnO3 (A = Ca, Sr, Ba) Perovskites Prepared by Auto-Combustion for Removal of VOCs. Catalysts 2022, 12, 865. [Google Scholar] [CrossRef]
  40. Dong, A.; Gao, S.; Wan, X.; Wang, L.; Zhang, T.; Wang, L.; Lang, X.; Wang, W. Labile Oxygen Promotion of the Catalytic Oxidation of Acetone over a Robust Ternary Mn-Based Mullite GdMn2O5. Appl. Catal. B 2020, 271, 118932. [Google Scholar] [CrossRef]
  41. Samantaray, S.K.; Parida, K. Modified TiO2–SiO2 Mixed Oxides. Appl. Catal. B 2005, 57, 83–91. [Google Scholar] [CrossRef]
  42. Li, T.; Wang, Z.; Shi, Y.; Yao, X. Preparation and Performance of Carbon-Based Ce-Mn Catalysts for Efficient Degradation of Acetone at Low Temperatures. Int. J. Environ. Res. Public Health 2022, 19, 16879. [Google Scholar] [CrossRef]
  43. Lin, L.-Y.; Bai, H. Promotional Effects of Manganese on the Structure and Activity of Ce–Al–Si Based Catalysts for Low-Temperature Oxidation of Acetone. Chem. Eng. J. 2016, 291, 94–105. [Google Scholar] [CrossRef]
  44. Gandı́a, L.M.; Vicente, M.A.; Gil, A. Complete Oxidation of Acetone over Manganese Oxide Catalysts Supported on Alumina- and Zirconia-Pillared Clays. Appl. Catal. B 2002, 38, 295–307. [Google Scholar] [CrossRef]
  45. Gatica, J.M.; Castiglioni, J.; de los Santos, C.; Yeste, M.P.; Cifredo, G.; Torres, M.; Vidal, H. Use of Pillared Clays in the Preparation of Washcoated Clay Honeycomb Monoliths as Support of Manganese Catalysts for the Total Oxidation of VOCs. Catal. Today 2017, 296, 84–94. [Google Scholar] [CrossRef]
  46. De los Santos, C.; Vidal, H.; Gatica, J.M.; Yeste, M.P.; Cifredo, G.; Castiglioni, J. Optimized Preparation of Washcoated Clay Honeycomb Monoliths as Support of Manganese Catalysts for Acetone Total Combustion. Microporous Mesoporous Mater. 2021, 310, 110651. [Google Scholar] [CrossRef]

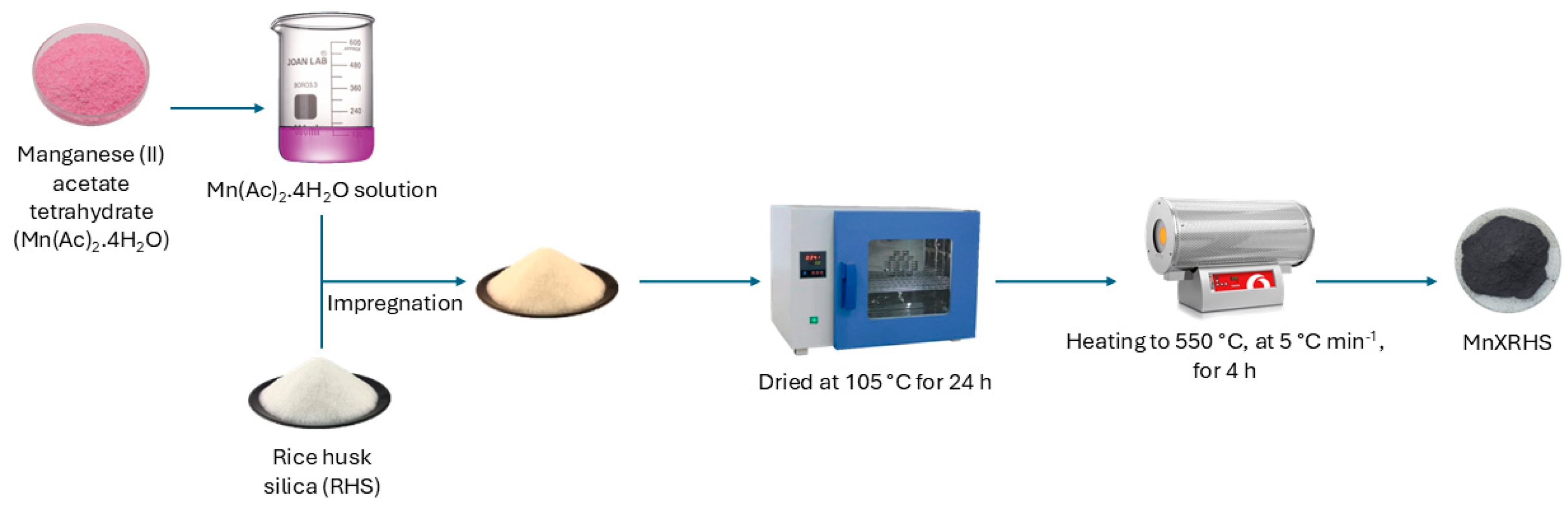

Scheme 1. Synthesis process flow to obtain MnXRHS catalysts.
Scheme 1. Synthesis process flow to obtain MnXRHS catalysts.
Materials 17 06069 sch001

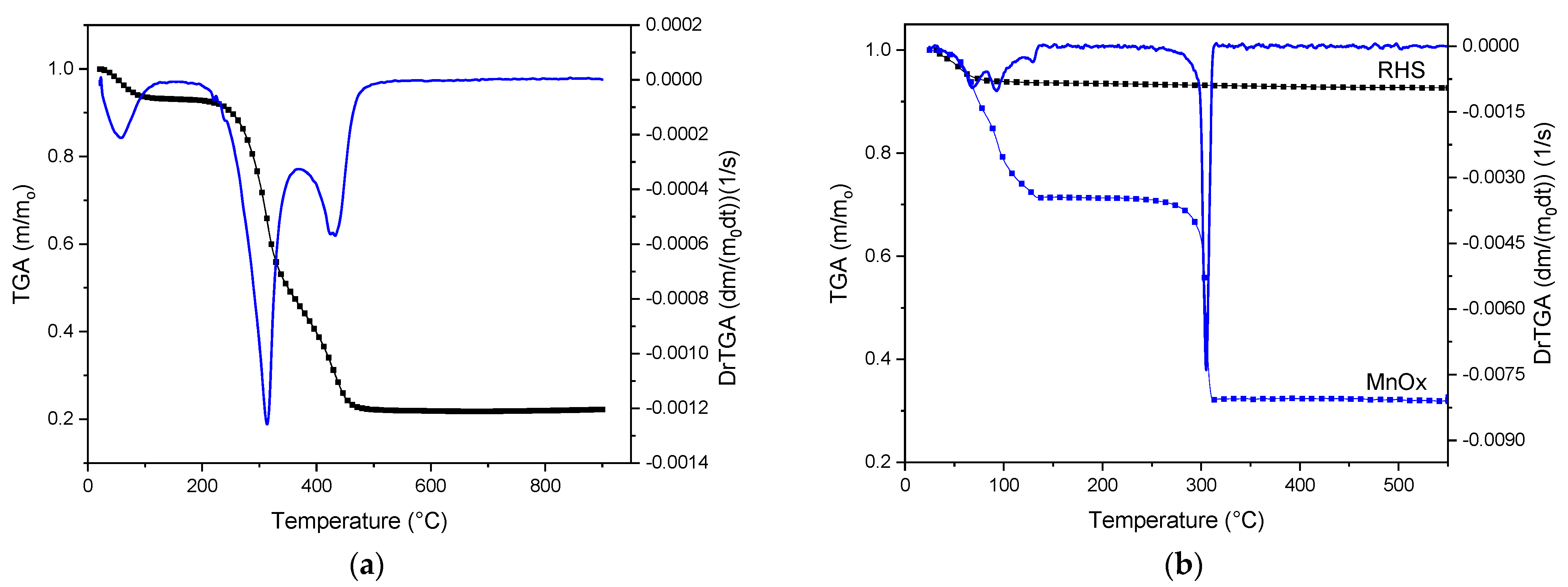

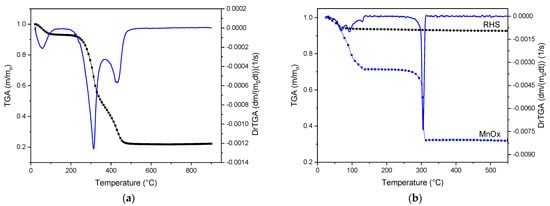

Figure 1. Thermogravimetric analysis results obtained for (a) RH (TGA showed in black and DrTGA in blue) and (b) RHS and manganese acetate, which is the precursor of bulk MnOx.
Figure 1. Thermogravimetric analysis results obtained for (a) RH (TGA showed in black and DrTGA in blue) and (b) RHS and manganese acetate, which is the precursor of bulk MnOx.
Materials 17 06069 g001

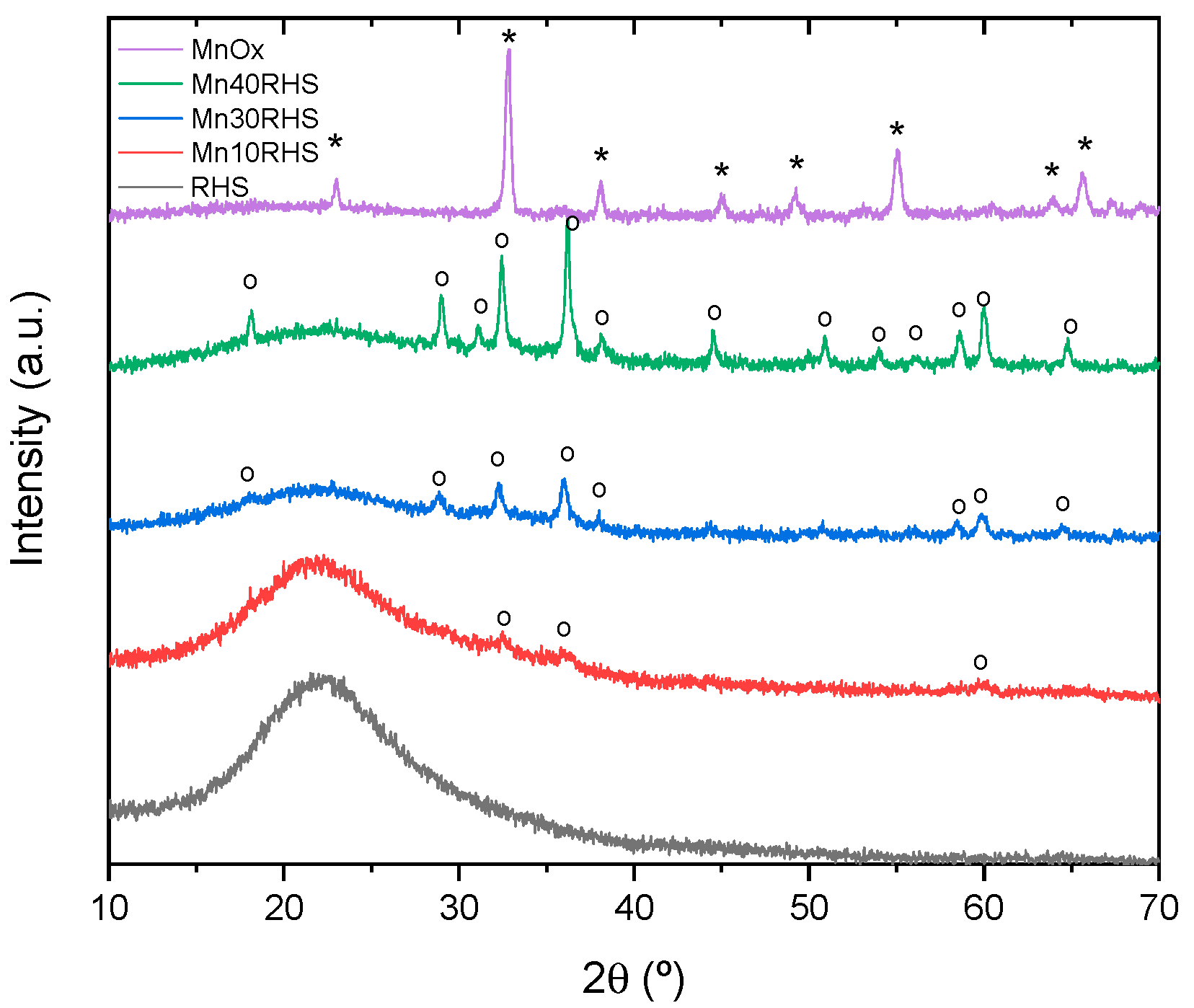

Figure 2. X-ray powder diffraction patterns for bulk MnOx, Mn40RHS, Mn30RHS, Mn10RHS, and RHS. Peaks associated with Mn2O3 (*) and peaks associated with Mn3O4 (o).
Figure 2. X-ray powder diffraction patterns for bulk MnOx, Mn40RHS, Mn30RHS, Mn10RHS, and RHS. Peaks associated with Mn2O3 (*) and peaks associated with Mn3O4 (o).
Materials 17 06069 g002

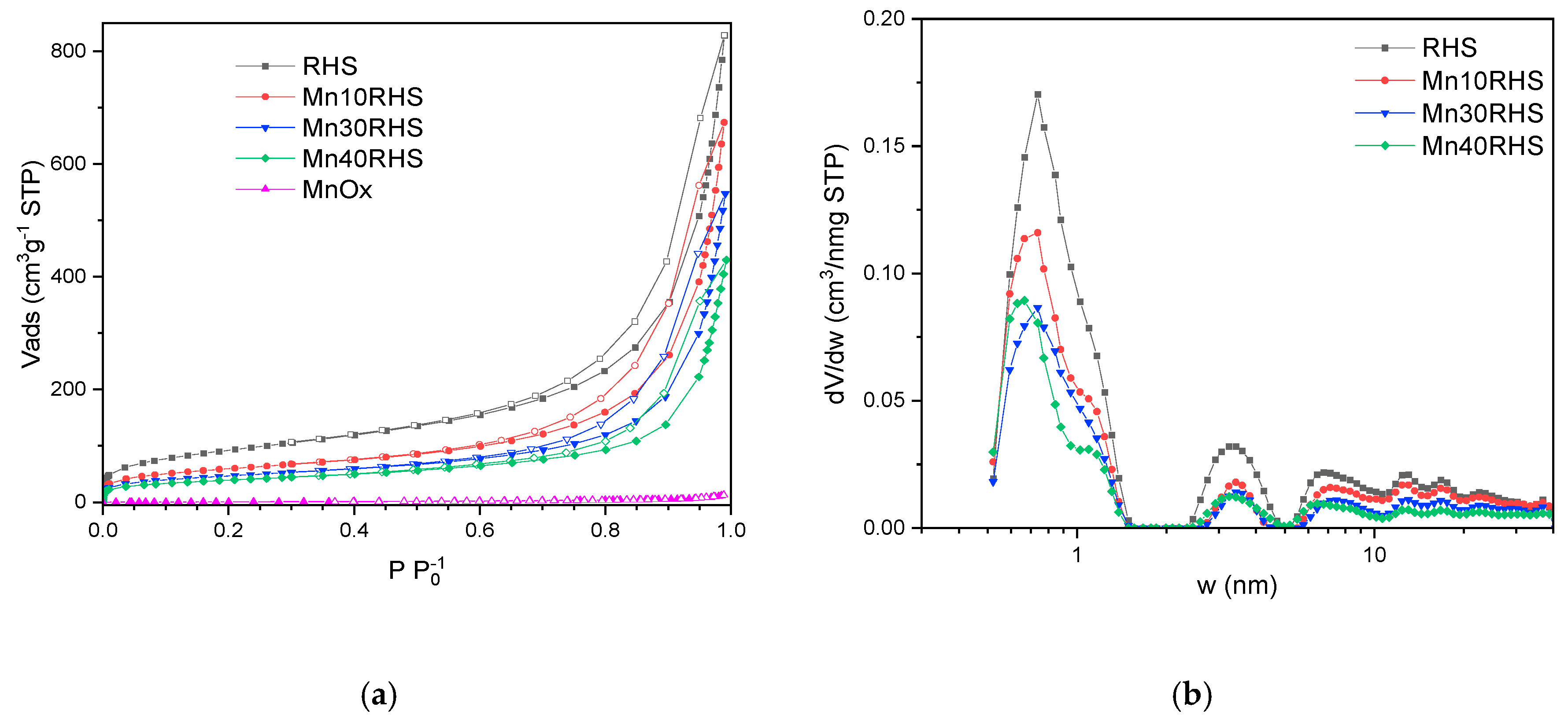

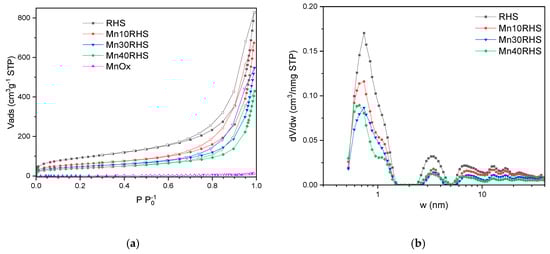

Figure 3. Nitrogen adsorption–desorption isotherms of the catalyst samples (a) and pore size distribution curves obtained through NLDFT (b).
Figure 3. Nitrogen adsorption–desorption isotherms of the catalyst samples (a) and pore size distribution curves obtained through NLDFT (b).
Materials 17 06069 g003

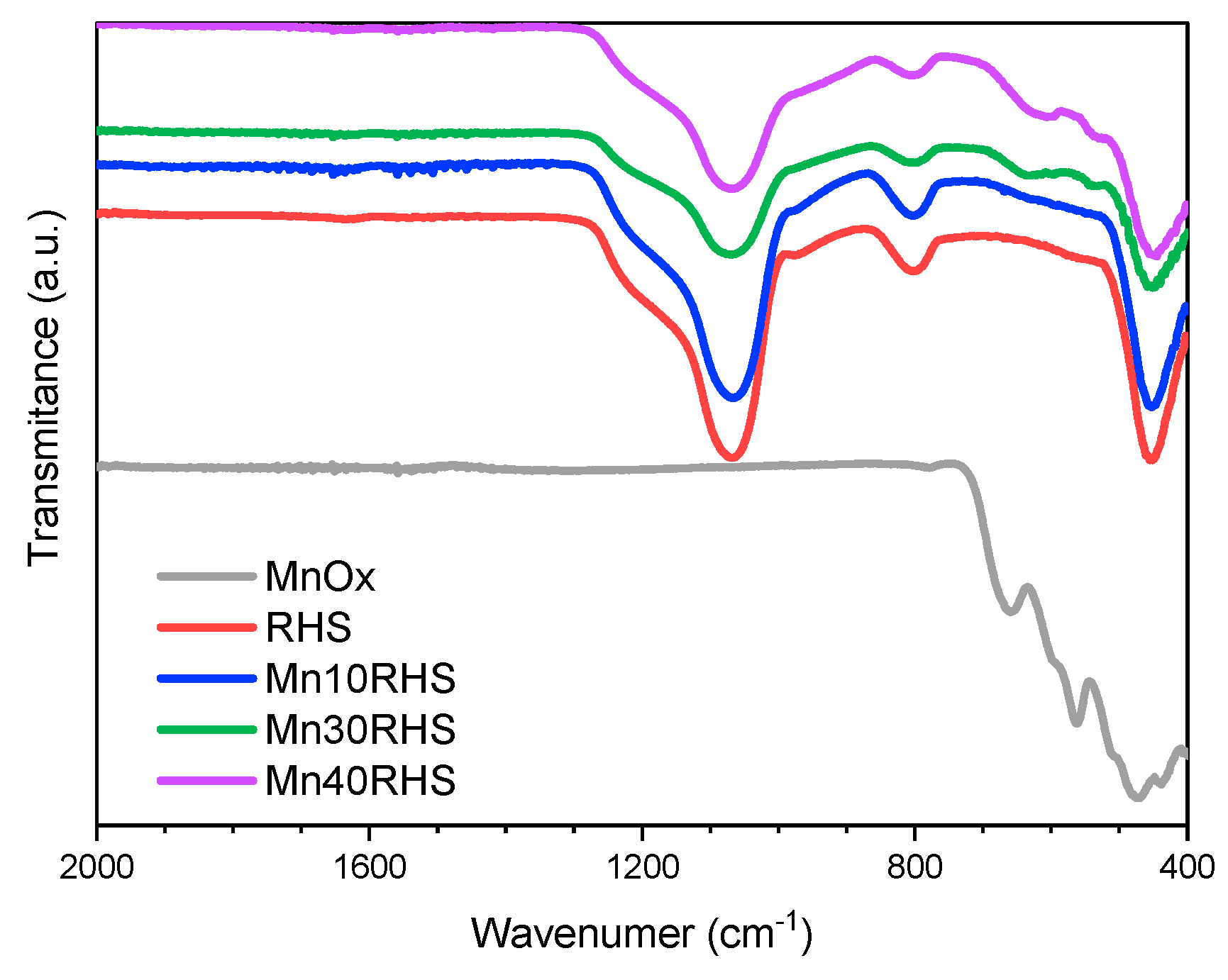

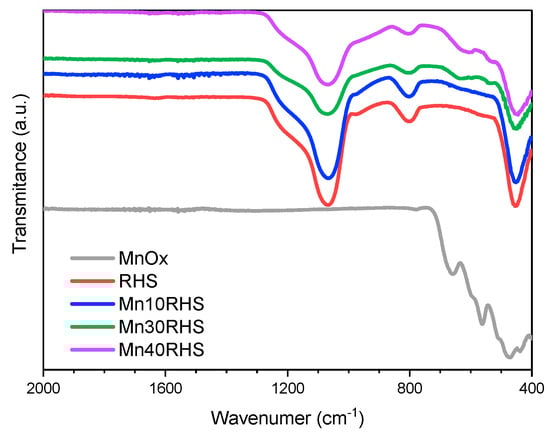

Figure 4. FT-IR spectra for the catalysts.
Figure 4. FT-IR spectra for the catalysts.
Materials 17 06069 g004
Figure 5. SEM micrographs and EDS mapping obtained for (a,b) RHS; (c,d) Mn10RHS; (e,f) Mn30RHS; (g,h) Mn40RHS; (i,j) MnOx. All figures were taken using a magnification of ×800.
Figure 5. SEM micrographs and EDS mapping obtained for (a,b) RHS; (c,d) Mn10RHS; (e,f) Mn30RHS; (g,h) Mn40RHS; (i,j) MnOx. All figures were taken using a magnification of ×800.
Materials 17 06069 g005

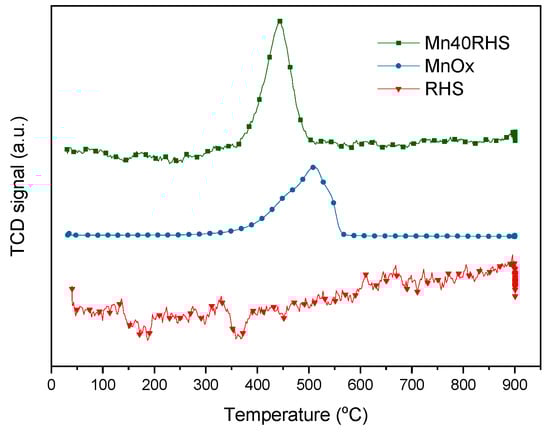

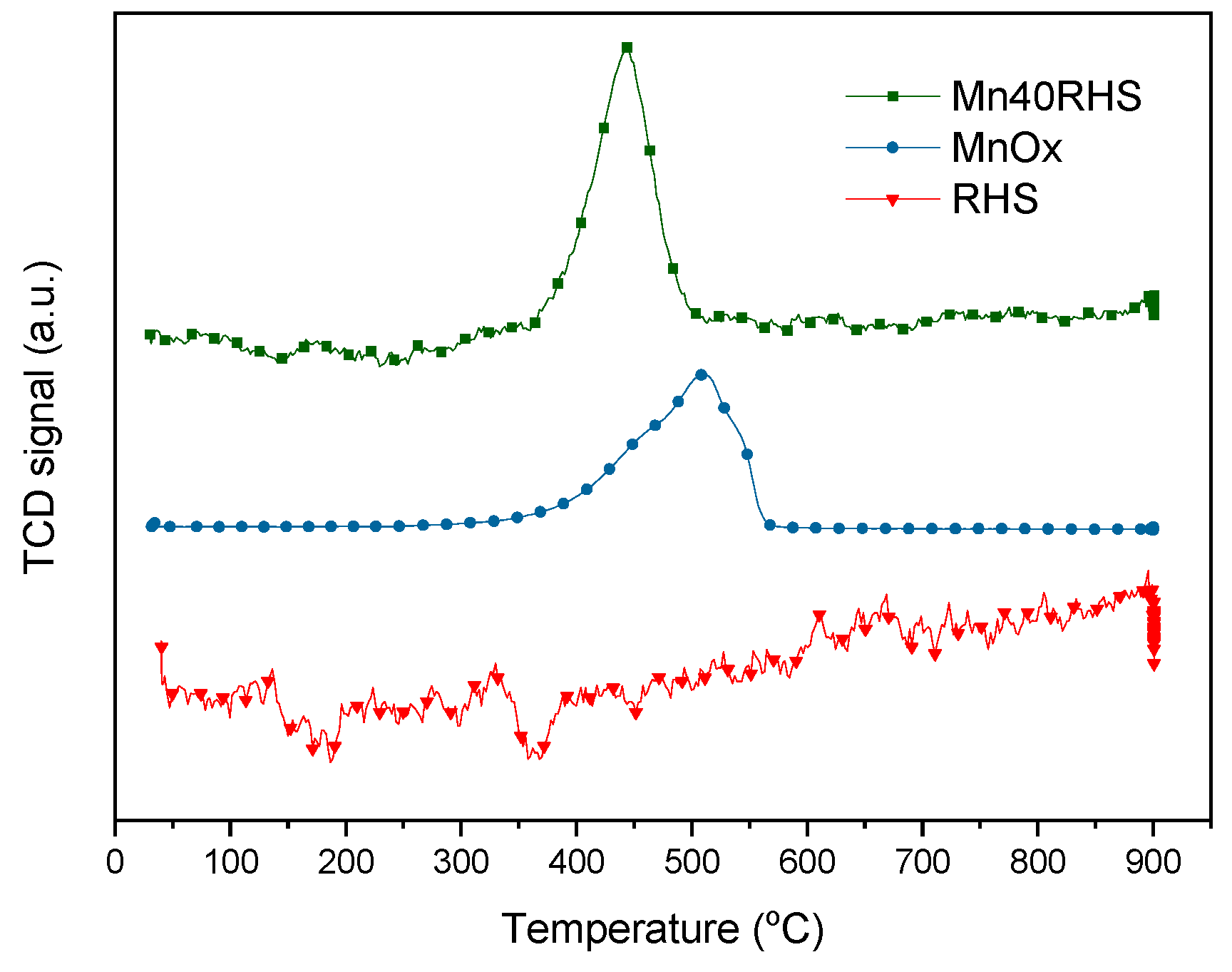

Figure 6. H2-TPR for bulk MnOx, Mn40RHS, and RHS.
Figure 6. H2-TPR for bulk MnOx, Mn40RHS, and RHS.
Materials 17 06069 g006

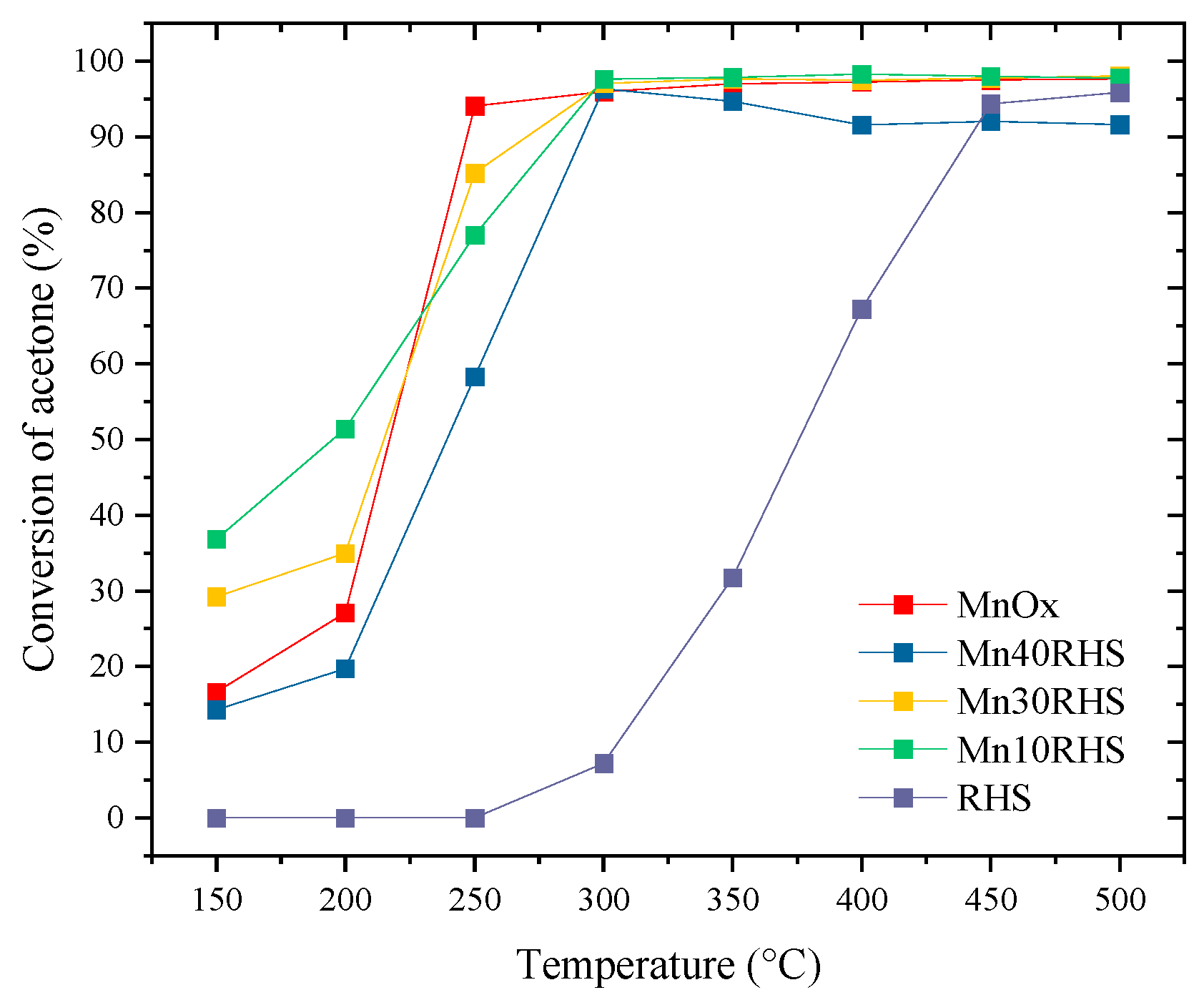

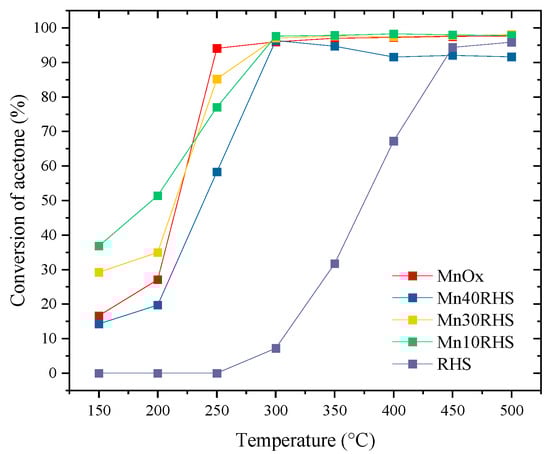

Figure 7. Light-off curves obtained for acetone oxidation.
Figure 7. Light-off curves obtained for acetone oxidation.
Materials 17 06069 g007

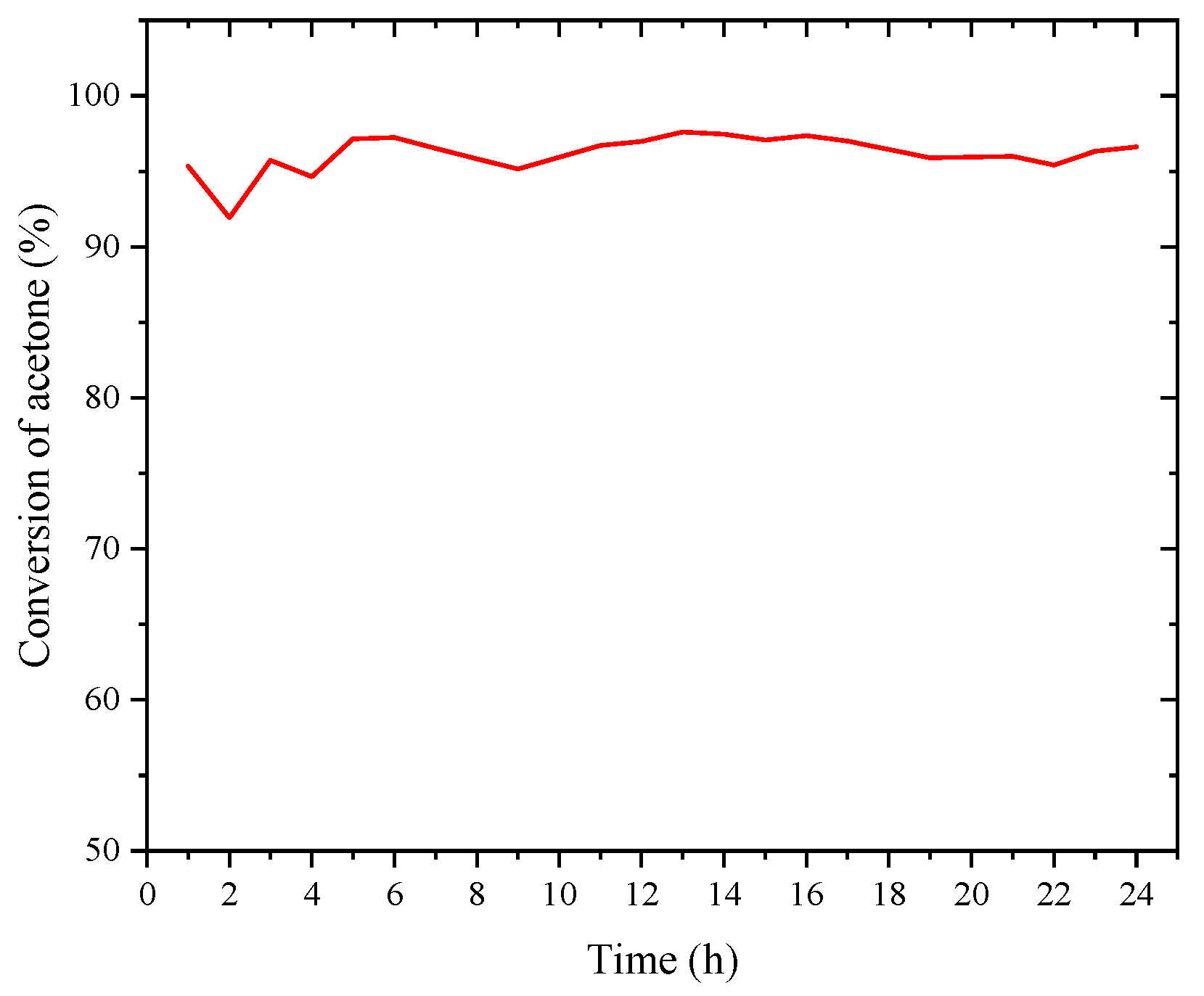

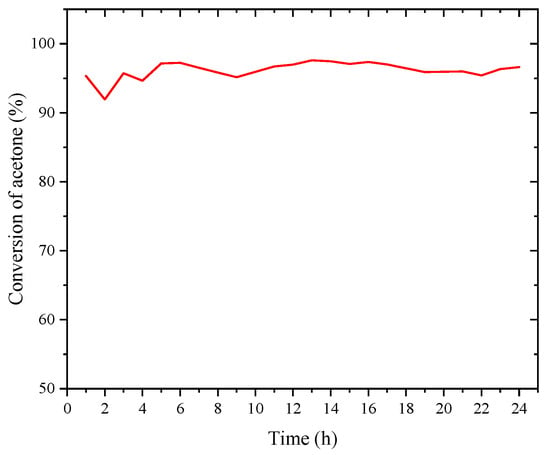

Figure 8. Stability test performed to Mn30RHS during 24 h for acetone.
Figure 8. Stability test performed to Mn30RHS during 24 h for acetone.
Materials 17 06069 g008
Table 1. Textural parameters for synthesized catalysts.
Table 1. Textural parameters for synthesized catalysts.
SampleSBETVtpVmpVµp
m2/gcm3/g
RHS3330.7900.7070.083
Mn10RHS2150.6090.5510.058
Mn30RHS1690.4700.4250.045
Mn40RHS1410.3480.3080.040
MnOx20.0130.0130.000
Table 2. Values of T85, T95, R, and temperature at which R = 1, obtained from light-off curves and calculated from GC data.
Table 2. Values of T85, T95, R, and temperature at which R = 1, obtained from light-off curves and calculated from GC data.
ParameterMn10RHSMn30RHSMn40RHS
T 85   ( ° C ) 269245285
R T 85 0.510.860.85
T 95 ( ° C ) 294291298
R T 95 0.720.920.94
T R = 1   ( ° C ) -300300
Table 3. Summary of data reported in literature for acetone oxidation showing the best results in T50 and T90 values.
Table 3. Summary of data reported in literature for acetone oxidation showing the best results in T50 and T90 values.
CatalystConcentration (ppm)GHSV (mL g−1 h−1)T50T90Ref
α-MnO210009093104[38]
LaMnO31200-225280[39]
GdMn2O550024142160[40]
Mn/TiO2–SiO25502400160180[41]
Ce0.8-Mn/AC100-175245[42]
MnO2 (2.75 wt.%)/Al-MSP100015,000212270[43]
MnOx (30 wt.%)/SiO2120015,000220275This work
MnO2, Mn2O3 (10 wt.%)/Zr-PILC-34,000310329[44]
MnO2, Mn2O3 (10 wt.%)/Al-PILC-34,000325342[44]
Mn2O3 (3.07 wt.%)/Clay monolith120014,000275350[45]
Mn2O3/PILC/Clay monolith1800-270380[46]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cardoso, M.; Portugau, P.; De Los Santos, C.; Faccio, R.; Vidal, H.; Gatica, J.M.; Yesté, M.d.P.; Castiglioni, J.; Torres, M. Catalytic Oxidation of Acetone over MnOx-SiO2 Catalysts: An Effective Approach to Valorize Rice Husk Waste. Materials 2024, 17, 6069. https://doi.org/10.3390/ma17246069

AMA Style

Cardoso M, Portugau P, De Los Santos C, Faccio R, Vidal H, Gatica JM, Yesté MdP, Castiglioni J, Torres M. Catalytic Oxidation of Acetone over MnOx-SiO2 Catalysts: An Effective Approach to Valorize Rice Husk Waste. Materials. 2024; 17(24):6069. https://doi.org/10.3390/ma17246069

Chicago/Turabian Style

Cardoso, Mauricio, Patrice Portugau, Carolina De Los Santos, Ricardo Faccio, Hilario Vidal, José Manuel Gatica, María del Pilar Yesté, Jorge Castiglioni, and Martin Torres. 2024. "Catalytic Oxidation of Acetone over MnOx-SiO2 Catalysts: An Effective Approach to Valorize Rice Husk Waste" Materials 17, no. 24: 6069. https://doi.org/10.3390/ma17246069

APA Style

Cardoso, M., Portugau, P., De Los Santos, C., Faccio, R., Vidal, H., Gatica, J. M., Yesté, M. d. P., Castiglioni, J., & Torres, M. (2024). Catalytic Oxidation of Acetone over MnOx-SiO2 Catalysts: An Effective Approach to Valorize Rice Husk Waste. Materials, 17(24), 6069. https://doi.org/10.3390/ma17246069

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
