Improving the Energy Storage Performance in Bi0.5Na0.5TiO3-Based Ceramics by Combining Relaxor and Antiferroelectric Properties

by
Srinivas Pattipaka
1,
Yeseul Lim
1,
Yundong Jeong
1,
Mahesh Peddigari
2,
Yuho Min
3,
Jae Won Jeong
4,
Jongmoon Jang
5,
Sung-Dae Kim
1 and
Geon-Tae Hwang
1,*
1
Department of Materials Science and Engineering, Pukyong National University, 45, Yongso-ro, Nam-Gu, Busan 48513, Republic of Korea
2
Department of Physics, Indian Institute of Technology Hyderabad, Kandi 502284, Telangana, India
3
School of Materials Science and Engineering, Kyungpook National University, 80 Daehak-ro, Buk-gu, Daegu 41566, Republic of Korea
4
Korea Institute of Materials Science (KIMS), 797 Changwondaero, Seongsan-gu, Changwon 51508, Republic of Korea
5
Department of Electronic Engineering, Yeungnam University, Gyeongsan 38541, Republic of Korea
*
Author to whom correspondence should be addressed.
Materials 2024, 17(20), 5044; https://doi.org/10.3390/ma17205044
Submission received: 2 September 2024 / Revised: 2 October 2024 / Accepted: 4 October 2024 / Published: 15 October 2024
(This article belongs to the Special Issue Piezoelectric, Ferroelectric, and Dielectric Materials: Properties and Related Applications)
Browse Figures
Versions Notes

Abstract

Ceramic capacitors have received great attention for use in pulse power systems owing to their ultra-fast charge–discharge rate, good temperature stability, and excellent fatigue resistance. However, the low energy storage density and low breakdown strength (BDS) of ceramic capacitors limit the practical applications of energy storage technologies. In this work, we present a series of relaxor ferroelectric ceramics (1−x) [0.94 Bi0.5Na0.5TiO3 –0.06BaTiO3]– x Sr0.7Bi0.2TiO3 (1-x BNT-BT- x SBT; x = 0, 0.20, 0.225, 0.25, 0.275 and 0.30) with improved energy storage performances by combining relaxor and antiferroelectric properties. XRD, Raman spectra, and SEM characterizations of BNT-BT-SBT ceramics revealed a rhombohedral–tetragonal phase, highly dynamic polar nanoregions, and a reduction in grain size with a homogeneous and dense microstructure, respectively. A high dielectric constant of 1654 at 1 kHz and low remnant polarization of 1.39 µC/cm2 were obtained with the addition of SBT for x = 0.275; these are beneficial for improving energy storage performance. The diffuse phase transition of these ceramics displays relaxor behavior, which is improved with SBT and confirmed by modified the Curie–Weiss law. The combining relaxor and antiferroelectric properties with fine grain size by the incorporation of SBT enables an enhanced maximum polarization of a minimized P-E loop, leading to an improved BDS. As a result, a high recoverable energy density Wrec of 1.02 J/cm3 and a high energy efficiency η of 75.98% at 89 kV/cm were achieved for an optimum composition of 0.725 [0.94BNT-0.06BT]-0.275 SBT. These results demonstrate that BNT-based relaxor ferroelectric ceramics are good candidates for next-generation ceramic capacitors and offer a potential strategy for exploiting novel high-performance ceramic materials.

1. Introduction

Dielectric materials have received great attention for energy storage applications in microwaves, pulse power systems, electric vehicles, and high-frequency inverters owing to their ultra-fast charge–discharge rate and better temperature stability than batteries, electrochemical capacitors, and dielectric polymers [1,2,3,4,5,6]. However, dielectric capacitors have a lower energy storage density and efficiency than batteries and polymers because of their low dielectric breakdown strength (BDS), limiting their practical applications. Therefore, novel high-performance dielectric capacitors with high energy storage density and efficiency are needed for energy storage capacitor applications.
In general, the recoverable energy density (Wrec) and energy efficiency (η) of a dielectric capacitor can be calculated from the polarization (P)–electric field (E) loop using the following equations [6,7,8,9,10]:
W r e c = ∫ P r P m a x E   d P
η = W r e c W r e c + W l o s s
where Pmax is the maximum polarization, Pr is the remnant polarization, and Wloss is the energy loss. According to the above equations, the energy storage performance can be significantly improved by enhancing the difference between Pr and Pmax (ΔP). The BDS is also an important parameter for energy storage, which means a higher BDS is required for a high Wrec.
Dielectric materials, such as linear dielectric (LDE), ferroelectric (FE), anti-ferroelectric (AFE), and relaxor ferroelectric (RFE) materials, have been extensively used in energy storage capacitors [5,6]. Among these materials, the RFE materials (for example, Bi0.5Na0.5TiO3 (BNT)-, BaTiO3 (BT)-, and BiFeO3 (BFO)-composition-based materials) show high maximum polarization, small remnant polarization, and slim P-E loops due to the creation of polar nanoregions (PNRs). Additionally, they mostly display highly dynamic short-range FE orders. Nevertheless, the PNRs can transform into long-range FE orders with the increasing electric field, leading to high maximum polarization. After the field is removed, the induced FE orders can simply convert into PNRs, resulting in a small remnant polarization [11,12,13,14]. Thus, the RFEs typically exhibit high Wrec and η. Therefore, lead-based RFEs have been extensively reported for applications in energy storage capacitors [15,16]. However, the toxicity of lead poses a risk to both human health and the environment, which has encouraged the development of alternative lead-free ceramic materials. Over the past few years, lead-free RFEs, including BT [17,18,19,20,21]-, BNT [3,22,23,24,25,26,27]-, NaNbO3 (NN)/K0.5Na0.5NbO3 (KNN) [28,29]-, and AgNbO3 (AN) [30,31]-based materials, have been discovered and used in energy storage capacitor applications.
BNT-based materials display a strong ferroelectric response due to their large-electric-field-induced polarization and strain [32,33]. Hybridization between the Bi3+ 6s2 and oxygen 2p orbitals can result in weak Bi-O covalency with off-center Bi3+, enabling substantial lattice relaxation and generating massive saturated polarization with high remnant polarization [34]. Additionally, the creation of PNRs is assisted by the local random fields caused by valency differences and chemical inhomogeneity [35,36]. In addition, the relaxor characteristics of the material can be enhanced by adding another phase (for example, tetragonal/orthorhombic) and modifying it with a suitable dopant/binary/ternary composition, enabling slim hysteresis loops [37]. Among these lead-free ceramics, the BNT-BT binary composition is a very popular system; it has a morphotropic phase boundary (MPB) between a rhombohedral and a tetragonal phase and also has a high maximum polarization; these features are responsible for higher energy storage density and efficiency [38]. Interestingly, the incorporation of SrTiO3 (ST) into the BNT-BT system plays a significant role in enhancing dielectric and ferroelectric properties [26,39,40].
In this paper, we improved the energy storage performance in BNT-BT ceramics with the incorporation of SBT by combining relaxor and antiferroelectric properties. Relaxor ferroelectric materials exhibit a heterogeneous polar state at the nanoscale, and long-range domains are destroyed due to the cation order–disorder and random fields, resulting in a slim P–E loop [41,42,43]. The BT-BNT combination exhibits an AFE/FE response with relaxor characteristics, which makes them it interesting for energy storage applications [44,45]. Sr0.7Bi0.2TiO3 (SBT) is a relaxor ferroelectric with a small coercive field, small remnant polarization, and diffused dielectric maxima over a wide temperature range. It was utilized to make a solid solution with BNT-BT to achieve a relaxor nature [46]. Combining relaxor and antiferroelectric properties with a fine grain size by the incorporation of SBT into BNT-BT enables an enhanced maximum polarization and a minimized P-E loop, leading to improved breakdown strength. An improvement in recoverable energy density of 1.02 J/cm3 and a high energy efficiency of 75.98% at a BDS of 89 kV/cm are achieved using 0.725 [0.94BNT-0.06BT]-0.275 SBT ceramics.

2. Materials and Methods

A conventional solid-state reaction method was used to prepare (1−x) [0.94 Bi0.5Na00.5TiO3– 0.06BaTiO3]– x Sr0.7Bi0.2TiO3 (1−x BNT-BT- x SBT; x = 0, 0.20, 0.225, 0.25, 0.275 and 0.30) ceramic powders. Raw materials were used, including Bi2O3, Na2CO3, BaCO3, TiO2, and SrCO3. They weighed as per a stoichiometric ratio and ball-milled for 24 h with ZrO2 balls in an ethanol solution. Further, BNT, BT, and SBT slurries were dried at 120 °C and calcined individually at temperatures of 800 °C, 900 °C, and 950 °C for 2 h and 3 h, respectively, for the formation of their phases. These calcined BNT, BT and SBT powders were well mixed and ball-milled again for 12 h for the preparation of a BNT-BT-SBT composition. Furthermore, 5 wt.% of polyvinyl alcohol was added to the obtained powders before the product was pressed at 10 MPa into disks with 10 mm diameters and a thickness of about 0.5 mm. These pellets were sintered at 1100 °C for 3 h with a heating and cooling rate of 5 °C/min. Lastly, Ag paste was applied on the surface of sintered samples to measure electrical characterizations.
The phase evolution of the BNT-BT-SBT ceramic samples was investigated using an X-ray Diffractometer (Rigaku/Ultima IV) with a Cu-Kα wavelength of 1.5406 Å and sweeping rate of 0.02039 degrees per minute at a voltage of 40 kV and current of 30 mA. Raman spectra were measured by a Raman spectrometer (JASCO, NRS-5100) with a laser wavelength of 532 nm. Surface morphology and elemental composition were investigated by a scanning electron microscope (SEM) (TESCAN/VEGA II LSU) equipped with an energy-dispersive spectrometer (EDS). Temperature- and frequency-dependent dielectric properties were assessed from room temperature (RT) to 400 °C and 100 Hz–1000 kHz using an impedance analyzer (Hewlett Packard, 4284A). P-E hysteresis loops were performed from RT to 200 °C using a ferroelectric tester (Aix ACCT Systems GmbH, TF Analyzer 2000).

3. Results and Discussion

Figure 1 shows the X-ray diffraction (XRD) patterns of (1−x) BNT-BT- x SBT ceramic samples for x = 0–0.30. The XRD peaks clearly indicate that all the samples of BNT-BT-SBT display the formation of rhombohedral (R) and tetragonal (T) phases, demonstrating that the SBT diffused into BNT-BT lattices to form a homogeneous solid solution. It is well known that the (1−x) BNT- x BT system possesses rhombohedral (Joint Committee on Powder Diffraction Standards (JCPDS) card No. 36-0340, 46-0001, Crystallography Open Database (COD) No. 2103295 for Bi0.5Na0.5TiO3) and tetragonal crystal structures (JCPDS card No. 89-1428, COD No. 1507756 and 2100858 for BaTiO3) at MPB for x = 0.06 [47,48,49,50,51,52,53,54]. The coexistence of both rhombohedral and tetragonal phases in (1−x) BNT-BT- x SBT ceramic samples for x = 0–0.30 was confirmed by the splitting of the (111)/(−111) and (002)/(200) peaks at 2θ about 40° and 46°, respectively, as shown in Figure 1b. However, no significant change in R and T phases was observed with the incorporation of the SBT composition. These results are in good agreement with the earlier reports on BNT-BT-based ceramic compositions [54,55]. In addition, these diffraction peaks shifted slightly to the lower-angle side with the addition of SBT into BNT-BT, indicating increased lattice parameters. The increased lattice parameters were responsible for Sr2+ (1.44 Å) having a larger ionic radius than Bi3+ (1.36 Å), Na+ (1.39 Å), and Ba2+ (1.35 Å) at the A-site [56,57,58].
Figure 2 shows the Raman spectra of BNT-BT-SBT ceramic samples with spectral de-convolution. The Raman spectra of all the sintered samples are similar to those in the earlier reports on BNT-based ceramics [59,60]. The Raman modes separated into four regions, as illustrated at the top of Figure 2. (i) The Raman modes below 200 cm−1 were associated with the A-site (Bi-O, Na-O, Ba-O, and Sr-O) vibrations, (ii) the Raman modes between 200 and 420 cm−1 related to the B–O (Ti-O) vibrations, (iii) the modes between 420 and 690 cm−1 were associated with the BO6 (TiO6)–octahedra vibrations, and (iv) the Raman modes above 690 cm−1 corresponded to the A1 and E overlapping modes [59]. The modes at 135–174 cm−1 were shifted to the higher wavenumbers of 159–218 cm−1 with SBT, related to the vibrations of A-site due to the A-site disorder. This disorder is produced by the addition of SBT (Bi3+ and Sr2+) into the BNT-BT (Bi3+, Na+, and Ba2+) system [61]. Additionally, a significant shift occurred at 312 and 530 cm−1 to lower wavenumbers of 296 and 524 cm−1 with the addition of SBT, which was attributed to the enhancement of B-site disorder in the BNT-BT-SBT [57]. Besides, these Raman active modes became broadened, indicating the disturbance of the long-range FE order and the creation of highly dynamic polar nanoregions and improving the relaxor characteristics of BNT-BT-SBT ceramics [62]. These findings are in good agreement with the X-ray diffraction, dielectric and ferroelectric properties.
Figure 3 shows SEM images of the surface of BNT-BT-SBT ceramic samples. All the sintered ceramic samples show rectangular-shaped grains, which are uniformly distributed. Figure 3a clearly shows that the x = 0 sample displays a low-density microstructure, which gradually improves with the incorporation of SBT. The composition at higher concentrations shows a more compact and denser microstructure with smaller grains than other samples of (1-x) BNT-BT- x SBT, where x = 0.275 and x = 0.30. In order to prove that all the sintered ceramic samples have uniform microstructures and are highly dense, the density of BNT-BT-SBT ceramics was estimated using the Archimedes principle. The density was found to be enhanced from 5.62 ± 0.24 g/cm3 to 5.81 ± 0.28 g/cm3 with SBT from x = 0 to 0.30. The estimated relative density of BNT-BT-SBT was found to be 95.64% to 98.85% of the theoretical density [63], proving that these ceramic samples are highly dense and have homogeneous microstructures. Moreover, the average grain size of BNT-BT-SBT ceramic samples was calculated using Image-J 1.31 software using the linear intercept method. The average grain size was found to be 1.30 ± 0.41 µm for the x = 0 sample (pure BNT-BT), and further; it was slightly reduced to 0.81 ± 0.26 µm with the addition of SBT (x = 0.30). The reduction in grain size was ascribed to the larger radii of Sr2+ (1.44 Å) than Bi3+ (1.36 Å), Na+ (1.39 Å), and Ba2+ (1.35 Å) at the A-site, which enhanced the lattice strain energy (ΔGstrain) [64,65]. The SEM results suggest that the sample with a fine grain size and a homogeneity and dense microstructure can sustain higher voltages, leading to improved BDS and energy storage properties [66,67]. Further, energy-dispersive X-ray spectroscopy (EDS) was performed to analyze the elemental composition of BNT-BT-SBT ceramics for x = 0–0.30. As seen in Figure 4, we assessed every element with the required composition and determined its atomic ratio. Moreover, A-site (Bi3+, Na1+, Ba2+, and Sr2+), B-site (Ti4+) and oxygen atomic and molecular proportions were nearly in line with the stoichiometric ratio of the BNT-BT-SBT compositions (Table 1). It is noticed that there was a small reduction in the ratio of Bi and Na elements due to their volatile nature during high sintering temperatures [68].
Figure 5a illustrates dielectric constant (εr) and dielectric loss (tanδ) as functions of frequency for BNT-BT-SBT ceramics measured at RT from 100 Hz to 100 kHz. The sample x = 0 (BNT-BT) showed a lower εr of 1276 and lower tanδ of 0.043 at 1 kHz as compared to pure BNT ceramics (εr = 692 and tanδ = 0.045 at 1 kHz) [57,69]. The εr and tanδ values were gradually enhanced to 1654 and 0.061 with the incorporation of SBT into BNT-BT for the x = 0.275 composition (as shown in Figure 5b). The improvement of the dielectric properties was attributed to the substitution of SBT into BNT-BT, a dense and homogeneous microstructure. Figure 5c,d show the temperature variation in εr and tanδ of BNT-BT-SBT ceramics for lower and optimized compositions of x = 0.20 and 0.275, which are measured at different frequencies of 0.1, 1, 10, 100, 1000 kHz. It is noticed that the dielectric maximum temperature (Tm) was shifted to a lower temperature with the addition of SBT for the composition of x = 0.275 than x = 0.20, as can be seen in Figure 5c,d. The addition of SBT into BNT-BT can disrupt the long-range FE order, and lower the dielectric maximum temperature. As a result, PNRs form owing to the difference in ionic radius at the A-site of BNT-BT-SBT ceramics. Moreover, the dielectric maximum temperature peaks are shifted to higher temperatures, and gradually become diffuse with frequency, which indicates the typical relaxor ferroelectric behavior [70,71]. The degree of the relaxor behavior of these samples was calculated using a modified version of the Curie–Weiss law [56,72]:
1 ε r − 1 ε r m = T − T m γ C
where ε r m is maximum dielectric constant at a maximum temperature Tm, T is absolute temperature, C is Curie constant, and γ is degree of relaxation. The value of γ is 1 for normal ferroelectrics and in between 1 and 2 for relaxor ferroelectrics [72]. Figure 5e,f display the log–log plots of (1/ ε r   − 1/ ε r m ) vs. (T − Tm) of BNT-BT-SBT ceramics for the compositions of x = 0.20 and 0.275, which were performed at 1 kHz. The γ value slightly enhanced from 1.88 ± 0.00311 to 1.92 ± 0.00315, confirming the improved relaxor properties with the incorporation of SBT, resulting in high energy storage density and energy efficiency. These results are in good agreement with earlier reports [1,2,3].
Figure 6 shows the RT P-E loops of BNT-BT-SBT ceramic capacitors measured at 10 Hz. The BNT-BT-SBT sample (x = 0) displays typical FE characteristics. It shows a Pr of 17.06 µC/cm2, Pmax of 29.29 µC/cm2, and coercive field (Ec) of 13.03 kV/cm. These values initially decreased for x = 0.20 and further increased with SBT, whereas the EBD increased from 48.75 kV/cm to 89.73 kV/cm from x = 0 to 0.275, which provides a high energy storage density (inset of Figure 6a). The P-E loops are slim as compared with the ferroelectric sample with a composition of x = 0; their shape is actually a pinched ferroelectric loop. The “pinched” hysteresis loop in ferroelectric materials can result from two key mechanisms: defect pinning or intrinsic phase transitions. In the first case, defects like impurities or grain boundaries pin domain walls, preventing full polarization switching and creating a pinched loop. However, in defect-free systems, pinched loops can also arise from intermediate modulated phases that combine FE/AFE and RFE orders [73,74]. In this work, these phases form in (1-x) BNT-BT- x SBT as the composition changes, leading to incomplete polarization switching. The material undergoes a transition between these modulated states by the application of an electric field, but the polarization does not completely revert to its original state after the field is removed. This results in a “pinched” loop due to the coexistence of AFE and RFE orders, preventing total polarization reversal. Therefore, the observed behavior can be understood by intrinsic phase transitions.
Figure 6b,c show the bipolar P-E loops of BNT-BT-SBT ceramics measured at different temperatures and at 10 Hz. The energy storage density was increased with the temperature up to 100 °C, and further decreased due to diffusive FE to AFE transition (depolarization temperature). Dielectric and P–E hysteresis loop studies show that the Td is mostly dependent on BNT-BT-SBT concentrations. Moreover, the energy storage properties in terms of Wrec, Wloss, and η were estimated by Equations (1) and (2) from unipolar P-E loops and shown in Table 2. The Wrec values gradually improved with the incorporation of SBT for x = 0 and 0.275. The sample x = 0.275 shows a high recoverable energy density of 1.02 J/cm3 at EBD of 89.73 kV/cm and an energy efficiency of 75.83%. The improvement in the energy storage performance is achieved by combining relaxor and antiferroelectric properties. The combining relaxor and antiferroelectric properties by incorporation of SBT into BNT-BT produced an enhanced maximum polarization and a slim P-E loop, leading to an improved BDS, an improved recoverable energy density of 1.02 J/cm3, and a high energy efficiency of 75.98% at a BDS of 89 kV/cm using 0.725 [0.94BNT-0.06BT]-0.275 SBT lead-free ceramics. The values of Wrec and η of 0.725 (0.94 BNT-0.06 BT)-0.275 SBT ceramic capacitors are almost superior to, and comparable to, those of other lead-free ceramic materials, which are good candidates for energy storage capacitor applications [32,75,76,77,78,79,80].

4. Conclusions

A series of BNT-BT-SBT relaxor ferroelectric ceramics were fabricated using a conventional solid-state reaction method and we determined their energy storage properties by combining relaxor and antiferroelectric properties. XRD, Raman spectra, and SEM characterizations confirmed the formation of a rhombohedral–tetragonal phase, the presence of highly dynamic polar nanoregions, and reductions in grain size with homogeneous and dense microstructures. The dielectric and ferroelectric properties were enhanced. A high dielectric constant, low dielectric loss, and low remnant polarization were found with the incorporation of SBT into BNT-BT for x = 0.275 composition, which was beneficial for improving energy storage performance. Combining relaxor and antiferroelectric properties with fine grain size contributes a large breakdown strength. There is also large difference between Pmax and Pr with the substitution of SBT, leading to high energy storage density and a high energy efficiency being obtained for the 0.725 [0.94BNT-0.06BT]-0.275 SBT composition. Our results demonstrate that combining relaxor and antiferroelectric properties is an effective approach and that BNT-BT-SBT ceramics are promising for energy storage capacitor applications.

Author Contributions

Conceptualization, S.P., M.P. and G.-T.H.; Methodology, J.J.; Validation, S.P.; Formal analysis, S.P., Y.L., Y.J. and S.-D.K.; Investigation, M.P., Y.M., J.W.J., J.J. and G.-T.H.; Resources, Y.J., S.-D.K. and G.-T.H.; Data curation, Y.L.; Writing—original draft, S.P.; Writing—review & editing, Y.J., Y.M., J.W.J., S.-D.K. and G.-T.H.; Supervision, G.-T.H.; Funding acquisition, G.-T.H. All authors have read and agreed to the published version of the manuscript.

Funding

The work at PKNU is supported by the Global Joint Research Program funded by the Pukyong National University (No. 202411870001). The work at KIMS was supported by the Nano & Material Technology Development Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science and ICT (RS-2023-00282305).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Li, Q.; Chen, L.; Gadinski, M.R.; Zhang, S.; Zhang, G.; Li, H.U.; Iagodkine, E.; Haque, A.; Chen, L.-Q.; Jackson, T.N.; et al. Flexible High-Temperature Dielectric Materials from Polymer Nanocomposites. Nature 2015, 523, 576–579. [Google Scholar] [CrossRef] [PubMed]
  2. Kumar, N.; Ionin, A.; Ansell, T.; Kwon, S.; Hackenberger, W.; Cann, D. Multilayer Ceramic Capacitors Based on Relaxor BaTiO3-Bi(Zn1/2Ti1/2)O3 for Temperature Stable and High Energy Density Capacitor Applications. Appl. Phys. Lett. 2015, 106, 252901. [Google Scholar] [CrossRef]
  3. Li, J.; Li, F.; Xu, Z.; Zhang, S. Multilayer Lead-Free Ceramic Capacitors with Ultrahigh Energy Density and Efficiency. Adv. Mater. 2018, 30, 1802155. [Google Scholar] [CrossRef] [PubMed]
  4. He, J.; Liu, X.; Zhao, Y.; Du, H.; Zhang, T.; Shi, J. Dielectric Stability and Energy-Storage Performance of BNT-Based Relaxor Ferroelectrics through Nb5+ and Its Excess Modification. ACS Appl. Electron. Mater. 2022, 4, 735–743. [Google Scholar] [CrossRef]
  5. Yang, Z.; Du, H.; Jin, L.; Poelman, D. High-Performance Lead-Free Bulk Ceramics for Electrical Energy Storage Applications: Design Strategies and Challenges. J. Mater. Chem. A Mater. 2021, 9, 18026–18085. [Google Scholar] [CrossRef]
  6. Wang, G.; Lu, Z.; Li, Y.; Li, L.; Ji, H.; Feteira, A.; Zhou, D.; Wang, D.; Zhang, S.; Reaney, I.M. Electroceramics for High-Energy Density Capacitors: Current Status and Future Perspectives. Chem. Rev. 2021, 121, 6124–6172. [Google Scholar] [CrossRef]
  7. Chen, Q.; Shen, Y.; Zhang, S.; Zhang, Q.M. Polymer-Based Dielectrics with High Energy Storage Density. Annu. Rev. Mater. Res. 2015, 45, 433–458. [Google Scholar] [CrossRef]
  8. Xie, A.; Zuo, R.; Qiao, Z.; Fu, Z.; Hu, T.; Fei, L. NaNbO3-(Bi0.5Li0.5)TiO3 Lead-Free Relaxor Ferroelectric Capacitors with Superior Energy-Storage Performances via Multiple Synergistic Design. Adv. Energy Mater. 2021, 11, 2101378. [Google Scholar] [CrossRef]
  9. Li, T.; Jiang, X.; Li, J.; Xie, A.; Fu, J.; Zuo, R. Ultrahigh Energy-Storage Performances in Lead-Free Na0.5Bi0.5TiO3-Based Relaxor Antiferroelectric Ceramics through a Synergistic Design Strategy. ACS Appl. Mater. Interfaces 2022, 14, 22263–22269. [Google Scholar] [CrossRef]
  10. Li, B.; Yan, Z.; Zhou, X.; Qi, H.; Koval, V.; Luo, X.; Luo, H.; Yan, H.; Zhang, D. Achieving Ultrahigh Energy Storage Density of La and Ta Codoped AgNbO3 Ceramics by Optimizing the Field-Induced Phase Transitions. ACS Appl. Mater. Interfaces 2023, 15, 4246–4256. [Google Scholar] [CrossRef]
  11. Yang, L.; Kong, X.; Li, F.; Hao, H.; Cheng, Z.; Liu, H.; Li, J.-F.; Zhang, S. Perovskite Lead-Free Dielectrics for Energy Storage Applications. Prog. Mater. Sci. 2019, 102, 72–108. [Google Scholar] [CrossRef]
  12. Gui, D.-Y.; Ma, X.-Y.; Yuan, H.-D.; Wang, C.-H. Mn- and Yb-Doped BaTiO3-(Na0.5Bi0.5)TiO3 Ferroelectric Relaxor with Low Dielectric Loss. Materials 2023, 16, 2229. [Google Scholar] [CrossRef] [PubMed]
  13. Shi, H.; Li, K.; Li, F.; Ma, J.; Tu, Y.; Long, M.; Lu, Y.; Gong, W.; Wang, C.; Shan, L. Enhanced Piezoelectricity and Thermal Stability of Electrostrain Performance in BiFeO3-Based Lead-Free Ceramics. Nanomaterials 2023, 13, 942. [Google Scholar] [CrossRef] [PubMed]
  14. Ji, H.; Wang, D.; Bao, W.; Lu, Z.; Wang, G.; Yang, H.; Mostaed, A.; Li, L.; Feteira, A.; Sun, S.; et al. Ultrahigh Energy Density in Short-Range Tilted NBT-Based Lead-Free Multilayer Ceramic Capacitors by Nanodomain Percolation. Energy Storage Mater. 2021, 38, 113–120. [Google Scholar] [CrossRef]
  15. Zhang, G.; Zhu, D.; Zhang, X.; Zhang, L.; Yi, J.; Xie, B.; Zeng, Y.; Li, Q.; Wang, Q.; Jiang, S. High-Energy Storage Performance of (Pb0.87Ba0.1La0.02)(Zr0.68Sn0.24Ti0.08)O3 Antiferroelectric Ceramics Fabricated by the Hot-Press Sintering Method. J. Am. Ceram. Soc. 2015, 98, 1175–1181. [Google Scholar] [CrossRef]
  16. Liu, Z.; Chen, X.; Peng, W.; Xu, C.; Dong, X.; Cao, F.; Wang, G. Temperature-Dependent Stability of Energy Storage Properties of Pb0.97La0.02(Zr0.58Sn0.335Ti0.085)O3 Antiferroelectric Ceramics for Pulse Power Capacitors. Appl. Phys. Lett. 2015, 106, 262901. [Google Scholar] [CrossRef]
  17. Yuan, Q.; Li, G.; Yao, F.-Z.; Cheng, S.-D.; Wang, Y.; Ma, R.; Mi, S.-B.; Gu, M.; Wang, K.; Li, J.-F.; et al. Simultaneously Achieved Temperature-Insensitive High Energy Density and Efficiency in Domain Engineered BaTiO3-Bi(Mg0.5Zr0.5)O3 Lead-Free Relaxor Ferroelectrics. Nano Energy 2018, 52, 203–210. [Google Scholar] [CrossRef]
  18. Zhao, P.; Wang, H.; Wu, L.; Chen, L.; Cai, Z.; Li, L.; Wang, X. High-Performance Relaxor Ferroelectric Materials for Energy Storage Applications. Adv. Energy Mater. 2019, 9, 1803048. [Google Scholar] [CrossRef]
  19. Asbani, B.; Gagou, Y.; Ben Moumen, S.; Dellis, J.-L.; Lahmar, A.; Amjoud, M.; Mezzane, D.; El Marssi, M.; Rozic, B.; Kutnjak, Z. Large Electrocaloric Responsivity and Energy Storage Response in the Lead-Free Ba(GexTi1−x)O3 Ceramics. Materials 2022, 15, 5227. [Google Scholar] [CrossRef]
  20. Yuan, Q.; Yao, F.; Wang, Y.; Ma, R.; Wang, H. Relaxor Ferroelectric 0.9BaTiO3–0.1Bi(Zn0.5Zr0.5)O3 Ceramic Capacitors with High Energy Density and Temperature Stable Energy Storage Properties. J. Mater. Chem. C Mater. 2017, 5, 9552–9558. [Google Scholar] [CrossRef]
  21. Suchanicz, J.; Sitko, D.; Stanuch, K.; Świerczek, K.; Jagło, G.; Kruk, A.; Kluczewska-Chmielarz, K.; Konieczny, K.; Czaja, P.; Aleksandrowicz, J.; et al. Temperature and E-Poling Evolution of Structural, Vibrational, Dielectric, and Ferroelectric Properties of Ba1−xSrxTiO3 Ceramics (x = 0, 0.1, 0.2, 0.3, 0.4 and 0.45). Materials 2023, 16, 6316. [Google Scholar] [CrossRef] [PubMed]
  22. Yin, J.; Zhang, Y.; Lv, X.; Wu, J. Ultrahigh Energy-Storage Potential under Low Electric Field in Bismuth Sodium Titanate-Based Perovskite Ferroelectrics. J. Mater. Chem. A Mater. 2018, 6, 9823–9832. [Google Scholar] [CrossRef]
  23. Qi, H.; Zuo, R. Linear-like Lead-Free Relaxor Antiferroelectric (Bi0.5Na0.5)TiO3–NaNbO3 with Giant Energy-Storage Density/Efficiency and Super Stability against Temperature and Frequency. J. Mater. Chem. A Mater. 2019, 7, 3971–3978. [Google Scholar] [CrossRef]
  24. Lu, Y.; Zhang, H.; Yang, H.; Fan, P.; Samart, C.; Takesue, N.; Tan, H. SPS-Prepared High-Entropy (Bi0.2Na0.2Sr0.2Ba0.2Ca0.2)TiO3 Lead-Free Relaxor-Ferroelectric Ceramics with High Energy Storage Density. Crystals 2023, 13, 445. [Google Scholar] [CrossRef]
  25. Jiang, Y.; Niu, X.; Liang, W.; Jian, X.; Shi, H.; Li, F.; Zhang, Y.; Wang, T.; Gong, W.; Zhao, X.; et al. Enhanced Energy Storage Performance in Na0.5Bi0.5TiO3-Based Relaxor Ferroelectric Ceramics via Compositional Tailoring. Materials 2022, 15, 5881. [Google Scholar] [CrossRef]
  26. Liu, X.; Shi, J.; Zhu, F.; Du, H.; Li, T.; Liu, X.; Lu, H. Ultrahigh Energy Density and Improved Discharged Efficiency in Bismuth Sodium Titanate Based Relaxor Ferroelectrics with A-Site Vacancy. J. Mater. 2018, 4, 202–207. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Jia, Y.; Yang, J.; Feng, Z.; Sun, S.; Zhu, X.; Wang, H.; Yan, S.; Zheng, M. Enhancing Energy Storage Performance of 0.85Bi0.5Na0.5TiO3-0.15LaFeO3 Lead-Free Ferroelectric Ceramics via Buried Sintering. Materials 2024, 17, 4019. [Google Scholar] [CrossRef]
  28. Zhou, M.; Liang, R.; Zhou, Z.; Dong, X. Superior Energy Storage Properties and Excellent Stability of Novel NaNbO3-Based Lead-Free Ceramics with A-Site Vacancy Obtained via a Bi2O3 Substitution Strategy. J. Mater. Chem. A Mater. 2018, 6, 17896–17904. [Google Scholar] [CrossRef]
  29. Lubszczyk, M.; Brylewski, T.; Rutkowski, P.; Świerczek, K.; Kruk, A. Preparation and Physicochemical Properties of K0.5Na0.5NbO3 Ceramics Obtained Using a Modified Wet Chemistry Method. Mater. Sci. Eng. B 2023, 288, 116135. [Google Scholar] [CrossRef]
  30. Tian, Y.; Jin, L.; Zhang, H.; Xu, Z.; Wei, X.; Viola, G.; Abrahams, I.; Yan, H. Phase Transitions in Bismuth-Modified Silver Niobate Ceramics for High Power Energy Storage. J. Mater. Chem. A Mater. 2017, 5, 17525–17531. [Google Scholar] [CrossRef]
  31. Xu, Y.; Guo, Y.; Liu, Q.; Bai, J.; Huang, J.; Lin, L.; Lu, S. Antiferroelectricity in New Silver Niobate Lead-Free Antiferroelectric Ceramics (1-x)AgNbO3-XCaZrO3 (x = 0.00–0.01). J. Alloys Compd. 2019, 782, 469–476. [Google Scholar] [CrossRef]
  32. Liu, X.; Zhao, Y.; Shi, J.; Du, H.; Xu, X.; Lu, H.; Che, J.; Li, X. Improvement of Dielectric and Ferroelectric Properties in Bismuth Sodium Titanate Based Relaxors through Bi Non-Stoichiometry. J. Alloys Compd. 2019, 799, 231–238. [Google Scholar] [CrossRef]
  33. Shi, J.; Fan, H.; Liu, X.; Li, Q. Giant Strain Response and Structure Evolution in (Bi0.5Na0.5)0.945−x(Bi0.2Sr0.7□0.1)xBa0.055TiO3 Ceramics. J. Eur. Ceram. Soc. 2014, 34, 3675–3683. [Google Scholar] [CrossRef]
  34. Li, F.; Hou, X.; Wang, J.; Zeng, H.; Shen, B.; Zhai, J. Structure-Design Strategy of 0–3 Type (Bi0.32Sr0.42Na0.20)TiO3/MgO Composite to Boost Energy Storage Density, Efficiency and Charge-Discharge Performance. J. Eur. Ceram. Soc. 2019, 39, 2889–2898. [Google Scholar] [CrossRef]
  35. Liu, N.; Liang, R.; Zhou, Z.; Dong, X. Designing Lead-Free Bismuth Ferrite-Based Ceramics Learning from Relaxor Ferroelectric Behavior for Simultaneous High Energy Density and Efficiency under Low Electric Field. J. Mater. Chem. C Mater. 2018, 6, 10211–10217. [Google Scholar] [CrossRef]
  36. Wu, Y.; Fan, Y.; Liu, N.; Peng, P.; Zhou, M.; Yan, S.; Cao, F.; Dong, X.; Wang, G. Enhanced Energy Storage Properties in Sodium Bismuth Titanate-Based Ceramics for Dielectric Capacitor Applications. J. Mater. Chem. C Mater. 2019, 7, 6222–6230. [Google Scholar] [CrossRef]
  37. Hu, Q.; Tian, Y.; Zhu, Q.; Bian, J.; Jin, L.; Du, H.; Alikin, D.O.; Shur, V.Y.; Feng, Y.; Xu, Z.; et al. Achieve Ultrahigh Energy Storage Performance in BaTiO3–Bi(Mg1/2Ti1/2)O3 Relaxor Ferroelectric Ceramics via Nano-Scale Polarization Mismatch and Reconstruction. Nano Energy 2020, 67, 104264. [Google Scholar] [CrossRef]
  38. Wang, H.; Jiang, X.; Liu, X.; Yang, R.; Yang, Y.; Zheng, Q.; Kwok, K.W.; Lin, D. An Effective Approach to Achieve High Energy Storage Density and Efficiency in BNT-Based Ceramics by Doping AgNbO3. Dalton Trans. 2019, 48, 17864–17873. [Google Scholar] [CrossRef]
  39. Shi, P.; Zhu, L.; Gao, W.; Yu, Z.; Lou, X.; Wang, X.; Yang, Z.; Yang, S. Large Energy Storage Properties of Lead-Free (1-x)(0.72Bi0.5Na0.5TiO3-0.28SrTiO3)-XBiAlO3 Ceramics at Broad Temperature Range. J. Alloys Compd. 2019, 784, 788–793. [Google Scholar] [CrossRef]
  40. Pan, Z.; Hu, D.; Zhang, Y.; Liu, J.; Shen, B.; Zhai, J. Achieving High Discharge Energy Density and Efficiency with NBT-Based Ceramics for Application in Capacitors. J. Mater. Chem. C Mater. 2019, 7, 4072–4078. [Google Scholar] [CrossRef]
  41. Cross, L.E. Relaxor Ferroelectrics. Ferroelectrics 1987, 76, 241–267. [Google Scholar] [CrossRef]
  42. Cowley, R.A.; Gvasaliya, S.N.; Lushnikov, S.G.; Roessli, B.; Rotaru, G.M. Relaxing with Relaxors: A Review of Relaxor Ferroelectrics. Adv. Phys. 2011, 60, 229–327. [Google Scholar] [CrossRef]
  43. Kleemann, W. Relaxor Ferroelectrics: Cluster Glass Ground State via Random Fields and Random Bonds. Phys. Status Solidi 2014, 251, 1993–2002. [Google Scholar] [CrossRef]
  44. Zhang, Z.; Tan, R.; Wang, F.; Yan, K. Core–Shell Grain Structure and High Energy Storage Performance of BNT-Based Relaxor Ferroelectric Ceramics. Electron. Mater. Lett. 2023, 19, 161–171. [Google Scholar] [CrossRef]
  45. Glaum, J.; Heo, Y.; Acosta, M.; Sharma, P.; Seidel, J.; Hinterstein, M. Revealing the Role of Local Stress on the Depolarization of BNT-BT-Based Relaxors. Phys. Rev. Mater. 2019, 3, 054406. [Google Scholar] [CrossRef]
  46. Lv, J.; Li, Q.; Li, Y.; Tang, M.; Jin, D.; Yan, Y.; Fan, B.; Jin, L.; Liu, G. Significantly Improved Energy Storage Performance of NBT-BT Based Ceramics through Domain Control and Preparation Optimization. Chem. Eng. J. 2021, 420, 129900. [Google Scholar] [CrossRef]
  47. Xu, C.; Lin, D.; Kwok, K.W. Structure, Electrical Properties and Depolarization Temperature of (Bi0.5Na0.5)TiO3–BaTiO3 Lead-Free Piezoelectric Ceramics. Solid. State Sci. 2008, 10, 934–940. [Google Scholar] [CrossRef]
  48. Takenaka, T.; Kei-ichi Maruyama, K.M.; Koichiro Sakata, K.S. (Bi1/2Na1/2)TiO3-BaTiO3 System for Lead-Free Piezoelectric Ceramics. Jpn. J. Appl. Phys. 1991, 30, 2236. [Google Scholar] [CrossRef]
  49. Jones, G.O.; Thomas, P.A. Investigation of the Structure and Phase Transitions in the Novel A-Site Substituted Distorted Perovskite Compound Na0.5Bi0.5TiO3. Acta Crystallogr. B 2002, 58, 168–178. [Google Scholar] [CrossRef]
  50. Buttner, R.H.; Maslen, E.N. Structural Parameters and Electron Difference Density in BaTiO3. Acta Crystallogr. B 1992, 48, 764–769. [Google Scholar] [CrossRef]
  51. Al-Shakarchi, E.K.; Mahmood, N.B. Three Techniques Used to Produce BaTiO3 Fine Powder. J. Mod. Phys. 2011, 2, 1420–1428. [Google Scholar] [CrossRef]
  52. Mahmood, N.B.; Al-Shakarchi, E.K. Dielectric Properties of BNT-xBT Prepared by Hydrothermal Process. J. Adv. Dielectr. 2017, 07, 1750019. [Google Scholar] [CrossRef]
  53. Nesterović, A.; Vukmirović, J.; Stijepović, I.; Milanović, M.; Bajac, B.; Tóth, E.; Cvejić, Ž.; Srdić, V.V. Structure and Dielectric Properties of (1-x)Bi0.5Na0.5TiO3–xBaTiO3 Piezoceramics Prepared Using Hydrothermally Synthesized Powders. R. Soc. Open Sci. 2021, 8, 202365. [Google Scholar] [CrossRef]
  54. Craciun, F.; Galassi, C.; Birjega, R. Electric-Field-Induced and Spontaneous Relaxor-Ferroelectric Phase Transitions in (Na1/2Bi1/2)1 − xBaxTiO3. J. Appl. Phys. 2012, 112, 124106. [Google Scholar] [CrossRef]
  55. Jaita, P.; Manotham, S.; Rujijanagul, G. Influence of Al2O3 Nanoparticle Doping on Depolarization Temperature, and Electrical and Energy Harvesting Properties of Lead-Free 0.94(Bi0.5Na0.5)TiO3–0.06BaTiO3 Ceramics. RSC Adv. 2020, 10, 32078–32087. [Google Scholar] [CrossRef]
  56. Gupta, S.K.; McQuade, R.; Gibbons, B.; Mardilovich, P.; Cann, D.P. Electric Field-Induced Strain in Sr(Hf0.5Zr0.5)O3-Modified Bi0.5(Na0.8K0.2)0.5TiO3 Piezoelectric Ceramics. J. Appl. Phys. 2020, 127, 074104. [Google Scholar] [CrossRef]
  57. Pattipaka, S.; James, A.R.; Dobbidi, P. Enhanced Dielectric and Piezoelectric Properties of BNT-KNNG Piezoelectric Ceramics. J. Alloys Compd. 2018, 765, 1195–1208. [Google Scholar] [CrossRef]
  58. Tong, X.-Y.; Song, M.-W.; Zhou, J.-J.; Wang, K.; Guan, C.-L.; Liu, H.; Fang, J.-Z. Enhanced Energy Storage Properties in Nb-Modified Bi0.5Na0.5TiO3–SrTiO3 Lead-Free Electroceramics. J. Mater. Sci. Mater. Electron. 2019, 30, 5780–5790. [Google Scholar] [CrossRef]
  59. Jaita, P.; Saenkam, K.; Rujijanagul, G. Improvements in Piezoelectric and Energy Harvesting Properties with a Slight Change in Depolarization Temperature in Modified BNKT Ceramics by a Simple Technique. RSC Adv. 2023, 13, 3743–3758. [Google Scholar] [CrossRef]
  60. Fernandez-Benavides, D.; Gutierrez-Perez, A.; Benitez-Castro, A.; Ayala-Ayala, M.; Moreno-Murguia, B.; Muñoz-Saldaña, J. Comparative Study of Ferroelectric and Piezoelectric Properties of BNT-BKT-BT Ceramics near the Phase Transition Zone. Materials 2018, 11, 361. [Google Scholar] [CrossRef]
  61. Chu, B.; Hao, J.; Li, P.; Li, Y.; Li, W.; Zheng, L.; Zeng, H. High-Energy Storage Properties over a Broad Temperature Range in La-Modified BNT-Based Lead-Free Ceramics. ACS Appl. Mater. Interfaces 2022, 14, 19683–19696. [Google Scholar] [CrossRef] [PubMed]
  62. Shi, L.N.; Wang, Y.G.; Ren, Z.H.; Jain, A.; Jiang, S.S.; Chen, F.G. Significant Improvement in Electrical Characteristics and Energy Storage Performance of NBT-Based Ceramics. Ceram. Int. 2022, 48, 26973–26983. [Google Scholar] [CrossRef]
  63. Jaita, P.; Watcharapasorn, A.; Cann, D.P.; Jiansirisomboon, S. Dielectric, Ferroelectric and Electric Field-Induced Strain Behavior of Ba(Ti0.90Sn0.10)O3-Modified Bi0.5(Na0.80K0.20)0.5TiO3 Lead-Free Piezoelectrics. J. Alloys Compd. 2014, 596, 98–106. [Google Scholar] [CrossRef]
  64. Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallogr. Sect. A 1976, 32, 751–767. [Google Scholar] [CrossRef]
  65. Boonlakhorn, J.; Thongbai, P.; Putasaeng, B.; Yamwong, T.; Maensiri, S. Very High-Performance Dielectric Properties of Ca1−3x/2YbxCu3Ti4O12 Ceramics. J. Alloys Compd. 2014, 612, 103–109. [Google Scholar] [CrossRef]
  66. Sun, Z.; Wang, Z.; Tian, Y.; Wang, G.; Wang, W.; Yang, M.; Wang, X.; Zhang, F.; Pu, Y. Progress, Outlook, and Challenges in Lead-Free Energy-Storage Ferroelectrics. Adv. Electron. Mater. 2020, 6, 1900698. [Google Scholar] [CrossRef]
  67. Choi, H.; Pattipaka, S.; Son, Y.H.; Bae, Y.M.; Park, J.H.; Jeong, C.K.; Lee, H.E.; Kim, S.-D.; Ryu, J.; Hwang, G.-T. Improved Energy Storage Density and Efficiency of Nd and Mn Co-Doped Ba0.7Sr0.3TiO3 Ceramic Capacitors Via Defect Dipole Engineering. Materials 2023, 16, 6753. [Google Scholar] [CrossRef]
  68. Maqbool, A.; Hussain, A.; Malik, R.A.; Rahman, J.U.; Zaman, A.; Song, T.K.; Kim, W.-J.; Kim, M.-H. Evolution of Phase Structure and Giant Strain at Low Driving Fields in Bi-Based Lead-Free Incipient Piezoelectrics. Mater. Sci. Eng. B 2015, 199, 105–112. [Google Scholar] [CrossRef]
  69. Hiruma, Y.; Nagata, H.; Takenaka, T. Phase Diagrams and Electrical Properties of (Bi1/2Na1/2)TiO3-Based Solid Solutions. J. Appl. Phys. 2008, 104, 124106. [Google Scholar] [CrossRef]
  70. Shvartsman, V.V.; Lupascu, D.C. Lead-Free Relaxor Ferroelectrics. J. Am. Ceram. Soc. 2012, 95, 1–26. [Google Scholar] [CrossRef]
  71. Liu, G.; Wang, Y.; Han, G.; Gao, J.; Yu, L.; Tang, M.; Li, Y.; Hu, J.; Jin, L.; Yan, Y. Enhanced Electrical Properties and Energy Storage Performances of NBT-ST Pb-Free Ceramics through Glass Modification. J. Alloys Compd. 2020, 836, 154961. [Google Scholar] [CrossRef]
  72. Uchino, K.; Nomura, S.; Cross, L.E.; Jang, S.J.; Newnham, R.E. Electrostrictive Effect in Lead Magnesium Niobate Single Crystals. J. Appl. Phys. 1980, 51, 1142–1145. [Google Scholar] [CrossRef]
  73. Xu, B.; Paillard, C.; Dkhil, B.; Bellaiche, L. Pinched Hysteresis Loop in Defect-Free Ferroelectric Materials. Phys. Rev. B 2016, 94, 140101. [Google Scholar] [CrossRef]
  74. Fan, P.; Zhang, Y.; Xie, B.; Zhu, Y.; Ma, W.; Wang, C.; Yang, B.; Xu, J.; Xiao, J.; Zhang, H. Large Electric-Field-Induced Strain in B-Site Complex-Ion (Fe0.5Nb0.5)4+-Doped Bi1/2(Na0.82K0.12)1/2TiO3 Lead-Free Piezoceramics. Ceram. Int. 2018, 44, 3211–3217. [Google Scholar] [CrossRef]
  75. Wu, J.; Mahajan, A.; Riekehr, L.; Zhang, H.; Yang, B.; Meng, N.; Zhang, Z.; Yan, H. Perovskite Srx(Bi1−xNa0.97−xLi0.03)0.5TiO3 Ceramics with Polar Nano Regions for High Power Energy Storage. Nano Energy 2018, 50, 723–732. [Google Scholar] [CrossRef]
  76. Yan, Y.; Zeng, X.; Deng, T.; Chen, F.; Yang, L.; He, Z.; Jin, L.; Liu, G. Rheological, Mechanical, and Electrical Properties of Sr0.7Bi0.2TiO3 Modified BaTiO3 Ceramic and Its Composites. J. Am. Ceram. Soc. 2023, 106, 3052–3065. [Google Scholar] [CrossRef]
  77. Li, Q.; Wang, C.; Yadav, A.K.; Fan, H. Large Electrostrictive Effect and Energy Storage Density in MnCO3 Modified Na0.325Bi0.395Sr0.245□0.035TiO3 Lead-Free Ceramics. Ceram. Int. 2020, 46, 3374–3381. [Google Scholar] [CrossRef]
  78. Nayak, S.; Venkateshwarlu, S.; Budisuharto, A.S.; Jørgensen, M.R.V.; Borkiewicz, O.; Beyer, K.A.; Pramanick, A. Effect of A-site Substitutions on Energy Storage Properties of BaTiO3-BiScO3 Weakly Coupled Relaxor Ferroelectrics. J. Am. Ceram. Soc. 2019, 102, 5919–5933. [Google Scholar] [CrossRef]
  79. Cao, W.P.; Li, W.L.; Dai, X.F.; Zhang, T.D.; Sheng, J.; Hou, Y.F.; Fei, W.D. Large Electrocaloric Response and High Energy-Storage Properties over a Broad Temperature Range in Lead-Free NBT-ST Ceramics. J. Eur. Ceram. Soc. 2016, 36, 593–600. [Google Scholar] [CrossRef]
  80. Jabeen, N.; Hussain, A.; Qaiser, M.A.; Ali, J.; Rehman, A.; Sfina, N.; Ali, G.A.; Tirth, V. Enhanced Energy Storage Performance by Relaxor Highly Entropic (Ba0.2Na0.2K0.2La0.2Bi0.2)TiO3 and (Ba0.2Na0.2K0.2Mg0.2Bi0.2)TiO3 Ferroelectric Ceramics. Appl. Sci. 2022, 12, 12933. [Google Scholar] [CrossRef]
Materials 17 05044 g001
Figure 1. (a) X-ray diffraction patterns of the (1−x) BNT-BT- x SBT ceramic samples for x = 0–0.30 in the 2θ range of 20°–70°, and (b) enlarged XRD patterns in the range of 38°–50°.
Figure 1. (a) X-ray diffraction patterns of the (1−x) BNT-BT- x SBT ceramic samples for x = 0–0.30 in the 2θ range of 20°–70°, and (b) enlarged XRD patterns in the range of 38°–50°.
Materials 17 05044 g001
Materials 17 05044 g002

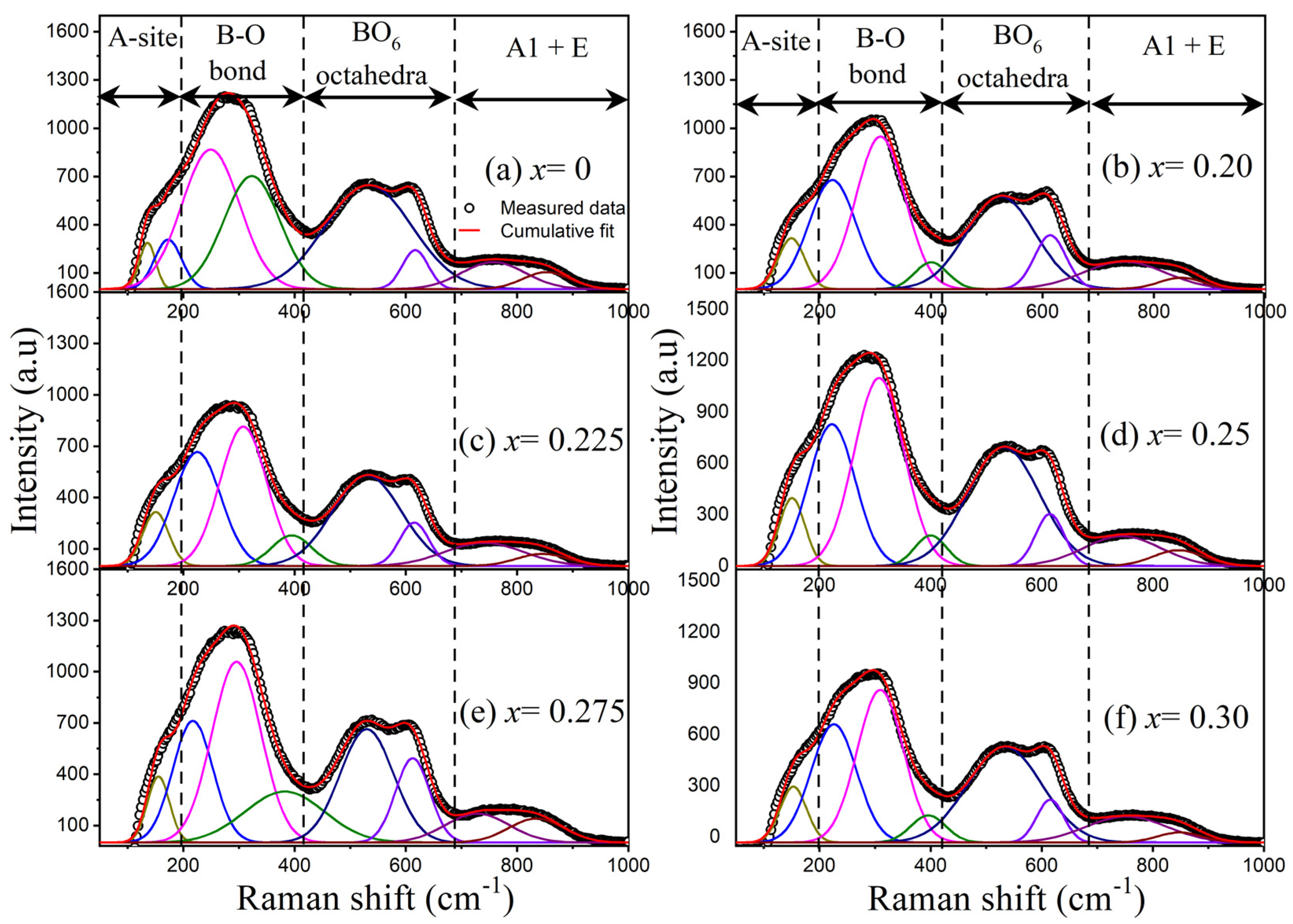

Figure 2. Raman spectra along with spectral deconvolution of (1−x) BNT-BT- x SBT ceramic samples for (a) x = 0, (b) x = 0.20, (c) x = 0.225, (d) x = 0.25, (e) x = 0.275, and (f) x = 0.30.
Figure 2. Raman spectra along with spectral deconvolution of (1−x) BNT-BT- x SBT ceramic samples for (a) x = 0, (b) x = 0.20, (c) x = 0.225, (d) x = 0.25, (e) x = 0.275, and (f) x = 0.30.
Materials 17 05044 g002
Materials 17 05044 g003

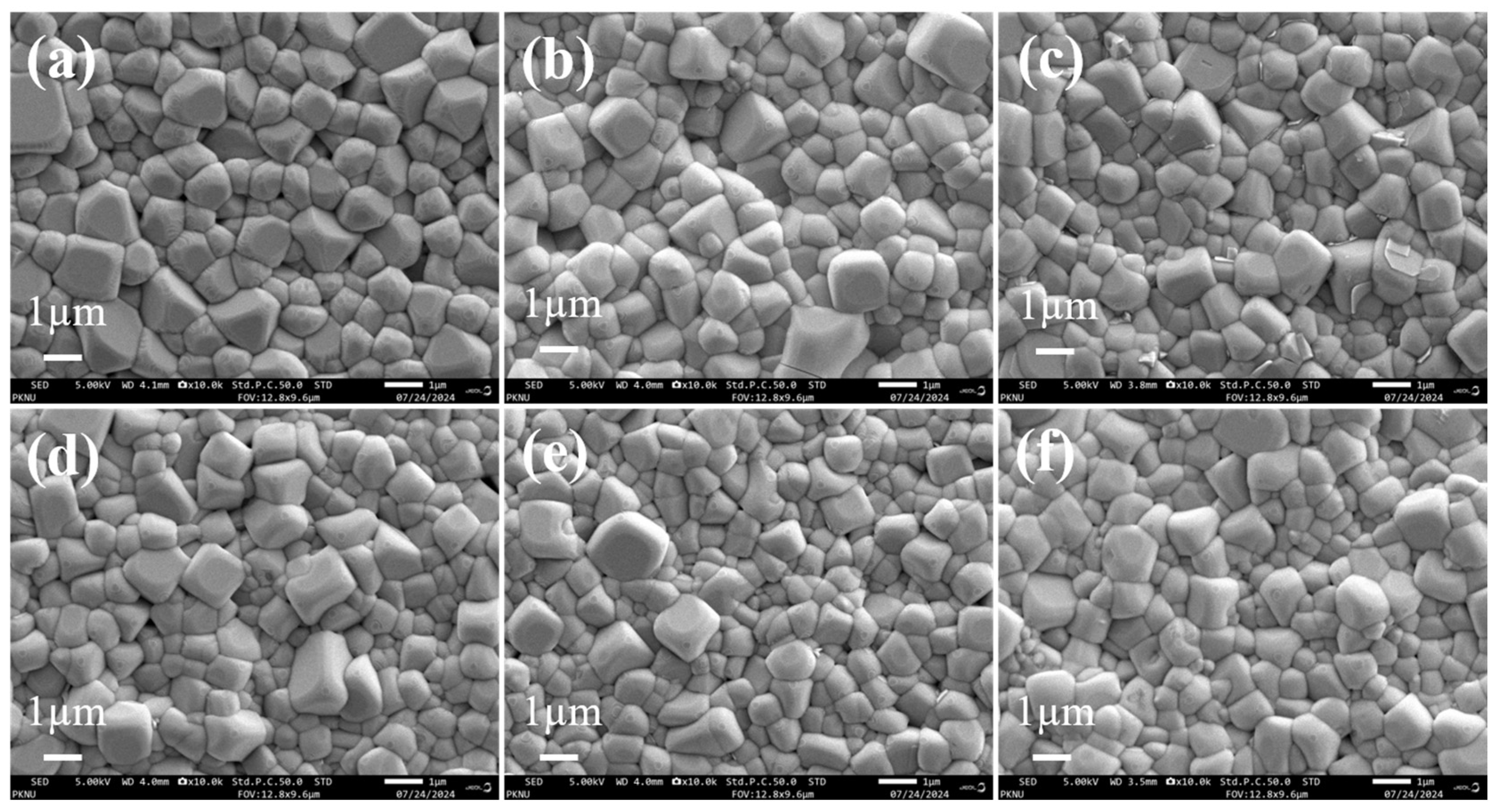

Figure 3. SEM images of (1−x) BNT-BT- x SBT ceramic samples for (a) x = 0, (b) x = 0.20, (c) x = 0.225, (d) x = 0.25, (e) x = 0.275, and (f) x = 0.30.
Figure 3. SEM images of (1−x) BNT-BT- x SBT ceramic samples for (a) x = 0, (b) x = 0.20, (c) x = 0.225, (d) x = 0.25, (e) x = 0.275, and (f) x = 0.30.
Materials 17 05044 g003
Materials 17 05044 g004
Figure 4. EDS spectra for the elemental analysis of (1−x) BNT-BT- x SBT ceramics: (a) x = 0, (b) x = 0.20, (c) x = 0.225, (d) x = 0.25, (e) x = 0.275, and (f) x = 0.30.
Figure 4. EDS spectra for the elemental analysis of (1−x) BNT-BT- x SBT ceramics: (a) x = 0, (b) x = 0.20, (c) x = 0.225, (d) x = 0.25, (e) x = 0.275, and (f) x = 0.30.
Materials 17 05044 g004
Materials 17 05044 g005

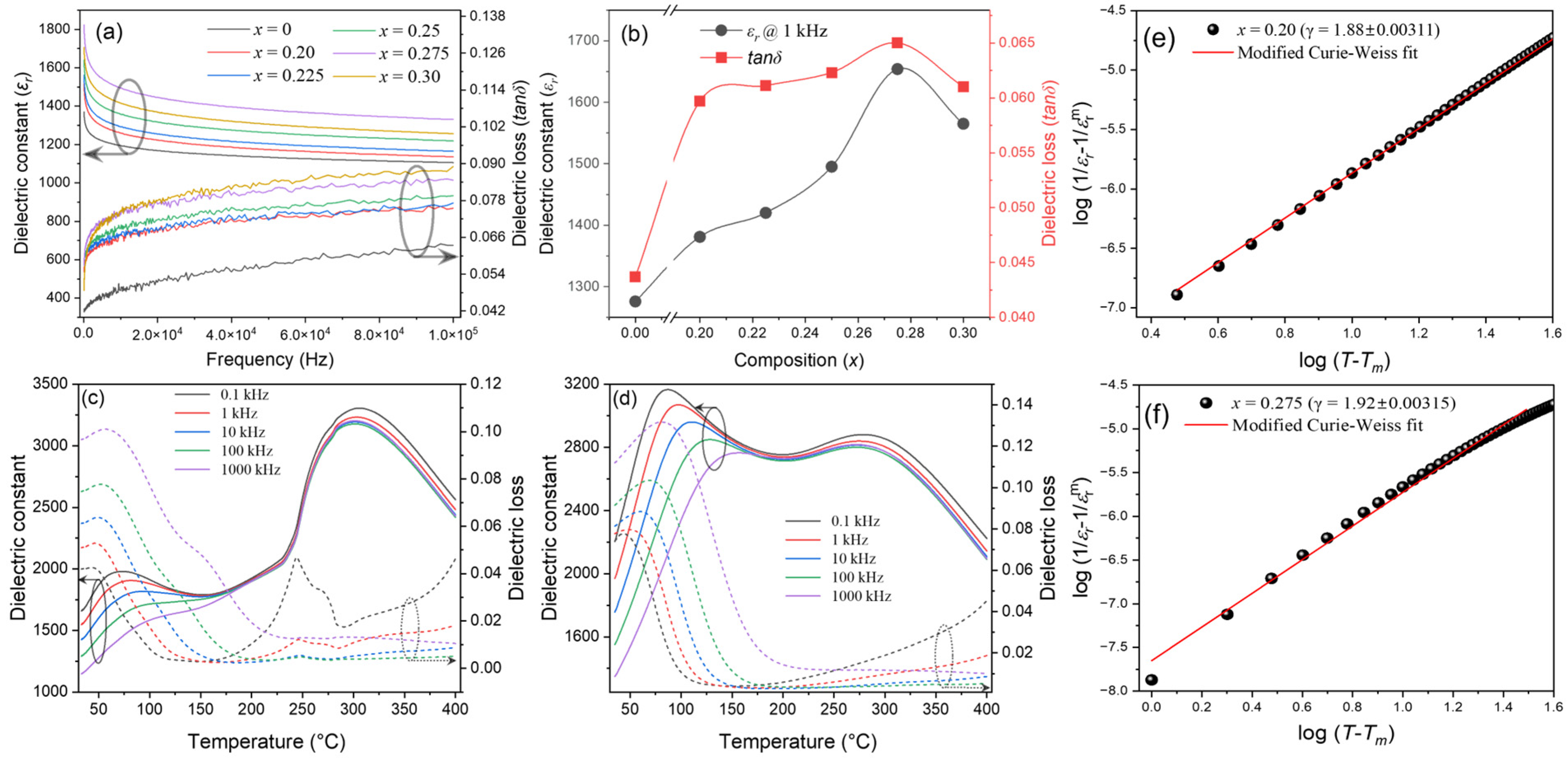

Figure 5. (a) Frequency variation in dielectric constant and dielectric loss of (1−x) BNT-BT- x SBT ceramic capacitors for x = 0–0.30. (b) Composition versus dielectric constant and dielectric loss. (c,d) Temperature dependency of dielectric constant and dielectric loss. (e,f) represent l o g T − T m versus l o g 1 ε r − 1 ε r m of (1-x) BNT-BT- x SBT ceramic for x = 0.20 and 0.275 at 1 kHz.
Figure 5. (a) Frequency variation in dielectric constant and dielectric loss of (1−x) BNT-BT- x SBT ceramic capacitors for x = 0–0.30. (b) Composition versus dielectric constant and dielectric loss. (c,d) Temperature dependency of dielectric constant and dielectric loss. (e,f) represent l o g T − T m versus l o g 1 ε r − 1 ε r m of (1-x) BNT-BT- x SBT ceramic for x = 0.20 and 0.275 at 1 kHz.
Materials 17 05044 g005
Materials 17 05044 g006
Figure 6. (a) RT bipolar P-E hysteresis loops of (1−x) BNT-BT- x SBT ceramic capacitors for all compositions from x = 0 to 0.30. The inset of Figure 6a shows the unipolar P-E loop with energy storage density and energy loss for the optimized sample (x = 0.275). (b,c) bipolar P-E hysteresis loops. Insets of (b,c) show Wrec and η at different temperatures for x = 0.20 to 0.275.
Figure 6. (a) RT bipolar P-E hysteresis loops of (1−x) BNT-BT- x SBT ceramic capacitors for all compositions from x = 0 to 0.30. The inset of Figure 6a shows the unipolar P-E loop with energy storage density and energy loss for the optimized sample (x = 0.275). (b,c) bipolar P-E hysteresis loops. Insets of (b,c) show Wrec and η at different temperatures for x = 0.20 to 0.275.
Materials 17 05044 g006
Table 1. Elemental composition of (1−x) BNT-BT- x SBT ceramic samples for x = 0–0.30.
Table 1. Elemental composition of (1−x) BNT-BT- x SBT ceramic samples for x = 0–0.30.
SamplesComposition
Measured Atomic %Theoretical Atomic %
X = 0O = 60.77, Na = 11.91, Bi = 6.43, Ba = 1.48 and Ti = 19.41A-site (Na = 9.4, Bi = 9.4 and Ba = 1.2), B-site (Ti = 20) and O = 60
X = 0.20O = 59.64, Na = 9.56, Sr = 2.46, Bi = 5.83, Ba = 1.39 and Ti = 21.13A-site (Na = 7.52, Bi =8.32, Ba = 0.96 and Sr = 2.24), B-site (Ti = 20) and O = 60
X = 0.225O = 60.29, Na = 9.14, Sr = 2.88, Bi = 5.69, Ba = 1.39 and Ti = 20.61A-site (Na = 7.285, Bi = 8.185, Ba = 0.93 and Sr = 2.52), B-site (Ti = 20) and O = 60
X = 0.25O = 60.58, Na = 8.21, Sr = 3.26, Bi = 5.64, Ba = 1.22 and Ti = 21.10A-site (Na = 7.05, Bi = 8.05, Ba = 0.9 and Sr = 2.8), B-site (Ti = 20) and O = 60
X = 0.275O = 60.87, Na = 7.93, Sr = 3.56, Bi = 5.62, Ba = 1.11 and Ti = 20.91A-site (Na = 6.815, Bi = 7.915, Ba = 0.87 and Sr = 3.08), B-site (Ti = 20) and O = 60
X = 0.30O = 62.69, Na = 6.88, Sr = 3.63, Bi = 4.76, Ba = 2.12 and Ti = 19.91A-site (Na = 6.58, Bi = 7.78, Ba = 0.84 and Sr = 3.36), B-site (Ti = 20) and O = 60
Table 2. The values of ferroelectric (Pr, Pmax, Ec, and EBD) and energy storage properties (Wrec, Wloss, and η) of (1-x) BNT-BT- x SBT ceramic capacitors for x = 0–0.30.
Table 2. The values of ferroelectric (Pr, Pmax, Ec, and EBD) and energy storage properties (Wrec, Wloss, and η) of (1-x) BNT-BT- x SBT ceramic capacitors for x = 0–0.30.
CompositionPr
(µC/cm2)		Pmax (µC/cm2)Ec (kV/cm)EBD
(kV/cm)		Wrec
(J/cm3)		Wrec (J/cm3)η
(%)
x = 017.0629.2913.0343.990.160.8017.45
x = 0.200.7918.762.1948.750.390.1473.58
x = 0.2252.0928.384.7768.990.680.3764.76
x = 0.252.9532.826.4789.380.930.5065.03
x = 0.2751.3931.392.9789.731.020.3275.83
x = 0.301.0028.542.3383.530.960.2281.35
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Pattipaka, S.; Lim, Y.; Jeong, Y.; Peddigari, M.; Min, Y.; Jeong, J.W.; Jang, J.; Kim, S.-D.; Hwang, G.-T. Improving the Energy Storage Performance in Bi0.5Na0.5TiO3-Based Ceramics by Combining Relaxor and Antiferroelectric Properties. Materials 2024, 17, 5044. https://doi.org/10.3390/ma17205044

AMA Style

Pattipaka S, Lim Y, Jeong Y, Peddigari M, Min Y, Jeong JW, Jang J, Kim S-D, Hwang G-T. Improving the Energy Storage Performance in Bi0.5Na0.5TiO3-Based Ceramics by Combining Relaxor and Antiferroelectric Properties. Materials. 2024; 17(20):5044. https://doi.org/10.3390/ma17205044

Chicago/Turabian Style

Pattipaka, Srinivas, Yeseul Lim, Yundong Jeong, Mahesh Peddigari, Yuho Min, Jae Won Jeong, Jongmoon Jang, Sung-Dae Kim, and Geon-Tae Hwang. 2024. "Improving the Energy Storage Performance in Bi0.5Na0.5TiO3-Based Ceramics by Combining Relaxor and Antiferroelectric Properties" Materials 17, no. 20: 5044. https://doi.org/10.3390/ma17205044

APA Style

Pattipaka, S., Lim, Y., Jeong, Y., Peddigari, M., Min, Y., Jeong, J. W., Jang, J., Kim, S.-D., & Hwang, G.-T. (2024). Improving the Energy Storage Performance in Bi0.5Na0.5TiO3-Based Ceramics by Combining Relaxor and Antiferroelectric Properties. Materials, 17(20), 5044. https://doi.org/10.3390/ma17205044

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
