Environmental Sustainable Cement Mortars Based on Polyethylene Terephthalate from Recycling Operations

by
Francesco Todaro
,
Andrea Petrella
*,
Giusy Santomasi
,
Sabino De Gisi
and
Michele Notarnicola
Department of Civil, Environmental, Land, Building Engineering and Chemistry (DICATECh), Polytechnic University of Bari, Via E. Orabona n. 4, 70125 Bari, Italy
*
Author to whom correspondence should be addressed.
Materials 2023, 16(5), 2111; https://doi.org/10.3390/ma16052111
Submission received: 6 February 2023 / Revised: 26 February 2023 / Accepted: 1 March 2023 / Published: 6 March 2023
(This article belongs to the Special Issue Waste-to-Resource in the Ecological Transition: Opportunities and Challenges)
Browse Figures
Versions Notes

Abstract

:
The building and construction industry is a key sector behind the ecological transition in that it is one of the main responsible factors in the consumption of natural resources. Thus, in line with circular economy, the use of waste aggregates in mortars is a possible solution to increase the sustainability of cement materials. In the present paper, polyethylene terephthalate (PET) from bottle scraps (without chemical pretreatment) was used as aggregate in cement mortars to replace conventional sand aggregate (20%, 50% and 80% by weight). The fresh and hardened properties of the innovative mixtures proposed were evaluated through a multiscale physical-mechanical investigation. The main results of this study show the feasibility of the reuse of PET waste aggregates as substitutes for natural aggregates in mortars. The mixtures with bare PET resulted in less fluid than the specimens with sand; this was ascribed to the higher volume of the recycled aggregates with respect to sand. Moreover, PET mortars showed a high tensile strength and energy absorption capacity (with Rf = 1.9 ÷ 3.3 MPa, Rc = 6 ÷ 13 MPa); instead, sand samples were characterized by a brittle rupture. The lightweight specimens showed a thermal insulation increase ranging 65–84% with respect to the reference; the best results were obtained with 800 g of PET aggregate, characterized by a decrease in conductivity of approximately 86% concerning the control. The properties of these environmentally sustainable composite materials may be suitable for non-structural insulating artifacts.

1. Introduction

Industrial waste disposal is certainly a source of economic, environmental, social and health issues. Accordingly, the reuse and recycling operations represent a new development opportunity to manage a large quantity of solid waste [1,2,3,4,5,6].
From the 1950s to today, the production of plastic materials has grown exponentially and is destined to grow dramatically in the coming decades [7,8].
There are many types of plastics, used in the most disparate sectors of human activities, such as polyethylene, polypropylene, polyvinyl chloride, polystyrene, polyamides and polyethylene terephthalate.
The polyethylene terephthalate (PET) is a thermoplastic polymer belonging to polyesters and is one of the most widely used plastics in the package industry whose production has been increasing continuously since the late 1970s. This material has found strong applications in place of glass in the production of bottles due to its lightness and ease of handling and storing. PET containers are used not only for mineral water, but also for fruit juices, soft drinks, milk, etc., since they have numerous advantages in addition to lightness, such as cheapness, chemical inertia, high pressure tolerance and impermeability to gases.
PET is a resistant material, and with an estimated average life of around 1000 years, it can be considered non-biodegradable. For this reason, the disposal of this product is a problem to be solved since the dispersion of plastics in the environment cause problems to the habitat of fauna and flora and therefore to the humans through the food chain [9,10].
The containment of the environmental impact of plastic materials is therefore achieved through a dual approach as reduction of packaging by producers and correct disposal by consumers.
For this reason, it is very important the plastic disposal goes through separate collection in order to transform this type of waste into a resource.
There are different methods for disposing such materials: incineration, landfilling and recycling. Incineration can produce enough heat and steam to generate electricity for the local grid and it represents an easy and cheap solution, but with a harsh impact on air, water and soil quality [11,12]. Moreover, since plastic decomposes much more slowly than any other waste, landfilling cannot be considered an efficient method of disposal because hundreds of years are needed for a natural decomposition [13].
As a matter of fact, waste recycling is the best way for sustainable management of plastics because of environmental compatibility and economic benefits [14,15].
An economical way of PET recycling is the incorporation in cement conglomerates as granulate after mechanical grinding [16,17,18]. Some researchers investigated the main properties of mortars with PET. In the study of Yilmaz [19] waste PET granules were used at a 5%, 10% and 20% replacement of the sand. His study indicated some drawbacks of the use of waste PET aggregates, such as the decrease in compressive strength and fire resistance, but also some benefits, such as a reduction in the density and water absorption and high frost resistance of the cement mortar. Results were confirmed in other later studies [20,21,22].
As a result, PET used as aggregate in mortars and concrete formulation can increase the sustainability of this waste with many positive effects, such as decrease in the usage of natural resources, waste consumption, environmental protection and energy saving [23,24]. In most cases, however, chemical treatments were investigated to improve the surface quality of plastic aggregates, with cost and environmental impacts inadequate [25,26,27].
In this research, cheap, environmentally friendly and lightweight cement mortars were prepared with recycled polyethylene terephthalate (PET) as an aggregate deriving from bottle scraps. Moreover, no treatments of this material and of the mixture occurred. Specifically, different types of conglomerates were studied in fresh (rheology) and hardened state (mechanical, thermal, and microstructural properties) in order to show the peculiar characteristics of each composite. The specimens were prepared with partial and total replacement of the conventional sand aggregate with PET grains in the range of 1–2 mm. A comparison among mortars with bare PET, bare sand and mixture of aggregates was obtained to understand the potential applications of these materials.

2. Materials and Methods

The preparation of the cement mortars was obtained with CEM II A-LL 42.5 R (Buzzi Unicem, Barletta, Italy) cement [28]. Polyethylene terephthalate (PET) from bottle scraps (Maltek Industrie Srl, Terlizzi, Italy) was crushed (with the cutting mill SM 300, Retsch GmbH) and used after sieving (with electromagnetic sieve shaker IRIS FTL-0200, FILTRA Sl, Barcelona, Spain) with grain sizes in the range of 1–2 mm, which partially and totally substituted sand aggregate. Normalized sand (~1700 g/dm3, 0.08–2 mm, Societè Nouvelle du Littoral, Leucate, France) was used in the mortars with grains in the range of 0.5–1 mm after sieving.
Figure 1A shows the inorganic (sand) and the organic (recycled PET) grains which were used as aggregates for the mortars’ preparation. The SEM image of a PET grain is reported in Figure 1B.
Table 1 shows the samples, prepared with 225 g of water and 450 g of cement [29], with the same water to cement ratio of the reference sample (normalized mortar) which was prepared with normalized sand (1350 g).
A flow-test allowed for determining the consistency of the samples in the fresh state [30]. The percentage increase in the diameter (flow) was calculated with Equation (1):
flow = [(D2 − D1)/D1] × 100
where D2 is average spread diameter and D1 is the original base diameter.
After 28 days of curing, specimens were mechanically characterized with a compression and flexural testing machines (MATEST, Milan, Italy). Specifically, 40 × 40 × 160 mm prisms were prepared, and cured for 28 days. Successively, flexural and compressive tests were carried out, respectively, with 50 ± 10 N/s and 2400 ± 200 N/s loading rates [29].
The hardened specimens were also thermally characterized with a portable system for measurement of heat transfer properties of materials (ISOMET, Applied Precision Ltd., Bratislava, Slovakia). Specifically, φ = 100 mm; h = 50 mm cylinders were prepared and cured for 28 days. A thermal stress was induced on the sample from a flat source which was placed on the surface. This allowed for obtaining an estimation of the thermal conductivity (λ) of the mortars [31].
The composites were also microstructurally characterized with a FESEM-EDX Carl Zeiss Sigma 300 VP electron microscope (Carl Zeiss Microscopy GmbH, Jena, Germany), after application of the materials onto aluminium stubs and gold sputtering. The aggregate distribution of the mortars was observed with a Premier series dyno-lyte portable microscope.

3. Results and Discussion

3.1. Preliminary Remarks

Table 1 shows that the PET mortars (PET1, PET2, PET3, samples 7, 8 and 9, respectively) were lighter and more porous than the sand samples (SAND1, SAND2, SAND3, samples 1, 2 and 3), and also in comparison with the reference (control), which showed the highest density among the tested specimens [32,33,34,35]. Among the lightweight mortars, the PET1 composite was the most porous and the lightest because of the largest quantity of organic aggregate (800 g) added into the mixture. The PET2 and PET3 mortars were prepared with 500 g and 250 g, respectively. Samples with an aggregate mixture (SP20, SP50, SP80, samples 4, 5 and 6) showed a decrease in specific mass and increase in porosity with the increase in the lightweight aggregate (PET) and the SP50 sample showed intermediate values of specific mass and porosity, constant the final aggregate dosage, 500 g, in the mixture (PET2 and SAND2).

3.2. Rheology

The flow-test allowed for determining the consistency of the fresh specimens (Figure 2) and the values were compared with the result obtained by the control (Equation (2)).
Δflow = [(flowspecimen − flownormalized mortar)/flownormalized mortar] × 100
SAND1 (Figure 2A) showed similar flow of the control (+5%, plastic behaviour), whereas with lower sand dosage, the samples resulted in becoming increasingly more fluid (SAND2 (+52%) and SAND3 (+80%), respectively, with 500 g and 250 g of sand). The mixtures with bare PET resulted in less fluid than the sand samples. Specifically, the PET3 mixture (with 250 g of aggregate) showed an increase in fluidity in the range of +56% with respect to the control, but a decrease with respect to SAND3 (with 250 g of aggregate). The PET2 mixture resulted in a similar workability of the control (−15%, plastic behaviour) but was more dried than SAND2, which was characterized by the same aggregate dosage (500 g).
Finally, the PET1 mixture was extremely dried, with rheological features totally different with respect to SAND1, which was characterized by the same aggregate quantity (800 g).
These results can be associated with the absorption of water promoted by PET aggregate [36,37], which contributed to a decrease in the fluidity of the specimens sequestering the free water; this effect is more evident with the increase in PET dosage.
Specimens with a mixture of aggregates (SP samples) resulted in a decrease in fluidity with the increase in PET (Figure 2B), and SP80 resulted in a similar workability of the normalized mortar (+8%), while SP50 showed an intermediate value (+29%) with respect to bare aggregate samples, SAND2 (+52%) and PET2 (−15%). Figure 2C shows a picture of the flow tests of the SAND1 (left) and of the PET1 samples, respectively, evidencing the different rheological behaviour of composites characterized by the same dosage but different types of aggregates.
The workability of fresh mortars determines the properties of hardened materials; indeed, the lack of workability prevents the molding of specimens from taking place efficiently, compromising mechanical resistance [36]. Similar results were shown by Albano et al. [37], where a PET content in 20% decreased both the cement mortars’ fluidity and mechanical strengths.

3.3. Mechanical Strengths

Figure 3 reports the flexural strengths of the samples. The values of the SAND composites increased with the increase in the aggregate dosage (~4.5–7.0 MPa), whereas the PET composites showed lower strengths (~1.3–3.0 MPa) above all in comparison with the control (~8.6 MPa), because all the sand samples were characterized by a more resistant aggregate, thus showing higher densities [38]. These results can be attributed to the negative effect of PET smooth surface texture on the bond strength between cement and aggregates [39].
Moreover, the lightweight specimens showed an increase in the strengths with the decrease in PET. Accordingly, PET3 resulted in being the most resistant (3.1 MPa), and with values more than double than PET1 (1.35 MPa) because of having the highest density and the lowest porosity. SP samples’ flexural resistances were between the SAND2 and PET2 values (6.4 MPa and 1.9 MPa, respectively), and decreased with the organic aggregate increase due to the specific mass decrease in the composites, together with the increase in the porosity. The flexural strengths showed an exponential increase with the density increase in the composites. Moreover, the sand samples showed a brittle rupture (Figure 3C) which became semi-brittle in the SP50 (Figure 3D) and PET3 conglomerates. Instead, for PET2 and especially in PET1 mortars was observed (Figure 3E,F) a ductile fracture without specimen collapse (where the plastic aggregates prevent the propagation of cracks), associated to the high tensile strength and energy absorption capacity of PET [40,41].
As shown in Figure 3F, the PET particles can make some interlock between the two fractured surfaces because of the special shape of PET particles and their flexibility, which prevented the complete beam failure.
The PET composites’ results are consistent with other research that has identified for mortars with a max 50% of recycled PET, a flexural strength of between 1 and 4.5 MPa [20].
Figure 4 reports the compressive strengths of the samples. With the increase in the sand dosage, the resistances of the SAND composites tend to increase with values that in the case of the SAND1 sample were similar to the normalized mortar (40.5 Mpa vs. 47 Mpa). The PET aggregate addition was determined to decrease the compressive strengths, which was evident in the case of the SP80 composite (~12 Mpa). Bare PET specimens showed the lowest strengths, except in the case of the PET3 sample (~13 Mpa), due to the lowest quantity of aggregate added (250 g) with respect to the other similar composites. PET2 and PET3 resulted in being more resistant than PET1 (~10 Mpa and ~13 Mpa vs. ~6 Mpa), due to the higher porosity of the latter mortar associated to the higher dosage of PET (800 g) which is evidenced in Figure 3F. Additionally, in this case, the compressive strengths showed an exponential increase in the compressive strengths with the density increase and discrete cracks with no collapse in the PET samples.
This trend can be attributed to the decrease in adhesive strength between the surface of the plastic waste and the cement paste [16,21,27,42]. An increase in the roughness of the aggregates’ surface may increase the compressive strengths [26,27].
The mortars’ sections are observed in Figure 5, where the different aggregates compositions were showed. Specifically, Figure 5A,B show the decrease in the sand dosage from SAND1 to SAND3 samples, whereas Figure 5C–E show the increase in the PET concentration from SP20 to SP80 samples. Finally, it can be observed that for bare PET mortars, an increase in the PET dosage determined an increase in the porosity, which is clearly evidenced in the PET1 composite (Figure 5F–H).
The values obtained are compatible with other similar studies [20,42].

3.4. Thermal Conductivity

Figure 6 reports the thermal conductivity of the samples. Sand-based specimens resulted in being more insulating than the normalized mortar [29,30]. In fact, these conglomerates showed values ranging 0.7–1.3 W/mK with respect to ~2 W/mK of the control. An increase in the values was observed with the increase in the conventional aggregate dosage which is responsible of the increase in density of these types of conglomerates. The addition of the recycled plastic material determined a decrease in the thermal conductivity of the SP samples associated both to a density decrease and porosity increase. Specifically, values ranging 0.3–0.7 W/mK were observed for these composites, with a thermal insulation increase in 65–84% with respect to the reference.
The best results were obtained with PET conglomerate, characterized by a decrease in conductivity of approximately 86% with respect to the control. As already showed in Figure 5G, the relevant porosity of this sample can explain this result. Among bare PET specimens, PET3 was the least insulating (~0.39 W/mK), due to the lowest dosage of aggregate, which induced a specific mass increase and a porosity decrease.
An exponential increase in the conductivity with the density increase in the mixtures was observed [32,33] (Figure 6B).

3.5. Microstructural Properties

The low mechanical strengths, together with the high thermal insulation of bare PET samples, can be explained with scanning electron microscope detections (Figure 7). It can be observed that the sand adhesion to the cement matrix (Figure 7A), on the contrary to what was observed with PET grains which, due to hydrophobic features, did not adhere in the same manner, generating voids at the interface [26,43,44,45] (Figure 7B). The size of these voids tends to be wider with the increase in the PET dosage. For example, in the case of the PET2 composite, voids in the range of 5µm can be observed (Figure 7C). Accordingly, the simultaneous presence of the lightweight recycled materials in the mixtures, combined with the low adhesion to the cement paste, determined a great decrease in the density of the composites with an increase in the porosity (Table 1), which determined the low strengths and the high thermal insulation [32,33,34,35,36].
The further increase in the organic aggregate generated a strong increase in the porosity, as in the case of the PET1 sample (Figure 8A). Specifically, SEM detections of Figure 8B,C evidenced pores in the matrix ranging 500–800 µm.
For all these reasons, the simultaneous presence of the conventional and recycled aggregates in the SP mortars determined intermediate values of mechanical resistances and thermal conductivity.
As a final remark, the PET2 and PET3 samples, characterized by 500 g and 250 g of recycled aggregate, respectively, are a good compromise among rheological, mechanical and thermal properties. PET3 is more resistant and more fluid than PET2, characterized by a lower thermal conductivity and with a workability very similar to the normalized mortar.

4. Conclusions

Polyethylene terephthalate (PET) from bottle scraps was used as aggregate in lightweight cement mortars which were characterized with rheological, mechanical, thermal and microstructural tests. The following conclusions can be drawn based on experimental results compared with studies reported in the literature:
−
the mixtures with bare PET resulted in less fluid than the sand samples (SAND), which is ascribed to the higher volume of the recycled materials respective to sand.
−
SP samples resulted in a decrease in fluidity with the increase in PET dosage and SP80 resulted in a similar workability of the normalized mortar (+8%), while SP50 showed an intermediate value (+29%) with respect to the samples with bare aggregate.
−
The PET composites showed lower strengths (Rf = 1.9–3.3 MPa, Rc = 6–13 MPa) than the SAND samples and the reference, with results increasing with the decrease in the dosage of the organic aggregate. SP conglomerates showed intermediate values (Rf = 2.2–4.7 Mpa, Rc = 11.9–24.3 Mpa)
−
The sand samples showed a brittle rupture which became semi-brittle in the SP50 and PET3 conglomerates and was not observed in PET2 and especially PET1 mortars. Both were characterized by discrete cracks with no collapse, associated to the high tensile strength and energy absorption capacity of PET.
−
The addition of PET determined a decrease in the thermal conductivity (0.3–0.7 W/mK), associated to the density decrease and porosity increase. The thermal insulation enhancement was ~65–84% compared to the reference (~2 W/mK). The best results were obtained with PET1 conglomerate (800 g PET), the most porous. The thermal and mechanical results can be explained through microstructural detections which revealed the low adhesion of PET to the cement mixture; accordingly, the simultaneous presence of the lightweight recycled materials combined with the low adhesion to the cement paste resulted in a great decrease in the specific mass of the composites and the increase in porosity.
−
The SP and PET specimens are effectively environmentally sustainable conglomerates due to the preparation with products derived from bottle scraps and due to the lightness, which is fundamental for thermal insulating materials in non-structural structures.
An example of a possible application for lightweight cement mortars with PET aggregates is in civil engineering applications, such as elements with efficient thermal insulation or non-structural concrete panels. For this purpose, guidelines for the use of waste plastic aggregate in cement mortars are essential for reliable design and construction. Finally, more research is required to grow confidence in using recycled aggregates (e.g., the long-term properties of concrete with PET aggregates still need to be appropriately investigated).

Author Contributions

Conceptualization, A.P. and F.T.; methodology, A.P.; validation, G.S. and S.D.G.; formal analysis, F.T. and G.S.; investigation, A.P. and F.T.; resources, A.P. and M.N.; data curation, A.P., G.S. and S.D.G.; writing—original draft preparation, A.P. and F.T.; writing—review and editing, A.P., S.D.G. and M.N.; visualization, F.T. and G.S.; supervision, M.N.; project administration, M.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Salmenperä, H.; Pitkänen, K.; Kautto, P.; Saikku, L. Critical Factors for Enhancing the Circular Economy in Waste Management. J. Clean. Prod. 2021, 280, 124339. [Google Scholar] [CrossRef]
  2. Prajapati, P.; Varjani, S.; Singhania, R.R.; Patel, A.K.; Awasthi, M.K.; Sindhu, R.; Zhang, Z.; Binod, P.; Awasthi, S.K.; Chaturvedi, P. Critical Review on Technological Advancements for Effective Waste Management of Municipal Solid Waste—Updates and Way Forward. Environ. Technol. Innov. 2021, 23, 101749. [Google Scholar] [CrossRef]
  3. Nanda, S.; Berruti, F. Municipal Solid Waste Management and Landfilling Technologies: A Review. Environ. Chem. Lett. 2021, 19, 1433–1456. [Google Scholar] [CrossRef]
  4. Asefi, H.; Lim, S. A Novel Multi-Dimensional Modeling Approach to Integrated Municipal Solid Waste Management. J. Clean. Prod. 2017, 166, 1131–1143. [Google Scholar] [CrossRef]
  5. Rizzi, V.; D’Agostino, F.; Gubitosa, J.; Fini, P.; Petrella, A.; Agostiano, A.; Semeraro, P.; Cosma, P. An Alternative Use of Olive Pomace as a Wide-Ranging Bioremediation Strategy to Adsorb and Recover Disperse Orange and Disperse Red Industrial Dyes from Wastewater. Separations 2017, 4, 29. [Google Scholar] [CrossRef] [Green Version]
  6. Ranieri, E.; Tursi, A.; Giuliano, S.; Spagnolo, V.; Ranieri, A.C.; Petrella, A. Phytoextraction from Chromium-Contaminated Soil Using Moso Bamboo in Mediterranean Conditions. Water Air Soil Pollut. 2020, 231, 408. [Google Scholar] [CrossRef]
  7. Zhao, X.; Korey, M.; Li, K.; Copenhaver, K.; Tekinalp, H.; Celik, S.; Kalaitzidou, K.; Ruan, R.; Ragauskas, A.J.; Ozcan, S. Plastic Waste Upcycling toward a Circular Economy. Chem. Eng. J. 2022, 428, 131928. [Google Scholar] [CrossRef]
  8. Getor, R.Y.; Mishra, N.; Ramudhin, A. The Role of Technological Innovation in Plastic Production within a Circular Economy Framework. Resour. Conserv. Recycl. 2020, 163, 105094. [Google Scholar] [CrossRef]
  9. Raheem, A.B.; Noor, Z.Z.; Hassan, A.; Abd Hamid, M.K.; Samsudin, S.A.; Sabeen, A.H. Current Developments in Chemical Recycling of Post-Consumer Polyethylene Terephthalate Wastes for New Materials Production: A Review. J. Clean. Prod. 2019, 225, 1052–1064. [Google Scholar] [CrossRef]
  10. Law, K.L.; Narayan, R. Reducing Environmental Plastic Pollution by Designing Polymer Materials for Managed End-of-Life. Nat. Rev. Mater. 2022, 7, 104–116. [Google Scholar] [CrossRef]
  11. Escobar-Arnanz, J.; Mekni, S.; Blanco, G.; Eljarrat, E.; Barceló, D.; Ramos, L. Characterization of Organic Aromatic Compounds in Soils Affected by an Uncontrolled Tire Landfill Fire through the Use of Comprehensive Two-Dimensional Gas Chromatography–Time-of-Flight Mass Spectrometry. J. Chromatogr. A 2018, 1536, 163–175. [Google Scholar] [CrossRef]
  12. Artíñano, B.; Gómez-Moreno, F.J.; Díaz, E.; Amato, F.; Pandolfi, M.; Alonso-Blanco, E.; Coz, E.; García-Alonso, S.; Becerril-Valle, M.; Querol, X.; et al. Outdoor and Indoor Particle Characterization from a Large and Uncontrolled Combustion of a Tire Landfill. Sci. Total Environ. 2017, 593–594, 543–551. [Google Scholar] [CrossRef] [PubMed]
  13. van Fan, Y.; Jiang, P.; Tan, R.R.; Aviso, K.B.; You, F.; Zhao, X.; Lee, C.T.; Klemeš, J.J. Forecasting Plastic Waste Generation and Interventions for Environmental Hazard Mitigation. J. Hazard Mater. 2022, 424, 127330. [Google Scholar] [CrossRef] [PubMed]
  14. Shamsuyeva, M.; Endres, H.J. Plastics in the Context of the Circular Economy and Sustainable Plastics Recycling: Comprehensive Review on Research Development, Standardization and Market. Compos. Part C Open Access 2021, 6, 100168. [Google Scholar] [CrossRef]
  15. Oberoi, I.S.; Rajkumar, P.; Das, S. Disposal and Recycling of Plastics. Mater. Today Proc. 2021, 46, 7875–7880. [Google Scholar] [CrossRef]
  16. Akçaözoğlu, S.; Atiş, C.D.; Akçaözoğlu, K. An investigation on the use of shredded waste PET bottles as aggregate in lightweight concrete. Waste Manag. 2010, 30, 285–290. [Google Scholar] [CrossRef]
  17. Hossain, M.B.; Bhowmik, P.; Shaad, K.M. Use of waste plastic aggregation in concrete as a constituent material. Progress. Agric. 2016, 27, 383–391. [Google Scholar] [CrossRef] [Green Version]
  18. Pereira, E.L.; de Oliveira Junior, A.L.; Fineza, A.G. Optimization of mechanical properties in concrete reinforced with fibers from solid urban wastes (PET bottles) for the production of ecological concrete. Constr. Build. Mater. 2017, 149, 837–848. [Google Scholar] [CrossRef]
  19. Yılmaz, A. Mechanical and durability properties of cement mortar containing waste pet aggregate and natural zeolite. Ceram. Silikáty 2021, 65, 48–57. [Google Scholar] [CrossRef]
  20. Campanhão, A.F.; Marvila, M.T.; de Azevedo, A.R.; da Silva, T.R.; Fediuk, R.; Vatin, N. Recycled pet sand for cementitious mortar. Materials 2021, 15, 273. [Google Scholar] [CrossRef]
  21. Marvila, M.; de Matos, P.; Rodríguez, E.; Monteiro, S.N.; de Azevedo, A.R. Recycled aggregate: A viable solution for sustainable concrete production. Materials 2022, 15, 5276. [Google Scholar] [CrossRef]
  22. Ahmad, F.; Jamal, A.; Mazher, K.M.; Umer, W.; Iqbal, M. Performance evaluation of plastic concrete modified with e-waste plastic as a partial replacement of coarse aggregate. Materials 2022, 15, 175. [Google Scholar] [CrossRef] [PubMed]
  23. Mohan, H.T.; Jayanarayanan, K.; Mini, K.M. Recent Trends in Utilization of Plastics Waste Composites as Construction Materials. Constr. Build. Mater. 2021, 271, 121520. [Google Scholar] [CrossRef]
  24. Pablo Ojeda, J. A Meta-Analysis on the Use of Plastic Waste as Fibers and Aggregates in Concrete Composites. Constr. Build. Mater. 2021, 295, 123420. [Google Scholar] [CrossRef]
  25. Saikia, N.; De Brito, J. Mechanical properties and abrasion behaviour of concrete containing shredded PET bottle waste as a partial substitution of natural aggregate. Constr. Build. Mater. 2014, 52, 236–244. [Google Scholar] [CrossRef]
  26. Lee, Z.H.; Paul, S.C.; Kong, S.Y.; Susilawati, S.; Yang, X. Modification of waste aggregate PET for improving the concrete properties. Adv. Civ. Eng. 2019, 2019, 6942052. [Google Scholar] [CrossRef]
  27. Almeshal, I.; Tayeh, B.A.; Alyousef, R.; Alabduljabbar, H.; Mohamed, A.M. Eco-friendly concrete containing recycled plastic as partial replacement for sand. J. Mater. Res. Technol. 2020, 9, 4631–4643. [Google Scholar] [CrossRef]
  28. EN 197-1; Cement Composition, Specifications and Conformity Criteria for Common Cements. Italian Organization for Standardization (UNI). Available online: https://store.uni.com/p/UNIN19701-2011/uni-en-197-1-2011/UNIN19701-2011 (accessed on 14 September 2011).
  29. EN 196-1; Methods of Testing Cement-Part 1: Determination of Strength. Italian Organization for Standardization (UNI). Available online: https://store.uni.com/en-196-1-2016 (accessed on 27 April 2016).
  30. Determination of Consistency of Cement Mortars Using a Flow Table. Italian Organization for Standardization (UNI). Available online: https://store.uni.com/uni-7044-1972 (accessed on 20 April 1972).
  31. Gustafsson, S.E. Transient Plane Source Techniques for Thermal Conductivity and Thermal Diffusivity Measurements of Solid Materials. Rev. Sci. Instrum. 1991, 62, 797–804. [Google Scholar] [CrossRef]
  32. Petrella, A.; Petrella, M.; Boghetich, G.; Petruzzelli, D.; Calabrese, D.; Stefanizzi, P.; de Napoli, D.; Guastamacchia, M. Recycled Waste Glass as Aggregate for Lightweight Concrete. Proc. Inst. Civ. Eng. Constr. Mater. 2007, 160, 165–170. [Google Scholar] [CrossRef]
  33. Petrella, A.; Notarnicola, M. Lightweight Cement Conglomerates Based on End-of-Life Tire Rubber: Effect of the Grain Size, Dosage and Addition of Perlite on the Physical and Mechanical Properties. Materials 2021, 14, 225. [Google Scholar] [CrossRef]
  34. Petrella, A.; Stefanizzi, P.; Petrella, M.; Calabrese, D.; Boghetich, G.; Petruzzelli, D.; Petrella, A.; Petrella, M.; Boghetich, G.; Petruzzelli, D.; et al. Thermo-Acoustic Properties of Cement-Waste-Glass Mortars. Proc. Inst. Civ. Eng. Constr. Mater. 2009, 162, 67–72. [Google Scholar] [CrossRef]
  35. Petrella, A.; Petruzzelli, V.; Basile, T.; Petrella, M.; Boghetich, G.; Petruzzelli, D. Recycled Porous Glass from Municipal/Industrial Solid Wastes Sorting Operations as a Lead Ion Sorbent from Wastewaters. React. Funct. Polym. 2010, 70, 203–209. [Google Scholar] [CrossRef]
  36. Zhang, P.; Zheng, Y.; Wang, K.; Zhang, J. A review on properties of fresh and hardened geopolymer mortar. Compos. Part B Eng. 2018, 152, 79–95. [Google Scholar] [CrossRef]
  37. Albano, C.; Camacho, N.; Hernandez, M.; Matheus, A.; Gutierrez, A. Influence of content and particle size of waste pet bottles on concrete behavior at different w/c ratios. Waste Manag. 2009, 29, 2707–2716. [Google Scholar] [CrossRef]
  38. Petrella, A.; di Mundo, R.; Notarnicola, M. Recycled Expanded Polystyrene as Lightweight Aggregate for Environmentally Sustainable Cement Conglomerates. Materials 2020, 13, 988. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Coppola, L.; Beretta, S.; Bignozzi, M.C.; Bolzoni, F.; Brenna, A.; Cabrini, M.; Candamano, S.; Caputo, D.; Carsana, M.; Cioffi, R.; et al. The Improvement of Durability of Reinforced Concretes for Sustainable Structures: A Review on Different Approaches. Materials 2022, 15, 2728. [Google Scholar] [CrossRef]
  40. Dawood, A.O.; AL-Khazraji, H.; Falih, R.S. Physical and Mechanical Properties of Concrete Containing PET Wastes as a Partial Replacement for Fine Aggregates. Case Stud. Constr. Mater. 2021, 14, e00482. [Google Scholar] [CrossRef]
  41. Asdollah-Tabar, M.; Heidari-Rarani, M.; Aliha, M.R.M. The Effect of Recycled PET Bottles on the Fracture Toughness of Polymer Concrete. Compos. Commun. 2021, 25, 100684. [Google Scholar] [CrossRef]
  42. Islam, M.J.; Meherier, M.S.; Islam, A.R. Effects of waste PET as coarse aggregate on the fresh and harden properties of concrete. Constr. Build. Mater. 2016, 125, 946–951. [Google Scholar] [CrossRef]
  43. Petrella, A.; Petrella, M.; Boghetich, G.; Basile, T.; Petruzzelli, V.; Petruzzelli, D. Heavy Metals Retention on Recycled Waste Glass from Solid Wastes Sorting Operations: A Comparative Study among Different Metal Species. Ind. Eng. Chem. Res. 2012, 51, 119–125. [Google Scholar] [CrossRef]
  44. Petrella, A.; Petruzzelli, V.; Ranieri, E.; Catalucci, V.; Petruzzelli, D. Sorption of Pb(II), Cd(II), and Ni(II) From Single- and Multimetal Solutions by Recycled Waste Porous Glass. Chem. Eng. Commun. 2016, 203, 940–947. [Google Scholar] [CrossRef]
  45. Kangavar, M.E.; Lokuge, W.; Manalo, A.; Karunasena, W.; Frigione, M. Investigation on the Properties of Concrete with Recycled Polyethylene Terephthalate (PET) Granules as Fine Aggregate Replacement. Case Stud. Constr. Mater. 2022, 16, e00934. [Google Scholar] [CrossRef]
Materials 16 02111 g001 550

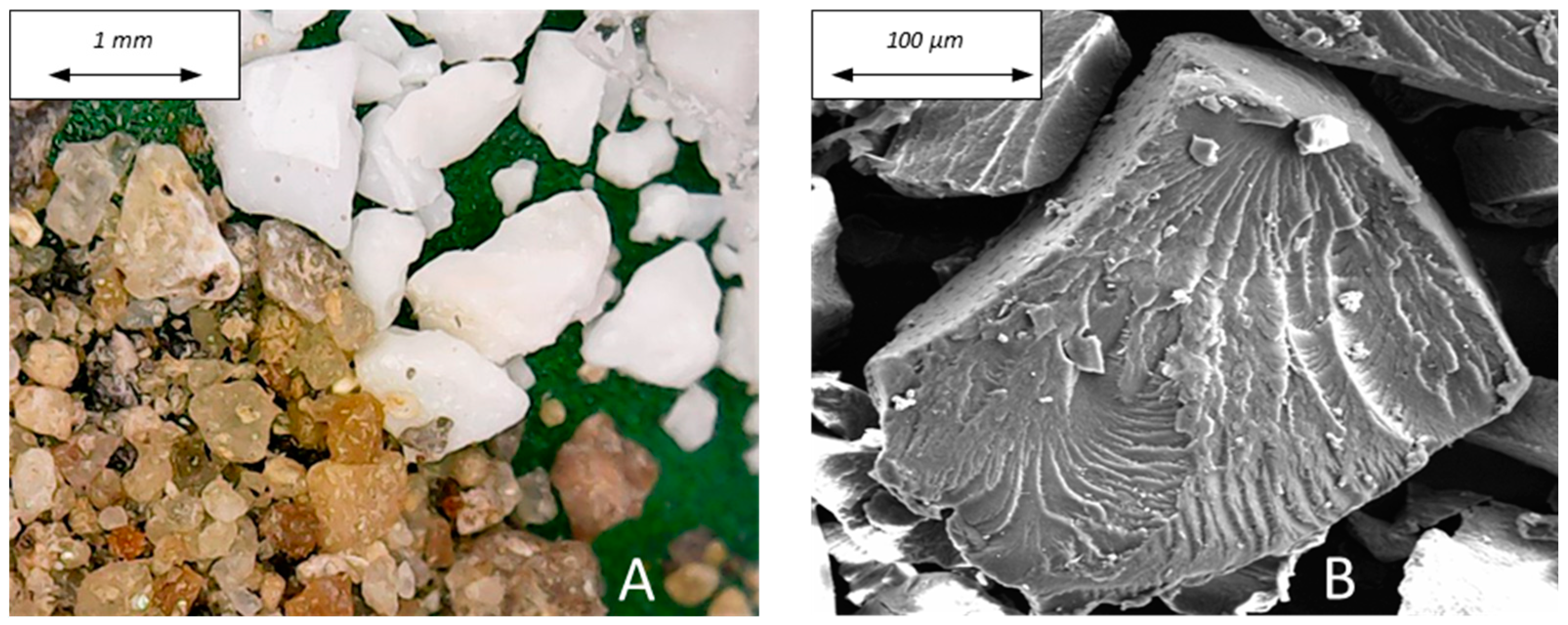

Figure 1. (A) Sand (left) and PET (right) grains and (B) SEM image of a PET grain.
Figure 1. (A) Sand (left) and PET (right) grains and (B) SEM image of a PET grain.
Materials 16 02111 g001
Materials 16 02111 g002a 550Materials 16 02111 g002b 550

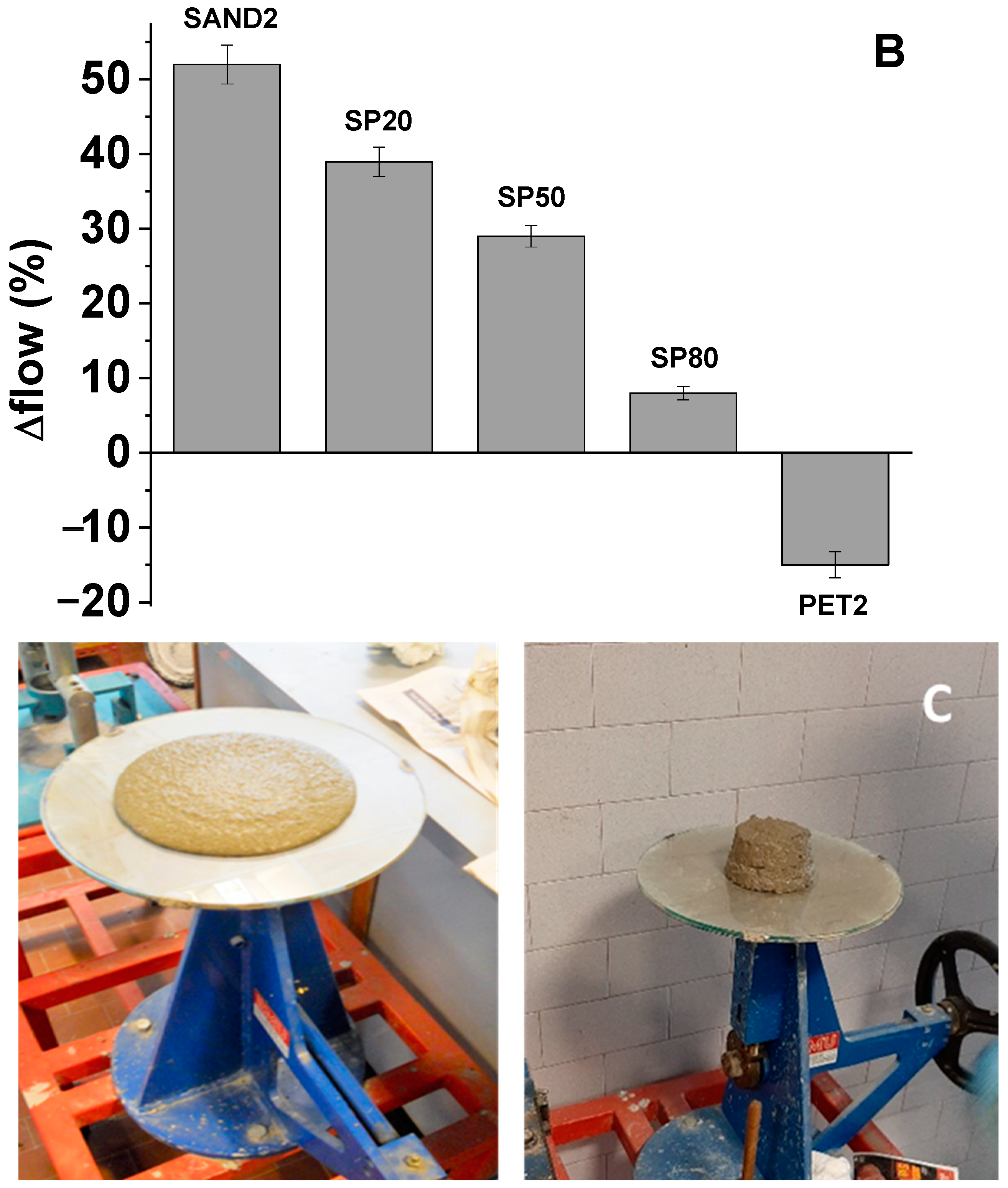

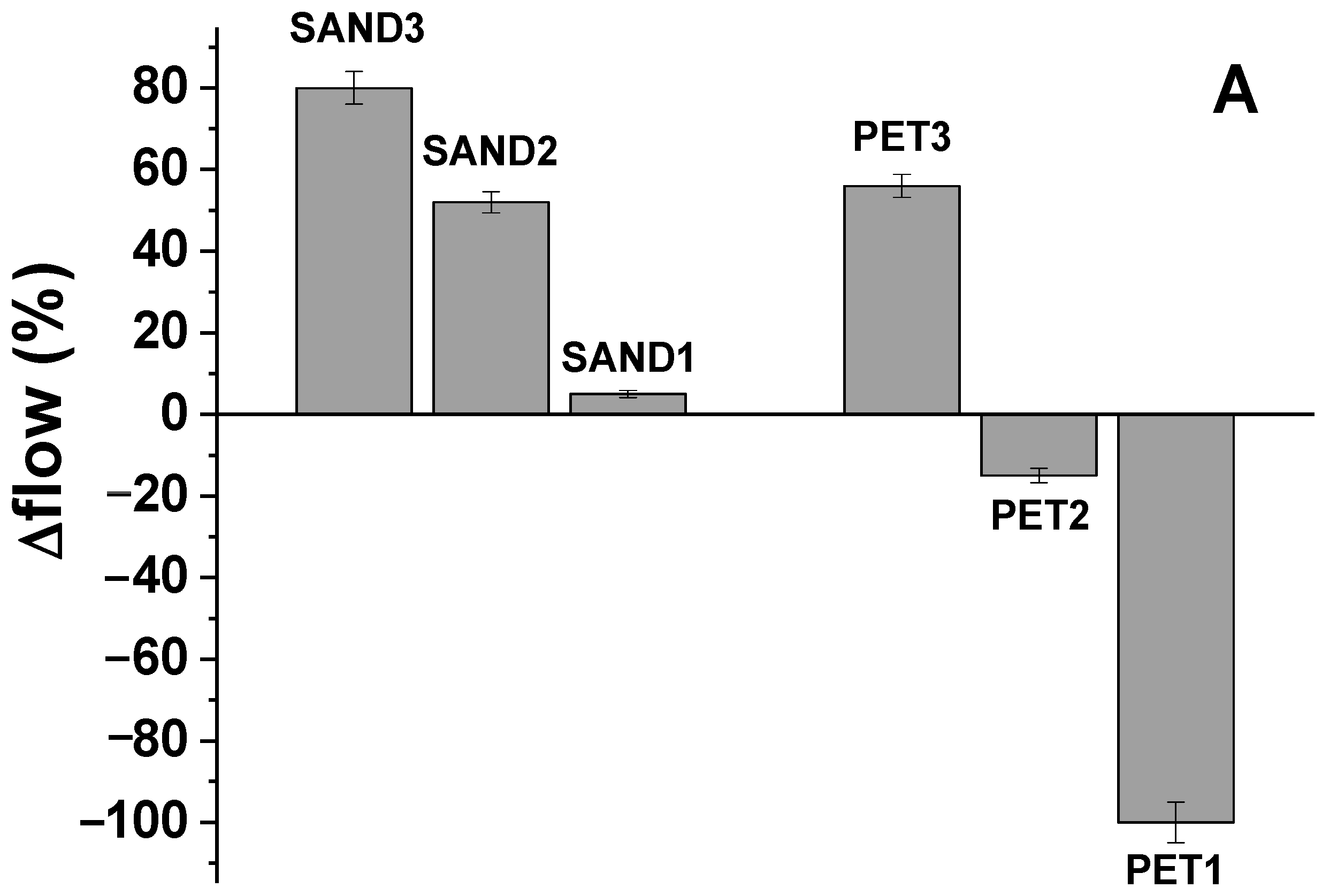

Figure 2. (A) Flows of the SAND and PET composites respective to the normalized mortar, (B) flows of the SP, SAND2 and PET2 composites respective to the normalized mortar, (C) flow tests of the SAND1 (left) and of the PET1 samples (right).
Figure 2. (A) Flows of the SAND and PET composites respective to the normalized mortar, (B) flows of the SP, SAND2 and PET2 composites respective to the normalized mortar, (C) flow tests of the SAND1 (left) and of the PET1 samples (right).
Materials 16 02111 g002aMaterials 16 02111 g002b
Materials 16 02111 g003a 550Materials 16 02111 g003b 550

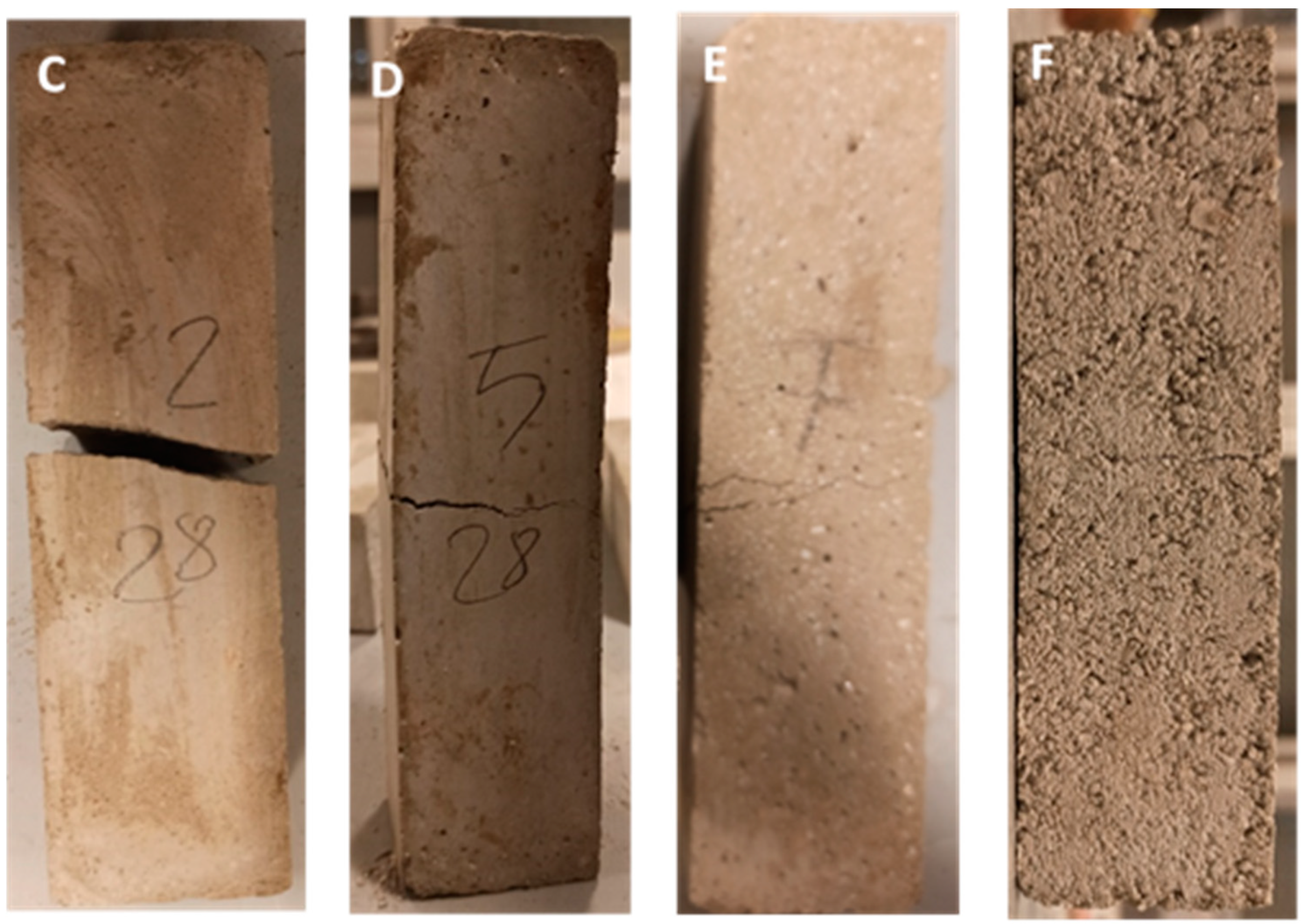

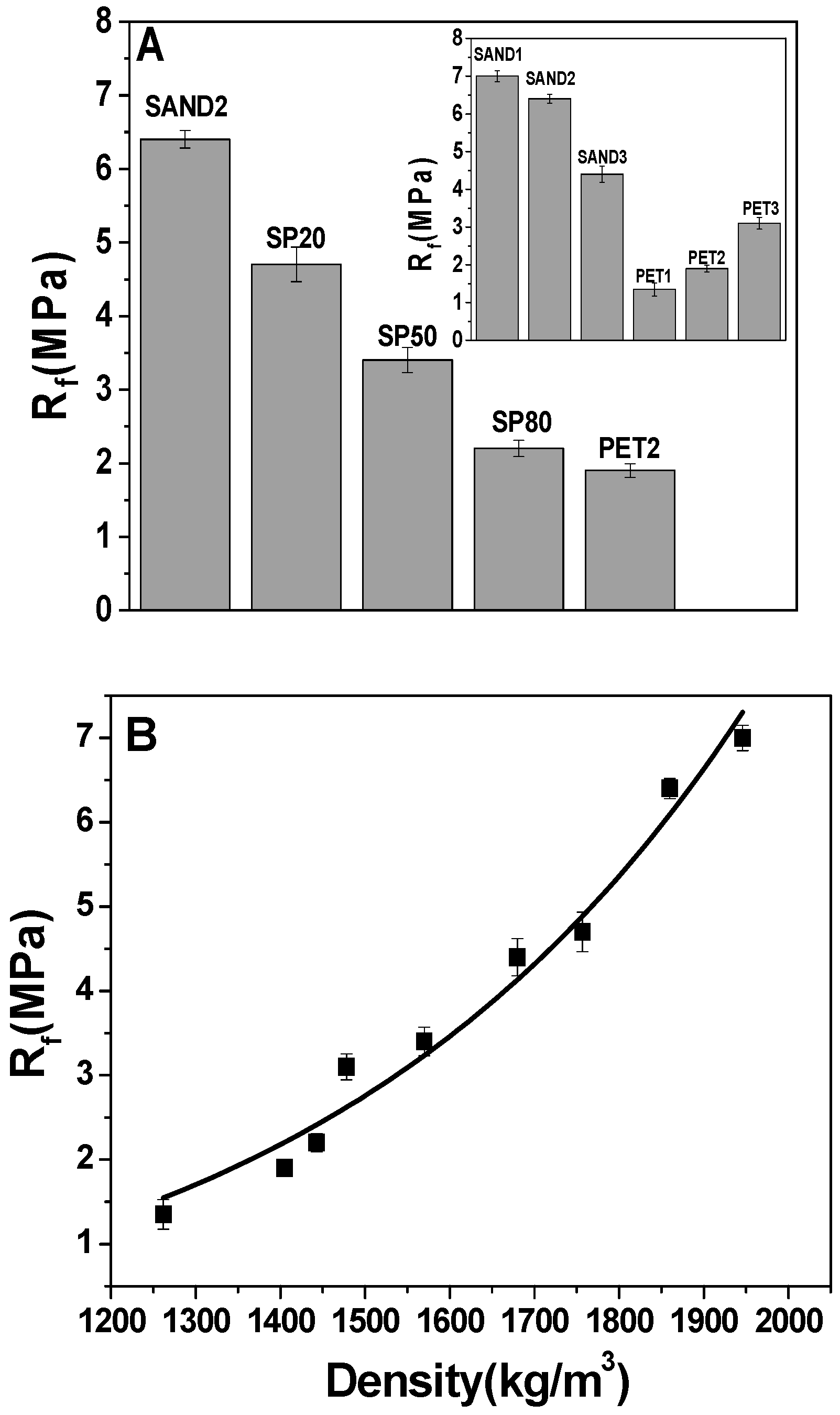

Figure 3. (A) Flexural strengths of SAND2, SP and PET2 samples (with 500 g of aggregate). In the inset: flexural strengths of bare SAND and PET specimens. (B) Exponential increase in the flexural strengths with density. Flexural cracks in (C) SAND1 sample, (D) SP50 sample, (E) PET2 sample, (F) PET1 sample.
Figure 3. (A) Flexural strengths of SAND2, SP and PET2 samples (with 500 g of aggregate). In the inset: flexural strengths of bare SAND and PET specimens. (B) Exponential increase in the flexural strengths with density. Flexural cracks in (C) SAND1 sample, (D) SP50 sample, (E) PET2 sample, (F) PET1 sample.
Materials 16 02111 g003aMaterials 16 02111 g003b
Materials 16 02111 g004 550

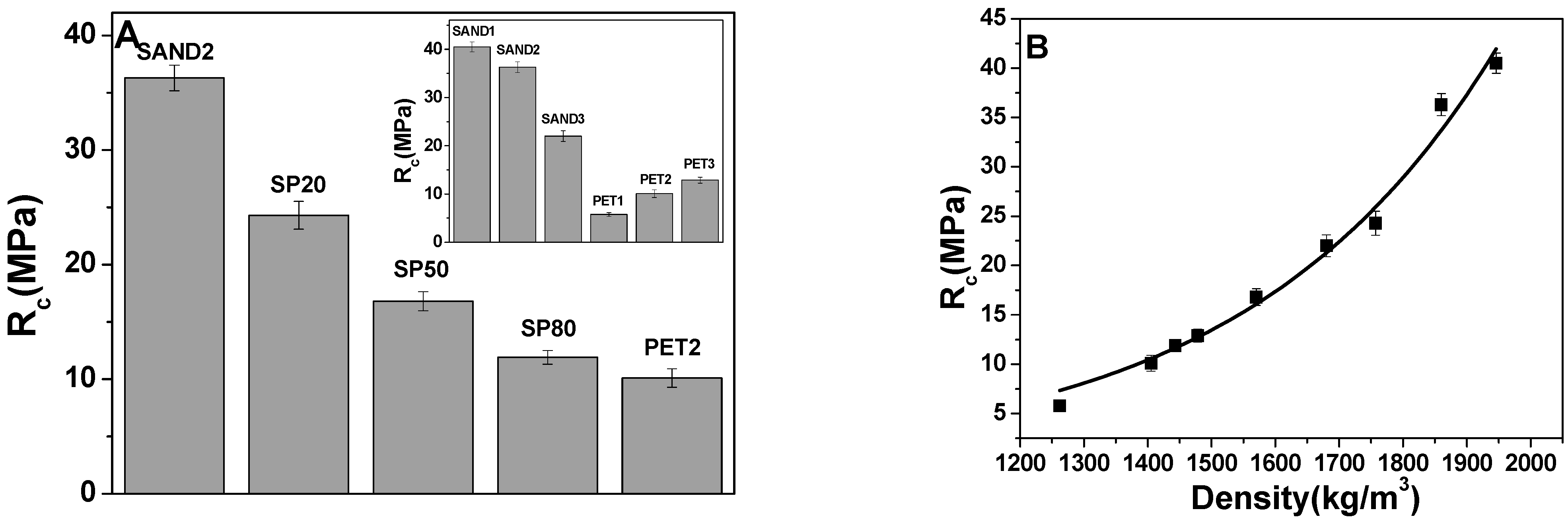

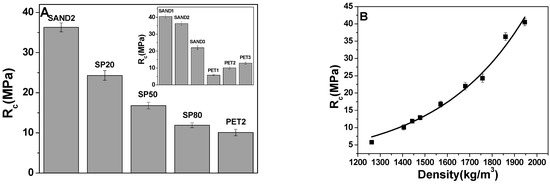

Figure 4. (A) Compressive strengths of SAND2, SP and PET2 samples (with 500 g of aggregate). In the inset: compressive strengths of bare SAND and PET specimens. (B) compressive strengths vs. sample density.
Figure 4. (A) Compressive strengths of SAND2, SP and PET2 samples (with 500 g of aggregate). In the inset: compressive strengths of bare SAND and PET specimens. (B) compressive strengths vs. sample density.
Materials 16 02111 g004
Materials 16 02111 g005 550

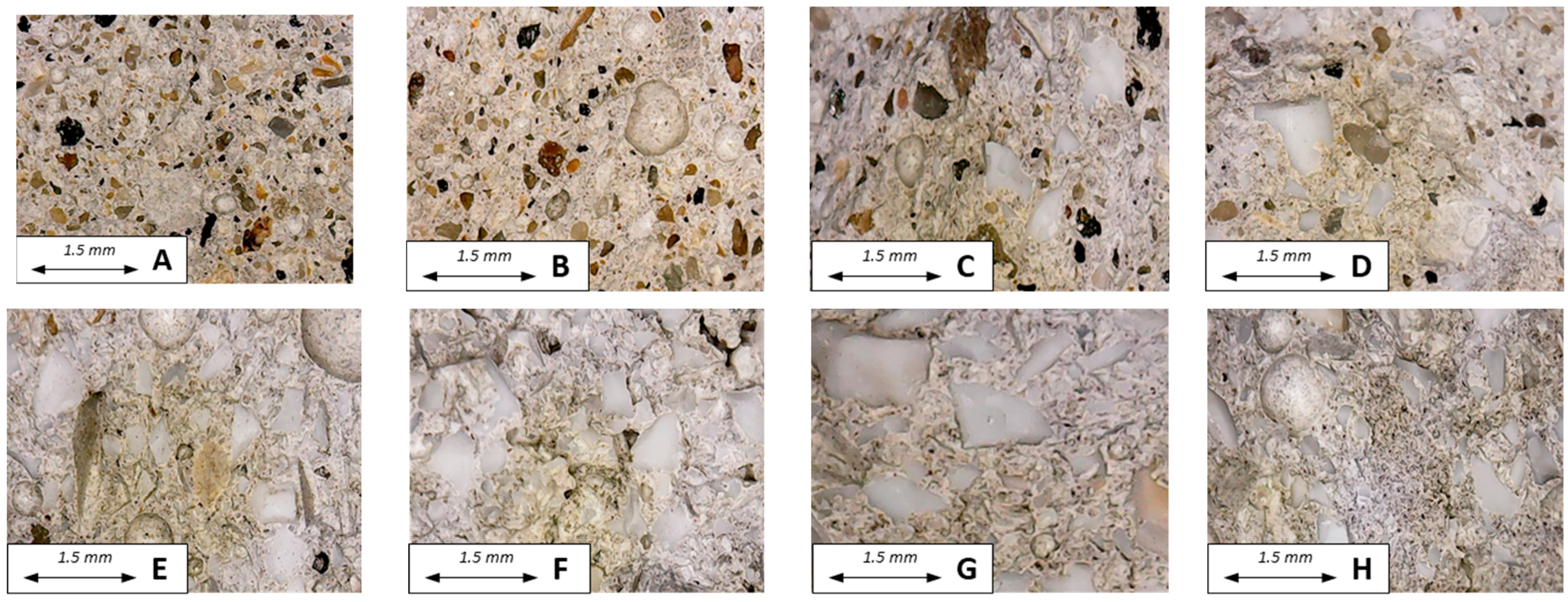

Figure 5. Sections of (A) SAND1, (B) SAND2, (C) SP20, (D) SP50, (E) SP80, (F) PET1, (G) PET2, (H) PET3.
Figure 5. Sections of (A) SAND1, (B) SAND2, (C) SP20, (D) SP50, (E) SP80, (F) PET1, (G) PET2, (H) PET3.
Materials 16 02111 g005
Materials 16 02111 g006 550

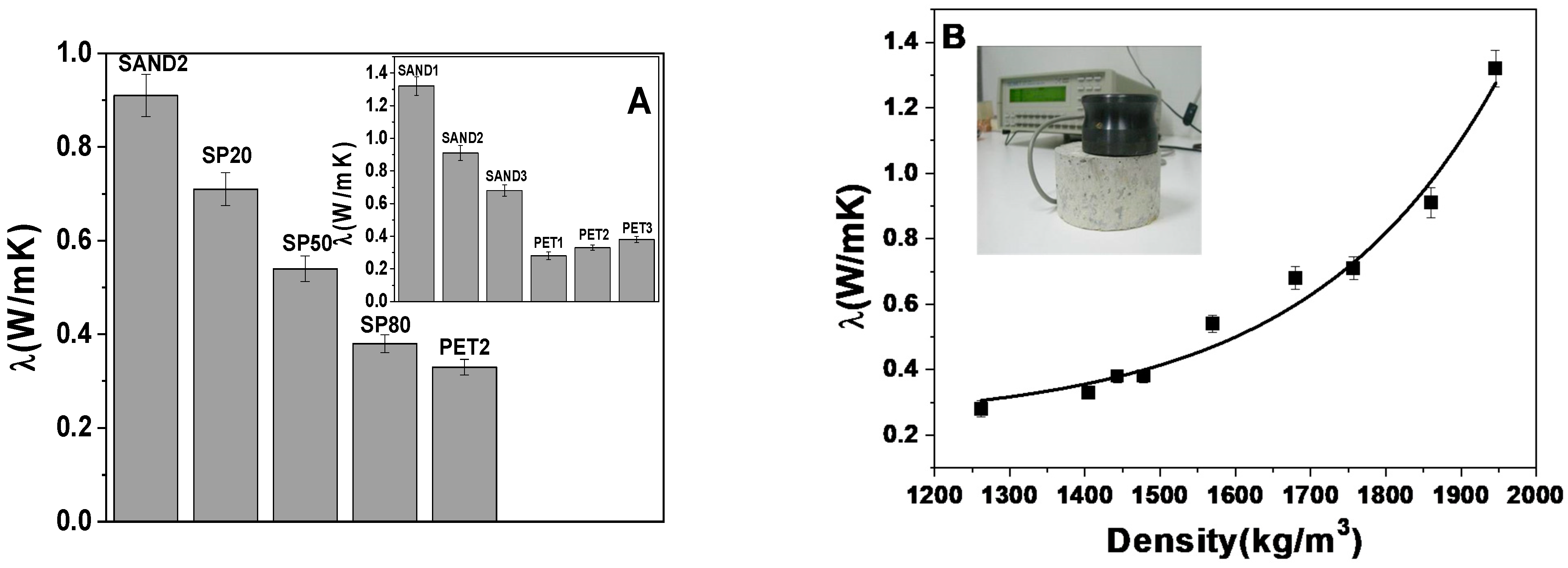

Figure 6. (A) Thermal conductivities of SAND2, SP and PET2 samples (with 500 g of aggregate). In the inset: thermal conductivities of bare SAND and PET specimens. (B) thermal conductivities vs. sample density.
Figure 6. (A) Thermal conductivities of SAND2, SP and PET2 samples (with 500 g of aggregate). In the inset: thermal conductivities of bare SAND and PET specimens. (B) thermal conductivities vs. sample density.
Materials 16 02111 g006
Materials 16 02111 g007 550

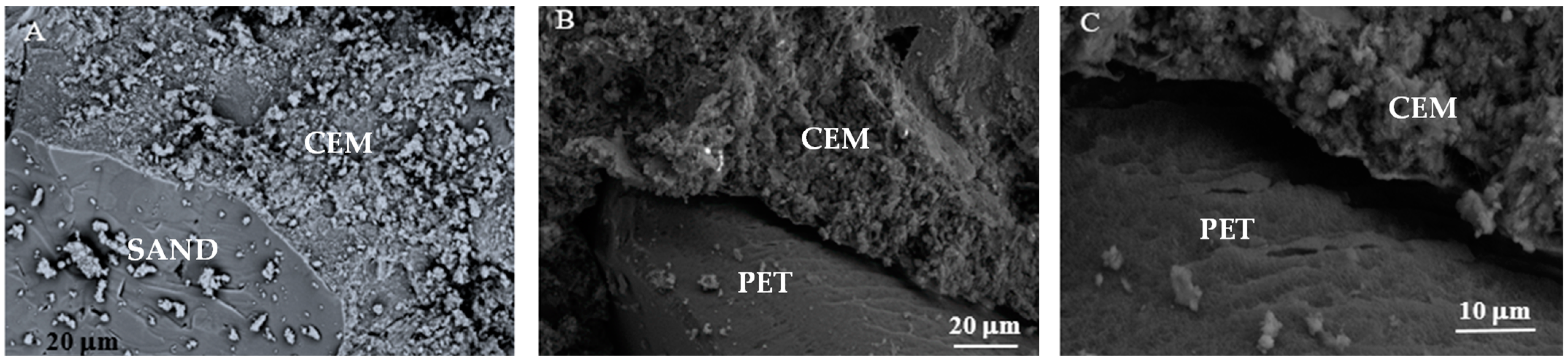

Figure 7. Scanning electron microscope detections of: (A) sand/cement interface in the SAND2 composite, (B) PET/cement interface in the PET2 composite, (C) magnification of the PET/cement interface from (B).
Figure 7. Scanning electron microscope detections of: (A) sand/cement interface in the SAND2 composite, (B) PET/cement interface in the PET2 composite, (C) magnification of the PET/cement interface from (B).
Materials 16 02111 g007
Materials 16 02111 g008 550

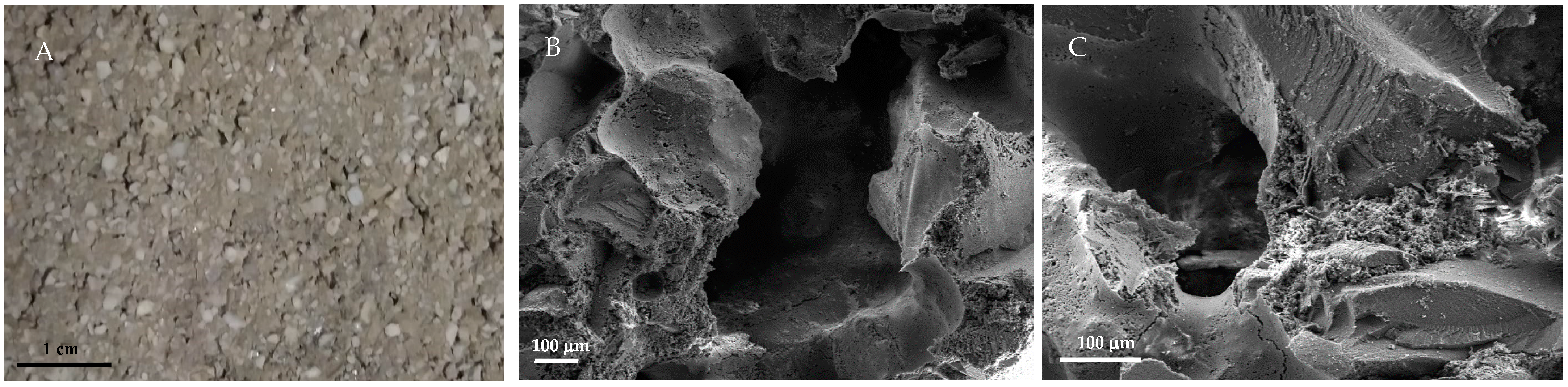

Figure 8. (A) Image of the PET1 (800 g of PET) sample surface, (B,C) SEM detections of the PET1 sample.
Figure 8. (A) Image of the PET1 (800 g of PET) sample surface, (B,C) SEM detections of the PET1 sample.
Materials 16 02111 g008
Table
Table 1. Composition, density ρ and porosity of the cement mortars.
Table 1. Composition, density ρ and porosity of the cement mortars.
SampleTypeCement (g)Water (cm3)PET
(g)		Sand
(g)		Density
(kg/m3)		Porosity
(%)
Controlnormalized mortar45022501350206022
1SAND14502250800194623
2SAND24502250500186023
3SAND34502250250168024
4SP20450225100400175728
5SP50450225250250157031
6SP80450225400100144335
7PET14502258000126241
8PET24502255000140535
9PET34502252500147831
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Todaro, F.; Petrella, A.; Santomasi, G.; De Gisi, S.; Notarnicola, M. Environmental Sustainable Cement Mortars Based on Polyethylene Terephthalate from Recycling Operations. Materials 2023, 16, 2111. https://doi.org/10.3390/ma16052111

AMA Style

Todaro F, Petrella A, Santomasi G, De Gisi S, Notarnicola M. Environmental Sustainable Cement Mortars Based on Polyethylene Terephthalate from Recycling Operations. Materials. 2023; 16(5):2111. https://doi.org/10.3390/ma16052111

Chicago/Turabian Style

Todaro, Francesco, Andrea Petrella, Giusy Santomasi, Sabino De Gisi, and Michele Notarnicola. 2023. "Environmental Sustainable Cement Mortars Based on Polyethylene Terephthalate from Recycling Operations" Materials 16, no. 5: 2111. https://doi.org/10.3390/ma16052111

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
