Enzymolytic Lignin-Derived N-S Codoped Porous Carbon Nanocomposites as Electrocatalysts for Oxygen Reduction Reactions

by
Zheng Li
1,
Xia Qu
1,
Yuwei Feng
1,
Lili Dong
1,2,
Yantao Yang
1,2,
Tingzhou Lei
1,2,* and
Suxia Ren
1,2,*
1
Institute of Urban & Rural Mining, Changzhou University, Changzhou 213164, China
2
Changzhou Key Laboratory of Biomass Green, Safe & High Value Utilization Technology, Changzhou 213164, China
*
Authors to whom correspondence should be addressed.
Materials 2023, 16(24), 7614; https://doi.org/10.3390/ma16247614
Submission received: 14 November 2023 / Revised: 30 November 2023 / Accepted: 6 December 2023 / Published: 12 December 2023
(This article belongs to the Collection Advanced Biomass-Derived Carbon Materials)
Browse Figures
Versions Notes

Abstract

:
Currently, the development of nonmetallic oxygen reduction reaction (ORR) catalysts based on heteroatomic-doped carbon materials is receiving increaseing attention in the field of fuel cells. Here, we used enzymolytic lignin (EL), melamine, and thiourea as carbon, nitrogen, and sulfur sources and NH4Cl as an activator to prepare N- and S-codoped lignin-based polyporous carbon (ELC) by one-step pyrolysis. The prepared lignin-derived biocarbon material (ELC-1-900) possessed a high specific surface area (844 m2 g−1), abundant mesoporous structure, and a large pore volume (0.587 cm3 g−1). The XPS results showed that ELC-1-900 was successfully doped with N and S. ELC-1-900 exhibited extremely high activity and stability in alkaline media for the ORR, with a half-wave potential (E1/2 = 0.88 V) and starting potential (Eonset = 0.98 V) superior to those of Pt/C catalysts and most non-noble-metal catalysts reported in recent studies. In addition, ELC-1-900 showed better ORR stability and methanol tolerance in alkaline media than commercial Pt/C catalysts.

Graphical Abstract

1. Introduction

In the past few decades, the extraction and consumption of fossil fuels such as coal, oil, and natural gas have caused problems such as energy depletion and environmental pollution. In order to achieve carbon peaking and carbon neutrality goals, various countries have made tremendous efforts to develop advanced energy conversion and storage equipment [1]. Among these, fuel cells have attracted much attention due to their high energy density and high specific capacity, and their performance is superior to commercial Li-ion batteries [2]. However, the slow cathodic kinetics of oxygen reduction reaction (ORR) greatly limits the overall reaction rate of the battery, resulting in insufficient energy conversion efficiency of zinc air batteries [3,4], which also affects the further improvement of battery performance. Therefore, the way to improve battery efficiency is to enhance the oxygen reduction reaction of the cathode, which involves adding an oxygen reduction reaction catalyst to the cathode material. As a result, finding efficient and durable ORR electrocatalysts has become crucial. As is well known, platinum metals and platinum-based materials are still considered the most effective ORR catalysts [5]. However, due to low reserves, high costs, and poor cycle stability, Pt catalysts are difficult to meet the needs of large-scale applications [6,7]. In order to replace Pt catalysts, the development of nonprecious metal electrocatalysts has become a research hotspot.
Recently, the use of porous carbon materials has been recognized as an important direction in the field of new energy materials owing to their high specific surface area, adjustable pore structure and surface chemical structure, good conductivity, abundant raw material sources, and low cost. They have excellent potential to replace expensive Pt/C as ORR electrocatalysts at the cathode of fuel cells. The pore structure and surface chemical structure of carbon materials are the main structural factors that affect their performance as ORR electrocatalytic materials. Since the discovery of nitrogen-doped carbon nanotubes and graphene with high ORR electrocatalytic activity [8,9], the preparation of nitrogen-doped porous carbon has become the main research direction for the preparation of metal-free carbon material catalysts with high performance for the electrocatalytic ORR [10,11].
There have been many reports about lignin-based porous carbon materials as active electrode materials for energy devices such as supercapacitors [12], lithium-ion batteries, and sodium-ion batteries. There have been many reports on the use of carbon materials prepared from lignin as ORR electrocatalysts for fuel cell cathodes. In these studies, industrial lignins, such as alkali lignin [13] and lignosulfonate [14], were typically used as raw materials. First, heteroatoms such as sulfur and nitrogen were used in the raw materials [15], and then nitrogen compounds were added to pyrolyze the lignin to obtain carbon materials doped with different heteroatoms; alternatively, nitrogen-containing lignin was prepared by nitrification. Then, these lignin materials were carbonized or activated to prepare lignin-based porous carbon materials. For example, Zhang et al. synthesized N- and S-codoped carbon nanosheets by using alkaline lignin (AL) as the carbon source by a simple one-step pyrolysis method. Sample N-S-C 900 exhibited excellent electrocatalytic activity for ORR, which is better than the commercial Pt/C catalyst with regard to the half-wave potential and limiting current density in alkaline medium. At the same time, the obtained catalyst also showed better ORR stability and excellent methanol tolerance in alkaline and acidic media than commercial Pt/C catalysts [16]. Yan et al., using magnesium lignin sulfonate as a sulfur source and carbon precursor, melamine as a nitrogen source, MgO as a hard template, and ZnCl2 as an activator, synthesized nitrogen–sulfur-codoped three-dimensional magnesium lignin sulfonate (MLS-derived) floral-fractionated porous carbon (NSLPC) materials by a simple, green method. When the ratio of MgO to ZnCl2 was 10:0.5, NSLPC-1005 had the best ORR activity and a high specific surface area (1752.54 m2 g−1). In alkaline media, the initial potential of NSLPC-1005 was 0.97 V, and the half-potential was 0.86 V [17]. However, there have been few reports on the preparation of electrocatalytic materials for fuel cells by enzymatic hydrolysis of lignin. The chemical structure and physical state of lignin during enzymatic hydrolysis are obviously different from those of other industrial lignins due to the small amount of nitrogen atoms, high purity, and low impurity content. This material may be used to prepare ORR electrocatalytic carbon materials with excellent properties. However, the pore structure of lignin-based carbon modified by nitrogen-containing compounds is underdeveloped, and the specific surface area is low. A high specific surface area and developed pore structure are the basic prerequisites for the preparation of high-performance ORR electrocatalysts [18]. Therefore, an effective method is to use activators for activation. For example, Ma et al., using alkaline lignin as a raw material, MgO as a hard template, and KOH/NaOH as an activator, synthesized hierarchical porous nitrogen-doped floral carbon nanosheets and then deposited n-CQDs in situ on the carbon nanosheets by a one-step hydrothermal method to prepare n-HPFN@CQDs. Due to their abundant active sites, high specific surface area and developed pore structure, n-HPFN@CQDs showed better ORR catalytic activity and stability in a 0.1 mol KOH medium than commercial Pt/C catalysts [19]. Huang et al. prepared N-doped carbon nanosheets (LNZ@GC) by a two-step process of ball milling carbonization using alkali lignin as the carbon source and NH4Cl and ZnCl2 as activators. LNZ@GC showed excellent ORR performance, with a half-wave potential of up to 0.851 V, and excellent stability and methanol tolerance, both of which were superior to those of commercial Pt/C [20].
To prepare lignin-based activated carbon with a developed pore structure and high nitrogen content, ammonium chloride was used as an activator, melamine and thiourea were used as nitrogen and sulfur sources, and N- and S-codoped enzymolytic lignin (EL)-based porous carbon materials were prepared by a one-step pyrolysis method. The relationship between the pore structure, defect degree, form of nitrogen and sulfur doping, and ORR electrocatalytic performance was investigated by various characterization methods and electrochemical tests.

2. Experimental Section

2.1. Experimental Materials

EL is provided by the sub project of The National Key Research and Development Program of China (Structure Activity Relationship and Molecular Reconstruction Mechanism of Lignocellulose Component Transformation (2021YFC2101604)); melamine (C3H6N6, 99%), thiourea (CH4N6S, AR, 99%), ammonium chloride (NH4Cl, 99.5%) and ethanol (analytical purity, 99.7%) were purchased from McLean Chemical Reagent Co., Ltd., Shanghai, China; and Nafion (D520, 5%) was obtained from Shanghai Hesen Electric Co., Ltd., Shanghai, China.

2.2. Experimental Procedure

First, an amount of melamine (1~4 g) and thiourea (1~4 g) was dispersed into 100 mL of DMF and stirred at 100 °C for 30 min until they were completely dissolved. Afterwards, 1 g of EL and 1 g of ammonium chloride were added into the mixed solution with 30 min stirring. Then, the mixture was heated to 155 °C in order to evaporate most of the DMF solution. After that, the mixture was dried in a blower dryer for 12 h and powder solids were obtained. Finally, the obtained solids were heated to 900 °C at a heating rate of 5 °C/min and maintained for 2 h carbonization under nitrogen atmosphere in a tube furnace. The sample was further washed with hydrochloric acid and deionized water to neutral. Samples with mass ratios of lignin, melamine, thiourea, and ammonium chloride of 1:1:1:1, 1:2:2:1, and 1:4:4:1 were labelled ELC-1-900, ELC-2-900, and ELC-4-900, respectively. For comparison, samples prepared under the same conditions without the addition of melamine, thiourea, and ammonium chloride were labelled ELC-900. In addition, for ELC-1-900, we explored the effects of different carbonization temperatures (800 and 1000 °C), and the resulting samples were denoted as ELC-1-800 and ELC-1-1000, respectively.

2.3. Catalyst Structure Characterization

The surface element distribution and valence states of the samples were determined by X-ray photoelectron spectrometer (XPS, Thermo Scientific K-Alpha, Waltham, MA, USA). Raman spectroscopy was used to characterize the material defects from 800 to 2000 cm−1 on LabRAM Aramis (Renishaw, inVia Raman microscope, Wotton-under-Edge, UK) with an excitation wavelength of 532 nm. The morphologies of the carbon materials were characterized by high-resolution transmission electron microscopy (HRTEM, FEI Tecnai F20, Hillsboro, OR, USA). The specific surface area and pore size distribution of the samples were obtained by the Brunauer–Emmett–Teller (BET) way and the Barrett–Joyner–Halenda (BJH) theory (BET, MAC, TriStar II 3flex, New York, NY, USA).

2.4. Electrochemical Measurements

Electrochemical tests were carried out in a three-electrode cell at room temperature by means of the electrochemical workstation (CHI 760E, Shanghai, China). In this experiment, a rotating disk electrode (RDE) served as the working electrode, the platinum sheet electrode was used as the counter electrode, and a saturated calomel electrode (SCE) was taken as the reference electrode. Among them, the diameter of the RDE glassy carbon (GC) is 4 mm. The test was conducted in an alkaline environment with an electrolyte solution of 0.1 M KOH.
The electrocatalyst ink was prepared by taking 2 mg catalysts and dispersing them in a mixture solution, which contained 250 μL deionized water, 250 μL ethanol, and 50 μL Nafion (5 wt%); then, the ink was put in the ultrasonic cleaning machine for 40 min. Accordingly, 12 μL ink was dropped on the GC electrode and dried naturally to prepare the working electrode. As a comparison, the commercial Pt/C (Johnson Matthey, 20 wt%) catalysts were tested by using the above method.
Linear sweep voltammetry (LSV) and cyclic voltammetry (CV) curves of catalyst samples were obtained in 0.1 M KOH solution saturated with N2 or O2. The potential range of CV was 0–1.2 V and the scanning rate was 50 mV s−1. Similarly, the testing potential range of LSV was 0–1.2 V but the scanning rate was 5 mV s−1, all of which were completed in O2 atmosphere. The ORR polarization curve rotation speeds were set at 400, 900, 1600, and 2500 rpm. In the absence of other explanations, the LSV of 1600 rpm was selected for comparison in this paper.
The chronoamperometric method (I-t) was tested in 0.1 M KOH electrolyte saturated with O2. The speed of RDE is 1600 rpm and the durability of the catalyst samples were evaluated after continuous operation for 10000 s. After polarizing the working electrode for 300 s, 3 M methanol was added to the electrolyte and the remaining 700 s of current changes were monitored. The smaller the current change, the better the methanol resistance of the catalyst.

3. Results and Discussion

3.1. Characterization of Different Catalysts

TEM was used to analyze and characterize the microstructure and crystal parameters of the catalyst samples. In addition to ELC-900, other samples showed a graphene-like transparent structure. Next, we discuss the influence of temperature on the sample morphology. In the ELC-1-800, ELC-1-900, and ELC-1-1000 samples, many folds were observed on the surface of the carbon nanosheets (Figure 1b,e,f), which further increased the specific surface area and changed the defect degree of graphitic carbon [21]. This porous and folded structure facilitated the occurrence of a high proportion of exposed edge sites, a high density of active sites, and a large surface-to-mass ratio to enhance catalytic activity.
From the high-resolution TEM images, it can be seen that the catalyst samples ELC-1-800, ELC-1-900, and ELC-1-1000 all possessed clear lattice fringes with lattice spacings of approximately 0.34~0.35 nm, corresponding to the (002) crystal face of graphitic carbon [22], which improved their electronic conductivity. This structure resulted in more active sites for electrocatalytic reactions [23].
ORR catalytic reactions occurred on the surface of catalysts, and the specific surface area of the catalyst is a key factor. The larger the specific surface area, the more favorable it is for the exposure of active sites, thereby improving the ORR catalytic performance [24]. In order to analyze the effect of N and S doping on the specific surface area and pore size of the catalyst, we tested and characterized the N2 adsorption and desorption isotherms of the catalyst. Figure 2a shows the N2 adsorption and desorption curves of different catalysts. All the samples except for ELC-900 showed type IV isotherm characteristics in the middle- and high-pressure regions (P/P0 = 0.45–1), and there were obvious retention rings, indicating rich mesoporous structures [25]. The presence of these mesopores enhances the mass transfer effect of the ORR, facilitating the progress of the ORR.
The specific surface areas of different catalysts were characterized by BET. Among them, the specific surface areas of ELC-900, ELC-1-900, ELC-2-900, ELC-4-900, ELC-1-800, and ELC-1-1000 were 18, 844, 262, 123, 962, and 18 m2 g−1, respectively (Table 1). Compared with that of the EL carbon material, the specific surface areas of the samples doped with N and S were improved. NH3 and other gases produced during the decomposition of melamine and thiourea in the carbonization process etched the surface of carbon materials at high temperature and played a key role in the formation of pore channels as expansion agents. The pore size distributions of different catalysts were determined by means of the Barrett–Joyner–Halenda (BJH) equation. The average aperture size of ELC-900 was 4.22 nm, while the average aperture sizes of ELC-1-900, ELC-2-900, ELC-4-900, ELC-1-800, and ELC-1-1000 were 4.36~11.56 nm. The NH3 produced during the carbonization process not only increased the specific surface area but also further enlarged the average pore diameter of the samples.
Figure 2c shows that the spectra of all the samples have two characteristic peaks corresponding to the D band and the G band at 1350 cm−1 and 1590 cm−1, respectively [26]. The D band indicates disordered carbon or defects in sp3-hybridized carbon, which may be related to vacancy and heteroatom doping. The G band is caused by the in-plane tensile vibrations of sp2-hybridized carbon atoms (including C-C and N-C) in the graphite-carbon structure [27]. Generally, the ratio of the intensity of the D band to that of the G band (ID/IG) reflects the defect degree and graphitization degree of carbon materials. Compared with that of ELC-900 (1.03), the ratio of the D band to the G band of ELC-1-900 (1.23) was 0.2 higher, indicating that the defect concentration of ELC-1-900 was relatively high, and there were many defects or distorted structures. The presence of these structures is conducive to enhancing the catalytic performance of the sample. In general, having a high ID/IG value endows carbon materials with excellent ORR properties [28].
Heteroatom doping may affect the electronic structure of carbon atoms and, thus, further affect the catalytic ORR activity of the material. Therefore, the contents of nitrogen and sulfur and their chemical valence states in different samples were characterized by XPS, and the results are shown in Figure 3. It can be seen from Figure 3a that the spectra of ELC-900, ELC-1-900, ELC-2-900, ELC-4-900, ELC-1-800, and ELC-1-1000 all have an obvious N1s (399.1 eV) characteristic peak, indicating the successful doping of N. The two characteristic peaks of C1s (284.8 eV) and O1s (532.1 eV) were observed for all samples. The characteristic peak of S2p (164.0 eV) was hardly observed in the spectra, which may be due to the low content of S compared with other elements, as seen in Table S1. In Figure 3b and Table S1, the proportion of elements was summarized and compared, and the S (0.33%) content of ELC-1-900 was the highest. The nitrogen contents of ELC-1-800, ELC-1-900, and ELC-1-1000 were 10.93%, 7.73%, and 4.83%, respectively. With increasing pyrolysis temperature, the total nitrogen content gradually decreased, indicating that a high carbonization temperature was not good for obtaining carbon materials with a high nitrogen content.
In general, there are four nitrogen-doped configurations on the carbon skeleton, namely, pyridinic nitrogen (pyridinic-N, 397.5–398.0 eV), pyrrolic nitrogen (pyrrolic-N, 398.8–399.3 eV), graphitic nitrogen (graphitic-N, 400.3–400.7 eV), and nitrogen oxide (oxidic-N, 403.3–404.0 eV) [29]. During the catalytic ORR, pyridinic-N and graphitic-N play important roles. The free electron pair of pyridinic-N can bind to the O2 molecule, thus facilitating its reduction on the adjacent C atom, while graphitic-N is thought to catalyze the reduction of O2 to H2O2. Therefore, the presence of graphitic-N increases the ORR limiting current density, while pyridinic-N is thought to help reduce the ORR overpotential. Figure 3c,d show high-resolution N1s and S2p spectra, which provide insight into the elemental distribution of nitrogen and sulfur, where ELC-1-900 had a high proportion of pyridinic-N (19.96%) and graphitic-N (38.05%), thus promoting the ORR four-electron pathway. In addition, the high-resolution S2p spectrum was deconvoluted into four peaks (Figure 3d), and the peaks at 163.5 eV and 165.0 eV were attributed to thiophene sulfur (-C-S-C-). The peak at 167.0–167.5 eV and 168.4–169.0 was attributed to sulfur oxide (-C-SOX-C-) [30,31], and thiophene sulfur was generally considered one of the active sites for the ORR in alkaline media [32]. The sulfur content of ELC-1-900 was the highest (0.33%), and thiophene sulfur accounted for 72.21%. With a further increase in temperature, due to the thermal instability of thiophene sulfur and sulfur oxide, the sulfur content of ELC-1-1000 was reduced to 0.24%, and the sulfur contents of ELC-1-800 and ELC-1-1000 were lower than that of ELC-1-900, indicating that an excessive carbonization temperature is not conducive to sulfur atom doping [21].

3.2. Electrocatalytic ORR Performance of Different Catalysts

RDE and a three-electrode test system were used to test and analyze the electrocatalytic ORR performance of the sample, and the effect of nitrogen and sulfur doping on the electrocatalytic ORR performance of the catalyst was investigated. First, cyclic voltammetry of the sample in a 0.1 M KOH electrolyte saturated with O2 and N2 was performed. The results are shown in Figure 4, where the dashed line represents the results under N2 saturation and the solid line represents the results under O2 saturation. As seen from the figure, compared with the CV curve under nitrogen saturation, in the CV curves of ELC-900, ELC-1-900, ELC-2-900, ELC-4-900, ELC-1-800, and ELC-1-1000 under O2 saturation conditions, potentials of approximately 0.55, 0.84, 0.71, 0.74, 0.81, and 0.64 were obvious. The reduction peak indicated that the ORR occurred on the electrode, and the prepared catalyst samples exhibited electrocatalytic ORR activity. Among the samples, ELC-1-900 had a relatively high reduction peak potential, indicating that this sample had a higher ORR catalytic activity. There was no obvious redox peak in the CV curves obtained in N2-saturated electrolyte, and, in the O2-saturated electrolyte, there were significant redox peaks, indicating that these catalysts all have ORR activity.
To further investigate the ORR activity of the catalyst samples, the LSV curves of these materials in 0.1 M KOH oxygen-saturated electrolyte at room temperature were obtained, and the results are shown in Figure 5. The polarization curves of different catalysts at 1600 rpm are shown in Figure 5a. Figure 5b shows a bar chart of the half-wave potential, initial potential, and limit current density of different catalysts. The half-wave potential of different catalysts was very different, and the half-wave potential (E1/2) of the ELC-900 catalyst without any nitrogen source was only 0.51 V. After adding melamine and thiourea, the half-wave potentials of ELC-2-900 (E1/2 = 0.74 V) and ELC-4-900 (E1/2 = 0.78 V) were significantly increased. When the ratio of lignin to melamine to thiourea was 1:1:1 (ELC-1-900), the half-wave potential of ELC-1-900 was the highest, reaching 0.88 V, which is superior to commercial Pt/C catalysts (0.86 V).
To further investigate the effect of temperature on the ORR activity of the catalyst, we compared the ORR properties of ELC-1-900 with those of samples prepared at different temperatures but with the same component ratio: 800 °C (ELC-1-800) and 1000 °C (ELC-1-1000). The half-wave potential of ELC-1-900 was significantly higher than those of ELC-1-800 (E1/2 = 0.76 V) and ELC-1-1000 (E1/2 = 0.60 V). Considering the results of XPS analysis, although the ratio of graphitic-N to pyridinic-N in ELC-1-900 was lower than that in ELC-1-800, the proportion of thiophene sulfur in the sulfur content of ELC-1-900 (72.21%) was higher than that in ELC-1-800 (56.06%), indicating that thiophene sulfur resulted in higher ORR catalytic activity in alkaline media [21]. Figure 5c shows the Tafel slope of different catalysts in the kinetic stage of the ORR. The smaller the Tafel slope was, the faster the material progressed in the kinetic stage of the ORR. The Tafel slope of ELC-1-900 was 69 mV dec−1, which was lower than that of the other three samples, ELC-1-800 (104 mV dec−1), ELC-1-1000 (118 mV dec−1), and ELC-900 (125 mV dec−1), showing better kinetic characteristics. It can be seen from the above results that ELC-1-900 had the best ORR performance compared with other catalyst samples because it had a relatively high specific surface area and abundant mesopores. In addition, the doped nitrogen and sulfur provide active sites for the ORR performance of the material. It can be seen from the XPS results that ELC-1-900 had a relatively high nitrogen content (7.73%) and sulfur content (0.33%). Table S2 lists other reported catalysts and compares them with the ELC-1-900 catalyst prepared in this paper. It can be seen that the half-wave potential and initial potential of ELC-1-900 are high, making it a promising ORR catalyst.
During the use of methanol fuel cells, the methanol fuel at the anode may have a toxic effect on the cathode catalyst, so the antimethanol crosslinking reaction ability of the catalyst is very important in practical applications. As shown in Figure 6a, 3 M methanol was added to the electrolyte during the chronocurrent test of the ELC-1-900 catalyst. When methanol was added, the current on the Pt/C electrode jumped significantly, while the current of ELC-1-900 changed very little. These results show that the ELC-1-900 catalyst had good antimethanol crosslinking ability and good selectivity for the ORR. In addition, stability is also an important index to evaluate the performance of ORR catalysts, and the stability of catalysts determines their service life in practical applications. Therefore, we performed stability tests of the ELC-1-900 sample with the best ORR catalytic activity and compared the results with those of a commercial Pt/C catalyst, and the results are shown in Figure 6b. After 10,000 s of continuous constant-voltage test, the current retention rate of ELC-1-900 was approximately 95.1%, which was higher than that of commercial Pt/C (89.9%), indicating that the ELC-1-900 catalyst had excellent stability. The above results show that the ELC-1-900 catalyst had better ORR catalytic activity, stability, and methanol tolerance than the commercial Pt/C catalyst in alkaline media.

4. Conclusions

In summary, we prepared N- and S-codoped porous carbon catalyst using enzymatic lignin as the raw material and NH4Cl as the activator by one-step pyrolysis method. The prepared porous carbon material has excellent electrocatalytic performance, indicating that enzymatic hydrolysis of lignin can also serve as an excellent carbon source material for preparing electrocatalysts. The BET results show that the catalyst has a high specific surface area of 844 m−2 g−1 and a large pore volume of 0.587 cm3 g−1, which provides as many active sites as possible for the catalyst. XPS analysis indicates that N and S doping was successfully carried out in the prepared sample. This N- and S-codoped carbon material shows good electrocatalytic activity for the ORR; its half-wave potential and initial potential are better than those of a Pt/C (20%) catalyst and it has better durability and methanol tolerance than a Pt/C catalyst, which makes the catalyst very promising for fuel cell applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma16247614/s1, Table S1: Contents of each element analyzed by XPS; Table S2: Comparison of the ORR properties of ELC-1-900 and other nonmetallic catalysts under alkaline conditions. References [33,34,35,36] are cited in the supplementary materials.

Author Contributions

Z.L.: conceptualization, methodology (BET and XPS), investigation, data curation, writing—original draft preparation, and data interpretation; X.Q.: methodology (TEM) and formal analysis; Y.F.: methodology (Raman) and data curation; L.D.: validation and writing—review and editing; Y.Y.: resources and investigation; S.R. conceptualization, methodology, validation, and writing—review and editing; T.L.: conceptualization and supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (grant number 2021YFC2101604).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Borghei, M.; Lehtonen, J.; Liu, L.; Rojas, O.J. Advanced Biomass-Derived Electrocatalysts for the Oxygen Reduction Reaction. Adv. Mater. 2018, 30, 1703691. [Google Scholar] [CrossRef]
  2. Rupar, J.; Tekić, D.; Janošević Ležaić, A.; Upadhyay, K.K. ORR Catalysts Derived from Biopolymers. Catalysts 2023, 13, 80. [Google Scholar] [CrossRef]
  3. Ao, X.; Zhang, W.; Li, Z.; Li, J.-G.; Soule, L.; Huang, X.; Chiang, W.-H.; Chen, H.M.; Wang, C.; Liu, M.; et al. Markedly Enhanced Oxygen Reduction Activity of Single-Atom Fe Catalysts via Integration with Fe Nanoclusters. ACS Nano 2019, 13, 11853–11862. [Google Scholar] [CrossRef] [PubMed]
  4. Sekhon, S.S.; Lee, J.; Park, J.-S. Biomass-derived bifunctional electrocatalysts for oxygen reduction and evolution reaction: A review. J. Energy Chem. 2022, 65, 149–172. [Google Scholar] [CrossRef]
  5. Nagappan, S.; Duraivel, M.; Han, S.; Yusuf, M.; Mahadadalkar, M.; Park, K.; Dhakshinamoorthy, A.; Prabakar, K.; Park, S.; Ha, C.-S.; et al. Electrocatalytic Oxygen Reduction Reaction of Graphene Oxide and Metal-Free Graphene in an Alkaline Medium. Nanomaterials 2023, 13, 1315. [Google Scholar] [CrossRef] [PubMed]
  6. Baik, S.; Lee, J.W. Effect of boron–nitrogen bonding on oxygen reduction reaction activity of BN Co-doped activated porous carbons. RSC Adv. 2015, 5, 24661–24669. [Google Scholar] [CrossRef]
  7. Bouleau, L.; Pérez-Rodríguez, S.; Quílez-Bermejo, J.; Izquierdo, M.T.; Xu, F.; Fierro, V.; Celzard, A. Best practices for ORR performance evaluation of metal-free porous carbon electrocatalysts. Carbon 2022, 189, 349–361. [Google Scholar] [CrossRef]
  8. Hanif, S.; Iqbal, N.; Shi, X.; Noor, T.; Ali, G.; Kannan, A.M. NiCo–N-doped carbon nanotubes based cathode catalyst for alkaline membrane fuel cell. Renew. Energy 2020, 154, 508–516. [Google Scholar] [CrossRef]
  9. Choi, E.Y.; Lee, S.; Kim, C.K. Hybridization Effects of Nitrogen-Doped Graphene-Carbon Nanotubes and Nano-Onion Carbons on the Electrocatalytic Activity of the Oxygen Reduction Reaction. ECS J. Solid State Sci. Technol. 2018, 7, M128–M137. [Google Scholar] [CrossRef]
  10. Borghei, M.; Laocharoen, N.; Kibena-Poldsepp, E.; Johansson, L.-S.; Campbell, J.; Kauppinen, E.; Tammeveski, K.; Rojas, O.J. Porous N,P-doped carbon from coconut shells with high electrocatalytic activity for oxygen reduction: Alternative to Pt-C for alkaline fuel cells. Appl. Catal. B Environ. 2017, 204, 394–402. [Google Scholar] [CrossRef]
  11. Kaare, K.; Yu, E.; Volperts, A.; Dobele, G.; Zhurinsh, A.; Dyck, A.; Niaura, G.; Tamasauskaite-Tamasiunaite, L.; Norkus, E.; Andrulevičius, M.; et al. Highly Active Wood-Derived Nitrogen-Doped Carbon Catalyst for the Oxygen Reduction Reaction. ACS Omega 2020, 5, 23578–23587. [Google Scholar] [CrossRef] [PubMed]
  12. Tsyganova, S.I.; Fetisova, O.Y.; Mazurova, E.N.; Taran, O.P.; Kuznetsov, B.N. Synthesis and Properties of Magnetically Susceptible Porous Carbon Materials Based on Hydrolysis Lignin Modified with ZnCl2 and FeCl3. Russ. J. Appl. Chem. 2022, 95, 408–416. [Google Scholar] [CrossRef]
  13. Rois, M.F.; Widiyastuti, W.; Setyawan, H.; Rahmatika, A.M.; Ogi, T. Preparation of activated carbon from alkali lignin using novel one-step process for high electrochemical performance application. Arab. J. Chem. 2021, 14, 103162. [Google Scholar] [CrossRef]
  14. Rois, M.F.; Ramadhani Alya Sasono, S.; Widiyastuti, W.; Nurtono, T.; Setyawan, H. High-performance electrocatalyst made from lignosulfonate nanofiber composited with manganese dioxide without carbonation process. Adv. Powder Technol. 2022, 33, 103572. [Google Scholar] [CrossRef]
  15. Graglia, M.; Pampel, J.; Hantke, T.; Fellinger, T.-P.; Esposito, D. Nitro Lignin-Derived Nitrogen-Doped Carbon as an Efficient and Sustainable Electrocatalyst for Oxygen Reduction. ACS Nano 2016, 10, 4364–4371. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, X.L.; Yu, D.L.; Zhang, Y.Q.; Guo, W.H.; Ma, X.X.; He, X.Q. Nitrogen- and sulfur-doped carbon nanoplatelets via thermal annealing of alkaline lignin with urea as efficient electrocatalysts for oxygen reduction reaction. RSC Adv. 2016, 6, 104183–104192. [Google Scholar] [CrossRef]
  17. Yan, D.; Han, Y.; Ma, Z.; Wang, Q.; Wang, X.; Li, Y.; Sun, G. Magnesium lignosulfonate-derived N, S co-doped 3D flower-like hierarchically porous carbon as an advanced metal-free electrocatalyst towards oxygen reduction reaction. Int. J. Biol. Macromol. 2022, 209, 904–911. [Google Scholar] [CrossRef]
  18. Xiong, D.; Li, X.; Fan, L.; Bai, Z. Three-Dimensional Heteroatom-Doped Nanocarbon for Metal-Free Oxygen Reduction Electrocatalysis: A Review. Catalysts 2018, 8, 301. [Google Scholar] [CrossRef]
  19. Ma, Z.; Han, Y.; Wang, X.; Sun, G.; Li, Y. Lignin-derived hierarchical porous flower-like carbon nanosheets decorated with biomass carbon quantum dots for efficient oxygen reduction. Colloids Surf. A Physicochem. Eng. Asp. 2022, 652, 129818. [Google Scholar] [CrossRef]
  20. Huang, B.; Jiang, J. N-doped carbon nanosheets derived from lignin as a novel bifunctional electrocatalyst for rechargeable zinc-air battery. Diam. Relat. Mater. 2022, 128, 109291. [Google Scholar] [CrossRef]
  21. Shen, Y.; Peng, F.; Cao, Y.; Zuo, J.; Wang, H.; Yu, H. Preparation of nitrogen and sulfur co-doped ultrathin graphitic carbon via annealing bagasse lignin as potential electrocatalyst towards oxygen reduction reaction in alkaline and acid media. J. Energy Chem. 2019, 34, 33–42. [Google Scholar] [CrossRef]
  22. Lin, S.-Y.; Xia, L.-X.; Cao, Y.; Meng, H.-L.; Zhang, L.; Feng, J.-J.; Zhao, Y.; Wang, A.-J. Electronic Regulation of ZnCo Dual-Atomic Active Sites Entrapped in 1D@2D Hierarchical N-Doped Carbon for Efficient Synergistic Catalysis of Oxygen Reduction in Zn-Air Battery. Small 2022, 18, 2107141. [Google Scholar] [CrossRef] [PubMed]
  23. Yan, L.; Xu, Y.; Chen, P.; Zhang, S.; Jiang, H.; Yang, L.; Wang, Y.; Zhang, L.; Shen, J.; Zhao, X.; et al. A Freestanding 3D Heterostructure Film Stitched by MOF-Derived Carbon Nanotube Microsphere Superstructure and Reduced Graphene Oxide Sheets: A Superior Multifunctional Electrode for Overall Water Splitting and Zn-Air Batteries. Adv. Mater. 2020, 32, 2003313. [Google Scholar] [CrossRef] [PubMed]
  24. Deng, X.; Shi, W.; Zhong, Y.; Zhou, W.; Liu, M.; Shao, Z. Facile Strategy to Low-Cost Synthesis of Hierarchically Porous, Active Carbon of High Graphitization for Energy Storage. ACS Appl. Mater. Interfaces 2018, 10, 21573–21581. [Google Scholar] [CrossRef] [PubMed]
  25. Guo, H.; Feng, Q.; Zhu, J.; Xu, J.; Li, Q.; Liu, S.; Xu, K.; Zhang, C.; Liu, T. Cobalt nanoparticle-embedded nitrogen-doped carbon/carbon nanotube frameworks derived from a metal–organic framework for tri-functional ORR, OER and HER electrocatalysis. J. Mater. Chem. A 2019, 7, 3664–3672. [Google Scholar] [CrossRef]
  26. Thangasamy, P.; Oh, S.; Randriamahazaka, H.; Nam, S.; Oh, I.-K. Mechanistic insight into collectively exhaustive CoPi-NPC nanosheets for oxygen reduction reaction and Zn-air battery. Appl. Catal. B Environ. 2022, 316, 121656. [Google Scholar] [CrossRef]
  27. Yang, G.; Zhang, Z.; Kang, X.; Li, L.; Li, Y.; Sun, Y. Fe–N–C Composite Catalyst Derived from Solid Digestate for the Oxygen Reduction Reaction in Microbial Fuel Cells. ACS Appl. Energy Mater. 2020, 3, 11929–11938. [Google Scholar] [CrossRef]
  28. Dong, Q.; Mo, Z.; Wang, H.; Ji, S.; Wang, X.; Linkov, V.; Wang, R. N-Doped Carbon Networks Containing Inserted FeNx@NC Nanospheroids and Bridged by Carbon Nanotubes as Enhanced Catalysts for the Oxygen Reduction Reaction. ACS Sustain. Chem. Eng. 2020, 8, 6979–6989. [Google Scholar] [CrossRef]
  29. Chen, Y.-P.; Lin, S.-Y.; Sun, R.-M.; Wang, A.-J.; Zhang, L.; Ma, X.; Feng, J.-J. FeCo/FeCoP encapsulated in N, Mn-codoped three-dimensional fluffy porous carbon nanostructures as highly efficient bifunctional electrocatalyst with multi-components synergistic catalysis for ultra-stable rechargeable Zn-air batteries. J. Colloid Interface Sci. 2022, 605, 451–462. [Google Scholar] [CrossRef]
  30. Ait El Fakir, A.; Anfar, Z.; Enneiymy, M.; Jada, A.; El Alem, N. Conjugated polymers templated carbonization to design N, S co-doped finely tunable carbon for enhanced synergistic catalysis. Appl. Catal. B Environ. 2022, 300, 120732. [Google Scholar] [CrossRef]
  31. Jin Bae, E.; Hun Kang, Y.; Jang, K.-S.; Yun Cho, S. Enhancement of Thermoelectric Properties of PEDOT:PSS and Tellurium-PEDOT:PSS Hybrid Composites by Simple Chemical Treatment. Sci. Rep. 2016, 6, 18805. [Google Scholar] [CrossRef] [PubMed]
  32. Ding, X.-B.; Li, F.; Cao, Q.-C.; Wu, H.; Qin, Y.-H.; Yang, L.; Wang, T.; Zheng, X.; Wang, C.-W. Core-shell S-doped g-C3N4@P123 derived N and S co-doped carbon as metal-free electrocatalysts highly efficient for oxygen reduction reaction. Chem. Eng. J. 2022, 429, 132469. [Google Scholar] [CrossRef]
  33. Zhang, M.; Song, Y.; Tao, H.; Yan, C.; Masa, J.; Liu, Y.; Shi, X.; Liu, S.; Zhang, X.; Sun, Z. Lignosulfonate biomass derived N and S co-doped porous carbon for efficient oxygen reduction reaction. Sustain. Energy Fuels 2018, 2, 1820–1827. [Google Scholar] [CrossRef]
  34. Li, C.; Wu, Y.; Fu, M.; Zhao, X.; Zhai, S.; Yan, Y.; Zhang, L.; Zhang, X. Preparation of Fe/N Double Doped Carbon Nanotubes from Lignin in Pennisetum as Oxygen Reduction Reaction Electrocatalysts for Zinc-Air Batteries. ACS Appl. Energy Mater. 2022, 5, 4340–4350. [Google Scholar] [CrossRef]
  35. Wu, D.-H.; Huang, H.; Ul Haq, M.; Zhang, L.; Feng, J.-J.; Wang, A.-J. Lignin-derived iron carbide/Mn, N, S-codoped carbon nanotubes as a high-efficiency catalyst for synergistically enhanced oxygen reduction reaction and rechargeable zinc-air battery. J. Colloid Interface Sci. 2023, 647, 1–11. [Google Scholar] [CrossRef]
  36. Dong, R.; Yang, Z.; Fu, Y.; Chen, Z.; Hu, Y.; Zhou, Y.; Qin, H. Aminated lignin chelated metal derived bifunctional electrocatalyst with high catalytic performance. Appl. Surf. Sci. 2022, 580, 152205. [Google Scholar] [CrossRef]
Materials 16 07614 g001
Figure 1. TEM images of samples with different catalysts: (a) ELC-900, (b) ELC-1-900, (c) ELC-2-900, (d) ELC-4-900, (e) ELC-1-800, and (f) ELC-1-1000. High-resolution TEM images: (g) ELC-1-900, (h) ELC-1-800, and (i) ELC-1-1000.
Figure 1. TEM images of samples with different catalysts: (a) ELC-900, (b) ELC-1-900, (c) ELC-2-900, (d) ELC-4-900, (e) ELC-1-800, and (f) ELC-1-1000. High-resolution TEM images: (g) ELC-1-900, (h) ELC-1-800, and (i) ELC-1-1000.
Materials 16 07614 g001
Materials 16 07614 g002

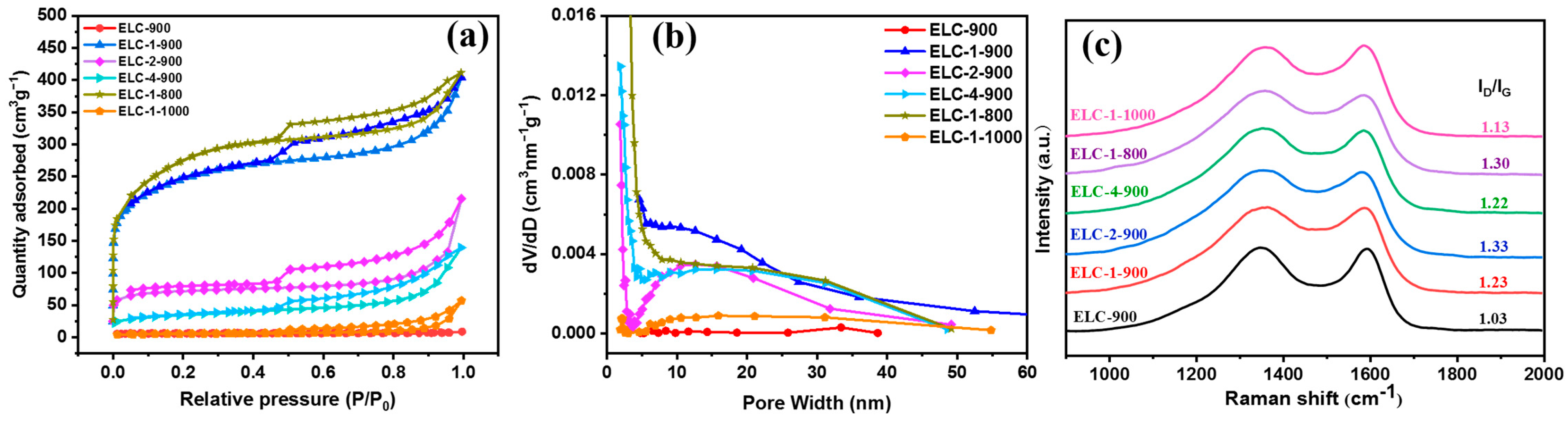

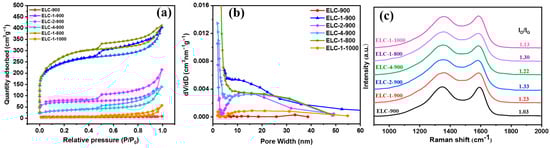

Figure 2. (a) N2 adsorption–desorption isotherms; (b) aperture distribution curves for different catalysts; (c) Raman spectra of the catalyst at different temperatures and ratios.
Figure 2. (a) N2 adsorption–desorption isotherms; (b) aperture distribution curves for different catalysts; (c) Raman spectra of the catalyst at different temperatures and ratios.
Materials 16 07614 g002
Materials 16 07614 g003

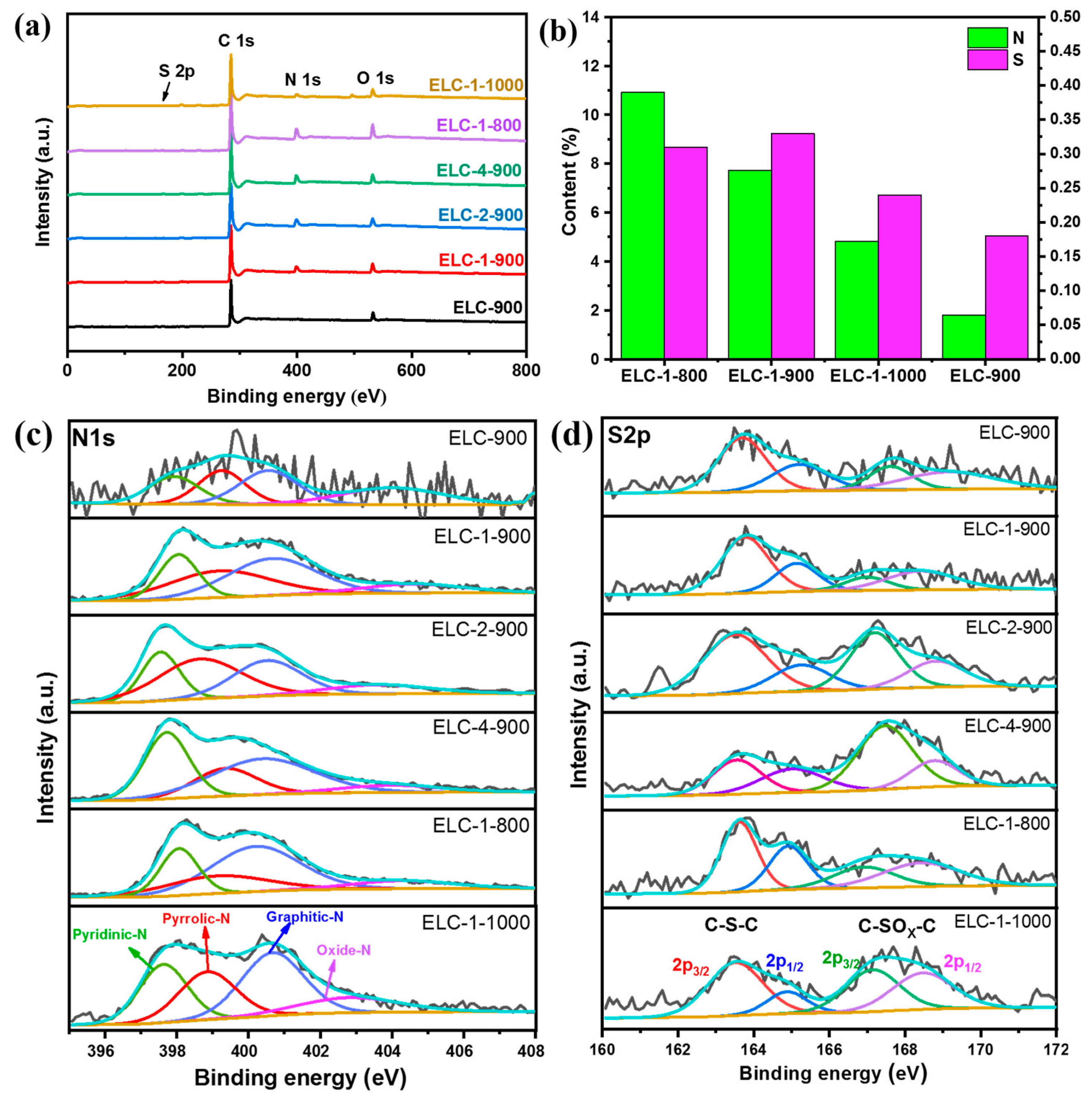

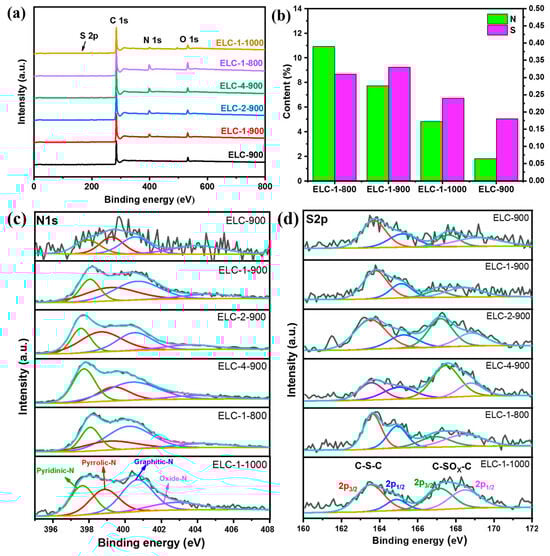

Figure 3. (a) Full-scan XPS spectra, (b) nitrogen and sulfur contents, (c) high-resolution N1s, and (d) S2p spectra of different catalysts.
Figure 3. (a) Full-scan XPS spectra, (b) nitrogen and sulfur contents, (c) high-resolution N1s, and (d) S2p spectra of different catalysts.
Materials 16 07614 g003
Materials 16 07614 g004

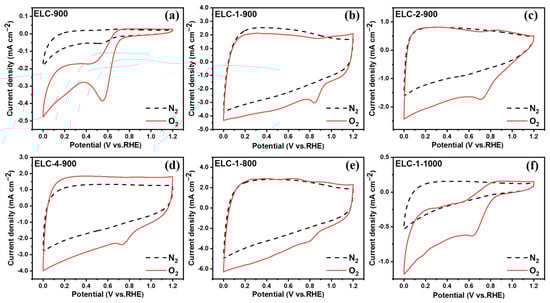

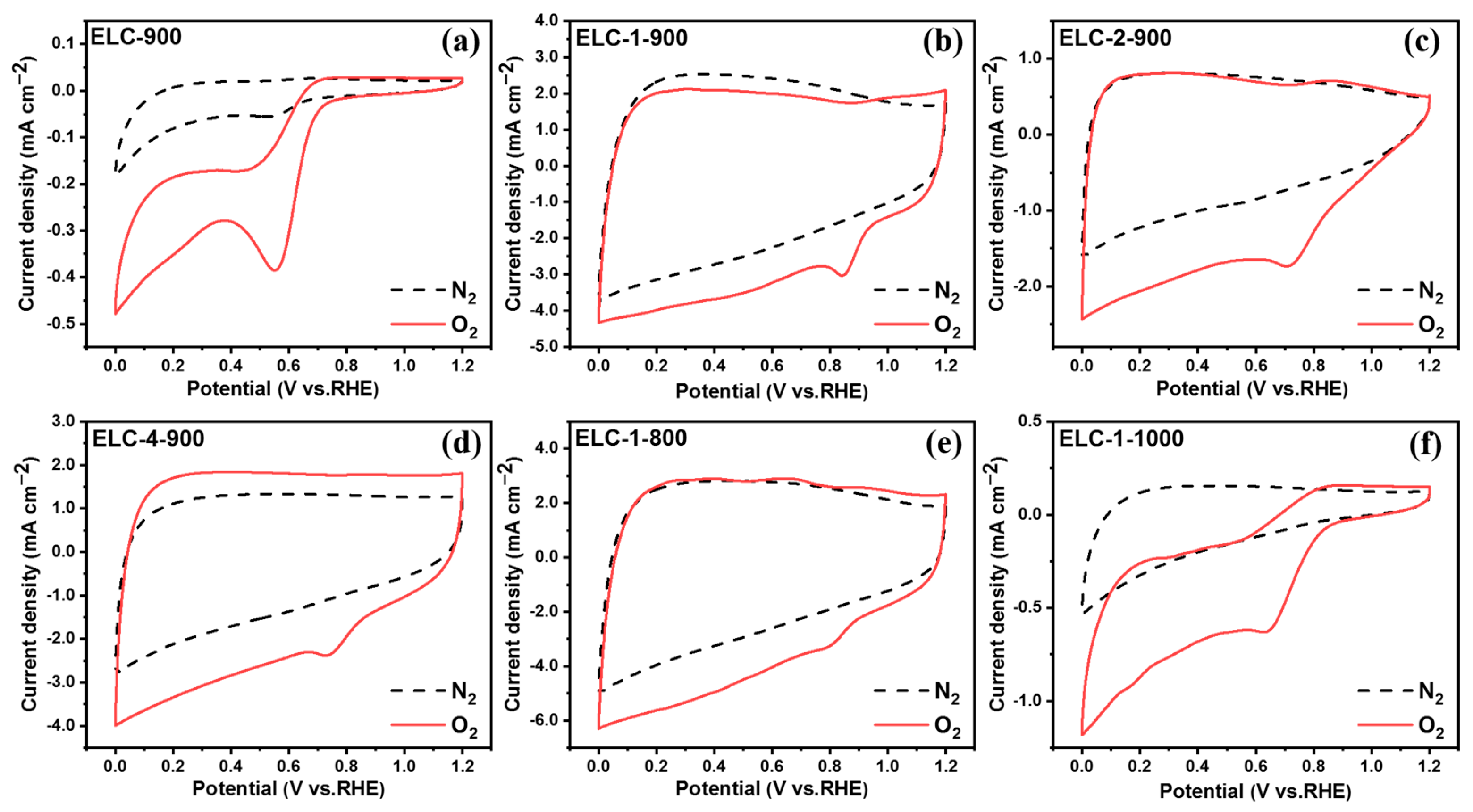

Figure 4. CV curves of different catalysts in an electrolyte saturated with O2 and N2; (a) ELC-900; (b) ELC-1-900; (c) ELC-2-900; (d) ELC-4-900; (e) ELC-1-800; (f) ELC-1-1000.
Figure 4. CV curves of different catalysts in an electrolyte saturated with O2 and N2; (a) ELC-900; (b) ELC-1-900; (c) ELC-2-900; (d) ELC-4-900; (e) ELC-1-800; (f) ELC-1-1000.
Materials 16 07614 g004
Materials 16 07614 g005

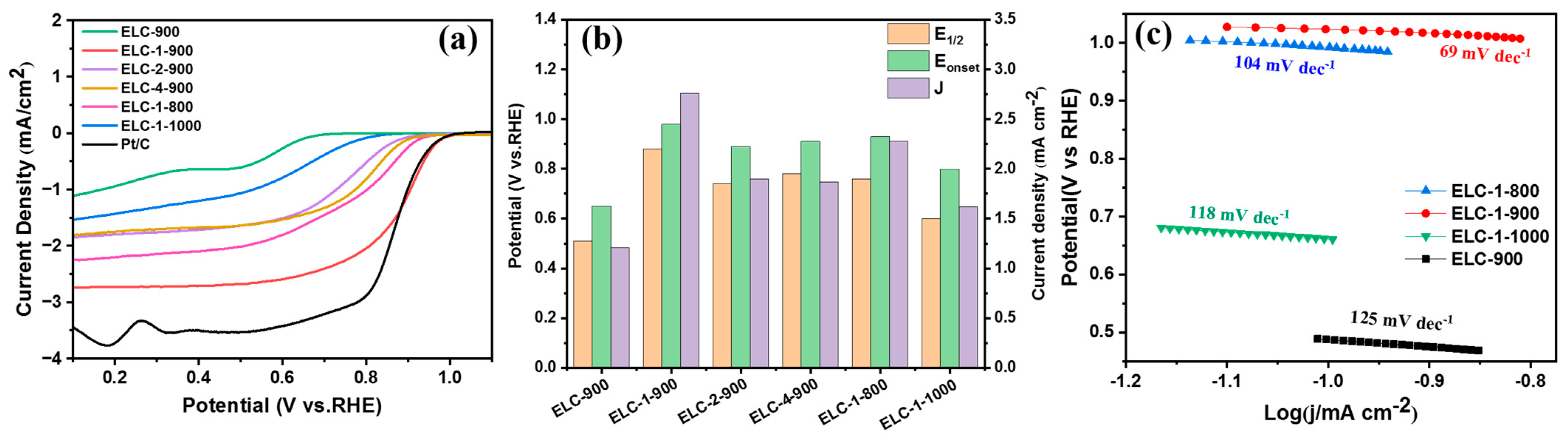

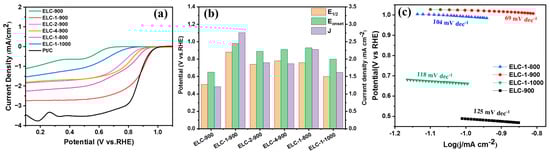

Figure 5. (a) LSV curves obtained for different samples at 1600 rpm; (b) ORR performance comparison bar chart; (c) Tafel slope.
Figure 5. (a) LSV curves obtained for different samples at 1600 rpm; (b) ORR performance comparison bar chart; (c) Tafel slope.
Materials 16 07614 g005
Materials 16 07614 g006

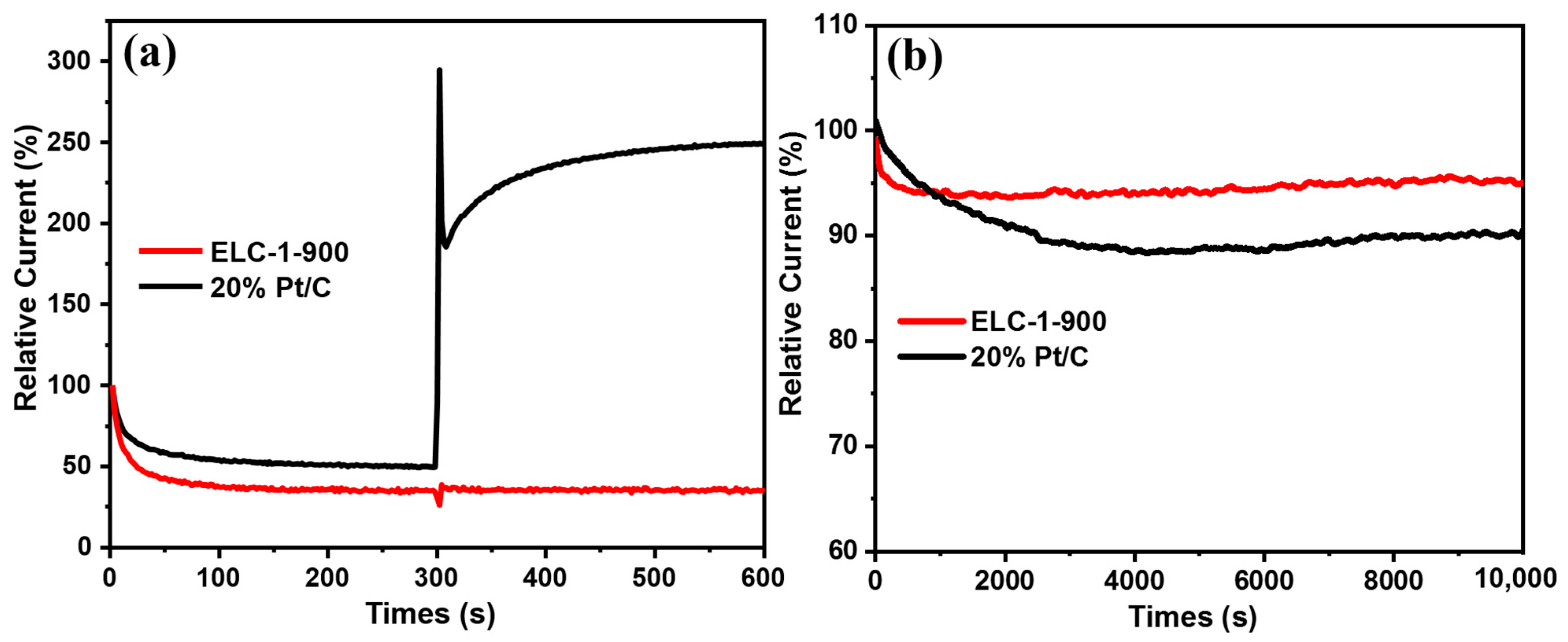

Figure 6. (a) Methanol tolerance and (b) stability test of ELC-1-900; test in an O2-saturated 0.1 M KOH solution (comparison to a commercial 20%Pt/C catalyst).
Figure 6. (a) Methanol tolerance and (b) stability test of ELC-1-900; test in an O2-saturated 0.1 M KOH solution (comparison to a commercial 20%Pt/C catalyst).
Materials 16 07614 g006
Table 1. The specific surface area, average pore diameter, and pore volume of different samples.
Table 1. The specific surface area, average pore diameter, and pore volume of different samples.
SamplesSBET (m2 g−1)Average Pore Diameter (nm)Pore Volume (cm−3 g−1)
ELC-900184.220.012
ELC-1-9008444.360.587
ELC-2-9002629.330.333
ELC-4-9001239.080.215
ELC-1-8009625.910.636
ELC-1-10001811.560.088
