Computational and Experimental Studies on Combustion and Co-Combustion of Wood Pellets with Waste Glycerol

by
Agnieszka Bala-Litwiniak
*,
Dorota Musiał
and
Michał Nabiałczyk
Department of Production Management, Faculty of Production Engineering and Materials Technology, Czestochowa University of Technology, Armii Krajowej 19, 42-200 Czestochowa, Poland
*
Author to whom correspondence should be addressed.
Materials 2023, 16(22), 7156; https://doi.org/10.3390/ma16227156
Submission received: 23 October 2023 / Revised: 6 November 2023 / Accepted: 7 November 2023 / Published: 14 November 2023
(This article belongs to the Section Advanced Composites)
Browse Figures
Versions Notes

Abstract

:
The shortage of fossil fuels and their rising prices, as well as the global demand for renewable energy and the reduction in greenhouse gas (GHG) emissions, result in an increased interest in the production of alternative biofuels, such as biodiesel or biomass pellets. In this study, the possibility of utilizing waste glycerol, as an addition to pine pellets intended for heating purposes, has been investigated. The usefulness of pellets containing glycerol additions has been compared in terms of applicable quality standards for wood pellets. The highest values of moisture (4.58%), ash (0.5%) and bulk density (650 kg/m3) were observed for pellets without glycerin waste. The addition of waste glycerol slightly increases the calorific value of the pellet (17.94 MJ/kg for 7.5% additive). A 10-kW domestic biomass boiler has been employed to burn the tested pellets. The consumption of analyzed fuels during boiler operation was determined. The concentration of CO, CO2 and NOx in exhaust gases has also been examined. It was observed that the addition of 7.5% of waste glycerol contributes to the reduction in NOx concentrations by 30 ppm and CO2 by 0.15%. The obtained experimental results were compared with the numerical calculations made with the use of ANSYS Chemkin-Pro. The conducted research indicates the legitimacy of utilizing waste glycerol as an additive to wood pellets. In addition, this type of addition has a positive effect on, among others, the increase in calorific value, as well as lower emissions of combustion products such as NOx and CO2.

1. Introduction

The European Commission defined the Energy Strategy and the targets and scenarios for the period until 2030, as defined in the Framework for Climate and Energy. The Framework proposes a 40% cut in greenhouse gas (GHG) emissions, increasing the share of renewable energy sources by up to at least 27%, the continuous enhancement of energy efficiency, and the provision of competitive, affordable and secure energy [1,2]. In 2020, the European Green Deal declared to increase the level of greenhouse gas emission reduction to 55% compared to the values from 1990 [3,4,5]. The transport and energy sectors are the main anthropogenic sources in the European Union, responsible for emissions of over 20% and 60% of GHG, respectively, of which more than half is CO2 [6,7]. This is largely due to the fact that the sectors mentioned in most European countries are based on fossil fuels. The combustion of fuels such as coal, crude oil and natural gas causes significant emissions of pollutants, which, due to increasingly higher environmental protection standards, require continuous reduction [8,9].
There are many alternatives to fossil and conventional fuels, including solar energy, hydropower, geothermal energy, wind energy, hydrogen energy and biofuels [10,11,12]. Finding clean and renewable energy sources is one of the greatest challenges facing humanity in the medium and long-term perspective [13]. In accordance with Directive 2009/28/EC and the document “Draft National Policy Framework for the Development of Alternative Fuels Infrastructure”, in the transport sector, Member States were obliged to ensure a minimum 10% share of renewable energy by 2020, and by 2030, this share should increase to at least 14% [14,15,16]. Therefore, in recent years, there has been a significant increase in the production of liquid biofuels obtained from vegetable oils [17,18,19]. In European climatic conditions, the main raw material for biodiesel production is rapeseed oil, and less often, soybean, sunflower, corn or waste vegetable oils are used [20,21]. Biodiesel produced from rapeseed, called rapeseed methyl ester (RME), is produced in the transesterification process involving the methanolysis of rapeseed oil, which also produces waste glycerol [22,23,24]. The amounts of these undesirable wastes always exceed 10% of the weight of the obtained esters [25,26,27].
The dynamic increase in biodiesel production is therefore associated with the generation of large amounts of waste glycerol and the need for its disposal, which generates additional costs and thus affects the profitability of the process. So far, the most popular method of managing waste glycerol was its purification into pharmaceutical glycerin, which has numerous applications, including in the pharmaceutical, food and cosmetics industries [28,29]. In a number of studies published in recent years, there are many alternatives to using waste glycerol, including the transformation of glycerin into commonly used chemical compounds (production of hydrogen, ethanol and methanol, acrolein, organic acids and many others) [30,31,32,33,34,35]. Some authors also propose the use of glycerin as an additive to car fuels, animal feed or in the denitrification process in sewage treatment plants [36,37,38]. Unfortunately, the mentioned methods require preliminary cleaning, which involves additional costs. Due to the relatively high calorific value of this type of waste (16.1–22.6 MJ/kg depending on the raw material used to produce the biodiesel), using it as a fuel seems to be a reasonable solution [39].
Unfortunately, direct combustion of waste glycerol is problematic due to its high viscosity (at 22 °C about 110 cP) and relatively high ignition temperature (about 170 °C), which requires costly modifications to heating devices [40,41]. The best solution seems to be the co-combustion of waste glycerol with solid fuels such as biomass [42]. There is not much research on the use of glycerol as an additive to solid fuels. Zang and others [43] believe that the addition of glycerin waste to solid fuels could have a beneficial effect on reducing NOx emissions as well as the formation of smaller amounts of ash. It was also observed that the addition of waste glycerol to biomass pellets reduces the bulk density and ash content and simultaneously increases the calorific value [44,45,46,47,48]. In turn, Potip et al. [49] attempted to co-incinerate waste glycerol with ground coffee and showed that with the increase in the addition of glycerin waste, the temperature and combustion rate increase, without affecting the exceedance of standards for exhaust gases such as CO, NO2 or SO2. Marrugo et al. [50] used waste glycerol as a binder in the production of pellets. They made pellets from sugarcane pomace, coffee husks and rice husks. The authors found that the addition of raw glycerin facilitates the binding of biomass particles during pellet production. Previous works have attempted to use waste glycerol as a binder during the production of wood pellets [26,42].
As mentioned earlier, the energy sector is responsible for over 60% of GHG emissions, therefore replacing fossil fuels with biomass is one of the cheaper and simpler solutions to reducing emissions not only of carbon dioxide but also of such toxic components of exhaust gases, such as sulfur dioxide, nitrogen oxides, carbon monoxide or chlorine compounds [51,52,53,54,55]. The main advantage of biomass is its production in the process of photosynthesis, where carbohydrates are obtained from CO2 and H2O under the influence of solar radiation. In this way, the CO2 obtained during combustion corresponds to the amount necessary for the production of biomass, resulting in a carbon dioxide emission of zero when burning biomass [10,56]. It is estimated that the amount of greenhouse gases generated in the biomass combustion process is lower by over 90% compared to coal combustion [57,58]. Therefore, the use of biomass for heating purposes (e.g., in the form of pellets) seems to be a simple, cheap and environmentally friendly alternative. The main source of biomass for the production of pellets is wood from products obtained from the wood industry, which in Poland results in higher costs for obtaining this type of pellet. This is due to the imposed VAT rate on wood fuels, which is 23%. For comparison, VAT on pellets from waste biomass is 8%. Therefore, the production of pellets from raw materials other than wood seems to be a more economical solution [39]. On the other hand, pellets made of wood have better physicochemical properties, including a higher calorific value [58,59]. An interesting solution may be the production of pellets with the addition of waste raw materials, e.g., the previously mentioned waste glycerol.
The aim of the research presented in this article was to determine the combustion conditions of wood pellets containing waste glycerol. The utilitarian goal was to produce wood pellets containing waste glycerol using a cheap and simple method and burn them effectively in a home heating boiler, while maintaining applicable emission standards [60,61,62]. This alternative can be cost-effective without the necessity of modifications of the heating devices. Glycerol co-combustion with the wood pellets can be a significant solution, because, besides the benefits of waste management, it also contributes to a reduction in harmful combustion products [39,42,63].

2. Research Methodology

2.1. Materials and Test Stand

The waste glycerol has been delivered from Trzebinia Refinery (RT S.A.), Trzebinia, Poland. The minimum content of glycerine in the waste was 80% wt, ash content was below 5% wt, MONG (Matter Organic Non Glycerol) was below 6% wt and the remaining was water. Calorific value of the waste was 22.6 MJ/kg. As the solid component, pine wood sawdust obtained from Opal-Drew Sawmill, Wapiennik, Poland, with fragmentation of 2–4 mm and a bulk density of 190 kg/m3 were used. Pellets were fabricated with the use of ZLSP 150B Pellet Mill with a power of 4 kW from Anyang Gemco Energy Machinery Co., Ltd., with factory situated in Anyang, Henan, China. The length and diameter of the pellets obtained were measured. In order to determine the selected physicochemical properties (ash content, moisture content, calorific value and CHN analysis), the analyzed pine–glycerol pellets were ground in a knife mill using a sieve matrix with a mesh size of up to 1 mm. The moisture content was determined based on a 1 g sample weight loss after drying at 105 ± 5 °C to a constant weight according to standard EN ISO 18134-3:2015 [64]. The ash content was determined by burning a 1 g sample of all the studied biomass fuels in a muffle furnace at 250 ± 10 °C for 50 min and then at 550 ± 10 °C for 4 h, according to standard EN ISO 18122:2015 [65]. The bulk density of the resulting pellets was determined in accordance with the EN ISO 17828:2016-02 standard [66]. A container with a volume of 0.002 m3 was used in the study. Several measurement tests were carried out and the obtained results were averaged. The calorific values of the analyzed fuels were determined using a KL-12 Mn calorimeter (PRECYZJA-BIT, Bydgoszcz, Poland) according to standard EN 14918:2009 [67]. The content of C, H, N for all four types of pellets was determined using an elemental analyzer (Truspec CHN628 LECO, St. Joseph, MI, USA). The simultaneous determination of the content of carbon, hydrogen and nitrogen was based on the Dumas method, also known as the high-temperature oxy-fuel combustion method. The content of the analyzed elements was determined using an infrared absorption detector (C and H) and a thermal conductivity detector (N). Based on the literature [37,63], the content of sulfur and chlorine in pine sawdust and glycerol does not exceed 0.01%. Therefore, these elements were omitted from the elemental composition analysis.
A 10-kW domestic biomass boiler, Mini Bio type (Kostrzewa, Giżycko, Poland), was employed for pellet burning. The boiler was equipped with a burner adapted for the combustion of biomass pellets having a diameter of 6 to 8 mm. The chamber’s internal diameter was 0.32 m, and its total length was 0.48 m. The heat receiver was a radiator to which water flowed from the boiler water tank installed around the combustion chamber. The installation is equipped with a thermostat that keeps the water in the set temperature range. The temperature set point of the thermostat during pellet combustion was fixed at 60 °C. The temperature inside the combustion chamber was measured using a NiCr-Ni thermocouple. Depending on the distance from the burner, the temperature was in the range of 300–800 °C. The simplified scheme of the test stand is presented in Figure 1.

2.2. Methods

Four types of pellets were analyzed in the study: pine pellets without and with 2.5, 5 and 7.5% by weight share of waste glycerol. In the further part of the paper, the abbreviations “PP” for pine pellet and PP g for pine–glycerol pellet were used, respectively. The glycerol mass percentage in the pellet is specified at the end of the symbol (e.g., PP-G5 for pellets containing 5% wt of glycerol). The methodology for producing the analyzed pellets is shown in Figure 2.
During the combustion of each of the four types of pellets, a continuous chemical analysis of flue gases (CO2, CO and NOx) was carried out using the Vario-Plus analyzer (MRU, Poznań, Poland) utilized with infrared sensors. The analyzer probe (No. 7 in Figure 1) was placed approximately 10 cm from the burner. The value of the excess air coefficient measured by the analyzer was close to λ = 2.0 (± 0.5). Both temperature and flue gas concentrations were recorded continuously at the flue gas sampling point by the flue gas analyzer. The values were read every 2 min, on average. The burning experiments were repeated for all four analyzed fuels three times and special care was taken to maintain constant boiler operating conditions, including ambient temperature and thermostat temperature settings. The obtained experimental research results were compared with the numerical calculation using ANSYS Chemkin-Pro, ANSYS, Canonsburg, PA, USA.
The purpose of these considerations was to develop a numerical simulation procedure that would most reliably represent the chemical kinetics of the pine pellet combustion process. As suggested by previous research conducted by the authors, two combustion mechanisms were used for the calculations [59]:
  • A large mechanism with 621 compounds and 27,829 chemical reactions developed by the CRECK Modeling Group [68,69];
  • A small mechanism with 107 compounds and 652 chemical reactions developed by Glarborg et al. [70,71].
Both mechanisms contained the thermochemical and transport data necessary to perform the calculations. The diagram of the calculation procedure is shown in Figure 3.
The 0D steady state Perfectly Stirred Reactor (PSR) was used to conduct preliminary simulations. The selection of the chemical reactor was based on our previous works and that of other authors describing modeling processes for biomass combustion and co-combustion [59,72,73]. The following boundary conditions were adopted for the calculations:
  • Fuel and air streams (Table 1);
  • Elemental analysis of biomass (Table 2);
  • Geometric parameters of the boiler;
  • Temperature range of 300–850 °C;
  • Residence time of 10 s.
The stream of supplied fuel and air, the elemental composition of the biomass and the temperature range in the combustion chamber were determined experimentally. The residence time was calculated based on the amount of exhaust gases leaving the combustion chamber and the chamber parameters. The obtained results of numerical simulations were reduced by the moisture content, and the shares of individual exhaust gas components were related to the dry exhaust gas content, so they could be compared with the experimental results (dry exhaust gas concentration from the analyzer).

3. Results and Discussion

3.1. Results of Experimental Studies

Table 1 shows the fuel and air consumption in the combustion process. The proximate and ultimate analyses, as well as the bulk density, length, diameter and calorific values of the analyzed pine–glycerol pellets are presented in Table 2.
Table 1 shows that the addition of glycerol increases fuel consumption which in turn contributes to an increase in the air flow. It results from Table 2 that the addition of glycerol contributes to an unsignificant reduction in pellet moisture. This is a rather unexpected result, since the applied glycerol contained ca. 10% of water, and it presumably results from the hygroscopic properties of glycerol. After the combustion of each type of analyzed fuel, the amounts of ash remaining were slightly lower for fuels containing 5% and 7.5% glycerol additions than for PP and PP-G2.5. A similar relationship was observed for bulk density. The trends observed in the above results are also confirmed by other research studies [44,45,47]. The calorific value of the waste glycerol (22.6 MJ/kg) is a little greater than that of pine sawdust utilized for pellet manufacturing (17.63 MJ/kg), and therefore, the increasing additions of glycerol to the pellets give rise to a slight increase in the calorific value.
The share of the waste glycerol in the cellulosic fuel does not significantly affect the quantitative changes of carbon, hydrogen and nitrogen in the final product. However, with the increase in glycerol content in the pellets, the small downward trend for the [C] and [N] and, at the same time, an upward trend for [H] and [O] are observed. This is due to the higher share of hydrogen and oxygen, lower share of carbon and lack of nitrogen in pure glycerin (C—39.13%, H—8.70%, O—52.17%). The produced pellets therefore meet the EN ISO-17225-2:2014 standard [74] in terms of moisture and ash content as well as diameter, length and bulk density. A much higher nitrogen content can be noticed for all the analyzed pellets, compared to the requirements of the standard. This is due to the high nitrogen content of pine sawdust. However, the addition of waste glycerol contributes to a decrease in the nitrogen content in the fuel, so it may have a beneficial effect on the decrease in the NOx concentration during the combustion of fuels with this type of additive.

3.2. Results of the Numerical Calculations

The results of the initial simulations were carried out for pine pellets (PP). Due to the fact that during the experiment the coefficient of excess combustion air oscillated within λ = 2.0 (± 0.5), numerical simulations were carried out for λ = 2.0 and 2.5. The dependence of the combustion temperature on the concentration of CO2, CO and NOx is shown in Figure 4, Figure 5 and Figure 6.
From the analysis presented in Figure 4, Figure 5 and Figure 6, discrepancies can be observed for the two analyzed mechanisms. These discrepancies are observed for CO2 and CO at lower temperatures, with the largest ones observed for λ = 2.0 and T = 300 °C and amounting to 0.53% and 0.52%, respectively. In the case of NOx concentration dependence on temperature, the largest discrepancies can be observed for higher temperatures (624 ppm for T = 850 °C and λ = 2.0). For the lowest temperatures considered, these discrepancies are much lower (average 54 ppm). Due to the existing discrepancies, in order to select the mechanism for further consideration, a comparative analysis with experimental studies was carried out. During the combustion of the analyzed pellets, the temperature was close to 600 ± 50 °C and the excess air coefficient was λ = 2.0 ± 0.5. Therefore, the results of numerical simulations obtained for T = 600 °C T = 650 °C, λ = 2.0 and λ = 2.5 were implemented for the comparative analysis. A summary of the results for both mechanisms and experimental results for the pine pellet (PP) is shown in Figure 7.
Comparing the results of the numerical simulations with the experimental results, a greater convergence with the calculations carried out using the mechanism developed by Glarborg was found (Figure 7a). In the case of calculations taking into account the Creck mechanism, discrepancies with the experiment of almost 400 ppm can be seen for the NOx concentration. The CO2 concentration depends on the coefficient of excess combustion air and shows a similar tendency for both mechanisms. In the case of the CO concentration, there are significant discrepancies between experimental and calculated results. However, in the case of the Glarborg mechanism, these discrepancies are smaller. Such a similarity was also observed in a previous article [59]. Due to the above, the Glarborg mechanism was taken into account for further comparative analyses. Analyzing the results presented in Figure 7a, the greatest convergence can be observed for the model results obtained for T = 650 °C and λ = 2.0, and therefore, these parameters were taken into account for further considerations. Target numerical tests were carried out for four types of analyzed pellets (PP, PP-G2.5, PP-G5 and PP-G7). Simulations were carried out based on the experimental conditions presented in Table 1 and Table 2 (chamber dimensions, fuel consumption, air stream, elemental composition of pellets). Simulations were carried out for the temperature range of 300–850 °C. The results of the dependence of changes in CO2, CO and NOx concentrations on temperature for the four considered pellets are shown in Figure 8, Figure 9 and Figure 10.
It can be concluded from the simulations that the addition of waste glycerol has an effect on reducing the CO2 concentration in the entire range of the analyzed temperatures. A similar tendency is noticeable in the case of CO concentration in the lower temperature range, up to about 500 °C. At higher temperatures, the differences resulting from the different additions of glycerol are not so significant. In the case of the analysis of the NOx concentration, no significant deviations depending on the temperature are observed. To illustrate the exact range of concentration differences, taking into account the previous considerations (3.1) and knowing the conditions of the experiment, the results of the simulation for the temperature of 650 °C were taken into account for the comparative analysis (Figure 11).
Comparing the results of experimental data and numerical calculations, one can observe convergent trends for the exhaust gas components in question. With the increase in the share of glycerol in the burned pellets, a decrease in the concentration of CO2 and NOx is observed. This beneficial phenomenon results from the lower share of carbon and lack of nitrogen in the waste glycerol, compared to pine wood. The smallest differences between the experiment and the calculation results are visible for NOx and are higher by about 60 ppm in the case of calculations. Both for the calculations and the results of the experiment, it can be observed that the addition of glycerol reduces the NOx concentration in the exhaust gas. While the combustion of pine pellets (PP) only or with a small admixture of waste glycerol (PP-G2.5) does not significantly reduce the NOx concentration, the introduction of 5% and 7.5% glycerol to pellets clearly reduces such a concentration. This favorable phenomenon is due to the lower share of nitrogen in fuels containing glycerol (Table 2). A similar decreasing trend can be observed for the CO2 concentration, which, as mentioned earlier, results from a lower share of the carbon element in glycerin waste than in pine wood. From the results of numerical tests, it can be observed that the concentration of CO is practically at the same level, regardless of the type of fuel used. However, the experiment shows that higher amounts of glycerol favor the formation of CO in the exhaust gas, which is a harmful phenomenon. The higher concentrations of CO recorded during the experiment should be explained by the deterioration of combustion conditions along with the increase in the share of glycerol in the pellets. It should be noted that the burner in the boiler is adapted to burn pure wood fuels, therefore the addition of waste glycerol made the operation of the boiler unstable. Larger fluctuations in temperature and the coefficient of excess combustion air were observed. In addition, the 7.5% share of waste glycerol in pine pellets was the maximum that allowed the combustion process to be carried out. Higher shares contributed to the deterioration of fuel parameters, which resulted in spontaneous extinguishing of the boiler. It should be noted that the PSR (Perfectly Stirred Reactor) reactor was used for numerical simulations, which ensured perfect mixing of reagents. Such conditions are not always possible to meet during the experiment. Therefore, the small discrepancies visible between the results of the experiment and the calculations should be explained by the instability of the combustion process.

4. Conclusions

In the era of the energy crisis and the limited resources of fossil fuels, it is extremely important to find cheap, alternative, environmentally friendly solutions, the so-called bio-fuels. The role of this type of fuel is to meet expectations, both in terms of ecology and the economy. This article examines the possibility of using waste glycerol as an additive to pine pellets. This solution allows for the cheap management of post-production waste, and it may also contribute to the improvement of selected physicochemical properties of the fuel and thus lowering the emission of harmful combustion products. The experimental and numerical research carried out allowed the following conclusions to be formulated:
−
All four types of analyzed pellets meet the requirements of the EN-ISO-17225-2:2014 standard in terms of calorific value, moisture content, ash, bulk density and dimensions The highest values of moisture (4.58%), ash (0.5%) and bulk density (650 kg/m3) were observed for PP. The addition of waste glycerol slightly increases the calorific value of the pellet (17.94 MJ/kg for PP-G7.5).
−
The higher nitrogen content in relation to the requirements of the standard for all four analyzed pellets results from the high nitrogen content (4.12%) of the base material (pine sawdust).
−
The addition of waste glycerol contributes to the reduction in nitrogen and carbon content in the fuel, which has a positive effect on the reduction in NOx and CO2 concentrations in exhaust gases. The addition of 7.5% glycerin waste contributes to the reduction in NOx concentrations by 30 ppm and CO2 by 0.15%.
−
The Glarborg mechanism used in numerical calculations shows a high convergence with the experimental results in comparison to the Creck mechanism (over 400 ppm difference at 650 °C for NOx between the considered mechanisms).
−
Difficulties in burning pellets with a 7.5% and higher content of waste glycerol result from adapting the burner to burning wood fuels.
−
The obtained test results indicate the legitimacy of further analysis in terms of the efficiency of the combustion of this type of pellet in boilers equipped with an industrial burner.

Author Contributions

Conceptualization, A.B.-L., D.M. and M.N.; methodology, A.B.-L. and D.M.; software, D.M.; validation, D.M.; formal analysis, A.B.-L.; investigation, A.B.-L.; resources, A.B.-L.; data curation, A.B.-L. and D.M.; writing—original draft preparation, A.B.-L.; writing—review and editing, M.N.; visualization, A.B.-L., D.M. and M.N.; supervision, A.B.-L. and M.N.; project administration, D.M. and M.N.; funding acquisition, A.B.-L. and D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bilandzija, N.; Jurisic, V.; Voca, N.; Leto, J.; Matin, A.; Sito, S.; Kricka, T. Combustion Properties of Miscanthus × Giganteus Biomass—Optimization of Harvest Time. J. Energy Inst. 2017, 90, 528–533. [Google Scholar] [CrossRef]
  2. Amanatidis, G. European Policies on Climate and Energy towards 2020, 2030 and 2050. 2019. 12p. Available online: https://www.europarl.europa.eu/RegData/etudes/BRIE/2019/631047/IPOL_BRI(2019)631047_EN.pdf (accessed on 11 July 2023).
  3. Jäger-Waldau, A.; Kougias, I.; Taylor, N.; Thiel, C. How Photovoltaics Can Contribute to GHG Emission Reductions of 55% in the EU by 2030. Renew. Sustain. Energy Rev. 2020, 126, 109836. [Google Scholar] [CrossRef]
  4. Osorio, S.; Tietjen, O.; Pahle, M.; Pietzcker, R.C.; Edenhofer, O. Reviewing the Market Stability Reserve in Light of More Ambitious EU ETS Emission Targets. Energy Policy 2021, 158, 112530. [Google Scholar] [CrossRef]
  5. Pietzcker, R.C.; Osorio, S.; Rodrigues, R. Tightening EU ETS Targets in Line with the European Green Deal: Impacts on the Decarbonization of the EU Power Sector. Appl. Energy 2021, 293, 116914. [Google Scholar] [CrossRef]
  6. Chen, Y.; Lee, C.C. Does Technological Innovation Reduce CO2 Emissions?Cross-Country Evidence. J. Clean. Prod. 2020, 263, 121550. [Google Scholar] [CrossRef]
  7. Mata, T.M.; Martins, A.A.; Caetano, N.S. Microalgae for Biodiesel Production and Other Applications: A Review. Renew. Sustain. Energy Rev. 2010, 14, 217–232. [Google Scholar] [CrossRef]
  8. Hertwich, E.G.; Ali, S.; Ciacci, L.; Fishman, T.; Heeren, N.; Masanet, E.; Asghari, F.N.; Olivetti, E.; Pauliuk, S.; Tu, Q.; et al. Material Efficiency Strategies to Reducing Greenhouse Gas Emissions Associated with Buildings, Vehicles, and Electronics—A Review. Environ. Res. Lett. 2019, 14, 043004. [Google Scholar] [CrossRef]
  9. Nicholson, S.R.; Rorrer, N.A.; Carpenter, A.C.; Beckham, G.T. Manufacturing Energy and Greenhouse Gas Emissions Associated with Plastics Consumption. Joule 2021, 5, 673–686. [Google Scholar] [CrossRef]
  10. Nejat, P.; Jomehzadeh, F.; Taheri, M.M.; Gohari, M.; Muhd, M.Z. A Global Review of Energy Consumption, CO2 Emissions and Policy in the Residential Sector (with an Overview of the Top Ten CO2 Emitting Countries). Renew. Sustain. Energy Rev. 2015, 43, 843–862. [Google Scholar] [CrossRef]
  11. Panwar, N.L.; Kaushik, S.C.; Kothari, S. Role of Renewable Energy Sources in Environmental Protection: A Review. Renew. Sustain. Energy Rev. 2011, 15, 1513–1524. [Google Scholar] [CrossRef]
  12. Liang, S.; Liao, Y.; Li, W.; Li, C.; Ma, X. Enhanced Stability of Iron-Nickel Oxygen Carriers in Biomass Chemical Looping Gasification by Core-Shell Structure. Chem. Eng. J. 2023, 451, 138964. [Google Scholar] [CrossRef]
  13. Benedek, J.; Sebestyén, T.T.; Bartók, B. Evaluation of Renewable Energy Sources in Peripheral Areas and Renewable Energy-Based Rural Development. Renew. Sustain. Energy Rev. 2018, 90, 516–535. [Google Scholar] [CrossRef]
  14. Directive 2009/28/EC of the European Parliament and of the Council of 23 April 2009 on the Promotion of the Use of Energy from Renewable Sources and Amending and Subsequently Repealing Directives 2001/77/EC Andâ2003/30/EC. Off. J. Eur. Union 2009, 5, 16–62.
  15. Borowski, P.F.; Kupczyk, A.; Biernat, K.; Maczyńska-Sęczek, J.; Detka, T.; Golisz, E.; Gawłowska, A.; Di Nardo, M. Problems of Selected Sectors of Biofuels for Transport in Poland. Processes 2021, 9, 1573. [Google Scholar] [CrossRef]
  16. Draft National Policy Framework for the Development of the Market in Alternative Fuels. 2014. Available online: https://alternative-fuels-observatory.ec.europa.eu/system/files/documents/2022-12/Slovakia%20NPF%20%28EN%29.pdf (accessed on 11 July 2023).
  17. Demirbas, A. Biodiesel: A Realistic Fuel Alternative for Diesel Engines; Springer: London, UK, 2008; ISBN 9781846289941. [Google Scholar]
  18. Gebremariam, S.N.; Marchetti, J.M. Economics of Biodiesel Production: Review. Energy Convers. Manag. 2018, 168, 74–84. [Google Scholar] [CrossRef]
  19. Alataş, S. Do Environmental Technologies Help to Reduce Transport Sector CO2 Emissions? Evidence from the EU15 Countries. Res. Transp. Econ. 2022, 91, 101047. [Google Scholar] [CrossRef]
  20. Ramos, M.; Dias, A.P.S.; Puna, J.F.; Gomes, J.; Bordado, J.C. Biodiesel Production Processes and Sustainable Raw Materials. Energies 2019, 12, 4408. [Google Scholar] [CrossRef]
  21. Vasudevan, P.T.; Fu, B. Environmentally Sustainable Biofuels: Advances in Biodiesel Research. Waste Biomass Valorization 2010, 1, 47–63. [Google Scholar] [CrossRef]
  22. Tarakowski Rafałand Malanowski, A.; Rostocki, A.J.; Kowalczyk, M.; Modzelewski, P.; Ptasznik, S.; Siegoczyński, R.M. Could RME Biodiesel Be Potentially Harmful to Modern Engine? Solidification Process in RME. Fuel 2015, 146, 28–32. [Google Scholar] [CrossRef]
  23. Harabi, M.; Bouguerra, S.N.; Marrakchi, F.; Chrysikou, L.P. Biodiesel and Crude Glycerol from Waste Frying Oil: Production, Characterization and Evaluation of Biodiesel Oxidative Stability with Diesel Blends. Sustainability 2019, 11, 1937. [Google Scholar] [CrossRef]
  24. Korus, R.A.; Hoffman, D.S.; Barn, N.; Peterson, C.L.; Drown, D.C. Transesterification Process to Manufacture Ethyl Ester of Rape Oil. In Proceedings of the First Biomass Conference of the Americas: Energy, Environment, Agriculture, and Industry, Burlington, VT, USA, 30 August–2 September 1993; National Renewable Energy Laboratory: Golden, CO, USA, 1993; pp. 815–826. [Google Scholar]
  25. Dasari, M.A.; Kiatsimkul, P.P.; Sutterlin, W.R.; Suppes, G.J.; Yazdani, S.S.; Gonzalez, R.; Papanikolaou, S.; Fakas, S.; Fick, M.; Chevalot, I.; et al. Value-Added Utilization of Crude Glycerol from Biodiesel Production: A Survey of Current Research Activities. N. Biotechnol. 2012, 16, 2671–2686. [Google Scholar] [CrossRef]
  26. Bala-Litwiniak, A.; Radomiak, H. Environmental Benefits of Co-Combustion of Light Fuel Oil with Waste Glycerol. Energy Sources Part A Recover. Util. Environ. Eff. 2016, 38, 2510–2516. [Google Scholar] [CrossRef]
  27. Elkelawy, M.; Bastawissi, H.A.E.; Esmaeil, K.K.; Radwan, A.M.; Panchal, H.; Sadasivuni, K.K.; Suresh, M.; Israr, M. Maximization of Biodiesel Production from Sunflower and Soybean Oils and Prediction of Diesel Engine Performance and Emission Characteristics through Response Surface Methodology. Fuel 2020, 266, 117072. [Google Scholar] [CrossRef]
  28. Nanda, M.; Yuan, Z.; Qin, W. Purification of Crude Glycerol Using Acidification: Effects of Acid Types and Product Characterization. Austin J. Chem. Eng. 2014, 1, 1–7. [Google Scholar]
  29. Attarbachi, T.; Kingsley, M.D.; Spallina, V. New Trends on Crude Glycerol Purification: A Review. Fuel 2023, 340, 127485. [Google Scholar] [CrossRef]
  30. Kosamia, N.M.; Samavi, M.; Uprety, B.K.; Rakshit, S.K. Valorization of Biodiesel Byproduct Crude Glycerol for the Production of Bioenergy and Biochemicals. Catalysts 2020, 10, 609. [Google Scholar] [CrossRef]
  31. Berthold-pluta, A. Applied Sciences Valorization of Waste Glycerol to Dihydroxyacetone with Biocatalysts Obtained from Gluconobacter Oxydans. Appl. Sci. 2018, 8, 2517. [Google Scholar] [CrossRef]
  32. Skaf, D.W.; Natrin, N.G.; Brodwater, K.C.; Bongo, C.R. Comparison of Photocatalytic Hydrogen Production from Glycerol and Crude Glycerol Obtained from Biodiesel Processing. Catal. Lett. 2012, 142, 1175–1179. [Google Scholar] [CrossRef]
  33. Tsukuda, E.; Sato, S.; Takahashi, R.; Sodesawa, T. Production of Acrolein from Glycerol over Silica-Supported Heteropoly Acids. Catal. Commun. 2007, 8, 1349–1353. [Google Scholar] [CrossRef]
  34. Da Silva, G.P.; Mack, M.; Contiero, J. Glycerol: A Promising and Abundant Carbon Source for Industrial Microbiology. Biotechnol. Adv. 2009, 27, 30–39. [Google Scholar] [CrossRef]
  35. Leoneti, A.B.; Aragão-Leoneti, V.; de Oliveira, S.V.W.B. Glycerol as a By-Product of Biodiesel Production in Brazil: Alternatives for the Use of Unrefined Glycerol. Renew. Energy 2012, 45, 138–145. [Google Scholar] [CrossRef]
  36. Nitayavardhana, S.; Khanal, S.K. Biodiesel-Derived Crude Glycerol Bioconversion to Animal Feed: A Sustainable Option for a Biodiesel Refinery. Bioresour. Technol. 2011, 102, 5808–5814. [Google Scholar] [CrossRef] [PubMed]
  37. Kaur, J.; Sarma, A.K.; Jha, M.K.; Gera, P. Valorisation of Crude Glycerol to Value-Added Products: Perspectives of Process Technology, Economics and Environmental Issues. Biotechnol. Rep. 2020, 27, e00487. [Google Scholar] [CrossRef] [PubMed]
  38. Bodík, I.; Blšťáková, A.; Sedláček, S.; Hutňan, M. Biodiesel Waste as Source of Organic Carbon for Municipal WWTP Denitrification. Bioresour. Technol. 2009, 100, 2452–2456. [Google Scholar] [CrossRef]
  39. Bala-Litwiniak, A. Environmental and Economic Aspects of Combustion of Biomass Pellets Containing a Waste Glycerol. Combust. Sci. Technol. 2021, 193, 1998–2008. [Google Scholar] [CrossRef]
  40. Quispe, C.A.G.; Coronado, C.J.R.; Carvalho, J.A. Glycerol: Production, Consumption, Prices, Characterization and New Trends in Combustion. Renew. Sustain. Energy Rev. 2013, 27, 475–493. [Google Scholar] [CrossRef]
  41. Lukáč, L.; Kizek, J.; Jablonský, G.; Karakash, Y. Defining the Mathematical Dependencies of NO x and CO Emission Generation after Biomass Combustion in Low-Power Boiler. Civ. Environ. Eng. Rep. 2019, 29, 153–163. [Google Scholar] [CrossRef]
  42. Bala-Litwiniak, A.; Radomiak, H. Possibility of the Utilization of Waste Glycerol as an Addition to Wood Pellets. Waste Biomass Valorization 2018, 10, 2193–2199. [Google Scholar] [CrossRef]
  43. Zhang, J.; Wang, Y.; Muldoon, V.L.; Deng, S. Crude Glycerol and Glycerol as Fuels and Fuel Additives in Combustion Applications. Renew. Sustain. Energy Rev. 2022, 159, 112206. [Google Scholar] [CrossRef]
  44. Emami, S.; Tabil, L.G.; Adapa, P. Effect of Glycerol on Densification of Agricultural Biomass. Int. J. Agric. Biol. Eng. 2015, 8, 64–73. [Google Scholar] [CrossRef]
  45. González, W.A.; López, D.; Pérez, J.F. Biofuel Quality Analysis of Fallen Leaf Pellets: Effect of Moisture and Glycerol Contents as Binders. Renew. Energy 2020, 147, 1139–1150. [Google Scholar] [CrossRef]
  46. Kachel, M.; Kraszkiewicz, A.; Subr, A.; Parafiniuk, S.; Przywara, A.; Koszel, M.; Zając, G. Impact of the Type of Fertilization and the Addition of Glycerol on the Quality of Spring Rape Straw Pellets. Energies 2020, 13, 819. [Google Scholar] [CrossRef]
  47. Costa, N.; Ferreira, V.; Pinho, C. Preliminary Study of Fluidized Bed Combustion to Determine Diffusive and Kinetic Data of Char Pellets from Eucalyptus and Grapevine Additivated with Glycerol. Angolan Miner. Oil Gas J. 2022, 3, 1–9. [Google Scholar]
  48. Demir, V.G.; Yaman, P.; Efe, M.O.; Yuksel, H. Production of Bio-Pellets Derived from Sawdust and Crude Glycerol. In Proceedings of the ICOEST—International Conference on Environmental Science and Technology, Belgrade, Serbia, 28 September–2 October 2016. 8p. [Google Scholar]
  49. Potip, S.; Wongwuttanasatian, T. Combustion Characteristics of Spent Coffee Ground Mixed with Crude Glycerol Briquette Fuel. Combust. Sci. Technol. 2018, 190, 2030–2043. [Google Scholar] [CrossRef]
  50. Marrugo, G.; Valdés, C.F.; Gómez, C.; Chejne, F. Pelletizing of Colombian Agro-Industrial Biomasses with Crude Glycerol. Renew. Energy 2019, 134, 558–568. [Google Scholar] [CrossRef]
  51. Růžičková, J.; Raclavská, H.; Šafář, M.; Kucbel, M.; Raclavský, K.; Grobelak, A.; Švédová, B.; Juchelková, D. The Occurrence of Pesticides and Their Residues in Char Produced by the Combustion of Wood Pellets in Domestic Boilers. Fuel 2021, 293, 120452. [Google Scholar] [CrossRef]
  52. Possell, M.; Hewitt, C.N.; Beerling, D.J. The Effects of Glacial Atmospheric CO2 Concentrations and Climate on Isoprene Emissions by Vascular Plants. Glob. Chang. Biol. 2005, 11, 60–69. [Google Scholar] [CrossRef]
  53. Variny, M.; Varga, A.; Rimár, M.; Janošovský, J.; Kizek, J.; Lukáč, L.; Jablonský, G.; Mierka, O. Advances in Biomass Co-Combustion with Fossil Fuels in the European Context: A Review. Processes 2021, 9, 100. [Google Scholar] [CrossRef]
  54. Gregory, R.P. Climate Disasters, Carbon Dioxide, and Financial Fundamentals. Q. Rev. Econ. Financ. 2021, 79, 45–58. [Google Scholar] [CrossRef]
  55. Daneshvar, E.; Wicker, R.J.; Show, P.L.; Bhatnagar, A. Biologically-Mediated Carbon Capture and Utilization by Microalgae towards Sustainable CO2 Biofixation and Biomass Valorization—A Review. Chem. Eng. J. 2022, 427, 130884. [Google Scholar] [CrossRef]
  56. Low, J.; Cheng, B.; Yu, J. Surface Modification and Enhanced Photocatalytic CO2 Reduction Performance of TiO2: A Review. Appl. Surf. Sci. 2017, 392, 658–686. [Google Scholar] [CrossRef]
  57. Williams, C.L.; Westover, T.L.; Emerson, R.M.; Tumuluru, J.S.; Li, C. Sources of Biomass Feedstock Variability and the Potential Impact on Biofuels Production. Bioenergy Res. 2016, 9, 1–14. [Google Scholar] [CrossRef]
  58. Pradhan, P.; Mahajani, S.M.; Arora, A. Production and Utilization of Fuel Pellets from Biomass: A Review. Fuel Process. Technol. 2018, 181, 215–232. [Google Scholar] [CrossRef]
  59. Bala-Litwiniak, A.; Musiał, D. Computational and Experimental Studies of Selected Types of Biomass Combustion in a Domestic Boiler. Materials 2022, 15, 4826. [Google Scholar] [CrossRef]
  60. Pawlak-Kruczek, H.; Arora, A.; Mościcki, K.; Krochmalny, K.; Sharma, S.; Niedzwiecki, L. A Transition of a Domestic Boiler from Coal to Biomass—Emissions from Combustion of Raw and Torrefied Palm Kernel Shells (PKS). Fuel 2020, 263, 116718. [Google Scholar] [CrossRef]
  61. Ozgen, S.; Cernuschi, S.; Caserini, S. An Overview of Nitrogen Oxides Emissions from Biomass Combustion for Domestic Heat Production. Renew. Sustain. Energy Rev. 2021, 135, 110113. [Google Scholar] [CrossRef]
  62. Jaworek, A.; Sobczyk, A.T.; Marchewicz, A.; Krupa, A.; Czech, T. Particulate Matter Emission Control from Small Residential Boilers after Biomass Combustion. A Review. Renew. Sustain. Energy Rev. 2021, 137, 110446. [Google Scholar] [CrossRef]
  63. Vassilev, S.V.; Baxter, D.; Andersen, L.K.; Vassileva, C.G. An Overview of the Chemical Composition of Biomass. Fuel 2010, 89, 913–933. [Google Scholar] [CrossRef]
  64. EN ISO 18134-3:2015; Solid Biofuels—Determination of Moisture Content—Oven Dry Method—Part 3: Moisture in General Analysis Simple. Polish Committee for Standardization: Warsaw, Poland, 2015.
  65. EN ISO 18122:2015; Solid Biofuels—Determination of Ash Content. Polish Committee for Standardization: Warsaw, Poland, 2015.
  66. EN ISO 17828:2016-02; Solid Biofuels—Determination of Bulk Density. Polish Committee for Standardization: Warsaw, Poland, 2016.
  67. EN 14918:2009; Solid Biofuels—Determination of Calorific Value. Polish Committee for Standardization: Warsaw, Poland, 2009.
  68. Gao, X.; Lu, L.; Shahnam, M.; Rogers, W.A.; Smith, K.; Gaston, K.; Robichaud, D.; Brennan Pecha, M.; Crowley, M.; Ciesielski, P.N.; et al. Assessment of a Detailed Biomass Pyrolysis Kinetic Scheme in Multiscale Simulations of a Single-Particle Pyrolyzer and a Pilot-Scale Entrained Flow Pyrolyzer. Chem. Eng. J. 2021, 418, 129347. [Google Scholar] [CrossRef]
  69. Ranzi, E.; Frassoldati, A.; Stagni, A.; Pelucchi, M.; Cuoci, A.; Faravelli, T. Reduced Kinetic Schemes of Complex Reaction Systems: Fossil and Biomass-Derived Transportation Fuels. Int. J. Chem. Kinet. 2014, 46, 512–542. [Google Scholar] [CrossRef]
  70. Glarborg, P. Detailed Kinetic Mechanisms of Pollutant Formation in Combustion Processes. Comput. Aided Chem. Eng. 2019, 45, 603–645. [Google Scholar] [CrossRef]
  71. Li, B.; Sun, Z.; Li, Z.; Aldén, M.; Jakobsen, J.G.; Hansen, S.; Glarborg, P. Post-Flame Gas-Phase Sulfation of Potassium Chloride. Combust. Flame 2013, 160, 959–969. [Google Scholar] [CrossRef]
  72. Das, B.; Bhattacharya, A.; Datta, A. Kinetic Modeling of Biomass Gasification and Tar Formation in a Fluidized Bed Gasifier Using Equivalent Reactor Network (ERN). Fuel 2020, 280, 118582. [Google Scholar] [CrossRef]
  73. Fitzpatrick, E.M.; Bartle, K.D.; Kubacki, M.L.; Jones, J.M.; Pourkashanian, M.; Ross, A.B.; Williams, A.; Kubica, K. The Mechanism of the Formation of Soot and Other Pollutants during the Co-Firing of Coal and Pine Wood in a Fixed Bed Combustor. Fuel 2009, 88, 2409–2417. [Google Scholar] [CrossRef]
  74. EN ISO-17225-2:2014; Solid Biofuels—Fuel Specifications and Classes—Part 6: Graded Non-Woody Pellets. Polish Committee for Standardization: Warsaw, Poland, 2014.
Materials 16 07156 g001

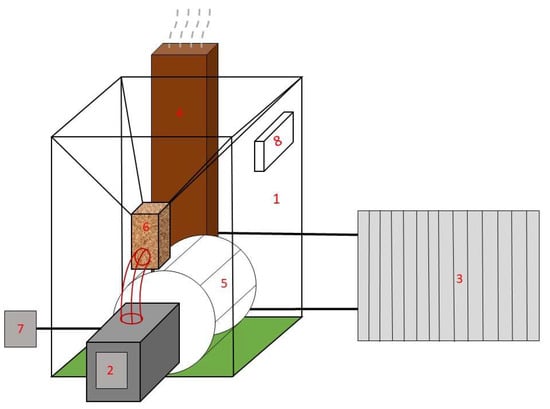

Figure 1. A simplified scheme of a test stand for combustion of biomass pellets, where 1—main boiler chamber; 2—burner; 3—heat exchanger; 4—funnel; 5—combustion chamber; 6—fuel feeder; 7—flue gas analyzer; 8—control panel.
Figure 1. A simplified scheme of a test stand for combustion of biomass pellets, where 1—main boiler chamber; 2—burner; 3—heat exchanger; 4—funnel; 5—combustion chamber; 6—fuel feeder; 7—flue gas analyzer; 8—control panel.
Materials 16 07156 g001
Materials 16 07156 g002

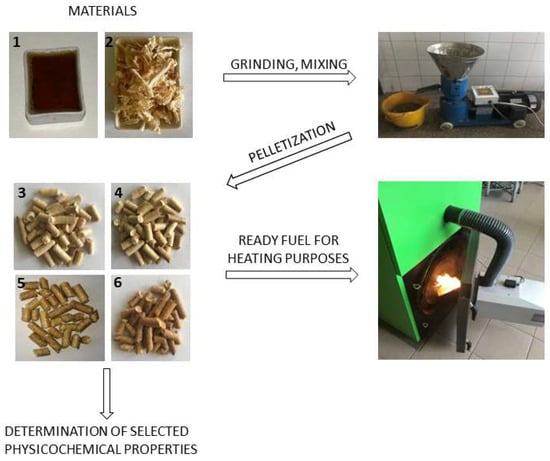

Figure 2. Schematic diagram of the methodology for the production of pine–glycerol pellets, where 1—glycerol; 2—pine sawdust; 3—PP; 4—PGP-2.5; 5—PGP-5; 6—PGP-7.5.
Figure 2. Schematic diagram of the methodology for the production of pine–glycerol pellets, where 1—glycerol; 2—pine sawdust; 3—PP; 4—PGP-2.5; 5—PGP-5; 6—PGP-7.5.
Materials 16 07156 g002
Materials 16 07156 g003

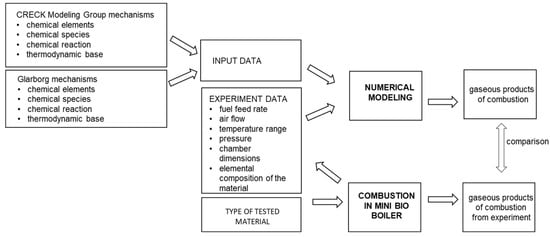

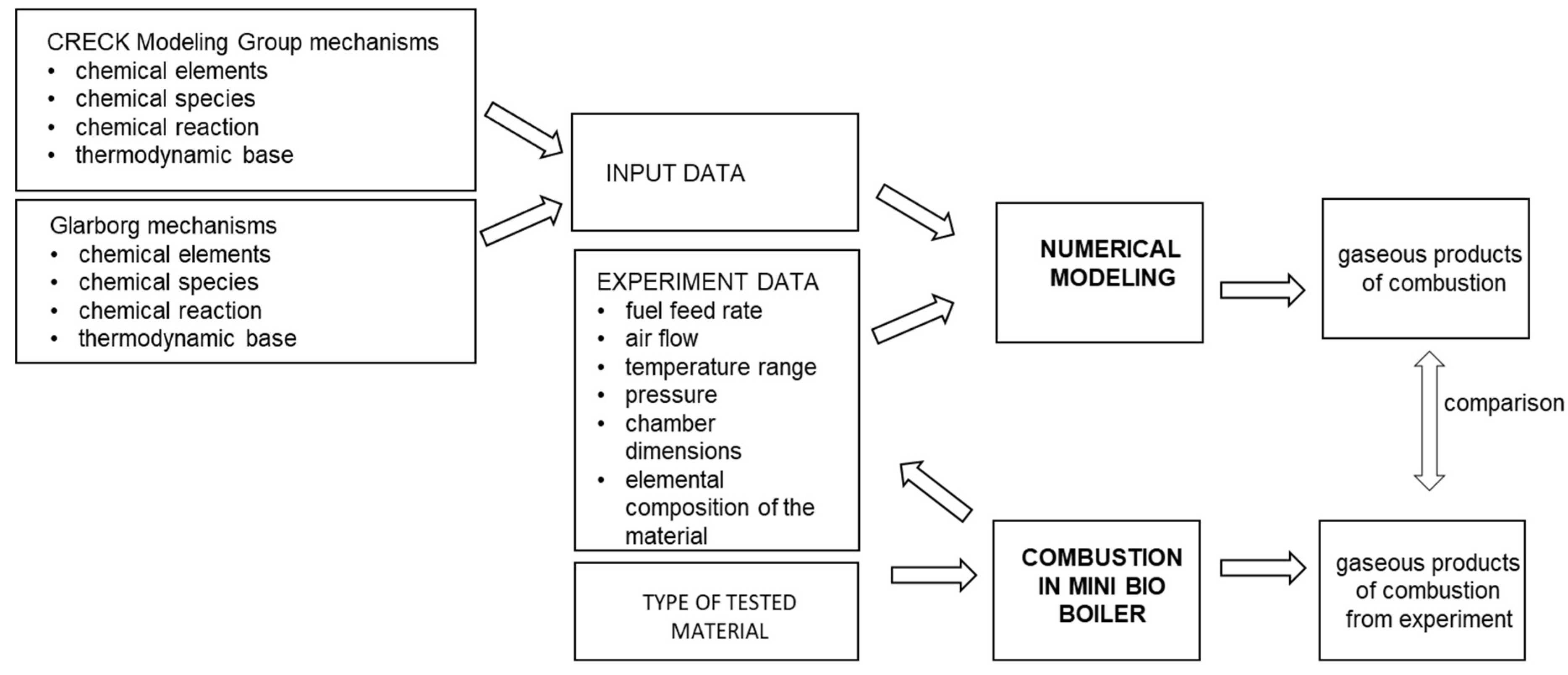

Figure 3. The scheme of the calculation procedure.
Figure 3. The scheme of the calculation procedure.
Materials 16 07156 g003
Materials 16 07156 g004

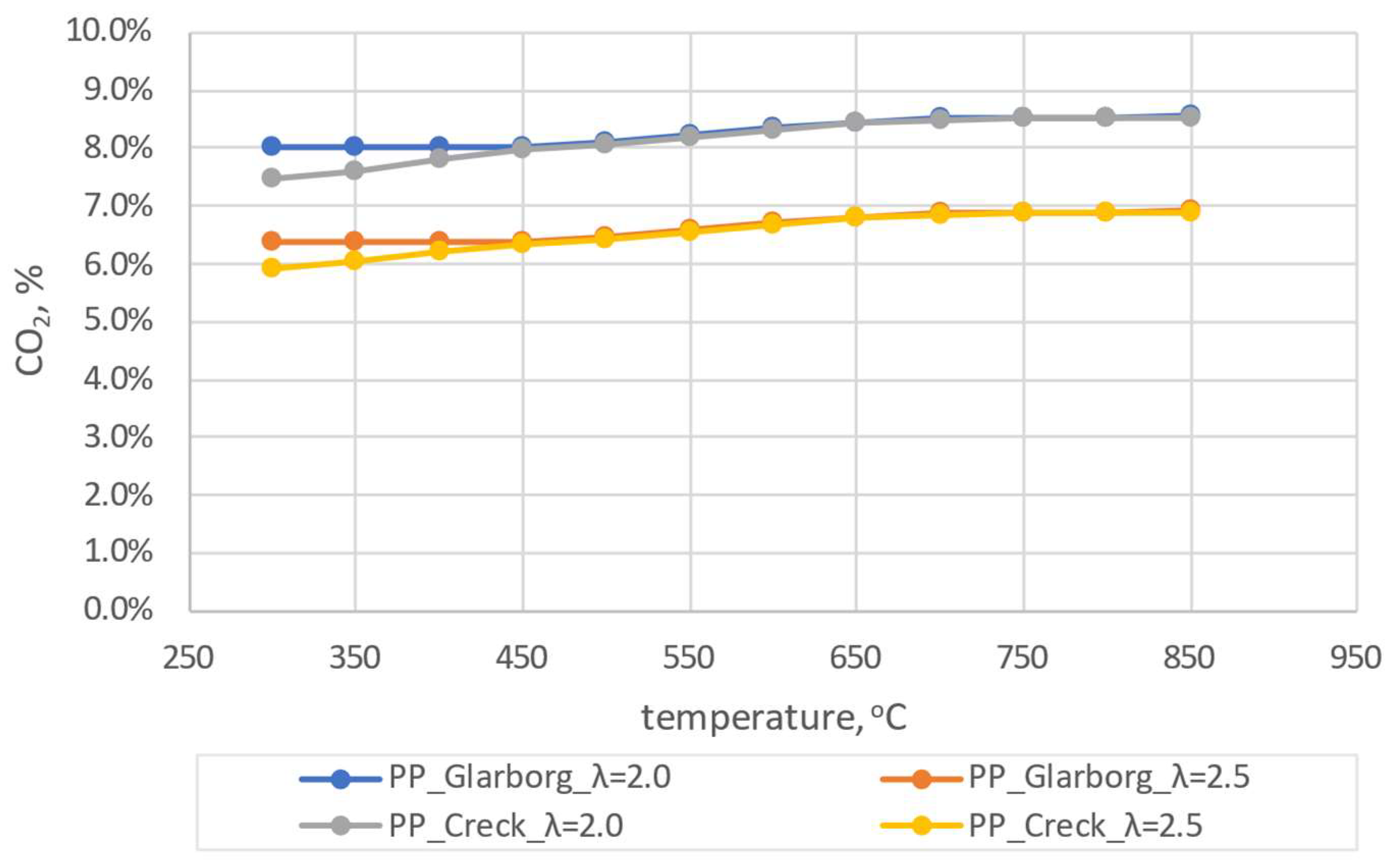

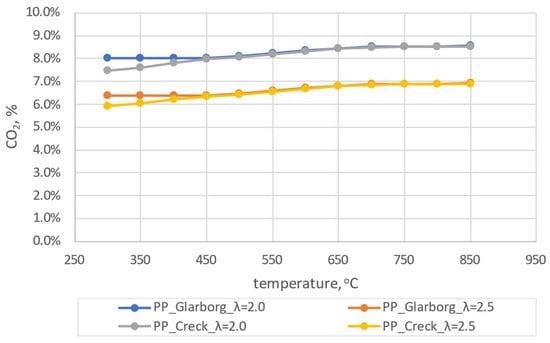

Figure 4. The dependence of CO2 shares as a function of temperature for pine pellets–comparison of two mechanism.
Figure 4. The dependence of CO2 shares as a function of temperature for pine pellets–comparison of two mechanism.
Materials 16 07156 g004
Materials 16 07156 g005

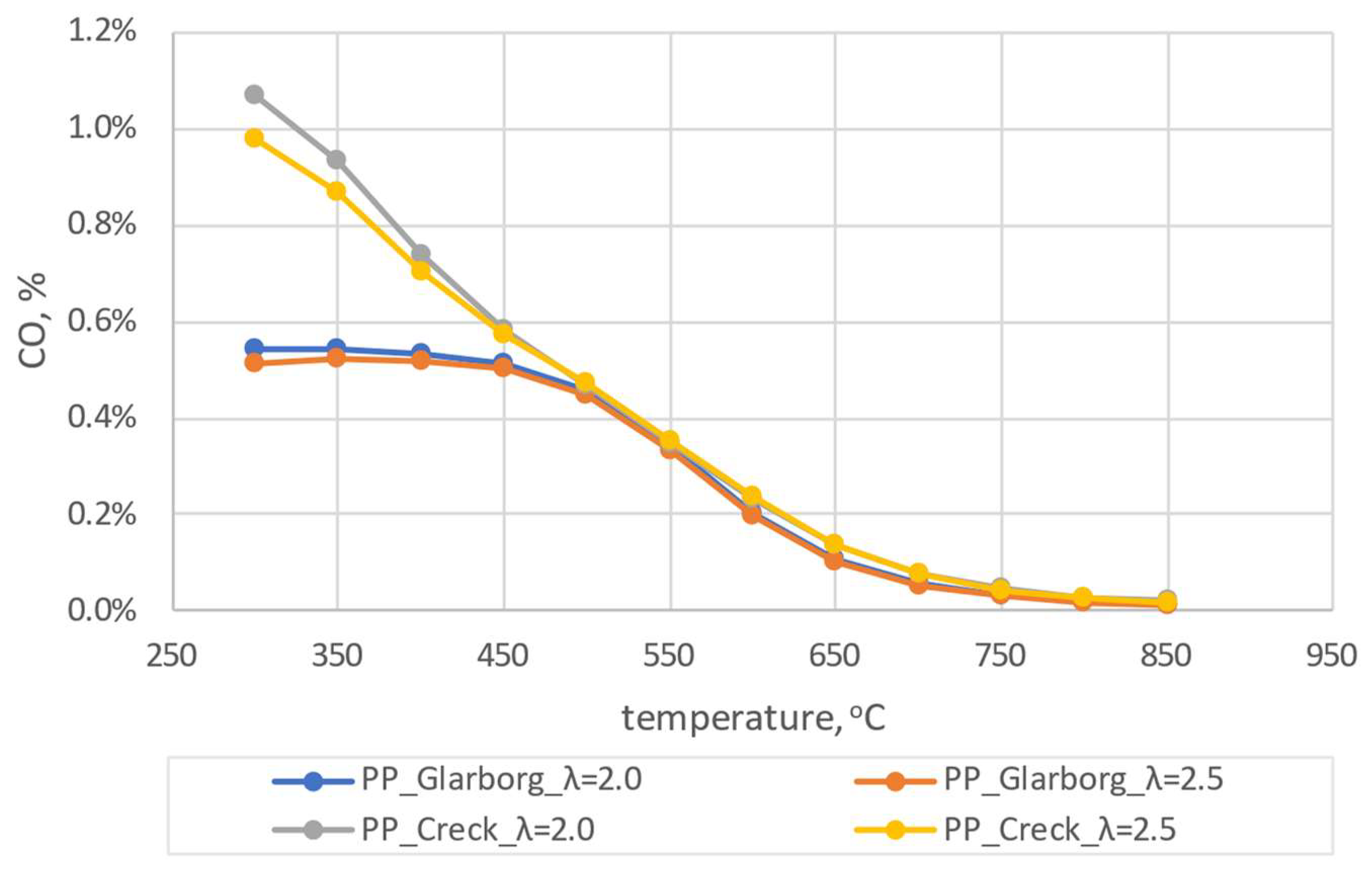

Figure 5. The dependence of CO shares as a function of temperature for pine pellets–comparison of two mechanism.
Figure 5. The dependence of CO shares as a function of temperature for pine pellets–comparison of two mechanism.
Materials 16 07156 g005
Materials 16 07156 g006

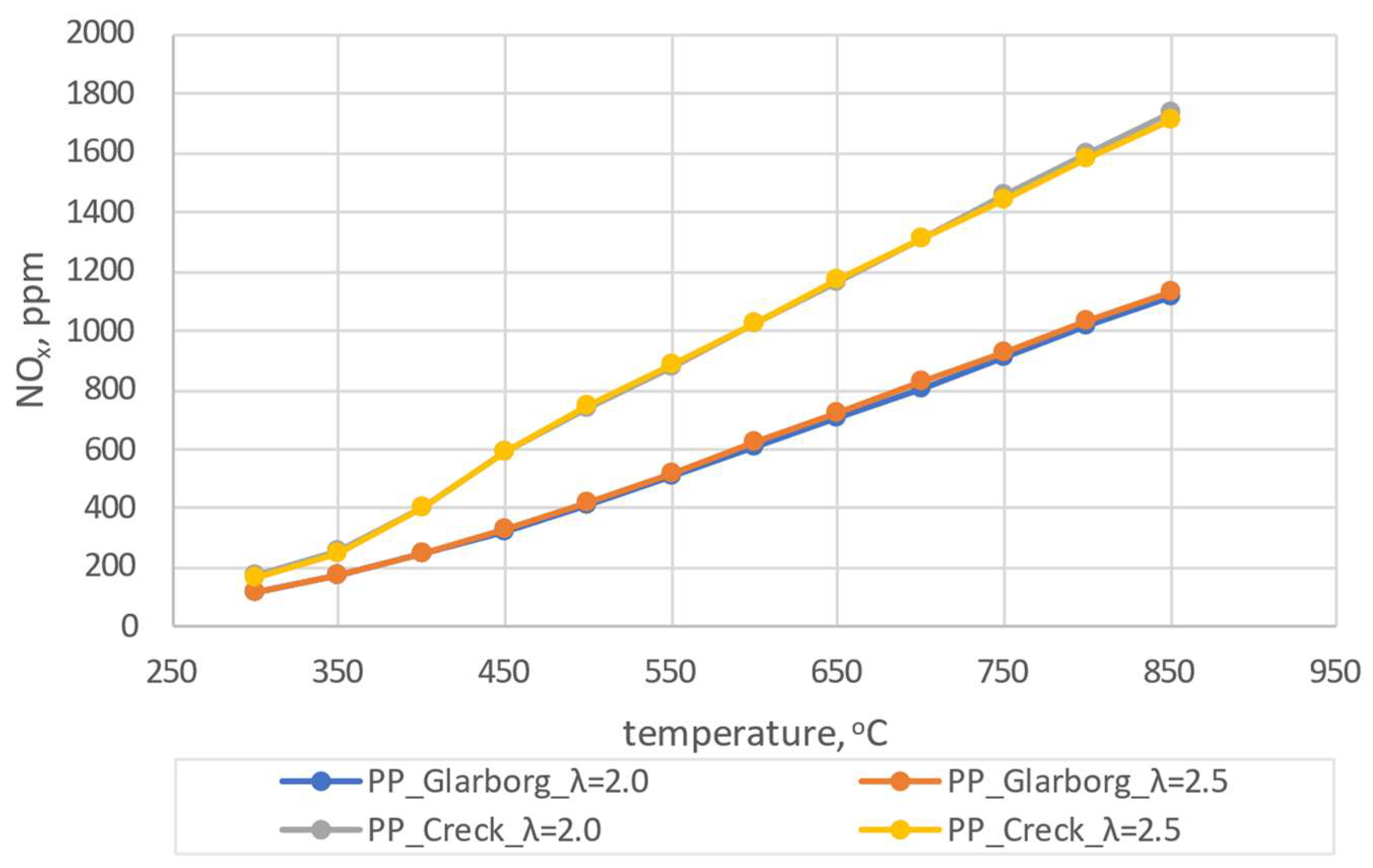

Figure 6. The dependence of NO shares as a function of temperature for pine pellets – comparison of two mechanism.
Figure 6. The dependence of NO shares as a function of temperature for pine pellets – comparison of two mechanism.
Materials 16 07156 g006
Materials 16 07156 g007

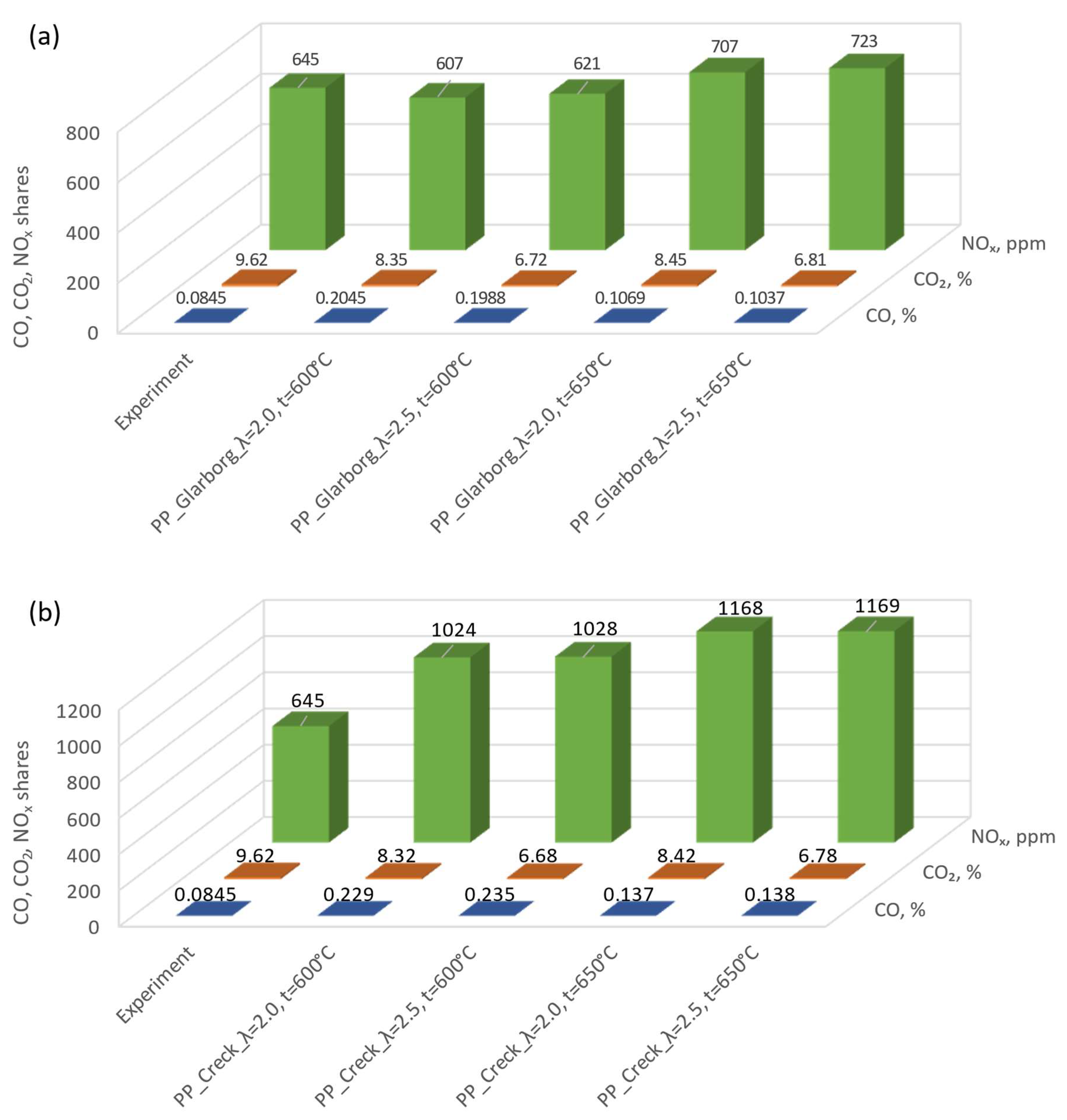

Figure 7. Comparative analysis of experimental and computational results using Glarborg (a) and Creck (b) mechanisms for pine pellets.
Figure 7. Comparative analysis of experimental and computational results using Glarborg (a) and Creck (b) mechanisms for pine pellets.
Materials 16 07156 g007
Materials 16 07156 g008

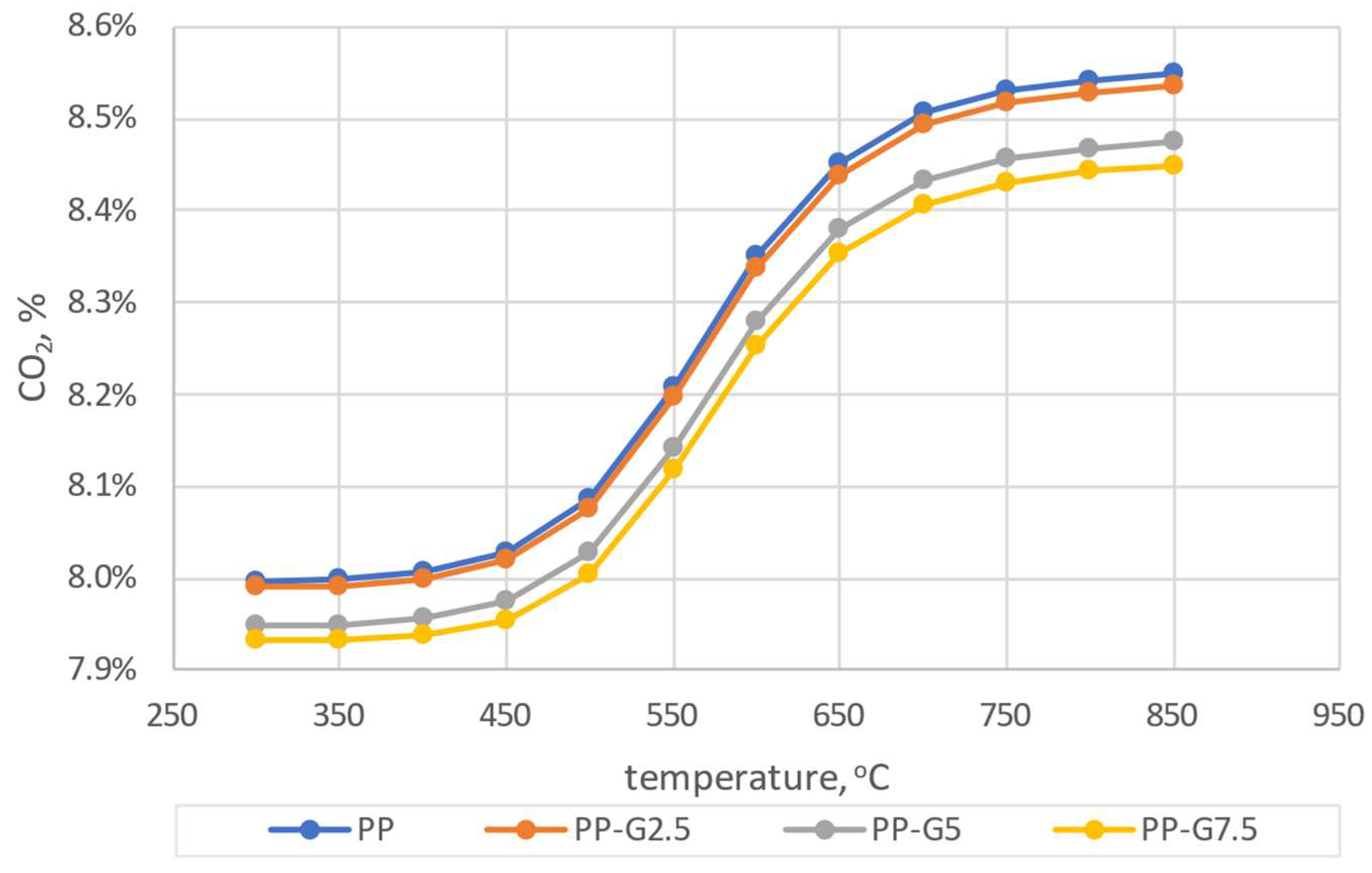

Figure 8. The dependence of CO2 shares as a function of temperature.
Figure 8. The dependence of CO2 shares as a function of temperature.
Materials 16 07156 g008
Materials 16 07156 g009

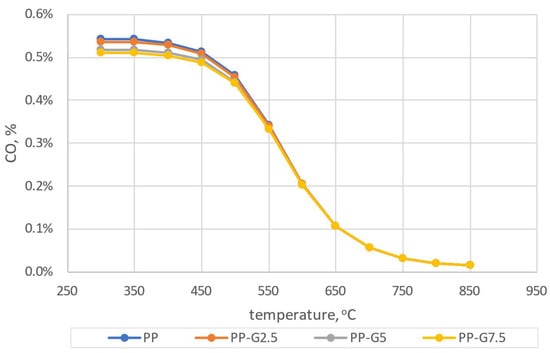

Figure 9. The dependence of CO shares as a function of temperature.
Figure 9. The dependence of CO shares as a function of temperature.
Materials 16 07156 g009
Materials 16 07156 g010

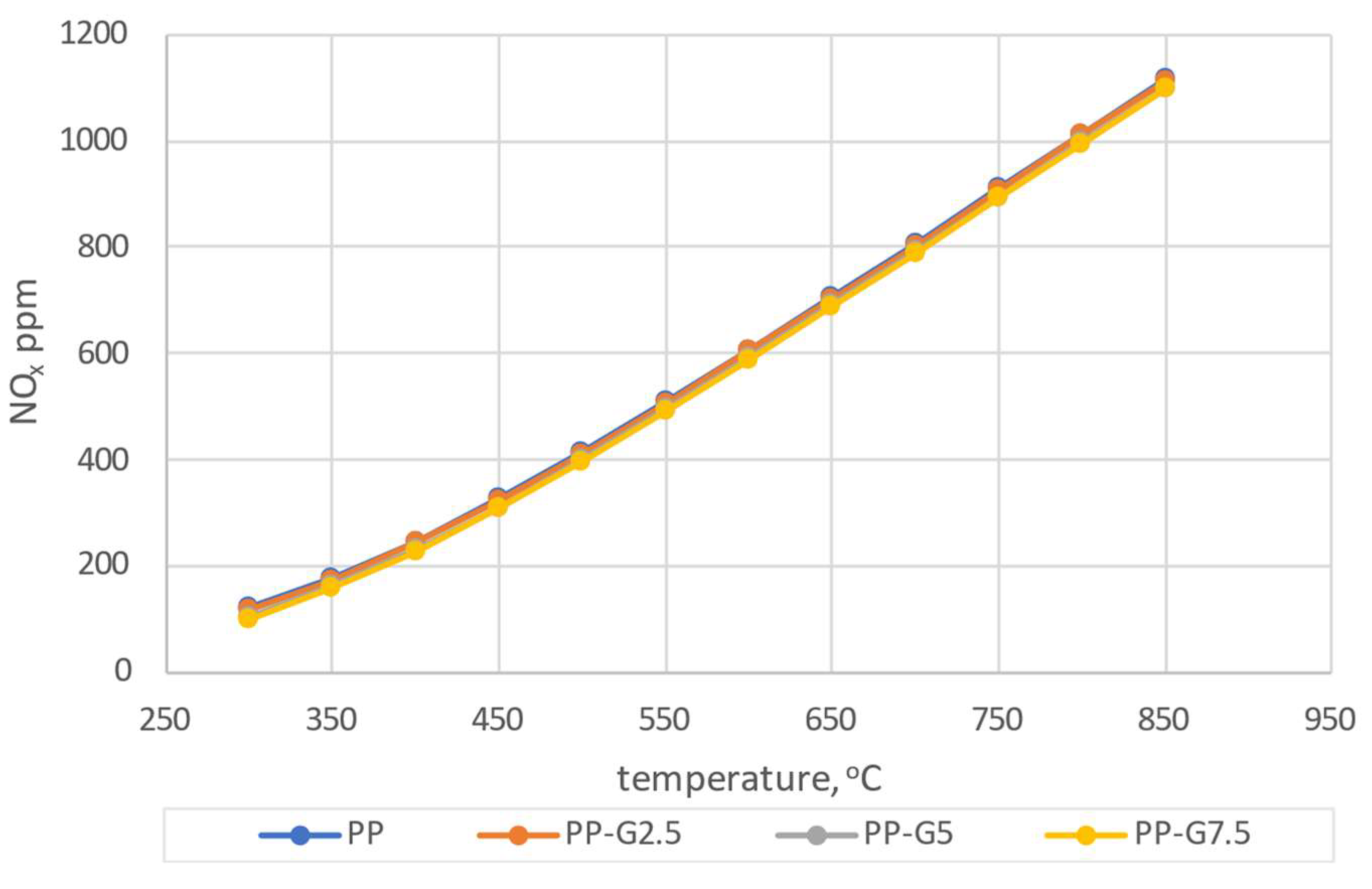

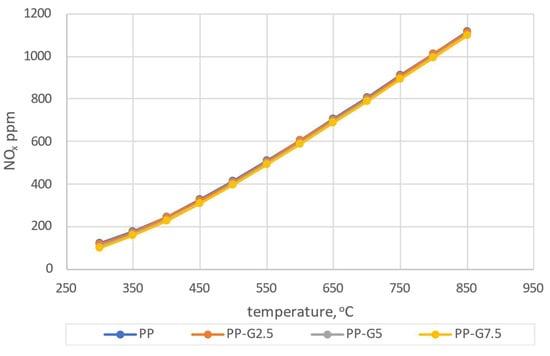

Figure 10. The dependence of NO shares as a function of temperature.
Figure 10. The dependence of NO shares as a function of temperature.
Materials 16 07156 g010
Materials 16 07156 g011aMaterials 16 07156 g011b

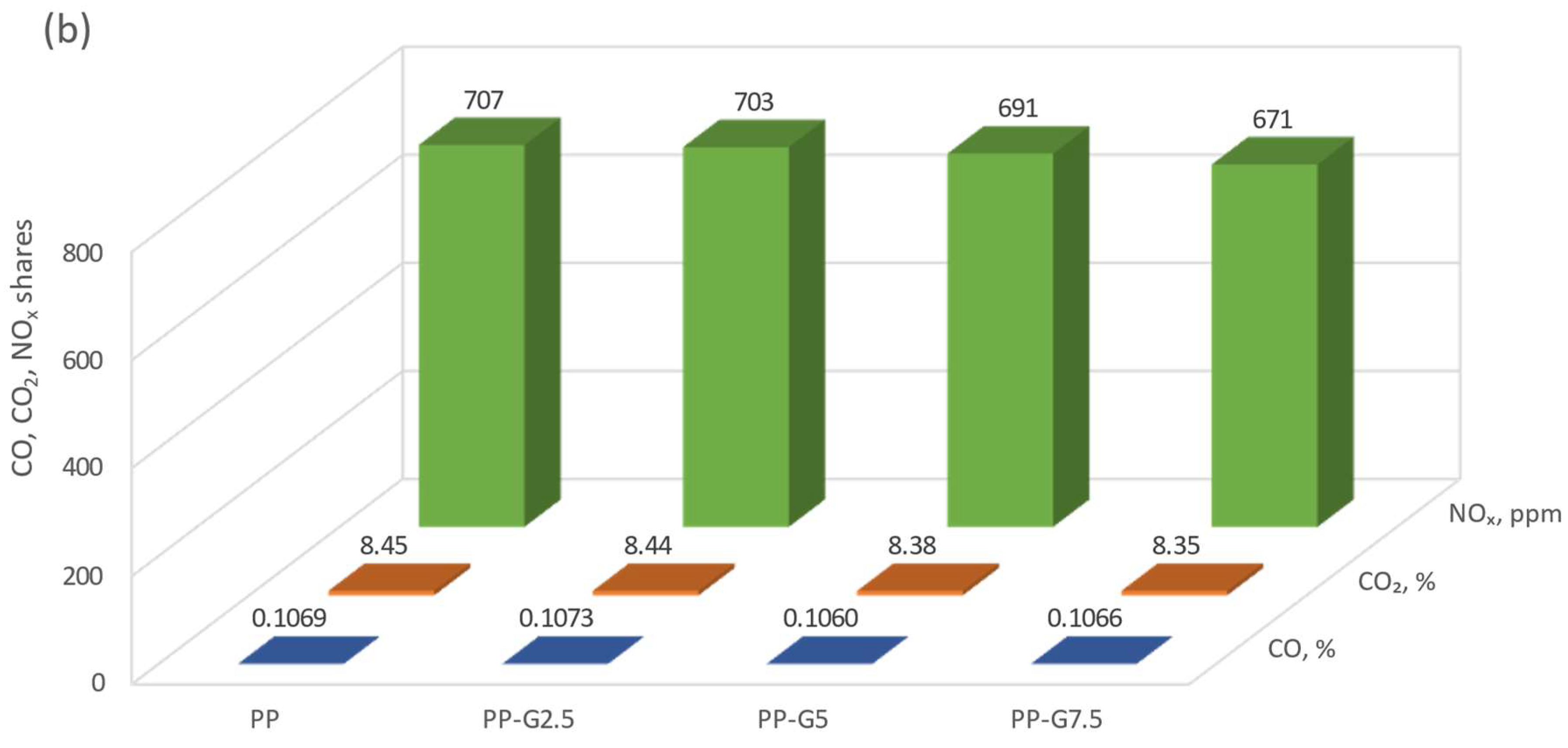

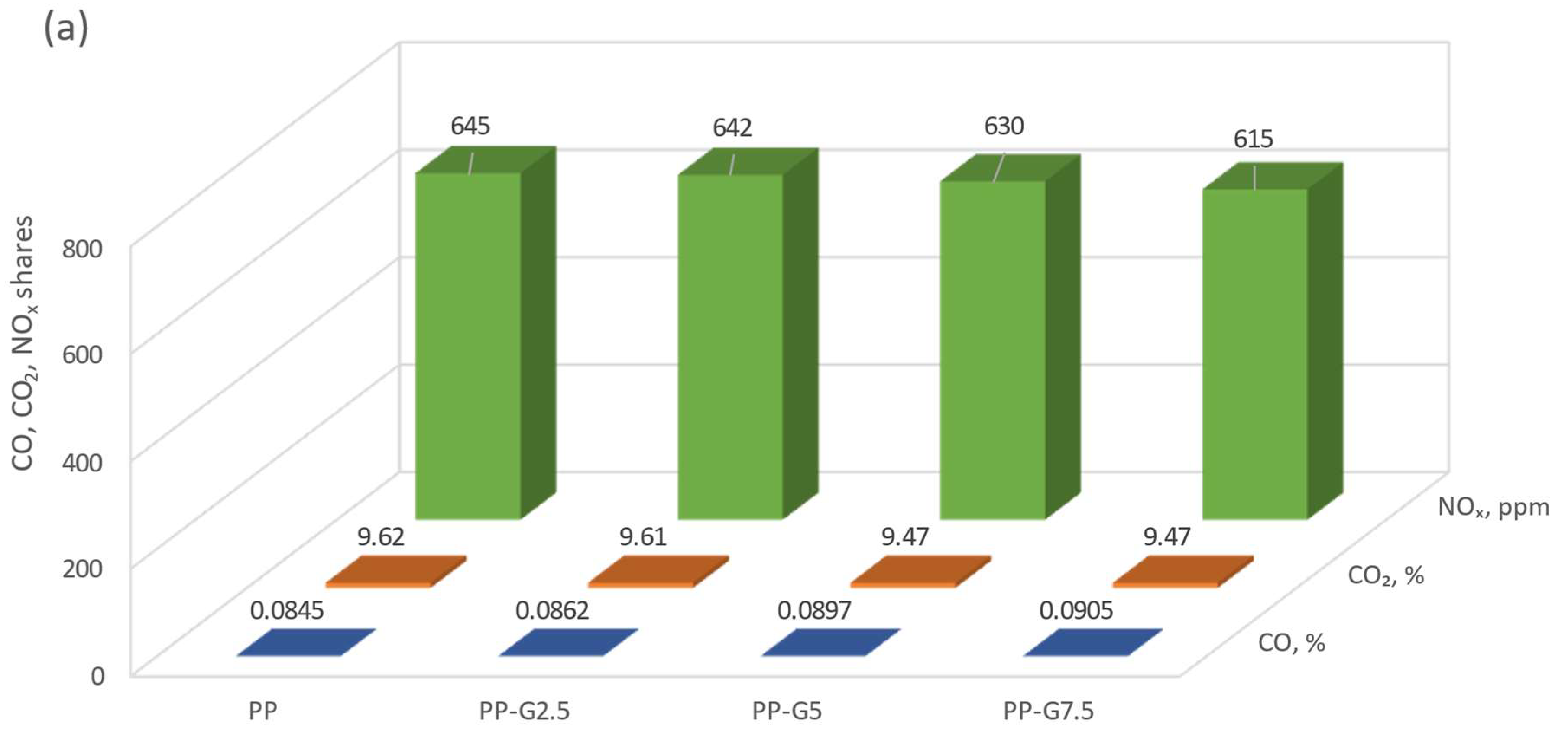

Figure 11. A comparative analysis of the experimental (a) and computational (b) results for the temperature of 650 °C and λ = 2.0.
Figure 11. A comparative analysis of the experimental (a) and computational (b) results for the temperature of 650 °C and λ = 2.0.
Materials 16 07156 g011aMaterials 16 07156 g011b
Table 1. Comparison of fuel feed rate and air flow during combustion of pine (PP) and pine–glycerol pellets (PP-G).
Table 1. Comparison of fuel feed rate and air flow during combustion of pine (PP) and pine–glycerol pellets (PP-G).
FuelFuel Feed Rate, kg/sAir Flow,
m3/s
λ = 2.0λ = 2.5
PP0.0002500.0023220.002903
PP-G2.50.0002720.0025220.003153
PP-G50.0002920.0027120.003390
PP-G7.50.0003190.0029590.003698
Table 2. A comparison of the selected physicochemical properties and elemental composition for pine pellets without (PP) and with waste glycerol (PP-G2.5, PP-G5, PP-G7.5).
Table 2. A comparison of the selected physicochemical properties and elemental composition for pine pellets without (PP) and with waste glycerol (PP-G2.5, PP-G5, PP-G7.5).
Analyzed ParametersPPPP-G2.5PP-G5PP-G7.5EN ISO-17225-2:2014 [74]
Proximate analysis
Moisture, % (±0.1%)4.584.304.123.76≤10
Ash, % (±0.1%)0.500.500.410.40≤3
Ultimate analysis
C, % (±0.1%)46.4146.2345.8245.58-
H, % (±0.1%)6.456.526.786.86-
N, % (±0.1%)4.124.094.024.00≤1
O, % (bal.)37.9438.3638.8539.4-
Diameter, mm (±1 mm)66666
Length, mm (±1 mm)5–155–155–155–153.15–40
Calorific value, MJ/kg (±0.1 MJ/kg)17.6317.6917.8217.94≥16.5
Bulk density, kg/m3 (±10 kg/m3)650650620560≥500
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bala-Litwiniak, A.; Musiał, D.; Nabiałczyk, M. Computational and Experimental Studies on Combustion and Co-Combustion of Wood Pellets with Waste Glycerol. Materials 2023, 16, 7156. https://doi.org/10.3390/ma16227156

AMA Style

Bala-Litwiniak A, Musiał D, Nabiałczyk M. Computational and Experimental Studies on Combustion and Co-Combustion of Wood Pellets with Waste Glycerol. Materials. 2023; 16(22):7156. https://doi.org/10.3390/ma16227156

Chicago/Turabian Style

Bala-Litwiniak, Agnieszka, Dorota Musiał, and Michał Nabiałczyk. 2023. "Computational and Experimental Studies on Combustion and Co-Combustion of Wood Pellets with Waste Glycerol" Materials 16, no. 22: 7156. https://doi.org/10.3390/ma16227156

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
