TiO₂ Nanotubes Decorated with Mo₂C for Enhanced Photoelectrochemical Water-Splitting Properties

Abstract

The presence of Ti³⁺ in the structure of TiO₂ nanotube arrays (NTs) has been shown to enhance the photoelectrochemical (PEC) water-splitting performance of these NTs, leading to improved results compared to pristine anatase TiO₂ NTs. To further improve the properties related to PEC performance, we successfully produced TiO₂ NTs using a two-step electrochemical anodization technique, followed by annealing at a temperature of 450 °C. Subsequently, Mo₂C was decorated onto the NTs by dip coating them with precursors at varying concentrations and times. The presence of anatase TiO₂ and Ti₃O₅ phases within the TiO₂ NTs was confirmed through X-ray diffraction (XRD) analysis. The TiO₂ NTs that were decorated with Mo₂C demonstrated a photocurrent density of approximately 1.4 mA cm⁻², a value that is approximately five times greater than the photocurrent density exhibited by the bare TiO₂ NTs, which was approximately 0.21 mA cm⁻². The observed increase in photocurrent density can be ascribed to the incorporation of Mo₂C as a cocatalyst, which significantly enhances the photocatalytic characteristics of the TiO₂ NTs. The successful deposition of Mo₂C onto the TiO₂ NTs was further corroborated by the characterization techniques utilized. The utilization of field emission scanning electron microscopy (FESEM) allowed for the observation of Mo₂C particles on the surface of TiO₂ NTs. To validate the composition and optical characteristics of the decorated NTs, X-ray photoelectron spectroscopy (XPS) and UV absorbance analysis were performed. This study introduces a potentially effective method for developing efficient photoelectrodes based on TiO₂ for environmentally sustainable hydrogen production through the use of photoelectrochemical water-splitting devices. The utilization of Mo₂C as a cocatalyst on TiO₂ NTs presents opportunities for the advancement of effective and environmentally friendly photoelectrochemical (PEC) systems.

1. Introduction

The extreme reliance on fossil fuels for energy generation since the industrial revolution has triggered a global energy crisis and various other environmental problems [1,2]. Therefore, reducing energy dependence on fossil fuels through the provision of clean and renewable energy sources is urgent. One alternative is to use clean and green hydrogen (H₂) directly produced from water molecules using solar light energy, known as the photoelectrochemical (PEC) process. H₂ can be used as fuel in an electrochemical fuel cell device to produce electricity, with pure water as the only byproduct.

In the PEC process, semiconductor materials are employed as photoelectrodes [2]. To date, numerous semiconductor materials, such as TiO₂ [3,4,5], Co₃O₄ [6,7], WO₃ [8], Cu₂O [9], and Fe₂O₃ [10], have been investigated as photoelectrode materials. Among them, TiO₂ has garnered considerable attention due to its photoactivity, low cost, excellent chemical stability, and abundance in nature [11]. However, TiO₂ can only be stimulated by UV light, which accounts for only 3–5% of solar energy radiation, because of its large band gap, further causing quick recombination of photoinduced electron-hole pairs as well as inefficient charge carrier separation [11]. Therefore, various methods have been used to improve the PEC performance and photocatalytic activity of TiO₂, including morphology modification [12,13,14], synthesis of composite heterojunctions with other materials [15], ion doping [16,17], facet engineering [18], and cocatalyst addition [19].

In terms of morphology, TiO₂ nanotube arrays (NTs) have attracted attention due to their high specific surface area, excellent adsorption capacity, and good structural properties for electron transport. Several methods have been employed to fabricate TiO₂ NT photoelectrodes, and electrochemical anodization is considered one of the most promising methods for fabricating a highly ordered NT structure [20]. Although the electrochemical anodization method is considered a promising fabrication method for producing ordered TiO₂ NTs with defect engineering and doping, the PEC performance of fabricated TiO₂ NTs still does not reach satisfactory levels due to their restricted light harvesting and the high resistance at the interface between the nanotubes and the substrate. Therefore, a synergistic approach combining various strategies, such as the formation of heterojunctions with other semiconductor materials or the addition of cocatalyst materials, could prove excellent for obtaining TiO₂ NTs with efficient light harvesting and charge separation for high PEC water-splitting performance. Currently, 2D MXenes have been investigated as promising catalysts or cocatalysts in many applications. The nomenclature “MXene” has been used to represent a group of compounds that includes transition metal carbides, nitrides, and carbonitrides. The nomenclature “MXene” is derived from its chemical composition, wherein the symbol “M” represents a transition metal, “X” signifies carbon and/or nitrogen, and the suffix “ene” refers to its two-dimensional structural arrangement [21]. Among the reported MXene materials, dimolybdenum carbide (Mo₂C) has been reported to show excellent electrocatalytic performance in the hydrogen evolution reaction (HER) [21]. It has an electronic density of states comparable to that of Pt and excellent electrical conductivity. In addition to being used as a catalyst for the HER, Mo₂C has also been investigated for photocatalytic water splitting for hydrogen generation [22]. Shen et al. reported that the Mo₂C/CdS nanocomposite produced a photocurrent density 7.83 times higher than that of pure CdS [23]. Furthermore, Yue et al. reported that dandelion-like TiO₂ nanoparticles with 1% Mo₂C were able to produce H₂ with a production rate of 39.4 mmol h⁻¹ g⁻¹, which is 25 times that obtained with pristine TiO₂ [22].

Although Mo₂C has been shown to be a good cocatalyst for TiO₂, the photocatalytic performance of TiO₂ NTs on Ti foil substrates with Mo₂C has yet to be reported. This study presents the effectiveness of TiO₂ NTs with Mo₂C incorporated as a cocatalyst for PEC water-splitting applications. Here, TiO₂ NTs were prepared by two-step electrochemical anodization, and Mo₂C was inserted by dip coating the NTs into Mo₂C precursors of various concentrations for various dipping times. Our findings indicated that the combined effect of multiple PEC improvement strategies could offer a versatile and systematic way to overcome the intrinsic and extrinsic limitations of TiO₂ NTs for PEC water-splitting applications.

2. Materials and Methods

2.1. Materials

Titanium foil (0.127 nm thickness, obtained from Sigma Aldrich, St. Louis, MI, USA), molybdenum carbide (Mo₂C) (99%, obtained from Sigma Aldrich), Pt mesh (99%, obtained from Sigma Aldrich), ethylene glycol (analytical grade, obtained from Merck, Darmstadt, Germany), ammonium fluoride NH₄F (analytical grade, obtained from Merck, Germany), distilled water, ethanol (analytical grade, obtained from QReC, Kuala Lumpur, Malaysia) and sodium sulfate (Na₂SO₄) were used. All chemicals were used as received from the manufacturer without additional purification.

2.2. Fabrication of TiO₂ NTs and TiO₂ NTs Decorated with Mo₂C

The TiO₂ NTs were fabricated using a multiple anodization technique [24]. First, cleaned Ti foil (1.5 cm × 1.5 cm) was used as the anode, and Pt foil was used as the counter electrode connected to a power supply at a voltage of 50 V for one hour. Ethylene glycol containing 0.3 vol. % NH₄F and 2 vol. % distilled water was used as the electrolyte. The anodized film was then sonicated in a mixture of ethanol and distilled water (1:1) for 5 min to clean dirt away from the openings of the grown nanotubes. Subsequently, the Ti foil underwent a second anodization process for 30 min in the same electrolyte at the same voltage. Then, ethanol and distilled water were used to flush the samples. The anodized samples were then annealed at 450 °C for 3 h at a ramping rate of 2 °C/min. The best TiO₂ NTs that achieved the highest photocurrent were then dip coated in an ethanol/distilled water mixture containing highly dispersed Mo₂C at four different concentrations of 5 g/L, 10 g/L, 15 g/L and 20 g/L, and the obtained samples were labeled S-1, S-2, S-3 and S-4, respectively.

2.3. Characterization

X-ray diffraction (XRD) patterns were acquired via a Bruker D-8 Advance (Ettlingen, Germany, Equipment sourced by Bruker Malaysia), and X-ray photoelectron spectroscopy (XPS) was performed using a Kratos/Shimadzu instrument (model: Axis Ultra DLD) (Milton Keynes, UK, Equipment sourced by Shimadzu Malaysia) to determine the chemical phases present in the crystalline substances. The XRD patterns were analyzed using X’Pert HighScore software (Version 2.2b). To investigate the topographic nature of the surface, field emission scanning electron microscopy (FESEM) was carried out using a Zeiss Merlin Compact microscope (Oberkochen, Germany, Equipment sourced by Zeiss Malaysia). The optical properties were analyzed using a Perkin Elmer ultraviolet/visible/near-infrared spectrophotometer (UV–VIS-NIR) (model: Lambda 950) (Waltham, MA, USA, Equipment sourced by Perkin Elmer Malaysia).

2.4. PEC Property Measurements

An Ametek Versastat 4 was used to carry out the PEC analysis. An exposed area of 1 cm² was employed for testing the thin films that served as the working electrode in a PEC cell. The counter electrode consisted of a platinum wire; the reference electrode was a Ag/AgCl electrode. The counter electrode measured the potential difference between the two electrodes. In these experiments, 0.5 M Na₂SO₄ (pH 6.7) was used as the electrolyte. The current density on the thin film surfaces was measured in the dark and under solar AM 1.5 illumination using a xenon lamp (Oriel with an intensity of 100 mW cm⁻²). Linear sweep voltammetry (LSV) was conducted from 0 to +1.0 V versus Ag/AgCl in 0.5 M Na₂SO₄ at a scan rate of 5 mV s⁻¹. To obtain a deeper understanding of the charge transport behavior shown by the synthesized photoanodes, Mott-Schottky analysis was performed at 1 kHz. This allowed for calculation of the charge carrier densities, as well as the conduction band (CB). The electrochemical impedance spectra (EIS) Nyquist plots were constructed by utilizing 10 mV sinusoidal perturbations at a frequency of 100 kHz.

3. Results and Discussion

3.1. Physical Characterization of TiO₂ NTs

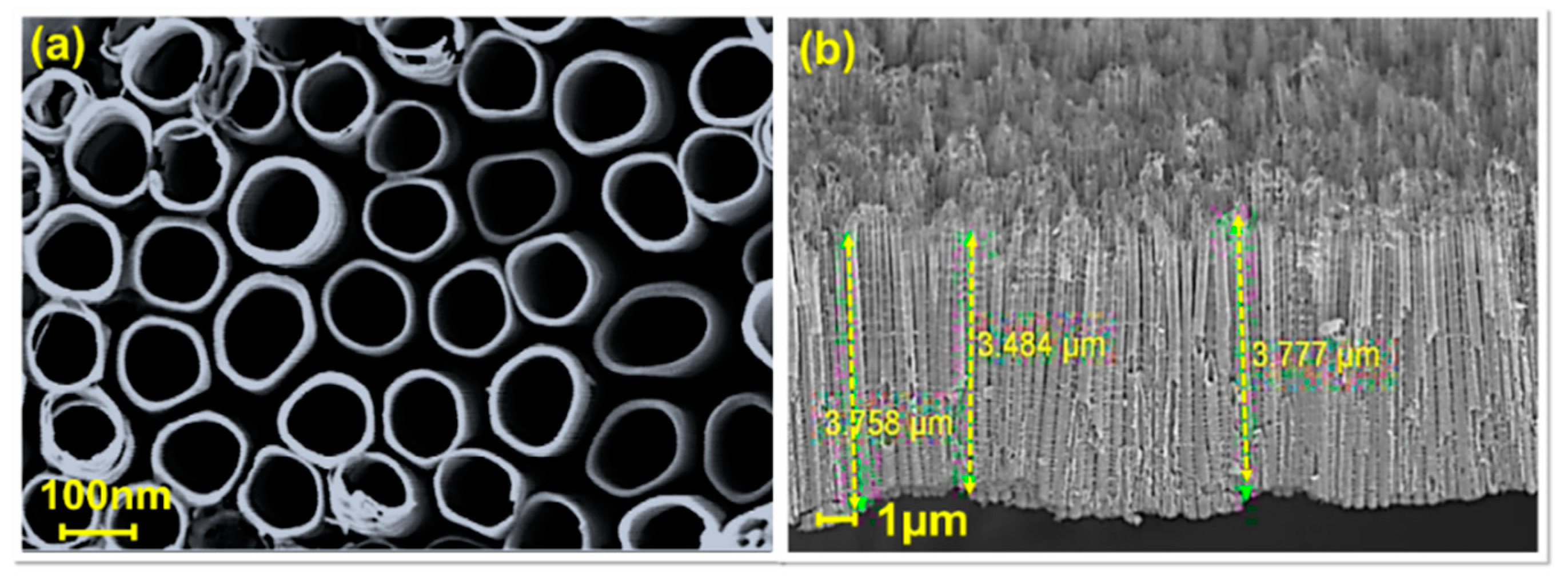

To thoroughly investigate the growth of TiO₂ NTs, a detailed analysis was conducted comprising analysis of the morphology, crystal phase, crystallinity, and optical properties. Figure 1 shows the FESEM results that capture the microstructure of the TiO₂ NT sample.

Based on the FESEM images, the TiO₂ NT sample clearly exhibited non-interconnected single tubes (Figure 1a). The diameter of the TiO₂ NTs was ~151–160 nm. Figure 1b displays cross-sectional views of TiO₂ NTs. The length of the TiO₂ NTs was ~3.4–3.8 µm.

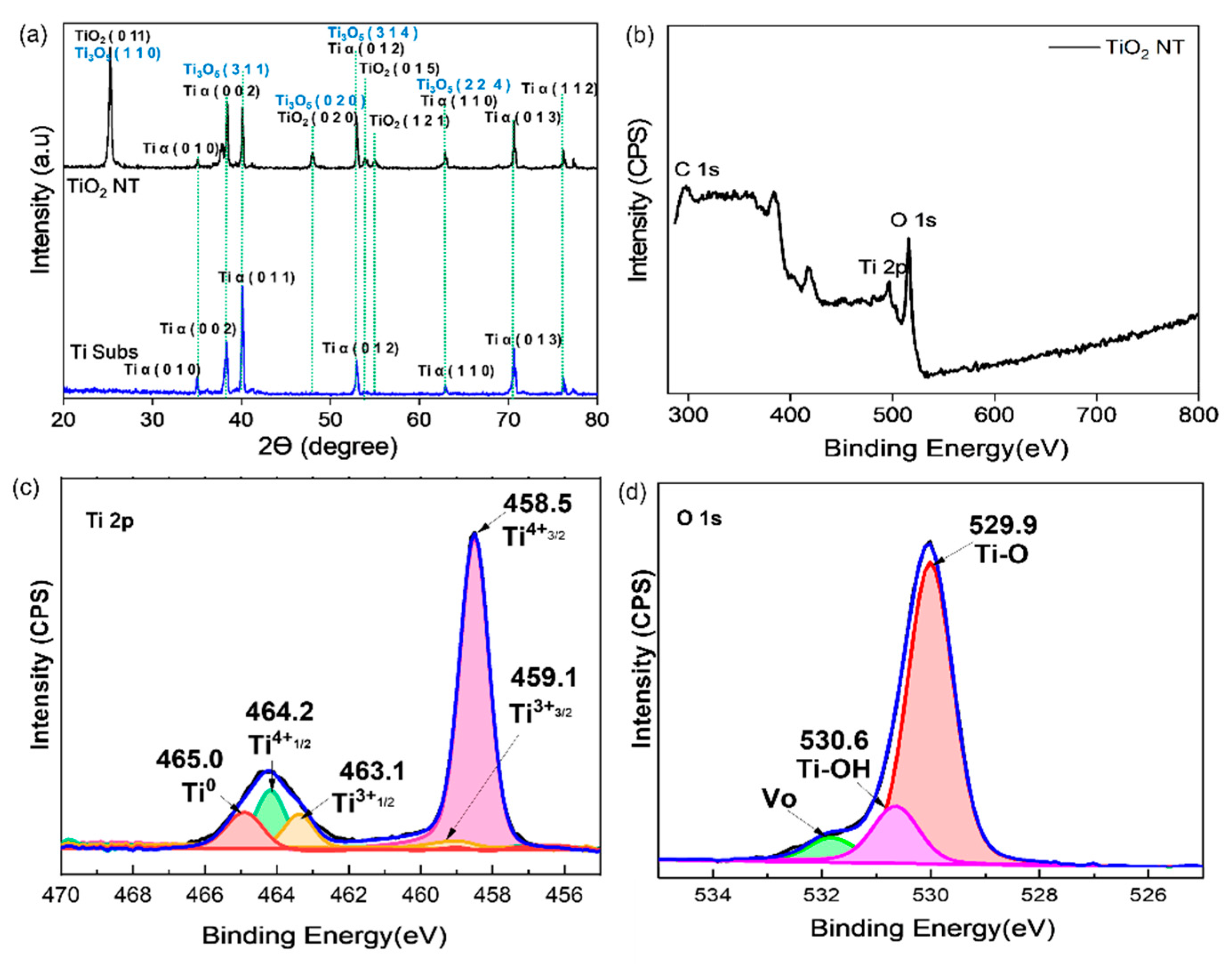

Next, XRD analysis was carried out to identify the phases and determine the chemical composition. Figure 2a shows the XRD patterns of the Ti foil substrate and TiO₂ NT sample.

The spectra show Ti alpha diffraction peaks representing the Ti foil at 35.01°, 38.27°, 40.10°, 52.99°, 62.89°, 70.66° and 76.18°, corresponding to the (0 1 0), (0 0 2), (0 1 1), (0 1 2), (0 1 3), (1 1 0) and (1 1 2) planes, respectively. However, when the sample was anodized, anatase peaks appeared at 25.28°, 47.83°, 53.09° and 55.02°, corresponding to the (0 1 1), (0 2 0), (0 1 5) and (1 2 1) planes, respectively. The intensity of the Ti alpha peaks was reduced because the surface of the titanium substrate was oxidized during the anodization process, which resulted in the formation of a layer of anatase titanium oxide. The XRD patterns found in this study are similar to those found in Quiroz et al., (2015), which contain a tri-titanium pentoxide (Ti₃O₅) phase [25]. Based on the XRD library patterns, the Ti alpha peaks overlapped with the Ti₃O₅ peaks at 38.27°, 52.99° and 70.66° and overlapped with some anatase peaks at 25.28° and 47.83°.

Figure 2b shows the results of the XPS analysis conducted to verify the presence of Ti₃O₅ in the TiO₂ NT samples. The peaks at ~464 eV and 458 eV correspond to Ti 2p, and the Ti 2p peaks of Ti³⁺ were observed at binding energies of 463.1 eV (Ti³⁺ 2p^3/2) and 459.1 eV (Ti⁴⁺ 2p^1/2). The Ti 2p peaks of Ti⁴⁺ appeared at 458.5 eV (Ti⁴⁺ 2p^3/2) and 464.2 eV (Ti⁴⁺ 2p^1/2). The XPS spectra of TiO₂ NTs revealed a modest shift in position and a change in the size of the original peaks of TiO₂ NTs from those in a previous study after self-doping with Ti³⁺. The observed peak shift indicates that the self-doping of Ti with Ti³⁺ affected its electronic state. As a consequence of this process, some of the Ti⁴⁺ ions in the lattice are believed to have been replaced by Ti³⁺ ions. Furthermore, the decrease in the Ti⁴⁺ peaks suggests that there was less TiO₂ present in the sample. The creation of oxygen vacancies in the surface layer during the multistep anodization procedure can be deduced to be responsible for the diminishing area of the Ti⁴⁺ species peak [26]. Furthermore, the peaks at binding energies of 529.9 eV and 530.6 eV were ascribed to lattice oxygen for TiO₂ NTs. The O 1s spectra provided more evidence demonstrating that more oxygen defects were present in the TiO₂ NTs [27]. The percentage of atomic oxygen vacancies for TiO₂ NTs was 6.25%. The XPS results agreed with the XRD results, suggesting that more Ti³⁺ was produced during the anodization process.

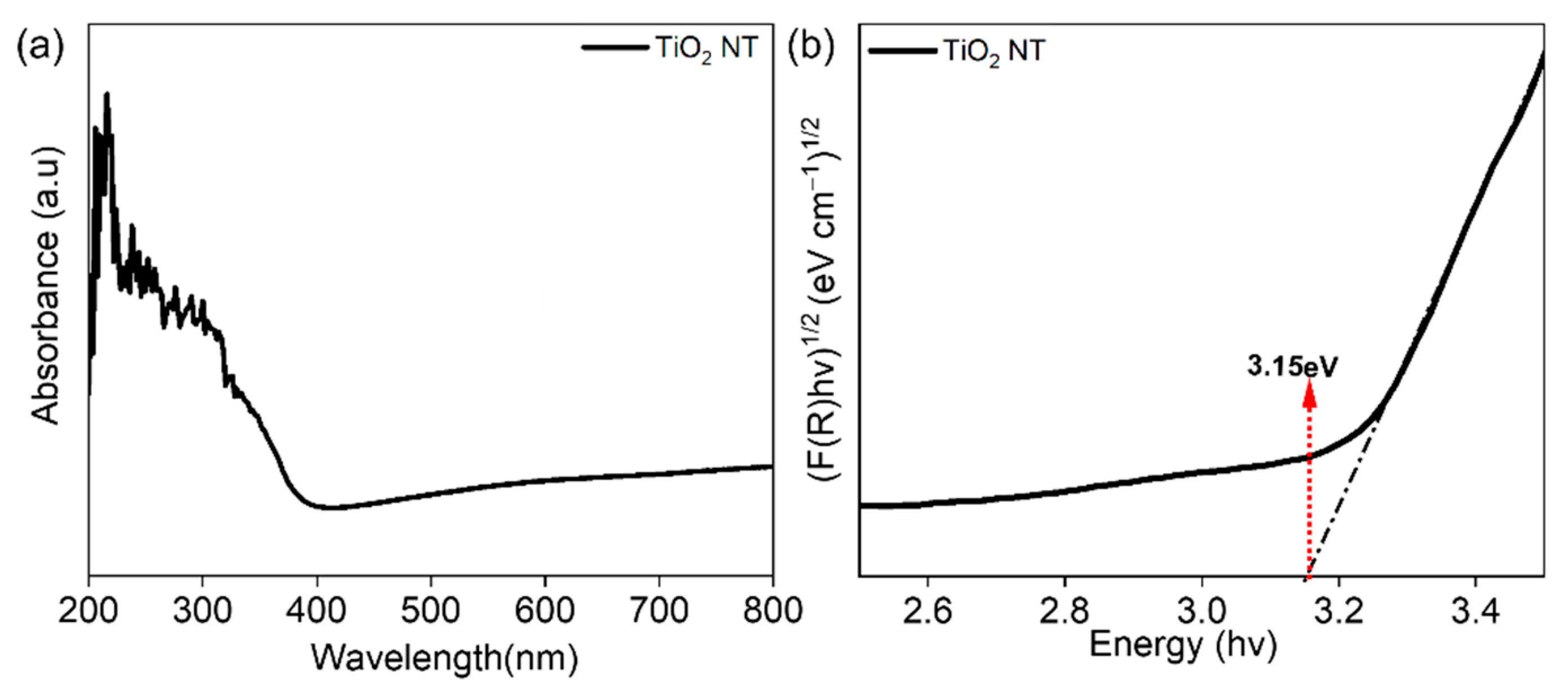

Figure 3a shows the UV–Vis absorption spectra over the wavelength range from 250 to 800 nm, showing that the TiO₂ NTs had higher absorption in the UV range. Next, the band gap of the sample was calculated using Kubelka–Munk theory, and the value for the TiO₂ NTs was 3.15 eV [3].

3.2. Physical Characterization of Mo₂C as a Cocatalyst Decorated on TiO₂ NTs

Mo₂C was added to TiO₂ NTs using a dip coating technique. Dip coating is a simple, dependable, and robust process that can be used to cover almost any substrate material by immersing it in a solution and then removing it to drip dry to form a conformal coating.

FESEM analysis was performed to study the effect of different concentrations of the Mo₂C precursor on the morphology of TiO₂ NTs. Figure 4(a1–d3) shows micrographs of TiO₂ NTs for different precursor Mo₂C concentrations.

As shown in Figure 4, increasing the concentration resulted in an increasing deposition amount. Figure 4(a1,b1) illustrate that the distribution of Mo₂C on the surface of the TiO₂ NTs was not uniform. Figure 4(c1) shows that Mo₂C was well distributed inside the TiO₂ NT tubes at a concentration of 15 g/L, which was crucial for the photoelectrode activity. Increasing the concentration to 20 g/L resulted in large nanoclusters of Mo₂C blocking most TiO₂ NTs (Figure 4(d1)). Next, Figure 4(a2–d2) illustrates cross-sectional views of the decorated Mo₂C on the TiO₂ NTs. The length of the TiO₂ NTs increased as the concentration of Mo₂C increased; this finding may support the idea that Mo₂C is distributed on the upper openings of the TiO₂ NTs. In addition, an image of the cross-section of sample S-3 can be seen in the inset of Figure 4(c2); this image demonstrates that Mo₂C decorated the outside wall of the tubes. Energy-dispersive X-ray spectroscopy (EDX) mapping and cross-section analysis were performed to determine the distribution of Mo₂C in sample S-3 with a concentration of 15 g/L. The findings are shown in Figure 4(a3–d3), suggesting that Mo₂C was equally dispersed over the TiO₂ NT surface and in the interstices. This indicates that Mo₂C was efficiently distributed across the sample, resulting in a uniform distribution.

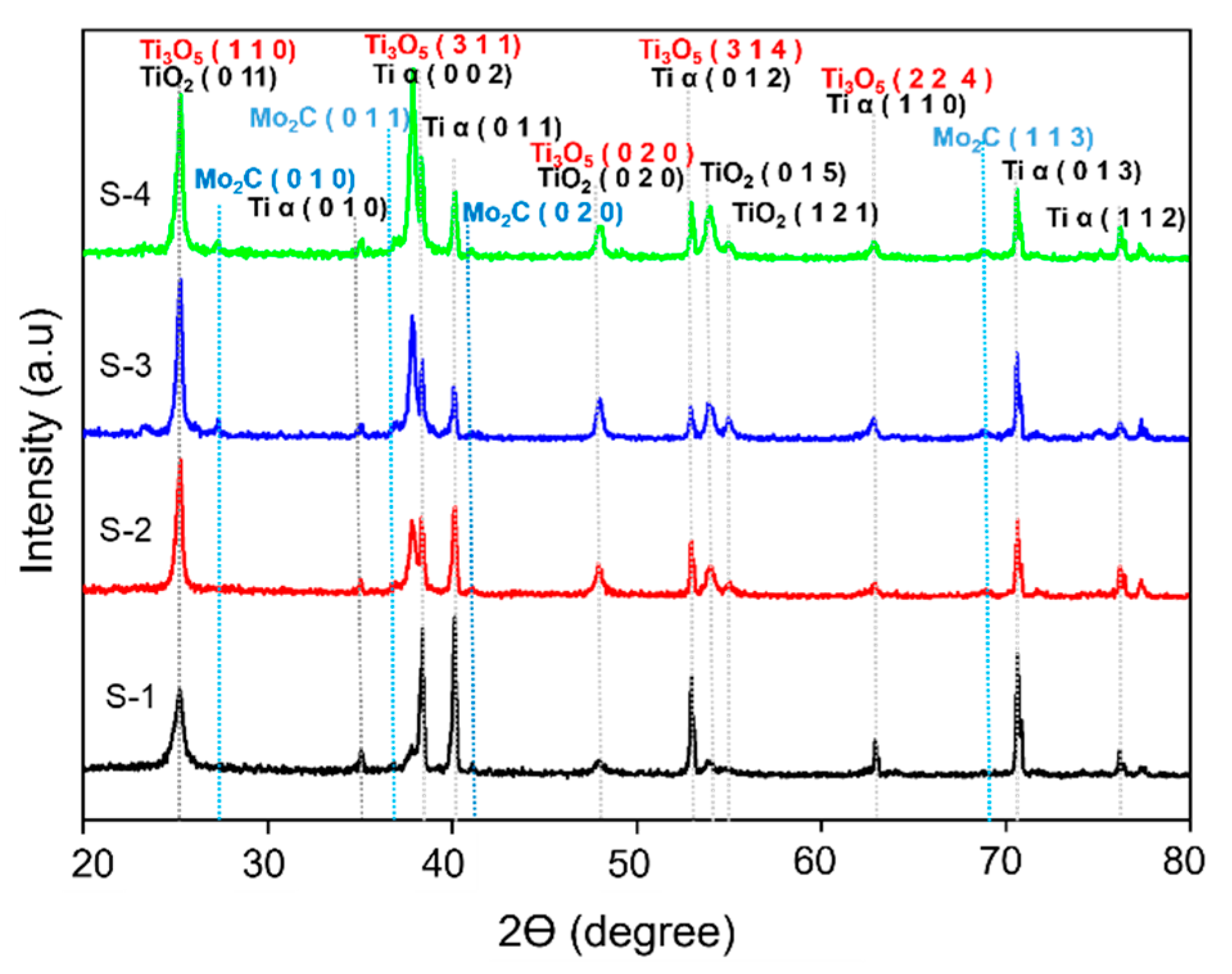

The XRD patterns of TiO₂ NTs after deposition of Mo₂C are presented in Figure 5.

The diffraction peaks at 25.1°, 37.8°, 48.0°, 52.9° and 62.3° in the pattern of bare TiO₂ NTs were identified as corresponding to the planes of anatase TiO₂ and Ti₃O₅ phases (JCPDS nos. 98-009-4632 and 98-007-1775). Upon deposition of Mo₂C nanoparticles, the patterns displayed additional peaks at 27.2°, 37.2°, 38.3°, 41.1° and 68.8°, which correspond to the standard diffraction peaks of Mo₂C (JCPDS no. 98-006-1705). These findings are consistent with the FESEM results, in which increasing the concentration of Mo₂C leads to increases in the amount of deposited Mo₂C and the intensity of the peaks. The observed peaks indicate the successful deposition of Mo₂C nanoparticles onto the TiO₂ NT surface, which can potentially enhance the PEC properties of the material.

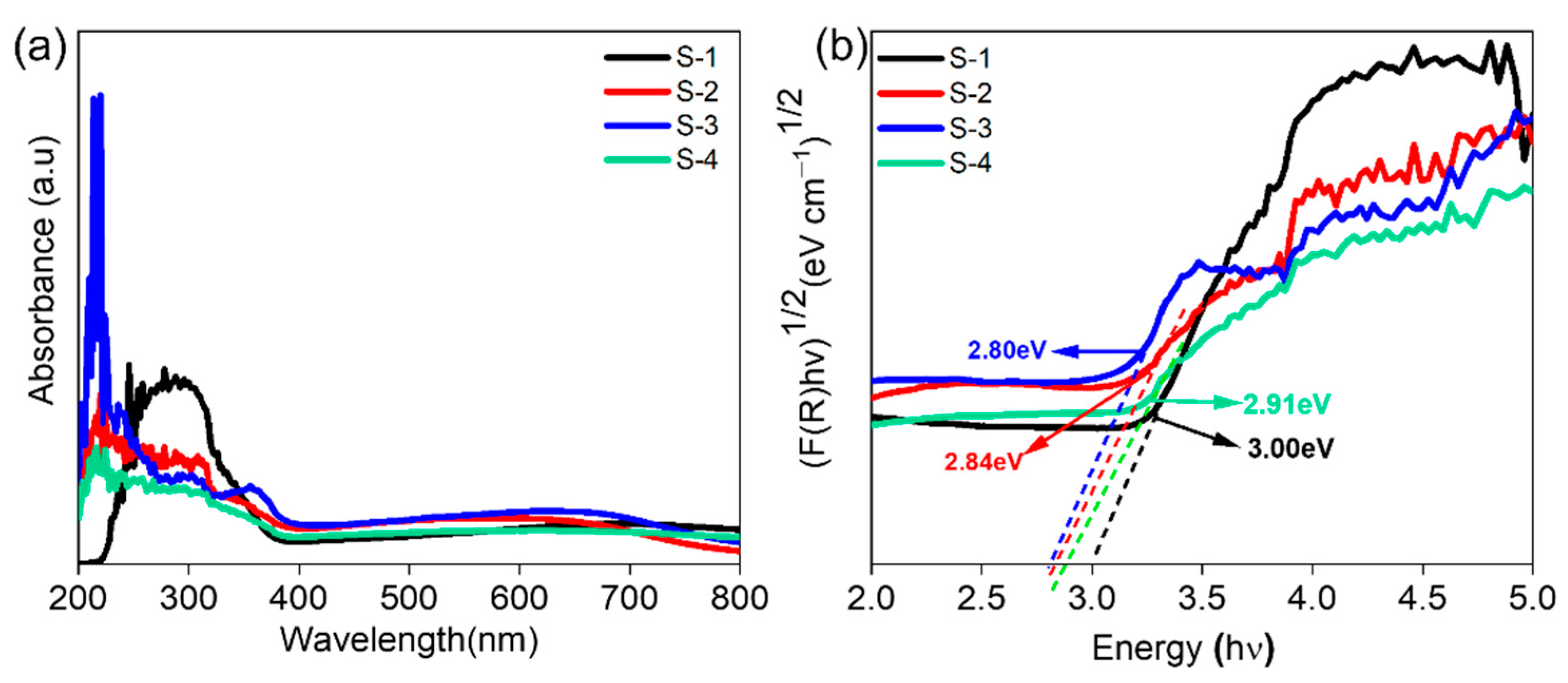

The UV–Vis absorption spectra of Mo₂C/TiO₂ NTs with various concentrations are presented in Figure 6a. The TiO₂ NTs loaded with Mo₂C nanoparticles exhibited a broader absorption in the visible light region (450 nm to 800 nm) compared to pure TiO₂ NTs. Among the samples, S-3 showed the highest absorption and thus had the highest PEC activity. The band gap of the samples is displayed in Figure 6b, revealing that the Mo₂C-loaded TiO₂ NTs had a lower band gap than the pure TiO₂ NTs.

The band gap of S-3 was determined to be ~2.80 eV, the smallest among the samples. Previous reports suggest that higher absorption in the visible region corresponds to better PEC water-splitting activity. Fine-tuning the band gap and band locations is necessary when creating visible light-responsive photocatalysts for hydrogen production.

3.3. PEC Properties of TiO₂ NTs and Mo₂C as a Cocatalyst Decorated on TiO₂ NTs

Mo₂C has garnered interest in the field of PEC applications due to its exceptional stability in challenging environments and remarkable electrical conductivity, making it a promising cocatalyst for such purposes. Mo₂C applied onto TiO₂ NTs has been observed to function as an electron transfer mediator, thereby facilitating the separation of photogenerated charge carriers and resulting in an improved overall PEC performance of TiO₂ NTs. The hybridization of TiO₂ NTs with Mo₂C has been found to exhibit a synergistic effect, whereby the distinctive characteristics of each material are combined to overcome the constraints of TiO₂ NTs. This discussion explores the PEC characteristics of TiO₂ NTs and TiO₂ NTs that have been decorated with Mo₂C as a cocatalyst.

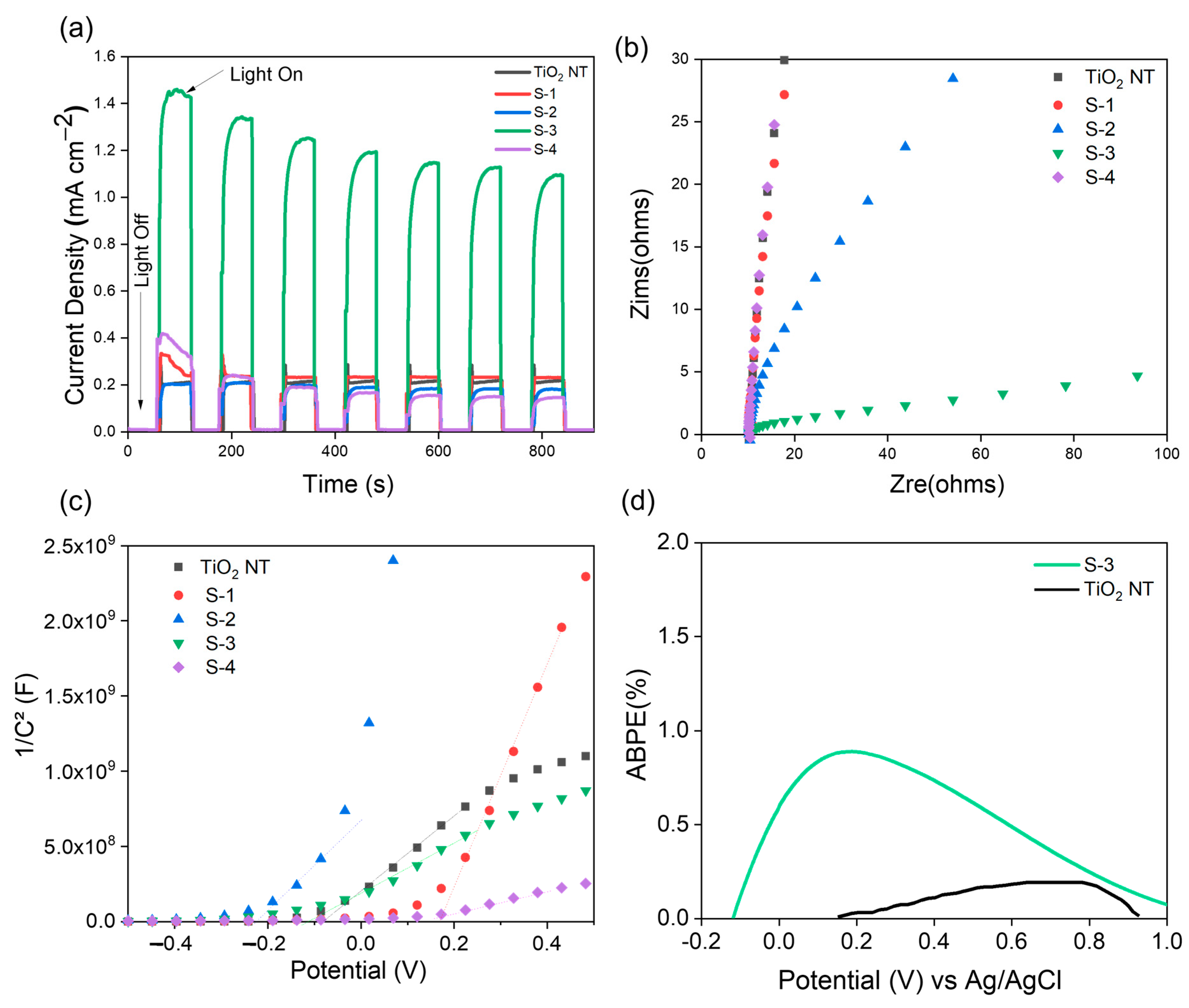

The correlation between the TiO₂ NTs with Mo₂C as a cocatalyst and the PEC behavior of TiO₂ NTs was investigated by chronoamperometric measurements under light chopping, and the test was carried out in 0.5 M Na₂SO₄ at a bias potential of 0.7 V vs. Ag/AgCl in the presence and absence of illumination (light-off and light-on). The concentration of Mo₂C varied, with values of 5 g/L (S-1), 10 g/L (S-2), 15 g/L (S-3) and 20 g/L (S-4), as shown in Figure 7a.

All samples demonstrated a satisfactory photocurrent density as well as a good level of stability after 900 s. The photocurrent density of the TiO₂ NT sample was determined to be 0.21 mA cm⁻², and this value of photocurrent increased approximately one-fold when compared to the value of pure TiO₂ NT due to the presence of oxygen vacancy defects, as reported in previous work [28,29,30]. Meanwhile, the photocurrent densities produced by samples S-1, S-2 and S-4 were similar to that of bare TiO₂ NTs. The significant photocurrent density produced by sample S-3 had a value of ~1.4 mA cm⁻², nearly five times higher than that of bare TiO₂ NTs.

EIS is a trustworthy method for investigating the charge transfer and recombination rate at semiconductor electrolyte interfaces, where “Zre” is the real portion and “Zim” is the imaginary part. Due to the relationship between the arc of the circle and the charge transfer resistance, the Nyquist plots provide sufficient information on the charge transfer. In the Nyquist plot, a smaller arc indicates greater charge carrier separation and higher charge transfer efficiency (conductivity) [30]. Figure 7b shows that sample S-3 has the smallest semicircle radius. This indicates that photogenerated electron-hole pairs are more effectively separated and that electrons may more easily cross the valence band in response to a relatively low-energy excitation. As a consequence, the charge transfer in S-3 is enhanced, proving the presence of a large separation between the holes and electrons.

The Mott–Schottky (M–S) curves of all photoelectrode samples are shown in Figure 7c. The flat band potential (E_fb) was estimated by projecting the linear section of the plots onto the potential axis. In addition, the donor density (N_D) was calculated using the slope of the M–S curves and Equation (1) obtained from previous work [25,30]. The N_D and E_fb values determined are reported in

Table 1. Flat band potential (E_fb) and donor density (N_D) of TiO₂ NTs and S-3.

Sample	ND (×109 cm−3)	Efb (V)	Band Gap (eV)
TiO2 NT	3.7918	−0.08	3.17
S-3	3.2629	−0.12	2.80

, and the E_fb values of sample S-3 are less negative, which indicates an upward shift of the Fermi level [30,31].

$$N_{\mathrm{D}}=\left(\frac{2}{e\epsilon {\epsilon }_o{A}^2}\right){\left[\frac{d\left(\frac{1}{C2}\right)}{dE}\right]}^{-1}$$

(1)

where $\left[\frac{d\left(\frac{1}{C2}\right)}{dE}\right]$ is the slope of the tangent line in the Mott–Schottky plot, e is the electron charge, ε is the dielectric constant of the TiO₂ film, ε⁰ is the vacuum permittivity, and A is the surface area of the TiO₂ NT thin film electrode.

The efficiency with which a PEC cell converts light into electricity is quantified by the applied bias photon-to-current efficiency (ABPE). To assess how well a PEC cell converts solar energy into a usable form, the ABPE test is crucial. This method is useful for comparing the efficiency of various materials in converting light into electricity and for determining the efficacy of individual materials. To further improve the PEC cell design, the ABPE may be utilized to investigate how an applied bias affects the cell output. In conclusion, the ABPE is a useful metric for assessing PEC cell performance, yielding crucial data for improving future solar energy conversion technologies. Figure 7d shows the ABPE measurements of TiO₂ NTs and S-3. The ABPE value was calculated using Equation (2) [32,33]:

ABPE % = [J_p (E₀ rev − E_app)/I₀] × (100)

(2)

where J_p is the photocurrent density (mA/cm²), I₀ is the illumination intensity (mW/cm²), E₀ rev is the standard reversible potential for water splitting (1.23 V), and E_app is the applied potential. The highest ABPE value for TiO₂ NTs is 0.19% at 0.8 V, while that of S-3 is 0.89% at 0.2 V. Next, the solar-to-hydrogen efficiency (STH) was also calculated for PEC water splitting with a visible light source of irradiance 100 mW cm⁻² using Equation (3) [32,33]:

$$STH\left(\%\right)=J_{\mathrm{P}}\frac{1.23-V_{\mathrm{A}\mathrm{p}\mathrm{p}}}{P} \times 100$$

(3)

where J_p is the photocurrent density (mA/cm²), V_app is the applied potential, and P is the intensity of the light source. The maximum STH % for TiO₂ NTs is 0.05%, while that for Mo₂C/TiO₂ NTs (S-3) is 0.32%, as shown in

Table 2. Measured parameters of the PEC cell.

Sample Details	Photocurrent Density (mA cm−2) at 1 V vs. Ag/AgCl	Solar to Hydrogen Conversion Efficiency, (η %)
TiO2 NT	0.23	0.05
S-3	1.4	0.32

.

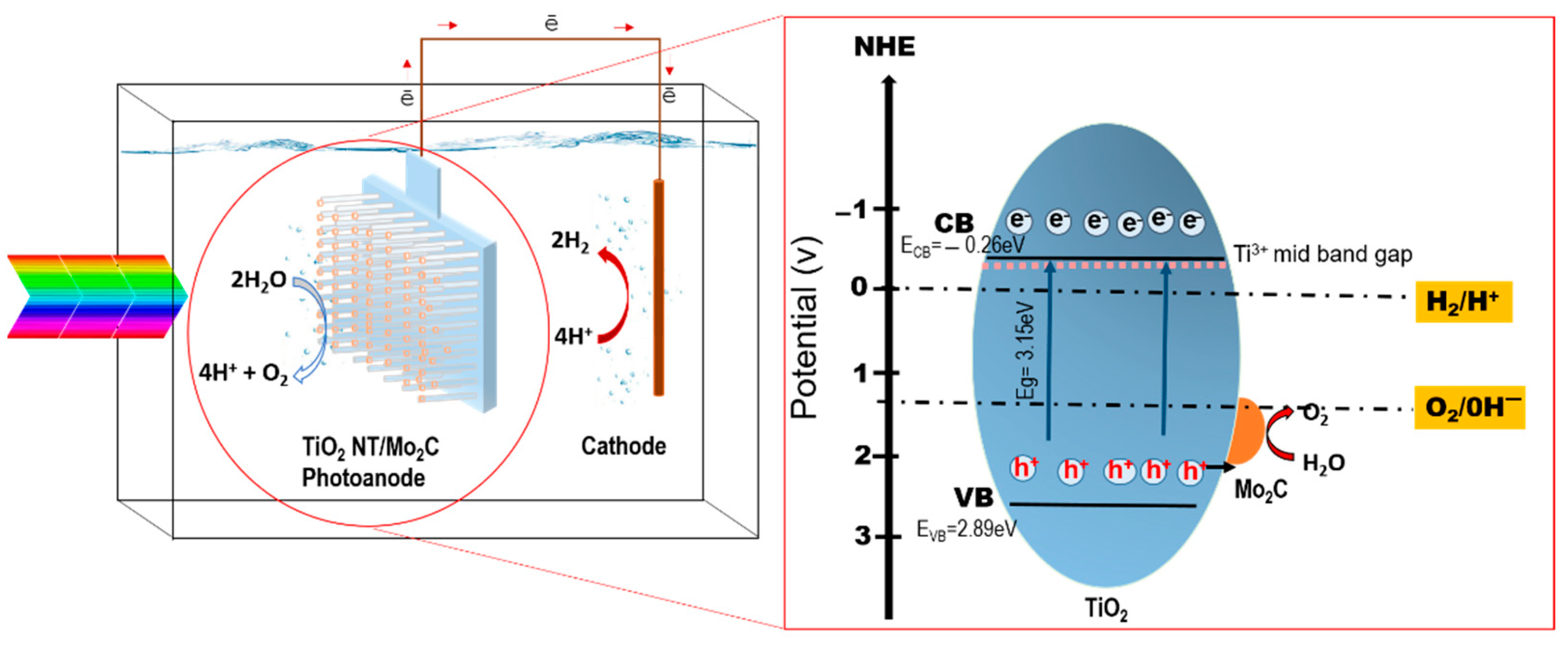

The increased PEC properties of TiO₂ NTs decorated with Mo₂C are further explained by the proposed mechanism shown in Figure 8.

In this work, oxygen vacancies produce localized electronic states inside the energy gap, which correspond to Ti³⁺ species, which are in the mid-band gap. These restricted states may serve as traps or recombination sites for electrons and holes created by photons. The Mo₂C deposited onto the TiO₂ photoanode may serve as a cocatalyst to accelerate the HER and oxygen evolution reaction (OER), leading to a higher efficiency in PEC water splitting. Moreover, the Mo₂C cocatalyst may minimize the energy barrier for charge transfer and avoid charge recombination, resulting in an increased photocurrent and better stability.

Upon irradiation with solar light, the TiO₂ electrons may be excited into the CB during the process, and electrons move from the TiO₂ photoanode to the cathode, resulting in the reduction of protons to hydrogen at the cathode. Mo₂C works as a cocatalyst, boosting the oxidation of water molecules by facilitating the flow of holes from the TiO₂ photoanode surface to the water molecules. The Mo₂C catalyst helps reduce the energy barrier for the OER, which leads to a decrease in the overpotential needed to drive the reaction. This may lead to an increase in the rate of the reaction and consequently a greater efficiency of the entire water-splitting process.

The method for achieving very uniform Mo₂C nanoparticles distributed on both the inside and outside vertically aligned TiO₂ NTs via the dip coating deposition process has great promise. These novel interactions of Mo₂C/TiO₂ NTs dramatically enhance both the light absorption and the PEC activity under visible light illumination by 5-fold compared to those of pure TiO₂ NTs. These characterization results are consistent with an improved Mo₂C/TiO₂ NT performance, although the result is not as incredible as that reported by previous researchers on the photocatalytic effect of Mo₂C for pristine powder TiO₂ [34]. There is still much room to improve the performance, such as by optimizing the length and tube diameter of TiO₂ NTs so that they are suitable for Mo₂C diffusion, as well as the Mo₂C deposition methods.

4. Conclusions

The implementation of Mo₂C as a cocatalyst led to a significant enhancement in the photocurrent density of TiO₂ NTs. The photocurrent density of the modified TiO₂ NTs was observed to be significantly enhanced by a factor of five when compared to the unmodified TiO₂ NTs. The implications of these findings are of great importance for the further development of environmentally sustainable PEC water-splitting technologies, specifically in the domain of hydrogen production. The successful decoration of TiO₂ NTs with Mo₂C was confirmed through XRD and FESEM analysis. Moreover, the incorporation of Mo₂C has been observed to significantly decrease the band gap and enhance the light absorption capabilities of TiO₂ NTs. Significantly, it was determined that the most favorable concentration of Mo₂C was 15 g/L (S-3), exhibiting the highest photoelectrochemical efficiency. In general, this study provides insights into the possible utilization of Mo₂C-decorated TiO₂ NTs, specifically the Ti₃O₅ phase, for enhancing the effectiveness and efficacy of photoelectrochemical systems. The utilization of Mo₂C as a cocatalyst in PEC water-splitting applications is highly promising due to several factors. These include the achievement of enhanced photocurrent density, the confirmation of Mo₂C’s presence through X-ray diffraction (XRD) analysis, the reduction of the band gap, and the determination of an optimal concentration.
