Article

Biocompatibility Assessment of Zinc Alloys as a New Potential Material for Bioabsorbable Implants for Osteosynthesis

by
Maria Roesner
1,
Sergej Zankovic
1,
Adalbert Kovacs
2,
Moritz Benner
2,3,
Roland Barkhoff
3 and
Michael Seidenstuecker
1,*
1
G.E.R.N. Tissue Replacement, Regeneration & Neogenesis, Department of Orthopedics and Trauma Surgery, Medical Center-Albert-Ludwigs-University of Freiburg, Faculty of Medicine, Albert-Ludwigs-University of Freiburg, Hugstetter Straße 55, 79106 Freiburg, Germany
2
Limedion GmbH, Coatings and Surface Analysis, Am Schäferstock 2-4, 68163 Mannheim, Germany
3
Quadralux e.K., Am Schäferstock 2-4, 68163 Mannheim, Germany
*
Author to whom correspondence should be addressed.
Materials 2023, 16(15), 5224; https://doi.org/10.3390/ma16155224
Submission received: 23 June 2023 / Revised: 17 July 2023 / Accepted: 23 July 2023 / Published: 25 July 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
In the last several years, zinc and its alloys have come into focus as bioabsorbable materials by qualifying themselves with an excellent corrosion rate, mechanical properties, anti-bacterial effects. and considerable biocompatibility. In this study, the biocompatibility of zinc–silver alloys containing 3.3 wt% silver (ZnAg3) was assessed by evaluating their cell viability, the proliferation rate, and the cell toxicity. Two alloys were investigated in which one was phosphated and the other was non-phosphated. The alloys were tested on human osteoblasts (hOb), which are, to a large extent, responsible for bone formation and healing processes. The performance of the phosphated alloy did not differ significantly from the non-phosphated alloy. The results showed a promising biocompatibility with hOb for both alloys equally in all conducted assays, qualifying ZnAg3 for further investigations such as in vivo studies.

1. Introduction

Orthopedics and trauma surgery are major fields in surgical medicine and globally up to 28.3 million surgical procedures were performed per year between 2017 and 2022 with an increasing tendency [1]. A great portion of these surgeries were conducted with hardware such as metal implants [1]. Hardware such as screws and nails are commonly used in surgery to reconnect fracture segments and stabilize the affected bone structure. The Global Burden of Disease (GBD) 2019 Fracture Collaborators [2] reported 455 million prevalent cases of fracture in 2019. For several years, there was still the question pending whether and under which circumstances an implant should be removed, especially after trauma surgery [3,4,5,6]. The decision yields significant medical consequences for the patient as well as economic consequences for the hospitals since the removal requests a second procedure, including all the risks and costs of a conventional surgical intervention [7]. With bioabsorbable implants entering the market, this question is redundant [8]. In the last decades, numerous studies have been conducted to investigate different alloys to find an ideal material for medical applications which would meet the high requirements in terms of mechanical properties and biocompatibility [8,9,10,11,12,13,14,15,16]. Bioabsorbable materials are expected to degrade at a speed adequate for the related tissue, providing the needed stability over time and allowing the natural healing process [7,11]. Until today, one of the first choices in orthopedics and trauma surgery for metal implant usage is titanium and its alloys [9], although long-term exposure can still bring the risk of foreign body reaction or inflammation [9,17]. Despite the good performance of a permanent implant, the issues on stress shielding of the organism and a possibly necessary second surgery remain [8].
Within the last years, zinc alloys have progressively gained the attention of the scientific community [14,15,16,18,19,20,21,22,23,24,25].Zinc is one of the trace elements of the human body and shows a great biocompatibility [16]. Studies by, Vojtěch et al. [14], for example, have demonstrated that the absorbed amounts of zinc coming from a degrading zinc implant are marginal compared to the tolerable daily dose of zinc, which is limited to a maximum intake of 40 mg/day [14,26]. When degrading, zinc is not known to convert to hydrogen, which can affect the healing process by creating potentially harmful hydrogen gas pockets in the surrounding tissue, which is a major issue with magnesium [23,27,28,29,30]. Furthermore, zinc is identified as an activator of aminoacyl-tRNA synthetase in osteoblastic cells, which leads to increased bone formation and mineralization. In addition to that, zinc has an inhibitory effect on osteoclastic bone resorption because it interferes with the osteoclast-like cell formation [31,32]. The degradation rate of the material is fundamental to its use as a bioabsorbable implant, whereby iron-based alloys are found to be below the benchmark of the recommended rate and magnesium-based alloys degrade too fast, while zinc alloys degrade at a reasonable rate [16,19,33,34]. Zinc and its alloys also meet the requirements regarding the corrosion rate as Hagelstein et al. [35] showed. In addition, Li et al. [36] has also shown that zinc–silver (ZnAg) alloys have antibacterial properties and exhibit no harmful toxicity [9,34,36].In addition to the promising biocompatibility, anti-inflammatory properties, and excellent corrosion rate, pure zinc itself seems to lack the necessary mechanical properties [19,21,37]. For this reason, alloying it with other materials could improve the mechanical properties and qualify it as an excellent biomaterial [19,21,32].
The aim of this study was to assess the biocompatibility of two ZnAg alloys, which differed in their surface by being either phosphated or non-phosphated. Mostaed et al. [34] described a series of ZnAg alloys with an Ag percentage between 2.5 and 7.0 wt% [21,34]. At 7.0 wt% Ag, the improvement of the mechanical properties regrading tensile strength reached their maximum at around 287 MPa [21]. Alloying zinc with silver tremendously improved the anti-bacterial properties of the material since silver is well known to inhibit the adherence of bacteria on surfaces [32,34,38,39,40,41]. Furthermore, silver is widely used in implant medicine and is proven to be highly qualified as a bone implant [38,42]. Previous studies have identified ZnAg alloys as promising biomaterials and showed great biocompatibility through in vitro as well as few in vivo studies [15,16,23,24,32,36,41,43]. As one of the most abundant minerals in the human body, phosphorus participates in vital processes [44]. Approximately 85% of phosphorus present in the body can be found in bone material, mostly building complexes with calcium [45]. The phosphatation of metallurgical samples in previous studies was shown to alter the corrosion rate [46] and might have further effects on the material and its properties. The objective of this study is to prove the expected biocompatibility of both alloys and to determine whether the phosphated coat has any effect on the outcome.

2. Materials and Methods

2.1. Sample Preparation and Characterization

The assessed alloys provided by Limedion GmbH, Mannheim, Germany, contained zinc and silver with an Ag contingent of approximately 3.3 wt% described as ZnAg3. An Indutherm VC 600 casting machine was used for casting the zinc–silver alloys. To reduce grain sizes and enhance mechanical properties, a cylindrical extrusion process at elevated temperatures (250–300 °C) was applied. During the extrusion process, sections of cast rod with a height between 20 and 50 cm and a diameter of 30 mm were pressed into 6 mm thick rods (extrusion ratio 25:1). The rods were cut into 1 mm thick disks. Thus, the samples used in this study were disks that measured 6 mm in diameter and 1 mm in thickness. The ZnAg3 alloy used in this study had a tensile strength of 227 MPa and an elongation of 44% according to the manufacturer data.
Two alloys, which differed in their surfaces, were tested: one alloy was phosphated and the other alloy was non-phosphated. As phosphating medium, an acidic zinc–calcium-based phosphate solution was applied, resulting in phosphate layers of a layer weight of 2.0 g/m2.

2.1.1. Three-Dimensional Laser Scanning Microscopy

Both alloys were monitored throughout the experiment regarding the surface roughness. The roughness was determined at 200× magnification by using a 3D-laser scanning microscope (Keyence VK-X 200; Keyence, Osaka, Japan). For each alloy, 6 samples were evaluated and measured on 4 positions sectioned in 10 segments per sample. Pictures of the measured samples were taken at 100× magnification for accuracy and assembled digitally to obtain one bigger picture. The samples were not treated in any way before the measurements and imaging.

2.1.2. Energy Dispersive X-ray (EDX) Spectroscopy and Environmental Scanning Electron Microscope (ESEM)

The EDX was performed to determine the exact ratio of zinc and silver contained in both alloys. ESEM pictures were taken of both alloys at 2554× and 10,217× magnification with a large field secondary electron detector and 20 kV acceleration voltage at approximately 10−3 Pa. Both were carried out on an ESEM (FEI Quanta 250 FEG, FEI, Hilsboro, OR, USA) equipped with an EDX system (Oxford Instruments INCA x-act, Oxford Instruments, Abingdon, Oxfordshire, UK).

2.1.3. Inductively Coupled Plasma-Optical Emission Spectroscopy (ICP-OES)

To determine the metal concentrations of the ZnAg alloy, ICP-OES measurements were performed. Samples of about 0.1–0.2 g were cut out from three locations (bottom, middle, and top) of the 30 mm diameter cast ingot. After dilution in concentrated HNO3, working solutions were prepared by adding 2% HNO3. The measurements were carried out on a Perkin Elmer Avio 200 (Perkin Elmer, 710 Bridgeport Avenue, Shelton, CT 06484-4794, USA)

2.1.4. Atomic Absorption Spectroscopy (AAS)

According to ISO standard 10993-15:2019-11 [47], 5 samples of each alloy were incubated in Eppendorf tubes 2.0 mL containing 1 mL Tris buffer (TRIS Hydrochlorid, 1 kg Pufferan® ≥99%, p.a., article No. 9090.3, Roth®, Karlsruhe, Germany) for 10 days at room temperature. The pH value of the Tris buffer was set to 7.4 with hydrochloric acid solution (hydrochloric acid solution, Volumetric, Reag. Ph. Eur., 0.1 M HCl (0.1 N), Honeywell, Charlotte, NC, USA). After 1, 2, 3, 7, and 10 days, the 1 mL Tris buffer was transferred to an empty Eppendorf tube 2.0 mL and replaced with new Tris buffer. The collected solutions per day and sample were analyzed separately at the Institute for Geoscience, University of Freiburg, Germany, with an atomic absorption spectrometer (Perkin Elmer AAS 4110ZL Zeeman, Perkins Elmer, Waltham, MA, USA).

2.2. Biocompatibility

The evaluation of the biocompatibility was conducted according to ISO standard 10993-1:2021-05 [48]. Prior to usage in the cell culture experiments, the samples were sterilized following a specific protocol to avoid uncontrolled oxidation. The samples were separately immersed in 1 mL of different solutions in 2.0 mL Eppendorf tubes and sterilized in the ultrasonic bath (Branson Bransonic ultrasonic cleanser, 5510E-DTH, Branson, Danbury, CT, USA) for a defined amount of time. First, the samples were sterilized in n-hexan (n-Hexan, Rotipuran® ≥ 99%, p.a., article No. 4723.2, Roth®, Karlsruhe, Germany) for 20 min in the ultrasonic bath. After replacing the n-hexan with acetone (Acetone, Rotipuran® ≥ 99.8%, p.a., article No. 9372.1, Roth®, Karlsruhe, Germany), they were sterilized for another 20 min followed by a 3 min sterilization with 100% ethanol (ethanol absolut ≥ 99.8%, AnalaR Normapur® ACS, Reag. Ph. Eur. analytisches Reagens, VWR International, Darmstadt, Germany) and another 20 min with 70% ethanol. Finally, the samples were transferred separately into 2.0 mL Eppendorf tubes containing 250 μL medium (Gibco® Medium 199 (1X), article No. 31150-022, Gibco®, Grand Island, NE, USA; additives: 10% FBS and 1% P/S) and incubated for 24 h at 37 °C and a 5% CO2 saturation in an incubator (CO2 incubator ICO50, Memmert, Schwabach, Germany) to reach an homogeneous oxidated surface in all samples since oxidation naturally cannot be avoided neither in the cell culture nor in any organism. Furthermore, this step was needed to produce the eluate for the eluent trials.
Human osteoblasts (hOb) were used for all cell culture experiments and were obtained with informed consent and isolated from bone material obtained through surgical therapy such as total knee arthroplasty (Ethics vote FREEZE 418/19 of the ethics commission of Freiburg University Medical Center). All biocompatibility assays were conducted with 10,000 cells/40 μL per sample. For all assays, we tested a triplet of each alloy in direct contact trials and in eluent trials with the dilutions 1 to 6, 1 to 10, and 1 to 15. Three runs per assay were performed. The eluates of all individual samples were collected, and the different dilutions were prepared with the needed amount of eluate and medium. It should be noted that the calculations of the eluate for the cell proliferation assay (WST assay) and cytotoxicity assay (LDH assay) had to consider the added 40 μL medium containing the cells to avoid adulterations of the dilutions. After 3 and 7 days, a medium change as well as a change of the eluates was carried out.

2.2.1. Live/Dead Assay

For the live/dead assay, 40 μL of medium with a concentration of 250,000 cells/mL was pipetted onto each sample. The eluent trials were performed on Thermanox® membranes (Nunc®, Thermanox® Plastic Coverslips, catalog No. 174950, Nunc Bran Products, Rochester, NY, USA) since the samples needed to be transferable for evaluating them under the microscope later on. Due to the size of the Thermanox® membranes, the live/dead assay was conducted on 24-well plates. The samples were incubated for 2 h at 37 °C and a 5% CO2 saturation in the incubator (Midi CO2-incubator, catalog No. 3403, Unity Lab Services as part of Thermo Fisher Scientific, Waltham, MA, USA). Then, 1 mL medium and 1 mL of the needed eluate, respectively, was added to each well and the well plates were incubated for 3, 7, or 10 days. For each of the different durations of time, a separate well plate was pipetted. After the incubation, the samples were evaluated by staining them with a live/dead cell staining kit (Viability/Cytotoxicity Assay Kit for Animal Live & Dead Cell, catalog No.: 30002-T, Biotium, Fremont, CA, USA). The entire staining process, as well as the preparation of the staining solution, was performed in the dark to prevent photobleaching. A total of 2 mL of Dulbecco’s Balanced Salt Solution (DPBS (1X), article No. 14190-094, Gibco®, Grand Island, NE, USA) was pipetted into a Falcon tube and 4 μL of ethidium homodimer III (Eth D-III) solution was added. Then, the solution was vortexed (Corning® LSE Vortex Mixer, catalog No. 6776, Corning, NY, USA) for a few seconds on a low level and 1 μL calcein was added. The samples were washed with DPBS and stained for 10 min in the prepared staining solution. The evaluation was conducted with an Olympus fluorescence microscope (BX51, Olympus, Osaka, Japan) at 5× and 10× magnification. For each sample, 5 pictures were taken, 1 overview and 4 detail shots. The calculations were performed with the counted cells of the detail shots at 10× magnification.

2.2.2. Cell Proliferation (WST Assay)

As in the previously described biocompatibility test, the cells were pipetted onto the samples and incubated. The WST assay was conducted on 48-well plates for the direct contact trials and 96-well plates for the eluent trials since the smaller sized working volume did not require as much eluate. Furthermore, each well plate comprised one triplet of blank wells only containing medium and one triplet of control wells containing medium with cells. After 2 h of incubation, 460 μL medium was added to each well on the 48-well plates and 160 μL of medium and 160 μL of the needed eluate, respectively, was added to each well on the 96-well plate. The well plates were incubated for 1, 3, or 7 days. A separate well plate was prepared for each duration of time. After the incubation, the medium or eluate was removed and the wells were washed three times with DPBS. For the direct contact trials, the samples were transferred to a new well on the same well plate to evaluate just the cells being located on the sample. A total of 500 μL medium without phenol red (Gibco® Medium 199 (1X), article No. 11043-023, Gibco®, Grand Island, NE, USA; additives: 1% FBS and 1% P/S) was pipetted into the wells containing a sample and 300 μL medium without phenol red was pipetted into the rest of the wells. For the eluent trials, 200 μL medium without phenol red was pipetted into each well. In total, 10% of the WST solution (Cell Proliferation Reagent WST-1, article-No. 11644807001, Roche, Basel, Switzerland) was added to each well and the plate was incubated for 2 h at 37 °C and a CO2 5% saturation. Then, 3 × 100 μL of each well of the direct contact trials and 2 × 100 μL of each well of the eluent trials were transferred to a new 96-well plate. All steps involving the WST solution were performed in the dark. Finally, the absorbance was measured at 450 nm using the Spectrostar nano (BMGlabtech, Ortenberg, Germany) spectrometer.

2.2.3. Cytotoxicity (LDH Assay)

The LDH assay was entirely performed with medium without phenol red since the medium was not replaced at any time and was directly evaluated by measuring the absorbance. According to the previous scheme, the same amount of cells were pipetted onto the samples and incubated. The LDH assay was conducted on 48-well plates for the direct contact trials and 96-well plates for the eluent trials and comprised of one triplet of blank wells alongside one triplet of negative and positive control wells. The negative control contained the cells and medium and was described as 0% toxicity. The positive control contained the cells and a solution consisting of medium with 1% Triton X and was described as 100% toxicity. After 2 h of incubation, 460 μL medium or 460 μL of the Triton X solution was added to each well on the 48-well plates and 160 μL medium, 160 μL of the Triton X solution or 160 μL of the needed eluate was added to each well on the 96-well plates. The well plates were incubated for 1, 2, or 3 days. A separate well plate was prepared for each duration of time. Then, 3 × 100 μL of each well of the direct contact trials and 100 μL of each well of the eluent trials was transferred to a new 96-well plate. The used cytotoxicity detection kit (Cytotoxicity Detection Kit (LDH), article. No. 11644793001, Roche, Basel, Switzerland) contained a catalyst solution which had to be added in a 1 to 45 ratio to a staining solution. Therefore, 160 μL of the catalyst solution was pipetted into 7.2 mL of the staining solution. Then, 100 μL of this solution was added to each well and the well plates were incubated for 30 min at room temperature. All steps involving the staining solution were performed in the dark and the well plates were sheltered in aluminum foil and placed in a dark room for the time of incubation. Finally, the absorbance was measured at 490 nm using the Spectrostar nano (BMGlabtech, Ortenberg, Germany) spectrometer. The calculations were performed according to the product information sheet [49].

2.2.4. pH-Measurements

The pH value was monitored throughout the cell culture experiments with a pH meter (Laboratory meter inoLab pH 7110 SET 4 pH/mV meter, article-No. WW1AA114, WTW as part of xylem brand, Washington, DC, USA). The medium that came into contact with the samples was collected during the medium changes. Thus, we could measure the pH value during the incubation with cells after 3, 7, and 10 days. For comparison, pure medium with and without phenol red as well as excessive eluate directly after production was also measured. The measurements on day 3, 7, and 10 were conducted with medium with phenol red.

2.3. Statistics

All calculations and designs of diagrams were executed with Origin 2022 Professional SR1 (OriginLab, Northampton, MA, USA). The conducted biocompatibility tests are presented by their means and standard deviations.

3. Results

3.1. Sample Characterization

3.1.1. Grain Size Determination

The following two microphotographs in Figure 1 show metallographic examinations of the alloy after casting (a) and after extrusion (b). The grain sizes of the cast alloy were in the range between 70 and 100 µm, while extrusion reduced the grain sizes to 5–10 µm (c).

3.1.2. Three-Dimensional Laser Scanning Microscopy

The results of the surface roughness measurements showed an average roughness (Sa) with 0.52 ± 0.11 µm for the non-phosphated samples and 0.57 ± 0.10 µm for the phosphated samples (see Figure 2).

3.1.3. Energy Dispersive X-ray (EDX) Spectroscopy

The EDX spectroscopy revealed that the suspected elements were found in both samples (Table 1 and Table 2). The carbon and oxygen found were unavoidable impurities on the surface as the EDX was not performed under sterile conditions and was rendered in the evaluations (Figure 3). The quantitative analysis showed an Ag weight% of 3.93 for the non-phosphated alloy, which is a slightly higher than expected (Table 1). For the phosphated alloy, the Ag weight% regarding just the zinc and silver would be 3.37 wt% if it was not for the phosphorus and oxygen (Table 1).

3.1.4. Environmental Scanning Electron Microscope (ESEM)

For both alloys, the surface structure was already observed at 40 µm. Notably the structure of the non-phosphated alloy (Figure 4a,c) showed the presence of grind marks that occurred through the manufacturing process of the material. In the images of the phosphated alloy (Figure 4b,d), the crystal structures of the phosphatation are visible.

3.1.5. Inductively Coupled Plasma-Optical Emission Spectroscopy (ICP-OES)

The ICP-OES measurement resulted in a value of 13.82 ± 2.44 mg/L Zn, corresponding to 96.7 ± 0.05% Zn. The specification of 96.7% Zn in the alloy was thus met. In addition, 0.47 ± 0.09 mg/L Ag was measured, corresponding to 3.30 ± 0.05% Ag. Here too, the specification of 3.3% silver in the alloy was met.
ElementConcentration mg/LPercentage %Index Value %
Zn13.82 ± 2.4496.70 ± 0.0596.70
Ag0.47 ± 0.093.30 ± 0.053.30

3.1.6. Atomic Absorption Spectroscopy (AAS)

The AAS did not show any significant difference in the measurements between the phosphated and the non-phosphated zinc alloys (Figure 5). Both alloys relieved atomic components increasingly until day 7. The silver was frequently in a non-measurable range. The phosphated alloy released slightly more silver components than the non-phosphated alloy.

3.2. Biocompatibility

3.2.1. Live/Dead Assay

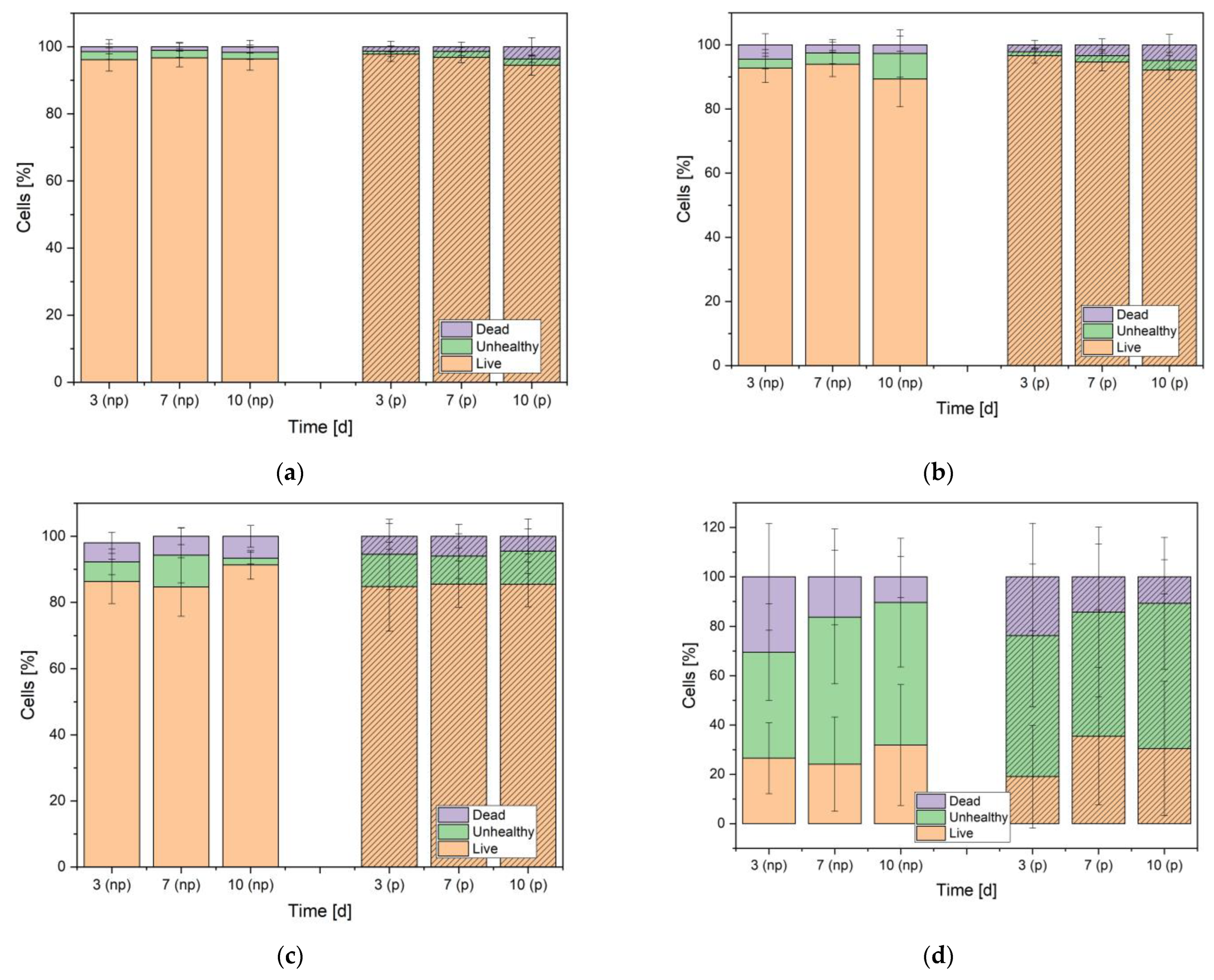

The number of living cells/mm2 in all the eluent trials was similar for all days and dilutions with 220 ± 138 cells/mm2 for the non-phosphated alloy and 366 ± 190 cells/mm2 for the phosphated alloy (see Figure 6). The direct contact trials were presented by clearly less cells with 15 ± 19 cells/mm2 for the non-phosphated alloy and 14 ± 22 cells/mm2 for the phosphated alloy (Figure 7 and Figure 8). The results are presented as percentages of living, unhealthy, and dead cells. Unhealthy cells are described as cells being not clearly identifiable as living cells, lacking sign of certain death which would be a red dyed cell nucleus. Unhealthy cells were not added to the counted cells/mm2. The dilution 1 to 15 (Figure 6a) showed the best cell viability for both alloys with a living cell percentage constantly above 94%. For the dilution 1 to 10 and 1 to 6 (Figure 6b,c), the results showed a non-significant tendency for a decrease in living cells. The statistics for the dilution 1 to 6 (Figure 6c) displayed percentages of living cells frequently below 90% but above 80%. The direct contact trials resulted in poorer cell viability (Figure 6d) with about 20–30% of living cells and a higher amount of unhealthy cells with percentages ranging between 40% and 60%. It is worth mentioning that the percentage of dead cells of the direct contact trials decreased significantly over time with 30.5% ± 21.6% on day 3, 16.2% ± 19.4% on day 7, and 10.4% ± 8.3% on day 10 for the non-phosphated alloy and 23.7% ± 21.7% on day 3, 14.2% ± 13.3% on day 7, and 10.8% ± 6.9% on day 10 for the phosphated alloy. The corresponding diagram can be found in Figure A1.

3.2.2. Cell Proliferation (WST Assay)

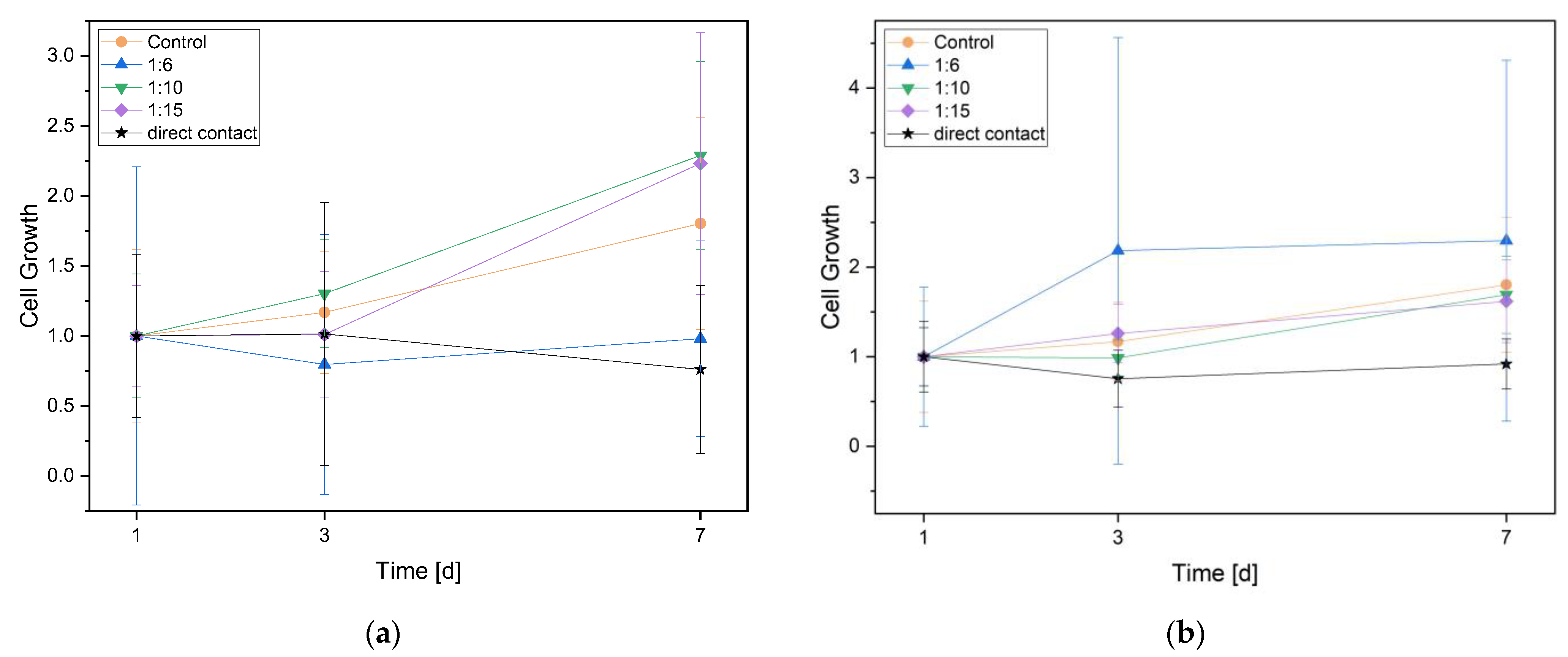

The cell proliferation over 1, 3, and 7 days was assessed with the WST assay. The measured values of the spectrometer were converted into factors, with day 1 representing the starting point. The dilutions 1 to 15 and 1 to 10 showed in both alloys a positive proliferation tendency, although without significance. The dilution 1 to 6 showed different results in the two alloys. For the phosphated alloy, there was a clear positive proliferation tendency, and for the non-phosphated alloy, the proliferation rate was markedly poorer. For both alloys, the direct contact trials showed the slowest proliferation rate (Figure 9).

3.2.3. Cytotoxicity (LDH Assay)

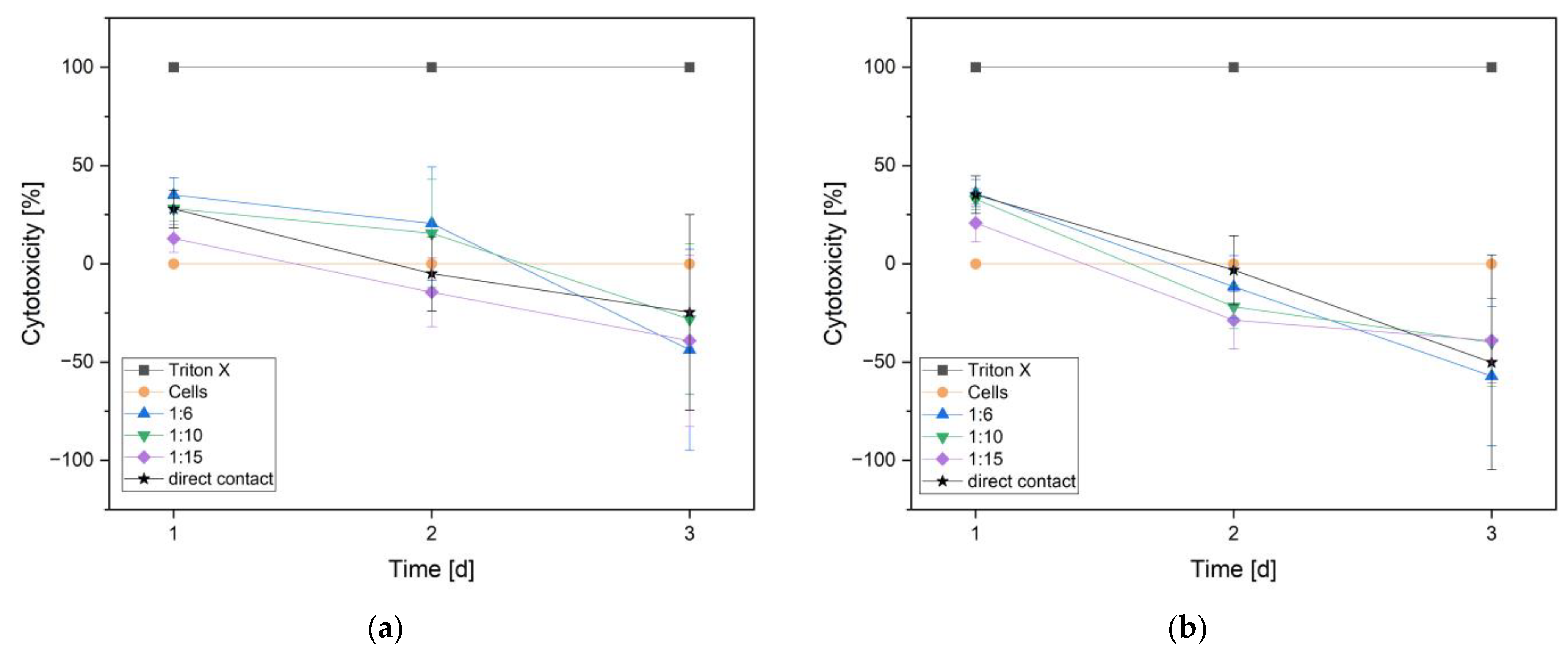

As Figure 10 shows, both alloys started with about 25% toxicity in all trials and reached about 0% toxicity within the second day. On the third day, neither of the two alloys showed toxicity in any trial.

3.2.4. pH-Measurements

The measured pH values are listed in Table 3 for the non-phosphated and phosphated alloy. For the medium with phenol red, the pH value was 7.69, and for the medium without phenol red, the pH value was 7.76.

4. Discussion

4.1. Sample Characterization

The surface roughness did not differ much between both alloys, with an average roughness (Sa) of 0.52 µm ± 0.11 µm for the non-phosphated samples and 0.57 µm ± 0.10 µm for the phosphated samples, and showed that the results were not impacted by a possible difference in the attachment of the cells to the material due to the surface roughness. Furthermore, the measurements are in a similar range compared to previous studies on biomaterials [50,51]. Wątroba et al. hypothesized that a surface roughness of 0.22 µm is adequate for MG-63 cells [52]. According to Andrukhov et al. [53], even a surface roughness of 1–2 µm is suitable for osteoblastic cells.
The EDX detected a reasonable amount of phosphorus and oxygen in the phosphated alloy. It needs to be considered that the phosphated coat could possibly alter the result of the EDX for the phosphated alloy concerning the Ag wt%. However, the EDX results certainly depict the surface to which the cells were exposed during the cell culture experiments. In addition, the ESEM pictures represented a surface structure of the non-phosphated alloy similar to previous studies for ZnAg alloys [36,41,50]. The surface of the phosphated alloy revealed a crystal-like structure due to the phosphatation. These structures were also observed by Ashassi-Sorkhabi et al. [46].
The atomic absorption spectroscopy (AAS) showed that the released amount of zinc and silver was similar for both alloys. The measurements also revealed that Ag frequently was under the detection limit, which matches the results of Li et al. [41]. The low solubility of Ag in chloride solution might explain the results, although Ag is known to build soluble AgCl2− complexes and, thus, can be present in the samples even in low concentrations. After day 7, a decrease in the zinc and silver concentrations occurred, which could be explained by a de-alloying effect on the surface. On the other hand, Zn(OH)2 and ZnO might have been formed and precipitated on the surface, causing the concentration of zinc to decrease before reaching a stable state as Li et al. [41] observed. Zinc was in a range of 50 to 230 µg/mL compared to the Li et al. [41] findings of a zinc ion concentration of 738.9 μM using DMEM + 10% FBS and 313.7 μM using McCoy’s 5A + 15% FBS. Furthermore, our results do not support the level of toxicity being determined by the zinc ion concentration in extracts for osteoblastic cells. Here, Kubásek et al. [54] proposed a maximum of zinc ion concentration of 120 µm for U-2 OS osteoblasts as the cellular tolerance limit.

4.2. Biocompatibility

The live/dead assay revealed a very high biocompatibility of both ZnAg3 alloys towards the human osteoblastic cells whereas all eluent trials showed the fraction of living cells to be above 80% throughout all dilutions and for every duration of time. In comparison, the direct contact trials resulted in a higher portion of unhealthy and dead cells. However, the amount of dead cells in the direct contact trials decreased significantly over time, as shown in Figure A1. Li et al. [41] evaluated the cell viability of a Zn–Ag–Au–V alloy with L929 cells and Saos-2 cells and displayed similar results for eluent trials. Unfortunately, they did not include the numbers of cells in the samples, but only the relative metabolic activity and the relative cell proliferation.
The WST assay showed no significant cell proliferation, however, human osteoblasts are known to have a very slow proliferation rate since it takes up 6 weeks for human osteoblasts after passaging in cell culture to gain a confluent plate [55]. Therefore, the results of the WST assay demonstrated that the number of living cells over time was maintained and the relative proliferation rate of the cells must not be altered necessarily. Holthaus et al. [56] also observed a very steady increase of cell proliferation for human osteoblasts over 7 days for titanium alloys.
The LDH assay showed a decreasing toxicity over 3 days for all trials and even reached a negative toxicity compared to the control on day 3. This emphasizes our assumption that ZnAg3 is well tolerated by human osteoblasts. Bosetti et al. [57] also displayed similar results for stainless steel- and silver-coated samples using the LDH and, therefore, showed that Ag does not exhibit any cytotoxicity and is well qualified as a biomaterial in orthopedics and trauma surgery. Wątroba et al. [52] also conducted the LDH assay on MG-63 with ZnAg3 among other materials and found higher concentrations of zinc ions to be cytotoxic. Our results did not show these issues in any of our runs of the LDH assay, while the direct contact trial had the highest zinc ion concentration and yielded no cell toxicity on day 3 for the non-phosphated alloy and was mostly comparable ZnAg3 alloy.
Since a material is considered cytotoxic if the reduction of the cell viability is greater than 30% according to ISO 10993 standard [48], the results do not provide any evidence of cytotoxicity. Collectively, the results of the live/dead assay, WST assay, and LDH assay independently suggest a consistent biocompatibility.
The measured pH values were similar for both alloys and reflect the increase of the pH value as the zinc ions of the material are relieved, which has also been proven in previous studies [41]. The physiological pH value of 7.36 should be maintained within a certain range [58]. During our trials, we found a pH value slightly higher than targeted. However, other materials increase the pH value even more drastically, such as magnesium alloys [59]. The human body provides more effective buffering systems than the cell culture which is a rather simulated environment for the cells.

5. Conclusions

Both zinc alloys demonstrated promising biocompatibility, which could be displayed in all performed assays in the eluent trials as well as in the direct contact trials. Considering the excellent mechanical properties, corrosion rate, and biocompatibility, zinc alloys are highly qualified for further investigations and future clinical use as a bioabsorbable implant. We could achieve consistent results throughout the study and disprove any possible cytotoxicity of ZnAg3 against human osteoblasts in vitro. As depicted in the literature, zinc and its alloys meet the high requirements set for bioabsorbable implants and seem to be distinguished candidates for biomaterials. We could not identify any differences in the results between the phosphate and non-phosphated alloy, which may be due to the low layer thickness. Prospectively, we aim to assess the aptitude of ZnAg3 in vivo for further evaluation.

6. Patents

The alloy, including its casting and extrusion process, is patented by the company Limedion. It includes the production of zinc with 90.0–99.5 wt% and silver with 0.05–10 wt%. The patent specification number is EP 3 250 247 B1.

Author Contributions

Conceptualization, M.S. and M.R.; methodology, M.R. and M.S.; software, M.R.; validation, M.R. and M.S.; formal analysis, M.R. and M.S.; investigation, M.R.; resources, M.S., A.K., M.B. and R.B.; data curation, M.R.; writing—original draft preparation, M.R.; writing—review and editing, M.S., S.Z., A.K. and M.B.; visualization, M.R.; supervision, M.S. and S.Z.; project administration, M.S.; funding acquisition, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This project was funded as an R&D cooperation project under the Mat2MedTech Programme of the Federal Ministry for Education and Research (BMBF) (funding code 13XP5103A, Project name: Z-Bioresorb). The article processing charge was funded by the Baden-Wuerttemberg Ministry of Science, Research and Art and the University of Freiburg in the funding program Open Access Publishing.

Institutional Review Board Statement

The ethical vote and approval FREEZE of the ethics commission of Freiburg University Medical Center were waived for this study due to the use of human osteoblasts.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This contribution originally was intended to be published together with Anke Bernstein for Musculoskeletal Biomaterials of the Research Center for Tissue Replacement, Regeneration and Neogenesis (G.E.R.N.) and the Department of Orthopaedics and Trauma Surgery at the University Hospital Freiburg in Breisgau, Germany. Tragically, Anke Bernstein died during her holidays at the end of June 2021.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Materials 16 05224 g0a1 550
Figure A1. Live/dead assay showing significance in the decrease of dead cells [%] after 3, 7, and 10 days for the direct contact trial by means for non-phosphated and phosphated ZnAg3. significant difference with p < 0.05 (*). Color indicates the different days.
Figure A1. Live/dead assay showing significance in the decrease of dead cells [%] after 3, 7, and 10 days for the direct contact trial by means for non-phosphated and phosphated ZnAg3. significant difference with p < 0.05 (*). Color indicates the different days.
Materials 16 05224 g0a1

References

  1. Life-Science-Intelligence. Orthopedic Surgery—Global Trends & Opportunities; Life-Science-Intelligence: Huntington Beach, CA, USA, 2018. [Google Scholar]
  2. Wu, A.-M.; Bisignano, C.; James, S.L.; Abady, G.G.; Abedi, A.; Abu-Gharbieh, E.; Alhassan, R.K.; Alipour, V.; Arabloo, J.; Asaad, M.; et al. Global, regional, and national burden of bone fractures in 204 countries and territories, 1990–2019: A systematic analysis from the global burden of disease study 2019. Lancet Healthy Longev. 2021, 2, e580–e592. [Google Scholar] [CrossRef] [PubMed]
  3. Walley, K.C.; Hofmann, K.J.; Velasco, B.T.; Kwon, J.Y. Removal of hardware after syndesmotic screw fixation: A systematic literature review. Foot Ankle Spec. 2016, 10, 252–257. [Google Scholar] [CrossRef] [PubMed]
  4. Montgomery, B.K.; Gamble, J.G.; Kha, S.T.; Hecht, G.G.; Vorhies, J.S.; Lucas, J.F. Indications for and risks associated with implant removal after pediatric trauma. J. Am. Acad. Orthop. Surgeons. Glob. Res. Rev. 2022, 6, e22. [Google Scholar] [CrossRef] [PubMed]
  5. Driessen, M.L.S.; Goessens, M.L.M.J. Complications of implant removal after healed hip fractures. Arch. Orthop. Trauma Surg. 2020, 140, 1745–1749. [Google Scholar] [CrossRef]
  6. Gupta, J.; Harkin, E.A.; O’Connor, K.; Enobun, B.; O’Hara, N.N.; O’Toole, R.V. Surgical factors associated with symptomatic implant removal after patella fracture. Injury 2022, 53, 2241–2246. [Google Scholar] [CrossRef]
  7. Kannan, M.B. 13—Hydroxyapatite coating on biodegradable magnesium and magnesium-based alloys. In Hydroxyapatite (Hap) for Biomedical Applications; Mucalo, M., Ed.; Woodhead Publishing: Sawston, UK, 2015; pp. 289–306. [Google Scholar] [CrossRef]
  8. Salahshoor, M.; Guo, Y. Biodegradable orthopedic magnesium-calcium (mgca) alloys, processing, and corrosion performance. Materials 2012, 5, 135–155. [Google Scholar] [CrossRef] [Green Version]
  9. Paiva, J.C.C.; Oliveira, L.; Vaz, M.F.; Costa-de-Oliveira, S. Biodegradable bone implants as a new hope to reduce device-associated infections&mdash;a systematic review. Bioengineering 2022, 9, 409. [Google Scholar] [CrossRef]
  10. Schlichting, K.; Dahne, M.; Weiler, A. Biodegradable composite implants. Sports Med. Arthrosc. Rev. 2006, 14, 169–176. [Google Scholar] [CrossRef]
  11. Chandra, G.; Pandey, A. Design approaches and challenges for biodegradable bone implants: A review. Expert Rev. Med. Devices 2021, 18, 629–647. [Google Scholar] [CrossRef]
  12. Chen, Q.; Thouas, G.A. Metallic implant biomaterials. Mater. Sci. Eng. R Rep. 2015, 87, 1–57. [Google Scholar] [CrossRef]
  13. Castellani, C.; Lindtner, R.A.; Hausbrandt, P.; Tschegg, E.; Stanzl-Tschegg, S.E.; Zanoni, G.; Beck, S.; Weinberg, A.-M. Bone–implant interface strength and osseointegration: Biodegradable magnesium alloy versus standard titanium control. Acta Biomater. 2011, 7, 432–440. [Google Scholar] [CrossRef] [PubMed]
  14. Vojtěch, D.; Kubásek, J.; Šerák, J.; Novák, P. Mechanical and corrosion properties of newly developed biodegradable zn-based alloys for bone fixation. Acta Biomater. 2011, 7, 3515–3522. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Y.; Yan, J.; Zhou, W.; Xiong, P.; Wang, P.; Yuan, W.; Zheng, Y.; Cheng, Y. In vitro degradation and biocompatibility evaluation of typical biodegradable metals (mg/zn/fe) for the application of tracheobronchial stenosis. Bioact. Mater. 2019, 4, 114–119. [Google Scholar] [CrossRef] [PubMed]
  16. Li, G.; Yang, H.; Zheng, Y.; Chen, X.-H.; Yang, J.-A.; Zhu, D.; Ruan, L.; Takashima, K. Challenges in the use of zinc and its alloys as biodegradable metals: Perspective from biomechanical compatibility. Acta Biomater. 2019, 97, 23–45. [Google Scholar] [CrossRef]
  17. Torgersen, S.; Gjerdet, N.R.; Erichsen, E.S.; Bang, G. Metal particles and tissue changes adjacent to miniplates. A retrieval study. Acta Odontol. Scand. 1995, 53, 65–71. [Google Scholar] [CrossRef]
  18. Amano, H.; Miyake, K.; Hinoki, A.; Yokota, K.; Kinoshita, F.; Nakazawa, A.; Tanaka, Y.; Seto, Y.; Uchida, H. Novel zinc alloys for biodegradable surgical staples. World J. Clin. Cases 2020, 8, 504–516. [Google Scholar] [CrossRef]
  19. Xiao, X.; Liu, E.; Shao, J.; Ge, S. Advances on biodegradable zinc-silver-based alloys for biomedical applications. J. Appl. Biomater. Funct. Mater. 2021, 19, 22808000211062407. [Google Scholar] [CrossRef]
  20. Oliver, A.A.; Guillory, R.J., II; Flom, K.L.; Morath, L.M.; Kolesar, T.M.; Mostaed, E.; Sikora-Jasinska, M.; Drelich, J.W.; Goldman, J. Analysis of vascular inflammation against bioresorbable zn–ag-based alloys. ACS Appl. Bio Mater. 2020, 3, 6779–6789. [Google Scholar] [CrossRef]
  21. Sikora-Jasinska, M.; Mostaed, E.; Mostaed, A.; Beanland, R.; Mantovani, D.; Vedani, M. Fabrication, mechanical properties and in vitro degradation behavior of newly developed znag alloys for degradable implant applications. Mater. Sci. Eng. C 2017, 77, 1170–1181. [Google Scholar] [CrossRef]
  22. Jin, G.; Qin, H.; Cao, H.; Qian, S.; Zhao, Y.; Peng, X.; Zhang, X.; Liu, X.; Chu, P.K. Synergistic effects of dual zn/ag ion implantation in osteogenic activity and antibacterial ability of titanium. Biomaterials 2014, 35, 7699–7713. [Google Scholar] [CrossRef]
  23. Hehrlein, C.; Schorch, B.; Kress, N.; Arab, A.; von zur Mühlen, C.; Bode, C.; Epting, T.; Haberstroh, J.; Mey, L.; Schwarzbach, H.; et al. Zn-alloy provides a novel platform for mechanically stable bioresorbable vascular stents. PLoS ONE 2019, 14, e0209111. [Google Scholar] [CrossRef]
  24. Guillory, R.J.; Mostaed, E.; Oliver, A.A.; Morath, L.M.; Earley, E.J.; Flom, K.L.; Kolesar, T.M.; Mostaed, A.; Summers, H.D.; Kwesiga, M.P.; et al. Improved biocompatibility of zn–ag-based stent materials by microstructure refinement. Acta Biomater. 2022, 145, 416–426. [Google Scholar] [CrossRef]
  25. Shojaei, S.; Shahgholi, M.; Karimipour, A. The effects of atomic percentage and size of zinc nanoparticles, and atomic porosity on thermal and mechanical properties of reinforced calcium phosphate cement by molecular dynamics simulation. J. Mech. Behav. Biomed. Mater. 2023, 141, 105785. [Google Scholar] [CrossRef]
  26. Institute of Medicine. Dietary Reference Intakes for Vitamin a, Vitamin k, Arsenic, Boron, Chromium, Copper, Iodine, Iron, Manganese, Molybdenum, Nickel, Silicon, Vanadium, and Zinc; National Academies Press (US): Washington, DC, USA, 2001. [Google Scholar] [CrossRef]
  27. Plaass, C.; Ettinger, S.; Sonnow, L.; Koenneker, S.; Noll, Y.; Weizbauer, A.; Reifenrath, J.; Claassen, L.; Daniilidis, K.; Stukenborg-Colsman, C.; et al. Early results using a biodegradable magnesium screw for modified chevron osteotomies. J. Orthop. Res. Off. Publ. Orthop. Res. Soc. 2016, 34, 2207–2214. [Google Scholar] [CrossRef] [Green Version]
  28. Witte, F.; Kaese, V.; Haferkamp, H.; Switzer, E.; Meyer-Lindenberg, A.; Wirth, C.J.; Windhagen, H. In vivo corrosion of four magnesium alloys and the associated bone response. Biomaterials 2005, 26, 3557–3563. [Google Scholar] [CrossRef]
  29. Vojtìch, D. Comparative mechanical and corrosion studies on magnesium, zinc and iron alloys as biodegradable metals. Mater. Tehnol. 2015, 49, 877–882. [Google Scholar] [CrossRef]
  30. Zberg, B.; Uggowitzer, P.J.; Löffler, J.F. Mgznca glasses without clinically observable hydrogen evolution for biodegradable implants. Nat. Mater. 2009, 8, 887–891. [Google Scholar] [CrossRef] [PubMed]
  31. Yamaguchi, M. Role of nutritional zinc in the prevention of osteoporosis. Mol. Cell. Biochem. 2010, 338, 241–254. [Google Scholar] [CrossRef] [PubMed]
  32. Qu, X.; Yang, H.; Jia, B.; Wang, M.; Yue, B.; Zheng, Y.; Dai, K. Zinc alloy-based bone internal fixation screw with antibacterial and anti-osteolytic properties. Bioact. Mater. 2021, 6, 4607–4624. [Google Scholar] [CrossRef]
  33. Bowen, P.K.; Drelich, J.; Goldman, J. Zinc exhibits ideal physiological corrosion behavior for bioabsorbable stents. Adv. Mater. 2013, 25, 2577–2582. [Google Scholar] [CrossRef]
  34. Mostaed, E.; Sikora-Jasinska, M.; Drelich, J.W.; Vedani, M. Zinc-based alloys for degradable vascular stent applications. Acta Biomater. 2018, 71, 1–23. [Google Scholar] [CrossRef] [PubMed]
  35. Hagelstein, S.; Zankovic, S.; Kovacs, A.; Barkhoff, R.; Seidenstuecker, M. Mechanical analysis and corrosion analysis of zinc alloys for bioabsorbable implants for osteosynthesis. Materials 2022, 15, 421. [Google Scholar] [CrossRef] [PubMed]
  36. Li, P.; Schille, C.; Schweizer, E.; Rupp, F.; Heiss, A.; Legner, C.; Klotz, U.E.; Geis-Gerstorfer, J.; Scheideler, L. Mechanical characteristics, in vitro degradation, cytotoxicity, and antibacterial evaluation of zn-4.0ag alloy as a biodegradable material. Int. J. Mol. Sci. 2018, 19, 755. [Google Scholar] [CrossRef] [Green Version]
  37. Katarivas Levy, G.; Goldman, J.; Aghion, E. The prospects of zinc as a structural material for biodegradable implants—A review paper. Metals 2017, 7, 402. [Google Scholar] [CrossRef] [Green Version]
  38. Zhang, B.B.; Zheng, Y.F.; Liu, Y. Effect of ag on the corrosion behavior of ti–ag alloys in artificial saliva solutions. Dent. Mater. 2009, 25, 672–677. [Google Scholar] [CrossRef]
  39. Simchi, A.; Tamjid, E.; Pishbin, F.; Boccaccini, A.R. Recent progress in inorganic and composite coatings with bactericidal capability for orthopaedic applications. Nanomed. Nanotechnol. Biol. Med. 2011, 7, 22–39. [Google Scholar] [CrossRef]
  40. Baba, K.; Hatada, R.; Flege, S.; Ensinger, W.; Shibata, Y.; Nakashima, J.; Sawase, T.; Morimura, T. Preparation and antibacterial properties of ag-containing diamond-like carbon films prepared by a combination of magnetron sputtering and plasma source ion implantation. Vacuum 2013, 89, 179–184. [Google Scholar] [CrossRef]
  41. Li, P.; Schille, C.; Schweizer, E.; Kimmerle-Müller, E.; Rupp, F.; Han, X.; Heiss, A.; Richter, A.; Legner, C.; Klotz, U.E.; et al. Evaluation of a zn–2ag–1.8au–0.2v alloy for absorbable biocompatible materials. Materials 2020, 13, 56. [Google Scholar] [CrossRef] [Green Version]
  42. Zierold, A.A. Reaction of bone to various metals. Arch. Surg. 1924, 9, 365–412. [Google Scholar] [CrossRef] [Green Version]
  43. Yang, H.; Jia, B.; Zhang, Z.; Qu, X.; Li, G.; Lin, W.; Zhu, D.; Dai, K.; Zheng, Y. Alloying design of biodegradable zinc as promising bone implants for load-bearing applications. Nat. Commun. 2020, 11, 401. [Google Scholar] [CrossRef] [Green Version]
  44. Khoshniat, S.; Bourgine, A.; Julien, M.; Weiss, P.; Guicheux, J.; Beck, L. The emergence of phosphate as a specific signaling molecule in bone and other cell types in mammals. Cell. Mol. Life Sci. CMLS 2011, 68, 205–218. [Google Scholar] [CrossRef] [PubMed]
  45. Hansen, N.M.; Felix, R.; Bisaz, S.; Fleisch, H. Aggregation of hydroxyapatite crystals. Biochim. Et Biophys. Acta (BBA)—Gen. Subj. 1976, 451, 549–559. [Google Scholar] [CrossRef]
  46. Ashassi-Sorkhabi, H.; Seifzadeh, D.; Harrafi, H. Phosphatation of iron powder metallurgical samples for corrosion protection. J. Iran. Chem. Soc. 2007, 4, 72–77. [Google Scholar] [CrossRef]
  47. ISO 10993-15:2019-11; Biologische Beurteilung von Medizinprodukten—Teil 15: Qualitativer und Quantitativer Nachweis von Abbauprodukten aus Metallen und Legierungen. Beuth Verlag GmbH: Berlin, Germany, 2019.
  48. DIN EN ISO 10993-1:2021-05; Biologische Beurteilung Von Medizinprodukten—Teil 1: Beurteilung und Prüfungen im Rahmen eines Risikomanagementsystems. Beuth Verlag GmbH: Berlin, Germany, 2020.
  49. Roche. Cytotoxicity Detection Kit (Ldh); Version 12; Roche: Basel, Switzerland, 2020. [Google Scholar]
  50. Hotchkiss, K.M.; Reddy, G.B.; Hyzy, S.L.; Schwartz, Z.; Boyan, B.D.; Olivares-Navarrete, R. Titanium surface characteristics, including topography and wettability, alter macrophage activation. Acta Biomater. 2016, 31, 425–434. [Google Scholar] [CrossRef] [Green Version]
  51. Costa-Rodrigues, J.; Fernandes, A.; Lopes, M.A.; Fernandes, M.H. Hydroxyapatite surface roughness: Complex modulation of the osteoclastogenesis of human precursor cells. Acta Biomater. 2012, 8, 1137–1145. [Google Scholar] [CrossRef]
  52. Wątroba, M.; Bednarczyk, W.; Szewczyk, P.K.; Kawałko, J.; Mech, K.; Grünewald, A.; Unalan, I.; Taccardi, N.; Boelter, G.; Banzhaf, M.; et al. In vitro cytocompatibility and antibacterial studies on biodegradable zn alloys supplemented by a critical assessment of direct contact cytotoxicity assay. J. Biomed. Mater. Res. Part B Appl. Biomater. 2023, 111, 241–260. [Google Scholar] [CrossRef]
  53. Andrukhov, O.; Huber, R.; Shi, B.; Berner, S.; Rausch-Fan, X.; Moritz, A.; Spencer, N.D.; Schedle, A. Proliferation, behavior, and differentiation of osteoblasts on surfaces of different microroughness. Dent. Mater. Off. Publ. Acad. Dent. Mater. 2016, 32, 1374–1384. [Google Scholar] [CrossRef] [PubMed]
  54. Kubásek, J.; Vojtěch, D.; Jablonská, E.; Pospíšilová, I.; Lipov, J.; Ruml, T. Structure, mechanical characteristics and in vitro degradation, cytotoxicity, genotoxicity and mutagenicity of novel biodegradable zn–mg alloys. Mater. Sci. Eng. C 2016, 58, 24–35. [Google Scholar] [CrossRef] [PubMed]
  55. Gallagher, J.A. Human osteoblast culture. Methods Mol. Med. 2003, 80, 3–18. [Google Scholar] [CrossRef]
  56. Holthaus, M.G.; Treccani, L.; Rezwan, K. Osteoblast viability on hydroxyapatite with well-adjusted submicron and micron surface roughness as monitored by the proliferation reagent wst-1. J. Biomater. Appl. 2012, 27, 791–800. [Google Scholar] [CrossRef]
  57. Bosetti, M.; Massè, A.; Tobin, E.; Cannas, M. Silver coated materials for external fixation devices: In vitro biocompatibility and genotoxicity. Biomaterials 2002, 23, 887–892. [Google Scholar] [CrossRef] [PubMed]
  58. Gstraunthaler, G.L.T. Zell- und Gwebekultur Allgemeine Grundlagen und Spezielle Anwendungen; Springer: Berlin/Heidelberg, Germany, 2013; Volume 10. [Google Scholar]
  59. Zhen, Z.; Liu, X.; Huang, T.; Xi, T.; Zheng, Y. Hemolysis and cytotoxicity mechanisms of biodegradable magnesium and its alloys. Mater. Sci. Eng. C 2015, 46, 202–206. [Google Scholar] [CrossRef] [PubMed]
Materials 16 05224 g001 550
Figure 1. Photomicrographs of the grain size of the ZnAg3 alloy directly after casting, 20× magnification (a) and extrusion section of 50× magnification (b) and boxplot of the grain size after extrusion and casting (c). The photomicrographs were taken with a Leica DMRX 020-525.706 microscope. N = 30.
Figure 1. Photomicrographs of the grain size of the ZnAg3 alloy directly after casting, 20× magnification (a) and extrusion section of 50× magnification (b) and boxplot of the grain size after extrusion and casting (c). The photomicrographs were taken with a Leica DMRX 020-525.706 microscope. N = 30.
Materials 16 05224 g001
Materials 16 05224 g002 550

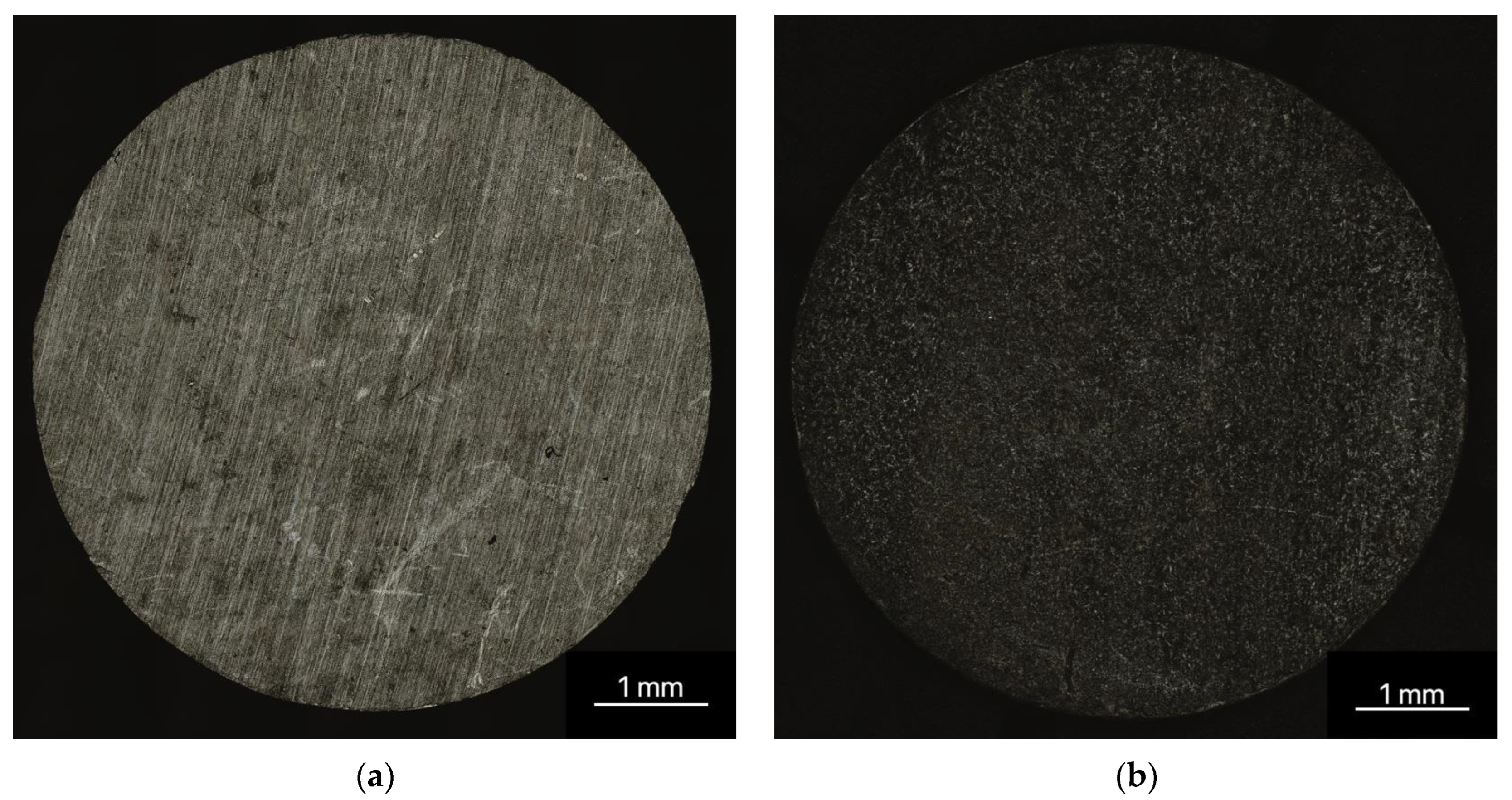

Figure 2. 3D-laser scanning microscopic pictures of untreated non-phosphated (a) and phosphated (b) ZnAg3; images taken with the 3D-laser scanning microscope Keyence VK-X 200.
Figure 2. 3D-laser scanning microscopic pictures of untreated non-phosphated (a) and phosphated (b) ZnAg3; images taken with the 3D-laser scanning microscope Keyence VK-X 200.
Materials 16 05224 g002
Materials 16 05224 g003 550

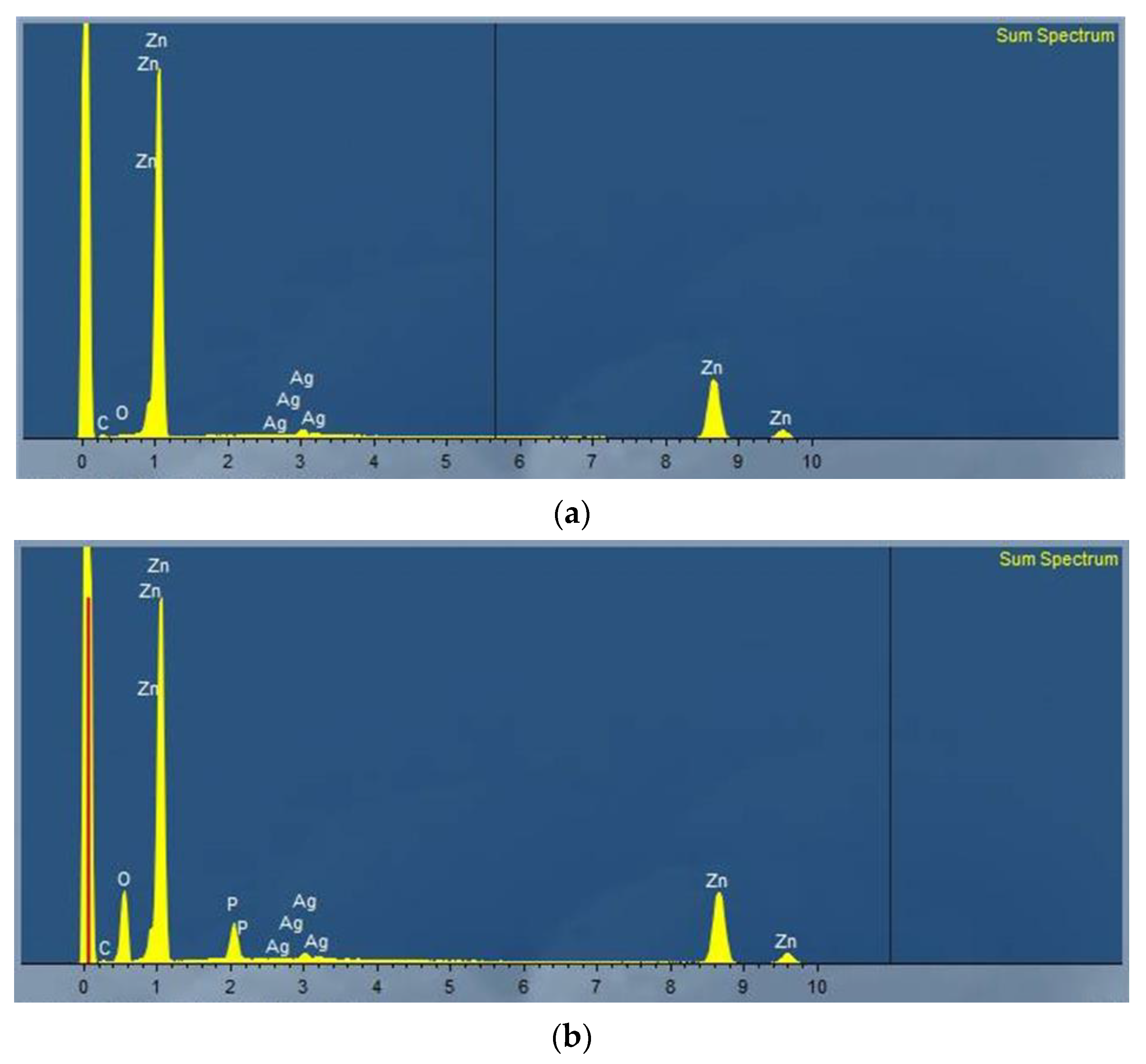

Figure 3. Sum spectrum (EDX) of untreated non-phosphated (a) and phosphated (b) ZnAg3.
Figure 3. Sum spectrum (EDX) of untreated non-phosphated (a) and phosphated (b) ZnAg3.
Materials 16 05224 g003
Materials 16 05224 g004a 550Materials 16 05224 g004b 550
Figure 4. ESEM pictures of untreated non-phosphated (a,c) and phosphated (b,d) ZnAg3 at increasing magnifications; images taken with an FEI Quanta FEG 250 ESEM with large field secondary electron detector and 20 kV acceleration voltage at 10−3 Pa.
Figure 4. ESEM pictures of untreated non-phosphated (a,c) and phosphated (b,d) ZnAg3 at increasing magnifications; images taken with an FEI Quanta FEG 250 ESEM with large field secondary electron detector and 20 kV acceleration voltage at 10−3 Pa.
Materials 16 05224 g004aMaterials 16 05224 g004b
Materials 16 05224 g005 550

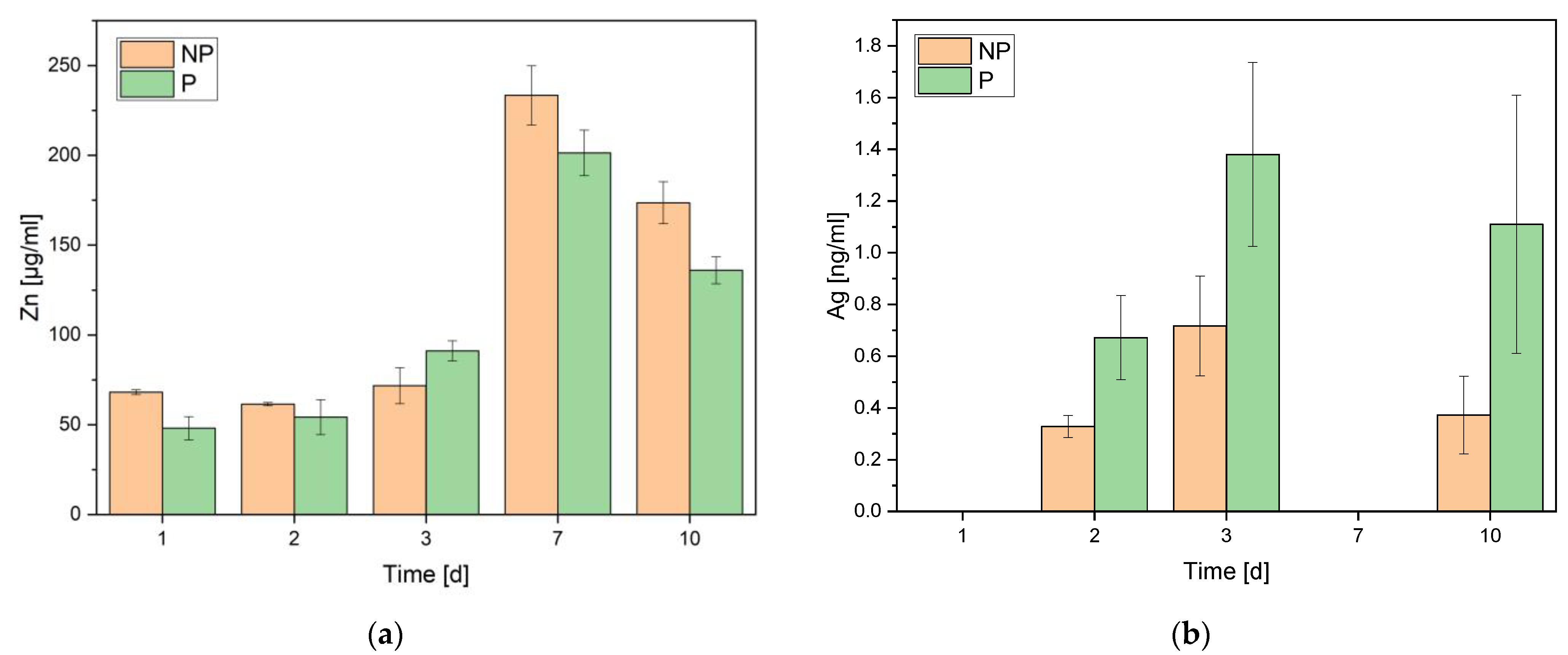

Figure 5. Atomic absorption spectroscopy of zinc (a) and silver (b) over 10 days of untreated non-phosphated (NP) and phosphated (P) ZnAg3.
Figure 5. Atomic absorption spectroscopy of zinc (a) and silver (b) over 10 days of untreated non-phosphated (NP) and phosphated (P) ZnAg3.
Materials 16 05224 g005
Materials 16 05224 g006 550
Figure 6. Live/dead assay showing living, unhealthy, and dead cells [%] after 3, 7, and 10 days for the dilution 1 to 15 (a), 1 to 10 (b), 1 to 6 (c), and for the direct contact trial (d) for non-phosphated (plain) and phosphated (shaded) ZnAg3.
Figure 6. Live/dead assay showing living, unhealthy, and dead cells [%] after 3, 7, and 10 days for the dilution 1 to 15 (a), 1 to 10 (b), 1 to 6 (c), and for the direct contact trial (d) for non-phosphated (plain) and phosphated (shaded) ZnAg3.
Materials 16 05224 g006
Materials 16 05224 g007 550
Figure 7. Fluorescence microscopic images of the non-phosphated ZnAg3 at 5× magnification, showing dead cells (red) and living cells (green); from left to right: days 3, 7, and 10 days of dilution 1 to 15 (a–c), 1 to 10 (d–f), 1 to 6 (g–i), and direct contact trial (j–l); images taken with an Olympus BX-53 fluorescence microscope.
Figure 7. Fluorescence microscopic images of the non-phosphated ZnAg3 at 5× magnification, showing dead cells (red) and living cells (green); from left to right: days 3, 7, and 10 days of dilution 1 to 15 (a–c), 1 to 10 (d–f), 1 to 6 (g–i), and direct contact trial (j–l); images taken with an Olympus BX-53 fluorescence microscope.
Materials 16 05224 g007
Materials 16 05224 g008 550
Figure 8. Fluorescence microscopic images of the phosphated ZnAg3 at 5× magnification, showing dead cells (red) and living cells (green); from left to right: days 3, 7, and 10 days of dilution 1 to 15 (a–c), 1 to 10 (d–f), 1 to 6 (g–i), and direct contact trial (j–l); images taken with an Olympus BX-53 fluorescence microscope.
Figure 8. Fluorescence microscopic images of the phosphated ZnAg3 at 5× magnification, showing dead cells (red) and living cells (green); from left to right: days 3, 7, and 10 days of dilution 1 to 15 (a–c), 1 to 10 (d–f), 1 to 6 (g–i), and direct contact trial (j–l); images taken with an Olympus BX-53 fluorescence microscope.
Materials 16 05224 g008
Materials 16 05224 g009 550
Figure 9. Cell proliferation on day 1, 3, and 7 for non-phosphated (a) and phosphated (b) ZnAg3. Medium with cells served as a control.
Figure 9. Cell proliferation on day 1, 3, and 7 for non-phosphated (a) and phosphated (b) ZnAg3. Medium with cells served as a control.
Materials 16 05224 g009
Materials 16 05224 g010 550
Figure 10. Cytotoxicity on day 1, 2, and 3 for non-phosphated (a) and phosphated (b) ZnAg3. A 1% triton X solution was defined as 100% cytotoxicity and, therefore, the positive control (Triton X), medium with cells served as a negative control defined as 0% toxicity (Cells).
Figure 10. Cytotoxicity on day 1, 2, and 3 for non-phosphated (a) and phosphated (b) ZnAg3. A 1% triton X solution was defined as 100% cytotoxicity and, therefore, the positive control (Triton X), medium with cells served as a negative control defined as 0% toxicity (Cells).
Materials 16 05224 g010
Table
Table 1. Quantitative analysis of elemental spectrum (EDX) of untreated non-phosphated (np) and phosphated (p) ZnAg3 regarding zinc and silver.
Table 1. Quantitative analysis of elemental spectrum (EDX) of untreated non-phosphated (np) and phosphated (p) ZnAg3 regarding zinc and silver.
ElementWeight% npWeight% p
Zn96.07 ± 0.2296.63 ± 0.52
Ag3.93 ± 0.223.37 ± 0.23
Table
Table 2. Quantitative analysis of elemental spectrum (EDX) of untreated phosphated ZnAg3 including phosphorus and oxygen.
Table 2. Quantitative analysis of elemental spectrum (EDX) of untreated phosphated ZnAg3 including phosphorus and oxygen.
ElementWeight% Atomic%
Zn67.02 ± 0.3636.77
O24.91 ± 0.3455.82
P5.73 ± 0.136.64
Ag2.34 ± 0.160.78
Table
Table 3. pH values for non-phosphated ZnAg3 (np) and phosphated ZnAg3 (p) right after the production of the eluate and after 3, 7, and 10 days. The pH values were measured with Laboratory meter inoLab pH 7110 SET 4 pH/mV meter, WTW as part of xylem brand, Washington, DC, USA.
Table 3. pH values for non-phosphated ZnAg3 (np) and phosphated ZnAg3 (p) right after the production of the eluate and after 3, 7, and 10 days. The pH values were measured with Laboratory meter inoLab pH 7110 SET 4 pH/mV meter, WTW as part of xylem brand, Washington, DC, USA.
np p
Eluate (medium with phenol red)8.488.50
Eluate (medium without phenol red)8.698.64
Day 37.777.87
Day 77.767.76
Day 108.098.11
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Roesner, M.; Zankovic, S.; Kovacs, A.; Benner, M.; Barkhoff, R.; Seidenstuecker, M. Biocompatibility Assessment of Zinc Alloys as a New Potential Material for Bioabsorbable Implants for Osteosynthesis. Materials 2023, 16, 5224. https://doi.org/10.3390/ma16155224

AMA Style

Roesner M, Zankovic S, Kovacs A, Benner M, Barkhoff R, Seidenstuecker M. Biocompatibility Assessment of Zinc Alloys as a New Potential Material for Bioabsorbable Implants for Osteosynthesis. Materials. 2023; 16(15):5224. https://doi.org/10.3390/ma16155224

Chicago/Turabian Style

Roesner, Maria, Sergej Zankovic, Adalbert Kovacs, Moritz Benner, Roland Barkhoff, and Michael Seidenstuecker. 2023. "Biocompatibility Assessment of Zinc Alloys as a New Potential Material for Bioabsorbable Implants for Osteosynthesis" Materials 16, no. 15: 5224. https://doi.org/10.3390/ma16155224

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
