Photodegradation of Bamboo: A Study on Changes in Mechanical Performances
Abstract
1. Introduction
2. Materials and Methods
2.1. Materials

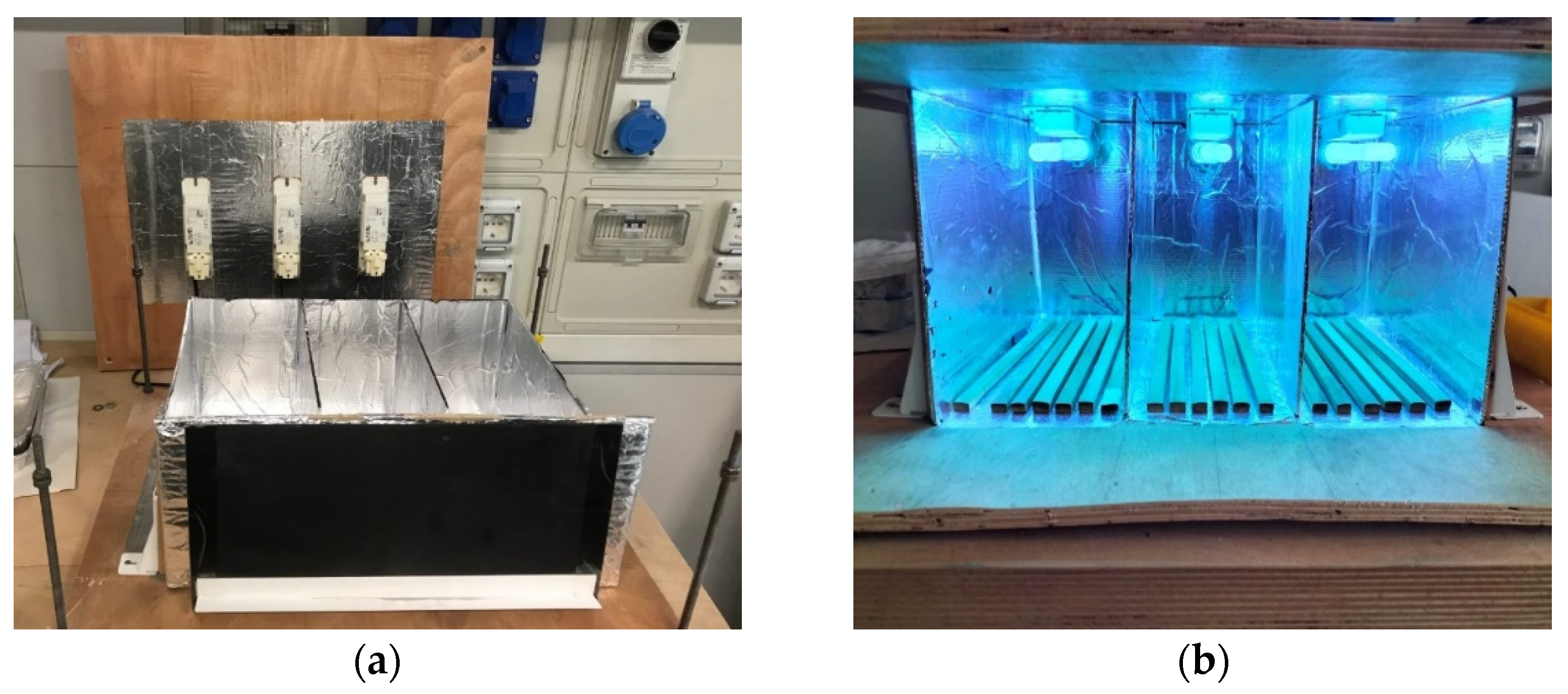

2.2. UV Aging
2.3. Microscopic Analysis

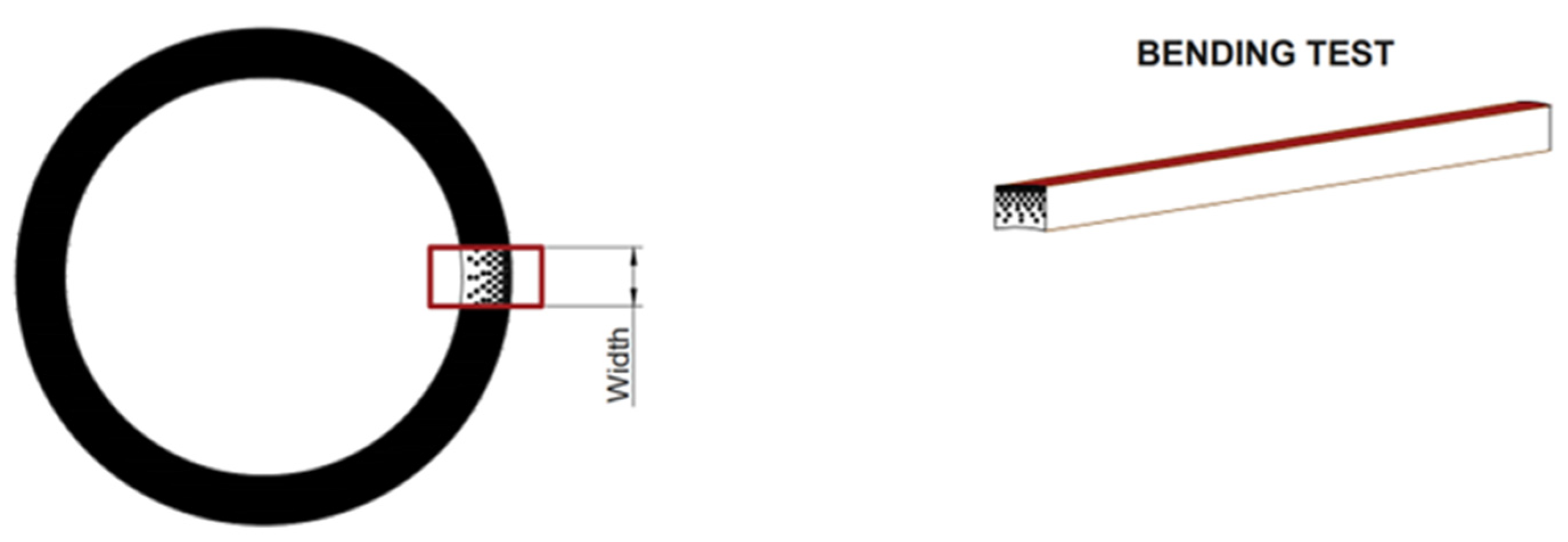

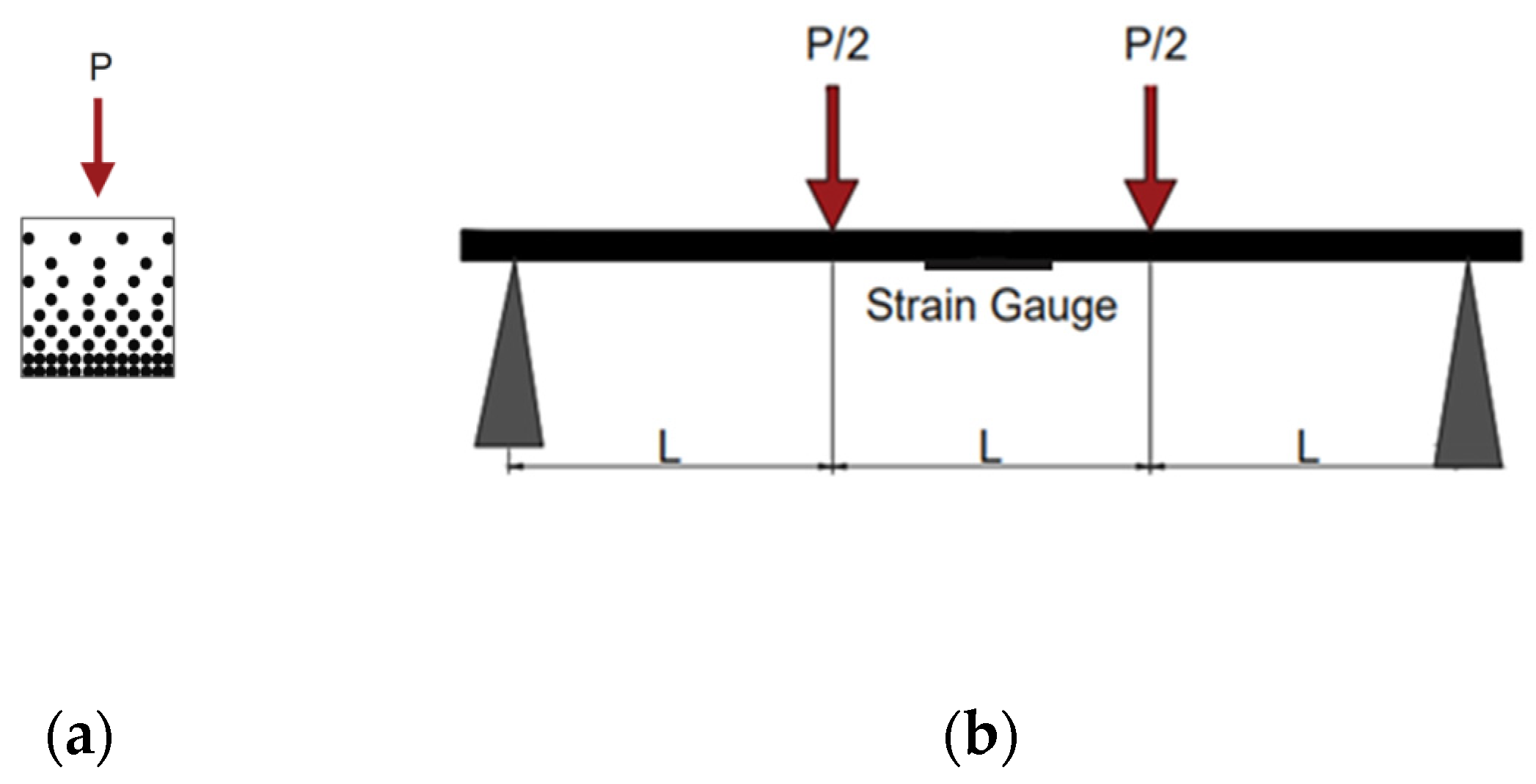

2.4. Bending Tests
3. Results
3.1. Bending Tests
3.2. IR and Microscopical Analysis
4. Conclusions
- After 48 h of exposure, bending strength starts growing, reaching an increment of 31% (149 MPa), concerning the initial value (113 MPa), at 96 h of exposure.
- After 96 h, bending strength starts declining slightly from the higher value but remains higher than the initial strength; after 360 h of exposure, it is 8% of the initial one (122 MPa).
- There are no significant changes in deformation at different times of exposure.

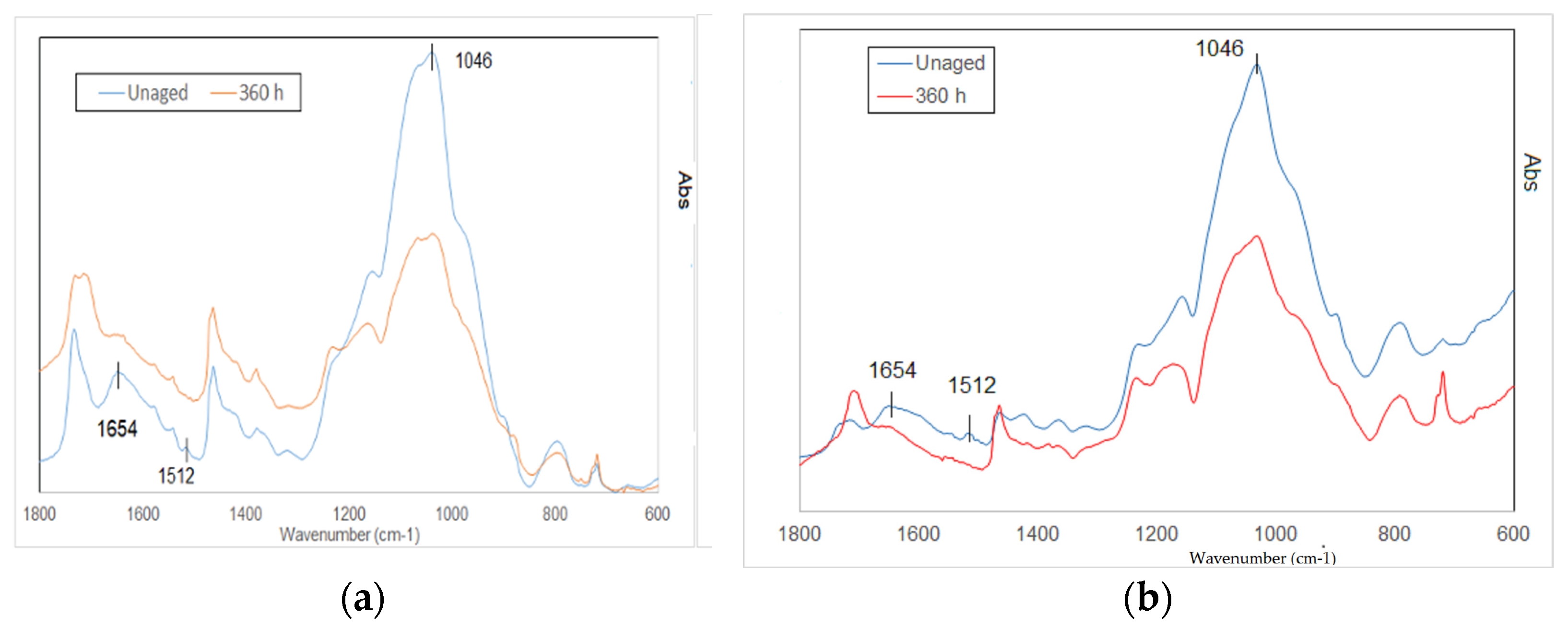

- Modifications of the chemical features of the material have been analyzed with FTIR spectroscopy and a progressive degradation of lignin is reported.
- Modifications of the morphological features have been analyzed by ESEM and optical microscopy observations, and cracks in the fiber walls are highlighted from micrographs, as reported in [10]. No effects have been found on the fiber length.

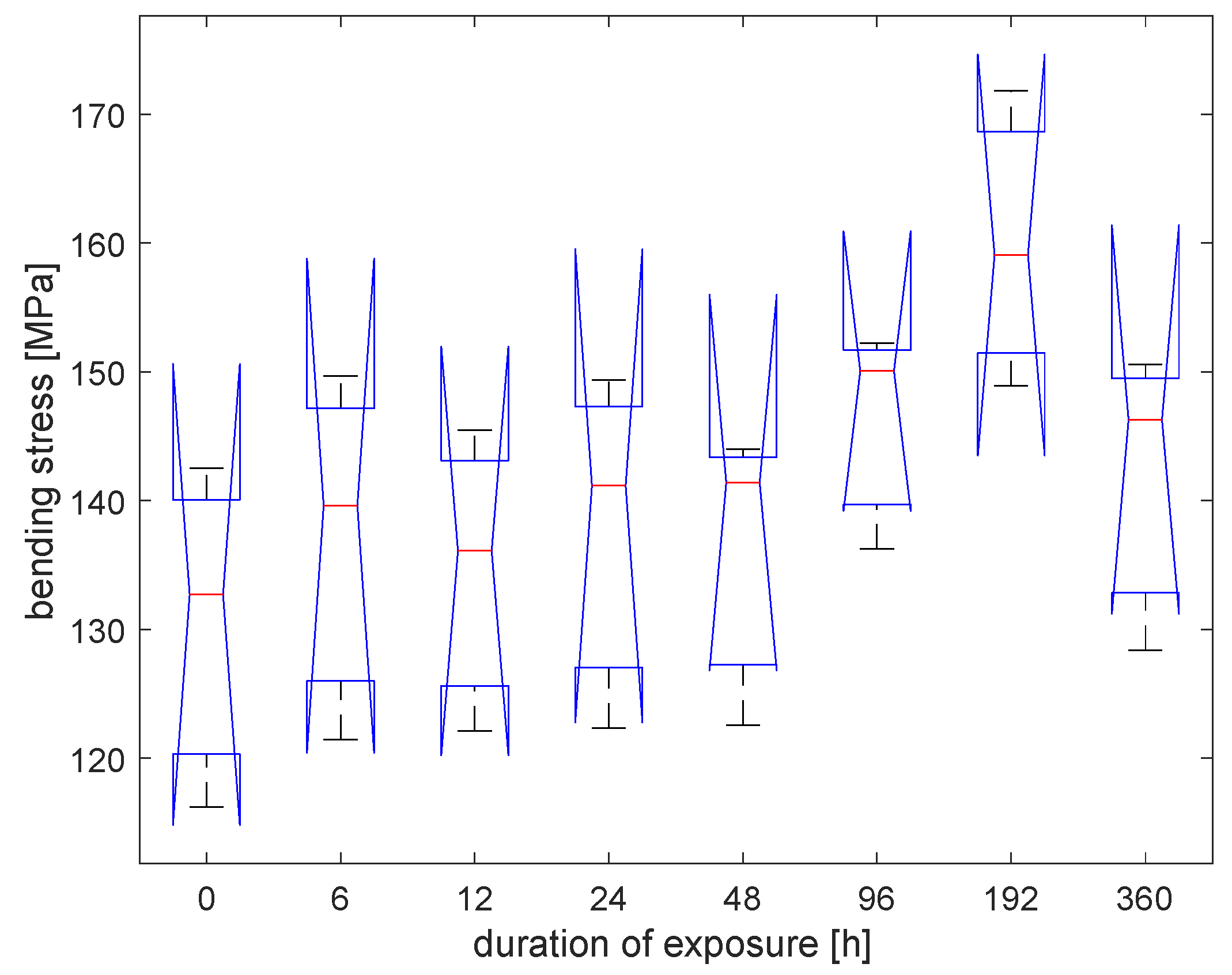

- After 48 h of exposure, bending strength starts growing, reaching an increment of 23% (160 MPa) concerning the initial value (130 MPa) at 192 h of exposure.
- After 192 h, bending strength starts declining slightly from the higher value but remains higher than the initial strength, as it is around the 8% after 360 h of exposure (142 MPa).
- There are no significant changes in deformation at different times of exposure.
- Modifications of the chemical features of the material have been analyzed with FTIR spectroscopy and a progressive degradation of lignin is reported for the virgin samples.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Azadeha, A.; Ghavami, K.; Savastano, H., Jr.; Filho, T.; Barbosa, N.P. Static Flexural Behavior of Bamboo as a Functionally Graded Material and the Effect of heat on dynamic flexural modulus. J. Build. Eng. 2020, 34, 101949. [Google Scholar] [CrossRef]
- Zhang, Y.M.; Yu, Y.L.; Yu, W.J. Effect of thermal treatment on the physical and mechanical properties of Phyllostachys pubescen bamboo. Eur. J. Wood Prod. 2013, 71, 61–67. [Google Scholar] [CrossRef]
- Nguyen, C.T.; Wagenfür, A.; Phuong, L.X.; Dai, V.H.; Bremer, M.; Fischer, S. The effects of thermal modification on the properties of two vietnamese bamboo species. BioResources 2012, 7, 5355–5366. [Google Scholar] [CrossRef]
- Zhong, Y.; Ren, H.Q.; Jiang, Z.H. Effects of Temperature on the Compressive Strength Parallel to the Grain of Bamboo Scrimbe. Materials 2016, 9, 436. [Google Scholar] [CrossRef] [PubMed]
- Lee, C.H.; Yang, T.H.; Cheng, Y.W.; Lee, C.J. Effects of thermal modification on the surface and chemical properties of moso bamboo. Constr. Build. Mat. 2018, 178, 59–71. [Google Scholar] [CrossRef]
- Ramful, R.; Sunthar, T.P.M.; Marin, E.; Zhu, W.; Pezzoli, G. Investigating the effect of smoke treatment on hygroscopic characteristic of Bamboo by FTIR and Raman spectroscopy. Materials 2022, 15, 1544. [Google Scholar] [CrossRef] [PubMed]
- Zhang, Y.; Yu, Y.; Lu, Y.; Yu, W.; Wang, S. Effects of heat treatment on surface physicochemical properties and sorption behavior of bamboo (Phyllostachys edulis). Constr. Build. Mat. 2021, 2823, 122683. [Google Scholar] [CrossRef]
- Silviana, S.; Darmawan, A.; Dalanta, F.; Subagio, A.; Hermawan, F.; Santoso, H.M. Superhydrophobic coating derived from geothermal silica to enhance material durability of bamboo using haxanethylsilazane (HMDS) and trimethylchlorosilane (TMCS). Materials 2021, 14, 530. [Google Scholar] [CrossRef] [PubMed]
- Ayadi, N.; Lejeune, F.; Charrier El Bouhtoury, F.; Charrier, B.; Merlin, A. Color stability of heat-treated wood during artificial weathering. Eur. J. Wood Wood Prod. 2003, 61, 221–226. [Google Scholar] [CrossRef]
- Wang, X.Q.; Ren, H.Q. Surface deterioration of moso bamboo (Phyllostachys pubescens) induced by exposure to artificial sunlight. J. Wood Sci. 2009, 55, 47–52. [Google Scholar] [CrossRef]
- Yu, H.X.; Pan, X.; Xu, M.P.; Yang, W.M.; Zhuang, J.W. Surface chemical changes analysis of UV-light irradiated Moso bamboo (Phyllostachys pubescens Mazel). R. Soc. Open Sci. 2018, 5, 180110. [Google Scholar] [CrossRef] [PubMed]
- Wang, X.; Ren, H. Comparative study of the photo-discoloration of moso bamboo (Phyllostachys pubescens Mazel) and two wood species. Appl. Surf. Sci. 2008, 254, 7029–7034. [Google Scholar] [CrossRef]
- ISO/DIS 22157-1; Bamboo Structures—Determination of Physical and Mechanical Properties, Part 1: Test Method. ISO: Geneva, Switzerland, 2019.
- UNI 11842-2021; Bamboo—Determination of the Physical and Mechanical Properties of the Culms. UNI: Rome, Italy, 2021.
- Greco, S.; Molari, L. Flexural Behaviour of Five Species of Italian Bamboo. In Construction Technologies and Architecture; Trans Tech Publications Ltd.: Bäch, Switzerland, 2018; pp. 723–729. [Google Scholar] [CrossRef]
- Moro, D.; Ulian, G.; Valdrè, G. SEM-EDS nanoanalysis of mineral composite materials: A Monte Carlo approach. Comp. Struct. 2021, 259, 113227. [Google Scholar] [CrossRef]
- Fabiani, M.; Greco, S.; Mentrasi, L.; Molari, L.; Valdrè, G. Thermal treatment of bamboo with flame: Influence on the mechanical characteristics. Adv. Bamboo Sci. 2023. submitted. [Google Scholar]
- Meng, F.; Yu, Y.; Zhang, Y.; Yu, W.; Gao, J. Surface chemical composition analysis of heat-treated bamboo. Appl. Surf. Sci. 2016, 371, 383–390. [Google Scholar] [CrossRef]
Hours of Exposure | Natural Samples | Treated Samples | ||
---|---|---|---|---|
σb,ult [MPa] | ε [%] | σb,ult [MPa] | ||
0 | 113.26 (18.94) | 0.98 (0.16) | 130.48 (13.30) | 1.27 (0.17) |
6 | 125.12 (11.44) | 1.27 (0.02) | 136.92 (14.31) | 1.45 (0.09) |
12 | 119.45 (15.14) | 1.23 (0.1) | 134.55 (11.76) | 1.45 (0.17) |
24 | 119.75 (14.09) | 1.36 (0.04) | 137.62 (13.86) | 1.56 (0.13) |
48 | 125.30 (10.46) | 1.3 (0.05) | 135.99 (11.71) | 1.26 (0.2) |
96 | 149.72 (12.55) | 1.2 (0.17) | 146.18 (8.67) | 1.56 (0.14) |
192 | 137.69 (17.33) | 1.51 (0.13) | 159.95 (11.49) | 1.59 (0.09) |
360 | 122.20 (26.70) | 1.39 (0.04) | 141.74 (11.78) | 1.62 (0.13) |

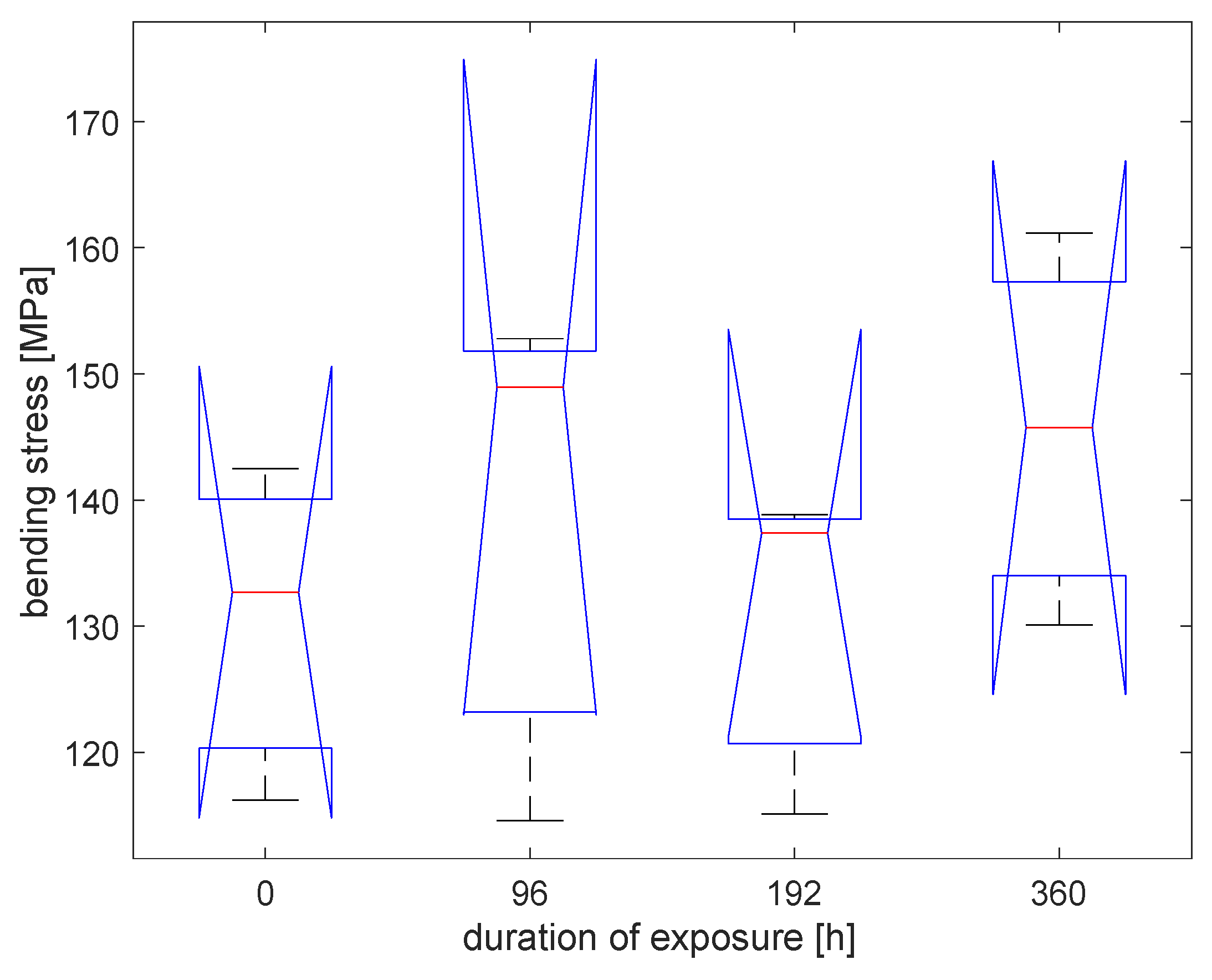

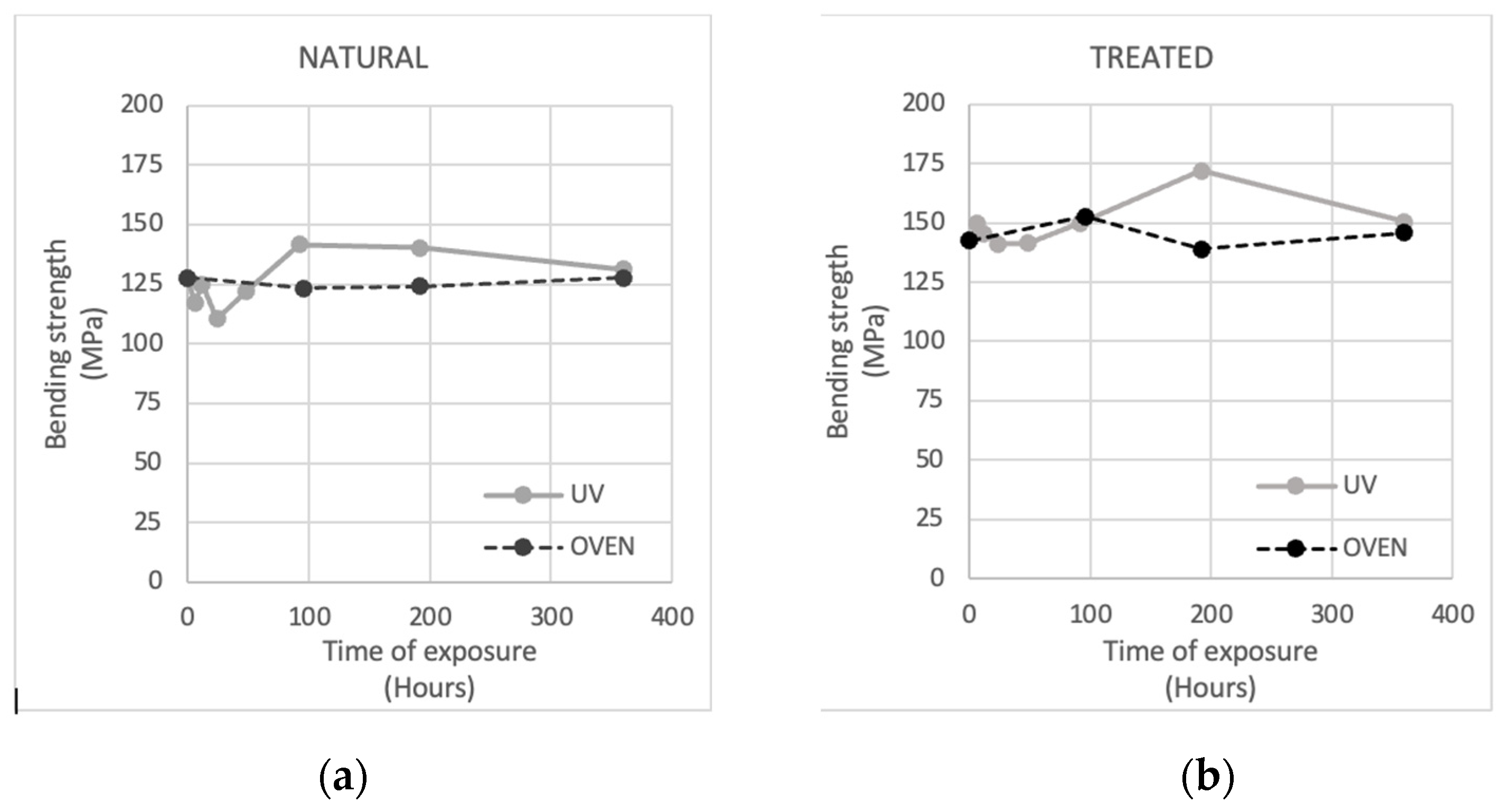

Hours of Exposure | σb,ult [MPa] (St Dev) | |||
---|---|---|---|---|
UV Rays | Oven | |||
Natural | Treated | Natural | Treated | |
96 | 149.72 (12.55) | 146.18 (8.67) | 123.25 (9.03) | 138.00 (21.03) |
192 | 137.69 (17.33) | 159.95 (11.49) | 120.62 (20.30) | 130.45 (13.31) |
360 | 122.20 (26.70) | 141.74 (11.78) | 132.10 (6.16) | 145.67 (15.54) |
6 h | 12 h | 24 h | 48 h | 96 h | 192 h | 360 h | |
---|---|---|---|---|---|---|---|
0 h | 0.997 | 0.999 | 0.995 | 0.999 | 0.759 | 0.125 | 0.941 |
6 h | − | 1.000 | 1.000 | 1.000 | 0.978 | 0.346 | 0.999 |
12 h | − | 1.000 | 1.000 | 0.931 | 0.245 | 0.995 | |
24 h | − | 1.000 | 0.986 | 0.381 | 0.999 | ||
48 h | − | 0.964 | 0.304 | 0.999 | |||
96 h | − | 0.853 | 0.999 | ||||
192 h | − | 0.614 |
96 h | 192 h | 360 h | |
---|---|---|---|
0 h | 0.919 | 1.000 | 0.668 |
96 h | 0.918 | 0.951 | |
192 h | 0.667 |
