Investigation of Exfoliation Efficiency of 6H-SiC Implanted Sequentially with He+ and H2+ Ions
Abstract
:1. Introduction
2. Experiment
3. Results and Discussion
4. Conclusions

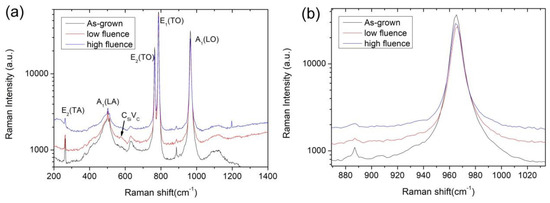

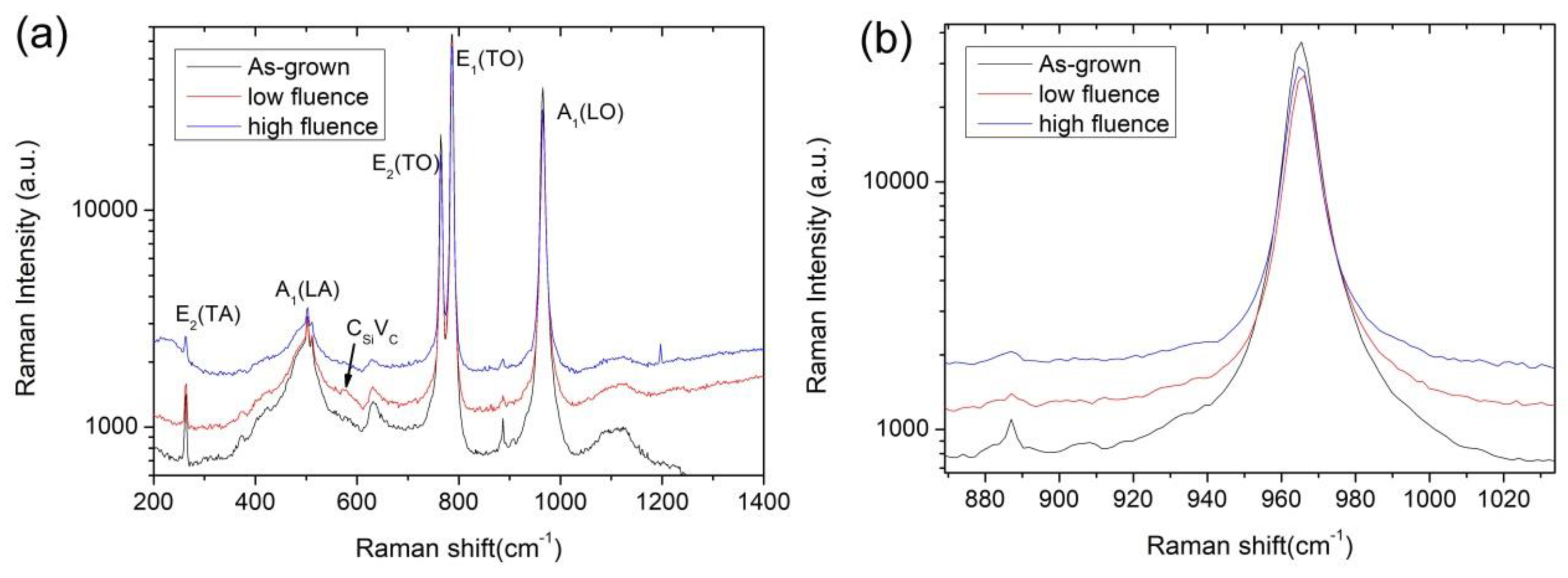

- Raman spectra show that defects produced by ion implantation are not completely recovered after high-temperature annealing at 1100 °C for 15 min. This is due to the bubbles formed during annealing, which retard the recovery of lattice damage. The increase in ion fluence leads to a decrease in crystallization peak intensity.

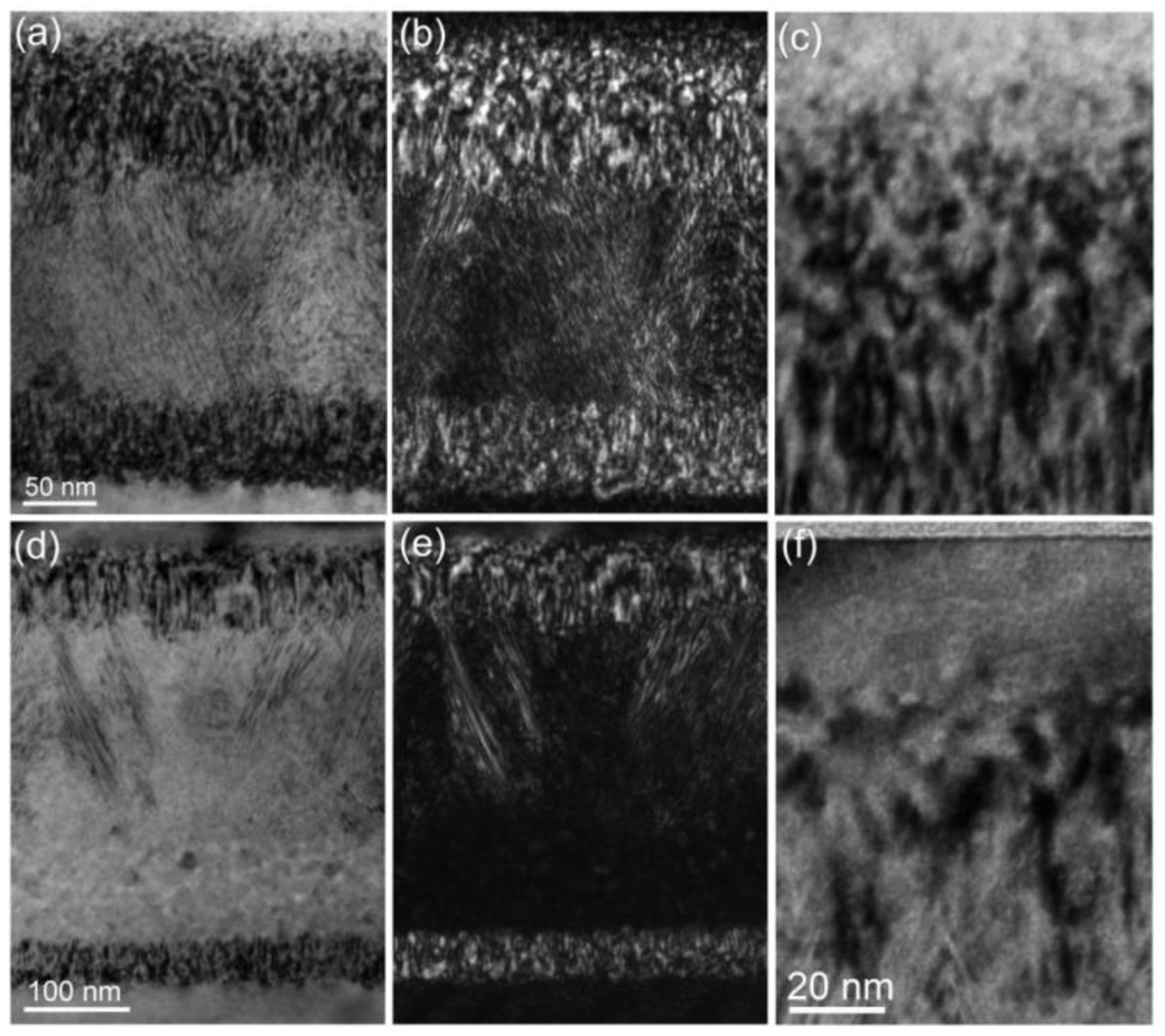

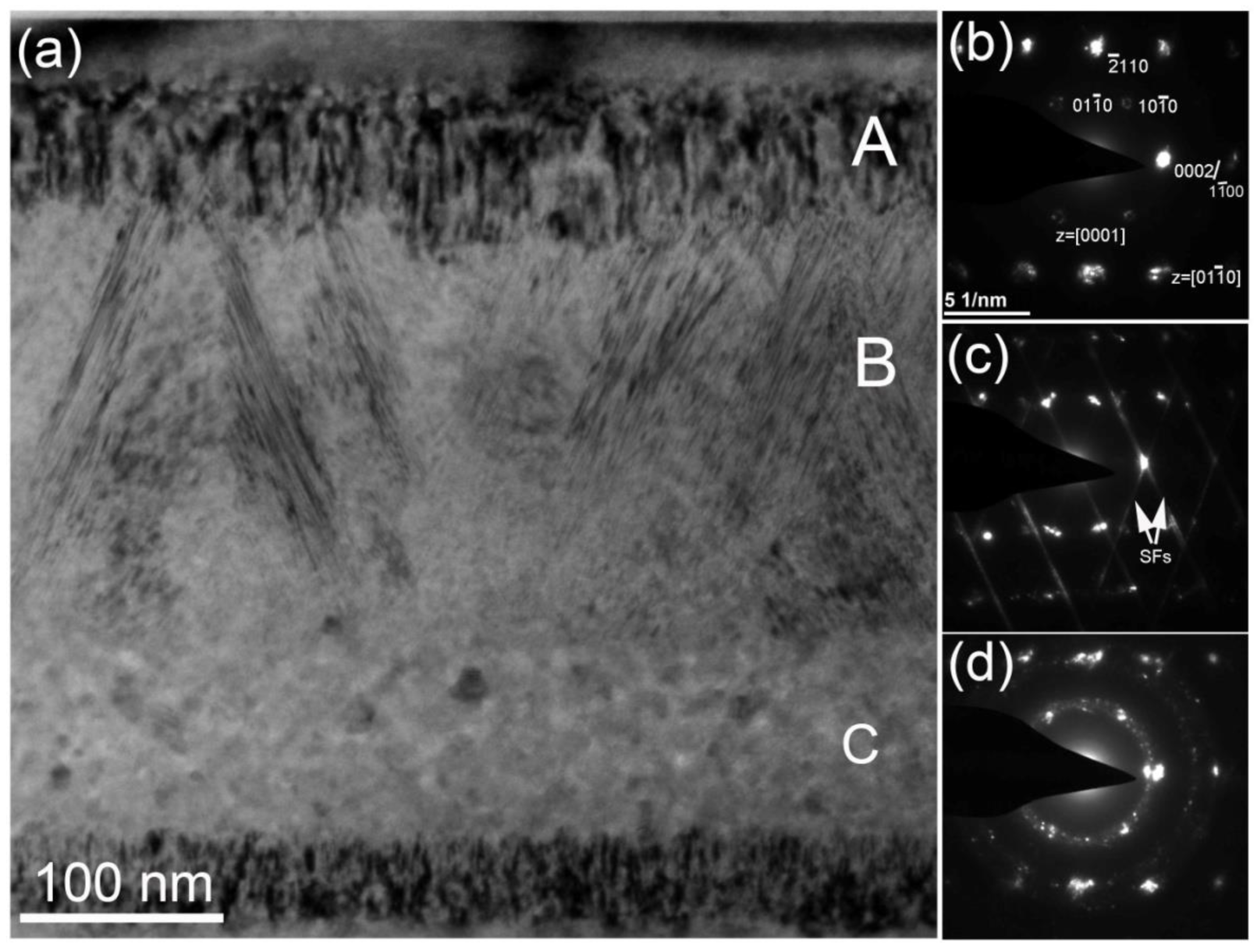

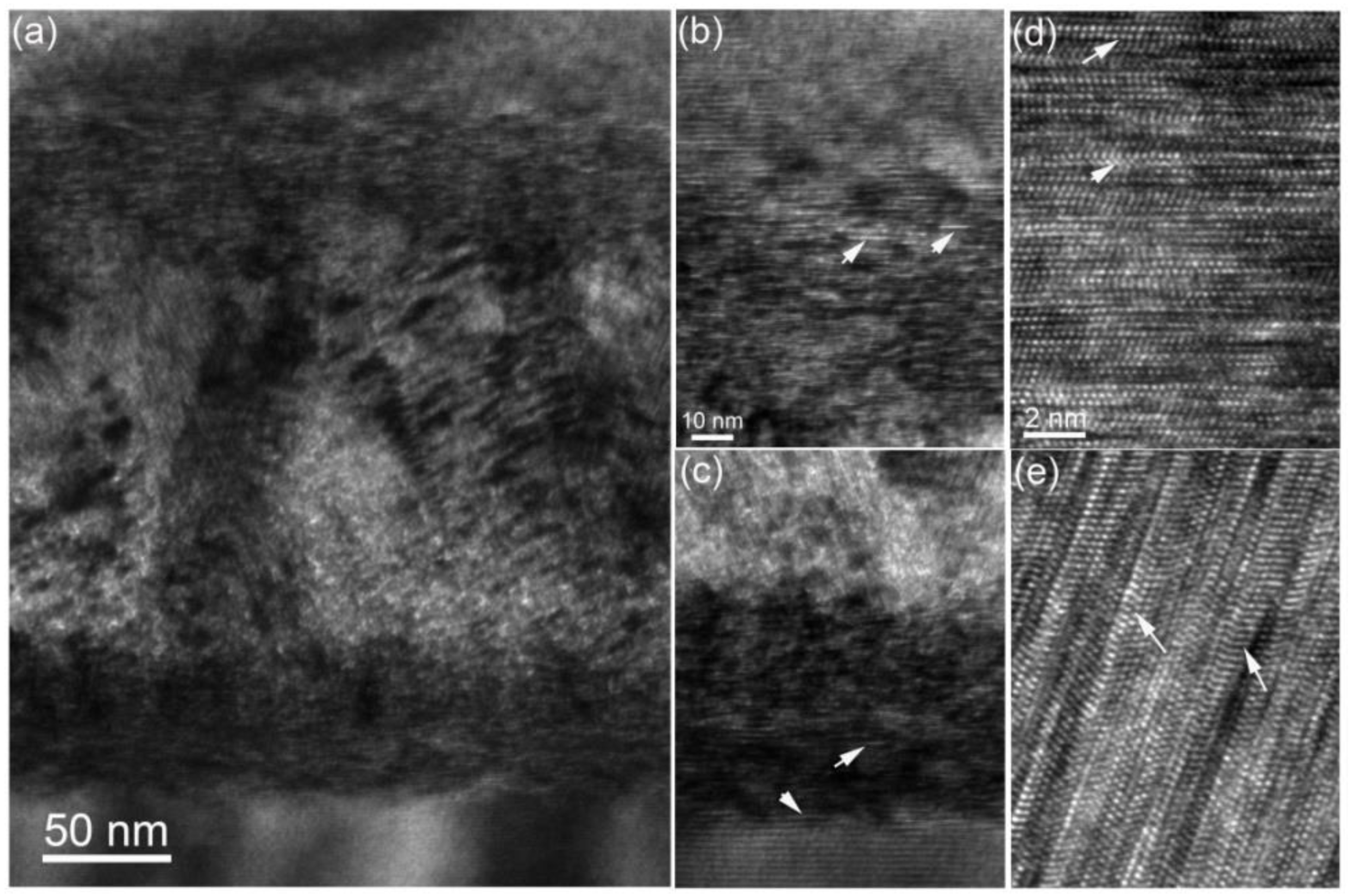

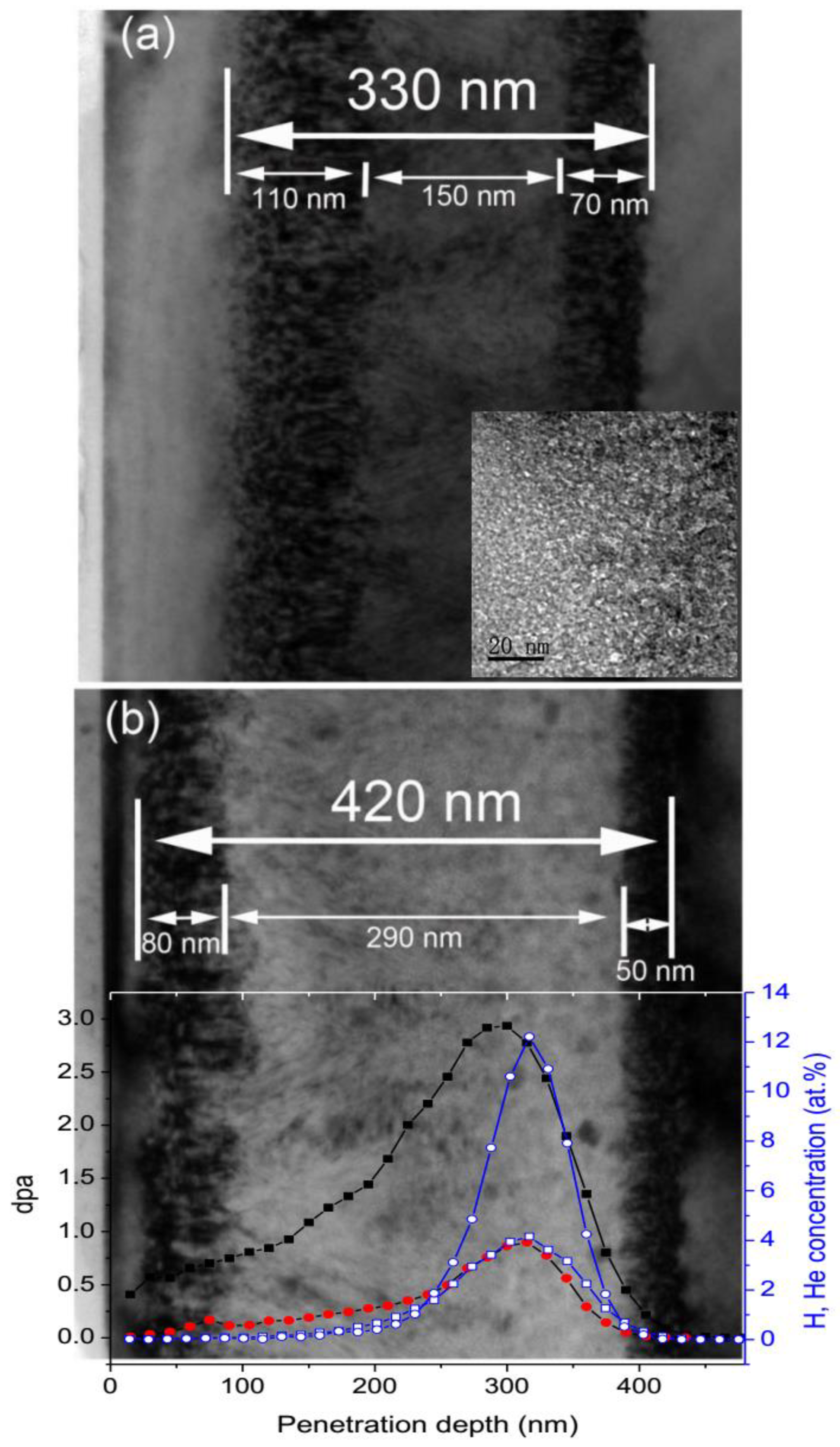

- Microstructure observation shows recrystallization during annealing at 1100 °C. In the damaged band, bubbles, dislocation loops and stacking faults are formed, similar to single He implantation. In comparison with single H2 or He implantation, an increase in bubble density but a decrease in bubble size in the He and H co-implantation is observed.

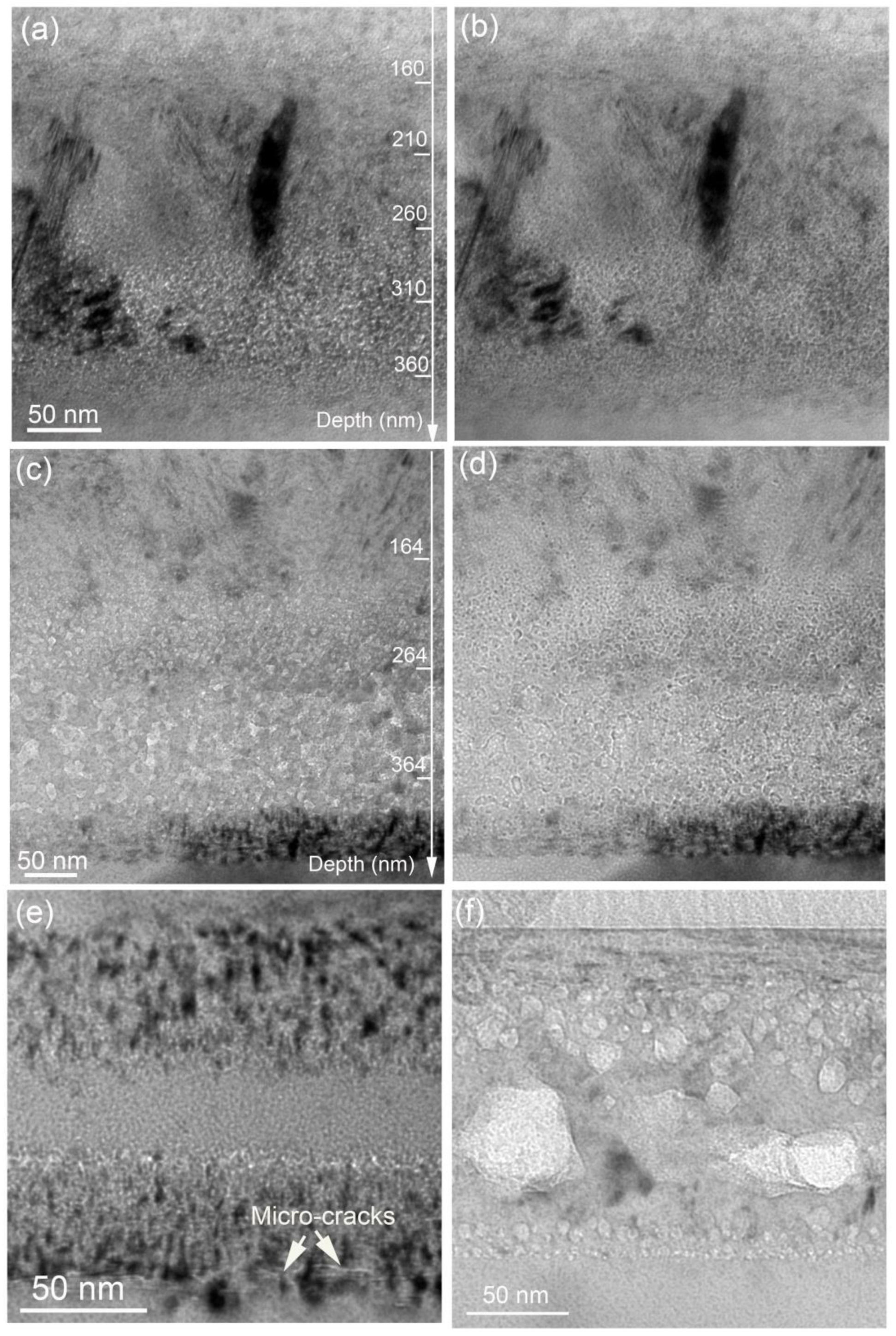

- Surface exfoliation is retarded by He and H2 co-implantation because He implantation-induced lattice defects inhibit the formation of micro-cracks in the damaged band.
