Article

Structure of Sewage Sludge-Clay Multiscale Composite Particles to Control the Mechanism of SO2 and H2S Gas Release

by
Haihong Fan
*,
Lin Li
,
Zhou Li
and
Shuo Shang
College of Materials Science and Engineering, Xi’an University of Architecture and Technology, Xi’an 710055, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(5), 1855; https://doi.org/10.3390/ma15051855
Submission received: 24 January 2022 / Revised: 24 February 2022 / Accepted: 28 February 2022 / Published: 2 March 2022
(This article belongs to the Special Issue Construction Circular Economy: Recycling Construction and Demolition Wastes)
Browse Figures
Versions Notes

Abstract

:
In order to address the problem of sulfur gas and other odors released in the process of using sewage sludge as a construction material, this study prepared multiscale composite particles with a “large scale-medium scale-small scale-micro scale” structure by mixing sludge with silica-alumina building materials. Analysis of the structural changes formed by the internal gas of composite particles due to diffusion at different temperatures and a study of the characteristics of SO2 and H2S release from composite particles were conducted, as well as being compared with the release characteristics of pure sludge, which clarified the mechanism of controlling sulfur-containing-gas release from composite particles. The results showed that compared with pure sludge, the sludge-clay multiscale composite particles were able to reduce the release of SO2 and H2S up to 90% and 91%, and the release temperatures of SO2 and H2S were increased to 120 °C and 80 °C, respectively. Meanwhile, the special structure of the sludge-clay multiscale composite particles and the clay composition are the main factors that hinder the diffusion of sludge pyrolysis gases. Additionally, there are three layers of “gray surface layer-black mixed layer-dark gray spherical core” formed inside the composite particles, which is the apparent manifestation of the diffusion of volatile gases. This study provides theoretical support for the application of multiscale composite particle inhibition of odor-release technology in industrial production.

1. Introduction

With the acceleration of urbanization and the increase in people’s awareness of environmental protection, the capacity of urban wastewater treatment and the host of sludge produced have increased dramatically. In terms of composition, sewage sludge (SS) is a mixture of organic matter, sand, mineral impurities, water, and other components. It contains a large number of organic acids, inorganic acids, phenols, mineral particles, pathogenic bacteria, heavy metals, and other harmful substances, as well as bacterial flora and useful compounds (carbon, nitrogen and phosphorus compounds) [1,2]. If not properly treated, it can have substantial impact on the environment, soil, and people’s daily life [3]. According to statistics, the volume of dry sludge in China reached 5.61 million tons in 2018 [4], sludge production has exceeded 60 million tons in 2019 (based on 80% water content), and the annual production of sludge is expected to exceed 90 million tons in 2025 [5]. At present, the utilization of construction materials is an important method of sludge treatment and disposal, which is cheaper and more widely used than other treatment and disposal methods. Meanwhile, it can reduce the impact on soil, groundwater, and environment in the process of treatment and application.
The utilization of sewage sludge construction materials is mainly based on drying the sludge, thoroughly mixing it with silica-alumina raw materials such as clay, and preparing it into cement [6], bricks [7], and ceramic granules [8] after heating or firing and other processes, in which the sludge releases odorous gases, causing a large impact on the environment. Clay is composed of a variety of hydrated silicates and certain amounts of alumina, alkali metal oxides, and alkaline earth metal oxides, possessing a well-developed pore system, with a large specific surface area and good adsorption properties, and has gained wide and intensive applications in the area of adsorptive separation and environmental treatment [9,10]. Zheng et al. [11], showed that firing pretreatment of sludge removed 52.8% of S from sludge but slowed down the thermal rate of sludge, increasing the cost of pyrolysis. Wang et al. [12], studied the effect of dewatering conditioners on N/S/Cl contaminants in sludge, and it was found that SO42− in the conditioner enhances the release of SO2 but inhibits the release of N-containing contaminants. Liu et al. [13], used chemical conditioners: polyacrylamide (PAM), H2SO4, and CaO to inhibit the pyrolysis process in sludge sulfur-containing gas release, and revealed that PMA and H2SO4 increase SO2 and H2S emissions, while CaO can reduce sulfur-containing gas emissions by producing calcium sulfate. Cheng et al. [14] added alkalis (KOH and NaOH) to the sludge and discovered that they inhibit the release of H2S but accelerate the release of SO2 under low temperature. As mentioned above, although these methods have some inhibitory effect on sludge odor release, there is still some odor gas from escaping and the cost of odor treatment is high. In contrast, it is more suitable to use clay as a material to inhibit the release of sulfur-containing gas from sludge, because clay not only has the characteristics of low cost and simple production process, but it also has developed applications in industrial gas adsorption products, and it is more often used as an adsorbent pelletizing binder formation. Milica et al. [15] used materials such as sludge, fly ash, and landfill ash and mixed them into a representative heavy clay material. It was found that the samples with 50% fly ash and landfill ash additions had the greatest plasticity. In an aqueous solution, bentonite behaves as a binder to bridge mineral particles [16], and bentonite has also been proven to be the most effective binder [16,17]. Therefore, it is very suitable to use clay to prepare sludge-clay multiscale composite particles (SS-C composite particles) for sludge odor adsorption.
The present study made multiscale composite particles with a specific hierarchical structure of sludge mixed with clay and achieved the regulation of harmful gas release by using the special structure of this kind of particles and the adsorption effect of clay. It aimed to prepare sewage sludge-clay composite particles to control the release of odorous gases from sludge, enable the sludge to be consumed in large quantities, and to solve the environmental pollution problems caused during the utilization of building materials from sludge.

2. Materials and Methods

2.1. Materials

The dewatered sewage sludge used in this study was sampled from the Xi’an wastewater treatment plant. First, the wet sludge was dried in an oven at 105 °C for 24 h to achieve a constant weight; then, the dry sludge was crushed and sieved to about 105 μm, and the dry clay was crushed and sieved to about 20 μm, so as to obtain dry sludge and dry clay fine powder. Meanwhile, they were stored separately in airtight containers for spare. Finally, the SS-C composite particles were prepared according to the multiscale particle preparation method.
The results of the proximate analysis of the SS are presented in Table 1. Table 2 and Table 3 showed the chemical compositions of sludge and clay, It can be seen that the sludge contains a large amount of silica-aluminous components and also contains some Fe and P-containing substances. On the other hand, clay contains a lot of calcium-containing substances in addition to silica-alumina components. Figure 1 is the XRD pattern of SS and clay, where it can be seen that the primary mineral phases of sewage sludge are quartz and alumina, and the primary mineral phases of clay are quartz, calcite, margarite, and kaolinite. Therefore, SS-C composite particles contain a certain amount of SiO2, Al2O3, and CaCO3, etc.

2.2. Methods

2.2.1. TG

The TG characteristics of sewage sludge were tested on a TGA-DSC-1600 thermal analyzer (Mettler-Toledo, Zurich, Switzerland). The protective atmosphere was nitrogen (N2, 99.999%), the N2 flow rate was 20 mL/min, the experiments were performed using a 70 μL alumina crucible, and the sample weight was about 15 ± 0.1 mg. The test temperature was 50~1100 °C, and the heating rate was 10 °C/min. The mass loss was calculated from the weight difference of each sample before and after the experiment [18].

2.2.2. Sewage Sludge-Clay Multiscale Composite Particles with Sulfur Gas Online Monitoring Test

This experiment used a QSH-VTF-1200T tube furnace (Shanghai Quanshuo, Shanghai, China) to heat the sample, and a HFP-0401 (C) portable gas detector (Xi’an Huafan, Xi’an, China) for the online testing of the gaseous products from sample decomposition. Meanwhile, a HUIKE-K2 air pump (Shenzhen HUIKE, Shenzhen, China) provides the combustion atmosphere and a HFP-BX suction pump (Xi’an Huafan, Xi’an, China) provides the gas detector with a constant flow of odorous gas. Figure 2 shows the sulfur-containing gas detection test bench, where the gases are identified with the air pump → rotameter → quartz reactor → U-tube → suction pump → gas detector. Among them, the air pump played the role of providing combustion atmosphere and transporting decomposition products, the sample was placed in an alumina crucible and then heated in a quartz tube, and the U-tube was added with quartz cotton and silica-gel desiccant, which played the roles of filtering tar and drying gas, respectively. Air was chosen as the carrier gas for the experiments, and the flow rate of both air and pumping was 205 mL/min.

3. Results and Discussion

3.1. TG-DTG Analysis of Sludge

The TG-DTG curves of SS are shown in Figure 3. The mass loss process can be divided into three stages: (1) The drying and water evaporation stage from 50 °C to 200 °C, at this stage, the SS sample absorbs heating slowly and mainly loses mass due to water evaporation, and the mass loss is only 1.12%; (2) the pyrolysis and charring stages are from 200 °C to 600 °C, and among 200~400 °C is the pyrolysis stage, which is mainly associated with mass loss caused by the decomposition of unstable proteins and volatilization of organic matter [19,20]. In addition, 400~600 °C is the charring stage, with a mass loss of 11.44%, and the organic matter (aliphatic-S and aromatic-S [21]) in this section of SS will be slowly pyrolyzed until charring into char. Above all, the mass loss at this stage is the largest and the maximum mass loss is at temperature point 290 °C; (3) 600~1100 °C is the stage of decomposition of refractory organic and inorganic substances, in which the mass loss from 600~950 °C is due to the decomposition of residual volatile organic substances, sulfate and carbonate [21,22] in SS, while 950~1100 °C is associated with mass reduction because of the decomposition of char.
In summary, It is known that the mass loss of sludge is maximum in the temperature range of 200 °C to 600 °C, so the decomposition of organic matter also accelerates the release of gas. It is reported in other literature that the mass loss of sludge at 200~600 °C can reach 41.7~51.8% [19,23,24,25]. Therefore, regulating the gas release process in the temperature range of 200 °C to 600 °C is the key to reducing the release of harmful gases during sludge drying.

3.2. Preparation of Sludge-Clay Multiscale Composite Particles

The “multiscale composite particle preparation method” is similar to the classification of particle size [26,27]. For example, particles are usually broadly classified by particle size as “nanoparticles (1–100 nm)”, “ultrafine particles (0.1–1 μm)”, “fine particles (1–100 μm)”, “coarse particles (100–1000 μm)”, etc. However, the particle size ranges of the above classifications may vary in different industries. Therefore, this study has given a new definition for the structure of SS-C composite particles.
The structure of the SS-C composite particles is shown in Figure 4. On the whole, the composite particles are spherical in shape and belong to the large-scale particles with diameters of about 15–20 mm. These are divided into internal and external layers; the outermost layer is a thin clay layer made of clay micropowder, closely accumulated, while the inner layer is a particle cluster made of multiple small-scale composite particles with diameters of about 1 mm adhered to each other, and this particle cluster is defined as medium-scale particles. Meanwhile, the small-scale particles are also composed of an inner and outer core-shell structure, with the outer layer consisting of an accumulation of clay micronutrients and the inner layer consisting of multiple smaller-scale particles. However, these smaller scale particles are composed of smaller microscale core-shell structures of sewage sludge-clay cores. Therefore, the SS-C composite particle refers to a multiscale composite particle with a “macro-scale-mesoscale-micro-scale” structure.

3.3. Changes in the Internal Structure of Sewage Sludge-Clay Multiscale Composite Particles during Heating

This study aimed to analyze the mechanism of the sewage sludge-clay multiscale composite particles how to control the release of SO2 and H2S. Hence, according to the sludge and clay ratios listed in Table 4 (that is, in ratios 1#–6#: 1 g of sludge and 5 g, 10 g, 15 g, 20 g, 25 g and 30 g of clay separately), SS-C composite particles with different ratios were made and heated at different temperatures, and the firing regime was 0–200 °C, 300 °C, 400 °C, 500 °C, 600 °C, 700 °C, 800 °C, 900 °C, 1000 °C, and 1100 °C with a continuous heating rate of 10 °C/min, holding for 5 min, cooling to room temperature and then removed. Finally dissected to observe the cross-sectional changes. The results are shown in Table 5.
As seen in Table 5, in the temperature range of 105~300 °C, the interior of the spherical SS-C composite particles exhibited a double-layer structure of “gray surface layer-dark gray mixed layer” from the outside to the inside (Figure 5a). With the increase in the proportion of clay, the color of the dark gray core kept becoming shallower. During the temperature range of 400~600 °C, when the sludge-clay ratio was 1:5, 1:10, and 1:15, the inner part of the SS-C composite particles presented a three-layer structure of “gray surface layer-black mixed layer-dark gray spherical core” from outside to inside (Figure 5d), and when the ratio was 1:20, 1:25, and 1:30, the inner part of the SS-C composite particles was “yellow surface layer-dark gray spherical core”. The two-layer structure is of “yellow surface layer-dark yellow mixed layer” (Figure 5b), but the mixed layer is darker than at low temperature. However, the color of the mixed layer was darker than that at low temperature. When the temperature was higher than 700 °C, only the SS-C composite particles with the sludge-clay ratio of 1:5 showed the bilayer structure of “light yellow surface layer-yellow spherical core” (Figure 5c), and the internal color of the particles in other ratios was basically uniform.
The change in color inside the SS-C composite particles is a macroscopic expression of the outcome of the sludge pyrolysis reaction, in which more biochar [28] or VOCs containing carbon are retained by pyrolysis, and the color becomes darker. The change in color at different temperatures was analyzed to speculate on the pyrolysis process of sludge inside the composite particles.
The surface layer of SS-C composite particles is a clay layer, and under low temperature, carbon-containing gas produced by internal sludge pyrolysis diffuses outward and is trapped, partially due to the adsorption of clay, which has a low concentration and presents a gray color. However, clay layer minerals undergo decomposition-sintering and other reactions in the high-temperature environment above 700 °C and present a yellow color.
The SS-C composite particles consist of a mixture of multiscale composite particles made of sludge and clay powder in a certain ratio, and during the process of sludge pyrolysis, the adsorption of clay and the resistance of particles of different scales cause a large amount of biochar or carbonaceous organic materials diffused outside the particles to be retained here, and the more the retained materials, the darker the color. The three-layer structure of “gray surface layer-black mixed layer-dark gray spherical core” in the temperature range of 40~600 °C in Table 5 indicates that the outwardly diffused carbon-containing materials gather in the area of “black mixed layer” in this temperature range. When the temperature is higher than 700 °C, there is no stratification inside the composite particles, which means that all the carbon-containing materials in the sludge have been decomposed.
As can be seen from Table 5, the preparation of sludge and clay into multiscale composite particles at a drying temperature that was equal to or lower than 600 °C could effectively control the rate of pyrolysis of organic matter in sludge and reduce the amount of gas released.

3.4. Characteristics of SO2 and H2S Release from Sewage Sludge-Clay Multiscale Composite Particles

In industrial applications, a 1:5 SS-C composite particle is equivalent to containing 50% wet sludge and 50% dry clay, which in turn reduces the plasticity of the particle [15]. Therefore, it is significant to consider 1:5 SS-C composite particles as a research object.
Different temperatures of SO2 and H2S release from sludge and 1:5 SS-C composite particles are shown in Figure 6. It is seen that compared with heating 1 g sludge and composite particles containing 1 g sludge, the release of SO2 and H2S from sludge is much larger than that from composite particles, whereas the temperature at which SS-C composite particles start to release SO2 and H2S is significantly higher than that from sludge.
From the analysis of Figure 6a, it is clear that SO2 gas is released in large quantities from sludge in the temperature range of 250 °C to 450 °C, while it releases H2S gas in large quantities from 250 °C to 400 °C. The peaks of release occurred at 300 °C and 320 °C, and at the same time, the corresponding maximum release amounts reached 21 × 10−3 mL/min and 4.8 × 10−3 mL/min.
As can be seen from the analysis in Figure 6b, the temperature ranges for the massive release of SO2 and H2S gases from SS-C composite particles are, respectively 330~500 °C and 320~450 °C, which are higher than the minimum temperatures for the massive release of both gases from pure sludge by 80 °C and 70 °C, and at the same time, there are peaks at 420 °C and 400 °C, which are higher than that of sludge by 120 °C and 80 °C, accordingly, and the peaks of release are 2.1 × 10−3 mL/min and 0.4 × 10−3 mL/min, which are 90% and 91% lower than that of sludge.

3.5. Mechanism of Sulfur-Containing-Gas Release from Sewage Sludge-Clay Multiscale Composite Particles

Comparing the internal structure of the SS-C composite particles (Table 5) and the amount of sulfur gas released at different temperatures (Figure 6), it can be seen that there is a coincidence between the temperature when the SS-C composite particles start to show a two-layer structure of “gray surface layer-dark gray mixed layer” and the temperature point at which SO2 and H2S gases are released. Furthermore, the temperature point of the beginning of the three-layer structure of “gray surface layer-black mixed layer-dark gray spherical core” corresponds to the temperature point where the maximum amount of SO2 and H2S are released. However, when the inner part of the SS-C composite particles became a double-layer structure of “yellow surface layer and dark yellow mixed layer”, the two gases were not detected in the released gas. Therefore, it can be inferred that the “large scale-medium scale-small scale-micro scale” structure of the SS-C composite particles inhibit the release of both SO2 and H2S sulfur-containing gases.
As shown in Figure 7, the reason why SS-C composite particles can inhibit the release of sulfur-containing gases is that sulfur in sludge is mainly in the form of organic matter, and the sulfur-containing-gas release is due to the decomposition of organic sulfur (aliphatic-S and aromatic-S, etc.). With the increase in temperature, the organic matter in the sludge will diffuse by thermal decomposition, and the semi-volatile organic matter will continuously diffuse out of the shell because the clay shell layer has no organic matter while the mixed layer has a high concentration of organic matter. In the process of diffusion, H2S and SO2 are adsorbed in the pores of clay to reduce the release of sulfur-containing gases, and the multiscale structure also blocks the escape of gases and the transfer of organic matter. Qie [29] et al. found that SO2 could be adsorbed by different layers of pores, but the highest amount of SO2 was adsorbed by micropores, 33.0 mg/g; Gasquet [30] et al. found that H2S could also be adsorbed by the micropores of activated carbon; Yang [31] et al. The mechanism of H2S and SO2 removal from 13X molecular sieves (with porous structure) is an adsorption-redox process, in which H2S is oxidized to singlet sulfur and SO2 is oxidized to sulfuric acid attached to the pores. Meanwhile, the alkaline component and CaO react together to adsorb SO2 and H2S as adsorbents [32].Therefore, the organic matter accumulates in the black mixed-layer area, but with the increase in temperature, the organic matter accumulated in the black mixed-layer area will be decomposed and diffused outward.

4. Conclusions

In this study, sewage sludge-clay multiscale composite particles (SS-C composite particles) with “large scale-medium scale-small scale-micro scale” structure were prepared from sewage sludge and clay. The structural changes in the multiscale composite particles due to diffusion of internal gases at different temperatures and the release characteristics of SO2 and H2S were also investigated. In addition, compared with the release characteristics of sludge, the mechanism of multiscale composite particles to control the release of sulfur-containing gases was clarified. It is concluded from the experimental results as follows:
(1)
The mass loss in the temperature range of 200 °C to 600 °C is the largest in the sludge-drying process, and the mass loss amounts to 33.17%.
(2)
The special structure of sewage sludge-clay multiscale composite particles and the composition of clay can prevent the diffusion of sludge pyrolysis gas. Furthermore, it can form a double-layer structure of “gray surface layer-dark gray mixed layer”, “gray surface layer-black mixed layer-dark gray spherical core”, and “light yellow surface layer-yellow spherical core” within the composite particles at different temperature intervals.
(3)
The “large scale-medium scale-small scale-micro scale” structure of the sewage sludge-clay multiscale composite particles can inhibit the sulfur gas release of SO2 and H2S.
(4)
Sewage sludge-clay multiscale composite particles are also 80 °C and 70 °C higher than the minimum temperature at which SO2 and H2S gas are, respectively, released from pure sludge. Moreover, the peak temperature point is also 120 °C and 80 °C higher than that of pure sludge, and the maximum release is 90% and 91% lower than that of pure sludge.
(5)
The double-layer structure of “gray surface layer-dark gray mixed layer” and the three-layer structure of “gray surface layer-black mixed layer-dark gray spherical core” formed by sewage sludge-clay multiscale composite particles are the best internal structures to control the release of sulfur-containing gases.
On the one hand, SS-C composite particles allow the use of large amounts of sewage sludge and the inhibition of odor release from sludge; on the other hand, it also provides a basis for other researchers to apply the “multiscale composite particle preparation method” to other raw materials to adsorb or inhibit the release of certain gases.

Author Contributions

Conceptualization, H.F.; methodology, H.F. and L.L.; investigation, L.L., Z.L. and S.S.; writing—original draft preparation, H.F. and L.L.; writing—review and editing, H.F. and L.L.; supervision, Z.L. and S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Natural Science Foundation of Shaanxi Province of China (grant No. 2020SF-417).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request due to restrictions privacy. The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kosov, V.F.; Umnova, O.M.; Zaichenko, V.M. The pyrolysis process of sewage sludge. J. Phys. Conf. Ser. 2015, 653, 1–5. [Google Scholar] [CrossRef] [Green Version]
  2. Bibby, K.; Peccia, J. Identification of viral pathogen diversity in sewage sludge by metagenome analysis. Environ. Sci. Technol. 2013, 47, 1945–1951. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ronda, A.; Gómez-Barea, A.; Haro, P.; de Almeida, V.F.; Salinero, J. Elements partitioning during thermal conversion of sewage sludge. Fuel Process. Technol. 2019, 186, 156–166. [Google Scholar] [CrossRef]
  4. Xin, L.; Xiujuan, H.; Fengde, T. Analysis of the current situation of sludge generation, treatment and disposal in typical cities in China and trends in economics. Environ. Prot. Circ. Econ. 2021, 41, 88–93. (In Chinese) [Google Scholar] [CrossRef]
  5. Xiaohu, D. Status and development trend of sludge treatment and disposal in China. Science 2020, 72, 30–34. (In Chinese) [Google Scholar] [CrossRef]
  6. Świerczek, L.; Cieślik, B.M.; Konieczka, P. Challenges and opportunities related to the use of sewage sludge ash in cement-based building materials–A review. J. Clean. Prod. 2021, 287. [Google Scholar] [CrossRef]
  7. Taki, K.; Gahlot, R.; Kumar, M. Utilization of fly ash amended sewage sludge as brick for sustainable building material with special emphasis on dimensional effect. J. Clean. Prod. 2020, 275. [Google Scholar] [CrossRef]
  8. Amin, S.K.; Abdel Hamid, E.M.; El-Sherbiny, S.A.; Sibak, H.A.; Abadir, M.F. The use of sewage sludge in the production of ceramic floor tiles. HBRC J. 2019, 14, 309–315. [Google Scholar] [CrossRef] [Green Version]
  9. Chang, J.; Fan, X.; Jiang, Z.; Wang, X.; Chen, L.; Li, J.; Zhu, L.; Wan, C.; Chen, Z. Differential impact of clay minerals and organic matter on pore structure and its fractal characteristics of marine and continental shales in China. Appl. Clay Sci. 2021. [Google Scholar] [CrossRef]
  10. Cai, J.; Du, J.; Song, M.; Lei, T.; Wang, X.; Li, Y. Control of clay mineral properties on hydrocarbon generation of organo-clay complexes: Evidence from high-temperature pyrolysis experiments. Appl. Clay Sci. 2022, 216. [Google Scholar] [CrossRef]
  11. Zheng, A.; Li, L.; Tippayawong, N.; Huang, Z.; Zhao, K.; Wei, G.; Zhao, Z.; Li, H. Reducing emission of NOx and SOx precursors while enhancing char production from pyrolysis of sewage sludge by torrefaction pretreatment. Energy 2020, 192. [Google Scholar] [CrossRef]
  12. Wang, M.; Pan, X.; Xia, Y.; Zhu, A.; Wu, Y.; Fu, C.; Zhang, P.; Zhao, J.; Li, J.; Fu, J. Effect of dewatering conditioners on pollutants with nitrogen, sulfur, and chlorine releasing characteristics during sewage sludge pyrolysis. Fuel 2022, 307. [Google Scholar] [CrossRef]
  13. Liu, H.; Zhang, Q.; Hu, H.; Xiao, R.; Li, A.; Qiao, Y.; Yao, H.; Naruse, I. Dual role of conditioner CaO in product distributions and sulfur transformation during sewage sludge pyrolysis. Fuel 2014, 134, 514–520. [Google Scholar] [CrossRef]
  14. Cheng, S.; Qiao, Y.; Huang, J.; Cao, L.; Yang, H.; Liu, H.; Yu, Y.; Xu, M. Effect of alkali addition on sulfur transformation during low temperature pyrolysis of sewage sludge. Proc. Combust. Inst. 2017, 36, 2253–2261. [Google Scholar] [CrossRef]
  15. Arsenović, M.; Radojević, Z.; Jakšić, Ž.; Pezo, L. Mathematical approach to application of industrial wastes in clay brick production—Part II: Optimization. Ceram. Int. 2015, 41, 4899–4905. [Google Scholar] [CrossRef]
  16. Otsuki, A.; Hayagan, N.L. Zeta potential of inorganic fine particle-Na-bentonite binder mixture systems. Electrophoresis 2020, 41, 1405–1412. [Google Scholar] [CrossRef]
  17. Sivrikaya, O.; Arol, A.İ. The bonding/strengthening mechanism of colemanite added organic binders in iron ore pelletization. Int. J. Miner. Process. 2012, 110–111, 90–100. [Google Scholar] [CrossRef]
  18. Magdziarz, A.; Werle, S. Analysis of the combustion and pyrolysis of dried sewage sludge by TGA and MS. Waste Manag. 2014, 34, 174–179. [Google Scholar] [CrossRef]
  19. Tian, Y.; Zhang, J.; Zuo, W.; Chen, L.; Cui, Y.; Tan, T. Nitrogen conversion in relation to NH3 and HCN during microwave pyrolysis of sewage sludge. Environ. Sci. Technol. 2013, 47, 3498–3505. [Google Scholar] [CrossRef]
  20. Zhuang, X.; Huang, Y.; Song, Y.; Zhan, H.; Yin, X.; Wu, C. The transformation pathways of nitrogen in sewage sludge during hydrothermal treatment. Bioresour. Technol. 2017, 245, 463–470. [Google Scholar] [CrossRef]
  21. Wu, J.; Liu, J.; Yuan, S.; Zhang, X.; Liu, Y.; Wang, Z.; Zhou, J. Sulfur Transformation during Hydrothermal Dewatering of Low Rank Coal. Energy Fuels 2015, 29, 6586–6592. [Google Scholar] [CrossRef]
  22. Wang, Z.; Zhai, Y.; Wang, T.; Peng, C.; Li, S.; Wang, B.; Liu, X.; Li, C. Effect of temperature on the sulfur fate during hydrothermal carbonization of sewage sludge. Environ. Pollut. 2020, 260, 114067. [Google Scholar] [CrossRef] [PubMed]
  23. Nowicki, L.; Ledakowicz, S. Comprehensive characterization of thermal decomposition of sewage sludge by TG–MS. J. Anal. Appl. Pyrolysis 2014, 110, 220–228. [Google Scholar] [CrossRef]
  24. Ischia, M.; Perazzolli, C.; Maschio, R.D.; Campostrini, R. Pyrolysis study of sewage sludge by TG-MS and TG-GC-MS coupled analyses. J. Therm. Anal. Calorim. 2007, 87, 567–574. [Google Scholar] [CrossRef]
  25. Ischia, M.; Dal Maschio, R.; Grigiante, M.; Baratieri, M. Clay-sewage sludge co-pyrolysis. A TG-MS and Py-GC study on potential advantages afforded by the presence of clay in the pyrolysis of wastewater sewage sludge. Waste Manag. 2011, 31, 71–77. [Google Scholar] [CrossRef]
  26. Wedd, M.; Ward-Smith, S.; Rawle, A. Particle Size Analysis. In Encyclopedia of Analytical Science, 3rd ed.; Worsfold, P., Poole, C., Townshend, A., Miró, M., Eds.; Academic Press: Oxford, UK, 2019; pp. 144–157. [Google Scholar]
  27. Gong, H.; Shao, W.; Ma, X.; Cui, Z. Absorption properties of a multilayer composite nanoparticle for solar thermal utilization. Opt. Laser Technol. 2022, 150. [Google Scholar] [CrossRef]
  28. Xiao, L.P.; Shi, Z.J.; Xu, F.; Sun, R.C. Hydrothermal carbonization of lignocellulosic biomass. Bioresour. Technol. 2012, 118, 619–623. [Google Scholar] [CrossRef]
  29. Qie, Z.; Zhang, Z.; Sun, F.; Wang, L.; Pi, X.; Gao, J.; Zhao, G. Effect of pore hierarchy and pore size on the combined adsorption of SO2 and toluene in activated coke. Fuel 2019, 257. [Google Scholar] [CrossRef]
  30. Gasquet, V.; Kim, B.; Bonhomme, A.; Benbelkacem, H. Sewage sludge ash-derived materials for H2S removal from a landfill biogas. Waste Manag. 2021, 136, 230–237. [Google Scholar] [CrossRef]
  31. Yang, K.; Su, B.; Shi, L.; Wang, H.; Cui, Q. Adsorption mechanism and regeneration performance of 13X for H2S. Energy Fuels 2018, 32, 12742–12749. [Google Scholar] [CrossRef]
  32. Yi, K.; Liu, H.; Wang, J.; Lu, G.; Jin, M.; Hu, H.; Yao, H. The adsorption and transformation of SO2, H2S and NH3 by using sludge gasification ash: Effects of Fenton oxidation and CaO pre-conditioning. Chem. Eng. J. 2019, 360, 1498–1508. [Google Scholar] [CrossRef]
Materials 15 01855 g001 550

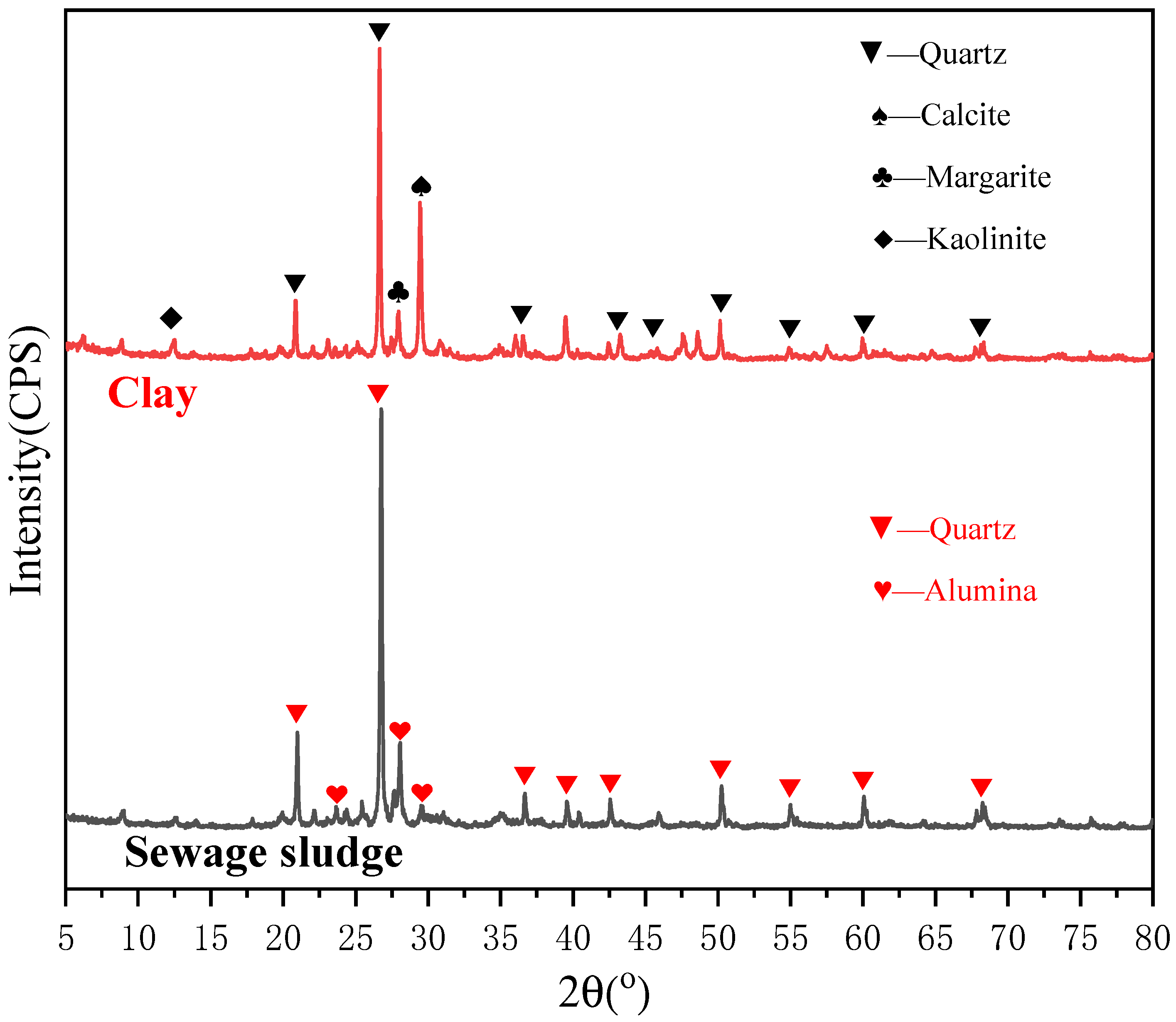

Figure 1. XRD patterns of SS and clay.
Figure 1. XRD patterns of SS and clay.
Materials 15 01855 g001
Materials 15 01855 g002 550

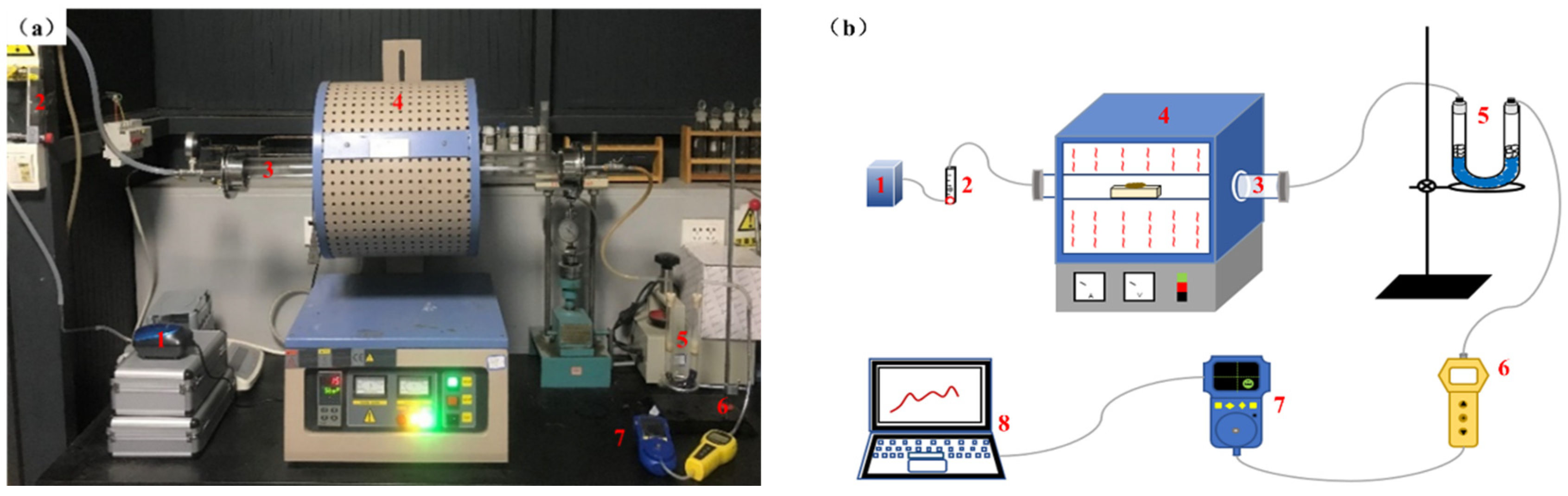

Figure 2. Sulfur-containing gas detection test bench: (a) Combustion and sulfur-containing-gas detection device diagram; (b) combustion and sulfur gas detection diagram; 1-air pump; 2-rotor flow meter; 3-quartz tube; 4-tube furnace; 5-U-tube; 6-suction pump; 7-gas detector; 8-computer.
Figure 2. Sulfur-containing gas detection test bench: (a) Combustion and sulfur-containing-gas detection device diagram; (b) combustion and sulfur gas detection diagram; 1-air pump; 2-rotor flow meter; 3-quartz tube; 4-tube furnace; 5-U-tube; 6-suction pump; 7-gas detector; 8-computer.
Materials 15 01855 g002
Materials 15 01855 g003 550

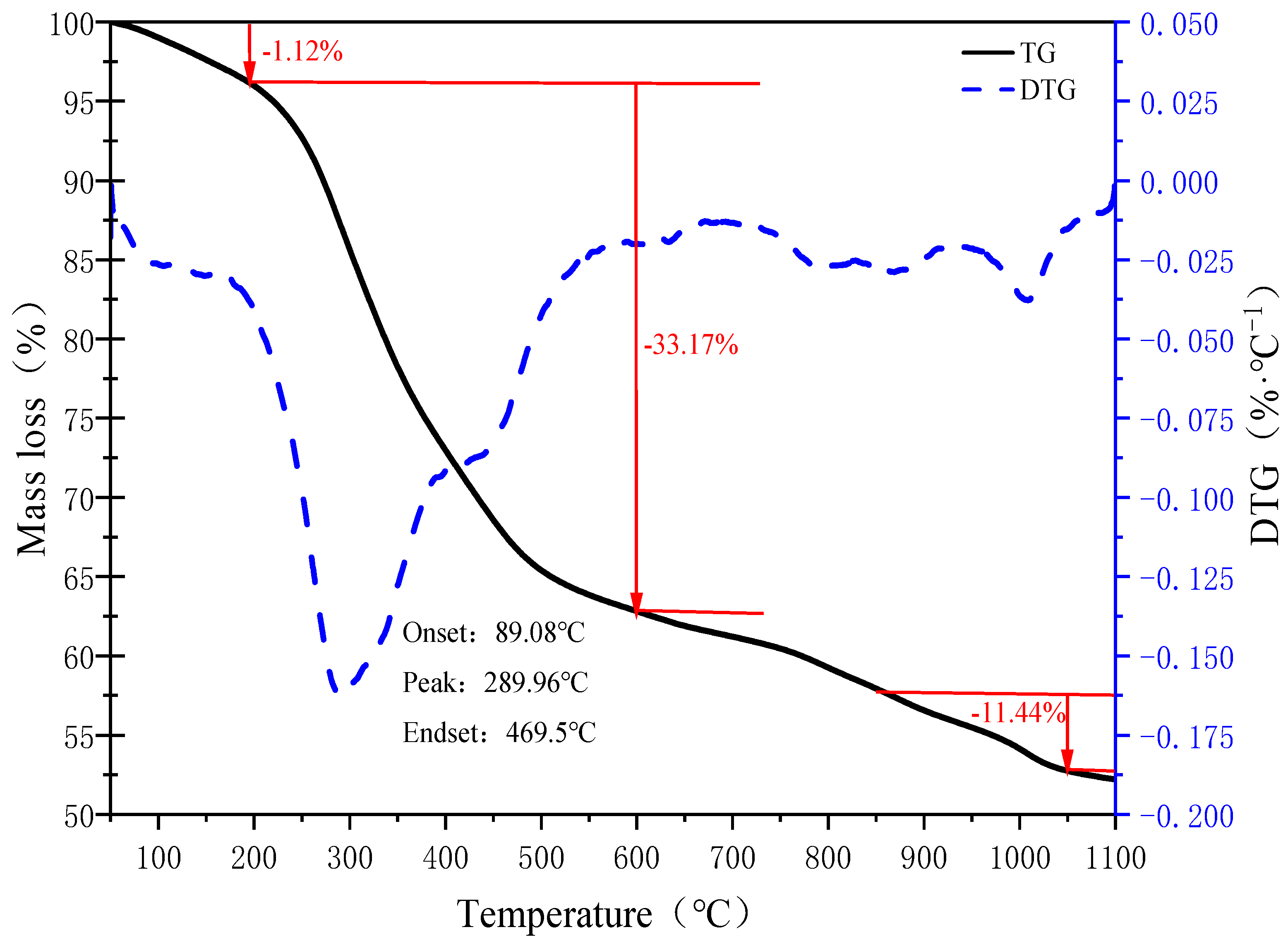

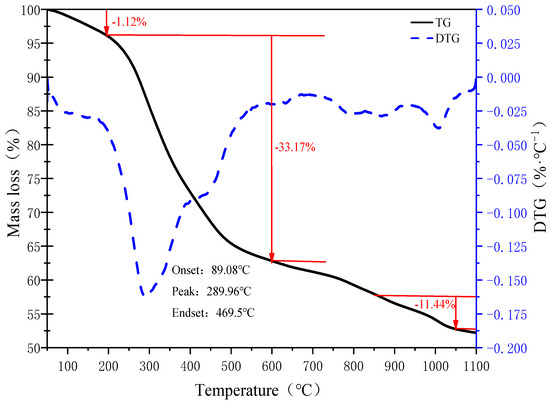

Figure 3. TG-DTG curves of SS.
Figure 3. TG-DTG curves of SS.
Materials 15 01855 g003
Materials 15 01855 g004 550

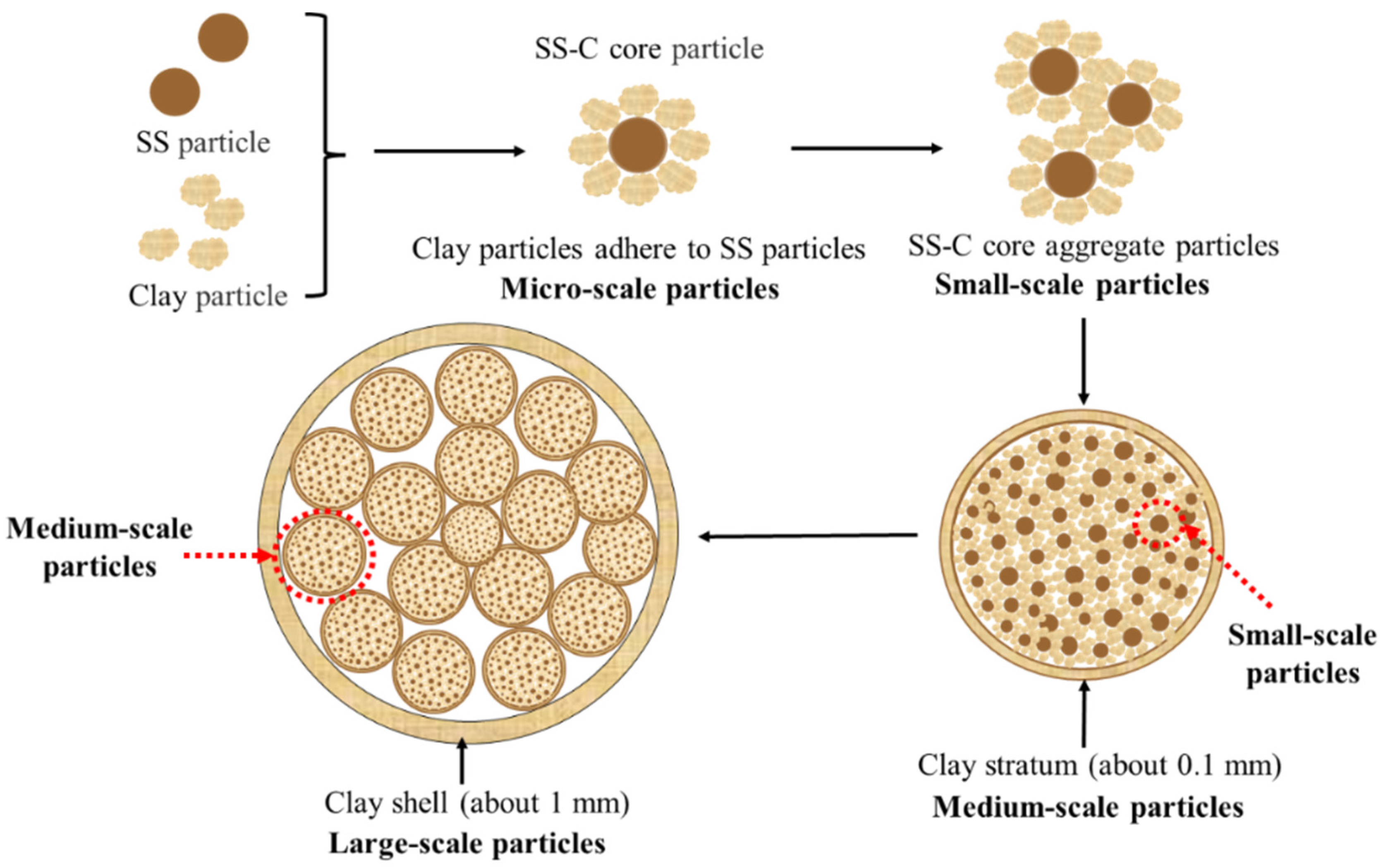

Figure 4. Schematic structure of sewage sludge-clay multiscale composite particles (SS-C composite particles).
Figure 4. Schematic structure of sewage sludge-clay multiscale composite particles (SS-C composite particles).
Materials 15 01855 g004
Materials 15 01855 g005 550

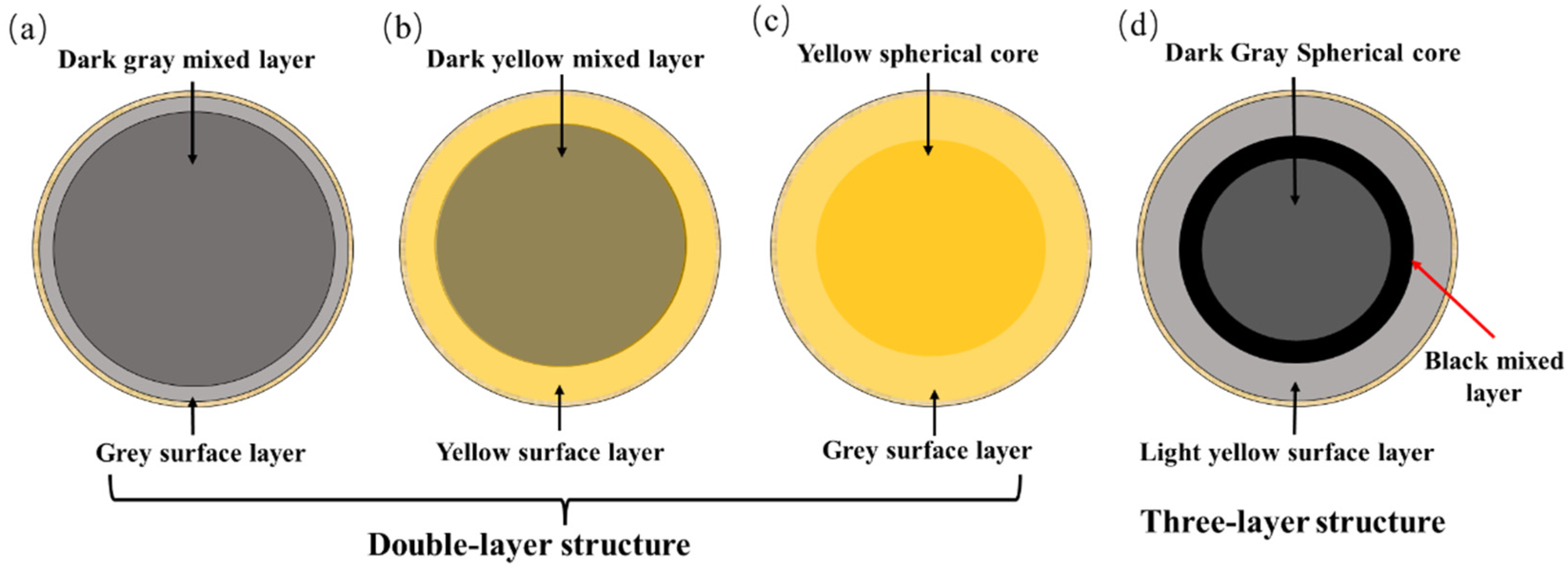

Figure 5. Schematic diagram of the internal structural changes of SS-C composite particles. (a) Gray surface layer-dark gray mixed layer, (b) yellow surface layer-dark yellow mixed layer, (c) light yellow surface layer-yellow spherical core, (d) gray surface layer-black mixed layer-dark gray spherical core.
Figure 5. Schematic diagram of the internal structural changes of SS-C composite particles. (a) Gray surface layer-dark gray mixed layer, (b) yellow surface layer-dark yellow mixed layer, (c) light yellow surface layer-yellow spherical core, (d) gray surface layer-black mixed layer-dark gray spherical core.
Materials 15 01855 g005
Materials 15 01855 g006 550

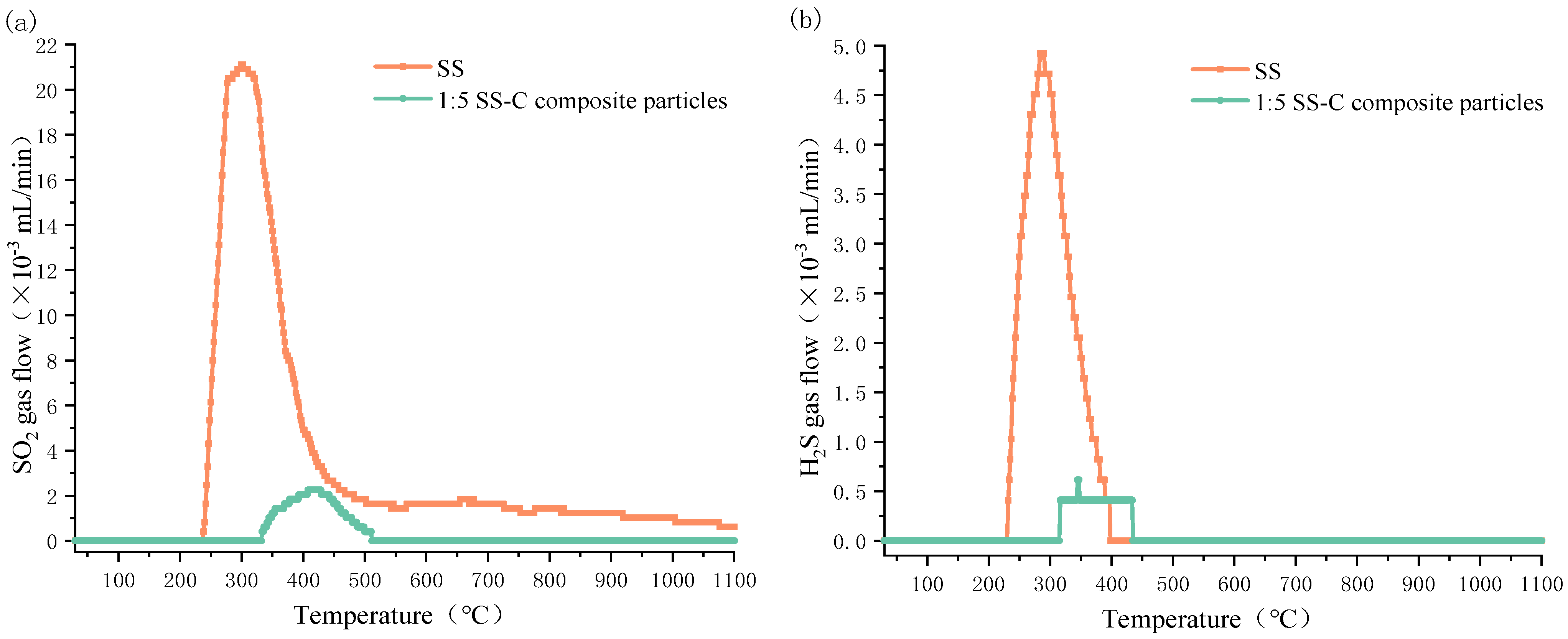

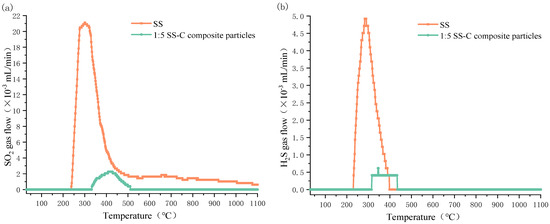

Figure 6. Release of SO2 and H2S gases from SS and 1:5 SS-C composite particles at different temperatures; (a) SO2; (b) H2S.
Figure 6. Release of SO2 and H2S gases from SS and 1:5 SS-C composite particles at different temperatures; (a) SO2; (b) H2S.
Materials 15 01855 g006
Materials 15 01855 g007 550

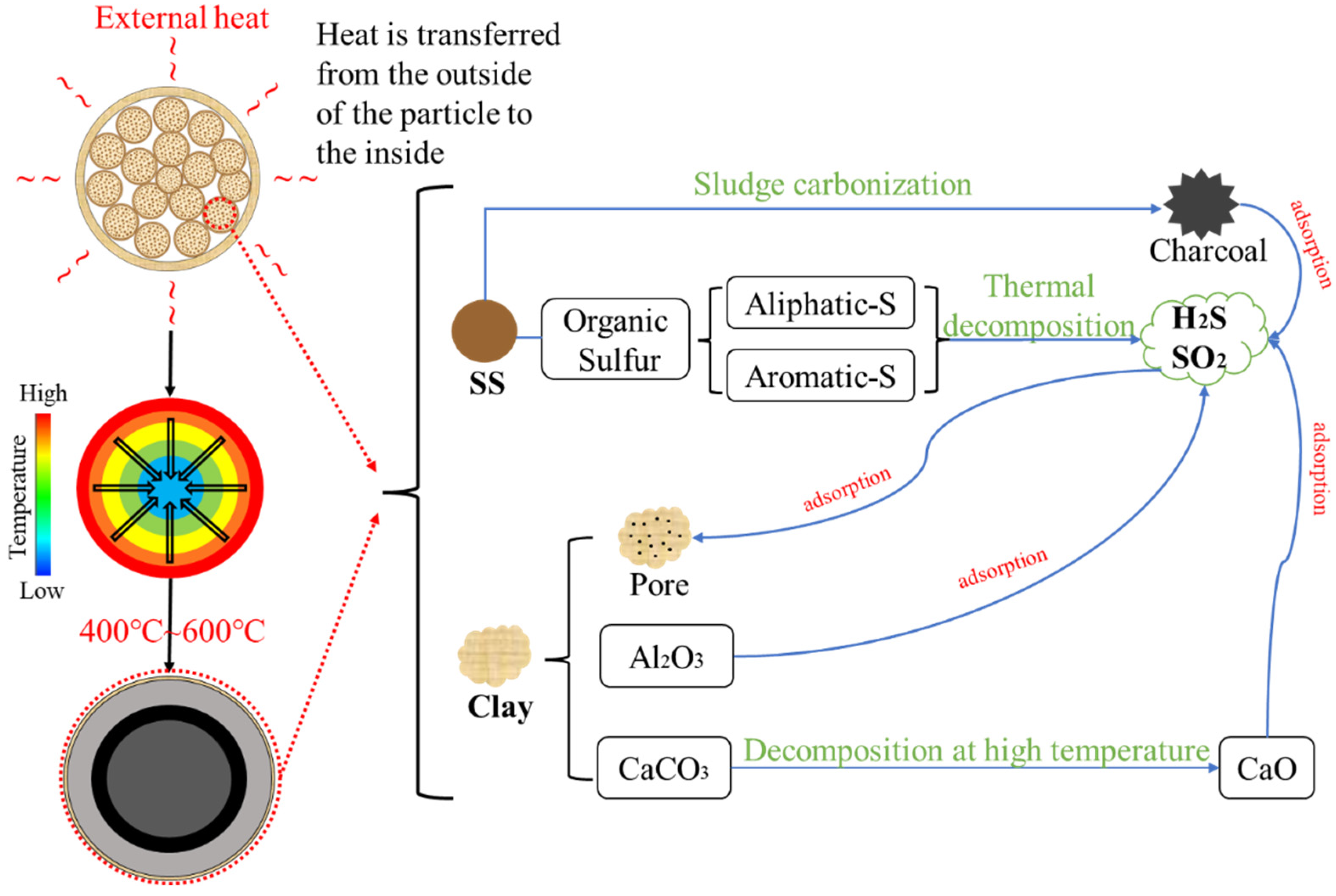

Figure 7. Inhibition of sulfur-containing-gas release process by SS-C composite particles.
Figure 7. Inhibition of sulfur-containing-gas release process by SS-C composite particles.
Materials 15 01855 g007
Table
Table 1. Proximate analysis of sewage sludge (wt.%).
Table 1. Proximate analysis of sewage sludge (wt.%).
MaVdAdFCQb,ad
(MJ/kg)
78.141.6452.465.9115.09
M, moisture content; V, volatile content; A, ash content; FC, fixed carbon; Qb, refers to the bomb; calorific value. a, as received basis; d, dried basis; ad, refers to air-dried basis; daf, dried and ash-free basis.
Table
Table 2. Chemical composition of sewage sludge (wt.%).
Table 2. Chemical composition of sewage sludge (wt.%).
SiO2Al2O3Fe2O3P2O5CaOK2OMgOSO3Na2OTiO2
37.0762014.9912.0765.7922.5432.3362.2151.0380.843
Table
Table 3. Chemical composition of clay (wt.%).
Table 3. Chemical composition of clay (wt.%).
SiO2CaOAl2O3Fe2O3MgOK2ONa2OTiO2P2O5MnO
37.6619.8710.24.7332.7462.020.6930.5950.2060.0824
Table
Table 4. Ratio and number of multiscale composite particles of sewage sludge-clay.
Table 4. Ratio and number of multiscale composite particles of sewage sludge-clay.
Number1#2#3#4#5#6#
SS (g):Clay (g)1:51:101:151:201:251:30
Table
Table 5. Internal structural changes in SS-C composite particles.
Table 5. Internal structural changes in SS-C composite particles.
NO.1#2#3#4#5#6#
T
105 °C Materials 15 01855 i001 Materials 15 01855 i002 Materials 15 01855 i003 Materials 15 01855 i004 Materials 15 01855 i005 Materials 15 01855 i006
200 °C Materials 15 01855 i007 Materials 15 01855 i008 Materials 15 01855 i009 Materials 15 01855 i010 Materials 15 01855 i011 Materials 15 01855 i012
300 °C Materials 15 01855 i013 Materials 15 01855 i014 Materials 15 01855 i015 Materials 15 01855 i016 Materials 15 01855 i017 Materials 15 01855 i018
360 °C Materials 15 01855 i019 Materials 15 01855 i020 Materials 15 01855 i021 Materials 15 01855 i022 Materials 15 01855 i023 Materials 15 01855 i024
400 °C Materials 15 01855 i025 Materials 15 01855 i026 Materials 15 01855 i027 Materials 15 01855 i028 Materials 15 01855 i029 Materials 15 01855 i030
460 °C Materials 15 01855 i031 Materials 15 01855 i032 Materials 15 01855 i033 Materials 15 01855 i034 Materials 15 01855 i035 Materials 15 01855 i036
500 °C Materials 15 01855 i037 Materials 15 01855 i038 Materials 15 01855 i039 Materials 15 01855 i040 Materials 15 01855 i041 Materials 15 01855 i042
560 °C Materials 15 01855 i043 Materials 15 01855 i044 Materials 15 01855 i045 Materials 15 01855 i046 Materials 15 01855 i047 Materials 15 01855 i048
600 °C Materials 15 01855 i049 Materials 15 01855 i050 Materials 15 01855 i051 Materials 15 01855 i052 Materials 15 01855 i053 Materials 15 01855 i054
660 °C Materials 15 01855 i055 Materials 15 01855 i056 Materials 15 01855 i057 Materials 15 01855 i058 Materials 15 01855 i059 Materials 15 01855 i060
700 °C Materials 15 01855 i061 Materials 15 01855 i062 Materials 15 01855 i063 Materials 15 01855 i064 Materials 15 01855 i065 Materials 15 01855 i066
800 °C Materials 15 01855 i067 Materials 15 01855 i068 Materials 15 01855 i069 Materials 15 01855 i070 Materials 15 01855 i071 Materials 15 01855 i072
900 °C Materials 15 01855 i073 Materials 15 01855 i074 Materials 15 01855 i075 Materials 15 01855 i076 Materials 15 01855 i077 Materials 15 01855 i078
1000 °C Materials 15 01855 i079 Materials 15 01855 i080 Materials 15 01855 i081 Materials 15 01855 i082 Materials 15 01855 i083 Materials 15 01855 i084
1100 °C Materials 15 01855 i085 Materials 15 01855 i086 Materials 15 01855 i087 Materials 15 01855 i088 Materials 15 01855 i089 Materials 15 01855 i090
