Next Article in Journal
Acknowledgment to Reviewers of Materials in 2021
Previous Article in Journal
The Object Segmentation from the Microstructure of a FSW Dissimilar Weld


Article

Microstructure Evolution and Improved Permeability of Ceramic Waste-Based Bricks

College of Materials Science and Engineering, Xi’an University of Science and Technology, Xi’an 710054, China
*
Author to whom correspondence should be addressed.
Academic Editor: Mostafa Seifan
Materials 2022, 15(3), 1130; https://doi.org/10.3390/ma15031130
Received: 14 December 2021 / Revised: 24 January 2022 / Accepted: 27 January 2022 / Published: 31 January 2022
(This article belongs to the Section Construction and Building Materials)

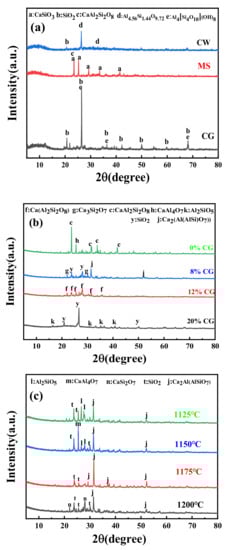

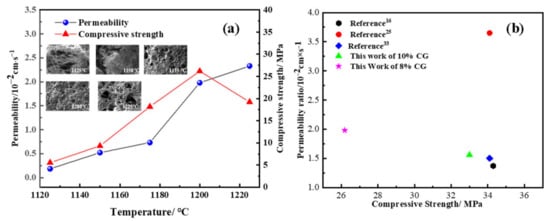

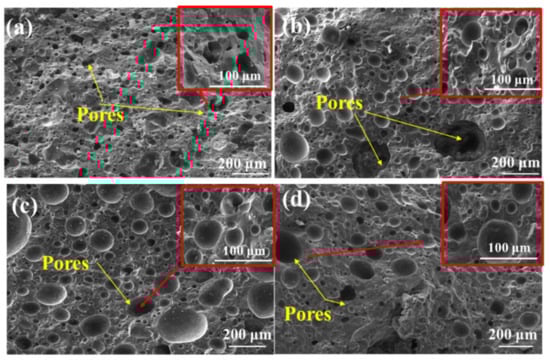

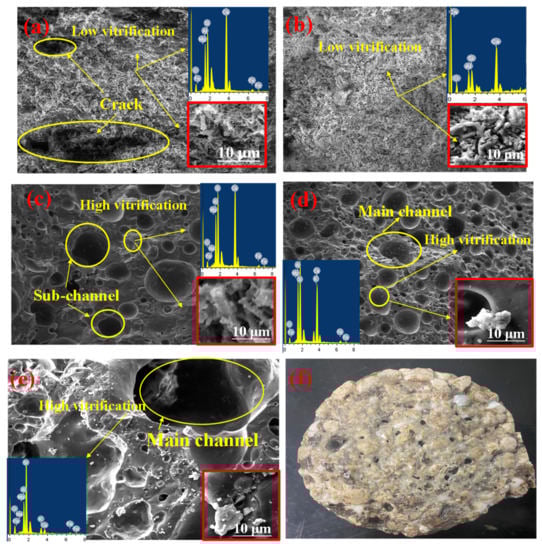

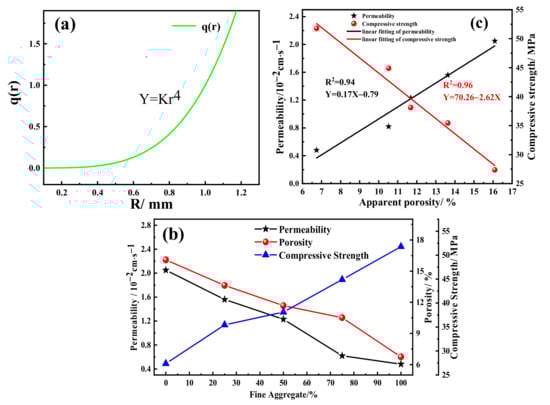

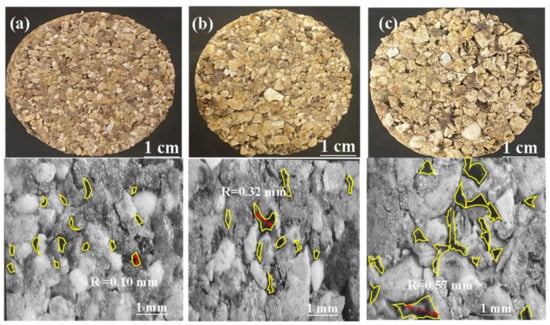

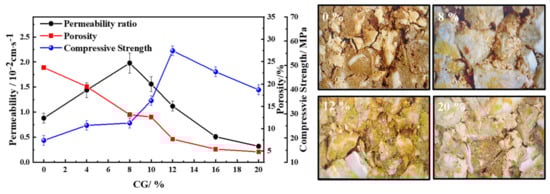

The resource and large-scale utilization of waste ceramic materials, magnesium slag, and coal gangue are one of the important ways for the sustainable development in metallurgy, coal, and other related enterprises. In this paper, waste ceramic materials were used as aggregates; coal gangue and magnesium slag were used as mixed binder; and the all solid-waste-based permeable bricks with excellent performance were prepared by forming pressure at 5 MPa. The mechanical properties and water permeability of the all-solid-waste-based permeable bricks were evaluated. The results proved that the porous channel of permeable brick is mainly composed of waste ceramic materials with a particle size of 2–3 mm. Pore structures below 200 μm were mainly composed of fine aggregate and mixed binder. Using 60% coarse aggregate, 20% fine aggregate, 10% coal gangue, and 10% magnesium slag as raw materials, the all-solid-waste-based permeable bricks were obtained by pressing at 6 MPa and sintering at 1200 °C, which exhibited the best performance, and its water permeability, compressive strength, and apparent porosity were 1.56 × 10−2 cm/s, 35.45 MPa, and 13.15%, respectively. Excellent water permeability, compressive strength, and apparent porosity of the all solid-waste-based permeable bricks were ascribed to the high content of connecting open pores, and closely adhesive force were ascribed to the porous microstructure constructed by the grading of waste ceramic materials and the tight conjoined points of the liquid phases in coal gangue and magnesium slag at a high sintering temperature. View Full-Text
Keywords: waste ceramic materials; magnesium slag; coal gangue; sintered brick; permeability waste ceramic materials; magnesium slag; coal gangue; sintered brick; permeability
Show Figures

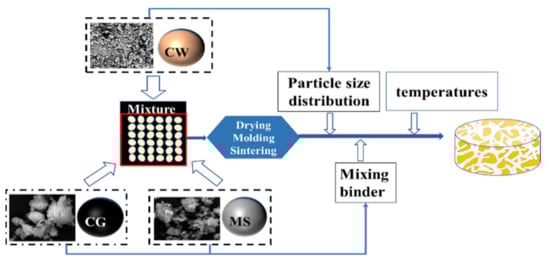

Figure 1

MDPI and ACS Style

Zhou, W.; Du, H.; Kang, L.; Du, X.; Shi, Y.; Qiang, X.; Li, H.; Zhao, J. Microstructure Evolution and Improved Permeability of Ceramic Waste-Based Bricks. Materials 2022, 15, 1130. https://doi.org/10.3390/ma15031130

AMA Style

Zhou W, Du H, Kang L, Du X, Shi Y, Qiang X, Li H, Zhao J. Microstructure Evolution and Improved Permeability of Ceramic Waste-Based Bricks. Materials. 2022; 15(3):1130. https://doi.org/10.3390/ma15031130

Chicago/Turabian Style

Zhou, Wenfei, Huiling Du, Le Kang, Xian Du, Yupu Shi, Xiaojing Qiang, Haodong Li, and Jing Zhao. 2022. "Microstructure Evolution and Improved Permeability of Ceramic Waste-Based Bricks" Materials 15, no. 3: 1130. https://doi.org/10.3390/ma15031130

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
