In Situ ZrB₂ Formation in B₄C Ceramics and Its Strengthening Mechanism on Mechanical Properties

Abstract

In order to reduce the sintering temperature and improve the mechanical properties of B₄C ceramics, ZrB₂ was formed in situ using the SPS sintering method with ZrO₂ and B₄C as raw materials. Thermodynamic calculations revealed that CO pressure affected the formation of ZrB₂ at temperatures from 814 °C to 1100 °C. The experimental results showed that the ZrB₂ grain size was <5 µm and that the grains were uniformly distributed within the B₄C ceramics. With an increase in ZrO₂ content, the Vickers hardness and flexural strength of the B₄C ceramics first increased and then decreased, while the fracture toughness continuously increased. When the content of ZrO₂ was 15 wt%, the Vickers hardness, fracture toughness and flexural strength of B₄C ceramics were 35.5 ± 0.63 GPa, 3.6 ± 0.24 MPa·m^1/2 and 403 ± 10 MPa, respectively. These results suggest that ZrB₂ inhibits B₄C grain growth, eliminates crack tip stress, and provides fine grain to strengthen and toughen B₄C ceramics.

1. Introduction

Due to their low density, high hardness and high elastic modulus, boron carbide (B₄C) ceramics have been used in the manufacturing of armor, cutting tools and neutron absorbers [1,2,3,4,5]. However, further application of B₄C ceramics is limited by the high sintering temperature (>2000 °C) and low fracture toughness (K_IC < 2.2 MPa·m^1/2), which can be attributed to the strong B-C covalent bonds, low atomic diffusion coefficient and low dislocation plasticity [6,7,8,9,10]. Therefore, it is essential to lower the sintering temperature and improve the mechanical properties of B₄C ceramics.

The addition of second phases, such as SiC, Al₂O₃, TiC and TiO₂, is an effective method of reducing the sintering temperature and improving the mechanical properties of B₄C ceramics [11,12], but ultimately results in reduced material hardness. Moreover, brittle compounds are formed during the densification process, leading to a low fracture toughness. Transitional metal diborides (TiB₂, ZrB₂) are useful additives which have similar properties to B₄C ceramics [13,14,15]. Among them, Zirconium Diboride (ZrB₂) has a high melting point (3245 °C), high hardness (14–23 GPa) and high flexural strength (higher than 500 MPa), which could improve the flexural strength and fracture toughness of B₄C ceramics [16,17].

Many reports have shown that the addition of ZrB₂ could efficiently enhance the mechanical properties of B₄C ceramics. For example, He et al. [18] found that ZrB₂ promoted the sintering process and increased the ceramic’s high critical crack size, resulting in excellent thermal shock resistance. In order to inhibit the grain growth of B₄C, Lin et al. [19] prepared B₄C ceramics by pressureless sintering using ZrO₂ as a sintering aid. The in situ formation of ZrB₂ inhibited the abnormal growth of B₄C grains, prolonged the crack extension path and improved the sintering activity. Guo et al. [20] prepared B₄C-ZrB₂ ceramics at low temperature, resulting in an average B₄C grain size of 1–2 μm. The hardness and fracture toughness reached 33.0 ± 1.3 GPa and 4.1 ± 0.2 MPa·m^1/2, respectively. Rehman et al. [21] prepared B₄C ceramics by SPS at 1700 °C; the average grain size of ZrB₂ was 1.3 ± 0.2 μm. The Vickers hardness, fracture toughness and flexural strength were 31.28 GPa, 4.2 MPa·m^1/2 and 511 MPa, respectively. However, the role of ZrB₂ as a sintering aid and grain growth inhibitor requires further investigation, and the effect of ZrB₂ on the fracture mode transformation of B₄C ceramics also needs to be clarified.

In this work, we aim to obtain densified B₄C ceramics with the in situ formation of ZrB₂ at 1700 °C using the spark plasma sintering (SPS) method, with ZrB₂ grains homogeneously distributed in the B₄C ceramics. The reaction between ZrO₂ and B₄C could effectively reduce the sintering temperature, and the pinning effect of ZrB₂ is expected to inhibit the B₄C grain growth, achieving desirable mechanical properties.

2. Materials and Methods

2.1. Materials and Processes

B₄C powder (1 μm, analytically pure) and nano-ZrO₂ (50 nm, purity > 99.9%) were used as raw materials. Nano-Y₂O₃ (50 nm, purity > 99.9%) was used as a sintering aid.

The compositions of the samples are shown in

Table 1. Compositions of samples.

Samples	BZ0	BZ5	BZ10	BZ15	BZ20
B4C/wt%	100	95	90	85	80
ZrO2/wt%	0	5	10	15	20
Y2O3/wt%	3	3	3	3	3

. The raw materials were mixed with stainless steel balls in anhydrous ethanol with a ball-to-material ratio of 5:1 and a mixing time of 6 h at 250 r/min. After mixing, the mixtures were dried in a drying oven at 80 °C for 24 h and then passed through a 200-mesh sieve. Then, the mixtures were sintered by SPS (Dr. Sinter-3.20 MKII, Sumitomo, Tokyo, JPN) under vacuum. The heating rate was maintained at 100 °C/min and a uniaxial load of 5 kN was applied during the heating stage to ensure good contact conductivity with the graphite indenter. After the temperature rose to 1600 °C, the uniaxial load was slowly increased to 15 kN. Then, the sintering temperature was increased to 1700 °C for 6 min. The sintered ceramics were cooled in the furnace to about 150 °C and the samples were taken out to obtain B₄C ceramics.

2.2. Characterizations

The bulk density of B₄C ceramics was measured using the Archimedes method. The Vickers hardness and fracture toughness were measured by the indentation method using a Vickers hardness tester (HV-50A, Huayin, Laizhou, China). The spacing between each indentation was ensured to be greater than 100 μm to avoid crack deformation or the overlapping of extended areas caused by indentation. Five effective indentations were also used to calculate the mean and error of Vickers hardness and fracture toughness. The B₄C ceramics were processed into long strip samples of 2 mm × 3 mm × 20 mm using a diamond wire cutting machine, and the bending strength of the samples was measured using a three-point bending test with a span of 16 mm and a loading rate of 0.5 mm/min. The mean values of flexural strength and error analyses were calculated with 3 sets of valid data. The phase compositions were characterized by X-ray diffractometer (XRD, X’Pert MPD Pro, Philips, Amsterdam, The Netherlands). The voltage and current of the Cu Kα1 radiation were 40 kV and 40 mA, respectively. The scanning range (2θ) was 10°–90°. The microscopic morphologies were characterized using a field-emission scanning electron microscope (FESEM, Nova NanoSem 400, Thermo, Waltham, MA, USA).

3. Results and Discussion

3.1. Thermodynamic Calculations

The in situ generation of ZrB₂ from B₄C and nano-ZrO₂ is represented in Reaction (1):

$${\mathrm{B}}_4\mathrm{C}\left(\mathrm{s}\right)+2{\mathrm{ZrO}}_2\left(\mathrm{s}\right)+3\mathrm{C}\left(\mathrm{s}\right)\to 2{\mathrm{ZrB}}_2\left(\mathrm{s}\right)+4\mathrm{CO}\left(\mathrm{g}\right)$$

(1)

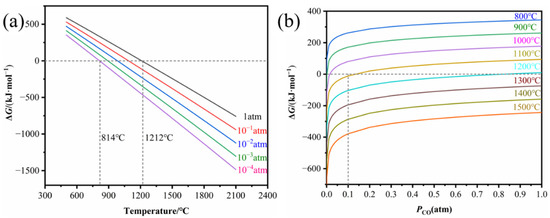

According to thermodynamic calculations by FactSage, the variation in Gibbs’ free energy of reaction (1) as a function of temperature at different P_CO (pressure of CO) and as a function of P_CO at different temperatures is shown in Figure 1. Figure 1a shows that in the standard state (P_CO = 0.986 atm), a temperature above 1212 °C is favorable for the formation of ZrB₂. It is expected that reaction (1) proceeds more rapidly when the reaction is carried out under vacuum. Therefore, pure ZrB₂ can be synthesized at a temperature as low as 814 °C when P_CO = 10⁻⁵ atm, according to Figure 1a. However, the CO generated by the sample surrounded by graphite die cannot be expelled in time, leading to P_CO > 10⁻⁴ atm; thus, the reaction will proceed at a temperature higher than 814 °C. Figure 1b further illustrates that reaction (1) needs to proceed at temperatures above 1100 °C when P_CO is in the range of 0–0.1 atm. In the experiments, the vacuum pump worked continuously and the vacuum level in the furnace was as low as 8 × 10⁻⁵ atm during SPS, maintaining the P_CO at a low level and thus promoting the low-temperature densification of B₄C ceramics.

3.2. XRD Phase Analysis

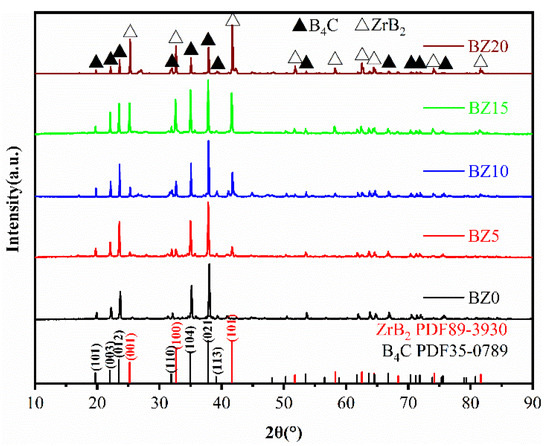

The XRD patterns of B₄C ceramics prepared by SPS with different ZrB₂ contents are shown in Figure 2. The ceramics are composed of B₄C and ZrB₂, and no residual nano-ZrO₂ phase can be detected, indicating that nano-ZrO₂ and B₄C completely reacted to form the ZrB₂ phase. The B₄C in the samples all had the rhombohedral crystal structure (PDF #35-0798). The diffraction peaks of samples at 2θ of 21.21°, 32.64°, and 41.69° were all taken from the ZrB₂ crystal (PDF #89-3930), and correspond to the (110), (200) and (211) crystal planes of its hexagonal crystal structure, respectively. The intensity of the ZrB₂ diffraction peak increases with the addition of nano-ZrO₂, while the intensity of the B₄C diffraction peak is the opposite, which is consistent with the expected results. The XRD results indicate that nano-ZrO₂ can react with B₄C in situ to form ZrB₂, which can promote the diffusion effect between B₄C particles during sintering and achieve the densification of B₄C ceramics.

3.3. Microstructural Analysis

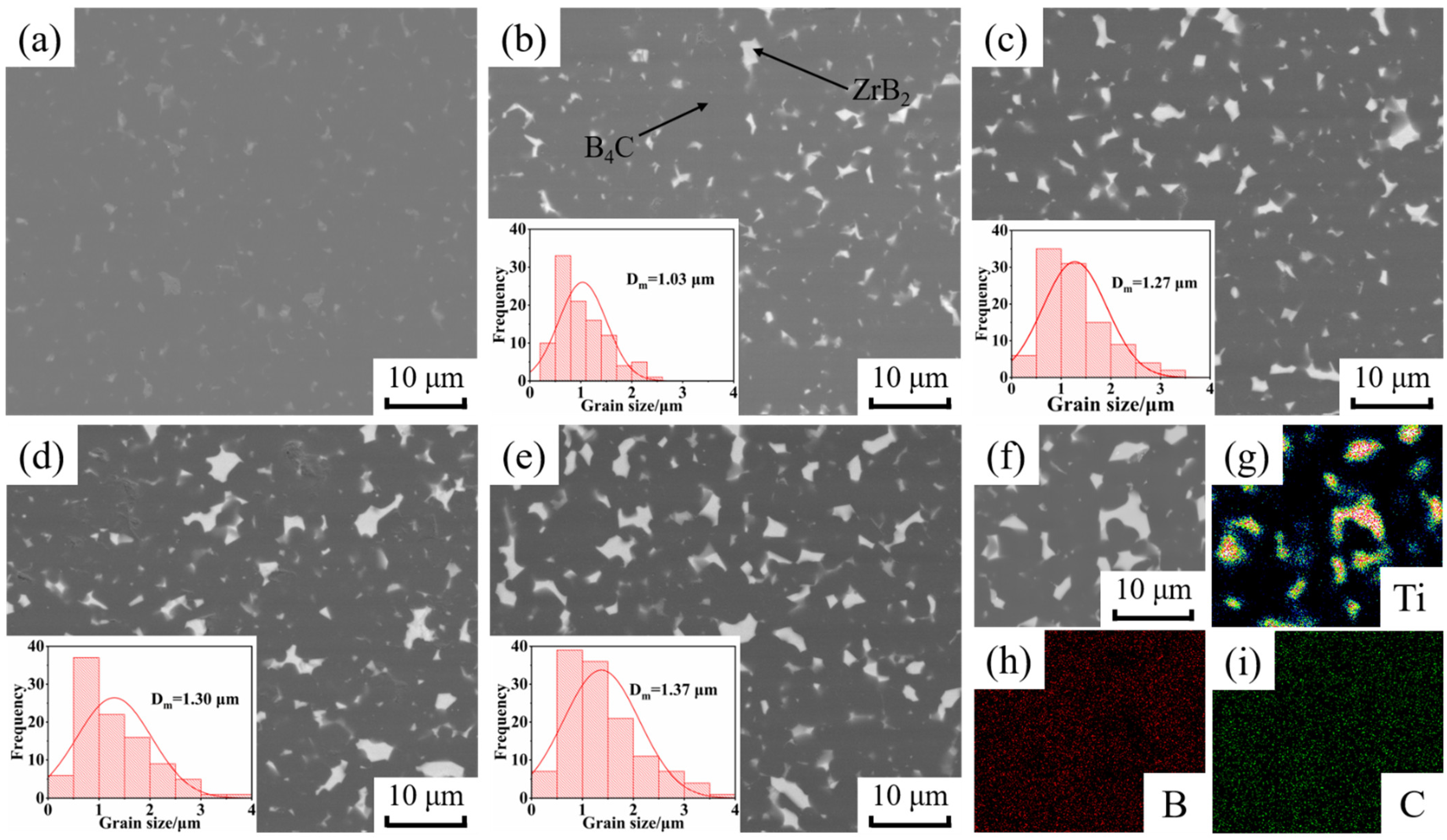

The BSE images of B₄C ceramics and the grain size of ZrB₂ prepared by SPS are shown in Figure 3. The distribution of B, C and Ti elements in sample BZ15 are shown in Figure 3f–i. Combined with XRD, it can be deduced that the dark gray phase is B₄C, and the bright white phase is ZrB₂. Figure 3a shows that the addition of 3 wt% nano-Y₂O₃ can achieve a polished surface of B₄C ceramics with no obvious pores without the addition of nano-ZrO₂. Figure 3b–e show that the amount of ZrB₂ produced gradually increases as the addition of nano-ZrO₂ increases from 5 wt% to 20 wt%, and the average particle size of ZrB₂ increases from 1.03 μm to 1.37 μm. The in situ reaction of nano-ZrO₂ to generate ZrB₂ facilitates the flowability between B₄C particles and promotes the densification and pore discharge of B₄C ceramics, such that there are no obvious pores on the polished surface. In addition, ZrB₂ not only has small grain size, but is also uniformly distributed within the B₄C ceramics, which will effectively improve the mechanical properties.

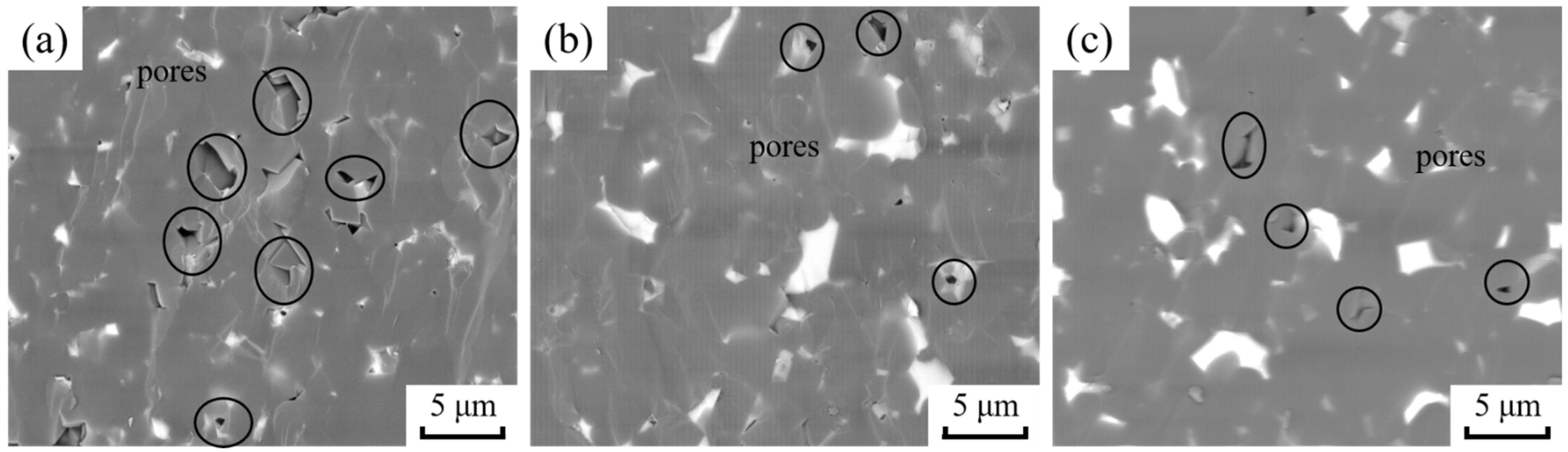

BSE diagrams of the fracture morphology of B₄C ceramics with different nano-ZrO₂ contents are shown in Figure 4. The fracture mode is mainly through crystal fracture, and the fracture surface is relatively neat and smooth. This indicates a favorable degree of connection between the grains after SPS. In addition, there are more pores in the BZ0 sample, but the number of pores decreases significantly with the addition of nano-ZrO₂. This indicates that nano-ZrO₂ promotes the densification of B₄C ceramics.

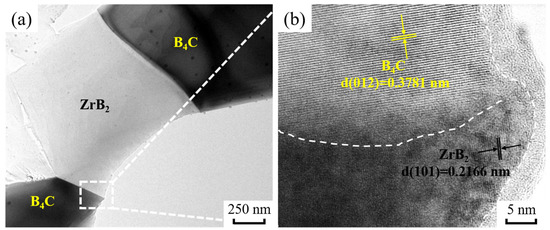

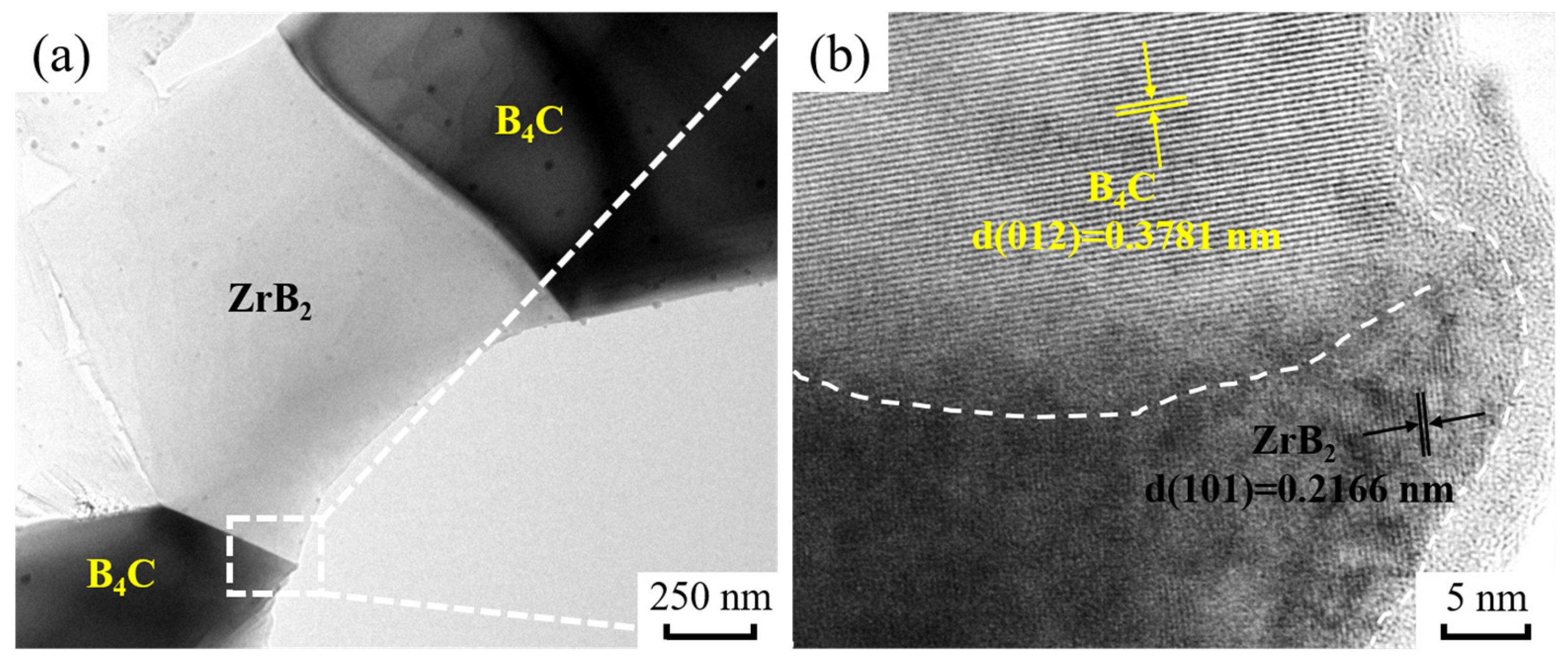

TEM images of BZ15 are shown in Figure 5. Figure 5a shows the interface between B₄C and ZrB₂ in the B₄C ceramics. The HRTEM image shown in Figure 5b indicates that the grain boundary between B₄C (d = 0.3781 nm, (012) zone axis) and ZrB₂ (d = 0.2166 nm, (101) zone axis) is clean. This result indicates that the grain boundary strength between B₄C and ZrB₂ is strong. It is well-known that a high binding force between the matrix phase and second phase has a significant effect on mechanical properties. Therefore, this suggests that excellent mechanical properties can be obtained from these B₄C ceramic samples.

3.4. Mechanical Properties of the B₄C Ceramics

The relative density and bulk density of B₄C ceramics prepared by SPS with different ZrO₂ contents are shown in Figure 6. The relative densities measured are all above 98.3%, and increase and then decrease with increasing ZrO₂ content. The bulk density continues to increase, between 2.52 g/cm³ and 2.83 g/cm³. The relative density reaches a maximum of 99.6% when the content of ZrO₂ is 5 wt%; this can be attributed to the in situ reaction of nano-ZrO₂ to generate ZrB₂, which that promotes the flowability between B₄C particles and obtains dense ceramics. When the content of ZrO₂ is higher than 5 wt%, the CO gas generated by the sintering reaction also increases, causing the relative density to decrease. The observed increase in bulk density can be explained by the fact that the theoretical density of ZrB₂ (6.1 g/cm³) is greater than that of B₄C, meaning that an increase in ZrB₂ content leads to a gradual increase in the bulk density of the ceramics.

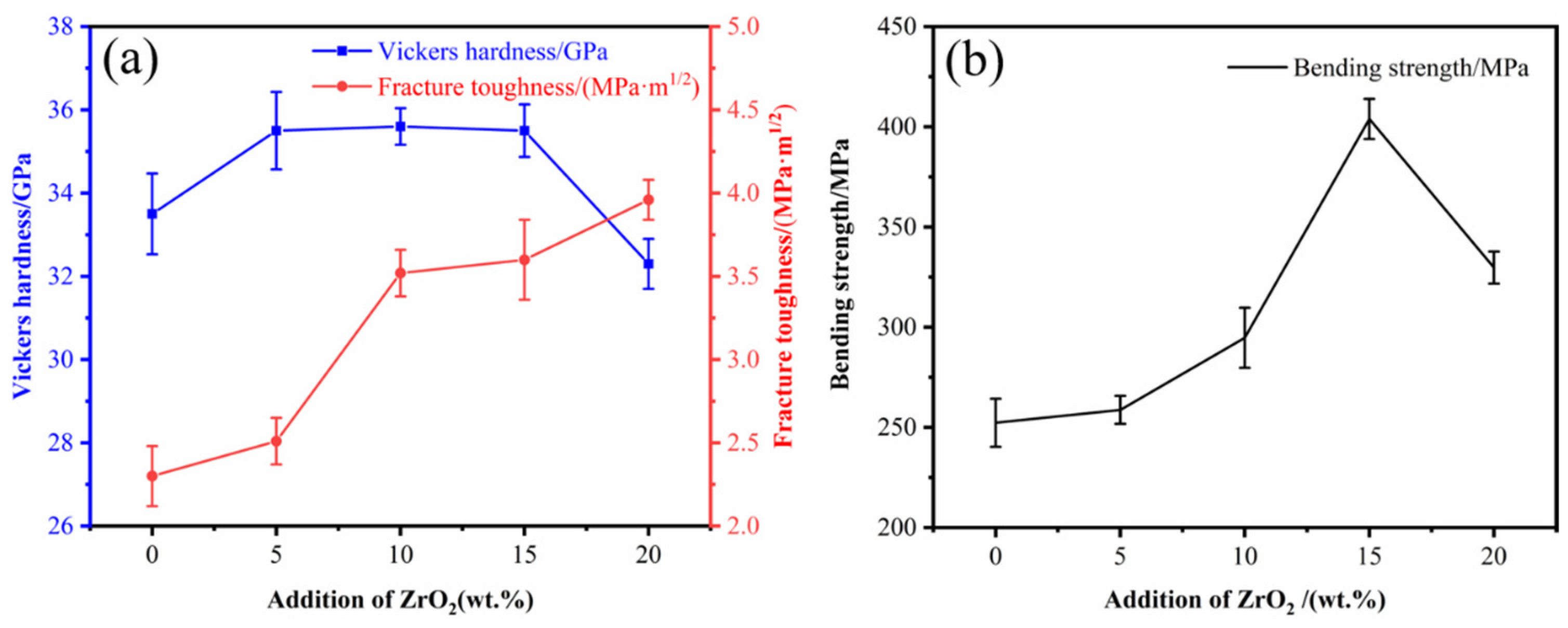

The Vickers hardness, fracture toughness and flexural strength of B₄C ceramics prepared by SPS at different ZrO₂ contents are shown in Figure 7. From Figure 7a, it can be seen that with the increase of ZrO₂ content, the Vickers hardness shows a trend of first increasing and then decreasing, and the fracture toughness gradually increases. The Vickers hardness is maintained above 35.5 GPa with a of ZrO₂ content of 5–15 wt%, but decreases to 32.3 GPa with a ZrO₂ content of 20 wt%. Fracture toughness gradually increases from 2.3 MPa·m^1/2 (BZ0) to 3.96 MPa·m^1/2 (BZ20). This is because an increase in the relative density of B₄C ceramics leads to an increase in Vickers hardness, but the presence of pores can also have a negative effect on Vickers hardness. The ZrB₂ generated in situ from nano-ZrO₂ has a pinning effect, which inhibits the growth of B₄C particles. At the same time, the residual stresses present during cooling can block the crack expansion of B₄C ceramics due to the difference in thermal expansion coefficients of B₄C and ZrB₂. Both processes are beneficial for the improvement of the fracture toughness of B₄C ceramics. As can be seen in Figure 7b, the bending strength of the B₄C ceramics shows a trend of increasing and then decreasing with an increase in ZrO₂ content. The bending strength reaches a maximum value of 404 MPa at 15 wt% ZrO₂, which is 60.3% higher than the BZ0 sample (252 MPa). The addition of nano-ZrO₂ promotes the sintering between B₄C particles and inhibits their further growth. Furthermore, the bending strength of ZrB₂ is greater than that of B₄C, ultimately improving the bending strength of the B₄C ceramics. However, when the content of ZrO₂ reaches 20 wt%, the generation of CO gas leads to an increase in the number of pores and a decrease in the density, which results in a lower bending strength. When the content of ZrO₂ is 15 wt%, the Vickers hardness, fracture toughness and bending strength of sample BZ15 are 35.5 GPa, 3.6 MPa·m^1/2 and 404 MPa, respectively, with optimal overall performance.

3.5. Densification and Toughening Mechanism Analysis

Crack propagation within the BZ15 sample following the Vickers hardness indentation tests is shown in Figure 8. There are obvious branching and deflection phenomena in crack extension, which can increase the energy required for crack extension and thus improve the fracture toughness of B₄C ceramics. In addition, the fracture mode of the B₄C ceramics changes from a traditional transgranular fracture to a hybrid mode of intergranular and transgranular fracture, which is beneficial for the improvement of fracture toughness.

The different coefficients of thermal expansion between the matrix and the second phase in ceramics could induce residual stress during the cooling process. The effect of this is more obvious when the strength and elastic modulus of the second phase are higher than those of the matrix. Since the thermal expansion coefficients of B₄C and ZrB₂ are quite different, the interface between ZrB₂ and B₄C will therefore be subject to residual stress (p_i) during the cooling process [22].

$$p_i=\frac{\Delta \alpha \Delta T}{\frac{1+{\nu }_{\mathrm{m}}}{2E_{\mathrm{m}}}+\frac{1-2{\nu }_{\mathrm{p}}}{E_{\mathrm{p}}}}$$

(2)

where Δα is the difference between the coefficients of thermal expansion of B₄C and ZrB₂, ΔT is the temperature difference between the cooling stages of SPS, ν is Poisson’s ratio, E is elastic modulus, and the subscripts p and m stand for ZrB₂ and B₄C, respectively.

In this condition, σ_r (radial stress) and σ_t (tangential stress) are generated in the matrix at a distance r from the particles [22].

$$\sigma \mathrm{r}=-pi{\left(\frac{R}{r}\right)}^3$$

(3)

and

$$\sigma t=\frac{1}{2}pi{\left(\frac{R}{r}\right)}^3$$

(4)

where R is the radius of the particle and r is the distance from a point in the stress field to the center of the particle. It can be seen that both σ_r and σ_t are proportional to (R/r)³.

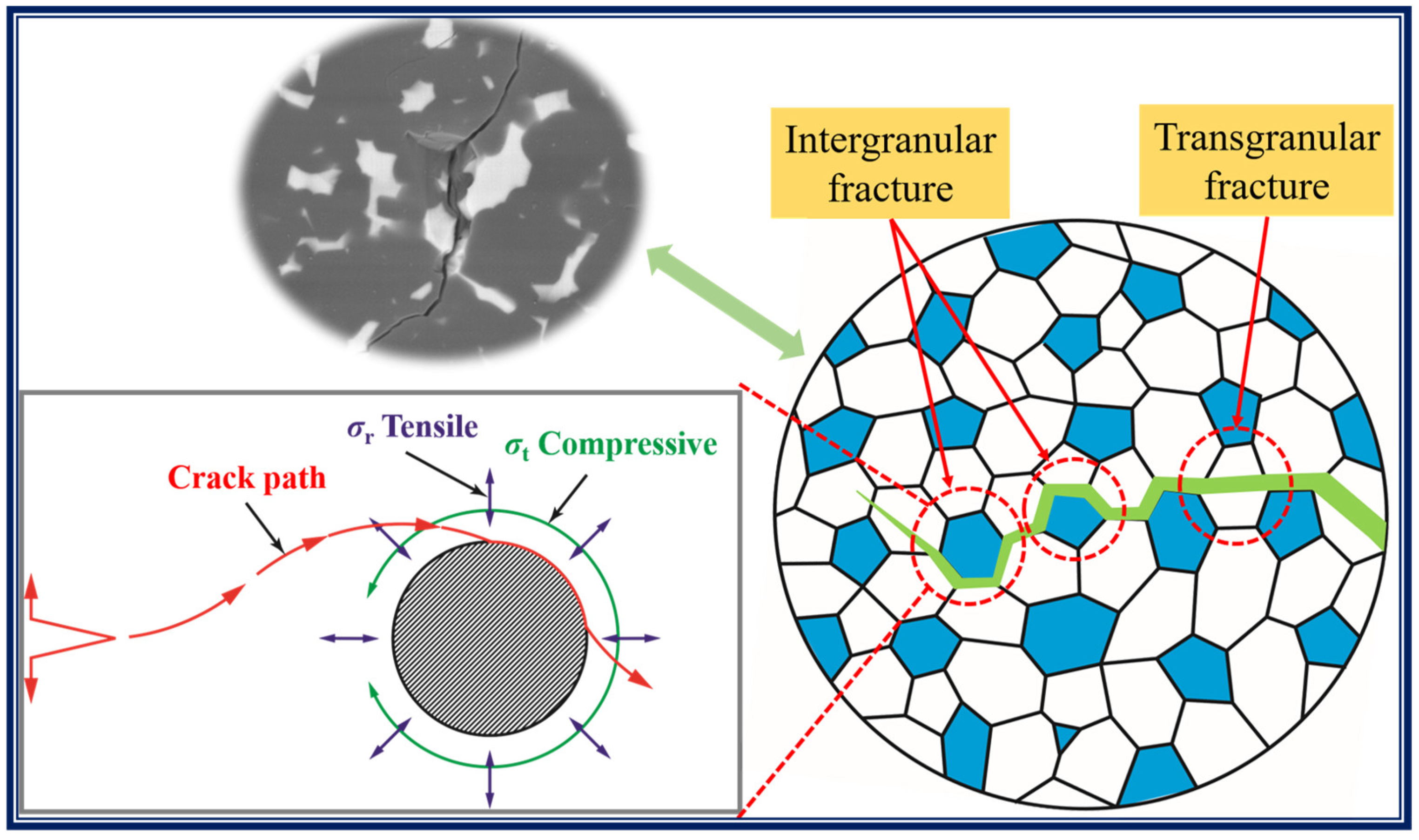

When a crack passes through this stress field, a deflection will occur, as shown in Figure 9. When second phase particles are encountered ahead of the crack, the radial tensile stress σ_r increases in the matrix (σ_r is maximal at the interface), causing the crack to deflect in the direction of the particles and reach the particle/matrix interface before propagating along the original extension direction. The combined effect of σ_r and σ_t lengthens the crack expansion path in the matrix and consumes the energy for crack expansion. Therefore, the crack deflection caused by the residual stress field produces an absolute toughening effect. Figure 8 shows that the crack extension undergoes deflection and bypass, and that there is a secondary crack generation on the primary crack, which increases the path of crack extension and consumes the energy of crack extension. If the crack propagation path is more tortuous, and the volume fraction of the second phase component which leads to crack deflection is higher, then the effect of crack deflection and toughening will be significant.

3.6. Comparison of Properties of B₄C Ceramics in Recent Years

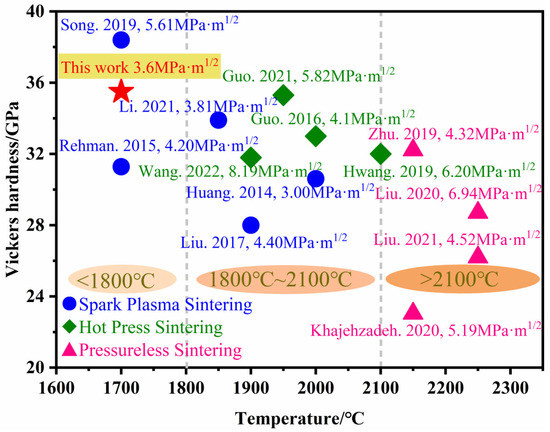

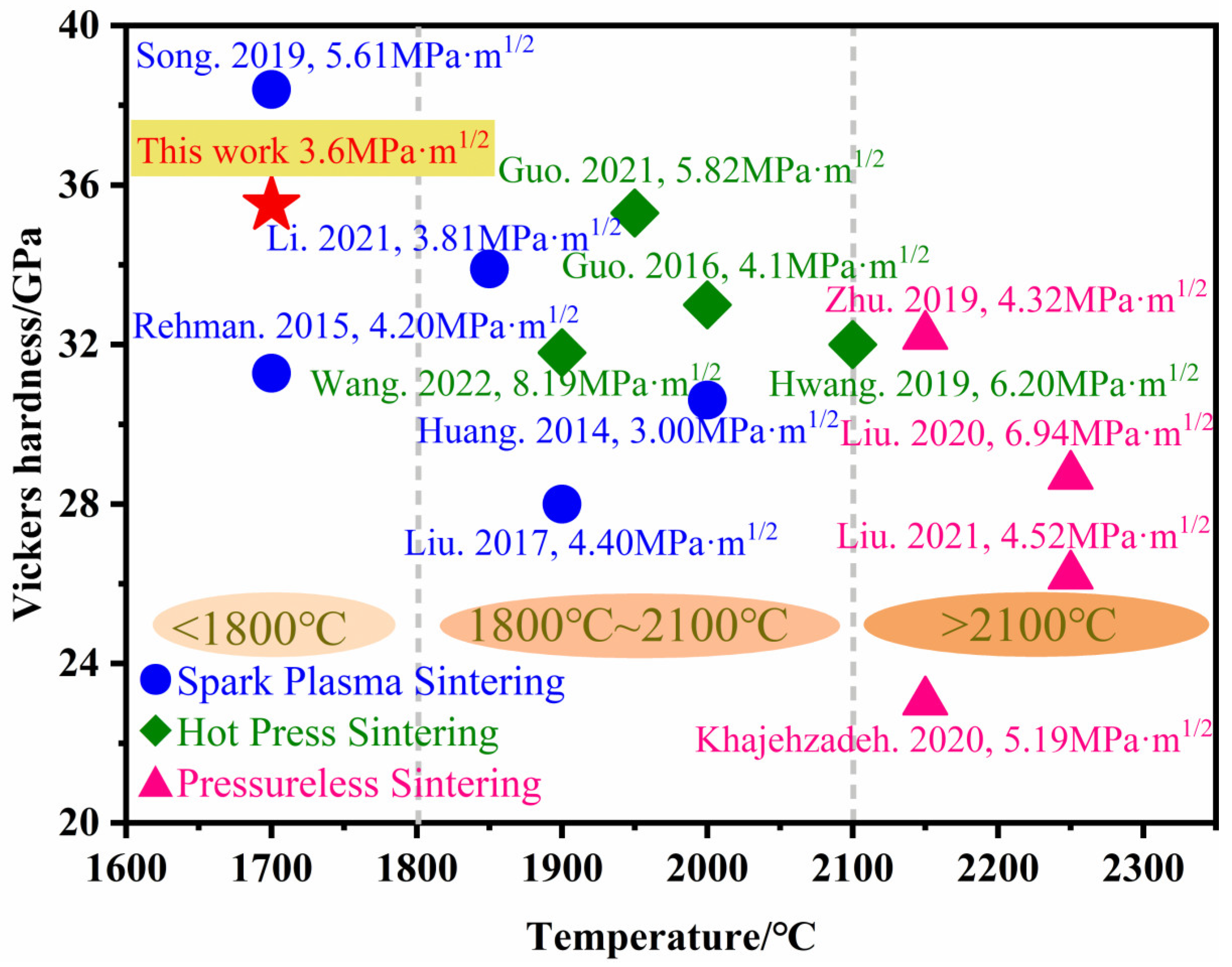

The Vickers hardness and fracture toughness of B₄C ceramics prepared under different sintering methods in recent years are shown in Figure 10 [20,21,23,24,25,26,27,28,29,30,31,32,33]. The different sintering methods described are pressureless sintering, hot-pressure sintering and spark plasma sintering. Although the Vickers hardness and fracture toughness of B₄C ceramics are high, the sintering temperature of dense B₄C ceramics is almost above 1800 °C. In this study, B₄C ceramics are successfully prepared at 1700 °C by in situ reaction using nano-ZrO₂ as a sintering aid. The maximum values of Vickers hardness and fracture toughness are 35.5 GPa and 3.6 MPa·m^1/2, respectively. The in situ-generated ZrB₂ inhibits the growth of B₄C grains, deflecting and bifurcating the cracks, thus enhancing the mechanical properties of B₄C ceramics.

The phase-field model of Roy shows that interfacial stress is an important factor affecting the interfacial stress distribution at interfaces and the phase-field solution [34]. Therefore, the effect of interfacial stress between B₄C and ZrB₂, as well as the ZrO₂ phase transition process on the evolution of the nano-microstructure, must be studied in further detail. In addition, Mahdi investigated the effect of high pressure on the phase transformation [35], which may offer some insight into the effect of residual stress on ZrB₂ grain growth due to the difference in the coefficients of thermal expansion between B₄C and ZrB₂.

4. Conclusions

In this study, B₄C ceramics were prepared by the in situ generation of ZrB₂ using SPS at low temperature. The effects of ZrB₂ on the microstructure and mechanical properties of the B₄C ceramics were characterized and tested. The following conclusions were drawn.

(1) The ceramics were composed of B₄C and ZrB₂. The nano-ZrO₂ reacted to form fine-crystalline ZrB₂, which was uniformly distributed in the B₄C ceramics. The in situ generation of ZrB₂ contributed to the flowability between B₄C particles, improving the sintering activity and achieving the densification of the B₄C ceramics at low temperature.

(2) The relative density, Vickers hardness and bending strength of the B₄C ceramics first increased and then decreased with the increase of ZrB₂ content, and the bulk density and fracture toughness increased continuously. The relative density was above 98.3% and the bulk density was 2.52–2.83 g/cm³. When the content of ZrO₂ was 15 wt%, the Vickers hardness, fracture toughness and bending strength were 35.5 ± 0.63 GPa, 3.6 ± 0.24 MPa·m^1/2 and 403 ± 10 MPa, respectively, with the best overall performance.

(3) The pinning effect of ZrB₂ particles changed the fracture mode of the B₄C ceramics from traditional transgranular fracture to a hybrid mode of intergranular and transgranular fracture, which improved the bending strength of the ceramics. The high bonding strength between powders and the residual stress between B₄C and ZrB₂ led to crack deflection and crack branching during the crack propagation, which resulted in the high mechanical properties of the B₄C ceramics.
