Quasi-One-Dimensional Linarite-Type PbCu(SeO₄)(OH)₂ with Competing Nearest-Neighbor and Next-Nearest-Neighbor Intrachain Exchange Interactions

Abstract

PbCu(SeO₄)(OH)₂, the selenate sibling of the mineral linarite, was synthesized hydrothermally, investigated in measurements of magnetization M, specific heat C_p and dielectric permittivity ε, and analyzed within density functional theory formalism. This quasi-one-dimensional compound evidences formation of a short-range correlation regime at T* ~ 8 K and experiences a long-range magnetic order at T_N = 4.3 K. A magnetization saturation of approximately 1 µ_B is reached at µ₀H_flip ~ 16 T preceded by a jump at µ₀H_flop = 2.4 T. Additionally, there are multiple indicators of the formation of an additional electrically active phase above the Neel temperature, which suggests that PbCu(SeO₄)(OH)₂ is a multiferroic system.

1. Introduction

Quasi-one-dimensional uniform spin systems with competing intrachain exchange interactions attract attention by formation of exotic ground states and the presence of quantum critical points between these states due to frustration of the nearest-neighbor exchange interaction J_nn by the next-nearest-neighbor exchange interaction J_nnn. Depending on the signs and values of these interactions, various spin arrangements are possible at low temperatures [1]. When J_nnn is antiferromagnetic, J_nnn > 0, the chain is frustrated independent of the sign on J_nn [2]. It is predicted, but never observed experimentally, that a spin gap opens at J_nnn/J_nn = α > α_c = 0.241 [3]. At α = 0.5, the Majumdar–Ghosh ground state is expected as a superposition of spin singlets [4]. It was found, however, that the copper chromate, CuCrO₄, supposed to be the best realization of this model with J_nn = 54 K and J_nnn = 27 K orders antiferromagnetically at T_N = 8.25 K due to the non-negligible interchain interactions [5]. If J_nn is negative (J_nn < 0), the ferromagnetic order within the chain should established in the range −0.25 < α ≤ 0. At α = −0.25, the system undergoes quantum phase transition to an incommensurate spin helix state [6]. Among numerous species of this type, there are many cuprates, among them LiCuVO₄ [7], LiCu₂O₂ [8], Li₂CuZrO₄ [9], and LiCuSbO₄ [10]. Some of these compounds evidence the multiferroic properties.

Over the last decade, there was a surge of interest in the mineral linarite PbCu(SO₄)(OH)₂, which hosts the well separated spin-1/2 uniform chains of Cu(OH)₂ units. The ferromagnetic nearest-neighbor intrachain exchange interaction in this system is frustrated by the next-nearest-neighbor intrachain antiferromagnetic exchange interaction [11]. This material experiences a long-range magnetic order at T_N = 2.8 K preceded by a phase, which was identified as an incommensurate longitudinal spin density wave state with a wavevector dependent on both temperature and magnetic field [12,13,14,15,16,17]. Below T_N, the linarite evidences sequence of spin-flop and spin-flip transitions. Further, at the lowest temperatures and in near the Neel temperature, two more hysteretic phases were found, which suggests the coexistence of commensurate and incommensurate circular spin orders [18,19,20,21]. Magnetic ordering in PbCu(SO₄)(OH)₂ is accompanied by anomalies in dielectric permittivity and electrical polarization, which makes this material type-II multiferroic [18,22,23].

Here, we present the newly synthesized selenium counterpart, PbCu(SeO₄)(OH)₂, of the mineral linarite. It was characterized in measurements of magnetization M in both static and pulsed magnetic fields, dielectric permittivity ε and specific heat C_p and analyzed within density functional theory formalism.

2. Synthesis and the Crystal Structure

The selenate sibling of linarite, PbCu(SeO₄)(OH)₂, was prepared under hydrothermal conditions. CuCl₂·2H₂O, PbO (Reachim) and H₂SeO₄ (80%) (Vekton, Penfield, NY, USA) were used for the synthesis. PbSeO₄ was prepared in a 25 mL autoclave loaded with 1.1221 g of PbO and 1 mL of H₂SeO₄ and kept at 200 °C for a week. The white precipitate was filtered from the solution washed by deionized water and dried on air. The purity of the sample was confirmed by powder XRD on a STOE STADI-P diffractometer (Cu K_α1 radiation) and the ICDD PDF 2 database was used as a reference. The X-ray pattern was in agreement with the 00-015-0375 PDF 2 dataset of PDF2. Prepared lead selenate was used for PbCu(SeO₄)(OH)₂ preparation.

Prepared PbSeO₄ 0.8000 g (2.285 mmol) and CuCl2·2H₂O 0.5899 g (3.459 mmol) were mixed with 5 mL of 5% NaOH water solution in a 25 mL autoclave stirred by a glass rod and heated in a furnace for 4 days at 150 °C. As a result, a dark blue precipitate was formed. After filtering under vacuum and washing by distilled water, the precipitate was dried. The examination by an optical microscope shows the formation of small blue crystals. Powder XRD shows the analogy with PbCu(SO₄)(OH)₂. The pattern was indexed assuming the existence of a P2₁/m space group with cell constants a = 4.7721(10) Å, b = 5.7633(12) Å, c = 9.869(3) Å, β = 102.616(16)°, cell volume 264.87(16) ų, and Figure of Merit F(30) = 38.5. The conclusion on the linarite-type phase formation was made based on these data.

The single crystal of PbCu(SeO₄)(OH)₂ was investigated on a Bruker D8 QUEST single-crystal X-ray diffractometer equipped with a PHOTON II detector, a charge-integrating pixel array detector (CPAD), a lsaterally graded multilayer (Goebel, Bad Staffelstein, Germany) mirror and a microfocus Mo-target X-ray tube (λ = 0.73071 Å). A frame width of 0.5° and exposure time of 2 s/frame were employed for data collection. Data reduction and integration were performed with the Bruker software package SAINT (Version 8.40B) [24]. The data were corrected for Lorentz and polarization effects.

Absorption correction was performed using a multiscan routine as implemented in SADABS (Version 2016/2) [25]. Atomic positions were located using direct methods and refined using a combination of Fourier synthesis and least-squares refinement in isotropic and anisotropic approximation. All calculations were carried using SHELXTL PLUS software [26]. The crystallographic parameters and final residuals for the single-crystal XRD experiments are given in

Table 1. Selected crystallographic data and refinement parameters for PbCu(SeO₄)(OH)₂ from single-crystal X-ray diffraction.

Chemical Formula	CuH2O6PbSe
Formula mass [g  mol–1]	447.71
Crystal size, mm	0.120 × 0.040 × 0.030
Crystal system	Monoclinic
Space group	P21/m (no. 11)
a [Å]	4.748(2)
b [Å]	5.745(3)
c [Å]	9.822(9)
β	102.39(3)
V [Å3]	261.7(3)
Z	2
T [K]	110(2)
dcalcd. [g cm3]	5.681
μ [mm–1]	43.091
θ range [°]	2.065 < θ < 29.994
Collected/independent reflections	2740/829
Rσ/Rint	0.0353/0.0329
Reflections with I > 2σ(I)	789
Refined parameters	52
Largest difference peak/hole [e Å–3]	1.632/−1.352
R1 [I > 2σ(I)]/R1 [all data]	0.0259/0.0277
wR2 [I > 2σ(I)]/wR2 [all data]	0.0614/0.0614
GoF	1.075

. A summary of the crystallographic data for the single-crystal experiments is available from CCDC, ref. number 2172183.

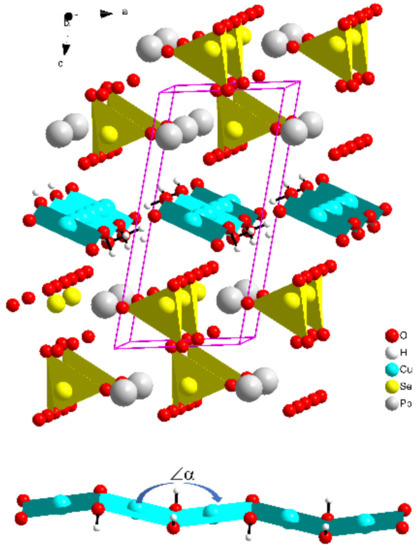

The experiment shows that the unit cell of PbCu(SeO₄)(OH)₂ contains one Pb, one Cu and one Se atom. Among five oxygen atoms, two belong to OH groups. According to the literature data [27,28], the mineral linarite crystallizes in a monoclinic space group P2₁/m (a = 9.682(2), b = 5.646(1), c = 4.683(6) Å, and β = 102.66(1)°). The buckled chains of edge-sharing CuO₄ squares are running in the crystal structure parallel to the [010] direction, as shown in Figure 1. These squares are parts of the strongly Jahn–Teller-distorted CuO₆ bipyramids with Cu-O difference from 1.93–1.98 to 2.54 Å. The layers of hydrogen-bonded Cu-OH chains are connected by PbO₈-distorted polyhedra and SO₄ tetrahedra.

The nearest-neighbor surrounding of the Cu atom in PbCu(SeO₄)(OH)₂ is formed by the O4 and O5 oxygen atoms from hydroxyl groups with of distances 1.93–1.99 Å in the square planar CuO₄ group. According to the Jahn–Teller effect, an additional two O2 atoms may be included in the copper atom surrounding at a distance of 2.48 Å, as presented in

Table 2. Selected bond distances in the PbCu(SeO₄)(OH)₂ crystal structure.

Bond		Distance, Å
Pb—O5		2.346(12)
Pb—O2	x2	2.413(20)
Pb—O3	x2	2.832(35)
Pb—O1	x2	3.029(2)
Se—O3		1.637(26)
Se—O1		1.641(6)
Se—O2	x2	1.654(6)
Cu—O4	x2	1.930(8)
Cu—O5	x2	1.994(17)
Cu—O2	x2	2.483(9)

. CuO₄ squares share their O4-O5 edges and form zig-zag chains along the [010] direction. The average <Cu-O> distance of CuO₄₊₂ bipyramids in PbCu(SeO₄)(OH)₂ is 2.136 Å, being close to that reported for linarite, 2.148 Å [28]. The angle α between the two nearest CuO₄ squares in the selenium compound, 159.02°, is larger than that in linarite, 154.70° [28].

Corresponding to the data reported in [27,28], the Pb atom in linarite lays within an eight-vertex oxygen polyhedron and is shifted from the center of the polyhedron, manifesting electron lone-pair activity. In the case of PbCu(SeO₄)(OH)₂, there are seven nearest oxygen atoms for the Pb atom. The next oxygen atom lays on the distance 3.2 Å. The selenium atom in the selenate SeO₄²⁻ group lays in a tetrahedron with Se-O distances in the usual range, 1.63–1.65 Å.

3. Physical Properties

Magnetization M and specific heat C_p in PbCu(SeO₄)(OH)₂ in the range 2–330 K under a magnetic field µ₀H up to 9 T were studied using relevant options of “Quantum Design” Physical Properties Measurements System PPMS-9T. Measurements in a pulsed magnetic field up to 32 T with pulse duration of approximately 10 msec were provided by a homemade capacitance bank discharge setup. Dielectric permittivity ε was measured on the platform of “Quantum Design” Magnetic Properties Measurements System MPMS-7T by means of an Andeen–Hagerling bridge AH2700 in the frequency range f = 10²–10⁴ Hz on the thin pressed pellets covered with a silver paste.

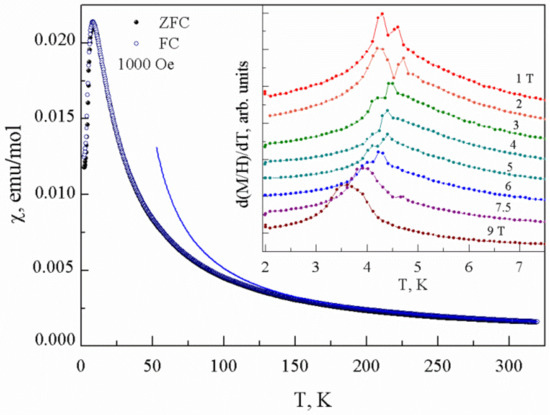

The temperature dependences of magnetic susceptibility χ = M/H taken at µ₀H = 0.1 T in both the field-cooled (FC) and zero-field-cooled (ZFC) regimes are shown in Figure 2. No difference between these curves were detected within the experimental resolution, which signals the absence of pronounced impurities. At elevated temperatures, the χ(T) can be described by the Curie–Weiss law

$$\chi ={\chi }_0+\frac{C}{T-\Theta }$$

(1)

with the temperature-independent term χ₀ = 4.1 × 10⁻⁴ emu/mol, the Curie constant C = 0.355 emu K/mol and the Weiss temperature Θ = 25 K. In accordance with the ratio 8C = µ_eff², the effective magnetic moment µ_eff = 1.68 µ_B, which is slightly lower than the expected value, 1.73 µ_B, for g—factor g = 2. The reduction in the effective magnetic moment µ_eff is a standard signature of low-dimensional magnetic systems. On lowering the temperature, the experimental data deviate downward from the extrapolation of the Curie–Weiss law, which points to the presence of antiferromagnetic interactions in the system. At approximately T* ~ 8 K, the χ(T) curve evidences a hump followed by the establishment of the long-range magnetic order at T_N = 4.3 K. The Neel temperature is marked by a peak in the temperature dependence of the derivative dχ/dT, as shown in the inset to Figure 2. This feature, however, is split and broadens at higher magnetic fields.

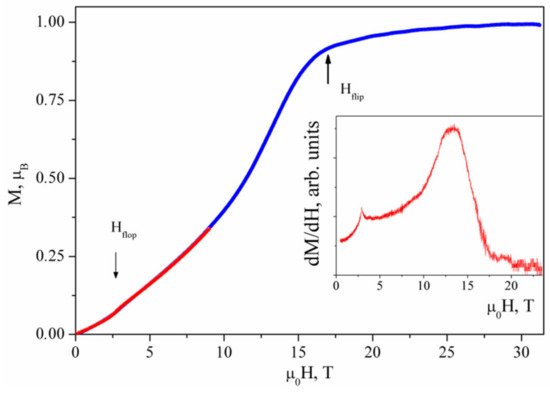

The field dependence of magnetization M in a pulsed magnetic field taken at 2.4 K is shown in Figure 3. This curve is normalized by the M(H) curve taken in the static magnetic field at the same temperature. The saturation at the level of 1 µ_B is reached at µ₀H_flip ~ 16 T. It is preceded by a jump at µ₀H_flop = 2.4 T. The anomalies at spin-flop and spin-flip transitions are pronounced in the field dependence of derivative dM/dH, as shown in the inset to Figure 3. An additional small anomaly can be identified at µ₀H ~ 19 T.

The temperature dependence of specific heat C_p in PbCu(SeO₄)(OH)₂ is shown in Figure 4. The C_p(T) curve evidences the presence of a sharp λ-type anomaly at T_N = 4.3 K characteristic to the second-order phase transition. At 200 K, which is the upper limit of measurements, the value of specific heat is still far from the thermodynamic limit, 3Rn = 275 J/mol K, where R is the universal gas constant and n is the number of atoms per formula unit. Under an external magnetic field, this anomaly shifts to lower temperatures, as shown in the inset to Figure 4. In the zero field, the peak is preceded by a pre-transition region, which is strongly suppressed by the magnetic field. It makes the anomaly in strong fields more pronounced, i.e., the ΔC_p at the transition point increases.

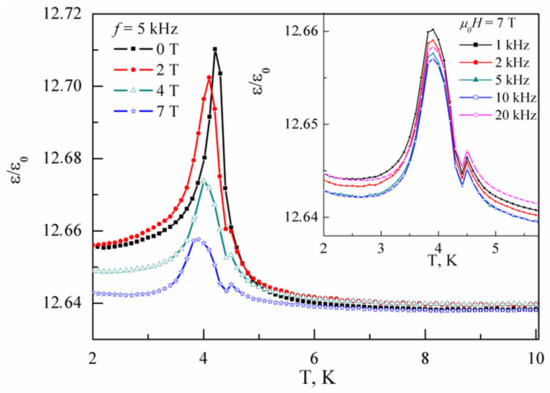

The temperature dependences of dielectric permittivity ε/ε₀ in PbCu(SeO₄)(OH)₂ taken at f = 5 kHz in various magnetic fields are shown in Figure 5. These curves evidence a sharp peak at the Neel temperature T_N = 4.3 K, which shifts to lower temperatures under an external magnetic field. Further, an additional anomaly seen only in the presence of magnetic field arose at 4.5 K. In the range 1–20 kHz, the positions of these anomalies are not frequency dependent, as shown in the inset in Figure 5. The appearance of an additional anomaly above Neel temperature indicates that the electrically active phase forms in PbCu(SeO₄)(OH)₂ prior to the long-range magnetic order, similar to observations in the mineral linarite [22,23].

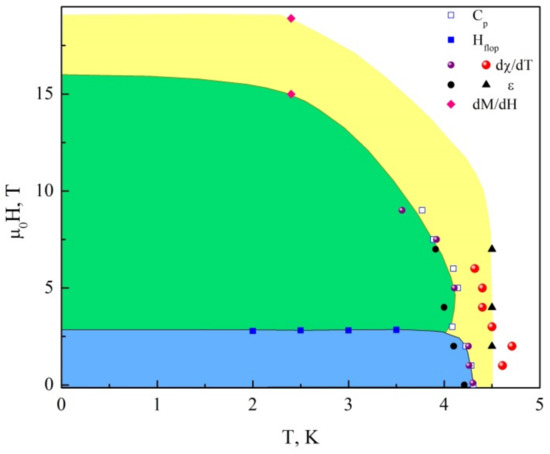

The combination of experimental data obtained in magnetization M, specific heat C_p and dielectric permittivity ε measurements enables establishing the magnetic phase diagram in PbCu(SeO₄)(OH)₂, as shown in Figure 6. The spin-flop boundary subdivides a magnetically ordered state into two phases prior to saturation magnetization. There are also multiple signatures of an additional phase preceding the long-range antiferromagnetic order similar to observations in the mineral linarite [22,23].

4. Density Functional Calculations

The exchange interaction parameters within Cu²⁺ chains in PbCu(SeO₄)(OH)₂ and, for comparison, in PbCu(SO₄)(OH)₂ were obtained by calculating the total energy difference of various magnetic configurations and mapping on the spin model with the Hamiltonian

$$H=J_1\sum S_i{S}_{i+1}+J_2\sum S_i{S}_{i+2}$$

(2)

The ab initio band structure calculations were carried out within the framework of the density functional theory (DFT) as implemented in VASP [29,30,31]. The generalized gradient approximation (GGA) [32] for the exchange-correlation functional was used. Conventional DFT calculations underestimate the effect of strong Coulomb correlations important for correct description of the magnetic ground state of transition metal oxides. Therefore, we perform GGA+U [33] calculations taking into account strong Coulomb correlations on Cu sites. We use the values of the Hund coupling J_H = 1 eV and the on-site Hubbard repulsion parameter, U = 7 eV, as in [12], and also U = 9 eV, which is close to the U = 9.5 eV obtained from the linear-response method [34] in [35] for the Cu₂GeO₄ compound. The cutoff energy for plane waves was chosen to be 500 eV. The integration over the Brillouin zone was performed using the 4 × 4 × 4 k-mesh. In order to calculate exchange interaction parameters both along the chain and between neighboring chains, the supercells consisting of 8 formula units (f.u.) were used. The obtained exchange interaction parameters, J_i, are listed in

Table 3. The exchange interaction parameters (in K) calculated within GGA+U for PbCu(SeO₄)(OH)₂ and PbCu(SO₄)(OH)₂. The notations J_1c, J_2c and J_3c correspond to the NN, NNN and NNNN interchain exchange interactions [12].

Compound	U, eV	J1, K	J2, K	J1c, K	J2c, K	J3c, K	α = |J2/J1|
PbCuSO4(OH)2	7	−118	72	13	−3	1	0.61
PbCuSeO4(OH)2	7	−103	54	6	−1.5	1	0.52
PbCuSeO4(OH)2	9	−80	33	4	−1	0.6	0.41

.

5. Discussion

Linarite, PbCu(SO₄)(OH)₂, is a prototype half-integer spin chain material with competing ferromagnetic nearest-neighbor and antiferromagnetic next-nearest-neighbor exchange interactions. On the basis of magnetic susceptibility and specific-heat data, the predominant ferromagnetic nearest-neighbor (NN) exchange interaction J₁ = −30 K and weaker antiferromagnetic next-nearest-neighbor (NNN) exchange interaction J₂ = 15 K (α = 0.5) were established [11]. This strong-coupling scenario was, however, in contrast to the values J₁ = −13 K and J₂ = 21 K (α = 1.6) obtained from the fit of the susceptibility data using a high-temperature expansion up to the fourth order at 50 < T < 350 K [22]. In order to resolve a controversy, the comprehensive experimental and theoretical study of PbCu(SO₄)(OH)₂ was undertaken. Measurements of magnetic susceptibility and saturation magnetization as well as electron spin resonance and nuclear magnetic resonance were performed [12]. The theoretical analysis within the density matrix renormalization group, the hard-core boson technique as well as ab initio calculations using local spin-polarized density approximation (LSDA+U) yield values of the main couplings of J₁ = −133 K and J₂ = 42 K [12]. The value of J₁ = −118 K obtained within VASP (Table 3) for U = 7 eV is in agreement with that calculated within FPLO (the Full-Potential Local-Orbital electronic structure code [36]) in [12], while J₂ = 72 K is much larger. We have to point out that while the reproducibility of results obtained by different DFT codes is well established (see for example [37]), the implementation of U correction, on the contrary, could be different depending on the basis set used in various codes. For example, the dramatic difference in the values of exchange interactions calculated within the FPLO and VASP methods were previously reported for the Cu₂GeO₄ compound [35]. In this compound, Cu and O form infinite chains of edge-sharing plaquettes linked into a 3D network via the non-magnetic GeO₄ tetrahedra. DFT calculations were performed in different codes that delivered largely consistent results for J₂ but not for J₁, which varies between −0.2 meV in VASP and −7.2 meV in FPLO [35]. The authors pointed out that this difference comes from the way the DFT+U correction is applied in different codes.

In [12], the NN and NNN exchange interactions within the chain are substantially larger compared to the values obtained previously [11,22] and shift the frustration ratio α ≈ 0.32 of PbCu(SO₄)(OH)₂ closer to the one-dimensional critical point at 0.25. On the contrary, the present calculation of the main intrachain exchange interaction parameters put PbCu(SeO₄)(OH)₂ very close to the Majumdar–Gosh critical point. Similar to the case of CuCrO₄, we do not observe the formation of the singlet ground state, but presumably the incommensurate helix forms in the magnetically ordered state of this compound. Similar to the mineral linarite case, there were multiple indicators of the formation of an additional electrically active phase preceding the long-range magnetic order, which suggests that PbCu(SeO₄)(OH)₂ is a multiferroic system.

6. Conclusions

A selenium analog of the naturally occurring mineral linarite was prepared hydrothermally for the first time. This quasi-one-dimensional compound evidences formation of a short-range correlation regime at T* ~ 8 K and experiences a long-range magnetic order at T_N = 4.3 K. A magnetization saturation of approximately 1 µ_B is reached at µ₀H_flip ~ 16 T preceded by a jump at µ₀H_flop = 2.4 T. Additionally, there are multiple indicators of the formation of an additional electrically active phase above the Neel temperature, which suggest that PbCu(SeO₄)(OH)₂ is a multiferroic system. It should be noted that during manuscript preparation, the mineral franksousaite, which has a similar composition, was described [38]. To the best of our knowledge, there are no synthesis descriptions for the linarite or franksousaite compound. The crystal structure of synthetic PbCu(SeO₄)(OH)₂ is close to that of franksousaite, taking into account the presence of approximately 16% of sulfur in the natural sample.
