Experimental Investigations and Effect of Nano-Powder-Mixed EDM Variables on Performance Measures of Nitinol SMA
Abstract
:1. Introduction
2. Materials and Methods
2.1. Alumina Nano-Powder

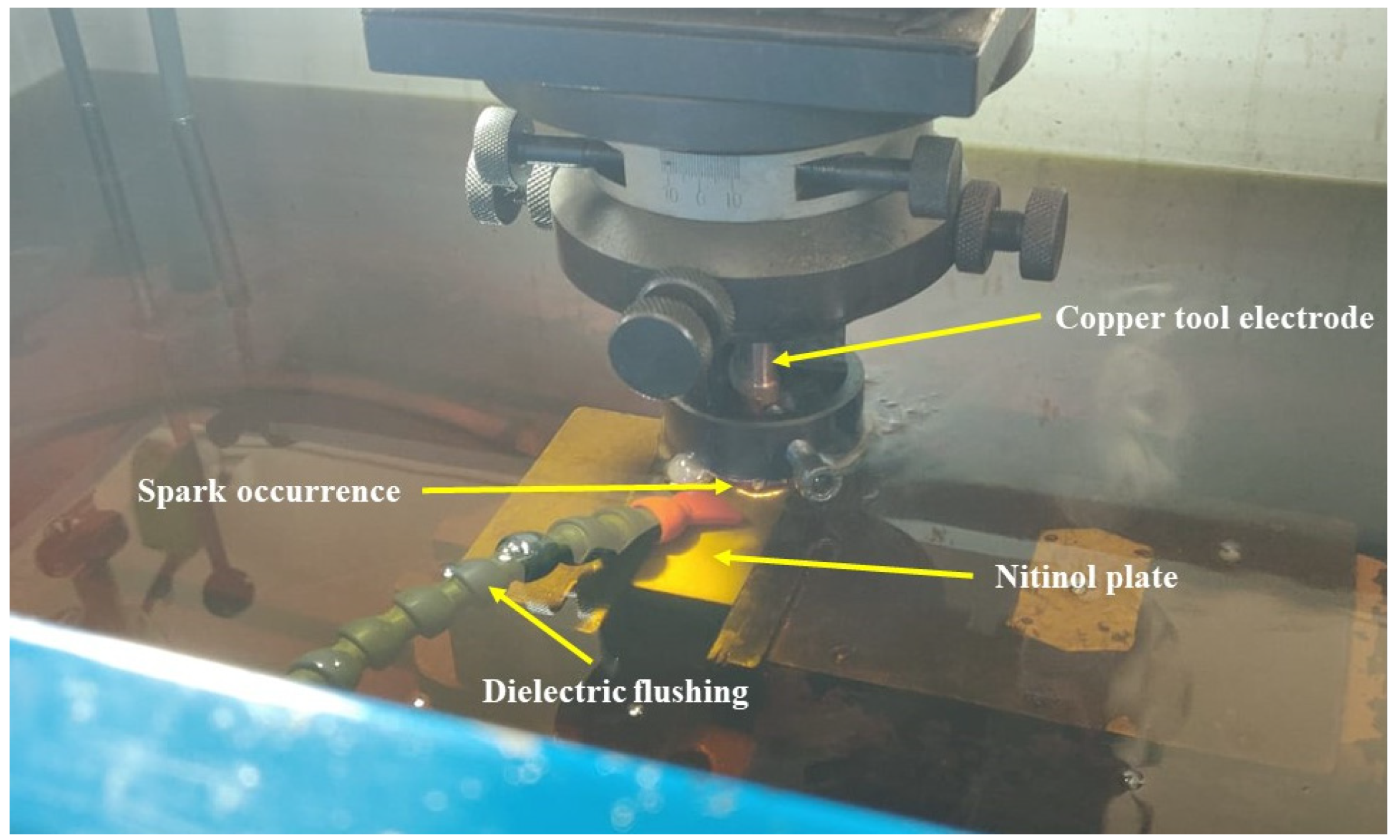

2.2. Experimental Details
2.3. Optimization
3. Results and Discussion

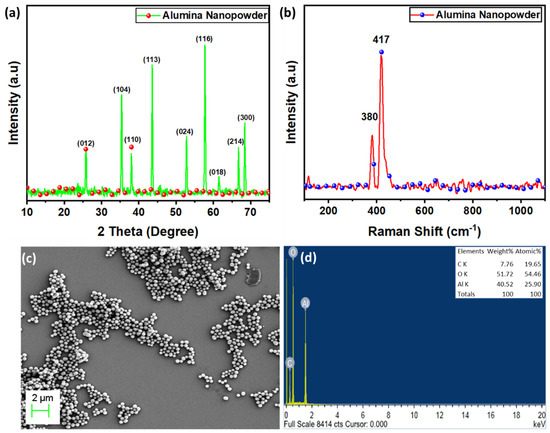

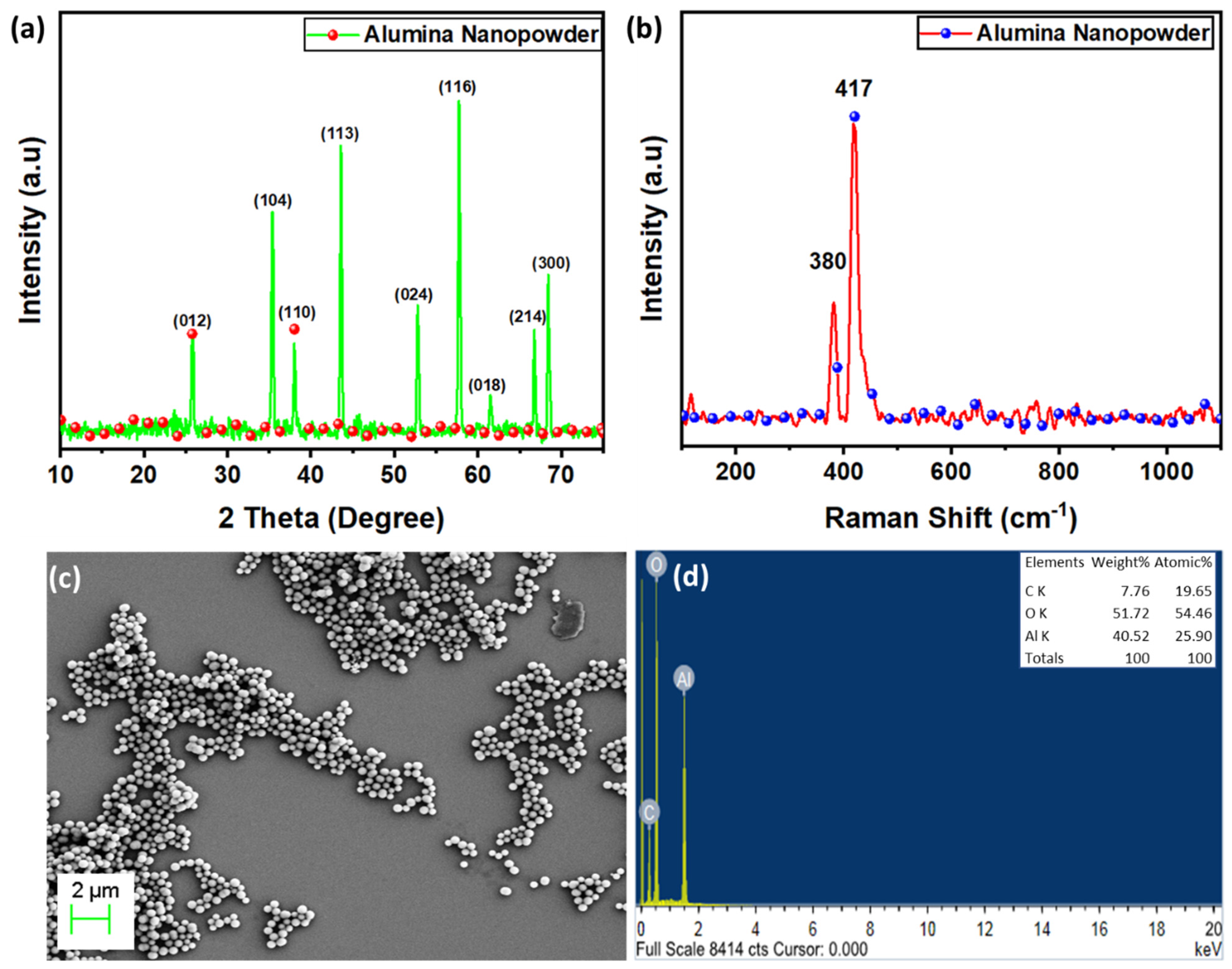

3.1. Analysis of Nano-Powder
3.2. Experimental Results and Regression Equations
3.3. ANOVA for MRR, TWR, and SR

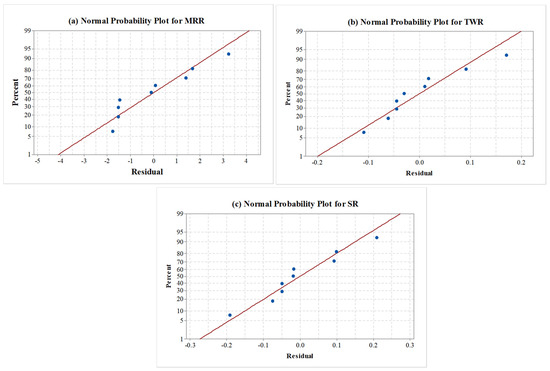

3.4. Normal Probability Plots
3.5. Impact of Machining Variables on Performance Measures

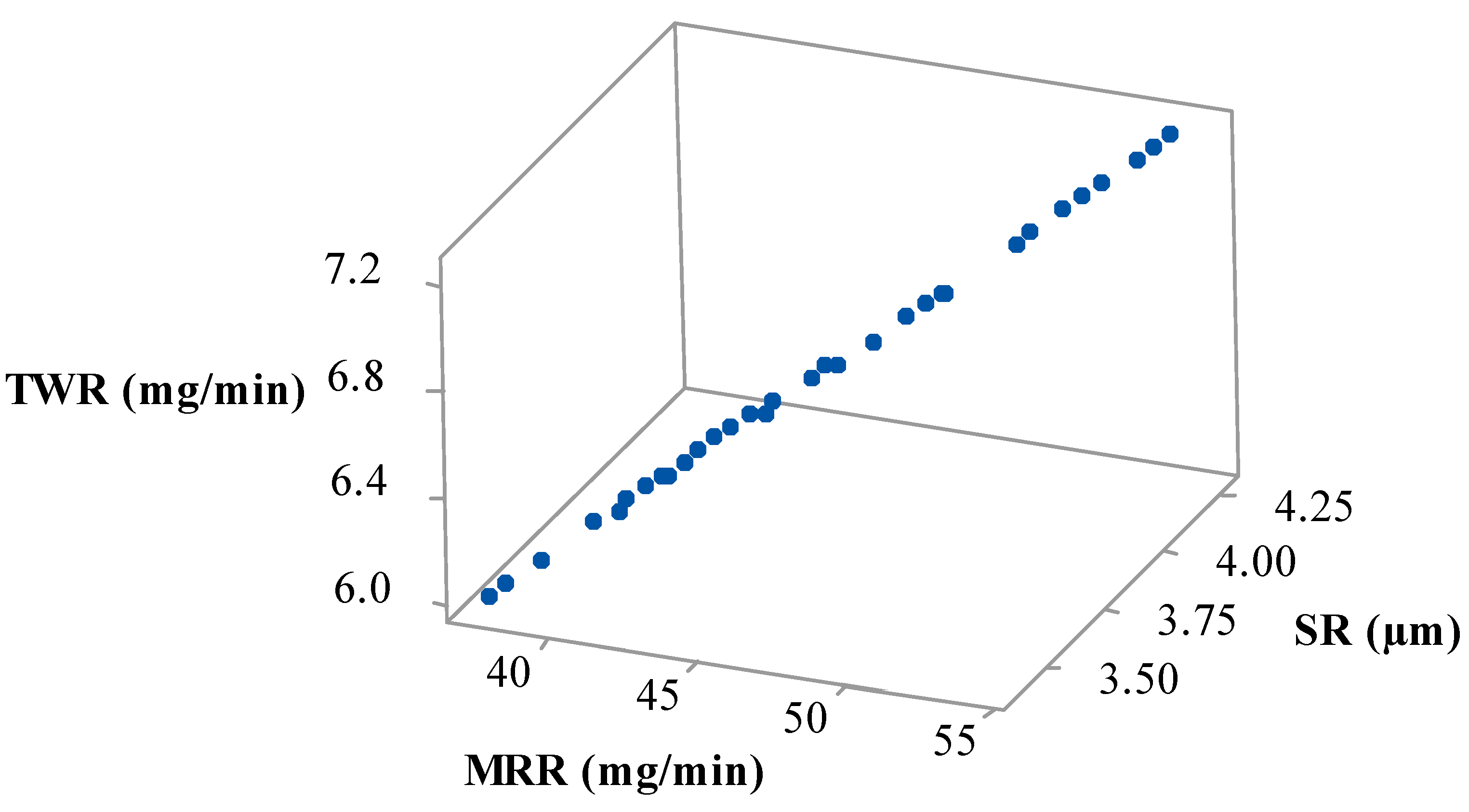

3.6. Optimization
3.7. Surface Morphology for Nano-Powder
4. Conclusions
- ANOVA results showed that regression model terms significantly impacted the developed model terms in the case of all the performance measures. In the case of individual variables, PC, Toff, and Ton significantly impacted the output measures of MRR, TWR, and SR, respectively. Verifying the normal probability plot yielded good ANOVA results and satisfied the necessary condition for ANOVA. Thus, all the statistical findings revealed the acceptability and fitness of the suggested models;

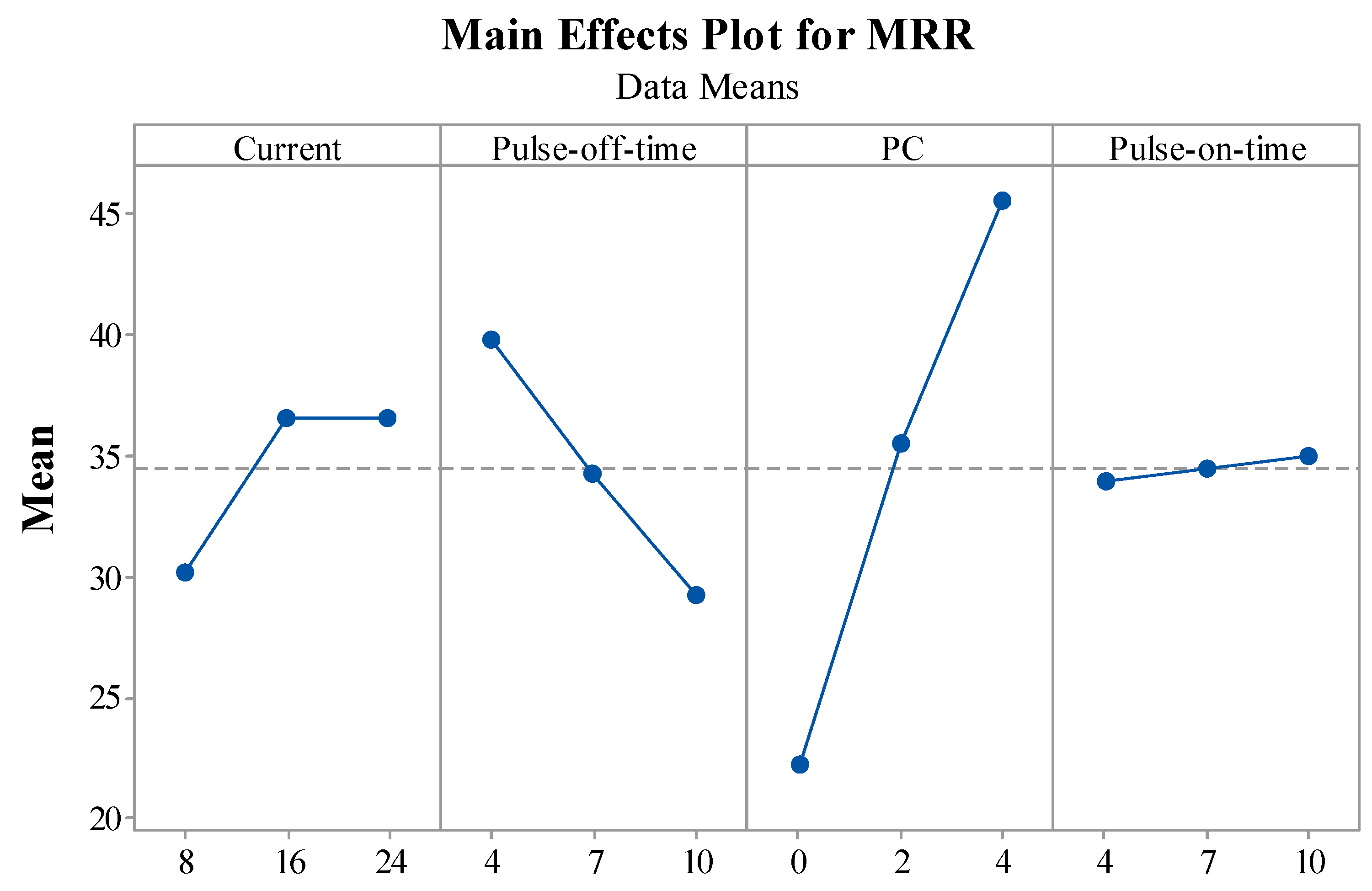

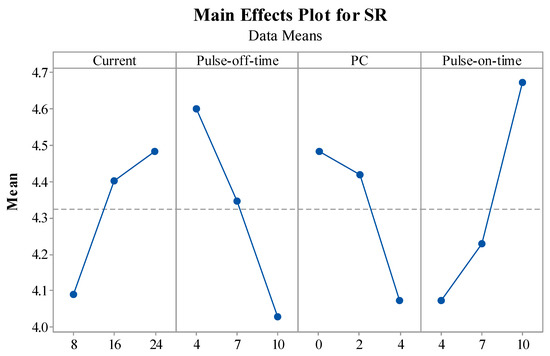

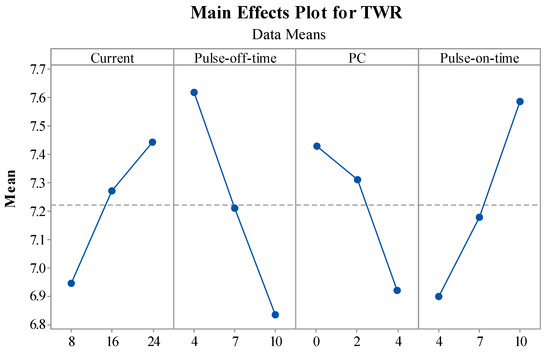

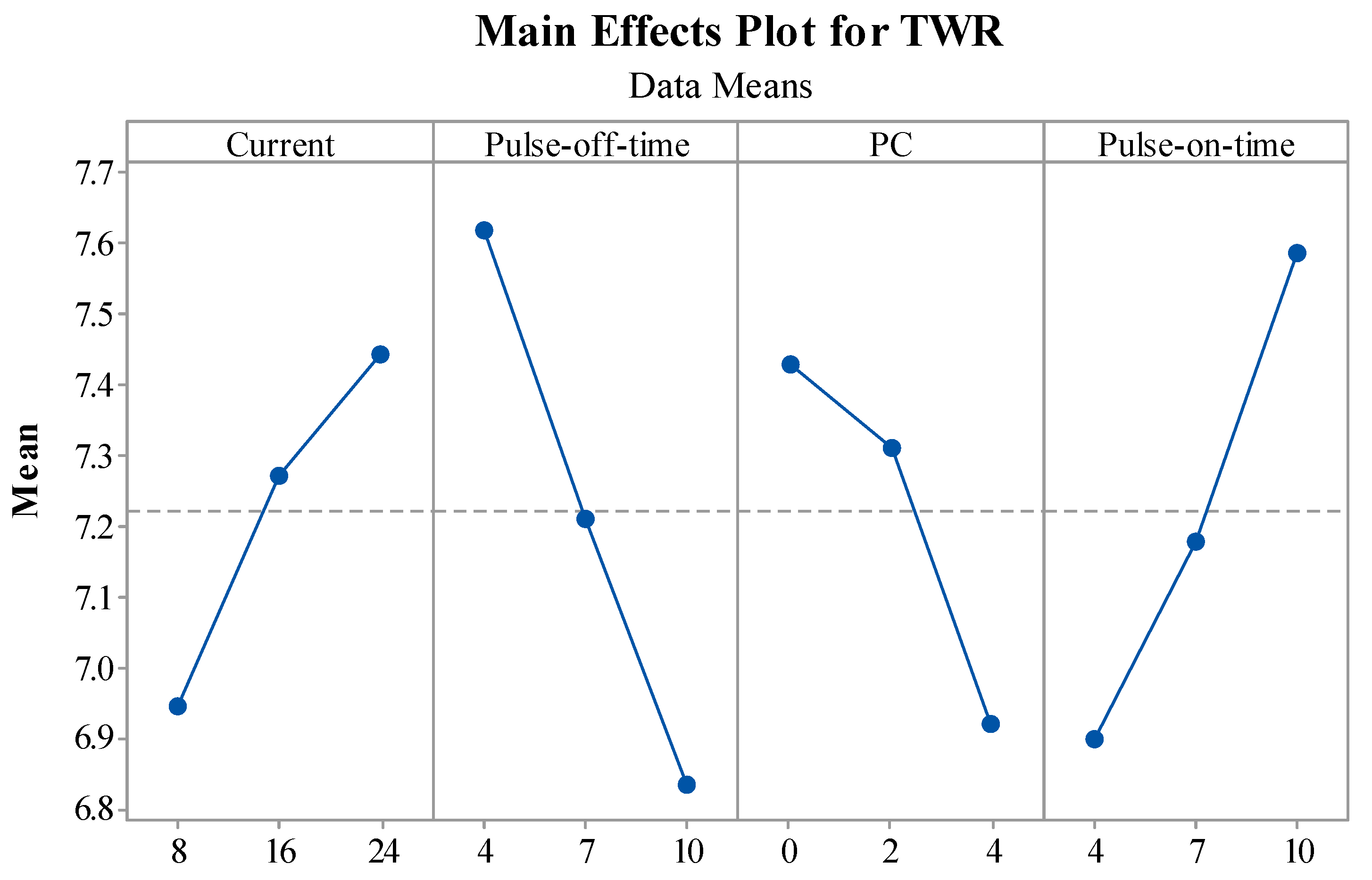

- The main effect plots were observed to have a positive impact on the addition of PC on all the performance measures. The addition of PC enhanced MRR, TWR, and SR;
- The TLBO algorithm has shown optimal parametric settings of current at 24 A, PC at 4 g/L, Toff at 10 µs, and Ton of 4 µs. Moreover, it has shown optimal input parameters of 43.57 mg/min for MRR, 6.478 mg/min for TWR, and 3.73 µm for SR. Pareto points with unique solutions were generated by considering the need of users for specific applications;

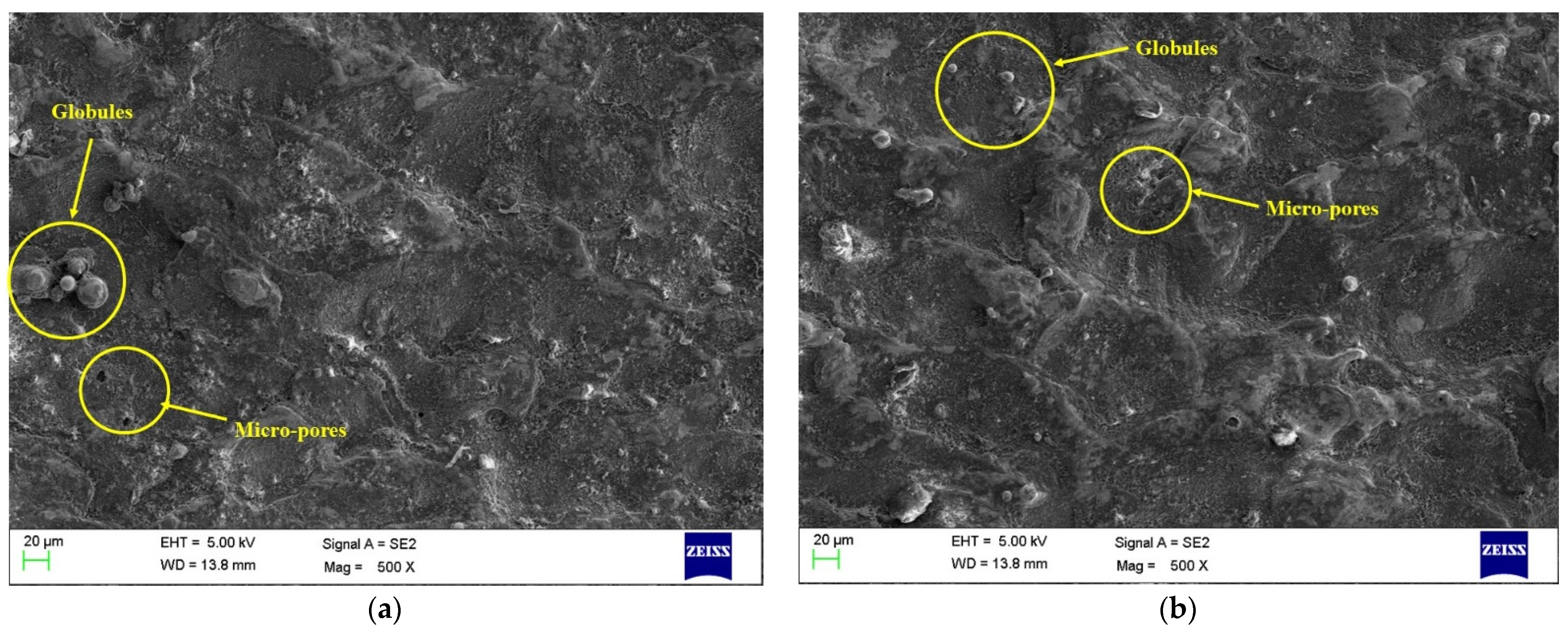

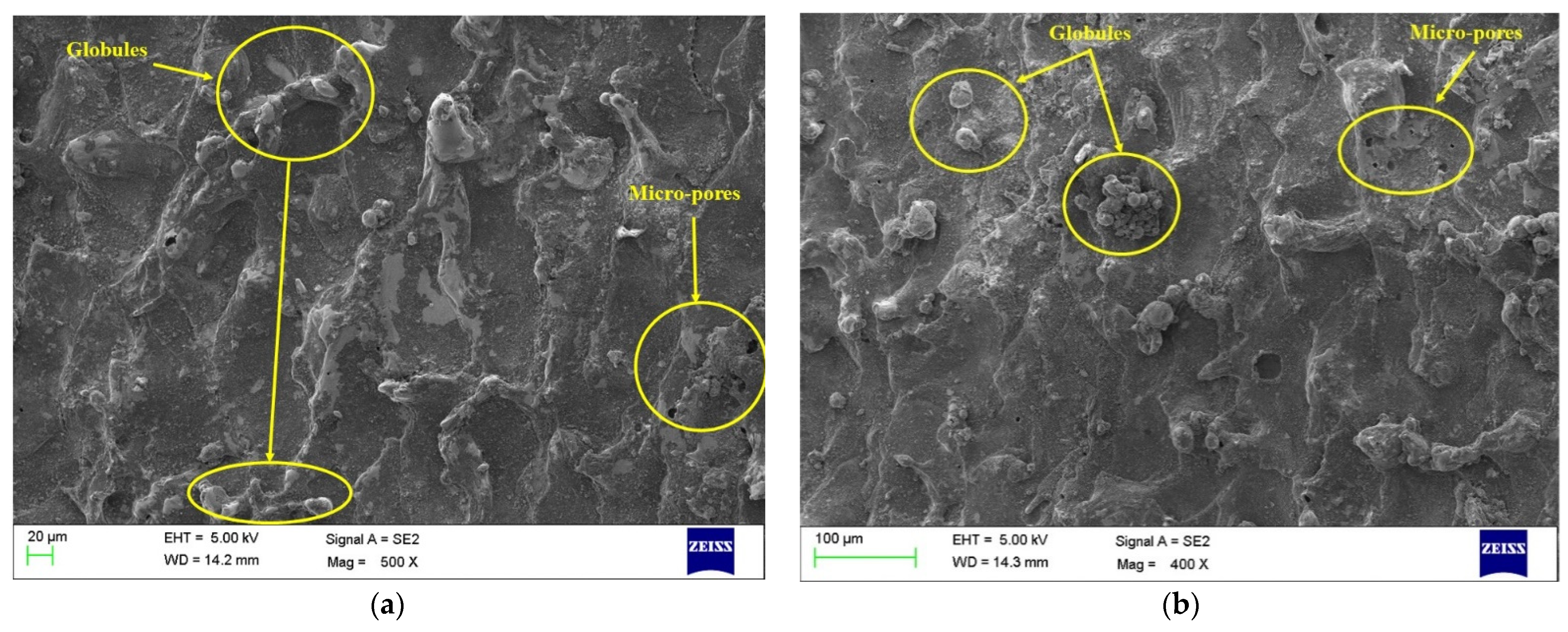

- Lastly, scanning electron microscopy (SEM) was used for the machined surface analysis. The obtained SEM graph established that using an Al2O3 nano-powder concentration of 4 g/L improved the quality of the machined parts by decreasing surface defects.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
ANOVA | Analysis of variance |
DF | Degree of freedom |
DOE | Design of Experiments |
EDM | Electrical discharge machining |
IEG | Inter-electrode gap |
MRR | Material removal rate (mg/min) |
NPMEDM | Nano-powder-mixed electrical discharge machining |
PC | Powder concentration |
PMEDM | Powder-mixed electrical discharge machining |
SEM | Scanning electron microscope |
SMA | Shape memory alloy |
SMAs | Shape memory alloys |
SR | Surface roughness (µm) |
TEM | Transmission electron microscope |
TLBO | Teaching–learning based optimization |
TWR | Tool wear rate (mg/min) |
Ton | Pulse on time (µs) |
Toff | Pulse off time (µs) |
T | Time in minutes |
References
- Jani, J.M.; Leary, M.; Subic, A.; Gibson, M.A. A review of shape memory alloy research, applications and opportunities. Mater. Des. 2014, 56, 1078–1113. [Google Scholar] [CrossRef]
- Rajput, G.S.; Vora, J.; Prajapati, P.; Chaudhari, R. Areas of recent developments for shape memory alloy: A review. Mater. Today Proc. 2022. [Google Scholar]
- Vora, J.; Jain, A.; Sheth, M.; Gajjar, K.; Abhishek, K.; Chaudhari, R. A review on machining aspects of shape memory alloys. Recent Adv. Mech. Infrastruct. 2022, 449–458. [Google Scholar] [CrossRef]
- Kaya, E.; Kaya, İ. A review on machining of NiTi shape memory alloys: The process and post process perspective. Int. J. Adv. Manuf. Technol. 2019, 100, 2045–2087. [Google Scholar] [CrossRef]
- Singh, R.; Singh, R.P.; Trehan, R. State of the art in processing of shape memory alloys with electrical discharge machining: A review. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2021, 235, 333–366. [Google Scholar] [CrossRef]
- Khanna, S.; Marathey, P.; Patel, R.; Paneliya, S.; Chaudhari, R.; Vora, J.; Ray, A.; Banerjee, R.; Mukhopadhyay, I. Unravelling camphor mediated synthesis of TiO2 nanorods over shape memory alloy for efficient energy harvesting. Appl. Surf. Sci. 2021, 541, 148489. [Google Scholar] [CrossRef]
- Manjaiah, M.; Narendranath, S.; Basavarajappa, S. Review on non-conventional machining of shape memory alloys. Trans. Nonferrous Met. Soc. China 2014, 24, 12–21. [Google Scholar] [CrossRef]
- Hassan, M.; Mehrpouya, M.; Dawood, S. Review of the machining difficulties of nickel-titanium based shape memory alloys. Appl. Mech. Mater. 2014, 564, 533–537. [Google Scholar] [CrossRef]
- Wang, G.; Liu, Z.; Niu, J.; Huang, W.; Wang, B. Effect of electrochemical polishing on surface quality of nickel-titanium shape memory alloy after milling. J. Mater. Res. Technol. 2020, 9, 253–262. [Google Scholar] [CrossRef]
- Ablyaz, T.R.; Shlykov, E.S.; Muratov, K.R.; Osinnikov, I.V. Study of the Structure and Mechanical Properties after Electrical Discharge Machining with Composite Electrode Tools. Materials 2022, 15, 1566. [Google Scholar] [CrossRef]
- Kliuev, M.; Kutin, A.; Wegener, K. Electrode wear pattern during EDM milling of Inconel 718. Int. J. Adv. Manuf. Technol. 2021, 117, 2369–2375. [Google Scholar] [CrossRef]
- Adam Khan, M.; Winowlin Jappes, J.T.; Samuel Ratna Kumar, P.S.; Mashinini, P.M. Machinability of Shape Memory Alloy Using Electro Spark Erosion Process. Int. J. Adv. Manuf. Technol. 2021. [Google Scholar] [CrossRef]
- Chaudhari, R.; Vora, J.J.; Prabu, S.; Palani, I.; Patel, V.K.; Parikh, D. Pareto optimization of WEDM process parameters for machining a NiTi shape memory alloy using a combined approach of RSM and heat transfer search algorithm. Adv. Manuf. 2021, 9, 64–80. [Google Scholar] [CrossRef]
- Singh, R.; Singh, R.P.; Trehan, R. Surface integrity and accuracy based aspects in EDM of Cu-based SMA: An experimental investigation with microstructural analysis. Adv. Mater. Process. Technol. 2022, 1–14. [Google Scholar] [CrossRef]
- Alam, M.N.; Siddiquee, A.N.; Khan, Z.A.; Khan, N.Z. A comprehensive review on wire EDM performance evaluation. Proc. Inst. Mech. Eng. Part E J. Process Mech. Eng. 2022, 236, 09544089221074843. [Google Scholar] [CrossRef]
- Mao, X.; Almeida, S.; Mo, J.; Ding, S. The state of the art of electrical discharge drilling: A review. Int. J. Adv. Manuf. Technol. 2022, 121, 2947–2969. [Google Scholar] [CrossRef]
- Philip, J.T.; Mathew, J.; Kuriachen, B. Transition from EDM to PMEDM–impact of suspended particulates in the dielectric on Ti6Al4V and other distinct material surfaces: A review. J. Manuf. Process. 2021, 64, 1105–1142. [Google Scholar] [CrossRef]
- Jadam, T.; Sahu, S.K.; Datta, S.; Masanta, M. Powder-mixed electro-discharge machining performance of Inconel 718: Effect of concentration of multi-walled carbon nanotube added to the dielectric media. Sādhanā 2020, 45, 1–16. [Google Scholar] [CrossRef]
- Karmiris-Obratański, P.; Papazoglou, E.L.; Leszczyńska-Madej, B.; Zagórski, K.; Markopoulos, A.P. A Comprehensive Study on Processing Ti–6Al–4V ELI with High Power EDM. Materials 2021, 14, 303. [Google Scholar] [CrossRef]
- Talla, G.; Gangopadhayay, S.; Biswas, C. State of the art in powder-mixed electric discharge machining: A review. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2017, 231, 2511–2526. [Google Scholar] [CrossRef]
- Abdudeen, A.; Abu Qudeiri, J.E.; Kareem, A.; Ahammed, T.; Ziout, A. Recent advances and perceptive insights into powder-mixed dielectric fluid of EDM. Micromachines 2020, 11, 754. [Google Scholar] [CrossRef] [PubMed]
- Chaudhari, R.; Khanna, S.; Vora, J.; Patel, V.K.; Paneliya, S.; Pimenov, D.Y.; Giasin, K.; Wojciechowski, S. Experimental investigations and optimization of MWCNTs-mixed WEDM process parameters of nitinol shape memory alloy. J. Mater. Res. Technol. 2021, 15, 2152–2169. [Google Scholar] [CrossRef]
- Majumdar, S.; Bhoi, N.K.; Singh, H. Graphene nano-powder mixed electric discharge machining of Inconel 625 alloy: Optimization of process parameters for material removal rate. Int. J. Interact. Des. Manuf. 2022, 1–7. [Google Scholar] [CrossRef]
- Joshi, A.Y.; Joshi, A.Y. A systematic review on powder mixed electrical discharge machining. Heliyon 2019, 5, e02963. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sahu, D.R.; Mandal, A. Critical analysis of surface integrity parameters and dimensional accuracy in powder-mixed EDM. Mater. Manuf. Process. 2020, 35, 430–441. [Google Scholar] [CrossRef]
- Kumar, A.; Mandal, A.; Dixit, A.R.; Das, A.K.; Kumar, S.; Ranjan, R. Comparison in the performance of EDM and NPMEDM using Al2O3 nanopowder as an impurity in DI water dielectric. Int. J. Adv. Manuf. Technol. 2019, 100, 1327–1339. [Google Scholar] [CrossRef]
- Kumar, A.; Mandal, A.; Dixit, A.R.; Das, A.K. Performance evaluation of Al2O3 nano powder mixed dielectric for electric discharge machining of Inconel 825. Mater. Manuf. Process. 2018, 33, 986–995. [Google Scholar] [CrossRef]
- MangapathiRao, K.; Vinaykumar, D.; Shekar, K.C.; Kumar, R.R. Investigation and analysis of EDM process–A new approach with Al2O3 nano powder mixed in sunflower oil. In Proceedings of the IOP Conference Series, Materials Science and Engineering, Sanya, China, 12–14 November 2021; p. 012059. [Google Scholar]
- Mohanty, S.; Singh, S.S.; Routara, B.; Nanda, B.; Nayak, R. A Comparative study on machining of AlSiCp metal matrix composite using Electrical discharge machine with and without nano powder suspension in dielectric. Mater. Today Proc. 2019, 18, 4281–4289. [Google Scholar] [CrossRef]
- Baseri, H.; Sadeghian, S. Effects of nanopowder TiO2-mixed dielectric and rotary tool on EDM. Int. J. Adv. Manuf. Technol. 2016, 83, 519–528. [Google Scholar] [CrossRef]
- Sivaprakasam, P.; Hariharan, P.; Gowri, S. Experimental investigations on nano powder mixed Micro-Wire EDM process of inconel-718 alloy. Measurement 2019, 147, 106844. [Google Scholar] [CrossRef]
- Jahan, M.; Rahman, M.; Wong, Y. Modelling and experimental investigation on the effect of nanopowder-mixed dielectric in micro-electrodischarge machining of tungsten carbide. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2010, 224, 1725–1739. [Google Scholar] [CrossRef]
- Taherkhani, A.; Ilani, M.A.; Ebrahimi, F.; Huu, P.N.; Long, B.T.; Van Dong, P.; Tam, N.C.; Minh, N.D.; Van Duc, N. Investigation of surface quality in Cost of Goods Manufactured (COGM) method of μ-Al2O3 Powder-Mixed-EDM process on machining of Ti-6Al-4V. Int. J. Adv. Manuf. Technol. 2021, 116, 1783–1799. [Google Scholar] [CrossRef]
- Ahmed, M.M.; Touileb, K.; El-Sayed Seleman, M.M.; Albaijan, I.; Habba, M.I. Bobbin Tool Friction Stir Welding of Aluminum: Parameters Optimization Using Taguchi Experimental Design. Materials 2022, 15, 2771. [Google Scholar] [CrossRef]
- Vora, J.; Chaudhari, R.; Patel, C.; Pimenov, D.Y.; Patel, V.K.; Giasin, K.; Sharma, S. Experimental investigations and Pareto optimization of fiber laser cutting process of Ti6Al4V. Metals 2021, 11, 1461. [Google Scholar] [CrossRef]
- Das, L.; Nayak, R.; Saxena, K.K.; Nanda, J.; Jena, S.P.; Behera, A.; Sehgal, S.; Prakash, C.; Dixit, S.; Abdul-Zahra, D.S. Determination of optimum machining parameters for face milling process of Ti6A14V metal matrix composite. Materials 2022, 15, 4765. [Google Scholar] [CrossRef] [PubMed]
- Patel, V.K.; Savsani, V.J. A multi-objective improved teaching–learning based optimization algorithm (MO-ITLBO). Inf. Sci. 2016, 357, 182–200. [Google Scholar] [CrossRef]
- Sharma, P.; Chakradhar, D.; Narendranath, S. Measurement of WEDM performance characteristics of aero-engine alloy using RSM-based TLBO algorithm. Measurement 2021, 179, 109483. [Google Scholar] [CrossRef]
- Mohammed, A.A.; Khodair, Z.T.; Khadom, A.A. Preparation and investigation of the structural properties of α-Al2O3 nanoparticles using the sol-gel method. Chem. Data Collect. 2020, 29, 100531. [Google Scholar] [CrossRef]
- Cava, S.; Tebcherani, S.M.; Souza, I.A.; Pianaro, S.A.; Paskocimas, C.A.; Longo, E.; Varela, J.A. Structural characterization of phase transition of Al2O3 nanopowders obtained by polymeric precursor method. Mater. Chem. Phys. 2007, 103, 394–399. [Google Scholar] [CrossRef]
- Chaudhari, R.; Vora, J.; López de Lacalle, L.; Khanna, S.; Patel, V.K.; Ayesta, I. Parametric optimization and effect of nano-graphene mixed dielectric fluid on performance of wire electrical discharge machining process of Ni55. 8Ti shape memory alloy. Materials 2021, 14, 2533. [Google Scholar] [CrossRef]
- Al-Amin, M.; Abdul-Rani, A.M.; Ahmed, R.; Shahid, M.U.; Zohura, F.T.; Rani, M.D.B.A. Multi-objective optimization of process variables for MWCNT-added electro-discharge machining of 316L steel. Int. J. Adv. Manuf. Technol. 2021, 115, 179–198. [Google Scholar] [CrossRef]
- Fuse, K.; Dalsaniya, A.; Modi, D.; Vora, J.; Pimenov, D.Y.; Giasin, K.; Prajapati, P.; Chaudhari, R.; Wojciechowski, S. Integration of fuzzy AHP and fuzzy TOPSIS methods for wire electric discharge machining of titanium (Ti6Al4V) alloy using RSM. Materials 2021, 14, 7408. [Google Scholar] [CrossRef]
- Singh, M.A.; Joshi, K.; Hanzel, O.; Singh, R.K.; Šajgalík, P.; Marla, D. Identification of wire electrical discharge machinability of SiC sintered using rapid hot pressing technique. Ceram. Int. 2020, 46, 17261–17271. [Google Scholar] [CrossRef]
- Dzionk, S.; Siemiątkowski, M.S. Studying the effect of working conditions on WEDM machining performance of super alloy Inconel 617. Machines 2020, 8, 54. [Google Scholar] [CrossRef]
- Al-Amin, M.; Abdul Rani, A.M.; Abdu Aliyu, A.A.; Abdul Razak, M.A.H.; Hastuty, S.; Bryant, M.G. Powder mixed-EDM for potential biomedical applications: A critical review. Mater. Manuf. Process. 2020, 35, 1789–1811. [Google Scholar] [CrossRef]
- Aggarwal, V.; Pruncu, C.I.; Singh, J.; Sharma, S.; Pimenov, D.Y. Empirical investigations during WEDM of Ni-27Cu-3.15 Al-2Fe-1.5 Mn based superalloy for high temperature corrosion resistance applications. Materials 2020, 13, 3470. [Google Scholar] [CrossRef]
- Sahu, A.K.; Thomas, J.; Mahapatra, S.S. An intelligent approach to optimize the electrical discharge machining of titanium alloy by simple optimization algorithm. Proc. Inst. Mech. Eng. Part E J. Process Mech. Eng. 2021, 235, 371–383. [Google Scholar] [CrossRef]
- Sharma, D.; Hiremath, S.S. Review on tools and tool wear in EDM. Mach. Sci. Technol. 2021, 25, 802–873. [Google Scholar] [CrossRef]
- Chaudhari, R.; Vora, J.J.; Patel, V.; Lacalle, L.L.d.; Parikh, D. Effect of WEDM process parameters on surface morphology of nitinol shape memory alloy. Materials 2020, 13, 4943. [Google Scholar] [CrossRef]
- Singh, S.; Patel, B.; Upadhyay, R.K.; Singh, N.K. Improvement of process performance of powder mixed electrical discharge machining by optimisation-A Review. Adv. Mater. Process. Technol. 2021, 1–31. [Google Scholar] [CrossRef]
- Srivastava, S.; Vishnoi, M.; Gangadhar, M.T.; Kukshal, V. An insight on Powder Mixed Electric Discharge Machining: A state of the art review. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2022, 09544054221111896. [Google Scholar] [CrossRef]
- Pillai, K.; Hariharan, P. Experimental investigation on surface and machining characteristics of micro ED milling of Ti-6Al-4 V with different nano powder mixed dielectrics. Silicon 2022, 14, 2871–2894. [Google Scholar] [CrossRef]
- Chaudhari, R.; Prajapati, P.; Khanna, S.; Vora, J.; Patel, V.K.; Pimenov, D.Y.; Giasin, K. Multi-response optimization of Al2O3 nanopowder-mixed wire electrical discharge machining process parameters of nitinol shape memory alloy. Materials 2022, 15, 2018. [Google Scholar] [CrossRef] [PubMed]
- Khan, A.A.; Ndaliman, M.B.; Zain, Z.M.; Jamaludin, M.F.; Patthi, U. Surface modification using electric discharge machining (EDM) with powder addition. Appl. Mech. Mater. 2011, 110–116, 725–733. [Google Scholar] [CrossRef]
- Thakur, S.S.; Patel, B.; Upadhyay, R.K.; Bagal, D.K.; Barua, A. Machining characteristics of metal matrix composite in powder-mixed electrical discharge machining–A review. Aust. J. Mech. Eng. 2022, 1–23. [Google Scholar] [CrossRef]
Parameters | Values |
---|---|
Current (A) | 8; 16; 24 |
Pulse-off time (µs) | 4; 7; 10 |
PC (g/L) | 0, 2, 4 |
Pulse-on time (µs) | 4; 7; 10 |
Size of nano-powder (nm) | 100–150 |
Spark gap (mm) | 0.01 |
Cutting depth (mm) | 2 |
Tool | Copper |

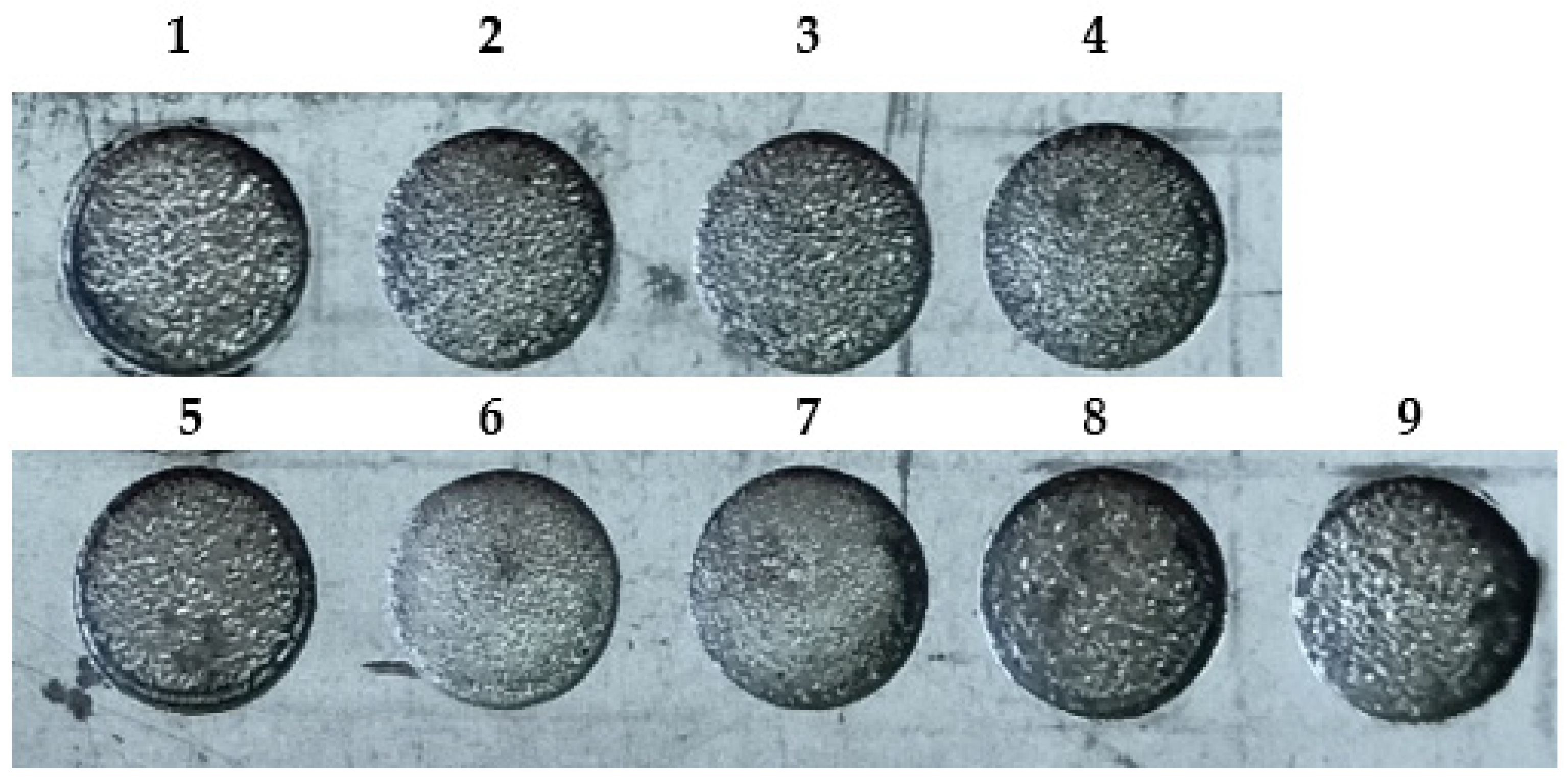

Trial | Current (A) | Toff (µs) | PC (g/L) | Ton (µs) | MRR (mg/min) | TWR (mg/min) | SR (µm) |
---|---|---|---|---|---|---|---|
1 | 8 | 4 | 0 | 4 | 22.87 ± 0.17 | 7.23 ± 0.17 | 4.27 ± 0.17 |
2 | 8 | 7 | 2 | 7 | 31.21 ± 0.31 | 6.98 ± 0.11 | 4.11 ± 0.11 |
3 | 8 | 10 | 4 | 10 | 36.71 ± 0.28 | 6.63 ± 0.22 | 3.89 ± 0.16 |
4 | 16 | 4 | 2 | 10 | 43.53 ± 0.22 | 8.13 ± 0.24 | 5.12 ± 0.22 |
5 | 16 | 7 | 4 | 4 | 47.04 ± 0.25 | 6.64 ± 0.13 | 3.92 ± 0.12 |
6 | 16 | 10 | 0 | 7 | 19.23 ± 0.11 | 7.05 ± 0.17 | 4.17 ± 0.13 |
7 | 24 | 4 | 4 | 7 | 53.18 ± 0.26 | 7.50 ± 0.19 | 4.41 ± 0.16 |
8 | 24 | 7 | 0 | 10 | 24.79 ± 0.18 | 8.01 ± 0.14 | 5.01 ± 0.19 |
9 | 24 | 10 | 2 | 4 | 31.98 ± 0.19 | 6.83 ± 0.16 | 4.03 ± 0.15 |
Source | DF | SS | MS | F-Value | p-Value |
---|---|---|---|---|---|
MRR | |||||
Regression | 4 | 1047.44 | 261.86 | 41.82 | 0.002 |
Current | 1 | 61.24 | 61.24 | 9.78 | 0.035 |
Toff | 1 | 167.15 | 167.15 | 26.69 | 0.007 |
PC | 1 | 817.39 | 817.39 | 130.53 | 0.000 |
Ton | 1 | 1.65 | 1.65 | 0.26 | 0.635 |
Error | 4 | 25.05 | 6.26 | ||
Total | 8 | 1072.49 | |||
TWR | |||||
Regression | 4 | 2.4037 | 0.6009 | 41.11 | 0.002 |
Current | 1 | 0.3742 | 0.3742 | 25.60 | 0.007 |
Toff | 1 | 0.9249 | 0.9249 | 63.27 | 0.001 |
PC | 1 | 0.3894 | 0.3894 | 26.64 | 0.007 |
Ton | 1 | 0.7151 | 0.7151 | 48.92 | 0.002 |
Error | 4 | 0.0584 | 0.0146 | ||
Total | 8 | 2.4622 | |||
SR | |||||
Regression | 4 | 1.5116 | 0.3778 | 13.68 | 0.013 |
Current | 1 | 0.2321 | 0.2321 | 8.40 | 0.044 |
Toff | 1 | 0.4873 | 0.4873 | 17.65 | 0.014 |
PC | 1 | 0.2521 | 0.2521 | 9.13 | 0.039 |
Ton | 1 | 0.5400 | 0.5400 | 19.56 | 0.011 |
Error | 5 | 0.1105 | 0.0276 | ||
Total | 8 | 1.6220 |
Condition/Response | MRR (mg/min) | TWR (mg/min) | SR (µm) |
---|---|---|---|
Predicted from TLBO | 43.57 | 6.478 | 3.73 |
Experimental values | 44.13 | 6.331 | 3.61 |
% Error | 1.28 | 2.26 | 3.21 |
