One-Step Synthesis of LiCo1-1.5xYxPO4@C Cathode Material for High-Energy Lithium-ion Batteries

by
Yue Wang
1,*,
Jingyi Qiu
1,*,
Meng Li
1,
Xiayu Zhu
1,
Yuehua Wen
1 and
Bin Li
2,*
1
Research Institute of Chemical Defense, Beijing 100191, China
2
School of Materials Science and Engineering, University of Science and Technology Beijing, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(20), 7325; https://doi.org/10.3390/ma15207325
Submission received: 4 October 2022 / Revised: 17 October 2022 / Accepted: 18 October 2022 / Published: 20 October 2022
(This article belongs to the Special Issue Investigation of High-Performance Electrode Materials: Processing and Storage Mechanism)
Browse Figures
Review Reports Versions Notes

Abstract

:
Intrinsically low ion conductivity and unstable cathode electrolyte interface are two important factors affecting the performances of LiCoPO4 cathode material. Herein, a series of LiCo1-1.5xYxPO4@C (x = 0, 0.01, 0.02, 0.03) cathode material is synthesized by a one-step method. The influence of Y substitution amount is optimized and discussed. The structure and morphology of LiCo1-1.5xYxPO4@C cathode material does not lead to obvious changes with Y substitution. However, the Li/Co antisite defect is minimized and the ionic and electronic conductivities of LiCo1-1.5xYxPO4@C cathode material are enhanced by Y substitution. The LiCo0.97Y0.02PO4@C cathode delivers a discharge capacity of 148 mAh g−1 at 0.1 C and 96 mAh g−1 at 1 C, with a capacity retention of 75% after 80 cycles at 0.1 C. Its good electrochemical performances are attributed to the following factors. (1) The uniform 5 nm carbon layer stabilizes the interface and suppresses the side reactions with the electrolyte. (2) With Y substitution, the Li/Co antisite defect is decreased and the electronic and ionic conductivity are also improved. In conclusion, our work reveals the effects of aliovalent substitution and carbon coating in LiCo1-1.5xYxPO4@C electrodes to improve their electrochemical performances, and provides a method for the further development of high voltage cathode material for high-energy lithium-ion batteries.

1. Introduction

With the rapid development of portable devices and electric vehicles, the demand for high energy batteries is increasing. The development of high-energy cathode [1,2,3,4,5,6] and anode [7] materials is imperative. Olivine LiCoPO4 with a theoretical energy density of about 800 Wh kg−1 is a good candidate cathode material for high-energy lithium-ion batteries [8,9,10]. However, the continuous oxidative decomposition of electrolyte [11,12] and the unstable cathode electrolyte interface [13,14] under 5 V high voltage caused by Co2+/Co3+, resulting in rapid capacity degradation during cycling, severely hindering the application of LiCoPO4 cathode material. In addition, the Li/Co antisite exchange during the cycling process [15,16,17] and low intrinsically ionic and electronic conductivity [18,19,20] must also be overcome.
Lots of work have been undertaken to solve these problems, including decreasing the cathode particle size and controlling the morphology to shorten the Li-ion migration distance [21,22,23,24]; coating the cathode particle with stable materials [25,26,27,28] or conductive materials [29,30,31,32,33] to stabilize the interface and reduce the side reaction; partial substitution at Co site [20,34,35,36,37] to improve the intrinsic ionic and electronic conductivity [34,35,38,39,40]; and adding electrolyte additives to suppress the electrolyte decomposition [14,41,42]. Every method has some effect in improving LiCoPO4 cathode performance. Generally, for LiCoPO4 cathode material, surface coating is the most effective way to enhance the stability of the interface [25,31,43], while cation substitution can significantly improve the material ionic conductivity [16,36,44,45].
In this work, the LiCo1-1.5xYxPO4@C cathode material, the substitution of Y, and carbon coating are synthesized in one step. The amount of Y substitution is optimized and its influence discussed.

2. Materials and Methods

2.1. Synthesis of LiCo1-1.5xYxPO4@C Cathode Material

LiCo1-1.5xYxPO4@C (x = 0, 0.01, 0.02, 0.03) cathode material was synthesized by a one-step method. First citric acid (CA, Sinopharm Chemical Reagent, ≥99.5%), Y(NO3)3·6H2O (Sinopharm Chemical Reagent, ≥99.0%), Co(NO3)2·6H2O (Sinopharm Chemical Reagent, ≥98.5%), LiNO3 (Sinopharm Chemical Reagent, ≥99.9%) and NH4H2PO4 (Sinopharm Chemical Reagent, ≥99.0%) were dissolved at stoichiometric amounts (nLi:nCo:nY:nP:nCA = 1.05:1-1.5x:x:1:2) in deionized water. Then the gel was formed by heating the solution at 80 °C. Subsequently, the wet gel was dried at 120 °C 24 h to obtain dry gel. Finally, the dry gel was calcined at 400 °C 3 h in rotary furnace at air atmosphere, and then changed to Ar atmosphere and calcined at 700 °C 2 h [39].

2.2. Material Characterization

The crystal information of the materials was detected by XRD (Smart Lab) with Cu Kα radiation, and TOPAS 5.0 software (Bruker AXS, America) was used to Rietveld refinements. The morphology of the materials was observed with SEM, EDS (Hitachi, BCPCAS-4800), and TEM (Tecnai, F20). FTIR spectra were obtained by IR spectrometer (PerkinElmer, Spectrum One).

2.3. Electrochemical Performance

The electrochemical tests were carried out with using the 2025-type coin cell. Coin cells were assembled with the dried LiCo1-1.5xYxPO4@C as cathode, Li metal as anode, Celgard2400 polyethylene as separator, and 1M LiPF6 in a mixture of DMC/EC (v/v, 1/1) with 1 wt.% TMSB additive as electrolyte in an argon-filled glovebox. The LiCo1-1.5xYxPO4@C electrodes were dried at 120 °C 12 h in a vacuum oven.
The cycling and rate performances of LiCo1-1.5xYxPO4@C electrode were measured by the LAND CT2001A. The CV curve of the LiCo1-1.5xYxPO4@C electrode was collected by CHI660D within the voltage range 3.0~5.3 V, with 0.05 mV s−1. EIS curve was conducted on Solartron SI 1260 and SI 1287 with a frequency range from 0.1 MHz to 10 MHz.

3. Results and Discussion

3.1. Composition and Morphology of LiCo1-1.5xYxPO4@C Cathode Material

Figure 1 shows the XRD patterns of the four cathode materials. All four cathode materials were well indexed to the olivine structure (JCPDS: 89-6192) with an orthorhombic Pnma space group, indicating the carbon layer and Y substitution did not change the main crystal structure of LiCoPO4. An obvious impurity peak YPO4 appeared when the Y substitution amount was 0.03. This means that at the substitution amount of 0.03, it was difficult for Y to be completely incorporated into the LiCoPO4 lattice, as the Y atomic radius was larger than that of Co. Figure 2 presents the Rietveld refinement results of the four cathode materials. The crystal structural parameter is listed in Table 1, showing the details of the structural differences. Significantly, with the increase in the Y doping amount, the a and b parameters increased obviously, leading to an increase in unit cell volume (283.84, 284.09, 284.30 and 284.42 for x = 0, 0.01, 0.02 and 0.03). This change indicates that Y (III) replaced Co (II) and was incorporated into the LiCoPO4 lattice. Since the ionic radius of Y (III) (90 pm) was larger than that of Co (II) (74.5 pm), it led to an increase in the unit cell volume. The increase in the unit cell volume could facilitate the migration of Li-ion, thus improving the electrochemical performance of LiCo1-1.5xYxPO4@C cathodes. According to the XRD and Rietveld refinement results, Y was successfully incorporated into the LiCoPO4 lattice without altering the olivine structure, although it caused an increase in the unit cell volume as Y doping amount increased.
SEM images of the four cathode materials are displayed in Figure 3a–d. All the four cathode materials had similar morphology, which was composed of agglomerated nanoparticles of about 200 nm. This suggests that the basic morphology of the four cathode materials was unaffected by Y substitution. EDS of LiCo0.97Y0.02PO4/C cathode material was performed to determine the Y distribution, and the result is shown in Figure 3e. It is evident that there was no region poorer or richer in Y, and the Y element was homogeneously dispersed in the LiCo0.97Y0.02PO4/C cathode material. The same results were observed for the O, Co, and P elements. TEM images of the four cathode materials are presented in Figure 4. All the four samples had only one diffraction fringe and had a uniform 5 nm carbon layer on the LiCoPO4 particle surface. From our previous studies [14,25,39], we found that a uniform carbon coating layer firstly refined particle size and improved material conductivity; secondly prevented direct contact between electrolyte and LiCoPO4 particle, and inhibited the continuous oxidative decomposition of electrolyte under 5 V high voltage caused by Co2+/Co3+, and thirdly, stabilized the interface between the cathode and electrolyte and suppressed the continuous generation of CEI on the LiCoPO4 particle surface, thus improving the electrochemical performance of the LiCoPO4 material. SEM and TEM images suggest that the basic morphology of the four cathode materials was unaffected by Y substitution; that is, it consisted of clustered nanoparticles with a 5 nm uniform carbon film on the Li LiCo1-1.5xYxPO4@C particle surface.
Figure 5 exhibits the FTIR spectra of the four cathode materials. It is obvious that with an increase in the Y substitution, the symmetric stretching at 987 cm−1 position shifted to 979 cm−1 position when x = 0.02, which indicated the decrease in the Li/Co antisite defect [8,15,16]. However, when the Y substitution amount increased to 0.03, the symmetric stretching position shifted to 984 cm−1 position, meaning the Li/Co antisite defect increase decreased the electrochemical performance of the LiCo0.955Y0.03PO4 material.
The XPS spectrum of LiCoPO4/C and LiCo0.97Y0.02PO4/C cathode material is shown Figure 6. The spectra of the two cathode materials were similar, except for the LiCo0.97Y0.02PO4/C sample with the Y characteristic peak. Figure 6b shows the Co2p spectra of the LiCoPO4/C and LiCo0.97Y0.02PO4/C cathode material, which were consistent with the reported binding energy of the Co [39,46]. The Y3d spectra for LiCo0.97Y0.02PO4/C cathode material is displayed in Figure 6c. The Y3d spectra suggests that Y is present in the LiCo0.97Y0.02PO4/C cathode material and that the oxidation state of Y is +3.

3.2. Electrochemical Performances of LiCo1-1.5xYxPO4@C Electrodes

Electrochemical performances of the four electrodes were tested in half-cell. Figure 7 shows the first cycle CV curves of the four electrodes. The CV curves of the four electrodes had two similarities: first, all had an oxidation peak around 4.3 V that can be ascribed to the electrolyte oxidation reaction; then, all had two oxidation peaks in the range of 4.8 V~4.9 V and one reduction peak around 4.7 V (the reduction potential of LiCoPO4 was closer and the two overlapped as a larger reduction peak at the CV test sweep rate of 0.05 mV s−1, which is consistent with the reports in the reference) that corresponded to the two steps of Li-ion extraction/intercalation [25,39]. The differences between the oxidation reaction potential, the reduction reaction potential, and the polarization potential of the CV curves are listed in Table 2. With increasing Y substitution amounts, the oxidation reaction potential decreased to 4.796 V and 4.892 V and the reduction potential increased to 4.71 V (x = 0.02); meanwhile, the polarization potential reduced to 0.182 V (x = 0.02). The changes in potential suggest that it is easier for Li-ion to migrate with Y substitution. These CV results reveal that the polarization of the four electrodes was reduced and that the Li-ion conductivity was enhanced with Y substitution. The improvement in Li-ion conductivity can be ascribed to the enlargement in unit cell volume of LiCo1-1.5xYxPO4@C cathode material, the decrement of the Li/Co antisite defect, and the increment of the Co-site vacancy with Y substitution, which offers additional channels for Li-ion migration.
Figure 8 presents the first, second, third, tenth, twentieth, fortieth and hundredth cycle charge/discharge profiles of the four electrodes at 0.1C. The four electrodes displayed two oxidation plateaus at approximately 4.8 to 4.9 V, and two reduction plateaus at approximately 4.6 to 4.8 V, which agrees with the CV results. Noticeably, all four electrodes had one side reaction at about 4.3 V and a high overcharge capacity, which is ascribed to the electrolyte oxidation reaction. The overcharge capacity during the first charge is a major factor in the low initial coulombic efficiency [15,39]. However, at the second charge process, the overcharge capacity was reduced, which means the electrolyte oxidation reaction was restrained. This phenomenon confirms carbon film plays an important role in inhibiting the continuous oxidative decomposition of electrolyte under 5 V high voltage, and in stabilizing the interface between the cathode and electrolyte.
Figure 9 displays cycling stability and rate performances of the four electrodes. Figure 9a presents the cycling stability performance of the four electrodes at 0.1 C. The first discharge capacities of the four electrodes are 142.6, 144.5, 148, and 145.8 mAh g−1, respectively. After 80 cycles, the discharge capacities are 76.8, 106.6, 111, and 97.6 mAh g−1, with capacity retention of 53.8%, 73.7%, 75%, and 66.9%, respectively. The rapid capacity fading can be ascribed to the continuous generation of CEI on the LiCoPO4 particle surface and the Li/Co antisite defects during the cycling process [43,47]. Figure 9b presents the rate performances of the four electrodes. As expected, the LiCo0.97Y0.02PO4/C electrode displayed the best performance, with the discharge capacities of 145 mAh g−1 (0.1 C), 130 mAh g−1 (0.2 C), 113 mAh g−1 (0.5 C), and 96 mAh g−1 (1 C); the discharge capacity returned to 130 mAh g−1 when the discharge rate returned to 0.1 C, exhibiting good electrochemical performance stability. In comparison, the corresponding discharge capacity of the LiCoPO4/C electrode was about 125 mAh g−1 (0.1 C), 110 mAh g−1 (0.2 C), 82 mAh g−1 (0.5 C), and 66 mAh g−1 (1 C). The improvement of the cycling stability and rate performances for LiCo0.97Y0.02PO4/C electrode was ascribed to the decrease in the Li/Co antisite defect and the increase in ionic conductivity due to Y doping. Similar improvements in cycling stability and rate performance were reported for Cr-doped LiCoPO4 [39,48] and V-doped LiCoPO4 [16,37], which the authors, due to the facilitation of ion migration, caused by Cr or V substitution. Table 3 shows the cycling performance of the LiCo0.97Y0.02PO4/C electrode in comparison with others reported.
Figure 10 shows the EIS spectra of the four electrodes and the corresponding equivalent circuits. The simulation results are listed in Table 4. It is clear that all four cathodes had similar ohmic resistance Re (1.6 Ω, 1.33 Ω, 1.41 Ω, and 1.53 Ω, respectively) due to their similar basic forms. However, the transfer resistance Rct (59.15 Ω, 25.41 Ω, 23.66 Ω and 21.03 Ω, respectively) decreased significantly, which implies that the electronic conductivity of the LiCo1-1.5xYxPO4@C cathode material was improved with the Y doping. The DLi+ results are presented in Table 4. By increasing the Y doping amounts, the D Li+ was improved, and the LiCo0.955Y0.03PO4@C electrode showed the best values of 6.16 × 10−14 cm2 s−1, whereas the LiCoPO4@C electrode only attained 7.11 × 10−16 cm2 s−1. The EIS results reveal that the intrinsic performance of ionic and electronic conductivities for LiCo1-1.5xYxPO4@C material was improved by Y substitution. This improvement can be ascribed to the enlargement in unit cell volume and the increment of the Co-site vacancy caused by aliovalent Y substitution that provided a convenient pathway for Li ion migration.

4. Conclusions

In this work, the LiCo1-1.5xYxPO4@C (x = 0, 0.01, 0.02 and 0.03) cathode material was synthesized in one step. The uniform carbon layer stabilized the interface between the cathode and electrolyte, inhibiting the continuous side reaction on the LiCoPO4 particle surface; meanwhile, the Y substitution decreased the antisite defect, increasing the ionic and electronic conductivities of LiCo1-1.5xYxPO4@C sample. Thus, the LiCo0.97Y0.02PO4@C cathode exhibited the best electrochemical performance, for instance, delivering an initial discharge capacity of 148 mAh g−1, with a capacity retention of 75% after 80 cycles at 0.1 C, and delivered a capacity of 96 mAh g−1 at 1 C. The low Li/Co antisite defect, the enhancement of electronic and Li-ion conductivity caused by Y substitution, and the uniform carbon layer, worked together to improve the performance of LiCo1-1.5xYxPO4@C cathode.

Author Contributions

Conceptualization, Y.W. (Yue Wang) and J.Q.; methodology, M.L. and X.Z.; writing and original draft preparation, Y.W. (Yuehua Wen), Y.W. (Yue Wang) and B.L.; supervision, B.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pramanik, A.; Manche, A.G.; Clulow, R.; Lightfoot, P.; Armstrong, A.R. Exploiting anion and cation redox chemistry in lithium-rich perovskite oxalate: A novel next-generation Li/Na-ion battery electrode. Dalton Trans. 2022, 51, 12467–12475. [Google Scholar] [CrossRef] [PubMed]
  2. Pandit, B.; Goda, E.S.; Ubaidullah, M.; Shaikh, S.F.; Nakate, U.T.; Khedulkar, A.P.; Rana, A.u.H.S.; Kumar, D.; Doong, R.-A. Hexagonal δ-MnO2 nanoplates as efficient cathode material for potassium-ion batteries. Ceram. Int. 2022, 48, 28856–28863. [Google Scholar] [CrossRef]
  3. Linnell, S.F.; Kim, E.J.; Choi, Y.-S.; Hirsbrunner, M.; Imada, S.; Pramanik, A.; Cuesta, A.F.; Miller, D.N.; Fusco, E.; Bode, B.E.; et al. Enhanced oxygen redox reversibility and capacity retention of titanium-substituted Na4/7[□1/7Ti1/7Mn5/7]O2 in sodium-ion batteries. J. Mater. Chem. A 2022, 10, 9941–9953. [Google Scholar] [CrossRef]
  4. Pramanik, A.; Bradford, A.J.; Lee, S.L.; Lightfoot, P.; Armstrong, A.R. Na2Fe (C2O4)(HPO4): A promising new oxalate-phosphate based mixed polyanionic cathode for Li/Na ion batteries. J. Phys. Mater. 2021, 4, 024004–024013. [Google Scholar] [CrossRef]
  5. Pandit, B.; Rondiya, S.R.; Dzade, N.Y.; Shaikh, S.F.; Kumar, N.; Goda, E.S.; Al-Kahtani, A.A.; Mane, R.S.; Mathur, S.; Salunkhe, R.R. High Stability and Long Cycle Life of Rechargeable Sodium-Ion Battery Using Manganese Oxide Cathode: A Combined Density Functional Theory (DFT) and Experimental Study. ACS Appl. Mater. Interfaces 2021, 13, 11433–11441. [Google Scholar] [CrossRef]
  6. Nitti, A.; Carfora, R.; Assanelli, G.; Notari, M.; Pasini, D. Single-Chain Polymer Nanoparticles for Addressing Morphologies and Functions at the Nanoscale: A Review. ACS Appl. Nano Mater. 2022. [Google Scholar] [CrossRef]
  7. Callegari, D.; Colombi, S.; Nitti, A.; Simari, C.; Nicotera, I.; Ferrara, C.; Mustarelli, P.; Pasini, D.; Quartarone, E. Autonomous Self-Healing Strategy for Stable Sodium-Ion Battery: A Case Study of Black Phosphorus Anodes. ACS Appl. Mater. Interfaces 2021, 13, 13170–13182. [Google Scholar] [CrossRef]
  8. Lapping, J.; Borkiewicz, O.; Wiaderek, K.; Allen, J.L.; Jow, T.R.; Cabana, J. Structural Changes and Reversibility Upon Deintercalation of Li from LiCoPO4 Derivatives. ACS Appl. Mater. Interfaces 2020, 12, 20570–20578. [Google Scholar] [CrossRef]
  9. Wolfenstine, J.; Lee, U.; Poese, B.; Allen, J.L. Effect of oxygen partial pressure on the discharge capacity of LiCoPO4. J. Power Source 2005, 144, 226–230. [Google Scholar] [CrossRef]
  10. Zhang, M.; Garcia-Araez, N.; Hector, A.L. Understanding and development of olivine LiCoPO4 cathode materials for lithium-ion batteries. J. Mater. Chem. A 2018, 6, 14483–14517. [Google Scholar] [CrossRef]
  11. Bramnik, N.N.; Nikolowski, K.; Baehtz, C.; Bramnik, K.G.; Ehrenberg, H. Phase transitions occurring upon lithium insertion-extraction of LiCoPO4. Chem. Mater. 2007, 19, 908–915. [Google Scholar] [CrossRef] [Green Version]
  12. Kosova, N.V.; Podgornova, O.A.; Devyatkina, E.T.; Podugolnikov, V.R.; Petrov, S.A. Effect of Fe2+ substitution on the structure and electrochemistry of LiCoPO4 prepared by mechanochemically assisted carbothermal reduction. J. Mater. Chem. A 2014, 2, 20697–20705. [Google Scholar] [CrossRef]
  13. Markevich, E.; Salitra, G.; Fridman, K.; Sharabi, R.; Gershinsky, G.; Garsuch, A.; Semrau, G.; Schmidt, M.A.; Aurbach, D. Fluoroethylene Carbonate as an Important Component in Electrolyte Solutions for High-Voltage Lithium Batteries: Role of Surface Chemistry on the Cathode. Langmuir 2014, 30, 7414–7424. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Y.; Ming, H.; Qiu, J.; Yu, Z.; Li, M.; Zhang, S.; Yang, Y. Improving cycling performance of LiCoPO4 cathode material by adding tris (trimethylsilyl) borate as electrolyte additive. J. Electroanal. Chem. 2017, 802, 8–14. [Google Scholar] [CrossRef]
  15. Wu, X.; Meledina, M.; Barthel, J.; Liu, Z.; Tempel, H.; Kungl, H.; Mayer, J.; Eichel, R.-A. Investigation of the Li–Co antisite exchange in Fe-substituted LiCoPO4 cathode for high-voltage lithium ion batteries. Energy Storage Mater. 2019, 22, 138–146. [Google Scholar] [CrossRef]
  16. Kreder, K.J., III; Assat, G.; Manthiram, A. Aliovalent Substitution of V3+ for Co2+ in LiCoPO4 by a Low-Temperature Microwave-Assisted Solvothermal Process. Chem. Mater. 2016, 28, 1847–1853. [Google Scholar] [CrossRef]
  17. Lapping, J.G.; Delp, S.A.; Allen, J.L.; Allen, J.L.; Freeland, J.W.; Johannes, M.D.; Hu, L.; Tran, D.T.; Jow, T.R.; Cabana, J. Changes in electronic structure upon Li deintercalation from LiCoPO4 derivatives. Chem. Mater. 2018, 30, 1898–1906. [Google Scholar] [CrossRef]
  18. Wolfenstine, J. Electrical conductivity of doped LiCoPO4. J. Power Source 2006, 158, 1431–1435. [Google Scholar] [CrossRef]
  19. Wolfenstine, J.; Read, J.; Allen, J.L. Effect of carbon on the electronic conductivity and discharge capacity LiCoPO4. J. Power Source 2007, 163, 1070–1073. [Google Scholar] [CrossRef]
  20. Wu, X.; Lin, Y.; Ji, Y.; Zhou, D.; Liu, Z.; Sun, X. Insights into the Enhanced Catalytic Activity of Fe-Doped LiCoPO4 for the Oxygen Evolution Reaction. ACS Appl. Energy Mater. 2020, 3, 2959–2965. [Google Scholar] [CrossRef]
  21. Wu, X.; Meledina, M.; Tempel, H.; Kungl, H.; Mayer, J.; Eichel, R.-A. Morphology-controllable synthesis of LiCoPO4 and its influence on electrochemical performance for high-voltage lithium ion batteries. J. Power Source 2020, 450, 227726–227733. [Google Scholar] [CrossRef]
  22. Peng, L.; Zhang, X.; Fang, Z.; Zhu, Y.; Xie, Y.; Cha, J.J.; Yu, G. General facet-controlled synthesis of single-crystalline {010}-oriented LiMPO4 (M = Mn, Fe, Co) nanosheets. Chem. Mater. 2017, 29, 10526–10533. [Google Scholar] [CrossRef]
  23. Ludwig, J.; Marino, C.; Haering, D.; Stinner, C.; Gasteiger, H.A.; Nilges, T. Morphology-controlled microwave-assisted solvothermal synthesis of high-performance LiCoPO4 as a high-voltage cathode material for Li-ion batteries. J. Power Source 2017, 342, 214–223. [Google Scholar] [CrossRef]
  24. Wu, B.R.; Xu, H.L.; Mu, D.B.; Shi, L.L.; Jiang, B.; Gai, L.; Wang, L.; Liu, Q.; Ben, L.B.; Wu, F. Controlled solvothermal synthesis and electrochemical performance of LiCoPO4 submicron single crystals as a cathode material for lithium ion batteries. J. Power Source 2016, 304, 181–188. [Google Scholar] [CrossRef]
  25. Wang, Y.; Qiu, J.; Yu, Z.; Ming, H.; Li, M.; Zhang, S.; Yang, Y. AlF3-modified LiCoPO4 for an advanced cathode towards high energy lithium-ion battery. Ceram. Int. 2018, 44, 1312–1320. [Google Scholar] [CrossRef]
  26. Okita, N.; Kisu, K.; Iwama, E.; Sakai, Y.; Lim, Y.; Takami, Y.; Sougrati, M.T.; Brousse, T.; Rozier, P.; Simon, P. Stabilizing the Structure of LiCoPO4 Nanocrystals via Addition of Fe3+: Formation of Fe3+ Surface Layer, Creation of Diffusion-Enhancing Vacancies, and Enabling High-Voltage Battery Operation. Chem. Mater. 2018, 30, 6675–6683. [Google Scholar] [CrossRef] [Green Version]
  27. Örnek, A. An impressive approach to solving the ongoing stability problems of LiCoPO4 cathode: Nickel oxide surface modification with excellent core–shell principle. J. Power Source 2017, 356, 1–11. [Google Scholar] [CrossRef]
  28. Ikuhara, Y.H.; Gao, X.; Fisher, C.A.; Kuwabara, A.; Moriwake, H.; Kohama, K.; Iba, H.; Ikuhara, Y. Atomic level changes during capacity fade in highly oriented thin films of cathode material LiCoPO4. J. Mater. Chem. A 2017, 5, 9329–9338. [Google Scholar] [CrossRef]
  29. Wu, J.; Tsai, C.-J. Qualitative modeling of the electrolyte oxidation in long-term cycling of LiCoPO4 for high-voltage lithium-ion batteries. Electrochim. Acta 2021, 368, 137585–137594. [Google Scholar] [CrossRef]
  30. Aboraia, A.M.; Shapovalov, V.V.; Guda, A.A.; Butova, V.V.; Soldatov, A. One-pot coating of LiCoPO4/C by a UiO-66 metal–organic framework. RSC Adv. 2020, 10, 35206–35213. [Google Scholar] [CrossRef]
  31. Wu, X.; Rohman, F.; Meledina, M.; Tempel, H.; Schierholz, R.; Kungl, H.; Mayer, J.; Eichel, R.-A. Analysis of the effects of different carbon coating strategies on structure and electrochemical behavior of LiCoPO4 material as a high-voltage cathode electrode for lithium ion batteries. Electrochim. Acta 2018, 279, 108–117. [Google Scholar] [CrossRef]
  32. Maeyoshi, Y.; Miyamoto, S.; Munakata, H.; Kanamura, K. Effect of conductive carbon additives on electrochemical performance of LiCoPO4. J. Power Source 2018, 376, 18–25. [Google Scholar] [CrossRef]
  33. Maeyoshi, Y.; Miyamoto, S.; Noda, Y.; Munakata, H.; Kanamura, K. Effect of organic additives on characteristics of carbon-coated LiCoPO4 synthesized by hydrothermal method. J. Power Source 2017, 337, 92–99. [Google Scholar] [CrossRef]
  34. Muñoz-García, A.B.; Tirri, B.; Capone, I.; Matic, A.; Pavone, M.; Brutti, S. Structural evolution of disordered LiCo1/3 Fe1/3 Mn1/3 PO4 in lithium batteries uncovered. J. Mater. Chem. A 2020, 8, 19641–19653. [Google Scholar] [CrossRef]
  35. Liu, D.; Kim, C.; Perea, A.; Joël, D.; Zhu, W.; Collin-Martin, S.; Forand, A.; Dontigny, M.; Gagnon, C.; Demers, H. High-Voltage Lithium-Ion Battery Using Substituted LiCoPO4: Electrochemical and Safety Performance of 1.2 Ah Pouch Cell. Materials 2020, 13, 4450. [Google Scholar] [CrossRef]
  36. Kim, E.J.; Miller, D.N.; Irvine, J.T.; Armstrong, A.R. Enhanced Cycling Performance of Magnesium-Doped Lithium Cobalt Phosphate. ChemElectroChem 2019, 6, 4885–4892. [Google Scholar] [CrossRef]
  37. Kreder, K.J.; Manthiram, A. Vanadium-Substituted LiCoPO4 Core with a Monolithic LiFePO4 Shell for High-Voltage Lithium-Ion Batteries. ACS Energy Lett. 2017, 2, 64–69. [Google Scholar] [CrossRef]
  38. Liu, D.; Zhu, W.; Kim, C.; Cho, M.; Guerfi, A.; Delp, S.; Allen, J.; Jow, T.; Zaghib, K. High-energy lithium-ion battery using substituted LiCoPO4: From coin type to 1 Ah cell. J. Power Source 2018, 388, 52–56. [Google Scholar] [CrossRef]
  39. Wang, Y.; Chen, J.; Qiu, J.; Yu, Z.; Ming, H.; Li, M.; Zhang, S.; Yang, Y. Cr-Substituted LiCoPO4 Core with a Conductive Carbon Layer towards High-Voltage Lithium-Ion Batteries. J. Solid State Chem. 2017, 258, 32–41. [Google Scholar] [CrossRef]
  40. Brutti, S.; Manzi, J.; Meggiolaro, D.; Vitucci, F.M.; Trequattrini, F.; Paolone, A.; Palumbo, O. Interplay between local structure and transport properties in iron-doped LiCoPO4 olivines. J. Mater. Chem. A 2017, 5, 14020–14030. [Google Scholar] [CrossRef]
  41. Fukutsuka, T.; Nakagawa, T.; Miyazaki, K.; Abe, T. Electrochemical properties of LiCoPO4-thin film electrodes in LiF-based electrolyte solution with anion receptors. J. Power Source 2016, 306, 753–757. [Google Scholar] [CrossRef]
  42. Freiberg, A.; Metzger, M.; Haering, D.; Bretzke, S.; Puravankara, S.; Nilges, T.; Stinner, C.; Marino, C.; Gasteiger, H.A. Anodic Decomposition of Trimethylboroxine as Additive for High Voltage Li-Ion Batteries. J. Electrochem. Soc. 2014, 161, A2255–A2261. [Google Scholar] [CrossRef]
  43. Manzi, J.; Brutti, S. Surface chemistry on LiCoPO4 electrodes in lithium cells: SEI formation and self-discharge. Electrochim. Acta 2016, 222, 1839–1846. [Google Scholar] [CrossRef]
  44. Li, H.; Wang, Y.; Yang, X.; Liu, L.; Chen, L.; Wei, J. Improved electrochemical performance of 5 V LiCoPO4 cathode materials via yttrium doping. Solid State Ion. 2014, 255, 84–88. [Google Scholar] [CrossRef]
  45. Allen, J.L.; Thompson, T.; Sakamoto, J.; Becker, C.R.; Jow, T.R.; Wolfenstine, J. Transport properties of LiCoPO4 and Fe-substituted LiCoPO4. J. Power Source 2014, 254, 204–208. [Google Scholar] [CrossRef]
  46. Serment, B.; Corucho, L.; Demourgues, A.; Hadziioannou, G.; Brochon, C.; Cloutet, E.; Gaudon, M. Tailoring the Chemical Composition of LiMPO4 (M = Mg, Co, Ni) Orthophosphates to Design New Inorganic Pigments from Magenta to Yellow Hue. Inorg. Chem. 2019, 58, 7499–7510. [Google Scholar] [CrossRef] [PubMed]
  47. Palmer, M.G.; Frith, J.T.; Hector, A.L.; Lodge, A.W.; Owen, J.R.; Nicklin, C.; Rawle, J. In situ phase behaviour of a high capacity LiCoPO4 electrode during constant or pulsed charge of a lithium cell. Chem. Commun. 2016, 52, 14169–14172. [Google Scholar] [CrossRef] [Green Version]
  48. Allen, J.L.; Allen, J.L.; Thompson, T.; Delp, S.A.; Wolfenstine, J.; Jow, T.R. Cr and Si Substituted-LiCo0.9Fe0.1PO4: Structure, full and half Li-ion cell performance. J. Power Source 2016, 327, 229–234. [Google Scholar]
  49. Zhang, M.; Garcia-Araez, N.; Hector, A.L.; Owen, J.R.; Palgrave, R.G.; Palmer, M.G.; Soulé, S. Solvothermal water-diethylene glycol synthesis of LiCoPO4 and effects of surface treatments on lithium battery performance. RSC Adv. 2019, 9, 740–752. [Google Scholar] [CrossRef] [PubMed]
Materials 15 07325 g001 550

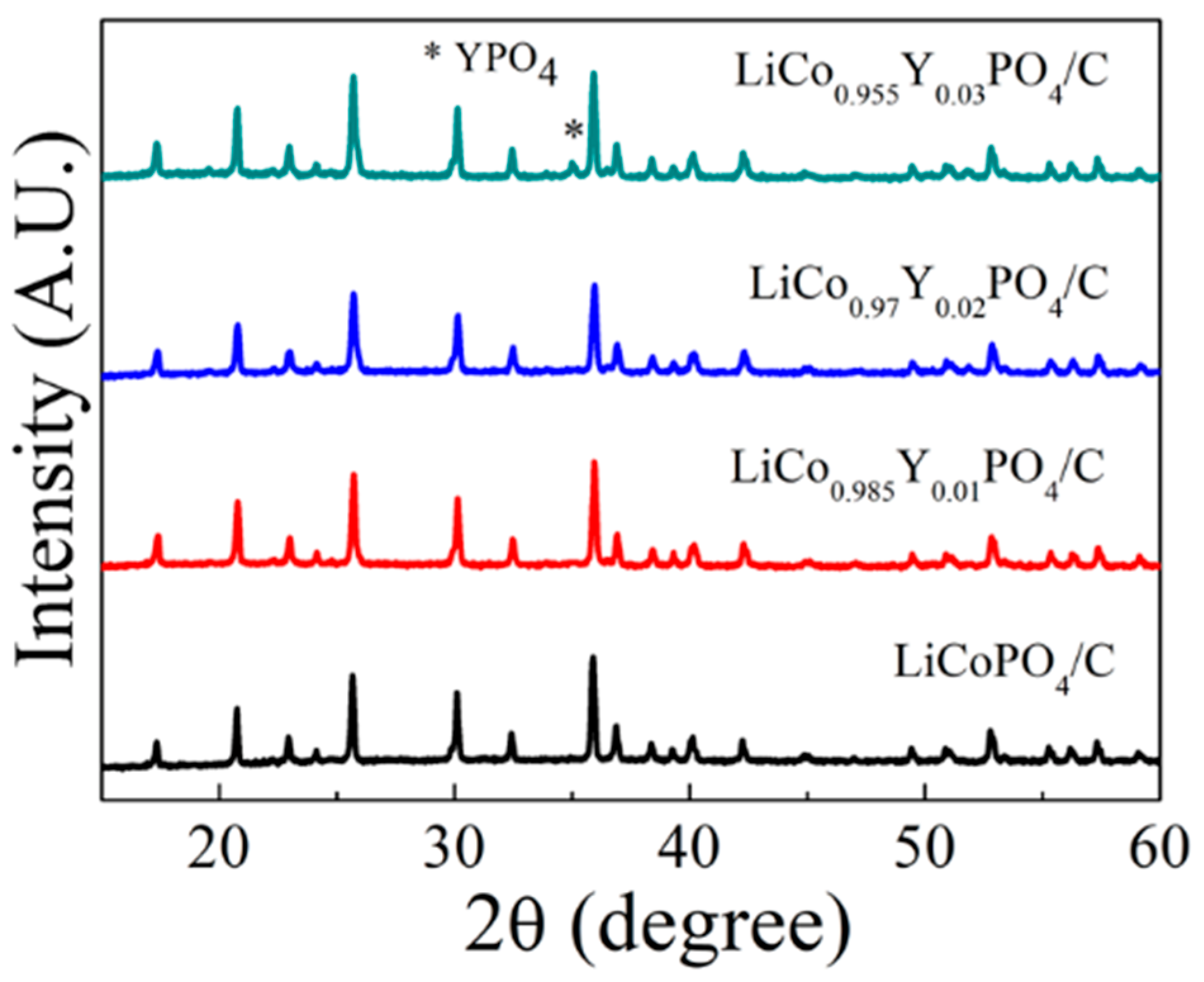

Figure 1. XRD patterns of the four cathode materials.
Figure 1. XRD patterns of the four cathode materials.
Materials 15 07325 g001
Materials 15 07325 g002 550
Figure 2. Refinement results of the four cathode materials.
Figure 2. Refinement results of the four cathode materials.
Materials 15 07325 g002
Materials 15 07325 g003 550

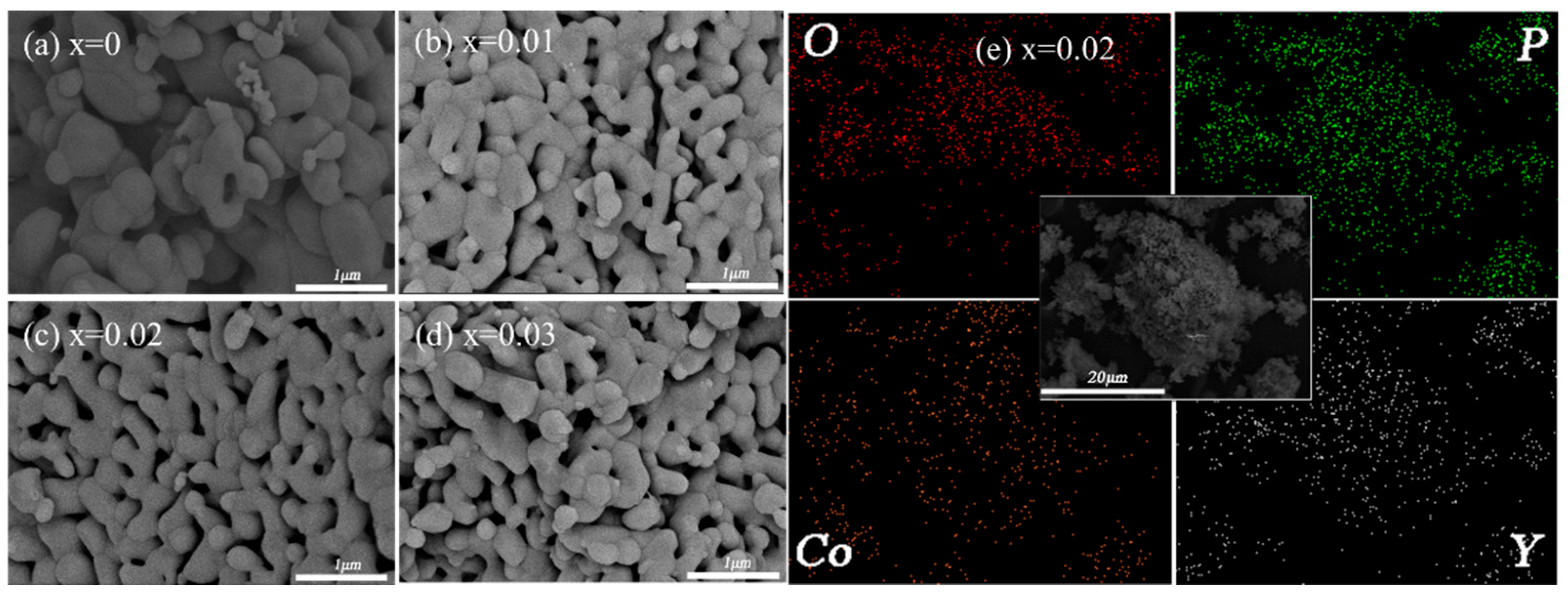

Figure 3. (a–d) SEM images of the four cathode materials and (e) EDS images of LiCo0.97Y0.02PO4/C cathode materials.
Figure 3. (a–d) SEM images of the four cathode materials and (e) EDS images of LiCo0.97Y0.02PO4/C cathode materials.
Materials 15 07325 g003
Materials 15 07325 g004 550

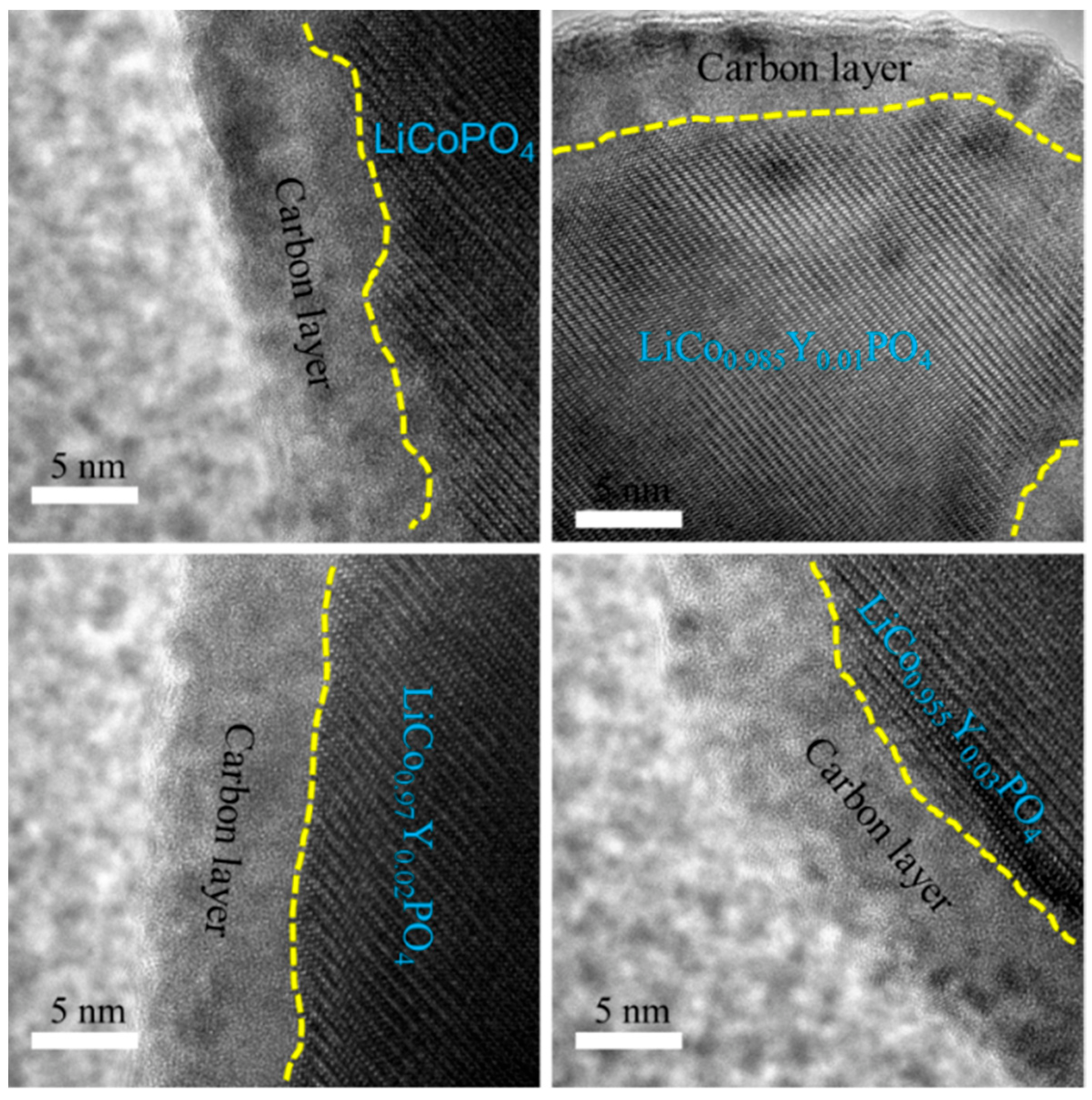

Figure 4. TEM images of the four cathode materials.
Figure 4. TEM images of the four cathode materials.
Materials 15 07325 g004
Materials 15 07325 g005 550

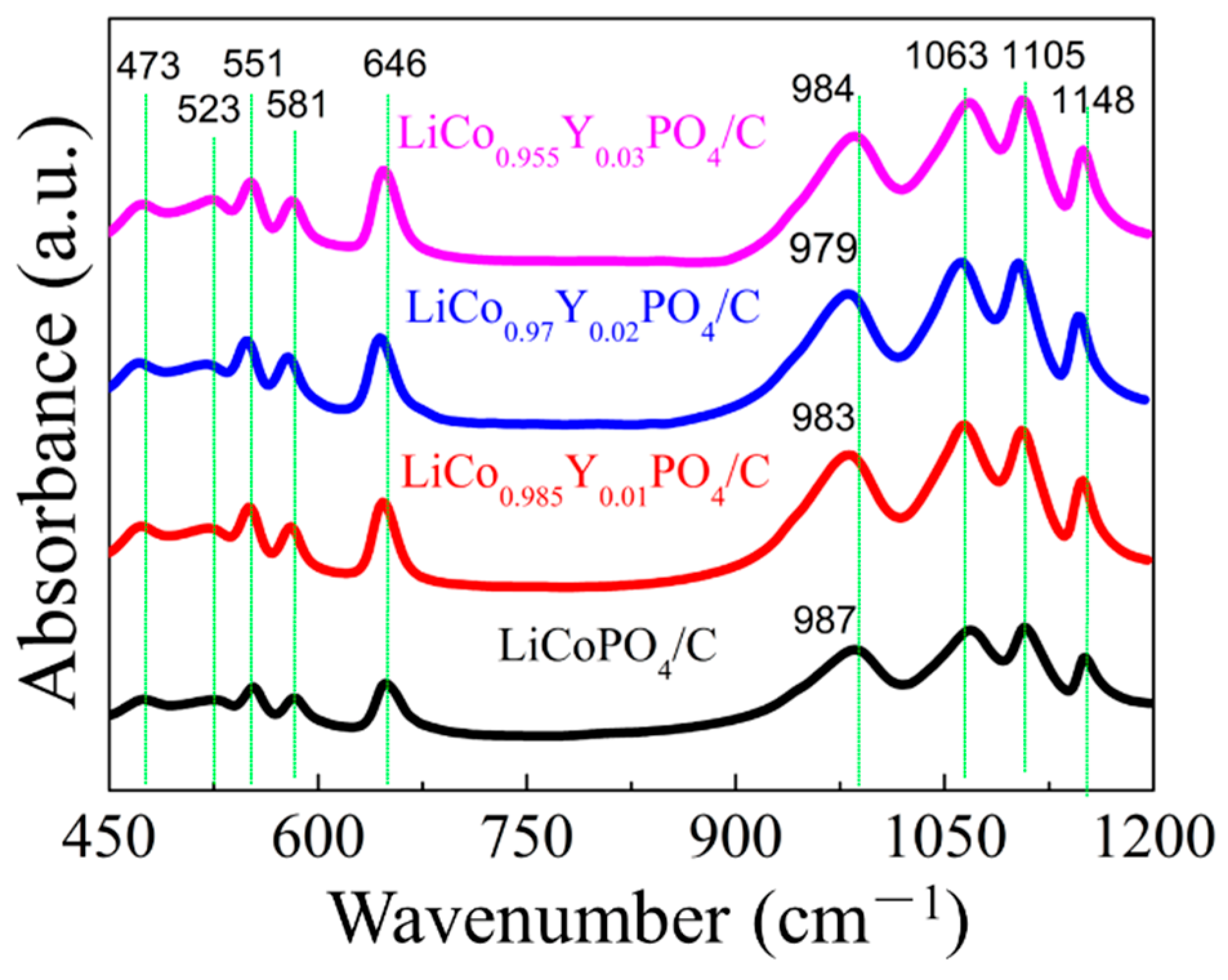

Figure 5. FTIR spectra of the four cathode materials.
Figure 5. FTIR spectra of the four cathode materials.
Materials 15 07325 g005
Materials 15 07325 g006 550

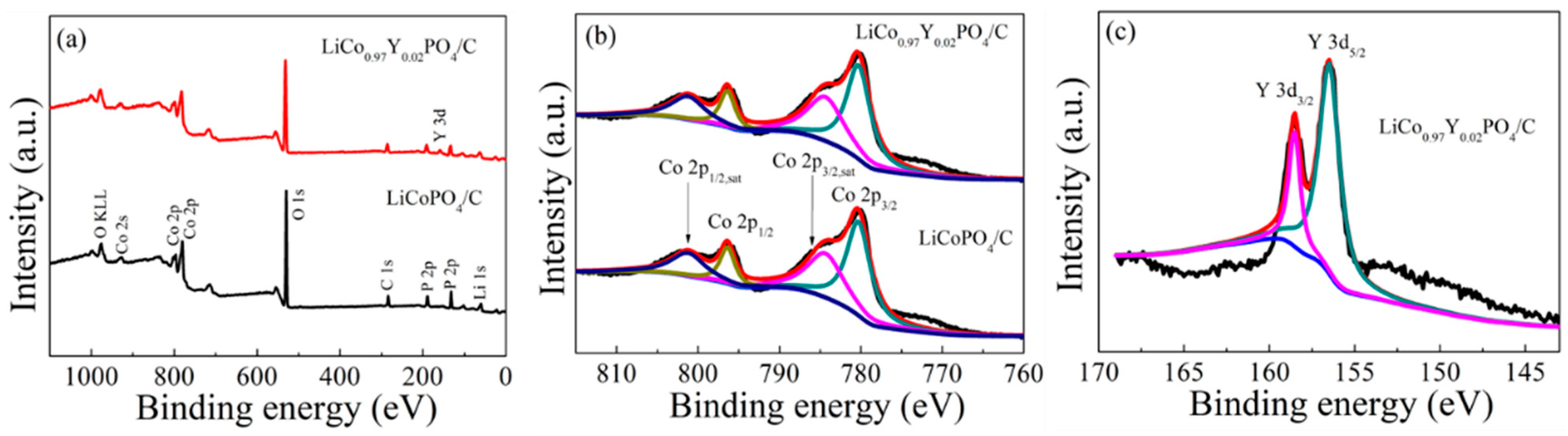

Figure 6. XPS spectrum of LiCoPO4/C and LiCo0.97Y0.02PO4/C cathode material.
Figure 6. XPS spectrum of LiCoPO4/C and LiCo0.97Y0.02PO4/C cathode material.
Materials 15 07325 g006
Materials 15 07325 g007 550

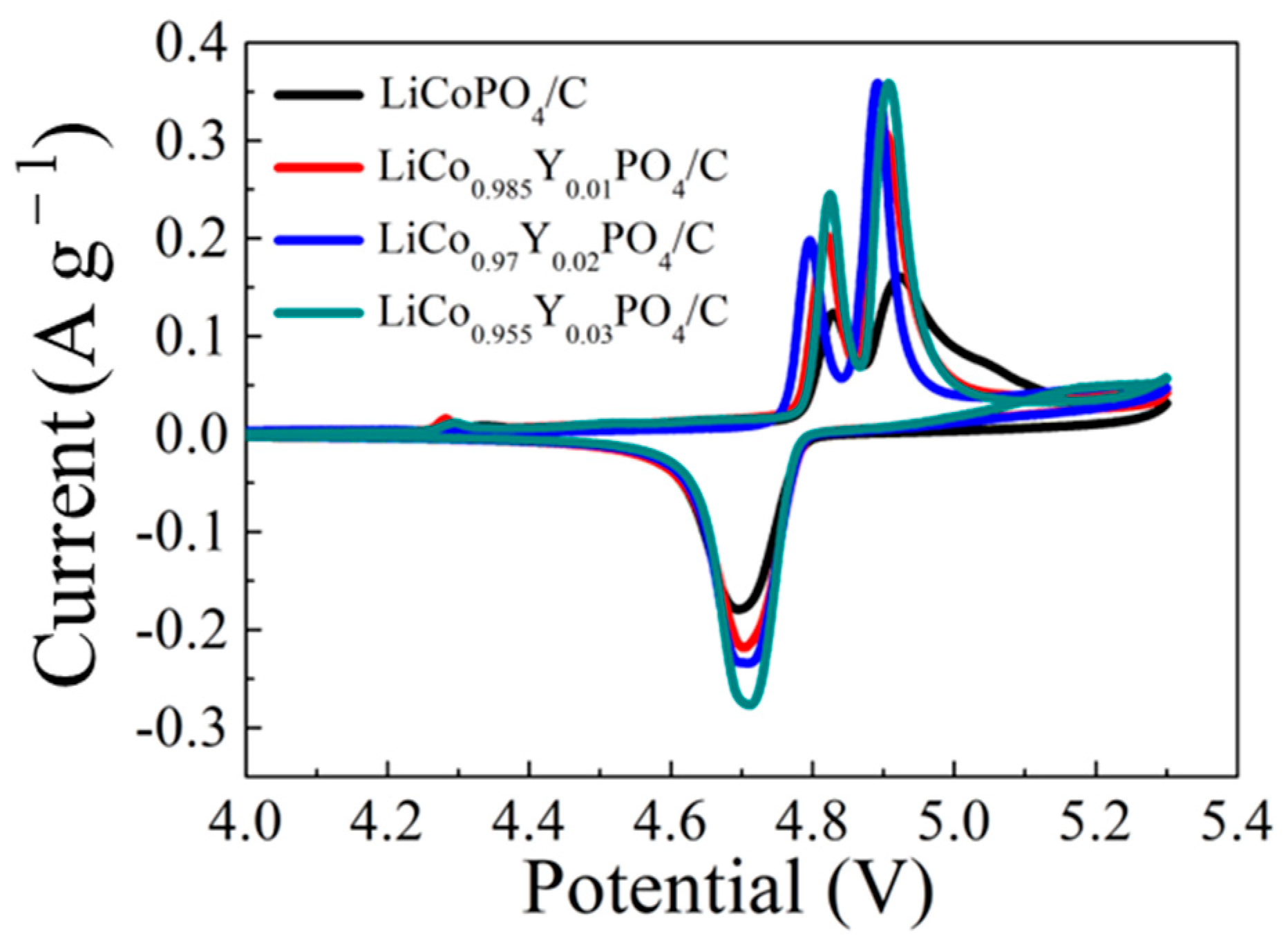

Figure 7. CV curves of the four electrodes.
Figure 7. CV curves of the four electrodes.
Materials 15 07325 g007
Materials 15 07325 g008 550

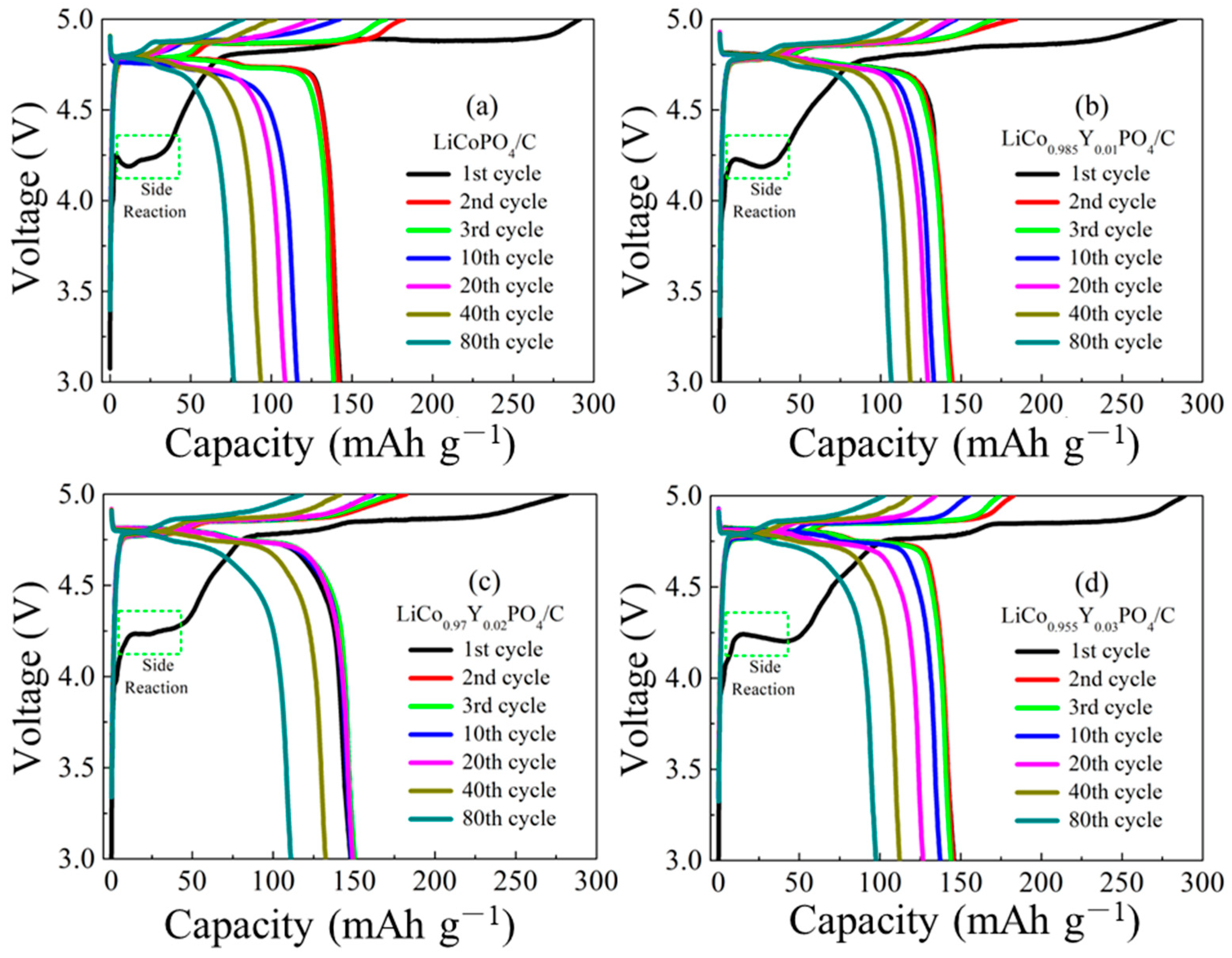

Figure 8. The charge/discharge profiles of the four electrodes.
Figure 8. The charge/discharge profiles of the four electrodes.
Materials 15 07325 g008
Materials 15 07325 g009 550

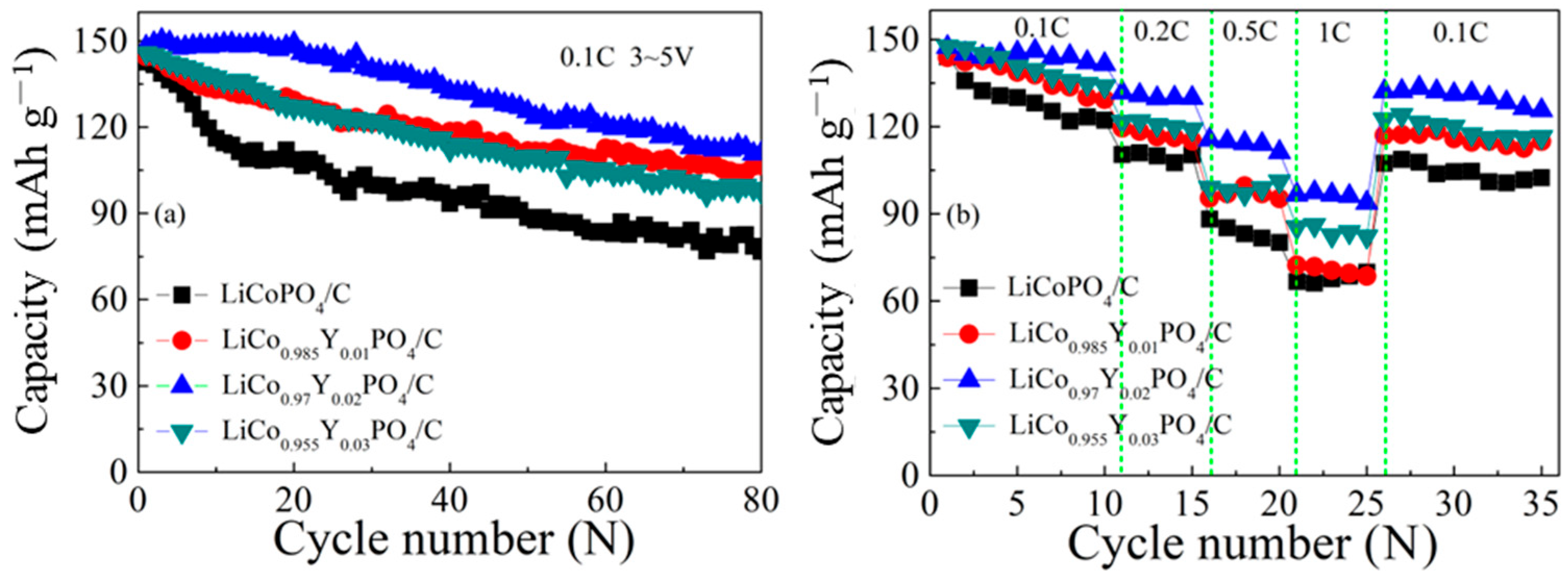

Figure 9. The cycling stability (a) and rate (b) performances of the four electrodes.
Figure 9. The cycling stability (a) and rate (b) performances of the four electrodes.
Materials 15 07325 g009
Materials 15 07325 g010 550

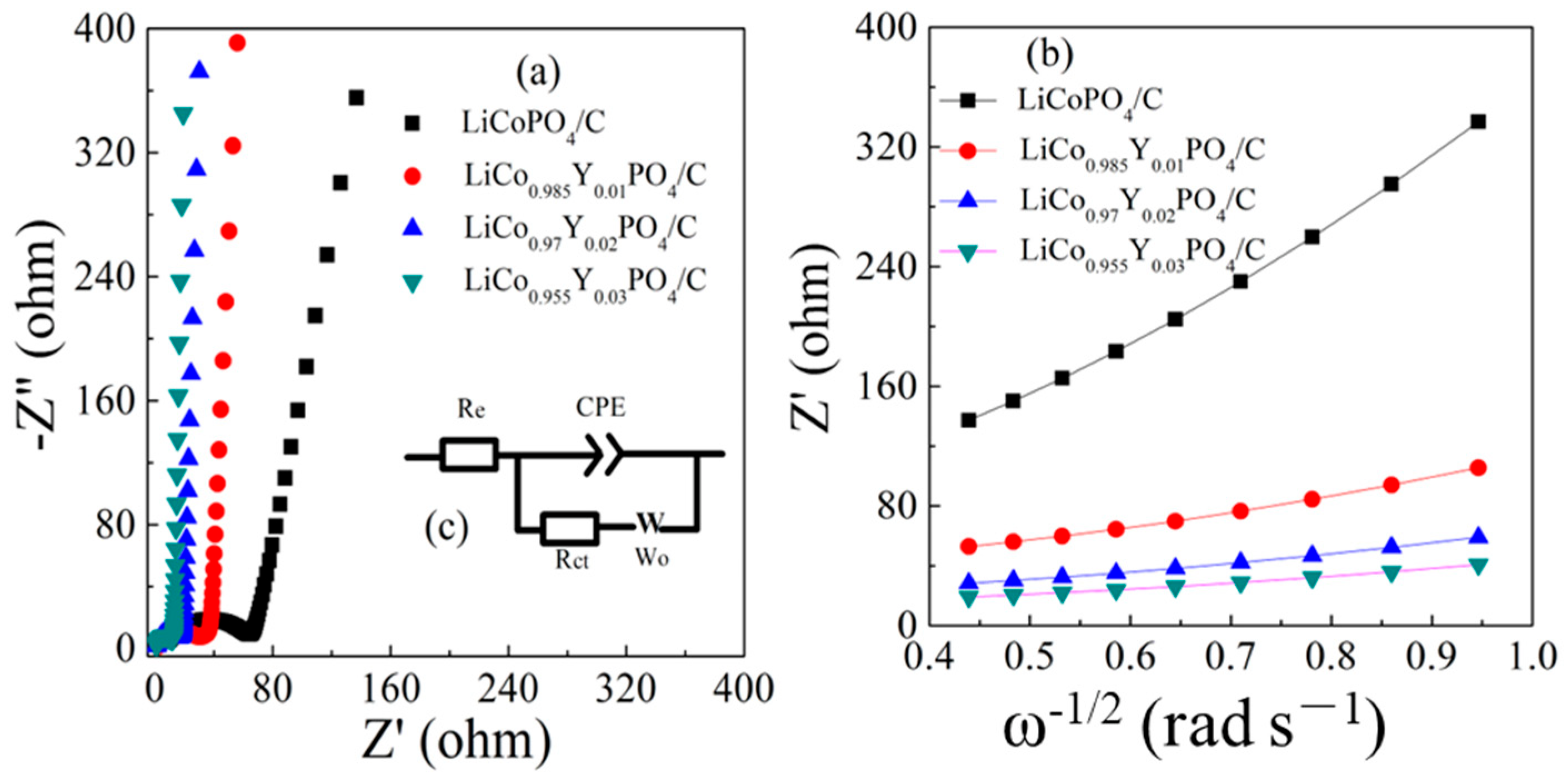

Figure 10. The EIS spectra of (a) the four electrodes and (b) the linear relationship between Z′ and ω−1/2 in four electrodes.
Figure 10. The EIS spectra of (a) the four electrodes and (b) the linear relationship between Z′ and ω−1/2 in four electrodes.
Materials 15 07325 g010
Table
Table 1. Crystal structural parameters of the four cathode materials.
Table 1. Crystal structural parameters of the four cathode materials.
Samplesa (Å)b (Å)c (Å)V (Å3)RwpRpGOF
LiCoPO4 (89-6192)10.20215.92274.7003284.01
LiCoPO4@C10.20075.92204.6987283.843.852.711.73
LiCo0.985Y0.01PO4@C10.20275.92454.6999284.093.962.741.78
LiCo0.97Y0.02PO4@C10.20585.92754.6995284.304.022.821.84
LiCo0.955Y0.03PO4@C10.20775.92884.6996284.424.072.921.89
Table
Table 2. The differences of the CV curves of the four electrodes.
Table 2. The differences of the CV curves of the four electrodes.
SamplesOxidation
Potential (V)		Reduction
Potential (V)		Polarization
Potential (V)
LiCoPO4@C4.8294.9244.6950.229
LiCo0.985Y0.01PO4/C4.824.9034.7040.199
LiCo0.97Y0.02PO4/C4.7964.8924.710.182
LiCo0.955Y0.03PO4/C4.8274.9084.7120.196
Table
Table 3. Cycling performance of the LiCo0.97Y0.02PO4/C electrode in comparison with others reported.
Table 3. Cycling performance of the LiCo0.97Y0.02PO4/C electrode in comparison with others reported.
SamplesRateInitial Discharge
Capacity (mAh g−1)		Capacity Retention
(%)		CyclesMethod
Our work0.1C1487580Y-Substituted and carbon coating
Ref. [33]0.1C1355230Carbon coating
Ref. [49]0.1C1476940Carbon coating
Ref. [31]0.1C1207520Carbon coating
Ref. [32]0.1C12456100Carbon coating
Ref. [16]0.1C978520V-Substituted
Ref. [37]0.1C1455220V-Substituted
Ref. [44]0.1C1532130Y-Substituted
Ref. [15]0.1C1248020Fe-Substituted
Ref. [36]0.1C882220Mg-Substituted
Table
Table 4. Impedance parameters of the four electrodes.
Table 4. Impedance parameters of the four electrodes.
SamplesRe (Ω)Rct (Ω)σD Li+ (cm2 s−1)
LiCoPO4@C1.659.153917.11 × 10−16
LiCo0.985Y0.01PO4/C1.3325.411031.02 × 10−14
LiCo0.97Y0.02PO4/C1.4123.66603.02 × 10−14
LiCo0.955Y0.03PO4/C1.5321.03426.16 × 10−14
