Influence of Silicon Carbide on Direct Powder Bed Selective Laser Process (Sintering/Melting) of Alumina

by
Asif Ur Rehman
1,2,3,*,
Muhammad Ahsan Saleem
4,
Tingting Liu
4,*,
Kai Zhang
4,
Fatih Pitir
1 and
Metin Uymaz Salamci
2,3,5
1
ERMAKSAN, Bursa 16065, Turkey
2
Department of Mechanical Engineering, Gazi University, Ankara 06570, Turkey
3
Additive Manufacturing Technologies Research and Application Center-EKTAM, Gazi University, Ankara 06560, Turkey
4
School of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
5
Manufacturing Technologies Center of Excellence-URTEMM A.S., Ankara 06560, Turkey
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(2), 637; https://doi.org/10.3390/ma15020637
Submission received: 1 November 2021 / Revised: 9 December 2021 / Accepted: 14 December 2021 / Published: 15 January 2022
(This article belongs to the Topic Material and Process Innovations for 3D Printing Applications)
Browse Figures
Versions Notes

Abstract

:
The powder bed selective laser process (sintering/melting) has revolutionised many industries, including aerospace and biomedicine. However, PBSLP of ceramic remains a formidable challenge. Here, we present a unique slurry-based approach for fabricating high-strength ceramic components instead of traditional PBSLP. A special PBSLP platform capable of 1000 °C pre-heating was designed for this purpose. In this paper, PBSLP of Al2O3 was accomplished at different SiC loads up to 20 wt%. Several specimens on different laser powers (120 W to 225 W) were printed. When the SiC content was 10 wt% or more, the chemical interaction made it difficult to process. Severe melt pool disturbances led to poor sintering and melting. The structural analysis revealed that the micro-structure was significantly affected by the weight fraction of SiC. Interestingly, when the content was less than 2 wt%, it showed significant improvement in the microstructure during PBSLP and no effects of LPS or chemical interaction. Particularly, a crack pinning effect could be clearly seen at 0.5 wt%.

1. Introduction

Additive manufacturing (AM) has revolutionised many industries, and more are diving in, partially or completely, to accomplish design freedom with reduced time to market [1,2,3,4,5,6,7,8,9]. LPBF is AM method for producing parts and freeform articles in such a way that the manufacturing layer is fused selectively by a high-energy laser beam [10] after powder deposition [11,12,13,14]. LPBF is able to achieve 100 percent density and excellent mechanical properties [15,16,17,18,19,20] for alloys with melting of powder particles. It is of great interest to accomplish direct LPBF for non-weldable materials including ceramics [21,22] due to its utility in many applications. Indirect LPBF of ceramics is achievable using metal, polymer or glass as binder to consolidate parts. These binders can also be removed by debinding in the case of polymers [23]. However, due to the low densities and weak binding strength, the horizon of application is very limited. Direct LPBF can give 100 percent density of ceramics; however, melting–solidification dynamics increase thermal stresses, which make it impossible to obtain consistent ceramic parts. By controlling the laser melt pool and reducing thermal stresses, ceramics parts production could be possible, but clear information on melt pool physics as well as laser–material interaction is needed.
LPBF has the extraordinary cycling rate of heating and cooling which triggers nonequilibrium conditions; new microstructures and material phases are usually formed during the process [24]. It is well established that the LPBF of alloys and metals works on same principle of welding during melting and solidification. It has been extensively studied for fabricating high-performance parts for a variety of metals, including tungsten [25], titanium [26,27,28,29,30], aluminium [31,32,33,34,35], stainless steel [36,37,38] and high-speed steel [39,40]. Welding concepts such as nucleation theory and undercooling [39] have also been used to achieve high-strength metal parts [41,42,43]. Our findings suggest that laser-induced melt pool is also effective.
Controlling the laser-driven melt pool is the key to diversifying the materials processability of LPBF [44,45,46]. The laser beam has a specific direction and intensity along with the mechanical impact it carries due to the energy packets within the beam [47]. Great efforts have been made by researchers to see the laser-induced flow through many techniques, which might be due to one or several of combined effects of matter–light interaction, fluid physics, laser-induced thermodynamics and laser-induced ultrasound. A laser can move liquid with less surface tension very easily. Laser irradiation is not simply heat, typically correlated in LPBF. Lasers may induce several physical phenomena that have been extensively proven in the literature, e.g., momentum transfer is also achievable through indirect transfer by fluorescent photons or direct transfer from incident photons [48], and the momentum of the laser may drive a microfluidic device in high-energy lasers [49,50]. Liquid deformation has been demonstrated through light scattering using a liquid–liquid interface by minimising surface tension at the two-phase boundary using a mixture of two liquids [51]. Matter–light manipulation has also pushed the development of many techniques. Laser beams can transport matter in radiometric force or photopheresis using gas media for low-density materials [52]. Laser irradiation may also induce special flow due to the ultrasound induced by lasers. Fluid motion is controlled by lasers in optical tweezing [53,54]. Fluid mixing [55,56] or generation of droplets [57] can be accomplished, and the chromocapillary effect [58,59] or optothermocapillary effect [60,61,62] can realize the transportation of droplets. Droplet manipulation can also be achieved using these techniques [58,59,60,61,62]. The well-known Marangoni effect is the driving force behind all the chromocapillary or optothermocapillary effects in all these studies, which is quite remarkable.
Additive manufacturing (AM) of ceramics is one of the most widely studied subjects because of its useability in many industrial sectors. Researchers have tried indirect ways to manufacture ceramics with binders (i.e., polymers) that can be removed by the debinding process, but the process may drastically decrease the density of ceramics and also influence mechanical properties [21,23,63,64]. Powder bed selective laser process (sintering/melting) of pure ceramics without any binder or direct PBSLP remains a formidable challenge [21,63,64,65,66,67]. However, direct PBSLP is highly desirable, and researchers have investigated many individual factors which effect the PBSLP process, from pre-heating, surrounding temperature, scanning speed, hatch spacing, laser power, interval time, laser scanning strategy (diagonal, island, zigzag and others), the influence of the non-steady-state melting regime in the scanning track, influence of porosity on fatigue crack initiation, laser pre-heating of ceramic powder, powder particle size, mixed nano and micron-sized powder particles, to various materials [27,63,65,67,68,69,70,71,72]. At this stage, direct PBSLP of ceramic is not mature enough until all the factors affecting it are combined to secure the most efficient quality of ceramic articles [12,14].
Manufacturing of Al2O3 through PBSLP is challenging and potentially rewarding for its low cost and use in advanced applications. It has also become the focus of recent research because of its remarkable properties such as high hardness, low electrical conductivity, excellent chemical stability, oxidation resistance and high wear resistance [73,74,75,76,77]. Despite these excellent qualities, Al2O3 ceramics have low flexural strength and fracture. Remarkable improvements have been observed when a small amount of SiC is added to Al2O3 [78]. The factors responsible for the improvement in mechanical properties of Al2O3/SiC composites are still under investigation; however, some researchers pointed out that this change is caused by residual stresses created upon cooling around SiC due to the difference in thermal expansion coefficients [78,79,80].
While manufacturing fully dense ceramics directly through PBSLP can generate cracks and other manufacturing defects [81], the material addition can improve the manufacturability [13]. Since SiC has slightly higher sublimation/melting temperature (2700–~3000 °C) than Al2O3 that is ~2300 °C, it can improve the manufacturability by crack deflection and pinning effect [82].
Alejandro et al. investigated the manufacturing possibility that silicon carbide (SiC) may be processed using direct Powder Bed Selective Laser Processing (PBSLP) and detailed how the laser power and scanning speed must be adjusted such that the scanning temperature was between the sintering and decomposition limitations [83].
Zhang et al. studied at how the surface morphology and melting state of pure Al2O3 ceramics changed as a result of changes in laser parameters. The laser power was adjusted from 100 to 200 W, while the scan speed was modified from 60 to 90 mm/s. Thermal capillary convection was noticed by the researchers during the SLM procedure, according to the findings. SLM of Al2O3 slurry produced streak convection and flowing Bénard cells by varying the temperature gradient. The researchers came to the conclusion that it is possible to fabricate slurry ceramic pieces without the need for binders using SLM [84].
In the present paper, the influence of SiC particles on Al2O3 in PBSLP is investigated. When SiC is used as an additive, it can prevent cracks, mainly through crack pinning and crack deflection. During traditional as well as additive manufacturing methods, Al2O3 and SiC have many uses in both ways when Al2O3 is used as a matrix or as an additive in SiC. When Al2O3 is used as an additive, it can cause liquid phase sintering of SiC at much lower temperatures. There are some similar chemical effects to liquid phase sintering when the SiC is more than 10 wt% that have also been discussed.

2. Materials and Methods

Al2O3 powder with 99% purity and an average particle size of 0.62 µm was used; the chemical composition is given in Table 1. SiC powder has 0.5–0.7 µm average particle size with 99% purity. The preliminary powder mixture with different concentrations of both powders has been prepared in different ratios: Al2O3 wt% of 99.5, 98, 95, 90 and 80 with SiC wt% of 0.5, 2, 5, 10 and 20, respectively.
  • Layer Deposition Method
In manufacturing SiC-Al2O3 composites through PBSLP, ceramic layer deposition of the pure powder is hard to maintain because of the inherent properties of the ceramic powder, so during material layer deposition, we used a two-step deposition methodology as described in Figure 1. Firstly, the powder as per the desired material composition was mixed with water, resulting in a slurry, which was deposited onto the layer movable platforms. The movable system’s platform thickness can be increased from a minimum of 10 μm. The slurry was deposited onto the platform with the layer thickness 50 μm with a powder levelling system equipped with rubber scrapers. Then, the water was evaporated completely by heating the base plate at ~110 °C. The laser irradiation of each layer of the mixed powder directly sinters or melts the ceramic particles. The whole process is repeated until the required number of layers are manufactured as per the requirements of the final article.
  • Experimental Setup
The PBSLP system is equipped with the IPG YLR-500 fibre laser, (IPG Photonics, Oxford, MA, US), which produces a laser beam with the wavelength of 1070 nm and can reach a maximum power of the 500 W in continuous mode. The laser is led through a scanner (SCANLAB intelliSCAN 20, SCANLAB GmbH, Puchheim, Germany). The spot size of the focused laser beam is about 60 μm. The system is also integrated with the induction heating system (20 KW) produced by the Shanghai Bamac, Shanghai, China capable of rapid heating, and the maximum preheating temperature is about 1000 °C. The PBSLP system designed and built for ceramics capable of pre-heating up to 1000 °C has been shown in Figure 2a while the induction heating system mechanism has been broken down in Figure 2d. The printed specimen of Alumina has been shown in Figure 2b while the printing strategy has been shown in Figure 2c.
The experiment was carried out with some variable process parameters, such as laser power (P = 10–50%), while keeping some factors constant, such as the scanning speed (200 mm/min) and the laser hatch distance (50 µm). Parts were printed in the layer after layer pattern, and the layer thickness was kept at 50 µm. The size of every part was kept under the 40 layers. After the manufacturing was completed, the samples were cleaned.
For scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS) analysis (Oxford Instrument, Bristol, UK), the samples were gold-coated (by the Leica ACE, (Leica Gmbh, Wetzlar, Germany) coater for five minutes). SEM was used to detect and examine the structure of the material.

3. Results and Discussions

In the experimental process, two phenomena were involved. Firstly, when the SiC content is in low, there is no chemical interaction, and an improvement can be observed. Secondly, when the SiC content is 10% or above, we found that the increase in SiC content in Al2O3 can increase the chemical reaction, which leads to high deformations and porosity. It is quite interesting because similar effects can only be found in the literature on liquid phase sintering of SiC. During manufacturing of SiC with the aid of metal oxides, such as Al2O3, Y2O3 and other rare-earth oxides, liquid phase sintering of SiC can be achieved at much lower temperatures (1800–1900 °C) [85,86]. The oxide sintering aids react with SiO2, which is always present at the surface of SiC particles while forming a silicate melt and enhancing densification. However, oxides interact with SiC with massive gaseous products formation leading to high weight loss and porosity [87]. It is known that Al2O3 may interact with SiC according to the following reactions [88]:
SiC (S) + Al2O3 (S) → Al2O (g) + SiO (g) + CO (g)
2SiC (S) + Al2O3 (S) → Al2O(S) (g) + 2Si (l) + 2CO (g)
3SiC (S) + Al2O3 (S) → 2Al (l) + 3Si (l) + 3CO (g)
In PBSLP, higher content of SiC triggers a chemical reaction to a large quantity which can disturb the melt pool and the surface of the article, as mentioned in Equations (1)–(3). This leads to the unpredictable surface under the same laser parameters for which there is no reaction for the article (under same experimental conditions) with less SiC. The chemical reaction leads to high porosity, increased warping and cracks. The samples of 10% SiC content and beyond were high in the deformation, and the layer size increased due to warping, cracks, deformation and greater porosity, making it challenging to continue to deposit another layer because of the collision between the edges of powder levelling system and the surface of the printed layer of the article. New laser scanning strategies (as shown in Figure 3) were employed to analyse the chemical interaction and its effect of laser-induced melt flow in laser scanning lines, and vice versa. In the laser strategy, small island-like laser scanning lines were used (instead of long scanning lines or so-called zigzag scanning strategy) to decrease the warping and to limit the chemical effects to smaller regions. According to a recent study of the real-time analysis of the melt pool under the laser, the melt pool is in a steady state in the middle of the scanning track and unsteady on the edges of the scanning track [71]. The chemical reaction is affected by the melt pool; it can be seen in Figure 3a,b that when the melt pool is in steady state, the reaction rate is higher as compared to the edges, when the flow is not steady. The reactions mentioned above may also increase with the increase in laser energy density and the SiC content. Apart from the certain conditions mentioned above, other laser parameters also effect this chemical response.
When SiC content increases in Al2O3, the tendency of the chemical reaction increases. As described in Equations (1)–(3), the interaction of Al2O3 and SiC will ultimately generate the high porosity within the article manufactured by PBSLP. In Figure 4c, the high porosity was seen in the middle of the track (when the laser power was increased to 140 W with the composition of the 90 wt% Al2O3 and 10 wt% of SiC). However, near the edges of the track of the same article, it can be seen that the additive manufacturing and reaction conditions are entirely different because they show high quality and multi-directional grains of the ceramic article.
The laser scanning line has a clear impact on the material powder layer due to the momentum of the high energy density of the laser beam. However, the laser path also has a significant effect on the melt pool, and it is responsible for the melt pool flow, but the chemical reaction changes can also hinder the flow. The employed laser scanning strategy makes it easier to see the effects of the laser path and chemical reaction with the state of the melt pool in the SEM, as shown in Figure 3a with small island-like horizontal scanning lines and long continuous vertical and horizontal lines in between. From the analysis of Figure 4a–c as well as Figure 5a,b, it can be deduced that the melt pool state is quite important to control the chemical reaction. In the centre, the laser scanning island (island is a term for small portions of unidirectional laser scanning lines), the chemical change is high compared to the edges of the island, which could be due to the disturbance led by the smaller to higher chemical reaction in the melt pool from the edges. Both the melt pool steady state as well as the chemical interaction are interdependent. When the flow is steady, the chemical interaction starts, and the melt pool starts to become unstable, but when the flow is unsteady, the chemical reaction is less evident.
When the laser melts the material powder during laser scanning, the chemical reaction between the SiC and Al2O3 inhibits and hinders the laser scan line of the melt pool, and production of SiO particle can also be seen at the surface as a result of the reaction. The silicon oxide particle is more abundantly available on the surface where the melt pool is hindered (orange highlighted area in Figure 5b) and less available where the melt pool is continuous (green highlighted area in Figure 5b), which provides a strong argument for the possible chemical reaction.
Laser irradiation is very rapid, and it may also involve the Si sublimation similar to that of high-temperature annealing of SiC, which may leave a carbon-rich surface where mobile C atoms are in abundance [89]. However, as the experiments are conducted in open air, the increase in chemical interaction between SiC and Al2O3 by varying the laser power or energy density can be analysed in XRD profile changes in Figure 6a–c. The experiments are conducted in open air, which may lead to chemical oxidation of SiO mentioned in Equation (1) into SiO2. Similarly, Al2SiO5 phase in XRD could be due to the formation of an intermediate phase of SiO2 and Al2O3, which is also decreasing with the increase in laser power.
One phenomenon in PBSLP of Al2O3 and SiC is the chemical interaction during the process. The other phenomenon is when there is no chemical interaction between the SiC and Al2O3, as the amount of SiC is decreased. In this case, when SiC is mixed in the specified quantity, it may change the melting temperature of the Al2O3-SiC mixture, which can be slightly higher than melting temperature of Al2O3 and slightly lower than the SiC depending on the proportion of the quantity. When the SiC content is increasing, it shows that the melting temperature is also increasing. In Figure 7, two different material proportions (Al2O3 wt% 95, SiC wt% 5 and Al2O3 wt% 98, SiC wt% 2, respectively) are presented (each material composition at three different laser powers, 120 W, 150 W and 180 W). The grain in Figure 7f shows partial melting when the SiC content is relatively lower. However, the grains in Figure 7c show sintering with the same laser power. Similarly, the increase in laser power also has the obvious effect of increasing the temperature of the melt pool, which defines the state of PBSLP process from solid-state sintering to partial and complete melting. The solid-state sintering to partial melting can be seen in Figure 7d–f in the samples with the same composition. All the micrographs of Figure 7 can be seen in a more magnified form in Figure 8.
When the laser scan line during PBSLP encounters SiC in bulk or more than usual (as compared to the rest of the material mixture powder layer), it can leave that part un-melted (as the mixing is random), leading to pores clearly showing un-melted morphology on the surface, which can be seen in Figure 8d,e. Even though the melting temperature was higher due to the relatively large amount of SiC in Figure 8a–c, this phenomenon was more abundant within the sintered articles.
Interestingly, when the SiC is in lesser quantities, the un-melted particles of SiC can form a dispersion in the matrix composites. Materials have a clear effect on the crack propagation of the composite, and SiC at the microscopic level can hinder the cracks. Due to the addition of SiC, the un-melted particle (because of the higher temperature of SiC) may exhibit the pinning effect and deflection in crack propagation when used in minimal quantity (Al2O3 wt% 99.5, SiC wt% 0.5). The crack pinning effects can be seen more clearly in the polished and etched article in Figure 9. Subjected to microscopic examination, the pinning effect can hinder the crack growth trend and crack deflection, or crack bending can shorten the crack in the length of the expansion direction. In more magnified SEM of the same article (Figure 9b), the SiC particles can be visualised in darker regions. An EDS map of the surface of the same article with SiC wt% 0.5 and Al2O3 wt% 99.5 is also shown in Figure 10.
The crack sensitivity is mainly affected due to the SiC particles in the ceramic mixture, the different elastic modulus E of the heterogeneous matrix and the difference in thermal expansion coefficients. Pinning and deflection occur due to lingering stress field around the two phases and the stress at the crack tip. The melting point, hardness, elastic modulus and thermal expansion coefficient are apparently different for each constituent.
The grain growth inhibition is favourable to the refinement of matrix grains, which eventually promote the densification with improved microstructure and toughening matrix by hindering crack growth. When the SiC particles are in the course of a crack, then crack lines cannot continue to grow. This effect is called crack pinning. Deflection occurs if the crack expansion is large enough to pass through the SiC particles, or if the crack continues to grow around the SiC particle.
An EDS map of the surface of the same article with silicon carbide at wt% 10 and Al2O3 wt% 90 is shown in Figure 11. The surface morphology of the printed specimen with different loads of silicon carbide are shown in Figure 12.
The printed specimen with alumina wt% 80 and silicon carbide wt% 20 (unpolished) can be seen in Figure 12a, alumina wt% 90 with silicon carbide wt% 10 (polished) in Figure 12b and alumina wt% 98 with silicon carbide wt% 2 in Figure 12c. Lastly, alumina wt% 99.5, silicon carbide wt% 0.5 printed specimen can be seen in Figure 12d. It can be clearly seen that with the reduction in silicon carbide content, the surface morphology keeps improving. When the silicon carbide content is 20 percent, the specimen is prone to cracking and cannot be polished. If subjected to polishing, the sample cracks down completely. The samples with lesser amounts of silicon carbide did not show this behaviour. The porosity and internal defects can also be visualised to be decreasing with the decrease in silicon carbide content. The specimen with the silicon carbide wt% 0.5 has the lowest number of defects.

4. Conclusions

In this study, we analysed AM of Al2O3 and SiC with PBSLP to reduce the cracks by the pinning effect. Furthermore, we carried out an investigation to explore the factors responsible for structural deformation.
At the microscopic level, when the SiC was 2% or less in quantity, it prevented cracks fabricated by PBSLP. The crack pinning effect was more evident when the SiC was in a very small quantity, 0.5%, and evenly distributed.
When the SiC constituent was 10% or higher, it triggered the chemical reaction between Al2O3 and SiC, which led to structural and surface deformation with a chemical reaction, which may have also resulted in high porosity and unwanted complexion in the manufactured article. The chemical interaction may have also depended on the laser scan steady state. Near the edges of the island, the melt pool was unsteady, showing very low chemical reaction, but when the melt pool became steady, the chemical interaction increased. Both chemical reaction and melt pool stability were interdependent. It is also evident that the hindrance of the melt pool was due to the chemical interaction between the SiC and Al2O3.
The laser power during the PBSLP of Al2O3 and SiC led to the obvious effect of solid-state sintering to partial melting and complete melting. The improved properties of Al2O3 and SiC composite were achieved by adopting the optimised process parameters as per the given weight percentage of the SiC in the composite.
Using very small amounts of SiC reduced cracks during PBSLP of Al2O3. Future work may focus on the control of the large-scale shrinkage of the article and the cracks at the macroscopic level. During the PBSLP of Al2O3 and SiC, a composite with a higher amount of SiC (10% or more) may also be possible, but melt pool state control would be required. Future research may focus on the stability of melt pool.

Author Contributions

Conceptualization, A.U.R. and T.L.; methodology, A.U.R. and K.Z.; software, A.U.R.; validation, A.U.R.; formal analysis, A.U.R.; investigation, A.U.R. and T.L.; resources, A.U.R., M.A.S. and T.L.; data curation, A.U.R.; writing—original draft preparation, A.U.R. and M.A.S.; writing—review and editing, A.U.R., K.Z., T.L., F.P. and M.U.S.; visualization, A.U.R.; supervision, A.U.R. and T.L.; project administration, A.U.R. and T.L.; funding acquisition, A.U.R., T.L., F.P. and M.U.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (grant no. 51775281, 52005262), the Natural Science Foundation of Jiangsu Province (BK20190463) and Programme of Introducing Talents of Discipline to Universities (no. B18028). The project was also funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD), and the Research Innovation Program for College Graduates of Jiangsu Province (no. KYZZ15_0114). This project also received financial support from the European Union’s Horizon 2020 (H2020) research and innovation program, under the aforementioned Marie Skłodowska-Curie grant agreement no. 764935. We thank Vincenzo M. Sglavo from University of Trento, Italy, for reviewing this manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

First author Asif Ur Rehman is supported by a Marie Curie ITN Ph.D. Fellowship under the DOC-3D-Printing project, grant agreement no. 764935, and is also grateful to the China Scholarship Council (CSC) for the Chinese Government Scholarship (CGS) during his master’s degree. All the authors are thankful to Nanjing University of Science and Technology for the research support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kruth, J.; Mercelis, P.; Van Vaerenbergh, J.; Froyen, L.; Rombouts, M. Binding mechanisms in selective laser sintering and selective laser melting. Rapid Prototyp. J. 2005, 11, 26–36. [Google Scholar] [CrossRef] [Green Version]
  2. Kruth, J.-P.; Levy, G.; Klocke, F.; Childs, T.H.C. Consolidation phenomena in laser and powder-bed based layered manufacturing. CIRP Ann. 2007, 56, 730–759. [Google Scholar] [CrossRef]
  3. Kruth, J.P.; Froyen, L.; Van Vaerenbergh, J.; Mercelis, P.; Rombouts, M.; Lauwers, B. Selective laser melting of iron-based powder. J. Mater. Process. Technol. 2004, 149, 616–622. [Google Scholar] [CrossRef]
  4. Rehman, A.U.; Sglavo, V.M. 3D printing of geopolymer-based concrete for building applications. Rapid Prototyp. J. 2020, 26, 1783–1788. [Google Scholar] [CrossRef]
  5. Rehman, A.U.; Sglavo, V.M. 3D printing of Portland cement-containing bodies. Rapid Prototyp. J. 2021. ahead of print. [Google Scholar] [CrossRef]
  6. Guo, N.; Leu, M.C. Additive manufacturing: Technology, applications and research needs. Front. Mech. Eng. 2013, 8, 215–243. [Google Scholar] [CrossRef]
  7. Mellor, S.; Hao, L.; Zhang, D. Additive manufacturing: A framework for implementation. Int. J. Prod. Econ. 2014, 149, 194–201. [Google Scholar] [CrossRef] [Green Version]
  8. Mahmood, M.; Popescu, A. 3D Printing at Micro-Level: Laser-Induced Forward Transfer and Two-Photon Polymerization. Polymers 2021, 13, 2034. [Google Scholar] [CrossRef]
  9. Mahmood, M.; Popescu, A.; Oane, M.; Ristoscu, C.; Chioibasu, D.; Mihai, S.; Mihailescu, I. Three-Jet Powder Flow and Laser–Powder Interaction in Laser Melting Deposition: Modelling Versus Experimental Correlations. Metals 2020, 10, 1113. [Google Scholar] [CrossRef]
  10. Ur Rehman, A.; Mahmood, M.A.; Ansari, P.; Pitir, F.; Salamci, M.U.; Popescu, A.C.; Mihailescu, I.N. Spatter Formation and Splashing Induced Defects in Laser-Based Powder Bed Fusion of AlSi10Mg Alloy: A Novel Hydrodynamics Modelling with Empirical Testing. Metals 2021, 11, 2023. [Google Scholar] [CrossRef]
  11. Ansari, P.; Rehman, A.U.; Pitir, F.; Veziroglu, S.; Mishra, Y.K.; Aktas, O.C.; Salamci, M.U. Selective Laser Melting of 316L Austenitic Stainless Steel: Detailed Process Understanding Using Multiphysics Simulation and Experimentation. Metals 2021, 11, 1076. [Google Scholar] [CrossRef]
  12. Rehman, A.U.; Tingting, L.; Liao, W. 4D Printing; Printing Ceramics From Metals With Selective Oxidation; Wipo: Geneva, Switzerland, 2018. [Google Scholar]
  13. Ullah, A.; Wu, H.; Rehman, A.U.; Zhu, Y.; Liu, T.; Zhang, K. Influence of laser parameters and Ti content on the surface morphology of L-PBF fabricated Titania. Rapid Prototyp. J. 2020, 27, 71–80. [Google Scholar] [CrossRef]
  14. Rehman, A.U.; Liu, T. Additive Manufacturing of Ceramic Materials and Combinations with New Laser Strategies. Master’s Thesis, Nanjing University of Science and Technology, Nanjing, Jiangsu, China, 2017. [Google Scholar]
  15. Dezfoli, A.R.A.; Lo, Y.L.; Raza, M.M. Prediction of Epitaxial Grain Growth in Single-Track Laser Melting of IN718 Using Integrated Finite Element and Cellular Automaton Approach. Materials 2021, 14, 5202. [Google Scholar] [CrossRef]
  16. Mahmood, M.A.; Ur Rehman, A.; Pitir, F.; Salamci, M.U.; Mihailescu, I.N. Laser Melting Deposition Additive Manufacturing of Ti6Al4V Biomedical Alloy: Mesoscopic In-Situ Flow Field Mapping via Computational Fluid Dynamics and Analytical Modelling with Empirical Testing. Materials 2021, 14, 7749. [Google Scholar] [CrossRef]
  17. Dezfoli, A.R.A.; Lo, Y.L.; Mohsin Raza, M. Microstructure and Elements Concentration of Inconel 713LC during Laser Powder Bed Fusion through a Modified Cellular Automaton Model. Crystals 2021, 11, 1065. [Google Scholar] [CrossRef]
  18. Frazier, W.E. Metal Additive Manufacturing: A Review. J. Mater. Eng. Perform. 2014, 23, 1917–1928. [Google Scholar] [CrossRef]
  19. Aramian, A.; Razavi, S.M.J.; Sadeghian, Z.; Berto, F. A review of additive manufacturing of cermets. Addit. Manuf. 2020, 33. [Google Scholar] [CrossRef]
  20. Mohsin Raza, M.; Lo, Y.L. Experimental investigation into microstructure, mechanical properties, and cracking mechanism of IN713LC processed by laser powder bed fusion. Mater. Sci. Eng. A 2021, 819, 141527. [Google Scholar] [CrossRef]
  21. Deckers, J.; Vleugels, J.; Kruth, J.-P. Additive manufacturing of ceramics: A review. J. Ceram. Sci. Technol. 2014, 5, 245–260. [Google Scholar] [CrossRef]
  22. Tiwari, S.K.; Pande, S.; Agrawal, S.; Bobade, S. Selection of selective laser sintering materials for different applications. Rapid Prototyp. J. 2015, 21, 630–648. [Google Scholar] [CrossRef]
  23. Shahzad, K. Powder-Based Indirect Selective Laser Sintering of Ceramics; KU Leuven: Leuven, Belgium, 2013. [Google Scholar]
  24. Murr, L.E.; Gaytan, S.M.; Ramirez, D.A.; Martinez, E.; Hernandez, J.; Amato, K.N.; Shindo, P.W.; Medina, F.R.; Wicker, R.B. Metal Fabrication by Additive Manufacturing Using Laser and Electron Beam Melting Technologies. J. Mater. Sci. Technol. 2012, 28, 1–14. [Google Scholar] [CrossRef]
  25. Zhang, B.; Liao, H.; Coddet, C. Effects of processing parameters on properties of selective laser melting Mg–9%Al powder mixture. Mater. Des. 2012, 34, 753–758. [Google Scholar] [CrossRef]
  26. Chlebus, E.; Kuźnicka, B.; Kurzynowski, T.; Dybała, B. Microstructure and mechanical behaviour of Ti―6Al―7Nb alloy produced by selective laser melting. Mater. Charact. 2011, 62, 488–495. [Google Scholar] [CrossRef]
  27. Yin, R.K. Qualitative Research from Start to Finish; The Guilford Press: New York, NY, USA, 2011. [Google Scholar] [CrossRef]
  28. Do, D.K.; Li, P. The effect of laser energy input on the microstructure, physical and mechanical properties of Ti-6Al-4V alloys by selective laser melting. Virtual Phys. Prototyp. 2015, 11, 41–47. [Google Scholar] [CrossRef]
  29. Sing, S.L.; An, J.; Yeong, W.Y.; Wiria, F.E. Laser and electron-beam powder-bed additive manufacturing of metallic implants: A review on processes, materials and designs. J. Orthop. Res. 2015, 34, 369–385. [Google Scholar] [CrossRef] [PubMed]
  30. Reza, A.; Dezfoli, A.; Lo, Y.-L.; Mohsin Raza, M. 3D Multi-Track and Multi-Layer Epitaxy Grain Growth Simulations of Selective Laser Melting. Materials 2021, 14, 7346. [Google Scholar] [CrossRef]
  31. Louvis, E.; Fox, P.; Sutcliffe, C.J. Selective laser melting of aluminium components. J. Mater. Process. Technol. 2011, 211, 275–284. [Google Scholar] [CrossRef]
  32. Kempen, K.; Thijs, L.; Van Humbeeck, J.; Kruth, J.-P. Mechanical Properties of AlSi10Mg Produced by Selective Laser Melting. Phys. Procedia 2012, 39, 439–446. [Google Scholar] [CrossRef] [Green Version]
  33. Loh, L.; Liu, Z.; Zhang, D.; Mapar, M.; Sing, S.; Chua, C.; Yeong, W. Selective Laser Melting of aluminium alloy using a uniform beam profile. Virtual Phys. Prototyp. 2014, 9, 11–16. [Google Scholar] [CrossRef]
  34. Lam, L.; Zhang, D.; Liu, Z.; Chua, C. Phase analysis and microstructure characterisation of AlSi10Mg parts produced by Selective Laser Melting. Virtual Phys. Prototyp. 2015, 10, 207–215. [Google Scholar] [CrossRef]
  35. Park, H.S.; Ansari, M.J. Numerical investigation and an effective predicting system on the Selective Laser Melting (SLM) process with Ti6Al4V alloy. IOP Conf. Series: Mater. Sci. Eng. 2018, 400, 042046. [Google Scholar] [CrossRef]
  36. Delgado, J.; Ciurana, J.; Sereno, L. Comparison of forming manufacturing processes and selective laser melting technology based on the mechanical properties of products. Virtual Phys. Prototyp. 2011, 6, 167–178. [Google Scholar] [CrossRef]
  37. Khairallah, S.A.; Anderson, A. Mesoscopic simulation model of selective laser melting of stainless steel powder. J. Mater. Process. Technol. 2014, 214, 2627–2636. [Google Scholar] [CrossRef]
  38. Badiru, A.B.; Valencia, V.V.; Liu, D. (Eds.) Additive Manufacturing Handbook; CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar] [CrossRef]
  39. Liu, Z.; Zhang, D.; Chua, C.; Leong, K. Crystal structure analysis of M2 high speed steel parts produced by selective laser melting. Mater. Charact. 2013, 84, 72–80. [Google Scholar] [CrossRef]
  40. Holzweissig, M.J.; Taube, A.; Brenne, F.; Schaper, M.; Niendorf, T. Microstructural Characterization and Mechanical Performance of Hot Work Tool Steel Processed by Selective Laser Melting. Met. Mater. Trans. A 2015, 46, 545–549. [Google Scholar] [CrossRef]
  41. Wang, Y.M.; Voisin, T.; McKeown, J.T.; Ye, J.; Calta, N.P.; Li, Z.; Zeng, Z.; Zhang, Y.; Chen, W.; Roehling, T.T.; et al. Additively manufactured hierarchical stainless steels with high strength and ductility. Nat. Mater. 2017, 17, 63–71. [Google Scholar] [CrossRef] [Green Version]
  42. Martin, J.H.; Yahata, B.D.; Hundley, J.M.; Mayer, J.A.; Schaedler, T.A.; Pollock, T.M. 3D printing of high-strength aluminium alloys. Nature 2017, 549, 365–369. [Google Scholar] [CrossRef] [PubMed]
  43. Sun, Z.; Tan, X.; Tor, S.B.; Chua, C.K. Simultaneously enhanced strength and ductility for 3D-printed stainless steel 316L by selective laser melting. NPG Asia Mater. 2018, 10, 127–136. [Google Scholar] [CrossRef]
  44. Rehman, A.U.; Pitir, F.; Salamci, M.U. Laser Powder Bed Fusion (LPBF) of In718 and the Impact of Pre-Heating at 500 and 1000 °C: Operando Study. Materials 2021, 14, 6683. [Google Scholar] [CrossRef] [PubMed]
  45. Rehman, A.U.; Pitir, F.; Salamci, M.U. Full-Field Mapping and Flow Quantification of Melt Pool Dynamics in Laser Powder Bed Fusion of SS316L. Materials 2021, 14, 6264. [Google Scholar] [CrossRef] [PubMed]
  46. Rehman, A.U.; Mahmood, M.A.; Pitir, F.; Salamci, M.U.; Popescu, A.C.; Mihailescu, I.N. Mesoscopic Computational Fluid Dynamics Modelling for the Laser-Melting Deposition of AISI 304 Stainless Steel Single Tracks with Experimental Correlation: A Novel Study. Metals 2021, 11, 1569. [Google Scholar] [CrossRef]
  47. Rehman, A.U.; Mahmood, M.A.; Pitir, F.; Salamci, M.U.; Popescu, A.C.; Mihailescu, I.N. Keyhole Formation by Laser Drilling in Laser Powder Bed Fusion of Ti6Al4V Biomedical Alloy: Mesoscopic Computational Fluid Dynamics Simulation versus Mathematical Modelling Using Empirical Validation. Nanomaterials 2021, 11, 3284. [Google Scholar] [CrossRef]
  48. Zhdanov, A.; Rao, S.; Fedyanin, A.; Petrov, D. Experimental analysis of recoil effects induced by fluorescence photons. Phys. Rev. E 2009, 80, 046602. [Google Scholar] [CrossRef] [Green Version]
  49. Baigl, D. Photo-actuation of liquids for light-driven microfluidics: State of the art and perspectives. Lab Chip 2012, 12, 3637–3653. [Google Scholar] [CrossRef]
  50. Neale, S.L.; MacDonald, M.; Dholakia, K.; Krauss, T. All-optical control of microfluidic components using form birefringence. Nat. Mater. 2005, 4, 530–533. [Google Scholar] [CrossRef]
  51. Ashkin, A.; Dziedzic, J.M. Radiation Pressure on a Free Liquid Surface. Phys. Rev. Lett. 1973, 30, 139–142. [Google Scholar] [CrossRef] [Green Version]
  52. Shvedov, V.G.; Rode, A.V.; Izdebskaya, Y.V.; Desyatnikov, A.S.; Krolikowski, W.; Kivshar, Y.S. Giant Optical Manipulation. Phys. Rev. Lett. 2010, 105, 118103. [Google Scholar] [CrossRef]
  53. Leach, J.; Mushfique, H.; di Leonardo, R.; Padgett, M.; Cooper, J. An optically driven pump for microfluidics. Lab a Chip 2006, 6, 735–739. [Google Scholar] [CrossRef]
  54. Ladavac, K.; Grier, D.G. Microoptomechanical pumps assembled and driven by holographic optical vortex arrays. Opt. Express 2004, 12, 1144–1149. [Google Scholar] [CrossRef] [Green Version]
  55. Hellman, A.N.; Rau, K.R.; Yoon, H.H.; Bae, S.; Palmer, J.F.; Phillips, K.S.; Allbritton, N.L.; Venugopalan, V. Laser-Induced Mixing in Microfluidic Channels. Anal. Chem. 2007, 79, 4484–4492. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Venancio-Marques, A.; Barbaud, F.; Baigl, D. Microfluidic Mixing Triggered by an External LED Illumination. J. Am. Chem. Soc. 2013, 135, 3218–3223. [Google Scholar] [CrossRef]
  57. Park, S.-Y.; Wu, T.-H.; Chen, Y.; Teitell, M.A.; Chiou, P.-Y. High-speed droplet generation on demand driven by pulse laser-induced cavitation. Lab Chip 2011, 11, 1010–1012. [Google Scholar] [CrossRef] [Green Version]
  58. Diguet, A.; Li, H.; Queyriaux, N.; Chen, Y.; Baigl, D. Photoreversible fragmentation of a liquid interface for micro-droplet generation by light actuation. Lab a Chip 2011, 11, 2666–2669. [Google Scholar] [CrossRef]
  59. Kavokine, N.; Anyfantakis, M.; Morel, M.; Rudiuk, S.; Bickel, T.; Baigl, D. Innenrücktitelbild: Light-Driven Transport of a Liquid Marble with and against Surface Flows (Angew. Chem. 37/2016). Angew. Chem. 2016, 128, 11471. [Google Scholar] [CrossRef]
  60. Baroud, C.N.; Vincent, M.R.D.S.; Delville, J.-P. An optical toolbox for total control of droplet microfluidics. Lab Chip 2007, 7, 1029–1033. [Google Scholar] [CrossRef] [Green Version]
  61. Kotz, K.T.; Noble, K.A.; Faris, G.W. Optical microfluidics. Appl. Phys. Lett. 2004, 85, 2658–2660. [Google Scholar] [CrossRef]
  62. Fradet, E.; McDougall, C.; Abbyad, P.; Dangla, R.; McGloin, D.; Baroud, C.N. Combining rails and anchors with laser forcing for selective manipulation within 2D droplet arrays. Lab Chip 2011, 11, 4228–4234. [Google Scholar] [CrossRef] [Green Version]
  63. Shahzad, K.; Deckers, J.; Kruth, J.-P.; Vleugels, J. Additive manufacturing of alumina parts by indirect selective laser sintering and post processing. J. Mater. Process. Technol. 2013, 213, 1484–1494. [Google Scholar] [CrossRef]
  64. Shahzad, K.; Deckers, J.; Zhang, Z.; Kruth, J.-P.; Vleugels, J. Additive manufacturing of zirconia parts by indirect selective laser sintering. J. Eur. Ceram. Soc. 2014, 34, 81–89. [Google Scholar] [CrossRef]
  65. Wilkes, J.; Hagedorn, Y.C.; Meiners, W.; Wissenbach, K. Additive manufacturing of ZrO2-Al2O3 ceramic components by selective laser melting. Rapid Prototyp. J. 2013, 19, 51–57. [Google Scholar] [CrossRef]
  66. Travitzky, N.; Bonet, A.; Dermeik, B.; Fey, T.; Filbert-Demut, I.; Schlier, L.; Schlordt, T.; Greil, P. Additive manufacturing of ceramic-based materials. Adv. Eng. Mater. 2014, 16, 729–754. [Google Scholar] [CrossRef]
  67. Leskelä, M.; Niinistö, J.; Ritala, M. 4.05—Atomic Layer Deposition; Hashmi, S., Batalha, G.F., Van Tyne, C.J., Yilbas, B.B.T.-C.M.P., Eds.; Elsevier: Oxford, UK, 2014; pp. 101–123. ISBN 978-0-08-096533-8. [Google Scholar]
  68. Schwentenwein, M.; Homa, J. Additive Manufacturing of Dense Alumina Ceramics. Int. J. Appl. Ceram. Technol. 2014, 12, 1–7. [Google Scholar] [CrossRef]
  69. Deckers, J.; Meyers, S.; Kruth, J.P.; Vleugels, J. Direct Selective Laser Sintering/Melting of High Density Alumina Powder Layers at Elevated Temperatures. Phys. Procedia 2014, 56, 117–124. [Google Scholar] [CrossRef] [Green Version]
  70. Wang, R.-J.; Wang, L.; Zhao, L.; Liu, Z. Influence of process parameters on part shrinkage in SLS. Int. J. Adv. Manuf. Technol. 2006, 33, 498–504. [Google Scholar] [CrossRef]
  71. Carter, L.N.; Martin, C.; Withers, P.J.; Attallah, M.M. The influence of the laser scan strategy on grain structure and cracking behaviour in SLM powder-bed fabricated nickel superalloy. J. Alloy. Compd. 2014, 615, 338–347. [Google Scholar] [CrossRef]
  72. Olakanmi, E.; Cochrane, R.; Dalgarno, K. Densification mechanism and microstructural evolution in selective laser sintering of Al–12Si powders. J. Mater. Process. Technol. 2011, 211, 113–121. [Google Scholar] [CrossRef]
  73. Zhao, C.; Fezzaa, K.; Cunningham, R.W.; Wen, H.; De Carlo, F.; Chen, L.; Rollett, A.D.; Sun, T. Real-time monitoring of laser powder bed fusion process using high-speed X-ray imaging and diffraction. Sci. Rep. 2017, 7, 1–11. [Google Scholar] [CrossRef]
  74. Tammas-Williams, S.; Withers, P.J.; Todd, I.; Prangnell, P.B. The Influence of Porosity on Fatigue Crack Initiation in Additively Manufactured Titanium Components. Sci. Rep. 2017, 7, 1–13. [Google Scholar] [CrossRef]
  75. Shi, X.L.; Xu, F.M.; Zhang, Z.J.; Dong, Y.L.; Tan, Y.; Wang, L.; Yang, J.M. Mechanical properties of hot-pressed Al2O3/SiC composites. Mater. Sci. Eng. A 2010, 527, 4646–4649. [Google Scholar] [CrossRef]
  76. Rixecker, G.; Wiedmann, I.; Rosinus, A.; Aldinger, F. High-temperature effects in the fracture mechanical behaviour of silicon carbide liquid-phase sintered with AlN–Y2O3 additives. J. Eur. Ceram. Soc. 2001, 21, 1013–1019. [Google Scholar] [CrossRef]
  77. Rodríguez-Rojas, F.; Ortiz, A.; Borrero-Lopez, O.; Guiberteau, F. Effect of the sintering additive content on the protective passive oxidation behaviour of pressureless liquid-phase-sintered SiC. J. Eur. Ceram. Soc. 2012, 32, 3531–3536. [Google Scholar] [CrossRef]
  78. Medvedovski, E. Alumina–mullite ceramics for structural applications. Ceram. Int. 2006, 32, 369–375. [Google Scholar] [CrossRef]
  79. Eckert, K.-L.; Mathey, M.; Mayer, J.; Homberger, F.R.; Thomann, P.E.; Groscurth, P.; Wintermantel, E. Preparation and in vivo testing of porous alumina ceramics for cell carrier applications. Biomaterials 1999, 21, 63–69. [Google Scholar] [CrossRef]
  80. Parchovianský, M.; Galusek, D.; Sedláček, J.; Švančárek, P.; Kašiarová, M.; Dusza, J.; Šajgalík, P. Microstructure and mechanical properties of hot pressed Al2O3/SiC nanocomposites. J. Eur. Ceram. Soc. 2013, 33, 2291–2298. [Google Scholar] [CrossRef]
  81. Pezzotti, G.; Müller, W.H. Strengthening mechanisms in Al2O3/SiC nanocomposites. Comput. Mater. Sci. 2001, 22, 155–168. [Google Scholar] [CrossRef]
  82. Wu, H.; Roberts, S.G.; Derby, B. Residual stress and subsurface damage in machined alumina and alumina/silicon carbide nanocomposite ceramics. Acta Mater. 2001, 49, 507–517. [Google Scholar] [CrossRef]
  83. Zhang, K.; Liu, T.; Liao, W.; Zhang, C.; Yan, Y.; Du, D. Influence of laser parameters on the surface morphology of slurry-based Al2O3 parts produced through selective laser melting. Rapid Prototyp. J. 2018, 24, 333–341. [Google Scholar] [CrossRef]
  84. Niu, F.; Wu, D.; Ma, G.; Zhang, B. Additive manufacturing of ceramic structures by laser engineered net shaping. Chin. J. Mech. Eng. 2015, 28, 1117–1122. [Google Scholar] [CrossRef]
  85. Montón, A.; Abdelmoula, M.E.; Küçüktürk, G.; Maury, F.; Grossin, D.; Ferrato, M. Experimental and numerical study for direct powder bed selective laser processing (sintering/melting) of silicon carbide ceramic. Mater. Res. Express 2021. [Google Scholar] [CrossRef]
  86. Wang, H.Y.; Lo, Y.L.; Tran, H.C.; Raza, M.M.; Le, T.N. Systematic approach for reducing micro-crack formation in Inconel 713LC components fabricated by laser powder bed fusion. Rapid Prototyp. J. 2021, 27, 1548–1561. [Google Scholar] [CrossRef]
  87. Cutler, R.A.; Jackson, T.B. Liquid phase sintered silicon carbide. Ceram. Mater. Compon. Engines 1989, 3, 309–318. [Google Scholar]
  88. Mulla, M.A.; Krstić, V. Low temperature pressureless sintering of β-SiC with Aluminium oxide and yttrium oxide additions. Am. Ceram. Soc. Bull. 1991, 70, 439–443. [Google Scholar]
  89. Marchi, J.; Bressiani, J.C.; Bressiani, A.H.D.A. Experimental Design Applied to Silicon Carbide Sintering. J. Am. Ceram. Soc. 2003, 86, 1208–1210. [Google Scholar] [CrossRef]
Materials 15 00637 g001 550
Figure 1. Layer deposition method.
Figure 1. Layer deposition method.
Materials 15 00637 g001
Materials 15 00637 g002 550

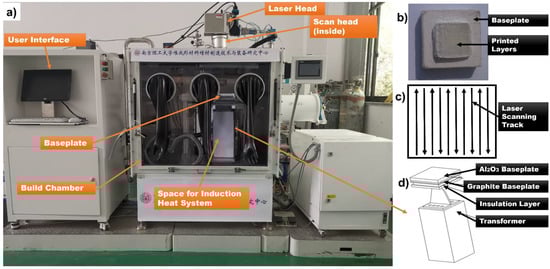

Figure 2. (a) Experimental setup. (b) Printed layers of ceramic specimen. (c) Laser scanning strategy. (d) Schematic of induction heating system.
Figure 2. (a) Experimental setup. (b) Printed layers of ceramic specimen. (c) Laser scanning strategy. (d) Schematic of induction heating system.
Materials 15 00637 g002
Materials 15 00637 g003 550

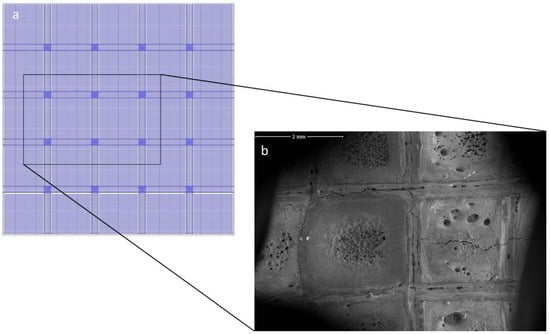

Figure 3. (a) Laser scanning strategy. (b) SEM of the article in region of the scanning strategy.
Figure 3. (a) Laser scanning strategy. (b) SEM of the article in region of the scanning strategy.
Materials 15 00637 g003
Materials 15 00637 g004 550

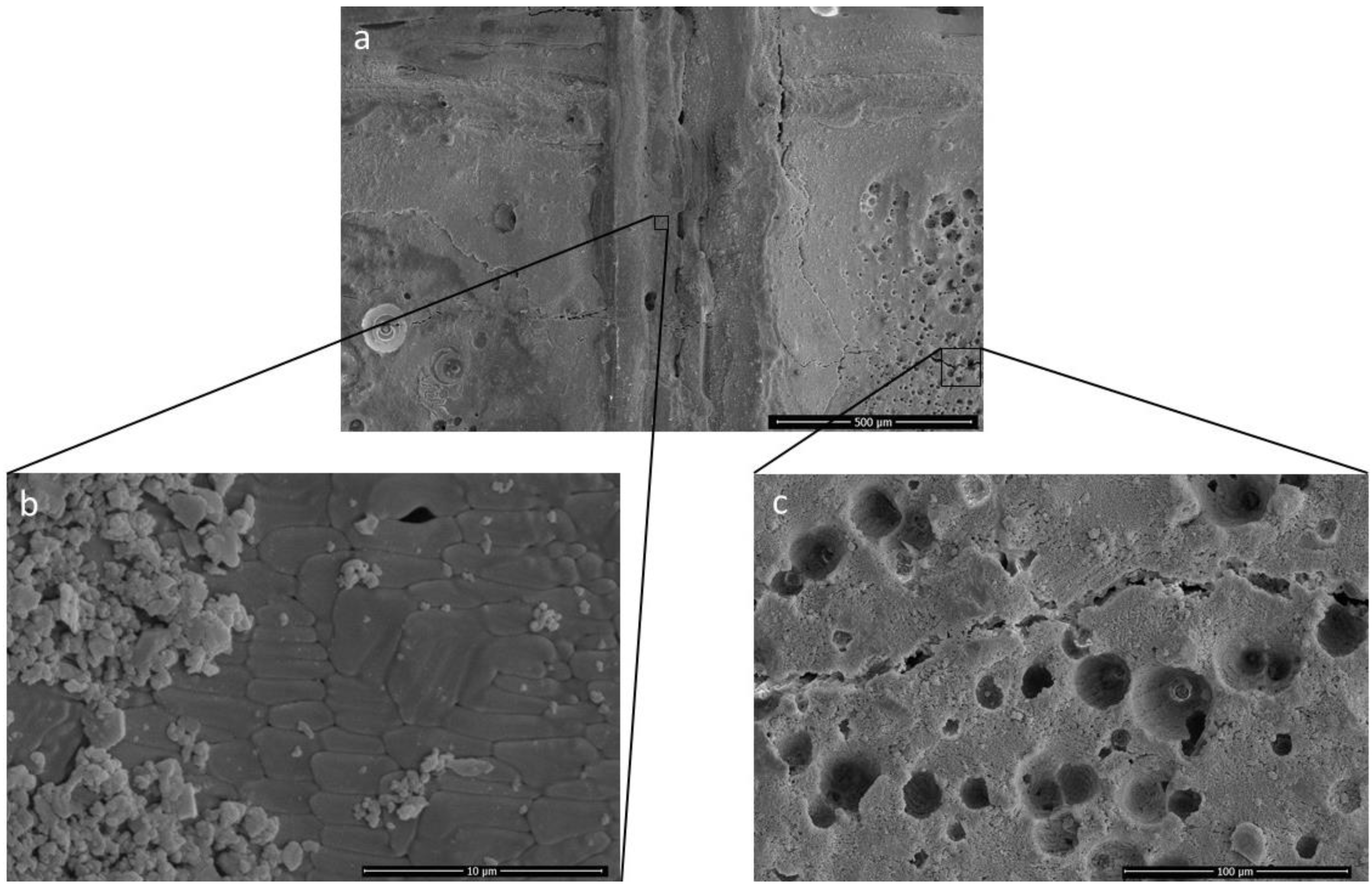

Figure 4. (a) Alumina wt% 90, silicon carbide wt% 10 at 140 W laser power. (b) Microstructure showing high quality of ceramics where the chemical reaction is low. (c) Microstructure showing high porosity due to production of gaseous content where the chemical reaction is high.
Figure 4. (a) Alumina wt% 90, silicon carbide wt% 10 at 140 W laser power. (b) Microstructure showing high quality of ceramics where the chemical reaction is low. (c) Microstructure showing high porosity due to production of gaseous content where the chemical reaction is high.
Materials 15 00637 g004
Materials 15 00637 g005 550

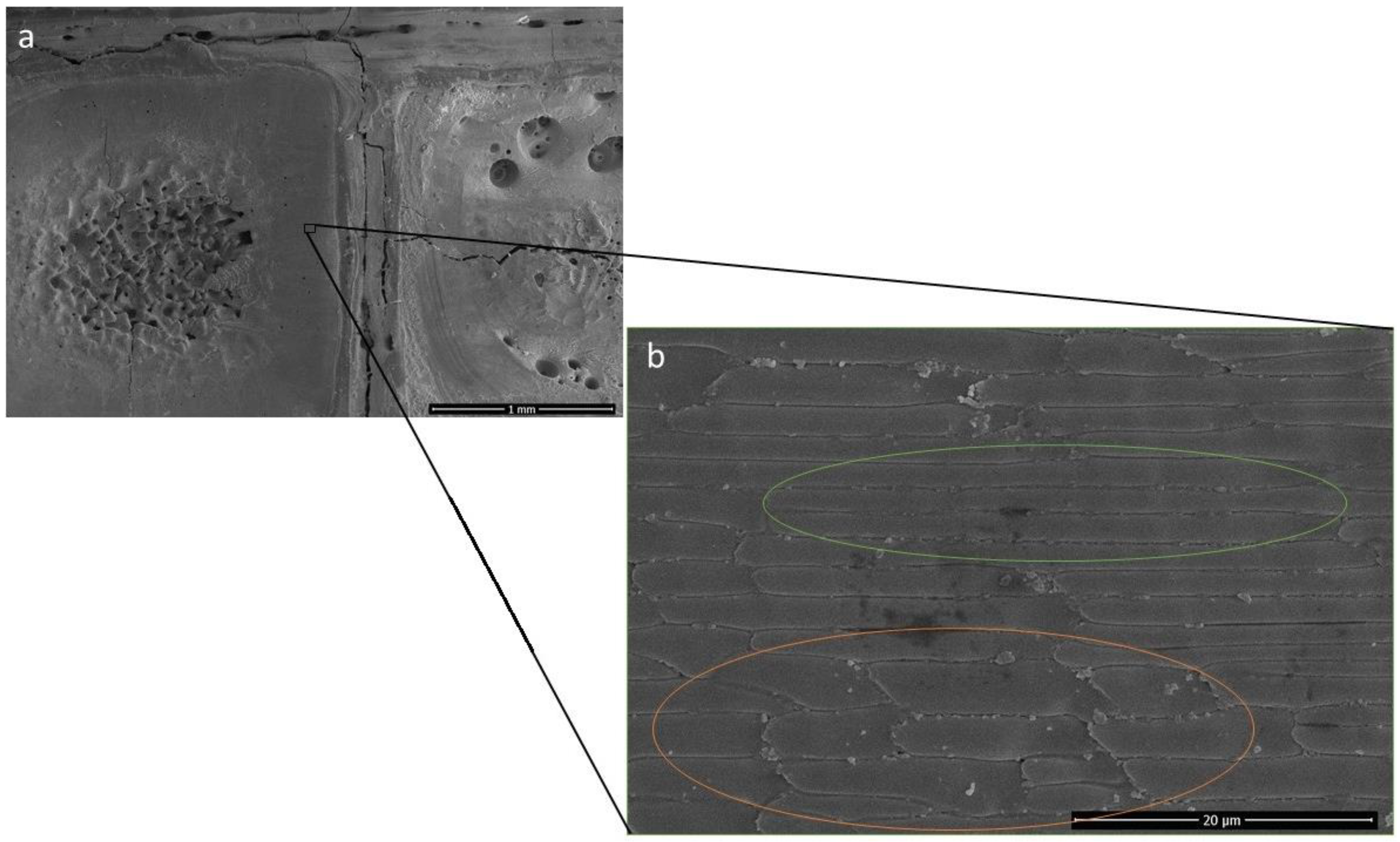

Figure 5. (a) Al2O3 wt% 90, SiC wt% 10 at 160 W laser power. (b) Inhibitory effect of grains under laser.
Figure 5. (a) Al2O3 wt% 90, SiC wt% 10 at 160 W laser power. (b) Inhibitory effect of grains under laser.
Materials 15 00637 g005
Materials 15 00637 g006 550

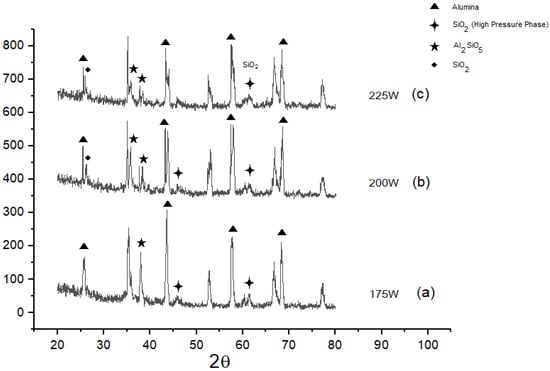

Figure 6. (a) XRD for Al2O3 wt% 90, silicon carbide wt% 10 at 175 W laser power. (b) XRD for Al2O3 wt% 90, silicon carbide wt% 10 at 200 W laser power. (c) XRD for Al2O3 wt% 90, silicon carbide wt% 10 at 225 W laser power.
Figure 6. (a) XRD for Al2O3 wt% 90, silicon carbide wt% 10 at 175 W laser power. (b) XRD for Al2O3 wt% 90, silicon carbide wt% 10 at 200 W laser power. (c) XRD for Al2O3 wt% 90, silicon carbide wt% 10 at 225 W laser power.
Materials 15 00637 g006
Materials 15 00637 g007 550

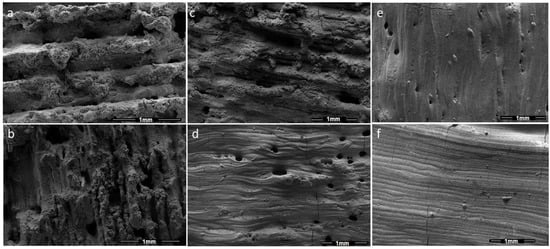

Figure 7. (a) Al2O3 wt% 95, SiC wt% 5 at 120 W laser power. (b) Al2O3 wt% 95, SiC wt% 5 at 150 W. (c) Al2O3 wt% 95, SiC wt% 5 at 180 W. (d) Al2O3 wt% 98, SiC wt% 2 at 120 W. (e) Al2O3 wt% 98, SiC wt% 2 at 150 W. (f) Al2O3 wt% 98, SiC wt% 2 at 180 W.
Figure 7. (a) Al2O3 wt% 95, SiC wt% 5 at 120 W laser power. (b) Al2O3 wt% 95, SiC wt% 5 at 150 W. (c) Al2O3 wt% 95, SiC wt% 5 at 180 W. (d) Al2O3 wt% 98, SiC wt% 2 at 120 W. (e) Al2O3 wt% 98, SiC wt% 2 at 150 W. (f) Al2O3 wt% 98, SiC wt% 2 at 180 W.
Materials 15 00637 g007
Materials 15 00637 g008 550

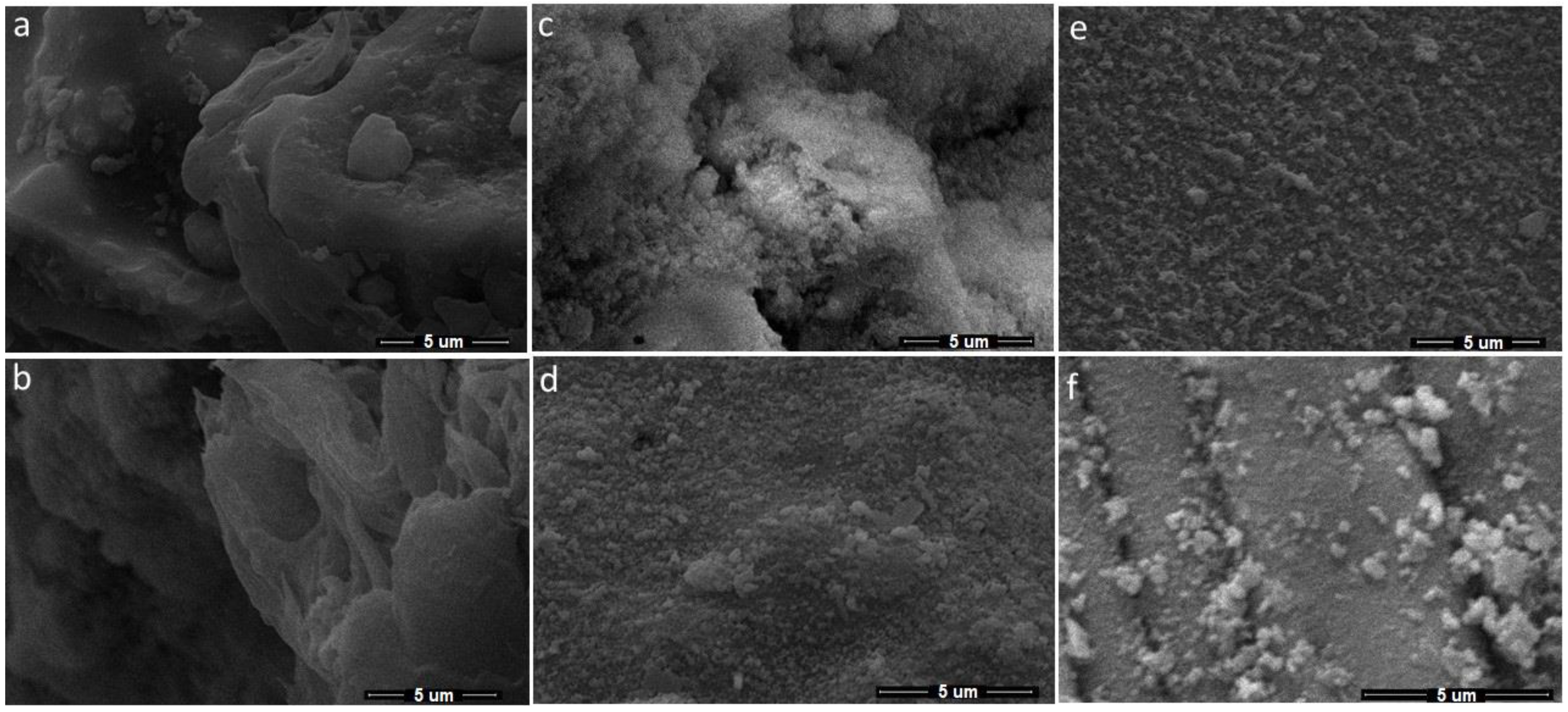

Figure 8. (a) Al2O3 wt% 95, SiC wt% 5 at 120 W laser power. (b) Al2O3 wt% 95, SiC wt% 5 at 180 W. (c) Al2O3 wt% 95, SiC wt% 5 at 150 W. (d) Al2O3 wt% 98, SiC wt% 2 at 120 W. (e) Al2O3 wt% 98, SiC wt% 2 at 150 W. (f) Al2O3 wt% 98, SiC wt% 2 at 180 W.
Figure 8. (a) Al2O3 wt% 95, SiC wt% 5 at 120 W laser power. (b) Al2O3 wt% 95, SiC wt% 5 at 180 W. (c) Al2O3 wt% 95, SiC wt% 5 at 150 W. (d) Al2O3 wt% 98, SiC wt% 2 at 120 W. (e) Al2O3 wt% 98, SiC wt% 2 at 150 W. (f) Al2O3 wt% 98, SiC wt% 2 at 180 W.
Materials 15 00637 g008
Materials 15 00637 g009 550

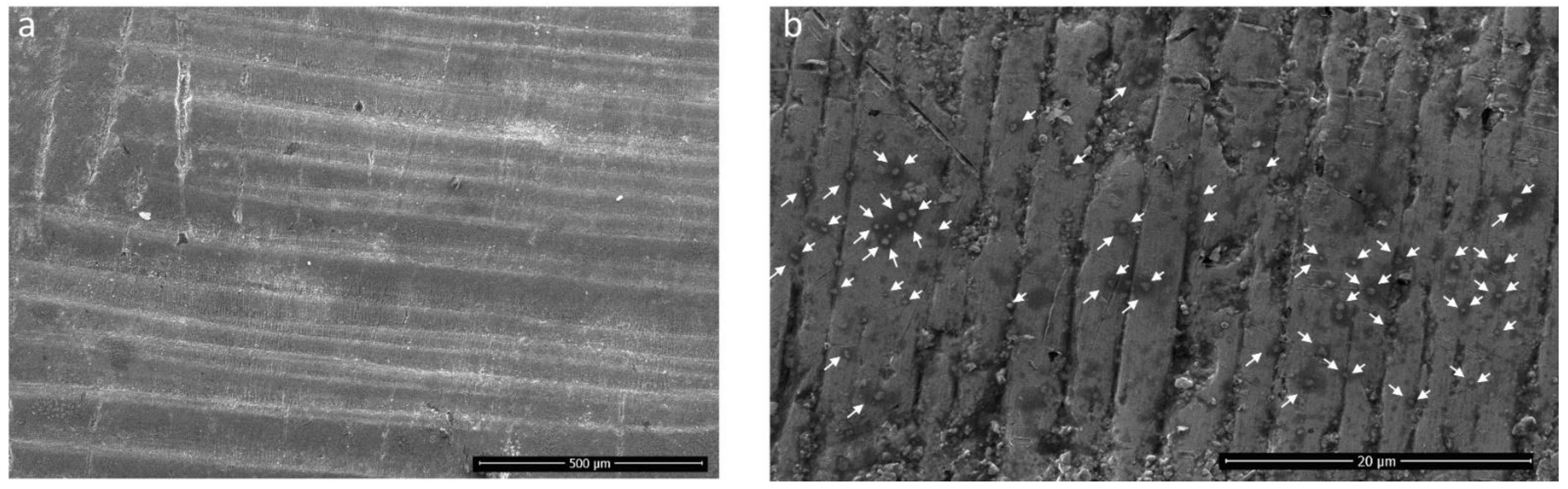

Figure 9. (a) Improved surface morphology with crack pinning effect of Al2O3 wt% 99.5, SiC wt% 0.5 at 120 W laser power. (b) Pinning effect of SiC can be seen clearly in magnified micrograph of the same sample in (a).
Figure 9. (a) Improved surface morphology with crack pinning effect of Al2O3 wt% 99.5, SiC wt% 0.5 at 120 W laser power. (b) Pinning effect of SiC can be seen clearly in magnified micrograph of the same sample in (a).
Materials 15 00637 g009
Materials 15 00637 g010 550

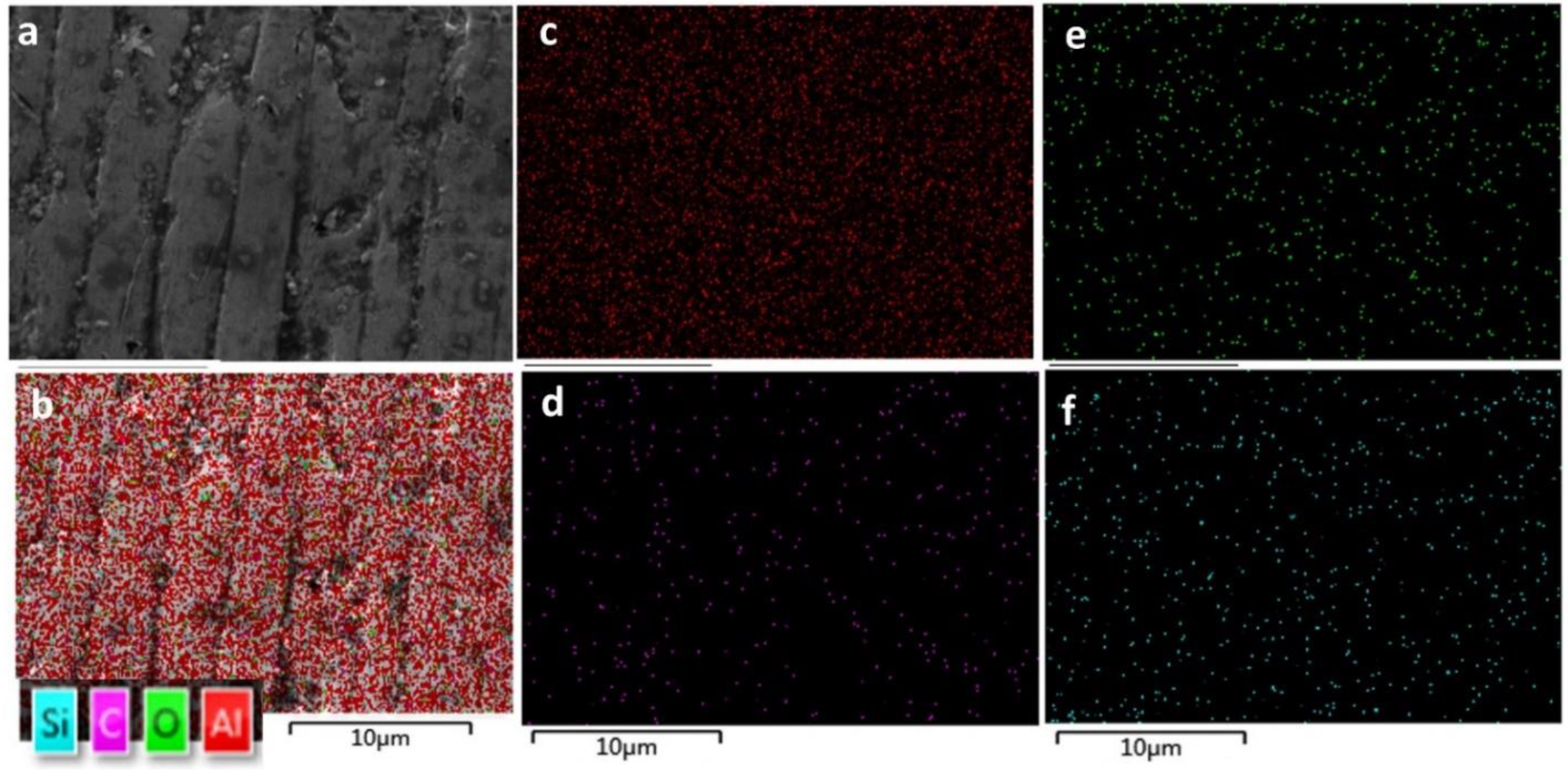

Figure 10. (a) Alumina wt% 99.5, silicon carbide wt% 0.5 at 160 W laser power. (b) EDS map of Si, C, O and Al; (c) EDS map of Al; (d) EDS map of C; (e) EDS map of C; and (f) EDS map of Si of the same article.
Figure 10. (a) Alumina wt% 99.5, silicon carbide wt% 0.5 at 160 W laser power. (b) EDS map of Si, C, O and Al; (c) EDS map of Al; (d) EDS map of C; (e) EDS map of C; and (f) EDS map of Si of the same article.
Materials 15 00637 g010
Materials 15 00637 g011 550

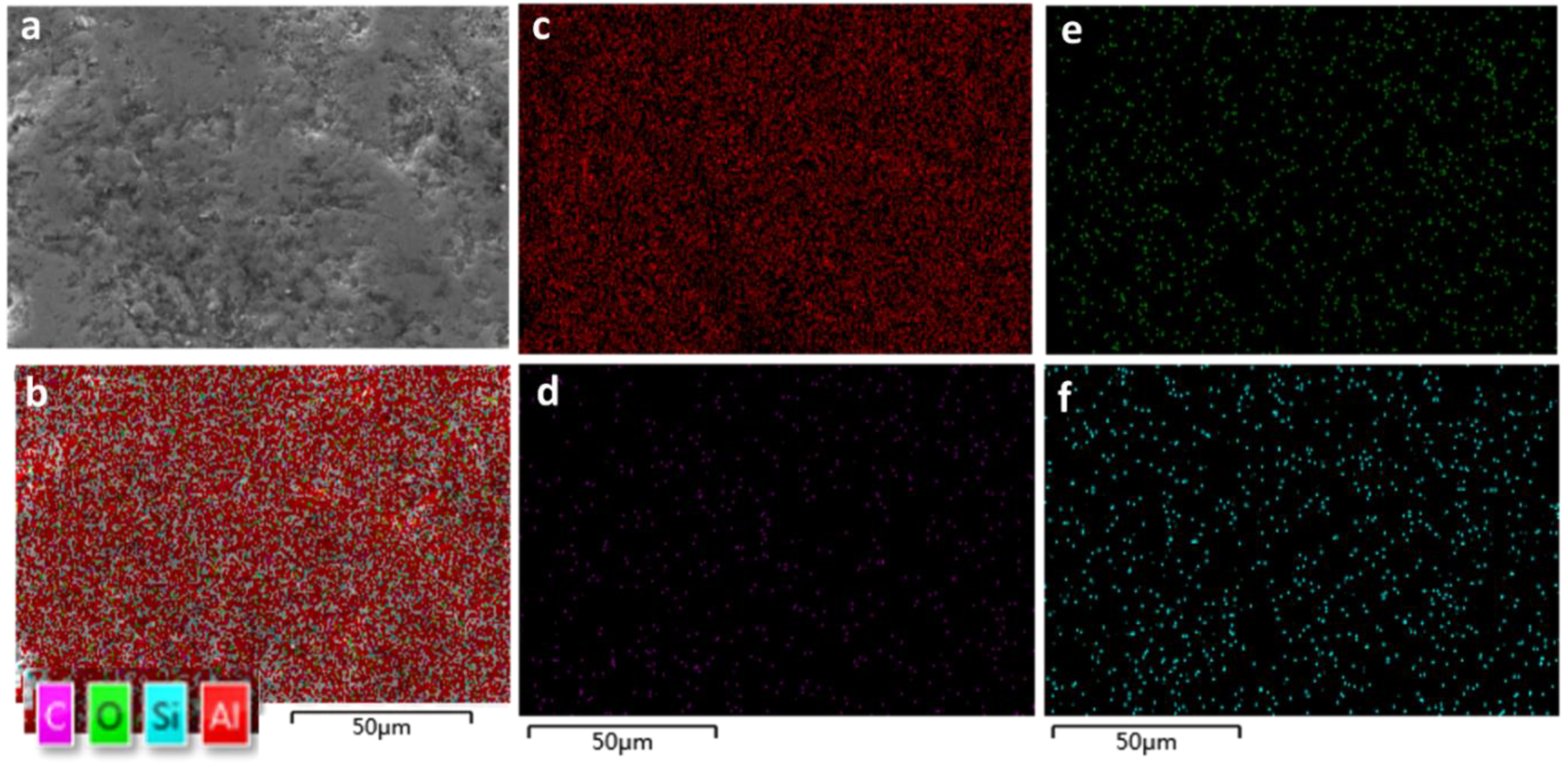

Figure 11. (a) Alumina wt% 90, silicon carbide wt% 10. (b) EDS map of Si, C, O and Al; (c) EDS map of Al; (d) EDS map of C; (e) EDS map of C; and (f) EDS map of Si of the same article.
Figure 11. (a) Alumina wt% 90, silicon carbide wt% 10. (b) EDS map of Si, C, O and Al; (c) EDS map of Al; (d) EDS map of C; (e) EDS map of C; and (f) EDS map of Si of the same article.
Materials 15 00637 g011
Materials 15 00637 g012 550

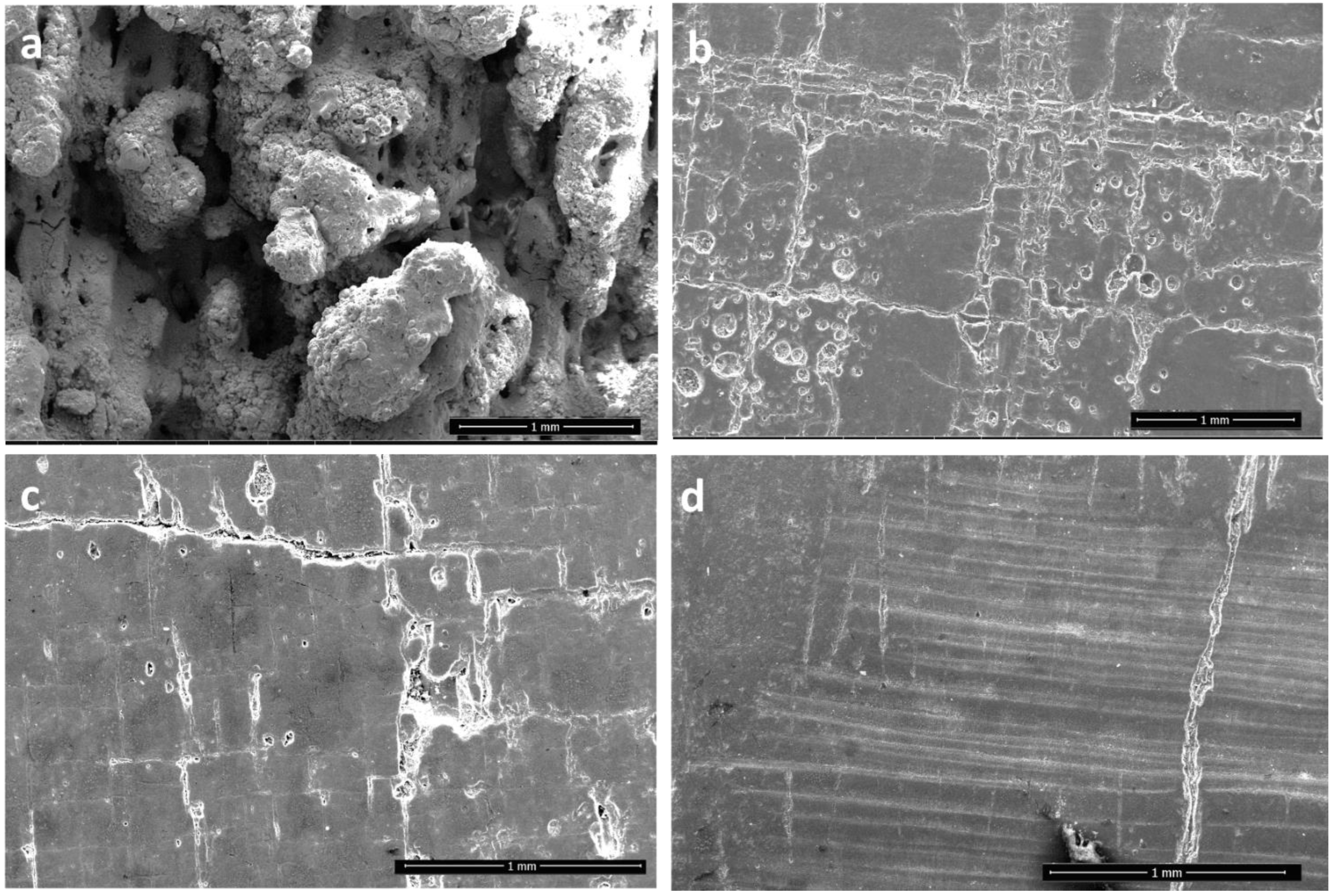

Figure 12. Surface morphology of (a) Alumina wt% 80, silicon carbide wt% 20 (unpolished); (b) alumina wt% 90, silicon carbide wt% 10 (polished); (c) alumina wt% 98, silicon carbide wt% 2 (polished); (d) alumina wt% 99.5, silicon carbide wt% 0.5 at 200 W laser power (polished).
Figure 12. Surface morphology of (a) Alumina wt% 80, silicon carbide wt% 20 (unpolished); (b) alumina wt% 90, silicon carbide wt% 10 (polished); (c) alumina wt% 98, silicon carbide wt% 2 (polished); (d) alumina wt% 99.5, silicon carbide wt% 0.5 at 200 W laser power (polished).
Materials 15 00637 g012
Table
Table 1. Chemical component of Al2O3 powder (wt%) as described by the supplier.
Table 1. Chemical component of Al2O3 powder (wt%) as described by the supplier.
Al2O3
(wt%)		Na2O
(wt%)		Fe2O3
(wt%)		SiO2
(wt%)		MgO
(wt%)		TiO2
(wt%)		CaO
(wt%)
99.000.07760.01240.02380.05210.00350.0136
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ur Rehman, A.; Saleem, M.A.; Liu, T.; Zhang, K.; Pitir, F.; Salamci, M.U. Influence of Silicon Carbide on Direct Powder Bed Selective Laser Process (Sintering/Melting) of Alumina. Materials 2022, 15, 637. https://doi.org/10.3390/ma15020637

AMA Style

Ur Rehman A, Saleem MA, Liu T, Zhang K, Pitir F, Salamci MU. Influence of Silicon Carbide on Direct Powder Bed Selective Laser Process (Sintering/Melting) of Alumina. Materials. 2022; 15(2):637. https://doi.org/10.3390/ma15020637

Chicago/Turabian Style

Ur Rehman, Asif, Muhammad Ahsan Saleem, Tingting Liu, Kai Zhang, Fatih Pitir, and Metin Uymaz Salamci. 2022. "Influence of Silicon Carbide on Direct Powder Bed Selective Laser Process (Sintering/Melting) of Alumina" Materials 15, no. 2: 637. https://doi.org/10.3390/ma15020637

APA Style

Ur Rehman, A., Saleem, M. A., Liu, T., Zhang, K., Pitir, F., & Salamci, M. U. (2022). Influence of Silicon Carbide on Direct Powder Bed Selective Laser Process (Sintering/Melting) of Alumina. Materials, 15(2), 637. https://doi.org/10.3390/ma15020637

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
