Fast Removal of Methylene Blue via Adsorption-Photodegradation on TiO₂/SBA-15 Synthesized by Slow Calcination

Abstract

TiO₂/SBA-15 photocatalysts were successfully prepared by impregnating low loading titania to SBA-15 via slow calcination. The photocatalyst is efficient for fast methylene blue removal via adsorption and photodegradation methods. The impregnation of low TiO₂ loading via slow calcination enhanced TiO₂ dispersion that preserved the SBA-15 porosity and uniform morphology. High interfacial interaction of TiO₂/SBA-15 improves TiO₂ photoresponse by narrowing the bandgap, resulting in a stronger redox ability. The methylene blue removal on 10%TiO₂/SBA-15 followed the pseudo-second-order kinetic model that reached 67% removal efficiency in 90 min. The synergy between adsorption and photodegradation is responsible for the fast methylene blue removal. These results indicate the importance of maintaining the adsorption capacity in SBA-15 after impregnation with TiO₂ for efficient adsorption-photodegradation processes, which can be achieved by controlling the deposition of TiO₂ on SBA-15. A low titania loading further reduced the cost of photocatalysts, thus becoming a potential material for environmental pollution treatment.

1. Introduction

The rapidly growing textile industry increased the accumulation of dye pollutants such as methylene blue (C₁₆H₁₈ClN₃S), which is harmful to the environment [1]. The threshold value for methylene blue in the water is about 5–10 mg/L, thus requiring the development of an efficient method for removing methylene blue waste [2]. Cheap and effective photocatalysts are continuously being investigated to obtain high efficiency and the fast removal of contamination in water [1,3]. One of the developments in dye treatment is via the combination of adsorption-photodegradation processes [4,5]. Several studies reported using SBA-15 and silica combined with carbon nitride or titania as an efficient photocatalyst for dye removal [4,6,7,8,9]. The method offers simultaneous adsorption of pollutants followed by photodegradation under light irradiation to decompose the adsorbed pollutants into less harmful molecules [6]. These two processes require synergy between the large surface area adsorbent for high accessibility of large dye molecules with the active photocatalysts for degradation [4,10]. TiO₂ is the most studied photoactive material that can be modified to produce various crystalline phases, structures, and sizes. TiO₂ is also very active under UV irradiation to catalyze redox reactions [11,12,13,14]. However, TiO₂ particles are easy to agglomerate, which limits their photodegradation usage. Hence, various methods are employed to increase TiO₂ stability, such as via the production of nanoparticles and deposition onto high surface area support [15,16].

Deposition of TiO₂ on Santa Barbara Amorphous-15 (SBA-15) mesoporous silica is a promising way to enhance photocatalytic activity [17,18,19,20]. SBA-15 has a large surface area of 400–800 m²/g, large pore diameter with structural regularity, high thermal-physical stability, and thick amorphous silica walls (3–6 nm) [17,21,22,23]. Several studies reported high performances of TiO₂/SBA-15 [22,24]), TiO₂/SiO₂ [25] and TiO₂/DMS [26] in methylene blue photodegradation. Deposition of TiO₂ on silica for photocatalytic degradation of Rhodamine B. [27] and methylene blue [22,24] were often produced at 20–60% titania loading [15,19,20,22,24,28]. Additionally, 60–95% efficiencies were obtained at a long removal time of 60–420 min, which involved dark adsorption and photodegradation processes [13,15,22,23,24]. High loading titania and annealing at high temperatures during the synthesis caused the sintering of titania particles, consequently reducing the surface area and blocking the pores of support material.

The slow calcination process improved the decomposition of precursors, facilitated the evacuation of impurities, and produced small particles for high adsorption capacity per unit mass [29,30]. This research investigates the photodegradation of methylene blue via the adsorption-photodegradation process using TiO₂/SBA-15. A low loading of TiO₂ at 1.0–10% was deposited on SBA-15 by a slow calcination method to enhance TiO₂ dispersion and preserve SBA-15 properties. The structural and textural properties of TiO₂/SBA-15 were determined using XRD, FTIR, Nitrogen adsorption-desorption, and SEM-EDX analysis, followed by the application in methylene blue removal from water.

2. Material

Materials used in this study were HCl 37% (Mr 36.5 g/mol), distilled water (Mr 18 g/mol), pluronic triblock copolymer P123 (Mr 5750 g/mol), Tetraethyl orthosilicate (TEOS) (Mr 208.33 g/mol), Tetraethyl orthotitanate (TEOT) (Mr 228.109 g/mol), n-hexane proanalysis (Mr 86.178 g/mol), and Methylene Blue (Mr 319.85 g/mol). All pure chemicals in our analysis were purchased from Sigma Aldrich.

2.1. SBA-15 Synthesis

SBA synthesis was performed using the previous study [22] with slight modifications. P123 (4 g) was mixed with HCl solution (19.5 mL of 37% HCl diluted in 127 mL of distilled water) by adding dropwise while stirring at 40 °C, 500 rpm for 3 h. Then, 9.24 mL of TEOS was added to the P123-HCl solution and stirred at the same temperature and speed for 24 h. The resulting solution was put in a polypropylene bottle in an autoclave and heated at 90 °C for 24 h. The resulting solids were filtered, washed, and dried at 100 °C for 24 h, followed by slow calcination. The slow calcination was done by heating the samples from room temperature to ~30 °C at a ramp rate of 1 °C min⁻¹, maintaining the temperature for 12 min, then heating to 110 °C for 1 h. Afterward, the heating step was continued to 300 °C for 2 h and increased to 550 °C for 5 h. The next step was slowly cooling them down to room temperature.

2.2. Synthesis of TiO₂/SBA-15

Before impregnation, SBA-15 was activated by mixing 1.5 g of SBA-15 with 50 mL of 0.1 M HCl and then was left for 24 h at room temperature. Afterward, the mixture was filtered, washed several times until the pH was neutral, and dried for 24 h at 100 °C. Impregnation of titania into SBA-15 began with mixing Tetraethyl orthotitanate (TEOT) in 20 mL n-hexane into SBA-15 to obtain 1% TiO₂/SBA-15 (w/w). This mixture was stirred at 45 °C for 16 h until a fine powder was formed and then dried at 160 °C for 2 h. The resulting powder was then washed with n-hexane, followed by filtration. The sample was then dried at 80 °C for 45 min. The slow calcination process was then performed on the samples as in the previous procedure to form x-TiO₂/SBA-15, where x is the amount of TiO₂ loading in SBA-15.

2.3. Characterization

The instruments employed for characterization: X-ray Diffraction (XRD) Pan analytical brand (Version PW3050/60-UK) (Surabaya, Indonesia), Fourier Transform Infrared (FTIR) Spectrophotometer Shimadzu 21 brand with a resolution of 0.5 cm⁻¹ (Surakarta, Indonesia), Scanning Electron Microscopy (SEM) with images taken with a JEOL JSM-700 microscope at a voltage speed of 15.0 kV (ITS, Surabaya), and Brunauer-Emmett-Teller (BET) of the Quantacrome Nova 1200 brand (Semarang, Indonesia), as well as a tool for testing samples using a Shimadzu UV-3600 Ultra Violet Visible (UV-Vis) Spectrophotometer with a wavelength of 665 nm (Surakarta, Indonesia). The bandgap energies were obtained using diffuse reflectance ultraviolet-visible (DRUV–Vis) spectroscopy analysis (Malang, Indonesia). The band gap energy (Eg) was determined using a Tauc plot [31,32,33].

2.4. Methylene Blue Degradation

The MB removal was performed using a 5 ppm methylene blue solution (200 mL) and 50 mg of 1% TiO₂/SBA-15 photocatalyst. The mixtures were kept in the dark under stirring and followed with photocatalytic irradiation UV light (125 W Mercury lamp-Philip HPL-N 125W/547 E2, the light intensity 166 mW/cm². The solution was taken every 10 min intervals, and the absorbance of each methylene blue solution was measured using a UV-Vis spectrophotometer at 200–800 nm. Similar steps were repeated for all samples. Analysis of the % efficiency of methylene blue photodegradation using the formula as Equation (1).

$$\%Eff=\frac{Co-Ct}{Co}\times 100\%$$

(1)

where $Co$ is the initial concentration of Methylene Blue, %Eff is the degradation efficiency, and Ct is the concentration of Methylene Blue at t min.

3. Result and Discussion

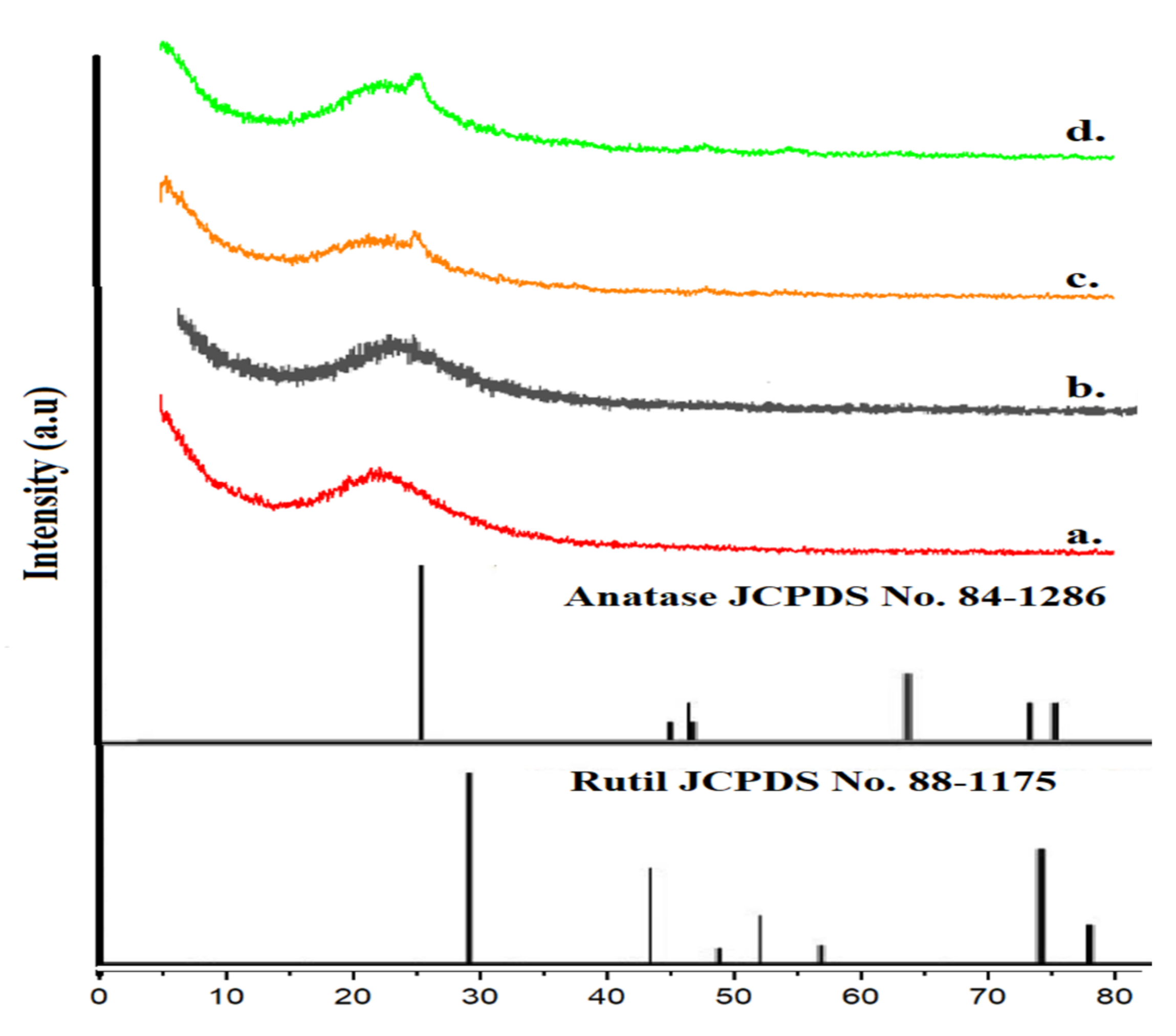

Figure 1 illustrates the wide-angle XRD patterns of SBA-15 and TiO₂/SBA-15 at different TiO₂ loading. A wide diffraction peak was detected at around 2θ = 22.5° for SBA-15, indicating the presence of amorphous silica with a stable structure. The broad amorphous silica peak at 22.5° is still visible without significant changes following TiO₂ deposition. The TiO₂ peak intensity was enhanced with the increasing TiO₂ loading. The XRD patterns of SBA-15 after impregnation with 5% and 10% TiO₂ exhibited small peaks at 2θ = 25.3°, 37.8°, 48.1°, and 65.0° corresponding to the respective (101), (004), (200) (211) anatase crystal planes (JCPDS File No. 21-1286). However, the TiO₂ peak was absent in 1% TiO₂/SBA-15 due to the low level of TiO₂ loading. The small TiO₂ peaks in 5% and 10% are a typical XRD pattern for low loading of TiO₂ as the peaks often appeared at loading higher than 12% [22,24,26]. No impurity peak was observed, implying good precursor decomposition during slow calcination.

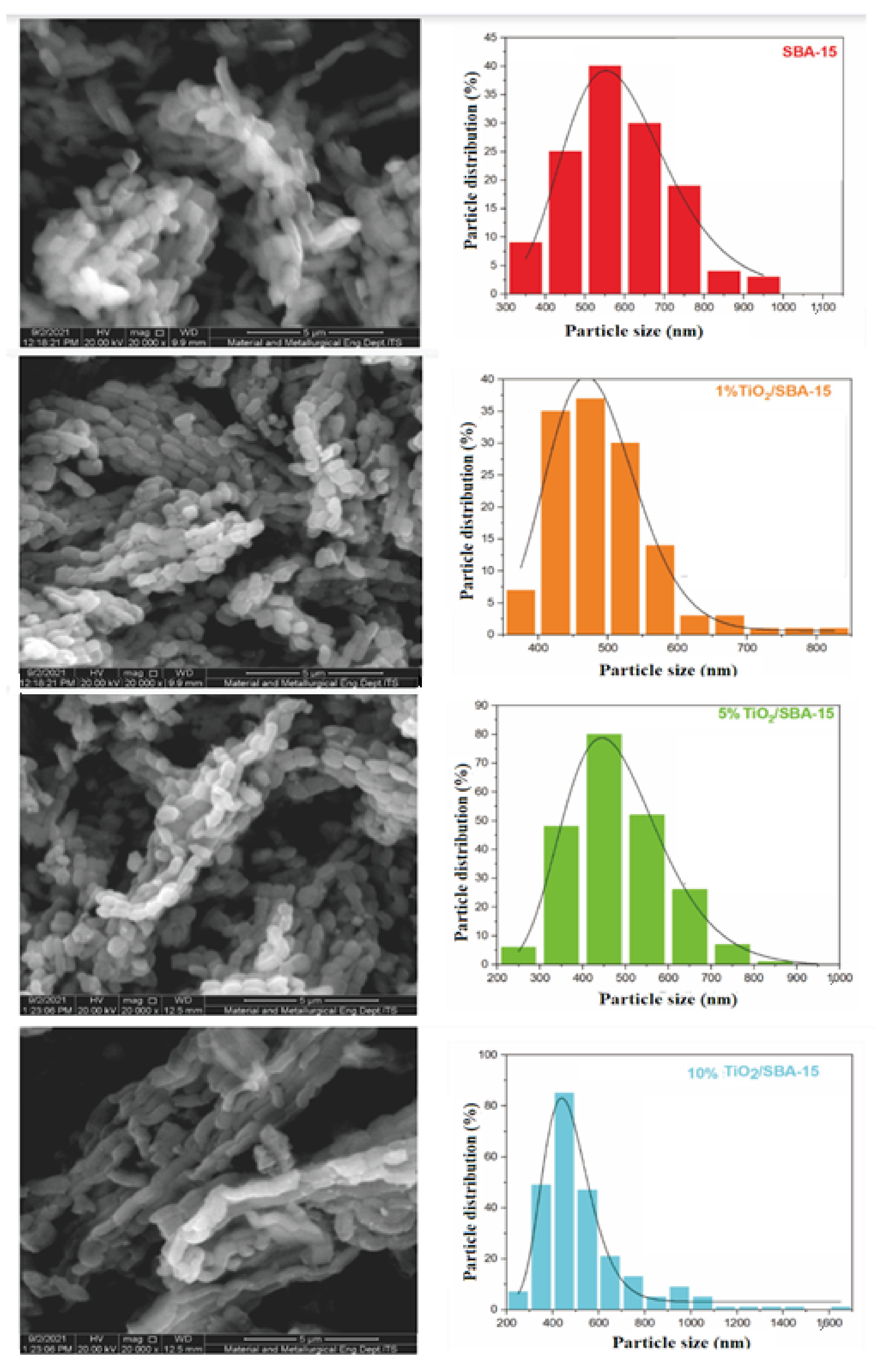

The morphology and particle size distribution of SBA-15 and TiO₂/SBA-15 were analyzed using SEM (Figure 2). The SBA-15 existed as a rectangular shape particle with a size estimated at 5.5 µm. After impregnation with 1% titania, the particle size was reduced to 4.3–4.7 µm, with well-defined rectangular shape structures. There is a possibility that TiO₂ was deposited within the mesopores of SBA-15, preserving the morphological structures of SBA-15. The morphology of TiO₂/SBA-15 remains unchanged at 5% TiO₂ loading but slightly loses the well-defined edges following impregnation with 10% TiO₂. The particle size distribution histogram in Figure 2 showed the decrease of SBA-15 sizes after TiO₂ impregnation. The slow calcination process during TiO₂ deposition reduced the agglomeration of silica and titania particles. The deposition of titania inside SBA-15 pores was suggested to occur at low TiO₂ loading; thus, no changes were observed in the morphology of SBA-15. However, TiO₂ at 10% loading might be deposited inside the pores and on the outer surface of SBA-15. Nevertheless, the SEM analysis also revealed the stability of the SBA-15 rectangular shape structure even after incorporation with 10% TiO₂. As shown in XRD, the TiO₂ peaks observed at 5–10% loading indicate the formation of the crystalline anatase phase of TiO₂. Slow calcination not only benefits in preserving the structural stability of SBA-15 but also produces a titania crystalline phase as a photoactive site. These results are consistent with the reported studies on the structural stability and high mechanical strength of limestone particles [29] and the reduction of zeolite defects [30] following the slow calcination method.

Figure 3 displays the FTIR spectra of SBA-15 and TiO₂/SBA-15 at different TiO₂ loading. The summary of adsorption bands is tabulated in

Table 1. FTIR analysis data from samples of SBA-15 before and after titania impregnation.

Wave Number (cm−1)	Vibration Type [Ref]
SBA-15
1052–1100	Symmetric stretching vibration Si-O-Si [18]
950–966	Stretching vibration of silanol Si-OH [18]
TiO2
790–800	stretching band Ti-O-Ti [24]
625–550	Ti-O-Ti stretching vibration [12,18]
453	Ti-O-Ti stretching vibration for anatase [12,18]
1%, 5%, 10% TiO/SBA-15
1052–1100	Symmetric stretching vibration Si-O-Si [18]
940–960	The Si–O–Ti linkage stretching band [24]
790–800	stretching band Ti-O-Ti [24]
440–493	Ti-O-Ti stretching vibration for anatase [12,18]

. The bands at 1,070–1,100 cm⁻¹ are visible in all SBA-15 and TiO₂/SBA-15 samples, which are assigned to the Si-O-Si as asymmetric stretching vibrations mode. The band at 800 cm⁻¹ and 460 cm⁻¹ assigned to the Si–O–Ti linkage stretching band and Ti-O-Ti bands appeared in all TiO₂/SBA-15 samples. The intensity of these peaks increased with the titania loading. The Si-O-Ti linkage provides evidence of the successful incorporation of Ti into SiO₂, which is in line with the previously reported studies [22,24,25,26,34].

Figure 4 presents the nitrogen adsorption isotherm at 77 K for SBA-15 and TiO₂/SBA-15, while Figure 5 presents their corresponding pore size distributions. The isotherms of these samples are classified as type-IV according to IUPAC, which are typical of mesoporous materials with pore sizes in the nanometer range [21]. The TiO₂/SBA-15 showed similar isotherm features suggesting the stability of the silica framework in maintaining the mesoporosity despite the addition of TiO₂. Figure 4 also exhibits hysteresis at a relative pressure (P/P0) of 0.4–0.8, which indicates the presence of mesoporosity. Impregnation of TiO₂ in SBA-15 does not cause the deformation of the hysteresis loop. However, the surface area and pore volume were reduced with increasing TiO₂ loading. Figure 5 also showed the pore size distribution at 15–30 Å of pore radius ranges, but with a reduction of pore volume with the increase of titania loading. The results suggest the deposition of TiO₂ within the pores of SBA-15.

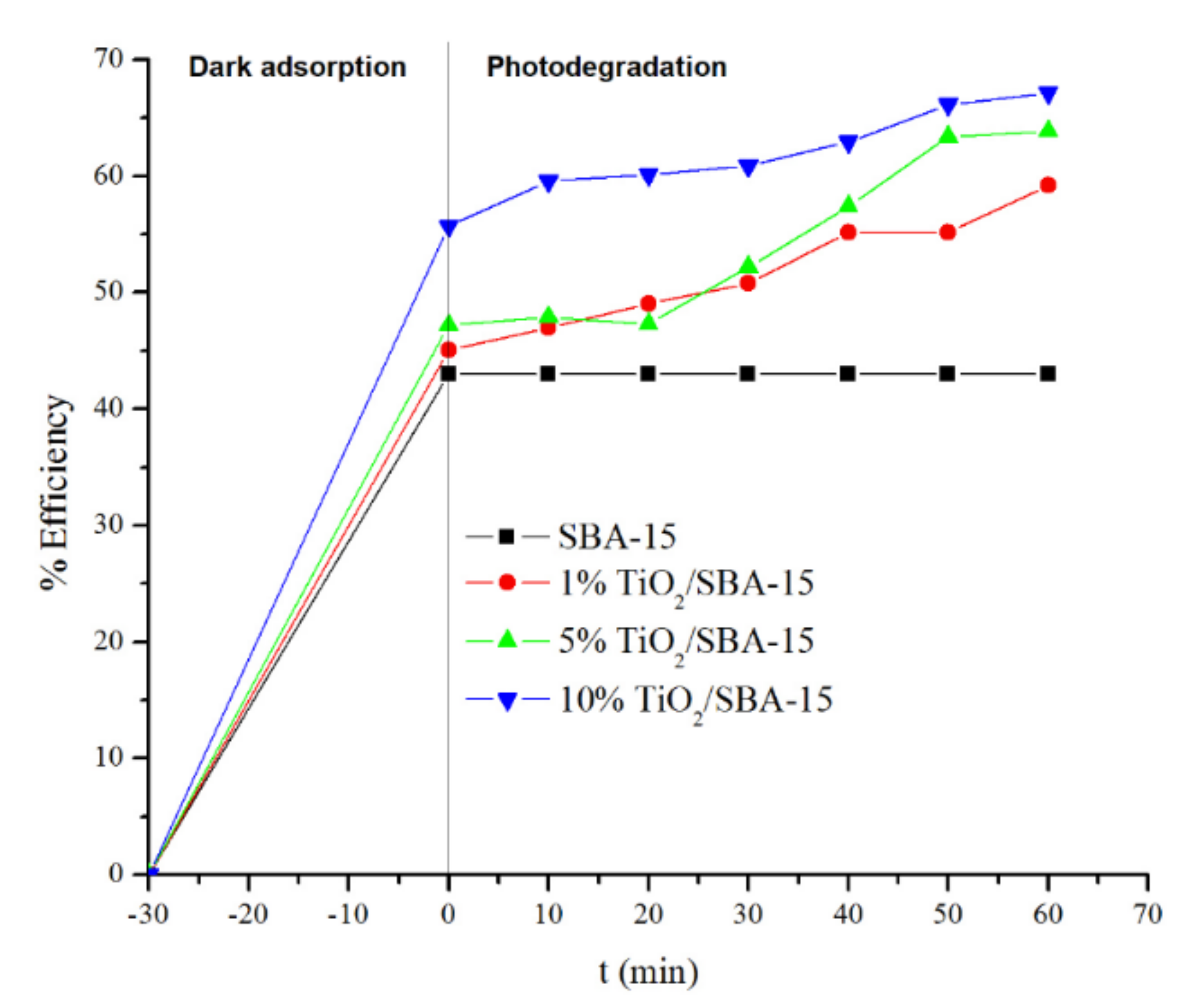

Figure 6 displays the removal efficiency of MB on SBA-15 and TiO₂/SBA-15 under dark and UV light irradiation. All samples showed removal efficiency at 43–55% under dark adsorption (30 min before UV light irradiation), representing the role of high surface area and mesoporous SBA-15 in removing MB via adsorption. The removal efficiency was further enhanced to reach 59–67% within 60 min of UV irradiation.

Table 2. Efficiency of methylene blue removal by 1, 5, 10 wt% TiO₂/SBA-15 photocatalyst at 90 min of contact time. The result compares with SBA-15 and reported literature.

Photocatalyst	Sa (m2/g)	Vb (cc/g)	Dc (Å)	Vme/Vmid	DAe %	Pf %	DA-Pg (min)	Total Removal (%)
SBA-15	498	0.737	53.8	2.22	43	0	30–60	43
1-TiO2/SBA-15	467	0.648	48.6	2.04	45	14.2	30–60	59.2
5-TiO2/SBA-15	399	0.578	48.1	1.99	47	16.8	30–60	63.8
10-TiO2/SBA-15	384	0.550	37.4	1.97	55	12.1	30–60	67.1
SBA-15 [22]	753.80	1.430	85.0	-	20	1.5	60–150	21.5
21-TiO2/SBA-15 [22]	596	0.88	71.0	-	60	6	60–150	66
80-TiO2/SBA-15 [10]	142	0.240	66.5	-	37	3	15–60	40
30-TiO2/SBA-15 [10]	499	0.520	41.0	-	65	34	15–60	99
46-TiO2/SBA-15 [22]	466	0.52	52.8	-	30	50	60–150	80
SBA-15 [24]	-	-	76	-	2	54	60–420	7
30-TiO2/SBA-15 [24]	-	-	65	-	70	28	60–420	98
60-TiO2/SBA-15 [24]	-	-	61	-	45	44	60–420	99
SBA-15 [15]	730	1.07	80	-	21	5	120–180	26
29-TiO2/SBA-15 [15]	587	0.73	65	-	22	59	120–180	79

S^a = Surface area BET, V^b = pore volume, D^c = pore diameter, Vme/Vmi^d = ratio of mesoporous and microporous volume, DA^e = % Efficiency from dark adsorption, P^f = % Efficiency from Photodegradation, DA-P^g = Time of dark adsorption and photodegradation.

summarizes the results of methylene blue removal using SBA-15 and TiO₂/SBA-15. In general, TiO₂/SBA-15 showed a higher removal of methylene blue than SBA-15. Interestingly, MB removal via dark adsorption was enhanced on higher loading TiO₂/SBA-15 samples. SBA-15 removed 43% of MB via adsorption, with the percentage enhanced to 55% at 10%TiO₂/SBA-15. There is a possibility that TiO₂ facilitated the adsorption process by interacting with methylene blue through electrostatic interactions. The role of SBA-15 in absorbing dye pollutants is further increased by the presence of titania. Under UV irradiation, titania removed MB through photodegradation to further added 16.8% of MB removal, reaching the total efficiency of 67.1%. Considering the amount of TiO₂ used is less than 10%, highly dispersed TiO₂ particles might be formed on SBA-15, thus exhibiting comparable activities with a large amount of titania, as previously reported in Table 2. Using 10% TiO₂/SBA-15 showed a total removal efficiency of 67%, almost similar to the reported studies with 21% and 80% TiO₂ loading [10,22].

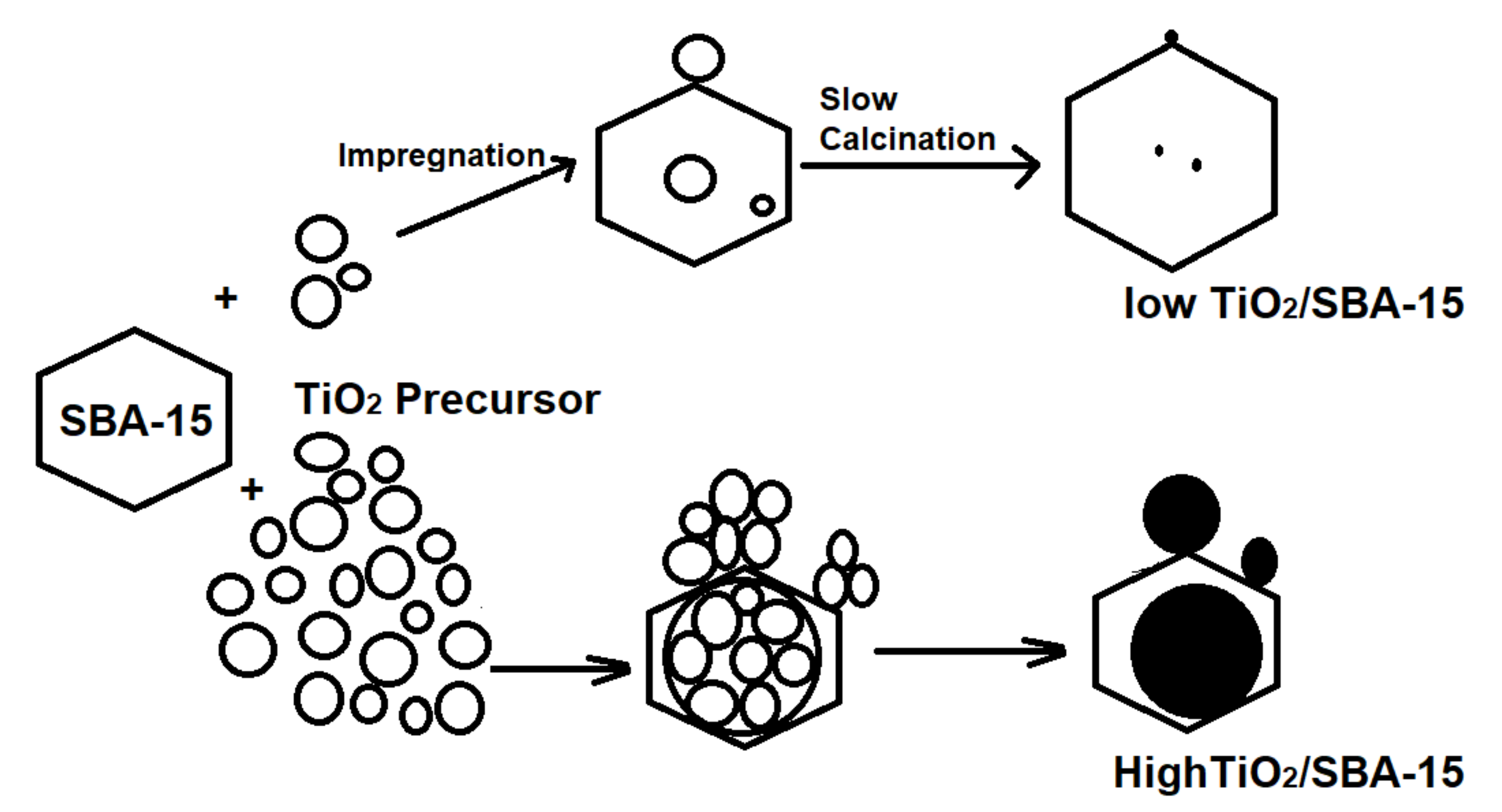

The benefits of using a low titania loading are the potential to reduce agglomeration and enhance dispersion, which is strongly important in enhancing the methylene blue photodegradation. The use of low TiO₂ loading is also beneficial in preserving the adsorption capacity of SBA-15. At 1% TiO₂ loading, the amount of MB removal is already higher than the reported studies using 46% of TiO₂ [22] despite having approximately similar surface area. The interaction between adsorbate and adsorbent occurs on SiO₂ more than TiO₂ due to the high affinity of the amine group in methylene blue to Si-OH in SBA-15 [28]. Therefore, it is important to provide high surface area support less affected by the pore-blocking effect after titania loading. Figure 7 illustrates the effect of TiO₂ loading toward agglomeration and dispersion of TiO₂ that can lead to the pore-blocking effect. The stability of the mesoporous/microporous ratio (Table 2) between 1.97–2.04 regardless of the TiO₂ loading suggests that using the slow calcination method efficiently dispersed TiO₂ onto SBA-15 while maintaining the structural properties of SBA-15. Not only low loading of titania but also faster removal of methylene blue than in previous research is explained in Table 2. In general, it can be concluded that the removal capability of methylene blue with TiO₂/SBA-15 in this study is faster with lower TiO₂ than in previous studies to save energy and costs in large-scale waste treatment.

The bandgap energy of 10TiO₂/ZSM-5 was determined using a Tauc plot at 3.05 eV (Figure 8), slightly lower than 3.23 eV of pure TiO₂ [12]. The reduction of bandgap energy for TiO₂/SBA-15 catalysts signifies its improved visible-light photoactivity. The narrow bandgap of TiO₂/SBA-15 allowed the adsorption of photons from a wider wavelength range (A ≤ 400 nm) than TiO₂ (A ≤ 378 nm)

The mechanism of methylene blue degradation on TiO₂/SBA-15 photocatalyst under UV light irradiation can be written as follows:

TiO₂ + hv → TiO₂ (e⁻ + h⁺)

(2)

OH⁻ + h⁺ → OH•

(3)

H₂O + e⁻ → OH• + H⁺

(4)

OH• + Methylene blue→ CO₂ +NO₃⁻ + SO₄²⁻ + H₂O

(5)

During light irradiation, TiO₂/SBA-15 absorbs photon energy for electron excitation to the conduction band, leaving the holes in the valence band (Equation (2)). These photogenerated energy carriers migrate to the surface of TiO₂/SBA-15 and react with H₂O or OH- to produce a hydroxyl radical (OH) (Equations (3) and (4)). The hydroxyl radicals are responsible for the redox reaction of the organic pollutants (methylene blue) adsorbed on the surface. The hydroxyl radical is a strong oxidizing agent and acts as the main oxidizer in the photocatalytic oxidation of methylene blue to carbon dioxide, water, and other mineralized products (Equation (5)). The pre-adsorbed methylene blue on the SBA-15 surfaces accelerates the degradation process. The highly dispersed TiO₂ increases TiO₂ and SBA-15 interaction to ensure efficient oxidation of the adsorbed methylene blue with the generated hydroxyl radicals.

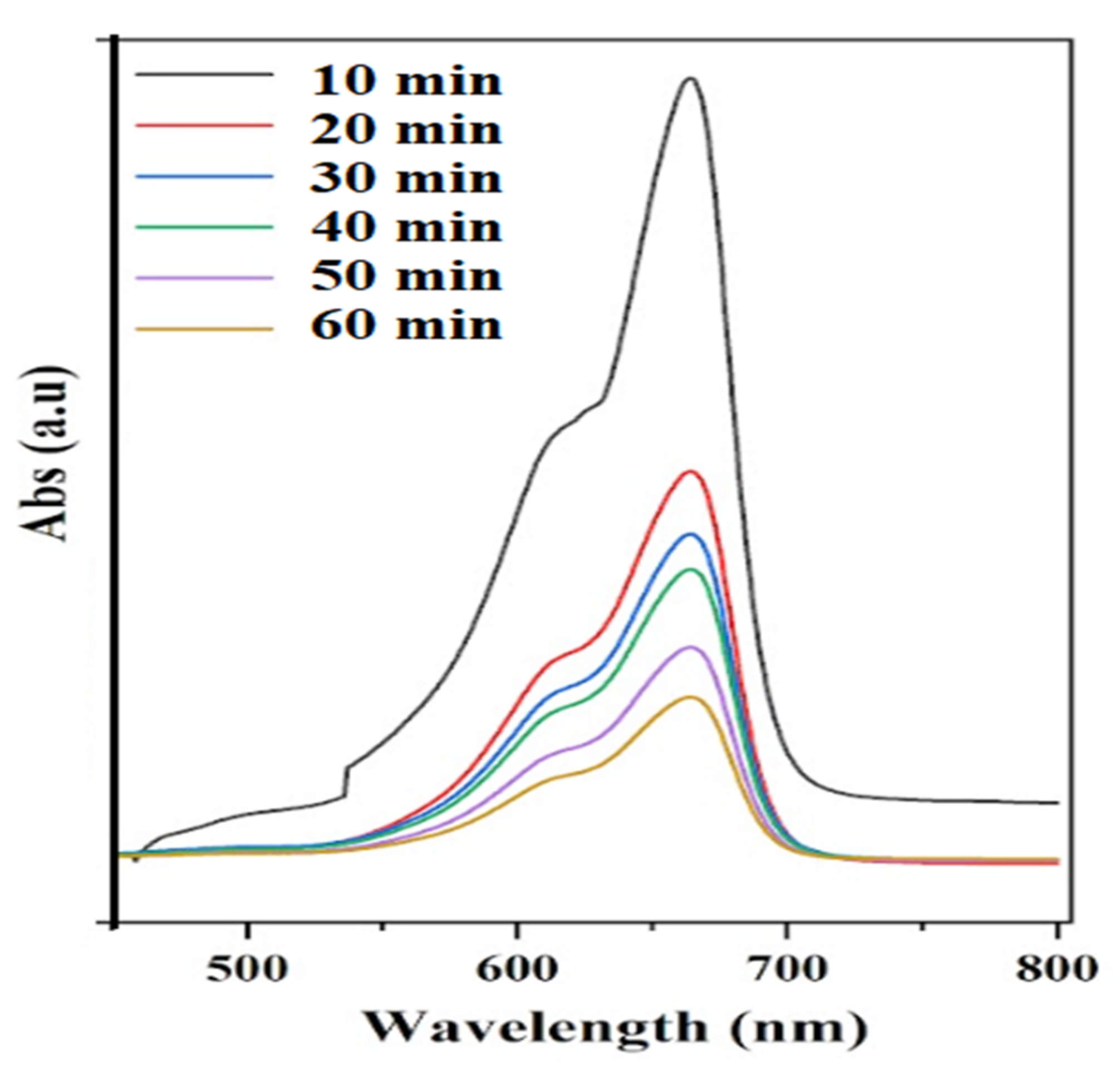

Figure 9 showed rapid photodegradation of MB in 60 min as determined using the UV spectrophotometer. The rapid reduction of methylene blue absorption is seen in the first 10 min, characterized by a hypsochromic shift ascribed to the change in the chemical structure of the MB. Hydroxyl radicals generated on TiO₂ caused rapid oxidation of methylene blue, presumably via N-demethylation of dimethylamine groups in MB. The presence of pre-adsorbed MB on the TiO₂/SBA-15 surfaces further accelerated the degradation process. Overall, about 67% of MB was degraded at about 90 min (consisting of 30 min dark adsorption and 60 min photocatalysis) while using a 10% TiO₂/SBA-15 photocatalyst. A highly dispersed TiO₂ with a smaller bandgap and high surface area and porosity of SBA-15 may be responsible for the enhanced activity in MB removal via the adsorption-photodegradation processes.

The kinetic of methylene blue adsorption on SBA-15 and TiO₂/SBA-15 was evaluated using the pseudo-first-order (Equation (6)) and the pseudo-second-order (Equation (7)) kinetics models using linear regression analysis (Figure 10,

Table 3. Data of kinetics model of Pseudo first order and second order for SBA-15 samples before and after titania impregnation.

Sample	Pseudo First Order		Pseudo Second Order		% Efficiency
	R2	k1 (min−1)	R2	k2 (g mg−1min−1)
SBA–15	0.3828	2.2 × 10−3	0.950	1.96 × 10−3	43.0
1% TiO2/SBA-15	0.2346	3.5 × 10−3	0.924	1.95 × 10−3	59.2
5% TiO2/SBA-15	0.6979	4.0 × 10−3	0.9558	1.36 × 10−3	63.8
10% TiO2/SBA-15	0.5344	5.2 × 10−3	0.9545	1.29 × 10−3	67.1

)

$$ln \left(qe-qt\right)=ln qe-k_{1}t$$

(6)

$$t/qt={\frac{1}{k_2{\left(qe\right)}^2}}^{}-1qe t$$

(7)

where $k_1$ (min⁻¹) and $k_2$ are the rates of sorption (g mg⁻¹min⁻¹), $qe$ is the amount of methylene blue removed at equilibrium (mg g⁻¹), and $qt$ is the amount of methylene blue removed at t time (mg g⁻¹).

Figure 10 and Table 3 showed that all samples followed the pseudo-second model (R² = 0.92–0.95) rather than the pseudo-first-order model (R² = 0.2–0.5). The highest kinetic adsorption-photodegradation rate constant corresponds to 10% titania loading (0.012 min⁻¹), suggesting that adsorption accelerates photocatalytic degradation. Adsorption is an important parameter for controlling the kinetic of methylene blue photodegradation. Therefore, generating the synergy between adsorption and photocatalytic degradation is important to ensure the TiO₂/SBA-15 performances in MB removal. Adsorption can occur via Si-O interaction with the N atom in the methylene blue and hydrogen bonding between OH on silica or titania with the electron pair of N. Table 2 and Table 3 and Figure 9 and Figure 10 present the relationship between the rate of adsorption-photodegradation of methylene blue and the equilibrium point of methylene blue adsorbed on TiO₂/SBA-15 following variations in titania loading. The removal of methylene blue occurs at a much faster rate with the increased loading of TiO₂.

4. Conclusions

TiO₂/SBA-15 photocatalysts were obtained using impregnation of low loading titania precursors using slow calcination treatment. SBA-15 was synthesized using TEOS as Si precursor with the addition of P123 as a mesopore template. The studies highlighted the importance of slow calcination by controlling the ramp rate at 1 °C min⁻¹ in producing a highly dispersed TiO₂ while preserving SBA-15 porosity. The TiO₂/SBA-15 photocatalyst displayed faster adsorption and photodegradation of methylene blue despite having a low TiO₂ loading. Impregnation with low titania loading on high surface area SBA-15 improves TiO₂ dispersion for superior photocatalytic activity while simultaneously preserving the surface area and porosity of SBA-15. The pseudo-second-order kinetic model of methylene blue removal established the synergy between adsorption and photocatalytic degradation, which reached total methylene blue removal up to 67%. These results further highlighted the importance of highly dispersed TiO₂ to maintain the adsorption capacity in SBA-15 for subsequent photodegradation reactions.
