Article

Template-Mediated Synthesis of Hierarchically Porous Metal–Organic Frameworks for Efficient CO2/N2 Separation

1
Beijing Key Laboratory for Theory and Technology of Advanced Battery Materials, School of Materials Science and Engineering, Peking University, Beijing 100871, China
2
CHN Energy New Energy Technology Research Institute Co., Ltd., Beijing 102211, China
3
State Key Laboratory of Heavy Oil Processing, China University of Petroleum-Beijing, Beijing 102249, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(15), 5292; https://doi.org/10.3390/ma15155292
Submission received: 11 June 2022 / Revised: 21 July 2022 / Accepted: 25 July 2022 / Published: 31 July 2022

Abstract

:
Carbon dioxide (CO2) is generally unavoidable during the production of fuel gases such as hydrogen (H2) from steam reformation and syngas composed of carbon monoxide (CO) and hydrogen (H2). Efficient separation of CO2 from these gases is highly important to improve the energetic utilization efficiency and prevent poisoning during specific applications. Metal–organic frameworks (MOFs), featuring ordered porous frameworks, high surface areas and tunable pore structures, are emerging porous materials utilized as solid adsorbents for efficient CO2 capture and separation. Furthermore, the construction of hierarchical MOFs with micropores and mesopores could further promote the dynamic separation processes, accelerating the diffusion of gas flow and exposing more adsorptive pore surface. Herein, we report a simple, efficient, one-pot template-mediated strategy to fabricate a hierarchically porous CuBTC (CuBTC-Water, BTC = 1,3,5-benzenetricarboxylate) for CO2 separation, which demonstrates abundant mesopores and the superb dynamic separation ability of CO2/N2. Therefore, CuBTC-Water demonstrated a CO2 uptake of 180.529 cm3 g−1 at 273 K and 1 bar, and 94.147 cm3 g−1 at 298 K and 1 bar, with selectivity for CO2/N2 mixtures as high as 56.547 at 273 K, much higher than microporous CuBTC. This work opens up a novel avenue to facilely fabricate hierarchically porous MOFs through one-pot synthesis for efficient dynamic CO2 separation.

1. Introduction

To mitigate the increasingly severe issues of global warming and climate change, extensive concerns have been concentrated on developing effective separation/capture systems for selective removal of CO2 from gaseous mixtures. Selective separation of CO2 is also paramount for the purification of valuable fuel gases such as H2 and CH4 [1,2]. Therefore, it is urgent that a large-capacity and high-selectivity adsorbent system with high feasibility of preparation and low energy consumption for CO2 separation is developed. Recently, by virtue of the highly tunable pore structure, abundant accessible adsorptive sites and well-defined crystalline structure, metal–organic frameworks (MOFs) have shown great potential for gas separation and capture through chemisorption/physisorption [3,4,5]. Compared with traditional porous materials such as porous carbon and molecular sieves, the highly tunable MOF structures can be subtly functionalized with functional groups, open metal sites and favorable pore shapes to judiciously optimize the microscopic pore environments and improve CO2 adsorption capacity and selectivity [6,7]. As a typical example, Mg-MOF-74 materials with abundant open metal sites have been reported to exhibit high efficiency for CO2 separation from CO2/CH4 mixtures [8]. In addition, grafting basic amine as functional groups in the pore surface via pre-modification with amine-functionalized ligands or post-introduction of amine molecules could also enhance the adsorptivity and selectivity of MOFs through Lewis acid–base interaction between MOFs and CO2 molecules [7,9,10]. However, the success of microporous MOFs under equilibrium conditions in adsorbing pure CO2 cannot be guaranteed when exposed to the gas mixtures under realistic dynamic conditions because of the high sorption and mass transfer limitations of microporous MOFs [9,11,12]. Trade-offs between permeability and selectivity of MOF adsorbents should be carefully considered for realistic dynamic CO2 separation, which is still a huge change for realistic large-scale separation [13].
Engineering the structure of MOFs into hierarchical nanoarchitecture has recently drawn increasing concerns, such as the creation of larger pore sizes or hollow structures to enhance the dynamic capacity and selectivity [14,15,16]. It has been discovered that the hierarchical porosity from the micro- to meso-scale could fully make use of intrinsic pores of MOFs with higher exposure to the gas molecule, which can also effectively accelerate the mass diffusion/permeation and avoid blocking of the micropores. Larger-size meso- and macroporous channels also provide enough space to load functional groups to further enhance the separation efficiency, which also presents great potential in many applications, such as heterocatalysis and drug delivery [17,18,19,20]. For the synthesis of hierarchical MOFs, increasing the length of linkers is a direct way to construct intrinsic hierarchical pores while the total routes involving fabrication of the specific linkers and topological MOFs are always a time/energy-consuming process [21,22]. In addition, researchers have also adopted post-modulation and template-directed methods to create hierarchical MOFs [23]. For example, Jiang et al. developed a general method using monocarboxylic acid as the modulator to fabricate a series of hierarchical MOFs [24]. Chen et al. employed polystyrene (PS) nanosphere monoliths as a hard template to synthesize an ordered macro–microporous ZIF-8 single crystal, which opened up an avenue for the design of large-size hierarchically porous MOFs with single-crystal structures [25]. However, developing a simple and one-pot method to directly fabricate hierarchically porous MOFs with both micro- and mesopores still remains a challenge.
Generally, most reported hierarchical CuBTC MOFs were composed of stacked small MOF particles using dissolvable Cu2+ metal salts rather than inherent hierarchical pores. In our work, we developed a facile one-pot self-sacrifice template strategy to fabricate a CuBTC-Water MOF based on a Cu2O precursor as the sole Cu+ metal source, which led to many defects in the framework and contributed to the hierarchical porous structures. This strategy demonstrated quite a simple preparation process to obtain the hierarchical CuBTC MOF without further post-treatment or templates, unlike conventional methods [26,27,28]. The hierarchically porous CuBTC-Water demonstrated a high CO2 adsorption ability under static adsorption–desorption conditions. Such hierarchically porous CuBTC-Water also exhibited more efficient dynamic separation behavior toward CO2/N2 and CO2/H2 than microporous CuBTC under continuous gas flow conditions, owing to its enhanced adsorption kinetics through the shortened diffusion pathway and highly exposed adsorptive surface. We hope this work can guide further study of hierarchically porous MOFs in service of industrial high-efficiency CO2 separation.

2. Experimental Section

2.1. Materials and Characterizations

All reagents and solvents were used directly as received from commercial sources without further purification. Thermo gravimetric analysis (TGA) was conducted using an SDT Q600 analyzer (TA Instruments, New Castle, DE, USA) under a continuous nitrogen flow (100 mL min−1) at a heating rate of 10 °C min−1.Powder X-ray diffraction (PXRD) patterns for the materials were collected with a (Rigaku Corporation SmartLab 9 kW diffractometer, Japan) at 45 kV and 200 mA with Cu Kα radiation (λ = 1.5406 Å). Scanning electron microscopy (SEM) images were recorded through a (Hitachi SU-8200 electron microscope, Japan). Fourier transform infrared spectroscopy (FT-IR) spectra were recorded by a (Bruker Tensor 27 Fourier transform infrared spectrometer, Germany) from 400 to 4000 cm−1 (KBr pellets). Chemical states were analyzed using X-ray photoelectron spectroscopy (XPS, Thermo Scientific Nexsa, Czech Republic).

2.2. Synthesis of CuBTCMOF

The synthesis of traditional CuBTC MOF was conducted using a solvothermal method. In detail, 8.4 g of H3BTC was dissolved in 240 mL of ethanol, and 17.5 g of Cu(NO3)2 3H2O was dissolved in 240 mL of deionized water. Then, the ethanol solution with the organic ligand and aqueous solution with the metal source were mixed to form a homogeneous solution; thereafter, the mixed solution was separated into six Teflon reactors at 120 °C for 10 h. Finally, the produced samples were collected and dried in a vacuum oven at 150 °C for activation.

2.3. Synthesis of CuBTC-DMF

Firstly, 0.234 g of commercialized Cu2O was weighed and put in a 100 mL clean beaker. Then, 0.4 g of benzenetricarboxylic acid (H3BTC) was dissolved in 60 mL of water–ethanol–DMF solution with the volume ratio of 1:1:1. Then, the solution was added into the beaker with Cu2O and continuously stirred at room temperature for 24 h. Finally, the blue product was obtained after centrifugation and washed with ethanol to remove the unreacted ligands. The CuBTC-DMF was activated in a vacuum oven at 150 °C for 12 h.

2.4. Synthesis of CuBTC-Water

The synthetic method for CuBTC-Water is similar to the synthesis of CuBTC-DMF. 0.4 g of H3BTC was dissolved in 60 mL of water–ethanol solution with the volume ratio of 1:1, and 0.234 g of Cu2O was mixed with the solution. After stirring at room temperature for 24 h, the blue product was obtained. Finally, the blue product was collected after centrifugation and washed with ethanol. The CuBTC-Water was activated in a vacuum oven at 150 °C for 12 h.

2.5. Gas Adsorption Measurements

All the gases (N2, CO2, H2) were of high purity (99.999%). Nitrogen adsorption isotherms at 77 K were performed with a Quantachrome Autosorb-IQ (Quantachrome Instruments, Boynton Beach, FL, USA) gas adsorption analyzer in a liquid nitrogen bath. The CO2, N2 and H2 sorption isotherms were measured at 273 K and 298 K using a circulating glycol–H2O bath. All adsorbent materials were activated at 150 °C for 12 h under vacuum conditions. The breakthrough experiments were performed on homemade instruments to simulate the actual mixture gas (20% CO2, 20% N2 and 60% He) separation to evaluate the adsorbents’ dynamic CO2/N2 separation ability. Figure S1 shows the home-built and self-designed equipment used for testing the samples’ dynamic gas adsorption and separation performance. The entire equipment comprised air intake, back pressure, mixed sample injection, mass spectrometry and exhaust gas processing. The blue background on the left side of the figure represents the three-way air inlet, the pressure reducing valve and the corresponding mass flow controller; the green background shown in the middle represents the back pressure adjustment pipeline; the yellow background shown in the upper right is the four-way valve, which can be used to switch the gas to enter the adsorption bed or blank bypass; and the white box corresponds to the sample adsorption bed in the circulating temperature-controlled bath, the pressure sensor and the back pressure regulating valve. The final gas pipeline passed through the check valve (marked on the purple background), passing through the mass spectrometer via the capillary pipeline and reaching the computer for the final recording. The mass spectrometer used was a quadrupole mass spectrometer manufactured by PFEIFFER VACUUM, and the instrument model was PrismaPlus QMG220 (Pfeiffer, Germany).
The calculation for Ideal Adsorbed Solution Theory (IAST) selectivity predominantly employs the adsorption isotherms of the two gases at the same temperature and conducts simulation calculations based on the ideal solution adsorption theory. A single Langmuir–Freundlich model was applied to fit the N2 with a lower adsorption capacity (as shown in Formula (1)), and a double Langmuir–Freundlich model was used for the CO2 with a higher adsorption capacity (as shown in Formula (2)). Subsequently, the IAST theoretical model was employed to simulate the separation selectivity under a certain mixture ratio, and the real ratio of the two gases in this paper was set as the reference (CO2:N2 = 15:85 (v/v)).
V = V 1 · K 1 · p n 1 1 + K 1 · p n 1
V = V 1 · K 1 · p n 1 1 + K 1 · p n 1 + V 2 · K 2 · p n 2 1 + K 2 · p n 2
v corresponds to the adsorption capacity per unit mass (cm3 g−1); V1 and V2 represent the saturated adsorption capacity (cm3 g−1) at two different sites; K1 and K2 (kPa−1) represent the affinity coefficient (the larger the value of K1 and K2, the stronger the interaction between the adsorbate and the adsorbent); n1 and n2 represent the deviation value from the ideal homogenous surface (the value of n1 and n2 is greater than or equal to 1; the larger the value, the weaker the interaction between the adsorbate and the adsorbent). The selection rules of the adsorption model are based on the nonlinearity of the adsorption isotherm and assume that only one layer of molecules is absorbed between the adsorbent and the adsorbate. Therefore, the physical adsorption model, i.e., the Freundlich model, and the chemical adsorption model, i.e., the Langmuir model, are employed. The adsorption process may simultaneously have physical adsorption and chemical adsorption. Hence, the two models shall be used at the same time. The Langmuir model will be used when n1 and n2 equal 1, whereas the Freundlich model is applicable when p is at a low level. Since the test process did not reach the high-pressure conditions, the test process complied with a physical adsorption process.

3. Results and Discussion

As shown in Scheme 1a, the hierarchically porous CuBTC MOF (denoted as CuBTC-Water, where H3BTC = 1,3,5-benzentricaboxylic acid) could be synthesized by a facile stirring process at room temperature (RT). The sacrificed solid Cu2O was employed as the metal source and could be transformed to the hierarchically porous CuBTC-Water in a water–ethanol solution (volume ratio of 1:1) with organic ligand H3BTC dissolved. After continuous stirring, a hierarchically porous CuBTC-Water was finally obtained. Interestingly, the synthesized hierarchical CuBTC-Water displayed an octahedron shape with porous nanosheet-like assembled morphology, which possessed abundant mesopores on its surface (Scheme 1a).
From the powder X-ray diffraction (PXRD) pattern (Figure 1a), the formed hierarchically porous CuBTC-Water could match the simulated CuBTC crystal structure well, revealing full conversion of Cu precursors. Unexpectedly, we found that the solvent played an important role in the formation of the hierarchically porous structure. When using water–ethanol/–imethylformamide (DMF) with the volume ratio of 1:1:1 as the solvent, the final product possessed normal octahedron-shape CuBTC morphology with a relatively intact surface, which was quite different from the synthesis without DMF as a solvent (Scheme 1b).
Nevertheless, both CuBTC-Water and CuBTC-DMF possessed the same PXRD patterns with the simulated CuBTC (Figure 1a), which indicated that the difference in solvent would not destroy the framework of the MOF. Figure S2 shows the PXRD patterns of simulated CuBTC, enlarged 6 times, in the 2Ɵ > 13° range, which shows excellent matches. The water stability test involved using a special gas-matched exchange reaction kettle as the test environment container. The CuBTC-Water was placed in the column tank, 5 mL of deionized water was put in the bottom of the reaction kettle, and then the reaction kettle was placed in the oven at 110 °C and maintained for 1 day. After the reactor cooled to room temperature naturally, the CuBTC-Water was removed for subsequent XRD characterization testing. CuBTC-Water still maintained a complete crystal structure, which proved that the material had good water stability (Figure S3). Thermogravimetric analysis (TGA) was also performed to investigate the thermal stability and influence of solvents for the synthesis of these two MOFs. As shown in Figure 1b, both CuBTC-Water and CuBTC-DMF showed sharp weight loss above 350 °C, ascribed to the collapse of MOF frameworks at high temperatures. In addition, the CuBTC-DMF had an obvious mild weight loss at 200–350 °C, indicating the desorption of strongly adsorbed DMF molecules in the pore of CuBTC-DMF during heating. At the same time, CuBTC-Water only displayed a smooth stage at this temperature region, suggesting a clean pore environment. The thermal analysis indicated the stability of such CuBTC-Water was maintained when the hierarchical pores were introduced. CuBTC-Water demonstrated a cleaner pore environment than CuBTC-DMF without the existence of DMF, which is better for the adsorption of CO2 molecules. Fourier transform infrared (FTIR) spectroscopy was also used to characterize the crystalline structure of CuBTC-Water and CuBTC-DMF. As shown in Figure 1c, the FTIR spectra of CuBTC-Water were in accordance with those of CuBTC-DMF and pure as-prepared CuBTC, indicating the high-purity HKUST-1 phase after the introduction of hierarchical pores. Unlike the conventional thermal methods, this method provides an energy-efficient route for preparing the hierarchically porous CuBTC-Water at room temperature without any post-treatments to obtain mesopores.
N2 physisorption analysis was then conducted to identify the pore characteristics of CuBTC-Water. As shown in Figure 2a, CuBTC-Water showed a much higher N2 uptake at the low-pressure region than CuBTC-DMF, indicating the presence of a large number of micropores and a higher Brunauer–Emmett–Teller (BET) surface area of CuBTC-Water. Figures S4 and S5 show the BET fitting plot of CuBTC-DMF and CuBTC-Water for calculation of their BET specific surface areas. Furthermore, CuBTC-Water showed obvious hysteresis loops at high relative pressure in the N2 adsorption–desorption isotherms, which indicated the existence of mesopores. The pore size distribution diagram and SEM image (Scheme 1a) also proved the existence of abundant mesopores as well as microporous structures in CuBTC-Water (Figure 2b). In contrast, CuBTC-DMF merely showed abundant micropores, as shown in Figure 2b and Figure S6. Hence, it can be deduced that the solvent played crucial roles in the fabrication of hierarchically porous MOF. CuBTC-Water synthesized from Cu2O and water–ethanol solution possessed abundant hierarchical structures and a BET surface area of 1697 m2 g−1, higher than CuBTC-DMF (1335 m2 g−1) synthesized from Cu2O and water–ethanol–DMF solution.
Owing to the use of insolvable Cu2O as the metal precursor in water–ethanol, the formed CuBTC-Water had abundant deficiencies in the crystalline framework. X-ray photoelectron spectroscopy (XPS) confirmed the large amount of Cu (I) in the framework, which might have contributed to the deficiencies. Introduction of DMF solution helped to form more integrated crystalline frameworks with fewer deficiencies, ascribed to the high affinity of DMF to the metal sites, which accorded with lower Cu (I) amounts in CuBTC-DMF, as seen in the XPS results (Figure 2c). Therefore, CuBTC-Water exhibited hierarchically porous structures and a large BET surface area by virtue of the deficiencies formed during synthesis via Cu2O and water–ethanol solution.
In the hierarchically porous structures of CuBTC-Water, mesopores are beneficial to facilitating the mass diffusion/transfer processes, and micropores contribute to the high storage ability of gas molecules. To investigate the CO2 adsorption properties, static equilibrium adsorption was carried out. The adsorption–desorption isotherms measured at 273 K and 298 K for CuBTC-Water are displayed in Figure 3a,b. CuBTC-Water demonstrated a CO2 uptake of 180.529 cm3 g−1 at 273 K and 1 bar and 94.147 cm3 g−1 at 298 K and 1 bar, with selectivity for CO2/N2 mixtures (CO2/N2 = 15:85 v/v) as high as 56.547 at 273 K (Figure 3e, calculated using the IAST method), whereas microporous CuBTC-DMF only exhibited 144.681 cm3 g−1 at 273 K and 1 bar (Figure 3c) and 47.70 cm3 g−1 at 298 K and 1 bar (Figure 3d) with a selectivity of 34.692 for CO2/N2 mixtures (Figure 3f). Owing to the higher BET surface areas and pore volume (0.757 cm3 g−1 of CuBTC-Water (micropore volume of 0.668 cm3 g−1) and 0.509 cm3 g−1 of CuBTC-DMF (micropore volume of 0.498 cm3 g−1), the formed hierarchically porous CuBTC-Water presented a higher CO2 adsorption ability and selectivity toward N2 and H2 than microporous CuBTC-DMF under static equilibrium adsorption.
Furthermore, according to the CO2/N2 adsorption and desorption isothermal data at 298 K and 273 K, we also calculated the CO2/N2 adsorption enthalpies of CuBTC-Water and CuBTC-DMF. As validated by Figure S7, the CO2/N2 adsorption enthalpy of CuBTC-Water material was obviously lower than that of CuBTC-DMF material. The adsorption enthalpy differences indicate that CuBTC-Water material not only possesses higher CO2 adsorption capacity, but also has lower CO2/N2 adsorption enthalpy, suggesting a much easier desorption barrier with low energy consumption for regeneration.
Moreover, in practical operations, gas separations are always conducted under a dynamic gas flow condition, in which the diffusions of gases within the adsorbents can impede the overall performance [14]. Hence, we conducted breakthrough measurements to test the separation ability of these two adsorbents under a dynamic flow condition. As displayed in Figure 4a–d, the breakthrough measurements for CuBTC-Water and CuBTC-DMF were conducted using a CO2/N2 gas mixture (20/20, v/v) under various gas flow rates at 298 K and 1 bar. The results show that CuBTC-Water demonstrated a much earlier breakthrough for N2 and a similar CO2 breakthrough time compared to CuBTC-DMF at the slow gas flow rate of 10 sccm (Figure 4a). At different gas flow rates, the hierarchically porous CuBTC-Water displayed an earlier nitrogen gas breakthrough and a greater amount of carbon dioxide adsorption than CuBTC-DMF.
The earlier N2 breakthrough indicated that N2 could be quickly saturated in the adsorbents and easily pass through the adsorbents with low diffusion resistance, which could be attributed to the mesoporous structures of CuBTC-Water with more exposed adsorptive surface, shortened gas diffusion length and low adsorption enthalpy. Thus, the CO2 adsorption amount of CuBTC-Water could reach 1.88 mmol g−1, higher than that of CuBTC-DMF. Thus, hierarchically porous CuBTC-Water demonstrated a selectivity of 3.38 at a gas flow rate of 10 sccm, which was much higher than that of microporous CuBTC-DMF, which demonstrated a selectivity of 2.56. Remarkably, as shown in Figure 5a, at a higher gas flow rate of 20, 50 and 100 sccm, CuBTC-Water also exhibited much better dynamic selectivity for CO2/N2 separation. CuBTC-Water exhibited an earlier N2 breakthrough and a much later CO2 breakthrough than CuBTC-DMF at the increased gas flow rates, indicating a better separation ability and the potential of hierarchically porous CuBTC-Water to achieve realistic CO2 separation. This further proved the superiorities of the hierarchically porous structures of CuBTC-Water, which can fully expose the adsorption surface area and facilitate gas diffusion under dynamic separation conditions (Figure 5b).
Compared with other reported synthesized compounds as listed in Table 1 and Table S1, the advantages of CuBTC-Water for efficient dynamic CO2 separation may be attributed to the following factors: firstly, this one-pot synthesis method with green environmental solvent is a quite simple preparation process compared to conventional methods, which is beneficial for its large-scale production and application. Secondly, well-organized hierarchical structures offer channels and shortened pathways, promoting realistic dynamic CO2 separation. Thirdly, the synergistic effect of hierarchical pores and moderate adsorption enthalpy also contribute to enhancing the separation efficiency.

4. Summary

In summary, the hierarchically porous CuBTC-Water was facilely synthesized through a self-sacrificed template method at room temperature utilizing Cu2O as the sacrificed template. In contrast to traditional methods of fabricating hierarchically porous MOFs, this work presents a one-pot route to constructing the hierarchical structures with abundant micropores and mesopores without any extra templates and post-treatments. Through simple tuning solvents with/without DMF, the porous structures can be intriguingly regulated from microporous structures to hierarchically porous structures. The hierarchically porous structures play vital roles in enhancing the separation ability of the CO2 gas mixture by virtue of the highly exposed adsorptive surface and shortened diffusion length. Hence, the produced hierarchically porous CuBTC-Water not only exhibited a high CO2 adsorption ability under static adsorption–desorption conditions, but also showed much higher selectivity for the CO2/N2 mixture under dynamic flow conditions than for CuBTC-DMF. The facile synthesis of hierarchical CuBTC-Water and its high adsorption/separation ability under dynamic flow conditions suggest the high potential of CuBTC-Water for realistic CO2 separation.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ma15155292/s1, Figure S1: The illustrated description for the breakthrough instruments. Figure S2: Enlarged the PXRD patterns of simulated CuBTC for 6 times in 2Ɵ > 13˚ range. Figure S3: XRD of CuBTC-Water after water stability test. Figure S4: BET fitting plot of CuBTC-DMF. Figure S5: BET fitting plot of CuBTC-Water. Figure S6: Enlarged pore distributions of CuBTC-DMF and CuBTC-Water calculated by using NLDFT method. Figure S7: Adsorption enthalpies of (a) CO2 and (b) N2 for CuBTC-DMF and CuBTC-Water. Table S1: Comparison of the other reported numbers for CuBTC in literature [36,37,38,39,40].

Author Contributions

Data curation, T.Q. and D.X.; Formal analysis, T.Q. and D.K.; Funding acquisition, S.G. and Y.F.; Investigation, T.Q., Y.F., D.X. and D.K.; Methodology, D.X. and D.K.; Software, D.K.; Supervision, S.G.; Validation, Y.F.; Writing—original draft, T.Q.; Writing—review and editing, S.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Key Research and Development Program of China (Grant No. 2019YFB1505001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Acknowledgments

This work is supported by grants from the National Key Research and Development Program of China (Grant No. 2019YFB1505001). The authors extend much thanks to the reviewers and editors for their valuable suggestions that have helped improve our paper substantially.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Haszeldine, R.S. Carbon Capture and Storage: How Green Can Black Be? Science 2009, 325, 1647–1652. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, Q.; Luo, J.Z.; Zhong, Z.Y.; Borgna, A. CO2 capture by solid adsorbents and their applications: Current status and new trends. Energy Environ. Sci. 2011, 4, 42–55. [Google Scholar] [CrossRef]
  3. Koh, K.; Wong-Foy, A.G.; Matzger, A.J. A Porous Coordination Copolymer with over 5000 m2/g BET Surface Area. J. Am. Chem. Soc. 2009, 131, 4184–4185. [Google Scholar] [CrossRef]
  4. Farha, O.K.; Yazaydin, A.O.; Eryazici, I.; Malliakas, C.D.; Hauser, B.G.; Kanatzidis, M.G.; Nguyen, S.T.; Snurr, R.Q.; Hupp, J.T. De novo synthesis of a metal-organic framework material featuring ultrahigh surface area and gas storage capacities. Nat. Chem. 2010, 2, 944–948. [Google Scholar] [CrossRef] [PubMed]
  5. McDonald, T.M.; Lee, W.R.; Mason, J.A.; Wiers, B.M.; Hong, C.S.; Long, J.R. Capture of Carbon Dioxide from Air and Flue Gas in the Alkylamine-Appended Metal-Organic Framework mmen-Mg2(dobpdc). J. Am. Chem. Soc. 2012, 134, 7056–7065. [Google Scholar] [CrossRef] [PubMed]
  6. Hong, D.-Y.; Hwang, Y.K.; Serre, C.; Férey, G.; Chang, J.-S. Porous Chromium Terephthalate MIL-101 with Coordinatively Unsaturated Sites: Surface Functionalization, Encapsulation, Sorption and Catalysis. Adv. Funct. Mater. 2009, 19, 1537–1552. [Google Scholar] [CrossRef]
  7. Zhong, R.Q.; Yu, X.F.; Meng, W.; Han, S.B.; Liu, J.; Ye, Y.X.; Sun, C.Y.; Chen, G.J.; Zou, R.Q. A solvent ‘squeezing’ strategy to graft ethylenediamine on Cu3(BTC)2 for highly efficient CO2/CO separation. Chem. Eng. Sci. 2018, 184, 85–92. [Google Scholar] [CrossRef]
  8. Britt, D.; Furukawa, H.; Wang, B.; Glover, T.G.; Yaghi, O.M. Highly efficient separation of carbon dioxide by a metal-organic framework replete with open metal sites. PNAS 2009, 106, 20637–20640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Buragohain, A.; Van der Voort, P.; Biswas, S. Facile synthesis and gas adsorption behavior of new functionalized Al-MIL-101-X (X = –CH3, –NO2, –OCH3, –C6H4, –F2, –(CH3)2, –(OCH3)2) materials. Micropor. Mesopor. Mat. 2015, 215, 91–97. [Google Scholar] [CrossRef]
  10. Yeon, J.S.; Lee, W.R.; Kim, N.W.; Jo, H.; Lee, H.; Song, J.H.; Lim, K.S.; Kang, D.W.; Seo, J.G.; Moon, D.; et al. Homodiamine-functionalized metal–organic frameworks with a MOF-74-type extended structure for superior selectivity of CO2 over N2. J. Mater. Chem. A 2015, 3, 19177–19185. [Google Scholar] [CrossRef]
  11. Wang, G.F.; Graham, E.; Zheng, S.L.; Zhu, J.X.; Zhu, R.L.; He, H.P.; Sun, Z.M.; Mackinnon, I.D.R.; Xi, Y.F. Diatomite-Metal-Organic Framework Composite with Hierarchical Pore Structures for Adsorption/Desorption of Hydrogen, Carbon Dioxide and Water Vapor. Materials 2020, 13, 4700. [Google Scholar] [CrossRef]
  12. Duan, C.; Zou, W.; Du, Z.J.; Mi, J.G.; Han, J.X.; Zhang, C. Construction of Oxygen-Rich Carbon Foams for Rapid Carbon Dioxide Capture. Materials 2020, 14, 173. [Google Scholar] [CrossRef]
  13. Hwang, S.; Chi, W.S.; Lee, S.J.; Im, S.H.; Kim, J.H.; Kim, J. Hollow ZIF-8 nanoparticles improve the permeability of mixed matrix membranes for CO2/CH4 gas separation. J. Membr. Sci. 2015, 480, 11–19. [Google Scholar] [CrossRef]
  14. Zhang, X.H.; Chuah, C.Y.; Dong, P.P.; Cha, Y.-H.; Bae, T.-H.; Song, M.-K. Hierarchically Porous Co-MOF-74 Hollow Nanorods for Enhanced Dynamic CO2 Separation. ACS Appl. Mater. Interfaces 2018, 10, 43316–43322. [Google Scholar] [CrossRef] [PubMed]
  15. Zhong, R.Q.; Yu, X.F.; Meng, W.; Liu, J.; Zhi, C.X.; Zou, R.Q. Amine-Grafted MIL-101(Cr) via Double-Solvent Incorporation for Synergistic Enhancement of CO2 Uptake and Selectivity. ACS Sustain. Chem. Eng. 2018, 6, 16493–16502. [Google Scholar] [CrossRef]
  16. Rieth, A.J.; Dinca, M. Controlled Gas Uptake in Metal-Organic Frameworks with Record Ammonia Sorption. J. Am. Chem. Soc. 2018, 140, 3461–3466. [Google Scholar] [CrossRef]
  17. Fonseca, J.; Choi, S. Synthesis of a novel amorphous metal organic framework with hierarchical porosity for adsorptive gas separation. Micropor. Mesopor. Mat. 2021, 310, 110600. [Google Scholar] [CrossRef]
  18. Feng, L.; Wang, K.-Y.; Lv, X.-L.; Yan, T.-H.; Zhou, H.-C. Hierarchically porous metal–organic frameworks: Synthetic strategies and applications. Natl. Sci. Rev. 2020, 7, 1743–1758. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Qiu, T.J.; Liang, Z.B.; Guo, W.H.; Tabassum, H.; Gao, S.; Zou, R.Q. Metal-Organic Framework-Based Materials for Energy Conversion and Storage. ACS Energy Lett. 2020, 5, 520–532. [Google Scholar] [CrossRef] [Green Version]
  20. Li, G.Q.; Kujawski, W.; Knozowska, K.; Kujawa, J. Thin Film Mixed Matrix Hollow Fiber Membrane Fabricated by Incorporation of Amine Functionalized Metal-Organic Framework for CO2/N2 Separation. Materials 2021, 14, 3366. [Google Scholar] [CrossRef]
  21. Li, P.; Vermeulen, N.A.; Malliakas, C.D.; Gomez-Gualdron, D.A.; Howarth, A.J.; Mehdi, B.L.; Dohnalkova, A.; Browning, N.D.; O’Keeffe, M.; Farha, O.K. Bottom-up construction of a superstructure in a porous uranium-organic crystal. Science 2017, 356, 624–627. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Feng, D.W.; Liu, T.F.; Su, J.; Bosch, M.; Wei, Z.W.; Wan, W.; Yuan, D.Q.; Chen, Y.P.; Wang, X.; Wang, K.C.; et al. Stable metal-organic frameworks containing single-molecule traps for enzyme encapsulation. Nat. Commun. 2015, 6, 5979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Qiu, T.J.; Gao, S.; Liang, Z.B.; Wang, D.G.; Tabassum, H.; Zhong, R.Q.; Zou, R.Q. Pristine Hollow Metal-Organic Frameworks: Design, Synthesis and Application. Angew. Chem. Int. Ed. 2021, 60, 17314–17336. [Google Scholar] [CrossRef]
  24. Cai, G.R.; Jiang, H.L. A Modulator-Induced Defect-Formation Strategy to Hierarchically Porous Metal–Organic Frameworks with High Stability. Angew. Chem. Int. Ed. 2017, 56, 563–567. [Google Scholar] [CrossRef] [PubMed]
  25. Shen, K.; Zhang, L.; Chen, X.D.; Liu, L.M.; Zhang, D.L.; Han, Y.; Chen, J.Y.; Long, J.L.; Luque, R.; Li, Y.W.; et al. Ordered macro-microporous metal-organic framework single crystals. Science 2018, 359, 206–210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Wan, M.M.; Zhang, X.L.; Li, M.Y.; Chen, B.; Yin, J.; Jin, H.C.; Lin, L.; Chen, C.; Zhang, N. Hollow Pd/MOF Nanosphere with Double Shells as Multifunctional Catalyst for Hydrogenation Reaction. Small 2017, 13, 1701395. [Google Scholar] [CrossRef] [PubMed]
  27. Yang, Y.H.; Arque, X.; Patino, T.; Guillerm, V.; Blersch, P.-R.; Perez-Carvajal, J.; Imaz, I.; Maspoch, D.; Sanchez, S. Enzyme-Powered Porous Micromotors Built from a Hierarchical Micro- and Mesoporous UiO-Type Metal-Organic Framework. J. Am. Chem. Soc. 2020, 142, 20962–20967. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, W.X.; Huang, J.J.; Yang, Q.; Wang, S.J.; Sun, X.M.; Zhang, W.N.; Liu, J.F.; Huo, F.W. Multi-shelled Hollow Metal-Organic Frameworks. Angew. Chem. Int. Ed. 2017, 56, 5512–5516. [Google Scholar] [CrossRef]
  29. Chen, C.; Li, X.; Zou, W.X.; Wan, H.; Dong, L.; Guan, G.F. Structural modulation of UiO-66-NH2 metal-organic framework via interligands cross-linking: Cooperative effects of pore diameter and amide group on selective CO2 separation. Appl. Surf. Sci. 2021, 553, 149547. [Google Scholar] [CrossRef]
  30. Liu, Y.L.; Di, Y.Y.; Qiao, C.F.; Liu, M.B.; Zhou, C.S. A novel microporous metal-organic framework with Lewis basic sites and open O donor sites: Crystal structure and adsorption properties. J. Solid State Chem. 2020, 292, 121688. [Google Scholar] [CrossRef]
  31. Du, L.T.; Miao, Y.C.; Zheng, B.S.; Ma, M.T.; Zhang, J.C. Honeycomb-like 2D metal-organic polyhedral framework exhibiting selectively adsorption of CO2. J. Solid State Chem. 2021, 300, 122230. [Google Scholar] [CrossRef]
  32. Zhou, X.J.; Liu, L.L.; Kou, H.; Zheng, S.M.; Song, M.J.; Lu, J.T.; Tai, X.S. A Multifunctional 3D Supermolecular Co Coordination Polymer With Potential for CO2 Adsorption, Antibacterial Activity, and Selective Sensing of Fe3+ /Cr3+ Ions and TNP. Front. Chem. 2021, 9, 678993. [Google Scholar] [CrossRef] [PubMed]
  33. Gupta, V.; Mandal, S.K. A robust and water-stable two-fold interpenetrated metal-organic framework containing both rigid tetrapodal carboxylate and rigid bifunctional nitrogen linkers exhibiting selective CO2 capture. Dalton Trans. 2019, 48, 415–425. [Google Scholar] [CrossRef] [PubMed]
  34. Gaikwad, S.; Cheedarala, R.K.; Gaikwad, R.; Kim, S.; Han, S. Controllable Synthesis of 1, 3, 5-tris (1H-benzo[d]imidazole-2-yl) Benzene-Based MOFs. Appl. Sci. 2021, 11, 9856. [Google Scholar] [CrossRef]
  35. He, T.J.; Xiao, Y.H.; Zhao, Q.D.; Zhou, M.X.; He, G.H. Ultramicroporous Metal-Organic Framework Qc-5-Cu for Highly Selective Adsorption of CO2 from C2H4 Stream. Ind. Eng. Chem. Res. 2020, 59, 3153–3161. [Google Scholar] [CrossRef]
  36. Chui, S.S.Y.; Lo, S.M.F.; Charmant, J.P.H.; Orpen, A.G.; Williams, I.D. A Chemically Functionalizable Nanoporous Material [Cu3(TMA)2(H2O)3]n. Science 1999, 283, 1148–1150. [Google Scholar] [CrossRef]
  37. Huo, J.; Brightwell, M.; Hankari, S.E.; Garai, A.; Bradshaw, D. A versatile, industrially relevant, aqueous room temperature synthesis of HKUST-1 with high space-time yield. J. Mater. Chem. A 2013, 1, 15220–15223. [Google Scholar] [CrossRef]
  38. Duan, C.X.; Zhang, H.; Li, F.E.; Xiao, J.; Luo, S.J.; Xi, H.X. Hierarchically porous metal-organic frameworks: Rapid synthesis and enhanced gas storage. Soft Matter 2018, 14, 9589–9598. [Google Scholar] [CrossRef] [PubMed]
  39. Zhan, G.W.; Zeng, H.C. An alternative synthetic approach for macro-meso-microporous metal-organic frameworks via a “domain growth” mechanism. Chem. Commun. 2016, 52, 8432–8435. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Doan, H.V.; Sartbaeva, A.; Eioi, J.-C.; Davis, S.A.; Ting, V.P. Defective hierarchical porous copper-based metal-organic frameworks synthesised via facile acid etching strategy. Sci. Rep. 2019, 9, 10887. [Google Scholar] [CrossRef]

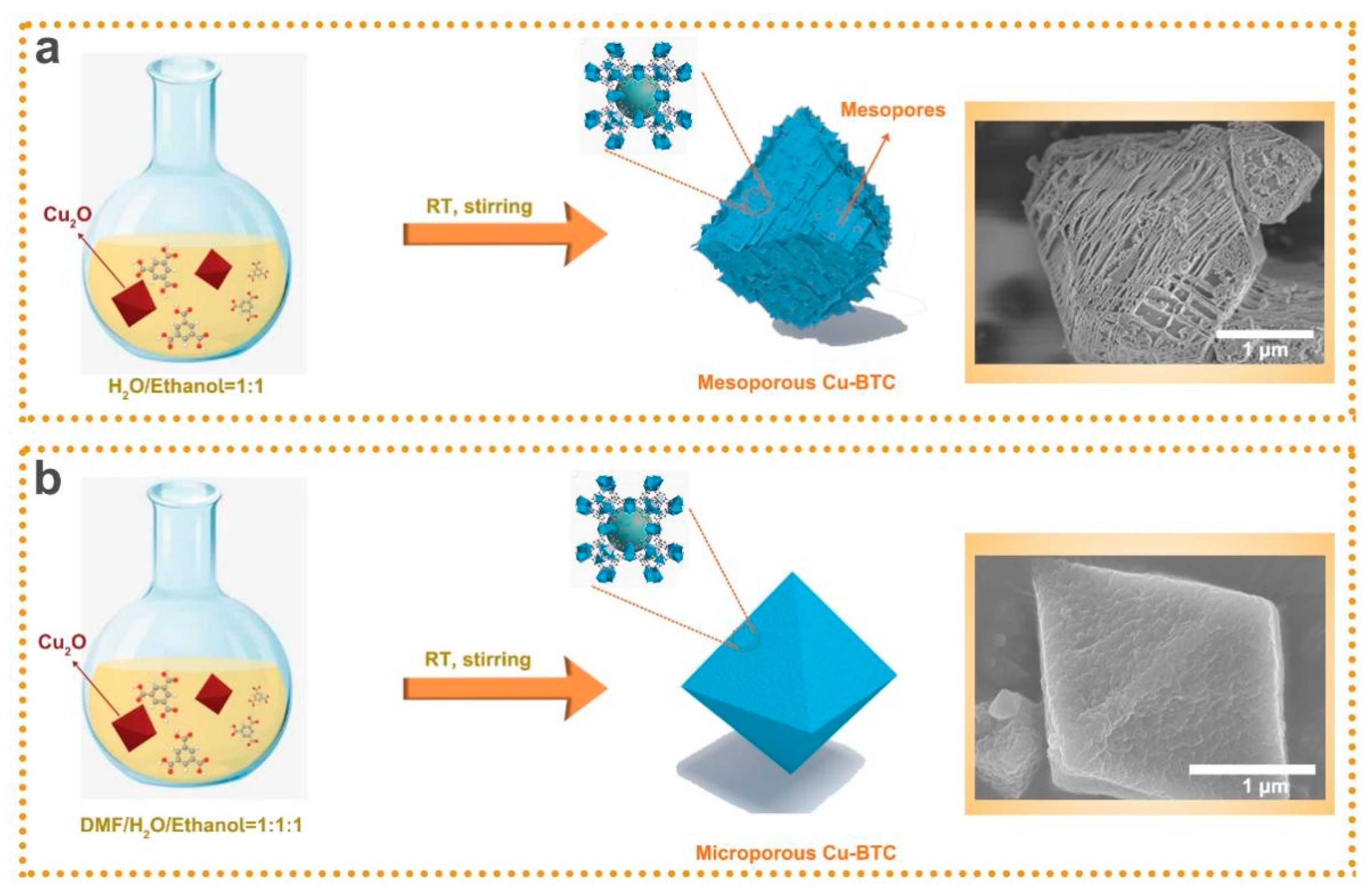

Scheme 1. Schematic illustration of the synthesis of hierarchically porous CuBTC-Water (a) and microporous CuBTC-DMF (b).
Scheme 1. Schematic illustration of the synthesis of hierarchically porous CuBTC-Water (a) and microporous CuBTC-DMF (b).
Materials 15 05292 sch001

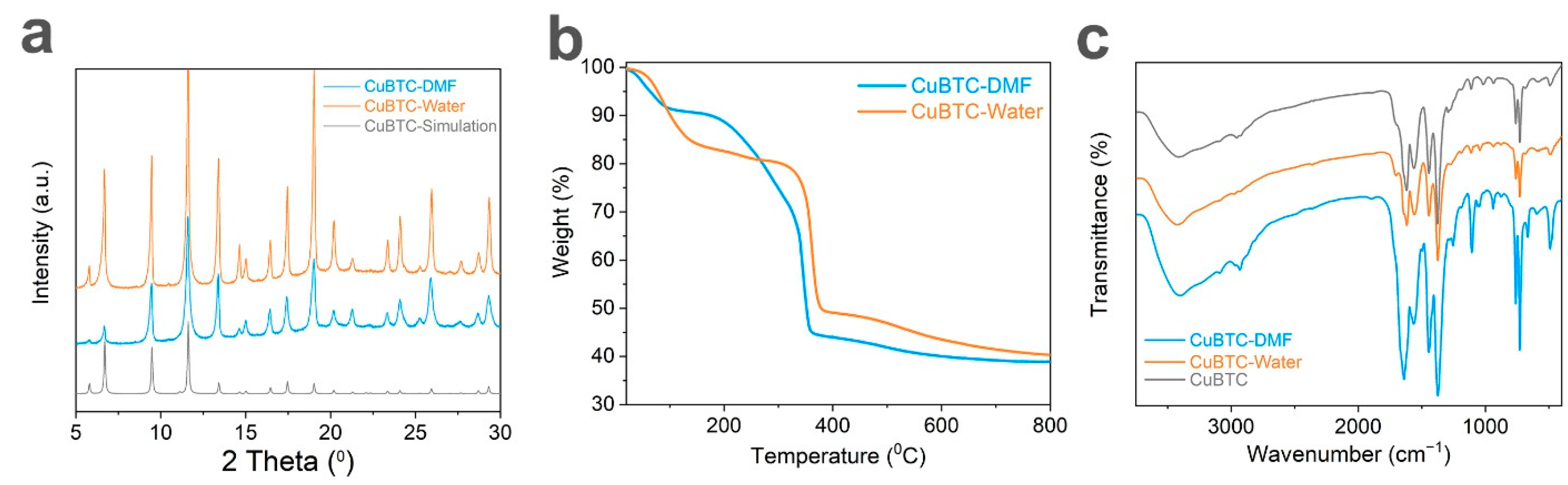

Figure 1. (a) PXRD patterns, (b) TGA and (c) FTIR spectrum of CuBTC-DMF and CuBTC-Water.
Figure 1. (a) PXRD patterns, (b) TGA and (c) FTIR spectrum of CuBTC-DMF and CuBTC-Water.
Materials 15 05292 g001

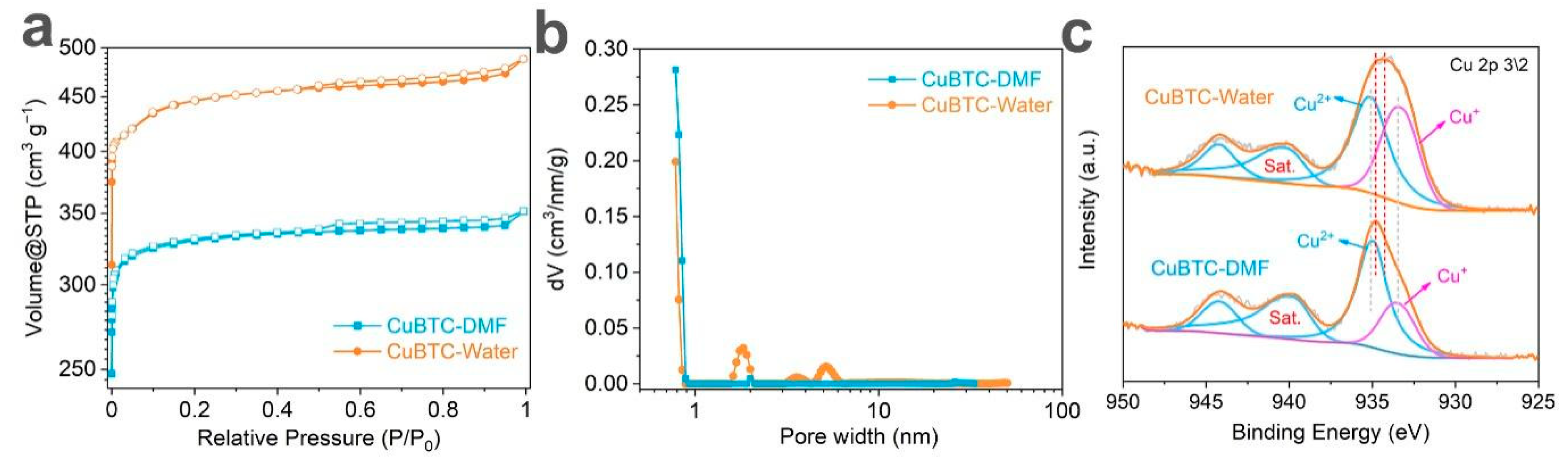

Figure 2. (a) N2 adsorption and desorption isotherms of CuBTC-DMF and CuBTC-Water at 77 K and (b) corresponding pore distributions calculated using NLDFT method. It should be noted that only micropores were observed for the CuBTC-DMF. In contrast, both mesopores and micropores coexisted in the CuBTC-Water. (c) High-resolution XPS spectra of CuBTC-DMF and CuBTC-Water.
Figure 2. (a) N2 adsorption and desorption isotherms of CuBTC-DMF and CuBTC-Water at 77 K and (b) corresponding pore distributions calculated using NLDFT method. It should be noted that only micropores were observed for the CuBTC-DMF. In contrast, both mesopores and micropores coexisted in the CuBTC-Water. (c) High-resolution XPS spectra of CuBTC-DMF and CuBTC-Water.
Materials 15 05292 g002

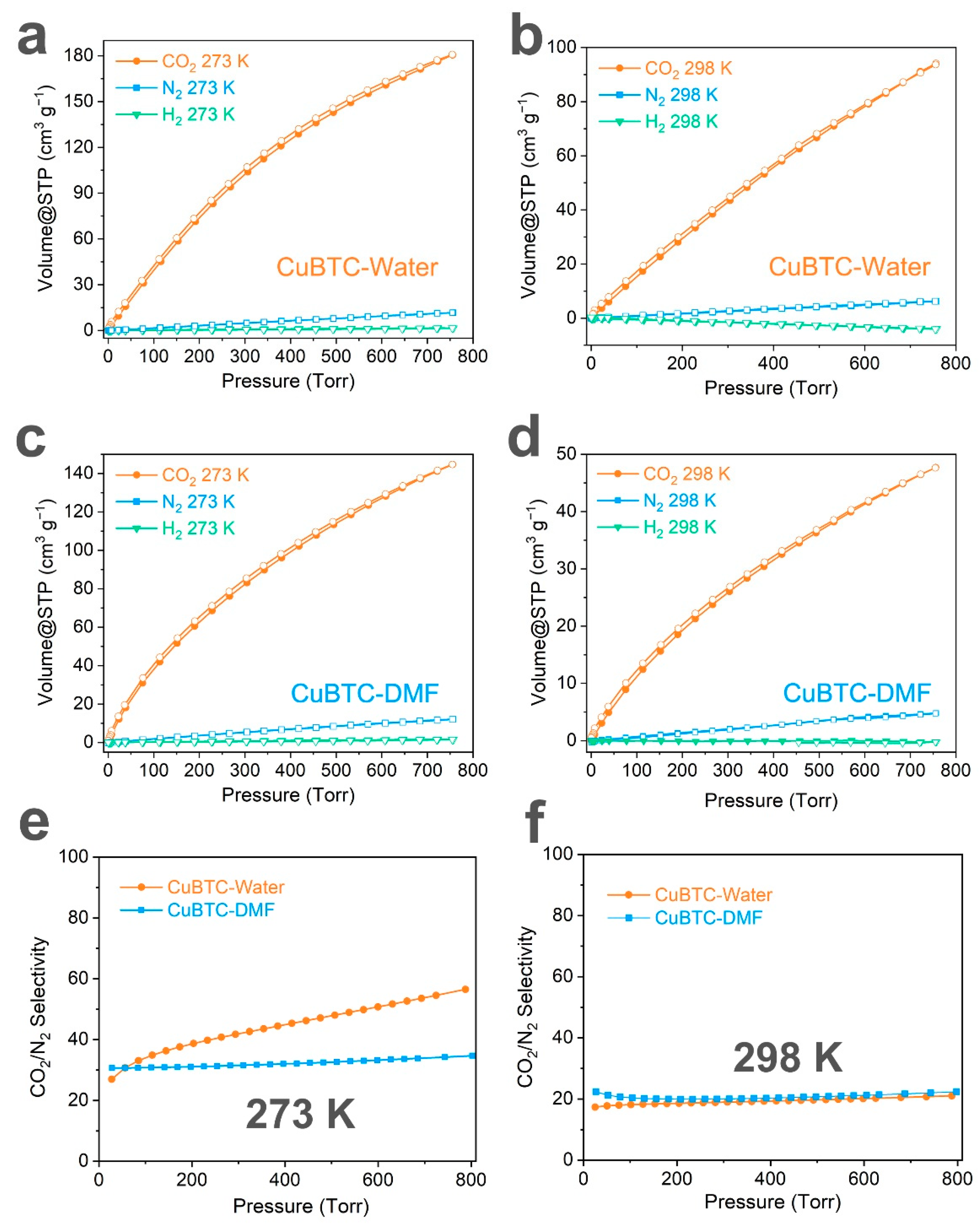

Figure 3. (a,b) Adsorption–desorption isotherms of CuBTC-Water at 273 K and 298 K. (c,d) Adsorption–desorption isotherms of CuBTC-DMF at 273 K and 298 K. (e,f) Selectivity of CuBTC-Water and CuBTC-DMF for CO2/N2 mixtures (CO2/N2 = 15:85 v/v, calculated using the IAST method) at 273 K and 298 K.
Figure 3. (a,b) Adsorption–desorption isotherms of CuBTC-Water at 273 K and 298 K. (c,d) Adsorption–desorption isotherms of CuBTC-DMF at 273 K and 298 K. (e,f) Selectivity of CuBTC-Water and CuBTC-DMF for CO2/N2 mixtures (CO2/N2 = 15:85 v/v, calculated using the IAST method) at 273 K and 298 K.
Materials 15 05292 g003

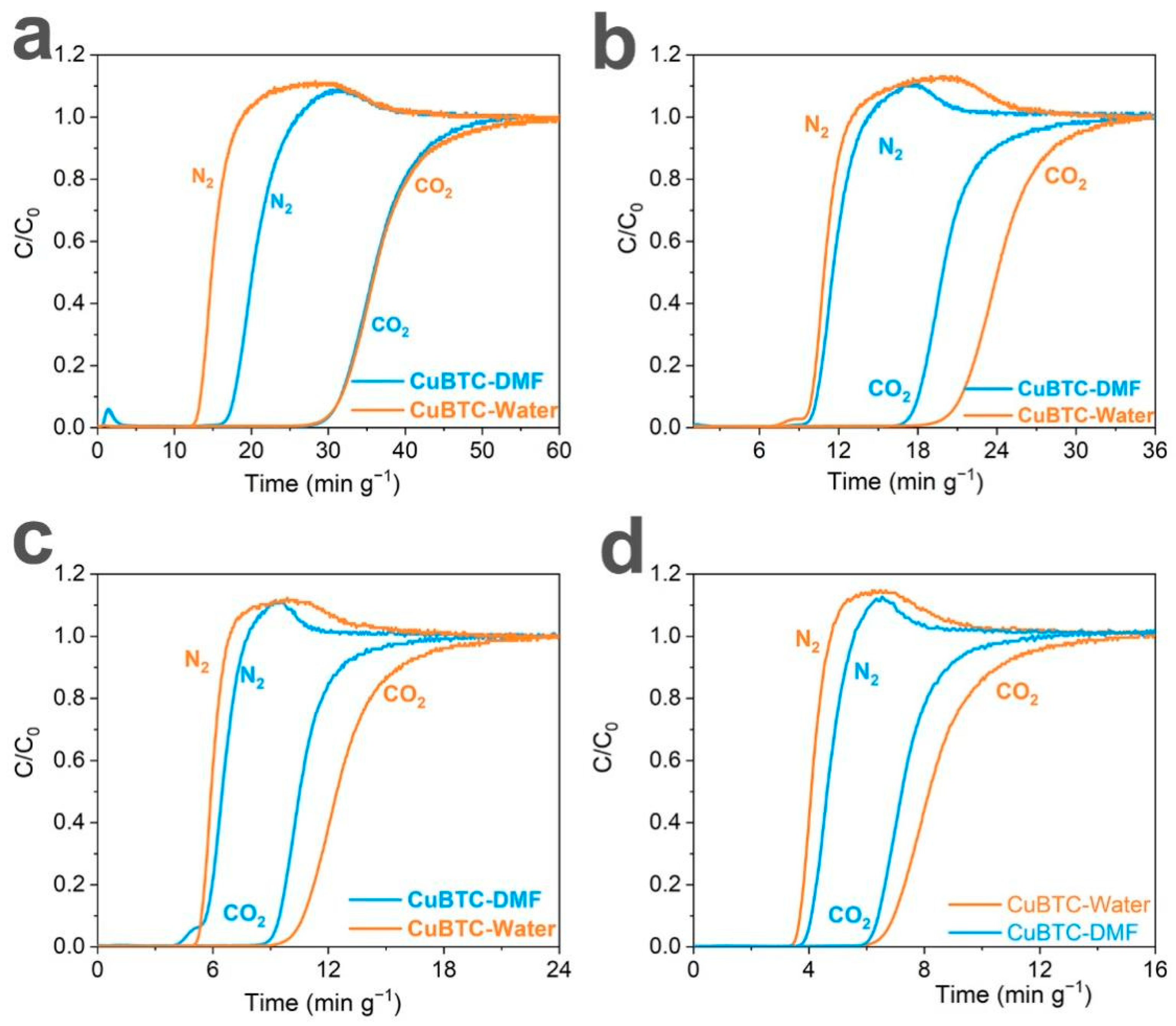

Figure 4. The dynamic breakthrough curves of CuBTC-DMF and CuBTC-Water for the CO2/N2 mixture (The feed gas for the breakthrough measurement and chromatographic separation was composed of 20% CO2, 20% N2 and 60% He.) at room temperature with different mass flow rates of (a) 10 sccm, (b) 20 sccm, (c) 50 sccm and (d) 100 sccm.
Figure 4. The dynamic breakthrough curves of CuBTC-DMF and CuBTC-Water for the CO2/N2 mixture (The feed gas for the breakthrough measurement and chromatographic separation was composed of 20% CO2, 20% N2 and 60% He.) at room temperature with different mass flow rates of (a) 10 sccm, (b) 20 sccm, (c) 50 sccm and (d) 100 sccm.
Materials 15 05292 g004

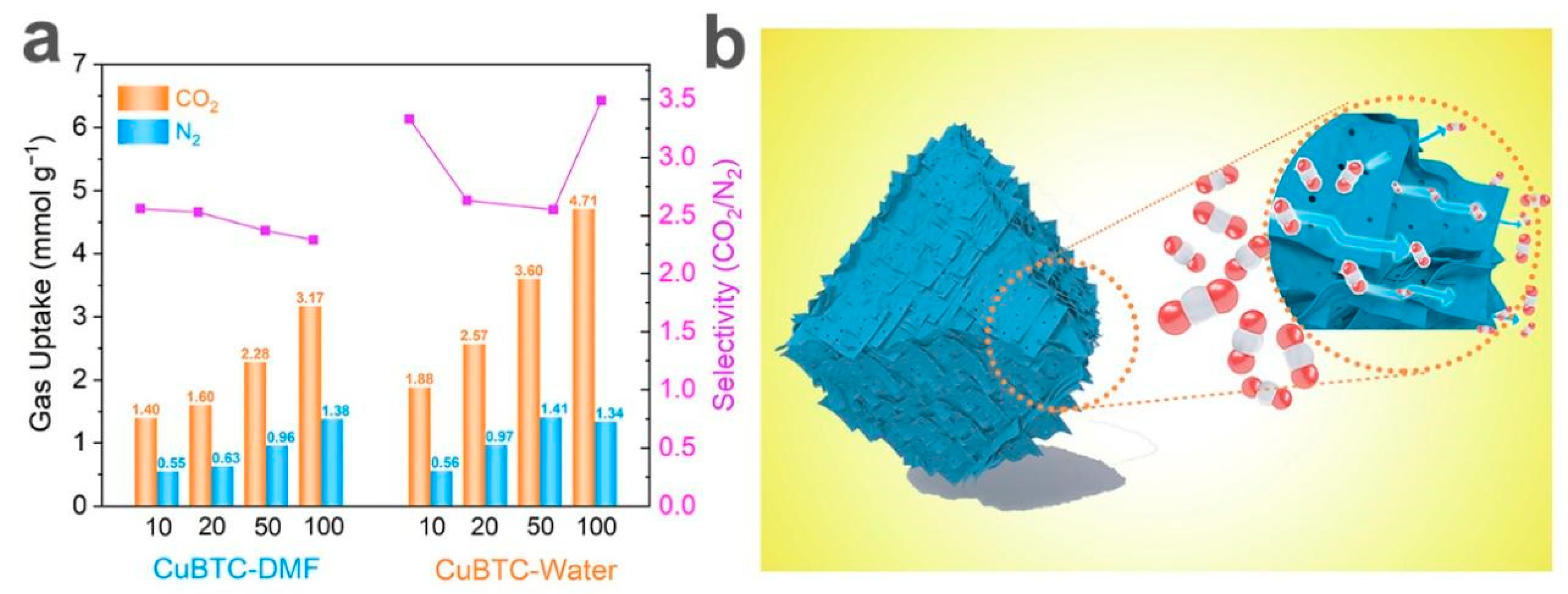

Figure 5. (a) Gas uptake amount and selectivity of CuBTC-DMF and CuBTC-Water. (b) Schematic illustration for CO2 separation under dynamic conditions through hierarchically porous CuBTC-Water. The circle area indicates the schematically enlarged MOF crystal for CO2/N2 separation.
Figure 5. (a) Gas uptake amount and selectivity of CuBTC-DMF and CuBTC-Water. (b) Schematic illustration for CO2 separation under dynamic conditions through hierarchically porous CuBTC-Water. The circle area indicates the schematically enlarged MOF crystal for CO2/N2 separation.
Materials 15 05292 g005
Table 1. Comparison of the performance of CuBTC-Water with other relevant materials reported in the literature.
Table 1. Comparison of the performance of CuBTC-Water with other relevant materials reported in the literature.
MaterialsSBET (m2 g−1)CO2 UptakeRef.
CuBTC-Water169794.147This work
UiO-66-DAM86054.1[29]
Zn porous MOF447.9259.2[30]
NJFU-547337.0[31]
Co3(L)2 (2,2′-bipy)2](DMF)3(H2O)365850[32]
{[Co2(4,4′-bpy)(L)]·H2O·0.5(DMF)}n22436.4[33]
TIBM-Cu MOF1073.588.2[34]
Qc-5-Cu211.360.76[35]
