Femtosecond Laser-Ablated Copper Surface as a Substrate for a MoS₂-Based Hydrogen Evolution Reaction Electrocatalyst

Abstract

One of the methods to improve the performance of a heterogeneous electrocatalyst is the dispersion of a catalytic material on a suitable substrate. In this study, femtosecond laser ablation was used to prepare very rough but also ordered copper surfaces consisting of vertical, parallel ridges. Then, a molybdenum sulfide coating was electrochemically deposited onto these surfaces. It was observed by profilometry that the average roughness of the surface after coating with MoS₂ had decreased, but the developed surface area still remained significantly larger than the projected surface area. The electrodes were then used as an electrocatalyst for the hydrogen evolution reaction in acidic media. These were highly efficient, reaching 10 mA cm⁻² of HER current at a −181 mV overpotential and a Tafel slope of ~39 mV dec⁻¹. Additionally, scanning electrochemical microscopy was used to observe whether hydrogen evolution would preferentially occur in certain spots, for example, on the peaks, but the obtained results suggest that the entire surface is active. Finally, the electrochemical impedance spectroscopy data showed the difference in the double-layer capacitance between the ablated and non-ablated surfaces (up to five times larger) as well as the parameters that describe the improved catalytic activity of fs-Cu/MoS₂ electrodes.

1. Introduction

The use of femtosecond (fs) lasers through a process called laser ablation in material processing has grown substantially in the last two decades [1,2,3,4] and is motivated by unparalleled control of the processing parameters enabled by such a light source [5]. Among the other fields, surface structuring has benefited greatly from the usage of fs lasers [6]. Here, it allows one to achieve true hierarchical surface features on a large variety of substrates such as various metals [7], glasses [8], or polymers [9]. Therefore, it comes as no surprise that surfaces made using a fs light source have been tested in a vast array of applications including self-cleaning [10], anti-icing [11], anti-fouling [12], photonics, and bionics [13,14], to name a few. Moreover, by optimizing the processing parameters, new phases can be formed and modified on the surface by a process called laser alloying [15].

On the other hand, electrochemical catalysis is constantly searching for nano- or micro-structured substrates with a significant volume-to-surface-area ratio such as metallic foams [16]. There have already been reports of the strongly enhanced hydrogen evolution reaction (HER) electrocatalytic activity of fs-blackened Cu compared to an unmodified sample [17]. Moreover, several studies on fs-treated Ni have revealed its enhanced oxygen evolution reaction (OER) [18,19] and HER [20] electrocatalytic properties in alkaline media. A broad range of transition metals including Ti, Mo, W, Co, and more have been investigated for their enhanced electrocatalytic HER activity after laser ablation [21]. In these cases, improved performance was related to a larger specific surface area created by fs-treatment.

The beneficial effect of femtosecond laser treatment on metallic surfaces for their electrocatalytic properties is certain, but there is also the possibility of combining these evolved morphologies with other catalytic materials. A potentially interesting method for electrocatalyst synthesis has been reported recently, where fs-laser treatment was applied on nickel surfaces immersed in aqueous salt solutions to form Ni-Mo-Fe alloys [22]. Another way to combine fs-treatment with electrocatalysis is to coat an already treated substrate with an electrocatalytic material. In a recent study, a Co oxide/CuO/Cu electrocatalyst with enhanced OER/HER catalytic properties was constructed from fs-treated Cu and a hydrothermally synthesized cobalt oxide coating [23].

The conductive nature of laser-ablated metal surfaces lends itself to the application of electrochemical deposition. For electrocatalytic applications, many different catalytic materials can be electrodeposited on various conductive surfaces [24,25,26]. The factor that determines the catalyst selection is its desired properties such as electrocatalytic activity in certain media (acidic or alkaline), efficiency, scalability, and even cost. The latter is why transition metal chalcogenides have received much attention in the field of electrochemical water splitting, as they are relatively inexpensive when compared to precious-metal-based (e.g., platinum) catalysts. In particular, molybdenum disulfide (MoS₂) is interesting because it is a non-precious metal catalyst with an electrocatalytic activity that can approach that of platinum for HER [27,28].

MoS₂ coatings and films of various morphologies and structures can be prepared by various methods: wet-chemical [29] or hydrothermal synthesis [27,30], ultrasonic spray pyrolysis [31], electrochemical deposition [24,28,32,33], and more. Electrodeposition, in particular, is interesting, because it allows a conductive electrode surface to be covered homogeneously with a semiconducting but electrocatalytic MoS₂ film. Additionally, the process is relatively simple, can be carried out at room temperature, and typically yields amorphous and highly electrocatalytically active films. The properties of the electrochemically synthesized films can be tuned by adding certain surfactants/reducing agents such as sodium dodecyl sulfate [28] or sodium hypophosphite [34] into the electrodeposition solution. The former was found to have a beneficial effect on the HER electrocatalytic stability of the MoS₂ film, and the latter was observed by X-ray photoelectron spectroscopy (XPS) to promote the formation of Mo(IV)-S bonds and slightly improve the catalytic efficiency of the film.

Therefore, the aim of this study was to combine the surface engineering capabilities of femtosecond laser ablation with the electrocatalysis of the hydrogen evolution reaction by electrochemically deposited MoS₂. To this end, copper surfaces were subjected to “femtosecond blackening” (i.e., femtosecond laser ablation) to prepare unidirectional ridged mesostructures. Then, the surfaces with evolved morphologies were coated with electrocatalytic MoS₂ by electrochemical deposition. The structures and surface morphologies of the uncoated copper surfaces and catalytic electrodes were extensively characterized. The prepared electrodes were tested for their HER electrocatalytic activity in acidic media, paying attention to both the total electrode activity as well as the local electrocatalytic activity observations by scanning electrochemical microscopy.

2. Materials and Methods

2.1. Femtosecond Blackening

A general femtosecond direct laser write system such as the one as in [35] was used. It comprised a femtosecond laser with a central wavelength of 1030 nm, pulse duration of 750 fs, a repetition rate of 500 kHz, and a galvanometric scanner with an F-theta lens (focal distance 100 mm). The maximum working field of the optic was 45 × 45 mm. Treated surfaces were designated as fs-Cu.

2.2. MoS₂ Electrodeposition

The MoS₂ films were synthesized by electrochemical cathodic deposition from a tetrathiomolybdate (MoS₄²⁻/TTM) solution that had been synthesized by the chemical sulfidation of (NH₄)₆Mo₇O₂₄ (≥99%, Roth) with Na₂S xH₂O (60%, Roth). The composition of the solution was as follows: 0.025 M MoS₄²⁻, 0.1 M Na₂SO₄ (≥99%, Roth), 0.1 M NaH₂PO₂ (≥99%, Roth). The pH of the electrolyte was ~8. Sodium hypophosphite was added because it was found to have a beneficial effect on the Mo-S bond formation during cathodic MoS₂ deposition in a previous study [34]. The depositions were carried out under potentiostatic conditions at −1.1 V vs. Ag/AgCl by limiting the amount of charge passed through the system to 5 C. The cathodic deposition of MoS₂ occurs as in Equation (1) [36].

MoS₄²⁻ + 2e⁻ + 2H₂O → MoS₂ + 2SH⁻ + 2OH⁻

(1)

The MoS₂ films were deposited on plain Cu (Cu/MoS₂) and fs-blackened Cu (fs-Cu/MoS₂) substrates. The plain Cu was abraded with 1200 grit sandpaper in circular motions until the surface visually appeared to be homogeneously rough. This is necessary because when deposited on a mirror-smooth copper substrate for 5 C, the MoS₂ films would readily delaminate with hydrogen bubbling.

The surface morphology and elemental composition of the electrodeposited MoS₂ films were evaluated using a scanning electron microscope (SEM) TM 4000 plus with an AZetecOne detector (Hitachi Ltd., Tokyo, Japan) for the energy-dispersive X-ray spectroscopy (EDX) measurements. Energy-dispersive X-ray spectroscopy was used to determine the elemental and phase composition of the electrodes and electrodeposited catalysts. An X-ray diffractometer (D2 Phaser, Bruker, Billerica, Massachusetts, USA, λ = 1.5418 Å/Cu Kα) was used.

2.3. Characterization of HER Electrocatalytic Activity

All electrochemical experiments (potentiostatic electrodeposition, linear sweep voltammetry (LSV), electrochemical impedance spectroscopy (EIS)) were performed in a standard three-electrode cell using a potentiostat/galvanostat Autolab 302N (Metrohm, Utrecht, The Netherlands). Unless specified otherwise, all potentials are given as overpotentials (η) in reference to the reversible hydrogen electrode (RHE). Electrocatalytic activity characterization was carried out in 0.5 M H₂SO₄ by the following procedure: (1) settling of open circuit potential (OCP) for 120 s; (2) 3 LSV sweeps at a rate of 2 mV s⁻¹ from 0 V to a cut off condition of −100 mA cm⁻² as normalized by geometric surface area; and (3) EIS measurements at −0.1 V, −0.2 V, −0.3 V overpotential. The EIS spectra were obtained in the frequency range from 10 kHz to 100 mHz, with a perturbation amplitude of ±10 mV. The electrochemical impedance data were modeled with equivalent electric circuits (EEC) using Zview software. The determined solution resistance R_s was used to correct the ohmic drop for Tafel slope analysis.

2.4. Profilometrical Analysis

The surface roughness and morphology of the samples with and without modification were evaluated by means of a 3D optical profiler ContourGT-K (Bruker Nano GmBH, Berlin, Germany) in non-contact mode using white light and phase shift interferometry. For each measurement, 50× optics was used to scan the surface area of 500 μm × 500 μm. Then, the parameters of the surface characteristics such as surface roughness (S_a—arithmetic mean of the absolute departures of the roughness profile from the mean line), maximum peak height above the mean line (S_p), maximum valley depth below the mean line (S_v), and the projected and developed surface areas (S_par, S_dar) were evaluated. Vision64 and Profilm Online software was used for data acquisition and surface analyses.

2.5. Scanning Electrochemical Microscopy (SECM)

A Versa SCAN (Ametek, Berwyn, PA, USA) SECM workstation was used in connection with a Versa STAT 3 and Versa STAT 3F bipotentiostat (Princeton Applied Research, Oak Ridge, TN, USA). The substrate-generation tip-collection (SG/TC) mode was used, where the sample being investigated was used to generate hydrogen, and the tip would oxidize the generated products. The electrolyte was 0.5 M H₂SO₄, as previously used. The probe was a Pt ultramicroelectrode with a diameter of 10 μm. The probe was positioned ~10 μm above the sample and a constant height mode was used, which may be prone to errors from uneven sample mounting. However, possible errors were minimized by examining a small area (X–Y 100 × 150 μm) and a 5 μm s⁻¹ tip scan rate. The SECM maps presented in the discussion are 100 × 100 μm because the first 100 × 50 μm data were typically distorted by the settling of either the substrate generation or tip collection current. The first scan lines were considered as pretreatment and discarded.

3. Results and Discussion

3.1. Profilometrical Analysis, Surface Morphology and Structure

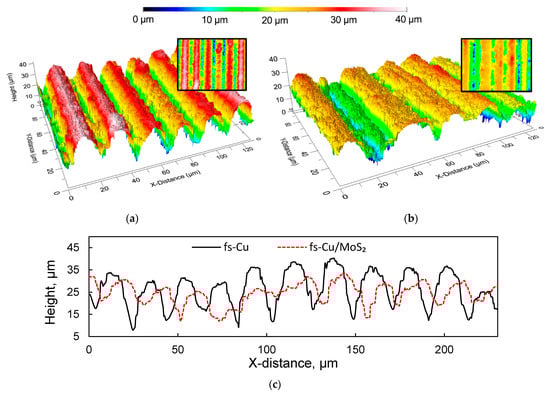

Optical profilometry was employed to obtain the initial information on the morphology of the fs-blackened copper surfaces. The profilogram of the fs-Cu sample showed that femtosecond processing created a homogeneous structure comprised from ordered rows of peaks and pits (Figure 1a). The peaks had a width of up to 20 µm and the pits were typically narrower than 10 µm. As can be seen from a 2D slice across the Y axis, the peak-to-pit height difference was 10 to 25 µm (Figure 1c). The area roughness analysis data are shown in

Table 1. The parameters calculated from the profilometric analysis.

	Sa, µm	Sv, µm	Sp, µm	Spar, mm2	Sdar, mm2
fs-Cu	6.86	53.11	24.26	0.25	10.46
fs-Cu/MoS2	4.94	48.36	16.21	0.25	4.68

. The mean height S_a = 6.86 µm (as measured across the 0.5 × 0.5 mm profilogram shown in Figure S1), valley depth S_v was 53.11 µm, and the peak height S_p was 24.26 µm. The projected surface area (S_par) was 0.25 mm², whereas the developed surface area (S_dar) was 10.46 mm², signifying the enhanced roughness. An identical analysis was performed on the fs-Cu/MoS₂ sample in order to estimate whether the electrochemically deposited film had changed the surface topography. There appeared to be a narrow peak in this profilogram (Figure 1b), but this is most likely related to the femtosecond ablation process and is not the effect of the electrochemical MoS₂ deposition. Overall, the surface became less rough, the S_a decreased to 4.94 µm, the S_v to 48.36 µm, and S_p to 16.21 µm. Consequently, S_dar = 4.68 mm², which was under half of what had been approximated for fs-Cu. The smoother surface was also reflected in the 2D slice, where it is evident that the peak-to-pit height ratio had decreased. These results are expected because a significant amount of the catalytic material was deposited. However, the decrease in roughness may signal that more MoS₂ is deposited in pits rather than on peaks, thus leveling out the surface. This analysis already implies that assuming a known geometrical surface area of an electrocatalytic electrode is at best inaccurate; this issue will later be addressed with non-stationary electrochemical methods.

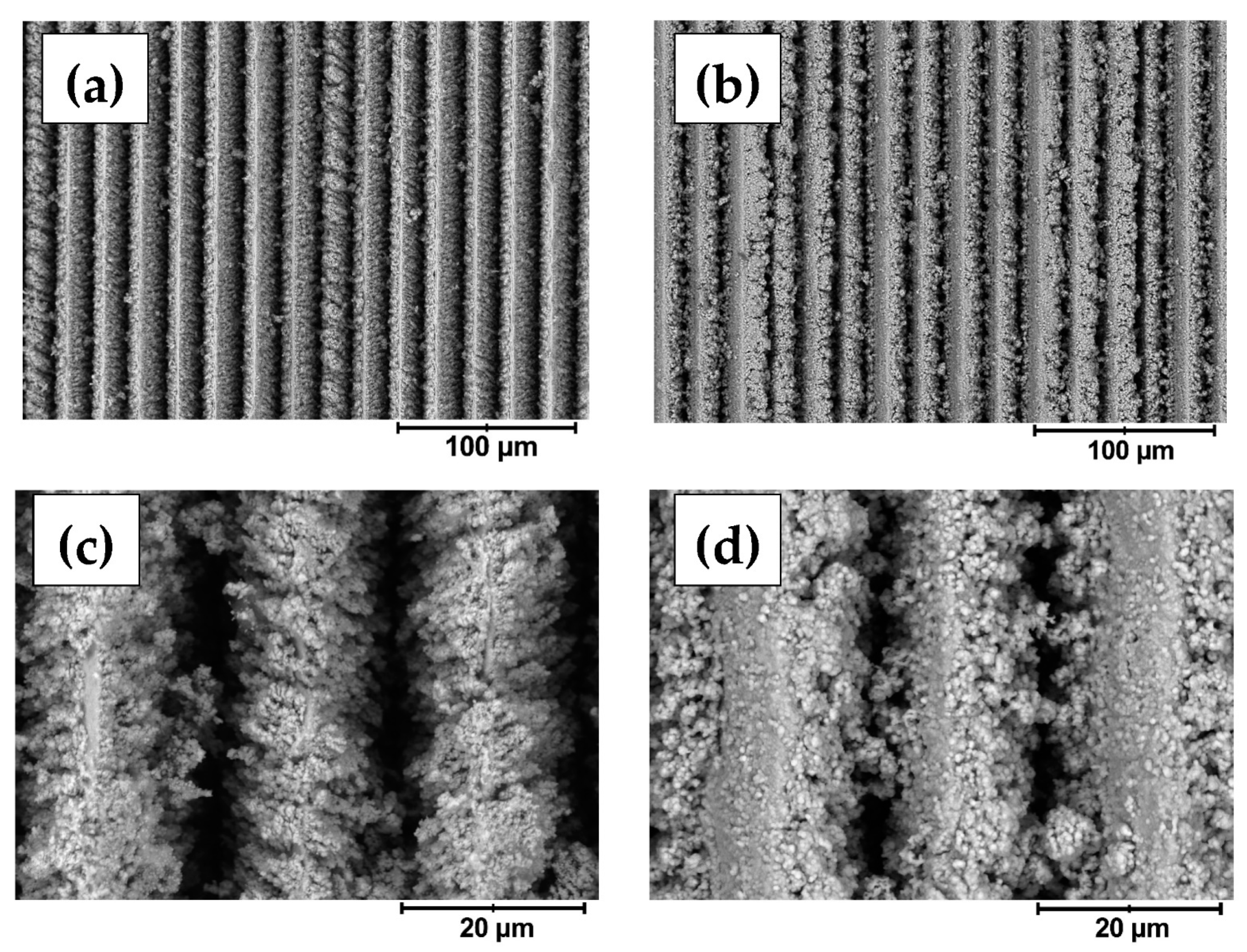

The surface morphology was observed in detail by SEM. In agreement with the profilometry, the fs-Cu surfaces consisted of ordered parallel ridges, and the width of a single ridge or pit-to-pit distance was ~20 µm (Figure 2a). At higher magnifications, it became apparent that femtosecond laser ablation in fact created a very coarse microstructure and that the edges of the peaks were rough (Figure 2c). When a MoS₂ film is electrochemically deposited on the fs-Cu substrate, several things can be noted. The MoS₂ deposits in both the peaks and pits, but it seems that more material is deposited within the pits (Figure 2b,d). Especially from higher magnification images, it can be seen that MoS₂ seems to preferentially crystallize on the edges of the peaks, occasionally even forming bridges between them. In contrast, the morphology of the deposited MoS₂ on the tops of the peaks was rather flat. This is likely to be the cause of the decrease in the surface roughness that was previously observed by profilometry—more material is simply deposited within the pits of the fs-ablated copper surface. Such deposition kinetics may have been caused by the higher local current densities that are formed within the pits, thus causing faster MoS₂ electrochemical deposition.

Regarding the atomic composition, the EDX measurements showed an average S to Mo atomic % ratio of 2.8 (i.e., a stoichiometry of MoS_2.8). MoS₃ is known to exist but is typically formed by the chemical disproportionation of [MoS₄]²⁻ at anodic potentials [37]. It is likely that here, unreacted S²⁻ or HS⁻ in the solution could have interacted with the copper substrate, thus increasing the overall content of sulfur in the atomic composition of these films. The XRD analysis revealed that, in accordance with other research on electrochemically deposited MoS₂, the films were amorphous (Figure S2) [28,38]. No peaks that could be assigned to any phase of MoS₂ were seen. Because the films were relatively thin, there remains a strong signal from the substrate. It is worth noting that the (200) peak became the most intense after depositing a MoS₂ film on the fs-Cu, which probably shows that MoS₂ tends to deposit on the (111) plane. Moreover, an XPS analysis carried out on similarly synthesized films in a previous study confirmed the formation of Mo(IV)-S bonds [34].

3.2. Electrocatalytic Activity

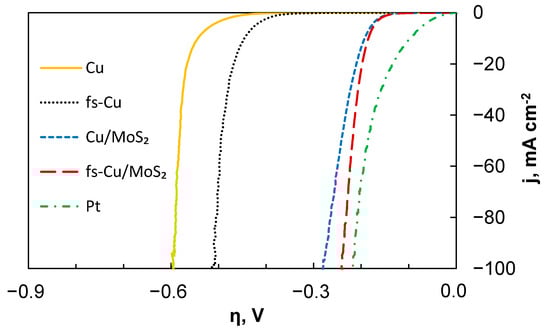

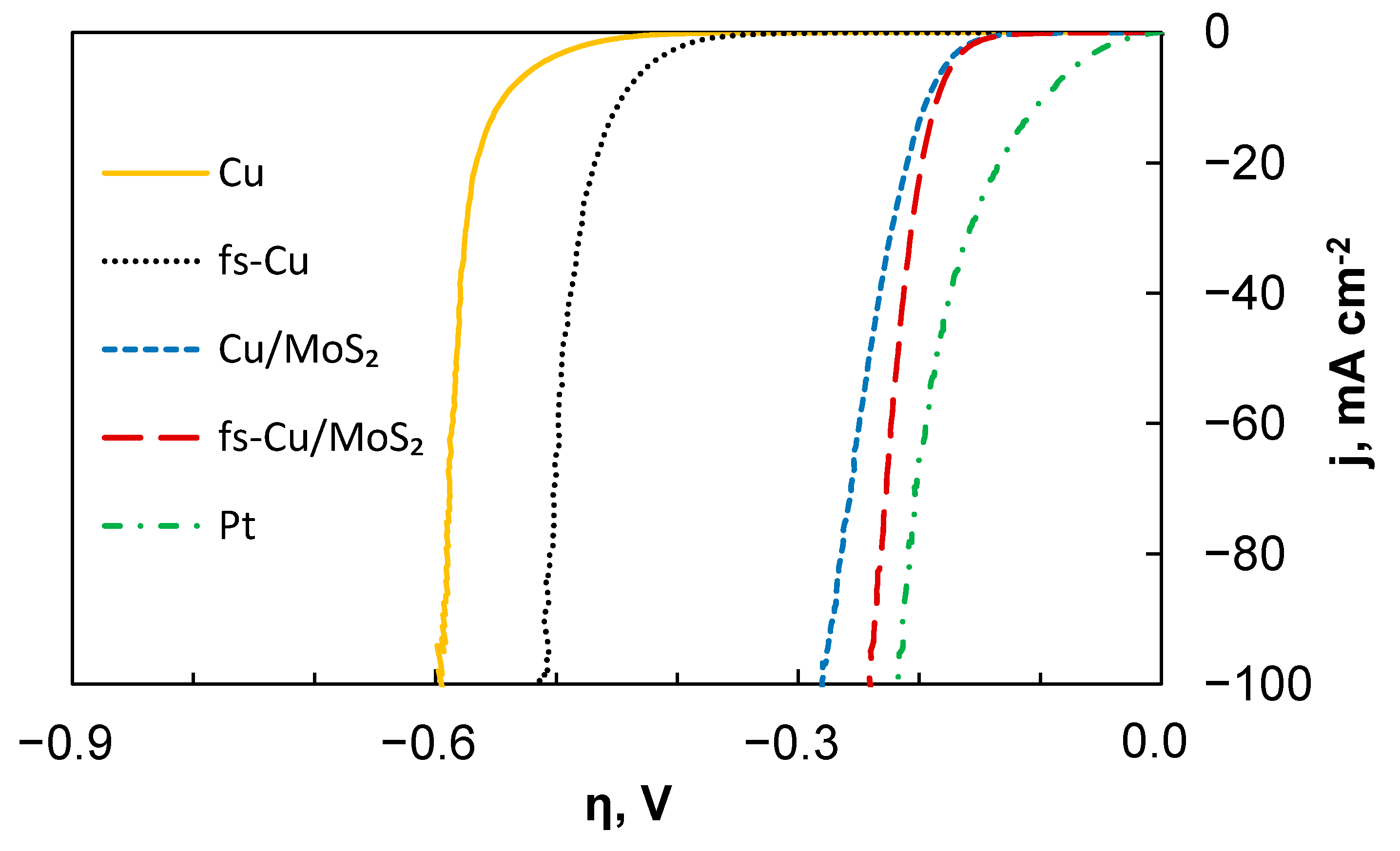

The HER electrocatalytic activity of the samples was initially investigated by linear sweep voltammetry in 0.5 M H₂SO₄. In each experiment, three curves were obtained, and Figure 3 shows the third curve for each sample. Here, iR correction was applied by using the solution resistance value that was obtained from the high frequency part of the EIS spectra, which will be discussed later. It must be noted that the current density was normalized to the geometric surface area of the substrate and the experiment represented the total electrode activity, which is heavily influenced by the actual electrochemically active surface area. The plain Cu exhibited the poorest electrocatalytic activity, whereas the fs-Cu without any catalyst coating already showed a marginally better performance. Again, it is important to note that this is most likely related to the increased electrochemically active surface area. When the MoS₂ films form on these surfaces, the catalytic activity increases significantly (i.e., higher current densities are reached at lower overpotentials). The electrode that was prepared by electrochemically depositing the MoS₂ onto the copper foil treated with abrasive paper (Cu/MoS₂) showed good electrocatalytic performance. However, the highest catalytic activity (apart from platinum, which is presented for comparison) was achieved with the fs-Cu/MoS₂ sample.

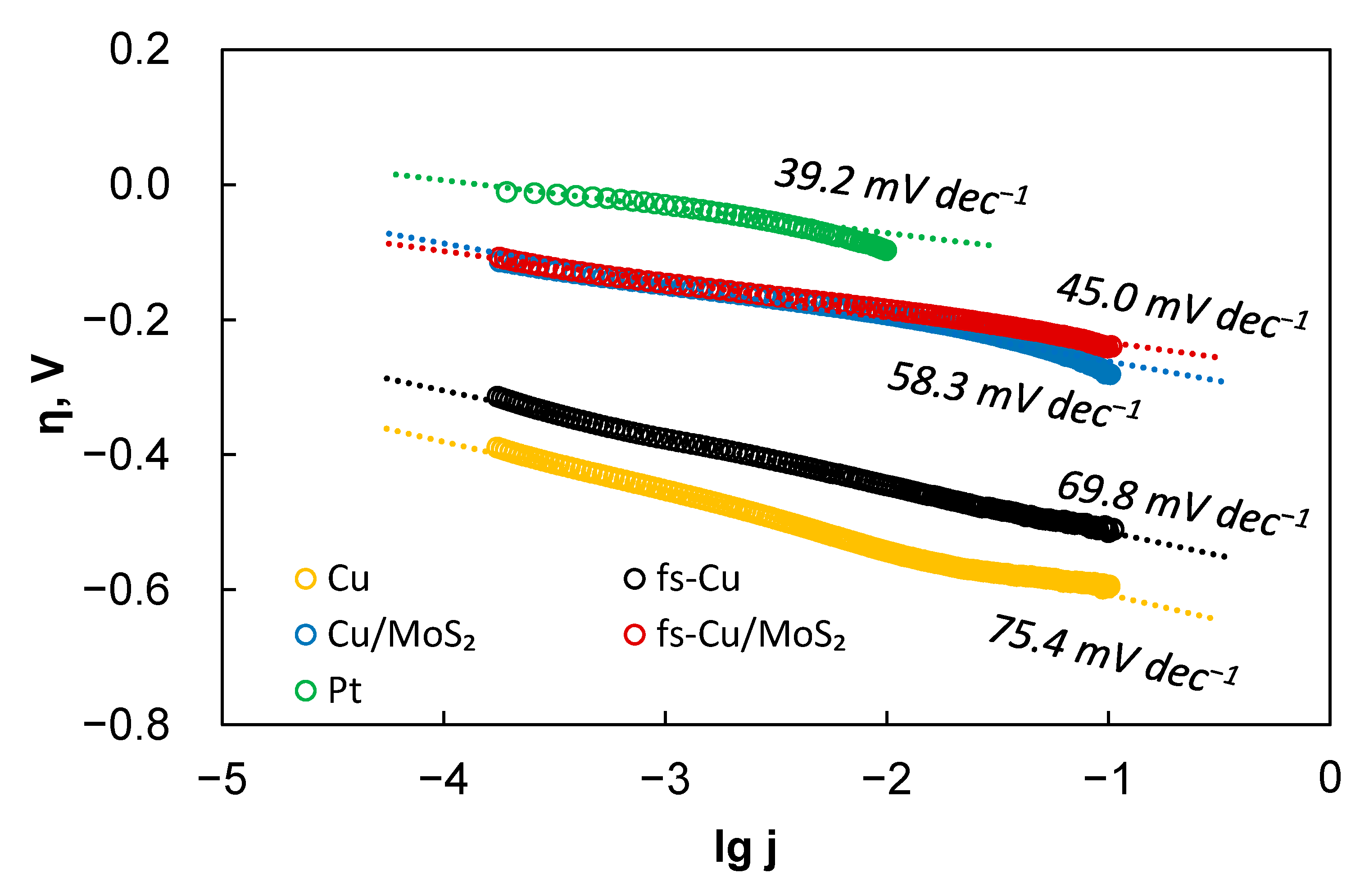

Several important parameters that describe the activity of electrocatalytic films were extracted from these curves: the Tafel slope, exchange current density (j₀), and the overpotential required to reach 10 mA cm⁻² of HER current (η_10mA). These data are presented in

Table 2. The values of the Tafel slopes, exchange current densities, and overpotential needed to reach 10 mA cm⁻² of the HER current of the samples considered in this study.

Sample	Tafel Slope, mV dec−1	j0, µA cm−2	η10mA, mV
Cu	75.4	0.00089	−552
fs-Cu	69.8	0.0043	−445
Cu/MoS2	58.3	3.23	−193
fs-Cu/MoS2	45.0	0.65	−185
Pt	39.2	150	−97

.

Table 3. The comparison of the reported Tafel slopes and overpotentials at the 10 mA cm⁻² HER current values (in 0.5 M H₂SO₄) of the MoS₂-based electrocatalysts.

Sample	Synthesis Method	Tafel Slope, mV dec−1	η10mA, mV	Reference
rGO/MoSx−100 °C	Hydrothermal	48.8	−125	[27]
MoSx	Electrodeposition	55	−211	[28]
67% Sbr-MoSx	Chemical synthesis	46	−96	[29]
MoS6	Anodic electrodeposition	-	−161	[33]
Cu-foam/MoS2	Electrodeposition	49	−142	[34]
MoSx-TiO2NT	Electrodeposition	43	−73	[44]
Co-doped MoS2	In situ sulfuration	-	−155	[45]
Pd0.2-MoS2	Solvothermal	60	−106	[46]
Cu/MoS2	Electrodeposition	58.3	−193	This work
fs-Cu/MoS2	Electrodeposition	45.0	−185	This work

presents a broad comparison with other recent MoS₂-based electrocatalysts for HER in acidic media. The Tafel slopes are calculated from the HER kinetic region where lg j is linearly related to the overpotential, as shown in Figure 4, as it is preferable to calculate the Tafel slopes from as large a current range as experimentally possible [39]. The Tafel slopes were calculated from a wide current density region from 0.1 mA cm⁻² to ~50 mA cm⁻², which allowed for a fairly accurate estimation. Certain Tafel slope values correspond to a particular mechanism of hydrogen evolution. The heterogeneously catalyzed hydrogen evolution reaction occurs through a combination of the Volmer hydrogen adsorption (Equation (2)), the Heyrovsky electrochemical recombination (Equation (3)), or the Tafel chemical recombination (Equation (4)) steps [40].

H₃O⁺ + e⁻ + M ⇄ M-H + H₂O

(2)

M-H + H₃O⁺ + e⁻ ⇄ H₂ + H₂O + M

(3)

2M-H ⇄ H₂ + 2M

(4)

Hydrogen adsorption must always occur. A widely accepted rule of thumb is that if either the Volmer, Heyrovsky, or Tafel steps are rate-determining, then the observed Tafel slope will be 120, 40, or 30 mV dec⁻¹, respectively [40,41]. Naturally, deviations and mixed kinetics do occur.

The results show that a slope of 75.4 mV dec⁻¹ was observed on the Cu substrate. In comparison, the Tafel slope of fs-Cu (69.8 mV dec⁻¹) suggests that the mechanism of HER on this electrode had not changed. Here, it must be mentioned that more recently, reasonable doubt has been cast onto the Tafel slope evaluation from potentiodynamic measurements, as they do not satisfy the true steady-state requirements unless carried out at extremely low scan rates [42]. Therefore, it is best to refrain from any mechanistic considerations from the Tafel slope values that are not standard. When an electrocatalytic MoS₂ film is deposited on these substrates, the Tafel slopes typically observed for MoS₂ [43] are as follows: 58.3 mV dec⁻¹ for Cu/MoS₂ and 45 mV dec⁻¹ for fs-Cu/MoS₂. This shows enhanced electrocatalytic activity and that hydrogen evolution occurs by the Volmer–Heyrovsky hydrogen adsorption/electrochemical recombination mechanism. Because the solution resistance is, in fact, not perfectly constant as the overpotential is increased, some over/undercorrection that manifests as a deviation from a linear trend can be seen at higher overpotentials.

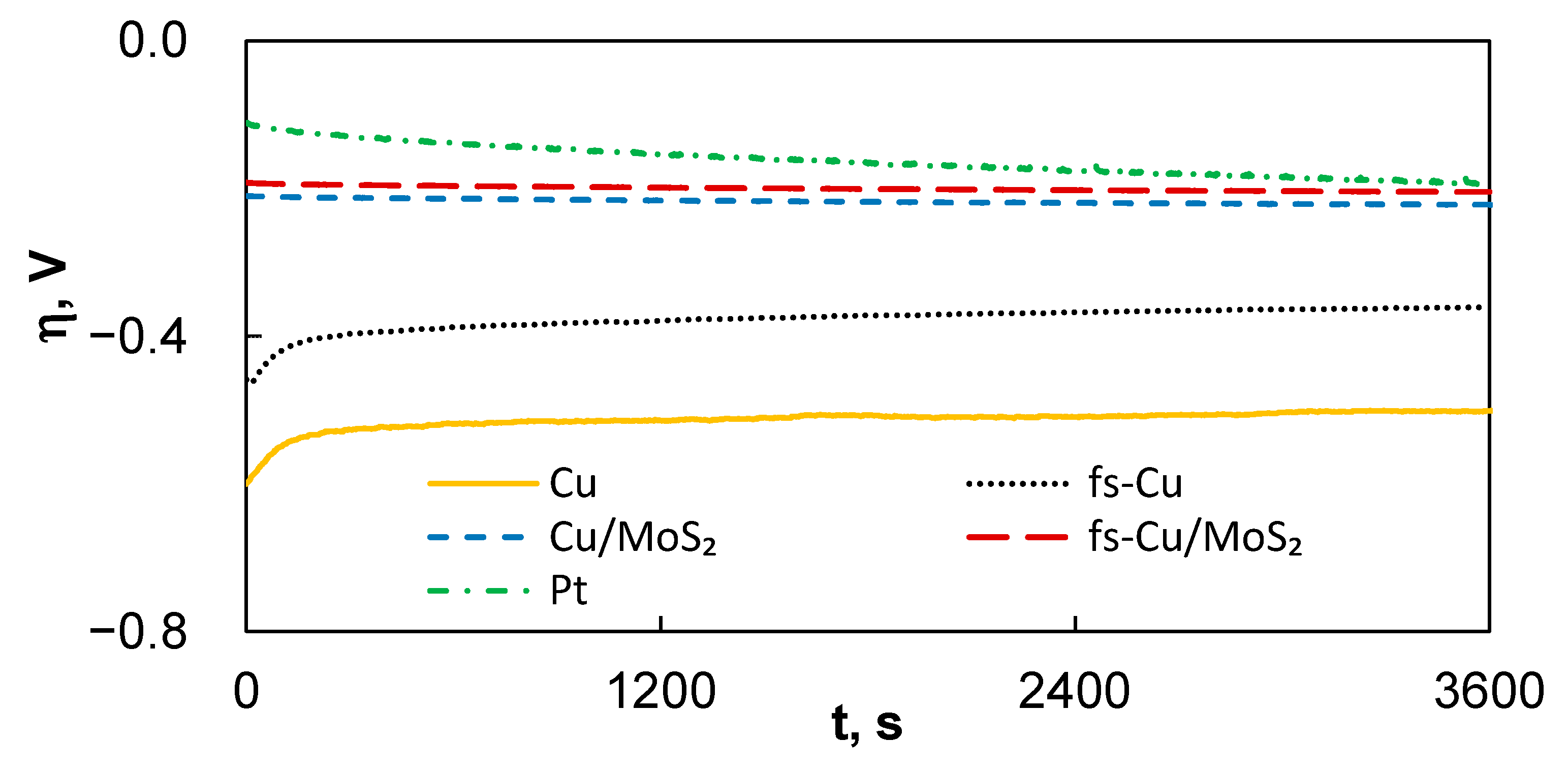

The electrochemical stability of an electrocatalytically performing electrode is also an important parameter, but there is no established standard estimation procedure in the scientific literature. For an industrial electrocatalyst device, two main parameters are of importance—on/off cycles and operational duration. In this study, the electrochemical stability of the electrodes was evaluated by applying a relatively mild constant current density of 10 mA cm⁻² and registering the potential over the duration of 1 h, then by calculating how much their activity in terms of the initial η vs. end η had changed (Figure 5). Broadly speaking, over the course of the experiment for the uncoated substrates, the overpotential needed to maintain the set current decreased (Cu: −17%; fs-Cu: −21%), whereas for the electrodes with MoS₂, it increased (Cu/MoS₂: + 6%; fs-Cu/MoS₂: +7%). That is, the Cu and fs-Cu gain some electrocatalytic activity, likely until the system approaches equilibrium. In contrast, the electrodes coated in an actively electrocatalytic MoS₂ film lost activity over time, possibly due to the deactivation of the catalytically active sites by the reaction of surface sulfur with oxygen to form less active or even inert Mo-OH sites [47,48]. It is interesting to note that under these experimental conditions, plain Pt also lost a significant amount of catalytic activity, in fact, more than the Cu/MoS₂ and fs-Cu/MoS₂. Longer aging experiments would need to be conducted to investigate the industrial viability, but the electrodes are, at the very least, stable for more comprehensive electrochemical characterization.

3.3. Scanning Electrochemical Microscopy Study

As the fs-Cu/MoS₂ electrodes had a uniform surface profile, it was useful to expand on their electrocatalytic activity characterization with a method that yielded a more local signal than the total electrode activity measurements. The SECM is a fairly new experimental technique that has recently been finding more use in the characterization of electrocatalytic macroelectrode surfaces [49,50,51]. In this study, a substrate-generation tip-collection mode was used, where the fs-Cu/MoS₂ film was polarized in order to induce hydrogen evolution (generator), and the probe was set to oxidize the generated products (thus collector). The electrolyte here was the same as before—0.5 M H₂SO₄. The mechanism behind the processes occurring at the substrate and tip as well as between them are interesting and complex [51], but for the purpose of practical application, we assumed that H₂ generates on the substrate (Equation (3)), the signal at the tip comes from the oxidation of H₂ (Equation (5)), and that the H₂ diffusion rate is steady at the tip measuring point.

H₂ → 2H⁺ + 2e⁻

(5)

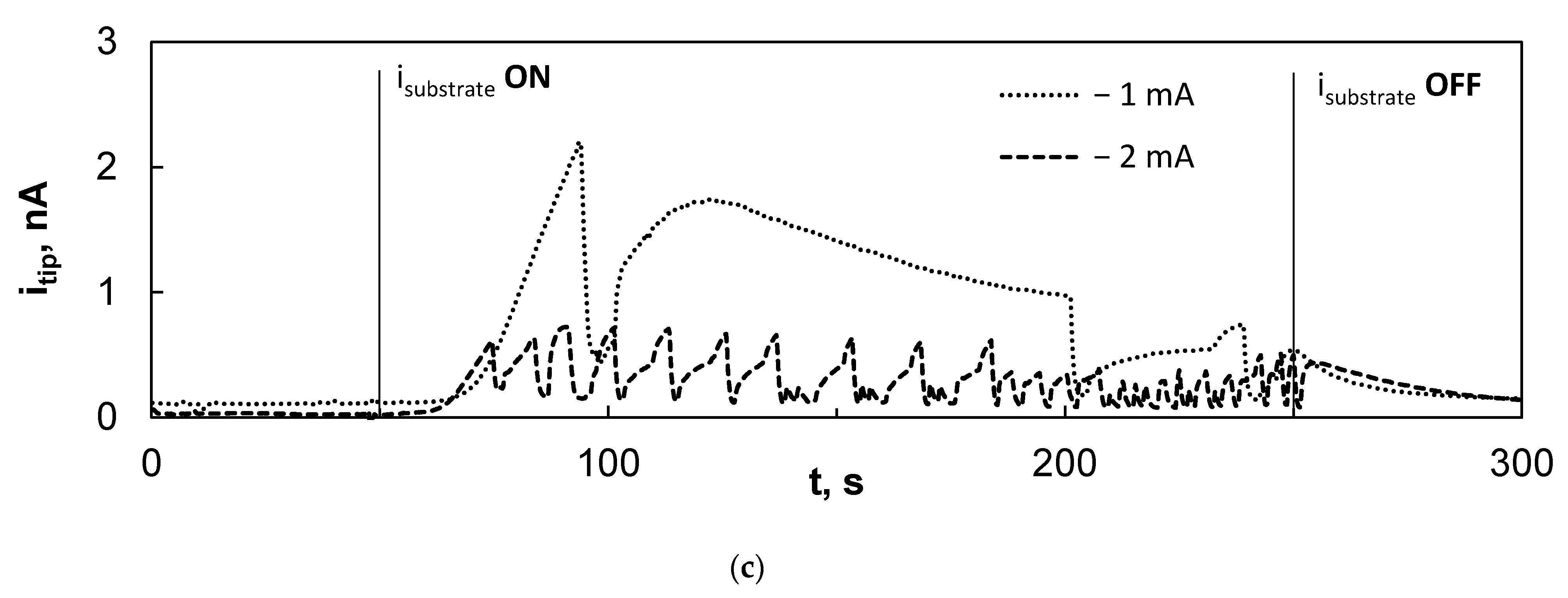

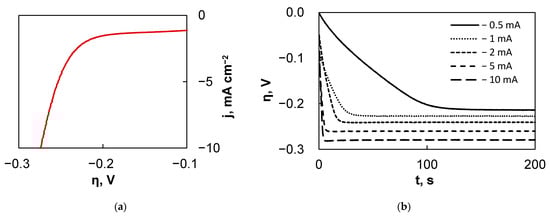

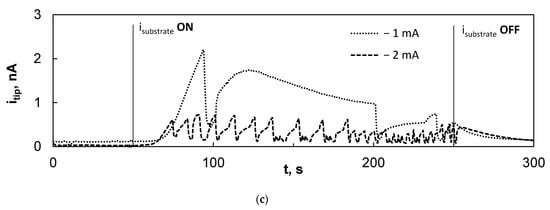

Several preliminary experiments were conducted in order to characterize the system and find the optimal conditions for mapping. First, after the fs-Cu/MoS₂ sample was mounted into the SECM cell holder and the system was fully assembled, an LSV curve was obtained (Figure 6a), which provided information on the hydrogen bubbling location and its rate. Additionally, it was determined that galvanostatic conditions are preferential to apply in this mode, as this provides more reliable and reproducible results. Therefore, as a second experiment, the sample was set at certain current densities from −0.5 mA cm⁻² to −10 mA cm⁻² and the potential response was measured (Figure 6b). It is not surprising that larger applied currents correspond to a higher overpotential, but what is important is the time that it takes for the fs-Cu/MoS₂ sample to approach the steady-state. Here, the larger the applied current, the sooner the sample reaches the steady-state conditions.

Finally, the electrochemical behavior of the Pt probe was examined. The 10 μm diameter probe was lowered to ~10 μm from the surface and polarized potentiostatically at 0 V vs. Ag/AgCl, because this was found to provide a sufficient signal to sample the HER in a previous experiment. For 50 s, the probe was kept at this potential and the sample at the OCP. Then, the current was applied to the sample for 200 s and again turned off at 250 s (Figure 6c). This experiment was important to understand the nature of the signal that can be expected. It was observed that the tip did register the signal from the sample, most likely through the oxidation of evolved H₂ that is not gaseous, but dissolved in the solution. However, the tip current only began to increase at ~10 to 15 s after the current had been switched on. This is related to the time that it takes for the fs-Cu/MoS₂ to reach the steady-state conditions, as shown in Figure 6b. The tip response time was faster when higher current densities were applied on the sample, but the i_tip was lower (Figure S3). The tip current then rose sharply until a peak was reached, after which a severe drop occurred in most cases. This drop is likely to have been caused by the formation of gas bubbles on or around the probe tip, which blocks product diffusion and, consequently, the rate of the electrochemical reaction occurring at the tip. This presumed effect is particularly clear when −2 mA was applied on the sample and the probe response current appeared choppy. As the rate of the substrate HER increased (e.g., at −5 mA and −10 mA), the signal was heavily distorted by the mixing that is caused by the rapid evolution of gaseous hydrogen. The probe could even occasionally become blocked. However, it was assumed that in the SECM area scans, when the probe is mobile, this effect should be largely suppressed. Then, it is most important that the average i_tip should be stable over the course of the scan.

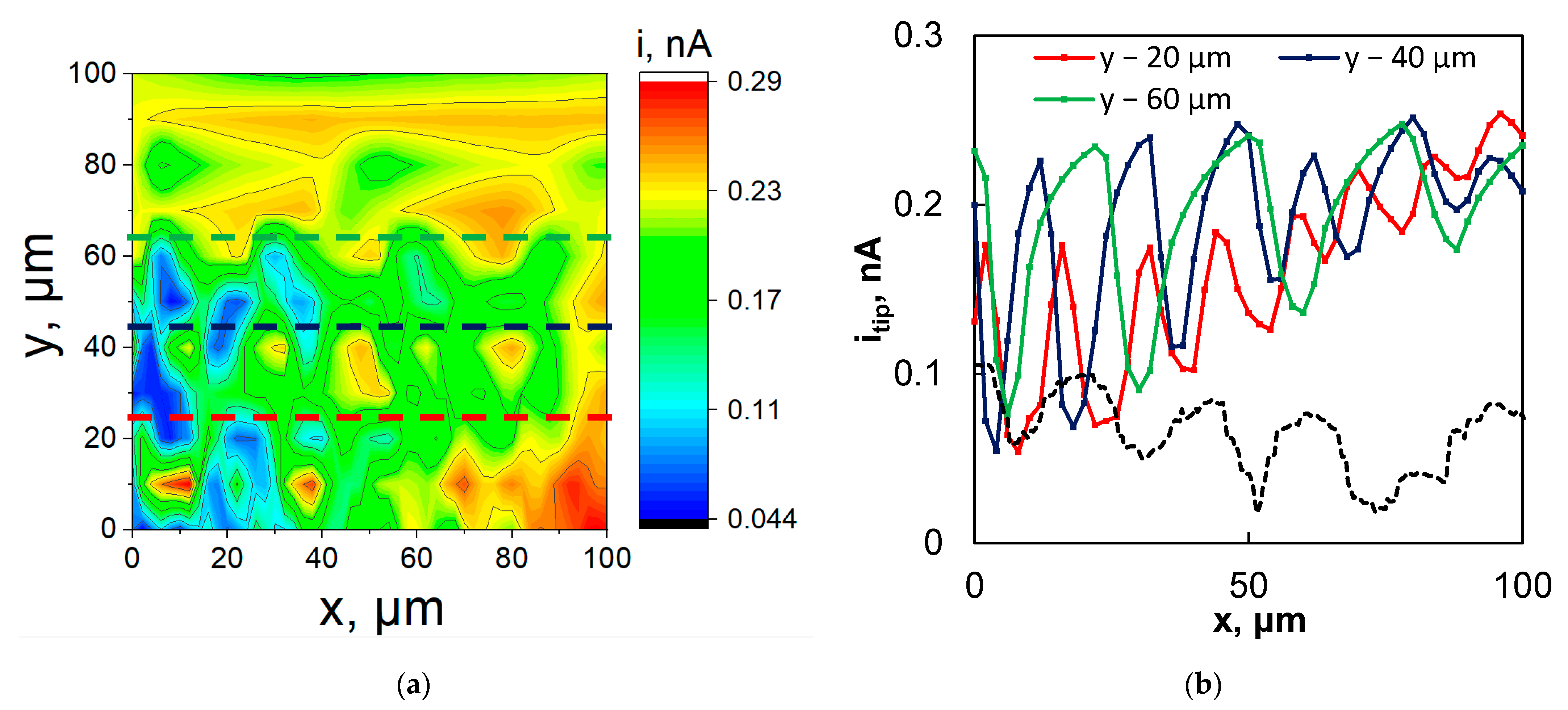

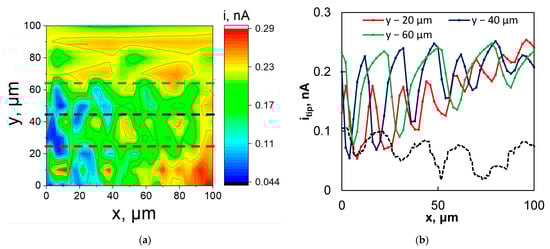

Then, the XY area scans were obtained in order to observe the effect of the ridged morphology of the fs-Cu in the electrocatalytic activity of the fs-Cu/MoS₂. Of course, any positive results should be attributed first and foremost to the topography of the surface. The SECM maps were obtained under several galvanostatic sample conditions (−1 mA, −2 mA, and −5 mA), but it was observed that −2 mA was the optimal condition that yielded the best signal. Although the 2D heatmap was not particularly revealing of the surface morphology (Figure 7a), slices across the X axis at several discrete Y values clearly reproduced the femtosecond-laser-induced ridges (Figure 7b). Errors in mapping could be attributed to the uneven sample mounting, but there is also no reason to expect that the distribution of the electrochemical HER activity on the sample is perfectly homogeneous. The SECM maps that were obtained at −1 mA and −5 mA are shown in Figure S4. When the substrate was set at −1 mA, not enough H₂ was evolved to obtain a distinct localized electrocatalytic activity signal over most of the surface (hence, the flat 2D slices). Conversely, when the substrate was set at −5 mA, significant signal distortion occurred due to the vigorous evolution of gaseous H₂.

The width of the fs-Cu peaks and pits as observed from the SECM mapping corresponded well to the results of the profilometric analysis. It must be noted that in this case, the SECM signal was caused by the oxidation of the substrate-generated products, so the map is a reflection of the radial diffusion of these products away from the sample. Because some of the 2D slices (e.g., Y − 40 μm and Y − 60 μm) reproduce the profilometric slice (Figure 7b, dashed line) so well, it may be inferred that the HER activity is similar in pits and on peaks. However, in some other cases such as Y − 80 μm to Y − 100 μm, the i_tip was almost constant, as if scanning over a completely flat surface, as can be seen in Figure 7a. The SECM is a highly sensitive technique that is particularly difficult to apply when gas generation is occurring, but this case proved to be of moderate success and further confirmed that the laser-ablated morphology does have an impact on the performance of the electrode as an electrocatalyst.

3.4. Electrochemical Impedance Spectroscopy Study

Electrochemical impedance spectroscopy is a very useful tool in heterogeneous electrocatalyst characterization because it gives the ability to measure certain parameters that are related to the electrochemically active or even electrocatalytically active surface area of the electrode. In previous studies, EIS has been used to compare the electrocatalytic activities of electrodes with an uncertain geometrical surface area [34,52] and a similar approach was applied here. The EIS spectra were obtained at overpotentials where little to moderate hydrogen evolution occurs, depending on the catalytic activity of the electrode (−0.1 V, −0.2 V, −0.3 V).

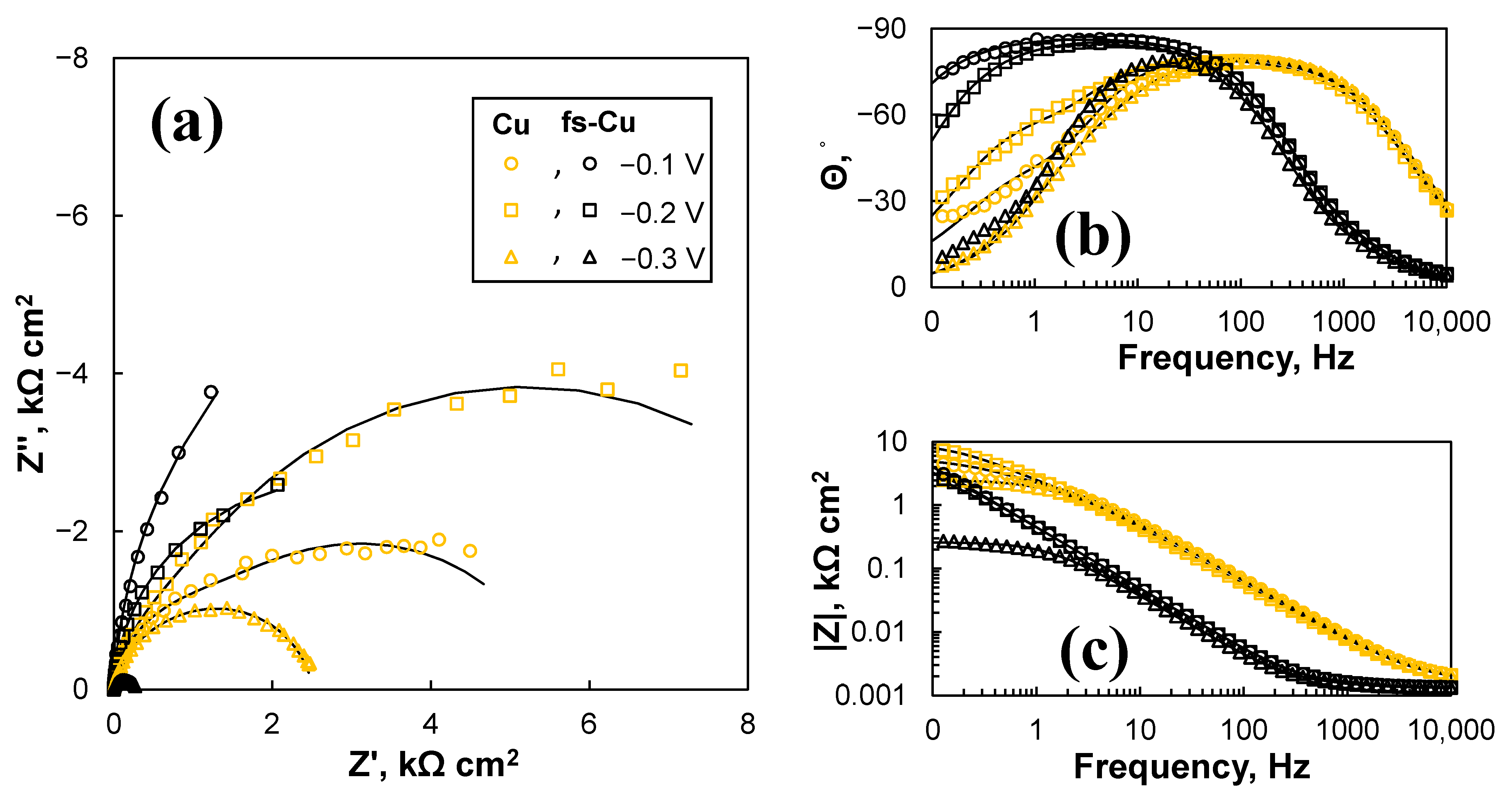

The EIS study, unsurprisingly, revealed that there was a significant difference in the electrocatalytic activity between the copper surfaces (Cu, fs-Cu) and those coated with catalytic films (Cu/MoS₂, fs-Cu/MoS₂). The spectra of the plain Cu surfaces are shown in Figure 8, and they were characterized by relatively large impedance magnitudes. For fs-Cu, at lower overpotentials, the impedance response was almost capacitive, as seen from the profile of the spectra in complex coordinates (Figure 8a) and the tendency of the phase shift Θ to approach −90° at low frequencies (Figure 8b). However, at −0.3 V, the impedance magnitude dropped substantially due to the onset of a Faradaic reaction, which must be HER under these conditions. The plain Cu exhibited similar tendencies, but its impedance magnitudes were larger. Judging from the phase shift behavior, the double layer charge/discharge kinetics were faster (because the phase maximum is reached at higher frequencies), but the appearance of a small hump at the intermediate frequencies (10 Hz to 1 Hz) suggests the onset of a Faradaic reaction. In comparison to fs-Cu, because Θ approached 0 again at 0.1 Hz, this effectively means that no significant low-frequency capacitive behavior (which could be related to hydrogen adsorption) was observed.

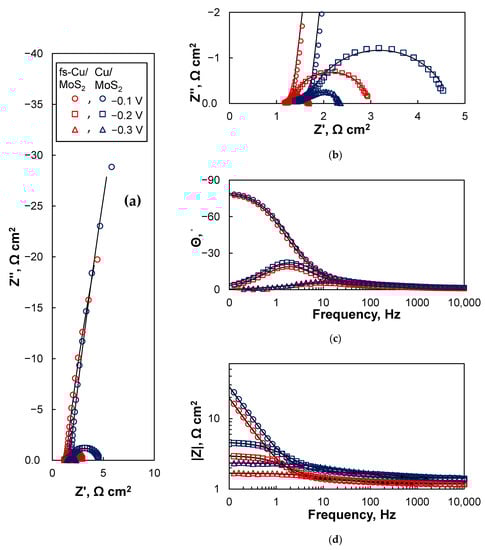

The EIS spectra of the MoS₂-coated electrodes were significantly different due to their superior electrocatalytic activity when compared to the uncoated copper surfaces (Figure 9). For both Cu/MoS₂ and fs-Cu/MoS₂ the spectra followed similar trends. A strongly capacitive response occurred at −0.1 V, as seen from the profile of the spectra in complex coordinates (Figure 9a,b) and the phase shift approaching −90° (Figure 9c). This is likely related to the adsorption of H⁺ to form a layer of H_ads, because the Gibbs free energy of hydrogen adsorption on the sulfur vacancies/active sites of MoS_2−x is ΔG_H⁰ ~−0.095 eV [53]. At higher overpotentials of −0.2 V and −0.3 V, hydrogen evolution began to occur at a rapid rate, and this is reflected in the spectra as the system turned from blocking to transmissive: semicircles were formed in complex coordinates (Figure 9b), Θ approached 0° at low frequencies (Figure 9c), and the impedance magnitude |Z| remained constant (Figure 9d). At first glance, there was little apparent difference between the impedances of the Cu/MoS₂ and fs-Cu/MoS₂ samples, but especially from Figure 9d, it can be inferred that the impedance magnitude of the fs-Cu/MoS₂ was overall lower, which means that the system was more conductive/electrocatalytically active.

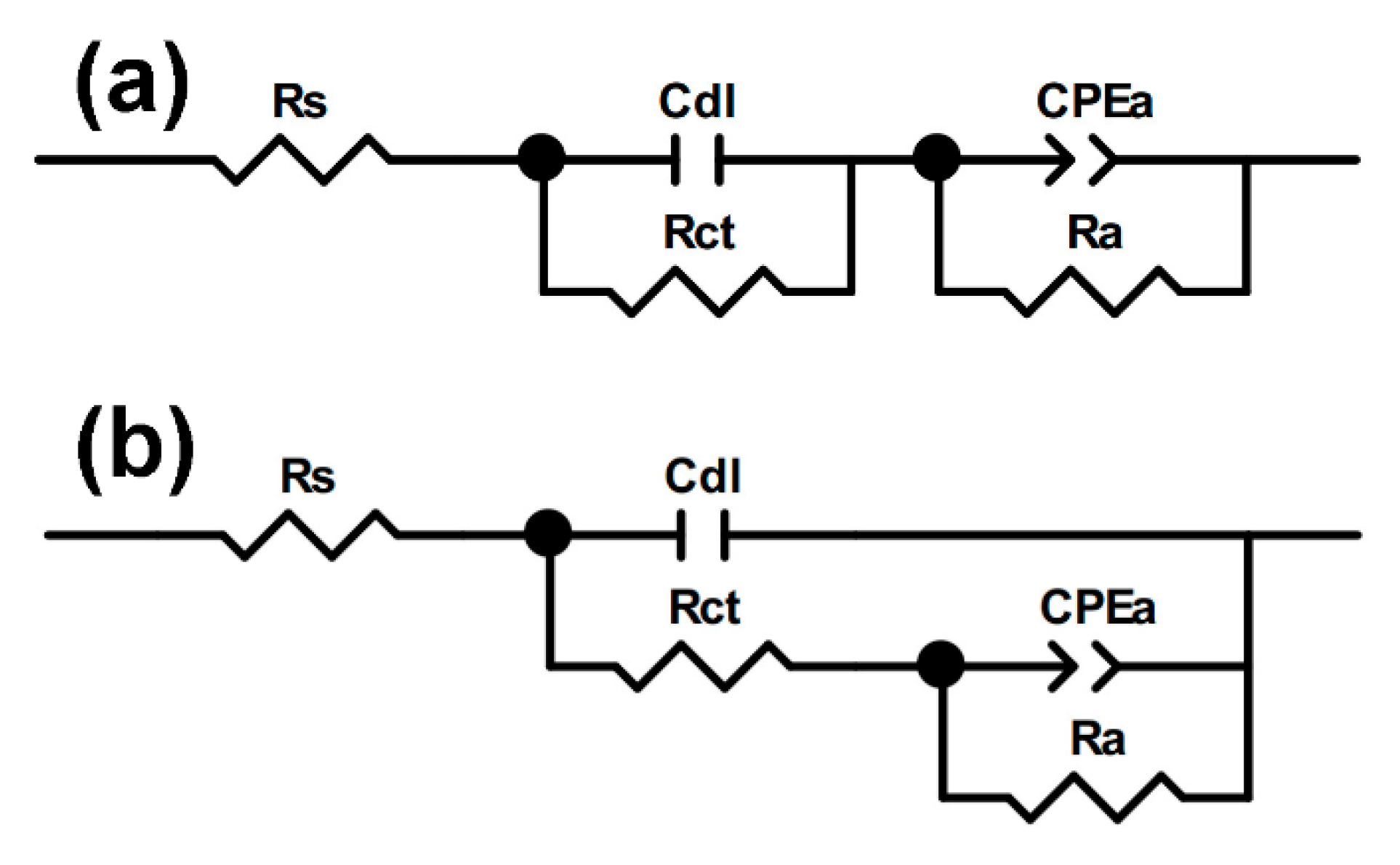

The electrochemical impedance spectra were interpreted in terms of the equivalent electric circuits in order to discern and calculate the certain parameters that describe the surface/electrolyte interface. Two equivalent circuits were used for fitting: the uncoated Cu and fs-Cu (Figure 10a) and the electrodes on which a MoS₂ film had been electrodeposited (Figure 10b). These circuits appeared similar, but they distinguished the different mechanisms of the electrode processes. The circuit shown in Figure 10a describes a system where two charge transfer processes can occur independently of each other, whereas in the second circuit, as shown in Figure 10b, the two processes must occur sequentially (i.e., the hydrogen adsorption followed by electrochemical recombination) [54].

In these equivalent circuits, the constant phase element (CPE) was used to account for the inhomogeneity in the surface coverage by adsorbed hydrogen. The CPE values were recalculated into the capacitance by Equations (6) and (7), colloquially known as Brug et al.’s effective capacitance equation [55,56].

$$C_a=T_a^{\frac{1}{n}}{\left(\frac{1}{R_s}+\frac{1}{R_a}\right)}^{1-\frac{1}{n}}$$

(6)

$$C_a=T_a^{\frac{1}{n}}{\left(\frac{1}{R_s+R_{ct}}+\frac{1}{R_a}\right)}^{1-\frac{1}{n}}$$

(7)

where T_a are the values of the CPE_a element.

The discrete parameters of the equivalent circuit correspond to certain measurable processes occurring at the catalyst/electrolyte interface. For example, the double layer capacitance C_dl is measured at high perturbation frequencies and is related to the charge and discharge of the charge-compensating Helmholtz double layer. Therefore, it is proportional to the electrochemically active surface area of the electrode. This provides insights into the effective surface area of the electrodes. First of all, the C_dl of fs-Cu is on average five times larger than that of unmodified Cu (

Table 4. The equivalent circuit fitting results and fitting errors.

Cu
η, V	Cdl, mF cm−2	Rct, Ω cm2	Ca, mF cm−2	Ra, kΩ cm2
−0.1	0.0529 ± 0.0035	1033 ± 32	0.176 ± 0.0091	4.53 ± 0.049
−0.2	0.114 ± 0.0089	546 ± 21	0.113 ± 0.0022	9.41 ± 0.069
−0.3	0.126 ± 0.018	191 ± 13	0.072 ± 0.0021	2.32 ± 0.011
fs-Cu
−0.1	0.607 ± 0.063	0.164 ± 0.0096	0.387 ± 0.0013	14.1 ± 0.33
−0.2	0.582 ± 0.063	0.169 ± 0.010	0.390 ± 0.0015	5.49 ± 0.063
−0.3	0.644 ± 0.23	0.138 ± 0.027	0.544 ± 0.010	0.258 ± 0.0028
Cu/MoS2
−0.1	3.76 ± 0.33	0.320 ± 0.013	49.6 ± 0.53	1.14 ± 0.068
−0.2	2.03 ± 0.19	0.264 ± 0.012	58.9 ± 1.7	0.00299 ± 4.3 × 10−5
−0.3	0.805 ± 0.073	0.149 ± 0.0083	33.6 ± 1.8	0.000768 ± 1.3 × 10−5
fs-Cu/MoS2
−0.1	10.2 ± 0.90	0.206 ± 0.011	64.9 ± 0.97	0.510 ± 0.16
−0.2	6.69 ± 0.51	0.155 ± 0.0069	82.7 ± 1.8	0.00163 ± 1.7 × 10−5
−0.3	2.64 ± 0.49	0.073 ± 0.0082	63.3 ± 5.6	0.000405 ± 1.3 × 10−5

). The C_dl values for both of these electrodes remained relatively constant from −0.1 V to −0.3 V because this is a capacitive zone where no Faradaic reaction occurs. A different tendency was observed for the electrodes coated in a catalytic MoS₂ film: C_dl decreased with the overpotential (which is likely related to the increasing surface coverage of H_ads). It is probably incorrect to compare the C_dl values between the plain metal electrodes and MoS₂ films because the mechanism and kinetics for the formation of a compensating double layer may be different. However, the C_dl values of fs-Cu/MoS₂ were ~3 times larger than of Cu/MoS₂, indicating that the former had a larger electrochemically active surface area.

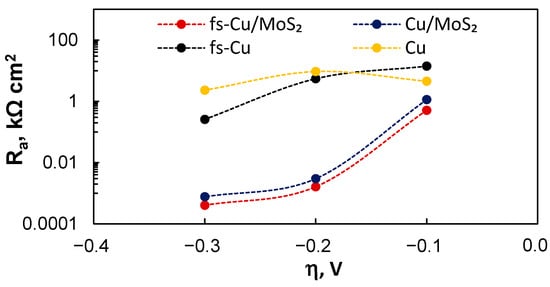

The second capacitance in the equivalent circuits (CPE_a)—adsorption capacitance C_a—is related to the adsorption/desorption of H⁺ on the electrode surface. The rate of this process is much slower than the charge/discharge of the Helmholtz double-layer, and is therefore observed at low perturbation frequencies. Because hydrogen evolution occurs via the adsorption (and subsequent electrochemical recombination) of H⁺ on the active site, this means that C_a is proportional to the electrocatalytically active surface area. Here, it is most apparent that the C_a of the Cu/MoS₂ and fs-Cu/MoS₂ samples (33–82 mF cm⁻²) was at least two magnitudes larger than the C_a on the copper substrates (0.07–0.54 mF cm⁻²). This signifies that hydrogen adsorption occurred much more readily on the MoS₂ material. As previously mentioned, the effect of the fs-ablated surface was apparent, as the C_a of the fs-Cu/MoS₂ was ~1.5 times larger than of Cu/MoS₂.

It is interesting to note the observed peak for the Cu/MoS₂ and fs-Cu/MoS₂ C_a values at −0.2 V. This appears to be in contrast to the expected result (that surface coverage by H_ads should increase with overpotential). This phenomenon can probably be attributed to the fact that C_a (i.e., effective capacitance was recalculated from the dimensionless value of the constant phase element CPE_a). Table S1 shows the values of CPE_a and n. In the case of fs-Cu/MoS₂, the CPE_a values increased with the applied potential, but the n dropped from 0.92 at −0.1 V to 0.74 at −0.3 V. Here, n can be thought of as a coefficient that represents the inhomogeneity of the capacitive layer, and n decreases when the hydrogen evolution becomes more vigorous, and H₂ gas bubbles disturb the catalyst/electrolyte interface.

The R_ct and R_a parameters are also worth discussing. Here, the charge transfer resistance R_ct represents the resistance at the electrode/solution interface at high frequencies and is a measure of the system’s resistance to a unit of charge being transferred across the double layer. The values of R_ct for fs-Cu, Cu/MoS₂, and fs-Cu/MoS₂ were from ~0.1 to 0.3 Ω cm². The main difference of significance here is that the R_ct of Cu was 1033 Ω cm² at −0.1 V and dropped to 191 Ω cm² at −0.3 V. As also suspected from the spectra in Figure 8a, this may signal the occurrence of a Faradaic reaction that is not hydrogen evolution.

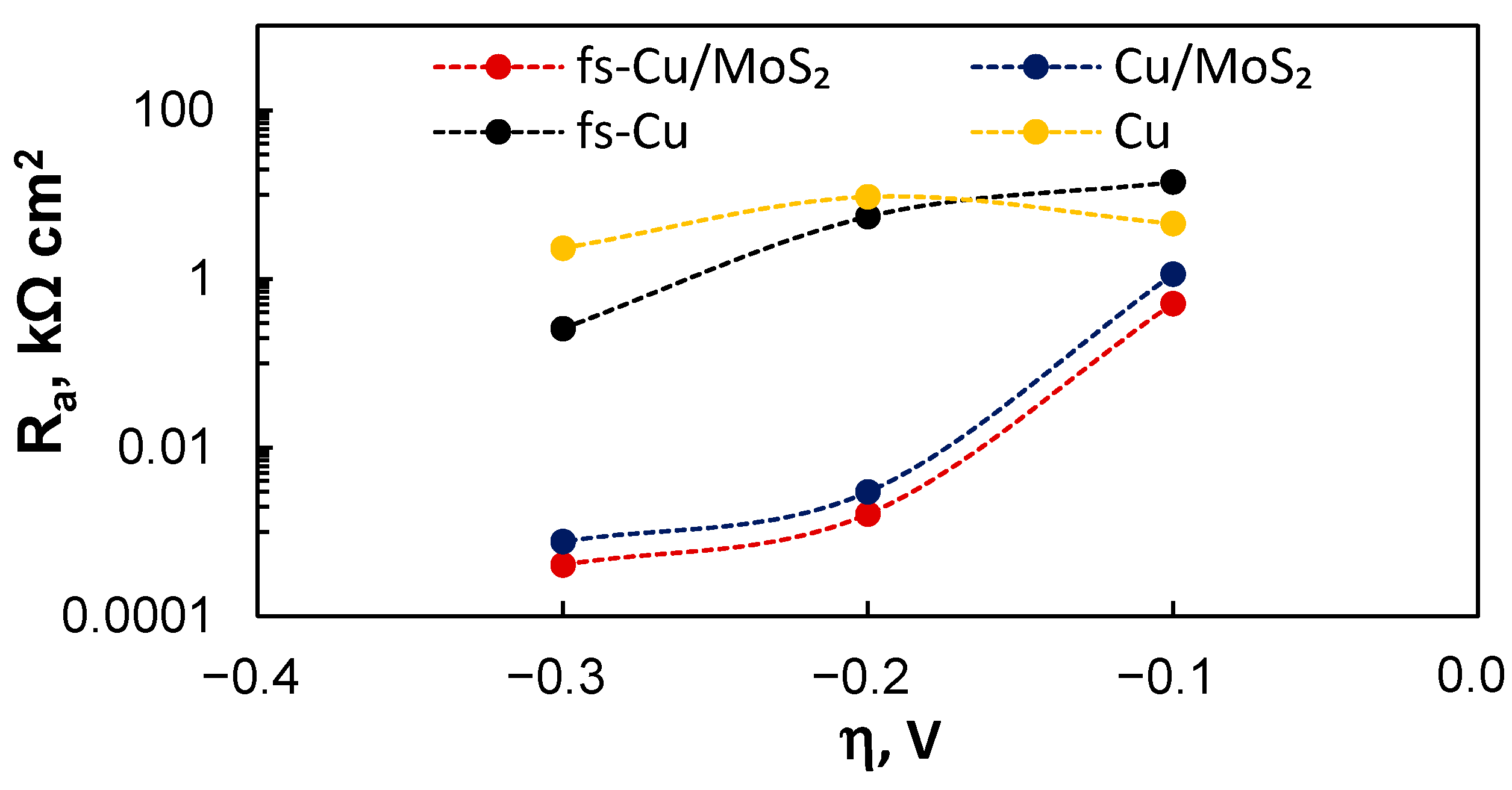

R_a, in particular, is representative of the electrode’s electrocatalytic HER performance. Mechanistically it is the resistance that H⁺ needs to overcome in order to adsorb on an active site and become H_ads (Equation (2)). Lower R_a values correspond to faster HER kinetics and better electrocatalytic activity at a certain overpotential. The large difference between the copper substrates and MoS₂ film was again evident (Figure 11). For Cu/MoS₂ and fs-Cu/MoS₂, the R_a values were magnitudes smaller than those for their respective plain substrate electrodes. Moreover, the tendency of R_a to decrease exponentially with the overpotential (corresponding to exponentially increasing the HER current as in Figure 3) was not observed for the substrate electrodes. When comparing Cu/MoS₂ and fs-Cu/MoS₂, the latter again exhibited measurably better electrocatalytic activity.

4. Conclusions

In this study, the femtosecond-laser-ablated copper surfaces were used as substrates with an elaborated surface area for the electrochemical deposition of MoS₂ to create an efficient electrocatalytic cathode for hydrogen evolution in acidic media. Profilometric analysis was used to approximate the observable developed surface area of fs-Cu, which was ~40 times larger than the geometric surface area. However, after electrochemically depositing a MoS₂ film onto this surface, the observed surface area decreased in half, which shows that extra care must be taken when approximating the surface area of heterogeneous catalysts with complex surface geometries. The fs-ablated (fs-Cu, fs-Cu/MoS₂) and plain (Cu, Cu/MoS₂) electrodes were characterized for their HER catalytic activity in 0.5 M H₂SO₄. It was observed that fs-Cu was more active than Cu, and similarly, fs-Cu/MoS₂ surpassed Cu/MoS₂, even though the same amount of catalyst had been deposited. Scanning electrochemical microscopy in a substrate generation/tip collection mode was used to examine the local HER activity of the fs-Cu/MoS₂ films, and it was found that a signal could be obtained from both the pits and peaks, which suggests that hydrogen evolution occurs across the entire surface. Finally, electrochemical impedance spectroscopy was used to relate the surface structure/morphology to the electrocatalytic activity. The impedance spectra were fitted by equivalent electric circuits, and C_dl and C_a were calculated from the high- and low-frequency signals, respectively. The C_dl, which is proportional to the electrochemically active surface area, was 2–5 times larger for fs-Cu and fs-Cu/MoS₂ when compared to Cu and Cu/MoS₂, which proves that the fs-ablated surfaces had a much larger electrochemically active surface area. Similarly, the C_a of fs-Cu/MoS₂ (which is proportional to the electrocatalytically active surface area) was larger than that of Cu/MoS₂. This conclusively shows that using a laser-ablated surface for the electrochemical deposition of a catalyst yields a more efficient device that using planar substrates. These results show that femtosecond laser ablation, which is a scalable and controllable process, can be used to manufacture excellent substrates for heterogeneous electrocatalyst use.
