Highly Porous and Ultra-Lightweight Aero-Ga2O3: Enhancement of Photocatalytic Activity by Noble Metals

by
Irina Plesco
1,*,
Vladimir Ciobanu
1,
Tudor Braniste
1,
Veaceslav Ursaki
1,
Florian Rasch
2,
Andrei Sarua
3,
Simion Raevschi
4,
Rainer Adelung
2,
Joydeep Dutta
5 and
Ion Tiginyanu
1,6,*
1
National Center for Materials Study and Testing, Technical University of Moldova, Stefan cel Mare Av. 168, MD-2004 Chisinau, Moldova
2
Functional Nanomaterials, Institute for Materials Science, Kiel University, Kaiser Str. 2, 24143 Kiel, Germany
3
H. H. Wills Physics Laboratory, School of Physics, University of Bristol, Tyndall Avenue, Bristol BS8 1TL, UK
4
Department of Physics and Engineering, State University of Moldova, Alexei Mateevici Str. 60, MD-2009 Chisinau, Moldova
5
Functional Materials Group, Applied Physics Department, School of Engineering Sciences, KTH Royal Institute of Technology, Hannes Alfvéns väg 12, 11419 Stockholm, Sweden
6
Academy of Sciences of Moldova, Stefan cel Mare Av. 1, MD-2001 Chisinau, Moldova
*
Authors to whom correspondence should be addressed.
Materials 2021, 14(8), 1985; https://doi.org/10.3390/ma14081985
Submission received: 11 March 2021 / Revised: 7 April 2021 / Accepted: 12 April 2021 / Published: 15 April 2021
(This article belongs to the Special Issue Properties of Interfaced Materials and Films)
Browse Figures
Versions Notes

Abstract

:
A new type of photocatalyst is proposed on the basis of aero-β-Ga2O3, which is a material constructed from a network of interconnected tetrapods with arms in the form of microtubes with nanometric walls. The aero-Ga2O3 material is obtained by annealing of aero-GaN fabricated by epitaxial growth on ZnO microtetrapods. The hybrid structures composed of aero-Ga2O3 functionalized with Au or Pt nanodots were tested for the photocatalytic degradation of methylene blue dye under UV or visible light illumination. The functionalization of aero-Ga2O3 with noble metals results in the enhancement of the photocatalytic performances of bare material, reaching the performances inherent to ZnO while gaining the advantage of the increased chemical stability. The mechanisms of enhancement of the photocatalytic properties by activating aero-Ga2O3 with noble metals are discussed to elucidate their potential for environmental applications.

Graphical Abstract

1. Introduction

Five different polymorphs have been reported for gallium oxide (Ga2O3), namely, the monoclinic (β), rhombohedral (α), defective spinel (γ), cubic (σ), and orthorhombic (ε) structures [1,2]. β-polymorph Ga2O3 has attracted most of the attention due to its superior chemical and thermal stability, wide bandgap, high stability to breakdown voltage, and high Baliga’s figure of merit (BFOM). It has been widely studied and utilized for various applications including in power electronics, solar blind UV photodetectors, solar cells, and as gas-sensing materials [3,4,5]. Photocatalysis is another emerging application of the β-Ga2O3 polymorph. Particularly, the photocatalytic activity of the Ga2O3 polymorphs was found to be strongly influenced by its crystal structure in the following order: β-Ga2O3 > α-Ga2O3 > γ-Ga2O3 [6].
Ga2O3-based pure phases and composites have been examined for energy and environmental applications, including the decomposition of volatile aromatic pollutants in air [6]; water purification [7,8,9,10,11]; solar water splitting [12,13,14,15]; photocatalytic carbon dioxide (CO2) reduction with water to produce carbon monoxide (CO), hydrogen (H2), and oxygen (O2) [15,16,17,18,19,20,21]; photocatalytic reduction of CO2 to produce methane (CH4) [22]; as well as solar-driven photoreduction of nitrogen (N2) in a clean route to produce ammonia (NH3) [23].
Generally, three main factors determine the solar-to-chemical energy conversion efficiencies of photocatalytic processes: (i) light absorption to produce photogenerated charge carriers; (ii) transfer and separation of charge carriers; (iii) surface reactions to convert reactants into products through the consumption of charge carriers [24]. Therefore, the use of a single semiconductor material is limited by these key factors, since their synergistic combination is rarely found in the same material.
Different approaches have been proposed for enhancing the photocatalytic performance of catalysts, such as making use of co-catalysts, the development of semiconductor-based hybrid photocatalysts, crystal phase engineering, and the rational design of phase junctions [24], e.g., via implementing heterojunctions [25,26,27,28]. Furthermore, coupling photocatalysts with conductive materials and utilizing the surface plasmon resonance (SPR) to produce plasmonic photocatalysis [26,27,28,29,30] show promising outcomes. By implementing these approaches, the following issues were addressed: (i) the light absorption region was extended by combining various photosensitizers with semiconductors, particularly by deposition of nanoparticles (NPs) of noble metals such as gold (Au), silver (Ag), and platinum (Pt) to enhance visible light absorption due to SPR; (ii) suppression of electron–hole recombination through efficient charge separation and confinement of the photogenerated electrons and holes in different components of semiconductor-based heterostructures or by using conductive materials, particularly noble metal NPs or carbon materials as electron acceptors and traps to enhance the carrier separation in photocatalysts and to avoid the recombination of charges; (iii) surface reactions were enhanced by integrating co-catalysts with semiconductors.
Nevertheless, the photocatalytic systems developed to date are still far from being applicable due to low efficiency and poor durability [25]. Particularly, the chemical stability of photocatalysts, including that of the most widely explored metal oxides as titanium dioxide (TiO2) and zinc oxide (ZnO) materials, presents a major challenge for practical applications [26,31].
In this research, we focused on the development of an efficient photocatalyst, which will not decompose in the process, bringing additional water pollution with metal ions or new compounds. The nanostructured titania and zinc oxide are the undebatable leaders among the semiconductor photoactivated catalysts. At the same time, sewage and ground waters suffer much from the deliberate usage of soaps, medicines, and cosmetics containing TiO2 and ZnO. According to the WHO reports, content of Zn in tap water can cover 10% of the daily amount of this mineral in human body, but taking into account its high accessibility from meat, fish, and cereals, this limit may be exceeded. Ingestion of excessive amounts of Zn causes fever, nausea, vomiting, stomach cramps, and diarrhea at humans, decreases the antibiotics effectiveness, etc. [32]. It was reported that intake of Zn overdoses for a long period of time increases the risks to develop prostate cancer [33]. Thus, the major concern of modern research is the development of sustainable technologies that are efficient and cost-effective but also with low level of toxicity.
In this work, we report on the design of an ultra-lightweight, highly porous, and stable aero-Ga2O3 material and demonstrate the photocatalytic efficiency for potential applications in photocatalytic water purification.

2. Materials and Methods

The aero-Ga2O3 material belongs to a class of highly porous and ultra-lightweight “aero-materials” which descend from 3D semiconductor network of interpenetrating ZnO microtetrapods. The sacrificial network of ZnO microtetrapods was prepared by a simple flame transport approach, which is described elsewhere [34]. So far, new aero-materials such as aerographite [35], aero-GaN [36,37,38], aero-ZnS [39], aero-BN [40], and aero-Si [41] have been realized by templating the ZnO network. For example, the aerographite is produced via the transformation of the sacrificial ZnO microtetrapod network into graphitic microtubes in a one-step chemical vapor deposition (CVD) process with toluene as the carbon source [35].

2.1. Materials Synthesis

The new aero-Ga2O3 is produced by a two-step process schematically represented in Figure 1a. Aero-GaN is first obtained by transforming the ZnO microtetrapods into GaN microtubes in a hydride vapor phase epitaxy (HVPE) process using hydrochloride (HCl), metallic gallium (Ga), and ammonia precursors as described in previous reports [36,37,38]. Gallium chloride (GaCl) is formed in the source zone, where gaseous HCl interacts with liquid Ga in the first stage of this process, while GaN is formed in the reaction zone via a chemical reaction between the gaseous molecules of GaCl and NH3. Simultaneously, the ZnO sacrificial template is decomposed due to the corrosive atmosphere and high temperatures. Secondly, the aero-GaN is subjected to annealing at 900 °C for 1 h under normal atmospheric conditions. As a result, aero-GaN is transformed into aero-Ga2O3 (also known as “Aerogallox”) [42].
Here, samples were prepared via the second hybrid approach, which is similar to that applied for the fabrication of the phase pure aerogallox, but it is complemented by the deposition of Au or Pt coatings in two technological steps. The first coating is deposited on the ZnO template before the HVPE process is performed for the production of aero-GaN. Following this, the second coating is deposited on the aero-GaN architecture before the annealing is performed for the transformation of aero-GaN into aero-Ga2O3. Thin gold or platinum films were deposited in a Cressington 108 Sputter Coater machine as described in a previous paper [43]. The thermal treatment leads to the structuring of the initially continuous metal film and to the formation of hybrid photocatalysts.

2.2. Materials Characterization

The microstructure morphology of aero-Ga2O3 microtetrapods was studied by scanning electron microscopy (SEM) Zeiss Gemini Ultra55 Plus (Carl Zeiss AG, Oberkochen, Germany) working at 7 kV. Raman spectra were recorded using a Renishaw InVia Raman system (Renishaw plc, Wotton-under-Edge, UK) in backscattering geometry at room temperature. The samples were illuminated using a 532 nm line of a CW DPSS laser with a power density of 11.3 mW/µm2. A 50× microscope objective lens with NA = 0.75 was used to focus the light on the sample surface. Raman spectra were collected from a single gallium oxide tube where possible with light normal to the side wall. The scattered light was detected by a cooled charge-coupled device detector.
A JEOL 6330F (JEOL Ltd., Tokyo, Japan) field emission scanning electron microscope (FE-SEM) equipped with a Gatan MonoCL cathodoluminescence (CL) microanalysis system was used for CL characterization. The CL spectra have been taken with an accelerating voltage of 10 keV and current of 10 nA in the spectral range of 250–600 nm, using a grating spectrometer and a photomultiplier tube (PMT) detector.

2.3. Photocatalytic Degradation of MB Solution

Methylene blue (MB) dye (Merck KGaA, Darmstadt, Germany) was chosen for investigating the photocatalytic properties of the developed catalyst, since it is a common organic pollutant recommended by the International Standards Organization ISO 10678: 2010. A 10 μM MB solution in deionized (DI) water was prepared as the organic contaminant. Consequently, 50 mL of MB solution was transferred into a glass beaker with 20 mg of catalyst and mixed at 600 rpm by a magnetic stirrer. The same concentration of 0.4 mg/mL of the active material in solution was used for all the tested photocatalysts. The solution with aero-material was placed under a 100 W Blak Ray Hg lamp (Analytik Jena GmbH, Jena, Germany) with the main intensity peak at 365 nm, at 14.5 cm distance from the solution surface to study the photocatalytic properties under ultraviolet (UV) illumination, or under a 150 W Halogen lamp irradiation ensuring an optical power density of 100 mW/cm2 to estimate the photodegradation with visible light. To monitor the degradation of MB, the samples were transferred into cuvettes for UV/Vis spectroscopy, and the absorption spectra were recorded with a Perkin Elmer Lambda 750 UV/Vis spectrometer (PerkinElmer Life and Analytical Sciences, Shelton, CT, USA). By monitoring the absorption intensity decay as a function of time, we calculated the concentration of remaining MB in the solution. The MB absorption peak was observed at 665 nm and the current concentration of MB was calculated using Beer–Lambert law:
c M B = A ε l
where c M B is the solution concentration, A is the measured absorption value, ε is the absorptivity of the solution at certain wavelength (λ), and l is the optical pathway during the measurement expressed in centimeters. The absorptivity of dye ε has been extracted from the blank test data.
The MB degradation experiments were performed at low pollutant concentration; thus, the kinetics study was performed according to the first-order Langmuir–Hinshelwood model that relates the rate of photochemical reactions, which are proportional to the surface coverage of the photocatalyst:
− l n ( C M B C 0 ) = K
where K is the adsorption coefficient of the reactant on the surface of the catalyst, c M B is the solution concentration, and c 0 is the initial pollutant concentration.

3. Results and Discussions

3.1. Morphology of the Aero-Ga2O3

An SEM micrograph of the aero-Ga2O3 material used for photocatalytic degradation tests is presented in Figure 2a. The aero-Ga2O3 microstructure displays a network of interconnected microtetrapods. The Ga2O3 tetrapods preserve the initial shape of the ZnO template; however, they are converted into a hollow geometry. Concerning the crystallographic structure of the obtained Ga2O3 material, it was shown in previous work to belong to the β-Ga2O3 polytype with the C2/m (C32h) space group [42]. This assignment was confirmed by the Raman scattering analysis discussed below.
The morphology of the aero-Ga2O3-Au hybrid photocatalyst (Figure 3) is similar to that of the pure Ga2O3. However, an array of Ga2O3 nanowires (NWs) terminated by Au nanoparticles grows inside the Ga2O3 microtubes during the HVPE on sacrificial ZnO microtetrapods, as illustrated in Figure 3b. The growth of these nanowires was elucidated in detail in a previous paper [43]. It was shown that the confined reaction conditions during the HVPE process and hydrothermal dissolution of ZnO lead to the metal-catalytic vapor–liquid–solid (VLS) growth of NWs. Some nanowires with golden nanoparticles on top are also observed on the outer surface of aero-Ga2O3-Au, which were formed during the last step of the oxidation of GaN microtubes after being covered with an ultrathin layer of Au nanostructures. However, the aero-Ga2O3-Au and aero-Ga2O3-Pt hybrid photocatalysts are basically composed of Ga2O3 microtubes with noble metal nanocoatings.

3.2 Optical Properties

As mentioned below, the Raman spectrum of the aero-Ga2O3 (Figure 4) corroborates well with its attribution to the β-Ga2O3 monoclinic polytype. The primitive unit cell of β-Ga2O3 consists of 10 atoms at the Γ-point with irreducible representation Γopt = 10Ag + 5Bg + 4Au + 8Bu predicts a set of 27 optical modes of which 15 g modes are Raman-active and 12 u modes are IR-active only [44].
All the Raman active modes are observed in the measured Raman spectrum, which are summarized in Table 1 along with the classification given in Ref. [44] and refs therein.
The frequencies of the Ag(7) and Bg(4) modes coincide. A series of weaker peaks are also observed at 123 cm−1, 131 cm−1, 140 cm−1, 155 cm−1, 166 cm−1, 211 cm−1, 231 cm−1, and 482 cm−1 in the spectrum (Figure 4), which can be attributed to either activation of Raman inactive modes due to breaking of local symmetry, to some local vibrational modes, or to second-order Raman modes. The Raman spectra were not affected by metal deposition, and no vibration modes related to metal inclusions were observed in the spectrum.
The presence of donor and acceptor centers in the prepared aero-Ga2O3, their energy levels, and the corresponding electron transitions can be deduced from the cathodoluminescence spectrum (Figure 5a). The emission spectrum is deconvoluted into four Gaussian CL bands with maxima around (3.3–3.4) eV, (2.9–3.0) eV, (2.6–2.7) eV, and (2.3–2.4) eV. The maxima of CL bands and the position of respective energy levels were determined with an uncertainty of around 5%. One should also take into consideration that the position of the luminescence band related to distant donor–acceptor pair recombination depends upon the excitation power density used in the experiment. The luminescence spectra were not affected by metal deposition in the materials reported in this paper.
The scheme of energy levels and electron transitions plotted according to the observed CL bands is presented in Figure 5b. This scheme contains two donor and two acceptor levels, which is in accordance with the model proposed by Mi et al. [45].
According to this model, the two blue emission bands, at (2.6–2.7) eV and (2.9–3.0) eV in our case, arise from electron transitions from the D1 to the A1 level and from the D2 to the A2 level, respectively. The UV emission band at (3.3–3.4) eV was attributed to the recombination of an electron on the D1 donor level with a hole on the A2 acceptor level, while the green band at (2.3–2.4) eV was associated with electron transition from the D2 to the A1 level. It was suggested that the donor levels can be formed by oxygen vacancies (VOX) and Ga2+ interstitials, while the acceptor levels can be attributed to gallium vacancy (VGaX) and gallium–oxygen vacancy pairs [(VGa,VO)X] [45,46,47]. The PL bands at 2.4, 2.7, and 3.0 eV have been supposed to arise from donor–acceptor pair recombination involving the same donor, while acceptors are associated with interstitial oxygen (Oi0), gallium vacancy (VGa2−), and gallium–oxygen vacancy pairs [(VGa,VO)1−], respectively [48]. The acceptors involved in the donor–acceptor pair recombination generating the green emission band at 2.3 eV were also associated with either interstitial oxygen (Oi0), octahedral gallium vacancy (VGa2−), or tetrahedral gallium vacancy (VGa1−) [49].
The prepared aero-Ga2O3 material as well as the aero-Ga2O3-metal hybrid structures were subjected to photocatalytic tests under UV and visible light illumination in order to degrade the MB solution. The effect of a wide range of photocatalysts on the degradation and discoloring of MB was extensively investigated previously, including those based on β-Ga2O3 [50,51]. Upon excitation by the UV light with a wavelength of 365 nm, an electron from the acceptor level A2 is excited into the conduction band, as shown in Figure 5b. As a result of this transition, an electron from the valence band non-radiatively recombines with the hole formed on the acceptor level, thus leaving a free hole in the valence band. The holes in the valence band are able to oxidize (OH−) in reaction with water to produce reactive hydroxyl radicals (•OH). On the other hand, the excited electrons in the conduction band are able to produce superoxide anion radicals (O2•−) upon reacting with O2. Both (•OH) and (O2•−) are free radicals and being strong oxidants are able to mineralize organic and inorganic carbon compounds producing carbon dioxide, water, and other smaller organic molecules [8,10,27,28,51,52,53].

3.3 Photocatalytic Performance

The evolution of the pollutant concentration during the experiments and photocatalytic rate constant were calculated according to Equations (1) and (2), respectively, and the resulting plots are presented in Figure 6. The photocatalytic activity of the aero-Ga2O3 without metal activation is compared in Figure 6a with that of the initial ZnO microtetrapod template. The high activity of ZnO under visible light illumination led to 90% degradation of MB dye within 60 min, while under UV excitation, 90% of the dye is degraded within 35 min. On the other hand, the aero-Ga2O3 performs worse, with only 35% degradation of dye observed after 45 min both under visible and UV light illumination, while only 43% was degraded after 60 min under UV excitation.
The performance of the aero-Ga2O3 was significantly improved by noble metal activation, as shown in Figure 6b, so that the aero-Ga2O3-Au hybrid structure degraded about 85% of the dye within 35 min under UV excitation, while the aero-Ga2O3-Pt composite degraded 60% after the similar exposure time under UV illumination. After a 60 min exposure, the dye was almost completely degraded by the aero-Ga2O3-Au hybrid structure, while 80% of the dye was degraded by the aero-Ga2O3-Pt composite. The photocatalysts did not promote any noticeable degradation under visible light illumination compared to the natural dye degradation.
Adsorption rates of MB on aero-Ga2O3 bare and functionalized with Au and Pt were analyzed using the pseudo 1st order kinetic model, according to Equation (2). Plots of l n ( C 0 C M B ) versus the time of reaction are presented in Figure 6c,d. The rate constants obtained from the slopes of the lines in Figure 6 in case of no catalyst, aero-Ga2O3, aero-Ga2O3–Pt, aero-Ga2O3–Au, ZnO tetrapodes under UV and visible light illumination are presented in Table 2.
As mentioned above, two mechanisms are expected to contribute to the enhancement of photocatalytic activity of semiconductors by noble metal functionalization: namely, the extension of the light absorption region by surface plasmon effects and the suppression of charge recombination due to carrier separation at the metal-semiconductor Schottky contact. The surface plasmon resonance frequencies of gold nanoparticles and films embedded in various semiconductor matrices were found to be in the spectral range of 500–700 nm [54,55,56,57,58,59]. The resonance frequencies of platinum are also in the visible light spectrum [60,61]. However, according to very low catalytic activity under visible light illumination of aero-Ga2O3 functionalized with Au or Pt, as deduced from Figure 6b, one can conclude that light absorption is not extended to the visible light spectrum, indicating that the plasmonic effects of Au or Pt coatings are negligible in the prepared aero-Ga2O3 catalyst. On the contrary, the improvement of the catalytic performance upon Pt deposition, and especially by Au functionalization, may come from effective carrier separation at the Schottky contact formed at the semiconductor metal interface, especially when the noble metal is in the form of dots [62].
According to previously published data, the work function of Au was estimated to be of 5.2–5.3 eV [63,64], while the reported value for Pt was in the range of 5.6–5.9 eV [3,64]. A value of 4.0 eV was reported for the electron affinity of Ga2O3 leading to the formation of a Schottky barrier height of 1.2 eV at the Au/Ga2O3 interface according to the Schottky–Mott rule [3,5,63,65]:
Φ B = Φ A u − χ
where ΦB is the barrier height, ΦAu is the Au work function, and χ is the electron affinity of β-Ga2O3.
The Schottky barrier height for the Pt/Ga2O3 interface should be a little higher. However, the real Schottky barrier height is also affected by the Fermi-level pinning at the metal-semiconductor interface and by the chemical disorder, so that the measured value of the barrier height usually differs from the calculated one. For instance, the measured value of Schottky barrier height was in the range of 1.0–1.7 eV for Au [3,63,64,65], and 1.0–1.6 eV for Pt [3,64,65,66]. Thus, considering the obtained photodegradation results with aero-Ga2O3-Au and aero-Ga2O3-Pt catalysts, we conclude that the aero-Ga2O3 composite with Au provides higher catalytic activity, which is most likely due to the higher Schottky barrier and carrier blocking for Au, as compared to that with Pt. The better quality of the contact ensures more efficient charge separation at the interface and suppression of free carrier recombination, which in its turn results in a higher photocatalytic activity of the Ga2O3-Au photocatalysts. The performance of this photocatalyst is similar to that obtained with the initial ZnO microstructured template, but the aero-Ga2O3 material is much more stable in contact with various chemicals compared to ZnO [67,68].
The catalysts presented in this study have been tested for several runs. After the first test, the catalysts were centrifuged, washed in DI, centrifuged again, and dried at 100 °C in air, and tests were repeated in a new run maintaining the catalyst concentration in solvent of 0.4 mg/mL. It was observed that material keeps its performance on the fair level after being reused.

4. Conclusions

The results of this study demonstrate the potential of the newly developed aero-Ga2O3-Au hybrid structure for environmental applications. Good crystallinity of the β-Ga2O3 phase of microtubes constituting the aero-Ga2O3 architecture was demonstrated by Raman scattering spectroscopy. The scheme of energy bands and electron transitions in aero-Ga2O3 deduced from CL spectra suggests the existence of effective channels for UV excitation with the 365 nm line of the aero-Ga2O3 matrix with the subsequent formation of (•OH) and (O2•−) free radicals in water, which are strong oxidants that are able to oxidize the MB dye. The photocatalytic activity of the pure aero-Ga2O3 material is behind the performances of the initial ZnO microtetrapods-based template, while the functionalization of the aero-Ga2O3 with noble metals results in spectacular enhancement of the photocatalytic performances of this new material. The performed analysis suggests that the main contribution to this enhancement comes from the formation of Schottky barriers at the Au or Pt /aero-Ga2O3 interface leading to effective separation of the excited free carriers and suppression of their recombination. Although the performance of the developed photocatalyst is at the level inherent to the initial ZnO template, the aero-Ga2O3 functionalized with noble metals represents a promising composite material exhibiting high chemical stability and possessing a unique spatial architecture.

Author Contributions

Conceptualization, I.T., T.B.; formal analysis, I.P.; investigation, I.P., V.C., T.B., A.S., S.R.; resources, F.R., R.A., J.D., I.T.; data curation, I.P.; writing—original draft preparation, I.P. and V.U.; writing—review and editing, all authors; visualization, I.P., V.C., V.U.; supervision, I.T., J.D.; project administration, I.T., J.D.; funding acquisition, I.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by European Commission under the Grant #810652 “NanoMedTwin” and from the Ministry of Education, Culture and Research of the Republic of Moldova under the Grant #20.80009.50007.20 and Grant #20.80009.50007.12.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Acknowledgments

Sindu Shree is acknowledged for the preparation of initial ZnO microtetrapods.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Roy, R.; Hill, V.G.; Osborn, E.F. Polymorphism of Ga2O3 and the System Ga2O3−H2O. J. Am. Chem. Soc. 1952, 74, 719–722. [Google Scholar] [CrossRef]
  2. Romanov, A.E.; Stepanov, S.I.; Nikolaev, V.I.; Bougrov, V.E. Gallium Oxide: Properties and Applications—A Review. Rev. Adv. Mater. Sci. 2016, 44, 63–86. [Google Scholar]
  3. Pearton, S.J.; Yang, J.; Cary, P.H.; Ren, F.; Kim, J.; Tadjer, M.J.; Mastro, M.A. A review of Ga2O3 materials, processing, and devices. Appl. Phys. Rev. 2018, 5, 011301. [Google Scholar] [CrossRef] [Green Version]
  4. Chen, X.; Ren, F.; Gu, S.; Ye, J. Review of gallium-oxide-based solar-blind ultraviolet photodetectors. Photonics Res. 2019, 7, 381. [Google Scholar] [CrossRef]
  5. Huan, Y.-W.; Sun, S.-M.; Gu, C.-J.; Liu, W.-J.; Ding, S.-J.; Yu, H.-Y.; Xia, C.-T.; Zhang, D.W. Recent Advances in β-Ga2O3–Metal Contacts. Nanoscale Res. Lett. 2018, 13, 246. [Google Scholar] [CrossRef] [PubMed]
  6. Hou, Y.; Wu, L.; Wang, X.; Ding, Z.; Li, Z.; Fu, X. Photocatalytic performance of α-, β-, and γ-Ga2O3 for the destruction of volatile aromatic pollutants in air. J. Catal. 2007, 250, 12–18. [Google Scholar] [CrossRef]
  7. Shao, T.; Zhang, P.; Jin, L.; Li, Z. Photocatalytic decomposition of perfluorooctanoic acid in pure water and sewage water by nanostructured gallium oxide. Appl. Catal. B Environ. 2013, 142–143, 654–661. [Google Scholar] [CrossRef] [Green Version]
  8. Xu, B.; Ahmed, M.B.; Zhou, J.L.; Altaee, A.; Wu, M.; Xu, G. Photocatalytic removal of perfluoroalkyl substances from water and wastewater: Mechanism, kinetics and controlling factors. Chemosphere 2017, 189, 717–729. [Google Scholar] [CrossRef]
  9. Xu, B.; Zhou, J.L.; Altaee, A.; Ahmed, M.B.; Johir, M.A.H.; Ren, J.; Li, X. Improved photocatalysis of perfluorooctanoic acid in water and wastewater by Ga2O3/UV system assisted by peroxymonosulfate. Chemosphere 2020, 239, 124722. [Google Scholar] [CrossRef]
  10. Das, B.; Das, B.; Sankar Das, N.; Pal, S.; Kumar Das, B.; Sarkar, S.; Kumar Chattopadhyay, K. Novel Ag2O-Ga2O3 type II p-n heterojunction as an efficient water cleanser for green cleaning technology. Appl. Surf. Sci. 2020, 515, 145958. [Google Scholar] [CrossRef]
  11. Tan, X.; Chen, G.; Xing, D.; Ding, W.; Liu, H.; Li, T.; Huang, Y. Indium-modified Ga2O3 hierarchical nanosheets as efficient photocatalysts for the degradation of perfluorooctanoic acid. Environ. Sci. Nano 2020, 7, 2229–2239. [Google Scholar] [CrossRef]
  12. Kudo, A.; Miseki, Y. Heterogeneous photocatalyst materials for water splitting. Chem. Soc. Rev. 2009, 38, 253–278. [Google Scholar] [CrossRef]
  13. Pan, L.; Kim, J.H.; Mayer, M.T.; Son, M.K.; Ummadisingu, A.; Lee, J.S.; Hagfeldt, A.; Luo, J.; Grätzel, M. Boosting the performance of Cu2O photocathodes for unassisted solar water splitting devices. Nat. Catal. 2018, 1, 412–420. [Google Scholar] [CrossRef]
  14. Ito, R.; Akatsuka, M.; Ozawa, A.; Kato, Y.; Kawaguchi, Y.; Yamamoto, M.; Tanabe, T.; Yoshida, T. Photocatalytic Activity of Ga2O3 Supported on Al2O3 for Water Splitting and CO2 Reduction. ACS Omega 2019, 4, 5451–5458. [Google Scholar] [CrossRef] [Green Version]
  15. Sudrajat, H.; Nguyen, T.K. Gallium oxide nanoparticles prepared through solid-state route for efficient photocatalytic overall water splitting. Optik (Stuttg.) 2020, 223, 165370. [Google Scholar] [CrossRef]
  16. Akatsuka, M.; Kawaguchi, Y.; Itoh, R.; Ozawa, A.; Yamamoto, M.; Tanabe, T.; Yoshida, T. Preparation of Ga2O3 photocatalyst highly active for CO2 reduction with water without cocatalyst. Appl. Catal. B Environ. 2020, 262, 118247. [Google Scholar] [CrossRef]
  17. Kawaguchi, Y.; Yamamoto, M.; Ozawa, A.; Kato, Y.; Yoshida, T. Effects of the crystalline structure of Ga2O3 on the photocatalytic activity for CO production from CO2. Surf. Interface Anal. 2019, 51, 79–84. [Google Scholar] [CrossRef] [Green Version]
  18. Pang, R.; Teramura, K.; Morishita, M.; Asakura, H.; Hosokawa, S.; Tanaka, T. Enhanced CO evolution for photocatalytic conversion of CO2 by H2O over Ca modified Ga2O3. Commun. Chem. 2020, 3, 137. [Google Scholar] [CrossRef]
  19. Yoon, H.J.; Hyun Yang, J.; Park, S.J.; Rhee, C.K.; Sohn, Y. Photocatalytic CO2 reduction and hydrogen production over Pt/Zn-embedded β- Ga2O3 nanorods. Appl. Surf. Sci. 2021, 536. [Google Scholar] [CrossRef]
  20. Yoshioka, K.; Yamamoto, M.; Tanabe, T.; Yoshida, T. Roles of Silver Co-catalyst on Gallium Oxide for Photocatalytic CO2 Reduction to CO. E-J. Surf. Sci. Nanotechnol. 2020, 18, 168–174. [Google Scholar] [CrossRef] [Green Version]
  21. Yoshida, H.; Maeda, K. Preparation of Gallium Oxide Photocatalysts for Reduction of Carbon Dioxide. Stud. Surf. Sci. Catal. 2010, 175, 351–354. [Google Scholar]
  22. Park, H.A.; Choi, J.H.; Choi, K.M.; Lee, D.K.; Kang, J.K. Highly porous gallium oxide with a high CO2 affinity for the photocatalytic conversion of carbon dioxide into methane. J. Mater. Chem. 2012, 22, 5304–5307. [Google Scholar] [CrossRef]
  23. Devthade, V.; Gupta, A.; Umare, S.S. Graphitic carbon nitride-γ-gallium oxide (GCN-γ-Ga2O3) nanohybrid photocatalyst for dinitrogen fixation and pollutant decomposition. ACS Appl. Nano Mater. 2018, 1, 5581–5588. [Google Scholar] [CrossRef]
  24. Bai, S.; Gao, C.; Low, J.; Xiong, Y. Crystal phase engineering on photocatalytic materials for energy and environmental applications. Nano Res. 2019, 12, 2031–2054. [Google Scholar] [CrossRef]
  25. Wang, S.; Yun, J.H.; Luo, B.; Butburee, T.; Peerakiatkhajohn, P.; Thaweesak, S.; Xiao, M.; Wang, L. Recent Progress on Visible Light Responsive Heterojunctions for Photocatalytic Applications. J. Mater. Sci. Technol. 2017, 33, 1–22. [Google Scholar] [CrossRef] [Green Version]
  26. Ishchenko, O.M.; Rogé, V.; Lamblin, G.; Lenoble, D. TiO2- and ZnO-Based Materials for Photocatalysis: Material Properties, Device Architecture and Emerging Concepts. In Semiconductor Photocatalysis—Materials, Mechanisms and Applications; IntechOpen Limited: London, UK, 2016; Chapter 1; pp. 3–30. [Google Scholar]
  27. Belver, C.; Bedia, J.; Gómez-Avilés, A.; Peñas-Garzón, M.; Rodriguez, J.J. Semiconductor Photocatalysis for Water Purification. In Nanoscale Materials in Water Purification; Elsevier Inc.: Amsterdam, The Netherlands, 2018; Chapter 20; pp. 581–651. [Google Scholar]
  28. Li, Y.; Chen, F.; He, R.; Wang, Y.; Tang, N. Semiconductor Photocatalysis for Water Purification. In Nanoscale Materials in Water Purification; Elsevier Inc.: Amsterdam, The Netherlands, 2018; Chapter 22; pp. 689–705. [Google Scholar]
  29. Bora, T.; Myint, M.T.Z.; Al-Harthi, S.H.; Dutta, J. Role of surface defects on visible light enabled plasmonic photocatalysis in Au-ZnO nanocatalysts. RSC Adv. 2015, 5, 96670–96680. [Google Scholar] [CrossRef] [Green Version]
  30. Bora, T.; Dutta, J. Plasmonic Photocatalyst Design: Metal—Semiconductor Junction Affecting Photocatalytic Efficiency. J. Nanosci. Nanotechnol. 2018, 19, 383–388. [Google Scholar] [CrossRef] [PubMed]
  31. Wangab, Y.; Ma, X.; Li, H.; Liu, B.; Li, H.; Yin, S.; Sato, T. Recent Advances in Visible-Light Driven Photocatalysis. Adv. Catal. Mater. 2016, 12, 337–357. [Google Scholar]
  32. Fawell, J.K.; Lund, U.; Mintz, B. Guidelines for Drinking-Water Quality, 2nd ed.; Health Criteria and Other Supporting Information; World Health Organization: Geneva, Switzerland, 1996; Volume 2, Available online: https://www.who.int/water_sanitation_health/dwq/chemicals/zinc.pdf (accessed on 14 April 2021).
  33. Zhang, Y.; Coogan, P.; Palmer, J.R.; Strom, B.L.; Rosenberg, L. Vitamin and mineral use and risk of prostate cancer: The case-control surveillance study. Cancer Causes Control CCC 2009, 20, 691–698. [Google Scholar] [CrossRef] [Green Version]
  34. Mishra, Y.K.; Kaps, S.; Schuchardt, A.; Paulowicz, I.; Jin, X.; Gedamu, D.; Freitag, S.; Claus, M.; Wille, S.; Kovalev, A.; et al. Fabrication of macroscopically flexible and highly porous 3D semiconductor networks from interpenetrating nanostructures by a simple flame transport approach. Part. Part. Syst. Charact. 2013, 30, 775–783. [Google Scholar] [CrossRef]
  35. Mecklenburg, M.; Schuchardt, A.; Mishra, Y.K.; Kaps, S.; Adelung, R.; Lotnyk, A.; Kienle, L.; Schulte, K. Aerographite: Ultra lightweight, flexible nanowall, carbon microtube material with outstanding mechanical performance. Adv. Mater. 2012, 24, 3486–3490. [Google Scholar] [CrossRef]
  36. Tiginyanu, I.; Braniste, T.; Smazna, D.; Deng, M.; Schütt, F.; Schuchardt, A.; Stevens-Kalceff, M.A.; Raevschi, S.; Schürmann, U.; Kienle, L.; et al. Self-organized and self-propelled aero-GaN with dual hydrophilic-hydrophobic behaviour. Nano Energy 2019, 56, 759–769. [Google Scholar] [CrossRef]
  37. Dragoman, M.; Braniste, T.; Iordanescu, S.; Aldrigo, M.; Raevschi, S.; Shree, S.; Adelung, R.; Tiginyanu, I. Electromagnetic interference shielding in X-band with aero-GaN. Nanotechnology 2019, 30, 34LT01. [Google Scholar] [CrossRef]
  38. Dragoman, M.; Ciobanu, V.; Shree, S.; Dragoman, D.; Braniste, T.; Raevschi, S.; Dinescu, A.; Sarua, A.; Mishra, Y.K.; Pugno, N.; et al. Sensing up to 40 atm Using Pressure-Sensitive Aero-GaN. Phys. Status Solidi Rapid Res. Lett. 2019, 13, 1900012. [Google Scholar] [CrossRef] [Green Version]
  39. Plesco, I.; Braniste, T.; Wolff, N.; Gorceac, L.; Duppel, V.; Cinic, B.; Mishra, Y.K.; Sarua, A.; Adelung, R.; Kienle, L.; et al. Aero-ZnS architectures with dual hydrophilic-hydrophobic properties for microfluidic applications. APL Mater. 2020, 8, 061105. [Google Scholar] [CrossRef]
  40. Schütt, F.; Zapf, M.; Signetti, S.; Strobel, J.; Krüger, H.; Röder, R.; Carstensen, J.; Wolff, N.; Marx, J.; Carey, T.; et al. Conversionless efficient and broadband laser light diffusers for high brightness illumination applications. Nat. Commun. 2020, 11, 1437. [Google Scholar] [CrossRef] [Green Version]
  41. Hölken, I.; Neubüser, G.; Postica, V.; Bumke, L.; Lupan, O.; Baum, M.; Mishra, Y.K.; Kienle, L.; Adelung, R. Sacrificial Template Synthesis and Properties of 3D Hollow-Silicon Nano- and Microstructures. ACS Appl. Mater. Interfaces 2016, 8, 20491–20498. [Google Scholar] [CrossRef]
  42. Braniste, T.; Dragoman, M.; Zhukov, S.; Aldrigo, M.; Ciobanu, V.; Iordanescu, S.; Alyabyeva, L.; Fumagalli, F.; Ceccone, G.; Raevschi, S.; et al. Aero-Ga2O3 nanomaterial electromagnetically transparent from microwaves to terahertz for internet of things applications. Nanomaterials 2020, 10, 1047. [Google Scholar] [CrossRef]
  43. Wolff, N.; Ciobanu, V.; Enachi, M.; Kamp, M.; Braniste, T.; Duppel, V.; Shree, S.; Raevschi, S.; Medina-Sánchez, M.; Adelung, R.; et al. Advanced Hybrid GaN/ZnO Nanoarchitectured Microtubes for Fluorescent Micromotors Driven by UV Light. Small 2020, 16, 1905141. [Google Scholar] [CrossRef] [Green Version]
  44. Kranert, C.; Sturm, C.; Schmidt-Grund, R.; Grundmann, M. Raman tensor elements of β-Ga2O3. Sci. Rep. 2016, 6, 35964. [Google Scholar] [CrossRef]
  45. Mi, W.; Luan, C.; Li, Z.; Zhao, C.; Feng, X.; Ma, J. Ultraviolet-green photoluminescence of β-Ga2O3 films deposited on MgAl6O10 (1 0 0) substrate. Opt. Mater. (Amst.) 2013, 35, 2624–2628. [Google Scholar] [CrossRef]
  46. Harwig, T.; Kellendonk, F. Some observations on the photoluminescence of doped β-gallium sesquioxide. J. Solid State Chem. 1978, 24, 255–263. [Google Scholar] [CrossRef]
  47. Binet, L.; Gourier, D. Origin of the blue luminescence of β-Ga2O3. J. Phys. Chem. Solids 1998, 59, 1241–1249. [Google Scholar] [CrossRef]
  48. Liu, C.; Berencén, Y.; Yang, J.; Wei, Y.; Wang, M.; Yuan, Y.; Xu, C.; Xie, Y.; Li, X.; Zhou, S. Irradiation effects on the structural and optical properties of single crystal β-Ga2O3. Semicond. Sci. Technol. 2018, 33, 9. [Google Scholar] [CrossRef]
  49. Ho, Q.D.; Frauenheim, T.; Deák, P. Origin of photoluminescence in β-Ga2O3. Phys. Rev. B 2018, 97, 115163. [Google Scholar] [CrossRef]
  50. Das, B.; Das, B.; Pal, S.; Sarkar, R.; Das, N.S.; Sarkar, S.; Chattopadhyay, K.K. Facile preparation of porous Ga2O3 nano/microbars for highly efficient photocatalytic degradation. Condens. Matter Appl. Phys. 2020, 2220, 020013. [Google Scholar] [CrossRef]
  51. Girija, K.; Thirumalairajan, S.; Mastelaro, V.R.; Mangalaraj, D. Photocatalytic degradation of organic pollutants by shape selective synthesis of β- Ga2O3 microspheres constituted by nanospheres for environmental remediation. J. Mater. Chem. A 2015, 3, 2617–2627. [Google Scholar] [CrossRef]
  52. Pirilä, M.; Saouabe, M.; Ojala, S.; Rathnayake, B.; Drault, F.; Valtanen, A.; Huuhtanen, M.; Brahmi, R.; Keiski, R.L. Photocatalytic Degradation of Organic Pollutants in Wastewater. In Topics in Catalysis; IntechOpen: Rijeka, Croatia, 2015; Volume 58, pp. 1085–1099. [Google Scholar]
  53. Yan, H.; Wang, X.; Yao, M.; Yao, X. Band structure design of semiconductors for enhanced photocatalytic activity: The case of TiO2. Prog. Nat. Sci. Mater. Int. 2013, 23, 402–407. [Google Scholar] [CrossRef]
  54. Amendola, V.; Pilot, R.; Frasconi, M.; Maragò, O.M.; Iatì, M.A. Surface plasmon resonance in gold nanoparticles: A review. J. Phys. Condens. Matter 2017, 29, 203002. [Google Scholar] [CrossRef] [PubMed]
  55. Soldo-Olivier, Y.; Abisset, A.; Bailly, A.; De Santis, M.; Garaudée, S.; Lacipière, J.; Coati, A.; Garreau, Y.; Saint-Lager, M.C. Localized surface plasmon resonance of Au/TiO2(110): Substrate and size influence from in situ optical and structural investigation. Nanoscale Adv. 2020, 2, 2448–2461. [Google Scholar] [CrossRef]
  56. Karimi, S.; Moshaii, A.; Abbasian, S.; Nikkhah, M. Surface Plasmon Resonance in Small Gold Nanoparticles: Introducing a Size-Dependent Plasma Frequency for Nanoparticles in Quantum Regime. Plasmonics 2019, 14, 851–860. [Google Scholar] [CrossRef]
  57. Zaman, Q.; Souza, J.; Pandoli, O.; Costa, K.Q.; Dmitriev, V.; Fulvio, D.; Cremona, M.; Aucelio, R.Q.; Fontes, G.; Del Rosso, T. Two-color surface plasmon resonance nanosizer for gold nanoparticles. Opt. Express 2019, 27, 3200. [Google Scholar] [CrossRef] [PubMed]
  58. Yao, G.Y.; Liu, Q.L.; Zhao, Z.Y. Studied localized surface plasmon resonance effects of au nanoparticles on TIO2 by FDTD simulations. Catalysts 2018, 8, 236. [Google Scholar] [CrossRef]
  59. Takagi, K.; Nair, S.V.; Watanabe, R.; Seto, K.; Kobayashi, T.; Tokunaga, E. Surface plasmon polariton resonance of gold, silver, and copper studied in the kretschmann geometry: Dependence on wavelength, angle of incidence, and film thickness. J. Phys. Soc. Jpn. 2017, 86, 124721. [Google Scholar] [CrossRef]
  60. Shuang, S.; Lv, R.; Xie, Z.; Zhang, Z. Surface plasmon enhanced photocatalysis of Au/Pt-decorated TiO2 nanopillar arrays. Sci. Rep. 2016, 6, 26670. [Google Scholar] [CrossRef] [Green Version]
  61. Sui, M.; Kunwar, S.; Pandey, P.; Lee, J. Strongly confined localized surface plasmon resonance (LSPR) bands of Pt, AgPt, AgAuPt nanoparticles. Sci. Rep. 2019, 9, 16582. [Google Scholar] [CrossRef] [Green Version]
  62. Monaico, E.; Tiginyanu, I.; Ursaki, V. Porous semiconductor compounds. Semicond. Sci. Technol. 2020, 35, 103001. [Google Scholar] [CrossRef]
  63. Mohamed, M.; Irmscher, K.; Janowitz, C.; Galazka, Z.; Manzke, R.; Fornari, R. Schottky barrier height of Au on the transparent semiconducting oxide β-Ga2O3. Appl. Phys. Lett. 2012, 101, 132106. [Google Scholar] [CrossRef]
  64. Farzana, E.; Zhang, Z.; Paul, P.K.; Arehart, A.R.; Ringel, S.A. Influence of metal choice on (010) β-Ga2O3 Schottky diode properties. Appl. Phys. Lett. 2017, 110, 202102. [Google Scholar] [CrossRef]
  65. Xue, H.W.; He, Q.M.; Jian, G.Z.; Long, S.B.; Pang, T.; Liu, M. An Overview of the Ultrawide Bandgap Ga2O3 Semiconductor-Based Schottky Barrier Diode for Power Electronics Application. Nanoscale Res. Lett. 2018, 13, 290. [Google Scholar] [CrossRef] [Green Version]
  66. He, Q.; Mu, W.; Dong, H.; Long, S.; Jia, Z.; Lv, H.; Liu, Q.; Tang, M.; Tao, X.; Liu, M. Schottky barrier diode based on β-Ga2O3 (100) single crystal substrate and its temperature-dependent electrical characteristics. Appl. Phys. Lett. 2017, 110, 093503. [Google Scholar] [CrossRef] [Green Version]
  67. Fatehah, M.O.; Aziz, H.A.; Stoll, S. Stability of ZnO Nanoparticles in Solution. Influence of pH, Dissolution, Aggregation and Disaggregation Effects. J. Colloid Sci. Biotechnol. 2014, 3, 75–84. [Google Scholar] [CrossRef]
  68. Nekrasov, S.Y.; Migdisov, A.A.; Williams-Jones, A.E.; Bychkov, A.Y. An experimental study of the solubility of Gallium(III) oxide in HCl-bearing water vapour. Geochim. Cosmochim. Acta 2013, 119, 137–148. [Google Scholar] [CrossRef]
Materials 14 01985 g001 550

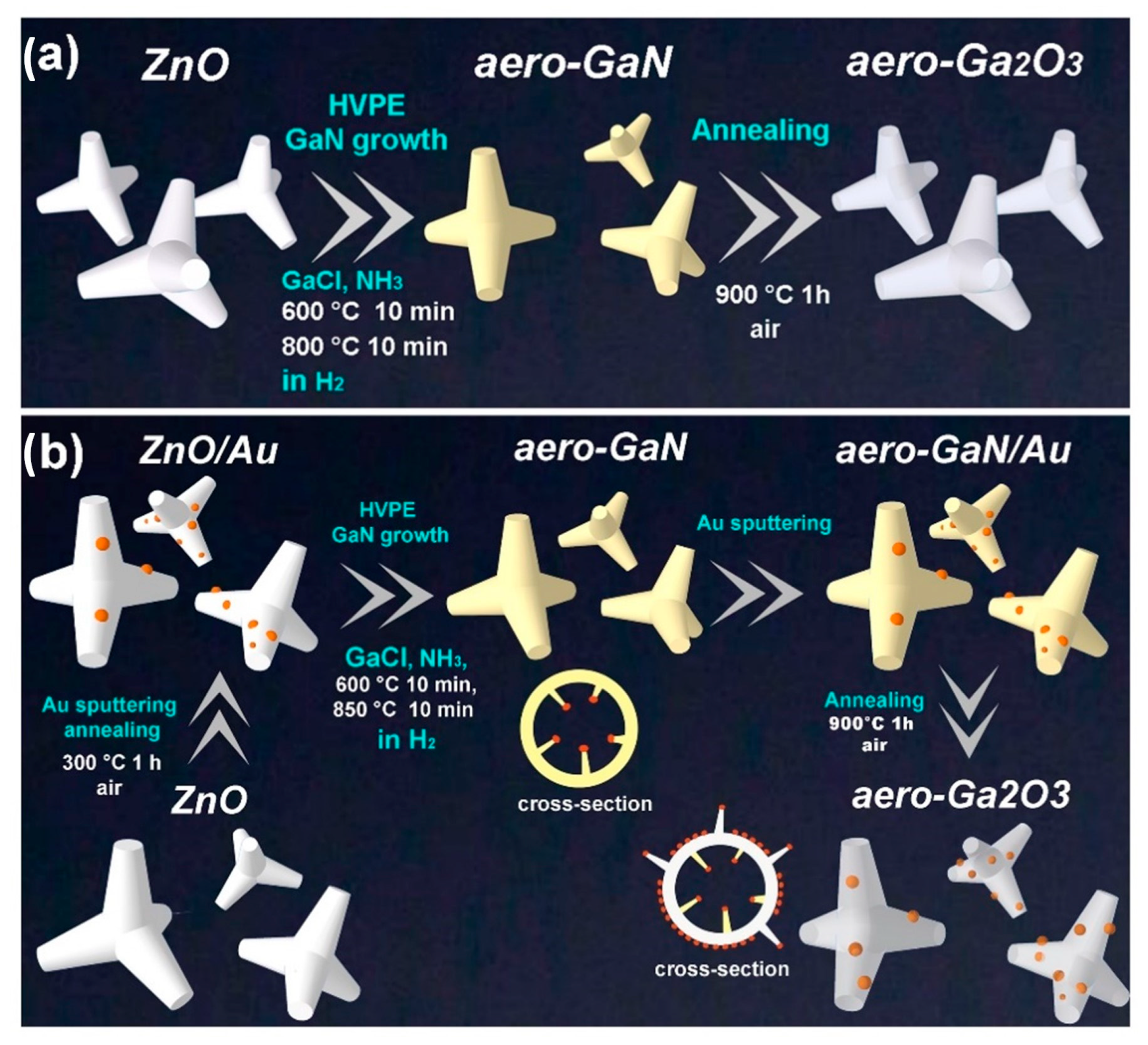

Figure 1. (a) Schematic representation of the technological routes for the preparation of aerogallox, (b) and aero-Ga2O3-Au hybrid photocatalyst.
Figure 1. (a) Schematic representation of the technological routes for the preparation of aerogallox, (b) and aero-Ga2O3-Au hybrid photocatalyst.
Materials 14 01985 g001
Materials 14 01985 g002 550
Figure 2. (a) SEM micrograph of aero-Ga2O3 microtetrapods, (b) Magnified micrograph revealing the surface features of the microtetrapod surface. The inset in (a) shows a photograph of Aero-Ga2O3.
Figure 2. (a) SEM micrograph of aero-Ga2O3 microtetrapods, (b) Magnified micrograph revealing the surface features of the microtetrapod surface. The inset in (a) shows a photograph of Aero-Ga2O3.
Materials 14 01985 g002
Materials 14 01985 g003 550
Figure 3. (a) SEM image of an aero-Ga2O3-Au microtetrapod, (b) Magnified image of the microtube opening in section (a). The inset in (a) shows photographs of Aero-Ga2O3 samples functionalized with noble metals.
Figure 3. (a) SEM image of an aero-Ga2O3-Au microtetrapod, (b) Magnified image of the microtube opening in section (a). The inset in (a) shows photographs of Aero-Ga2O3 samples functionalized with noble metals.
Materials 14 01985 g003
Materials 14 01985 g004 550

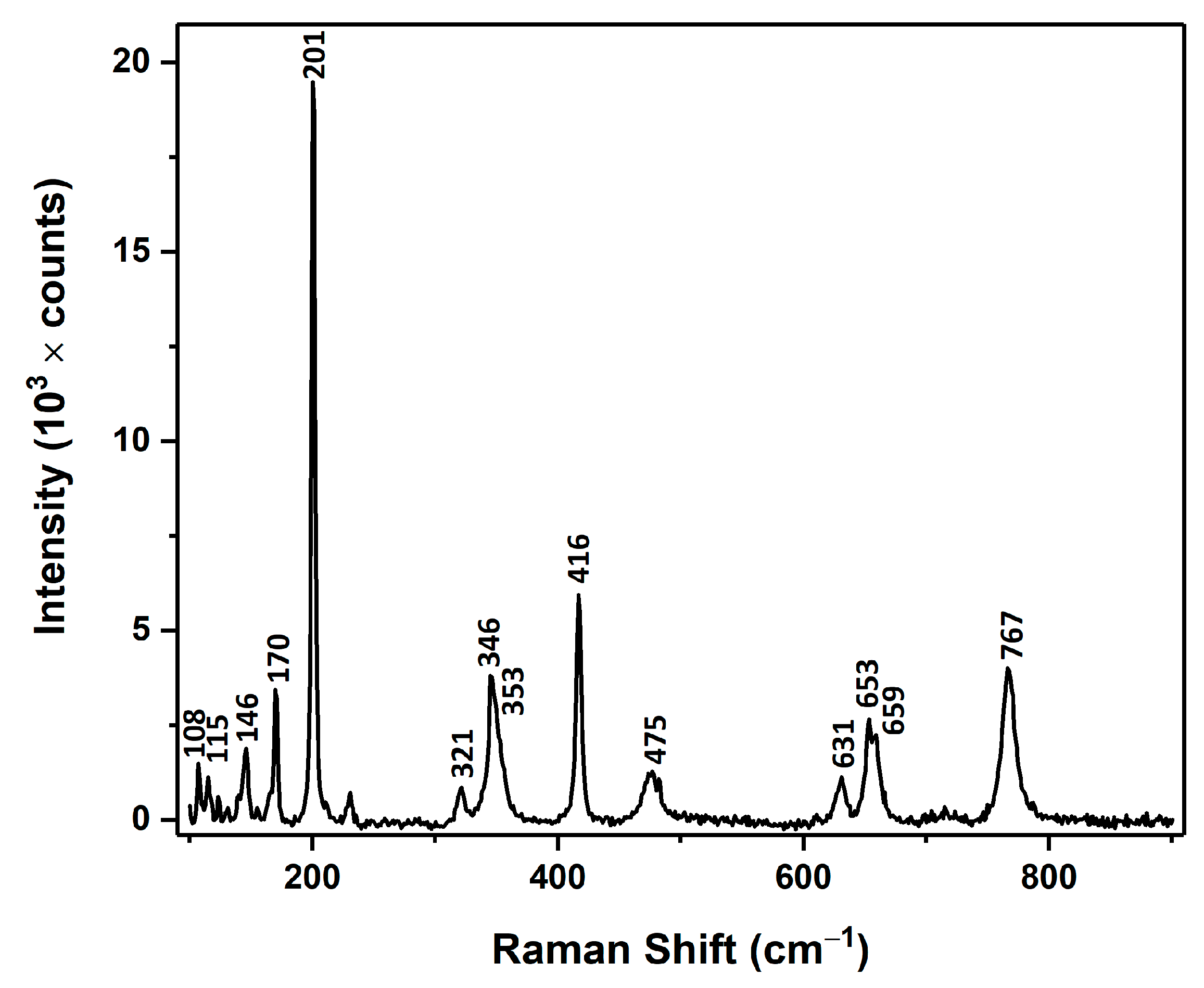

Figure 4. Raman spectrum of aero-Ga2O3 measured at room temperature.
Figure 4. Raman spectrum of aero-Ga2O3 measured at room temperature.
Materials 14 01985 g004
Materials 14 01985 g005 550

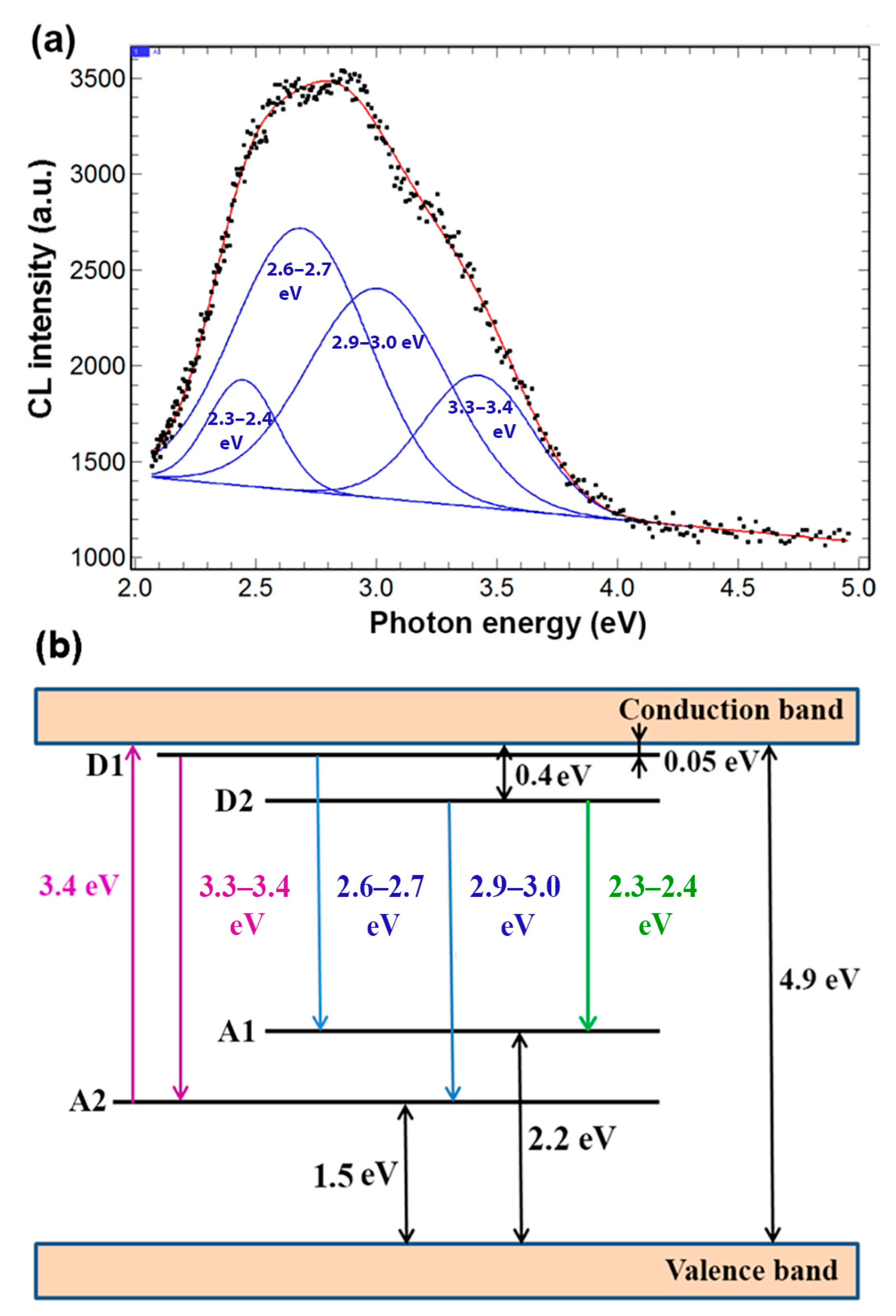

Figure 5. (a) Measured and deconvoluted cathodoluminescence (CL) spectrum of aero-Ga2O3 and (b) schematic diagram of energy bands and electron transitions in aero-Ga2O3.
Figure 5. (a) Measured and deconvoluted cathodoluminescence (CL) spectrum of aero-Ga2O3 and (b) schematic diagram of energy bands and electron transitions in aero-Ga2O3.
Materials 14 01985 g005
Materials 14 01985 g006 550

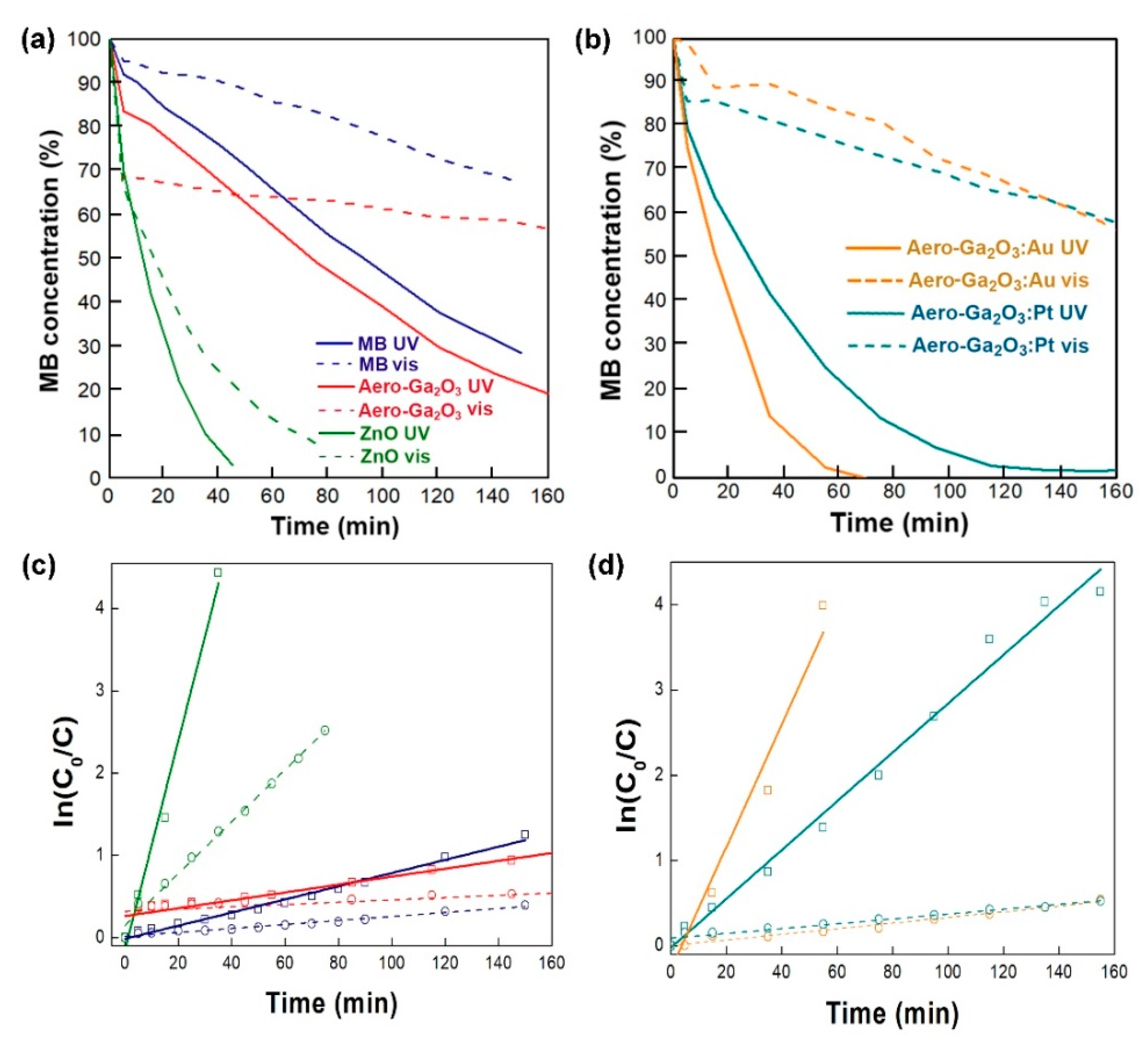

Figure 6. Comparison of photocatalytic activities under UV and visible light illumination of the prepared aero-Ga2O3 material and the initial ZnO template (a), and of aero-Ga2O3-Au and aero-Ga2O3-Pt photocatalysts (b), the kinetics of the photodegradation is presented in (c,d) plots corresponding to (a,b) methylene blue (MB) concentration evaluation. The concentration of the catalyst was maintained at the level of 0.4 mg/mL in all cases.
Figure 6. Comparison of photocatalytic activities under UV and visible light illumination of the prepared aero-Ga2O3 material and the initial ZnO template (a), and of aero-Ga2O3-Au and aero-Ga2O3-Pt photocatalysts (b), the kinetics of the photodegradation is presented in (c,d) plots corresponding to (a,b) methylene blue (MB) concentration evaluation. The concentration of the catalyst was maintained at the level of 0.4 mg/mL in all cases.
Materials 14 01985 g006
Table
Table 1. Spectral position of the Raman peaks of β-Ga2O3, given in cm−1.
Table 1. Spectral position of the Raman peaks of β-Ga2O3, given in cm−1.
Phonon ModeThis WorkRef. [44]
Ag(1)108111.0
Bg(1)115114.8
Bg(2)146144.8
Ag(2)170169.9
Ag(3)201200.2
Ag(4)321320.0
Ag(5)346346.6
Bg(3)353353.2
Ag(6)416416.2
Ag(7)475474.9
Bg(4)475474.9
Ag(8)631630.0
Bg(5)653652.3
Ag(9)659658.3
Ag(10)767766.7
Table
Table 2. Kinetic data of MB photodegradation on UV/vis illumination in the presence of catalysts.
Table 2. Kinetic data of MB photodegradation on UV/vis illumination in the presence of catalysts.
Catalystk (Rate Constant)R2 (Linear Coefficient Regression)
MB (UV)0.00800.9882
Aero-Ga2O3 (UV)0.00480.9418
Aero-Ga2O3-Pt (UV)0.02860.9877
Aero-Ga2O3-Au (UV)0.71920.9588
ZnO (UV)0.12700.9888
MB (vis)0.00240.9803
Aero-Ga2O3 (vis)0.00140.5090
Aero-Ga2O3-Pt (vis)0.00280.9502
Aero-Ga2O3-Au (vis)0.00330.9760
ZnO (vis)0.03100.9930
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Plesco, I.; Ciobanu, V.; Braniste, T.; Ursaki, V.; Rasch, F.; Sarua, A.; Raevschi, S.; Adelung, R.; Dutta, J.; Tiginyanu, I. Highly Porous and Ultra-Lightweight Aero-Ga2O3: Enhancement of Photocatalytic Activity by Noble Metals. Materials 2021, 14, 1985. https://doi.org/10.3390/ma14081985

AMA Style

Plesco I, Ciobanu V, Braniste T, Ursaki V, Rasch F, Sarua A, Raevschi S, Adelung R, Dutta J, Tiginyanu I. Highly Porous and Ultra-Lightweight Aero-Ga2O3: Enhancement of Photocatalytic Activity by Noble Metals. Materials. 2021; 14(8):1985. https://doi.org/10.3390/ma14081985

Chicago/Turabian Style

Plesco, Irina, Vladimir Ciobanu, Tudor Braniste, Veaceslav Ursaki, Florian Rasch, Andrei Sarua, Simion Raevschi, Rainer Adelung, Joydeep Dutta, and Ion Tiginyanu. 2021. "Highly Porous and Ultra-Lightweight Aero-Ga2O3: Enhancement of Photocatalytic Activity by Noble Metals" Materials 14, no. 8: 1985. https://doi.org/10.3390/ma14081985

APA Style

Plesco, I., Ciobanu, V., Braniste, T., Ursaki, V., Rasch, F., Sarua, A., Raevschi, S., Adelung, R., Dutta, J., & Tiginyanu, I. (2021). Highly Porous and Ultra-Lightweight Aero-Ga2O3: Enhancement of Photocatalytic Activity by Noble Metals. Materials, 14(8), 1985. https://doi.org/10.3390/ma14081985

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
