Microstructural and Optical Properties of MgAl2O4 Spinel: Effects of Mechanical Activation, Y2O3 and Graphene Additions

Institute of Technical Sciences, Serbian Academy of Sciences and Arts, 11000 Belgrade, Serbia
Materials Science and Engineering, Missouri University of Science and Technology, Rolla, MO 65409, USA
Institute of Physics Belgrade, 11000 Belgrade, Serbia
Departamento de Engenharia Química e de Materiais, Pontifícia Universidade Católica do Rio de Janeiro, Rio de Janeiro 22250-000, Brazil
Institute of Science and Technology for Ceramics (ISTEC), 48018 Faenza, Italy
National Institute of Optics, National Research Council (CNR-INO), 50125 Firenze, Italy
Author to whom correspondence should be addressed.
Materials 2021, 14(24), 7674;
Submission received: 22 November 2021 / Revised: 8 December 2021 / Accepted: 9 December 2021 / Published: 13 December 2021
(This article belongs to the Topic Multiple Application for Novel and Advanced Materials)


Magnesium aluminate and other alumina-based spinels attract attention due to their high hardness, high mechanical strength, and low dielectric constant. MgAl2O4 was produced by a solid-state reaction between MgO and α-Al2O3 powders. Mechanical activation for 30 min in a planetary ball mill was used to increase the reactivity of powders. Yttrium oxide and graphene were added to prevent abnormal grain growth during sintering. Samples were sintered by hot pressing under vacuum at 1450 °C. Phase composition and microstructure of sintered specimens were characterized by X-ray powder diffraction and scanning electron microscopy. Rietveld analysis revealed 100% pure spinel phase in all sintered specimens, and a decrease in crystallite size with the addition of yttria or graphene. Density measurements indicated that the mechanically activated specimen reached 99.6% relative density. Furthermore, the highest solar absorbance and highest spectral selectivity as a function of temperature were detected for the mechanically activated specimen with graphene addition. Mechanical activation is an efficient method to improve densification of MgAl2O4 prepared from mixed oxide powders, while additives improve microstructure and optical properties.

1. Introduction

Magnesium aluminate spinel, MgAl2O4, the only compound in the MgO-Al2O3 binary system at ambient pressure, is a ceramic of great importance in modern technologies due to its high hardness, high melting point and low dielectric constant [1]. It is attractive also due to its corrosion resistance, mechanical properties, and low cost [2,3]. When fully dense, pure MgAl2O4 can be transparent in visible light. The properties of ceramics strongly depend on the composition, nature of powders, impurities or additives, and fabrication methods [4]. Many different routes have been used to synthesize dense spinel-based ceramics such as hot pressing, pressureless methods, spark plasma, and microwave sintering utilizing spinel powder as the raw material, with or without sintering additives [5,6,7,8,9,10,11,12]. Some authors have reported on direct solid-state reactions of oxides, wet chemical precipitation, and mechanical activation [13,14,15,16,17,18,19]. The choice of synthesis method is based on the desired particle size and purity of the spinel powder. Additionally, preparation conditions have a great impact on the final microstructure and properties of ceramic materials [20].
Hot pressing (HP) has been recognized as an advanced method for ceramic fabrication. HP is a fast and efficient sintering technique that uses applied pressure and low-strain-rate powder metallurgy process for forming of a powder or powder compact at a temperature high enough to induce sintering and creep processes [21]. HP can use high heating rates (50 °C·min−1 or higher) and short non-isothermal sintering times (30 min or less), and it is considered an excellent method for preparing nanostructured ceramics and nanocomposites [21,22]. Compared to conventional sintering processes, HP can significantly shorten the sintering time to few minutes and can promote full densification of materials which are difficult to sinter using conventional sintering techniques. The key issue in all sintering approaches is controlling the grain growth/densification behavior. One of the possible ways to prevent grain growth during sintering is addition of very small quantities of various compounds (Y2O3, LiF, NaF, AlN, etc.). Another alternative, prior to sintering, is mechanical activation (MA), which is a high-energy ball milling process that induces physicochemical changes in spinels [16,17,18,23,24,25,26,27]. MA produces defects in materials which increase the chemical activity and accelerate mechanisms of sintering. Increasing the speed of the process decreases the sintering time and temperature [28,29]. Furthermore, mechanical activation can also affect the final physical properties of sintered bodies [30]. Such milling processes are attractive methods, because they enable the formation of submicron and/or nanostructured materials with desirable properties [31].
In the present work, we report the influence of MA, in combination with additives, on densification and the final properties of MgAl2O4 sintered bodies. We focused on studying doped spinel (concentration of the Y2O3 0.1 wt.%, and graphene 1 wt.%) to improve their optical properties. X-ray powder diffraction (XRPD), scanning electron microscopy (SEM), and UV–visible spectroscopy were used for characterization of the as-prepared samples.

2. Experimental Methods

A mixture of high-purity MgO and α-Al2O3 starting powders (all 99.9% purity Sigma–Aldrich, p.a., St. Louis, MO, USA) was used in these experiments. The starting MgO and α-Al2O3 powders were added in a one-to-one molar ratio to produce stoichiometric MgAl2O4. The powders were mixed by ball milling for 1 min to homogenize them without significant particle size reduction. A portion of the as-obtained powders was additionally mechanically activated for 30 min in a high-energy planetary ball mill (Planetary Ball Mill Retsch PM 100, Haan, Germany) in air. One wt.% of graphene (99.9% purity Sigma–Aldrich, p.a., St. Louis, MO, USA) was added to a second powder mixture prior to activation, while another batch of powder contained 0.1 wt.% of Y2O3 (99.99% purity, Pangea International Ltd.-Shanghai, China). The first steps of homogenization and mechanical activation were performed using the same mill with Y-stabilized ZrO2 vials and balls. The media were 5 mm in diameter. The ball-to-powder weight ratio was 40:1, with a rotation speed of 400 rpm. Powders were sieved after milling. The powder mixtures were labelled as HP1 (ball milled plus 30 min mechanical activation), HP2 (ball milled only), HP3 (30 min activated with yttrium addition), and HP4 (30 min activated with graphene addition). Powders were hot pressed in a graphite die (Ø = 30 mm) at 1450 °C in vacuum (20 Pa), with an applied pressure of 30 MPa, heating ramp 30 °C·min−1, and free cooling and dwelling times were between 5–10 min (see Table 1).
The procedure used for synthesis and densification of the spinel materials in the present study is based on our previous manuscript [13] and briefly summarized in the present paper. Densities of sintered specimens were calculated by Archimedes’ principle. Sintered specimens were subjected to X-Ray powder diffraction (XRPD; X’Pert Pro, PANalytical, Almelo, Netherlands) in the Bragg–Brentano geometry using Cu-Kα radiation. Measurements were conducted on polished cross sections of the hot-pressed specimens. Phase analysis was performed by Rietveld refinement (RIQAS4, Materials Data Incorporated, Livermore, CA, USA). Lattice parameters determined using Rietveld refinement of XRD data were used to calculate the theoretical density of sintered bodies, assuming cubic crystal structure and the space group Fd 3 ¯ m (227). Microstructure was examined by scanning electron microscopy (SEM; Raith eLine, Raith GmbH, Islandia, NY, USA). The samples were polished cross sections that were coated with a conductive Au/Pd coating before placing into the SEM.
Room-temperature hemispherical optical reflectance and transmittance spectra for quasinormal incidence angle have been acquired from polished cross sections using two instruments: a double-beam spectrophotometer (Perkin Elmer Lambda900, MA, USA) with a 150 mm-diameter Spectralon®-coated integration sphere for the 0.25–2.5 µm wavelength region, and a Fourier transform infrared spectrometer (FT-IR Bio-Rad Excalibur, CA, USA) with gold-coated integrating sphere and liquid nitrogen-cooled detector for the spectral range 2.5–15.7 µm. From experimental reflectance (R(λ)) and transmittance (T (λ)) data, the spectral absorbance α(λ) or emittance ε(λ) can be obtained, as:
α(λ) = 1 − R(λ) − T (λ) = ε(λ)
Thicknesses of samples are 6.50 mm for HP1, 6.90 mm for HP2 and HP3 and 6.95 mm for HP4.

3. Results and Discussion

Figure 1 shows the specimens after sintering. All specimens were disc shaped. The ones with graphene additions were black, and the rest were white or grey. They all achieved relative densities over 96%.
XRPD patterns of the sintered specimens are presented in Figure 2. Magnesium aluminate with the spinel structure is the only phase present in all samples and was identified using PDF card 01-077-1203. All peaks were well-defined, with high intensity, and are sharp, indicating high crystallinity. Rietveld analysis corroborated the presence of phase-pure spinel in all sintered specimens, with crystallographic density of 3.584 g·cm−3, which corresponds to its theoretical value. Lattice parameters were all about a = 8.077 Å. Neither mechanical activation nor additives affected lattice parameters significantly, indicating that neither carbon nor yttrium were likely substituted into the spinel lattice. Crystallite size determined by Rietveld refinement exhibited a maximum value of 429 Å for HP1, but decreased with the addition of yttrium or graphene with a minimum value of 391 Å for HP3. Incorporation of additives into spinel decreased both the lattice parameter and their crystallite size.
SEM images of sintered specimens are shown in Figure 3. All samples achieved a certain degree of translucency, indicating that the residual porosity was low [32]. Dense and homogeneous fully sintered matrix were characteristics of all samples. The nonactivated HP2 sample possesses the largest number of small, closed pores that were less than 200 nm, exhibiting a density of 3.46 g·cm−3 (96.5% TD). Voids larger than 1 μm were visible on the first three samples (HP1, HP2 and HP3), but were a consequence of grains being pulled out from the surface during the preparation process. A smaller number of closed spherical pores were visible on other micrographs (b, c, d), while the densest sample was the one with the yttrium addition (HP3), which reached more than 99.5% TD.
The spectral absorbance of samples is shown in Figure 4. The bands above ~11 µm wavelength were apparent in all samples, albeit with different depths. The relative differences between samples HP1-2-3 were due to compositional variations, such as the presence of Y2O3 and the contamination from milling media. The addition of graphene (sample HP4) increased the spinel spectral absorbance in the whole investigated wavelength range, and completely removed the complex spectral features shown by the other samples below 6 µm, bringing the curve to an almost flat, high-reflectance plateau. This major effect was obtained through both a reduction in the spectral reflectance in the range 0.3–6.0 µm (Figure 5a) and the zeroing of near-infrared spinel transparency window (see the transmittance curves in Figure 5b).
From the spectra, some parameters can be calculated to evaluate the potential of the materials as sunlight absorbers in solar receivers for thermodynamic solar plants. These parameters are solar absorptance α, total hemispherical emittance ε at the temperature T, and spectral selectivity α/ε, and are expressed by the following relationships:
α = 0.3 μ m 3 μ m α ( λ ) · S ( λ ) d λ 0.3 μ m 3 μ m S ( λ ) d λ
ε = 0.3 μ m 15.7 μ m ε ( λ ) · B ( λ , T ) d λ 0.3 μ m 15.7 μ m B ( λ , T ) d λ
where S(λ) is the sunlight spectral distribution [33] and B(λ,T) is the blackbody spectral radiance at the temperature T. For a more complete evaluation, the emittance in Equation (3) has been calculated at different temperatures from 800 to 1500 K. As a methodology comment referring to these parameters, the values calculated from Equations (1)–(3) were obtained from room-temperature spectra. These values are an estimation that is widely used in the literature for a comparative evaluation among materials. As such, they are not the exact values in operative conditions, which would need spectra acquired at the considered temperature. The methodology used herein generally underestimates the values of α and ε [34,35,36].
The calculated α values are listed in Table 2. In addition, data for two reference samples of dense SiC were also added [37,38] because SiC is an advanced high-temperature solar receiver material that is currently employed in existing plants.
For an ideal solar absorber, α should be as close as possible to unity. From Table 2, the samples with the highest performance are HP4 and HP1, showing α values equal (HP1) or even better (HP4) than the best SiC. HP2 and HP3 can also be considered good solar absorbers, as their α values are comparable to those of the dense polished SiC [37].
When thermal emittance (Equation (3)) is considered, Figure 6 compares the spinel samples to the SiC pellets [39], showing that HP4 had black-body-like behaviour with high thermal emittance, which is attributed to the graphene addition. The other spinel samples had emittance values similar to each other and comparable to SiC at temperatures above ~900 K. The spectral selectivity (α/ε ratio, Figure 7) shows that, at high temperatures, HP2 had a spectral selectivity similar to the more spectrally selective SiC specimens, while HP4 was similar to the second SiC reference pellet. Therefore, HP4 appears to be the most promising material from the present work for high-temperature solar thermal receivers, and should be comparable to SiC from the viewpoint of optical parameters.
Finally, given the spectral characteristics of the reflectance and transmittance spectra (Figure 5a,b) and considering that the range of nonzero transmittance is largely located in the infrared, outside the sunlight spectral region, increasing the transmittance by reducing the ceramic thickness could be beneficial in terms of optical parameters, as it reduces ε while only negligibly decreasing α, thus increasing the α/ε ratio. The optical performance of HP1, HP2 and HP3 samples could be improved using thinner specimens, combined, if needed for structural resistance, with a low-emittance substrate (e.g., a metal).

4. Conclusions

The influence of MA and additives was studied regarding the synthesis of MgAl2O4 spinel and its final properties. The focus was to monitor the influence of 30 min of mechanical activation along with additions of 0.1 wt.% Y2O3 and 1.0 wt.% graphene on changes in the microstructure and optical properties. Both MA and additives are beneficial, and the main conclusions are:
  • All specimens were nominally phase-pure spinel after HP. Dense, homogeneous and fully sintered microstructures were characteristic of all specimens. Nonactivated samples exhibited a larger number of closed spherical pores and lower relative densities (96.5% TD), while the densest sample was the one with Y2O3 addition (>99.5% TD).
  • The samples with the highest optical performance were HP4 and HP1, showing α values equal to (HP1) or even better (HP4) than reported values for SiC. All samples could be good candidates for solar absorbers, but the sample with graphene addition appears to be the most promising sample for high-temperature solar thermal receivers. The optical parameters were comparable to SiC.

Author Contributions

Conceptualization, N.O. and W.G.F.; methodology, S.F. (Suzana Filipovic); software, C.C.; validation, D.S., S.F. (Simone Failla) and E.S.; formal analysis, B.A.M.; investigation, D.D.R.; resources, M.N.; data curation, N.O.; writing—original draft preparation, N.O.; writing—review and editing, B.A.M. and W.G.F.; visualization, N.O. and S.F. (Suzana Filipovic); supervision, W.G.F.; project administration, N.O.; funding acquisition, W.G.F. All authors have read and agreed to the published version of the manuscript.


This research was funded by Ministry of Education, Science and Technological Development of the Republic of Serbia, grant number 451-03-68/2021-14/200175 and he APC was funded by Materials Research Center at MS&T.

Informed Consent Statement

Not applicable.


The paper was written while Nina Obradovic was a visiting scholar at Missouri University of Science and Technology, USA. The authors wish to thank Eric Bohannan of the Materials Research Center at Missouri S&T for assistance with X-ray diffraction analysis.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zegadi, A.; Kolli, M.; Hamidouche, M.; Fantozzi, G. Transparent MgAl2O4 spinel fabricated by spark plasma sintering from commercial powders. Ceram. Int. 2018, 44, 18828–18835. [Google Scholar] [CrossRef]
  2. Ianoş, R.; Lazǎu, I.; Pǎcurariu, C.; Barvinschi, P. Solution combustion synthesis of MgAl2O4 using fuel mixtures. Mater. Res. Bull. 2008, 43, 3408–3415. [Google Scholar] [CrossRef]
  3. Esposito, L.; Piancastelli, A.; Martelli, S. Production and characterization of transparent MgAl2O4 prepared by hot pressing. J. Eur. Ceram. Soc. 2013, 33, 737–747. [Google Scholar] [CrossRef]
  4. Obradović, N.; Filipović, S.; Đorđević, N.; Kosanović, D.; Marković, S.; Pavlović, V.; Olćan, D.; Đorđević, A.; Kachlik, M.; Maca, K. Effects of mechanical activation and two-step sintering on the structure and electrical properties of cordierite-based ceramics. Ceram. Int. 2016, 42, 13909–13918. [Google Scholar] [CrossRef]
  5. Ting, J.; Lu, H.Y. Hot-pressing of magnesium aluminate spinel—II. Microstructure development. Acta Mater. 1999, 47, 831–840. [Google Scholar] [CrossRef]
  6. Ting, J.; Lu, H.Y. Hot-pressing of magnesium aluminate spinel—I. Kinetics and densification mechanism. Acta Mater. 1999, 47, 817–830. [Google Scholar] [CrossRef]
  7. Merac, M.R.; Reimanis, I.E.; Smith, C.; Kleebe, H.-J.; Müller, M.M. Effect of impurities and LiF additive in hot-pressed transparent magnesium aluminate spinel. Int. J. Appl. Ceram. Technol. 2013, 10, 33–48. [Google Scholar] [CrossRef]
  8. Kim, J.M.; Kim, H.N.; Park, Y.J.; Ko, J.-W.; Lee, J.-W.; Kim, H.-D. Fabrication of transparent MgAl2O4 spinel through homogenous green compaction by micro fluidization and slip casting. Ceram. Int. 2015, 41, 13354–13360. [Google Scholar] [CrossRef]
  9. Morita, K.; Kim, B.N.; Yoshida, H.; Hiraga, K.; Sakka, Y. Influence of spark plasma sintering (SPS) conditions on transmission of MgAl2O4 Spinel. J. Am. Ceram. Soc. 2015, 98, 378–385. [Google Scholar] [CrossRef]
  10. Morita, K.; Kim, B.-N.; Yoshida, H.; Hiraga, K.; Sakka, Y. Assessment of carbon contamination in MgAl2O4 spinel during spark-plasma-sintering (SPS) processing. J. Ceram. Soc. Jpn. 2015, 123, 983–988. [Google Scholar] [CrossRef] [Green Version]
  11. Sokol, M.; Kalabukhov, S.; Dariel, M.; Frage, N. High-pressure spark plasma sintering (SPS) of transparent polycrystalline magnesium aluminate spinel (PMAS). J. Eur. Ceram. Soc. 2014, 34, 4305–4310. [Google Scholar] [CrossRef]
  12. Macaigne, R.; Marinel, S.; Goeuriot, D.; Saunier, S. Sintering paths and mechanisms of pure MgAl2O4 conventionally and microwave sintered. Ceram. Int. 2018, 44, 21107–21113. [Google Scholar] [CrossRef]
  13. Obradović, N.; Fahrenholtz, W.; Filipović, S.; Kosanović, D.; Dapčević, A.; Đorđević, A.; Balać, I.; Pavlović, V. The effect of mechanical activation on synthesis and properties of MgAl2O4 ceramics. Ceram. Int. 2019, 45, 12015–12021. [Google Scholar] [CrossRef] [Green Version]
  14. Reimanis, I.; Kleebe, H.J. A review on the sintering and microstructure development of transparent spinel (MgAl2O4). J. Am. Ceram. Soc. 2009, 92, 1472–1480. [Google Scholar] [CrossRef]
  15. Sokol, M.; Halabi, M.; Kalabukhov, S.; Frage, N. Nano-structured MgAl2O4 spinel consolidated by high pressure spark plasma sintering (HPSPS). J. Eur. Ceram. Soc. 2017, 37, 755–762. [Google Scholar] [CrossRef]
  16. Ye, G.; Troczynski, T. Mechanical activation of heterogeneous sol-gel precursors for synthesis of MgAl2O4 spinel. J. Am. Ceram. Soc. 2005, 88, 2970–2974. [Google Scholar] [CrossRef]
  17. Dwibedi, D.; Avdeev, M.; Barpanda, P. Role of Fuel on Cation Disorder in Magnesium Aluminate (MgAl2O4) Spinel Prepared by Combustion Synthesis. J. Am. Ceram. Soc. 2015, 98, 2908–2913. [Google Scholar] [CrossRef]
  18. Bratton, R.J. Co-precipitates yielding MgAl2O4 spinel powders. Am. Ceram. Soc. Bull. 1969, 48, 759–776. [Google Scholar]
  19. Li, J.G.; Ikegami, T.; Lee, J.H.; Mori, T.; Yajima, Y. A wet-chemical process yielding reactive magnesium aluminate spinel (MgAl2O4) powder. Ceram Int. 2001, 27, 481–489. [Google Scholar] [CrossRef]
  20. Filipović, S.; Pavlović, V.P.; Obradović, N.; Paunović, V.; Maca, K.; Pavlović, V.B. The impedance analysis of sintered MgTiO3 ceramics. J. of All. Comp. 2017, 701, 107–115. [Google Scholar] [CrossRef] [Green Version]
  21. Wang, S.; Zhang, J.; Luo, D.; Gu, F.; Tang, D.; Dong, Z.; Tan, G.; Que, W.; Zhang, T.; Li, S.; et al. Transparent ceramics: Processing, materials and applications. Prog. Sol. St. Chem. 2013, 41, 20–54. [Google Scholar] [CrossRef]
  22. Wang, F.; Zhao, Y.; Yang, C.; Fan, N.; Zhu, J. Effect of MoO3 on microstructure and mechanical properties of (Ti,Mo)Al/Al2O3 composites by in situ reactive hot pressing. Ceram. Inter. 2016, 42, 1–8. [Google Scholar] [CrossRef]
  23. O’Quinn, E.C.; Shamblin, J.; Perlov, B.; Ewing, R.C.; Neuefeind, J.; Feygenson, M.; Gussev, I.; Lang, M. Inversion in Mg1-xNixAl2O4 Spinel: New Insight into Local Structure. J. Am. Chem. Soc. 2017, 139, 10395–10402. [Google Scholar] [CrossRef] [PubMed]
  24. Torruella, P.; Ruiz-Caridad, A.; Walls, M.; Roca, A.G.; López-Ortega, A.; Blanco-Portals, J.; López-Conesa, L.; Nogués, J.; Peiró, F.; Estradé, S. Atomic-Scale Determination of Cation Inversion in Spinel-Based Oxide Nanoparticles. Nano Lett. 2018, 18, 5854–5861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Sickafus, K.E.; Wills, J.M.; Grimes, N.W. Structure of spinel. J. Am. Ceram. Soc. 1999, 82, 3279–3292. [Google Scholar] [CrossRef]
  26. Abdi, M.S.; Ebadzadeh, T.; Ghaffari, A.; Feli, M. Synthesis of nano-sized spinel (MgAl2O4) from short mechanochemically activated chloride precursors and its sintering behavior. Adv. Powd. Technol. 2015, 26, 175–179. [Google Scholar] [CrossRef]
  27. Obradović, N.; Fahrenholtz, W.G.; Filipović, S.; Corlett, C.; Đorđević, P.; Rogan, J.; Vulić, P.J.; Buljak, V.; Pavlović, V. Characterization of MgAl2O4 Sintered Ceramics. Sci. Sinter. 2019, 51, 363–376. [Google Scholar] [CrossRef]
  28. Popova, N.A.; Lukin, E.S.; Pavlyukova, L.T.; Sevostyanov, M.A.; Leonov, A.V. Synthesis of alumomagnesian spinel by mechanical activation method. IOP Conf. Ser. Mater. Sci. Eng. 2019, 525. [Google Scholar] [CrossRef]
  29. Tavangarian, F.; Li, G. Mechanical activation assisted synthesis of nanostructure MgAl2O4 from gibbsite and lansfordite. Powd. Technol. 2014, 267, 333–338. [Google Scholar] [CrossRef]
  30. Peleš, A.; Đorđević, N.; Obradović, N.; Tadić, N.; Pavlović, V.B. Influence of prolonged sintering time on density and electrical properties of isothermally sintered cordierite-based ceramics. Sci. Sinter. 2013, 45, 157–164. [Google Scholar] [CrossRef] [Green Version]
  31. Filipović, S.; Obradović, N.; Pavlović, V.B.; Mitrić, M.; Đorđević, A.; Kachlik, M.; Maca, K. Effect of consolidation parameters on structural, microstructural and electrical properties of magnesium titanate ceramics. Ceram. Int. 2016, 42, 9887–9898. [Google Scholar] [CrossRef]
  32. Nečina, V.; Pabst, W. Grain growth of MgAl2O4 ceramics with LiF and NaF addition. Open Ceram. 2021, 5, 100078. [Google Scholar] [CrossRef]
  33. ASTM G173-03. Standard Tables for Reference Solar Spectral Irradiances: Direct Normal and Hemispherical on 37° Tilted Surface; ASTM Int.: West Conshohocken, PA, USA, 2012. [Google Scholar]
  34. Mercatelli, L.; Meucci, M.; Sani, E. Facility for assessing spectral normal emittance of solid materials at high temperature. Appl. Optics. 2015, 54, 8700–8705. [Google Scholar] [CrossRef] [PubMed]
  35. Sani, E.; Mercatelli, L.; Meucci, M.; Zoli, L.; Sciti, D. Lanthanum hexaboride for solar energy applications. Sci. Rep. 2017, 7, 718. [Google Scholar] [CrossRef] [PubMed]
  36. Azzali, N.; Meucci, M.; Di Rosa, D.; Mercatelli, L.; Silvestroni, L.; Sciti, D.; Sani, E. Spectral emittance of ceramics for high temperature solar receivers. Sol. Energy 2021, accepted and in press. [Google Scholar] [CrossRef]
  37. Sciti, D.; Silvestroni, L.; Mercatelli, L.; Sans, J.L.; Sani, E. Suitability of ultra-refractory diboride ceramics as absorbers for solar energy applications. Sol. Energy Mater. Sol. Cells 2013, 109, 8–16. [Google Scholar] [CrossRef]
  38. Sciti, D.; Silvestroni, L.; Sans, J.L.; Mercatelli, L.; Meucci, M.; Sani, E. Tantalum diboride-based ceramics for bulk solar absorbers. Sol. Energy Mater. Sol. Cells 2014, 130, 208–216. [Google Scholar] [CrossRef]
  39. Sani, E.; Sciti, D.; Capiani, C.; Silvestroni, L. Colored zirconia with high absorbance and solar selectivity. Scr. Mater. 2020, 186, 147–151. [Google Scholar] [CrossRef]

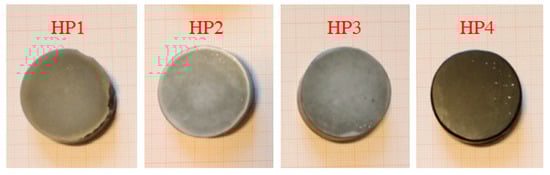

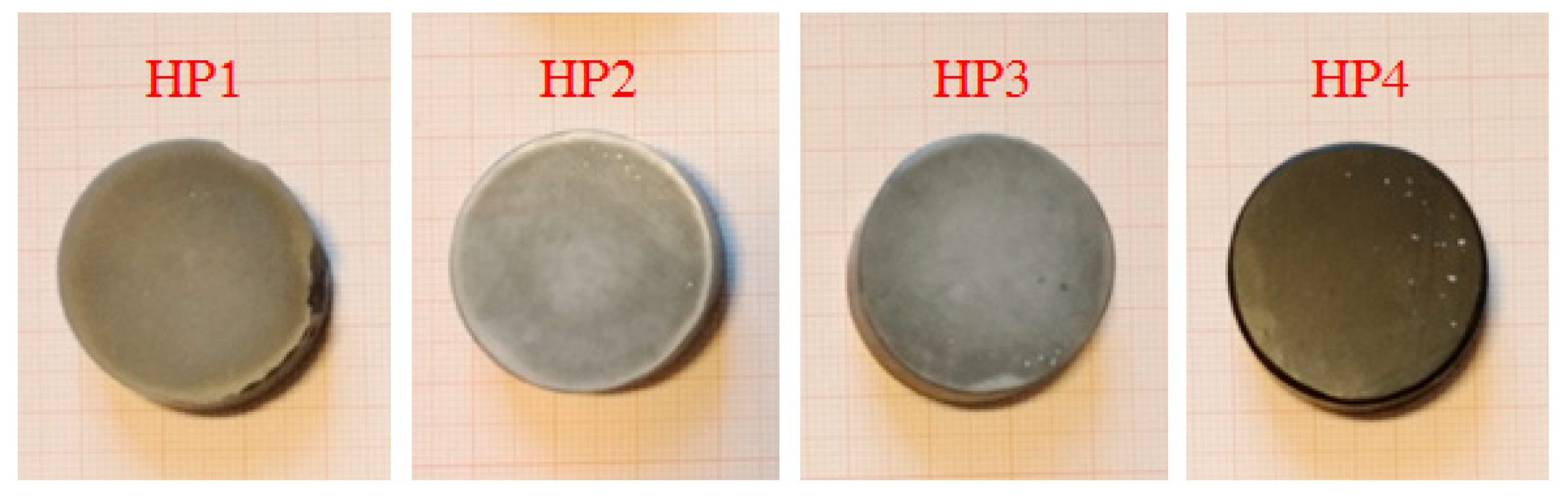

Figure 1. Sintered specimens: HP1—30 min-activated sample, HP2—nonactivated sample, HP3—30 min-activated sample with yttrium addition, and HP4—30 min-activated sample with graphene addition.
Figure 1. Sintered specimens: HP1—30 min-activated sample, HP2—nonactivated sample, HP3—30 min-activated sample with yttrium addition, and HP4—30 min-activated sample with graphene addition.
Materials 14 07674 g001

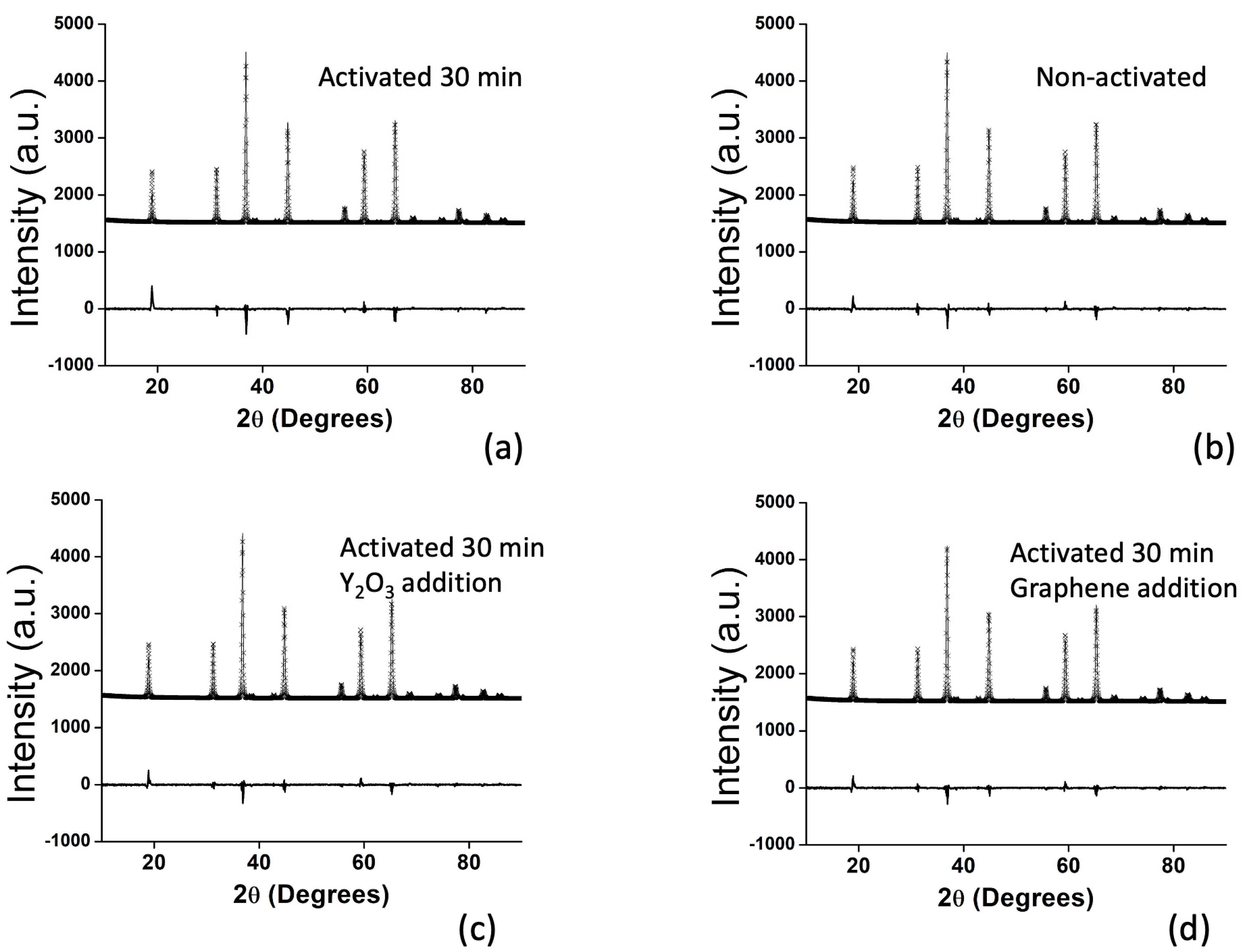

Figure 2. XRPD patterns and Rietveld fits of the sintered specimens: (a) HP1, (b) HP2, (c) HP3, and (d) HP4.
Figure 2. XRPD patterns and Rietveld fits of the sintered specimens: (a) HP1, (b) HP2, (c) HP3, and (d) HP4.
Materials 14 07674 g002

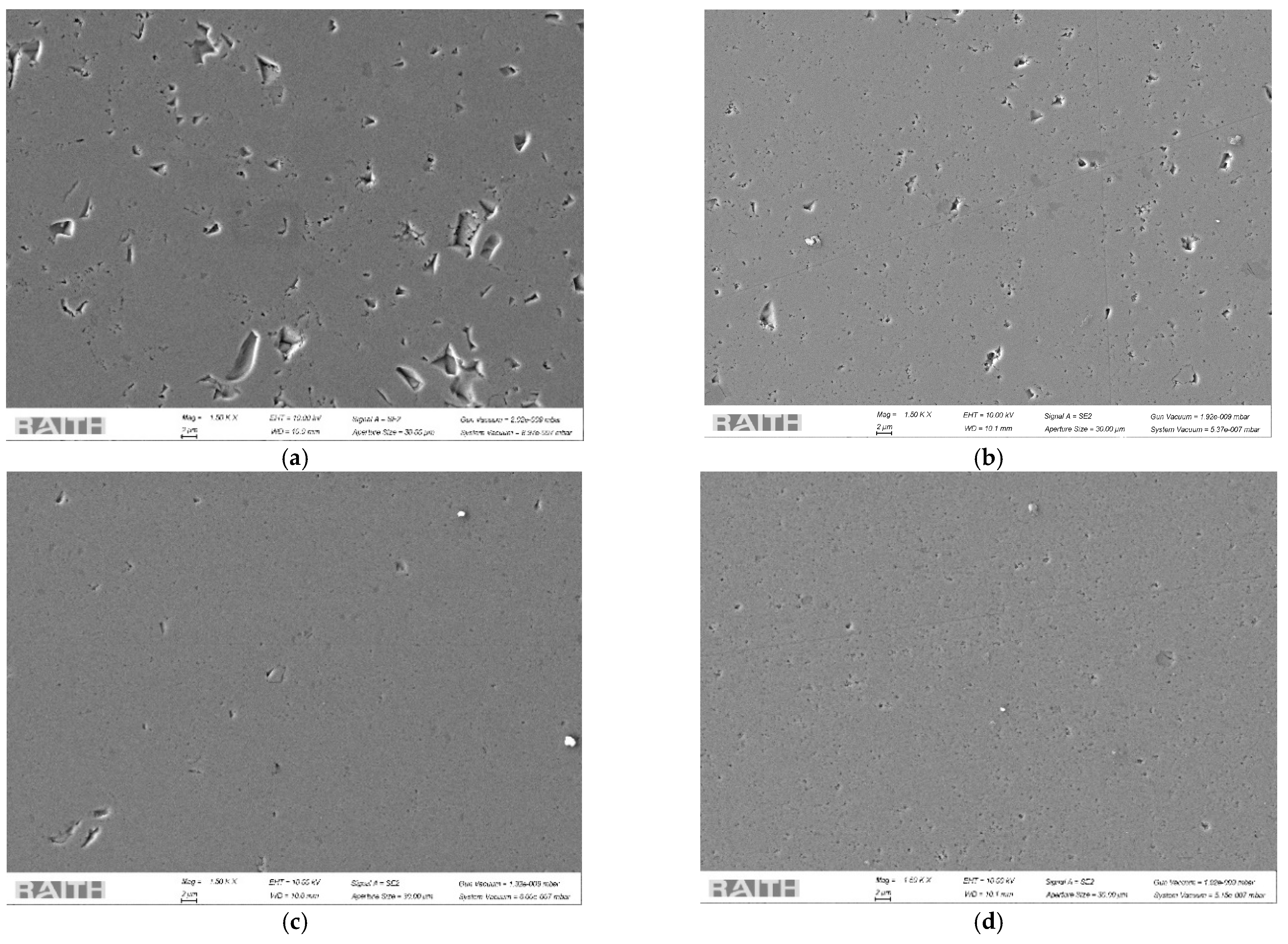

Figure 3. SEM images of sintered specimens: (a) HP1, (b) HP2, (c) HP3, and (d) HP4.
Figure 3. SEM images of sintered specimens: (a) HP1, (b) HP2, (c) HP3, and (d) HP4.
Materials 14 07674 g003

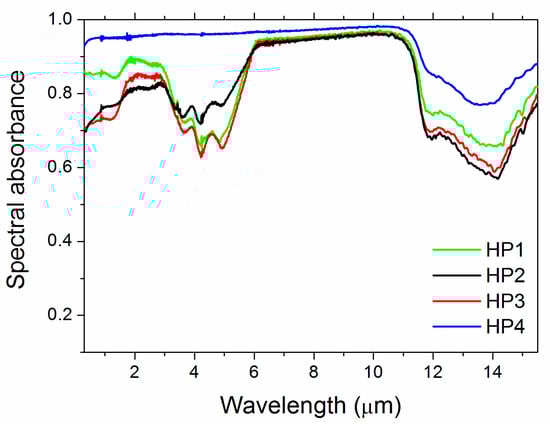

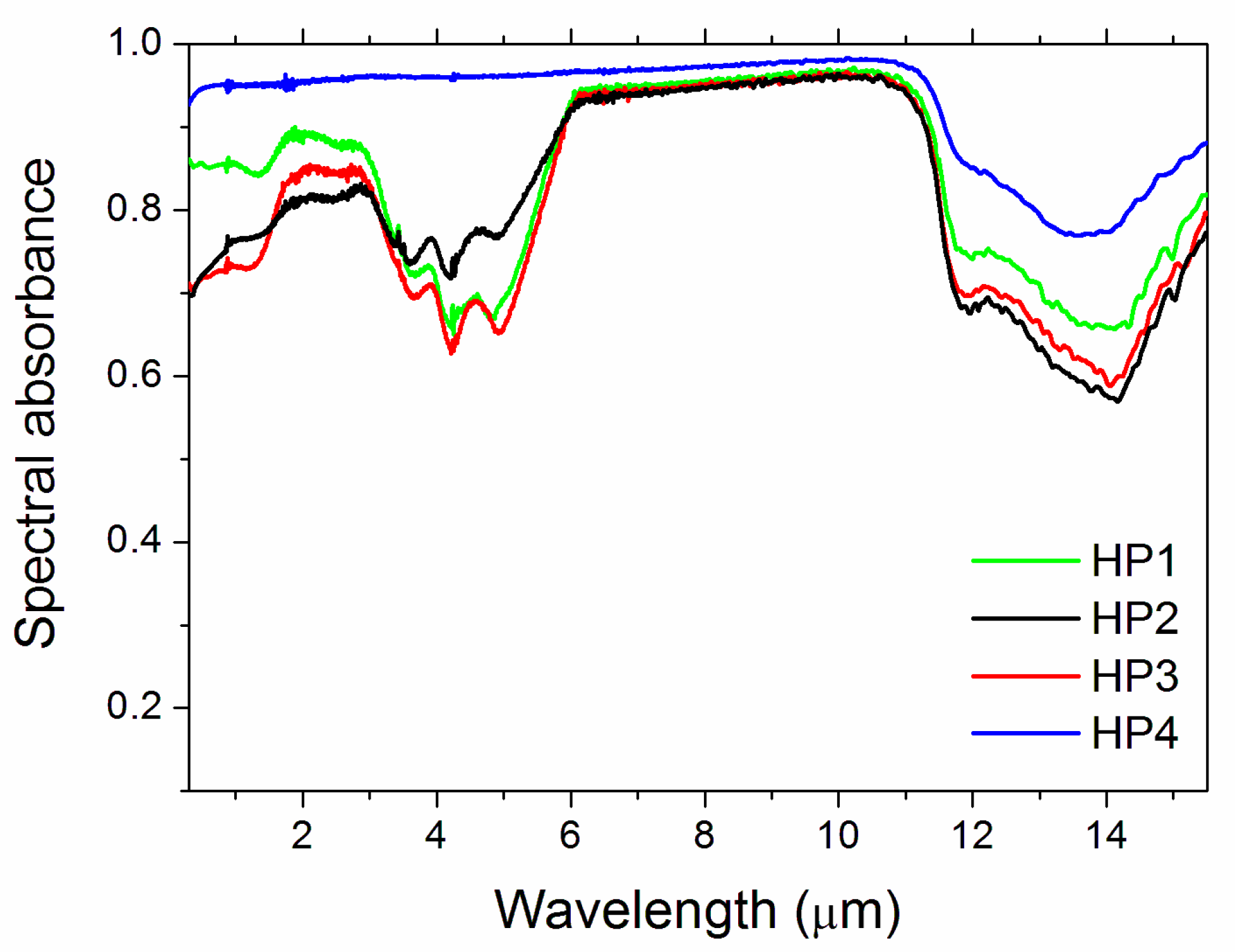

Figure 4. Room-temperature spectral absorbance.
Figure 4. Room-temperature spectral absorbance.
Materials 14 07674 g004

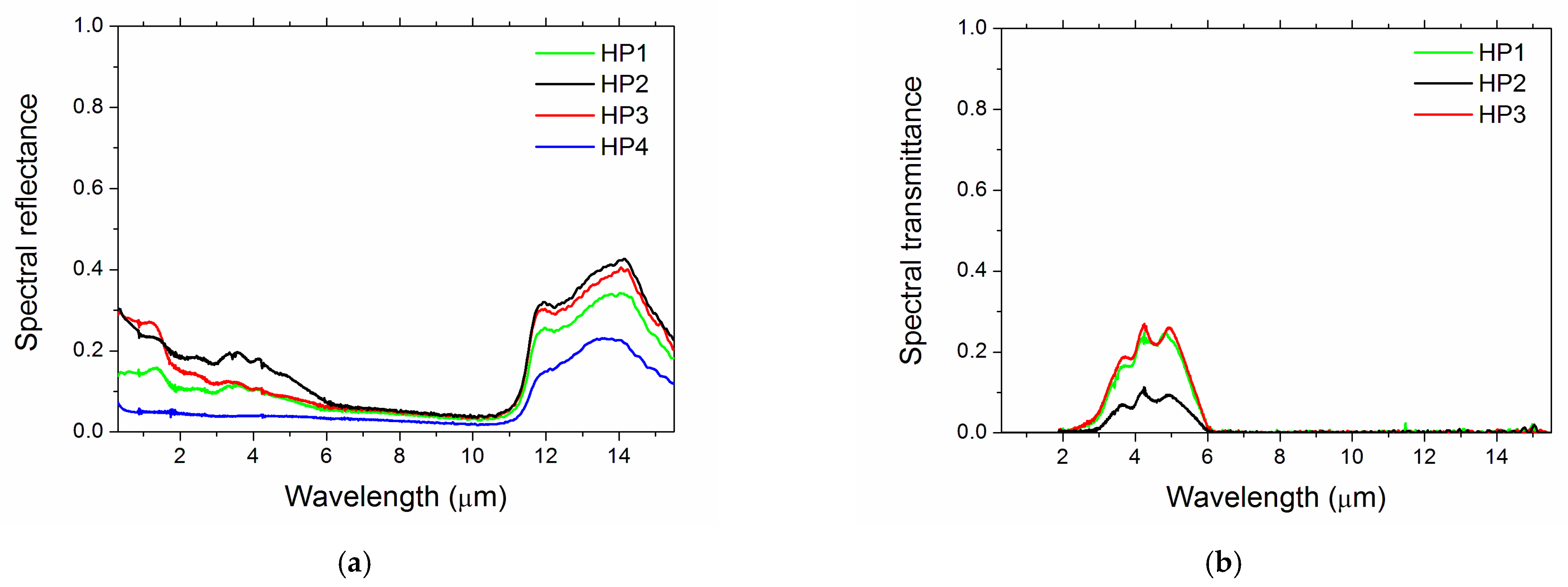

Figure 5. Room-temperature spectral hemispherical reflectance (a) and spectral hemispherical transmittance (b). Sample HP4 shows a null transmittance in the whole investigated range, thus it does not appear in the plot.
Figure 5. Room-temperature spectral hemispherical reflectance (a) and spectral hemispherical transmittance (b). Sample HP4 shows a null transmittance in the whole investigated range, thus it does not appear in the plot.
Materials 14 07674 g005

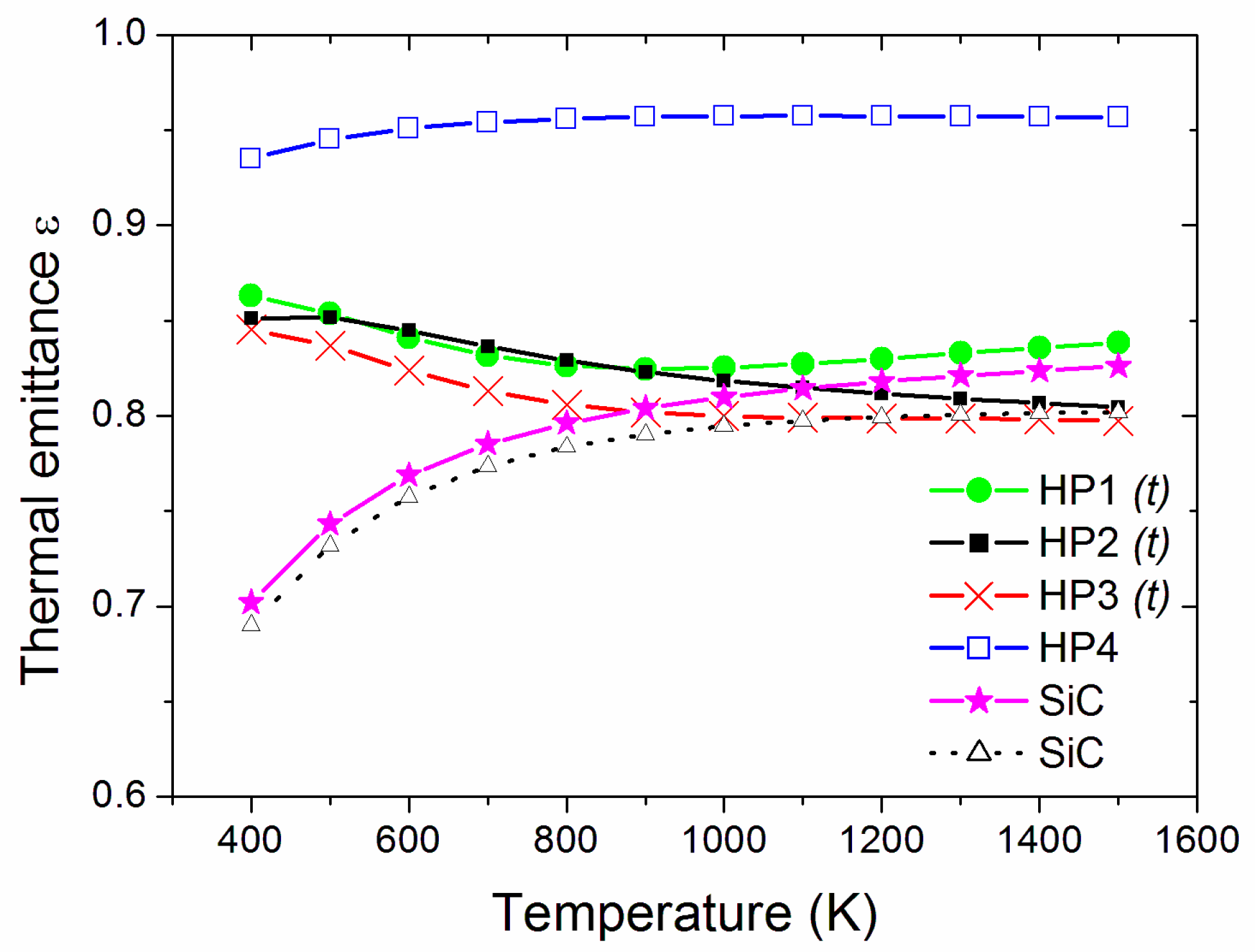

Figure 6. Estimated thermal emittance as a function of temperature. The label (t) identifies the samples showing transparency (non-null transmittance) at the considered thicknesses.
Figure 6. Estimated thermal emittance as a function of temperature. The label (t) identifies the samples showing transparency (non-null transmittance) at the considered thicknesses.
Materials 14 07674 g006

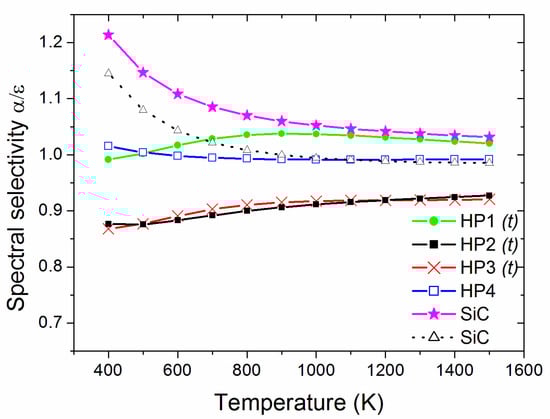

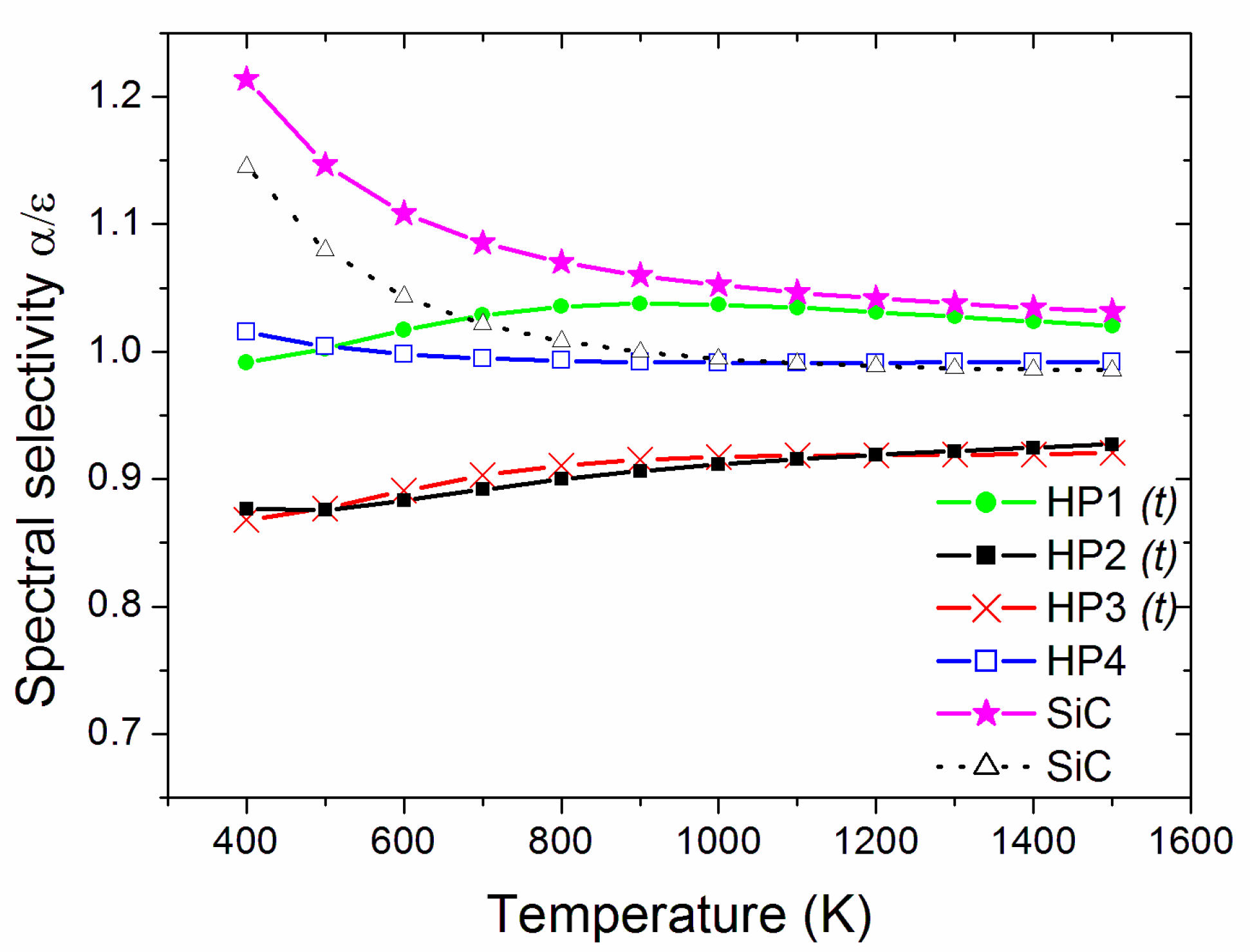

Figure 7. Estimated temperature-dependent spectral selectivity. The label (t) identifies the samples showing transparency (non-null transmittance) at the considered thicknesses.
Figure 7. Estimated temperature-dependent spectral selectivity. The label (t) identifies the samples showing transparency (non-null transmittance) at the considered thicknesses.
Materials 14 07674 g007
Table 1. Starting composition, sintering parameters, densities.
Table 1. Starting composition, sintering parameters, densities.
NameCompositionProcessTemperaturePressureDwell Time at TMAXHeightWeightBulk Density
HP1Al2O3 + MgOPlanetary14503057.519.353.52
HP2Al2O3 + MgOBall milled only108.0418.843.46
HP3Al2O3 + MgO + 0.1 wt.% Y2O3Planetary57.118.553.55
HP4Al2O3 + MgO + 1 wt.% CPlanetary67.519.493.47
Table 2. Solar absorptance of sintered specimens, calculated from Equation (2) and of SiC pellets from [37,38].
Table 2. Solar absorptance of sintered specimens, calculated from Equation (2) and of SiC pellets from [37,38].
SampleSolar Absorptance α
Dense SiC [37]0.78
Dense SiC [38]0.85
