1. Introduction
SCC is a type of concrete that requires a higher dosage of cement and fine aggregate as well as lower coarse aggregate content in comparison with normal concrete [
1]. This material provides a high level of workability for structural applications and is a good option for enormous cast volume. On the other hand, high cement content is one of the harmful issues of SCC for the environment. Segregation is another typical problem of employing SCC that is highly sensitive to the water to cement ratio. Different types of SCCs have been proposed by researchers to address mentioned shortcomings [
2]. In order to deal with high cement content, various cement replacement powders including either natural or synthetic powders have been proposed and verified by reliable investigations [
3,
4,
5].
Different types of natural and industrial powders are available, which have several advantages and disadvantages. Synthetic powders including silica fume, slag, and fly ash typically enhance the hardened properties of concrete especially the compressive strength, but as long as they are industrial products, their environmental problems encourage researchers to find environmentally friendly alternatives for them. Many natural cementitious materials have been proposed in the past decades such as rice husk ash (RHA), perlite, zeolite, limestone, and pumice. These powders did not present the same performance, and each one has a unique behavior in concrete [
6]. Some studies have worked on the evaluation of the properties of SCC containing fly ash and silica fume and reported that silica fume has a noticeable effect on the hardened properties of SCC, especially when incorporated with 10–25% volume content [
7,
8,
9,
10].
Pumice is a kind of volcanic product, which is mostly made of silica and alumina, and its components are similar to bubbles with a large inner surface [
11]. The physical and chemical properties of pumice result in great durability and strength. Pumice improves not only concrete durability [
12] but also shows excellent resistance against sulfate attacks [
13]. Concrete can be produced by pumice with high strength and low weight in comparison with concrete made by cement [
14,
15]. Using pumice powder and slag as cement replacement has been also investigated in another study [
16], where SCC incorporated with pumice showed proper sustainability and mechanical properties. However, slag represented better performance compared to pumice. Moreover, SCC incorporating pumice can keep the slump flow in a suitable range and increase the SP dosage in the mixture. Pumice is able to decrease the possibility of segregation and increase the workability retention of the SCC [
17]. On the other hand, slag is a mineral product that is chemically similar to cement [
18]. There are several types of slag generally divided into two main categories: (1) crystallized slag and (2) granulated blast furnace slag. Low heat in hydration, proper performance, resistance to sulfate attack and acid, resistance to abrasion and corrosion, and reasonable cost [
18] are the benefits of slag. Natural powders typically help to maintain workability in SCC especially with increasing cement replacement content up to 30% of total binder volume [
19]. According to Zhao et al. [
20], partial replacement of cement with slag and fly ash assists the SCC mixture to remain in target slump value. Besides, it was found that slag can decrease the slump loss rate.
Workability retention and slump durability are the most critical factors of a sustainable SCC [
21]. To maintain the slump flow in SCC as long as it takes to cast in situ applications, SP content should be considered as a key parameter in the mix design [
22]. SP content also plays an important role in the workability retention of SCC. In fact, SP demand is the required value of SP to maintain both the slump flow and workability in structural applications, which is obtained from experimental investigations. Employing natural cement replacements mainly increase the SP demand compared to control SCC samples [
23].
Although in recent years, several experimental studies have been carried out to investigate the properties of concrete products incorporating cementitious materials, artificial intelligence (AI) as a human intelligence-based approach can be utilized as assistance for numerical and experimental approaches [
24,
25,
26,
27]. The advantage of AI models in many studies has been proven due to providing more reliable results compared to other methods.
In a research study conducted by Uysal and Tanyildizi [
28], an artificial neural network (ANN) model was utilized to estimate the loss in compressive strength of the SCCs containing polypropylene (PP) fiber and different types of mineral additives. Promising results were obtained using the ANN model as a reliable alternative instead of experimental methods. Similarly, Asteris et al. [
29] proposed an ANN model based on experimental data to estimate the mechanical characteristics of the SCC. The comparative results of this study proved the valuable and reliable use of neural networks in predicting the mechanical properties of SCCs. Golafshani et al. [
30] applied the grey wolf optimizer (GWO) in the training phase of ANN and ANFIS models to develop hybridized algorithms for predicting the compressive strength of normal and high-performance concrete. The findings showed improvement in the training phases and generalization capabilities of the proposed models using GWO. Vakhshouri and Nejadi deployed ANFIS models to predict the compressive strength of SCC. They assigned the compressive strength as the output, and slump flow and mixture proportions were considered as inputs. It was reported that the most accurate prediction is obtained for compressive strength when the model includes all input data [
31].
In addition, several attempts were carried out to predict the mechanical properties of SCC or determine optimum values of the related parameters to achieve the desired compressive strength. In this regard, a research study conducted by Douma et al. [
32] showed correct estimation of fresh SCC properties using the ANN model. Similarly, the research study conducted by Elemam et al. [
33] demonstrated the applicability of the ANN model in estimating the fresh and hardened properties of SCC. In another effort by Azimi-Pour et al. [
34], support vector machines (SVMs) were used to model the fresh properties of fly ash-based SCC by minimizing the experimental tests.
As mentioned earlier, many papers investigated the fresh properties of SCC incorporating cement replacement materials. Partial replacement of cement in SCC with other materials may lead to changes in the fresh properties. Although these changes can be observed and calculated based on experimental tests, identifying the most influential parameter might not be a straightforward task. To address this problem, the use of artificial intelligence (AI) tools could be helpful. The adaptive neuro-fuzzy inference system (ANFIS) is a form of neural network that can learn and adapt automatically [
35]. ANFIS, in contrast to most analytical procedures, does not require the system parameters to be known, and its simpler solutions can be adopted for multivariable problems [
36,
37,
38,
39].
Aim of the Study
According to the literature, the SP demand as one of the controversial parameters of mix design of SCC has not been investigated as much as fresh and hardened properties. For example, Feng et al. [
40] examined the SP demand of SCC using hybrid intelligent algorithms and obtained promising results. Additionally, as discussed comprehensively, several studies were performed to predict the different characteristics of concrete using AI models. However, there is no study regarding the most influential parameters on the SP demand. Therefore, this study aims to investigate, estimate, and determine the SP demand and its most effective factors using an AI technique. For this purpose, an ANFIS algorithm is deployed to predict the SP demand of SCC incorporating pumice, slag, and fly ash powders as partial replacements. In addition, several ANFIS models, including 5 models with separate inputs and 21 models with a couple of parameters were trained using experimental data [
16]. Finally, the effect of input parameters, i.e., contents of slag, silica fume, pumice, fly ash, cement, and coarse and fine aggregates were investigated.
4. ANFIS Methodology
ANFIS is a fuzzy inference system [
48] that is developed in an adaptive network framework. The ANFIS network is made up of five levels, as shown in
Figure 12 [
49]. The fuzzy inference system is generally located at the core of the ANFIS network. The first layer takes inputs (x and y in
Figure 12) and employs membership functions to transform them to fuzzy values [
50,
51,
52,
53]. The Takagi–Sugeno style IF-THEN rules are presented as follows:
Rule 1: if is and is , then ,
Rule 2: if is and is , then ,
Every node in this layer (the first) is chosen as an adaptive node with a node function:
where
is a linguistic label and
is the membership function of
. The bell-shaped membership function is usually selected as it has the highest capacity for the regression of nonlinear data [
54]. Bell-shaped membership function with the maximum value of 1 and minimum value of 0 is defined as follows:
where
are the parameters set and
is the input. Premise is defined as the parameter of this layer. The second layer multiplies the input signals before sending the result to the next layer. Consider the following example:
The firing strength of a rule may be seen in each node’s output. The rule layer is the third and final layer. The ratio of the
node’s rule firing strength to that of the other nodes is computed in this layer as follows:
where
is referred to as normalized firing strength. The defuzzification layer is the fourth layer, in which each node has a node function, as presented below:
where
is the third output layer and
are defined as the consequent parameters. The output layer is the fifth layer. The overall output is calculated in this layer by summing all of the input signals. That is to imply:
During this process, a threshold between the real value and the output is defined. Then, using the least-squares approach, the consequent parameters are calculated, and an error for each data set is determined. If this value is greater than the specified threshold, the premise parameters will be updated using the gradient descent method. This procedure is repeated until the error reaches below the threshold. The utilized approach in this procedure is known as a hybrid algorithm since two algorithms (i.e., least-squares and gradient descent algorithm) generate the parameters concurrently.
4.1. Precision Criteria
In this study, several performance metrics were utilized to assess the precision of the proposed models. In this regard, correlation coefficient (R
2), Nash–Sutcliffe efficiency (NSE), Pearson’s correlation coefficient (r), Wilmot’s index of agreement (WI), root mean square error (RMSE), and mean absolute error (MAE) were considered as follows:
where
and
are measured and estimated values, respectively. Additionally,
and
are mean of the measured and estimated values, respectively.
Nash–Sutcliffe (NS) efficiency is a normalized statistic that determines the relative amount of residual variance compared to the variance of the calculation (Nash and Sutcliffe [
55]). The Nash–Sutcliffe performance shows how well the observed data graph versus the simulated one corresponds to a 1:1 line. NS = 1 corresponds to the model of full compliance with the observed data. NS = 0 indicates that the model predictions are as accurate as the average of the observed data. 0 < NS < ∞ indicates that the observed average is a better prediction of the model. Mean absolute error (MAE) and mean square error (RMSE) are two of the most common criteria used to measure the accuracy of continuous variables. MAE measures the average size of errors in a set of predictions regardless of their direction. This average test is the absolute difference between prediction and actual observation that all individual differences have equal weight. RMSE is a quadratic scoring rule that also measures the average error rate. This square root is the average square difference between prediction and actual observation [
56]. From an interpretation point of view, MAE is the winner. RMSE does not describe moderate error alone and has other implications that are more difficult to understand. On the other hand, one of the distinct advantages of RMSE over MAE is that RMSE avoids the use of absolute values, which is undesirable in many mathematical calculations [
57]. Correlation coefficients typically measure the scattering of data against the standard deviation and draw a virtual envelope line across the data in a Cartesian system. Based on the quality of difference between vertical axis number and its corresponding horizontal axis number, the correlation value varies between zero and one while the one is the best correlation coefficient and zero means no relation between numbers [
58,
59].
4.2. Dataset Arrangement

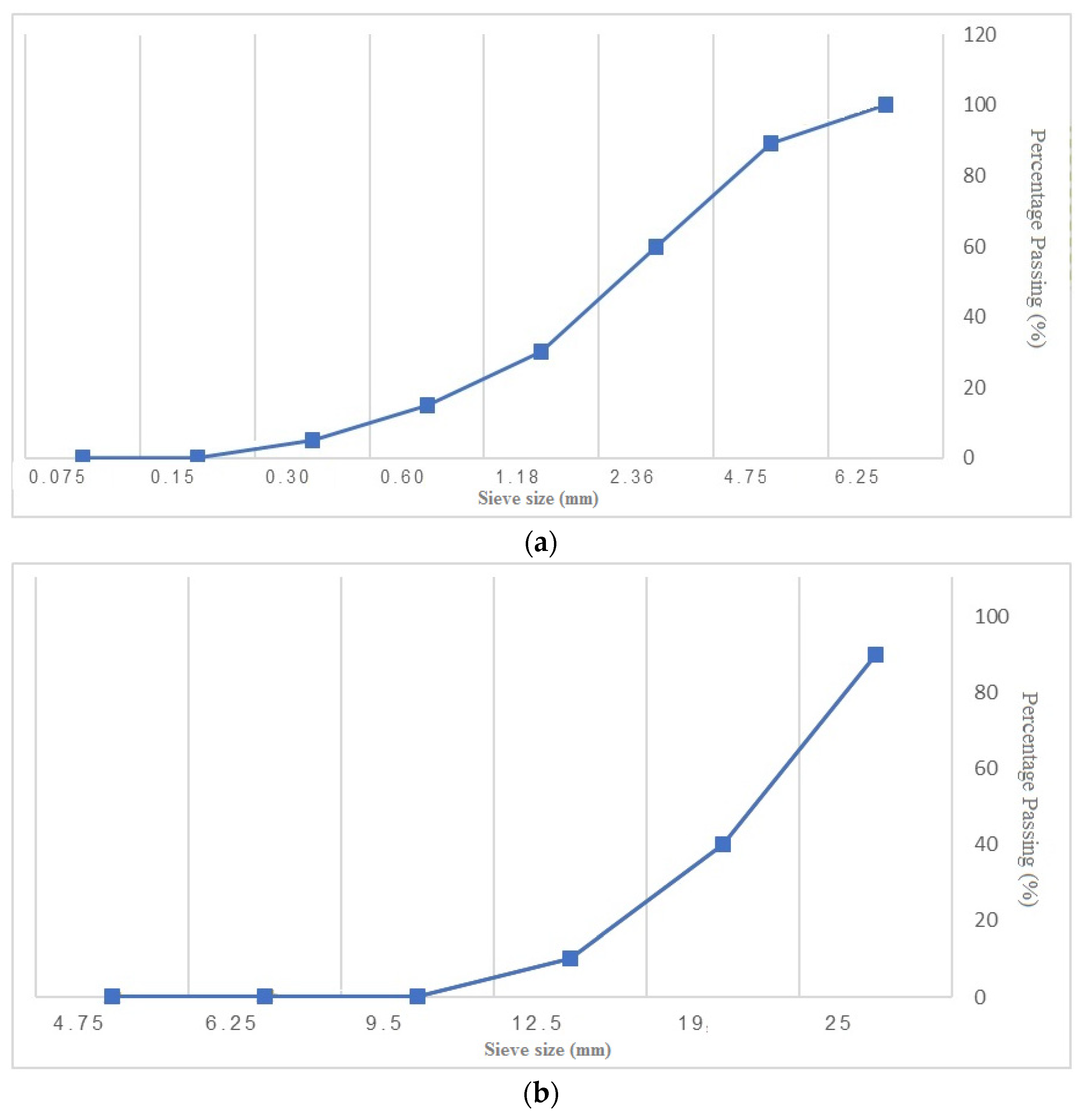

The used data in this investigation was obtained from the conducted tests on the specimens [
16]. Totally, a database containing 340 datasets was collected. The results of the J-ring, U-box, and V-funnel tests and slump values in the 3rd and 50th minutes were considered as the inputs of the models, and the SP demand was set as the output.
Table 6 shows some details of the dataset.
4.3. Development of Models
In order to identify the most effective parameters on the SP demand, 5 main models were established, while 21 dataset models with multi-parameters and 340 samples were developed and examined. After training different models, the results were compared, and finally, five models were derived to predict the SP demand. The mentioned models include inputs according to
Table 6, where the first model comprised input 1, the second model included both input 1 and input 2, and this sequence continues until model 5. This arrangement was derived from test and trial procedures based on the quality of precision coefficient from each model with a specific arrangement.
Table 7 shows the input parameters based on the quality of arrangement in each model. According to
Table 7, model 5 has all five parameters as inputs while model 1 includes only one input (j-ring).
Since the algorithm has to be developed by collected data, model 3 was selected randomly to be adjusted based on the best possible results. After the adjustment, the ANFIS algorithm was developed according to the new parameters. Considering the number of data and avoiding overfitting, 75% of the inputs were randomly devoted to the training phase of the models, and the remaining 25% were assigned to the testing phase. All the codes were developed in the MATLAB environment, and available functions of the MATLAB software (R2019a) were used in the developing process.
4.4. Results and Discussion
The impact of each input variable on the output variable can be observed by the RMSE value. The model with the lowest value of RMSE in the training phase demonstrates a better ability to solely predict the output. Each of the ANFIS models was run three times and the mean value of RMSEs in the training and testing phases were recorded.
Table 8 reveals the calculated accuracy criteria for the performance of the implemented models based on advanced input parameters. As can be seen in this table, model 5 is the most effective parameter on the output, which has the lowest value of RMSE in the training phase. In other words, the V-funnel test is the best indicator in the prediction of SP demand.

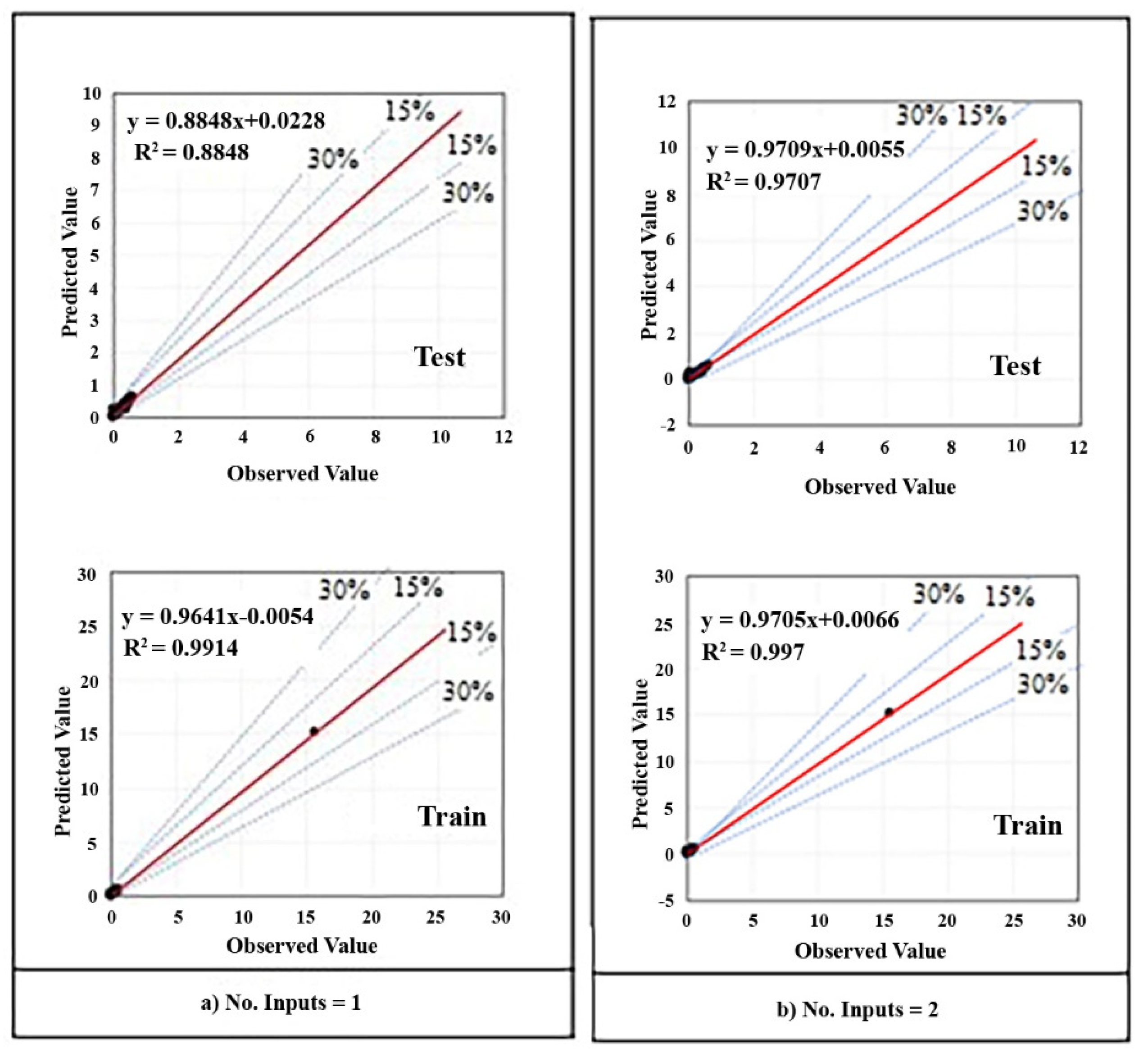

Figure 13 indicates the regression scatter diagrams of prediction results for each model, and the relation between observed (experimental) value and predicted value is written as an equation in each diagram. Besides, diagrams are separated into two single parts including train chart and test chart and the dispersion percent is clarified by guidance line around the envelope line (red line). Although all of the charts represent a suitable estimation, the best chart is obviously
Figure 13e which has been also presented in Figure 17 separately.
As shown in
Table 8 and
Figure 13, the best performance parameters in the testing phase for ANFIS are RMSE = 0.001, r = 1.000, R
2 = 1.000, NSE = 1.000, MAE = 0, and WI = 1.000. Models 4 and 5 represented the best results, and in both models, the V-funnel data has been added to other inputs. The best result for RMSE is the lowest value, and for r, the best positive correlation coefficient is 1, which means that the numbers closer to 1 are considered better results. Furthermore, the smaller values for NSE and MAE, and greater values for WI indicate better performance. Additionally, it can be observed that after model 5, model 4 has shown the lowest training MAE. Therefore, the slump value is the second most effective parameter in the SP demand prediction. The order and the efficiency of other inputs on the SP demand value can also be observed in
Figure 13.

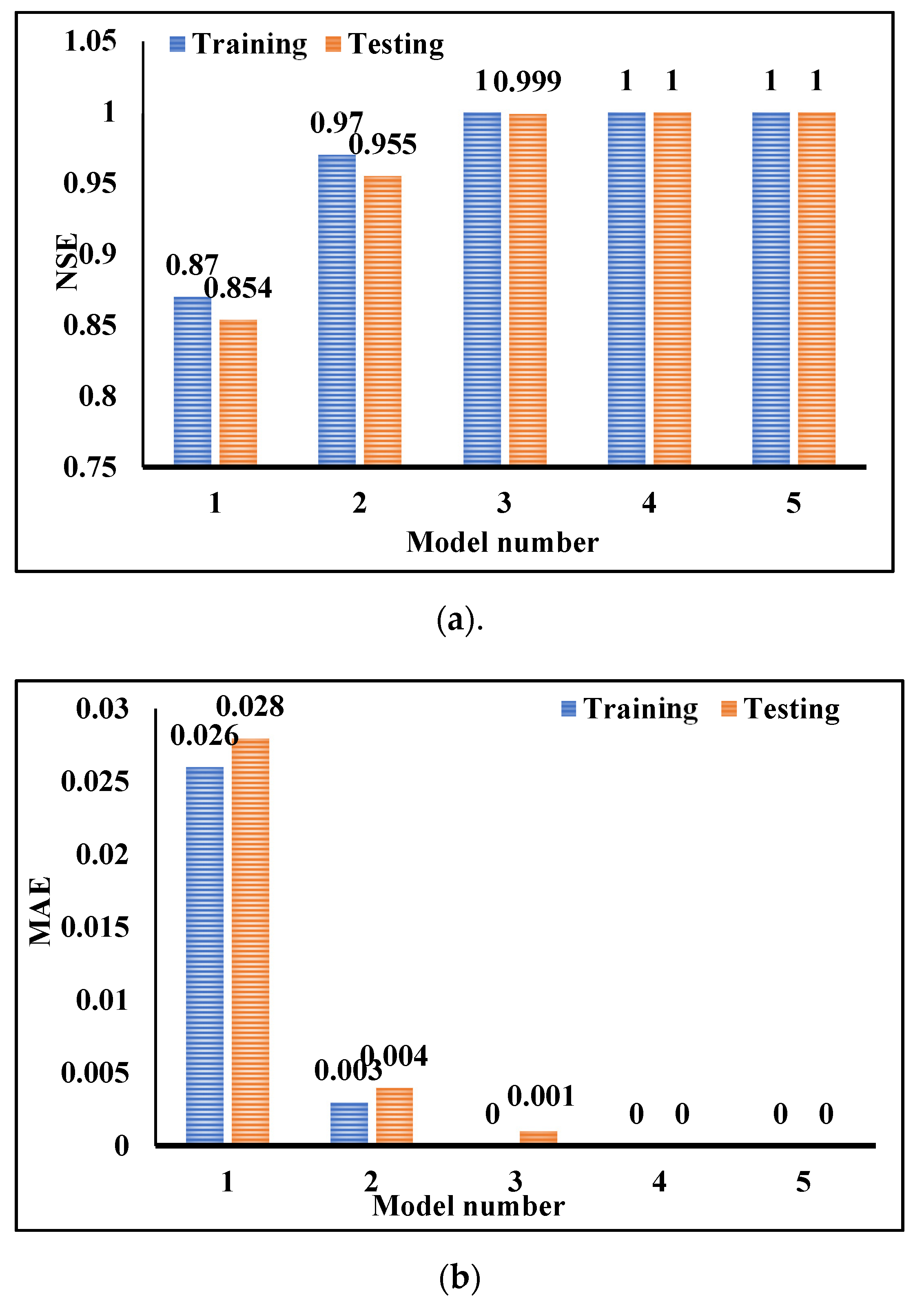

Figure 14 indicates the clustered charts of some precision parameters based on training and test results. In this figure, the MAE and NSE values of the testing and training phases for each model are displayed. By comparing their values in both phases, it can be concluded that the developed models have revealed an appropriate performance and overfitting has been avoided. All three parameters demonstrate that models 4 and 5 performed better than other models.
Figure 15 depicts the error histogram for model 5. This figure could prove the accuracy of the model in each training and testing phase again. It was found that ANFIS had an accurate prediction since both the training and testing phases have the same pattern (convergence) in the same area of the samples, and also the difference between predicted and measured values is not noticeable.
Figure 16 indicates a tolerance diagram of predicted and measured values for both testing and training phases, which contains a comparison of outputs and targets for the selected ANFIS model.
Figure 16b certifies the reliable prediction of model 5 and the noticeable accuracy of the ANFIS.
Figure 17 shows the scatter plot of the predicted results for the SP demand of the model, which obtained the highest rate among other inputs. In this diagram, the values of RMSE, r, and R
2 are equal to 0.001, 1.000, and 0.999, respectively. These values illustrate that developing an ANFIS model can be an efficient approach in SP demand estimation.
5. Conclusions
The prediction of superplasticizer (SP) demand is complicated due to the many factors involved in the estimation problem. Hence, in this paper, a soft computing methodology was employed, which is more accurate and reliable than other numerical and experimental methods. For the first time, an AI technique was used to select the most influential parameter in the SCC design. In order to achieve a reliable database, verified data from an experimental program was used to investigate the possible incorporation of pumice, slag, and fly ash powders as cement replacements in binary and ternary mixtures. To this end, different approaches, including the results of J-ring, U-box, V-funnel, and slump tests were considered to predict the SP demand value. After comparing the different types of inputs, five key characteristics of the SCC were selected as the most influential inputs, which were J-ring, U-box, V-funnel, 3 min slump, and 50 min slump. In continue, five ANFIS models were established and the impact of each model on the SP demand prediction was evaluated. In general, it was found that the ANFIS can accurately predict the results of the experiments. In addition, the ANFIS parameters were kept constant (clusters = 10, train samples = 75%) to compare the five ANFIS models. A summary of the obtained results are presented as follows:

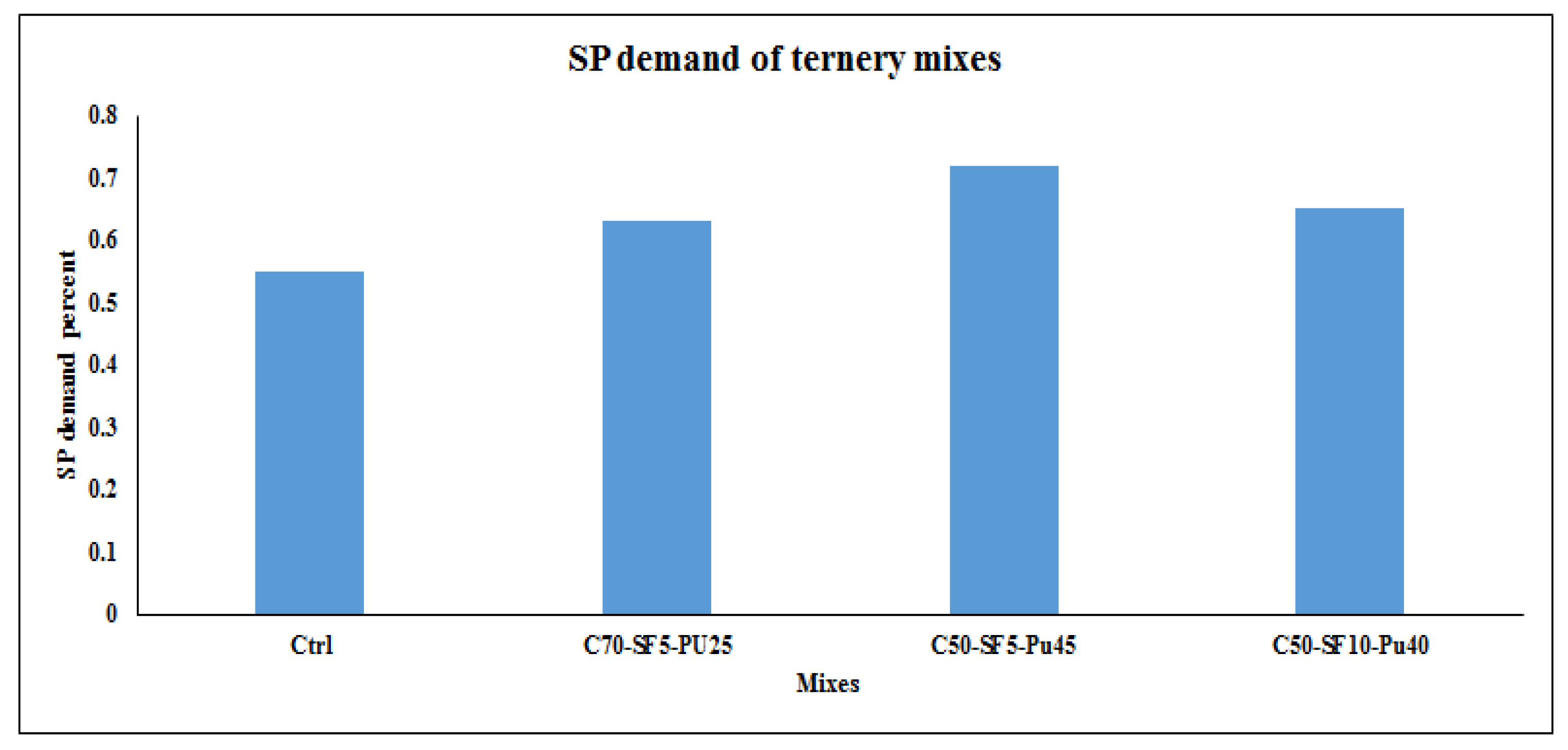

Pumice showed the highest effect on the SP demand of admixture, in 50% replacement binaries, it has increased the SP demand by 27% and 45% compared to slag and FA, respectively. This higher SP dosage could be related to the geometry shape and structure of pumice particles.
The optimum content based on the results of fresh properties in binary samples was 30% for pumice and 50% for slag and FA.

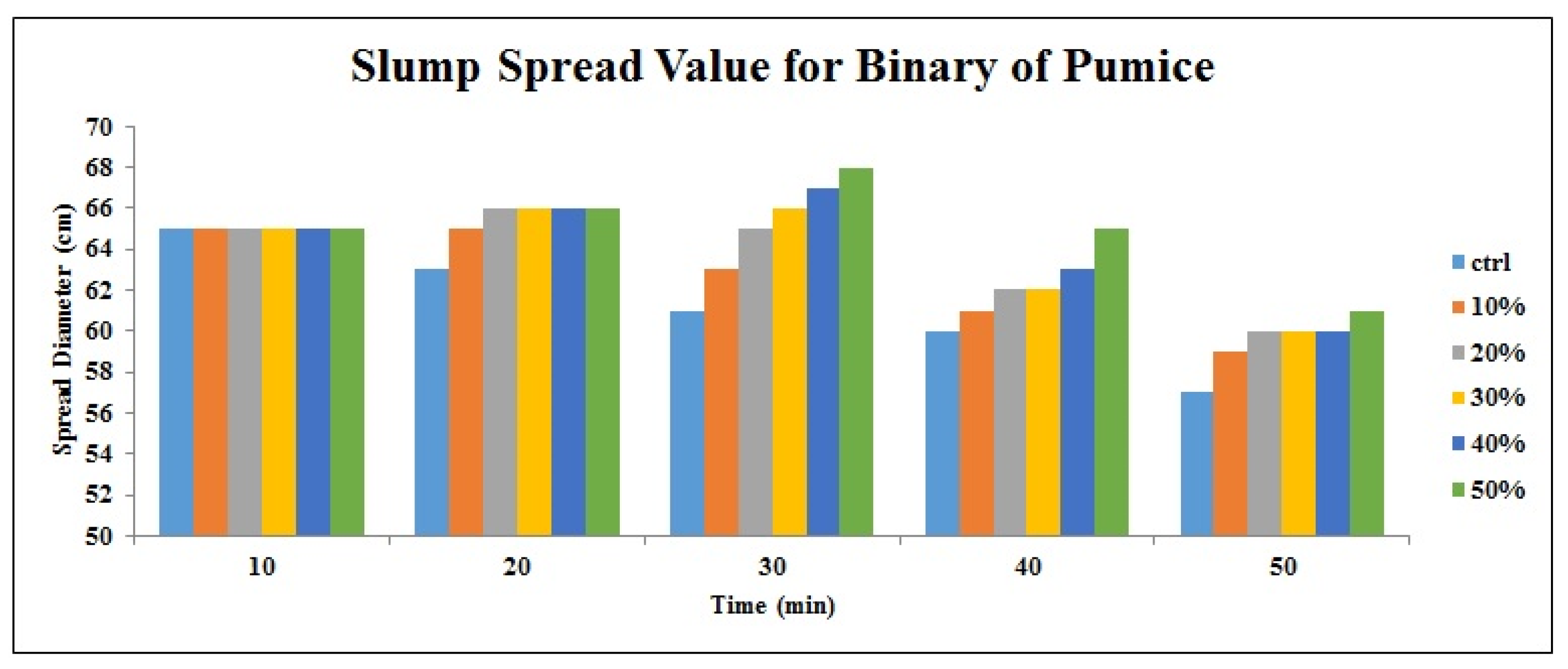

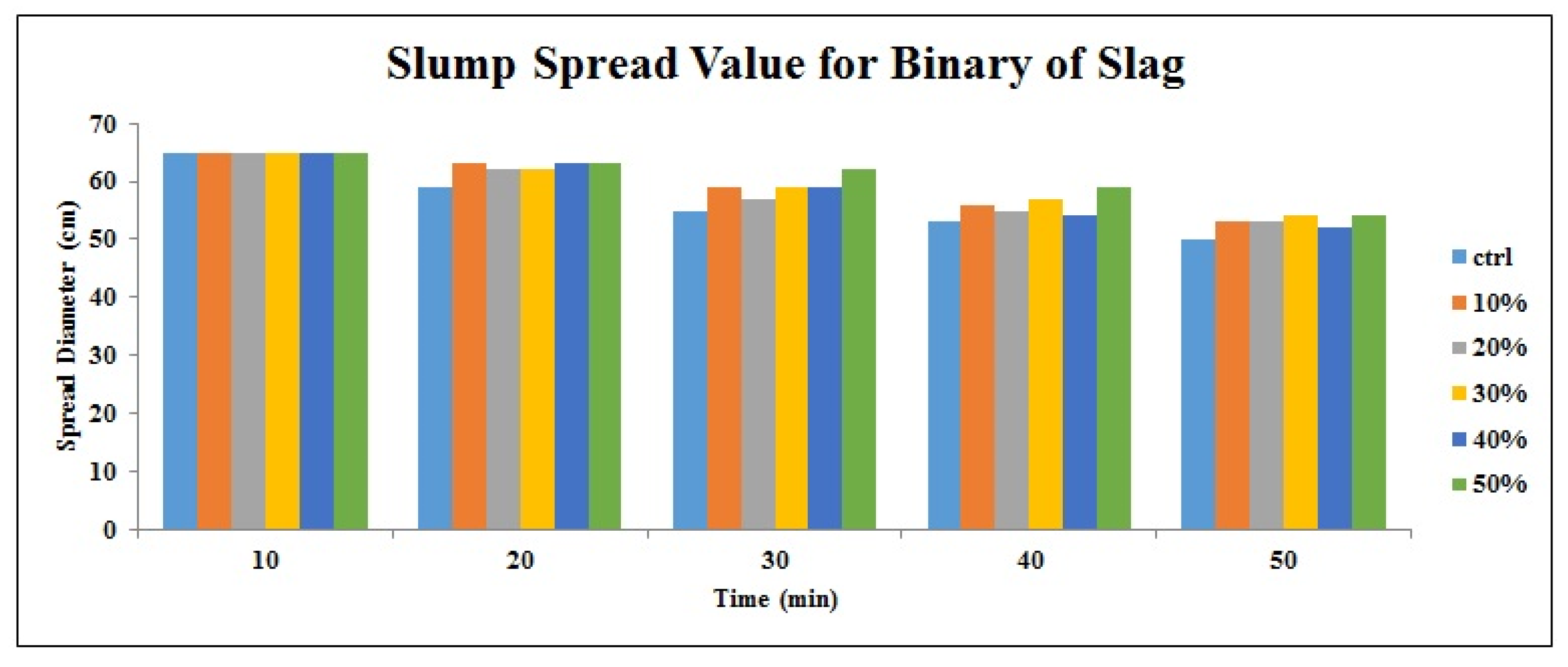

According to neural network results, the pumice incorporation has the most effect on the maintenance of the SCC slump to keep the optimal performance. The best prediction model was determined and the most accurate parameters for RMSE, r R2, NSE, MAE, and WI were 0.999, 1.000, 1.000, 0.001, 0.000, and 1.000, respectively.
Finally, among the five ANFIS models, the model corresponding to the V-funnel test led to the best RMSE, MAE, and NSE values. The results indicate that the V-funnel value is the most influential parameter in the SP demand prediction and SSC design.
